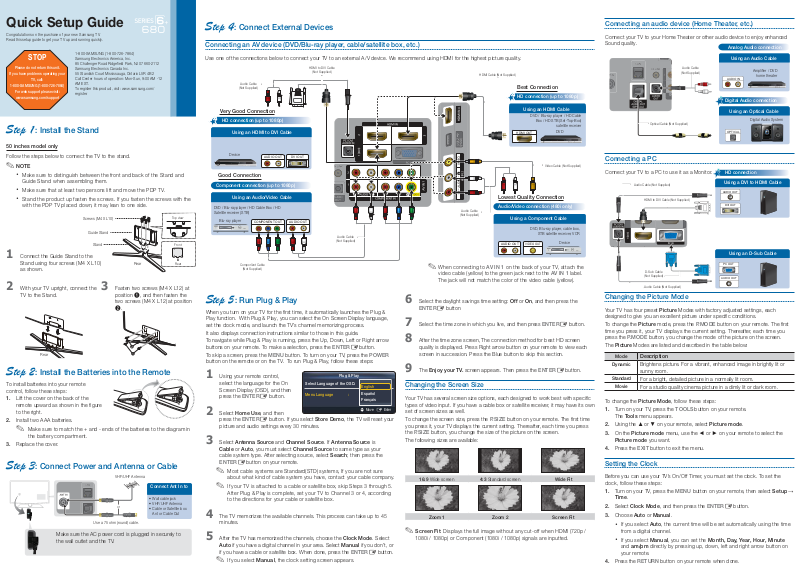

Quick Setup Guide

Congratulations on the purchase of your new Samsung TV. Read this setup guide to get your TV up and running quickly.

STOP

Please do not return this unit.

If you have problems operating your

TV, call:

1-800-SAMSUNG (1-800-726-7864)

For web support please visit:

www.samsung.com/support

Step 1: Install the Stand

50 inches model only

Follow the steps below to connect the TV to the stand.

✎

NOTE

Make sure to distin guish betwe en the front an d back of the Stan d and

Guide Stand w hen assem bling them.

Make sure that at le ast two per sons lift a nd move the PDP T V.

Stand the prod uct up fasten the s crews. If you faste n the screws with th e

with the PDP T V placed down, i t may lean to one si de.

1 Connect the Guide Stand to the

Stand using four screws (M4 X L10) as shown.

2 With your TV upright, connect the

TV to the Stand.

Rear

Step 2: Install the Batteries into the Remote

To install batteries into your remote control, follow these steps:

1. Lift the cover on the back of the

remote upward as shown in the ﬁgure to the right.

2. Install two AAA batteries.

✎

Make sure to match the + an d - ends of the bat teries to the dia gram in the batter y compar tment.

3. Replace the cover.

Step 3: Connect Power and Antenna or Cable

1-800-SAMSUNG (1-800-726-7864) Samsung Electronics America, Inc. 85 Challenger Road Ridgeﬁeld Park, NJ 07660-2112 Samsung Electronics Canada Inc. 55 Standish Court Mississauga, Ontario L5R 4B2 Call Center hours of operation: Mon-Sun, 9:00 AM -12 AM EST. To register this product, visit: www.samsung.com/ register.

Screws (M4 X L10)

Guide Stand

Stand

Rear

3 Fasten two screws (M4 X L12) at

position 1, and then fasten the two screws (M4 X L12) at position

Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

VHF/UHF Antenna

Use a 75 ohm (round) cable.

Connect Ant In to

• Wall cable jack

• VHF/UHF Antenna

• Cable or Satellite box Ant or Cable Out

Top view

Front

Rear

Step 4: Connect External Devices

Connecting an AV device (DVD/Blu-ray player, cable/satellite box, etc.)

Use one of the connections below to connect your TV to an external A/V device. We recommend using HDMI for the highest picture quality.

Audio Cable

(Not Supplied)

Very Good Connection

HD connection (up to 1080p)

Using an HDMI to DVI Cable

Device

AUDIO OUT DVI OUT

Good Connection

Component connection (up to 1080p)

Using an Audio/Video Cable

DVD / Blu-ray player / HD Cable Box / HD Satellite receiver (STB)

Blu-ray player

COMPONENT OUT

Component Cable

(Not Supplied)

Step 5: Run Plug & Play

When you turn on your TV for the ﬁrst time, it automatically launches the Plug & Play function. With Plug & Play, you can select the On Screen Display language, set the clock mode, and launch the TV’s channel memorizing process.

It also displays connection instructions similar to those in this guide. To navigate while Plug & Play is running, press the Up, Down, Left or Right arrow

buttons on your remote. To make a selection, press the To skip a screen, press the

button on the remote or on the TV. To run Plug & Play, follow these steps:

1 Using your remote control,

select the language for the On Screen Display (OSD), and then press the

2 Select Home Use, and then

press the picture and audio settings every 30 minutes.

3 Select Antenna Source and Channel Source. If Antenna Source is

Cable or Auto, you must select Channel Source to same type as your cable system type. After selecting source, select Search; then press the

ENTERE button on your remote.

✎

Most cable sy stems are Stand ard(STD) systems, If yo u are not sure about what k ind of cable sys tem you have, contact yo ur cable co mpany.

✎

If your TV is at tached to a cab le or satellite b ox, skip Steps 3 thro ugh 5. After Plug & Play i s complete, set you r TV to Chann el 3 or 4, accordi ng to the direction s for your cable o r satellite box.

4 The TV memorizes the available channels. This process can take up to 45

minutes.

5 After the TV has memorized the channels, choose the Clock Mode. Select

Auto if you have a digital channel in your area. Select Manual if you don’t, or

if you have a cable or satellite box. When done, press the

✎

If you select M anual, the clo ck setting sc reen appe ars.

MENU button. To turn on your TV, press the POWER

ENTERE button.

ENTERE button. If you select Store Demo, the TV will reset your

HDMI to DVI Cable

(Not Supplied)

AUDIO OUT

Select Language of the OSD.

Menu Language :

Audio Cable

(Not Supplied)

ENTER

Plug & Play

button.

English

Español

Français

Move

Enter

ENTERE button.

HDMI Cable (Not Supplied)

Lowest Quality Connection

Audio Cable

(Not Supplied)

✎

When conne cting to AV IN 1 on the back of yo ur TV, attach the video cab le (yellow) to the gre en jack nex t to the The jack wil l not match the colo r of the video ca ble (yellow).

6 Select the daylight savings time setting: Off or On, and then press the

ENTERE button

Audio/Video connection (480i only)

Using a Component Cable

AUDIO OUT

7 Select the time zone in which you live, and then press ENTER 8 After the time zone screen, The connection method for best HD screen

quality is displayed. Press Right arrow button on your remote to view each screen in succession. Press the Blue button to skip this section.

9 The Enjoy your TV. screen appears. Then press the ENTER

Changing the Screen Size

Your TV has several screen size options, each designed to work best with speciﬁc types of video input. If you have a cable box or satellite receiver, it may have its own set of screen sizes as well.

To change the screen size, press the you press it, your TV displays the current setting. Thereafter, each time you press

P.SIZE button, you change the size of the picture on the screen.

the The following sizes are available:

16:9 Wide screen 4:3 Standard screen Wide Fit

Zoom 1 Zoom 2 Screen Fit

✎

Screen Fi t: Displays the f ull image with out any cut-of f when HDMI (720p / 1080i / 1080p) or Compon ent (1080i / 1080p) signals a re inputted.

P.SIZE button on your remote. The ﬁrst time

Best Connection

HD connection (up to 1080p)

Using an HDMI Cable

DVD / Blu-ray player / HD Cable

Box / HD STB (Set-Top-Box)

satellite receiver

HDMI OUT

VIDEO OUT

DVD

Video Cable (Not Supplied)

DVD, Blu-ray player, cable box,

STB satellite receiver, VCR

Device

AV IN 1 label.

button.

Connecting an audio device (Home Theater, etc.)

Connect your TV to your Home Theater or other audio device to enjoy enhanced Sound quality.

Audio Cable

(Not Supplied)

Optical Cable (Not Supplied)

Analog Audio connection

Using an Audio Cable

Ampliﬁer / DVD

home theater

AUDIO IN

Digital Audio connection

Using an Optical Cable

Digital Audio System

OPTICAL

Connecting a PC

Connect your TV to a PC to use it as a Monitor.

Audio Cable (Not Supplied)

HDMI to DVI Cable (Not Supplied)

D-Sub Cable

(Not Supplied)

Audio Cable (Not Supplied)

HD connection

Using a DVI to HDMI Cable

AUDIO OUT

DVI OUT

Using an D-Sub Cable

PC OUT

AUDIO OUT

Changing the Picture Mode

Your TV has four preset Picture Modes with factory adjusted settings, each designed to give you an excellent picture under speciﬁc conditions.

To change the Picture mode, press the time you press it, your TV displays the current setting. Thereafter, each time you press the

P.MODE button, you change the mode of the picture on the screen.

The Picture Modes are listed and described in the table below:

Mode

Description

Dynamic

Brightens picture. For a vibrant, enhanced image in brightly lit or sunny room.

Standard

For a bright, detailed picture in a normally lit room.

Movie

For a studio quality cinema picture in a dimly lit or dark room.

To change the Picture Mode, follow these steps:

1. Turn on your TV, press the The Tools menu appears.

P.MODE button on your remote. The ﬁrst

TOOLS button on your remote.

2. Using the ▲ or ▼ on your remote, select Picture mode.

3. On the Picture mode menu, use the ◄ or ► on your remote to select the Picture mode you want.

4. Press the

EXIT button to exit the menu.

Setting the Clock

Before you can use your TV’s On/Off Timer, you must set the clock. To set the clock, follow these steps:

1. Turn on your TV, press the Time.

2. Select Clock Mode, and then press the

3. Choose Auto or Manual.

If you select Au to, the current time w ill be set autom atically us ing the time

from a digita l channel.

If you select M anual, you can s et the Month, D ay, Year, Hour, Minute

and am/pm di rectly by pres sing up, down, lef t and right ar row button on your remote.

4. Press the

RETURN button on your remote when done.

MENU button on your remote, then select Setup →

ENTERE button.

Page 2

SUM

Step 6: Remote Control

Remote Control Buttons and Functions

✎

This is a spec ial remote contro l for the visua lly impaire d and has Brai lle points on th e Power, Channel, Volume, Stop, and Play/Pa use buttons.

Turns the TV on and off.

POWER

Displays and selects the available video sources.

Have direct access to channels.

Press to select additional channels (digital) being

broadcasted by the same station. For example, to select

channel “54-3”, press “54”, then press “-” and “3”.

Adjusts the volume.

Opens the OSD.

Views Media Play (USB).

Quickly select frequently used functions.

Returns to the previous menu.

These buttons are for the Channel List,

Media Play (USB) menu, etc.

Use these buttons in Media Play (USB) and

Anynet+ (HDMI-CEC) modes. (

on Samsung recorders that have the Anynet+ feature)

�

: Controls recording

MEDIA.P

TOOLS

RETURN

P.MODE

Changing Channels and Adjusting the Volume

Adjust the volume by pressing the Volume button

✎

You can also change th e channels by p ressing the

on the remote.

CH LIST

button on the f ront panel of your T V and adjust the volume by press ing the y but ton.

Viewing the On Screen Menus

To view the On Screen Menus, follow these steps:

1. Turn on your TV, press the

remote. The main menu appears. The menu’s left side has the following menu options: Picture, Sound, Channel, Setup, Input, Application, and Support.

2. Press the ▲ or ▼ button on your remote to select a menu option, and then

press the

ENTERE button.

3. When done using the menu, press the

MENU button on your

EXIT button on your remote to exit.

MEDIA.P

TOOLS

FAV.CH

INFO

Selecting a Source

To watch a movie on your Blu-ray player or watch your favorite TV show, you must select the correct source. A source is a device, such as a Blu-ray/DVD player, a cable/satellite box, antenna or a cable TV input. Sources can be connected to your TV through the HDMI, DVI, Component, Composite, or D-sub connections, or through the Antenna or Cable In connections.

To view the signal from a source connected to the HDMI, DVI, Component, Composite, or D-sub jack, press the you press the

SOURCE button, you change to a different source.

SOURCE button on your remote. Each time

POWER

ON/OFF

SOURCE

ON/OFF

SOURCE

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to ON will reduce the battery usage time.)

Returns to the previous channel.

CH LIST

A B C D

MTS

SLEEP

P.SIZE

PRE-CH

FAV.CH

INFO

EXIT

Cuts off the sound temporarily.

Changes channels.

Displays channel list on thescreen.

Displays Favorite Channel Lists on the screen.

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

S.MODE: Press to select the sound mode. SLEEP: Use to set the sleep timer function.

: Sets the 3D mode.

P.MODE: Press to select the picture mode. P.SIZE: Selects the picture size. CC: Controls the caption decoder.

Change the channels by pressing the Channel button on the remote.

✎

If your TV is at tached to a cab le or satellite b ox, change the ch annel usin g the box’s remote.

Connecting a USB Device for Media Play

You can enjoy photo, music, and movie ﬁles stored on a USB device by connecting it to the TV and using the Media Play feature. To connect a USB device for Media Play, follow these steps:

1. Turn on your TV.

2. Connect a USB device

containing photo, music and/or movie ﬁles to the on the back or side panel of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

MediaPlay

Videos

Change Device

View Devices

Enter

Return

USB 1 or USB 2 (HDD) port

Step 7: Media Play Features

The Media Play feature lets you connect to your PC through your home network and stream PC audio and video ﬁles to your HDTV using your remote. To use IPTV or Samsung PC Share Manager, you must connect your TV to your network. You can attach the TV to your network in two ways, by cable, using CAT 5 cable, or wirelessly, using a Samsung Wireless LAN Adapter. Instructions for both connection methods are below.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:

The Modem Port on the Wall

Modem Cable (Not Supplied) LAN Cable (Not Supplied)

The LAN Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

LAN Cable (Not Supplied)

Conﬁguring the Network Connection - Wired

Most home networks use the Dynamic Host Conﬁguration Protocol (DHCP) to conﬁgure network connections. Home networks that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually.

To conﬁgure your network connection for a network that uses DHCP, follow these steps:

1. Connect your TV to your

network as shown in one of the illustrations above.

2. Turn on your TV, press the

button on your remote, and then select Setup → Network.

3. Set the Network Type to Wired if it is not already set to Wired.

4. Select Network Setup. The Network Setup screen appears.

5. On the Network Setup menu, set Internet Protocol Setup and DNS to Auto. Auto acquires and enters the necessary internet values automatically.

6. Select Network Test to check Internet connectivity.

✎

Some networ ks are Static IP ne tworks. If your n etwork is a St atic IP networ k, you can not use DH CP to configure t he network co nnection. In stead, you must enter the IP A ddress, S ubnet Mas k, Gateway, and DNS Se rver manually. For instr uctions exp laining how to co nfigure a Sta tic IP network , see your user’s manu al.

Internet Protocol Setup : Auto

IP Address :

Subnet Mask :

Gateway :

DNS : Auto

DNS Server :

TV Rear Panel

Network Setup

Move

Enter

Return

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem. To connect wirelessly, you must ﬁrst attach a “Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN - sold separately) to either the

USB 1 or USB 2 (HDD) port on the back of your TV. See the illustration below.

Wireless IP sharer

The LAN Port on the Wall

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols.

Samsung recommends using IEEE 802.11N. When you play the video over a IEEE

802.11B/G connection, the video may not play smoothly. Most wireless network systems incorporate a security system that requires devices

that access the network through an access point or AP (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

If Pure High-throughput (Greenﬁeld) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIPAES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certiﬁcation speciﬁcation

(AP having DHCP

server)

LAN Cable (Not Supplied)

Samsung Wireless LAN

Adapter

TV Side Panel

TV Rear Panel

Conﬁguring the Network Connection - Wireless

The instructions below are for networks that use the Dynamic Host Conﬁguration Protocol (DHCP) to conﬁgure network connections automatically. If your have a Static IP network, see your user’s manual for conﬁguration instructions.

To conﬁgure your network connection for a network that uses DHCP, follow these steps:

1. Connect your TV to your network

as shown in the illustrations above.

2. Turn on your TV, press the

button on your remote, and the select Setup → Network.

3. Set the Network Type to Wireless if it is not already set to Wireless.

4. Select Network Setup. The Network Setup screen appears.

5. On the Network Setup menu, select an AP (Access Point) or ad hoc network.

If you have selected a network with a security key, the Security Key screen appears.

6. Enter the security key using the numbers on the remote, and then press the Blue button on your remote.

✎

If your networ k uses WEP secu rity enc ryption, 0~9 a nd A~F will be available on th e Securi ty Key screen. U se the Directi on button on you r remote to move to the charac ters and the en ter key to select the m.

7. On the Network Setup menu, set Internet Protocol Setup and DNS to Auto. Auto acquires and enters the necessary internet values automatically.

Select a network : Not Selected

Internet Protocol Setup : Auto

IP Address :

Subnet Mask :

Gateway :

DNS : Auto

DNS Server :

8. Select Network Test to check internet connectivity.

✎

For more inform ation, see your us er’s manual.

Network Setup

Move

Enter

Return

BN68-03117A-01
