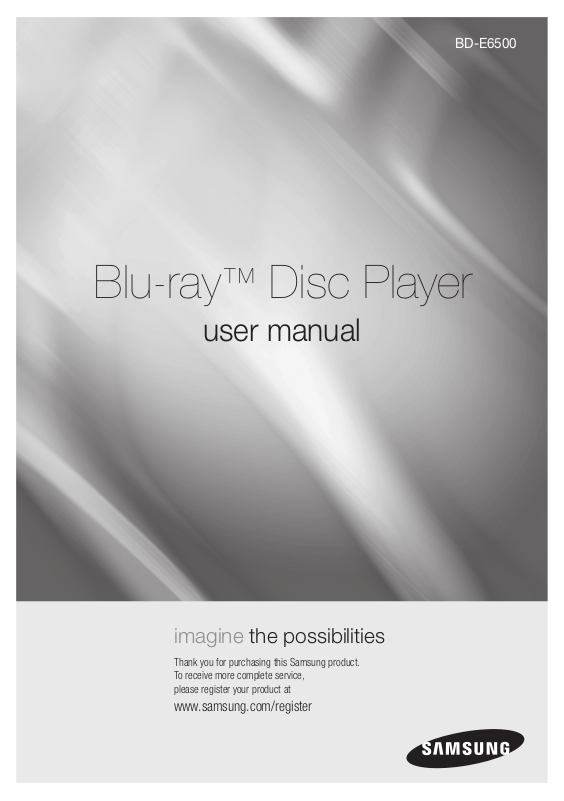

Samsung Blu-ray Disc Player User Manual

BD-E6500

Blu-ray

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

™

Disc Player

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lighting flash and Arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

FCC NOTE (for U.S.A)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on.

The user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• This class B digital product meets all requirements of the Canadian Interference Causing Equipment Regulations.

Note to CATV system installer

This reminder is provided to call CATV system installer's attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

DANGER :

• VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CAUTION :

• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. (IEC 60825-1)

• THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

| NOTE |

\If the Region number of a Blu-ray Disc/DVDs does not

correspond to the Region number of this player, the player cannot play the disc.

2 English

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install

in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.

11. Only use attachments/accessories specified

by the manufacturer.

12. Use only with the cart,

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disc Storage & Management

• Holding Discs

- Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping

- Avoid touching the surface of a disc where data has been recorded.

- Hold the disc by the edges so that fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

• Cleaning Discs

- If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

• Disc Storage `Do not keep in direct sunlight. `Keep in a cool ventilated area. `Keep in a clean protection jacket and store

vertically.

Handling Cautions

• Do not expose this apparatus to dripping or

splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must

pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

01 Safety Information

English 3

Safety Information

• Do not plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire.

• Maintenance of Cabinet.

- Before connecting other components to this player, be sure to turn them off.

- If you move your player suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the player, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.

• If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service center for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock.

Using the 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.

• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.

• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.

• Do not use the 3D Active Glasses for other purposes (Such as general eyeglasses, sunglasses, protective goggles, etc.)

• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury.

• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the player's HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.

• The player outputs 3D signals only through HDMI cable connected to the HDMI OUT port.

• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.

• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.

• You must use a high-speed HDMI cable for proper output of the 3D signal.

• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46-inch screen, stay 138 inches (11.5 feet) from the screen.

• Place the 3D video screen at eye level for the best 3D picture.

• When the player is connected to some 3D devices, the 3D effect may not function properly.

• This player does not convert 2D content into 3D.

• "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of the Blu-ray Disc Association.

Copyright

manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

4 English

Contents

SAFETY INFORMATION

2 Warning

3 Precautions

3 Important Safety Instructions

3 Disc Storage & Management

3 Handling Cautions

4 Using the 3D function

4 Copyright

GETTING STARTED

7 Disc and Format Compatibility

7 Disc types and contents your player can

7 Disc types your player cannot play

8 Region Code

8 Logos of Discs the player can play

9 Supported Formats

11 Accessories

12 Front Panel

12 Rear Panel

13 Remote Control

13 Tour of the Remote Control

14 Setting the Remote Control to Operate

play

Your TV

CONNECTIONS

15 Connecting to a TV

16 Connecting to an Audio System

17 Connecting to External Devices

18 Connecting to a Network Router

18 Wired Network

18 Wireless Network

Method 1 Connecting to an HDMI

supported AV receiver

Method 2 Connecting to an AV receiver

with Dolby Digital or DTS decoder

SETTINGS

19 The Initial Settings Procedure

19 The Home Screen

20 HDMI Input

20 Accessing the Settings Screen

20 Buttons on the Remote Control Used for

the Settings Menu

21 Settings Menu Functions

26 Networks and the Internet

26 Configuring Your Network Connection

28 Wi-Fi Direct

29 Soft AP

30 AllShare Settings

30 Upgrading Software

30 By Online

31 By USB

31 By Disc

31 By Downloaded

32 Standby Mode Upgrade

MEDIA PLAY

33 Playing Commercial Video Discs

33 The AllShare Play Screen

33 Accessing the AllShare Play Screen

33 The AllShare Play Screen at a Glance

33 Playing Files on a USB Device or USB

Compatible Mobile Phone

34 Playing Commercial Audio Discs

34 Music Screen Controls

35 Playing a Disc with User Recorded

Content

35 Using the AllShare Network Function

35 To Download the AllShare Software

36 Playing Content Located on Your PC or

DLNA Device through the Blu-ray Disc Player

Contents

English 5

Contents

36 Controlling the Playback of Content

Located on Your PC with Your Smart Phone

37 Controlling Video Playback

37 Buttons on the Remote Control used for

Video Playback

37 Using the Tools Menu

39 Controlling Music Playback

39 Buttons on the Remote Control used for

Music Playback

39 Using the Tools Menu

39 Repeating Tracks on an Audio CD

39 Shuffling Tracks on an Audio CD

40 Creating a Playlist from a CD

40 Ripping

41 Playing Photo Contents

41 Using the Tools Menu

41 Using the Tools Menu when a file is

highlighted

NETWORK SERVICES

44 Using Smart Hub

44 Smart Hub at a Glance

45 Using the Web Browser

46 BD-LIVE™

46 Using Disc to Digital

47 Registering a DVD Movie in Disc to Digital

47 Playing a Registered Disc to Digital Movie

APPENDIX

48 Compliance and Compatibility Notice

49 Copy Protection

49 Network Service Disclaimer

50 License

52 Additional Information

52 Note

54 Resolution according to the contents type

55 Digital Output Selection

56 Troubleshooting

58 Repairs

58 Specifications

6 English

Getting Started

Disc and Format Compatibility

Disc types and contents your player can play

Media Disc Type Details

Blu-ray Disc

3D Blu-ray Disc

VIDEO

MUSIC


| NOTE |

\The player may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.

\If a DVD-RW/-R has not been recorded properly in DVD video format, it will not be playable.

\Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps.

\Your player will not play content that has been recorded on a BD-R or USB device at a bitrate that exceeds 25 Mbps.

\Playback may not work for some types of discs, or when you use specific functions, such as angle change and aspect ratio

adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

\When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly.

DVD-VIDEO

DVD-RW

DVD-R

DVD+RW

DVD+R

CD-RW/-R,

DVD-RW/-R,

BD-RE/-R

CD-RW/-R,

DVD-RW/-R,

BD-RE/-R

BD-ROM or BD-RE/-R recorded in the BD-RE format.

DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R that have been recorded and finalized, or a USB storage media containing MKV, MP4 contents.

Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing MP3 or WMA contents.

Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing JPEG contents.

02 Getting Started

Disc types your player cannot play

• HD DVD

• DVD-ROM/PD/

MV, etc

• DVD-RAM

• Super Audio CD

(except CD layer)

• DVD-RW(VR mode)

• CVD/CD-ROM/CDV/

CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

• 3.9 GB DVD-R for Authoring.

English 7

Getting Started

Region Code

Both players and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Number for this player is displayed on the rear panel of the player.

Disc Type

Blu-ray Disc

DVD-VIDEO

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central and

South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Mexico, South America, Central America, Australia,

New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

Area

Logos of Discs the player can play

Blu-ray Disc 3D Blu-ray Disc

BD-LIVE

NTSC broadcast system in

U.S.A, Canada, Korea, Japan

8 English

China

Supported Formats

Video File Support

02 Getting Started

File Extension Container Video Codec Resolution

*.avi

*.mkv

*.asf *.wmv *.mp4

*.3gp

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

`Limitations

- Even when a file is encoded by a supported codec listed above, the file might not be played if its content is defective or corrupted.

- Normal playback is not guaranteed if the file's container information is wrong or the file itself is corrupted.

- Files having higher bit or frame rates than standard may stutter when played back.

- The seek (skip) function is not available if the file's index table is damaged.

- When you playback a file remotely through a network connection, video playback may stutter depending on the network speed.

- Some USB/Digital camera devices may not be compatible with the player.

`Video decoder

- Supports up to H.264 Level 4.1

- Does not support GMC 2 or higher

`Audio decoder

- Supports WMA 7, 8, 9 and STD

- Does not support WMA 9 PRO multi-channel or lossless audio if the number of channels is more than 2.

- Does not support WMA sampling rate of 22050Hz mono.

AVI MKV ASF MP4 3GP VRO VOB

PS TS

MPEG4 SP/ASP

H.264 BP/

MP/HP

H.263 720x480

Window

Media Video v9

MPEG2

MPEG1 352x288

1920x1080

Frame rate

(fps)

6~30

24/25/30

24/25/3 20

Bitrate (Mbps) Audio Codec

Dolby Digital

LPCM

AAC

HE-AAC

WMA

DD+ MP3 DTS

English 9

Getting Started

`Comments

- MPEG4 : Supports up to GMC 1-Warping Point.

- H.264 : Supports up to BP/MP/HP Level 4.1.

- H.263 : Supports up to Profile3, restricted up to SD resolution.

- WMV : Supports V9, VC1 SP/MP/AP L3.

- MPEG1 : Does not support D-picture.

- MPEG2 : Supports up to Hight Profile High Level.

| NOTE |

\Some MKV and MP4 format discs may not play,

depending on their video resolution and frame rate.

Music File Support

File

Extension

*.mp3

*.wma

Container

MP3

WMA

Audio

Codec

Support Range

MP3 -

* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48

WMA

* Bitrates - All bit rates in the range 5kbps to 384kbps

Notes on the USB connection

• Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.

• Some USB/digital camera devices may not be compatible with the player.

• Your player supports the FAT16, FAT32, and NTFS files systems.

• Connect USB devices directly to the player's USB port. Connecting through a USB cable may cause compatibility problems.

• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.

• The player does not support the PTP protocol.

• Do not disconnect a USB device during a

"loading" process.

• The bigger the image resolution, the longer the image takes to display.

• This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.

• Your player only supports video that is under 30fps (frame rate).

• Your player only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.)

• Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this player.

• If some USB devices require excessive power, they may be limited by the circuit safety device.

• If playback from a USB HDD is unstable, provide additional power by plugging the HDD into a wall socket. If the problem continues, contact the USB HDD manufacturer.

• You must remove the USB storage device safely. (by performing the "Safely Remove USB" function to prevent possible damage to the USB memory.) Press the HOME button to move to the home screen, press the YELLOW (C) button, and then press the v button.

• SAMSUNG is not responsible for any data file damage or data loss.

• Your player does not support compression file, sparse file and encryption file of NTFS.

- Before disconnecting a USB device, please use USB Safety Removal.

- If you don't use USB Safety Removal, your data on USB device can be corrupted or lost

- You can repair or format a USB device on your Desktop PC. (MS-Windows OS only)

10 English

AVCHD (Advanced Video Codec High Definition)

• This player can play back AVCHD format discs. These discs are normally recorded and used in camcorders.

• The AVCHD format is a high definition digital video camera format.

• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional

image compressing format.

• Some AVCHD discs use the "x.v.Color" format. This player can play back AVCHD discs that use "x.v.Color" format.

• "x.v.Color" is a trademark of Sony Corporation.

• "AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony

Corporation.

| NOTE |

\Some AVCHD format discs may not play, depending on the recording conditions.

AVCHD format discs need to be finalized.

\"x.v.Color" offers a wider color range than normal DVD camcorder discs.

Accessories

Check for the supplied accessories shown below.

02 Getting Started

Batteries for Remote Control (AAA Size)

(BN43-00004A)

Quick Guide

(AK68-02232E)

User Manual

(AK68-02229A)

SOURCE

VOL VOL

– +

VOL

–

DISC MENU

TITLE MENU

POPUP

HOME SMART

HUB

INFOTOOLS

RETURN

EXIT

A B C D

SUBTITLEHDMI IN

Disc2Digital5PANDORA

PANDORA

DIGITAL

SUBTITLE

INPUT

PANDORA

DIGITAL

SUBTITLE

INPUT

Remote Control (AK59-00141A)

English 11

Getting Started

Front Panel

PLAY/PAUSE BUTTON

STOP BUTTON EJECT BUTTON

DISC SLOT

DISPLAY USB HOST

POWER BUTTON

REMOTE CONTROL SENSOR

| NOTE |

\To upgrade the player's software through the USB Host jack, you must use a USB memory stick.

\When the player displays the Blu-ray Disc menu, you cannot start the movie by pressing the Play button on the player or the

remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the v button.

ENTER BUTTON

Rear Panel

12 English

LAN HDMI OUT

HDMI IN DIGITAL AUDIO OUT

Remote Control

Tour of the Remote Control

02 Getting Started

After setup, allows you to set the input

Press numeric buttons to operate options.

Press to skip backwards or forwards.

Press to move to the home screen.

These buttons are used both for menus

on the player and also several Blu-ray Disc

Press to use Disc to Digital function. Press to change HDMI input signal.

source on your TV.

Turn the player on and off.

Press to eject a disc.

Use to enter the disc menu.

Press to stop a disc.

Press to use Netflix.

Press to use the Tools menu.

Return to the previous menu.

functions.

Press to use Pandora.

SOURCE

VOL VOL

– +

VOL

DISC MENU

HOME SMART

RETURN

A B C D

Disc2Digital5PANDORA

PANDORA

DIGITAL

PANDORA

DIGITAL

TITLE MENU

POPUP

INFOTOOLS

EXIT

SUBTITLE HDMI IN

SUBTITLE

HUB

INPUT

Turn the TV on and off.

–

TV volume adjustment.

Use to enter the Popup menu/Title menu.

Press to search backwards or forwards.

Press to pause a disc.

Press to play a disc.

Press to use Smart Hub.

Use to display the playback information.

Use to select menu items and change menu values.

Press to exit the menu.

Press to switch the Blu-ray Disc/DVD's subtitle language.

Installing batteries

| NOTE |

\If the remote does not operate properly:

- Check the polarity +/– of the batteries.

- Check if the batteries are drained.

- Check if the remote sensor is blocked by obstacles.

- Check if there is any fluorescent lighting nearby.

| CAUTION |

\Dispose of batteries according to local environmental

regulations. Do not put them in the household trash.

English 13

Getting Started

Setting the Remote Control to Operate Your TV

You can control certain functions of your TV with this remote control.

Button Function

TV POWER Used to switch the television on and off.

TV SOURCE

Used to select an external source connected to the TV.

TV VOL (+/–) Used to adjust the volume of the television.

| NOTE |

\The functions listed above will not necessarily work on all

televisions. If you encounter problems, use the TV remote control.

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.

2. Point the remote control towards the

television.

3. Press and hold the TV POWER button, and

then enter the two-figure code in the table to the right that corresponds to your TV's brand by pressing the appropriate number buttons. If your television is compatible with the remote control, it will switch off. The remote is now programmed to operate the TV.

| NOTE |

\If several codes are listed for your television brand, try

each one in turn until you find one that works.

\If you replace the remote control’s batteries, you must set

the brand code again.

TV Control Codes

Brand Code

TV POWER+01, +02,

SAMSUNG

OLUFSEN

BLAUPUNKT TV POWER+71

BRIONVEGA TV POWER+57

CONTINENTAL

DAEWOO

EMERSON TV POWER+64

FERGUSON TV POWER+73

FORMENTI TV POWER+57

GRADIENTE TV POWER+70

GRUNDIG

IMPERIAL TV POWER+52

LOEWE OPTA TV POWER+06, +57

MAGNAVOX TV POWER+40

MITSUBISHI

NEWSAN TV POWER+68

+03, +04, +05, +06, +07, +08, +09

AIWA TV POWER+82

TV POWER+10, +11,

ANAM

+12, +13, +14, +15, +16, +17, +18

BANG &

TV POWER+57

BRANDT TV POWER+73

CGE TV POWER+52

TV POWER+75

EDISON

TV POWER+19, +20, +23, +24, +25, +26, +27, +28, +29, +30, +31, +32, +33, +34

TV POWER+06,

FINLUX

+49, +57

FUJITSU TV POWER+84

TV POWER+49, +52, +71

TV POWER+60,

HITACHI

+72, +73, +75

JVC TV POWER+61, +79

TV POWER+06, +19,

+20, +21, +22, +78

LOEWE TV POWER+06, +69

METZ TV POWER+57

TV POWER+06, +48, +62, +65

MIVAR TV POWER+52, +77

NEC TV POWER+83

Brand Code

NOBLEX TV POWER+66

NOKIA TV POWER+74

NORDMENDE

PANASONIC

PHONOLA

RADIOMARELLI TV POWER+57

SCHNEIDER TV POWER+06

SIEMENS TV POWER+71

SINUDYNE TV POWER+57

TELEFUNKEN

THOMSON

THOMSON ASIA TV POWER+80, +81

TV POWER+72, +73, +75

TV POWER+53, +54, +74, +75

TV POWER+06,

PHILIPS

+55, +56, +57

TV POWER+06, +56, +57

TV POWER+58,

PIONEER

+59, +73, +74

RADIOLA TV POWER+06, +56

RCA TV POWER+45, +46

REX TV POWER+74

TV POWER+57,

SABA

+72, +73, +74, +75

SALORA TV POWER+74

TV POWER+41,

SANYO

+42, +43, +44, +48

SELECO TV POWER+74

TV POWER+36,

SHARP

+37, +38, +39, +48

SINGER TV POWER+57

SONY TV POWER+35, +48

TELEAVA TV POWER+73

TV POWER+67, +73, +75, +76

TV POWER+72, +73, +75

TV POWER+47,

TOSHIBA

+48, +49, +50, +51, +52

WEGA TV POWER+57

YOKO TV POWER+06

ZENITH TV POWER+63

14 English

Connections

Connecting to a TV

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

Audio Video

03 Connections

| NOTE |

\If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the Digital Audio Out on the player

to an audio system to hear audio.

\An HDMI cable outputs digital video and audio, so you don't need to connect an audio cable.

\Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

\When you connect the player to your TV using the HDMI cable or to a new TV, and then turn it on for the first time, the player

automatically sets the HDMI output resolution to the highest supported by the TV.

\A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Color to Off in the menu.

\To view video in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI cable.

\HDMI outputs only a pure digital signal to the TV.

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

English 15

Connections

Connecting to an Audio System

You can connect the Blu-ray player to an the audio system using the method illustrated below.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

Method 1 Connecting to an HDMI supported AV receiver

• Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your receiver.

• Best quality (Recommended)

Method 2 Connecting to an AV receiver with Dolby Digital or DTS decoder

• Using a digital optical cable (not supplied), connect the Optical Digital Audio Out jack on the product to the Digital Optical In jack of the receiver.

• Good quality

• You will hear sound only through the front two speakers with Digital Output set to PCM.

16 English

Method 1

Audio

Method 2

Audio

Connecting to External Devices

You can use the player to increase the number of devices you can connect to your TV by connecting up to two external devices to the HDMI IN ports on the back of the player.

- Do not connect the power cord to the wall outlet until you have made all the other connections.

- When you change the connections, turn off all devices before you start.

03 Connections

STB

| NOTE |

\If you set "Pass Through HDMI IN 1" to On when an external device is connected to the HDMI IN 1 Jack, you can view the

output from the device on your TV without turning on the player.

Camcorder Game

console

English 17

Connections

Connecting to a Network Router

You can connect your player to your network router using one of the methods illustrated below.

To use the AllShare network functionality, you must connect your PC to your network as shown in the illustrations. The connection can be wired or wireless.

Wired Network

Broadband modem

(with integrated router)

Broadband

Router

Broadband

modem

| NOTE |

\Internet access to Samsung's software update server

may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP (Internet Service Provider).

\DSL users, please use a router to make a network

connection.

service

Broadband service

Wireless Network

Wireless Router

Broadband

service

| NOTE |

\If your wireless router supports DHCP, this player can use

a DHCP or static IP address to connect to the wireless network.

\Set your wireless router to Infrastructure mode. Ad-hoc

mode is not supported.

\The player supports only the following wireless security

key protocols:

- WEP (OPEN/SHARED), WPA-PSK (TKIP/AES),

WPA2-PSK (TKIP/AES)

\Select a channel on the wireless router that is not

currently being used. If the channel set for the wireless router is currently being used by another device nearby, it will result in interference and communication failure.

\If you select the Pure High-throughput (Greenfield)

802.11n mode and set the Encryption type on your router or router to WEP, TKIP or TKIP-AES (WPS2Mixed), the player will not support a connection in compliance with new Wi-Fi certification specifications.

\Wireless LAN, by its nature, may cause interference,

depending on the operating conditions (router performance, distance, obstacles, interference by other radio devices, etc).

18 English
