Page 1

Samsung Business TV

BEA series

A TV built for your business

Page 2

Industry trend

As visual display technology continues to improve, TV’s with advanced visual capabilities have become less cost prohibi-

tive for businesses of all sizes, including small retailers, family-owned and home-based businesses, providing a signicant

market opportunity. In today’s media-saturated and technology-friendly businesses environment, many small business owners want to directly manage their own digital and video channels, leaving behind outdated and costly printed materials previously used for customer communication. However, small business owners are time-strapped and often with limited resources, meaning any new solution needs to be simple and affordable, quickly integrating into their business.

Picture quality Business grade Content management

solution

Simplified operation

Why Samsung Business TV

Samsung is a recognized global leader in visual display technology, creating industry-leading TV’s and commercial visual displays designed to captivate potential customers and provide ultimate value to the business. Business TV from Samsung brings together Samsung’s expertise in commercial signage displays with its advanced TV technology to give users the ideal solution for customer communication with impactful visuals. Engineered to operate 8 hours a day, 7 days a week the display also features an extended warranty guaranteeing that users are always getting the most from their TV. Additionally, the Business TV app eliminates additional cost of an additional content management solution. Easy setup and streamlined operation with no additional equipment required — just a helpful integration with users’ personal devices — make Business TV ideal for any small business.

Eye-catching content

for your business

Built for business use 8/7

Increase sales and customer engagement with Crystalview picture quality

UHD resolution in a range of sizes to

t any space or budget

Do more with your TV

Enrich the customer experience with valuable digital content

Deliver offers and messages inline with existing TV programming

Simple to install,

easy to use

Plug-and-play, deploys easily, no IT support required

Works with the phone in your pocket

Customize pre-loaded content templates for creating your own

Page 3

Solution for a wide range of business needs

Samsung’s Business TV provides ﬂ exible functionality suited for a wide range of retail stores and businesses looking to do

more with their TV, while not overburdening staff with complicated features. From menu boards to providing advertising and promotion alongside TV programs, Business TV from Samsung is the perfect solution for businesses looking for a straightforward and effective way to communicate with their customers.

Coffee and beverage

Beauty shop

Drugstore

Footwear store

Telco retailer

Medical service

Page 4

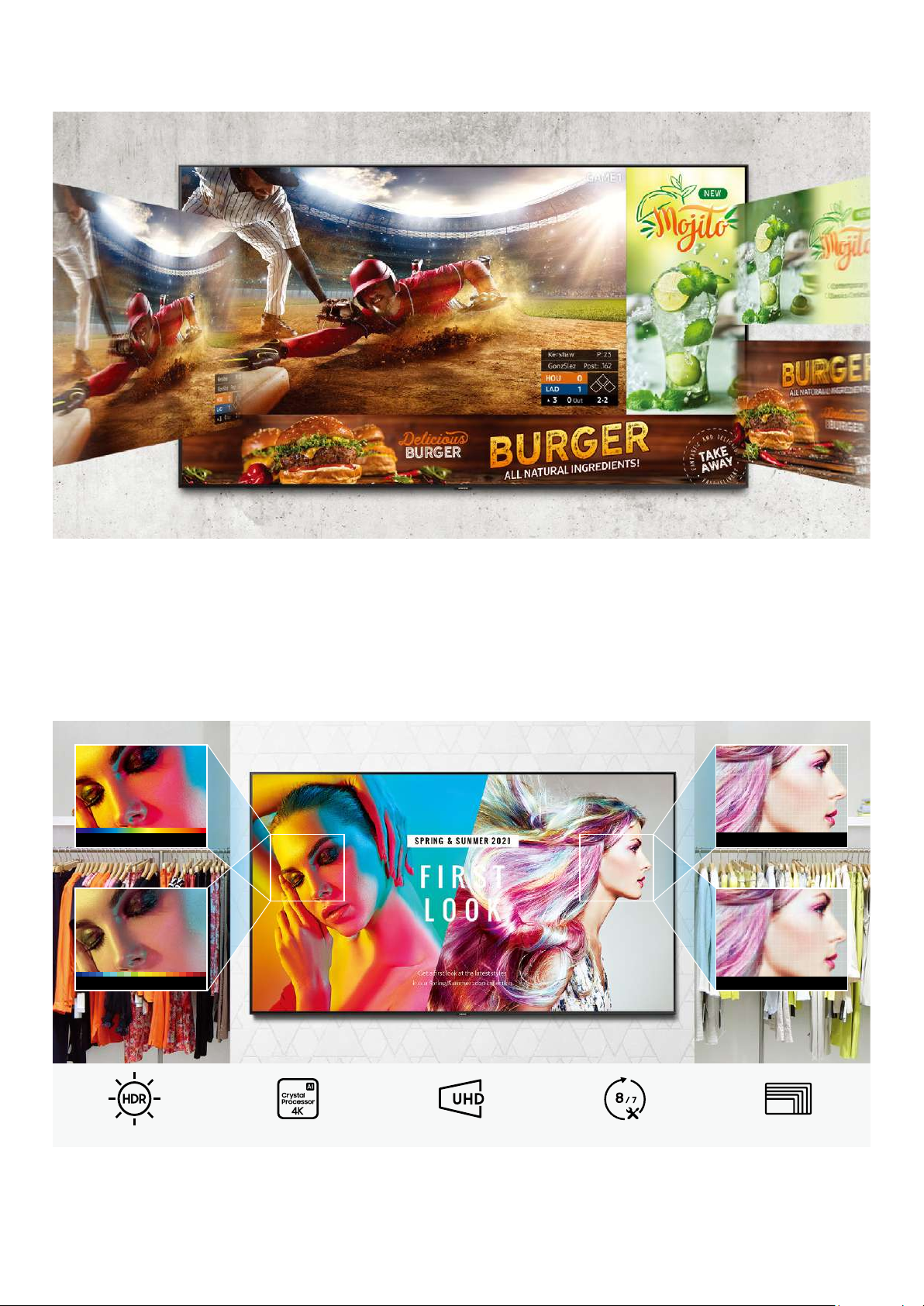

Do more with your TV

Business TV from Samsung is the ideal display solution for small businesses, allowing users to communicate with customers without the need for physical paper materials. Simple, ready-to-use content templates allow users to showcase personalized content alongside TV programming.

Eye-catching content for your business

4K UHDCrystal Display

Conventional

FHD

UHD resolutionHigh dynamic range Crystal Processor 4K 8/7 Operation Varlous size option

Samsung’s Business TV lineup delivers an eye-catching visual experience with UHD resolution in a range of sizes to  t any

space or budget. Crystal Display ensures optimized color expression and High-Dynamic Range improves brightness levels to better catch the attention of potential customers. Featuring an impressive warranty, Business TV displays are reliable and built to operate even with extended daily business hours, 8 hours a day, 7 days a week.

Page 5

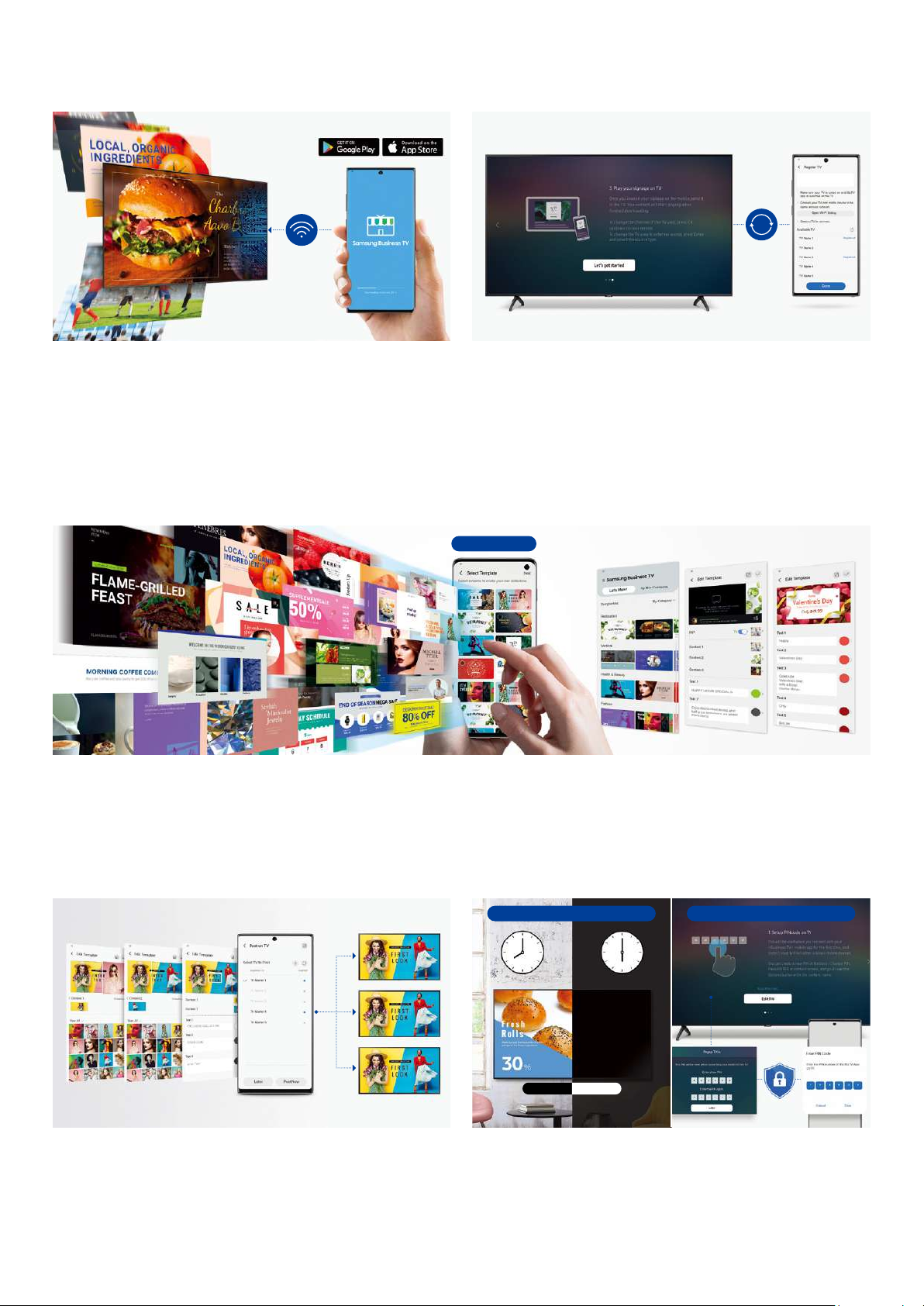

Simple to install, easy to use

Control content with your personal device

Samsung Business TV app, available for Android and iOS devices, provides convenience by allowing users to remotely manage and control content on connected Business TVs .

* Image simulated for illustration purposes

Simple setup in minutes

Set up could not be easier. Samsung’s Business TV comes preloaded with a step-by-step tutorial that automatically begins when

users rst turn the TV on. After downloading the business TV app,

users’ devices are automatically connected to the TV and available for immediate use.

Select templates

Vertical & Layout

category

L-bar type Seasonal

promotion

Design content with the click of a button

Small businesses can save time and money with Business TV’s more than 100 pre-loaded content templates including vertical orientation, L-Bar layouts, motion-embedded, seasonal sale and other pre-designed promotions and advertisements for do-it-yourself content management.

On / off timer 6-Digit lock

8AM 6PM

Auto-on Auto-off

Easy content management

An incredibly simple interface allows you to edit, review, nalize

and deploy content — even across multiple displays — with just a few quick taps.

Focus on your business, not your TV

Spend less time dealing with technical issues. An on/off timer allows the TV to automatically operate during business hours and a pin-code protects the display settings, avoiding any potential content interruptions.

* Simulated images of Samsung Business TV application provided herein may differ from actual user experience due to application updates.

Page 6

Specification

Model BE43A-H BE50A-H BE55A-H BE65A-H BE75A-H

Size 43 50 55 65 75

Type 60Hz E-LED BLU 60Hz E-LED BLU 60Hz E-LED BLU 60Hz E-LED BLU 60Hz E-LED BLU

Panel

Connectivity

Design

Power

Mechanical

Certication

Resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160

Operation Hour 8/7 8/7 8/7 8/7 8/7

Screen Curvature N/A, Flat N/A, Flat N/A, Flat N/A, Flat N/A, Flat

Input

Output

External Control RJ45 RJ45 RJ45 RJ45 RJ 45

External Sensor N /A N /A N/A N/A N /A

Wireless WiFi 5, Bluetooth supported WiFi 5, Bluetooth supported WiFi 5, Bluetooth supported WiFi 5, Bluetooth supported WiFi 5, Bluetooth supported

Bezel Type 3 Bezel-less 3 Bezel-less 3 Bezel-less 3 Bezel-less 3 Bezel-less

Color

Stand Type SLIM Feet SLIM Feet SLIM Feet SLIM Feet SLIM Feet

Swivel (Left / Right) N/A N/A N/A N/A N/A

Type Internal Internal Internal Internal Internal

Power Supply AC220-240V 50 / 60Hz AC220-240V 50 / 60Hz AC220-240V 50 / 60Hz AC220-240V 50 / 60Hz AC220-240V 50 / 60Hz

Power

Consumption

Dimension

(mm)

Weight (kg)

Bezel Width (mm) W/W : 5.5 (T/S) 11.1 (Bottom) W/W : 5.5 (T/S) 12.1 (Bottom) W/W : 5.5 (T/S) 11.1 (Bottom) W/W : 5.5 (T/S) 11.1 (Bottom) W/W : 5.5 (T/S) 12.1 (Bottom)

VESA

Safety 60065, 62368-1 60065, 62368-1 60065, 62368-1 60065, 62368-1 60065, 62368-1

EMC Class B Class B Class B Class B Class B

RGB N/A N/A N/A N/A N /A

Video HDMI x 3 HDMI x 3 HDMI x 3 HDMI x 3 HDMI x 3

HDCP HDCP 1.4 / 2.2 HDCP 1.4 / 2.2 HDCP 1.4 / 2.2 HDCP 1.4 / 2.2 HDCP 1.4 / 2.2

Audio N/A N /A N /A N/A N/A

USB USB (1) USB (1) USB (1) USB (1) USB (1)

RF 1 Terrestrial / 1 Cable / 0 Satellite 1 Terrestrial / 1 Cable / 0 Satellite 1 Terrestrial / 1 Cable / 0 Satellite 1 Terrestrial / 1 Cable / 0 Satellite 1 Terrestrial / 1 Cable / 0 Satellite

RGB N/A N/A N/A N/A N /A

Video N/A N/A N /A N /A N/A

Audio Optical Optical Optical Optical Optical

Power Out N/A N /A N/A N/A N/A

Front TITAN GRAY TITAN GRAY TITAN GRAY TITAN GRAY TITAN GRAY

Stand TITAN GRAY TITAN GRAY TITAN GRAY TITAN GRAY TITAN GRAY

Max 125 140 145 195 250

Energy Saving

Mode (W)

Stand-by (W) 0.5 0.5 0. 5 0.5 0. 5

Typical 41 48 52 62 72

Set without

Stand

Set with Stand 963.9 x 627.8 x 192.5 1116.8 x 719.1 x 250.2 1230.5 x 783.3 x 250.2 1449.4 x 906.6 x 282.1 1673.2 x 1047.9 x 341.1

Package 1081 x 670 x 143 1264 x 780 x 150 1386 x 843 x 158 1606 x 963 x 184 1840 x 1118 x 198

Set without

Stand

Set with Stand 8.3 11. 6 14.2 20.9 30.8

Package 11.8 16 19.5 28.6 41.9

Screw Size M8 M8 M8 M8 M8

Screw Depth 20-22 20-22 20-22 20-22 20-22

VESA Spec 200 x 200 200 x 200 200 x 200 400 x 300 400 x 400

N/A N/A N/A N/A N/A

963.9 x 558.9 x 59.6 1116.8 x 644.2 x 59.9 1230.5 x 707.2 x 59.9 1449.4 x 830.3 x 59.9 1673.2 x 958.2 x 59.9

8.1 11.4 13.9 20.6 30.4

Page 7

Accessory

Video

Audio

Broadcasting

System

Smart Service

Feature

Business TV

Special

Model BE43A-H BE50A-H BE55A-H BE65A-H BE75A-H

Included

Stand Yes Yes Yes Yes Yes

Optional

Picture Engine Crystal Processor 4K Crystal Processor 4K Crystal Processor 4K Crystal Processor 4K Crystal Processor 4K

Dolby Digital Plus Yes Yes Yes Yes Yes

Sound Output (RMS) 20W 20W 20W 20W 20W

Bluetooth Audio Yes Yes Yes Yes Yes

Digital Broadcasting ATSC 3.0 AT SC 3 .0 ATS C 3. 0 ATSC 3.0 AT SC 3 .0

DTV Sound System Dolby Dolby Dolby Dol by Dolby

CI (Common Interface) N /A N/A N/A N/A N/A

Smart TV Type Smart Smart Smart Smart Smart

Operating System Tizen™ Tizen™ Tizen™ Tizen™ Tizen™

General

Smart

Remote Control Simple IR Simple IR Simple IR Simple IR Simple IR

BizTV App (Android, iOS) Yes Yes Yes Yes Yes

Autorun Signage

(App auto launch)

App Pre-installation Yes Yes Yes Yes Yes

Security Lock

Mount N/A N/A N/A N/A N/A

Specialty N/A N/A N/A N/A N/A

Media Player USB M / player USB M / player USB M / player USB M / player USB M / player

HDR10+ Yes Yes Yes Yes Yes

Speaker Type 2CH (10W+10W) 2CH (10W+10W) 2CH (10W+10W) 2CH (10W+10W) 2CH (10W+10W)

Woofer N /A N/A N/A N/A N/A

Analog Tuner Yes Ye s Yes Yes Yes

Supported

Orientation Landscape Landscape Landscape Landscape Landscape

Adaptive

Sound

Instant On Yes Yes Yes Yes Yes

Game Mode Yes Yes Yes Yes Yes

Mobile to TV -

Mirroring,

DLNA

Remote Access

(PC on TV)

Easy Setup No No No No No

Wired TV On -

Samsung WOL

WiFi Direct Yes Yes Yes Yes Yes

TV Sound to

Mobile

Sound

Mirroring

On / Off timer Ye s Yes Yes Yes Yes

OTN On / Off Yes Yes Yes Yes Yes

Panel Button

Lock

USB Port Lock Yes Ye s Yes Yes Yes

Mobile

Connection

Remote Control, Batteries, User Manual, Power Cable

Samsung businessTV,

Web browser, Youtube

Adaptive Sound Adaptive Sound Adaptive Sound Adaptive Sound Adaptive Sound

Yes Yes Yes Yes Yes

Yes Ye s Yes Yes Ye s

Yes Yes Yes Yes Yes

Remote Control, Batteries, User Manual, Power Cable

Samsung businessTV,

Web browser, Youtube

Remote Control, Batteries, User Manual, Power Cable

Samsung businessTV,

Web browser, Youtube

Remote Control, Batteries, User Manual, Power Cable

Samsung businessTV,

Web browser, Youtube

Remote Control, Batteries, User Manual, Power Cable

Samsung businessTV,

Web browser, Youtube

Page 8

About Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. inspires the world and shapes the future with transformative ideas and technologies. The company is redening the

worlds of TVs, smartphones, wearable devices, tablets, cameras, digital appliances, medical equipment, network systems, and semiconductor and LED solutions. For the latest news, please visit the Samsung Newsroom at news.samsung.com.

Business TV

For more information about Samsung Business TV, visit www.samsung.com/business or www.samsung.com/displaysolutions

and designs are subject to change without notice. Non-metric weights and measurements are approximate. All data were deemed correct at time of creation. Samsung is not liable for errors or omissions. All brand, product, service names and logos are trademarks and/or registered trademarks of their respective owners and are hereby recognized and acknowledged.

Samsung Electronics Co., Ltd. 416, Maetan 3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-772, Korea

2021-04
