KEYSET USER GUIDE
February 2000
SAMSUNG DCS 50si
DIGITAL COMMUNICATIONS SYSTEM
TABLE OF CONTENTS
ABOUT THIS BOOK ...........................................................1
THINGS YOU SHOULD KNOW................................ 2–9
OUTSIDE CALLS
Making an Outside Call .................................................................... 10
Answering an Outside Call ............................................................... 10
Universal Answer ............................................................................. 10
Recall/Flash ..................................................................................... 11
Busy Line Queuing with Callback .................................................... 11
Canceling Callback ..........................................................................11
INTERCOM CALLS
Calling Other Stations ...................................................................... 12
Answering Intercom Calls ................................................................12
Answer Modes ........................................................................... 12–13
Busy Station Callback ...................................................................... 13
Busy Station Camp-on .....................................................................13
Calling Your System Operator .......................................................... 13
CALL PROCESSING
Holding Calls .............................................................................. 14–15
Transferring Calls .......................................................................15–16
Transfer with Camp-On .................................................................... 16
Transfer to Voice Mail ....................................................................... 16
Call Waiting ....................................................................................... 16
Conference Calls ............................................................................. 17
Forwarding Calls ........................................................................ 17–20
Call Pickup ....................................................................................... 20
DIALING FEATURES
Speed Dialing ................................................................................... 21
Programming Personal Speed Dial Numbers ............................. 21–22
One Touch Speed Dialing ................................................................. 22
Last Number Redial .........................................................................22
Save Number with Redial................................................................. 22
Chain Dialing .................................................................................... 23
Automatic Redial/Retry .................................................................... 23
Pulse to Tone Changeover ............................................................... 23
PAGING AND MESSAGING
Making an Internal Page ...................................................................24
Making an External Page ................................................................. 24
All Page ............................................................................................ 24
Meet Me Page .................................................................................. 25
Call Park and Page........................................................................... 25
Messages—Set and Cancel ...................................................... 25–26
Returning Messages ........................................................................ 26
Programmed Messages ................................................................... 26
CONVENIENCE FEATURES
Do Not Disturb ................................................................................. 27
One Time DND ................................................................................. 27
Mute ................................................................................................. 27
Background Music ........................................................................... 27
Appointment Reminder/Alarm Clock ................................................ 28
Door Phone Calls ....................................................................... 28–29
Executive/Secretary Hotline ............................................................29
Group Listening ................................................................................29
Account Codes ................................................................................29
Locking Your Keyset......................................................................... 30
Off-Hook Voice Announce .......................................................... 30–31
OHVA Block ..................................................................................... 31
OHVA Reject .................................................................................... 31
In Group/Out of Group ..................................................................... 31
CUSTOMIZING YOUR KEYSET
AME BGM ........................................................................................ 32
AME Password ................................................................................ 32
Select Ring Tone .............................................................................. 32
Change Your Passcode ....................................................................32
Set Answer Mode ............................................................................. 33
Automatic Hold ................................................................................. 33
Headset Operation ...........................................................................33
Hot Keypad ...................................................................................... 34
Key Confirmation Tone...................................................................... 34
Rejoining a Page .............................................................................. 34
Ring Preference ............................................................................... 34
DISPLAY FEATURES
Interactive Display Keys ..................................................................35
Directory Information ....................................................................... 35
Dial by Directory .............................................................................. 36
Call Progress Displays ....................................................................36
Display Number Dialed .................................................................... 36
Call Duration Timer........................................................................... 36
Auto Timer ........................................................................................37
Timer Function ................................................................................. 37
Viewing Message Indications ........................................................... 37
Alarm Reminder Messages ........................................................ 37–38
Personal Speed Dial Names ............................................................38
Station Names............................................................................ 38–39
Managing Key Assignments............................................................. 39
Caller ID ..................................................................................... 39–43
LCR with Clear ................................................................................. 43
ADD-ON MODULE
With Keyset ...................................................................................... 44
Without Keyset ................................................................................. 44
64 BUTTON MODULE WITH KEYSET ................. 44
PERSONAL SPEED DIAL NUMBERS ........... 45–46
ABOUT THIS BOOK
Your keyset is the most visible part of the DCS 50si System. No matter what
model keyset you are using, with or without a display, telephone calls are handled
in the same way. The LCD 12B and LCD 24B keysets have a few additional
conveniences that are not available to STD 24B, Basic 12B and 7B keyset
users. These are noted throughout this guide.
Please take the time to study this guide and to become familiar with the operation of your keyset. Keep this guide handy. You may need to look up instructions
for infrequently used features.
Learning to use your keyset correctly will make everyday telephone communications a breeze.
1
THINGS YOU SHOULD KNOW
USER ORIENTATION
DCS 50si telephones are called “keysets.” They contain buttons or “keys” that
are used to access or activate the many features of your office phone system.
The keys with paper designation strips are programmable keys. This means
they can be programmed for a specific function on your keyset and that same
button can be something different on another keyset. See the system manager
to get your most frequently used features assigned to your programmable keys.
When changes are made, be sure that your programmable keys are relabeled
properly.
Lines from the telephone company are “C.O. lines.” Calls on these lines are
referred to as “outside calls.” Your system can have individual C.O. line keys or
lines may be assigned to groups. When they are in a group, you access a line by
dialing an access code or pressing a route button. For example, dial 9 or press
the LOCAL key to get a local outside line. If Least Cost Routing is used, pressing the LCR key will automatically select a preprogrammed C.O. line according
to what digits are dialed. Each line in the system is numbered, beginning with
701, then 702, 703, etc.
Direct Station Selection (DSS) keys are programmed to ring specific stations.
You can press a DSS key instead of dialing the extension number. A DSS key
lights red when that station is busy (Busy Lamp Indication).
DCS 50si provides distinctive ring patterns to your keyset:
• Outside calls have a single ring tone repeated.
• Internal calls have a double ring tone repeated.
• Door phone calls and alarm/appointment reminders have a triple ring tone
repeated.
CALL INDICATIONS
The keys on your phone have light emitting diodes (LEDs). Some of these are
tri-colored LEDs that light green, red or amber (green and red together). Some of
the keys can only light red.
Intercom calls, also called internal calls, always appear on your CALL buttons.
They will always light green. You can have up to eight CALL buttons, but at least
two are recommended.
Outside calls appear on individual line keys if they are assigned. When an individual line is not assigned to its own key, it will appear on a CALL button. Your
2 3
outside calls will light green on your keyset and red on other keysets.
You never lose sight of your calls while they are on hold. They stay right where
you put them and are identified with a green flashing light if the key has a tricolored LED.
Some simple rules to remember:
• Any steady LED indicates the line or feature is in use.
• A fast flashing green LED indicates a new call ringing in.
• A slow flashing green or red LED indicates a call is on hold.
• A slow flashing amber LED indicates a recall to your keyset.
• A steady red LED on the HOLD key indicates the keyset is locked.
• A steady red LED on the TRSF key indicates the keyset is Forward All.
• A steady red LED on the ANS/RLS key indicates the keyset is in Headset
mode.
• A flashing red LED on the ANS/RLS key indicates the keyset is in DND
mode.
SPEAKERPHONE
Pressing the ANS/RLS key will answer or release a call on the speakerphone.
Switching from the handset to the speakerphone is easy. Press the SPK key
and hang up the handset.
NOTE: The 7B phone is not a speaker phone. If you are using a 7B phone, you
must lift the handset in order to speak to the other party.
VOLUME CONTROLS
DCS 50si keysets use the UP and DOWN keys to adjust the ringer volume while
the keyset is ringing, the speaker volume while the speakerphone is in use and
the handset volume while you are listening. These three levels will be stored in
memory until changed. If background music is turned on at your keyset, the
volume keys will also control the level of music. The volume of pages heard
through the speaker of a keyset can be adjusted during a page announcement
by using the volume keys. There are 16 levels for each volume setting. The
volume of off-hook ring is controlled by a user-programmable setting.
SYSTEM TONES
The system provides several tones to assist you. Some of these tones are
already familiar to you.
4 5

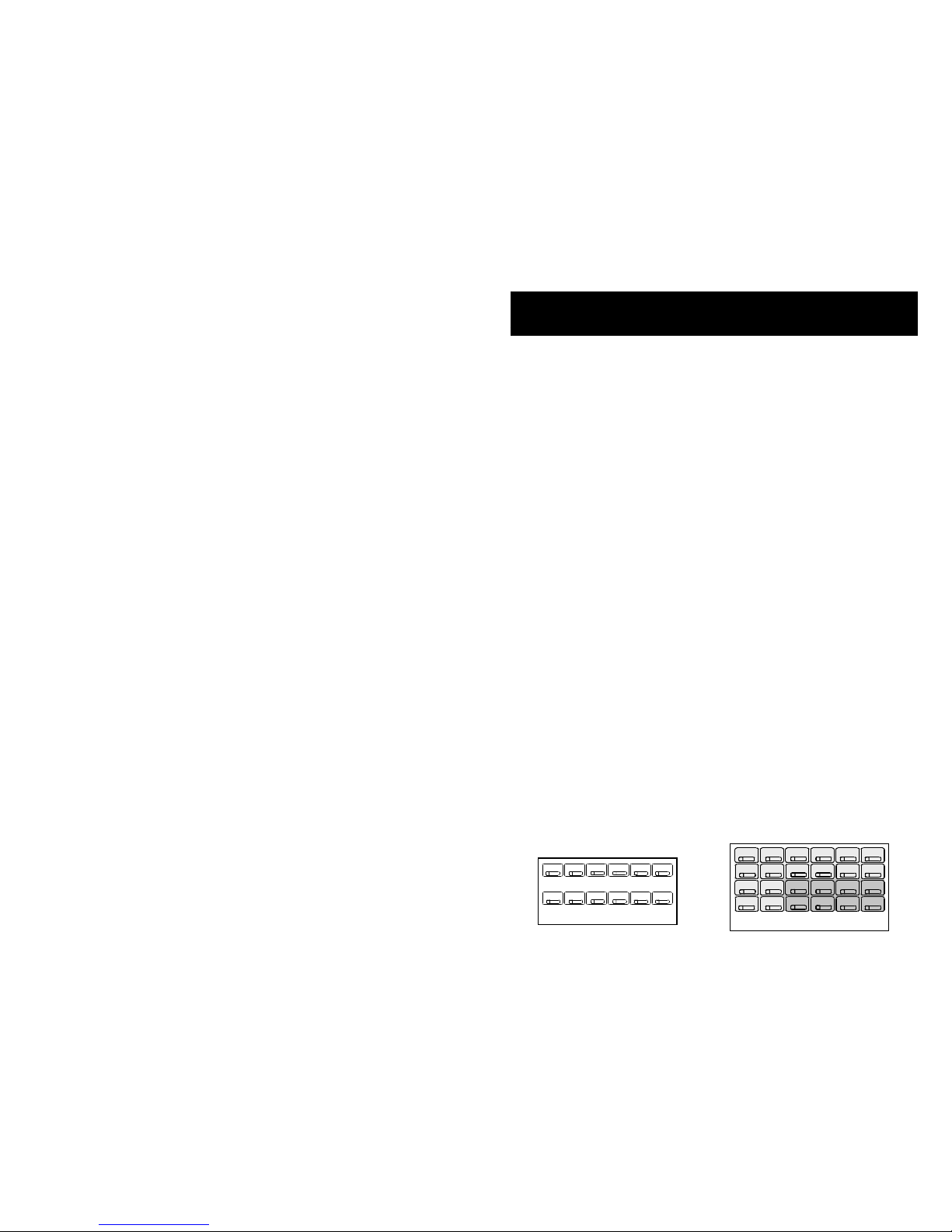

LCD 24B KEYSET LAYOUT
LABELING PROGRAMMABLE KEYS
Insert the end of a paper clip into the notch of the clear cover.
Push the cover sideways. Lift the cover and remove the designation strip. Label the designation strip. Replace the strip and
cover.
VOL
SPK
HOLD
TRSF
ANS/
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
OPER
RLS
SCROLL
HOLD KEY
TRANSFER KEY
ANSWER/RELEASE KEY
PULLOUT
DIRECTORY TRAY
32 CHARACTER DISPLAY Two
lines with 16 characters each.
SOFT KEYS Used to
activate features via
the display.
SCROLL KEY Used to
scroll through displays.
16 PROGRAMMABLE
KEYS WITH TRICOLORED LIGHTS
Used for CALL buttons, intercom calls,
outside lines and
many other system
features.
8 PROGRAMMABLE
KEYS WITH RED
LIGHTS Used to call
stations directly, to
indicate busy conditions of other stations, for One Touch
dialing and many
other system features.
VOLUME CONTROL
KEYS Used to set inde-
pendent levels for handset, speaker, background music, ring and
page volumes.
SPEAKER KEY Used to switch
call to speakerphone.
MICROPHONE For
handsfree operation.
SPEAKER For handsfree
operation and ringing.
6
LCD 12B KEYSET LAYOUT
LABELING PROGRAMMABLE KEYS
Insert the end of a paper clip into the notch of the clear cover.
Push the cover sideways. Lift the cover and remove the designation strip. Label the designation strip. Replace the strip and
cover.
7
STD 24B KEYSET LAYOUT
LABELING PROGRAMMABLE KEYS
Insert the end of a paper clip into the notch of the clear cover.
Push the cover sideways. Lift the cover and remove the designation strip. Label the designation strip. Replace the strip and
cover.
VOL
SPK
HOLD
TRSF
ANS/
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
OPER
RLS
SCROLL
HOLD KEY
TRANSFER KEY
ANSWER/RELEASE KEY
PULLOUT
DIRECTORY TRAY
32 CHARACTER DISPLAY Two
lines with 16 characters each.
SOFT KEYS Used to
activate features via
the display.
SCROLL KEY Used to
scroll through displays.
6 PROGRAMMABLE
KEYS WITH TRICOLORED LIGHTS
Used for CALL buttons, intercom calls,
outside lines and
many other system
features.
6 PROGRAMMABLE
KEYS WITH RED
LIGHTS Used to call
stations directly, to
indicate busy conditions of other stations, for One Touch
dialing and many
other system features.
VOLUME CONTROL
KEYS Used to set inde-
pendent levels for handset, speaker, background music, ring and
page volumes.
SPEAKER KEY Used to switch
call to speakerphone.
MICROPHONE For
handsfree operation.
SPEAKER For handsfree
operation and ringing.
DIGITAL
COMMUNICATION
SYSTEM
VOL
SPK
HOLD
TRSF
ANS/
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
OPER
RLS
HOLD KEY
TRANSFER KEY
ANSWER/
RELEASE KEY
PULLOUT
DIRECTORY TRAY
16 PROGRAMMABLE
KEYS WITH TRICOLORED LIGHTS
Used for CALL buttons,
intercom calls, outside
lines and many other system features.
8 PROGRAMMABLE
KEYS WITH RED
LIGHTS Used to call
stations directly, to indicate busy conditions of
other stations, for One
Touch dialing and many
other system features.
VOLUME CONTROL
KEYS Used to set inde-
pendent levels for handset, speaker, background music, ring and
page volumes.
SPEAKER KEY Used
to switch call to
speakerphone.
MICROPHONE For
handsfree operation.
SPEAKER For handsfree
operation and ringing.
8
BASIC 12B KEYSET LAYOUT
LABELING PROGRAMMABLE KEYS
Insert the end of a paper clip into the notch of the clear cover.
Push the cover sideways. Lift the cover and remove the designation strip. Label the designation strip. Replace the strip and
cover.
9
7B KEYSET LAYOUT
LABELING PROGRAMMABLE KEYS
Insert the end of a paper clip into the notch of the clear cover.
Push the cover sideways. Lift the cover and remove the designation strip. Label the designation strip. Replace the strip and
cover.
DIGITAL
COMMUNICATION
SYSTEM
VOL
SPK
HOLD
TRSF
ANS/
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
OPER
RLS
HOLD KEY
TRANSFER KEY
ANSWER/RELEASE KEY
MICROPHONE
For handsfree operation.
PULLOUT
DIRECTORY
TRAY
SPEAKER
For handsfree operation and
ringing.
6 PROGRAMMABLE
KEYS WITH TRICOLORED LIGHTS Used
for CALL buttons,
intercom calls, outside
lines and many other
system features.
6 PROGRAMMABLE
KEYS WITH RED
LIGHTS Used to call
stations directly, to
indicate busy conditions
of other stations, for One
Touch dialing and many
other system features.
VOLUME CONTROL
KEYS Used to set
independent levels for
handset, speaker,
background music, ring
and page volumes.
SPEAKER KEY Used to
switch call to speakerphone.
TRANSFER
CALL1 CALL 2
HOLD
FLASH
MONITORVOLUME
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
OPER
1
4
2
5
7
3
6
PULLOUT
DIRECTORY TRAY
3 PROGRAMMABLE
KEYS WITH TRICOLORED LIGHTS
(1, 2, 3) Used for
CALL buttons, intercom calls, outside
lines and many other
system features.
4 PROGRAMMABLE
KEYS WITH RED
LIGHTS (4, 5, 6, 7)
Used to call stations
directly, to indicate
busy conditions of
other stations, for
One Touch dialing
and many other system features.
VOLUME CONTROL
KEYS Used to set
independent levels for
handset, speaker,
background music,
ring and page volumes.
SPEAKER
For ringer and monitor.
MONITOR KEY
TRANSFER KEY
HOLD KEY
OUTSIDE CALLS
MAKING AN OUTSIDE CALL
• Lift the handset and press an idle outside line button, line group button or
dial a line access code to receive dial tone—OR—to use the speakerphone,
press an idle outside line button, line group button or dial a line access code
to receive dial tone through the speaker—OR—press SPK or the MONITOR
key if you are using a 7B phone, receive intercom dial tone and dial a line
access code.
• Dial the telephone number.
• Finish the call by replacing the handset or pressing the ANS/RLS key.
NOTE: You will receive No More Calls tone when you attempt to make a call
and there is no key available for that line.
• If Least Cost Routing is enabled on your phone system, this button may be
labeled LCR or accessed by dialing an access code (usually 9).
• If your system is programmed to require an authorization code before making a call, dial ✱ plus a valid code before selecting a C.O. line.
• If your system is programmed to require an account code before making a
call, press the ACCT button or dial 47 plus a valid code, press the ACCT
button again and then select a C.O. line.
For more information on authorization and account codes, see your system
administrator.
NOTE: If the Hot Keypad feature has been turned off, you must first lift the
handset or press SPK or the MONITOR key if you are using a 7B phone before
dialing.
ANSWERING AN OUTSIDE CALL
• Lift the handset and you are automatically connected to the ringing call.
See
Ring Preference
under
Customizing Your Keyset
—OR—press the ANS/
RLS key to automatically answer on the speakerphone.
NOTE: If a call is flashing at your keyset but not ringing, you must press the
flashing button to answer.
UNIVERSAL ANSWER
Outside lines may be programmed to ring a general alerting device. To answer
calls ringing this device, dial 67 or press the UA key. This device can operate in
the Day or Night mode.
10
NOTE: If the Hot Keypad feature has been turned off, you must first lift the
handset or press SPK or the MONITOR key if you are using a 7B phone before
dialing.
RECALL DIAL TONE
Press the NEW button to disconnect your existing call, wait for dial tone and
then make a new call on the same line.
NOTE: If this button does not appear on your keyset, the FLASH key may be
programmed to recall dial tone.
SENDING A FLASH
While on an outside call, press the FLASH key to send a flash to the telephone
company. This is required for some custom calling features or CENTREX use.
BUSY LINE QUEUING WITH CALLBACK
If you receive a busy signal when you are selecting an outside line, this means
that the line or group of lines is busy.
• Press the CBK key or dial 44. You will hear confirmation tone.
• When the line becomes free, the system will call you back.
• Lift the handset or press the ANS/RLS key to answer, wait for dial tone and
dial the telephone number or speed dial number again.
NOTES:
1. A callback will be canceled if not answered within 30 seconds. If you have
set a callback, your CBK key will light.
2. If the Hot Keypad feature has been turned off, you must first lift the handset
or press SPK before dialing.
CANCELING CALLBACK
A callback will be canceled if not answered within 30 seconds. If you have set a
callback, your CBK key will light.
Your phone may have a maximum of five callbacks on stations and/or lines set
at a time. To cancel a callback:
• Press the CBK key or dial 44. You will hear confirmation tone.
• While you are listening to confirmation tone, press the HOLD key. This will
cancel the oldest callback that you have set.
NOTES:
1. If the hot keypad feature is turned off, you must first lift the handset or press
SPK before dialing.
11
Loading...
