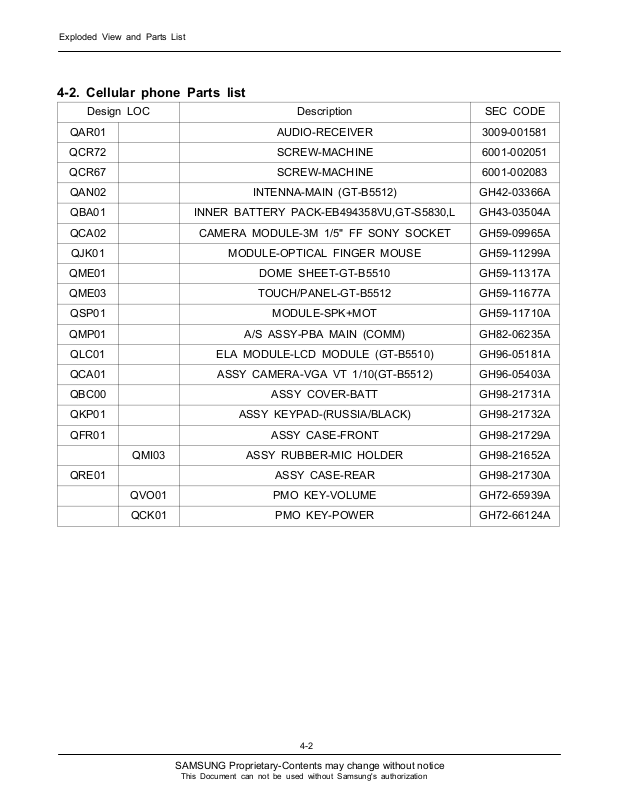

4-2.

Design LOC Description SEC CODE

QAR01 AUDIO-RECEIVER

QCR72 SCREW-MACHINE

QCR67 SCREW-MACHINE

3009-001581

6001-002051

6001-002083

QAN02 INTENNA-MAIN(GT-B5512) GH42-03366A

QBA01 INNER BATTERY PACK-EB494358VU,GT-S5830,L GH43-03504A

QCA02 CAMERA MODULE-3M

FF SONY SOCKET GH59-09965A

1/5"

QJK01 MODULE-OPTICAL FINGER MOUSE GH59-11299A

QME01 DOME SHEET-GT-B5510 GH59-11317A

QME03 TOUCH/PANEL-GT-B5512 GH59-11677A

QSP01 MODULE-SPK+MOT GH59-11710A

QMP01 A/S ASSY-PBA MAIN(COMM) GH82-06235A

QLC01 ELA MODULE-LCD MODULE(GT-B5510) GH96-05181A

QCA01 ASSY CAMERA-VGA VT

GT-B5512) GH96-05403A

1/10(

QBC00 ASSY COVER-BATT GH98-21731A

QKP01 ASSY KEYPAD-(RUSSIA/BLACK) GH98-21732A

QFR01 ASSY CASE-FRONT GH98-21729A

QMI03 ASSY RUBBER-MIC HOLDER GH98-21652A

QRE01 ASSY CASE-REAR GH98-21730A

QVO01 PMO KEY-VOLUME GH72-65939A

QCK01 PMO KEY-POWER GH72-66124A
