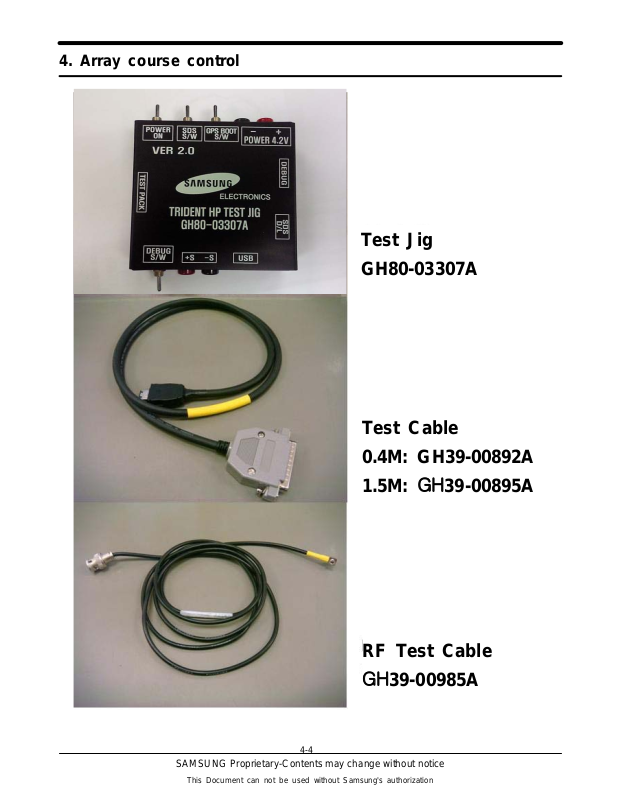

4. Array course control
Test Jig
GH80-03307A
Test Cable
0.4M: GH39-00892A
1.5M:
GH
39-00895A
RF Test Cable
GH
39-00985A
4-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 2
Array course control
Software Downloading
4-1. Downloading Binary Files
ㆍ
Two binary files for downloading B220
- B220DDXXX.s3 : Main source code binary
- B220DDXXX.cts : Contents file
4-2. Pre-requsite for Downloading
ㆍ
Downloader Program(
ㆍ
B220 Mobile Phone
ㆍ
Data Cable
ㆍ
Binary files
OptiFlash.exe
)
4-2
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 3
4-3. S/W Downloader Program
Array course control
1. Load the binary download program by executing the "
2. Select the
"Options"
platform"
→
"Settings"
.
→
"Generic"
Optiflash.exe
→
"Specify hardware
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below
"
4-3
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 4
Array course control
3.Select the
COM port
when the download cable is connected
Additionally you can select the maximum transfer speed OptiFlash will use to
communicate with the phone. However, OptiFlash will use a slower speed if
either the PC's or the phone's serial hardware is incapable of handling the
selected speed
4-4
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 5
Array course control
4. Select the
"Flash&Verify"
→
"Browse"
Set the directory path and choose the lastet s/w binary, for example
"B220DDXXX.s3", for the downloader binary setting.
4-5
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 6
Array course control
5. Click "OK" button then press "
Flash
(Before pressing 'Flash' button, push the button
time.
Then press 'Flash'.)
".
'*'and 'END' at the same
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a "All is well" message.
7. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#
4-6
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
