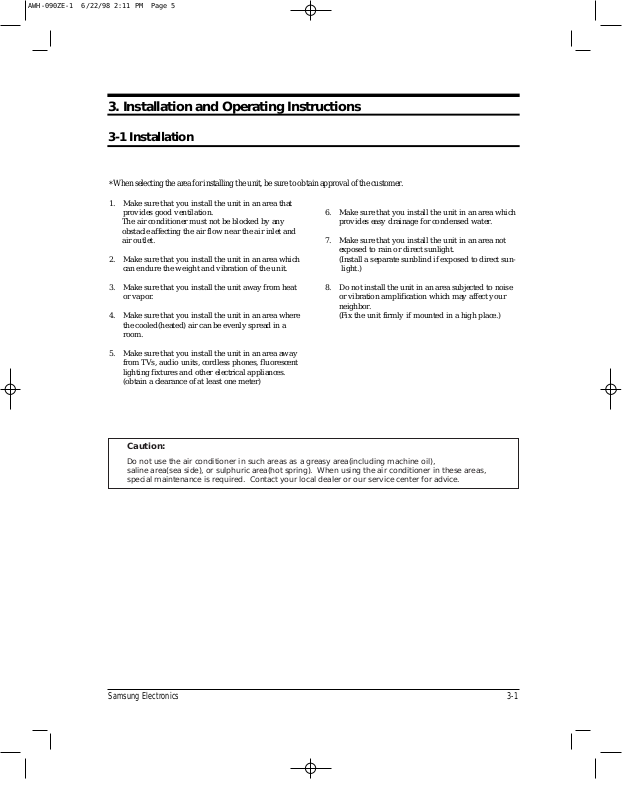

3. Installation and Operating Instructions

3-1 Installation

When selecting the area for installing the unit, be sure to obtain approval of the customer.

*

1. Make sure that you install the unit in an area that
provides good ventilation.

The air conditioner must not be blocked by any
obstacle affecting the air flow near the air inlet and
air outlet.

2. Make sure that you install the unit in an area which
can endure the weight and vibration of the unit.

6. Make sure that you install the unit in an area which
provides easy drainage for condensed water.

7. Make sure that you install the unit in an area not
exposed to rain or direct sunlight.
(Install a separate sunblind if exposed to direct sun-

light.)

3. Make sure that you install the unit away from heat
or vapor.

4. Make sure that you install the unit in an area where
the cooled(heated) air can be evenly spread in a
room.

5. Make sure that you install the unit in an area away
from TVs, audio units, cordless phones, fluorescent
lighting fixtures and other electrical appliances.
(obtain a clearance of at least one meter)

8. Do not install the unit in an area subjected to noise
or vibration amplification which may affect your
neighbor.
(Fix the unit firmly if mounted in a high place.)

Caution:

Do not use the air conditioner in such areas as a greasy area(including machine oil),
saline area(sea side), or sulphuric area(hot spring). When using the air conditioner in these areas,
special maintenance is required. Contact your local dealer or our service center for advice.

Samsung Electronics 3-1

3-2 Function Description

Operation control

Thermostat control

3-2-1 Operation control

(1) COOL MODE(BLUE POSITION) :

The air conditioner starts cooling, provided that the room temperature is higher than the selected temperature.

• ( HI COOL) : The fan turns rapidly.

• (LOW COOL) : The fan turns slowly.

• Thermostat control in cool mode.
Left end : COOL air will be supplied above 30 ~ 35˚C

COOL air will be ceased below 28 ~ 32.5˚C

Right end : COOL air will be supplied above 17.4 ~ 20.4˚C

COOL air will be ceased below 14.4 ~ 17.4˚C

(2) HEAT MODE(RED POSITION) :

The air conditioner starts heating, provided that the room temperature is lower than the selected temperature.

• ( HI HEAT) : The fan turns rapidly.

• (LOW HEAT) : The fan turns slowly.

• Thermostat control in heat mode.
Left end : HEAT air will be supplied below 14.4 ~ 17.4˚C

HEAT air will be ceased above 17.4 ~ 20.4˚C

Right end : HEAT air will be supplied below 28 ~ 32.5˚C

HEAT air will be ceased above 30 ~ 35˚C

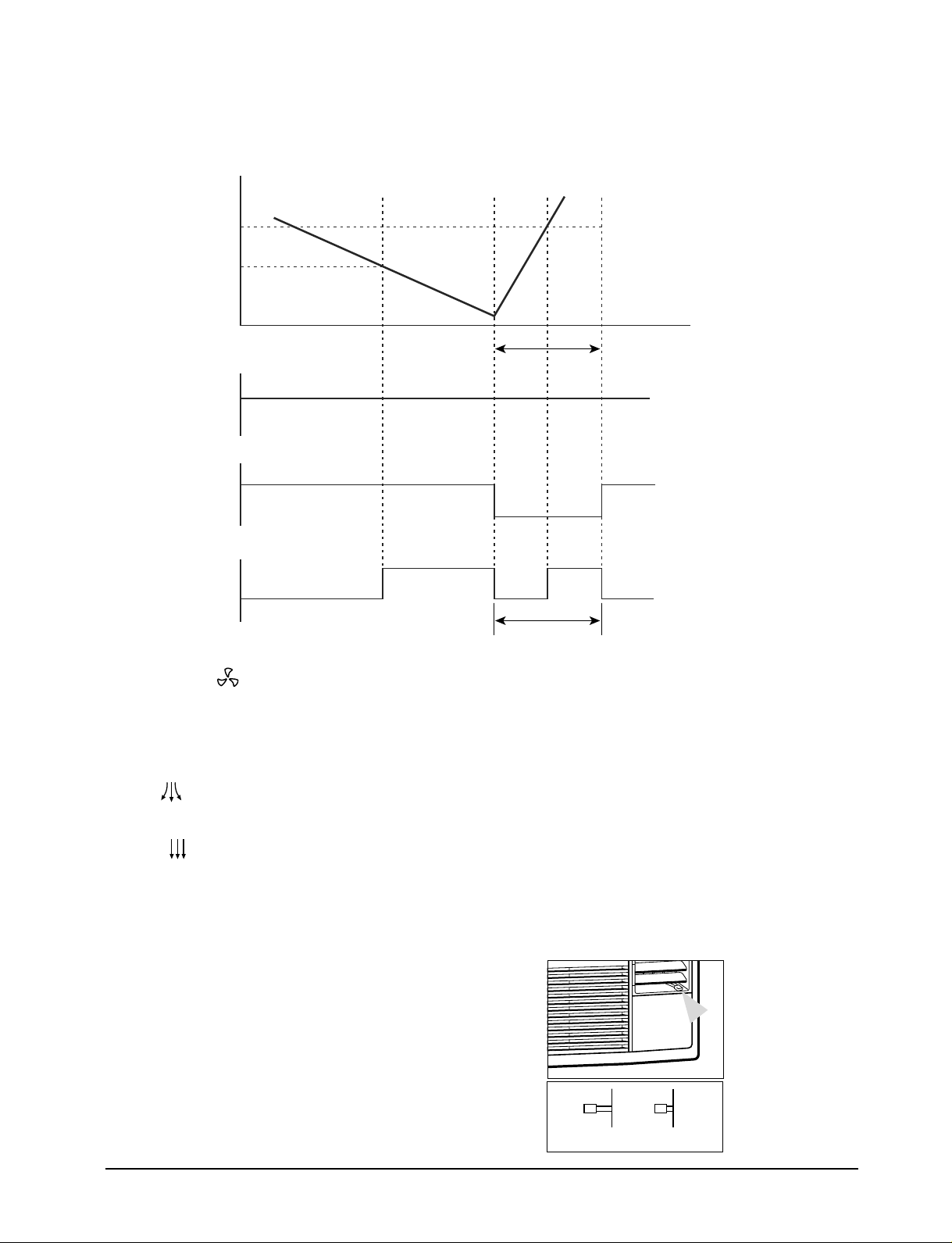

• DEICE function in heat mode :

Deice operation is controlled by sensing the condenser heat exchange temperature and timer.

✻Deice time is about 5 minutes.
✻ Operating the deice, the air conditioner starts cooling cycle and then the fan stops.
✻ Deice operation
