Samsung AWEP301JSECSTA Quick Guide
Headquarters:
Left
Right
▪
1301 East Lookout Drive Richardson,
TX 75082
Internet Address:
▪
http://www.samsungmobileusa.com/
accessories
Customer Care Center:
▪
1-888-987-4357
Guide No.: GH68-18612A
04/2008. Rev. 1.0

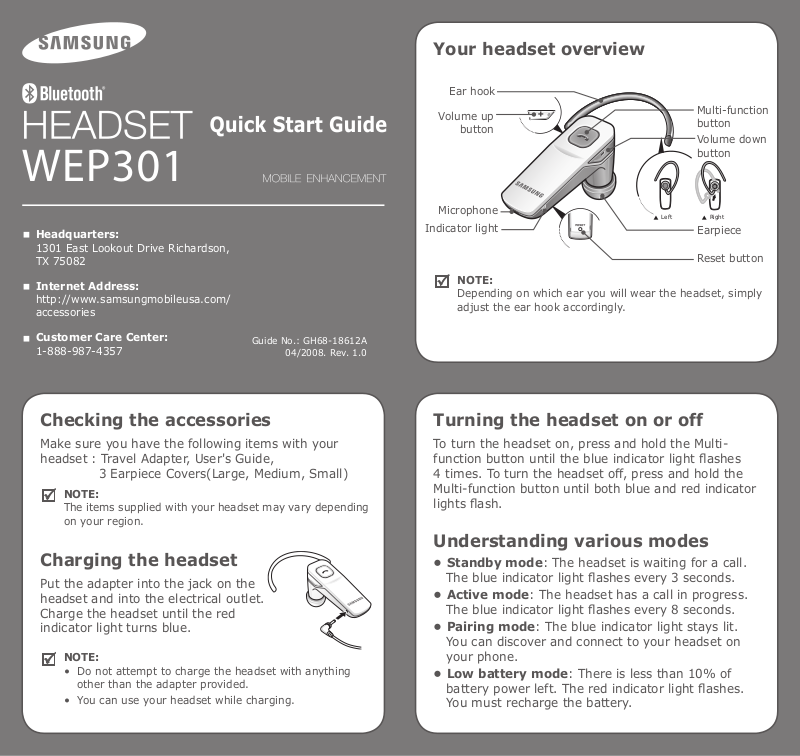

Your headset overview
Ear hook
Volume up
button
Microphone
Indicator light
NOTE:
Depending on which ear you will wear the headset, simply
adjust the ear hook accordingly.
Multi-function
button
Volume down
button
Earpiece
Reset button
Checking the accessories
Make sure you have the following items with your
headset : Travel Adapter, User's Guide,
3 Earpiece Covers(Large, Medium, Small)
NOTE:
The items supplied with your headset may vary depending
on your region.
Charging the headset
Put the adapter into the jack on the
headset and into the electrical outlet.
Charge the headset until the red
indicator light turns blue.
NOTE:
Do not attempt to charge the headset with anything
•
other than the adapter provided.
You can use your headset while charging.
•
Turning the headset on or off
To turn the headset on, press and hold the Multi-
function button until the blue indicator light ashes
4 times. To turn the headset off, press and hold the
Multi-function button until both blue and red indicator
lights ash.
Understanding various modes
Standby mode: The headset is waiting for a call.
•
The blue indicator light ashes every 3 seconds.
Active mode: The headset has a call in progress.
•
The blue indicator light ashes every 8 seconds.
Pairing mode: The blue indicator light stays lit.
•
You can discover and connect to your headset on
your phone.
Low battery mode: There is less than 10% of
•
battery power left. The red indicator light ashes.
You must recharge the battery.
Pairing with your Bluetooth phone
1 Enter Pairing mode.
•
Turn off your headset and press and hold the
Multi-function button until the blue indicator light
remains lit after blinking.
If you turn it on for the rst time, it proceeds
•
into Pairing mode immediately.
2 Search for and pair with your phone according to
your phone’s user guide. (Bluetooth PIN: 0000, 4
zeros)
•
If the pairing is successful, the blue indicator
light will ash 10 times rapidly before entering
Standby mode.
If the blue indicator light remains lit, retry
•
pairing.
NOTE:
When the headset and the phone are paired, the
headset attempts to reconnect automatically each
time it turns on. Otherwise, press the Multi-function
button to reconnect.
Using call functions
Some features may not be supported by your phone.
In Standby mode
Press the Multi-function button to:
•
Answer an incoming call
•
Redial the last number called
Press and hold the Multi-function button to:
•
Make a voice-activated call
•
Reject an incoming call
Press and hold [+] and [-] at the same time to turn
the indicator light on or off.
In Active mode
Press the Multi-function button to:
•
End a call
•
Transfer a call from the phone to the headset
Press and hold the Multi-function button to:
•
Place a call on hold
•
Answer a second call
•
Retrieve a call on hold
Press [+] or [-] to adjust the volume.
Press and hold [+] or [-] to turn the microphone off
or on.
Specications
Item Specications and description
Bluetooth version
Support prole Headset Prole, Hands-Free Prole
Operating range Up to 30 feet (10 meters)
Standby time Up to 80 hours*
Talk time Up to 5 hours*
* Depending on the phone type and usage, the actual time may
vary.
Compatible with Bluetooth 2.0 or
earlier
