Samsung AV-R620R, HT-AS620 User Manual

Instruction Manual
Digital Surround
AV Receiver System
HT-AS620
THIS APPLIANCE IS MANUFACTURED BY:
AV-R620
AH68-02012B
GB

Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
Protect the player from moisture(i.e. vases) , and excess heat(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only. Condensation may occur if your player or disc have been
stored in cold temperatures. If transporting the player during the winter, wait approximately
2 hours until the unit has reached room temperature before using.
During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
The battery used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
PREPARATION
VOLUME

Safety Warnings

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.
This symbol alerts you to important operating and maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Wiring the Main Power Supply Plug(UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:–
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER product.
This apparatus shall always be connected to a AC outlet with a protective grounding connection.
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
CAUTION
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

54
Contents

PREPARATION

Safety Warnings ..............................................................................................................2
Precautions......................................................................................................................3
Features ..........................................................................................................................4
Description ......................................................................................................................6
CONNECTIONS
Connecting the Speakers ................................................................................................10
Connecting External Components ..................................................................................12
Connecting the FM and AM Antennas.............................................................................15
OPERATION
Before Using the AV Receiver .........................................................................................16
Selecting Digital/Analog Input .........................................................................................18
Setting the Speaker Mode ...............................................................................................20
Setting the Speaker Listening Distance .........................................................................22
Setting Digital Input .........................................................................................................24
Setting DRC (Dynamic Range Compression) .................................................................25
Te st Tone ........................................................................................................................26
Setting Speaker Level .....................................................................................................28
Dolby Pro Logic ll Mode..................................................................................................30
Dolby Pro Logic ll Effect .................................................................................................32
SFE Mode........................................................................................................................34
Stereo Mode ....................................................................................................................36
RADIO OPERATION
Listening to Radio ...........................................................................................................38
Presetting Radio Stations ...............................................................................................39
About RDS broadcasting .................................................................................................40
MISCELLANEOUS
Convenient Functions......................................................................................................42
Operating your TV with the Remote Controll...................................................................44
Operating your VCR (DVD) with the Remote Control......................................................46
Before Calling for Service................................................................................................48
Specifications ..................................................................................................................50
PREPARATION
Dolby Pro Logic II
Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS play backs 5.1 channel sound with less compression than Dolby Digital for richer sound.

Features

Digital AV Receiver
This product is a pure digital AV receiver that performs digital signal processing to minimize signal distortion and loss.
SFE(Sound Field Effect) Using 24bit Audio Digital Signal Processing
Provides more realistic surround sound with normal stereo audio sources.
GB7GB
COOLING FAN
VCR/SAT VIDEO INPUT
JACK
AM ANTENNA
JACK
MONITOR VIDEO
OUTPUT JACK
FM ANTENNA
JACK
DVD OPTICAL DIGITAL AUDIO
INPUT JACK
CD COAXIAL DIGITAL
AUDIO INPUT JACK
VCR VIDEO OUTPUT JACK
FRONT SPEAKER
TERMINALS
SUBWOOFER SPEAKER TERMINALS
[
Rear Panel
]
CD AUDIO INPUT JACKS
DVD AUDIO INPUT JACKS
VCR/SAT AUDIO INPUT JACKS
VCR AUDIO OUTPUT JACKS
SUBWOOFER OUTPUT JACKS 1, 2
DVD VIDEO INPUT
JACK
CENTER SPEAKER TERMINALS
SURROUND SPEAKER TERMINALS

Description

[
Front Panel
]
[
Display
]
POWER button
HEADPHONE Jack
SELECT ( ) button TUNING ( ) button
POWER STANDBY Indicator
SETUP button
FUNCTION button
SURROUND button
VOLUME CONTROL
INPUT MODE button
SPEAKER INDICATOR
DOLBY PRO
LOGIC II
INDICATOR
RADIO BROADCASTING RECEIVING INDICATOR
RADIO STEREO INDICATOR
DIGITAL INDICATOR
RADIO FREQUENCY INDICATOR
DTS
INDICATOR
LIVE SURROUND
INDICATOR
L.PCM
INDICATOR
DOLBY DIGITAL
INDICATOR
,
,
FRONT DISPLAY
DOLBY
INDICATOR
Accessories
√√
œœ
Remote Control
FM Antenna User’s Manual
AM Antenna
PREPARATION
GB
Insert Remote Batteries
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.
Range of Operation of the Remote Control
Remove the battery cover in the direction of the arrow.
1
Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).
2
Replace the battery cover.
3
Follow these precautions to avoid leaking or cracking batteries:
Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
Use the correct type of batteries.Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose batteries to heat or flame.
PREPARATION
Description
VOLUME CONTROL button
MUTE button
MENU button
POWER button
NUMBER(0~9) buttons
INFO button
SUBWOOFER button
SLEEP button
MO/ST button
TUNER button
SFE MODE button
STEREO button
SPK LEVEL button
SPK DISTANCE button
EXTERNAL DEVICE PLAYBACK button
CURSOR/ENTER button
TV button
AMP button
DVD button VCR button
DIMMER button
TV VIDEO
,
FUNCTION button
CD button
VCR/SAT button
DVD button
DRC button
INPUT MODE DIGITAL button INPUT MODE ANALOG button
TUNER MEMORY button
MODE button
TUNING MODE button
TUNER/CHANNEL button
SPK SELECT button
TEST TONE button
RDS Selection buttons
[
Remote Control
]
EFFECT button
11
GB
10

CONNECTIONS

Never touch speaker terminals while the power is on. Doing so could result in electric shock.
Make sure the polarities (+ and -) are correct.
MAIN UNIT AV-R620 FRONT SPEAKER PS-AF620 CENTER SPEAKER PS-AC620 SURROUND SPEAKER PS-AR620 PASSIVE SUBWOOFER PS-AW620
SYSTEM MODEL NAME : HT-AS620
Connecting Speaker Wire
PASSIVE
SUBWOOFER
PS-AW620
ACTIVE SUBWOOFER
(not supplied)
FRONT (R) PS-AF620
FRONT (L)
PS-AF620
SURROUND (R)
PS-AR620
SURROUND (L)
PS-AR620
MAIN UNIT AV-R620
CENTER
PS-AC620
1
Press the tab of the speaker connector.
2
Insert the black wire into the black(-) terminal and the gray wire into the red(+) terminal.

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Place these speakers behind your listening position.
If there isn't enough room, place these speakers so they face each other.
Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.
Unlike the front and center speakers, the surround
speakers are used to handle mainly sound effects and sound will not come from them all the time.
Surround Speakers
SL SR
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.
Front Speakers
It is best to install it at the same height as the front speakers.
You can also install it directly over or under the TV.
Center Speaker
Place AV Receiver on a dedicated stand or rack.
Position of AV Receiver
The position of the subwoofer is not so critical. Place it anywhere you like.
Subwoofer
When you attach the speakers to a wall, make sure to fasten them tightly so they do not fall off.
If more bass is desired, you can connect an additional active subwoofer (not supplied) to the Subwoofer 1or 2 port. Since the signal on the Subwoofer 1and 2 ports is not stereo, you will hear the same mono bass sound regardless of the port you connect to.
Keep the subwoofer speaker out of reach of children to prevent them from inserting their hands or objects into the duct (hole) of the subwoofer speaker.
Caution
13
GB
12
SAT(Settop Box)
VCR
TV
The Analog Audio and Video In jacks of the main unit can be used for SAT or VCR.You cannot connect both devices at the same time.
If the external component has only one Audio Output jack, connect it to either the right or left Audio Input jack of the main unit.
Connect the audio cable's red plug to the red jack and white cable to the white jack.
CONNECTIONS

Connecting External Components

DVD Player
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting Video Component
Video Projector
Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
Even though the Digital Audio inputs are labelled DVD and CD, you can connect your DVD/CD player to either the OPTICAL or COAXIAL digital audio input (as long as it matches the Digital audio output on your player).
or or
15
GB
14
1. Connect the FM antenna supplied to the FM 75COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.
1. Connect the AM loop antenna supplied to the AM and terminals.
2. If reception is poor, connect an outdoor single vinyl-
covered wire to the AM terminal. (Keep the AM loop antenna connected).
The cooling fan dissipates the heat generated inside the unit so that the unit can be operated normally. The cooling fan is activated automatically to supply cool air to the unit.
Please observe the following cautions for your safety.
Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside may rise and cause damage to it.
Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Connecting the FM and AM Antennas

FM antenna connection
If AM reception is poor, connect an outdoor AM antenna(not supplied).
FM Antenna (supplied)
AM Loop Antenna (supplied)
Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.
COOLING FAN
AM antenna connection
CONNECTIONS
Connecting External Components
CD Player
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting Audio Component
17
GB
16
To Select a Function
REMOTE CONTROL
MAIN UNIT
Press FUNCTION button.
Each time you press the this button, FM AM DVD VCR/SAT CD will be selected in turn.
Method 1
Method 2
Press the FUNCTION button.
Each time you press the this button, FM AM DVD VCR/SAT CD will be selected in turn.
Press CD, VCR/SAT, DVD or TUNER button.
You can directly select CD, VCR/SAT, DVD or TUNER.

OPERATION

Functions of Dedicated Remote Control
Connect the power plug to the outlet.
1
Press the POWER button of the main unit.
This unit will be turned on or set to Standby mode.
2
MAIN UNIT
REMOTE CONTROL
You can operate your AMP(this AV receiver), TV, DVD and VCR with this remote control. See pages 44-47 for more details.
Press the POWER button of the remote control.
This unit will be turned on or set to Standby mode.

Before Using the AV Receiver

Turning On/Off
19
GB
18
OPERATION

Selecting Digital/Analog Input

You can listen to sound in 2 Channel analog or Dolby Digital 5.1 Channel using this unit.
REMOTE CONTROL
For DVD Function
Follow steps 1-4 in DVD setup on page 26 before selecting the DVD Input Mode.
Press the INPUT MODE DIGITAL button.
DVD OPTICAL or COAXIAL will be selected based on the DVD setup you made on page 26
Press the INPUT MODE ANALOG button.
DVD ANALOG will be selected.
DVD setup is not required before selecting the DVD Analog mode.
For CD Function
Follow steps 1-4 in CD setup on page 26 before selecting the CD Input Mode.
Press the INPUT MODE DIGITAL button.
CD OPTICAL or COAXIAL will be selected based on the DVD setup you made on page 26
Press the INPUT MODE ANALOG button.
CD ANALOG will be selected.
CD setup is not required before selecting the CD Analog mode.
or
or
The product is set to “DVD:OPTICAL,CD:COAXIAL ” by factory default.
MAIN UNIT
For DVD Function
Follow steps 1-4 in DVD setup on page 26 before selecting the DVD Input Mode.
Press the INPUT MODE button.
DVD OPTICAL or COAXIAL and DVD ANALOG will be selected repetitively.
For CD Function
Follow steps 1-4 in CD setup on page 26 before selecting the CD Input Mode.
Press the INPUT MODE button.
CD OPTICAL or COAXIAL and CD ANALOG will be selected repetitively.
You can enjoy Dolby Digital only if you connect the Digital Audio Output jack
of an external audio component to the Optical/Coaxial Digital Audio Input jack on the main unit.
21
GB
20
OPERATION
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 1 time.
“SPK SETUP” appears in the display.
Press SURROUND button to select the speaker you want.
Each time you press this button, F.SPK C.SPK S.SPK SW SPK CROVR will be selected in turn.
Press SELECT ( ) button to set the mode for the selected speaker.
Repeat steps 3-4 to adjust each speaker.
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and exits Setup Mode.
LARGE : Select when using large speakers. You can listen to full
range sound.
SMALL : Select when using small speakers.
Bass below 100Hz will not be output.
NONE : Select when you use no speaker.
YES(Subwoofer) : Select when using the Subwoofer Speaker.
NO(Subwoofer) : Select when not using the Subwoofer Speaker.
CROVR: Select the crossover frequency for the best bass
response in your room.
Setting the Speaker
MAIN UNIT
1
2
4
5
3
,

Setting the Speaker Mode

Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Frequency response from the speaker will be adjusted according to your speaker configuration and whether certain speakers are used or not.
Press SPK SELECT button to select the speaker you want.
Each time you press this button, F.SPK C.SPK S.SPK SW SPK
CROVR SPK MODE OFF will be selected in turn.
Press …† button to set the mode (Large, Small etc.) for the selected speaker.
Repeat steps 1-2 to set the mode for each speaker.
To Exit Setup Mode
Wait for about 5 seconds or press the SPK SELECT button of the remote control to select SPK MODE OFF.
To turn the SUBWOOFER On or Off.
Press SUBWOOFER button on the remote.
Each time you press this button, SW SPK : YES, SW SPK : NO will be selected in turn.
1
2
3
REMOTE CONTROL
SPEAKER
F.SPK(Front)
C.SPK(Center)
S.SPK(Surround)
SW SPK(Subwoofer)
CROVR
(Crossover Frequency)
Possible Settings
LARGE,SMALL LARGE,SMALL,NONE LARGE,SMALL,NONE
YES
,NO
60,80,100,120,
150,180,200(Hz)
Default Setting
SMALL SMALL SMALL
YES
150Hz
If F.SPK is set to LARGE, you can select YES or NO for SW SPK.
If F.SPK is set to SMALL, SW SPK is automatically set to YES. NO cannot be selected.
23
GB
22
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 2 times.
“DIST SETUP” appears on the display.
Press SURROUND button to select the speaker you want.
Each time you press this button, F.L CEN F.R S.R S.L S.W will be selected in turn.
Press SELECT( ) button to set the speaker distance.
For F.L, CEN, F.R, S.W, S.R, S.L Speaker, you can set the distance from the speaker to listening position between 0.3~9.0m in intervals of 0.3m.
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and Setup Mode is exited.
MAIN UNIT
1 2
4
3
,
OPERATION

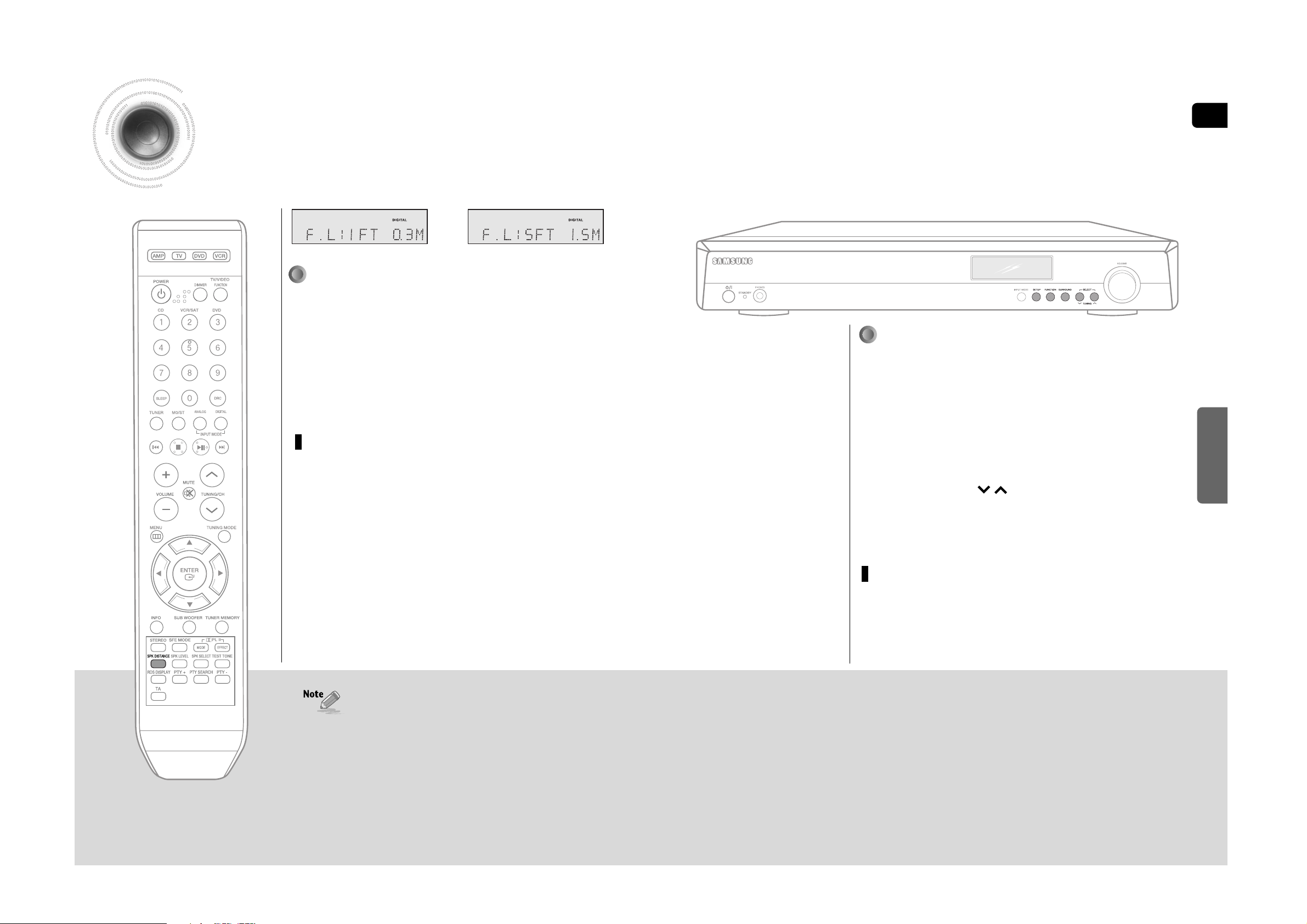

Setting the Speaker Listening Distance

Press the SPK DISTANCE button to select the speaker you want.
Each time you press this button, F.L CEN F.R S.R S.L S.W DIST OFF will be selected in turn.
Press …† button to set the speaker distance.
For F.L, CEN, F.R, S.W, S.R, S.L Speaker, you can set the distance from the speaker to listening position between 0.3~9.0m in intervals of 0.3m.
To Exit Setup Mode
Wait for about 5 seconds or press the SPK DISTANCE button of remote control to select DIST OFF.
If the listening position is beyond the range of speaker distance setup when you place the speaker, set the speaker distance to the maximum.
REMOTE CONTROL
1
2
25
GB
24
4
Setting DRC
(Dynamic Range Compression)
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 4 times.
“DRC SETUP” appears on the display.
Press SURROUND button.
“DRC : STD” appears on the display .
Press SELECT( ) button to set DRC.
Each time you press this button, DRC : STD DRC : MAX DRC : MIN
will be selected in turn.
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and the unit exits Setup Mode.
STD : Sets DRC effect to standard.
MAX : Sets DRC effect to maximum.
MIN : Sets DRC effect to minimum.
Setting DRC
MAIN UNIT
1 2
3
Press DRC button.
Each time you press this button, DRC : STD DRC : MAX DRC : MIN will be selected in turn.
REMOTE CONTROL
OPERATION
,

Digital Input Setup

You must set the digital input for a DVD or CD player to either Optical or Coaxial depending on which Digital input you have your player connected to.
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 3 times.
“DIGITAL IN” appears on the display.
Press SURROUND button to select DVD.
Press SELECT( ) button to set the digital input.
Each time you press this button, OPTICAL COAXIAL will be selected in turn.
MAIN UNIT
1 2
3 4
,
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and the unit exits Setup Mode.
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 3 times.
“DIGITAL IN” appears on the display.
Press SURROUND button to select CD.
Press SELECT( ) button to set the digital input.
Each time you press this button, OPTICAL COAXIAL will be selected in turn.
1 2
3 4
,
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and the unit exits Setup Mode.
DVD SETUP
CD SETUP
27
GB
26

Test Tone

Use test tone to check the speaker connection status or level.
Press TEST TONE button.
Test signal will be automatically output as follows; F.L CEN F.R S.R S.L S.W.
During test tone output, press …† button to adjust the speaker output level from -10 to +10 dB by 1 step.
To Stop Test Tone
Press TEST TONE button again.
To Automatically Output Test Tone
REMOTE CONTROL
OPERATION
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 5 times.
“TEST-T AUTO” appears in the display.
Press SURROUND button.
Test signal will be automatically output as follows; F.L CEN F.R
S.R S.L ➝ S.W .
During test signal output, press SELECT ( ) button to adjust the speaker output level from -10 to +10 dB by 1 step.
MAIN UNIT
1 2
3
To Stop Test Tone
Press SETUP button 1 time.
“SETUP MODE OFF” appears on the display and test tone stops.
,
F.L (Front-Left) : -10 ~ +10dB
CEN (Center) : -10 ~ +10dB
F.R (Front-Right) : -10 ~ +10dB
S.R (Surround-Right) : -10 ~ +10dB
S.L (Surround-Left): -10 ~ +10dB
S.W (Subwoofer): -10 ~ +10dB
Test Tone Output
Press SETUP button.
“SETUP MODE” appears on the display and the unit enters into Setup Mode.
Press FUNCTION button 6 times.
“TEST-T MANU” appears in the display.
Press SURROUND button.
Each time you press this button, F.L CEN F.R S.R S.L S.W will
be selected in turn.
Press SELECT( ) button to set the test tone as you want.
You can adjust the speaker output level from -10 to +10dB by 1 step.
The sound gets quieter at -10dB and louder at +10dB.
To Manually Output Test Tone
MAIN UNIT
1 2
4
3
To Stop Test Tone
Press SETUP button 1 time.
“SETUP MODE OFF” appears on the display and test signal stops.
,
29
GB
28
F.L (Front-Left) : -10 ~ +10dB
CEN (Center) : -10 ~ +10dB
F.R (Front-Right) : -10 ~ +10dB
S.R (Surround-Right) : -10 ~ +10dB
S.L (Surround-Left): -10 ~ +10dB
S.W (Subwoofer): -10 ~ +10dB
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and exits Setup Menu.
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 8 times.
“LEVEL SETUP” appears on the display.
Press SURROUND button.
Each time you press this button, F.L CEN F.R S.R S.L S.W
will be selected in turn.
Press SELECT( ) button to set to the speaker level you want.
You can adjust it from -10 to +10dB by 1 step.
The sound gets smaller at -10dB and louder at +10dB.
Default setting value is 00dB

Setting Speaker Level

MAIN UNIT
1
2
4
3
,
OPERATION
Setting Speaker Level
You can set the balance and level of speakers
Press SPK LEVEL button to select the speaker you want.
Each time you press this button, F.L CEN F.R S.R S.L S.W SPK LVL OFF will be selected in turn.
Press …† button to set the speaker level you want.
You can adjust it from -10 to +10dB by 1 step.
The sound gets quieter at -10dB and louder at +10dB.
Default setting value is 00dB.
To Exit Setup Mode
Wait for about 5 seconds or press SPK LEVEL button on the remote control to select SPK LVL OFF.
Remote Control
1
2
31
GB
30
MUSIC : Provides 5.1 Channel Surround sound to digital, analog or existing stereo sources such as CD, TAPE, FM, TV and Stereo VCR.
CINEMA : Adds realism to the movie soundtrack.
MATRIX : You will hear 5.1 Channel Surround sound.
GAME : Enhances the excitement of the game's sound.
PROLOGIC : You will experience a surround effect with just the front left and right speakers.
Press SURROUND button to select “DPL ll” Mode.
Each time you press this button, DPL ll SFE STEREO will be selected in turn.
Press SELECT( ) button.
Each time you press SELECT ( ) button, CINEMA MATRIX GAME PROLOGIC MUSIC will be selected in turn.
Each time you press SELECT ( ) button, MUSIC PROLOGIC GAME MATRIX CINEMA will be selected in turn.

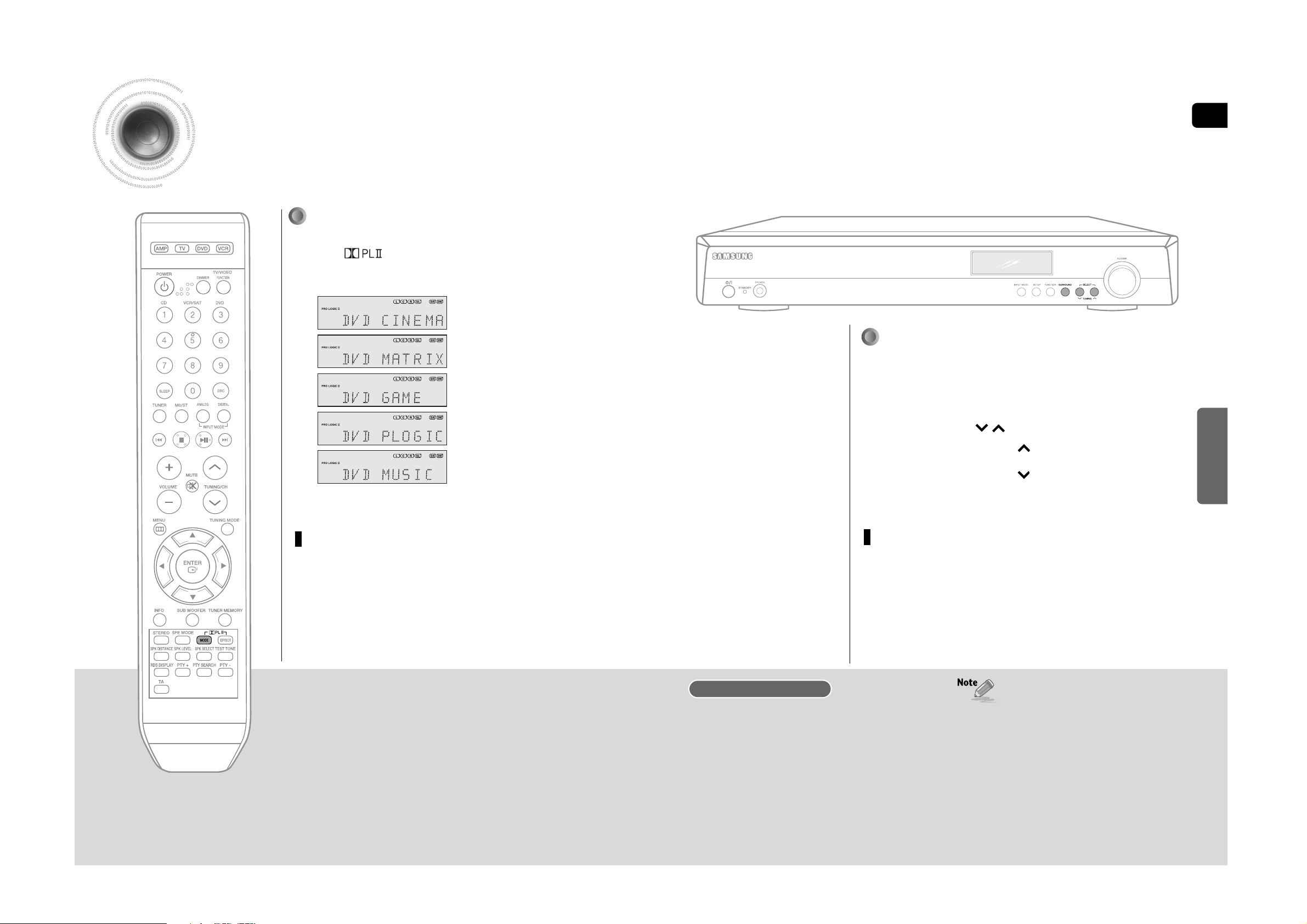

Dolby Pro Logic ll Mode

To Exit Setup Mode
Wait for about 5 seconds.
MAIN UNIT
1
2
,
OPERATION
Dolby Pro Logic ll Mode
This mode provides 5.1 channel sound from 2 channel sources
Press MODE button.
Each time you press this button, CINEMA MATRIX GAME PROLOGIC MUSIC will be selected in turn.
To Exit Setup Mode
Wait for about 5 seconds.
REMOTE CONTROL
You cannot use Dolby Pro Logic ll Mode for multi channel signals such as Dolby Digital and DTS.
Pro Logic works only for PCM audio signals with sampling frequencies of 32KHz,44KHz or 48KHz.
33
GB
32

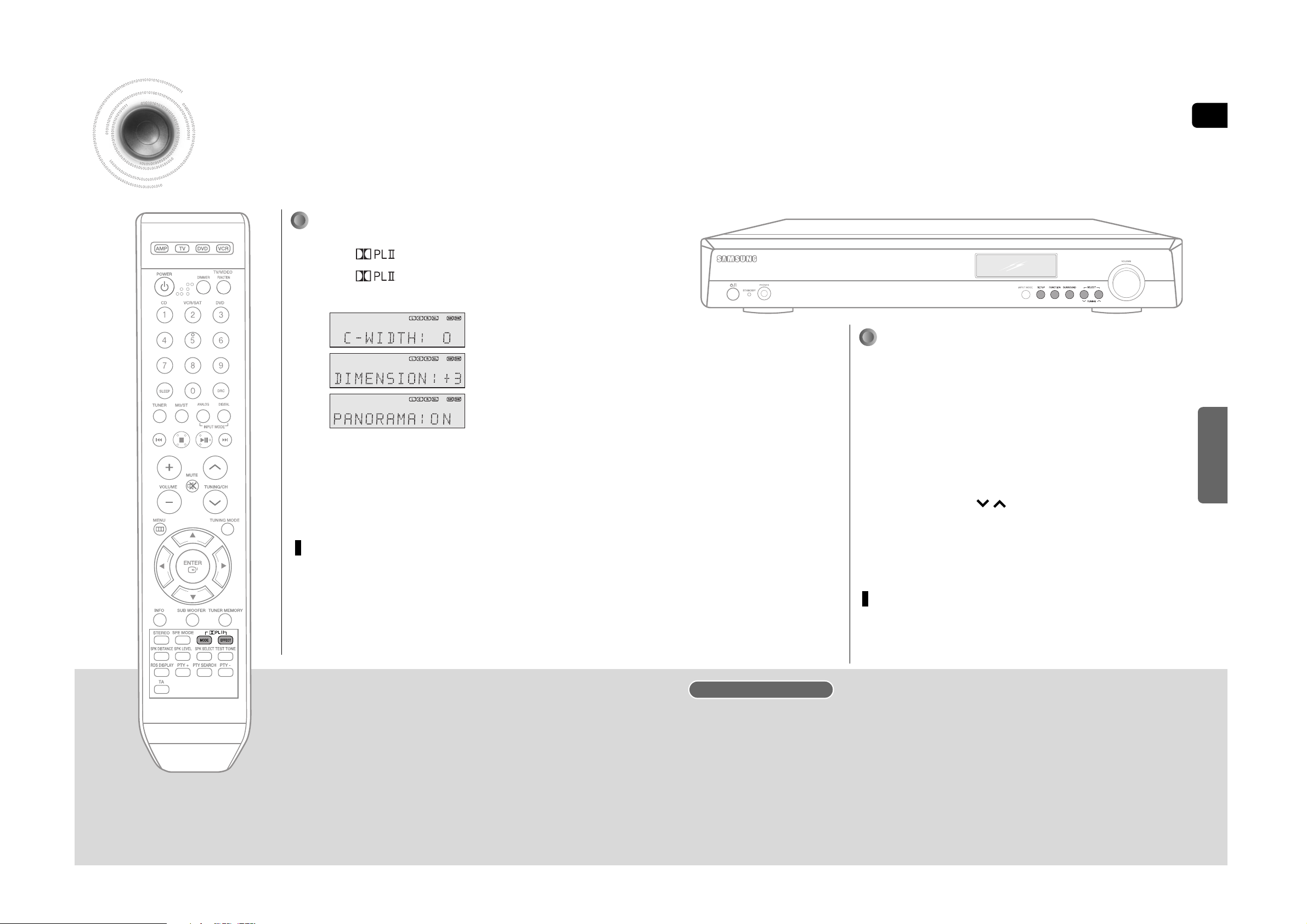

C-WIDTH : This sets the width of the center image. The higher the setting, the less
sound comes from the center speaker.
DIMENSION : Incrementally adjusts the sound field (DSP)from the front or rear.
PANORAMA : This mode extends the front stereo image to include the surround
speakers for an exciting "wraparound" effect with side wall imaging.
To Exit Setup Mode
Wait for about 5 seconds or press SETUP button. “SETUP MODE OFF” appears on the display and exits Setup Mode.
Press SETUP button.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 10 times.
“DPL ll MODE”appears on the display.
Press SURROUND button.
Each time you press this button, C-WIDTH DIMENSION PANORAMA will be selected in turn.
Press SELECT( ) button to select Dolby Pro Logic ll effect you want.

Dolby Pro Logic ll Effect

MAIN UNIT
1
2
4
3
,
OPERATION
Dolby Pro Logic ll Effect
This function works only in Dolby PRO LOGIC II MUSIC Mode.
Press MODE button to select ‘MUSIC’ Mode.
Press EFFECT button.
Each time you press this button, C-WIDTH DIMENSION PANORAMA will be selected in turn.
Press …† button to select Dolby Pro Logic II effect you want.
C-WIDTH: You can set from 0 to 7.
DIMENSION: You can set from -7 to +7.
PANORAMA: You can Set it ON or OFF.
To Exit Setup Mode
Wait for about 5 seconds.
REMOTE CONTROL
1 2
3
35
GB
34
Press SURROUND button to select ‘SFE’ Mode.
Each time you press this button, DPL II SFE STEREO will be selected in turn.
Press SELECT( ) button.
Each time you press Select ( ) button, HALL THEATER ARENA CLUB DOME STADIUM CHURCH will be selected in turn
Each time you press Select ( ) button, CHURCH STADIUM DOME CLUB ARENA THEATER HALL will be selected in turn.
To Exit Setup Mode
Wait for about 5 seconds.
MAIN UNIT
1
2
,
OPERATION

SFE Mode

The SFE (Sound Field Effect) function uses 7 different DSP sound field effects to digitally simulate actual music environments such as concert halls or movie theaters.
Press SFE MODE button.
Each time you press this button, HALL THEATER ARENA CLUB DOME STADIUM CHURCH will be selected in turn.
To Exit Setup Mode
Wait for about 5 seconds.
REMOTE CONTROL
37
GB
36
OPERATION

Stereo Mode

You can select this mode when listening to sound through the Front Left and Right speakers and subwoofer.
When PCM and Analog Stereo signals are input, the left and right channels are played back in Stereo Mode.
Press STEREO button.
“STEREO” appears in the display and Stereo Mode is
selected.
Press SURROUND button to select ‘STEREO’.
Each time you press this button, DPL ll SFE STEREO will be selected in turn.
To Exit Setup Mode
Wait for about 5 seconds.
To Exit Setup Mode
Wait for about 5 seconds.
REMOTE CONTROL MAIN UNIT
For Surround Mode and Input Signal
o = active, – = inactive
L/R : Front Speaker (Left/Right) C : Center Speaker SL/SR : Rear Speaker (Left/Right) SW : Subwoofer
Channel status displays are dependent on the speaker configuration.
SFE Mode works with 2ch signals.
Dolby D Surr. EX Dolby Digital 5.1
OOOO
DIGITAL L, C, R, SL, SR, SW
Dolby D (5.1ch) Dolby Digital 5.1
OOOO
DIGITAL L, C, R, SL, SR, SW
Dolby D (2ch) Pro Logic II
OOOO
DIGITAL L, C, R, SL, SR, SW
Dolby D (2ch Surr) Pro Logic II
OOOO
DIGITAL L, C, R, SL, SR, SW
L.PCM (Audio) Pro Logic II
OOOO
L.PCM L, C, R, SL, SR, SW
Analog Pro Logic II
OOOO
ANALOG L, C, R, SL, SR, SW
DTS-ES DTS 5.1
OOOO
DTS L, C, R, SL, SR, SW
DTS 96/24 DTS 5.1
OOOO
DTS L, C, R, SL, SR, SW
DTS (5.1) DTS 5.1
OOOO
DTS L, C, R, SL, SR, SW
L.PCM (Audio) Neo:6
OOO
-L.
PCM L, R
Dolby D (2ch) DD + SFE
OOOO
DIGITAL L, C, R, SL, SR, SW
Dolby D (2ch Surr) DD + SFE
OOOO
DIGITAL L, C, R, SL, SR, SW
L.PCM (Audio) SFE
OOOO
L.PCM L, C, R, SL, SR, SW
Analog SFE
OOOO
ANALOG L, C, R, SL, SR, SW
Dolby D (2ch) DD
O
---
DIGITAL L, R, SW
Dolby D (2ch Surr) DD
O
---
DIGITAL L, R, SW
L.PCM (Audio) Stereo
O
---
L.PCM L, R, SW
L.PCM 96KHz Stereo
O
---
L.PCM L, R, SW
Analog Stereo
O
---
ANALOG L, R, SW
Surround Mode
Input Signal
Decoding
Output Channel
L/R
C
SL SR
Sub
Woofer
Display Information
Display Signal Format Channel Status
DOLBY (MUSIC, CINEMA, MATRIX,
GAME,
PROLOGIC
)
DTS
STEREO
SFE
39
GB
38

Presetting Radio Stations

You can preset up to 30 FM and AM stations.
Press TUNER button.
Each time you press this button, FM AM will be selected in turn.
Press Select button and then TUNING MODE button to select 89.10.
Refer to step 2, page 38, to tune in automatically and manually.
Press TUNER MEMORY button.
Tuner number will blink on the display.
Press TUNING/CH( ) button to select preset 2.
You can select from presets 1 to 30.
Press TUNER MEMORY button.
Tuner number will disappear and station 89.10 will be saved in preset 2.
To preset other stations, repeat steps 2 to 5.
To Listen to Preset Station
Press TUNING MODE button of the remote control to select the PRESET and press TUNING/CH ( ) button.
Ex) Setting station FM 89.10 in preset 2 .
REMOTE CONTROL
1
2
4
5
6
3
,
,

RADIO OPERATION

Listening to Radio

You can listen to the chosen band (FM, AM) by using either automatic or manual tuning.
Press TUNER button.
Each time you press this button, FM AM will be repetitively selected.
Select frequency.
Automatic Tuning 1 :
1) Press TUNING MODE button to select PRESET.
2) Press TUNING/CH ( ) button to select the preset frequency.
Automatic Tuning 2 :
1) Press TUNING MODE button to select MANUAL
2) Press and hold TUNING/CH ( ) button to automatically tune in frequency.
Manual Tuning :
1) Press TUNING MODE button to select MANUAL.
2) Press TUNING/CH ( ) button briefly to increase or decrease the frequency step by step.
Press FUNCTION button to select FM or AM.
Select the frequency.
Automatic Tuning : Press and hold TUNING( ) button to
automatically tune in frequency.
Manual Tuning : Press TUNING( ) button briefly to increase
or decrease the frequency step by step.
To Listen to Mono/Stereo
Press MO/ST button on the remote.
Each time you press this button, STEREO, MONO will be selected in turn.
If you select MONO in the area with weak reception, it will help to reduce noise.
This function works only with the Remote Control.
REMOTE CONTROL MAIN UNIT
1
2
1
2
,
,,,
,
How to select PRESET and MANUAL on the main unit.
1. Press the SETUP button.
2. Press the FUNCTION button 9 times.
“TUNER SETUP” appears in the display.
3. Press the SURROUND button.
4. SELECT ( ) button to select MANUAL or PRESET.
,
41
GB
40
Using the RDS (Radio Data System) to receive FM stations
What information can RDS signals provide?
RDS allows FM stations to send an additional signal along with their regular program signals. For example,the stations send their station names,as well as information about what type of program they broadcast, such as sports or music,etc.
When tuned to an FM station which provides the RDS service,the RDS indicator lights up on the display.
Description on RDS function
1. PTY (Program Type) : Displays the type of programme currently being broadcast
2. PS NAME (Program Service Name) :
Indicates the name of broadcasting station
and is composed of 8 characters.
3. RT (Radio Text) :
Decodes the text broadcast by a station (if any) and is composed
of maximum 64 characters.
4. CT (Clock Time) :
Decodes the real time clock from the FM frequency.
• Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.
5. TA (Traffic Announcement) :
When this symbol flashes it shows that the traffic
announcement is in progress.
You can see the RDS signals the station sends on the display.
TO show the RDS signals
Press RDS DISPLAY while listening to an FM station.
Each time you press the button, the display change to show you the following information:
PS (Program Service) :While searching,"PS"appears and then the station names will be displayed."NO PS" appears if no signal is sent. RT(Radio Text) : while searching,"RT"appears and then text messages the station sends will be displayed. "NO RT"appears if no signal is sent.
Frequency : station frequency (non-RDS service)
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
The display window cannot differentiate upper case and lower case letters and always uses upper case letters.
The display window cannot show accented letters, “A,” for instance, may stands for accented “A’s” like “À, Â, Ä, Á, Åand Ã.”

About RDS broadcasting

RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.
If searching finishes at once,“PS”,and “RT” will not appear on the display.
PTY (Program Type) indication and PTY-SEARCH function
To search for a program using the PTY codes
Before you start, remember...
The PTY Search is only applicable to preset stations.
To stop searching any time during the process, press PTY SEARCH while searching.
There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.
When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control.
One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes.
Press PTY SEARCH while listening to an FM station.
1
Press the PTY-or PTY+until the PTY code you want appears on the display.
The display gives you the PTY codes described to the right.
2
Press PTY SEARCH again, while the PTY code selected in the previous step is still on the display.
The center unit searches 15 preset FM stations,stops when it finds the one you
have selected, and tunes in that station.
3
Display
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M.O.R.M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATION M
OLDIES
FOLK M
DOCUMENT
Program Type
• News including an announced opinion and report
• Several matters including a current incident, documentary, discussion and analysis.
• Information including weights and measures,
returns and forecast, matters interesting the customer, medical information, etc.
• Sports
• Education
• Drama-Radio serial, etc.
• Culture-National or local culture including the religious problem, social science, language, theater,etc.
• Natural science and technology
• Others-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.
• Pop music
• Rock music
• Current contemporary music considered to be “easy listening.”
• Light classical music- Classical music and instrumental and chorus music
• Heavy classical music-Orchestra music, symphony, chamber music and opera
• Other music - Jazz, R&B country music
• Weather
• Finance
• Children’s programmes
• Social affairs
• Religion
• Phone in
• Travel
• Leisure
• Jazz Music
• Country Music
• National Music
• Oldies Music
• Folk Music
• Documentary
RADIO OPERATION
43
GB
42
Connect the headphone to the headphone jack and listen to music.
Use headphones (not supplied) for private listening pleasure.
Press the MUTE button.
MUTE appears on the display.
Press “0” button five times and then press ENTER button.
Press …† buttons to select “YES”.
The unit will turn off after 5 seconds.
Do not turn the volume up too high when you use headphones as It may damage your hearing.
Reset Function
Using Headphone
REMOTE CONTROL
Press the DIMMER button.
Each time you press this, the brightness of the display will be adjusted.
You can adjust the brightness of the display.
Adjust the Display
REMOTE CONTROL
MISCELLANENOUS
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
1 2 3

Convenient Functions

Press the SLEEP button.
SLEEP : OFF ➝ 15 ➝ 30 ➝ 45 ➝ 60 ➝ 90 ➝ 120MIN will be selected in turn.
You can set the time that this unit will shut itself off.
To Check Sleep Timer
Press SLEEP button.
The remaining time before this unit will shut itself off is shown on the display.
Pressing the button again changes the sleep time from what you set previously.
To Cancel Sleep Timer
Press SLEEP button until SLEEP : OFF appears on the display.
To Output Sound Again
Press MUTE button again.
MUTE will disappear and sound will output.
Press the MUTE button.
MUTE appears on the display.
This function is useful when answering a doorbell or telephone call.
Sleep Timer Function
Mute Function
REMOTE CONTROL
REMOTE CONTROL
SLEEP, Mute and the Adjust Display function can only be operated with the remote control.
Caution
45
GB
44
Code Number Brand Code Number Brand Code Number Brand
ADMIRAL(M.WARDS)
056, 057, 058 A MARK 001, 015 ANAM 001, 002, 003, 004,005,
006, 007, 008, 009, 010,
011, 012, 013, 014 AOC 001, 018, 040, 048 BELL & HOWELL(M.WARDS)
057, 058, 081 BROCSONIC 059, 060 CANDLE 018 CETRONIC 003 CITIZEN 003, 018, 025 CINEMA 097 CLASSIC 003 CONCERTO 018 CONTEC 046 CORONADO 015 CRAIG 003, 005, 061, 082, 083,
084 CROSLEX 062 CROWN 003 CURTIS MATHES 059, 061, 063 CXC 003 DAEWOO 002, 003, 004, 015,016,
017, 018, 019, 020, 021,
022, 023, 024, 025, 026,
027, 028, 029, 030, 032,
034, 035, 036, 040, 048,
059, 090, 099, 100 DAYTRON 040 DYNASTY 003 EMERSON 003, 015, 040, 046, 059,
061, 064, 082, 083, 084,
085 FISHER 019, 065, 103 FUNAI 003 FUTURETECH 003 GENERAL ELECTRIC(GE)
006, 040, 056, 059, 066,
067, 068 HALL MARK 040 HITACHI 015, 018, 050, 059, 069 INKEL 045 JC PENNY 056, 059, 067, 086 JVC 070 KTV 059, 061, 087, 088 KEC 003, 015, 040 KMC 015 LG(GOLDSTAR)
001, 015, 016, 017, 037,
038, 039, 040, 041, 042,
043, 044, 054, 086
LUXMAN 018 LXI(SEARS) 019, 054, 056, 059, 060,
062, 063, 065, 071
MAGNAVOX 015, 017, 018, 048, 054,
059, 060, 062, 072, 089 MARANTZ 040, 054 MATSUI 054 MGA 018, 040 MITSUBISHI/MGA
018, 040, 054, 059, 060,
075, 101 MTC 018 NEC 018, 019, 020, 040, 059,
060 NIKEI 003 ONKING 003 ONWA 003 PANASONIC 006, 007, 008, 009, 054,
066, 067, 073, 074 PENNEY 018 PHILCO 003, 015, 017, 018, 048,
054, 059, 062, 069, 090 PHILIPS 015, 017, 018, 040, 048
054, 062, 072, 112, 114,
117, 118 PIONEER 063, 066, 080, 091 PORTLAND 015, 018, 059 PROTON 040 QUASAR 006, 066, 067 RADIO SHACK 017, 048, 056, 060, 061,
075 RCA/PROSCAN 018, 059, 067, 076, 077
078, 092, 093, 094 REALISTIC 003, 019 SAMPO 040 SAMSUNG 000, 015, 016, 017, 040,
043, 046, 047, 048, 049,
054, 059, 060, 098 SANYO 019, 061, 065, 101, 102,
103, 104 SCOTT 003, 040, 060, 061 SEARS 015, 018, 019 SHARP 015, 057, 064, 101, 105,
106, 115 SIGNATURE 2000 (M.WARDS)
057, 058 SONY 050, 051, 052, 053, 055,
101 SOUNDESIGN 003, 040 SPECTRICON 001 SSS 018
SYLVANIA 018, 040, 048, 054, 059,
060, 062 SYMPHONIC 061, 095, 096 TATUNG 006 TECHWOOD 018 TEKNIKA 003, 015, 018, 025 TMK 018, 040 TOSHIBA 019, 057, 063, 071, 101
107, 109, 110, 111, 113 VIDTECH 018 VIDECH 059, 060, 069 WARDS 015, 017, 018, 040, 048,
054, 060, 064 YAMAHA 018 YORK 040 YUPITERU 003 ZENITH 058, 079 ZONDA 001 DONGYANG 003, 054 LOWE 054 FINLUX 054, 109, 114 YOKO 054 LOEWE OPTA 054, 114 PHONOLA 054, 112, 114 RADIOLA 054, 112 SCHNEIDER 054 AKAI 103 GRUNDIG 108, 109, 113, 119, 120,
121 BLAUPUNKT 108 SIEMENS 108 CGE 113 IMPERIAL 113 MIVAR 113 SABA 114 BANG&OLUFSEN
114 BRIONVEGA 114 FORMENTI 114 METZ 114 WEGA 114 RADIOMARELLI
114 SINGER 114 SINUDYNE 114 TELEFUNKEN 116
TV Brand Code List
MISCELLANENOUS

Operating your TV with the Remote Control

The remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV.
The remote control will work with Samsung TVs by default.
1
Press TV button to set the remote to TV mode.
2
Press POWER button to turn on the TV.
3
Point the remote control toward the TV.
4
While holding down POWER button, enter the code corresponding to your brand of TV.
If the code matches the TV's code, the TV will be turned off.
If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.
You can use the TV POWER, VOLUME, CHANNEL, MENU and Numeric buttons (0~9).
5
If TV is turned on or off when you press the power button of the remote control, the setting is completed.
47
GB
46
Brand Code Number Brand Code Number Brand Code Number
Code Number Brand
ADMIRAL(M.WARDS)
043, 106 AWIA 044, 045, 046 AKAI 088, 089, 090 ANAM 001, 002, 003, 004, 005,
033 AOC 091 AUDIO DYNAMIC
019, 047, 092 BELL & HOWELL(M.WARDS)
048, 093 BROKSONIC 092
,
094, 095
CANON 001
,
033, 049, 091 CAPEHART 011 CITIZEN 050 CRAIG 050
,
072, 096 CRITERION 051 CURTIS MATHES
001, 031, 032, 033, 044, 091
DAEWOO 006
,
007, 008, 009, 010
,
011, 012, 013, 014, 015
,
016, 017, 018, 046, 051
,
091 DAYTRON 011 DBX 019
,
047, 052, 092
EMERSON 025
,
031, 032, 044, 046
,
094, 095, 097, 098, 099 FISHER 009
,
048, 053, 054, 055
,
100 FUNAI 044 GENERAL ELECTRIC(GE)
001, 031, 032, 033, 056
,
091 GO VIDEO 059
,
060, 061
HARMAN KARDON
019 HITACHI 020
,
021, 049, 054, 062
,
100 HQ 051 INSTANT REPLAY
001, 033, 049, 091 JCL 001
,
033 JCP 025 JC PENNY 047
,
048, 052, 062, 091
,
092
JVC 001
,
033, 047, 052, 063
,
064, 065, 092
KENWOOD 047
,
050, 052, 092 LG(GOLDSTAR) 019
,
020, 021, 022, 023
,
024, 025, 026, 027, 028
,
029, 030, 050
LXI(SEARS) 020
,
025, 044, 048, 050
,
053, 054, 055, 062, 100 MAGIN 072 MAGNAVOX 001
,
031, 032, 033, 049
,
066, 067, 091 MARANTZ 001
,
019, 033, 047, 052
,
092, 110 MARTA 025
,
050
MEI 001
,
033
MEMOREX 001
,
025, 033, 054, 091
,
100
MINOLTA 020
,
021, 062
MITSUBISHI/MGA
068, 069, 070, 101, 102 MTC 072 MULTITECH 044
,
057, 069
NEC 019
,
047, 052, 057, 092
OLYMPIC 049
,
091 OPTIMUS 101 ORION 103 PANASONIC 001
,
004, 033, 049, 067
,
091, 107
PENNEY 019
,
020, 072 PENTAX 001
,
020, 021, 033, 062 PHILCO 001
,
033, 046, 049, 091
,
094
PHILIPS 001
,
030, 033, 049, 050
,
066, 091 PILOT 025 PIONEER 049 PORTLAND 011 QUASAR 001
,
033, 049, 067, 091
,
107, 108 RICO 036 RCA/PROSCAN
001, 020, 021, 031, 032
,
033, 049, 051, 062, 066
,
070, 091, 104 REALISTIC 001
,
009, 025, 033
, 044, 048, 054, 091, 101
, 105
SAMSUNG 000, 006, 031, 032, 057
,
058, 071, 072, 073, 074
,
075, 076, 077, 078, 079
,
080, 081
SANYO 008
,
009, 046, 048, 050
,
054, 058, 093, 100
SANSUI 092 SCOTT 006
,
051, 054, 057, 069
,
070, 100, 101
SEARS 020
,
021, 025
SHARP 043
,
105, 106 SINGER 096 SIGNATURE 2000 (M.WARDS)
043, 044, 054, 100, 106 SHINTOM 096 SONY 034
,
035, 036, 037, 038
,
039, 040, 041, 042,082
,
083, 084, 085, 086 STS 020 SYLVANIA 001
,
033, 044, 049, 066
,
091 SYMPHONIC 044 TANDY 009
TASHIRO 050 TATUNG 047
,
052, 092
TEAC 044
,
047, 052, 092
TECHNICS 001
,
033, 049, 091
TEKNIKA 001
,
025, 033
TOSHIBA 006
,
051
TOTEVISION 025
,
072 TAEKWANG 087 UNITECH 072 VECTOR RESEARCH
019
VIDEO CONCEPTS
019 VIDEOSONIC 072 WARDS 001
,
020, 031, 032, 033
,
043, 050, 054, 072, 100
,
105, 106, 109 YAMAHA 019
,
047,048, 052, 092
,
ZENITH 019, 047,048, 052, 092
DENON 003, 032 DOONOON 019 DMTECH 017 FISHER 002 GE 006 HARMAN/KARDON
012 JVC 010
,
013 KENWOOD 008 LG 001 MAGNAVOX 004 MITSUBISHI 005
,
016 ONKYO 004
,
014 OPTIMUS 011 PANASONIC 021 PROSCAN 006 PHILIPS 004
,
023 PIONEER 007
,
011, 022, 025 RCA 006 SAMSUNG 000
,
027 SANYO 002 SONY 015, 020 THETA DIGITAL
011 TOSHIBA 004, 018 YAMAHA 009, 033 ZENITH 004, 024 TAEGWANG 026 PS2 028 X-BOX 029 APEX 030 MARANTZ 031
VCR Brand Code List
DVD Brand Code List
MISCELLANENOUS

Operating your DVD (VCR) with Remote Control

The remote control may not work on some brands of DVD (VCR). Also, some operations may not be possible depending on your brand of DVD (VCR).
The remote control will work with Samsung DVDs (VCRs) by default.
1
Press DVD button to set the remote to DVD mode.
2
Press POWER button to turn on the DVD (VCR).
3
Point the remote control toward the DVD (VCR).
4
While holding down POWER button, enter the code corresponding to your brand of DVD (VCR).
If the code matches the DVD (VCR)'s code, the DVD (VCR) will be turned off.
If there is more than one code listed for your DVD (VCR) in the table, enter one at a time to determine which code works.
If you operate VCR, press VCR button to set the remote to VCR mode.
You can use DVD (VCR) POWER, VOLUME, PLAY, PAUSE, STOP, SKIP, MENU and Numeric button (0~9).
5
If DVD (VCR) is turned on or off when you press the power button of the remote controller, the setting is completed.
49
GB
48
Symptom Check Remedy
Can't select Dolby Pro Logic
ll Mode.
Is the input signal selected properly?
Select 2 channel Dolby Digital, PCM, and
Analog input signal.
There is no sound when playing a DTS encoded DVD.
Is Digital input selected?
Check whether digital external component
is properly connected and refer to page 22 to select the digital input.
MISCELLANENOUS

Before Calling for Service

Symptom
Check Remedy
Can't turn it on.
It does not work when the button is pressed.
Sound is not produced.
Picture does not appear when the function is selected.
Is the power code plugged into the outlet?
Is there static electricity in the air?
Are the speakers and external
components connected properly?
Is the Mute function on?
Is the volume set to minimum?
Is the speaker setup set incorrectly to
NONE?
Is the external component connected
properly?
Connect the power plug to the outlet.
Disconnect the power plug and connect it
again.
Properly connect it.
Properly connect them.
Press Mute button to cancel the function.
Adjust the volume.
Refer to pages 22~23 to select LARGE,
SMALL or YES.
There is no sound from
center speaker
Is the center speaker connected properly?
Is C.SPK (Center) incorrectly set to NONE
in Speaker Setup?
Is the Surround Mode selected to Stereo?
Refer to pages 10~11 to connect it properly.
Refer to pages
20~21
to select LARGE or
SMALL.
Refer to pages 30~37 to select other
Surround Modes.
Remote controller does not work.
There is no sound from
surround speakers.
The sound from each device is changed during stereo playback.
Can't receive radio
broadcasts.
Is AM or FM antenna connected
properly?
Are the batteries drained?
Is the distance between remote
control and main unit proper?
Is the surround speaker connected
properly?
Is S.SPK (Surround) incorrectly set to
NONE in Speaker Setup?
Is Surround Mode selected to Stereo?
Refer to pages 10~11 to connect it properly.
Refer to pages
20~21
to select LARGE or
SMALL.
Refer to pages 30~37 to select other
Surround Mode.
Replace with new batteries.
Operate at close distance.
Properly connect the antenna.
If the input strength of antenna connector
is weak, install the FM antenna in a place with good reception.
Are the left/right speaker or left/right input/output cables connected properly?
Check the left/right channel and properly
connect it.
If PROTECTION appears on the display, check whether the speaker terminal is shorted and then turn on the unit
Product Protection Function
Heat Protection
The Protection function will come on if the main unit or power
transformer overheats. "" will appear in the display .
This function will come on:
- If speaker terminal is shorted
- If speaker cable is shorted If there is no problem when you turn the unit on again after turning it off, “PROTECTION” will disappear from the display and the unit will work properly.
GB
50
MISCELLANEOUS

Specifications

S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering Society) guidelines.
VIDEO
OUTPUT
Power Supply
Standby Power Consumption
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Frequency Response
Usable Sensitivity
S/N Ratio
Distortion
Stereo Separation
Tuner Output Level
Frequency Response
S/N Ratio
Usable Sensitivity
Distortion
Rated Output
Front Speaker(Left+Right)
Center Speaker
Surround Speaker(Left+Right)
Subwoofer Speaker
Input Sensitivity/Impedance
S/N Ratio(Analog Input)
Separation(1KHz)
Analog Input
Digital Input
TV Format
Input Level/Impedance
Output Level/Impedance
Video Frequency Response
Component Video Frequency Response
S/N Ratio
GENERAL
FM TUNER
AM TUNER
AMPLIFIER
FREQUENCY
RESPONSE
230V, 50 Hz
0.9W
95W
4.2 kg
430 x 66 x 348 mm
+5°C~+35°C
10%~75%
87.5~108.0MHz
12dBf
MONO/STEREO 55/55dB
MONO/STEREO 0.3/0.8%
30dB
1KHz, 75KHz Dev
522~1611KHz
40dB
60dBµV/m(Loop Antenna)
2% (MOD:80%)
20Hz~20KHz/THD = 10%
4 100W/CH
4 100W/CH
4 100W/CH
4 100W/CH
450mV/47k
80dB
60dB
20Hz~20KHz(±3dB)
20Hz ~44KHz(±3dB)
NTSC/PAL
1Vp-p/75
1Vp-p/75
5Hz to 10KHz(-3dB)
5Hz to 40KHz(-3dB)
60dB
S P E A K E R S
Subwoofer speaker
4
100W
200W
175 x 320 x 390 mm
5 .2 Kg
Front / Surround
4x 4
100W
200W
90 x 152 x 90 mm
0.5 Kg/0.4 Kg
Center
4
100W
200W
200 x 90 x 92 mm
0.6 Kg
Speaker system
Impedance
Rated output
Maximum output
Dimensions (W x H x D)
Weight
51
52

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Loading...
