Samsung AV17 Parts List

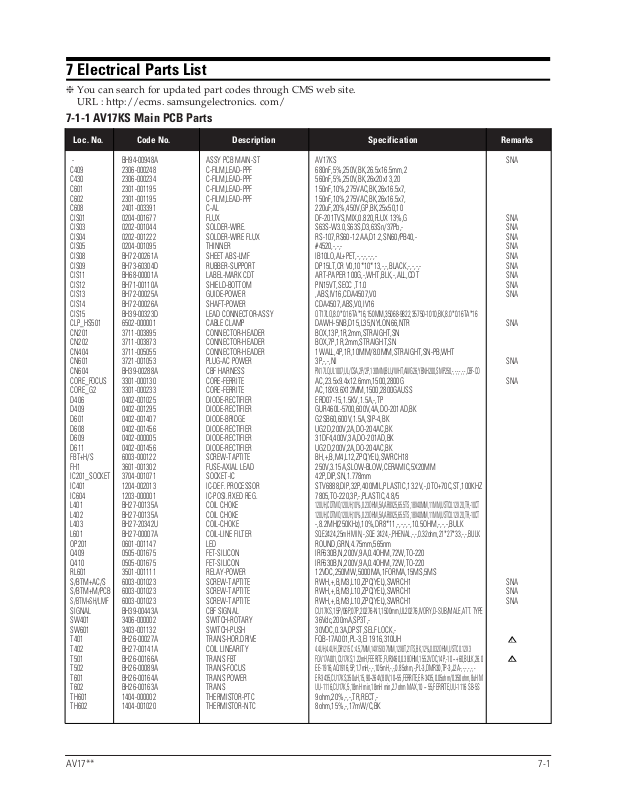

7 Electrical Parts List
You can search for updated part codes through CMS web site. URL : http://ecms. samsungelectronics. com/
7-1-1 AV17KS Main PCB Parts
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
- |
BH94-00948A |
ASSY PCB MAIN-ST |
AV17KS |
SNA |
C409 |
2306-000248 |
C-FILM,LEAD-PPF |
680nF,5%,250V,BK,26.5x16.5mm,2 |
|
C430 |
2306-000234 |
C-FILM,LEAD-PPF |
560nF,5%,250V,BK,26x20x13,20 |
|
C601 |
2301-001195 |
C-FILM,LEAD-PPF |
150nF,10%,275VAC,BK,26x16.5x7, |
|
C602 |
2301-001195 |
C-FILM,LEAD-PPF |
150nF,10%,275VAC,BK,26x16.5x7, |
|
C608 |
2401-003391 |
C-AL |
220uF,20%,450V,GP,BK,25x50,10 |
|
CIS01 |
0204-001677 |
FLUX |
DF-201TVS,MIX,0.820,FLUX 13%,G |
SNA |
CIS03 |
0202-001044 |
SOLDER-WIRE. |
S63S-W3.0,S63S,D3,63Sn/37Pb,- |
SNA |
CIS04 |
0202-001222 |
SOLDER-WIRE FLUX |
RS-107,RS60-1.2AA,D1.2,SN60/PB40,- |
SNA |
CIS05 |
0204-001095 |
THINNER |
#4520,-,-,- |
SNA |
CIS08 |
BH72-00261A |
SHEET ABS-LMF |
IB10LO,AL+PET,-,-,-,-,-,- |
SNA |
CIS09 |
BH73-60304D |
RUBBER-SUPPORT |
DP15LT,CR V0,10*10*13,-,-,BLACK,-,-,-,- |
SNA |
CIS11 |
BH68-00001A |
LABEL-MARK CDT |
ART-PAPER 100G,-,WHT,BLK,-,ALL,CDT |
SNA |
CIS12 |
BH71-00110A |
SHIELD-BOTTOM |
PN15VT,SECC ,T1.0 |
SNA |
CIS13 |
BH72-00025A |
GUIDE-POWER |
,ABS,IV16,CDA4507,V0 |
SNA |
CIS14 |
BH72-00026A |
SHAFT-POWER |
CDA4507,ABS,V0,IV16 |
|
CIS15 |
BH39-00323D |
LEAD CONNECTOR-ASSY |
OT17LO,8.0*0.16TA*16,150MM,35068-9822,35750-1010,BK,8.0*0.16TA*16 |
|
CLP_HS501 |
6502-000001 |
CABLE CLAMP |
DAWH-5NB,D15,L35,NYLON66,NTR |
SNA |
CN201 |
3711-003895 |
CONNECTOR-HEADER |
BOX,13P,1R,2mm,STRAIGHT,SN |
|
CN202 |
3711-003873 |
CONNECTOR-HEADER |
BOX,7P,1R,2mm,STRAIGHT,SN |
|
CN404 |
3711-005055 |
CONNECTOR-HEADER |
1WALL,4P,1R,10MM/8.0MM,STRAIGHT,SN-PB,WHT |
|
CN601 |
3721-001053 |
PLUG-AC POWER |
3P,-,-,NI |
SNA |
CN604 |
BH39-00288A |
CBF HARNESS |
PN17LO,UL1007,UL/CSA,2P/2P,130MM,BLU/WHT,AWG26,YBNH200,SMP250,-,-,-,-,-,-,CBF-CO |
|
CORE_FOCUS |
3301-000130 |
CORE-FERRITE |
AC,23.5x9.4x12.6mm,1500,2800G |
SNA |
CORE_G2 |
3301-000233 |
CORE-FERRITE |
AC,18X9.6X12MM,1500,2800GAUSS |
|
D406 |
0402-001025 |
DIODE-RECTIFIER |
ERD07-15,1.5KV,1.5A,-,TP |
|
D409 |
0402-001295 |
DIODE-RECTIFIER |
GUR460L-5700,600V,4A,DO-201AD,BK |
|
D601 |
0402-001407 |
DIODE-BRIDGE |
G2SB60,600V,1.5A,SIP-4,BK |
|
D608 |
0402-001456 |
DIODE-RECTIFIER |
UG2D,200V,2A,DO-204AC,BK |
|
D609 |
0402-000005 |
DIODE-RECTIFIER |
31DF4,400V,3A,DO-201AD,BK |
|
D611 |
0402-001456 |
DIODE-RECTIFIER |
UG2D,200V,2A,DO-204AC,BK |
|
FBT+H/S |
6003-000122 |
SCREW-TAPTITE |
BH,+,B,M4,L12,ZPC(YEL),SWRCH18 |
|
FH1 |
3601-001302 |
FUSE-AXIAL LEAD |
250V,3.15A,SLOW-BLOW,CERAMIC,5X20MM |
|
IC201_SOCKET |
3704-001071 |
SOCKET-IC |
42P,DIP,SN,1.778mm |
|
IC401 |
1204-002013 |
IC-DEF. PROCESSOR |
STV6888,DIP,32P,400MIL,PLASTIC,13.2V,-,0TO+70C,ST,100KHZ |
|
IC604 |
1203-000001 |
IC-POSI.FIXED REG. |
7805,TO-220,3P,-,PLASTIC,4.8/5 |
|
L401 |
BH27-00135A |
COIL CHOKE |
120UH,CDTMO,120UH,10%,0.23OHM,5A,AR8X25,65.5TS,18X40MM,11MM,USTC0.12X20,TR,-10CT |
|
L402 |
BH27-00135A |
COIL CHOKE |
120UH,CDTMO,120UH,10%,0.23OHM,5A,AR8X25,65.5TS,18X40MM,11MM,USTC0.12X20,TR,-10CT |
|
L403 |
BH27-20342U |
COIL-CHOKE |
-,8.2MH(250KHz),10%,DR8*11,-,-,-,-,10.5OHM,-,-,-,BULK |
|
L601 |
BH27-00007A |
COIL-LINE FILTER |
SQE2424,25mH MIN,-,SQE 2424,-,PHENAL,-,-,0.32ohm,21*27*33,-,-,BULK |
|
OP201 |
0601-001147 |
LED |
ROUND,GRN,4.75mm,565nm |
|
Q409 |
0505-001675 |
FET-SILICON |
IRF630B,N,200V,9A,0.4OHM,72W,TO-220 |
|
Q410 |
0505-001675 |
FET-SILICON |
IRF630B,N,200V,9A,0.4OHM,72W,TO-220 |
|
RL601 |
3501-001111 |
RELAY-POWER |
12VDC,250MW,5000MA,1FORMA,15MS,5MS |
|
S/BTM+AC/S |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
S/BTM+M/PCB |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
S/BTM+SH/LMF |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
SIGNAL |
BH39-00443A |
CBF SIGNAL |
CU17KS,15P/06P,07P,20276-N1,1500mm,UL20276,IVORY,D-SUB/MALE,ATT. TYPE |
|
SW401 |
3406-000002 |
SWITCH-ROTARY |
36Vdc,200mA,SP3T,- |
|
SW601 |
3403-001132 |
SWITCH-PUSH |
30VDC,0.3A,DPST,SELF LOCK,- |
|
T401 |
BH26-00027A |
TRANS-HOR.DRIVE |
FQB-17A001,PL-3,EI 1916,310UH |
! |
T402 |
BH27-00141A |
COIL LINEARITY |
4.4UH,4.4UH,DR1215 C:4.5,7MM,14X15X37MM,12X8T,21TS,BK,12%,0.032OHM,USTC 0.12X3 |
|
T501 |
BH26-00166A |
TRANS FBT |
FQV17A001,CU17KS,1.22mH,FEERITE,FUR3460,0.38OHM,155.2VDC,14P,-10 ~ +60,BULK,26.0 |
! |
T502 |
BH26-00089A |
TRANS-FOCUS |
EE-1916,AQ1916,5P,1.7mH,-,-,105mH,-,-,0.85ohm,-,PL-3,DMR30,TP-3,J2A-,-,-,-,-,- |
|
T601 |
BH26-00164A |
TRANS POWER |
ER-3435,CU17KS,350uH,15,90~264V,80V,10~55,FERRITE,ER-3435,0.05ohm/0.350ohm,8uH M |
|
T602 |
BH26-00163A |
TRANS |
UU-1116,CU17K,5,18mH min,18mH min,2.7ohm MAX,10 ~ 55,FERRITE,UU-1116 SB-5S |
|
TH601 |
1404-000002 |
THERMISTOR-PTC |
9ohm,20%,-,-,TR,RECT,- |
|
TH602 |
1404-001020 |
THERMISTOR-NTC |
8ohm,15%,-,17mW/C,BK |
|
|
|
|
|
|
AV17** |
7-1 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
MICOM |
BH97-00414U |
ASSY MICOM |
AV17K*/AV17L* |
|
IC201 |
0903-001194 |
IC-MICROCONTROLLER |
3P863,8Bit,SDIP,42P,600MIL,12MHz,ST,CMOS,PLASTIC,5V,-,-40to+85C,1040BYTE,48KBYTE |
SNA |
CIS |
BH82-00020A |
A/S MICOM |
AV17K*/AV17L* |
|
- |
BH97-00483A |
ASSY AUTO-(MAIN),ST |
AV17KS |
SNA |
AV17K |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
BD201 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD202 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD301 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD302 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD401 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD402 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD403 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD404 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD410 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD601 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD602 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD603 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD605 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
C201 |
2401-000010 |
C-AL |
220uF,20%,16V,GP,-,6.3x11mm,2. |
|
C202 |
2201-000389 |
C-CERAMIC,DISC |
0.022NF,5%,50V,C0G,TP,5X3MM,5 |
|
C203 |
2201-000389 |
C-CERAMIC,DISC |
0.022NF,5%,50V,C0G,TP,5X3MM,5 |
|
C204 |
2301-000148 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,7x3.2x7mm,5mm |
|
C205 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C206 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C207 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C209 |
2401-002075 |
C-AL |
4.7uF,20%,50V,GP,TP,5x11,5 |
|
C210 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C211 |
2201-000146 |
C-CERAMIC,DISC |
0.1NF,5%,50V,SL,TP,5X3.5MM,5 |
|
C212 |
2201-000017 |
C-CERAMIC,DISC |
1NF,10%,50V,Y5P,TP,5X3.5MM,5 |
|
C213 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
C214 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C215 |
2201-000146 |
C-CERAMIC,DISC |
0.1NF,5%,50V,SL,TP,5X3.5MM,5 |
|
C216 |
2401-002075 |
C-AL |
4.7uF,20%,50V,GP,TP,5x11,5 |
|
C301 |
2301-001049 |
C-FILM,LEAD-PEF |
150nF,5%,100V,TP,10.5x5x14.5,5 |
|
C302 |
2305-000412 |
C-FILM,LEAD-PEF |
470nF,5%,63V,TP,-,5mm |
|
C303 |
2401-000031 |
C-AL |
47uF,20%,16V,GP,TP,5x11,5 |
|
C305 |
2401-002463 |
C-AL |
470uF,20%,16V,GP,TP,8x11.5,5 |
|
C306 |
2401-002274 |
C-AL |
220uF,20%,35V,WT,TP,10x12.5,5 |
|
C307 |
2305-000237 |
C-FILM,LEAD-PEF |
1uF,5%,63V,TP,7.5x15.5mm,5mm |
|
C308 |
2301-000312 |
C-FILM,LEAD-PEF |
8.2nF,5%,100V,TP,6x12.5mm,5mm |
|
C309 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C312 |
2401-000050 |
C-AL |
10uF,20%,16V,GP,TP,5x11,2.5 |
|
C313 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C340 |
2202-002008 |
C-CERAMIC,MLC-AXIAL |
10nF,+80-20%,50V,Y5V,TP,2.3X3. |
|
C401 |
2401-000031 |
C-AL |
47uF,20%,16V,GP,TP,5x11,5 |
|
C402 |
2305-000665 |
C-FILM,LEAD-PEF |
100nF,5%,63V,TP,7.5x4.0x5.0mm, |
|
C403 |
2202-000573 |
C-CERAMIC,MLC-RADIAL |
0.82NF,5%,50V,C0G,TP,5.1X3.2X5.1MM,5 |
|
C404 |
2301-000148 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,7x3.2x7mm,5mm |
|
C405 |
2201-000471 |
C-CERAMIC,DISC |
0.33NF,10%,50V,Y5P,TP,4X3.5MM,5 |
|
C406 |
2301-000110 |
C-FILM,LEAD-PEF |
1.8nF,5%,100V,TP,7x3.0x6.5mm,5 |
|
C407 |
2401-003826 |
C-AL |
220UF,20%,63V,LR,TP,10X25MM,5 |
|
C408 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C410 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C411 |
2301-000005 |
C-FILM,LEAD-PEF |
33nF,5%,100V,TP,5.8x12.5x3,5 |
|
C412 |
2301-000016 |
C-FILM,LEAD-PEF |
22nF,5%,100V,TP,7.2x4.5x9.0mm, |
|
C413 |
2401-001012 |
C-AL |
3.3UF,20%,50V,BP,TP,16X25,7.5 |
|
C414 |
2401-001334 |
C-AL |
0.47UF,20%,50V,GP,TP,5X11,2.5 |
|
C415 |
2401-001222 |
C-AL |
4.7UF,20%,160V,WT,TP,8X11.5MM,5 |
|
C416 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
C419 |
2309-000106 |
C-FILM,LEAD-OTHER |
2.2nF,5%,1.6KV,TP,23x16x9,7.5m |
! |
C420 |
2309-000106 |
C-FILM,LEAD-OTHER |
2.2nF,5%,1.6KV,TP,23x16x9,7.5m |
! |
C421 |
2303-001029 |
C-FILM,LEAD-PPF |
5.2nF,5%,630V,TP,19x7x13,7.5 |
|
C423 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
|
|
|
|
|
7-2 |
AV17** |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
C425 |
2306-000119 |
C-FILM,LEAD-PPF |
100nF,5%,250V,TP,19x14.5x6.5,7 |
|
C426 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C427 |
2306-000137 |
C-FILM,LEAD-PPF |
180nF,5%,250V,TP,19x16.5x8,7.5 |
|
C429 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C431 |
2306-000164 |
C-FILM,LEAD-PPF |
220nF,5%,250V,TP,19x22x10,7.5m |
|
C432 |
2305-001033 |
C-FILM,LEAD-PEF |
15nF,10%,250V,TP,13X9.0X4.5mm, |
|
C433 |
2305-001003 |
C-FILM,LEAD-PEF |
10nF,5%,250V,TP,13x4.5x9mm,7.5 |
|
C436 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C440 |
2401-001914 |
C-AL |
1uF,20%,50V,BP,TP,5x11,5 |
|
C461 |
2401-002075 |
C-AL |
4.7uF,20%,50V,GP,TP,5x11,5 |
|
C462 |
2301-000148 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,7x3.2x7mm,5mm |
|
C463 |
2401-000597 |
C-AL |
1uF,20%,50V,GP,TP,4x7mm,1.5mm |
|
C501 |
2301-000016 |
C-FILM,LEAD-PEF |
22nF,5%,100V,TP,7.2x4.5x9.0mm, |
|
C503 |
2201-000119 |
C-CERAMIC,DISC |
100NF,+80-20%,50V,Y5V,TP,8X3MM,5 |
|
C504 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C505 |
2401-000758 |
C-AL |
0.22UF,20%,50V,GP,TP,5X11,5 |
! |
C508 |
2401-002267 |
C-AL |
2.2uF,20%,250V,GP,TP,8x11.5,5 |
|
C509 |
2401-002267 |
C-AL |
2.2uF,20%,250V,GP,TP,8x11.5,5 |
|
C510 |
2301-000294 |
C-FILM,LEAD-PEF |
56nF,5%,100V,TP,9.5x12.5mm,5mm |
|
C513 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C520 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C541 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C551 |
2401-000050 |
C-AL |
10uF,20%,16V,GP,TP,5x11,2.5 |
|
C552 |
2201-000132 |
C-CERAMIC,DISC |
0.1NF,10%,500V,Y5P,TP,6.5X3MM,5 |
|
C553 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C603 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C604 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C607 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C609 |
2401-000970 |
C-AL |
22uF,20%,50V,WT,TP,5x11,5 |
|
C610 |
2401-003046 |
C-AL |
47uF,20%,50V,WT,TP,6.3x11,2.5 |
|
C611 |
2401-000611 |
C-AL |
1uF,20%,50V,WT,TP,5x11,5 |
|
C612 |
2305-000149 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,12x12.5x6.5,5 |
|
C613 |
2201-000012 |
C-CERAMIC,DISC |
0.22NF,10%,1KV,Y5P,TP,6.3X5MM,5 |
|
C614 |
2201-000019 |
C-CERAMIC,DISC |
10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 |
|
C615 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C616 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C617 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C618 |
2401-000039 |
C-AL |
1000uF,20%,16V,GP,TP,10x16,5 |
|
C619 |
2201-000469 |
C-CERAMIC,DISC |
0.33NF,10%,500V,Y5P,TP,5.5X3MM,5 |
|
C620 |
2401-003826 |
C-AL |
220UF,20%,63V,LR,TP,10X25MM,5 |
|
C621 |
2401-001576 |
C-AL |
47uF,20%,50V,GP,TP,8x11.5,5 |
|
C622 |
2401-000039 |
C-AL |
1000uF,20%,16V,GP,TP,10x16,5 |
|
C623 |
2401-000039 |
C-AL |
1000uF,20%,16V,GP,TP,10x16,5 |
|
C624 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C625 |
2301-000356 |
C-FILM,LEAD-PEF |
47nF,5%,50V,TP,7.5x4.0x6.5,5mm |
|
C626 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C627 |
2401-000292 |
C-AL |
100uF,20%,16V,WT,TP,8x11.5mm,5 |
|
C630 |
2401-002463 |
C-AL |
470uF,20%,16V,GP,TP,8x11.5,5 |
|
C631 |
2401-000292 |
C-AL |
100uF,20%,16V,WT,TP,8x11.5mm,5 |
|
C633 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C634 |
2401-000480 |
C-AL |
10uF,20%,50V,GP,TP,5x11,5 |
|
C635 |
2401-000015 |
C-AL |
33uF,20%,50V,WT,-,6.3x11mm,2.5 |
|
C636 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C639 |
2305-000178 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,-,5mm |
|
C643 |
2202-000263 |
C-CERAMIC,MLC-AXIAL |
470pF,10%,50V,Y5P,TP,3.5x19,- |
|
C649 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CIS06 |
0203-001199 |
TAPE-KRAFT |
#53110,T0.1,W6,L2000M,BRN |
SNA |
CIS07 |
0203-001200 |
TAPE-PAPER |
#53128,T0.15,W5.5,L2000M,BEIGE |
SNA |
CN304 |
3711-000197 |
CONNECTOR-HEADER |
1WALL,3P,1R,2.5mm,STRAIGHT,SN |
|
CN603 |
3711-000217 |
CONNECTOR-HEADER |
1WALL,2P,1R,7.92MM,STRAIGHT,SN,NTR |
|
D201 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D301 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D302 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D303 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
|
|
|
|
|
AV17** |
7-3 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
D304 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D401 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D402 |
0402-000006 |
DIODE-RECTIFIER |
1N4007GP,1000V,1A,DO-41,TP |
|
D403 |
0402-000006 |
DIODE-RECTIFIER |
1N4007GP,1000V,1A,DO-41,TP |
|
D404 |
0402-000006 |
DIODE-RECTIFIER |
1N4007GP,1000V,1A,DO-41,TP |
|
D405 |
0402-000208 |
DIODE-RECTIFIER |
EK-04,40V,1A,DO-41,TP |
|
D407 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D410 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D411 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D412 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D413 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D414 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D415 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D416 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D417 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D419 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D420 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D421 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
D501 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
D503 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D504 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D505 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D506 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D508 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D509 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D510 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D511 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D520 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D602 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D604 |
0402-000012 |
DIODE-RECTIFIER |
UF4007,1KV,1A,DO-41,TP |
|
D605 |
0402-000012 |
DIODE-RECTIFIER |
UF4007,1KV,1A,DO-41,TP |
|
D606 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D607 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D610 |
0402-000012 |
DIODE-RECTIFIER |
UF4007,1KV,1A,DO-41,TP |
|
D612 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D613 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
D614 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D626 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D628 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D629 |
0402-000208 |
DIODE-RECTIFIER |
EK-04,40V,1A,DO-41,TP |
|
D630 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
EY301 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY302 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY401 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY444 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY445 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY501 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY502 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY503 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY504 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY505 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY506 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY507 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY508 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY509 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY510 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY601 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY602 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY603 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY604 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY605 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY606 |
6042-000001 |
EYELET |
ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H |
SNA |
EY607 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY608 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
|
|
|
|
|
7-4 |
AV17** |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
EY609 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY610 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
GT603 |
BH71-40300A |
PIN-HINGE |
BRASS,D2.36!,HEAT/SINK,SN |
SNA |
GT604 |
BH71-40300A |
PIN-HINGE |
BRASS,D2.36!,HEAT/SINK,SN |
SNA |
IC202 |
1103-001149 |
IC-EEPROM |
524C80D41,4KBit,DIP,8P,300MIL,10mS,5V,10%,PLASTIC,-25to+70C,10uA,CMOS,ST |
|
JP_DHHS |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP1 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP10 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP11 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP12 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP13 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP14 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP15 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP16 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP17 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP18 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP19 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP2 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP20 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP21 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP22 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP23 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP24 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP25 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP26 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP27 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP28 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP29 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP3 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP30 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP31 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP32 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP33 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP35 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP37 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP38 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP39 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP4 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP40 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP41 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP42 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP43 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP44 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP45 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP46 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP47 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP48 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP49 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP5 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP50 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP51 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP52 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP53 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP55 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP56 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP57 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP58 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP59 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP6 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP60 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP62 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP64 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP65 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP66 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
|
|
|
|
|
AV17** |
7-5 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
JP67 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP68 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP69 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP7 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP71 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP72 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP73 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP74 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP75 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP76 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP77 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP78 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP8 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP80 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP81 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP9 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
MP1.0 |
BH41-00266A |
PCB MAIN |
CT17KS,FR-1,1,1.0,1.6T,247*247,CT17K,MAIN |
SNA |
Q301 |
0501-000122 |
TR-SMALL SIGNAL |
2N3904,NPN,625mW,TO-92,TP,100-300 |
|
Q302 |
0501-000581 |
TR-SMALL SIGNAL |
2N3906,PNP,625mW,TO-92,TP,100-300 |
|
Q303 |
0501-000586 |
TR-SMALL SIGNAL |
KSC945,NPN,250mW,TO-92,TP,120-240 |
|
Q401 |
0501-000586 |
TR-SMALL SIGNAL |
KSC945,NPN,250mW,TO-92,TP,120-240 |
|
Q403 |
0501-000372 |
TR-SMALL SIGNAL |
KSC2383-Y,NPN,900000mW,TO-92L,TP,160-320 |
|
Q405 |
0501-000303 |
TR-SMALL SIGNAL |
KSA733,PNP,250mW,TO-92,TP,120-240 |
|
Q406 |
0501-000303 |
TR-SMALL SIGNAL |
KSA733,PNP,250mW,TO-92,TP,120-240 |
|
Q407 |
0501-000140 |
TR-SMALL SIGNAL |
2N5551,NPN,625mW,TO-92,TP,80-250 |
|
Q414 |
0501-000412 |
TR-SMALL SIGNAL |
KSP42,NPN,625mW,TO-92,-,40 |
|
Q415 |
0501-000412 |
TR-SMALL SIGNAL |
KSP42,NPN,625mW,TO-92,-,40 |
|
Q416 |
0501-000412 |
TR-SMALL SIGNAL |
KSP42,NPN,625mW,TO-92,-,40 |
|
Q420 |
0501-000303 |
TR-SMALL SIGNAL |
KSA733,PNP,250mW,TO-92,TP,120-240 |
|
Q502 |
0501-000143 |
TR-SMALL SIGNAL |
2N6520,PNP,625mW,TO-92,TP,30-200 |
|
Q551 |
0501-000413 |
TR-SMALL SIGNAL |
KSP44,NPN,625mW,TO-92,TP,50-200 |
|
Q601 |
0501-000010 |
TR-SMALL SIGNAL |
KSC1008,NPN,800mW,TO-92,TP,120-240 |
|
Q602 |
0501-000586 |
TR-SMALL SIGNAL |
KSC945,NPN,250mW,TO-92,TP,120-240 |
|
Q603 |
0501-000122 |
TR-SMALL SIGNAL |
2N3904,NPN,625mW,TO-92,TP,100-300 |
|
Q604 |
0501-000404 |
TR-SMALL SIGNAL |
KSD1616-Y,NPN,750mW,TO-92,TP,135-270 |
|
Q609 |
0501-002228 |
TR-SMALL SIGNAL |
KTA1281,PNP,1000mW,TO-92L,TP,120-240 |
|
Q610 |
0501-000586 |
TR-SMALL SIGNAL |
KSC945,NPN,250mW,TO-92,TP,120-240 |
|
Q611 |
0501-000122 |
TR-SMALL SIGNAL |
2N3904,NPN,625mW,TO-92,TP,100-300 |
|
Q613 |
0501-002228 |
TR-SMALL SIGNAL |
KTA1281,PNP,1000mW,TO-92L,TP,120-240 |
|
Q614 |
0501-000586 |
TR-SMALL SIGNAL |
KSC945,NPN,250mW,TO-92,TP,120-240 |
|
R200 |
2001-000869 |
R-CARBON |
56OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R201 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R202 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R203 |
2001-000008 |
R-CARBON |
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R204 |
2001-000008 |
R-CARBON |
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R205 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R206 |
2001-000435 |
R-CARBON |
1MOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R207 |
2001-000869 |
R-CARBON |
56OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R208 |
2001-000869 |
R-CARBON |
56OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R209 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R212 |
2001-000241 |
R-CARBON |
1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R213 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R214 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R215 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R216 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R217 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R218 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R220 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R221 |
2001-000734 |
R-CARBON |
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R222 |
2001-000734 |
R-CARBON |
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R223 |
2001-000554 |
R-CARBON |
270OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R224 |
2001-000869 |
R-CARBON |
56OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R225 |
2001-000869 |
R-CARBON |
56OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R228 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
|
|
|
|
|
7-6 |
AV17** |
Loc. No. |
Code No. |
Description |
Specification |
R229 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R230 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R231 |
2001-000515 |
R-CARBON |
220OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R235 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R236 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R301 |
2001-000734 |
R-CARBON |
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R302 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R304 |
2004-000344 |
R-METAL |
15Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R306 |
2004-000899 |
R-METAL |
4.7Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R307 |
2001-000016 |
R-CARBON(S) |
1OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R308 |
2001-001126 |
R-CARBON(S) |
300OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R309 |
2004-004088 |
R-METAL(S) |
1ohm,1%,1/2W,AA,TP,2.5x6.5mm |
R310 |
2004-001005 |
R-METAL |
5.1Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R311 |
2004-000947 |
R-METAL |
43Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R312 |
2001-000258 |
R-CARBON |
1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R315 |
2004-004087 |
R-METAL(S) |
1.5ohm,1%,1/2W,AA,TP,2.5x6.5mm |
R316 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R317 |
2001-000786 |
R-CARBON |
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R320 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R321 |
2001-000302 |
R-CARBON |
10OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R322 |
2001-000878 |
R-CARBON |
6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R323 |
2001-001079 |
R-CARBON(S) |
15OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R324 |
2001-000273 |
R-CARBON |
100KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R325 |
2001-001079 |
R-CARBON(S) |
15OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R326 |
2001-000042 |
R-CARBON |
1KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
R327 |
2001-000273 |
R-CARBON |
100KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R328 |
2001-000660 |
R-CARBON |
33KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R340 |
2001-000908 |
R-CARBON |
62KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R401 |
2004-000193 |
R-METAL |
100Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R404 |
2004-001254 |
R-METAL |
8.2Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R405 |
2001-000449 |
R-CARBON |
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R406 |
2001-000522 |
R-CARBON |
22KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R407 |
2001-001099 |
R-CARBON(S) |
2.7KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R408 |
2003-000145 |
R-METAL OXIDE |
100ohm,5%,1W,AA,TP,4.3x12mm |
R411 |
2001-000333 |
R-CARBON |
12OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R412 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R413 |
2003-000407 |
R-METAL OXIDE(S) |
0.6ohm,5%,2W,AA,TP,4x12mm |
R414 |
2001-000723 |
R-CARBON |
4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R415 |
2003-000701 |
R-METAL OXIDE(S) |
470ohm,5%,2W,AA,TP,4x12mm |
R416 |
2001-000107 |
R-CARBON(S) |
150KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R417 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R418 |
2001-000221 |
R-CARBON |
1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R419 |
2001-000531 |
R-CARBON |
240KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R420 |
2004-000327 |
R-METAL |
150Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R423 |
2004-000176 |
R-METAL |
1.8Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R424 |
2004-000216 |
R-METAL |
10Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R425 |
2001-001088 |
R-CARBON(S) |
1KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R426 |
2001-000110 |
R-CARBON |
10OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R427 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R428 |
2003-000703 |
R-METAL OXIDE(S) |
470ohm,5%,3W,AA,TP,6x16mm |
R429 |
2001-000319 |
R-CARBON |
120KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R430 |
2001-001078 |
R-CARBON(S) |
15KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R431 |
2003-000407 |
R-METAL OXIDE(S) |
0.6ohm,5%,2W,AA,TP,4x12mm |
R432 |
2001-000020 |
R-CARBON(S) |
22OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R434 |
2001-000449 |
R-CARBON |
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R435 |
2001-000786 |
R-CARBON |
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R436 |
2001-000449 |
R-CARBON |
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R437 |
2001-000786 |
R-CARBON |
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R438 |
2001-000449 |
R-CARBON |
2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R439 |
2001-000786 |
R-CARBON |
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R443 |
2003-000525 |
R-METAL OXIDE(S) |
180ohm,5%,2W,AA,TP,4x12mm |
R444 |
2003-000769 |
R-METAL OXIDE(S) |
680ohm,5%,3W,AA,TP,6x16mm |
R445 |
2001-000019 |
R-CARBON(S) |
10OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R446 |
2003-000777 |
R-METAL OXIDE(S) |
68ohm,5%,2W,AA,TP,4x12mm |
|
|
|
|
7 Electrical Parts List
Remarks
!
!
AV17** |
7-7 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
R450 |
2004-000327 |
R-METAL |
150Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R451 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R452 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R453 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R454 |
2003-000650 |
R-METAL OXIDE(S) |
330ohm,5%,2W,AA,TP,4x12mm |
R455 |
2004-000796 |
R-METAL |
33Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R461 |
2004-000298 |
R-METAL |
130Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R500 |
2001-000548 |
R-CARBON |
270KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R501 |
2001-000890 |
R-CARBON |
6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R502 |
2004-000825 |
R-METAL |
36Kohm,1%,1/4W,AB,TP,2.4x6.4mm |
R504 |
2001-000008 |
R-CARBON |
15KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R505 |
2004-000458 |
R-METAL |
2.2Kohm,1%,1/4W,AA,TP,2.4x6.4m |
R506 |
2004-000284 |
R-METAL |
12Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R507 |
2004-000216 |
R-METAL |
10Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R509 |
2001-000995 |
R-CARBON |
820OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R510 |
2001-000356 |
R-CARBON |
150KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R511 |
2001-000478 |
R-CARBON |
2.7OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R514 |
2001-001071 |
R-CARBON(S) |
12KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R516 |
2002-001081 |
R-COMPOSITION |
27KOHM,5%,1/2W,AA,TP,3.3X10MM |
R520 |
2001-001000 |
R-CARBON |
82KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R521 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R524 |
2001-000531 |
R-CARBON |
240KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R526 |
2004-001164 |
R-METAL |
62Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R529 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R530 |
2004-000580 |
R-METAL |
22Kohm,1%,1/4W,AA,TP,2.4x6.4mm |
R531 |
2001-000660 |
R-CARBON |
33KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R551 |
2001-000530 |
R-CARBON |
240KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
R552 |
2001-000537 |
R-CARBON |
24KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
R553 |
2001-001129 |
R-CARBON(S) |
330KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R554 |
2001-000316 |
R-CARBON |
120KOHM,5%,1/2W,AA,TP,3.3X9MM |
R555 |
2001-001024 |
R-CARBON |
910OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R556 |
2001-000241 |
R-CARBON |
1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R557 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R558 |
2001-000316 |
R-CARBON |
120KOHM,5%,1/2W,AA,TP,3.3X9MM |
R600 |
2001-001129 |
R-CARBON(S) |
330KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R601 |
2001-001129 |
R-CARBON(S) |
330KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R602 |
2001-000023 |
R-CARBON |
47OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R603 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R604 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R607 |
2003-000014 |
R-METAL OXIDE(S) |
10Kohm,5%,3W,AA,TP,6x16mm |
R608 |
2001-000027 |
R-CARBON |
100OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R609 |
2002-001103 |
R-COMPOSITION |
300Kohm,5%,1/2W,AA,TP,3.7x10.0mm |
R610 |
2002-001103 |
R-COMPOSITION |
300Kohm,5%,1/2W,AA,TP,3.7x10.0mm |
R611 |
2001-001120 |
R-CARBON(S) |
3.3OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R612 |
2003-000738 |
R-METAL OXIDE(S) |
56Kohm,5%,2W,AA,TP,4x12mm |
R613 |
2001-000613 |
R-CARBON |
3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R614 |
2001-000734 |
R-CARBON |
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R617 |
2001-001038 |
R-CARBON(S) |
0.56OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R618 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R619 |
2003-000471 |
R-METAL OXIDE(S) |
10ohm,5%,2W,AA,TP,4x12mm |
R621 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R622 |
2001-000211 |
R-CARBON |
1OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R630 |
2001-000786 |
R-CARBON |
47KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R631 |
2001-001088 |
R-CARBON(S) |
1KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
R632 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R640 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R641 |
2001-000734 |
R-CARBON |
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
R642 |
2001-000019 |
R-CARBON(S) |
10OHM,5%,1/2W,AA,TP,2.4X6.4MM |
R643 |
2001-000780 |
R-CARBON |
470OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R663 |
2001-000071 |
R-CARBON |
22KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
R664 |
2001-000062 |
R-CARBON |
470OHM,5%,1/4W,AA,TP,2.4X6.4MM |
R668 |
2001-000515 |
R-CARBON |
220OHM,5%,1/8W,AA,TP,1.8X3.2MM |
R671 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
SK501 |
4715-001055 |
SURGE ABSORBER |
1kV,+50-10%,-,-,RADIAL |
|
|
|
|
Remarks
!
!
!
!
!
SNA
7-8 |
AV17** |
Loc. No. |
Code No. |
Description |
TP401 |
6042-000002 |
EYELET |
TP402 |
6042-000002 |
EYELET |
TP501 |
6042-000002 |
EYELET |
X201 |
2801-000006 |
CRYSTAL-UNIT |
ZD201 |
0403-000361 |
DIODE-ZENER |
ZD202 |
0403-000361 |
DIODE-ZENER |
ZD203 |
0403-000361 |
DIODE-ZENER |
ZD204 |
0403-000361 |
DIODE-ZENER |
ZD205 |
0403-000361 |
DIODE-ZENER |
ZD208 |
0403-000361 |
DIODE-ZENER |
ZD209 |
0403-000348 |
DIODE-ZENER |
ZD210 |
0403-001068 |
DIODE-ZENER |
ZD211 |
0403-000361 |
DIODE-ZENER |
ZD502 |
0403-000355 |
DIODE-ZENER |
ZD503 |
0403-000348 |
DIODE-ZENER |
ZD504 |
0403-000348 |
DIODE-ZENER |
ZD601 |
0403-000361 |
DIODE-ZENER |
ZD602 |
0403-001221 |
DIODE-ZENER |
ZD625 |
0403-001220 |
DIODE-ZENER |
ZD626 |
0403-000355 |
DIODE-ZENER |
ZD627 |
0403-000355 |
DIODE-ZENER |
HS301 |
BH99-00044A |
ASSY HEAT/SINK |
CIS |
0205-001027 |
OIL-SILICON |
CIS |
1204-001508 |
IC-VERTICAL DEF. |
CIS |
6006-001008 |
SCREW-ASS’Y MACH |
CIS |
6021-000118 |
NUT-HEXAGON |
CIS |
BH62-00050A |
HEAT SINK-V IC |
HS601 |
BP96-00064C |
ASSY HEAT SINK P |
CIS |
BH13-00045A |
IC HYBRID |
CIS |
BH61-00004A |
SPRING ETC-TR |
CIS |
BH62-00004A |
HEAT SINK-POWER |
CIS |
BH62-20001B |
TUBE-RUBBER |
HS501 |
BP96-00066H |
ASSY HEAT SINK P |
CIS |
0205-001027 |
OIL-SILICON |
CIS |
0402-001455 |
DIODE-RECTIFIER |
CIS |
0502-000465 |
TR-POWER |
CIS |
0502-001225 |
TR-POWER |
CIS |
BH61-00004A |
SPRING ETC-TR |
CIS |
BH61-70003A |
SPRING ETC |
CIS |
BH62-00015A |
HEAT SINK-FBT |
HS411 |
BP96-00067A |
ASSY HEAT SINK P |
CIS |
0205-001027 |
OIL-SILICON |
CIS |
0505-001675 |
FET-SILICON |
CIS |
6006-001008 |
SCREW-ASS’Y MACH |
CIS |
6021-000118 |
NUT-HEXAGON |
CIS |
BH62-30024A |
HEAT SINK-TR |
HS402 |
BP96-00072A |
ASSY HEAT SINK P |
CIS |
0205-001027 |
OIL-SILICON |
CIS |
0505-001675 |
FET-SILICON |
CIS |
BH61-00004A |
SPRING ETC-TR |
CIS |
BH62-00016A |
HEAT SINK-TR |
|
|
|
7 Electrical Parts List
Specification |
Remarks |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
12MHz,50ppm,28-AAM,S,35ohm,BK |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ36B,36V,33-39V,500mW,DO-35,T |
|
UZ4.7BSA,4.7V,4.47-4.65V,500mW |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP |
|
UZ36B,36V,33-39V,500mW,DO-35,T |
|
UZ36B,36V,33-39V,500mW,DO-35,T |
|
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
UZ39BSB,35.36-37.19V,500MW,DO-34,TP |
|
UZ2.7BSB,2.69-2.91V,500MW,DO-34,TP |
|
UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP |
|
UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP |
|
HS V.IC,SCREW+NUT,KA2142,-,-,OIL SILICON |
SNA |
G746,-,- |
SNA |
KA2142,SIP,10P,-,PLASTIC,35V,15W,-20TO+70C,ST,VERTICAL DEFLECTION |
|
WSP,BH,+,M3,L10,ZPC(YEL),SWRCH |
SNA |
1C,M3,ZPC(YEL),SM20C |
SNA |
AQ17,A1050S,T1.0,H60,L77,-,-,- |
SNA |
BH62-00004A,SPRING,8S0765RC,RUBBER SILICON |
SNA |
FS8S0765RCYDTU,CU17KS,5,-25 to 85,TO-220(FORMING),35,ST |
|
CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- |
SNA |
-,T1,-,A1050S,DA/DB |
SNA |
CSQ4357,W25*L20*T0.45,-,-,-,- |
SNA |
HS FBT,SPRING,ST2310HI,DTV1500M,KTD2058,OIL SILICON, |
SNA |
G746,-,- |
SNA |
DTV1500M,1500V,6A,TO-220FPAC,ST |
|
KTD2058,NPN,25000mW,TO-220IS,ST,100-200 |
|
ST2310HI,NPN,55000MW,ISOWATT218,ST,6.5-9.5 |
|
CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- |
SNA |
CVT4857,STS304-W1/2H,W3.8,-,L30,L30,-,T0.5,DEGRE,W3.8,STS304-W1/2H |
SNA |
A1050S,T1.0,T1.0,-,- |
SNA |
H/S TR,SCREW+NUT,IRF630B,OIL SILICON |
SNA |
G746,-,- |
SNA |
IRF630B,N,200V,9A,0.4OHM,72W,TO-220 |
|
WSP,BH,+,M3,L10,ZPC(YEL),SWRCH |
SNA |
1C,M3,ZPC(YEL),SM20C |
SNA |
SPC,T1,SN,CFX1577L |
SNA |
H/S TR,SPRING,IRF630B,OIL SILICON |
SNA |
G746,-,- |
SNA |
IRF630B,N,200V,9A,0.4OHM,72W,TO-220 |
|
CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- |
SNA |
A1050S,T1.0,-,DP17MO |
SNA |
|
|
AV17** |
7-9 |
7 Electrical Parts List
7-1-2 AV17KS Video PCB Parts
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
- |
BH94-00901A |
ASSY PCB VIDEO-ST |
AV17KS |
SNA |
CIS01 |
0202-001044 |
SOLDER-WIRE. |
S63S-W3.0,S63S,D3,63Sn/37Pb,- |
SNA |
CIS02 |
0202-001222 |
SOLDER-WIRE FLUX |
RS-107,RS60-1.2AA,D1.2,SN60/PB40,- |
SNA |
CIS06 |
BH63-00055A |
SHIELD-VIDEO |
AN17KS,SPTE ,T0.2 |
SNA |
CIS08 |
6502-000001 |
CABLE CLAMP |
DAWH-5NB,D15,L35,NYLON66,NTR |
SNA |
CIS09 |
BH68-00001A |
LABEL-MARK CDT |
ART-PAPER 100G,-,WHT,BLK,-,ALL,CDT |
SNA |
CIS10 |
0204-001677 |
FLUX |
DF-201TVS,MIX,0.820,FLUX 13%,G |
SNA |
CIS13 |
0205-001111 |
OIL-SILICON |
YH-500,300,2.5 |
SNA |
CJS11 |
0204-001095 |
THINNER |
#4520,-,-,- |
SNA |
CN101 |
3711-004228 |
CONNECTOR-HEADER |
BOX,6P,1R,2MM,ANGLE,SN |
|
CN102 |
BH39-00015A |
CBF-HARNESS |
13P/14P,200MM,WHT/BLK/RED/BLU,UL1007,AWG26,SMH200-13/YBNH200-14 |
|
IC102 |
BH13-00044A |
IC HYBRID |
LM1246DEW,CU17KS,24,0 to +70,DIP,250mA,5.25V,ST |
|
ICS04 |
0203-001200 |
TAPE-PAPER |
#53128,T0.15,W5.5,L2000M,BEIGE |
SNA |
SH/VID+H/S |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
SK1 |
3704-001188 |
SOCKET-CRT |
10P,22.5,-,NI+SN,- |
|
CIS07 |
BH96-00096A |
ASSY MISC P-SHIELD VIDEO CAP |
AN17KS,SPTE T0.2 |
|
CIS |
BH63-00056A |
SHIELD-VIDEO CAP |
AN17KS,SPTE ,T0.2 |
SNA |
CIS |
BH71-10311A |
EARTH-PLATE |
PBS 3/4H |
SNA |
- |
BH97-00399B |
ASSY AUTO-VIDEO,ST |
AV17KS |
SNA |
BD101 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD102 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD103 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD104 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD105 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD106 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD107 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
C102 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C104 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C105 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C108 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C112 |
2401-003034 |
C-AL |
220uF,20%,16V,WT,TP,8x11.5,5 |
|
C113 |
2301-000014 |
C-FILM,LEAD-PEF |
6.8nF,5%,100V,TP,5.8x12.5mm,5m |
|
C114 |
2201-000389 |
C-CERAMIC,DISC |
0.022NF,5%,50V,C0G,TP,5X3MM,5 |
|
C116 |
2401-001459 |
C-AL |
47uF,20%,100V,GP,TP,10x16.5,5 |
|
C117 |
2201-000019 |
C-CERAMIC,DISC |
10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 |
|
C118 |
2201-000019 |
C-CERAMIC,DISC |
10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 |
|
C120 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C122 |
2201-000119 |
C-CERAMIC,DISC |
100NF,+80-20%,50V,Y5V,TP,8X3MM,5 |
|
C125 |
2201-000285 |
C-CERAMIC,DISC |
1NF,10%,1KV,Y5P,TP,8X5MM,5 |
|
C126 |
2201-000119 |
C-CERAMIC,DISC |
100NF,+80-20%,50V,Y5V,TP,8X3MM,5 |
|
C127 |
2201-000119 |
C-CERAMIC,DISC |
100NF,+80-20%,50V,Y5V,TP,8X3MM,5 |
|
C128 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C130 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C140 |
2201-002147 |
C-CERAMIC,DISC |
2.7NF,10%,500V,Y5P,TP,10X4MM,5 |
SNA |
C141 |
2201-000019 |
C-CERAMIC,DISC |
10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 |
|
C152 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
CB01 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CB02 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CB03 |
2201-000689 |
C-CERAMIC,DISC |
0.008NF,0.5PF,50V,C0G,TP,4X3.5MM,5 |
|
CB05 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
CB06 |
2401-003911 |
C-AL |
1uF,20%,160V,BP,TP,6.3x11mm,5 |
|
CG01 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CG02 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CG03 |
2201-000689 |
C-CERAMIC,DISC |
0.008NF,0.5PF,50V,C0G,TP,4X3.5MM,5 |
|
CG05 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
CG06 |
2401-003911 |
C-AL |
1uF,20%,160V,BP,TP,6.3x11mm,5 |
|
CIS03 |
0203-001199 |
TAPE-KRAFT |
#53110,T0.1,W6,L2000M,BRN |
SNA |
CIS04 |
0203-001200 |
TAPE-PAPER |
#53128,T0.15,W5.5,L2000M,BEIGE |
SNA |
CIS05 |
0203-001201 |
TAPE-PAPER |
#FB-300,T0.16,W6,L2000M,R/BLU |
SNA |
CN_G2 |
BH71-40300A |
PIN-HINGE |
BRASS,D2.36!,HEAT/SINK,SN |
SNA |
CN_GND |
BH71-40300A |
PIN-HINGE |
BRASS,D2.36!,HEAT/SINK,SN |
SNA |
CR01 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
|
|
|
|
|
7-10 |
AV17** |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
CR02 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CR03 |
2201-000689 |
C-CERAMIC,DISC |
0.008NF,0.5PF,50V,C0G,TP,4X3.5MM,5 |
|
CR05 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
CR06 |
2401-003911 |
C-AL |
1uF,20%,160V,BP,TP,6.3x11mm,5 |
! |
DB01 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DB02 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DB03 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
DB04 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
DB05 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DG01 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DG02 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DG03 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
DG04 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
DG05 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DR01 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DR02 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
DR03 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
DR04 |
0401-000004 |
DIODE-SWITCHING |
1SS244,250V,625mA,DO-34,TP |
|
DR05 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
EY1 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY4 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
EY6 |
6042-000002 |
EYELET |
ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H |
SNA |
IC104 |
BH13-00022A |
IC HYBRID-BIAS CLAMP |
LM2480NA,PN15H/17L,8P,0to+70C,DIP,3mA,85V,ST |
|
JP101 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP102 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP103 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP105 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP106 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP108 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP109 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP110 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP111 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
JP113 |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
L101 |
2701-000112 |
INDUCTOR-AXIAL |
100uH,10%,3070 |
|
LB11 |
2701-000172 |
INDUCTOR-AXIAL |
0.33uH,10%,3070 |
|
LG11 |
2701-000172 |
INDUCTOR-AXIAL |
0.33uH,10%,3070 |
|
LR11 |
2701-000172 |
INDUCTOR-AXIAL |
0.33uH,10%,3070 |
|
MP1.0 |
BH41-00267A |
PCB-VIDEO |
CT17KS,FR-1,1,1.0,1.6T,247*247,CT17K,6,VIDEO |
SNA |
R106 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R116 |
2001-000633 |
R-CARBON |
30KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R119 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R121 |
2001-000006 |
R-CARBON |
2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R122 |
2001-000411 |
R-CARBON |
18KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R128 |
2001-000290 |
R-CARBON |
10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R130 |
2001-000734 |
R-CARBON |
4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R132 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R133 |
2001-000281 |
R-CARBON |
100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R134 |
2001-000331 |
R-CARBON |
12KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R151 |
2001-001148 |
R-CARBON(S) |
430OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
R152 |
2001-000037 |
R-CARBON(S) |
330OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RB01 |
2001-000969 |
R-CARBON |
75OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RB02 |
2001-000969 |
R-CARBON |
75OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RB03 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RB06 |
2001-000376 |
R-CARBON |
15OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RB08 |
2001-001066 |
R-CARBON(S) |
110OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RB09 |
2001-001129 |
R-CARBON(S) |
330KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RB12 |
2001-000022 |
R-CARBON(S) |
33OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RG01 |
2001-000969 |
R-CARBON |
75OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RG02 |
2001-000969 |
R-CARBON |
75OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RG03 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RG06 |
2001-000376 |
R-CARBON |
15OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RG08 |
2001-001066 |
R-CARBON(S) |
110OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RG09 |
2001-001129 |
R-CARBON(S) |
330KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RG12 |
2001-000022 |
R-CARBON(S) |
33OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
|
|
|
|
|
AV17** |
7-11 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
RR01 |
2001-000969 |
R-CARBON |
75OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RR02 |
2001-000969 |
R-CARBON |
75OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RR03 |
2001-000429 |
R-CARBON |
1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RR06 |
2001-000376 |
R-CARBON |
15OHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
RR08 |
2001-000117 |
R-CARBON(S) |
68OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RR09 |
2001-001129 |
R-CARBON(S) |
330KOHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
RR12 |
2001-000022 |
R-CARBON(S) |
33OHM,5%,1/2W,AA,TP,2.4X6.4MM |
|
SK104 |
1405-001064 |
SURGE ABSORBER |
400V,20%,-,-,AXIAL |
|
SK108 |
4715-001055 |
SURGE ABSORBER |
1kV,+50-10%,-,-,RADIAL |
SNA |
SKB01 |
4715-001065 |
SURGE ABSORBER |
200V,20%,-,-,RADIAL |
SNA |
SKG01 |
4715-001065 |
SURGE ABSORBER |
200V,20%,-,-,RADIAL |
SNA |
SKR01 |
4715-000102 |
SURGE ABSORBER |
200V,20%,1000A,-,RADIAL |
|
ZD101 |
0403-000327 |
DIODE-ZENER |
UZ15BSA,15V,13.48-14.09V,500mW |
|
ZD102 |
0403-000361 |
DIODE-ZENER |
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
ZD103 |
0403-000361 |
DIODE-ZENER |
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
ZD104 |
0403-000361 |
DIODE-ZENER |
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
HS105 |
BH99-00004M |
ASSY HEAT/SINK |
BH62-00006A,SCREW+NUT,LM2445,OIL SILICON |
SNA |
CIS |
0205-001027 |
OIL-SILICON |
G746,-,- |
SNA |
CIS |
1201-002045 |
IC-VIDEO AMP |
LM2445,TO-220,9P,14.99x10.16mm,TRIPLE,-,PLASTIC,85V,-,-20to+100C,-,-,-,18mA,-,ST |
|
CIS |
6006-001008 |
SCREW-ASS’Y MACH |
WSP,BH,+,M3,L10,ZPC(YEL),SWRCH |
SNA |
CIS |
6021-000118 |
NUT-HEXAGON |
1C,M3,ZPC(YEL),SM20C |
SNA |
CIS |
BH62-00006A |
HEAT SINK-VIDEO |
-,A1050S T2.0,-,DB |
SNA |
HS102 |
BP62-00042A |
HEAT SINK-ES |
AN19IS,A1050S,T2.0,6.6,46,LUG,TAPE |
SNA |
|
|
|
|
|
7-12 |
AV17** |
|
|
|
7 Electrical Parts List |
|
7-1-3 AV17KS Others |
|
|
|
|
|
|
|
|
|
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
- |
BH90-00257A |
ASSY STAND |
PN17HT,ABS HB,IV16,W/W |
SNA |
CIS |
BH75-00274A |
UNIT-STAND |
PN15VT,-,ABS HB,-,IV16,-,- |
|
CIS |
6902-000109 |
BAG PE |
HDPE,T0.015,L430,W350,TRP,28,2,PE MARK |
SNA |
CIS |
BH60-00030A |
FASTENER-BAND |
PN17LT,ST+PVC,P0.4,-,150,YELLOW,-,-,- |
SNA |
CIS |
BH61-40002A |
FOOT-RUBBER |
-,NR,PMS428U,GA4237,-,-,- |
|
CIS |
BH63-30103A |
FELT-STAND |
MCM1755,FELT,T1.0,W10,L4 |
|
CIS |
BH68-20366A |
LABEL-MARK STAND |
,ART PAPER 100(S),WHT |
SNA |
CIS |
BH68-70306A |
CARD-STAND |
CVM4967PWS(SKD),WONSTROW,CHAIN |
SNA |
CIS |
BH72-00277A |
STAND-TOP |
PN15VT,ABS HB,IV16 |
SNA |
CIS |
BH72-60740A |
STAND-BASE USB |
CHB5807,ABS HB,IV16 |
SNA |
- |
BH90-00342B |
ASSY COVER REAR |
AQ17LS(T),ABS HB,IV16 |
|
CIS |
BH72-00329B |
COVER-REAR |
AQ17LS,ABS,HB,IV16 |
|
- |
BH90-00535M |
ASSY COVER FRONT |
AV17KSBB/EDC |
SNA |
C/F+C/R |
6003-000009 |
SCREW-TAPTITE |
BH,+,B,M4,L16,ZPC(YEL),SWRCH18 |
SNA |
C/F+CDT |
6006-001119 |
SCREW-ASS’Y TAPT |
WC,BH,+,M5,L25,ZPC(YEL),SWRCH18A |
SNA |
UNIT/C-FRONT |
BH90-00546T |
ASSY COVER FRONT |
AV17KS,ABS HB IV16,TCO03 |
SNA |
C/FRONT |
6107-001036 |
SPRING-CS |
PI9.4,D0.6,L15,WHT,STS304WPB |
SNA |
C/FRONT |
BH59-00182A |
PBA SUB-FUNCTION |
PN17HT,DB-PN17HT,SAMSUNG,-,FUNCTION,-,- |
SNA |
C/FRONT |
BH63-00057E |
COVER-FRONT |
AV17KS,ABS,HB,IV16 |
SNA |
C/FRONT |
BH64-00096A |
KNOB-FUNCTION |
AQ17LS,ABS,HB,IV16 |
SNA |
C/FRONT |
BH64-00098A |
KNOB-POWER |
AQ17IS,ABS,-,-,-,HB,IV16,-,- |
SNA |
C/FRONT |
BH67-00018A |
LENS-LED |
PN15VT,ACRYL ,CLEAR,-,-,-,- |
SNA |
C/FRONT |
BH71-00121A |
EARTH-PLATE |
PN17LT,SUS304,T0.15 |
SNA |
C/FRONT |
BH72-00294A |
GUIDE-SPACER |
,ABS,IV16,PN15VT,HB |
SNA |
C/FRONT |
BH72-60491B |
CAP-BOSS |
CGK5517,TPE,80,GRAY,CDT SETTING |
|
C/FRONT |
BN68-00434A |
LABEL-TCO03 |
CDT,TCO’03,PE CLAER,T0.05,25*20,6DO SILK |
SNA |
CIS |
BH41-00117A |
PCB CONTROL |
PN17HT,FR-1,1 LAYER,00,1.6t,13*84,PN17HT,-,CONTROL,CONTROL BOARD |
SNA |
CN2 |
BH39-00255A |
CBF HARNESS |
PN17HT,UL1007#26,UL/CSA,2P,150MM,BLU/WHT,AWG26,SMH250-02,60-9073-3018-02 |
|
D3 |
0403-000361 |
DIODE-ZENER |
UZ6.2BSB,6.2V,5.99-6.24V,500mW |
|
R231 |
2001-000241 |
R-CARBON |
1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R232 |
2001-000812 |
R-CARBON |
5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R233 |
2001-000331 |
R-CARBON |
12KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
R234 |
2001-000563 |
R-CARBON |
27KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
|
SW201 |
3404-000243 |
SWITCH-TACT |
15V,20mA,160gf+-50gf,6x3.4mm,S |
|
SW202 |
3404-000243 |
SWITCH-TACT |
15V,20mA,160gf+-50gf,6x3.4mm,S |
|
SW203 |
3404-000243 |
SWITCH-TACT |
15V,20mA,160gf+-50gf,6x3.4mm,S |
|
SW204 |
3404-000243 |
SWITCH-TACT |
15V,20mA,160gf+-50gf,6x3.4mm,S |
|
- |
BH91-00873A |
ASSY SHIELD |
AV17KS/KT |
SNA |
SH/BTM+SH/COV |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
CIS |
BH96-00079B |
ASSY MISC P-SHIELD-COVER |
AQ17LS,AL1050S |
SNA |
CIS |
BH71-00004A |
EARTH-PLATE |
CDA4507,STS 301,T0.15 |
SNA |
CIS |
BH72-00291A |
SHEET ABS-ANODE |
PN17LT,PP,NTR,-,V2,-,-,- |
SNA |
CIS |
BH75-00276A |
UNIT-SHIELD/COVER |
PN17LT,-,A1050S H14 T0.3,-,-,-,- |
|
CIS |
BH71-00105A |
SHIELD-COVER |
PN17LT,A1050S H14,T0.3 |
SNA |
CIS |
BH71-00123A |
SHIELD-COVER TOP |
PN17LT,A1050S H14,T0.3 |
SNA |
CIS |
BH71-00126A |
SHIELD-COVER BOTTOM |
PN17LT,SECC ,T0.5 |
SNA |
- |
BH91-00921A |
ASSY CHASSIS-ST |
AV17KS |
|
- |
BH91-00953D |
ASSY CDT-ST |
CU17KS |
SNA |
CDT |
0201-001053 |
ADHESIVE-RBR |
DC-3140_RTV#0414,TRP,-,- |
SNA |
CDT |
0203-000005 |
TAPE-ACETATE |
SGT730,T0.26,W19,L3000,BLK |
SNA |
CDT |
3302-000006 |
MAGNET-RUBBER |
AF,14G,1620-1980G,0.58-0.9MGOe |
|
CDT |
3309-000002 |
MAGNET-SHEET |
5x20x80mm,UL94V-0,2 |
|
CDT |
BH03-00066P |
CDT-ST |
M41QCJ761X273(T4),70,17,0.25,29.1,IFT,H/C,NH,TCO,TILT,4 |
|
CDT |
BH27-00054A |
COIL DEGAUSSING-ASS’Y |
320*250*1100mm,9.6mH,-,100Ts,°æ10% |
|
CIS |
6501-000004 |
CABLE TIE |
DA-80,T1,W2.5,L80,NTR,NYLON66 |
|
CIS |
BH27-00047A |
COIL DEGAUSSING |
320*250*1100mm,9.6mH,-,100Ts,°æ10% |
|
CIS |
BH39-00167A |
CBF-HARNESS |
1PIN,350MM,BLK,UL1015,AWG18/3*0.16TA*16,YFH800-1 |
|
|
|
|
|
|
AV17** |
7-13 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
CIS |
BH65-00002A |
CLAMPER CORE-D,COIL |
DELPHINUS,PET+PP L95,V2,-,BLACK,- |
SNA |
CIS |
BH72-00038B |
HOLDER-DCOIL |
DP17LS,NYLON66,V0,WHITE |
SNA |
CDT |
BH68-30003B |
LABEL-HIGH VOLTAGE |
CKA4217(C),ART,100G,YEL,BLK,W30*L30,CDT-TUBE |
SNA |
- |
BH92-00869Z |
ASSY BOX |
AV17KSBB/EDC |
SNA |
BOX |
BH68-00530A |
LABEL BOX |
LABEL-BARCODE,CE+TCO03,MOJO 100G,90*95,WHT |
SNA |
BOX |
BH69-00488A |
BOX |
S/M753DFX,W/W,CB-SW4,YEL,A-1,L609*W566*H440 |
SNA |
- |
BH92-00870E |
ASSY LABEL |
AN17KSBU/EDC |
SNA |
LABEL |
BH68-00496B |
LABEL RATING-00 |
AN17KS@EDC,SYNC,PE,T0.05,109,50,PE NATURE |
SNA |
- |
BH92-00872A |
ASSY P/MATERIAL |
AN17KS |
SNA |
P/MATERIAL |
0203-001100 |
TAPE-OPP MASKING |
OPP/W75/CLR,T0.05,W75,L800000,CLR |
SNA |
CIS |
0203-001159 |
TAPE-FILAMENT |
#8915,T0.15,W12,L55000,CLR |
SNA |
CIS |
6902-000001 |
BAG AIR |
LDPE,T0.2,L1800,W1000,TRP,,,LDPE ONLY |
SNA |
P/MATERIAL |
6902-000379 |
BAG AIR |
HDPE,T0.2,L1800,W1000,TRP,,,PAPER |
SNA |
P/MATERIAL |
6902-000523 |
BAG PE |
HDPE,T0.015,W900,L800,TRP,28 LANGUAGE,2- |
SNA |
P/MATERIAL |
6902-000576 |
BAG ROLL |
LDPE,T0.05,W2400,L1000,TRP,-,- |
SNA |
CIS |
BH69-00458A |
CUSHION |
AN17KS,EPS,M50 |
SNA |
P/MATERIAL |
BH69-40380A |
PACKING-PAD |
DW-2,500X2200X200,-,CGK5527 |
SNA |
- |
BH92-01085A |
ASSY ACCESSORY |
AV17KS |
SNA |
UNIT/ACCESSORY |
BH96-00233E |
ASSY ACCESSORY |
AV17KSBB/EDC |
|
ACCESSORY |
0203-000214 |
TAPE-OPP MASKING |
OPP/W50/CLR,T0.05,W50,L400000, |
SNA |
ACCESSORY |
6801-001073 |
CARD-REGISTRATION |
RUS,XEV,RUS,MOJO100,-,W220,L318,2,- |
SNA |
ACCESSORY |
6902-000110 |
BAG PE |
LDPE,T0.05,L356,W240,TRP,28,2,PE MARK |
SNA |
ACCESSORY |
BH39-10007A |
CBF POWER CORD |
DET,250V/6A,H05VV-F,LP-34A/KKP |
|
ACCESSORY |
BH68-00374A |
CARD WARRANTY-01 |
ASC List,Samsung,ART100G,Russian,EDC,295,210 |
SNA |
ACCESSORY |
BH68-00489A |
MANUAL-02 |
RUSSIAN W/CARD,SER,RUSSIAN,RUSSIA,MOJO100G |
SNA |
ACCESSORY |
BH68-70418A |
CARD-EU BLOC WARR-07 |
SyncMaster,BASIC,EU,MOJO,100G, |
SNA |
ACCESSORY |
BH96-00255A |
ASSY MANUAL P-IB+QSG |
AV17LS,17KS,SyncMaster,W/W,21 Langs,BH59-361A+BH68-376J |
SNA |
I/B |
BH59-00361A |
S/W DRIVER-IB |
AV17LS,17KS,W/W,SyncMaster,21 Langs |
SNA |
QUICK |
BH68-00376J |
MANUAL-01 |
AN_QUICK SETUP GUIDE,SYNCMASTER,E/F/S/G/P/I..14LANGS,W/W,MOJO100G,298,420 |
SNA |
|
|
|
|
|
7-14 |
AV17** |
|
|
|
7 Electrical Parts List |
|
7-2-1 AV17KT Main PCB Parts |
|
|
||
|
|
|
|
|
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
- |
BH94-00948A |
ASSY PCB MAIN-ST |
AV17KS |
SNA |
C409 |
2306-000248 |
“C-FILM,LEAD-PPF |
680nF,5%,250V,BK,26.5x16.5mm,2 |
|
C430 |
2306-000234 |
C-FILM,LEAD-PPF |
560nF,5%,250V,BK,26x20x13,20 |
|
C601 |
2301-001195 |
C-FILM,LEAD-PPF |
150nF,10%,275VAC,BK,26x16.5x7, |
|
C602 |
2301-001195 |
C-FILM,LEAD-PPF |
150nF,10%,275VAC,BK,26x16.5x7, |
|
C608 |
2401-003391 |
C-AL |
220uF,20%,450V,GP,BK,25x50,10 |
|
CIS01 |
0204-001677 |
FLUX |
DF-201TVS,MIX,0.820,FLUX 13%,G |
SNA |
CIS03 |
0202-001044 |
SOLDER-WIRE. |
S63S-W3.0,S63S,D3,63Sn/37Pb,- |
SNA |
CIS04 |
0202-001222 |
SOLDER-WIRE FLUX |
RS-107,RS60-1.2AA,D1.2,SN60/PB40,- |
SNA |
CIS05 |
0204-001095 |
THINNER |
#4520,-,-,- |
SNA |
CIS08 |
BH72-00261A |
SHEET ABS-LMF |
IB10LO,AL+PET,-,-,-,-,-,- |
SNA |
CIS09 |
BH73-60304D |
RUBBER-SUPPORT |
DP15LT,CR V0,10*10*13,-,-,BLACK,-,-,-,- |
SNA |
CIS11 |
BH68-00001A |
LABEL-MARK CDT |
ART-PAPER 100G,-,WHT,BLK,-,ALL,CDT |
SNA |
CIS12 |
BH71-00110A |
SHIELD-BOTTOM |
PN15VT,SECC ,T1.0 |
SNA |
CIS13 |
BH72-00025A |
GUIDE-POWER |
,ABS,IV16,CDA4507,V0 |
SNA |
CIS14 |
BH72-00026A |
SHAFT-POWER |
CDA4507,ABS,V0,IV16 |
|
CIS15 |
BH39-00323D |
LEAD CONNECTOR-ASSY |
OT17LO,8.0*0.16TA*16,150MM,35068-9822,35750-1010,BK,8.0*0.16TA*16 |
|
CLP_HS501 |
6502-000001 |
CABLE CLAMP |
DAWH-5NB,D15,L35,NYLON66,NTR |
SNA |
CN201 |
3711-003895 |
CONNECTOR-HEADER |
BOX,13P,1R,2mm,STRAIGHT,SN |
|
CN202 |
3711-003873 |
CONNECTOR-HEADER |
BOX,7P,1R,2mm,STRAIGHT,SN |
|
CN404 |
3711-005055 |
CONNECTOR-HEADER |
1WALL,4P,1R,10MM/8.0MM,STRAIGHT,SN-PB,WHT |
|
CN601 |
3721-001053 |
PLUG-AC POWER |
3P,-,-,NI |
SNA |
CN604 |
BH39-00288A |
CBF HARNESS |
PN17LO,UL1007,UL/CSA,2P/2P,130MM,BLU/WHT,AWG26,YBNH200,SMP250,-,-,-,-,-,-,CBF-CO |
|
CORE_FOCUS |
3301-000130 |
CORE-FERRITE |
AC,23.5x9.4x12.6mm,1500,2800G |
SNA |
CORE_G2 |
3301-000233 |
CORE-FERRITE |
AC,18X9.6X12MM,1500,2800GAUSS |
|
D406 |
0402-001025 |
DIODE-RECTIFIER |
ERD07-15,1.5KV,1.5A,-,TP |
|
D409 |
0402-001295 |
DIODE-RECTIFIER |
GUR460L-5700,600V,4A,DO-201AD,BK |
|
D601 |
0402-001407 |
DIODE-BRIDGE |
G2SB60,600V,1.5A,SIP-4,BK |
|
D608 |
0402-001456 |
DIODE-RECTIFIER |
UG2D,200V,2A,DO-204AC,BK |
|
D609 |
0402-000005 |
DIODE-RECTIFIER |
31DF4,400V,3A,DO-201AD,BK |
|
D611 |
0402-001456 |
DIODE-RECTIFIER |
UG2D,200V,2A,DO-204AC,BK |
|
FBT+H/S |
6003-000122 |
SCREW-TAPTITE |
BH,+,B,M4,L12,ZPC(YEL),SWRCH18 |
|
FH1 |
3601-001302 |
FUSE-AXIAL LEAD |
250V,3.15A,SLOW-BLOW,CERAMIC,5X20MM |
|
IC201_SOCKET |
3704-001071 |
SOCKET-IC |
42P,DIP,SN,1.778mm |
|
IC401 |
1204-002013 |
IC-DEF. PROCESSOR |
STV6888,DIP,32P,400MIL,PLASTIC,13.2V,-,0TO+70C,ST,100KHZ |
|
IC604 |
1203-000001 |
IC-POSI.FIXED REG. |
7805,TO-220,3P,-,PLASTIC,4.8/5 |
|
L401 |
BH27-00135A |
COIL CHOKE |
120UH,CDTMO,120UH,10%,0.23OHM,5A,AR8X25,65.5TS,18X40MM,11MM,USTC0.12X20,TR,-10CT |
|
L402 |
BH27-00135A |
COIL CHOKE |
120UH,CDTMO,120UH,10%,0.23OHM,5A,AR8X25,65.5TS,18X40MM,11MM,USTC0.12X20,TR,-10CT |
|
L403 |
BH27-20342U |
COIL-CHOKE |
-,8.2MH(250KHz),10%,DR8*11,-,-,-,-,10.5OHM,-,-,-,BULK |
|
L601 |
BH27-00007A |
COIL-LINE FILTER |
SQE2424,25mH MIN,-,SQE 2424,-,PHENAL,-,-,0.32ohm,21*27*33,-,-,BULK |
|
OP201 |
0601-001147 |
LED |
ROUND,GRN,4.75mm,565nm |
|
Q409 |
0505-001675 |
FET-SILICON |
IRF630B,N,200V,9A,0.4OHM,72W,TO-220 |
|
Q410 |
0505-001675 |
FET-SILICON |
IRF630B,N,200V,9A,0.4OHM,72W,TO-220 |
|
RL601 |
3501-001111 |
RELAY-POWER |
12VDC,250MW,5000MA,1FORMA,15MS,5MS |
|
S/BTM+AC/S |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
S/BTM+M/PCB |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
S/BTM+SH/LMF |
6003-001023 |
SCREW-TAPTITE |
RWH,+,B,M3,L10,ZPC(YEL),SWRCH1 |
SNA |
SIGNAL |
BH39-00443A |
CBF SIGNAL |
CU17KS,15P/06P,07P,20276-N1,1500mm,UL20276,IVORY,D-SUB/MALE,ATT. TYPE |
|
SW401 |
3406-000002 |
SWITCH-ROTARY |
36Vdc,200mA,SP3T,- |
|
SW601 |
3403-001132 |
SWITCH-PUSH |
30VDC,0.3A,DPST,SELF LOCK,- |
|
T401 |
BH26-00027A |
TRANS-HOR.DRIVE |
FQB-17A001,PL-3,EI 1916,310UH |
! |
T402 |
BH27-00141A |
COIL LINEARITY |
4.4UH,4.4UH,DR1215 C:4.5,7MM,14X15X37MM,12X8T,21TS,BK,12%,0.032OHM,USTC 0.12X3 |
|
T501 |
BH26-00166A |
TRANS FBT |
FQV17A001,CU17KS,1.22mH,FEERITE,FUR3460,0.38OHM,155.2VDC,14P,-10 ~ +60,BULK,26.0 |
! |
T502 |
BH26-00089A |
TRANS-FOCUS |
EE-1916,AQ1916,5P,1.7mH,-,-,105mH,-,-,0.85ohm,-,PL-3,DMR30,TP-3,J2A-,-,-,-,-,- |
|
T601 |
BH26-00164A |
TRANS POWER |
ER-3435,CU17KS,350uH,15,90~264V,80V,10~55,FERRITE,ER-3435,0.05ohm/0.350ohm,8uH M |
|
T602 |
BH26-00163A |
TRANS |
UU-1116,CU17K,5,18mH min,18mH min,2.7ohm MAX,10 ~ 55,FERRITE,UU-1116 SB-5S |
|
TH601 |
1404-000002 |
THERMISTOR-PTC |
9ohm,20%,-,-,TR,RECT,- |
|
TH602 |
1404-001020 |
THERMISTOR-NTC |
8ohm,15%,-,17mW/C,BK |
|
MICOM |
BH97-00414U |
ASSY MICOM |
AV17K*/AV17L* |
|
IC201 |
0903-001194 |
IC-MICROCONTROLLER |
3P863,8Bit,SDIP,42P,600MIL,12MHz,ST,CMOS,PLASTIC,5V,-,-40to+85C,1040BYTE,48KBYTE |
SNA |
CIS |
BH82-00020A |
A/S MICOM |
AV17K*/AV17L* |
|
- |
BH97-00483A |
ASSY AUTO-(MAIN),ST |
AV17KS |
SNA |
|
|
|
|
|
AV17** |
7-15 |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
AV17K |
BH39-40305U |
CBF HARNESS |
52MM,AWG22(0.6PI),-,-,AWG22(0. |
|
BD201 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD202 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD301 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD302 |
3301-000011 |
BEAD-AXIAL |
3.5x1.0x5.7mm,1500,2375G |
|
BD401 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD402 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD403 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD404 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD410 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD601 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD602 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD603 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
BD605 |
3301-001450 |
BEAD-AXIAL |
45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- |
SNA |
C201 |
2401-000010 |
C-AL |
220uF,20%,16V,GP,-,6.3x11mm,2. |
|
C202 |
2201-000389 |
C-CERAMIC,DISC |
0.022NF,5%,50V,C0G,TP,5X3MM,5 |
|
C203 |
2201-000389 |
C-CERAMIC,DISC |
0.022NF,5%,50V,C0G,TP,5X3MM,5 |
|
C204 |
2301-000148 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,7x3.2x7mm,5mm |
|
C205 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C206 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C207 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C209 |
2401-002075 |
C-AL |
4.7uF,20%,50V,GP,TP,5x11,5 |
|
C210 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C211 |
2201-000146 |
C-CERAMIC,DISC |
0.1NF,5%,50V,SL,TP,5X3.5MM,5 |
|
C212 |
2201-000017 |
C-CERAMIC,DISC |
1NF,10%,50V,Y5P,TP,5X3.5MM,5 |
|
C213 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
C214 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C215 |
2201-000146 |
C-CERAMIC,DISC |
0.1NF,5%,50V,SL,TP,5X3.5MM,5 |
|
C216 |
2401-002075 |
C-AL |
4.7uF,20%,50V,GP,TP,5x11,5 |
|
C301 |
2301-001049 |
C-FILM,LEAD-PEF |
150nF,5%,100V,TP,10.5x5x14.5,5 |
|
C302 |
2305-000412 |
C-FILM,LEAD-PEF |
470nF,5%,63V,TP,-,5mm |
|
C303 |
2401-000031 |
C-AL |
47uF,20%,16V,GP,TP,5x11,5 |
|
C305 |
2401-002463 |
C-AL |
470uF,20%,16V,GP,TP,8x11.5,5 |
|
C306 |
2401-002274 |
C-AL |
220uF,20%,35V,WT,TP,10x12.5,5 |
|
C307 |
2305-000237 |
C-FILM,LEAD-PEF |
1uF,5%,63V,TP,7.5x15.5mm,5mm |
|
C308 |
2301-000312 |
C-FILM,LEAD-PEF |
8.2nF,5%,100V,TP,6x12.5mm,5mm |
|
C309 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C312 |
2401-000050 |
C-AL |
10uF,20%,16V,GP,TP,5x11,2.5 |
|
C313 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C340 |
2202-002008 |
C-CERAMIC,MLC-AXIAL |
10nF,+80-20%,50V,Y5V,TP,2.3X3. |
|
C401 |
2401-000031 |
C-AL |
47uF,20%,16V,GP,TP,5x11,5 |
|
C402 |
2305-000665 |
C-FILM,LEAD-PEF |
100nF,5%,63V,TP,7.5x4.0x5.0mm, |
|
C403 |
2202-000573 |
C-CERAMIC,MLC-RADIAL |
0.82NF,5%,50V,C0G,TP,5.1X3.2X5.1MM,5 |
|
C404 |
2301-000148 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,7x3.2x7mm,5mm |
|
C405 |
2201-000471 |
C-CERAMIC,DISC |
0.33NF,10%,50V,Y5P,TP,4X3.5MM,5 |
|
C406 |
2301-000110 |
C-FILM,LEAD-PEF |
1.8nF,5%,100V,TP,7x3.0x6.5mm,5 |
|
C407 |
2401-003826 |
C-AL |
220UF,20%,63V,LR,TP,10X25MM,5 |
|
C408 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C410 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C411 |
2301-000005 |
C-FILM,LEAD-PEF |
33nF,5%,100V,TP,5.8x12.5x3,5 |
|
C412 |
2301-000016 |
C-FILM,LEAD-PEF |
22nF,5%,100V,TP,7.2x4.5x9.0mm, |
|
C413 |
2401-001012 |
C-AL |
3.3UF,20%,50V,BP,TP,16X25,7.5 |
|
C414 |
2401-001334 |
C-AL |
0.47UF,20%,50V,GP,TP,5X11,2.5 |
|
C415 |
2401-001222 |
C-AL |
4.7UF,20%,160V,WT,TP,8X11.5MM,5 |
|
C416 |
2301-000010 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,11.5x12.5mm,5 |
|
C419 |
2309-000106 |
C-FILM,LEAD-OTHER |
2.2nF,5%,1.6KV,TP,23x16x9,7.5m |
! |
C420 |
2309-000106 |
C-FILM,LEAD-OTHER |
2.2nF,5%,1.6KV,TP,23x16x9,7.5m |
! |
C421 |
2303-001029 |
C-FILM,LEAD-PPF |
5.2nF,5%,630V,TP,19x7x13,7.5 |
|
C423 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C425 |
2306-000119 |
C-FILM,LEAD-PPF |
100nF,5%,250V,TP,19x14.5x6.5,7 |
|
C426 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C427 |
2306-000137 |
C-FILM,LEAD-PPF |
180nF,5%,250V,TP,19x16.5x8,7.5 |
|
C429 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C431 |
2306-000164 |
C-FILM,LEAD-PPF |
220nF,5%,250V,TP,19x22x10,7.5m |
|
|
|
|
|
|
7-16 |
AV17** |
7 Electrical Parts List
Loc. No. |
Code No. |
Description |
Specification |
Remarks |
|
|
|
|
|
C432 |
2305-001033 |
C-FILM,LEAD-PEF |
15nF,10%,250V,TP,13X9.0X4.5mm, |
|
C433 |
2305-001003 |
C-FILM,LEAD-PEF |
10nF,5%,250V,TP,13x4.5x9mm,7.5 |
|
C436 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C440 |
2401-001914 |
C-AL |
1uF,20%,50V,BP,TP,5x11,5 |
|
C461 |
2401-002075 |
C-AL |
4.7uF,20%,50V,GP,TP,5x11,5 |
|
C462 |
2301-000148 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,7x3.2x7mm,5mm |
|
C463 |
2401-000597 |
C-AL |
1uF,20%,50V,GP,TP,4x7mm,1.5mm |
|
C501 |
2301-000016 |
C-FILM,LEAD-PEF |
22nF,5%,100V,TP,7.2x4.5x9.0mm, |
|
C503 |
2201-000119 |
C-CERAMIC,DISC |
100NF,+80-20%,50V,Y5V,TP,8X3MM,5 |
|
C504 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C505 |
2401-000758 |
C-AL |
0.22UF,20%,50V,GP,TP,5X11,5 |
! |
C508 |
2401-002267 |
C-AL |
2.2uF,20%,250V,GP,TP,8x11.5,5 |
|
C509 |
2401-002267 |
C-AL |
2.2uF,20%,250V,GP,TP,8x11.5,5 |
|
C510 |
2301-000294 |
C-FILM,LEAD-PEF |
56nF,5%,100V,TP,9.5x12.5mm,5mm |
|
C513 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C520 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C541 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C551 |
2401-000050 |
C-AL |
10uF,20%,16V,GP,TP,5x11,2.5 |
|
C552 |
2201-000132 |
C-CERAMIC,DISC |
0.1NF,10%,500V,Y5P,TP,6.5X3MM,5 |
|
C553 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C603 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C604 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C607 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C609 |
2401-000970 |
C-AL |
22uF,20%,50V,WT,TP,5x11,5 |
|
C610 |
2401-003046 |
C-AL |
47uF,20%,50V,WT,TP,6.3x11,2.5 |
|
C611 |
2401-000611 |
C-AL |
1uF,20%,50V,WT,TP,5x11,5 |
|
C612 |
2305-000149 |
C-FILM,LEAD-PEF |
100nF,5%,100V,TP,12x12.5x6.5,5 |
|
C613 |
2201-000012 |
C-CERAMIC,DISC |
0.22NF,10%,1KV,Y5P,TP,6.3X5MM,5 |
|
C614 |
2201-000019 |
C-CERAMIC,DISC |
10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 |
|
C615 |
2201-000291 |
C-CERAMIC,DISC |
1NF,10%,500V,Y5P,TP,7.5X3.5MM,5 |
|
C616 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C617 |
2201-000023 |
C-CERAMIC,DISC |
2.2NF,20%,250V,Y5U,TP,11X7MM,5 |
|
C618 |
2401-000039 |
C-AL |
1000uF,20%,16V,GP,TP,10x16,5 |
|
C619 |
2201-000469 |
C-CERAMIC,DISC |
0.33NF,10%,500V,Y5P,TP,5.5X3MM,5 |
|
C620 |
2401-003826 |
C-AL |
220UF,20%,63V,LR,TP,10X25MM,5 |
|
C621 |
2401-001576 |
C-AL |
47uF,20%,50V,GP,TP,8x11.5,5 |
|
C622 |
2401-000039 |
C-AL |
1000uF,20%,16V,GP,TP,10x16,5 |
|
C623 |
2401-000039 |
C-AL |
1000uF,20%,16V,GP,TP,10x16,5 |
|
C624 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
C625 |
2301-000356 |
C-FILM,LEAD-PEF |
47nF,5%,50V,TP,7.5x4.0x6.5,5mm |
|
C626 |
2401-000025 |
C-AL |
100uF,20%,16V,GP,TP,6.3x11,5 |
|
C627 |
2401-000292 |
C-AL |
100uF,20%,16V,WT,TP,8x11.5mm,5 |
|
C630 |
2401-002463 |
C-AL |
470uF,20%,16V,GP,TP,8x11.5,5 |
|
C631 |
2401-000292 |
C-AL |
100uF,20%,16V,WT,TP,8x11.5mm,5 |
|
C633 |
2401-000603 |
C-AL |
1UF,20%,50V,GP,TP,5X11,2 |
|
C634 |
2401-000480 |
C-AL |
10uF,20%,50V,GP,TP,5x11,5 |
|
C635 |
2401-000015 |
C-AL |
33uF,20%,50V,WT,-,6.3x11mm,2.5 |
|
C636 |
2301-000188 |
C-FILM,LEAD-PEF |
1nF,5%,100V,TP,10.5x12.5x6.5,5 |
|
C639 |
2305-000178 |
C-FILM,LEAD-PEF |
10nF,5%,100V,TP,-,5mm |
|
C643 |
2202-000263 |
C-CERAMIC,MLC-AXIAL |
470pF,10%,50V,Y5P,TP,3.5x19,- |
|
C649 |
2202-002009 |
C-CERAMIC,MLC-AXIAL |
100NF,+80-20%,50V,Y5V,TP,2.3X3.0MM,- |
|
CIS06 |
0203-001199 |
TAPE-KRAFT |
#53110,T0.1,W6,L2000M,BRN |
SNA |
CIS07 |
0203-001200 |
TAPE-PAPER |
#53128,T0.15,W5.5,L2000M,BEIGE |
SNA |
CN304 |
3711-000197 |
CONNECTOR-HEADER |
1WALL,3P,1R,2.5mm,STRAIGHT,SN |
|
CN603 |
3711-000217 |
CONNECTOR-HEADER |
1WALL,2P,1R,7.92MM,STRAIGHT,SN,NTR |
|
D201 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D301 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D302 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D303 |
0402-000546 |
DIODE-RECTIFIER |
TVR10G,400V,1.0A,DO-41,TP |
|
D304 |
0401-000005 |
DIODE-SWITCHING |
1N4148,100V,200mA,DO-35,TP |
|
D401 |
0402-000274 |
DIODE-RECTIFIER |
UF4004,400V,1A,DO-41,TP |
|
D402 |
0402-000006 |
DIODE-RECTIFIER |
1N4007GP,1000V,1A,DO-41,TP |
|
D403 |
0402-000006 |
DIODE-RECTIFIER |
1N4007GP,1000V,1A,DO-41,TP |
|
D404 |
0402-000006 |
DIODE-RECTIFIER |
1N4007GP,1000V,1A,DO-41,TP |
|
|
|
|
|
|
AV17** |
7-17 |
Loading...
