3. Operating Instructions and Installation

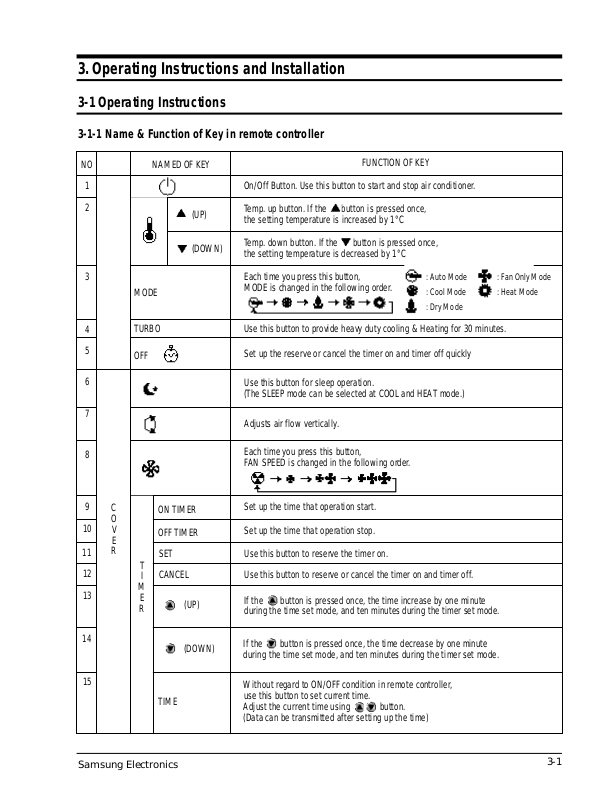

3-1 Operating Instructions
3-1-1 Name & Function of Key in remote controller
NO |
|
|
NAMED OF KEY |
|
|
FUNCTION OF KEY |
|
|||
|
|
|
|
|
|
|
||||
1 |
|
|
|
|
On/Off Button. Use this button to start and stop air conditioner. |
|
||||
|
|
|
|
|
|
|
|
|||
2 |
|
|
|
(UP) |
Temp. up button. If the |
button is pressed once, |
|
|||
|
|
|
|
the setting temperature is increased by 1°C |
|
|
||||
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
(DOWN) |
Temp. down button. If the |
button is pressed once, |
|
|||
|
|
|
|
the setting temperature is decreased by 1°C |
|
|
||||
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
Each time you press this button, |
|
: Auto Mode |
: Fan Only Mode |
||
|
|
MODE |
MODE is changed in the following order. |
: Cool Mode |
: Heat Mode |
|||||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
: Dry Mode |
|
|
|
|
|
|
||||||
4 |
|
TURBO |
Use this button to provide heavy duty cooling & Heating for 30 minutes. |
|||||||
|
|
|
|
|
|
|
||||
5 |
|
OFF |
|
|
Set up the reserve or cancel the timer on and timer off quickly |
|
||||
|
|
|
|
|
|
|
|
|
||
6 |
|
|
|
|
Use this button for sleep operation. |
|
|
|
||
|
|
|
|
|
(The SLEEP mode can be selected at COOL and HEAT mode.) |
|
||||
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
|
|
Adjusts air flow vertically. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||
8 |
|
|
|
|
Each time you press this button, |
|
|
|
||
|
|
|
|
|
FAN SPEED is changed in the following order. |
|
|
|||
|
|
|
|
|
|
|
|
|
||
9 |
C |
|
ON TIMER |
Set up the time that operation start. |
|
|
|
|||
|
O |
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
|
|
V |
|
OFF TIMER |
Set up the time that operation stop. |
|
|
|
||||
|
E |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
R |
|
SET |
Use this button to reserve the timer on. |
|
|
||||
|
|
T |
|
|
|
|
|
|
|
|
12 |
|
CANCEL |
Use this button to reserve or cancel the timer on and timer off. |
|
||||||
|
I |
|
||||||||
|
|
M |
|
|
|
|
|
|
|
|
13 |
|
|
|
|
|
|
|
|
|
|
|
E |
|
(UP) |
If the |
button is pressed once, the time increase by one minute |
|
||||
|
|
R |
|
during the time set mode, and ten minutes during the timer set mode. |
||||||
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
14 |
|
|
|
(DOWN) |
If the |
button is pressed once, the time decrease by one minute |
|
|||
|
|
|
|
|
||||||
|
|
|
|
during the time set mode, and ten minutes during the timer set mode. |
||||||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
15 |
|
|
|
|
Without regard to ON/OFF condition in remote controller, |
|
||||
|
|
|
|
|
|
|||||
|
|
|
TIME |
use this button to set current time. |
|
|
|
|||
|
|
|
Adjust the current time using |
button. |
|
|
||||
|
|
|
|
|
|
|
||||
|
|
|
|
|
(Data can be transmitted after setting up the time) |
|
||||
|
|
|
|
|
|
|
|
|
|
|
Samsung Electronics |
3-1 |
Operating Instructions and Installation
3-1-1 Name & Function of Key in remote controller
1.AUTO MODE : In this mode, operation mode(COOL, HEAT) is selected automatically by the room temperature of initial operation.
Room Temp |
Operation Type |
|
|
Tr³ 21°C+DT |
Cool Operation (Set Temp:24°C+DT) |
|
|
21°C +DT>Tr |
Heat Operation (Set Temp : 22°C+DT) |
|
|
DT= -2°, -1°C, 0°C+1°C+2°C
DT is controlled by setting temperature up( )/down( ) key of remote controller
2.COOL MODE : The unit operates according to the difference between the setting and room temperature. (18°C~30°C)
3.HEAT MODE : The unit operates according to the difference between the setting and room temperature.(16°C~30°C) *Prevention against cold wind : For about 3~5 minutes after initial operation, thermo control or “de-ice”, the indoor fan will either not operate or operate very slowly, then switch to the selected fan speed. This period is to allow the indoor unit's heatexchanger to prewarm before emitting warm air.
*High temperature release function : The outdoor unit for and compressor ON/OFF control for safety operation, when the overheat is heat exchanger of indoor unit. *De-ice : Deicing operation is controlled by indoor unit's heat exchanger temperature and accumulating time of compressor's operation.
De-ice end by sensing of the processing time by de-ice Condition.
4.DRY MODE :
The unit operates in DRY mode. *Compressor ON/OFF Time is controlled compulsorily(can not set up the fan speed, always breeze).
*Protective function : Low temperature release. (Prevention against freeze)
5.TURBO MODE : This mode is available in AUTO, COOL, HEAT, DRY, FAN MODE. When this button is pressed at first, the air conditioner is operated “powerful” state for 30 minutes regardless of the set temperature, room temperature.
When this button is pressed again, or when the operating time is 30 minutes, turbo operation mode is canceled and returned to the previous mode.
*But, if you press the TURBO button in DRY or FAN mode that is changed with AUTO mode automatically.
6.SLEEP MODE : Sleep mode is available only in COOL or HEAT mode.
The operation will stop after 6 hours.
*In COOL mode : The setting temperature is automatically raised by 1°C each 1hour When the temperature has been raised by total of 2°C, that temperature is maintained.
*In HEAT mode : The setting temperature is automatically droped by 1°C each 1hour. When the temperature has been droped by total of 2°C, that temperature is maintained.
7.FAN SPEED : Manual / Auto
Fan speed automatically varies depending on both the difference between setting and the room temperature.
3-2 |
Samsung Electronics |
8.COMPULSORY OPERATION :
For operating the air conditioner without the remote controller.
*AUTO : The operating is the same function that AUTO MODE in the remote controller.
9.SWING : BLADE-H is rotated vertically by the stepping motor.
*Swing Set / Auto |
: Press the |
button |
|
under the remote control is |
on |
||
LCD the |
and the blades move up and |
||
down, |
43°. If the one more time press |
||
the button, blatles location is stop.
10. Quick OFF TIMER: OFF timer (quick timer) allows reservation or cancel the timer on and timer off quickly
When OFF timer button is pressed at operating state, LCD displays the polling state sequentially.
The LCD also displays the time remaining.
Operating Instructions and Installation
11.24-Hour ON/OFF Real Setting Timer. : The air conditioner is turned ON at a specified time using ON TIMER .
OFF TIMER : The air Conditioner is turned OFF at a specified time using OFF TIMER . *ON TIMER : Only timer LED lights on.
*OFF TIMER : Both timer and operation LED lights on.
12.SELF Diagnosis
LED DISPLAY |
Check Point |
||
|
|
||
oper- |
TIMER FAN Turbo |
||
|
|||
ation |
|
||
Interruption of electric power and Power on.
Abnormal condition of the room sensor.
Abnormalconditionoftheindoorunit'sheatexchangersensor.
Indoor unit fan motor lock.
: LED |
: LED off |
blinking |
|
13.BUZZER SOUND : Whenever the ON/OFF button is pressed or whenever change occurs to the condition which is set up or select, the compulsory operation mode, buzzer is sounded "beep"
Samsung Electronics |
3-3 |
3-2 Installation
3-2-1 Selecting Area for Installation
Select an area for installation that is suitable to the customer's needs.
3-2-1(a) Indoor Unit
1.Make sure that you install the indoor unit in an area providing good ventilation. It must not be blocked by an obstacle affecting the airflow near the air inlet and the air outlet.
2.Make sure that you install the indoor unit in an area allowing good air handling and endurance of vibration of the indoor unit.
3.Make sure that you install the indoor unit in an area where there is no source of heat or vapor nearby.
4.Make sure that you install the indoor unit in an area from which hot or cool air is spread evenly in a room.
5.Make sure that you install the indoor unit in an area away from TVs, audio units, cordless phones, fluorescent lighting fixtures and other electrical appliances (at least 1 meter).
6.Make sure that you install the indoor unit in an area which provides easy pipe connection with the outdoor unit, and easy drainage for condensed water.
7.Make sure that you install the indoor unit in an area which is large enough to accomodate the measurements shown in figure on the next page.
3-2-1(b) Outdoor Unit
1.Make sure that you install the outdoor unit in area not exposed to the rain or direct sun light.
(Install a separate sunblind if exposed to direct sun light.)
2.Make sure that you install the outdoor unit in area allowing good air moment, not amplifying noise or vibration, especially to avoid disturbing neighbours.
(Fix the unit firmly if it is mounted in a high place.)
3.Make sure that you install the outdoor unit in area providing good ventilation and which is not dusty. It must not be blocked by any obstacle affecting the airflow near the air inlet and the air outlet.
4.Make sure that you install the outdoor unit in area free from animals or plants.
5.Make sure that you install the outdoor unit in area not blocking the traffic.
6.Make sure that you install the outdoor unit in area easy to drain condensed water from the indoor unit.
7.Make sure that you install the outdoor unit in area which provides easy connection within the maximum allowable length of a coolant pipe(10 meters).
Note
1.Add (18XX:20g, 24XX:30g) of refrigerant (R-22) for every 1 meter if the pipe length exceeds the standard pipe length of 5 meters.
2.Maintain a height between the indoor and outdoor units of less than 3 meters.
8.Make sure that you install the outdoor unit in an area which is large enough to accommodate the measurements
shown in figure on the next page.
3-2-1(c) Remote Control Unit
1.Make sure that you install the remote control unit in an area free from obstacles such as curtains etc, which may block signals from the remote control unit.
2.Make sure that you install the remote control unit in an area not exposed to
direct sunlight, and where there is no source of heat.
3.Make sure that you install the remote control unit in an area away from TVs, audio units, cordless phones, fluorescent lighting fixtures and other electrical appliances (at least 1 meter).
Caution :
It is harmful to the air conditioner if it is used in the following environments: greasy areas (including areas near machines), salty areas such as coast areas, areas where sulfuric gas is present such as hot spring areas. Contact your dealer for advice.
3-4 |
Samsung Electronics |
