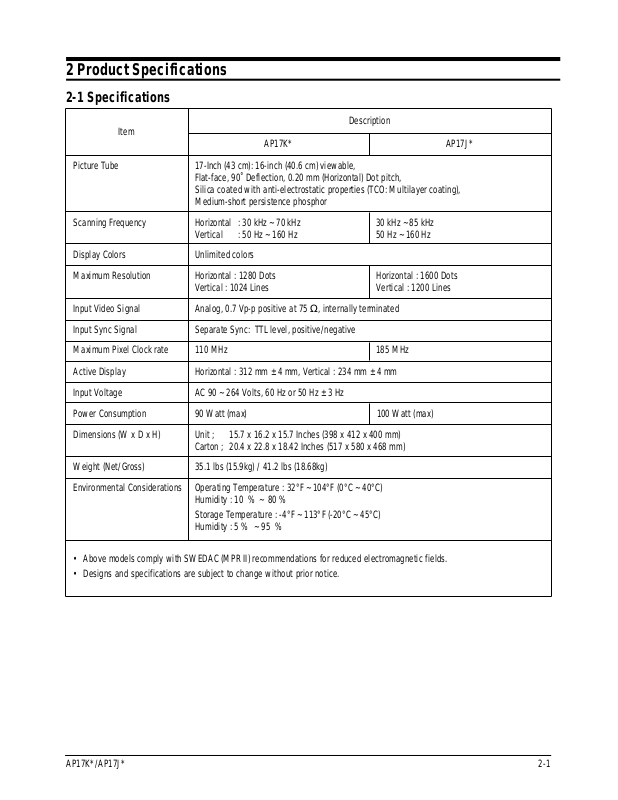

2 Product Specifications
2-1 Specifications
Picture Tube 17-Inch (43 cm): 16-inch (40.6 cm) viewable,
Flat-face, 90˚ Deflection, 0.20 mm (Horizontal) Dot pitch,
Silica coated with anti-electrostatic properties (TCO: Multilayer coating),
Medium-short persistence phosphor
Scanning Frequency Horizontal : 30 kHz ~ 70 kHz 30 kHz ~ 85 kHz
Vertical : 50 Hz ~ 160 Hz 50 Hz ~ 160 Hz
Display Colors Unlimited colors
Maximum Resolution Horizontal : 1280 Dots Horizontal : 1600 Dots
Vertical : 1024 Lines Vertical : 1200 Lines
Input Video Signal Analog, 0.7 Vp-p positive at 75 Ω, internally terminated
Input Sync Signal Separate Sync: TTL level, positive/negative
Maximum Pixel Clock rate 110 MHz 185 MHz
Active Display Horizontal : 312 mm ± 4 mm, Vertical : 234 mm ± 4 mm
Input Voltage AC 90 ~ 264 Volts, 60 Hz or 50 Hz ±3 Hz
Power Consumption 90 Watt (max) 100 Watt (max)
Dimensions (W x D x H) Unit ; 15.7 x 16.2 x 15.7 Inches (398 x 412 x 400 mm)
Carton ; 20.4 x 22.8 x 18.42 Inches (517 x 580 x 468 mm)
Weight (Net/Gross) 35.1 lbs (15.9kg) / 41.2 lbs (18.68kg)
Environmental Considerations Operating Temperature : 32°F ~ 104°F (0°C ~ 40°C)
Humidity : 10 % ~ 80 %
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %
• Above models comply with SWEDAC (MPR II) recommendations for reduced electromagnetic fields.
• Designs and specifications are subject to change without prior notice.
Item
AP17K*/AP17J* 2-1
Description
AP17K* AP17J*
Page 2
2 Product Specifications
2-2 AP17K*/AP17J*
2-2 Pin Assignments
5
15
Figure 2-1. Male Type Figure 2-2. Male Type
Sync
Type
Pin No.
Macintosh
Separate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red
Green
Blue
N-C
DDC Return
GND-R
GND-G
GND-B
N-C
GND-Sync/Self-raster
N-C
DDC Data
H-Sync
V-Sync
DDC Clock
GND-R
Red
H/V Sync
Sense 0
Green
GND-G
Sense 1
Reserved
Blue
Sense 2
GND
V-Sync
GND-B
GND
H-Sync
Page 3
2 Product Specifications
AP17K*/AP17J* 2-3
QRS
P
O
Video
Sync
Sync
Horizontal
Vertical
CDE
P
O
B
A
Video
Sync
Sync
Separate Sync
2-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard
for computer-generated video signals.
C D
A
O
E
B
P
Video
Sync
Sync
Video
Q R S
A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width
C : Back porch D : Active time Q : Back porch R : Active time
E : Front porch S : Front porch
fH (kHz)
A µsec
B µsec
C µsec
D µsec
E µsec
fV (Hz)
O msec
P msec
Q msec
R msec
S msec
Clock
Frequency
(MHz)
Polarity
H.Sync
V.Sync
Remark
IBM
VESA
800/85 Hz
800 x 600
1024/75 Hz
1024 x 768
1024/85 Hz
1024 x 768
VGA3/60 Hz
640 x 480
VGA2/70 Hz
720 x 400
31.469
31.777
3.813
1.907
25.422
0.636
70.087
14.268
0.064
1.080
12.711
0.413
28.322
Negative
Positive
Separate
31.469
31.778
3.813
1.907
25.422
0.636
59.940
16.683
0.064
1.048
15.253
0.318
25.175
Negative
Negative
Separate
37.500
26.667
2.032
3.810
20.317
0.508
75.000
13.333
0.080
0.427
12.800
0.027
31.500
Negative
Negative
Separate
43.269
23.111
1.556
2.222
17.778
1.556
85.008
11.764
0.671
0.578
11.093
0.023
36.000
Negative
Negative
Separate
46.875
21.333
1.616
3.232
16.162
0.323
75.000
13.333
0.064
0.448
12.800
0.021
49.500
Positive
Positive
Separate
53.674
18.631
1.138
2.702
14.222
0.569
85.061
11.756
0.056
0.503
11.179
0.019
56.250
Positive
Positive
Separate
60.023
16.660
1.219
2.235
13.003
0.203
75.029
13.328
0.050
0.466
12.795
0.017
78.750
Positive
Positive
Separate
68.677
14.561
1.016
2.201
10.836
0.508
84.997
11.765
0.044
0.524
11.183
0.015
94.500
Positive
Positive
Separate
1280/75 Hz
1280 x 1024
(AP17J*)
79.976
12.504
1.067
1.837
9.481
0.119
75.025
13.329
0.038
0.475
12.804
0.013
135.000
Positive
Positive
Separate
800/75 Hz
800 x 600
640/75 Hz
640 x 480
(AP17K* Only)
640/85 Hz
640 x 480
Table 2-1. Timing Chart
Mode
Timing
Page 4
2 Product Specifications
2-4 AP17K*/AP17J*
Memo
