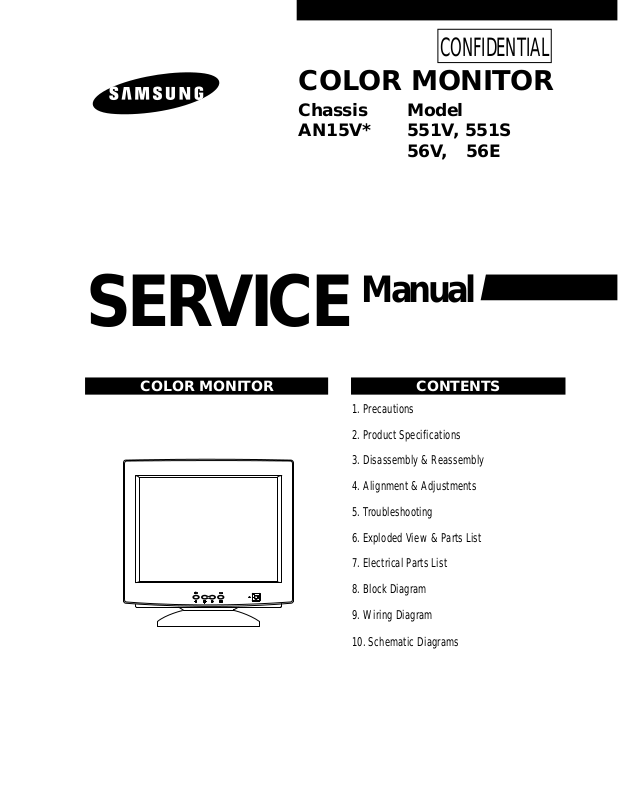

COLOR MONITOR

Chassis Model AN15V* 551V, 551S

56V, 56E

Manual

SERVICE

COLOR MONITOR CONTENTS

1. Precautions

2. Product Specifications

3. Disassembly & Reassembly

4. Alignment & Adjustments

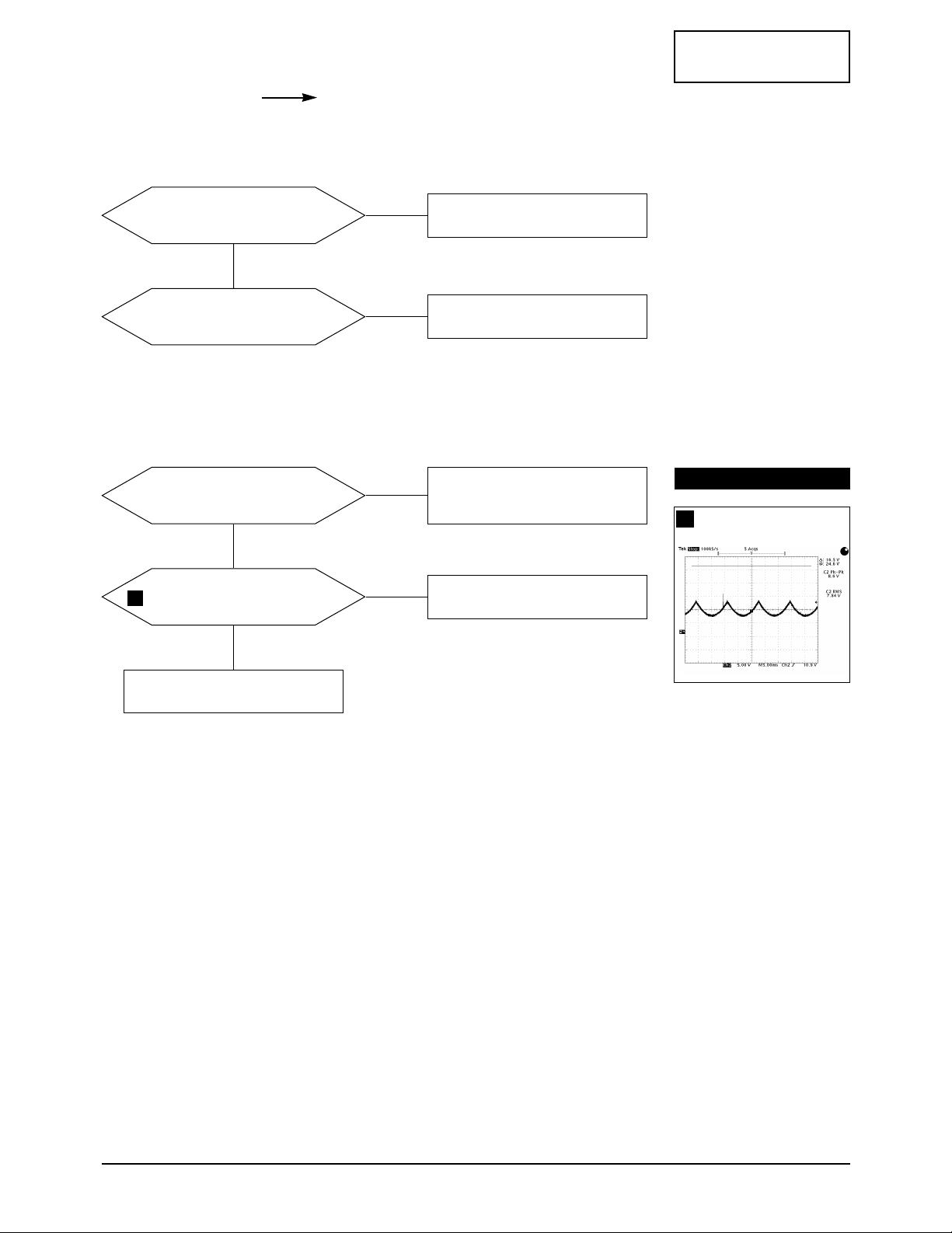

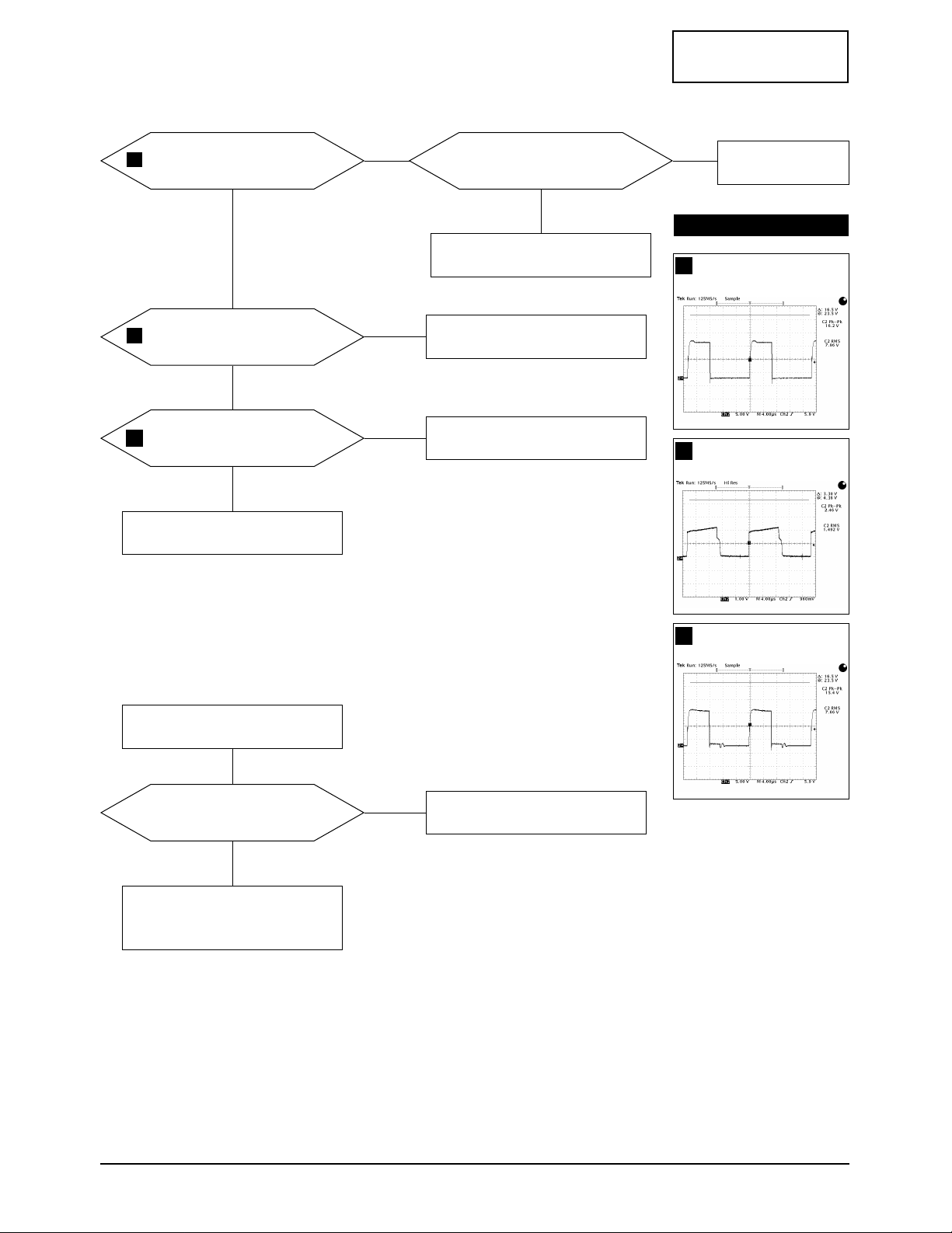

5. Troubleshooting

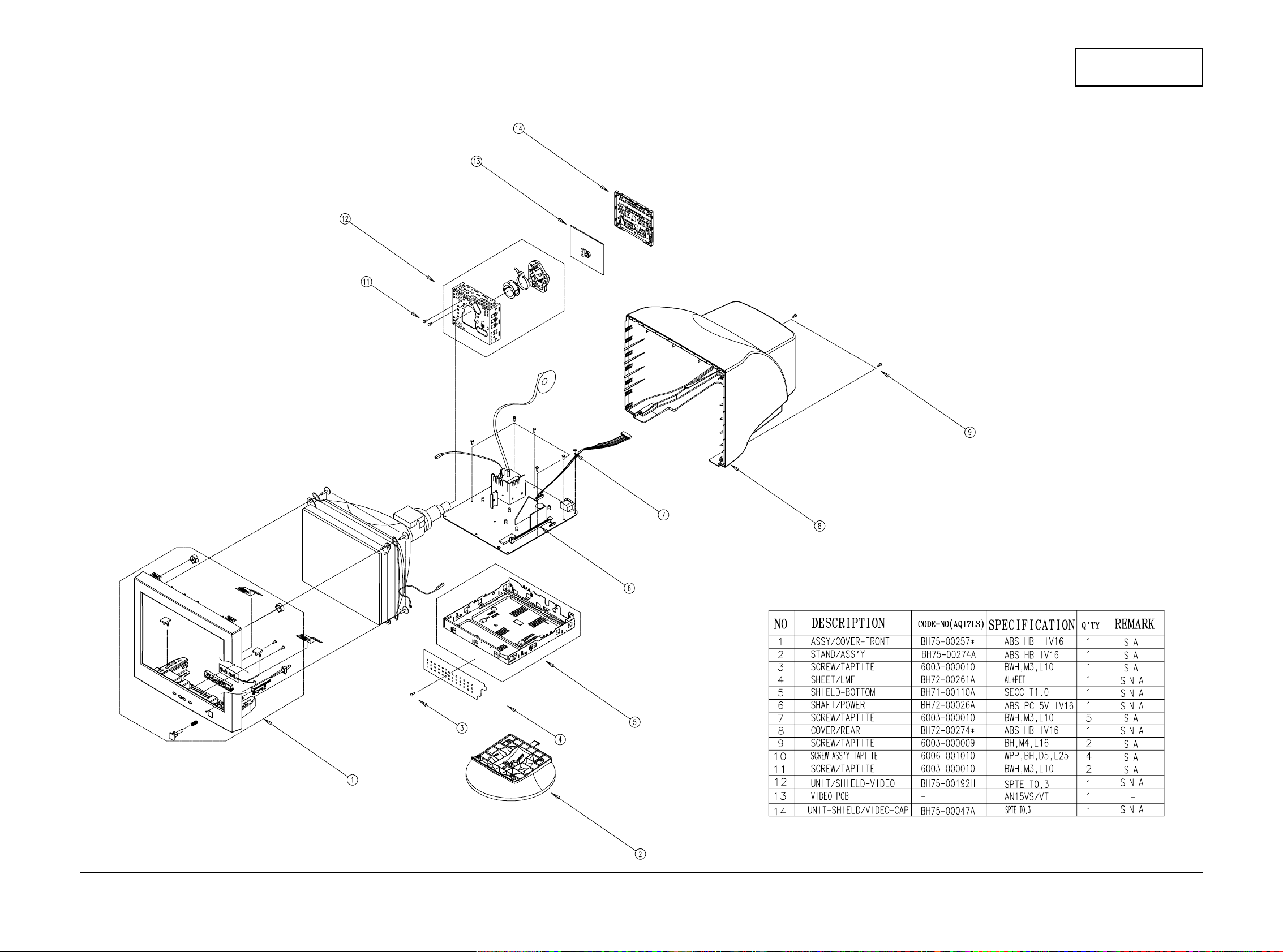

6. Exploded View & Parts List

7. Electrical Parts List

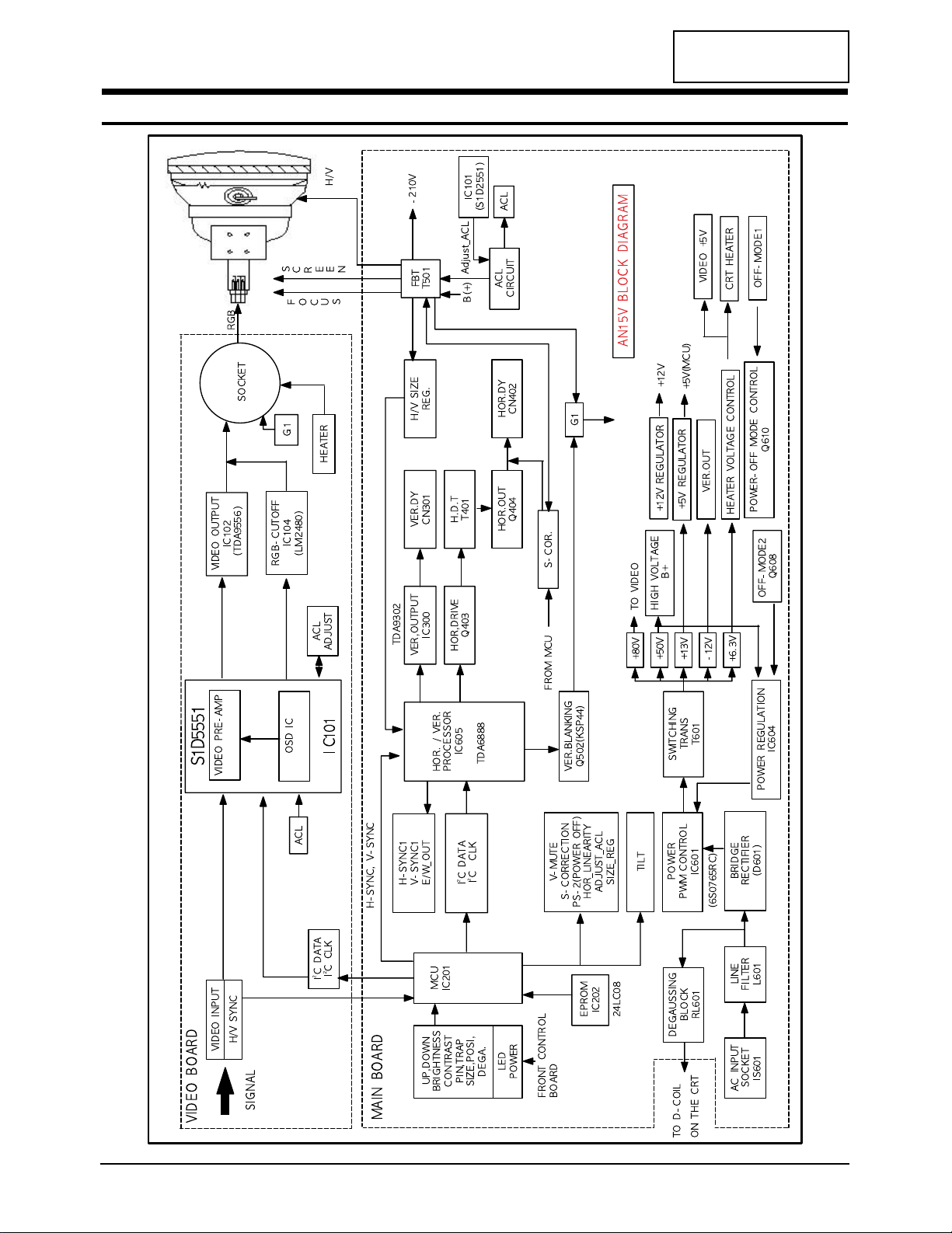

8. Block Diagram

9. Wiring Diagram

10. Schematic Diagrams

CONFIDENTIAL

Page 2

WARNINGS

1. For continued safety, do not attempt to modify the circuit board.

2. Disconnect the AC power before servicing.

3. When the chassis is operating, semiconductor heatsinks are potential shock hazards.

1-1-1 Servicing the High Voltage and CRT :

WARNING: A high voltage adjusted to the wrong

value may cause excessive X-ray emissions.

1. When servicing the high voltage system, remove the static charge by connecting a 10 kohm resistor in series with an insulated wire (such as a test probe) between the chassis and the anode lead.

2. When troubleshooting a monitor with excessively HV, avoid being unnecessarily close to the monitor. Do not operate the monitor for longer than is necessary to locate the cause of excessive voltage.

3. High voltage should always be kept at the rated value, no higher. Only when high voltage is excessive are X-rays capable of penetrating the shell of the CRT, including the lead in glass material. Operation at high voltages may also cause failure of the CRT or high voltage circuitry.

4. When the HV regulator is operating properly, there is no possibility of an X-ray problem. Make sure the HV does not exceed its specified value and that it is regulating correctly.

5. The CRT is especially designed to prohibit X-ray emissions. To ensure continued X-ray protection, replace the CRT only with one that is the same or equivalent type as the original.

6. Handle the CRT only when wearing shatterproof goggles and after completely discharging the high voltage anode.

7. Do not lift the CRT by the neck.

1-1-2 Fire and Shock Hazard :

Before returning the monitor to the user, perform the following safety checks:

1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. Leakage Current Hot Check (Figure 1-1):

WARNING: Do not use an isolation transformer during

this test.

Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for

Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test.

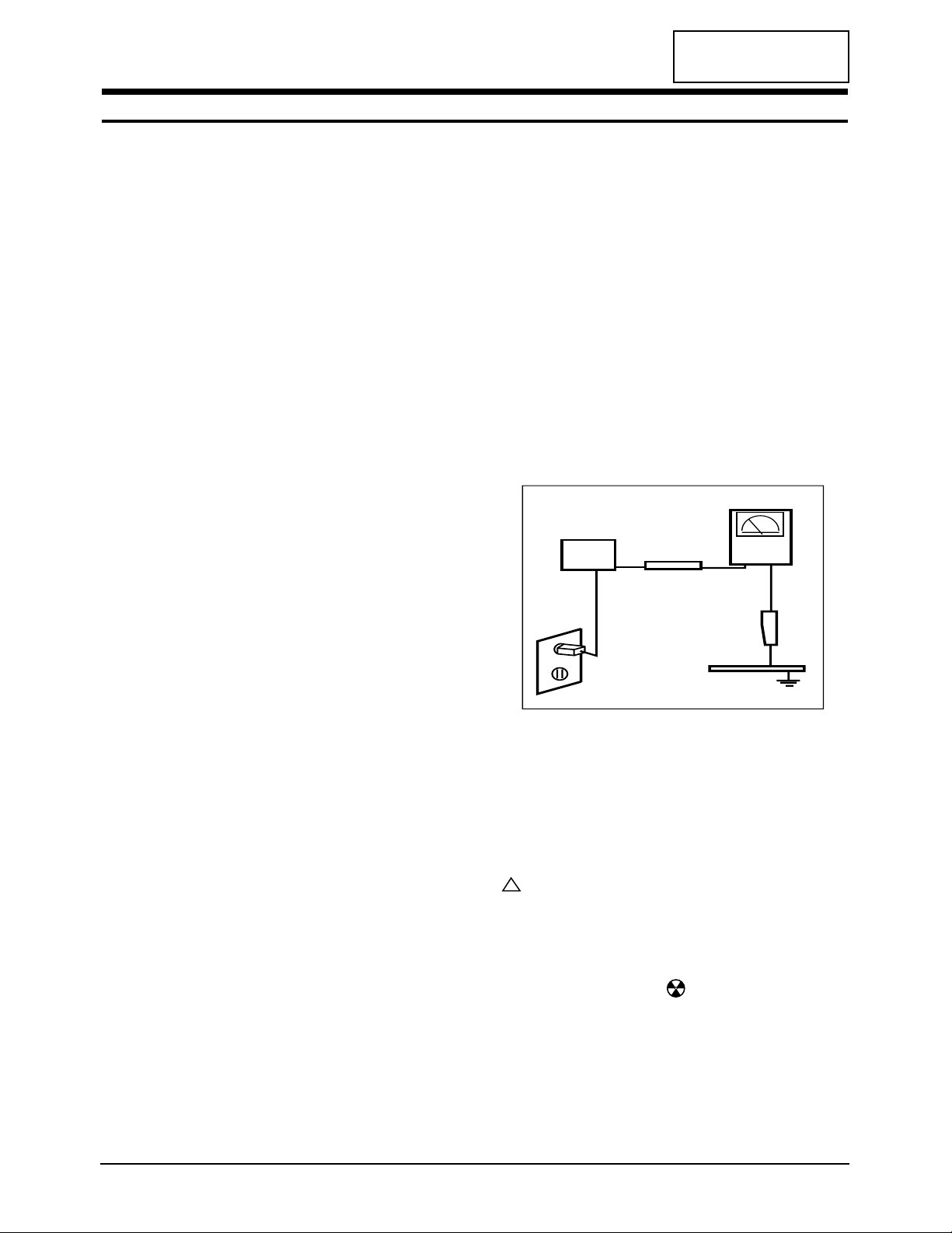

Figure 1-1. Leakage Current Test Circuit

1-1-3 Product Safety Notices

Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by

on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and / or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

Components identified by on schematics and parts lists must be sealed by a soldering iron after replacement and adjustment.

AN15V* 1-1

1 Precautions

1-1 Safety Precautions

DEVICE UNDER TEST

TEST ALL

EXPOSED METAL

SURFACES

(READING SHOULD

NOT BE ABOVE 0.5mA)

LEAKAGE CURRENT

TESTER

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

EARTH

GROUND

CONFIDENTIAL

Page 3

1. Servicing precautions are printed on the cabinet, and should be followed closely.

2. Always unplug the unit’s AC power cord from the AC power source before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect all test components in parallel with an electrolytic capacitor.

3. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

4. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.

1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wriststrap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.

2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.

4. Use only a grounded-tip soldering iron to solder or desolder ESDs.

5. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.

5. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

6. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

7. Never defeat any of the +B voltage interlocks. Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

8. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution: Be sure no power is applied to the

chassis or circuit and observe all other safety precautions.

8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.

9. Indicates ESDs on the Schematic Diagram in this manual.

1 Precautions

1-2 AN15V*

CONFIDENTIAL

1-3 Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some fieldeffect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

1-2 Servicing Precautions

WARNING1: First read the “Safety Precautions” section of this manual. If unforeseen circumstances

create conflict between the servicing precautions and safety precautions, always

follow the safety precautions. WARNING2: A high voltage adjusted to the wrong value may cause excessive X-ray emissions. WARNING3: An electrolytic capacitor installed with the wrong polarity might explode.

Page 4

AN15V* 2-1

2 Product Specifications

2-1 Specifications

Picture Tube: 15-Inch (38 cm): 13.8-inch (35 cm) viewable,

Full-square flat-face tube, 90˚ Deflection, Semi- tint, Non-glare, Invar shadow mask, Anti-static silica coating, 0.28 mm Dot pitch

Scanning Frequency Horizontal 30 KHz ~ 55 KHz (Automatic)

Vertical 50 Hz ~ 120 Hz (Automatic) Display Colors Unlimited colors Maximum Resolution Horizontal 1024 Dots

Vertical 768 Lines Input Video Signal Analog, 0.7 Vp-p positive at 75 Ω, internally terminated Input Sync Signal Separate Sync : TTL level positive/negative Maximum Pixel Clock rate 65 MHz

Active Display Horizontal : 267 mm ± 4 mm, Vertical : 200 mm ± 4 mm Input Voltage AC 90 ~ 264 Volts, 60 Hz / 50 Hz ± 3 Hz Power Consumption 80 Watt (max) Dimensions (W x D x H)

With Base 14.01 x 14.92 x 14.54 Inches (356 x 379 x 369.5 mm) Weight (Net/Gross) 11.5 kg (25.35 lbs) / Standard : 13.3 kg (29.32 lbs), Special : 13.4 kg (29.54 lbs) Environmental Considerations Operating Temperature : 32°F ~ 104°F (0°C ~ 40°C)

Humidity : 10 % ~ 80 % Storage Temperature : –4°F ~ 113°F (–20°C ~ 45°C) Humidity : 5 % ~ 95 %

• Above models comply with SWEDAC (MPR II) recommendations for reduced electromagnetic fields.

• Designs and specifications are subject to change without prior notice.

Item

Description

CONFIDENTIAL

Page 5

CONFIDENTIAL

2 Product Specifications

2-2 AN15V*

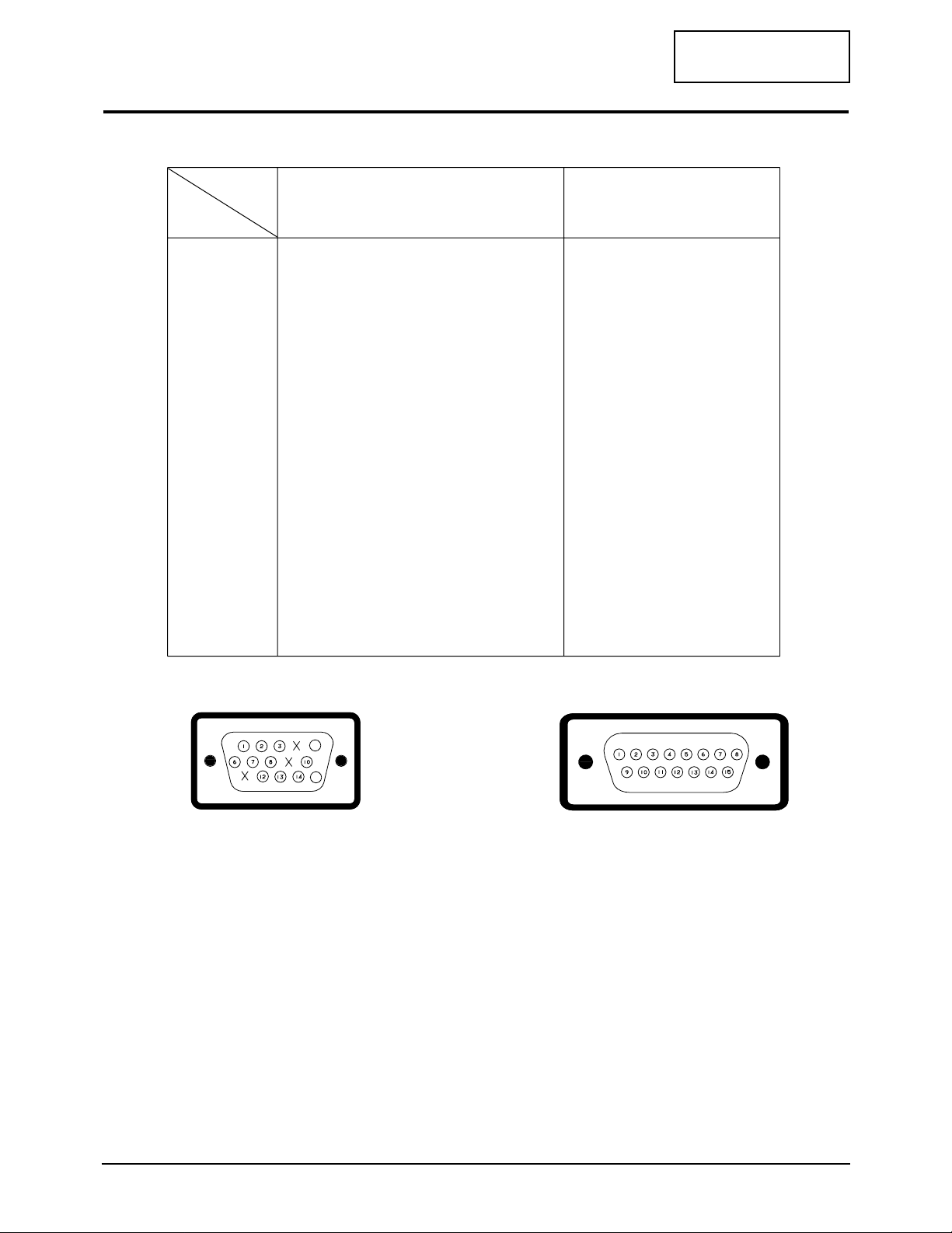

2-2 Pin Assignments

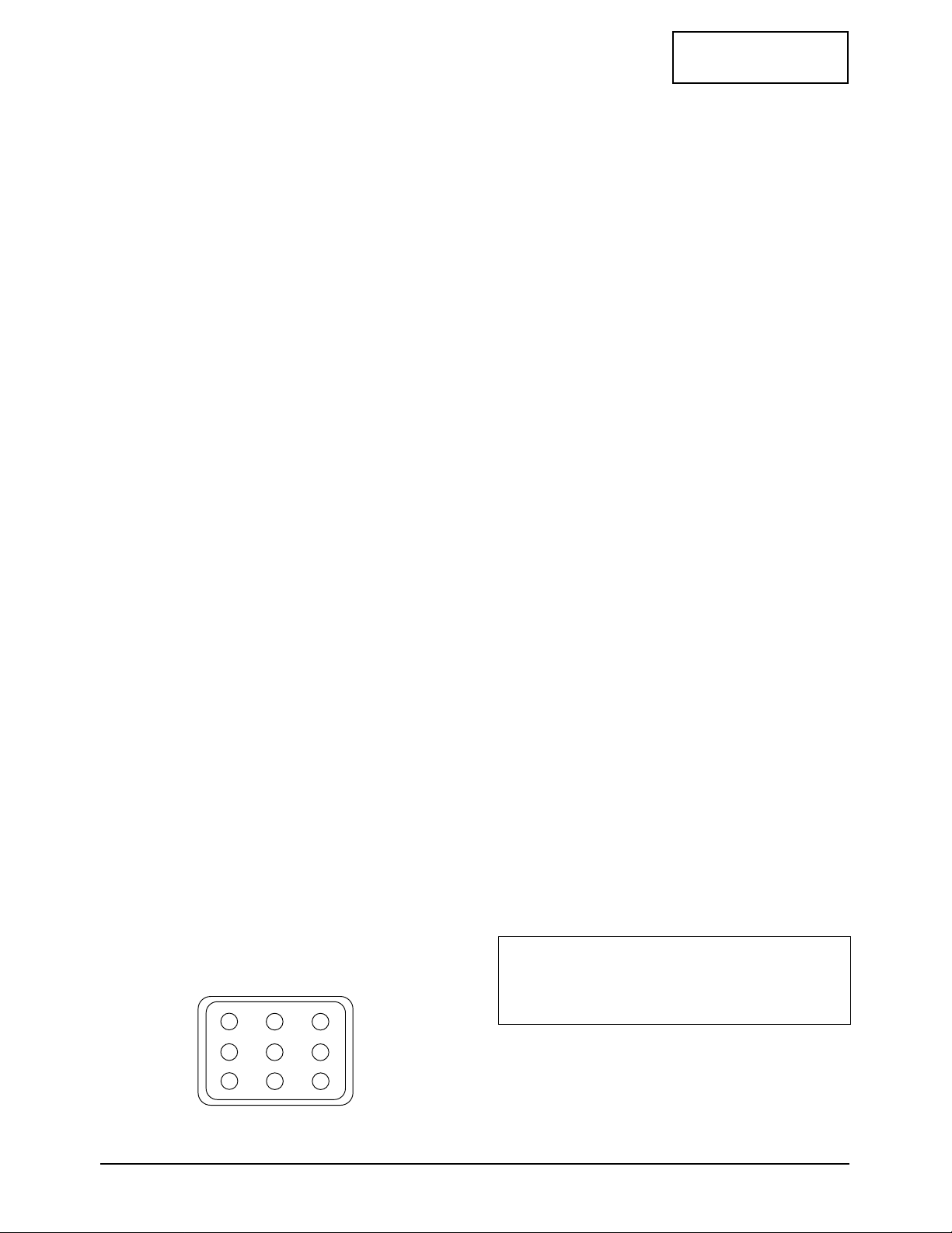

Figure 2-1. Male Type Figure 2-2. Male Type

Sync Type

Pin No.

Macintosh

Separate

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Red Green Blue N-C GND (DDC Return) GND-R GND-G GND-B N-C GND-Sync./Self-Test N-C DDC Data H-Sync. V-Sync. DDC Clock

GND-R Red H/V Sync. Sense 0 Green GND-G Sense 1 Reserved Blue Sense 2 GND V-Sync. GND-B GND H-Sync.

Page 6

2 Product Specifications

AN15V* 2-3

QRS

Video

Sync

Horizontal

Vertical

CDE

Video

Sync

Separate Sync

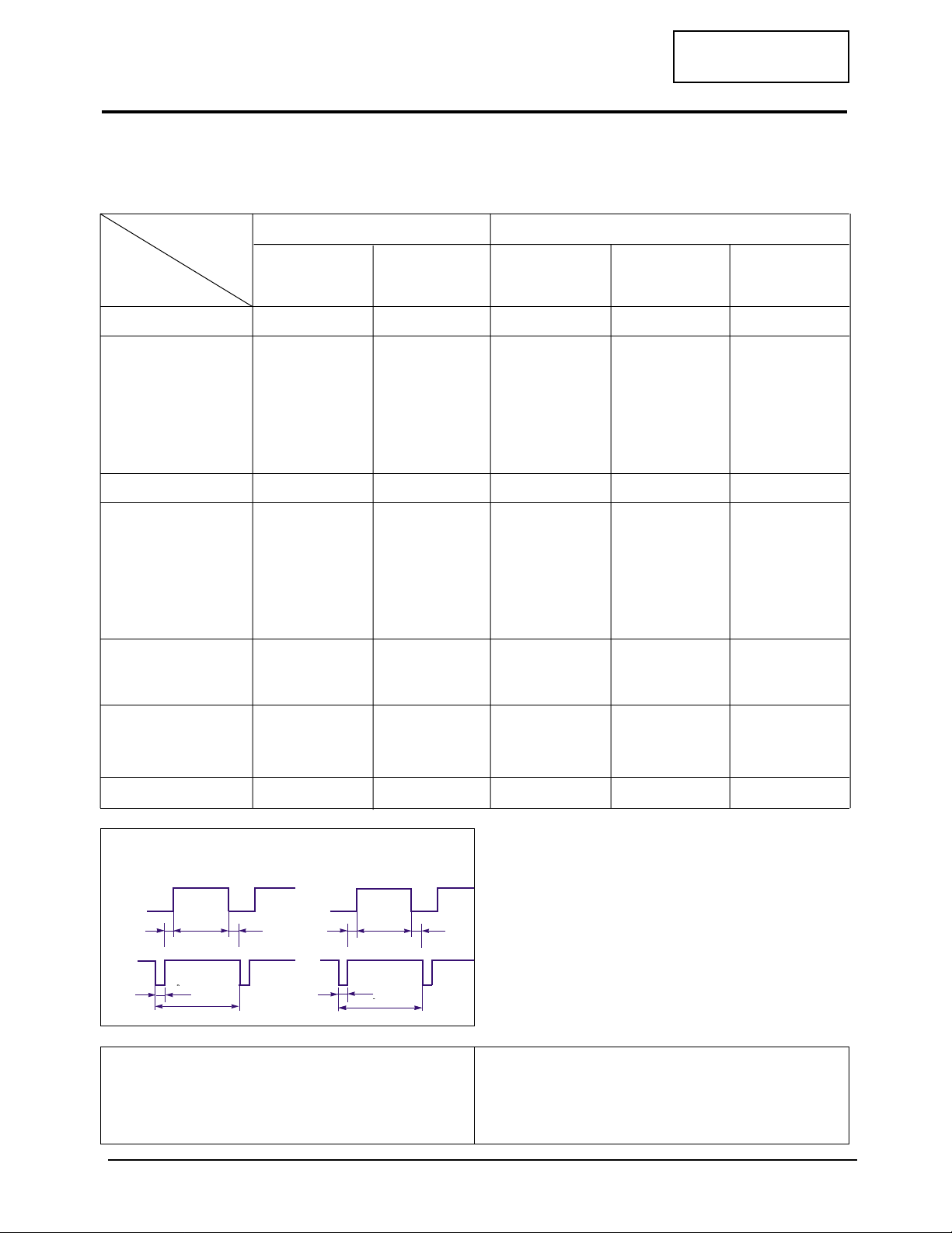

2-3 Timing Chart

This section of the service manual describes the timing that the computer industry recognizes as standard for computer-generated video signals.

C D

Video

Sync

Video

Q R S

A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width C : Back porch D : Active time Q : Back porch R : Active time E : Front porch S : Front porch

fH (kHz) A µsec B µsec C µsec D µsec E µsec fV (Hz) O msec P msec Q msec R msec S msec Clock

Frequency (MHz)

Polarity H.Sync

V.Sync Remark

IBM VESA

800/85 Hz 800 x 600

VGA3/60 Hz

640 x 480

VGA2/70 Hz

720 x 400

31.469

31.778

3.813

1.907

25.422

0.636

70.087

14.268

0.064

1.080

12.711

0.413

28.322

Negative

Positive

Separate

31.469

31.778

3.813

1.907

25.422

0.636

59.940

16.683

0.064

1.048

15.253

0.318

25.175

Negative Negative Separate

43.269

23.111

1.556

2.222

17.778

1.556

85.008

11.764

0.671

0.578

11.093

0.023

36.000

Negative Negative Separate

53.674

18.631

1.138

2.702

14.222

0.569

85.061

11.756

0.056

0.503

11.179

0.019

56.250

Positive Positive

Separate

640/85 Hz 640 x 480

Table 2-1 Timing Chart

Mode

Timing

37.500

26.667

2.032

3.810

20.317

0.508

75.000

13.333

0.080

0.427

12.800

0.027

31.500

Negative Negative Separate

640/75 Hz 640 x 480

CONFIDENTIAL

Page 7

CONFIDENTIAL

2 Product Specifications

2-4 AN15V*

Memo

Page 8

3-1-1 Before making Disassembly

1. Disconnect or power cord from the monitor.

2. With a pad beneath it, stand the monitor on its front with the screen facing downward and the base close to you.

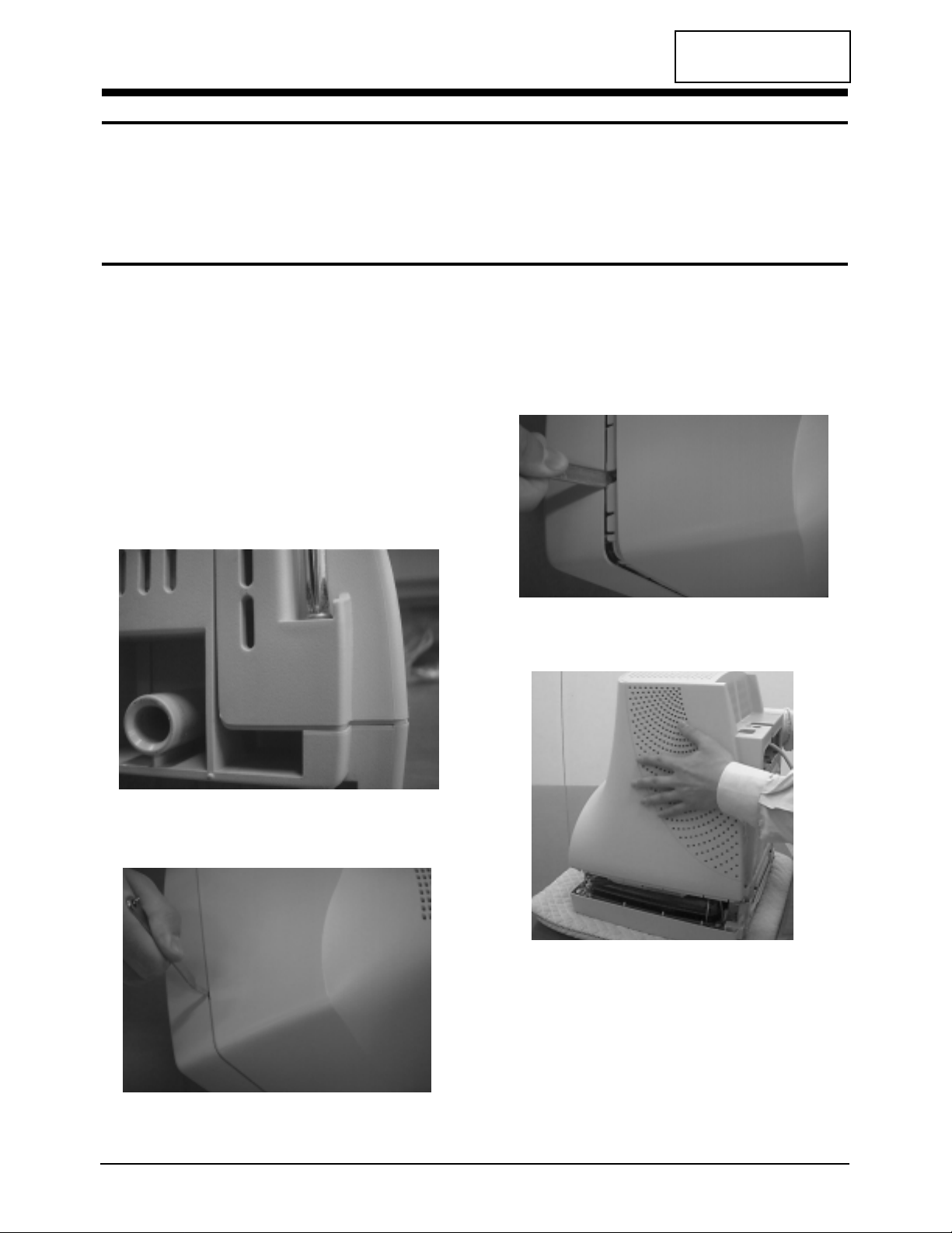

3-1-2 Cabinet Disassembly

1. Remove the Stand from the monitor. (Refer to Stand manual)

2. Remove 2 screws on the Rear cover.

3. Incline the monitor by lifting the rear of the monitor.

4. Push the Opening jig each groove along the top of the monitor till it makes a “ttak” sound. (2 grooves : Left and Right, Make sure each snap is disengaged.)

5. Pull the Rear Cover up off the monitor.

AN15V* 3-1

3 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the AN15V* monitor.

WARNING: This monitor contains electrostatically sensitive devices. Use with caution when

handling these components.

3-1 Disassembly

Cautions: 1. Disconnect the monitor from the power source before disassembly.

2. To remove the Rear Cover, you must use the special opening jig tool.

Figure 1

Figure 2

Figure 3

Figure 4

CONFIDENTIAL

Page 9

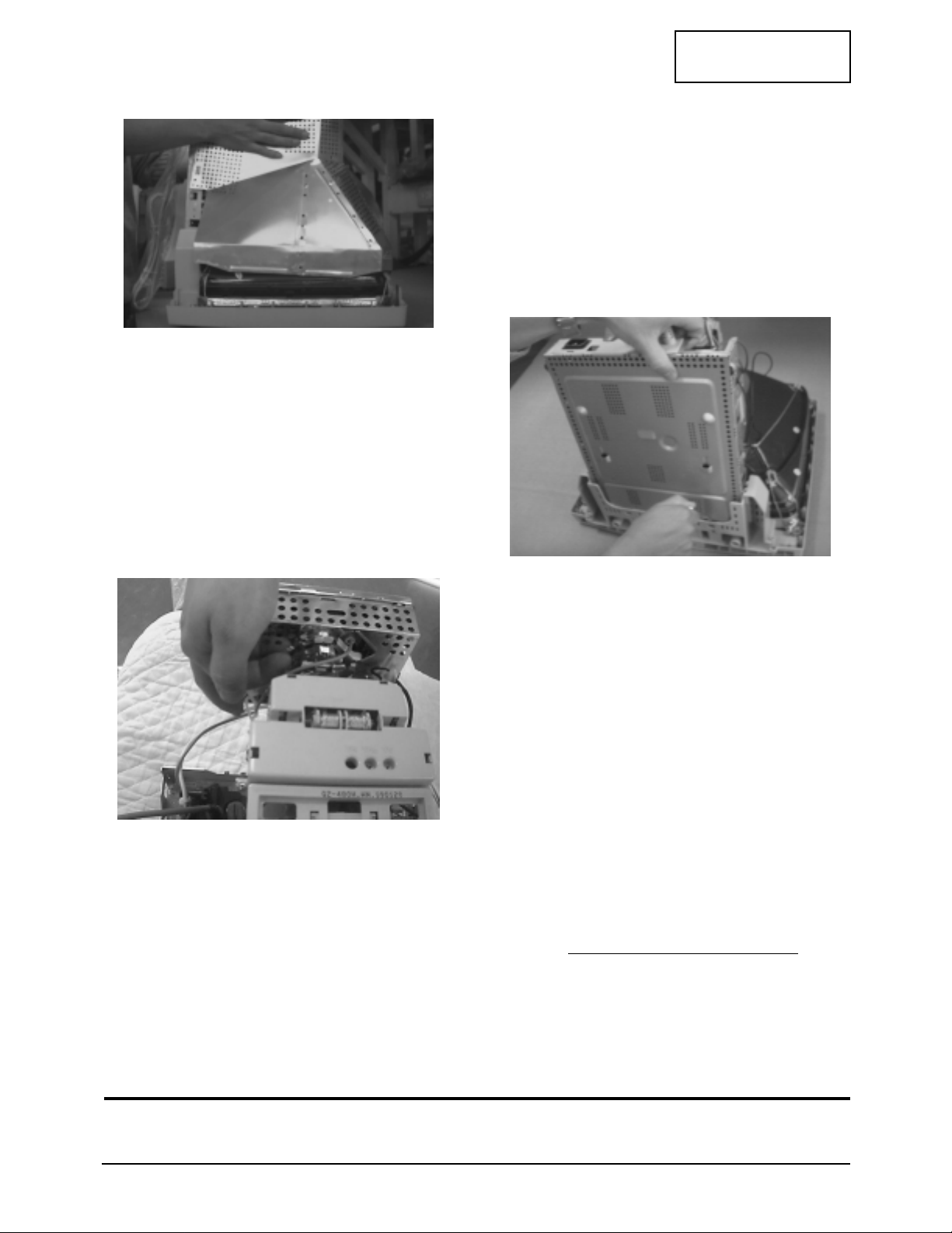

6. Remove the Shield.(TCO 95)

7. Using pinch-nose pliers or ling-nose pliers, acrefully disconnect the Anode Cap from the CRT.

Warning: Do not touch the Anode contact

on the CRT (High Voltage may remain).

3-1-3 Removing the CRT Socket PCB

1. Complete all previous steps.

2. Lift up the Video Spring and remove the CRT Socket PCB from the CRT.

3. Disconnect all connectors on the CRT Socket PCB.

4. Using a solder iron, disconnect Ground (GND) on the back of the Video Shield and remove the Shield Cap.

5. Remove the screw on the front of the Shield Socket.

6. Desolder the 4 tabs on the CRT Socket PCB and remove Shield.

7. Place the Video PCB on a flat, level surface that is protected from static electricity.

3-1-4 Removing the Main PCB

1. Complete all previous steps.

2. Disconnect the Degaussing Coil at CN603 on the Main PCB.

3. Disconnect all easily accessible ground wires on the PCB and Bottom Chassis.

4. Disconnect the DY connector at the CN404 connector on the Main .

5. Using the jig, release the snaps (2) connecting the Front Cover and the PCB then lift up the Bottom to separate the two Shield.

6. Disconnect the Sub PCB connector at the CN201 connector on the Main PCB.

7. Remove the screws on the back and along each side of the Bottom Chassis.

8. Carefully lift the Main PCB Ass’y and remove the remaining ground wires.

9. Place the Main PCB Ass’y on a flat, level surface that is protected from static electricity.

3-1-5 CRT Ass’y Disassembly

1. Complete all previous steps.

2. Straighten the Degaussing Coil Assembly coated metal ties and lift the Coil Ass’y from the CRT.

3. Remove the four corner screws and lift the CRT up and away from the Front Cover Assembly and place it on a padded surface.

Caution: Do not lift the CRT by the neck.

If you will be returning this CRT to the monitor, be sure to place the CRT face downward on a protective pad.

3 Disassembly and Reassembly

3-2 AN15V*

CONFIDENTIAL

3-2 Reassembly

Reassembly procedures are in the reverse order of Disassembly procedures.

Figure 6

Figure 7

Figure 5

Page 10

4-1-1 Before Making Adjustments

4-1-1 (a) ORIENTATION

When servicing, always face the monitor to the east.

4-1-1 (b) WARM-UP TIME

The monitor must be on for 30 minutes before starting alignment. Warm-up time is especially critical in color temperature and white balance adjustments.

4-1-1 (c) SIGNAL

Analog, 0.7 Vp-p positive at 75 ohm, internal termination Sync: TTL level, negative/positive

4-1-1 (d) SCANNING FREQUENCY

Horizontal: 30 KHz ~ 55 KHz (Automatic) Vertical: 50 Hz ~ 120 Hz (Automatic)

Unless otherwise specified, adjust at the 800 x 600 mode (54 KHz/85 Hz).

4-1-2 Required Equipment

The following equipment may be necessary for adjustment procedures:

4-1-2 (a) DISPLAY CONTROL ADJUSTMENT

1. Non-metallic (–) screwdriver:

1.5, 2.5, 3 mm

2. Non-metallic (+) screwdriver:

1.5, 2.5, 3 mm

3. Digital Multimeter (DMM), or Digital Voltmeter

4. Signal generator, or DM200 software

5. Personal computer

4-1-2 (b) COLOR ADJUSTMENTS

1. All equipment listed in 4-1-2 (a), above

2. Color analyzer, or any luminance measurement equipment

AN15V* 4-1

4 Alignment and Adjustments

This section of the service manual explains how to make permanent adjustments to the monitor. Directions are given for adjustments using the monitor Interface Board Ver. 1.1 and software (Softjig).

4-1 Adjustment Conditions

Caution: Changes made without the Softjig are saved only to the user mode settings. As such, the

settings are not permanently stored and may be inadvertently deleted by the user.

CONFIDENTIAL

Page 11

4 Alignment and Adjustments

4-2 AN15V*

CONFIDENTIAL

4-2-1

HIGH VOLTAGE

Signal: 800 x 600 (54 KHz/85 Hz) Display image: Full White Pattern Contrast: Maximum Brightness: Maximum Limit: 25.0 kV ± 0.2 kV

Measure the hight voltage level at the anode cap. High voltage should be within the limit as above.

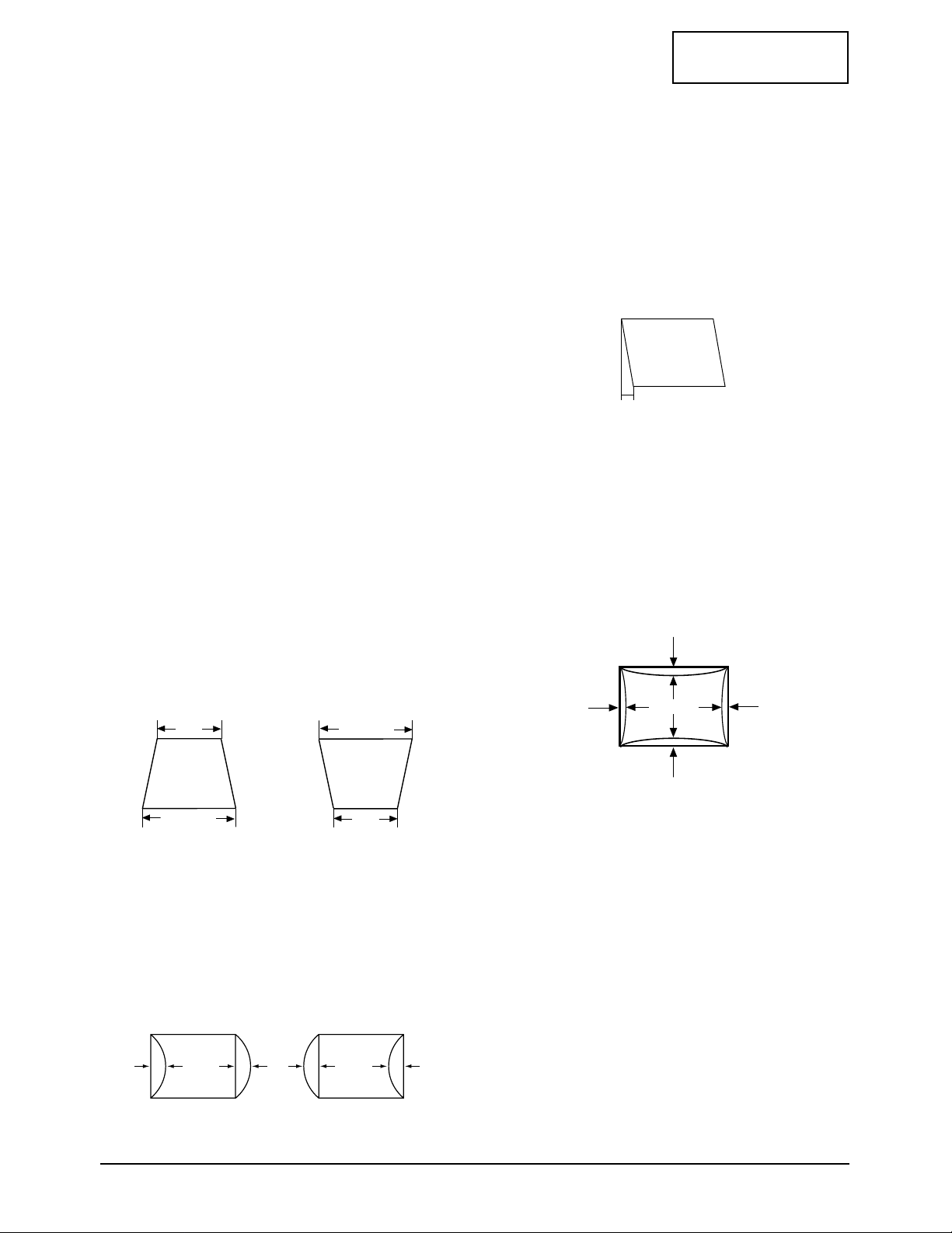

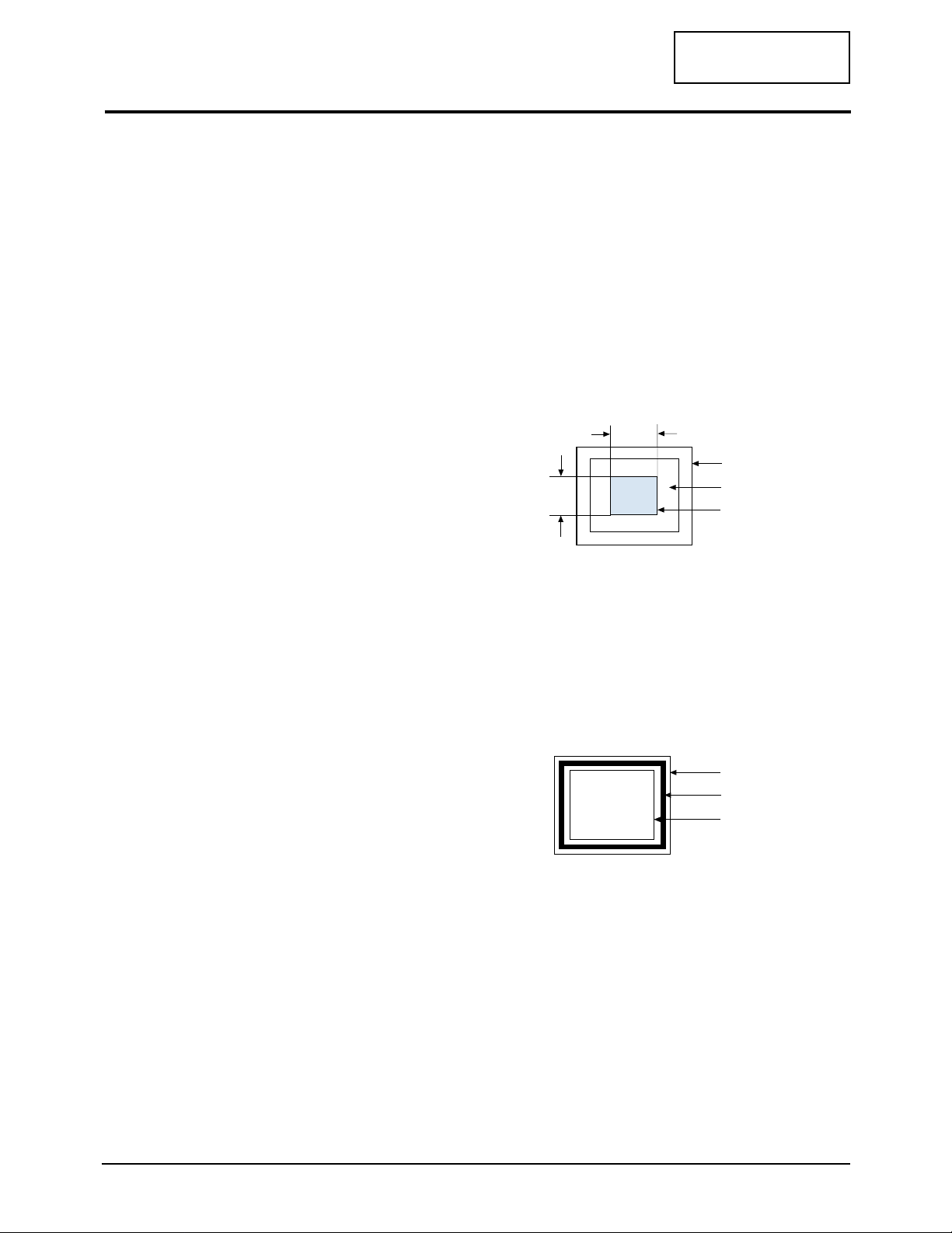

4-2-2 CENTER RASTER

Adjust VR401 so that the back raster comes to the center when you apply each basic mode.

SCREEN VOLTAGE ADJUSTMENT

❈ This can only SDI CRT conditions. Signal: 800 x 600 (54 KHz/85 Hz) Display image: Don’t care Contrast: Minimum Brightness: Minimum Limit: 480 ± 10V

Adjust screen VR of T501.

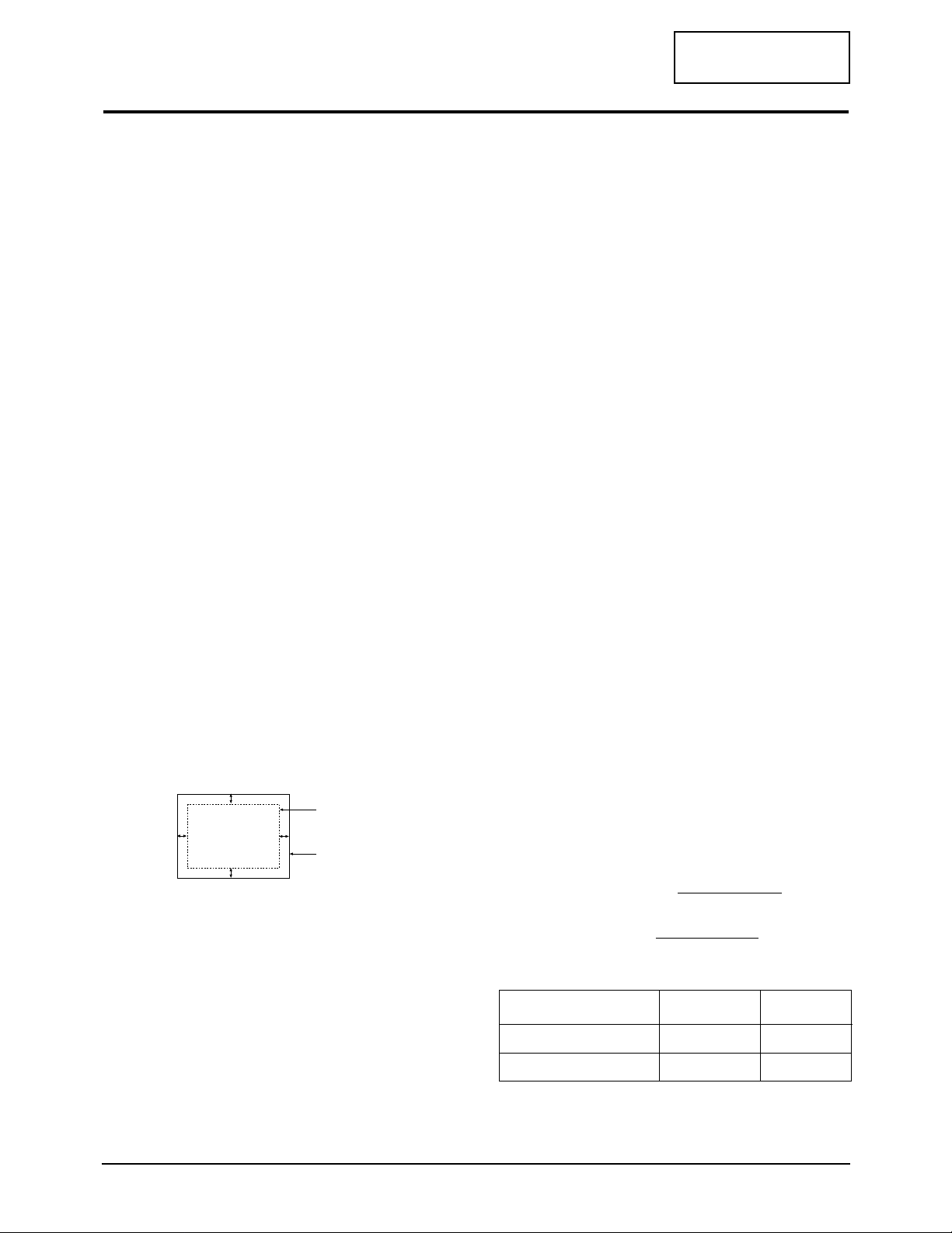

4-2-3 Centering

Centering means to position the center point of the display in the middle of the display area. Horizontal size and position and vertical size and position control the centering of the display.

Adjust the horizontal size and vertical size to their optimal settings: 267 mm (H) x 200 mm.

Adjust the horizontal position and vertical position to ≤ 5.0 mm of the center point of the screen.

|A – B| ≤ 5.0 mm. |C – D| ≤ 5.0 mm.

Figure 4-3. Centering

4-2-3 (a-1) HORIZONTAL SIZE ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

Use control bar after selecting “SIZE B+” in left menu to adjust the horizontal size of the display pattern to 255 mm . (Tolerance: ± 4 mm.)

4-2-3 (a-2) HORIZONTAL SIZE ADJUSTMENT

Use control bar after selecting “H-SIZE” in left menu to adjust the horizontal size of the display pattern to 267 mm . (Tolerance: ± 4 mm.)

4-2-3 (b) VERTICAL SIZE ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

Use control bar after selecting “V-SIZE” in left menu to adjust the vertical size of the display pattern to 200 mm. (Tolerance: ± 4 mm.)

4-2-3 (c) HORIZONTAL POSITION ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern

Use control bar after selecting “H-POSITION” in left menu to center the horizontal image on the raster.

4-2-3 (d) VERTICAL POSITION ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern

Use control bar after selecting “V-POSITION” in left menu to center the vertical image on the raster.

4-2-4 Linearity

Linearity affects the symmetry of images as they appear on the screen. Unless each row or column of blocks in a crosshatch pattern is of equal size, or within the tolerances shown in Table 4-1 an image appears distorted, elongated or squashed.

Horizontal Linearity = 2x x100

Vertical Linearity = 2x x100

Table 4-1

❈ Preset Mode : 54KHz / 85Hz

Pre-load Mode : Refer to Timing Chart

4-2 Display Control Adjustments

DISPLAY AREA

EDGE OF BEZEL

X max-X min

X max+X min Y max-Y min Y max+Y min

Preset mode ≤ 4% ≤ 8%

Adjacent Linearity

Entire Linearity

Pre-load mode (48kHz~) ≤ 5% ≤ 14%

Page 12

4-2-4 (a) HORIZONTAL LINEARITY ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

To adjust the Horizontal Linearity, refer to Table 4-1 for the tolerance range.

Increase or decrease H_LIN to optimize the image.

4-2-4 (b) VERTICAL LINEARITY ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

To adjust the Vertical Linearity, refer to Table 4-1 for the tolerance range.

Use control bar after selecting “V-LINEARITY BAL” in left menu to optimize the image.

4-2-5 Trapezoid Adjustment

CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

Use control bar after selecting “TRAPEZOID” in left menu to make the image area rectangular.

Figure 4-4. Trapezoid

4-2-6 Pinbalance Adjustment

CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

Use control bar after selecting “PINBALANCE” in left menu to optimize the image.

4-2-7 Parallelogram Adjustment

CONDITIONS

Scanning Frequency: 54 KHz/85 Hz Display image: Crosshatch pattern Brightness: Maximum Contrast: Maximum

Use control bar after selecting “PARALLEL” in left menu to make the image area rectangular.

Figure 4-6. Parallelogram

4-2-8 Side Pincushion Adjustment

CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Crosshatch pattern

Use control bar after selecting “PINCUSHION” in left menu to straighten the sides of the image area.

4-2-9 Degauss

No adjustments are available for the degaussing circuit. The degaussing circuit can effectively function only once per 30 minutes.

4-2-10 To Delete the User Mode Data

To delete the adjustment data from the user modes, click “@4: USER DELETE” in right ment.

4-2-11 Save the Data

To save the adjustment data for a mode, press “@3: ALL MODE SAVE” in right ment.

4 Alignment and Adjustments

AN15V* 4-3

CONFIDENTIAL

| A – B | < 4 mm

D1 D2 D1

Figure 4-5. Pinbalance

| D1 |, | D2 | ≤ 2.0 mm

4 mm

Figure 4-7. Pincushion

| C1 |, | C2 | ≤ 2.0 mm, | D1 |, | D2 | ≤ 2.0 mm.

Page 13

4 Alignment and Adjustments

4-4 AN15V*

CONFIDENTIAL

CAUTION : Check below condition before color

adjustment Video signal : Analog 0.7 Vp-p (at 75 Ω) Sync : TTL level (H, V seperate signal)

* Select “Color” in Softjig menu for color adjustment.

4-3-1 Color Coordinates (Temperature)

Color temperature is a measurement of the radiant energy transmitted by a color. For computer monitors, the color temperature refers to the radiant energy transmitted by white. Color coordinates are the X and Y coordinates on the chromaticity diagram of wavelengths for the visible spectrum.

CONDITIONS

Measurement instrument: Color analyzer Scanning frequency: 54 KHz/85 Hz Display image: White flat field at

center of display area

Luminance: Maximum

PROCEDURE

Use the directions in sections 4-3-2 through 4-3-3 to adjust the color coordinates for: 9300K to x = 0.283 ± 0.015, y = 0.298 ± 0.015 6500K to x = 0.313 ± 0.015, y = 0.329 ± 0.015

4-3-2 Color Adjustments for 9300K

4-3-2 (a) BACK RASTER COLOR ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Back raster pattern Brightness: Maximum Contrast: Maximum

1. Select “@1: CHANNEL 1” in right menu to

control the color for 9300K.

2. Adjust the luminance of the back raster to between 0.5 to 0.7 ft-L using contron bar after selecting “GREEN CUTOFF” in the menu.

3. Use control bar after selecting “BLUE CUTOFF” in left menu to set the “y” coordinate to 0.298 ± 0.015

4. Use control bar after selecting “RED CUTOFF” in left menu to 0.283 ± 0.015

* If color values would not be matched desirable

values, repeat sequence 3 and 4 after readjusting “GREEN CUTOFF” control a little different.

4-3-2 (b) WHITE BALANCE ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: White box pattern Brightness: 0.06ft-L at Back Raster

Pattern Display

Contrast: Maximum

1. Use control bar after selecting “RED GAIN”, “GREEN GAIN” and “BLUE GAIN” to adjust the luminance to 50 ft-L with the color coordinates ranged for 9300K to x = 0.283 ± 0.015, y = 0.298 ± 0.015.

Figure 4-8. White Box Pattern

4-3-2 (c) ABL ADJUSTMENT CONDITIONS

Scanning frequency: 54 KHz/85 Hz Display image: Full white pattern Brightness: Maximum Contrast: Maximum

Figure 4-9. Full White Pattern

1. Check the ABL. If it is not within the

specifications, use the ABL controls to adjust it. (38 ± 1 ft-L )

2. Select “@4: COLOR SAVE” to save the data.

3. Select “@6: ALL COLOR SAVE” to save the

CH2.

4-3-2 (d) WHITE BALANCE ADJUSTMENT VERIFICATION CONDITIONS

Scanning frequency: 54 KHz/85 Hz

1/3H-1/2H

1/3V-1/2V

FRONT BEZEL OPENING BACK RASTER

WHITE WINDOW

FRONT BEZEL OPENING BACK RASTER

WHITE WINDOW

4-3 Color Adjustments

Page 14

4 Alignment and Adjustments

AN15V* 4-5

CONFIDENTIAL

Display image: Back raster pattern

Full White Pattern

X-Y Coordinates: x = 0.283 ± 0.015,

y = 0.298 ± 0.015 ABL Luminance Refer to 4-3-2(c) Brightness: Maximum Contrast: 5 ft-L, 24 ft-L

1. Check whether the color coordinates of the

back raster satisfy the above spec. If they do not, return to 4-3-2 (a) and readjust

all settings.

2. Display a full white pattern.

3. Select “Geometry” in softjig menu.

4. Select “@7: 5-ft “ in right menu.

5. Check whether the white coordinates of the

video meet the above coordinates spec.

6. Select “@8: 24-ft “ in right menu.

7. Check whether the white coordinates of the

video satisfies the above spec. If they do not, return to 4-3-2 (a) and readjust

all settings. Select “Color” and click “@2: CHANNEL 2”

for color ajdustment for 6500K Repeat the sequence of 9300K adjustment. The luminance values the same as 9300K, but the color coordinated of back raster and white box are : x = 0.313 ± 0.015 y = 0.329 ± 0.015

4-3-3 Luminance Uniformity Check

Luminance is considered uniform only if the ratio of lowest to highest brightness areas on the screen is not less than 7.5:10.

CONDITIONS

Scanning frequency: 54 KHz/85 Hz

(800 x 600) Display image: White flat field Brightness: Cut off point at 24 ft-L Contrast: Maximum

PROCEDURE

Measure luminance at nine points on the display screen (see figure below).

4-3-4 Focus Adjustment

CONDITIONS

Scanning frequency: 54 KHz/85 Hz

(800 x 600) Display image: “H” character pattern Brightness: Cut off point Contrast: Maximum

PROCEDURE

1. Adjust the Focus VR on the FBT to display the

sharpest image possible.

2. Use Locktite to seal the Focus VR in position.

4-3-5 Color Purity Adjustment

Color purity is the absence of undesired color. Conspicuous mislanding (unexpected color in a uniform field) within the display area shall not be visible at a distance of 50 cm from the CRT surface.

CONDITIONS

Orientation: Monitor facing east Scanning frequency: 54 KHz/85 Hz Display image: White flat field Luminance: Cut off point at the center

of the display area Note: Color purity adjustments should only be

attempted by qualified personnel.

PROCEDURE

For trained and experienced service technicians only.

Use the following procedure to correct minor color purity problems:

1. Make sure the display is not affected by

external magnetic fields.

2. Make sure the spacing between the PCM

assembly and the CRT stem is 29 mm ± 1 mm.

3. Display a green pattern over the entire display

area.

4. Adjust the purity magnet rings on the PCM

assembly to display a pure green pattern. (Optimum setting: x = 0.295 ± 0.015, y = 0.594 ± 0.015)

Table 4-2. Color Purity Tolerances

(For 9300K color adjustment: x = 0.283 ± 0.015, y = 0.298 ± 0.015)

5. When you have the PCMs properly adjusted,

carefully glue them together to prevent their movement during shipping.

Figure 4-10. Luminance Uniformity Check Locations

Red: x = 0.640 ± 0.015 y = 0.323 ± 0.015 Green: x = 0.295 ± 0.015 y = 0.594 ± 0.015 Blue: x = 0.142 ± 0.015 y = 0.066 ± 0.015

Page 15

Memo

4 Alignment and Adjustments

4-6 AN15V*

CONFIDENTIAL

Page 16

CONFIDENTIAL

AN15V* 5-1

5 Troubleshooting

5-1 Parts Level Troubleshooting

Notes: Check the following circuits.

• No raster appears: Power circuit, Horizontal output circuit.

• High voltage develops but no raster appears: Video output circuits.

• High voltage does not develop: Horizontal output circuits.

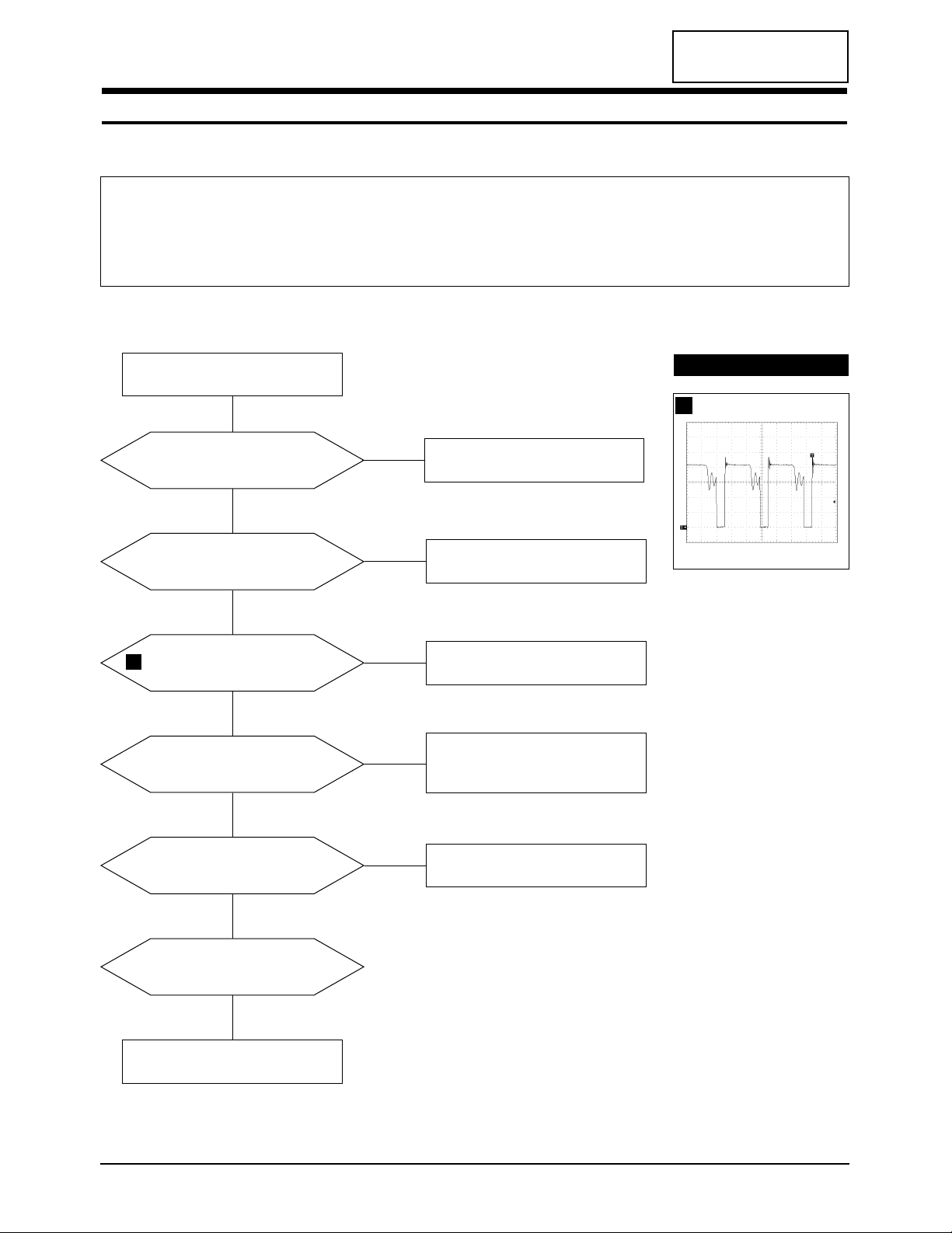

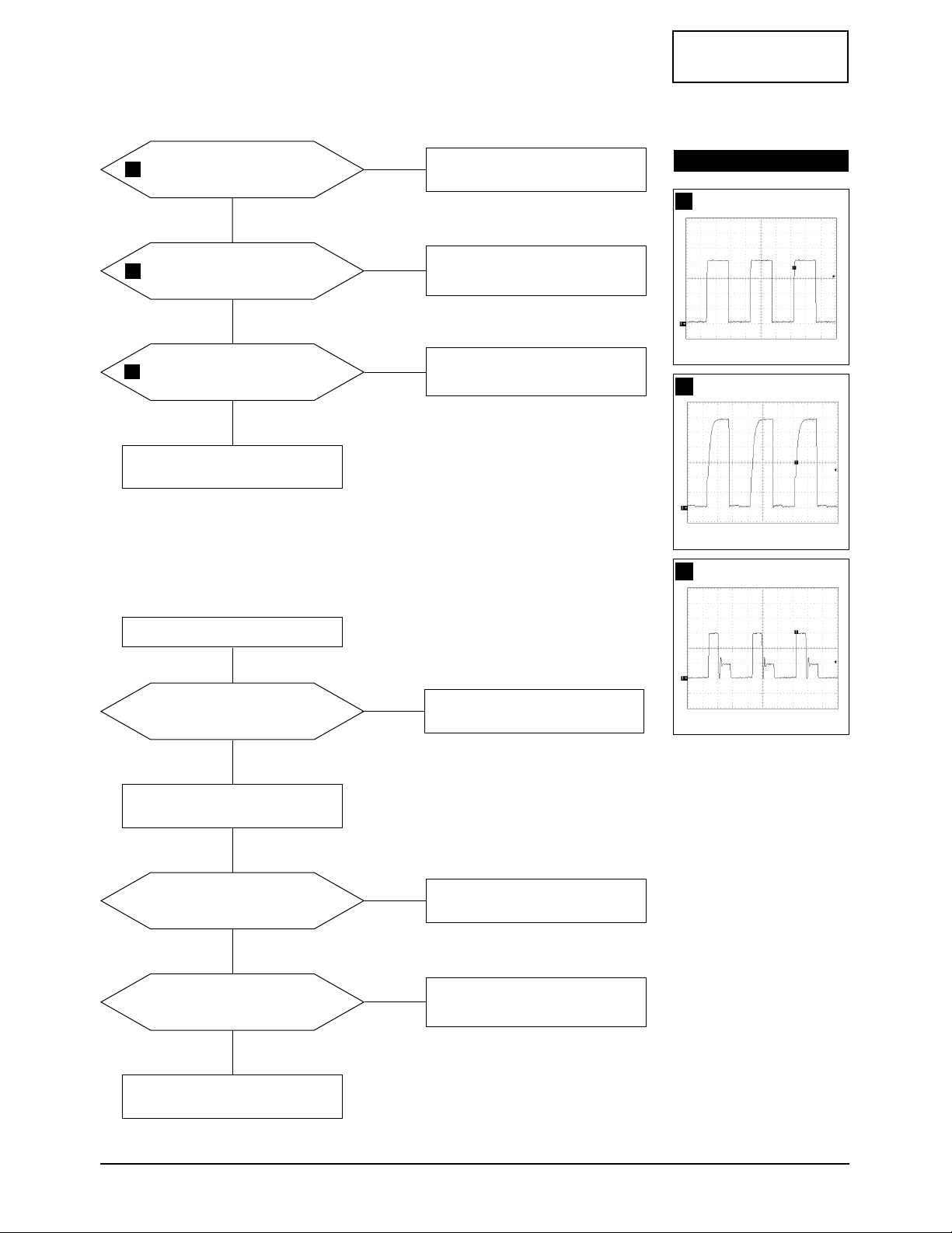

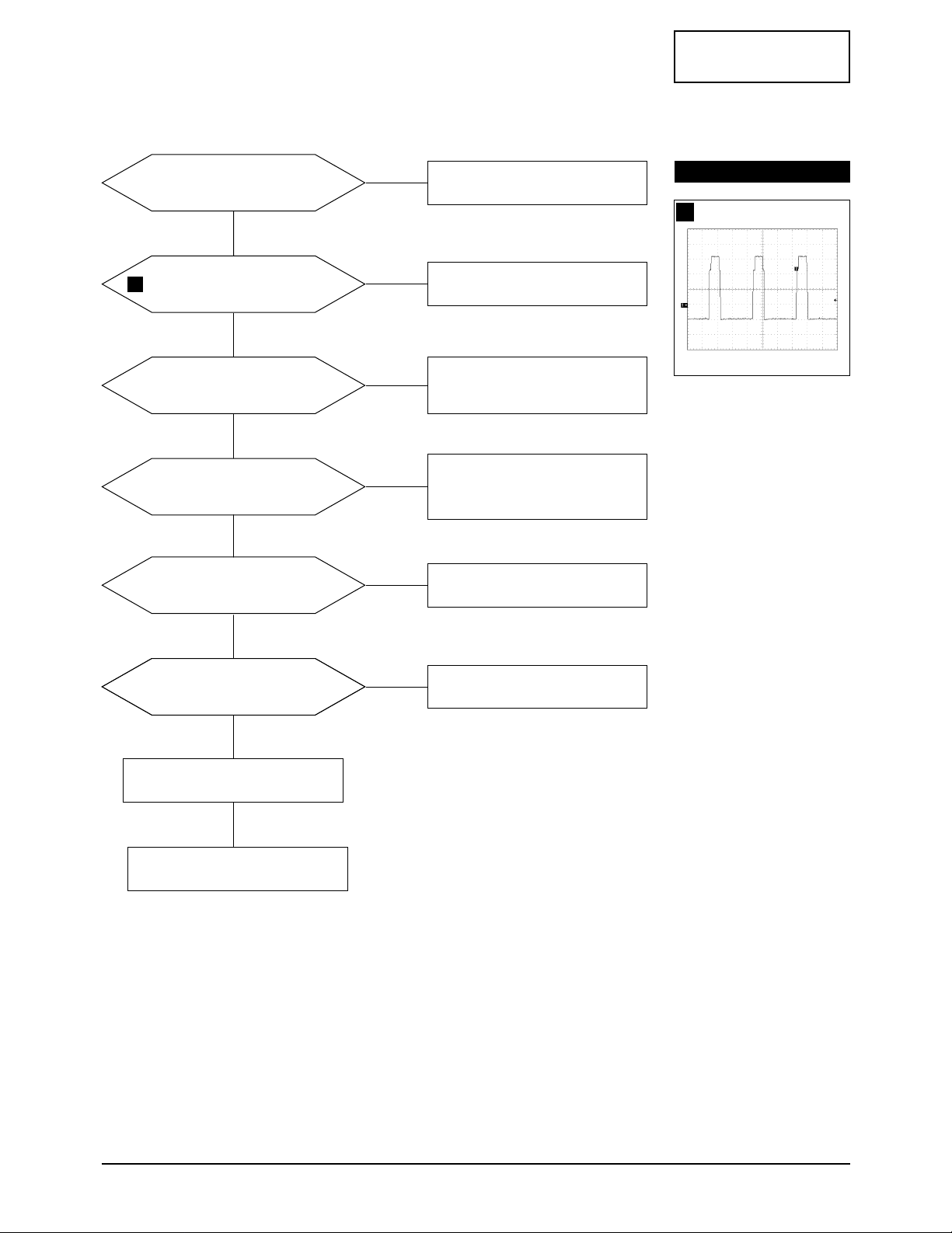

5-1-1 No Power Supply

Chirping noise exists?

Check and replace IC601.

Check and replace D601 and FH_1.

Done.

Yes

Repeating start?

Check and replace D606.

Yes

IC601 Pin 1 waveform is right?

Check and replace Q602, IC605,

OP202 and IC602.

Yes

C622 Voltage is 13 V ± 0.5V?

Check and replace IC201, IC301,

IC401, IC605, Q402,

Q404, Q613,and Q614.

Yes

Operate normally?

Replace Main board.

Yes

Verify voltages.

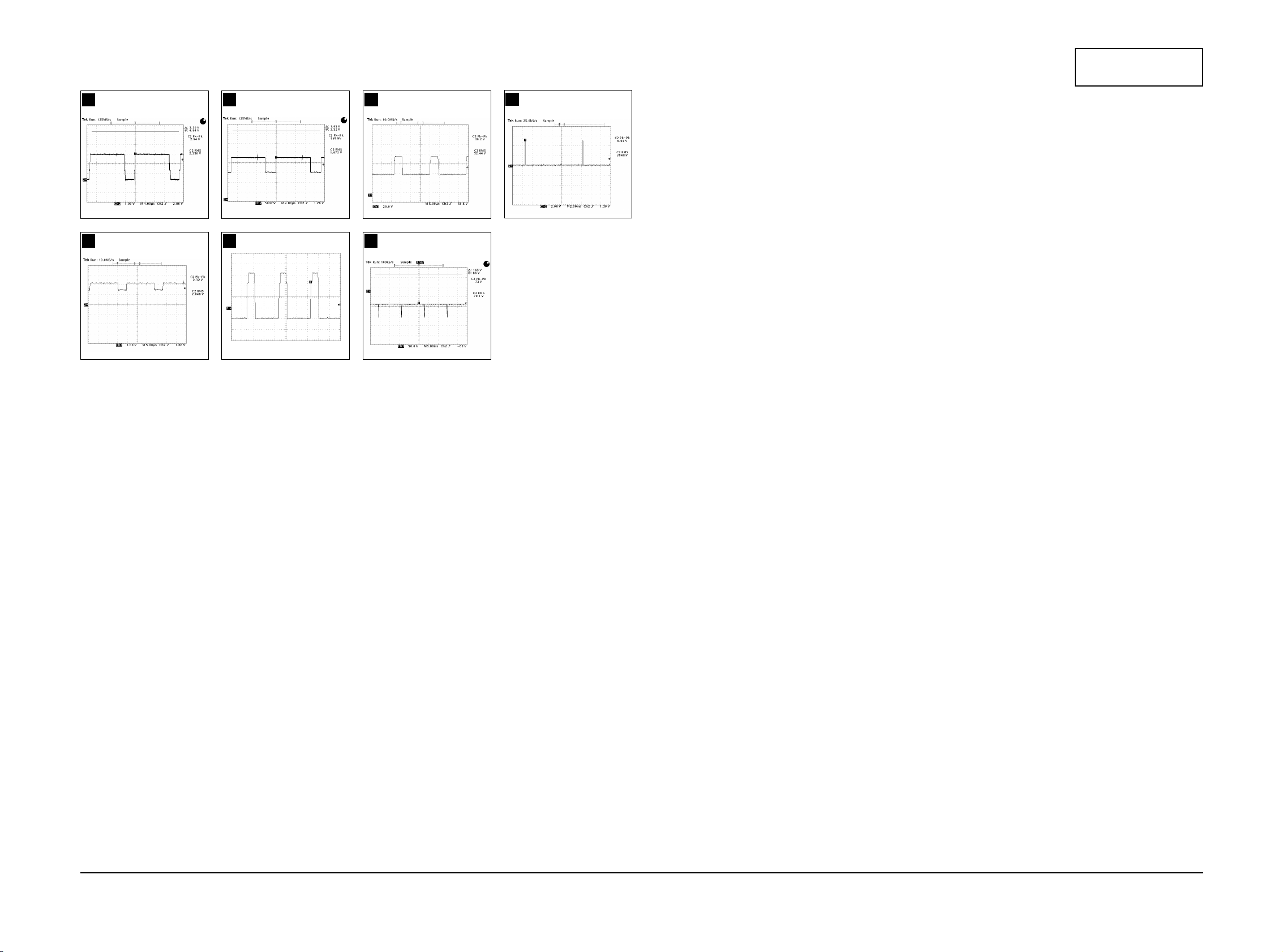

WAVEFORMS

100 V (IC601, #1)

CH1 P-P = 100 V CH1 RMS = 350.2 V

Page 17

CONFIDENTIAL

5 Troubleshooting

5-2 AN15V*

5-1-2 DPMS Failure

Make No H/V Sync.

(power off mode)

Check signal source

H/V Sync. video level.

LED blinks?

Check IC201 Pin 40.

Yes

+12 V line off?

Check IC201 Pin 5, Pin 6 and Q610,

Q602 operation condition.

Yes

Q602 Base

voltage exists?

Refer to 5-1-1 No Power Supply.

Done

Yes

IC601 Pin 1 Output

voltage exists?

Check IC201 Pin 5.

Check and replace Q602 and IC201.

WAVEFORMS

100 V (IC601, #1)

CH1 P-P = 100 V CH1 RMS = 325.8 V

Page 18

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-3

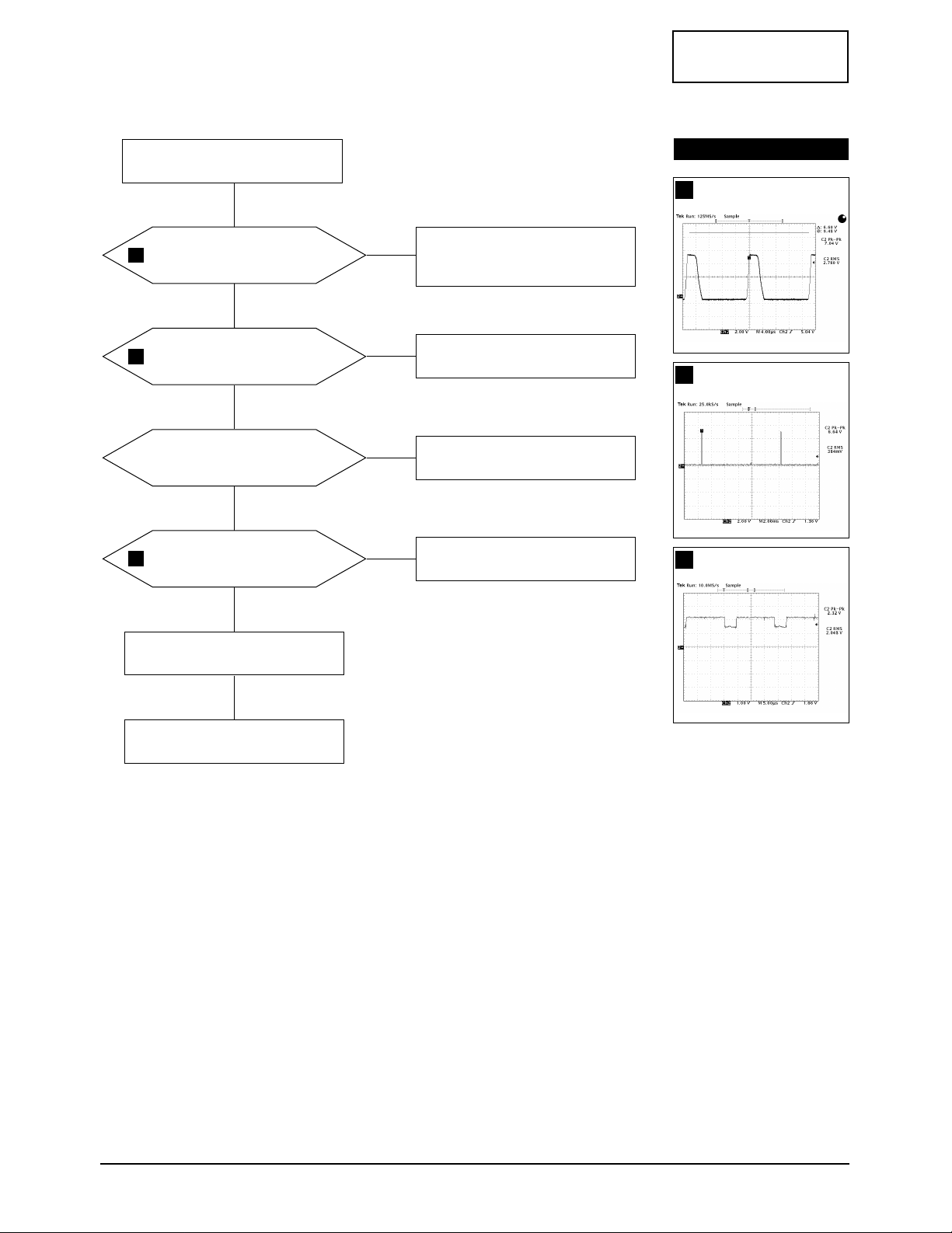

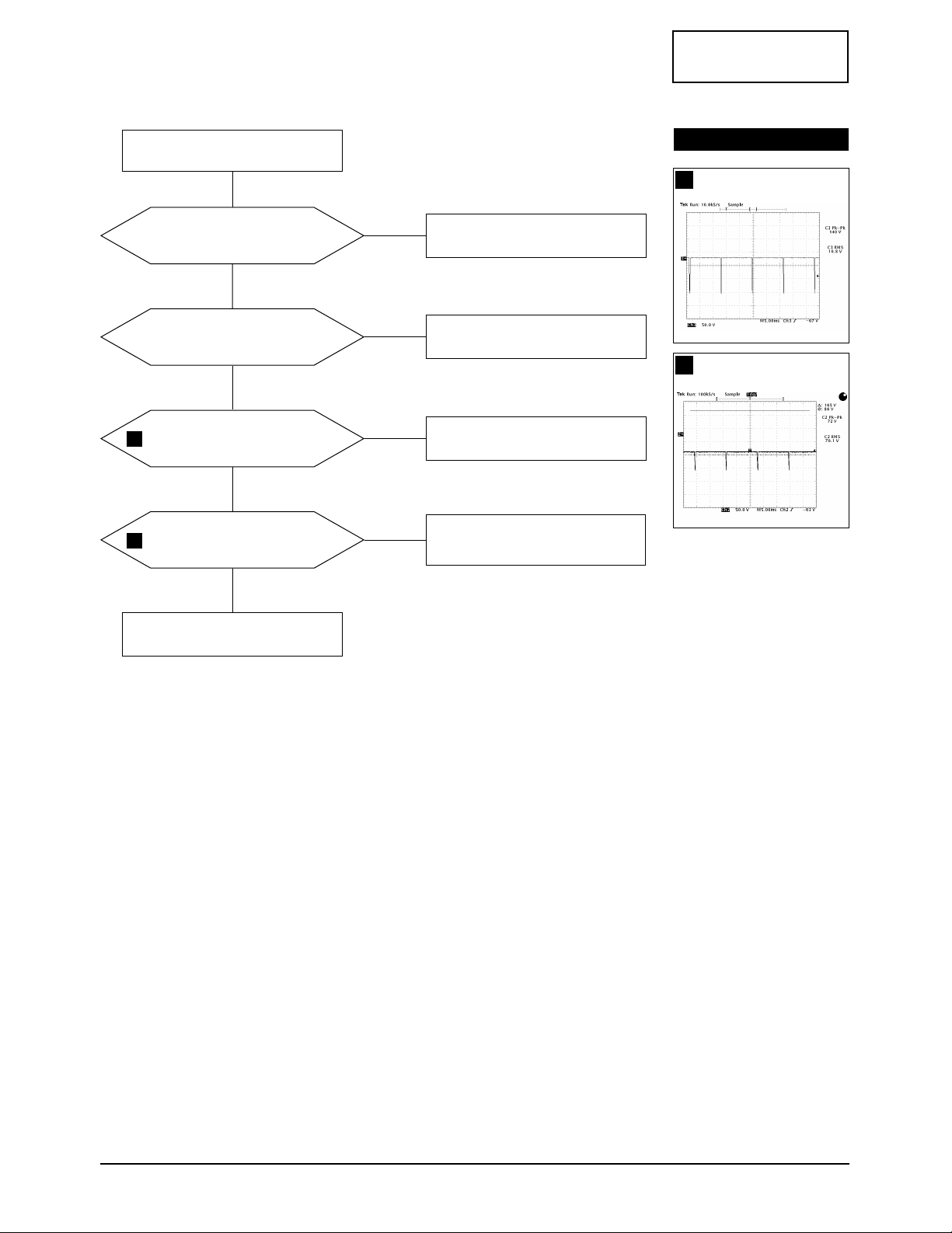

5-1-3 H_Deflection Failure

Does Horizontal pluse signal

appear at at Pin 26 of IC605?

Check IC605.

Yes

Does 20 Vp-p signal appear

at Collector of Q400?

Check Q400.

Yes

Check D406, Q404 and T401.

Does PWM output signal appear

at Pin 28 (B_drv) of IC605?

Check IC605.

Check 12 V line.

Yes

Does DC 12V appear at

Pin 29 of IC605?

Yes

5-1-4 S Correction Failure

S1~S2 signals are right at each

frequency block?

Check S1 ~ S2 signal.

Check and replace

Q404, Q410, Q411, Q415, and Q416.

Yes

Check and replace IC201.

WAVEFORMS

5.00 V (IC605, #28)

1.00 V (IC605, #26)

5.00 V (Q400, Collector)

Page 19

CONFIDENTIAL

5 Troubleshooting

5-4 AN15V*

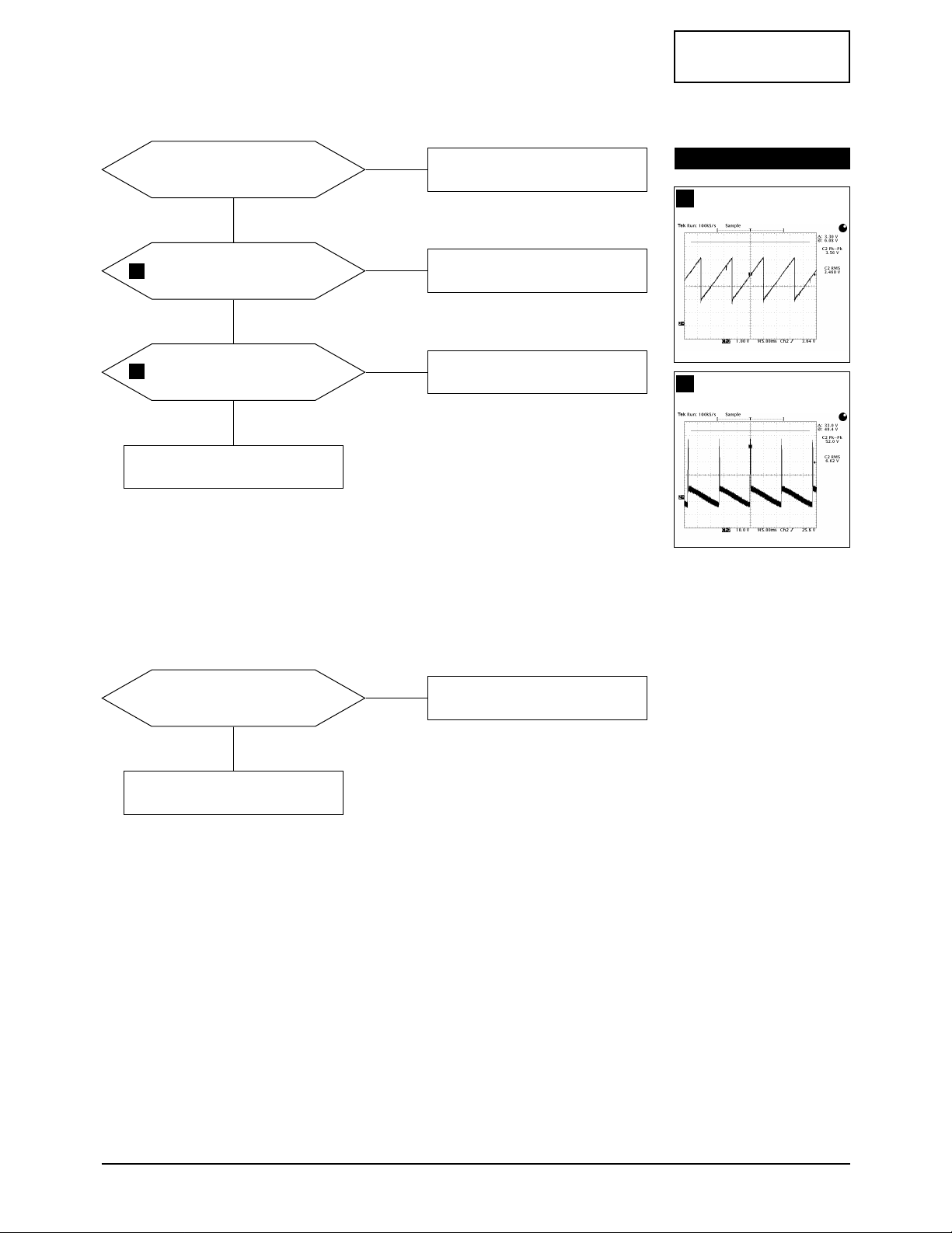

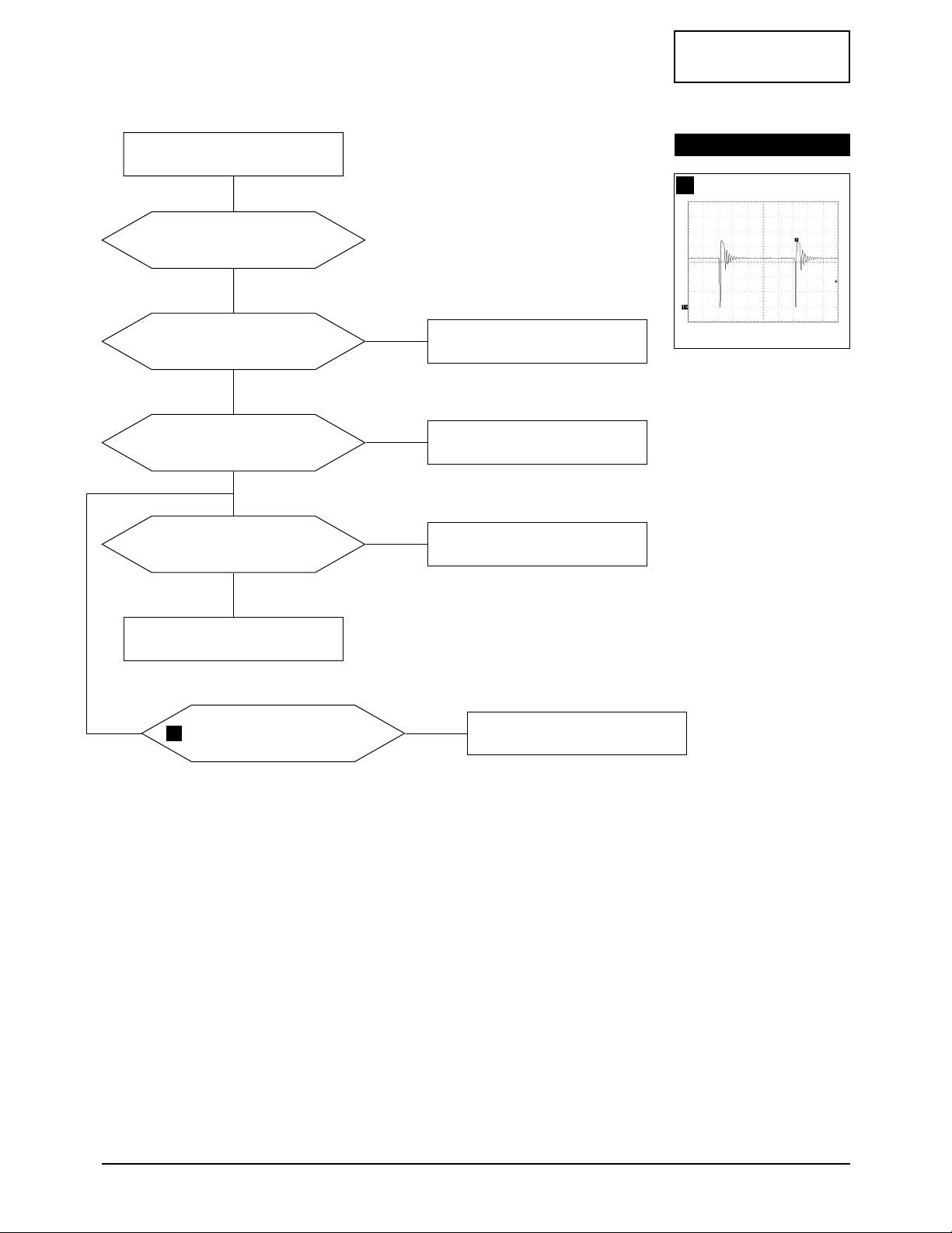

5-1-5 H_Lin. Failure

Check and replace T402

5-1-6 Invariable H_Size

IC605 Pin 28 voltage varies with

different B_Drv DAC values?

Q402 Gate output duty varies with

different B_Drv DAC values?

Check some parts around Q402,

IC605 Pin 4 ~ 6.

Yes

Check and replace IC605.

5-1-7 Abnormal H_Size

IC605 Pin 24 output duty

varies with different B+ offset

DAC values?

Q408 Collector waveform is

right?

Check and replace Q405,

Q406, Q407, and Q408.

Check some parts

around D409 and L401.

Yes

Check and replace IC201.

WAVEFORMS

5.00 V (Q408, Collector)

Page 20

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-5

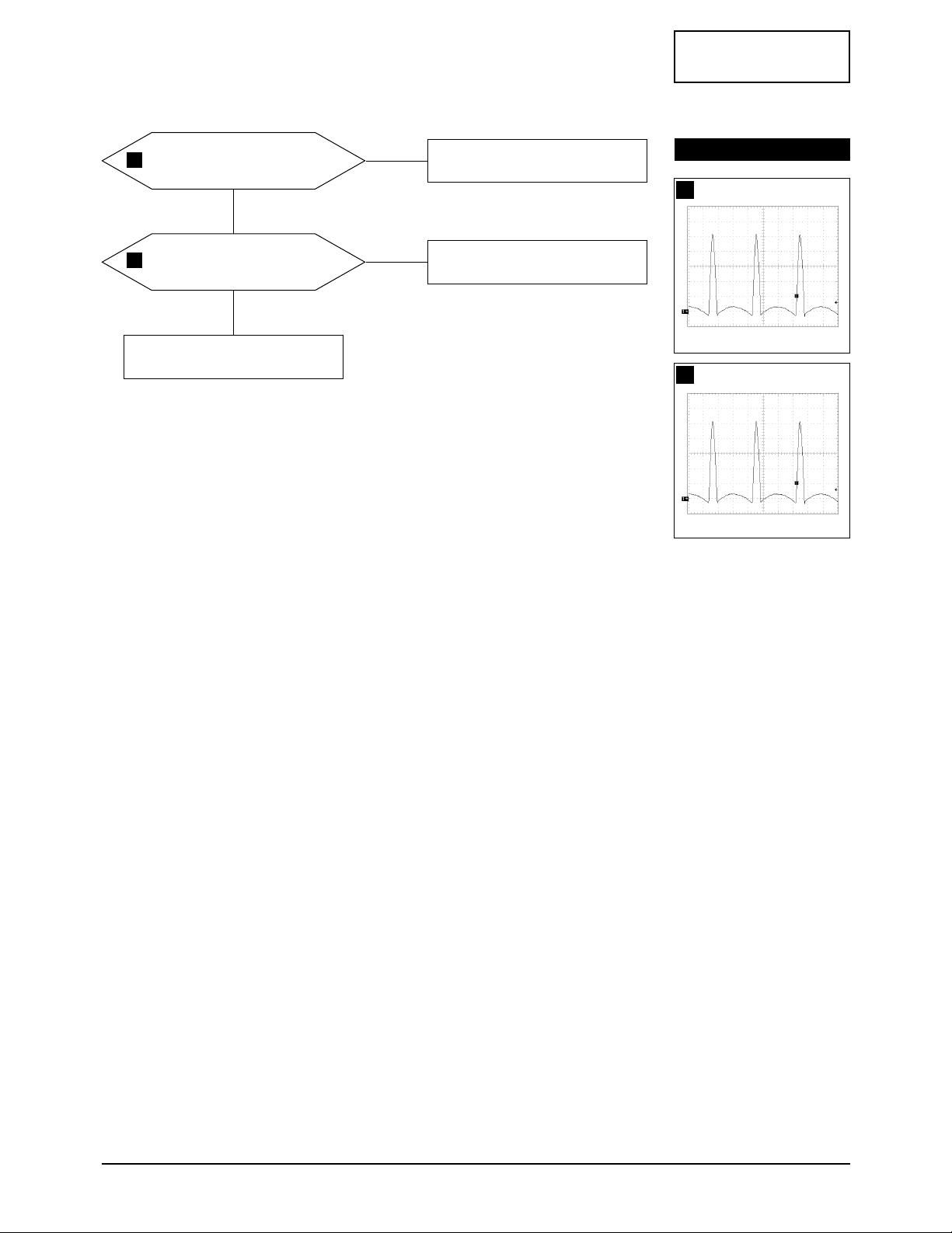

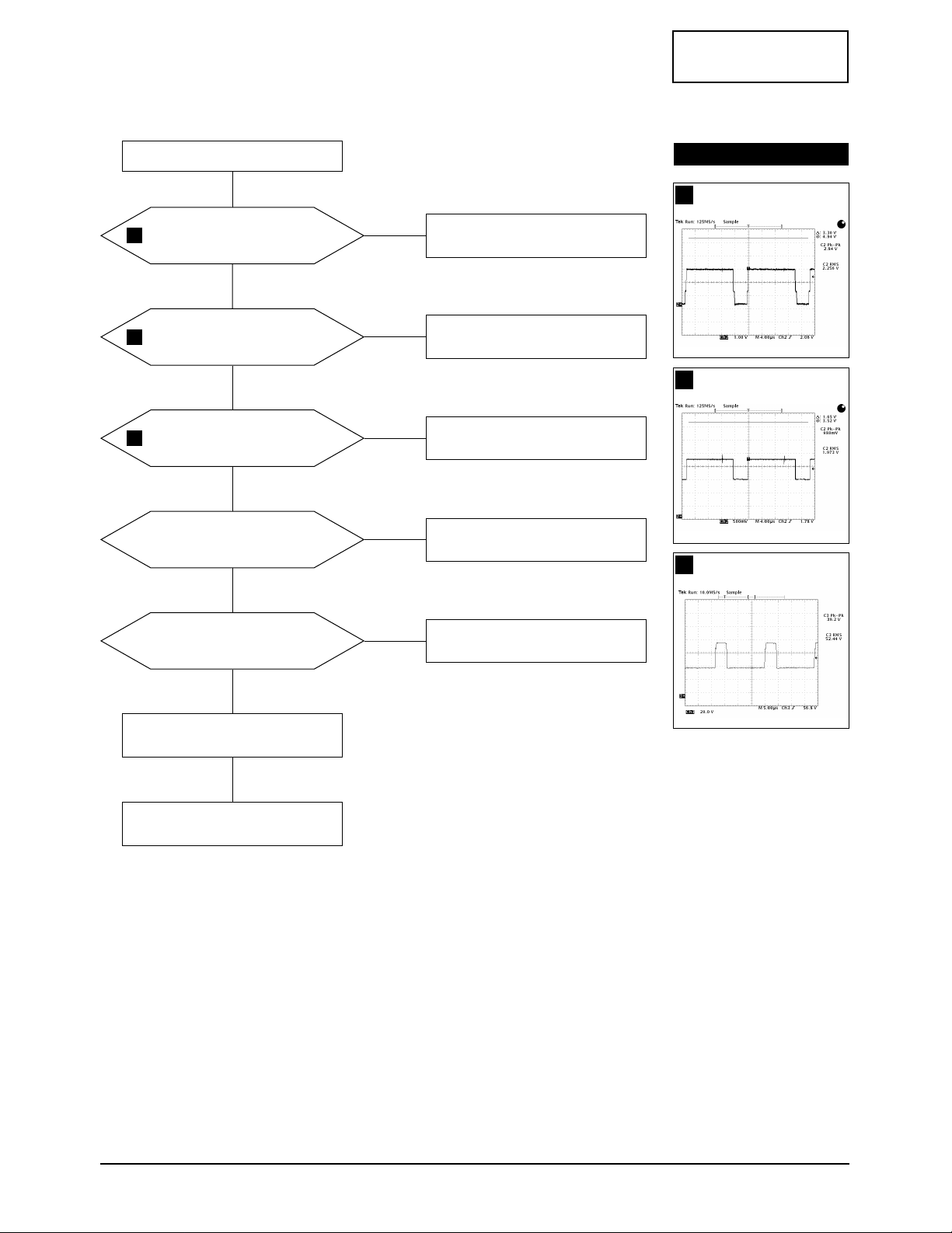

5-1-8 Side Pin or Trap Failure

IC605 Pin 24 output exists?

Yes

Check and replace IC605.

Refer to 5-1-7

Abnormal H_Size

5-1-9 Para. or Pin Balance Failure

IC605 Pin 24 output varies with

different DAC values?

Replace IC605.

Refer to 5-1-7

Abnormal H_Size

Yes

WAVEFORMS

1.00 V (IC605, #24)

Page 21

CONFIDENTIAL

5 Troubleshooting

5-6 AN15V*

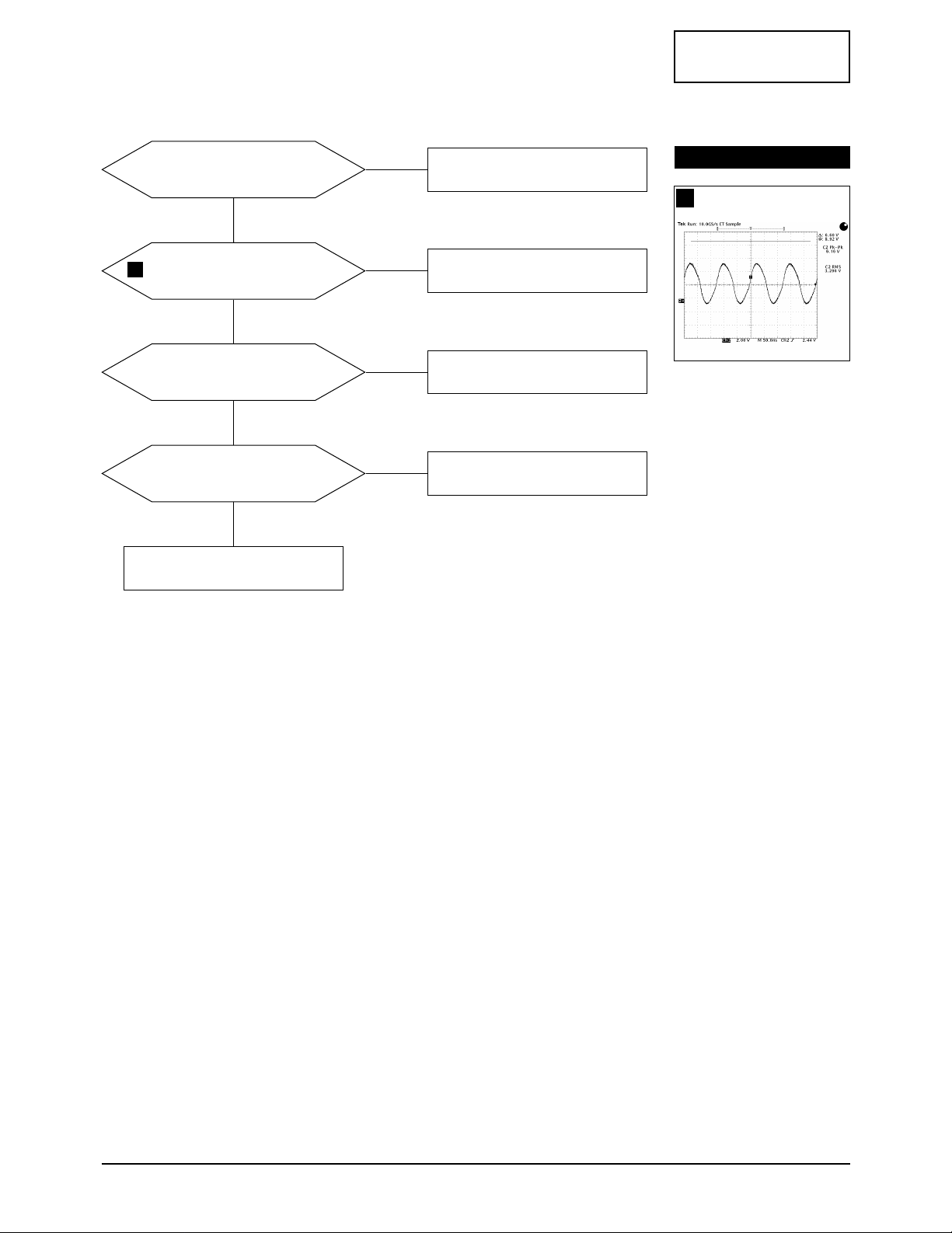

5-1-10 V Deflection Failure

13V and –10V lines are on?

IC605 Pin 23 output exists?

Check and replace IC605.

Yes

Refer to 5-1-1 No Power Supply

IC300 Pin 6 output exists?

Check and replace some parts

around IC300.

Yes

Check DY connector connection.

5-1-11 V Size or Position Variation Failure

IC605 Pin 23 output varies with

different DAC values?

Yes

Check and replace IC201 and IC605.

Check and replace IC300.

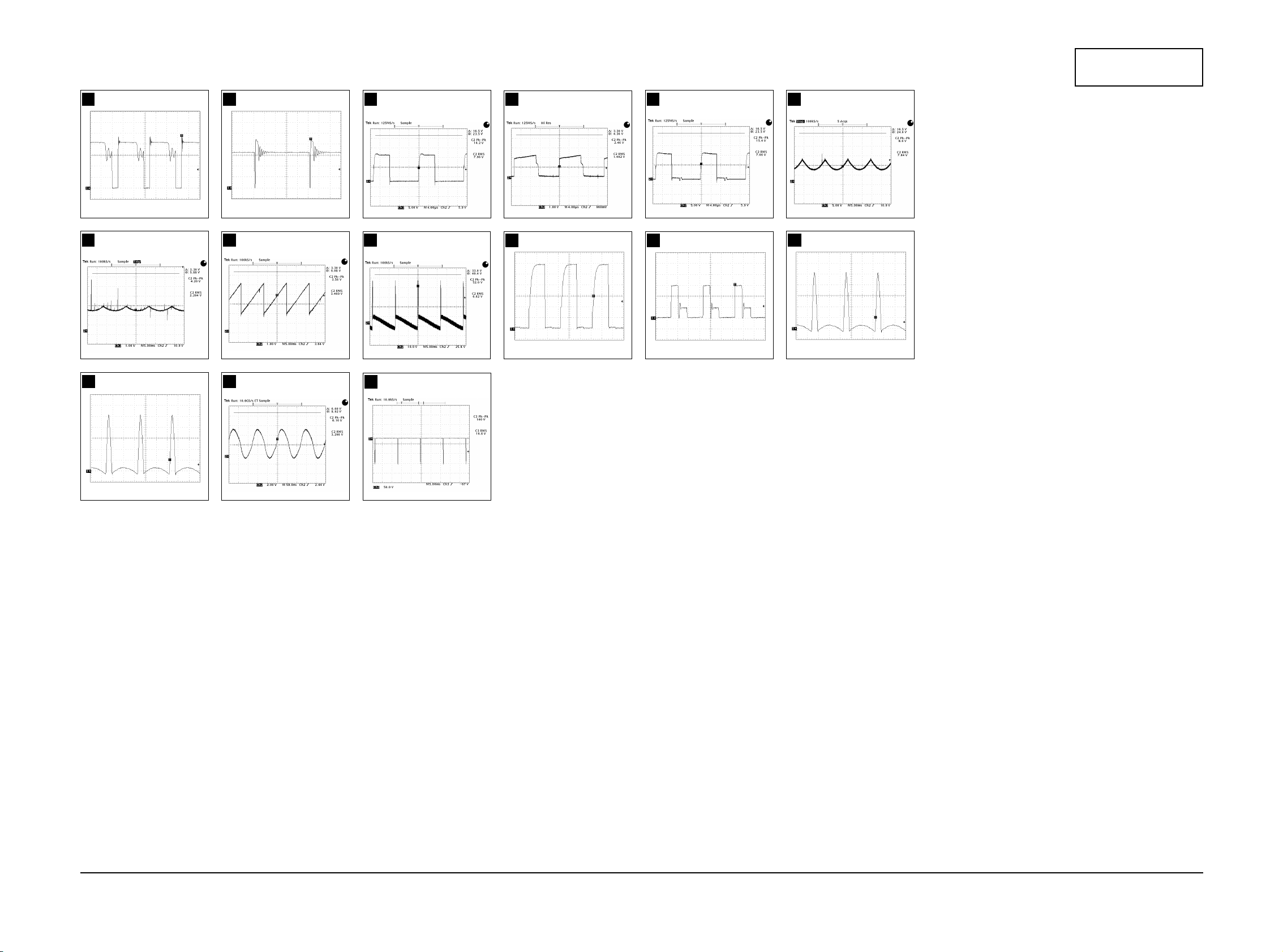

WAVEFORMS

1.00 V (IC605, #23)

10.0 V (IC300, #6)

Page 22

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-7

5-1-12 High Voltage Failure

IC605 Pin 28 OSC pulse exists?

Q402 Gate driving pulse exists?

Check and replace Q401, Q417.

Yes

Check and replace IC605

and +12 V line.

Q402 Drain pulse exists?

Check and replace Q402, D401

Check 50V line and L402.

Yes

Done

IC101 Pin 8 input exists and

varies with different patterns?

Check and replace IC101.

Input full white pattern to monitor.

Yes

T501 Pin 8 output exists?

Check and replace T501.

Yes

IC201 Pin 26 output exists and varies with different patterns?

Check and replace IC201.

Yes

Done

Check CN102.

5-1-13 ABL Failure

WAVEFORMS

5.00 V (IC605, #28)

CH1 P-P = 2.00 V CH1 RMS = 5.868 V

5.00 V (Q402, Gate)

CH1 P-P = 2.00 V CH1 RMS = 7.692V

50.0 V (Q402, Drain)

CH1 P-P = 50.0 V CH1 RMS = 73.7V

Page 23

CONFIDENTIAL

5 Troubleshooting

5-8 AN15V*

5-1-14 Dynamic Focus Failure (This comonly TSB CRT)

T502 Pin 6 output is right?

Yes

Replace the C432.

T502 Pin 1 input is right?

Check and replace T502.

Yes

Check the connection between FBT

Focus pin and CRT Socket PCB.

WAVEFORMS

50.0 V (T502, #6)

CH1 P-P = 50.0 V CH1 RMS = 75.6 V

100 V (T502, #1)

CH1 P-P = 100V CH1 RMS = 124.0 V

Page 24

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-9

5-1-15 No Video

IC101 Pin 12, 14 and 16 inputs

are right?

IC101 Pin 18, 21 and 24

outputs are right?

Check I2C bus and +12V line.

Yes

Check the signal cable connection.

IC102 Pin 9, 10 and 11

outputs are right?

Check +12V, +80V line.

Check and replace IC102.

Yes

Cathode DC levels are right?

Check +80V line.

Check and replace IC104.

Yes

G2 voltage is right?

Check G2 wire, CRT Socket

board and FBT.

Change CRT.

Yes

Done.

Check signal cable and connection.

WAVEFORMS

1.00 V (IC101 #12,14,16)

0.5 V (IC101 #18,21,24)

20.0 V (IC102, #9,10,11)

Page 25

CONFIDENTIAL

5 Troubleshooting

5-10 AN15V*

5-1-16 Micom Failure

IC201 Pin 11 input voltage is 5V?

IC201 Pin 13 and 14

inputs are right?

Check C202, C203 and X201.

Yes

Check Q608.

IC201 Pin 18 input is right?

Check and replace IC201 and R206.

Yes

All in/output values are right?

Replace IC201.

Yes

Done

WAVEFORMS

2.00 V (IC201, #13, 14)

Page 26

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-11

5-1-17 OSD Failure

IC101 Pin 32 input is right?

IC101 Pin 1 input is right?

Check CN102 Pin 8.

Yes

Check CN102 Pin 14.

Check and replace R117,

C117 and IC101.

IC101 Pin 29 and 30

inputs are right?

Check IC201 Pin 41 and 42.

Yes

IC101 Pin 18, 21 and 24

outputs are right?

Check and replace IC101.

Check and replace IC102.

Yes

Done

Check CN102 and connector Assy.

WAVEFORMS

2.00 V (IC101, #32)

2.00 V (IC101, #1)

1.00 V (IC101, #18,21,24)

Page 27

CONFIDENTIAL

5 Troubleshooting

5-12 AN15V*

5-1-18 User Control Failure

Does the DC level change

at Pin 38 of IC201 when you

push the button S/W?

Yes

Check the button.

(SW201 ~ SW204)

Check IC201.

RL601 operation is right?

Q601 base input is right?

Check and replace Q601.

Yes

Check D-coil and TH601.

IC201 Pin 4 output is right?

Check and replace IC201.

Yes

Done

Check degaussing connector.

5-1-19 Degaussing Failure

Page 28

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-13

5-2 General Troubleshooting

5-2-1 No Picture

LED blinks?

LED is green color?

Check Micom.

Check G2 voltage, high voltage

and R, G, B cathode voltage.

Yes

Refer to 5-2-2 Shut down.

5-2-2 Shut Down

Blinking LED’s?

Scan failure?

Check horizontal, vertical deflection

system and check power supply

secondary voltages.

Yes

Check power supply.

Check and replace IC201.

Done

Video failure?

Check Video board.

Yes

Page 29

CONFIDENTIAL

5 Troubleshooting

5-14 AN15V*

5-2-3 Missing Color

Proper Video levels are

on CN101 (D-Sub) Pin 1, 3 and 5?

Proper Video signal is

on all cathodes?

Refer to 5-1-15 No Video.

Yes

Check signal generator.

Proper DC voltage is

on all cathodes?

Check IC101 Pin 17, 20 and 23.

Check IC104.

Yes

G2 voltage is right?

Check T501.

Heater voltage is right?

Check D608, Q604 and T601.

Yes

Check D504, Q502 and T501.

Yes

G1 voltage is right?

Replace CRT.

Done

WAVEFORMS

10.0 V (R,G,B, Video)

CH1 P-P = 10.0V CH1 RMS = 17.02V

Page 30

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-15

G2 voltage is right?

Blank pulse is on Pin 3 of IC605?

Check IC605.

Yes

Check T501.

V_FLB pulse is on

Collector of Q502?

Check Q502.

Done

Yes

Does approve the Vertical pulse

on the CRT Socket G1?

Check CN102 and CN201.

Yes

Check white balance adjustment.

5-2-4 Visible Retrace

WAVEFORMS

5.00 V (Q502, Collector)

50.00 V (CRT Socket, G1)

Page 31

CONFIDENTIAL

5 Troubleshooting

5-16 AN15V*

Signals are right?

Signals at Pin 28 and 29 of

IC201 are right?

Check IC201.

Yes

Check Video Cable.

Signals at Pin 1 and 2 of

IC605 are right?

Check IC605.

Check circuits on Main board.

Yes

Done

Check input signals Pin 2

and 3 of CN202.

5-2-5 Unsynchronized Image

Page 32

CONFIDENTIAL

5 Troubleshooting

AN15V* 5-17

The convergence is now

within spec.?

Readjust convergence.

Done

Yes

The convergence is now

within spec.?

Done

Yes

Change CRT and readjust

convergence.

Done

Try readjusting convergence.

5-2-6 Misconvergence

Page 33

CONFIDENTIAL

5 Troubleshooting

5-18 AN15V*

Improved focus?

Check focus leads from FBT

to CRT Socket.

Check the CRT Socket.

Aging monitor and check for focus

change.

Yes

Dynamic focus circuit is right?

Refer to 5-1-14 Dynamic

Focus Failure.

Replace the CRT and verify focus.

Yes

Adjust focus VR of FBT.

5-2-7 Poor Focus

5-2-8 Purity Failure

Purity is right?

Degaussing circuit is right?

Refer to 5-1-19 Degaussing Failure.

Replace CRT and verify purity.

Yes

Done

Yes

Degaussing

(SDI CRT)

(Toshiba CRT)

Page 34

CONFIDENTIAL

AN15V* 6-1

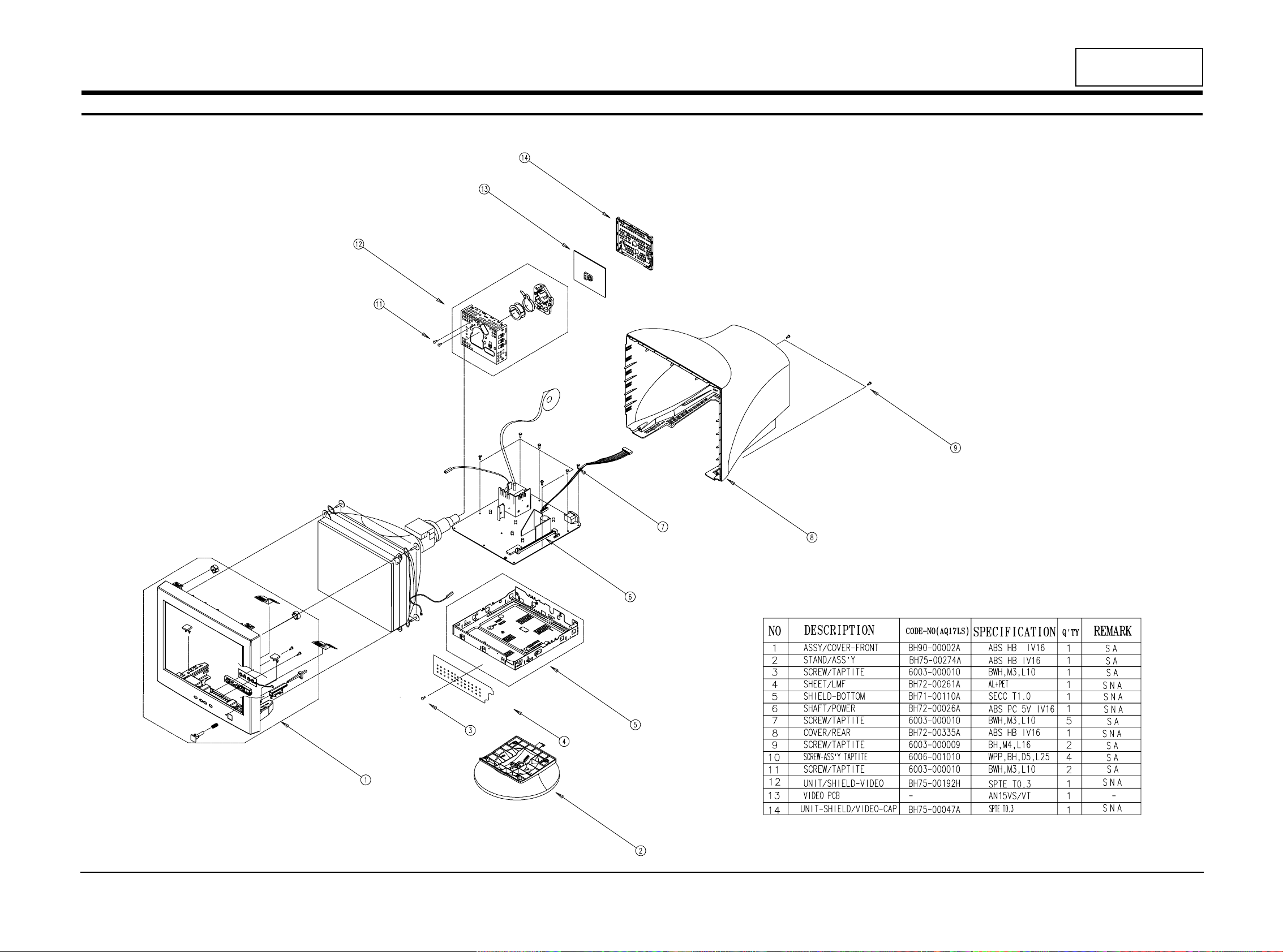

6 Exploded View and Parts List 6-1 AN15VS

Page 35

6-2 AN15VT

6 Exploded View & Parts List

6-2 AN15V*

CONFIDENTIAL

Page 36

CONFIDENTIAL

AN15V* 7-1

- BH94-00827C ASSY PCB MAIN AN15VS SNA AN_LABEL BH68-00446D LABEL AN-STICKER,ART-PAPER 100G,15,15,BLACK,YELLOW C409 2306-000248 C-FILM,MPPF 680nF,5%,250V,BK,26.5x16.5mm,2 C419 2301-001206 C-FILM,PPF 4.4nF,5%,2.5KV,BK,29x21x13,20 C601 2301-001195 C-FILM,MPPF 150nF,10%,275VAC,BK,26x16.5x7, C602 2301-001195 C-FILM,MPPF 150nF,10%,275VAC,BK,26x16.5x7, C608 2401-003392 C-AL 180uF,20%,450V,GP,BK,25x45,10 CIS BH39-00405A CBF SIGNAL

AN15/17**,15P/06P,07P,20276-N,1500MM,UL20276,IVORY,D-SUB/MALE,ATT. TYPE CIS1 0201-001096 ADHESIVE-HM #3748,YEL,8500CPS,- SNA CIS11 BH71-00110A SHIELD BOTTOM PN15VT,SECC ,T1.0 SNA CIS12 BH68-00001A LABEL-MARK CDT ART-PAPER 100G,-,WHT,BLK,-,ALL,CDT SNA CIS13 BH72-00025A GUIDE-POWER CDA4507,ABS,V0,IV16 SNA CIS14 BH72-00026A SHAFT-POWER CDA4507,ABS,V0,IV16 SNA CIS15 BH72-00261A SHEET ABS-LMF IB10LO,AL+PET,-,-,-,-,-,- SNA CIS16 BH73-60304C RUBBER-SUPPORT DP15LT,CR V0,GRAY,-,14*7*10,-,- SNA CIS2 0202-001044 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA CIS21 6502-000001 CABLE CLAMP DAWH-5NB,D15,L35,NYLON66,NTR SNA CIS22 6502-000001 CABLE CLAMP DAWH-5NB,D15,L35,NYLON66,NTR SNA CIS3 0202-001046 SOLDER-WIRE FLUX CF-110VH-2A,-,-,-,- SNA CIS31 BH39-00323D LEAD CONNECTOR-ASSY OT17LO,8.0*0.16TA*16,35068-9822,35750-1010,BK,150MM,8.0*0.16TA*16 CIS4 0202-001222 SOLDER-WIRE FLUX RS-107,RS60-1.2AA,D1.2,SN60/PB40,- SNA CIS5 0204-001095 THINNER #4520,-,-,- SNA CN201 3711-003895 CONNECTOR-HEADER BOX,13P,1R,2mm,STRAIGHT,SN SNA CN202 3711-003873 CONNECTOR-HEADER BOX,7P,1R,2mm,STRAIGHT,SN SNA CN404 3711-003989 CONNECTOR-HEADER NOWALL,4P,1R,8mm,STRAIGHT,SN SNA CN502_WIRE BH39-00401A LEAD CONNECTOR-ASSY DT15LT,UL1007#22,UL/CSA,3(2)P,BLK,#22,YBNH250-03,BK,170MM,1007#22 CN601 3721-001053 PLUG-AC POWER 3P,-,-,NI CN604 BH39-00288A CBF HARNESS

PN17LO,UL1007,UL/CSA,2P/2P,130MM,BLU/WHT,AWG26,YBNH200,SMP250,-,-,-,-,-,-,CBF-CO D406 0402-001025 DIODE-RECTIFIER ERD07-15,1.5KV,1.5A,-,TP D409 0402-001295 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO-201AD,BK D601 0402-000103 DIODE-BRIDGE D2SBA60,600V,1.5A,SIP-4,ST D608 0402-000016 DIODE-RECTIFIER UF5404,400V,3A,DO-201AD,TP D609 0402-001295 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO-201AD,BK FBT_CORE 3301-000233 CORE-FERRITE ZZ,18x9.5x28mm,-,- SNA FBT+H/S 6003-000122 SCREW-TAPTITE BH,+,B,M4,L12,ZPC(YEL),SWRCH18 SNA FUSE 3601-001302 FUSE-AXIAL LEAD 250V,3.15A,SLOW-BLOW,CERAMIC,5X20MM SNA IC_SOCKET 3704-001071 SOCKET-IC 42P,DIP,SN,1.778mm IC605 1204-002013 IC-DEF. PROCESSOR STV6888,DIP,32P,400MIL,PLASTIC,13.2V,-,0TO+70C,ST,100KHZ L401 BH27-00131A COIL CHOKE 150UH,AN17K,150UH,10%,0.35OHM,2.5A,AR8X25,72.5TS,18X39MM,11MM,BK L402 BH27-00131A COIL CHOKE 150UH,AN17K,150UH,10%,0.35OHM,2.5A,AR8X25,72.5TS,18X39MM,11MM,BK L403 BH27-20342U COIL-CHOKE -,8.2MH(250KHz),10%,DR8*11,-,-,-,-,10.5OHM,-,-,-,BULK L601 BH29-00002A FILTER LINE NOISE

AN15VS,20MH,0.42OHM,1.5KV,20MH,22X17X34MM,220V,TR,20MH,100MOHM,-10CTO+85C OP201 0601-001147 LED ROUND,GRN,4.75mm,565nm SNA OP202 0604-001018 PHOTO-COUPLER DAR-TR,63-125%,200mW,DIP-4,ST SNA Q410 0505-001676 FET-SILICON IRFU230B,N,200V,7.5A,0.4OHM,2.5W,I-PAK Q411 0505-001675 FET-SILICON IRF630B,N,200V,9A,0.4OHM,72W,TO-220 RL601 3501-001111 RELAY-POWER 12Vdc,250mW,5A,1FormA,15mS,5mS SH/B+AC/SK 6003-000010 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1 SNA SH/B+GND 6003-000010 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1 SNA SH/B+PCB 6003-000010 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1 SNA SH/B+SH/LM 6003-000010 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1 SNA SW601 3403-001132 SWITCH-PUSH 30VDC,0.3A,DPST,SELF LOCK,T401 BH26-00027A TRANS-HOR.DRIVE -,-,-,-,-,-,-,-,-,-,-,PL-3,EI 1916,310uH,-,-,T402 BH27-00137A COIL LINEARITY

7.5UH,7.5UH,DR12X15,7MM,15X15X37MM,12X9T,27TS,TR,12%,0.03OHM,USTC0.12X30

T501 BH26-00140A TRANS FBT

FQM15A009,AN15VS,1.95MH,SM19C,FUR3757SU,0.65 OHM,162.0,12P,-10 ~60,BK,26.0KV T601 BH26-00145A TRANS SWITCHING EER3638,AN15V,90~264V,PL-3,DMR30,EER3638,350UH T602 BH26-00141A TRANS-SYNC

AR0615(L-81),AN17L,5P,200UH,200UH,1.30 OHM,L-81,AR0630, BAR,18*13*18.5,BK TH601 1404-001264 THERMISTOR-PTC 4.5OHM,+30/-20%,220V,290VAC,21A,-,TR

Loc. No. Code No. Description Specification Remarks

7 Electrical Parts List

7-1 Main PCB Parts

Page 37

TH602 1404-001020 THERMISTOR-NTC 8ohm,15%,-,17mW/C,BK CIS9 BH97-00330G ASSY MICOM AN15VS

IC201 0903-001194 IC-MICROCONTROLLER

3P863,8Bit,SDIP,42P,600MIL,12MHz,ST,CMOS,PLASTIC,5V,-,-40to+85C,1040BYTE,48KBYTE CIS BH46-00005V S/W MICOM AN15VS SNA

- BH97-00351A ASSY AUTO-MAIN AN15VS SNA BD401 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD402 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD403 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD406 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD410 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD411 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD601 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD602 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD603 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA BD605 3301-001450 CORE-FERRITE BEAD AA,45OHM,3.5X0.6X5.7MM,50MA,TP,SN-20(UI2000),- SNA C201 2401-000010 C-AL 220uF,20%,16V,GP,-,6.3x11mm,2. C202 2201-000389 C-CERAMIC,DISC 0.022nF,5%,50V,NP0,TP,5x3,5 C203 2201-000389 C-CERAMIC,DISC 0.022nF,5%,50V,NP0,TP,5x3,5 C204 2301-000148 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm C205 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 C206 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C207 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 C209 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 C210 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 C211 2201-000146 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5 C212 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5 C213 2301-000010 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5 C214 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 C215 2201-000146 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5 C216 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 C300 2301-000148 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm C301 2301-001049 C-FILM,MPEF 150nF,5%,100V,TP,10.5x5x14.5,5 C302 2305-000412 C-FILM,MPEF 470nF,5%,63V,TP,-,5mm C303 2401-000031 C-AL 47uF,20%,16V,GP,TP,5x11,5 C304 2305-000004 C-FILM,MPEF 220nF,10%,100V,TP,12.7x16,5mm C305 2401-000037 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 C306 2401-000037 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 C307 2401-000849 C-AL 220uF,20%,35V,GP,TP,10x12.5,5 C308 2301-000014 C-FILM,PEF 6.8nF,5%,100V,TP,5.8x12.5mm,5m C310 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5 C315 2301-000519 C-FILM,PEF 3.3nF,5%,100V,TP,5.8x3x12.5,5m C316 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C401 2401-000031 C-AL 47uF,20%,16V,GP,TP,5x11,5 C402 2305-000665 C-FILM,MPEF 100nF,5%,63V,TP,7.5x4.0x5.0mm, C403 2202-000573 C-CERAMIC,MLC-RADIAL 820pF,5%,50V,NPO,TP,5.1x3.2x5. C404 2301-000148 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm C405 2201-000471 C-CERAMIC,DISC 0.33nF,10%,50V,Y5P,TP,4x3.5,5 C406 2301-000203 C-FILM,PEF 2.7nF,5%,100V,TP,7x3.0x6.5mm,5 C407 2401-000540 C-AL 150uF,20%,63V,LZ,TP,10x25,5 C408 2201-000469 C-CERAMIC,DISC 0.33nF,10%,500V,Y5P,TP,5.5x3,5 C410 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 C411 2301-000005 C-FILM,PEF 33nF,5%,100V,TP,5.8x12.5x3,5 C412 2301-000016 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm, C413 2401-001012 C-AL 3.3UF,20%,50V,BP,TP,16X25,7.5 C414 2401-001334 C-AL 470nF,20%,50V,GP,TP,5x11,2.5 C415 2401-001222 C-AL 4.7UF,20%,160V,WT,TP,8X11.5MM,5 C416 2301-000010 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5 C421 2303-001029 C-FILM,PPF 5.2nF,5%,630V,TP,19x7x13,7.5 C426 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5

7 Electrical Parts List

7-2 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 38

C427 2306-000131 C-FILM,MPPF 150nF,5%,250V,TP,19x16x7.5,7.5 C428 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 C429 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 C430 2301-001162 C-FILM,MPPF 370nF,5%,250V,TP,19x18.5x12.5, C431 2306-000179 C-FILM,MPPF 300nF,5%,250V,TP,20x18.5x10.5, C432 2305-000310 C-FILM,MPEF 22nF,5%,250V,TP,14.5x8.8mm,7.5 C433 2305-001003 C-FILM,MPEF 10nF,5%,250V,TP,13x4.5x9mm,7.5 C434 2201-000132 C-CERAMIC,DISC 0.1nF,10%,500V,Y5P,TP,6.5x3,5 C435 2201-000229 C-CERAMIC,DISC 0.15nF,10%,2kV,Y5P,TP,6.3x5,7.5 C436 2201-000672 C-CERAMIC,DISC 0.82nF,10%,500V,Y5P,TP,6.5x3,5 C440 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 C445 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 C461 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 C462 2301-000148 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm C463 2401-000597 C-AL 1uF,20%,50V,GP,TP,4x7mm,1.5mm C501 2301-000016 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm, C502 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 C503 2201-000119 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5 C504 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5 C505 2401-000059 C-AL 220nF,20%,50V,GP,-,5x11,5 C509 2401-002267 C-AL 2.2uF,20%,250V,GP,TP,8x11.5,5 C510 2301-000294 C-FILM,PEF 56nF,5%,100V,TP,9.5x12.5mm,5mm C513 2201-000291 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5 C541 2301-000004 C-FILM,PEF 2.2nF,5%,100V,TP,5.5X10X2.9,5m C603 2201-000024 C-CERAMIC,DISC 4.7nF,20%,250VAC,Y5U,TP,16x7,7 C604 2201-000024 C-CERAMIC,DISC 4.7nF,20%,250VAC,Y5U,TP,16x7,7 C605 2301-000016 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm, C606 2301-000148 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm C607 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C609 2401-000015 C-AL 33uF,20%,50V,WT,-,6.3x11mm,2.5 C610 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 C611 2401-000613 C-AL 1uF,20%,50V,WT,TP,5x11,5 C612 2401-000613 C-AL 1uF,20%,50V,WT,TP,5x11,5 C613 2201-000012 C-CERAMIC,DISC 0.22nF,10%,1kV,Y5P,TP,6.3x5,5 C614 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 C615 2201-000291 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5 C616 2201-000023 C-CERAMIC,DISC 2.2nF,20%,125V,Y5U,TP,11x7,5 C617 2201-000023 C-CERAMIC,DISC 2.2nF,20%,125V,Y5U,TP,11x7,5 C618 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 C619 2401-001585 C-AL 47uF,20%,50V,WT,TP,8x11.5,5 C620 2401-000887 C-AL 220uF,20%,63V,GP,TP,10x20,5 C621 2401-001585 C-AL 47uF,20%,50V,WT,TP,8x11.5,5 C622 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 C623 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 C624 2301-000004 C-FILM,PEF 2.2nF,5%,100V,TP,5.5X10X2.9,5m C625 2301-000174 C-FILM,PEF 15nF,5%,100V,TP,7.2x4.0x7.5mm, C626 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 C628 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 C629 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C630 2401-000037 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 C631 2401-000292 C-AL 100uF,20%,16V,WT,TP,8x11.5mm,5 C632 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 C633 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 C634 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 C643 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5 CIS6 0203-001199 TAPE-KRAFT #53110,T0.1,W6,L2000M,BRN SNA CIS7 0203-001200 TAPE-PAPER #53128,T0.15,W5.5,L2000M,BEIGE SNA CIS8 0203-001201 TAPE-PAPER #FB-300,T0.16,W6,L2000M,R/BLU SNA CN501 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA CN603 3711-000217 CONNECTOR-HEADER 1WALL,3P,1R,3.96mm,STRAIGHT,SN SNA D201 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP

7 Electrical Parts List

AN15V* 7-3

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 39

D302 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D303 0402-000128 DIODE-RECTIFIER 1N4002GP,100V,1A,DO-41,TP D401 0402-000274 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP D402 0402-000274 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP D403 0402-000006 DIODE-RECTIFIER 1N4007GP,1000V,1A,DO-41,TP D404 0402-000006 DIODE-RECTIFIER 1N4007GP,1000V,1A,DO-41,TP D405 0402-000208 DIODE-RECTIFIER EK-04,40V,1.5A,DO-41 D407 0402-000274 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP D410 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D411 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D412 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP D413 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP D414 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D415 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D416 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D420 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D421 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP D501 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D504 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP D505 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D506 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D508 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D509 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D510 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D511 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D513 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D600 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D602 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D604 0402-000012 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP D605 0402-000012 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP D606 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP D607 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D610 0402-000012 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP D611 0402-001118 DIODE-RECTIFIER UF1G,400V,1.2A,DO-204AL,TP D612 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP D615 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW D616 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW D625 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D626 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D627 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D628 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D629 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP D630 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP EY301 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY302 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY401 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY444 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY445 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY500 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY501 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY502 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY503 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY504 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY505 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY506 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY507 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY508 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY509 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY510 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY511 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY512 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA

7 Electrical Parts List

7-4 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 40

EY601 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY602 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY603 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY604 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY605 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY606 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY607 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY608 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY609 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY610 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA GT603 BH71-40300A PIN HINGE BRASS,D2.36!,HEAT/SINK,SN SNA GT604 BH71-40300A PIN HINGE BRASS,D2.36!,HEAT/SINK,SN SNA IC202 1103-001149 IC-EEPROM

524C80D41,4KBit,DIP,8P,300MIL,10mS,5V,10%,PLASTIC,-25to+70C,10uA,CMOS,ST IC602 1203-000002 IC-POSI.ADJUST REG. 431,TO-92,3P,-,PLASTIC,2.44/2. IC604 1203-002653 IC-POSI.FIXED REG. 78DL05,TO-92,3P,4.5X4.5MM,PLASTIC,4.8/5.2V,625MW,-40TO+85C,150MA,-,TP JP_DHHS BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP101 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP102 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP11 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP110 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP113 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP118 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP119 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP129 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP130 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP135 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP137 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP142 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP143 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP144 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP146 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP147 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP148 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP158 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP160 2004-001211 R-METAL 7.5Kohm,1%,1/4W,AA,TP,2.4x6.4m JP162 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP163 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP171 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP175 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP176 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP179 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP180 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP183 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP184 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP186 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP187 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP193 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP194 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP195 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP196 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP197 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP198 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP199 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP2 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP20 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP200 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP201 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP202 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP204 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP205 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP206 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0.

7 Electrical Parts List

AN15V* 7-5

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 41

JP207 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP208 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP209 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP21 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP210 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP211 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP212 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP213 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP214 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP215 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP216 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP217 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP219 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP220 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP221 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP25 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP3 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP30 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP32 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP33 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP34 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP35 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP36 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP37 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP4 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP43 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP56 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP57 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP58 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP60 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP62 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP64 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP8 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP9 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP91 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP94 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. MP1.0 BH41-00217A PCB MAIN AN15V*,FR1,1,1.6T,247*247,MAIN Q303 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 Q400 0501-000372 TR-SMALL SIGNAL KSC2383-Y,NPN,900000mW,TO-92L,TP,160-320 Q401 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 Q403 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 Q405 0501-000303 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,120-240 Q406 0501-000303 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,120-240 Q407 0501-000140 TR-SMALL SIGNAL 2N5551,NPN,625mW,TO-92,TP,80-250 Q415 0501-000412 TR-SMALL SIGNAL KSP42,NPN,625mW,TO-92,-,40 Q416 0501-000412 TR-SMALL SIGNAL KSP42,NPN,625mW,TO-92,-,40 Q420 0501-000303 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,120-240 Q499 0501-000303 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,120-240 Q502 0501-000143 TR-SMALL SIGNAL 2N6520,PNP,625mW,TO-92,TP,30-200 Q601 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 Q602 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 Q604 0501-000404 TR-SMALL SIGNAL KSD1616-Y,NPN,750mW,TO-92,TP,135-270 Q609 0501-002228 TR-SMALL SIGNAL KTA1281,PNP,1000mW,TO-92L,TP,120-240 Q610 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 Q613 0501-002228 TR-SMALL SIGNAL KTA1281,PNP,1000mW,TO-92L,TP,120-240 Q614 0501-000586 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,120-240 R200 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM R201 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R202 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R203 2001-000008 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM R204 2001-000008 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM

7 Electrical Parts List

7-6 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 42

R205 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R206 2001-000435 R-CARBON 1MOHM,5%,1/8W,AA,TP,1.8X3.2MM R207 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM R208 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM R209 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R212 2001-000591 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM R213 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R214 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R215 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R216 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R217 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R218 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R219 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R220 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R221 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM R222 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM R223 2001-000554 R-CARBON 270OHM,5%,1/8W,AA,TP,1.8X3.2MM R224 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM R225 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM R229 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R235 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R236 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R300 2004-001202 R-METAL 68ohm,1%,1/4W,AA,TP,2.4x6.4mm R301 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM R302 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R307 2001-000908 R-CARBON 62KOHM,5%,1/8W,AA,TP,1.8X3.2MM R308 2001-001053 R-CARBON(S) 1.5OHM,5%,1/2W,AA,TP,2.4X6.4MM R309 2004-001022 R-METAL 5.6Kohm,1%,1/4W,AA,TP,2.4x6.4m R310 2003-000422 R-METAL OXIDE(S) 1.2ohm,5%,2W,AA,TP,4x12mm R311 2004-000853 R-METAL 390ohm,1%,1/4W,AA,TP,2.4x6.4mm R312 2004-000498 R-METAL 2.7Kohm,1%,1/4W,AA,TP,2.4x6.4m R313 2001-001015 R-CARBON 9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R314 2001-000539 R-CARBON 24KOHM,5%,1/8W,AA,TP,1.8X3.2MM R316 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM R317 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM R327 2001-000689 R-CARBON 390KOHM,5%,1/8W,AA,TP,1.8X3.2MM R328 2001-000356 R-CARBON 150KOHM,5%,1/8W,AA,TP,1.8X3.2MM R401 2004-000979 R-METAL 47Kohm,1%,1/4W,AA,TP,2.4x6.4mm R404 2004-001022 R-METAL 5.6Kohm,1%,1/4W,AA,TP,2.4x6.4m R405 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM R406 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM R407 2001-001099 R-CARBON(S) 2.7KOHM,5%,1/2W,AA,TP,2.4X6.4MM R408 2003-000455 R-METAL OXIDE(S) 100ohm,5%,2W,AA,TP,4x12mm R411 2001-000333 R-CARBON 12OHM,5%,1/4W,AA,TP,2.4X6.4MM R412 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R413 2001-001048 R-CARBON(S) 1.2OHM,5%,1/2W,AA,TP,2.4X6.4MM R414 2001-001048 R-CARBON(S) 1.2OHM,5%,1/2W,AA,TP,2.4X6.4MM R415 2003-000429 R-METAL OXIDE(S) 1.5Kohm,5%,2W,AA,TP,4x12mm R416 2001-000107 R-CARBON(S) 150KOHM,5%,1/2W,AA,TP,2.4X6.4MM R417 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R418 2001-000613 R-CARBON 3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM R419 2001-000397 R-CARBON 180KOHM,5%,1/8W,AA,TP,1.8X3.2MM R420 2001-000354 R-CARBON 150KOHM,5%,1/4W,AA,TP,2.4X6.4MM R423 2004-000698 R-METAL 3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m R424 2004-000412 R-METAL 18Kohm,1%,1/4W,AA,TP,2.4x6.4mm R425 2001-001178 R-CARBON(S) 680OHM,5%,1/2W,AA,TP,2.4X6.4MM R426 2001-000110 R-CARBON 10OHM,5%,1/4W,AA,TP,2.4X6.4MM R427 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R428 2003-000736 R-METAL OXIDE(S) 560ohm,5%,3W,AA,TP,6x16mm R429 2001-000773 R-CARBON 470KOHM,5%,1/8W,AA,TP,1.8X3.2MM R430 2001-001078 R-CARBON(S) 15KOHM,5%,1/2W,AA,TP,2.4X6.4MM

7 Electrical Parts List

AN15V* 7-7

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 43

R431 2003-000438 R-METAL OXIDE(S) 1.5ohm,5%,3W,AA,TP,6x16mm R432 2001-000020 R-CARBON(S) 22OHM,5%,1/2W,AA,TP,2.4X6.4MM R436 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM R437 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM R438 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM R439 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM R442 2001-000938 R-CARBON 68OHM,5%,1/8W,AA,TP,1.8X3.2MM R443 2003-000650 R-METAL OXIDE(S) 330ohm,5%,2W,AA,TP,4x12mm R445 2001-000019 R-CARBON(S) 10OHM,5%,1/2W,AA,TP,2.4X6.4MM R446 2001-000117 R-CARBON(S) 68OHM,5%,1/2W,AA,TP,2.4X6.4MM R450 2004-000262 R-METAL 120Kohm,1%,1/4W,AA,TP,2.4x6.4m R452 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R453 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R454 2003-000650 R-METAL OXIDE(S) 330ohm,5%,2W,AA,TP,4x12mm R461 2001-000010 R-CARBON 68KOHM,5%,1/8W,AA,TP,1.8X3.2MM R500 2001-000435 R-CARBON 1MOHM,5%,1/8W,AA,TP,1.8X3.2MM R501 2001-000890 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM R502 2004-000861 R-METAL 39Kohm,1%,1/4W,AA,TP,2.4x6.4mm R503 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R504 2001-000008 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM R505 2004-000458 R-METAL 2.2Kohm,1%,1/4W,AA,TP,2.4x6.4m R506 2004-000284 R-METAL 12Kohm,1%,1/4W,AA,TP,2.4x6.4mm R507 2004-000216 R-METAL 10Kohm,1%,1/4W,AA,TP,2.4x6.4mm R510 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM R511 2001-000478 R-CARBON 2.7OHM,5%,1/4W,AA,TP,2.4X6.4MM R514 2001-001071 R-CARBON(S) 12KOHM,5%,1/2W,AA,TP,2.4X6.4MM R515 2001-001108 R-CARBON(S) 22KOHM,5%,1/2W,AA,TP,2.4X6.4MM R516 2001-001115 R-CARBON(S) 27KOHM,5%,1/2W,AA,TP,2.4X6.4MM R520 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM R524 2001-000337 R-CARBON 130KOHM,5%,1/8W,AA,TP,1.8X3.2MM R526 2004-000825 R-METAL 36Kohm,1%,1/4W,AB,TP,2.4x6.4mm R529 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R530 2004-000193 R-METAL 100Kohm,1%,1/4W,AA,TP,2.4x6.4m R600 2001-001129 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6.4MM R601 2001-001129 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6.4MM R602 2001-000023 R-CARBON 47OHM,5%,1/4W,AA,TP,2.4X6.4MM R603 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R604 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM R605 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM R606 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R607 2003-000014 R-METAL OXIDE(S) 10Kohm,5%,3W,AA,TP,6x16mm R608 2001-000034 R-CARBON 220OHM,5%,1/4W,AA,TP,2.4X6.4MM R609 2002-001068 R-COMPOSITION 180Kohm,5%,1/2W,AA,TP,3.9x9mm R610 2002-001068 R-COMPOSITION 180Kohm,5%,1/2W,AA,TP,3.9x9mm R611 2001-000018 R-CARBON 6.8OHM,5%,1/4W,AA,TP,2.4X6.4MM R612 2003-000738 R-METAL OXIDE(S) 56Kohm,5%,2W,AA,TP,4x12mm R613 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM R614 2001-001107 R-CARBON(S) 220ohm,5%,1/2W,AA,TP,2.4x6.4mm R615 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4MM R616 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM R617 2001-001048 R-CARBON(S) 1.2OHM,5%,1/2W,AA,TP,2.4X6.4MM R618 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R620 2001-000508 R-CARBON 220KOHM,5%,1/8W,AA,TP,1.8X3.2MM R621 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R622 2001-000211 R-CARBON 1OHM,5%,1/4W,AA,TP,2.4X6.4MM R623 2004-001349 R-METAL 91Kohm,1%,1/4W,AA,TP,2.4x6.4mm R624 2001-000890 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM R625 2004-000481 R-METAL 2.4Kohm,1%,1/4W,AA,TP,2.4x6.4m R626 2004-000498 R-METAL 2.7Kohm,1%,1/4W,AA,TP,2.4x6.4m R630 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

!!!!!

7 Electrical Parts List

7-8 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 44

R631 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4MM R632 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R634 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R663 2001-000071 R-CARBON 22KOHM,5%,1/4W,AA,TP,2.4X6.4MM R664 2001-000062 R-CARBON 470OHM,5%,1/4W,AA,TP,2.4X6.4MM R667 2001-000211 R-CARBON 1OHM,5%,1/4W,AA,TP,2.4X6.4MM R668 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R674 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R676 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4MM R677 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R678 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM SK501 4715-000001 SURGE ABSORBER 1KV,+50-10%,-,-, SNA TP501 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA VR401 2103-000493 VR-SEMI 5Kohm,30%,1/10W,SIDE X201 2801-000005 CRYSTAL-UNIT 8MHz,50ppm,28-AAM,S,35ohm,TP ZD201 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP ZD202 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP ZD203 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP ZD204 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP ZD205 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW ZD206 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW ZD207 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW ZD208 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP ZD209 0403-000348 DIODE-ZENER UZ36B,36V,33-39V,500mW,DO-35,T ZD210 0403-001068 DIODE-ZENER UZ4.7BSA,4.7V,4.47-4.65V,500mW ZD211 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW ZD301 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP

HS601 BP96-00064A ASSY HEAT SINK P H/S POWER,SPRING,6S0765RC,RUBBER SILICON CIS 1203-002642 IC-PWM CONTROLLER

FS6S0765RCB-YDTU,TO-220(FORMING),5P,9.88X9.2MM,PLASTIC,14/16V,145W,-25TO+85C,17A CIS BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- SNA CIS BH62-00004A HEAT SINK-POWER -,T1,-,A1050S,DA/DB SNA CIS BH62-20001B TUBE-RUBBER CSQ4357,W25*L20*T0.45,-,-,-,- SNA

HS301 BP96-00065A ASSY HEAT SINK P H/S V.IC,SPRING,STV9302A,OIL SILICON CIS 0205-001027 OIL-SILICON G746,-,- SNA CIS 1204-002014 IC-VERTICAL DEF. STV9302A,HEPTAWATT,7P,10.22X15.45MM,PLASTIC,35V,-,-20TO+75C,ST,CIS BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- SNA CIS BH62-00003B HEAT SINK-VERT A1050S,T1.0,T1.0,-,DA,DB SNA

HS501 BP96-00066D ASSY HEAT SINK P H/S FBT,SPRING,ST2001HI,DTV1500L,KTD2058,OIL SILICON CIS 0205-001027 OIL-SILICON G746,-,- SNA CIS 0402-001454 DIODE-RECTIFIER DTV1500L,1500V,4A,DO-220FP,ST CIS 0502-000465 TR-POWER KTD2058,NPN,25000mW,TO-220IS,ST,100-200 CIS 0502-001232 TR-POWER ST2001HI,NPN,55000MW,ISOWATT218,ST,5-10 CIS BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- SNA CIS BH61-70003A SPRING ETC CVT4857,STS304-W1/2H,W3.8,-,L30,L30,-,T0.5,DEGRE,W3.8,STS304-W1/2H SNA CIS BH62-00015A HEAT SINK-FBT A1050S,T1.0,T1.0,-,- SNA

HS402 BP96-00068A ASSY HEAT SINK P H/S TR,SPRING,IRF630B,OIL SILICON CIS 0205-001027 OIL-SILICON G746,-,- SNA CIS 0505-001675 FET-SILICON IRF630B,N,200V,9A,0.4OHM,72W,TO-220 CIS BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T0.5,-,-,- SNA CIS BH62-00008A HEAT SINK-TR -,SPC-1 L20*H45*T1,-,CDB SNA

7 Electrical Parts List

AN15V* 7-9

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 45

7 Electrical Parts List

7-10 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

CIS BH94-00828A ASSY PCB VIDEO AN15VS SNA 15_NOR 3704-001169 SOCKET-CRT 12P,22.5PI,-,NI+SN,CIS BH63-00056A SHIELD-VIDEO CAP AN17KS,SPTE ,T0.2 CIS BH68-00001A LABEL-MARK CDT ART-PAPER 100G,-,WHT,BLK,-,ALL,CDT SNA CIS1 0202-001044 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,- SNA CIS11 BH39-00134A CBF-HARNESS DT15LT,3*0.16TA,BLK,AWG18,35068-9822,EARTH CLIP,BK,100MM CIS12 6502-000127 CABLE CLAMP DAWH-18NB,ID15,-,NYLON66,NTR SNA CIS13 BH39-00150A CBF-HARNESS ,160MM,8*0.16TA*16 CIS14 6502-000001 CABLE CLAMP DAWH-5NB,D15,L35,NYLON66,NTR SNA CIS2 0202-001046 SOLDER-WIRE FLUX CF-110VH-2A,-,-,-,- SNA CIS3 0202-001222 SOLDER-WIRE FLUX RS-107,RS60-1.2AA,D1.2,SN60/PB40,- SNA CIS34 6502-000127 CABLE CLAMP DAWH-18NB,ID15,-,NYLON66,NTR SNA CIS4 0204-001095 THINNER #4520,-,-,- SNA CIS8 BH63-00055A SHIELD-VIDEO AN17KS,SPTE ,T0.2 CN101 3711-004228 CONNECTOR-HEADER BOX,6P,1R,2MM,ANGLE,SN SNA CN102 BH39-00015A CBF-HARNESS 13P/14P,200MM,WHT/BLK/RED/BLU,UL1007,AWG26,SMH200-13/YBNH200-14 IC101 1201-001947 IC-VIDEO AMP S1D2552X04,SDIP,32P,400MIL,-,-,PLASTIC,12.6V,1W,-20TO+75C,-,-,-,-,-,ST SH/VID+H/S 6003-000010 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1 SNA

- BH97-00352A ASSY AUTO-VIDEO AN15VS SNA BD101 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD102 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD103 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD104 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD105 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD106 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G C102 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 C103 2401-000037 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 C106 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C107 2401-003034 C-AL 220uF,20%,16V,WT,TP,8x11.5,5 C108 2401-000049 C-AL 47uF,20%,100V,WT,TP,10x16,5 C113 2301-000016 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm, C114 2201-000117 C-CERAMIC,DISC 1.8nF,10%,500V,Y5P,TP,8.5x3,5 C115 2401-000393 C-AL 10uF,20%,100V,WT,TP,8x11.5,5 C117 2301-000016 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm, C119 2201-000291 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5 C120 2201-000285 C-CERAMIC,DISC 1nF,10%,1kV,Y5P,TP,8x5,5 C121 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C123 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 C124 2301-000148 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm C151 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C152 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 C160 2301-000203 C-FILM,PEF 2.7nF,5%,100V,TP,7x3.0x6.5mm,5 C161 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 C162 2401-000613 C-AL 1uF,20%,50V,WT,TP,5x11,5 C163 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5 CB01 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 CB02 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 CB03 2201-000487 C-CERAMIC,DISC 33pF,5%,50V,SL,TP,5x3,5m CB04 2401-000055 C-AL 1uF,20%,160V,WT,TP,3x11,5mm CB06 2301-000010 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5 CB08 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5 CG01 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3 CG02 2401-000613 C-AL 1uF,20%,50V,WT,TP,5x11,5 CG03 2201-000487 C-CERAMIC,DISC 33pF,5%,50V,SL,TP,5x3,5m CG04 2401-000055 C-AL 1uF,20%,160V,WT,TP,3x11,5mm CG06 2301-000010 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5 CG08 2201-000234 C-CERAMIC,DISC 0.15nF,5%,50V,NP0,TP,9x3,5 CIS5 0203-001199 TAPE-KRAFT #53110,T0.1,W6,L2000M,BRN SNA CIS6 0203-001200 TAPE-PAPER #53128,T0.15,W5.5,L2000M,BEIGE SNA CR01 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3

7-2 Video PCB Parts

Page 46

CR02 2401-000603 C-AL 1uF,20%,50V,GP,TP,5x11,5 CR03 2201-000487 C-CERAMIC,DISC 33pF,5%,50V,SL,TP,5x3,5m CR04 2401-000055 C-AL 1uF,20%,160V,WT,TP,3x11,5mm CR06 2301-000010 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5 CR08 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5 DB01 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DB02 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DB03 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP DB04 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP DB05 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DG01 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DG02 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DG03 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP DG04 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP DG05 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DR01 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DR02 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP DR03 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP DR04 0401-000004 DIODE-SWITCHING 1SS244,250V,625mA,DO-34,TP DR05 0401-000005 DIODE-SWITCHING 1N4148,100V,200mA,DO-35,TP EY1 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY2 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY3 6042-000001 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH SNA EY4 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA EY5 6042-000002 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH SNA G2 BH71-40300A PIN HINGE BRASS,D2.36!,HEAT/SINK,SN SNA GND BH71-40300A PIN HINGE BRASS,D2.36!,HEAT/SINK,SN SNA IC104 BH13-00022A IC HYBRID-BIAS CLAMP LM2480NA,PN15H/17L,8P,0to+70C,DIP,3mA,85V,ST JP162 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP182 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP183 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP184 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP188 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP191 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP197 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP198 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP199 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP200 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP201 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP202 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP203 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP204 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP205 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP207 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. JP208 BH39-40305U CBF HARNESS 52MM,AWG22(0.6PI),-,-,AWG22(0. L101 2701-000112 INDUCTOR-AXIAL 100uH,10%,3x7mm L103 2701-000319 INDUCTOR-AXIAL 470NH,10%,3X7MM LB01 2701-000319 INDUCTOR-AXIAL 470NH,10%,3X7MM LG01 2701-000319 INDUCTOR-AXIAL 470NH,10%,3X7MM LR01 2701-000319 INDUCTOR-AXIAL 470NH,10%,3X7MM MP1.0 BH41-00218A PCB AN15V*,FR1,1,1.6T,247*247MM,6,VIDEO R101 2001-000591 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM R102 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM R103 2001-001138 R-CARBON(S) 390OHM,5%,1/2W,AA,TP,2.4X6.4MM R104 2001-001138 R-CARBON(S) 390OHM,5%,1/2W,AA,TP,2.4X6.4MM R105 2001-000947 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM R107 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R108 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM R109 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM R117 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM R118 2001-000857 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM

7 Electrical Parts List

AN15V* 7-11

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 47

R119 2001-000857 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM R124 2001-001195 R-CARBON(S) 82OHM,5%,1/2W,AA,TP,2.4X6.4MM R130 2003-002282 R-METAL OXIDE(S) 39OHM,5%,1W,AF,TP,3.3X9MM RB01 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM RB02 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM RB03 2001-000857 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM RB05 2001-000702 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM RB07 2001-000411 R-CARBON 18KOHM,5%,1/8W,AA,TP,1.8X3.2MM RB08 2001-000325 R-CARBON 120OHM,5%,1/8W,AA,TP,1.8X3.2MM RB09 2001-000962 R-CARBON 75KOHM,5%,1/4W,AA,TP,2.4X6.4MM RB10 2003-002281 R-METAL OXIDE(S) 120OHM,5%,1W,AF,TP,3.3X9MM RB15 2001-000938 R-CARBON 68OHM,5%,1/8W,AA,TP,1.8X3.2MM RG01 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM RG02 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM RG03 2001-000857 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM RG05 2001-000702 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM RG07 2001-000411 R-CARBON 18KOHM,5%,1/8W,AA,TP,1.8X3.2MM RG08 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM RG09 2001-000962 R-CARBON 75KOHM,5%,1/4W,AA,TP,2.4X6.4MM RG10 2001-001077 R-CARBON(S) 150OHM,5%,1/2W,AA,TP,2.4X6.4MM RG15 2001-000938 R-CARBON 68OHM,5%,1/8W,AA,TP,1.8X3.2MM RR01 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM RR02 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM RR03 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM RR05 2001-000702 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM RR07 2001-000411 R-CARBON 18KOHM,5%,1/8W,AA,TP,1.8X3.2MM RR08 2001-000376 R-CARBON 15OHM,5%,1/8W,AA,TP,1.8X3.2MM RR09 2001-000962 R-CARBON 75KOHM,5%,1/4W,AA,TP,2.4X6.4MM RR10 2003-002281 R-METAL OXIDE(S) 120OHM,5%,1W,AF,TP,3.3X9MM RR15 2001-000938 R-CARBON 68OHM,5%,1/8W,AA,TP,1.8X3.2MM SK101 1405-001064 SURGE ABSORBER 400V,20%,-,-,AXIAL SK102 4715-000001 SURGE ABSORBER 1KV,+50-10%,-,-, SNA SKB01 4715-000102 SURGE ABSORBER 200V,20%,1000A,-,RADIAL SNA SKG01 4715-001065 SURGE ABSORBER 200V,20%,-,-,AXIAL SKR01 4715-000102 SURGE ABSORBER 200V,20%,1000A,-,RADIAL SNA ZD101 0403-000355 DIODE-ZENER UZ5.1BSB,4.97-5.18V,500MW,DO-35,TP

HS103 BP96-00063B ASSY HEAT SINK P H/S VIDEO,SCREW+NUT,STV9555,OIL SILICON CIS 0205-001027 OIL-SILICON G746,-,- SNA CIS 1201-001917 IC-VIDEO AMP STV9555,CLIPWATT,11P,20X11MM,TRIPLE,20DB,PLASTIC,115V,4.79W,-,-,-,-,-,-,ST CIS 6006-001009 SCREW-ASS’Y MACH WSP,BH,+,M3(WOD6),L12,ZPC(YEL) SNA CIS 6021-000118 NUT-HEXAGON 1C,M3,ZPC(YEL),SM20C SNA CIS BH62-00006A HEAT SINK-VIDEO -,A1050S T2.0,-,DB SNA

7 Electrical Parts List

7-12 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 48

- BH90-00257A ASSY STAND PN17HT,ABS HB,IV16,W/W SNA CIS BH75-00274A UNIT-STAND PN15VT,-,ABS HB,-,IV16,-,CIS BH60-00030A FASTENER-BAND PN17LT,ST+PVC,P0.4,-,150,YELLOW,-,-,- SNA CIS BH61-40002A FOOT-RUBBER -,NR,PMS428U,GA4237,-,-,- SNA CIS BH63-30103A FELT-STAND MCM1755,FELT,T1.0,W10,L4 CIS BH68-20366A LABEL-MARK STAND -,ART PAPER 100(S),-,-,-,-,-,WHT ,-,- SNA CIS BH68-70306A CARD-STAND CVM4967PWS(SKD),WONSTROW,CHAIN SNA CIS BH69-30348C BAG-PE HDPE,T0.02,W350*L430,Y,-,CGB51 SNA CIS BH72-00277A STAND TOP PN15VT,ABS,HB,IV16 SNA CIS BH72-60740A STAND BASE-USB CHB5807,ABS,HB,IV16 SNA

- BH90-00348A ASSY COVER FRONT AQ15VS,ABS V0,IV16 SNA C/F+C/R 6003-000009 SCREW-TAPTITE BH,+,B,M4,L16,ZPC(YEL),SWRCH18 SNA C/F+CDT 6006-001119 SCREW-ASS’Y TAPT WC,BH,+,M5,L25,ZPC(YEL),SWRCH18A SNA CIS BH90-00002A ASSY COVER FRONT AQ15VS,-,ABS V0,-,IV16,-,-,CIS 6107-001036 SPRING-CS PI9.4,D0.6,L15,WHT,STS304WPB SNA CIS BH59-00182A PBA SUB-FUNCTION PN17HT,DB-PN17HT,SAMSUNG,-,FUNCTION,-,- SNA D3 0403-000361 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW R231 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM R233 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM R234 2001-000563 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM R232 2001-000812 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM SW201 3404-000243 SWITCH-TACT 15V,20mA,160gf+-50gf,6x3.4mm,S SW202 3404-000243 SWITCH-TACT 15V,20mA,160gf+-50gf,6x3.4mm,S SW203 3404-000243 SWITCH-TACT 15V,20mA,160gf+-50gf,6x3.4mm,S SW204 3404-000243 SWITCH-TACT 15V,20mA,160gf+-50gf,6x3.4mm,S CN2 BH39-00255A CBF HARNESS

PN17HT,UL1007#26,UL/CSA,2P,150MM,BLU/WHT,AWG26,SMH250-02,60-9073-3018-02 CIS BH41-00117A PCB CONTROL PN17HT,FR-1,1 LAYER,00,1.6t,13*84,PN17HT,-,CONTROL,CONTROL BOARD SNA CIS BH64-00096A KNOB-FUNCTION AQ17LS,ABS,HB,IV16 SNA CIS BH64-00133A KNOB POWER AQ15VS,ABS ,HB,IV16 SNA CIS BH67-00018A LENS-LED PN15VT,ACRYL ,CLEAR,-,-,-,- SNA CIS BH71-00121A EARTH PLATE PN17LT,SUS304,T0.15 SNA CIS BH72-00334A COVER FRONT AQ15VS,ABS,V0,IV16 SNA

- BH90-00349A ASSY COVER REAR AQ15VS,ABS V0,IV16 SNA

CIS BH72-00335A COVER REAR AQ15VS,ABS,V0,IV16

- BH91-00793C ASSY CDT AN15VS SNA

- BH91-00793S ASSY CDT-TM TM-AQ15VS SNA CIS 0201-001052 ADHESIVE-CYA NO2/TOKYO/3BCO,WHT,-,- SNA CIS 0203-000005 TAPE-ACETATE SGT730,T0.26,W19,L3000,BLK SNA CIS 3302-000006 MAGNET-RUBBER AF,14G,1620-1980G,0.58-0.9MGOe SNA CIS 3309-000002 MAGNET-SHEET 5x20x80mm,UL94V-0,2 SNA CIS 6502-001019 CABLE CLAMP DAMC-10,ID9.9,T7.1,NYLON6.6,GRAY SNA CIS BH03-10014A CDT-SN M36KUM35X02,-,15,0.28,-,MS-GUN,-,-,-,-,-,VLMF,4 CIS BH03-00006C CDT M36LGE23X211(F6M1),54,15,0.28,-,22.5,FST,N/C,NH,EQ,-,ESF,NONE,4 CIS BH68-30003B LABEL-HIGH VOLTAGE CKA4217(C),ART,100G,YEL,BLK,W30*L30,CDT-TUBE SNA

CIS BH96-00114A ASSY D-COIL P 15INCH,BH27-00129A,BH39-00413A

- BH91-00802C ASSY CHASSIS AN15VS

- BH92-00519B ASSY P/MATERIAL AQ15VSPN/XAZ,SEDA,BRAZIL SNA P/MATERIAL 0203-001100 TAPE-OPP MASKING OPP/W75/CLR,T0.05,W75,L800000,CLR SNA P/MATERIAL 0203-001159 TAPE-FILAMENT #8915,T0.15,W12,L55000,CLR SNA P/MATERIAL BH69-00260A BAG AIR DP17L,PE,0.2,1800,1000,NATURAL,- SNA P/MATERIAL BH69-00362A CUSHION-L/R(S) AQ15VS,EPS M50,-,-,-,-,-,-,- SNA P/MATERIAL BH69-30002C BAG-PE LDPE,T0.05,W2400,NO_PRINT SNA P/MATERIAL BH69-30348A BAG-PE HDPE,T0.02,W850*L800,Y,-,CGB51 SNA P/MATERIAL BH69-30360A BAG-AIR HDPE,T0.2,W1000*L1800,N,-,ALL SNA P/MATERIAL BH69-40380A PACKING-PAD DW-2,500X2200X200,-,CGK5527 SNA

7 Electrical Parts List

AN15V* 7-13

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

7-3 Others

Page 49

- BH92-00876A ASSY BOX AN15VS SNA CIS BH68-00329A LABEL BAR CODE ALL,MPRII,DOM,EXPORT,ART-PAPER 90G,-,-,-,-,-,WHT,-,- SNA CIS BH69-00384A BOX S/M551S,W/W(SMALL),CB-SW4,YEL,A-1,-,-,-,L466*W445*H366,- SNA

- BH92-00877A ASSY LABEL AN15VS SNA LABEL BH68-00459B LABEL RATING B,PE,T0.05,109,50,SYNC,-,PE NATURE,-,- SNA

- BH92-00878A ASSY ACCESSORY AN15VS SNA UNIT/ACCESSORY BH96-00117A ASSY ACCESSORY AN15VS7L/EDC ACCESSORY 0203-000214 TAPE-OPP MASKING OPP/W50/CLR,T0.05,W50,L400000, SNA ACCESSORY BH39-10007A CBF POWER CORD DET,250V/6A,H05VV-F,LP-34A/KKP ACCESSORY BH59-00335A S/W DRIVER-00 AN15VS,IB/DRIVER,SYNCMASTER,E/F/S/G/P/I/R/H/PO.. ACCESSORY BH68-00374A CARD WARRANTY ASC List,Samsung,ART100G,Russian,EDC,295,210 SNA ACCESSORY BH68-00376J MANUAL

AN_QUICK SETUP GUIDE,SYNCMASTER,E/F/S/G/P/I..14LANGS,W/W,MOJO100G,298,420 ACCESSORY BH68-00489A MANUAL RUSSIAN W/CARD,SER,RUSSIAN,RUSSIA,MOJO100G SNA ACCESSORY BH68-70418A CARD-EU BLOC WARR SyncMaster,BASIC,EU,MOJO,100G, SNA ACCESSORY BH69-30348D BAG-PE LDPE,T0.05,W240*L356,Y,-,CMG73 SNA

- TM-AN15VS 2 TSB,MINI-NECK -

7 Electrical Parts List

7-14 AN15V*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

Page 50

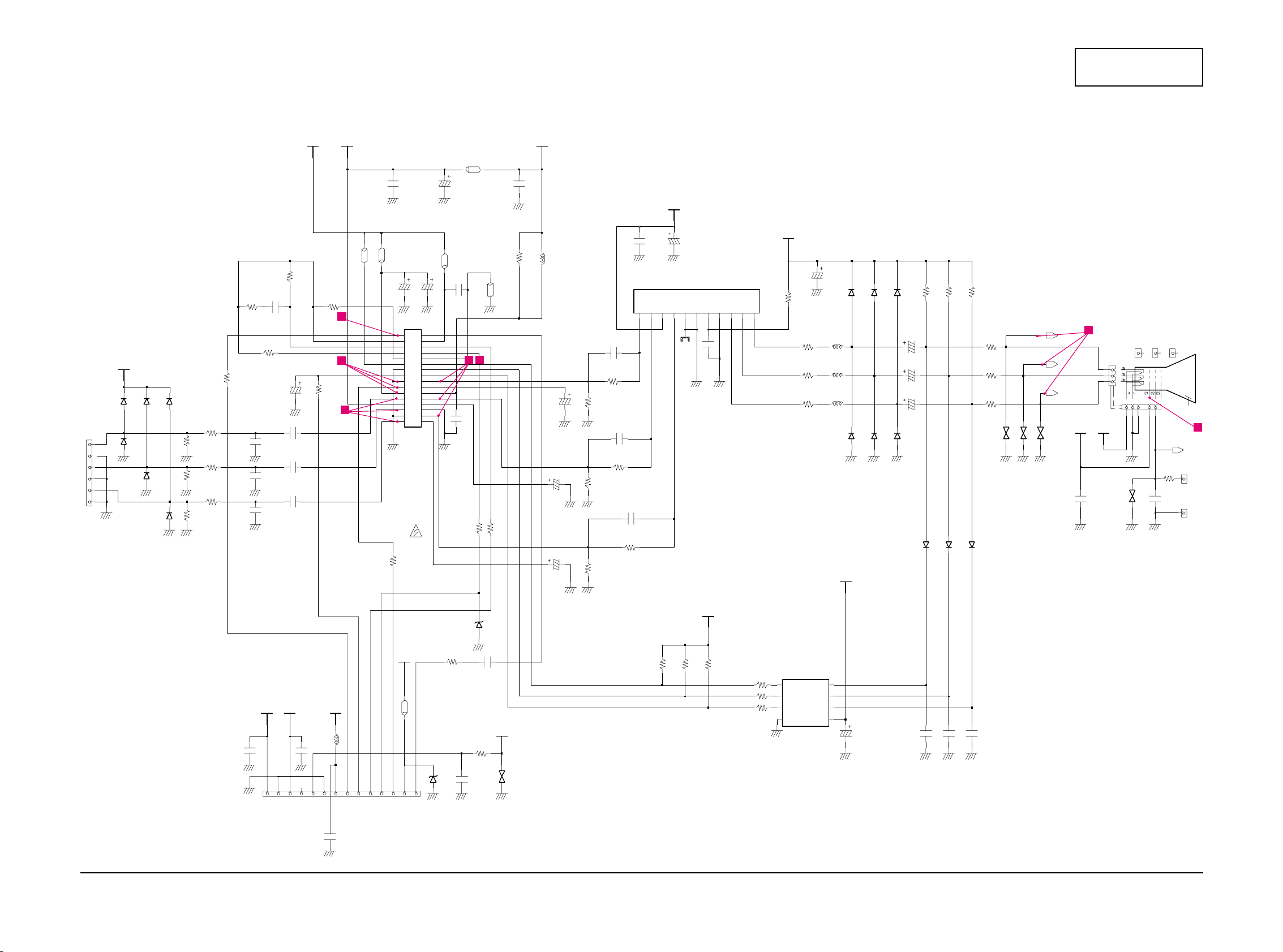

8 Block Diagrams

AN15V* 8-1

CONFIDENTIAL

Page 51

Memo

8 Block Diagrams

8-2 AN15V*

CONFIDENTIAL

Page 52

CONFIDENTIAL

AN15V* 9-1

15 PIN

D-SUB

refer to pin

assignment

product spec.

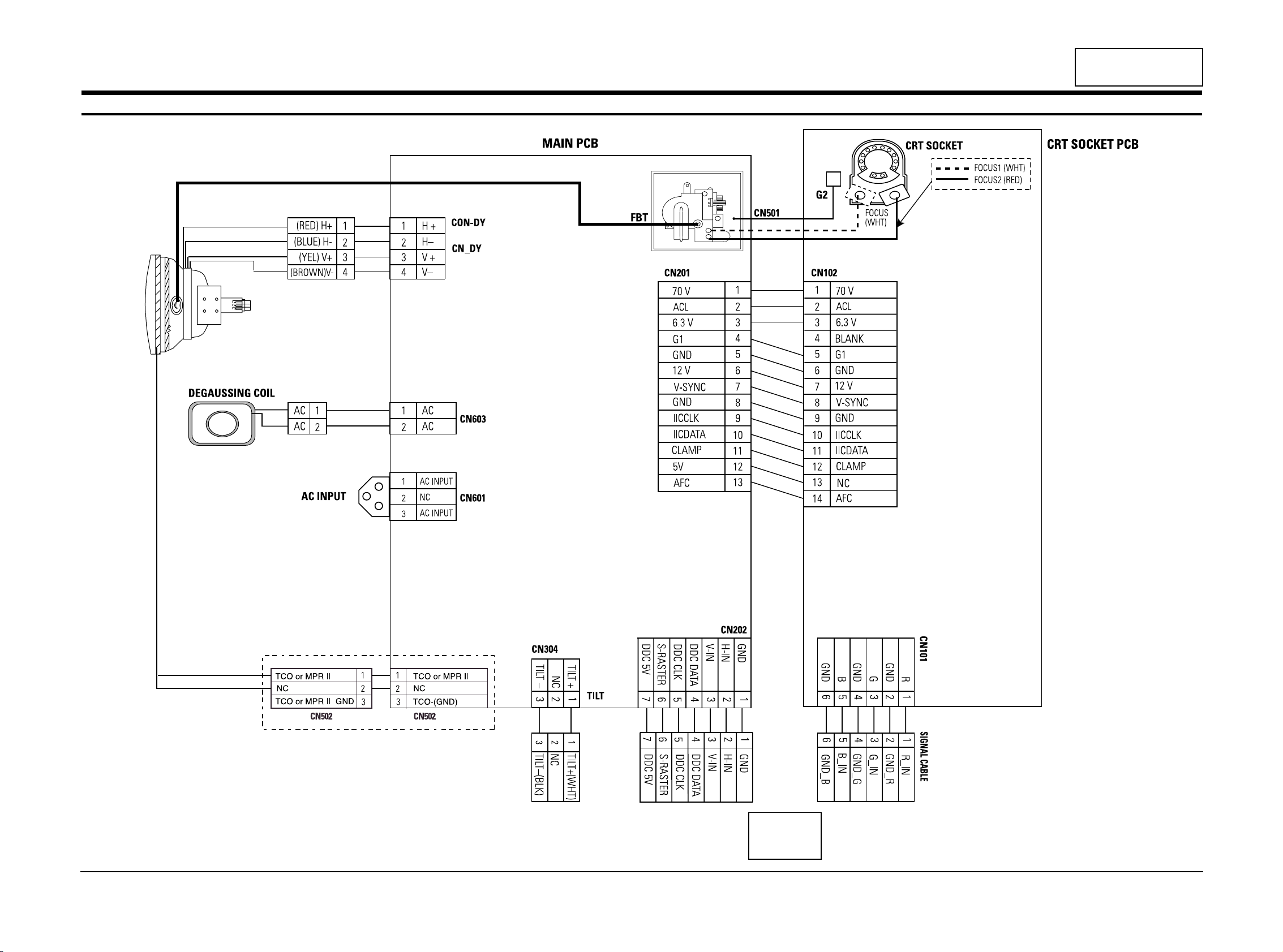

9 Wiring Diagram

Page 53

Memo

9 Wiring Diagrams

9-2 AN15V*

CONFIDENTIAL

Page 54

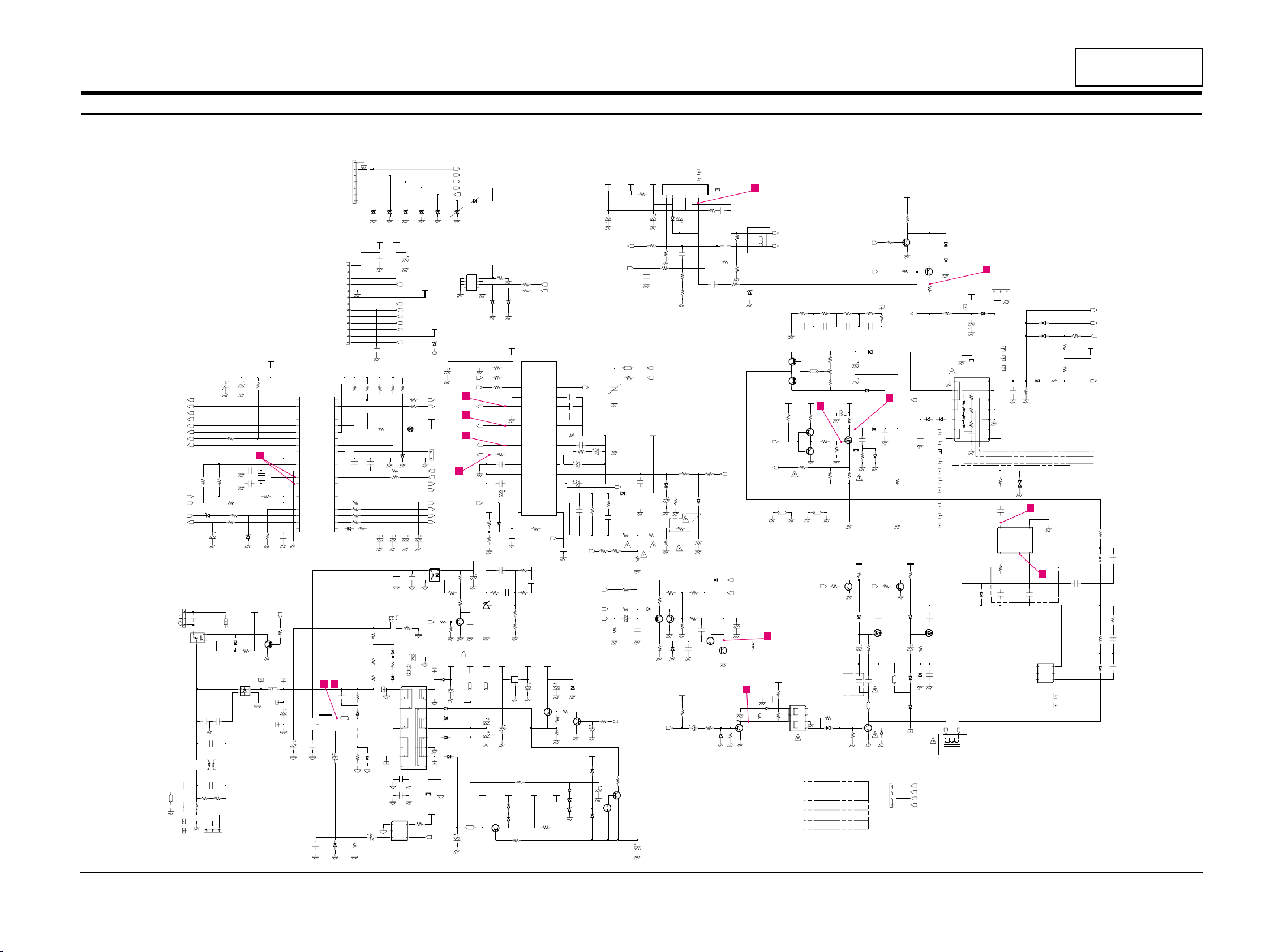

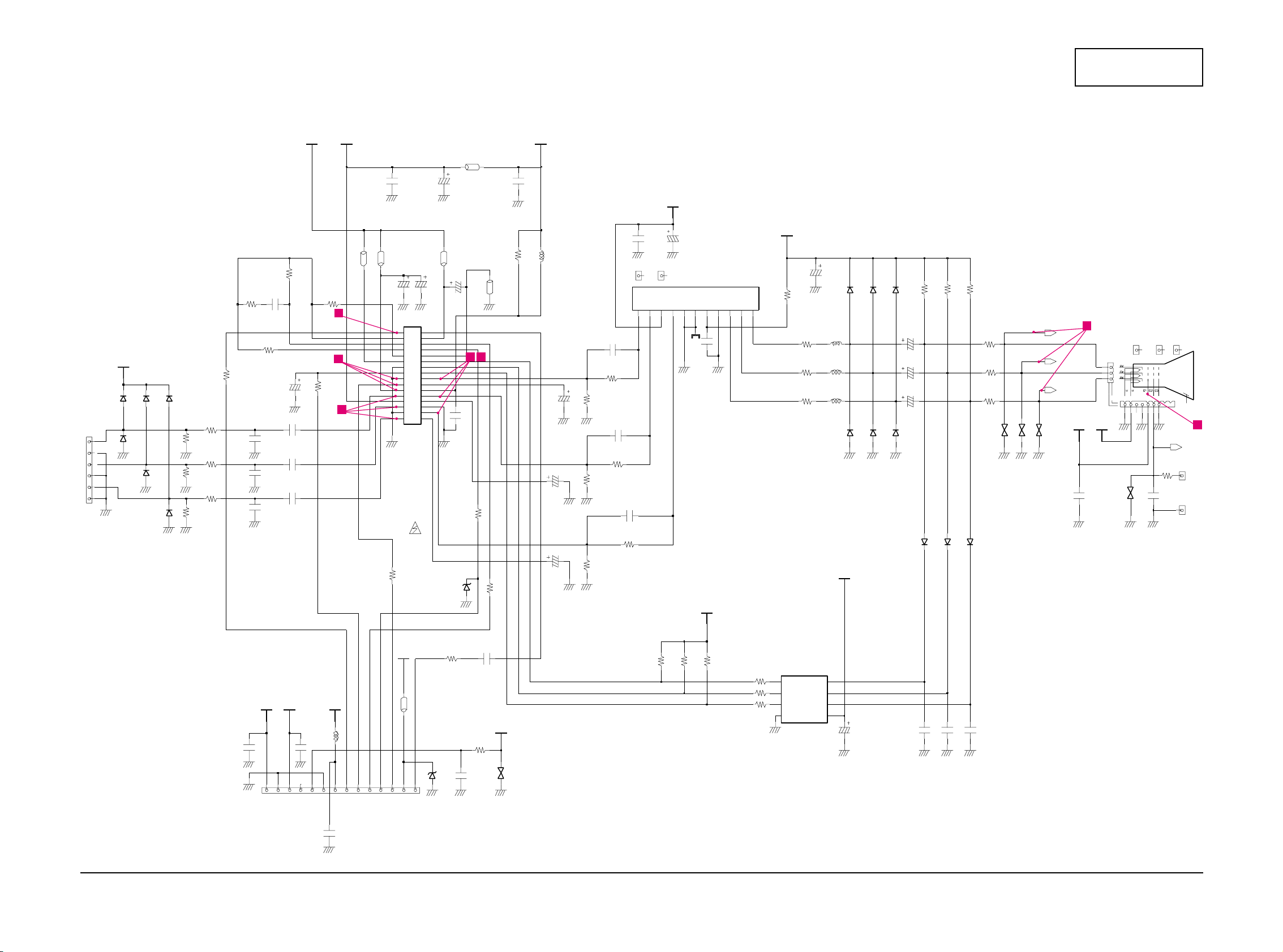

AN15V* 10-1

OFF_1

50V

C205

1uF

EY610 EYE1.5

KTA1281-Y

Q609

13V_1

100 1/6W

R220

100K 1/4W MF

R530

SNAME

CN501

EMT

70V

R678

C436 820PF 500V

EYE2.2

EY502

R432

1/2W

2N6520

Q502

C602

150nF

56 1/8W

V_REG

H_DRV

EW_OUT

B_DRV

B_SENSE

V_BLK

ADJ_ACL

DY_H4

DY_V1

V_OUT

DY_V2

GND

CLAMP

150uH

GND

VCAP

HPOS

HIGHLOW

PLL1F

HIGH

RESET

DEGAUSS

SDA

TEST

S-Correction Table

ISENSE

SUB_SIZE

DDCDATA

KEY1

VSYNC_IN

VGND

LOW LOW

ADJ_ACL

FC1VCC

31 ~ 34.9

F/S Test Point

---------

HIGH

HEHT

MODE_SIZE

HIGH

IIC_CLK

SIZE-ADJ

H-DY

LATCH

PLL2C

REGIN

COMP

DDCCLK

HSYNC_OUT

VRB

VOUT

POWER_KEY

HVFOCUS

SCREEN

OFF_1

1.2UH

AC INPUT

LOW

VEHT

Freq [Hz] S1

D-COIL

L : NORMAL

MODEL-SEL

H/V

1.2UH

8MHz

HSYNC

VAGCVSYNC_OUT

1.2UH

SCL

Option

AVREF

L : OFF MODE

1.2UH

HREF

X-IN

35 ~ 39.9

40 ~ 48.9

49 ~

IIC_DATA

TILT

TSB CDT

MUR460

KEY2

LED

KEY3

FOCUS

VFOCUS

XRAY

HOUT

VSYNC

V-DY

MODE_REG

120uH

H : NORMAL

EWOUT

HSYNC_IN

STV6888

HUNLOCK

BOUT

X-OUT

AC90V~AC264V

SELFRASTER

OFF-MODE

OUT

HGND

H : OFF MODE

HFLY

IC604 S78DL05

GND

R620

1/2W

180K

R610

100V

C412 22nF

220K 1/6W

2 3 45

KS24C041-C

IC202

10K 1/8W

D502

RGP02-12(T)

R603

500V

T402 SUPLECODE

C634 10uF

C515 330pF

1/6W

R203 15K

50V

BH62-00004A

HS601

R314

1/6W

R313

9.1K

R509

1/6W

24K

56 1/8W

12V

1/2W

330K

EY609 EYE1.5

R207

500V

1nF

C615

R508

1N4148

D415

R513

1/2W

330K

1KV

10nF

C512

1/2W

47K

R510 100K 1/8W

C516 330pF 500V

1/6W

R523 180K 1/2W

KSC945-Y

Q401

R327 390K

1.6KV

2.2nF

C418

R443 330 2W

slcon4p

CN404

2N5551C-Y

Q407

R415

1.5K

R300

C517 330pF 500V

1N4148

D629

1/4W

C622 1000uF 16V

R316

5.6K 1/6W

D511

1N4148

50V

C410 100uF 16V

D607 1N4148

50V

220nF

R623 91K 1/4W

1K 1/2W

C505

UZ5.1BSB

ZD203

R676

RGP02-12(T)

D512

ZD301 UZ5.1BSB

EY606

1/2W

1.5

IRF630B

Q410

KSC945-Y

Q602

R308

22pF

50V

C203

HS402

C603

250V

4.70NF

1K 1/8W

R436

2.2K 1/8W

R427

C514 330pF 500V

100V

6.80NF

C308

C407

150uF 63V

Q415 KSP42

R616 2K 1/8W

BD601

C617

1N4148

D630

DRAIN1F_B

GND

SYNC

Vcc

125V

2.2nF

IC601 DP104C

47UF 50V

2.7 1/4W

C621

SHL

100V

2.2nF

C541

R511

22K 1/6W

R406

R213 10K

1/8W

C620

63V

220uF

C604

C504 1nF 50V

1/4W

4.70NF 250V

1uF

R602

D626 1N4148

50V

C611

KSA733-Y

Q405

1SS244

D421

R522 330K 1/2W

1/8W

10K

R634

R674

1/8W

10K

1.2 1/2W

50V

1uF

C612

50V

1nF

C310

R617

1N4148

D513

1/8W

130K

R524

500V

10nF

C614

R605

4.7K 1/8W

IC602 TL431CLP

100V

2.7nF

C406

150K 1/6W

EK-04

D405

R604

R328

1N4002GP

D303

1.5K 1/8W

Q613 KTA1281-Y

1/8W10K

EYE1.5

EY508

R235

BH26-30302S

T602

1N4148

D416

D625 1N4148

P100V

10nF

C404

D408 DTV56F

6.3V

1N4007GP

D403

-140V

1M 1/6W

R206

16V

47uF

C303

HS301 BH62-00003A

1K 1/8WR214

UZ36BZD209

D302 1N4148

TH601

D413 TVR10G

4.7uF 50V

C216

1/6W100R302

CN502 slcon3p

123

6.3V

63V

470nF

C302

1/6W

47K

R317

12K 1/4W MF

R506

IC300

123 45 67

EY301

TDA9302H

6.8K

Q402

IRF630

5Kohm

R501

1/6W

1 1/4W

VR401

2.2K 1/8W

R622

16V

10uF

C502

13V_1

R405

250V MP

12V

10uF 50V

C432 22nF

D420 1N4148

C445

C606

100V

10nF

MPS

250V

C409 680NF

12V

BFS3557AOLS1

BD406

180uF 400V

Q420

KSA733-Y

100V

2.2nF

C624

C608

1K 1/8W

BD401

R677

1/6W

R307 62K

R500

BD402

1M 1/6W

22K 1/2W

R515

R430 15K 1/2W

ZD205 UZ6.2BSB

EY401

R201 10K 1/8W

R419 180K 1/6W

C307 220UF 35V

R311

BD603

1/4W

22K

1/4W MF

390

R663

D404

12V

Q404 KSC5802D610

1N4007GP

UZ5.1BSB

ZD202

UF4007(T)

R218

1/6W

100

R309

1/4W

5.6K

R217

1/6W

100

21 22

1N4148

D602

IC201

KS88C6232N

330

MP63V

100nF

C402

R454

50V

C215

C610

16V

100uF

100pF

R219

1/8W

10K

R618 1K 1/8W

EYE2.2

C405 330pF 50V

1K 1/8W

R606

EY601

C462 10nF 100V

50V

1nF

C643

1/4W MF

R502 39K

EYE1.5

EY505

12V

C427 150nF

250V MPS

Q499

KSA733-Y

KSP42

Q416

1/2W

R631

C212 1nF 50V

C403 820pF 50V MO

HS501 BH62-00002A

470nF

C414

L403

7.1MH

50V

1/2W

C463 1uF 50V

12V

R407

2.7K

12V

C616

2.2nF 125V

R520

1/6W

22K

220UF

C201

16V

D609

31DF4

1N4148

D506

HFL1327XD-RC

T501_1

1000uF

C618

100nF 50V MO

16V

12K

1/2W

R514

C316

KSC945-Y

Q403

500V

10nF

C632

ZD208 UZ5.1BSB

100V

C315

3.3nF

1/8W10KR209

CN202

slcon7p

R408

100

13V_2

R204

1/6W

15K

R417

1/8W

10K

R600 330K 1/2W

13V

100V

33nF

C411

100V

1/6W

R418

3.9K

C510 56nF

150nF

C601

Q303

KSC945-Y

R461

275VAC

1/6W

6.3V_1

1/6W

68K

50V

47UF

C619

R202

10K

EYE1.5

EY608

1N4148

D501

Q614 KSC945-Y

50V

1uF

C426

D601 D2SBA60

EYE1.5

13V_1

1/6W

100

R229

D412

TVR10G

EY507

UF4007

D605

36K

R526

1/4W

27K 1/2W

R516

13V

50V

100pF

C211

R504 15K 1/6W

MP250V

10nF

C433

D411 1N4148

1N4148

D410

5.6K

1/4W

R404

R608 220 1/4W

160V

4.70UF

C415

D504

UF1GD611

220 1/2W

TVR10G

EY605

R614

GT603

13V_1

1/4W

R667

L601

R215 1/6W100

C613 220pF 1KV

BD410 BFS3557AOLS1

100 1/6W

R601

1/2W

330K

OP202

LTV817M-SM

ANODE

CATHODE

COL

EY445 EYE1.5

1.2UH

BD600

-10V

BFS3557AOLS1

BD605

-10V

SW601

JPS1275

16V

100UF

C626

slcon13p

CN201

2.4K 1/4W MF

R625

470UF

KSD1616-Y

Q604

470 1/4W

C306

16V

C300 10NF 100V P

R664

MPS

250V

300nF

50V

100nF

C607

C431

C206 100nF 50V MO

150K 1/4W

R420

R425

1/2W

680

C435 150PF 2KV

EI-1916

T401

1/2W

R615

R429

1/6W

470K

R613 2K 1/8W

C204 10nF 100V P

630V

5.2nF

C421

12V

UZ5.1BSB

ZD201

EYE2.2

EY603

R507 10K 1/4W MF

ZD206

UZ6.2BSB

EYE1.5

R612

MO2W

56K

EY509 EYE1.5

EY512

ERD07-15

D406

FUSE2P

FH_1

L402

R503 10K 1/8W

C202

22pF

50V

EYE2.2

500V

100PF

C434

GUR460L-5700

D409

70V

EY604

R312

1/4W

2.7K

1/2W

R446 68

D628

1N4148

10K

R453

100 1/6WR216

EY602 EYE2.2

R428 560

D414

1N4148

CN603

slcon3p

50V

100nF

C416

100V

12V

OP201 LTL-10233W

370nF 250V P

C430

C600 1nF 400V

R445

C413

3.3UF 50V

G5PA-1

RL601

10 1/2W

EYE1.5

EY607

4.7K 1/8W

R222

1/8W

56R208

50V

4.7uF

C209

470UF 16V

C305

UF5404

D608

R450 120K 1/4W MF

50V

UZ6.2BSB

D618

EY511

47K 1/4W MF

R401

EYE1.5

D615 UZ6.2BSB

1N4148

D201

50V

1uF

C207

R236 10K 1/8W

100V

150nF

C301

OSD_5V

1K 1/8W

R412

C631 100uF 16V

IC605

100V

15nF

C625

D616 UZ6.2BSB

100V

22nF

C605

Q408

KTD2058-Y

R621

10K

1/8W

10 1/4W

330pF 500V

C408

R426

D509

1N4148

D627

1/4W

3.3K

EER39*42mm

T601

1N4148

D510

R423

R611

6.8 1/4W

ZD207

UZ6.2BSB

L401

C629

50V MO

100nF

FUSE

10K 1/8WR205

1.2

R310

R452 10K

R200 1/8W56

X201

Q0 Q1

R668 1K 1/8W

275VAC

UZ6.2BSB

ZD211

C628 10nF 500V

22nF

C501

C503

100nF

50V

1N4148

D505

100V

2.2K 1/4W MF

R505

OSD_5V

R411

1/4W

IRF630B

Q411

1N4148

D600

R439

D612 TVR10G

R416 150K 1/2W

47K 1/6W

BD403 BFS3557AOLS1

1/8W

3.3K

R212

16V47uF

C401

C513 1nF

C633 1uF 50V

UZ4.7BSA

ZD210

500V

50V4.7uF

C461

47K 1/6W

R437

CN601

slcon3p

123

R223

FH1

1/6W

270

50V

10uF

C428

C609 33uF 50V

TP501

50V

1.5

R431

S-23(1KV),5MM

SK501

12V

R630

1/6W

47K

EY500

EYE1.5

1/8W

33K

R480

D402 UF4004

1/6W

22K

R481

KSA733-Y

Q406

1.2 1/2W

TVR10G

D606

R632

R413

BD602

1.2UH

1/8W

10K

2.7K 1/4W MF

R626

T502

EE-1916

C440 1uF 50V

R225

ZD204 UZ5.1BSB

1/8W

R529

100V

220nF

C304

R221

1/8W

4.7K

slcon2p

CN604

GT604

UF4004

D401

KSC945-Y Q610

13V_2

1N4148

D508

KSC2383-Y

Q400

50V

1uF

C429

EYE1.5

EY504

EY444

EYE1.5

1/6W

R442

TH602

12V

180K 1/2W CC

R609

SCK-083

C630 470uF 16V

6.8K 1/6W

100V

100nF

C213 C214

100uF 16V

R624

1/8W

2.2K

R438

C623

16V

1000uF

Q601 KSC945-Y

EYE2.2

EY5031

EYE2.2

EY5011

D604 UF4007

R414

1.2 1/2W

1N4148

D624

UF4004

D407

R301

EY510 EYE1.5

4.7K 1/8W

BFS3557AOLS1

BD411

C210 1uF 50V

MO3W

10K

R607

2.5KV

4.4nF

C419

1/6W

10K

R470

18K 1/4W MF

R424

250V

2.2uF

C509

EY302

50V

EYE1.5

EY506

R224 1/8W56

VREF

DY_H3

50V_SENSE

SIZE_REG

TILT

DY_H4

OFF_2

AFC

ACL

OFF_1

V_MUTE

MODE_SIZE

SIZE_ADJ

MODE_REG

DEGAUSS

OFF_2

S_RASTER

DDCCLK

DDCDATA

50V_SENSE

HS_IN

B_DRV

AFC

VS_IN

VS_OUT

B_SENSE

HS_OUT

ADJ_ACL

MODE_REG

S1S2

MODE_SIZE

SIZE_REG

SIZE_ADJ

EW_OUT

DEGAUSS

H_DRV

DY_V1

DY_V2

DY_H3

S_RASTER

DDCCLK

DDCDATA

VS_IN

HS_IN

IICCLK

IICDATA

V_MUTE

V_BLK

VS_OUT

IICDATA

ACLIICCLK

HS_OUT

AFC

HS_OUT

VS_OUT

IICDATA

V_REG

IICCLK

AFC

IICDATA

IICCLK

V_OUT

1 2

10 Schematic Diagrams

10-1 Main Part Schematic Diagram

CONFIDENTIAL

Page 55

CONFIDENTIAL

10 Schematic Diagrams

10-2 AN15V*

50.0 V (T502, #6)

CH1 P-P = 50.0 V CH1 RMS = 75.6 V

100 V (T502, #1)

CH1 P-P = 100V CH1 RMS = 124.0 V

100 V (IC601, #1)

CH1 P-P = 100 V CH1 RMS = 350.2 V

100 V (IC601, #1)

CH1 P-P = 100 V CH1 RMS = 325.8 V

5.00 V (IC605, #28)

1.00 V (IC605, #26)

5.00 V (Q400, Collector)

5.00 V (Q408, Collector)

1.00 V (IC605, #24)

1.00 V (IC605, #23)

10.0 V (IC300, #6)

5.00 V (Q402, Gate)

CH1 P-P = 2.00 V CH1 RMS = 7.692V

50.0 V (Q402, Drain)

CH1 P-P = 50.0 V CH1 RMS = 73.7V

2.00 V (IC201, #13, 14)

5.00 V (Q502, Collector)

Page 56

CONFIDENTIAL

10 Schematic Diagrams

AN15V* 10-3

10-2 AN15VS Normal Video Part Schematic Diagram

SDA

TDA9555

120 OHM

CLP_IN

CLAMP

BCLP

VCO_IN_P

GOUT

ACL

RIN

GCT

V_SYNC

VCC2

ABL_IN

VSS

GND1

GND

AFC

RCT

VREF1

IICDATA

GIN

VFLB

KB2551

VSSA

120 OHM

ACL

VDDA

VREF

IICCLK

VCC1

CONT_CAP

GND2

VDD

GCLP

SCL

IICCLK

VS_OUT

IICDATA

RCLP

BCT ROUT

HFLB

BIN

CLAMP

BOUT

VCC3

CG06 100nF 100V

1/8W

3.3K

R101

50V

100nF

C152

12V

R107

1uF

CB02

CG08 150PF 50V

CG04

160V

1uF

50V

RED

WSP-401M

SK101

BLUE

3G1

G25

GND1

GND17

10 GND2

GREEN

8 HEATER

OPEN2

15_NOR crt_sock10p

R119 560 1/8W

LB01

0.47uH

CR08 1NF 50V

CR02

50V

1uF

1/2W

390

R103

100V

100nF

CR06

EY2

RR03 470

100V

100nF

CB06

1/6W

70V

8 9

10 11 12 13 14 15 16

IC101

C106 100nF 50V MO

1/4W

RG09 75K

C118

50V

1uF

C162

BD104

100pF

50V

SKG01 SPARK_RA

100nF

CG01

1/6W

RG02

RB15

50V

100V

1/6W

RR01

1/6W

22NF

C113

1UF

EY5

50V

CG02

560

RB03

100nF 50V

6.3V

1/8W

C151

BD101

1.2UH,3.5*5.7MM

CB01

1011121314

50V

100nF

123456789

680 1/6W

slcon14p

CN102

39K

R117

CN101 slcon6p

RR05

HS103 heat_sink

1SS244

DB04

100V

10nF

C124

0.47uH

LG01

50V

100nF

C121

1/4W

75K

C115 10UF 100V

12V

RB09

16V

100UF

C161

1/6W

RR15

L103

0.47uH

EY4

500V

1nF

C119

DR01

1N4148

12V

16V

470uF

C103

CG03 33PF 50V

RG08 1/6W 100

6.3V

RB08

1201/6W

POW

RR10

DB05 1N4148

EY3

CB08 1NF 50V

70V

1.2UH,3.5*5.7MM

BD106

GND

1/6W

R109

C160 47uF 16V

DB03

12_1V

70V

12K

SKB01

DMS-200D

1SS244

RG01

DG02

1N4148

1/6W

100V

47uF

C108

1/6W

100

R102

CR01 100nF 50V MO

1SS244

DR03

DMS-200D

SKR01

SK102

7.5K

R105

C163 10NF 500V

1/6W

RG15 68 1/6W

18K

1N4148

DG01

DR02

1N4148

RG07

39KRB05

18K

C107

220uF

16V

RB07

RR07 18K

R124 82 1/2W

RG10 1/2W

150

1/6W

RB02

1SS244

DR04

1.2UH,3.5*5.7MM

L101

100uH

BD102

DZ5.1B

ZD101

RB01 75

1/6W

1N4148

12V

DB01

1SS244

DG04

LR01

0.47uH

39K

RG05

DB02 1N4148

560

1/8W

RG03

EY1

C123 10nF 500V

DG03 1SS244

UZ6.2BSB

ZD102

DG05 1N4148

39ohm

R130

R104 390 1/2W

CB04 1uF

160V

12V

M36KUK35X02(R)

CRT

1/6W

5.6K

C102 1uF 50V

R108

LM2480NA

IC104

R120

DR05 1N4148

RB10

1/4W

30M

POW

500V

151/6W

RR08

1.2UH,3.5X5.7MM

BD103

1.8nF

C114

1/6W

RR02

1KV

1nF

C120

VDD

BD105

GNDA

GNDP

GNDS

IN12IN24IN3

OUT110OUT29OUT3

VCC

TDA9556

IC103

C117

CR04 1uF 160V

1/4W

75K

22NF 100V

R118

RR09

50V

33PF

CB03

1/8W

560

50V

33PF

CR03

B_OUT

G_OUT

R_OUT

AFC

1515 2020

1919

1414

1616

2121

2323

Page 57

CONFIDENTIAL

10 Schematic Diagrams

10-4 AN15V*

1.00 V (IC101 #12,14,16)

0.5 V (IC101 #18,21,24)

20.0 V (IC102 #9,10,11)

2.00 V (IC101 #1)

1.00 V (IC101 #18,21,24)

50.00 V (CRT Socket, G1)

10.0 V (R,G,B, Video)

CH1 P-P = 10.0V CH1 RMS = 17.02V

Page 58

CONFIDENTIAL

10 Schematic Diagrams

AN15V* 10-5

GND2

VCC2

VS_OUT

GIN

VFLB

CLP_IN

CONT_CAP

GND

VCO_IN_P

IICCLK

VREF1

RCT

VDD SDA SCL

BIN

CLAMP

IIC DATA

V_SYNC

BOUT

AFC

VCC3 RIN

ROUT

BCLP

BCT

VDDA

VSS

IIC DATA

CLAMP

VREF

GND1

GOUT

VCC1

GCT

HFLB

ABL_IN

IICCLK

KB2551

ACL

VSSA

120 OHM

RCLP

GCLP

C117

1/6W

RR08

22NF 100V

BD102

1.2UH,3.5*5.7MM

C106 100nF 50V MO

DB05 1N4148

GND

DB02 1N4148

C102 1uF 50V

RG01

R108

1/6W

5.6K

1/6W

R120

6.3V

RG08

1/6W 100

100V

100nF

CB06

1/4W

30M

RG07 18K

CG06 100nF 100V

CN101 slcon6p

1/6W

RR15

1/6W

RG02

12V

POW

RB10

100V

100nF

CR06

BD101

1.2UH,3.5X5.7MM

BD104

12V

50V

1uF

C162

C160

2.7nF 100V

RB07 18K

50V

100nF

C152

RG15 68 1/6W

1/8W

560

RB03

1/6W RR03 470

1/8W

CR08 1NF 50V

70V

R107

RR02

CB04

1uF

160V

1/4W

75K

1/6W

L103

0.47uH

RB09

BD103

EY4

DZ5.1B

ZD101

1.2UH,3.5X5.7MM

RR09

1/4W

75K

1/6W

DG05

1N4148

RB01

R104 390 1/2W

R117 680 1/6W

16V

470uF

C103

6.3V

RR01

1/6W

RB02

DB04

DR05 1N4148

M36KUK35X02(R)

CRT

1SS244

CG04

160V

1uF

CR04

1uF

160V

C121

1SS244

DG04

50V

100nF

CR01 100nF 50V

560 1/8W

SKR01 SPARK_RA

R124

82 1/2W

R119

G1G2

GND18GND2

SPARK_RA

SKG01

15_MINI j_c8_1p

121314

EY5

2345678

slcon14p

CN102

50V

1uF

CB02

C107

220UF

16V

1N4148

CB01 100nF 50V

C163 10NF 500V

DG02

VDD

BD105

GNDA8GNDP

GNDS

IN12IN24IN3

OUT110OUT2

OUT3

VCC

TDA9556

IC103

12V

12K

1/6W

R109

1/8W

560

R118

0.47uH

100V

47uF

C108

39KRB05

LB01

1SS244

DB03

15 16 17

7 8 9

10 11 12 13 14

IC101

1.2UH,3.5*5.7MM

BD106

16V

100UF

C161

HS103 heat_sink

LG01

500V

1nF

C119

100V

10nF

C124

0.47uH

12_1V

1SS244

DR03

50V

100nF

CG01

RB08

1201/6W

RR10

CG08 150PF 50V

SK102

POW

39KRG05

50V

CG02 1UF

1/6W

100

R102

75K

DB01 1N4148

1/4W

RG09

DG01

12V

C123 10nF 500V

1SS244

1N4148

1/8W

3.3K

R101

DG03

CB08 1NF 50V

C115 10UF 100V

LR01

0.47uH

100uH

ZD102 UZ6.2BSB

39K

L101

1/6W

RB15

RR05

1/6W

7.5K

R105

SKB01

DMS-200D

50V

33PF

CG03

C118

SK101 WSP-401M

100pF

50V

RG10

150

1/2W

100V

39ohm

R130

22NF

C113

CR02

50V

1uF

70V

RR07 18K

70V

CR03 33PF 50V

DR01

1N4148

EY1

LM2480NA

IC104

1/2W

390

R103

560

1/8W

RG03

DR02

1N4148

1SS244

DR04

500V

50V

100nF

C151

1KV

1nF

C120

1.8nF

C114

B_OUT

R_OUT

G_OUT

CB03 33PF 50V

AFC

15 20

10-3 AN15VS MINI_MVT Video Part Schematic Diagram

Page 59

CONFIDENTIAL

10 Schematic Diagrams

10-6 AN15V*

1.00 V (IC101 #13, 14, 16)

0.5 V (IC101 #18,21,24)

20.0 V (IC102, #9, 10, 11)

2.00 V (IC101, #1)

1.00 V (IC101, #18,21,24)

50.00 V (CRT Socket, G1)

10.0 V (R,G,B, Video)

CH1 P-P = 10.0V CH1 RMS = 17.02V

Page 60

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea. Printed in Korea P/N : BH82-00005E-00 http://www.samsungmonitor.com (SyncMaster Worldwide) http://www.samsung-monitor.com (SyncMaster USA) http://www.sec.co.kr/monitor (Korea)
