Contents
A
INSTALLATION PARTS
Safety precautions ......................................................................................................................................................3
Preparation for Installation ......................................................................................................................................5
Accessories ....................................................................................................................................................................5
Selecting the installation location ..........................................................................................................................6
Indoor unit installation .............................................................................................................................................8
Purging the unit ..........................................................................................................................................................9
Connecting the refrigerant pipe .......................................................................................................................... 10

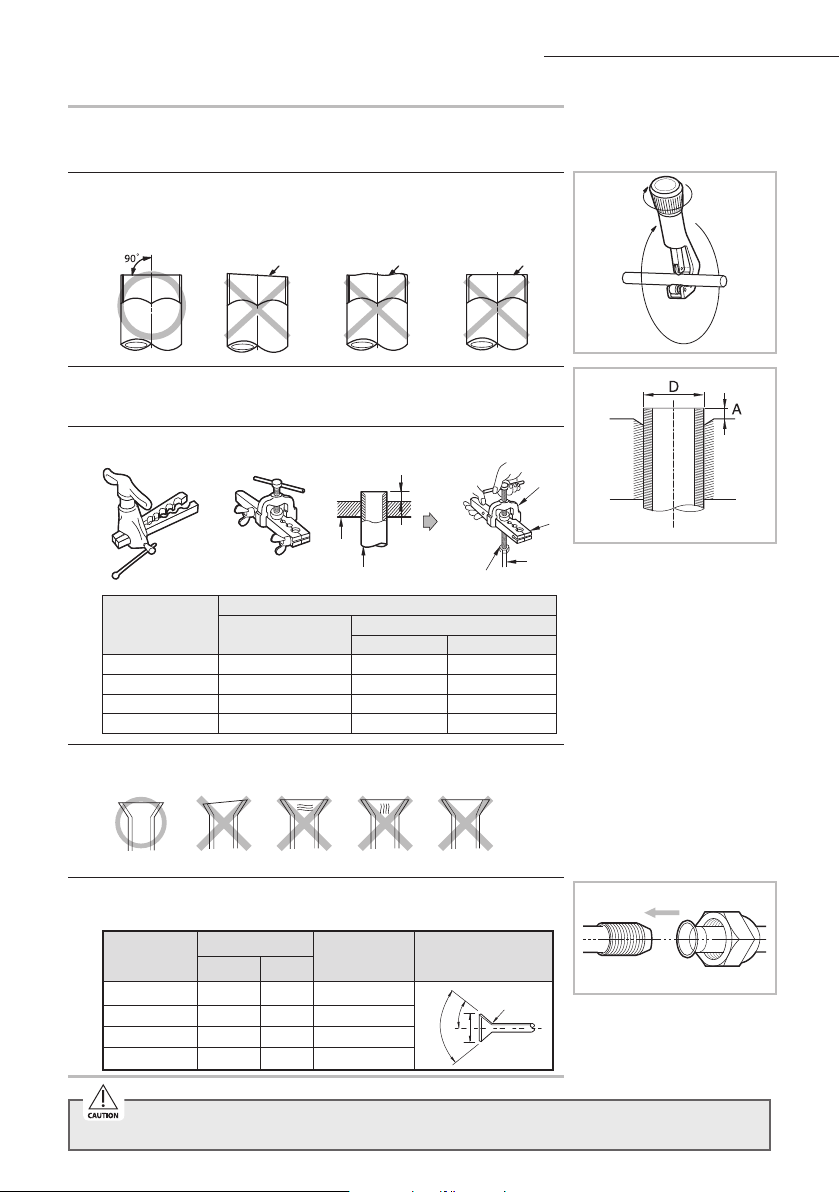

Cutting/aring the pipes ........................................................................................................................................ 11

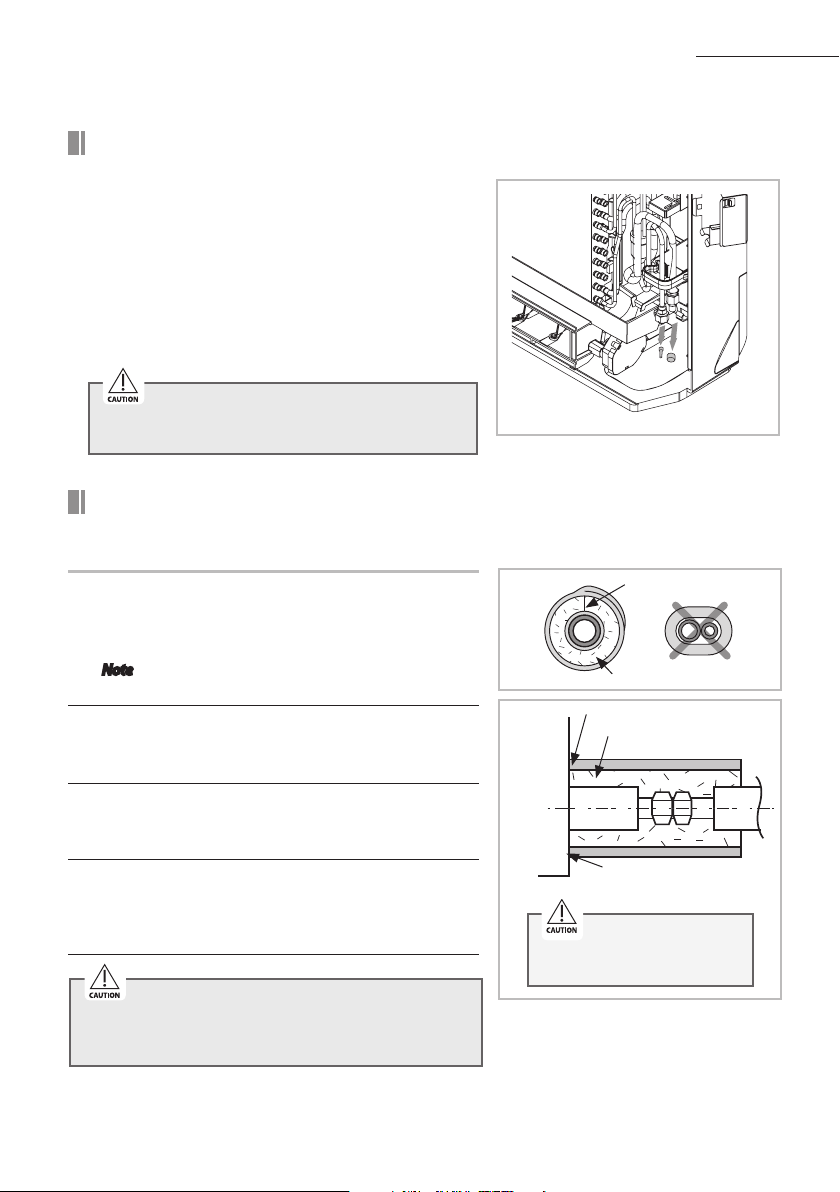

Performing leak test & insulation ........................................................................................................................ 12

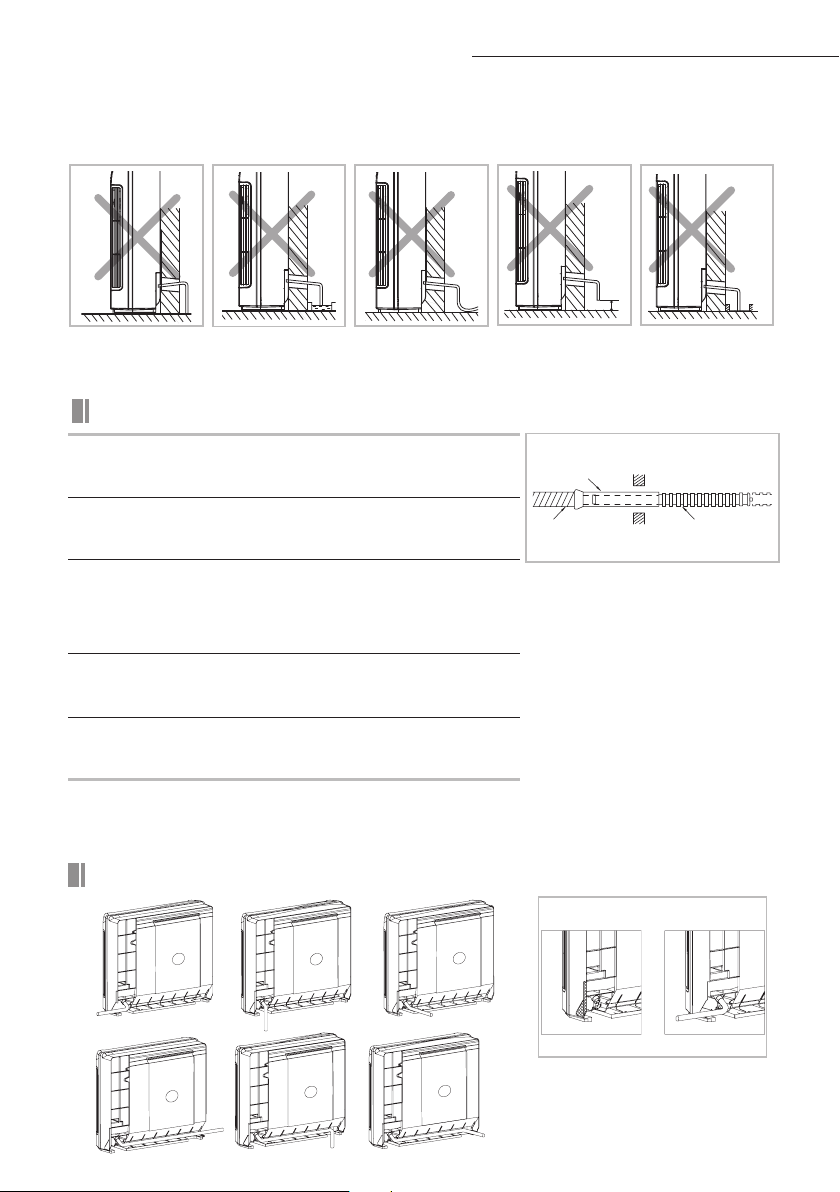

Drain hose installation ............................................................................................................................................ 13

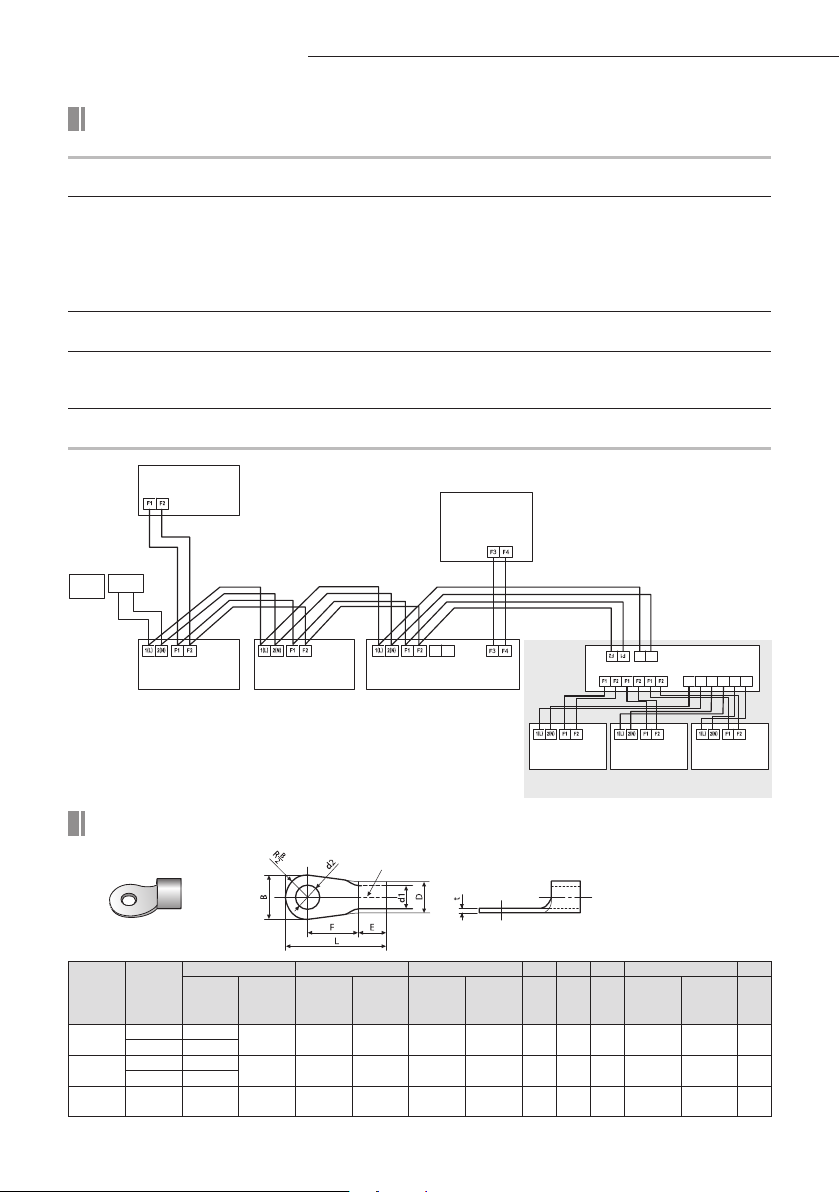

Wiring work ............................................................................................................................................................... 14

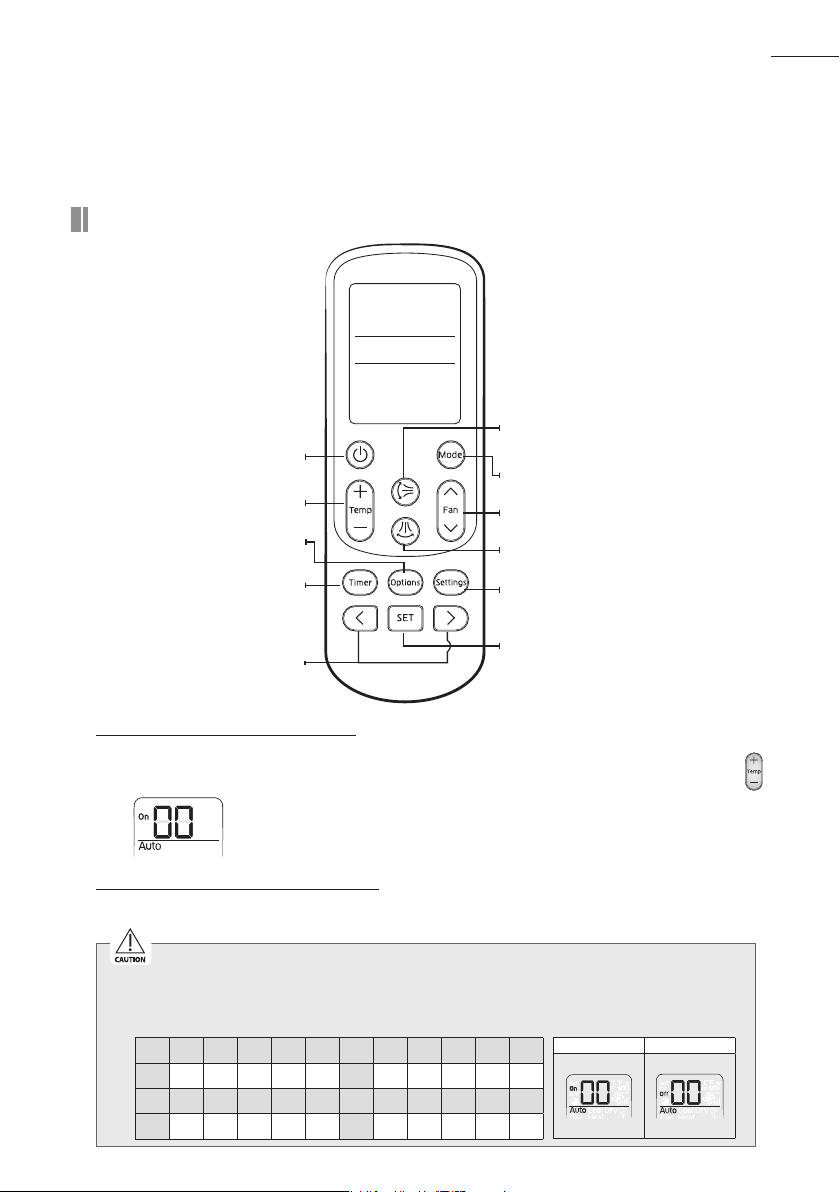

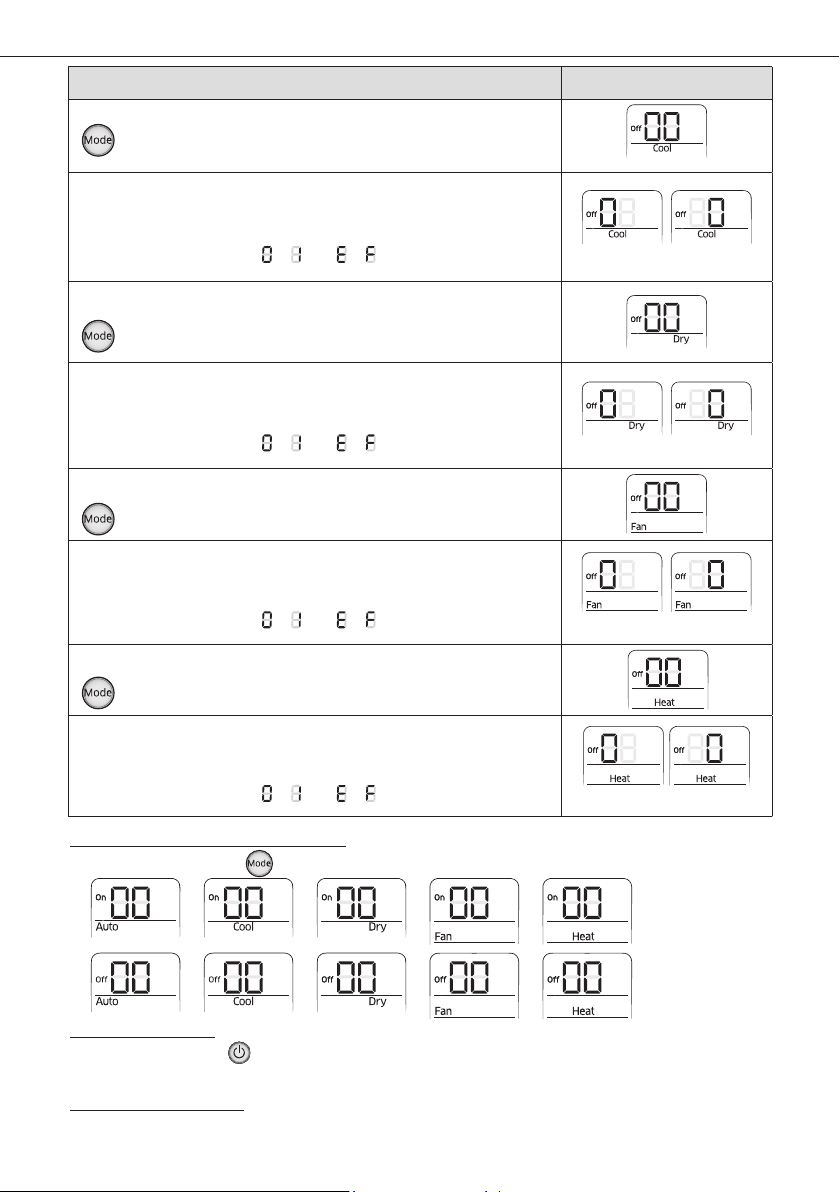

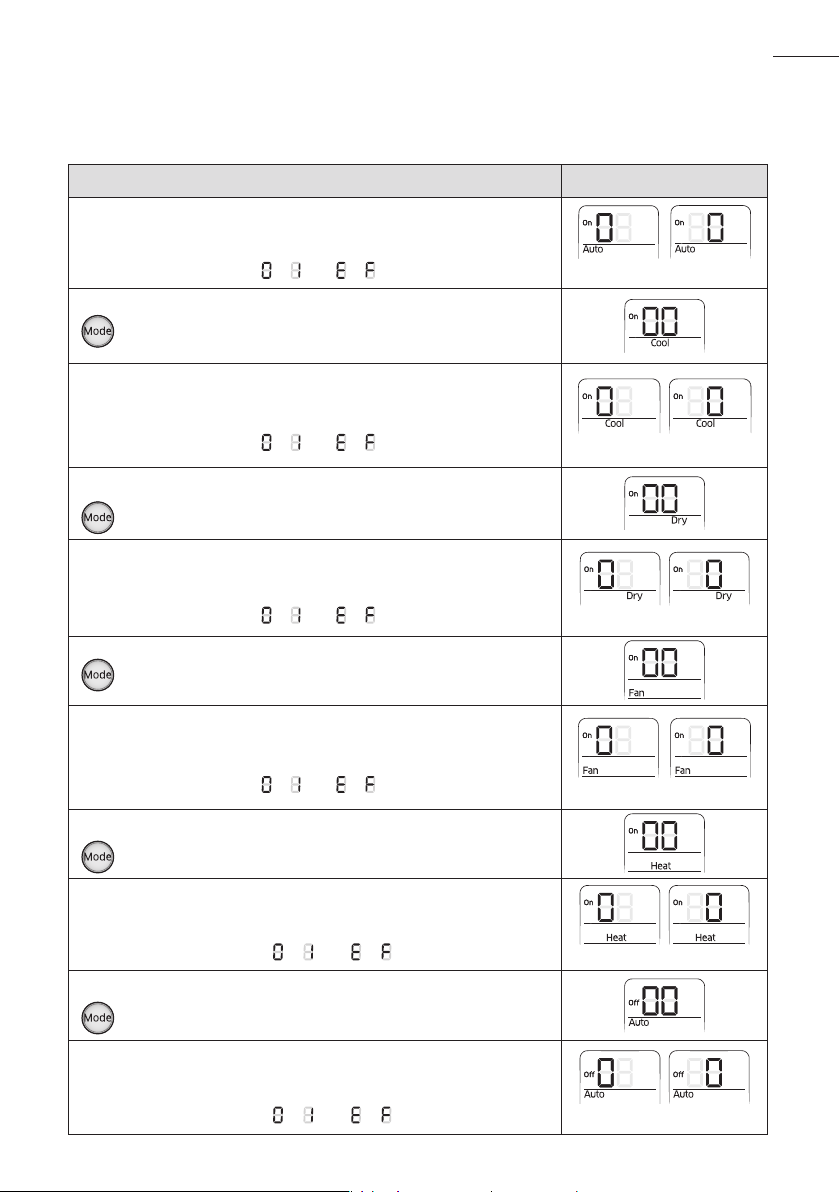

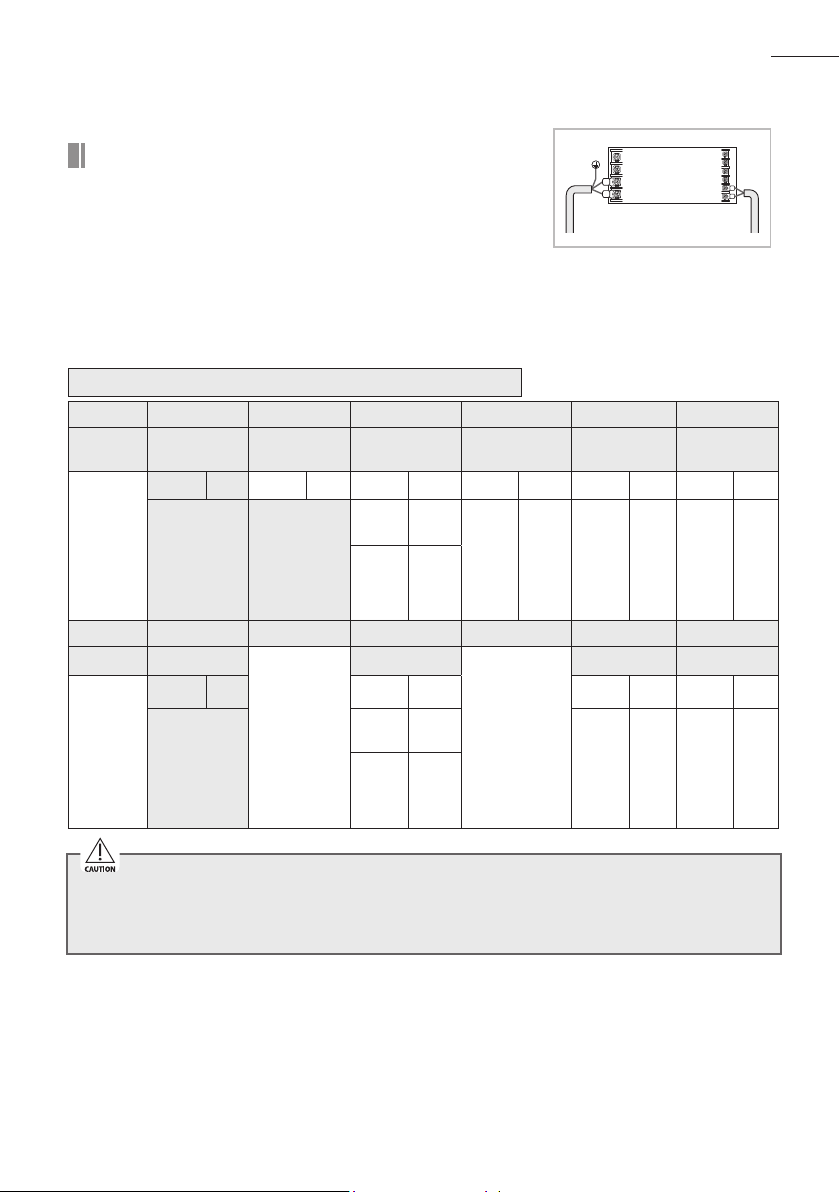

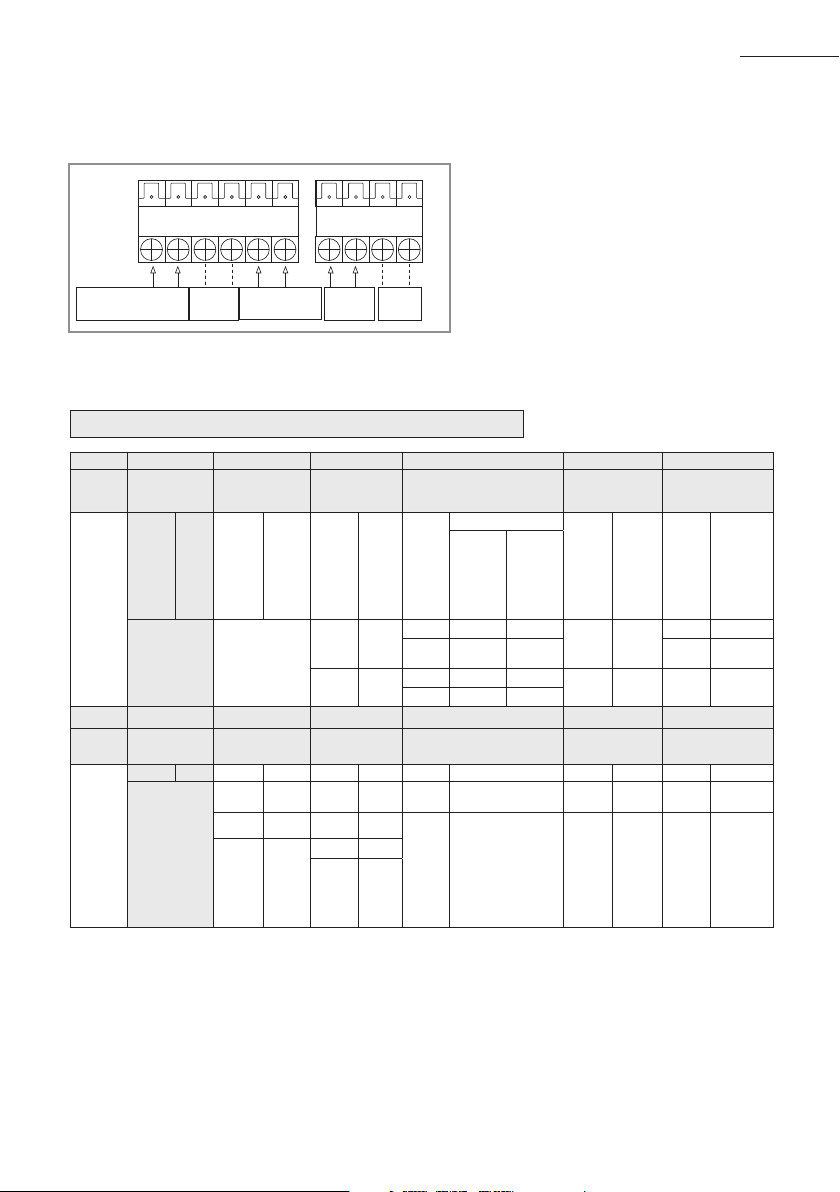

Setting an indoor unit address and installation option ................................................................................. 17
Final check and trial operation ............................................................................................................................. 28
Providing information for user ............................................................................................................................. 28

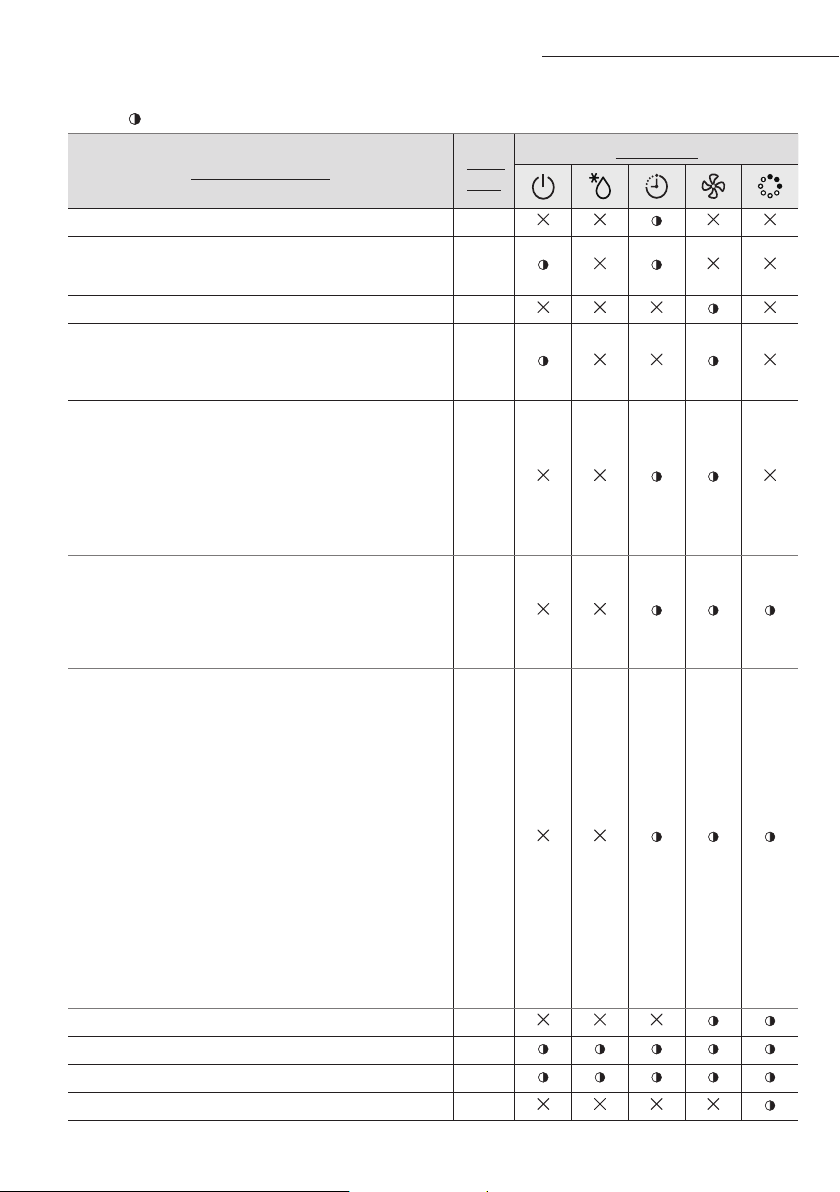

Troubleshooting ....................................................................................................................................................... 28

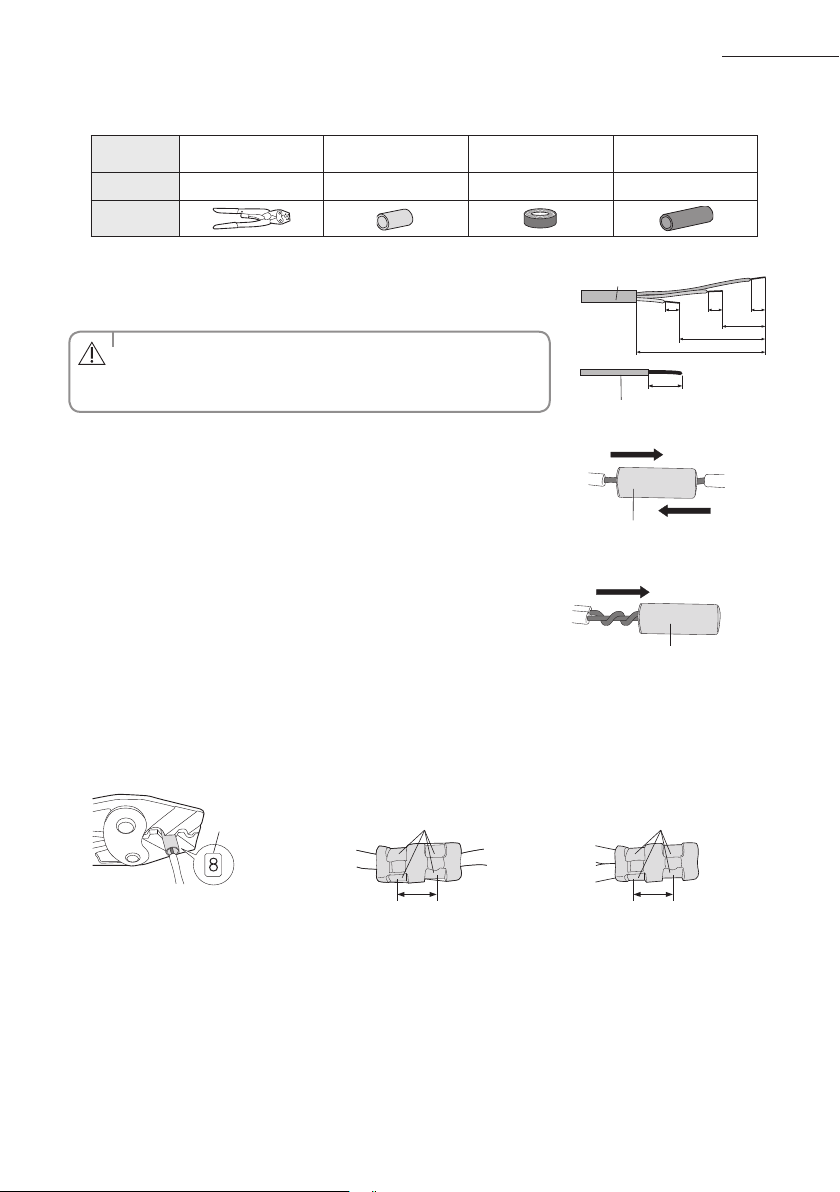

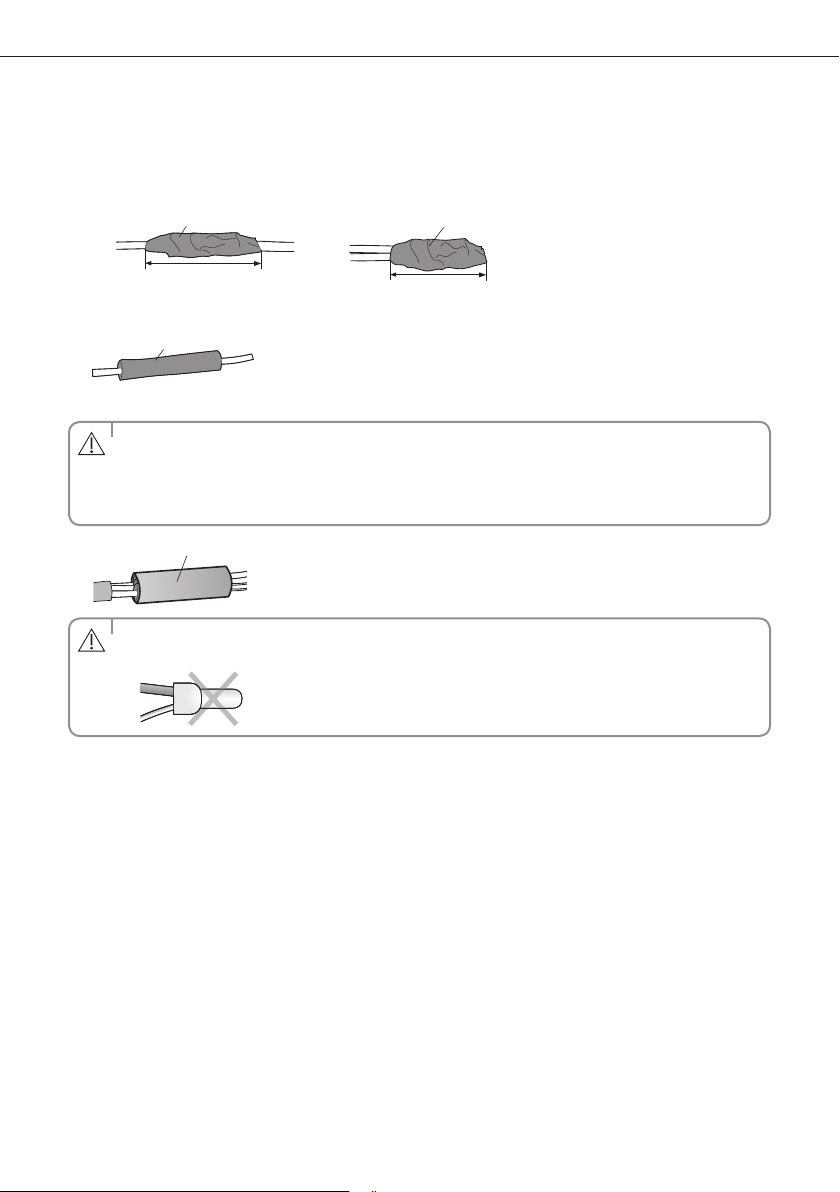

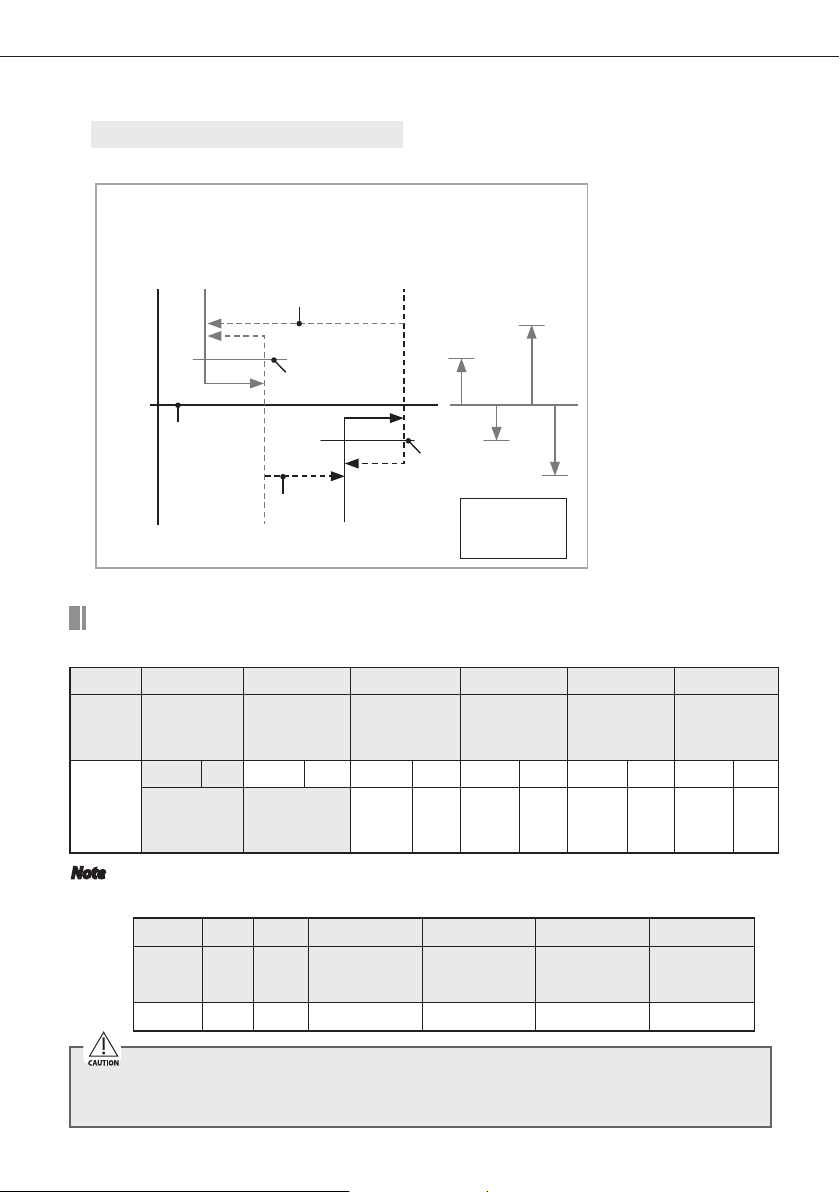

How to connect your extended power cables.................................................................................................. 30
2
Page 3
Safety precautions
A
(Carefully follow the precautions listed below because they are essential to guarantee the safety of the
equipment.)
WARNING
• Always disconnect the air conditioner from the power supply before servicing it or
accessing its internal components.
•
Verify that installation and testing operations are performed by qualified personnel.
• Verify that the air conditioner is not installed in an easily accessible area.
General information
Carefully read the content of this manual before installing the air conditioner and store the manual in a safe place in
order to be able to use it as reference after installation.
For maximum safety, installers should always carefully read the following warnings.
Store the operation and installation manual in a safe location and remember to hand it over to the new owner if the
air conditioner is sold or transferred.
This manual explains how to install an indoor unit with a split system with two SAMSUNG units. The use of other types
of units with different control systems may damage the units and invalidate the warranty. The manufacturer shall not
be responsible for damages arising from the use of non compliant units.
The manufacturer shall not be responsible for damage originating from unauthorized changes or the improper connection
of electric and hydraulic lines. Failure to comply with these instructions or to comply with the requirements set forth in the
“Operating limits” table, included in the manual, shall immediately invalidate the warranty.
The air conditioner should be used only for the applications for which it has been designed: the indoor unit is not
suitable to be installed in areas used for laundry.
Do not use the units if damaged. If problems occur, switch the unit off and disconnect it from the power supply.
In order to prevent electric shocks, fires or injuries, always stop the unit, disable the protection switch and contact
SAMSUNG’s technical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very
noisy.
Always remember to inspect the unit, electric connections, refrigerant tubes and protections regularly.
These operations should be performed by qualified personnel only.
The unit contains moving parts, which should always be kept out of the reach of children.
Do not attempt to repair, move, alter or reinstall the unit. If performed by unauthorized personnel, these operations
may cause electric shocks or fires.
Do not place containers with liquids or other objects on the unit.
All the materials used for the manufacture and packaging of the air conditioner are recyclable.
The packing material and exhaust batteries of the remote control(optional) must be disposed of in accordance with
current laws.
The air conditioner contains a refrigerant that has to be disposed of as special waste. At the end of its life cycle, the air
conditioner must be disposed of in authorized centers or returned to the retailer so that it can be disposed of correctly
and safely.
installinG the unit
IMPORTANT: When installing the unit, always remember to connect first the refrigerant tubes, then the electrical lines.
Always disassemble the electric lines before the refrigerant tubes.
Upon receipt, inspect the product to verify that it has not been damaged during transport. If the product appears
damaged, DO NOT INSTALL it and immediately report the damage to the carrier or retailer (if the installer or the
authorized technician has collected the material from the retailer.)
After completing the installation, always carry out a functional test and provide the instructions on how to operate
the air conditioner to the user.
Do not use the air conditioner in environments with hazardous substances or close to equipment that release free
flames to avoid the occurrence of fires, explosions or injuries.
The air conditioner should be used only for the applications for which it has been designed: the indoor unit is not
suitable to be installed in areas used for laundry.
3
Page 4
Safety precautions
A
Our units must be installed in compliance with the spaces indicated in the installation manual to ensure either
accessibility from both sides or ability to perform routine maintenance and repairs. The units’ components must be
accessible and that can be disassembled in conditions of complete safety either for people or things.
For this reason, where it is not observed as indicated into the Installation Manual, the cost necessary to reach and repair
the unit (in safety, as required by current regulations in force) with slings, trucks, scaffolding or any other means of
elevation won’t be considered in-warranty and charged to end user.
Power suPPly line, fuse or circuit breaker
Always make sure that the power supply is compliant with current safety standards. Always install the air conditioner in
compliance with current local safety standards.
Always verify that a suitable grounding connection is available.
Verify that the voltage and frequency of the power supply comply with the specifications and that the installed power is
sufficient to ensure the operation of any other domestic appliance connected to the same electric lines.
Always verify that the cut-off and protection switches are suitably dimensioned.
Verify that the air conditioner is connected to the power supply in accordance with the instructions provided in the
wiring diagram included in the manual.
Always verify that electric connections (cable entry, section of leads, protections…) are compliant with the electric
specifications and with the instructions provided in the wiring scheme. Always verify that all connections comply with
the standards applicable to the installation of air conditioners.
Make sure that you earth the cables.
- Do not connect the earth wire to the gas pipe, water pipe, lighting rod or telephone wire.
If earthing is not complete, electric shock or fire may occur.
Install the circuit breaker.
- If the circuit breaker is not installed, electric shock or fire may occur.
Make sure that the condensed water dripping from the drain hose runs out properly and safely.
Install the power cable and communication cable of the indoor and outdoor unit at least 1m
away from the electric appliance.
Install the indoor unit away from lighting apparatus using the ballast.
- If you use the wireless remote control, reception error may occur due to the ballast of the
lighting apparatus.
Do not install the air conditioner in following places.
- Place where there is mineral oil or arsenic acid.
Resin parts flame and the accessories may drop or water may leak.
The capacity of the heat exchanger may reduce or the air conditioner may be out of order.
- The place where corrosive gas such as sulfurous acid gas generates from the vent pipe or air
outlet.
The copper pipe or connection pipe may corrode and refrigerant may leak.
- The place where there is a machine that generates electromagnetic waves.
The air conditioner may not operate normally due to control system.
- The place where there is a danger of existing combustible gas, carbon fiber or flammable
dust.
The place where thinner or gasoline is handled.
Gas may leak and it may cause fire.
4
Page 5
Preparation for Installation
A
When deciding on the location of the air conditioner with the owner,
the following restrictions must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into
contact with the following elements:
Combustible gases
Saline air
Machine oil
Sulphide gas
Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Avoid installing the air conditioner:
In areas where it is exposed to direct sunlight. Close to heat sources.
In damp areas or locations where it could come into contact with water
(for example rooms used for laundry)
In areas where curtains and furniture could affect the supply and discharge of air.
Without leaving the required minimum space around the unit (as shown in the drawing).
In scarcely ventilated areas.
On surfaces that are unable to support the weight of the unit without deforming, breaking or causing
vibrations during the use of the air conditioner.
In a position that does not enable the condensate drainage pipe to be correctly installed (at the end
of the installation. It is always essential to check the efficiency of the drainage system.)
Only for floor standing type installation.
Accessories
The following accessories are supplied with the indoor unit.
The type and quantity may differ depending on the specifications.
User’s manual Installation
Cable-tie
manual
Wireless remote
control
Insulation Install
Outlet
Battery
Insulation Install
SVC
Drain Hose M4x12 tapped
Bracket Hanger Anti-allergy
filter
Deodorizing
filter
screw
5
Page 6
Selecting the installation location
A
Indoor Unit
This unit has to be installed as floor type only.
There must be no obstacles near the air inlet and outlet.
Select a convenient location that permits the air to reach every corner of the area to be cooled.
Pre-plan for easy and short routing of the refrigerant tubing and wiring to th outdoor unit.
There should be no flammable gas, alkaline, substances present in the air.
Maintain sufficient clearance around the indoor unit.
Make sure that the water dripping from the drain hose runs away correctly and safely.
Do not install the unit where it will be exposed to direct sunlight.
Space requirements for installation & service
300mm or more
300mm or more
1000mm or more
The units must be installed according to distances declared, in order to permit
accessibility from each side, either to guarantee correct operation of
maintenance or repairing products.
The unit’s parts must be reachable and removable completely under safety
condition (for people or things).
This model can be installed with no side space. But it is recommended installing
like above.
6
Page 7
AMNJD
Unit : mm
720
No. Name Description
1 Liquid pipe connection ø6.35
2 Gas pipe connection ø12.7
3 Drain pipe connection ID: ø12 ; OD: ø18
4 Power supply connection -
Maximum installation height: up to 3.6m
Condensate discharge pump(built-in): Max. 750mm
Length of pipes and difference in height: see the outdoor unit installation manual
Vacuum and refrigerant charge: see the outdoor unit installation manual
7
Page 8
Indoor unit installation
A
It is recommended to install the refnet joint before installing the indoor unit.
1
When you install the indoor with side-pipe connection,
please make space more than 300mm from the wall at the
pipe connection direction.
2
When you install the indoor at the inclined floor, please
lean the set toward the drain hose and pipe connection to
prevent water overflowing.
300mm
300mm
Position
of drain
3
Please remove the items when set is installed.
AM028/036FNJD : 6 Items
AM056FNJD : 7 Items
4
The body front should be opened to connect pipes.
Please release the 4 screws of body front
and then pull it out from the bottom of the set.
8
Position
of drain
Screw Hole
Page 9
5
Making a hole on the wall.
6
The pipes & cable should be go through the bottom back
hole.
7
Hanging the indoor unit on the Bracket Hanger, then x the
Indoor Unit by using 4 Screws.
Case 1. Installing on the floor : Must fix 4 screws on the
wall, make the indoor not to fall down(For safety installation)
.
Case 2. Hanging on the wall : Follow the installation guide
supplied in the accessory part.
Screw positions are specified on the installation guide.
75mm
Inside room
Outsite room
Drain hose
less than 70mm
Ø60~65mm
Purging the unit
From factory the unit is supplied and set with a pre-charge
of nitrogen gas (insert gas). Therefore, all insert gas must
be purged before connecting the assembly piping.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
Note To prevent dirt or foreign objects from getting
into the pipes during installation, do NOT remove
the pinch pipe completely until you are ready to
connect the piping.
Liquid refrigerant
port
Gas refrigerant
port
The designs and shape are subject to
change according to the model.
9
Page 10
Connecting the refrigerant pipe
A
There are two refrigerant pipes of differing diameters:
A smaller one for the liquid refrigerant
A larger one for the gas refrigerant
The inside of copper pipe must be clean & has no dust.
1
Remove the pinch pipe on the pipes and connect the
assembly pipes to each pipe, tightening the nuts, first
manually and then with a torque wrench, a spanner applying
the following torque.
Outer Diameter
6.35 mm 140~180 14~18
9.52 mm 350~430 34~42
12.70 mm 500~620 49~61
15.88 mm 690~830 68~82
Note Must apply refrigerant oil on the flaring area to
prevent a leak.
Be sure that there must be no crack or kink on the bended area.
2
3
Cut off any excess foam insulation.
4
Be sure that there must be no crack or wave on the bended
area.
5
It would be necessary to double the insulation
thickness(10mm or more) to prevent condensation even
on the insulator when if the installed area is warm and
humid.
Torque
kgf•cm N•m
Refrigerant oil
Torque wrench
Flare nut
Spring pipe
Spanner
Union
6
Do not use joints or extensions for the pipes that connect
the indoor and outdoor unit. The only permitted connections are those for which the units
are designed.
Connect the indoor and outdoor units using pipes
with flared connections(not supplied). For the lines,
use insulated, unwelded, degreased and deoxidized
copper pipe,(Cu DHP type to ISO1337), suitable for
operating pressures of at least 4200kPa and for a
burst pressure of at least 20700kPa. Copper pipe for
hydro-sanitary ap- plications is completely unsuitable.
For sizing and limits (height difference, line length,
max. bends, refrigerant charge, etc.) see the outdoor unit installation manual.
All refrigerant connection must be accessible, in
order to permit either unit maintenance or removing it completely.
10
Use the bender which have a minimum bending radius when you
bend the pipe.
Be careful so that the pipes is
bended one time only. Piping will
be very difficult if you repeat the
bending more than twice.
If you bend the pipe by using
spring Bending radius should be
more than 100mm so that pipe is
not distorted.
Page 11
Cutting/aring the pipes
A
1
Make sure that you prepared the required tools.
(pipe cutter, reamer, flaring tool and pipe holder)
If you want to shorten the pipe, cut it using a pipe cutter ensuring that
2
the cut edge remains at 90° with the side of the pipe. There are some
examples of correctly and incorrectly cut edges below.
To prevent a gas leak, remove all burrs at the cut edge of the pipe using a
3
reamer.
Carry out flaring work using flaring tool as shown below.
4
Flaring tool
Clutch type Wing nut type
Outer diameter
(mm)
6.35
9.52
12.70
15.88
Oblique Rough Burr
A
Die
Copper pipe
A(mm)
Flare tool for
R410A clutch type
0~0.5 1.0~1.5 1.5~ 2.0
0~0.5 1.0~1.5 1.5~ 2.0
0~0.5 1.0~1.5 1.5~ 2.0
0~0.5 1.0~1.5 1.5~ 2.0
Clutch type Wing nut type
Flare nut
Conventional flare tool
Yor k
Die
Copper
pipe
Check if you flared the pipe correctly. There are some examples of
5
incorrectly flared pipes below.
Inclined Damaged Surface Cracked Uneven Thickness
Align the pipes and tighten the flare nuts first manually and then with a
6
torque wrench, applying the following torque.
Outer diameter
(mm)
6.35 140~180 14~18 8.70 ~9.10
9.52 350~430 34~42 12.80~13.20
12.70 500~620 49~61 16.20~ 16.60
15.88 690~830 68~82 19.30~ 19.70
Connection Torque
kgf•cm N•m
Flare dimension
(mm)
Flare shape
(mm)
±2°
45°
90° ±2°
In case of needing brazing, you must work with Nitrogen gas blowing.
R 0.4~0.8
11
Page 12
Performing leak test & insulation
A
Leak test
LEAK TEST WITH NITROGEN (before opening valves)
In order to detect basic refrigerant leaks, before recreating the
vacuum and recirculating the R410A, it’s responsible of installer
to pressurize the whole system with nitrogen (using a pressure
regulator) at a pressure above 4.1MPa (gauge).
LEAK TEST WITH R410A (after opening valves)
Before opening valves, discharge all the nitrogen into the system
and create vacuum. After opening valves check leaks using a
leak detector for refrigerant R410A.
Discharge all the nitrogen to create a vacuum and
charge the system.
The designs and shape are subject to change
according to the model.
Insulation
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
1
To avoid condensation problems, place T13.0 or thicker
Acrylonitrile Butadien Rubber separately around each
refrigerant pipe.
No gap
Note Always make the seam of pipes face upwards.
2
Wind insulating tape around the pipes and drain hose
avoiding to compress the insulation too much.
Finish wrapping insulating tape around the rest of the
3
pipes leading to the outdoor unit.
The pipes and electrical cables connecting the indoor
4
unit with the outdoor unit must be fixed to the wall with
suitable ducts.
All refrigerant connection must be accessible, in order
to permit either unit maintenance or removing it
completely.
12
NBR(T13.0 or thicker)
Insulation cover pipe
Insulation pipe
Indoor unit
Be sure to overlap
the insulation
Must fit tightly against body
without any gap.
Page 13
Drain hose installation
A
When installing the drain hose for the indoor unit, check if condensation draining is adequate.
When passing the drain hose through the 65-mm hole drilled in the wall, check the following:
Ditch
The hose must
NOT slant upwards.
The end of the drain
hose must NOT be
placed under water.
Do NOT bend the hose
in different directions.
Drain hose installation
1
If necessary, connect the 2-meter extension drain hose to the drain
hose.
2 If you use the extension drain hose, insulate the inside of the exten-
sion drain hose with a shield.
3 Fit the drain hose into 1 of 2 drain hose holes, then fix the end of the
drain hose tightly with a clamp.
If you don’t use the other drain hose hole, block it with a rubber
stopper.
4 Pass the drain hose under the refrigerant pipe, keeping the drain
hose tight.
5 Pass the drain hose through the hole in the wall. Check if it slants
downwards as seen in the picture.
The hose will be fixed permanently into position after
finishing the installation and the gas leak test; refer to page
12 for further details.
6-Ways to connect Drain Hose and Pipe
Keep a clearance of at
least 5cm between the
end of the hose and
the ground.
Shield
Drain hose
Knock out
5cm less
Do NOT place the end
of the drain hose in a
hollow.
Extension drain hose
(No
default resource
)
➡
13
Page 14
Wiring work
A
Power and communication cable connection
Before wiring work, you must turn off all power source.
1
Indoor unit power should be supplied through the breaker( ELCB or MCCB+ELB ) separated by the
2
outdoor power.
ELCB:Earth Leakage Circuit Breaker
MCCB:Molded Case Circuit Breaker
ELB:Earth Leakage Breaker
The power cable should be used only copper wires.
3
Connect the power cable{1(L), 2(N)} among the units within maximum length and communication
4
cable(F1, F2) each.
Connect F3, F4(for communication) when installing the wired remote control.
5
Outdoor Unit
Wired Remote
Control
220-240V~
or
MCCB+
ELCB
ELB
Indoor Unit 1 Indoor Unit 2 Indoor Unit 3
ELCB : Essential Installation
WARNING :
Power off before connecting any wires;
Indoor PBA will be damaged while V1,V2,F3,F4 short each
other.
Selecting compressed ring terminal
Silver solder
Norminal
dimensions
Norminal
dimensions
for cable
for screw
(mm2)
(mm)
1.5
2.5
4 6.6
4 8
4 6.6
4 8.5
4 4 9.5 ±0.2 5.6
14
B D d1 E F L d2 t
Standard
dimension
(mm)
Allowance
(mm)
±0.2 3.4
±0.2 4.2
Standard
dimension
(mm)
Allowance
(mm)
+0.3
-0.2
+0.3
-0.2
+0.3
-0.2
V1 V2
Indoor Unit 4 Indoor Unit 5 Indoor Unit 6
Ceiling, wall-mounted indoor unit.
Standard
Allowance
dimension
(mm)
1.7 ±0.2 4.1 6 16 4.3
2.3 ±0.2 6 6 17.5 4.3
3.4 ±0.2 6 5 20 4.3
(mm)
Min. Min. Max.
N L
Standard
dimension
(mm)
EEV kit
N L N L N L
Allowance
(mm)
+0.2
0
+0.2
0
+0.2
0
Min.
0.7
0.8
0.9
Page 15

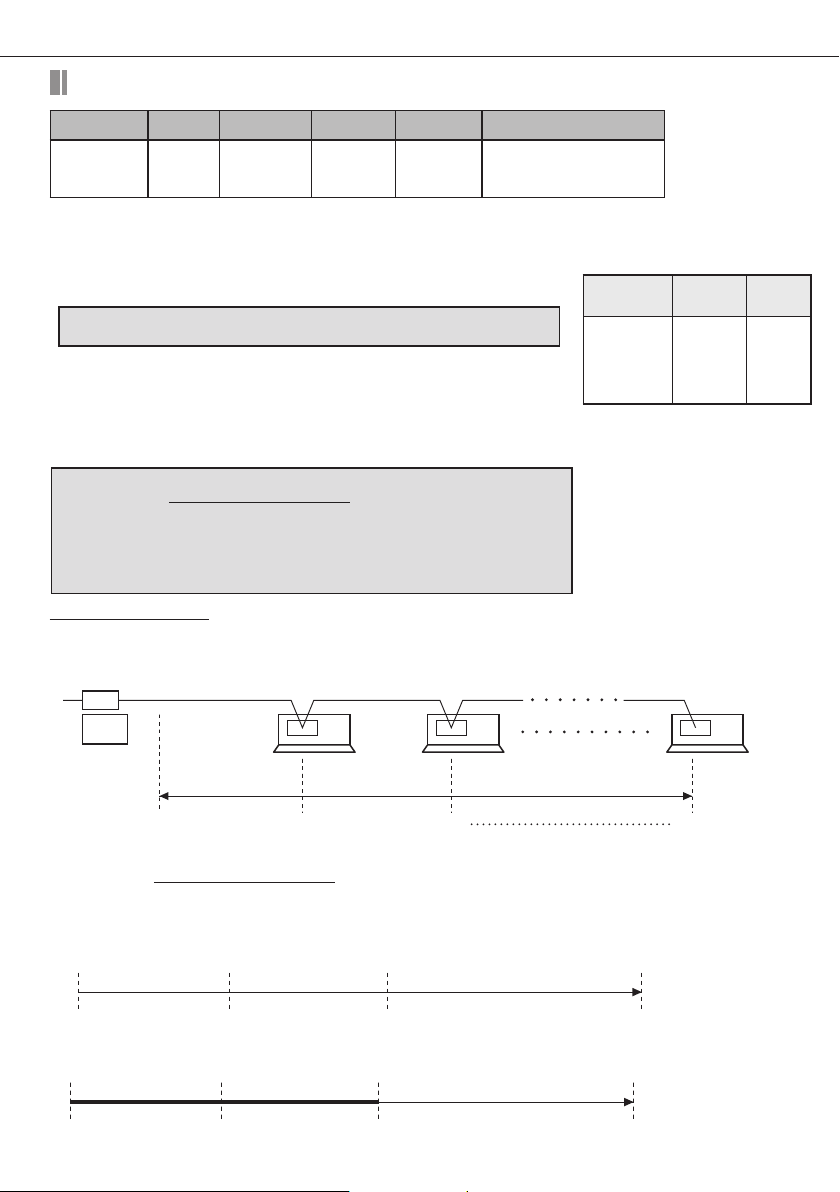

Specification of electronic wire
Power supply MCCB ELB or ELCB Power cable Earth cable Communication cable
Max : 242V
Min : 198V
Decide the capacity of ELCB(or MCCB+ELB) by below formula.
Power supply
cords of parts of appliances for outdoor use shall not be
lighter than polychloroprene sheathed exible cord.
IEC:60245 IEC 57 / CENELEC: H05RN-F or IEC:60245 IEC 66 / CENELEC: H07RN-F)
The capacity of ELCB(or MCCB+ELB) X [A] = 1.25 X 1.1 X ∑ A i
X
: The capacity of ELCB(or MCCB+ELB).
∑Ai : Sum of Rating currents of each indoor unit.
Refer to each installation manual about the rating current of indoor unit.
Decide the power cable specification and maximum length within
10% power drop among indoor units.
n
∑ (
coef: 1.55
Lk: Distance among each indoor unit[m], Ak: Power cable specification[mm2]
k=1
ik: Running current of each unit[A]
Example of Installation
- Total power cable length L = 100(m), Running current of each units 1[A]
- Total 10 indoor units were installed
ELCB
or MCCB+
ELB
X A, 30mmA
X A
Coef×35.6×Lk×ik
1000×A
10[A]
0.1 s
2.5mm
2
2
2.5mm
(Code designation
0.75~1.5mm
Rating current
2
Unit Model
AMNJD
10% of input voltage[V]
k
) <
9[A] 1[A]
Indoor unit2Indoor unit1
022
028
036
045
056
Indoor unit10
Rating
current
0.13A
0.25A
0.29A
0.30A
0.49A
Apply following equation.
k=1
n
∑ (
Coef×35.6×L
1000×A
k
k×ik
) <
Calculation
Installing with 1 sort wire.
2
2.5[mm
] 2.5[mm2]
220[V]
-2.2[V] -2.0[V]
-(2.2+2.0+1.8+1.5+1.3+1.1+0.9+0.7+0.4+0.2)=-11.2[V]
Installing with 2 different sort wire.
4.0[mm2] 4.0[mm2]
220[V]
-1.4[V] -1.2[V]
-(1.4+1.2+1.8+1.5+1.3+1.1+0.9+0.7+0.4+0.2)=-10.5[V]
20[m]10[m]0[m]
10% of input
voltage[V]
············ 2.5[mm
············ 2.5[mm
2
] ············
208.8[V](Within 198V~242V)
2
] ············
209.5[V](Within 198V~242V)
it's okay
100[m]
it's okay
15
Page 16
Wiring work(Cont.)
A
Select the power cable in accordance with relevant local and national regulations.
Wire size must comply with local and national code.
For the power cable, use the grade of H07RN-F or H05RN-F materials.
You should connect the power cable into the power cable terminal and fasten it with a clamp.
The unbalanced power must be maintained within 10% of supply rating among whole indoor
units.
If the power is unbalanced greatly, it may shorten the life of the condenser. If the unbalanced
power is exceeded over 10% of supply rating, the indoor unit is protected, stopped and the
error mode indicates.
To protect the product from water and possible shock, you should keep the power cable and
the connection cord of the indoor and outdoor units in the iron pipe.
Connect the power cable to the auxiliary circuit breaker.
An all pole disconnection from the power supply must be incorporated in the fixed
wiring(≥3mm).
You must keep the cable in a protection tube.
Keep distances of 50mm or more between power cable and communication cable.
Maximum length of power cables are decided within 10% of power drop. If it exceeds, you
must consider another power supplying method.
The circuit breaker(ELCB or MCCB+ELB) should be considered more capacity if many indoor
units are connected from one breaker.
Use round pressure terminal for connections to the power terminal block.
For wiring, use the designated power cable and connect it firmly, then secure to prevent out-
side pressure being exerted on the terminal board.
Use an appropriate screwdriver for tightening the terminal screws. A screwdriver with a small
head will strip the head and make proper tightening impossible.
Over-tightening the terminal screws may break them.
See the table below for tightening torque for the terminal screws.
16
Tightening torque
N•m kgf•cm
M3.5 0.8~1.2 8.0~12.0
M4 1.2~1.8 12.0~18.0
Page 17
Setting an indoor unit address and
A
installation option
Set the indoor unit address and installation option with remote controller option.
Set the each option separately since you cannot set the ADDRESS setting and indoor unit installation setting
option at the same time. You need to set twice when setting indoor unit address and installation option.
The procedure of option setting
Air ow direction (Up and down)
Adusts the air flow direction up and down
Turns the air conditioner on or o.
Selects options during operation.
Moves to select and set an option.
Power
Temperature
Adjusts the temperature.
Options
Timer
Sets timer option.
Direction
(Not applicable to Duct type models).
Mode
Selects operation mode.
Fan speed
Adjusts the fan speed.
Air ow direction (Left and right)
Adjusts the air ow direction left and right.
Settings
Selects settings.
SET
Selects or cancels an option.
Step 1. Entering mode to set option
1. Remove batteries from the remote controller.
2. Insert batteries and enter the option setting mode while pressing High Temp button and Low Temp button .
3. Check if you have entered the option setting status.
Step 2. The procedure of option setting
After entering the option setting status, select the option as listed below.
Option setting is available from SEG1 to SEG 24
SEG1, SEG7, SEG13, SEG19 are not set as page option.
Set the SEG2~SEG6, SEG8~SEG12 as ON status and SEG14~18, SEG20~24 as OFF status.
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
0 X X X X X 1 X X X X X
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
2 X X X X X 3 X X X X X
On(SEG1~12) O(SEG13~24)
17
Page 18
Setting an indoor unit address and
A
installation option (Cont.)
Option setting Status
1. Setting SEG2, SEG3 option
Press Low Fan button(∨) to enter SEG2 value.
Press High Fan button(∧) to enter SEG3 value.
Each time you press the button, … will be selected in rotation.
2. Setting Cool mode
Press Mode button to be changed to Cool mode in the ON status.
3. Setting SEG4, SEG5 option
Press Low Fan button(∨) to enter SEG4 value.
Press High Fan button(∧) to enter SEG5 value.
Each time you press the button, … will be selected in rotation.
4. Setting Dry mode
Press Mode button to be changed to DRY mode in the ON status.
5. Setting SEG6, SEG8 option
Press Low Fan button(∨) to enter SEG6 value.
Press High Fan button(∧) to enter SEG8 value.
Each time you press the button, … will be selected in rotation.
6. Setting Fan mode
Press Mode button to be changed to FAN mode in the ON status.
SEG2 SEG3
SEG4
SEG6
SEG5
SEG8
7. Setting SEG9, SEG10 option
Press Low Fan button(∨) to enter SEG9 value.
Press High Fan button(∧) to enter SEG10 value.
Each time you press the button, … will be selected in rotation.
8. Setting Heat mode
Press Mode button to be changed to HEAT mode in the ON status.
9. Setting SEG11, SEG12 option
Press Low Fan button(∨) to enter SEG11 value.
Press High Fan button(∧) to enter SEG12 value.
Each time you press the button, … will be selected in rotation.
10. Setting Auto mode
Press Mode button to be changed to AUTO mode in the OFF status.
11. Setting SEG14, SEG15 option
Press Low Fan button(∨) to enter SEG14 value.
Press High Fan button(∧) to enter SEG15 value.
Each time you press the button, … will be selected in rotation.
18
SEG9
SEG11
SEG14
SEG10
SEG12
SEG15
Page 19
Option setting Status
12. Setting Cool mode
Press Mode button to be change to Cool mode in the OFF status.
13. Setting SEG16, SEG17 option
Press Low Fan button(∨) to enter SEG16 value.
Press High Fan button(∧) to enter SEG17 value.
Each time you press the button, … will be selected in rotation.
14. Setting Dry mode
Press Mode button to be change to Dry mode in the OFF status.
15. Setting SEG18, SEG20 option
Press Low Fan button(∨) to enter SEG18 value.
Press High Fan button(∧) to enter SEG20 value.
Each time you press the button, … will be selected in rotation.
16. Setting Fan mode
Press Mode button to be change to Fan mode in the OFF status.
17. Setting SEG21, SEG22 option
Press Low Fan button(∨) to enter SEG21 value.
Press High Fan button(∧) to enter SEG22 value.
Each time you press the button, … will be selected in rotation.
SEG16
SEG18
SEG21
SEG17
SEG20
SEG22
18. Setting Heat mode
Press Mode button to be change to HEAT mode in the OFF status.
19. Setting SEG23, SEG24 mode
Press Low Fan button(∨) to enter SEG23 value.
Press High Fan button(∧) to enter SEG24 value.
Each time you press the button, … will be selected in rotation.
Step 3. Check the option you have set
After setting option, press button to check whether the option code you input is correct or not.
Step 4. Input option
Press operation button with the direction of remote control for set.
For the correct option setting, you must input the option twice.
Step 5. Check operation
1. Reset the indoor unit by pressing the RESET button of indoor unit or outdoor unit.
2. Take the batteries out of the remote controller and insert them again and then press the operation button.
SEG23
SEG24
19
Page 20
Setting an indoor unit address and
A
installation option (Cont.)
Setting an indoor unit address (MAIN/RMC)
Check whether power is supplied or not.
1.
- When the indoor unit is not plugged in, there should be additional
power supply in the indoor unit.
The panel(display) should be connected to an indoor unit to receive option.
2.
Before installing the indoor unit, assign an address to the indoor unit according
3.
to the air conditioning system plan.
4. Assign an indoor unit address by wireless remote controller.
- The initial setting status of indoor unit ADDRESS(MAIN/RMC) is “0A0000-100000-200000-300000”.
1(L)
2(N)
Indoor Unit
Option No. : 0AXXXX-1XXXXX-2XXXXX-3XXXXX
Option
Explanation
Indication
and Details
Option
Explanation
Indication
and Details
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
No Main
address
Main
address
setting
mode
No RMC
address
RMC
address
setting
mode
100-digit of indoor
unit address
0~9 100-digit 0~9 10-digit 0~9
__
PAG E Mode Setting Main address
Indication Details Indication Details Indication Details Indication Details Indication Details Indication Details
0
0 A
1
SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
PAG E
Indication Details Indication Details Indication Details Indication Details
__
1
Setting RMC address
0
1
10-digit of indoor
unit
Group channel(*16) Group address
RMC1 0~F RMC2 0~F
F2
F1
The unit digit of
an indoor unit
A unit
digit
When “A”~”F” is entered to SEG5~6, the indoor unit MAIN ADDRESS is not changed.
If you set the SEG 3 as 0, the indoor unit will maintain the previous MAIN ADDRESS even if you input the option value of SEG5~6.
If you set the SEG 9 as 0, the indoor unit will maintain previous RMC ADDRESS even if you input the option value of SEG11~12.
You cannot set SEG11 and SEG12 as F value at the same time.
20
Page 21
Setting an indoor unit installation option
(suitable for the condition of each installation location)
Check whether power is supplied or not.
1.
- When the indoor unit is not plugged in, there should be additional
power supply in the indoor unit.
The panel(display) should be connected to an indoor unit to receive
2.
option.
Set the installation option according to the installation condition of an air
3.
conditioner.
- The default setting of an indoor unit installation option is
“020010-100000- 200000-300000”.
- Individual control of a remote controller(SEG20) is the function that controls an
indoor unit individually when there is more than one indoor unit.
Set the indoor unit option by wireless remote controller.
4.
02 series installation option
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
External room
temperature sensor
0 2 --
SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
1 Drain pump Hot water heater --
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
External control
2 External control
SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
Individual control of
3
a remote controller
1WAY/2WAY/4WAY MODEL : Drain pump(SEG8) will be set to ‘USE + 3minute delay’ even if the drain
pump is set to 0.
1 WAY/2WAY/4WAY,DUCT MODEL : Number of hours using filter(SEG18) will be set to ‘1000hour’ even
if the SEG18 is set to exept for 2 or 6.
When setting the option other than above SEG values, the option will be set as “0”.
SEG5 central control option is basically set as 1 (Use), so you don’t need to set the central control
option additionally.
However, if the central control is not connected but it doesn’t indicate an error message, you need to
set the central control option as 0 (Disuse) to exclude the indoor unit from the central control.
output / External
heater On or O
signal
Heating setting
compensation
/ Removing
condensated
water in heating
mode
/ Minimizing fan
operation when
thermostat is o
S-Plasma ion Buzzer
EEV Step of stopped
unit during oil
return/defrost mode
Central control
EEV Step when
heating stops
Motion detect
sensor
Indoor Unit
1(L)
2(N)
FAN RPM
compensation
Number of hours
using lter
F2
F1
--
--
21
Page 22
Setting an indoor unit address and
A
installation option (Cont.)
The output of hot water heater in SEG9 is generated from the hot coil part of the terminal board in duct models.
* The output of hot coil terminal is AC 220 V / 230 V
(The same as Indoor Unit’s input Power)
F1 F2
COM1 COM2
OUTDOOR
COMMUNICATION
DC 12V
F3
V1
V2
(-)
(+) L N
Wire Remote
Controller
1(L) 2(N)
F4
POWER
AC
1
HOT
COIL
2
The external output of SEG15 is generated by MIM-B14 connection. (Refer to the manual of MIM-B14.)
02 series installation option(Detailed)
Option No. : 02XXXX-1XXXXX-2XXXXX-3XXXXX
Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Explanation PA GE MODE Use of robot cleaning
Indication Details Indication Details Indication Details Indication
Indication
and Details
When an
pump will
3min
0 Disuse
1 Use
Use of hot water
heater
2 --
3
0 2
Option SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
Explanation PA GE Use of drain pump
Indication Details Indication Details Indication Details Indication Details Indication Details Indication Details
0 Disuse 0 Disuse 0
Indication
and Details
1
1 Us e 1
indoor unit
stops, drain
2
operate for
Use of external room temperature
sensor / Minimizing fan operation
when thermostat is o
Details
Minimizing
Use of
External
room
temperature
sensor
Disuse
0
1 Use Disuse 1
Disuse Use
2
3 Use
Use
(*2)
Use
(*2)
fan
operation
when
thermostat
is o
Disuse
(*1)
Use
(*1)
Use of central control FAN RPM compensation
Indication Details Indication Details
Default
value
Noise
setting
0 Disuse
RPM
compensation
High ceiling
KIT
0 Disuse
1 Use 2
EEV Step when heating
stops
1
decreasing
22
Page 23
Option SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
Explanation PAG E
Use of external
control
Setting the output of external control
/ External heater On/O signal
S-Plasma ion Buzzer control Hours of lter usage
Details
Indication Details Indication Details Indication
Indication
and Details
2
Setting the
0 Disuse 0 Thermo on - 0 Disuse 0 Use buzzer 2 1000 Hour
ON/OFF
1
2
control
OFF
control
1
2 - Use
Window
3
ON/OFF
3 - Use
output of
external
control
Operation
on
External
Indication Details Indication Details Indication Details
heater On/
O signal
-
(*3)
1 Use
(*3)
1 Disuse buzzer
6 2000 Hour
control
Option SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
Explanation PA GE
Individual control of
a remote controller
Heating setting compensation / Removing
condensated water in heating mode
EEV Step of stopped
unit during oil return/
defrost mode
Motion detect sensor -
Details
Removing
Indication Details Indication Details Indication
Heating Setting
Compensation
Condensated
Indication Details Indication Details
Water in
Heating
Mode
value
mode
0 Disuse
Turn out in 30min.
1
without motion
Turn out in 60min.
2
without motion
Turn out in 120min.
3
without motion
Turn out in 180min.
4
without motion
Turn out in 30min.
5
without motion or
*advanced function
Turn out in 60min.
6
without motion or
*advanced function
Turn out in 120min.
7
without motion or
Indication
and Details
0 or 1 channel 1 0 Default
2 channel 2 1
3 channel 3 2 5 °C
3
4 channel 4
2 °C Disuse
3 Default
4 2 °C
5
5 °C
(*4)
Disuse
Default
0
Disuse
(*5)
(*4)
Use
Use
(*5)
1
Oil return
or Noise
decreasing
in defrost
(*5)
Use
*advanced function
Turn out in 180min.
8
without motion or
*advanced function
23
Page 24
Setting an indoor unit address and
A
installation option (Cont.)
*
Advanced function: Controlling cooling/heating current or power saving with motion detect.
(*1) Minimizing fan operation when thermostat is o
- Fan operates for 20 seconds at an interval of 5 minutes in heat mode.
(*2) 1: Fan is turned on continually when the hot water heater is turned on,
3: Fan is turned o when the hot water heater is turned on with cooling only indoor unit
Cooling only indoor unit: To use this option,install the Mode Select switch(MCM-C200) on the outdoor unit and x it as cool mode.
(*3) When the following 2 or 3 is used as external heater On/O signal, the signal for monitoring external contact control will not be output.
2: Fan is turned on continually when the external heater is turned on,
3: Fan is turned o when the external heater is turned on with cooling only indoor unit
Cooling only indoor unit: To use this option,install the Mode Select switch(MCM-C200) on the outdoor unit and x it as cool mode.
· If Fan is set to o for cooling only indoor unit by setting the SEG9=3 or SEG15=3, you need to use an external sensor or wired remote
controller sensor to detect indoor temperature exactly.
(*4) Default setting value
- 4Way Cassette, Mini 4Way Cassette: 5 °C
- Other indoor units: 2 °C
(*5) This function can be applied to 4 Way Cassette and Mini 4 Way Cassette only. If the air conditioner operates the heating mode
immediately after nishing the cooling mode, the condensated water in the drain pan becomes water vapor by the heat of the indoor
unit heat exchanger. Since the water vapor might be condensed on the indoor unit, which may fall into a living space, use this function to
get rid of the water vapor out of the indoor unit by operating the fan (for maximum 20 minutes) even when the indoor unit is turned o
after cooling mode is turned to heating mode .

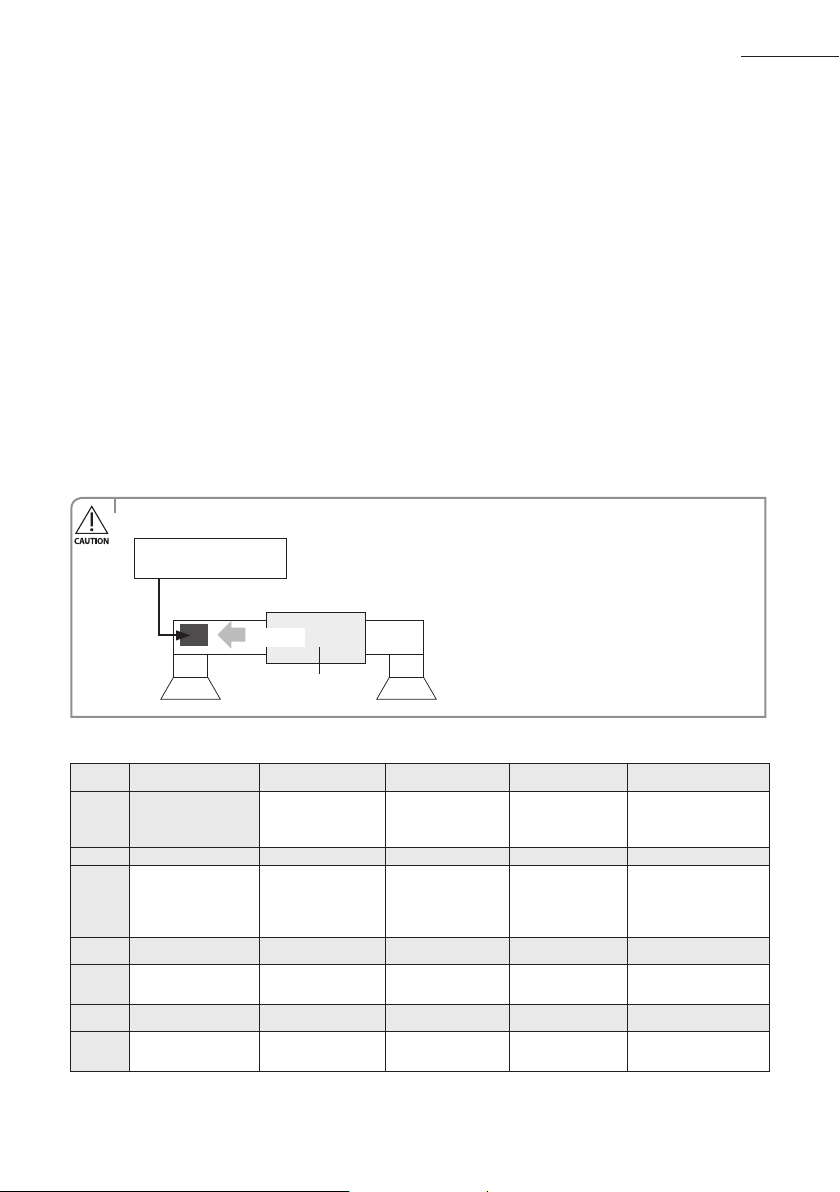

• Do not install the electronic heater in the ow channel of the indoor unit fan.
Electronic heater should
not be installed.
Suction side Discharge side
Air Flow
Duct Indoor unit
05 series installation option
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
0 5
SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
(When setting SEG3)
1
Standard for mode change
Cooling → Heating
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
2 - - - -
SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
3 - - - - -
Use of Auto Change Over
for HR only in Auto mode
(When setting SEG3)
Time required for mode
change
(When setting SEG3)
Standard heating temp.
Oset
Compensation option for
Long pipe or height
dierence between
indoor units
(When setting SEG3)
Standard cooling temp.
Oset
- -
Standard for mode change
Control variables when using
hot water / external heater
24
(When setting SEG3)
Heating → Cooling
Page 25
05 series installation option(Detailed)
Option No. : 05XXXX-1XXXXX-2XXXXX-3XXXXX
Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Explanation
Indication
and Details
Option SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
Explanation
Indication
and Details
PAG E MODE
Indication Details Indication Details Indication Details Indication Details Indication Details Indication Details
0 5
(When setting SEG3)
PAG E
Indication Details Indication Details Indication Details Indication Details
1
Standard for mode
changing Cooling →
Heating mode
0 1 0 5 min. 0
1 1.5 1 7 min.
2 2 2 9 min.
3 2.5 3 11 min.
4 3 4 13 min.
5 3.5 5 15 min.
6 4 6 20 min.
7 4.5 7 30 min.
Use of Auto Change
Over for HR only in
Auto mode
0
1
(When setting SEG3)
Time required for
mode change
Follow
product
option
Use Auto
Change
Over for
HR only
for Long pipe or height
(When setting SEG3)
Standard heating
temp. Oset
0 0 0 0 0 1
1 0.5 1 0.5 1 1.5
2 1 2 1 2 2
3 1.5 3 1.5 3 2.5
4 2 4 2 4 3
5 2.5 5 2.5 5 3.5
6 3 6 3 6 4
7 3.5 7 3.5 7 4.5
Compensation option
diference between
indoor units
Use default
1
difference1) is
2
(When setting SEG3)
Standard cooling
temp. Oset
value
1) Height
difference1)
is more than
30m or
2) Distance2)
is longer
than 110m
1) Height
15~30m or
2) Distance2)
is 50~110m
(When setting SEG3)
Standard for mode
Heating → Cooling
change
25
Page 26
Setting an indoor unit address and
A
installation option (Cont.)
Option SEG13 SEG14 SEG15 SEG16 SEG17
Explanation Control variables when using hot water / external heater
Indication
Indication
and Details
(*1) Height dierence : The dierence of the height between the corresponding indoor uint and the indoor unit installed at the lowest place.
(*2) Distance : The dierence between the pipe length of the indoor unit istalled at farthest place from an outdoor unit and the pipe length of the
corresponding indoor unit from an outdoor unit.
(*3) Heater operation when the SEG9 of 02 series installation option is set to using hot water heater or when SEG15 is set to using external heater
e.g. 1) Setting 02 series SEG9 =”1” / Setting 05 series SEG18 = “0”: Hot water heater is turned on at the same time as the heating
e.g. 2) Setting 02 series SEG15 =”2” / Setting 05 series SEG18 =”A”:
Room temp. ≤ set temp. + f(heating compensation temp.)
- External heater is turned on when the temperature is maintained as 4.5 °C for 10 minutes.
Room temp. > set temp. + f(heating compensation temp.)
- External heater is turned o when the temperature is maintained as 4.5 °C + 1 °C (1 °C is the Hysteresis for On/O selection.)
2
For example, When the indoor unit is installed 40m higher than the indoor unit installed at the lowest place, select the
option "1".
For example, when the farthest pipe length is 100m and the corresponding indoor unit is 40m away from an outdoor unit, select the
option "2".
(100 - 40 = 60m)
thermostat is on, and turned o when the heating thermostat is o.
Set temp. for heater On/O
0 At the same time as thermo on No delay
1
At the same time as thermo on
2 At the same time as thermo on 20 minutes
3 1.5 °C No delay
4 1.5 °C 10 minutes
5 1.5 °C 20 minutes
6 3.0 °C No delay
7 3.0 °C 10 minutes
8 3.0 °C 20 minutes
9 4.5 °C No delay
A 4.5 °C 10 minutes
B 4.5 °C 20 minutes
C 6.0 °C No delay
D 6.0 °C 10 minutes
E 6.0 °C 20 minutes
SEG18
(*3)
Details
Delay time for heater On
10 minutes
26
Page 27
SEG 3, 4, 5, 6, 8, 9 additional information
When the SEG 3 is set as "1" and follow Auto Change Over for HR only operation, it will operate as follows.
Temp.
Ts
Cooling Thermo O
Set temp.
for Auto mode
Cooling Thermo On
Standard temp. for
Heating → Cooling
d
Standard temp.
for Cooling
b
Standard temp.
for Cooling
→
Heating
Heating Thermo O
Heating Thermo On
c
B C
D
A
a
Standard temp.
for Heating
A : Set with SEG4(˚C)
B : Set with SEG5(˚C)
C : Set with SEG6(˚C)
D : Set with SEG8(˚C)
Cooling/Heating mode can be changed when Thermo O status is maintained during the time with SEG9.
Changing a particular option
You can change each digit of set option.
Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Explanation PAG E MODE
Indication Details Indication Details Indication Details Indication Details Indication Details Indication Details
Indication
and Details
Note
0 D
• Whenchangingadigitofanindoorunitaddresssettingoption,settheSEG3as‘A’.
• Whenchangingadigitofindoorunitinstallationoption,settheSEG3as‘2’.
Ex) When setting the ‘buzzer control’ into disuse status.
Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Explanation PAGE MODE
Indication 0 D 2 1 7 1
The option mode
you want to change
Option
mode
The option mode you
want to change
The tens’ digit of an
option SEG you will
change
Tens’ digit
1~6
of SEG
The tens’ digit of an
option SEG you will
change
The unit digit of an
option SEG you will
change
Unit digit
0~9
of SEG
The unit digit of an
option SEG you will
change
0~9
Changed value
Changed value
The
changed
value
0~F
If you are using heat pump model, mixed operation mode (two or more indoor units operating in different operation
mode simultaneously) is not available when the indoor units are connected to same outdoor unit. If you set the master
indoor unit with a remote controller, outdoor unit will operate in the mode which was set in the master indoor unit.
27
Page 28
Final check and trial operation
To complete the installation, perform the following checks and tests
to ensure that the air conditioner operates correctly.
Check the following:
Strength of the installation site
Tightness of pipe connection to detect gas leak
Electric wiring connection
Heat-resistant insulation of the pipe
Drainage
Grounding conductor connection
Correct operation (follow the steps below)
Providing information for user
After finishing the installation of the air conditioner, you should explain the following to the user.
Refer to appropriate pages in the user & installation manual.
How to start and stop the air conditioner
1
How to select the modes and functions
2
How to adjust the temperature and fan speed
3
How to adjust the airflow direction
4
How to set the timers
5
How to clean and replace the filters
6
Note When you complete the installation successfully, hand over the user & installation
manual to the user for storage in a handy and safe place.
Troubleshooting
Detection of errors
If an error occurs during the operation, an LED flickers and the operation is stopped except the LED.
If you re-operate the air conditioner, it operates normally at first, then detect an error again.
LED Display on the receiver & display unit
LED Display
If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
If you re-operate the air conditioner, it operates normally at first, then detect an error again.
When E108 error occurs, change the address and reset the system.Ex.) When address of the indoor
unit #1 and #2 are set as 5, address of the indoor unit #1 will become 5 and indoor unit #2 will
display E108, A002.
28
Page 29
Troubleshooting(Cont.)
On Flickering X O
Abnormal condition
Error
code
LED Display
Error on indoor temperature sensor (Short or Open)
1. Error on Eva-in sensor (Short or Open)
2. Error on Eva-out sensor (Short or Open)
3. Discharge sensor error (Short or Open)
Indoor fan error
1. Error on outdoor temperature sensor (Short or Open)
2. Error on cond sensor
3. Error on discharge sensor
Other outdoor unit sensor error that is not on the above list
1. When there is no communication between the indoor∙outdoor
units for 2 minutes
2. Communication error received from the outdoor unit
3. 3 miniute tracking error on outdoor unit
4. Communication error after tracking due to unmatching number
of installed units
5. Error due to repeated communication address
6. Communication address not confirmed
Other outdoor unit communication error that is not on the above list
Self diagnosis error display
1. Error due to opened EEV (2nd detection)
2. Error due to closed EEV (2nd detection)
3. Eva in sensor is detached
4. Eva out sensor is detached
5. Thermal fuse error (Open)
1. COND mid sensor is detached
2. Refrigerant leakage (2nd detection)
3. Abnomally high temperature on Cond (2nd detection)
4. Low pressure s/w (2nd detection)
5. Abnomally high temperature on discharged air on outdoor unit
(2nd detection)
6.
Indoor operation stop due to unconfirmed error on outdoor unit
7. Error due to reverse phase detection
8. Comp stop due to freeze detection (6th detection)
9. High pressure sensor is detached
10. Low pressure sensor is detached
11. Outdoor unit copression ration error
12. Outdoor sump down_1 prevetion control
13. Compressor down due to low pressure sensor prevention
control_1
14. Simultaneous opening of cooling/heating MCU SOL valve
(1st detection)
15. Simultaneous opening of cooling/heating MCU SOL valve
(2nd detection)
Other outdoor unit self-diagnosis error that is not on the above list
Flowating s/w (2nd detection)
EEPROM error
EEPROM option error
Error due to incompatible indoor unit
E121
E122
E123
E126
E154
E221
E237
E251
E101
E102
E202
E201
E108
E109
E151
E152
E128
E129
E198
E241
E554
E450
E451
E416
E559
E425
E403
E301
E306
E428
E413
E410
E180
E181
E153
E162
E163
E164
29
Page 30
How to connect your extended power cables
A
1. Prepare a compressor and the following tools.
Tools Crimping pliers
Spec MH-14 20xØ6.5(HxOD) Width 19mm 70xØ8.0(LxOD)
Shape
Connection sleeve
(mm)
Insulation tape
Contraction tube
(mm)
2. As shown in the gure, peel o the shields from the rubber or wire of
the power cable.
Power cable (provided by us)
- Peel o 20 mm of the wire shields of the tube installed already.
60
• After peeling o the tube wire, you must insert a contraction
tube.
CAUTION
• For information about the power cable specications for
indoor and outdoor units, refer to the installation manual.
Wire tube power cable
120
180
(Unit: mm)
20
3. Insert both sides of core wire of the power cable into the connection
sleeve.
Method 1
Push the core wire into the sleeve from both sides.
Connection sleeve
Method 2
Twist the wire cores together and push it into the sleeve.
Connection sleeve
4. Using a compressor, compress the two points and ip it over and compress another two points in the
same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to make sure it is rmly pressed.
Compression
dimension
Method 1
Compress it 4 times.
Method 2
Compress it 4 times.
202020
30
5 mm
5 mm
Page 31
5. Wrap it with the insulation tape twice or more and position your contraction tube in the middle of the
insulation tape.
A total of three or more layers of insulation is required.
Method 1
Insulation tape
Method 2
Insulation tape
40 mm
35 mm
6. Apply heat to the contraction tube to contract it.
Contraction tube
7. After tube contraction work is completed, wrap it with the insulation tape to nish.
• Make sure that the connection parts are not exposed to outside.
• Be sure to use insulation tape and a contraction tube made of approved reinforced insulating
CAUTION
materials that have the same level of withstand voltage with the power cable. (Comply with the
local regulations on extensions.)
Insulation tape
• In case of extending the electric wire, please DO NOT use a round-shaped Pressing socket.
WARNING
- Incomplete wire connections can cause electric shock or a re.
31
Page 32
Page 33
Console Type Series
Floor : AMNJD
Air Conditioner
installation manual
DB68-03630A-06
EN
imagine the possibilities
Thank you for purchasing this Samsung product.
Loading...
