ENGLISH
AFPCC052CA0
Cooling only
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ESPAÑOL
FRANÇAIS
System Air Conditioner
Aire acondicionado sistemático
Climatiseur numérique multifonctionnel
E S F DB98-05497A(1)
Safety Precautions
◆ If the power supply cord of this air conditioner is damaged,
it must be replaced by the manufacturer or its authorized
service personnel only in order to avoid a safety hazard.
WARNING
◆Do not attempt to install this air conditioner by yourself.
◆This unit contains no user-serviceable parts. Always consult authorized
service personnel for repairs.
◆When moving, consult authorized service personnel for disconnection
and installation of the unit.
◆Do not become over-exposed to cold air by staying in the direct path of
the airflow of the air conditioner for extended periods of time.
◆Do not insert fingers or objects into the outlet port or intake grilles.
◆Do not start and stop air conditioner operation by disconnecting the
power supply cord and so on.
◆Take care not to damage the power supply cord.
◆In the event of a malfunction (burning smell, etc.), immediately stop
operation, turn off the electrical breaker, and consult authorized
service personnel.
DANGER
◆Provide occasional ventilation during use.
◆Do not direct air flow at fireplaces or heating apparatus.
◆Do not climb on, or place objects on, the air conditioner.
◆Do not hang objects from the indoor unit.
◆Do not set flower vases or water containers on top of air conditioners.
◆Do not expose the air conditioner directly to water.
◆Do not operate the air conditioner with wet hands.
◆Do not pull power supply cord.
◆Turn off power source when not using the unit for extended periods.
◆Check the condition of the installation stand for damage.
◆Do not place animals or plants in the direct path of the air flow.
◆Do not drink the water drained from the air conditioner.
◆Do not use in applications involving the storage of foods, plants or
animals, precision equipment, or art works.
◆Do not apply any heavy pressure to radiator fins.
◆Operate only with air filters installed.
◆Do not block or cover the intake grille and outlet port.
◆Ensure that any electronic equipment is at least one metre away from
either the indoor or outdoor units.
◆Avoid installing the air conditioner near a fireplace or other heating
apparatus.
◆When installing the indoor and outdoor unit, take precautions to prevent
access to infants.
◆Do not use inflammable gases near the air conditioner.
◆Max input power & current is measured according to IEO standard and
input power & current is measured according to ISO standard.
CAUTION
E-2
E-3
ENGLISH
Contents
◆
P
REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
■ Getting Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Inserting the Wireless Remote Controller Batteries . . . . . . . . 10
UU
UU
SSSSIIIINNNNGGGGWWWWIIIIRRRREEEELLLLEEEESSSSSSSSRRRREEEEMMMMOOOOTTTTEEEECCCCOOOONNNNTTTTRRRROOOOLLLLLLLLEEEERR
RR
◆
O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . 12
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Heating Your Room (Except Cooling Only Models) . . . . . . . . 14
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 15
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Adjusting the Air Flow Direction . . . . . . . . . . . . . . . . . . . . . . . 17
◆
P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
UU
UU
SSSSIIIINNNNGGGGWWWWIIIIRRRREEEEDDDDRRRREEEEMMMMOOOOTTTTEEEECCCCOOOONNNNTTTTRRRROOOOLLLLLLLLEEEERR
RR
◆
O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . 21
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
■ Heating Your Room (Except Cooling Only Models) . . . . . . . . 23
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 24
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
■ Adjusting the Air Flow Direction . . . . . . . . . . . . . . . . . . . . . . . 25
◆
P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
UU
UU
SSSSIIIINNNNGG
GG
CC
CC
EEEENNNNTTTTRRRRAAAALLLLIIIIZZZZEEEEDDDDCCCCOOOONNNNTTTTRRRROOOOLLLLLLLLEEEERR
RR
■ Using the Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . 28
◆
R
ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 29
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 30
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 31
■ Bio-Pure Filter Installation (Optional) . . . . . . . . . . . . . . . . . . . . 32
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 33
◆
T
ECHNICAL SPECIFICATIONS
View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
E-4
Air flow blades(outlet)
Air inlet
Air filter(under the grille)
Indoor Unit
Outdoor Unit
Timer indicator
Remote control
sensor
On/Off button
On/Off indicator
Fan indicator
Removing frost
indicator
(Except Cooling
Only Models)
Filter Sign
indicator
Air outlet
Connection valve
(Inside)
TYPE A
Outdoor Unit
Air outlet
Connection valve
TYPE B
E-5
ENGLISH
Air outlet
Connection valve
TYPE C
Outdoor Unit
Air outlet
Connection valve
TYPE D
Outdoor Unit
Air outlet
Connection valve
TYPE E
Outdoor Unit
Air outlet
Connection valve
TYPE F
Outdoor Unit
Air outlet
Connection valve
TYPE G
Outdoor Unit
If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water
when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.
NNNNoooottttee
ee
Wireless Remote Controller-Buttons and Display
- After cleaning the air filter, press the filter reset button.
- The heating mode( ) is not selected in cooling only models.
NNNNoooottttee
ee
Operating mode
Mode selection button
Filter Reset button
Swing button
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
The wireless remote controller is an optional accessory.
E-6
Wired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory and it is installed on the wall.
- Test button is for your installation specialist. You must NOT press it.
- After cleaning the air filter, press the filter reset button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the air filter;
refer to page 31.
- The heating mode( ) is not selected in cooling only models.
NNNNoooottttee
ee
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
On Timer button
Off Timer button
Test button
Filter Reset button
Mode selection button
Temperature adjustment
buttons
Centralized controller indicator
(In case of installing the Centralized controller)
Removing frost indicator
(Except Cooling Only Models)
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Swing button
On/Off indicator
Operating mode
E-7
ENGLISH
Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
Operating lamp comes on when at least one air conditioner connected to the
centralized controller is operating.
NNNNoooottttee
ee
E-8
Getting Start
You have just purchased a system type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆ The following figures are shown on pages from 4 to 8 :
- Indoor and outdoor units
- Wireless remote controller (buttons and display)
- Wired remote controller (buttons and display)
- Centralized controller
◆ In the main part of the document, you will find a series of step-by-step proce-
dures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-9
ENGLISH
Inserting the Wireless Remote Controller Batteries
Push the battery cover on the rear of the remote controller with your
thumb in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆ + on the battery with + on the remote controller.
◆ - on the battery with - on the remote controller.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months, even
if they have not actually been used.
You must insert or replace the remote controller batteries when :
◆ You purchase the air conditioner
◆ The remote controller does not work correctly
NNNNoooottttee
ee
E-10
This chapter indicates how to operate and program
your air conditioner with the wireless remote controller.
The wireless remote controller is an optional accessory.
UU
UUssssiiiinnnngggg
WW
WWiiiirrrreeeelllleeeessssssss
RR
RReeee
mm
mmooootttteeee
CC
CCoooonnnnttttrrrroooolllllllleeeerrrr
E-11
ENGLISH
Selecting the Automatic Operation Mode
In the Automatic mode, the room temperature and the fan speed are
controlled automatically.
1
To select the AUTO mode, press the Mode button until is displayed
at the top of the wireless remote controller.
Result:
◆ The indoor unit beeps.
◆ The air conditioner runs in AUTO mode.
NNNNoooottttee
ee You can change modes at any time.
2
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the indoor unit comes on.
◆ The air conditioner runs in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
To adjust the temperature, press the Temperature buttons one or more
times until the required temperature is displayed. Possible temperatures are
between 65
O
F and 86OF inclusive.
R
esult:
◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
F.
◆ The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature.
The quantity of air is adjusted automatically.
3
E-12
Cooling Your Room
To select the COOL mode, press the Mode button until is displayed
at the top of the wireless remote controller.
Result:
◆ The indoor unit beeps.
◆ The air conditioner runs in COOL mode.
2
You can change modes at any time.
To adjust the temperature, press the
Temperature
buttons one or more
times until the required temperature is displayed. Possible temperatures
are between
65
O
F and 86OF
inclusive.
Result:
◆ Each time you press
Temperature
buttons:
- The temperature is adjusted by 1
O
F.
- The indoor unit beeps.
◆ The air conditioner starts cooling, provided that the room
◆ temperature is higher than the selected temperature ; the fan
◆ will, however, operate.
3
You must select the COOL mode if you wish to adjust the :
◆ Cooling temperature
◆ Fan speed when cooling
1
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the indoor unit comes on.
◆ The air conditioner runs in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed :
4
To control the direction of the air flow, refer to page 17.
5
NNNNoooottttee
ee
E-13
ENGLISH
Automatic(rotated : ➔➔)
Low
Medium
High

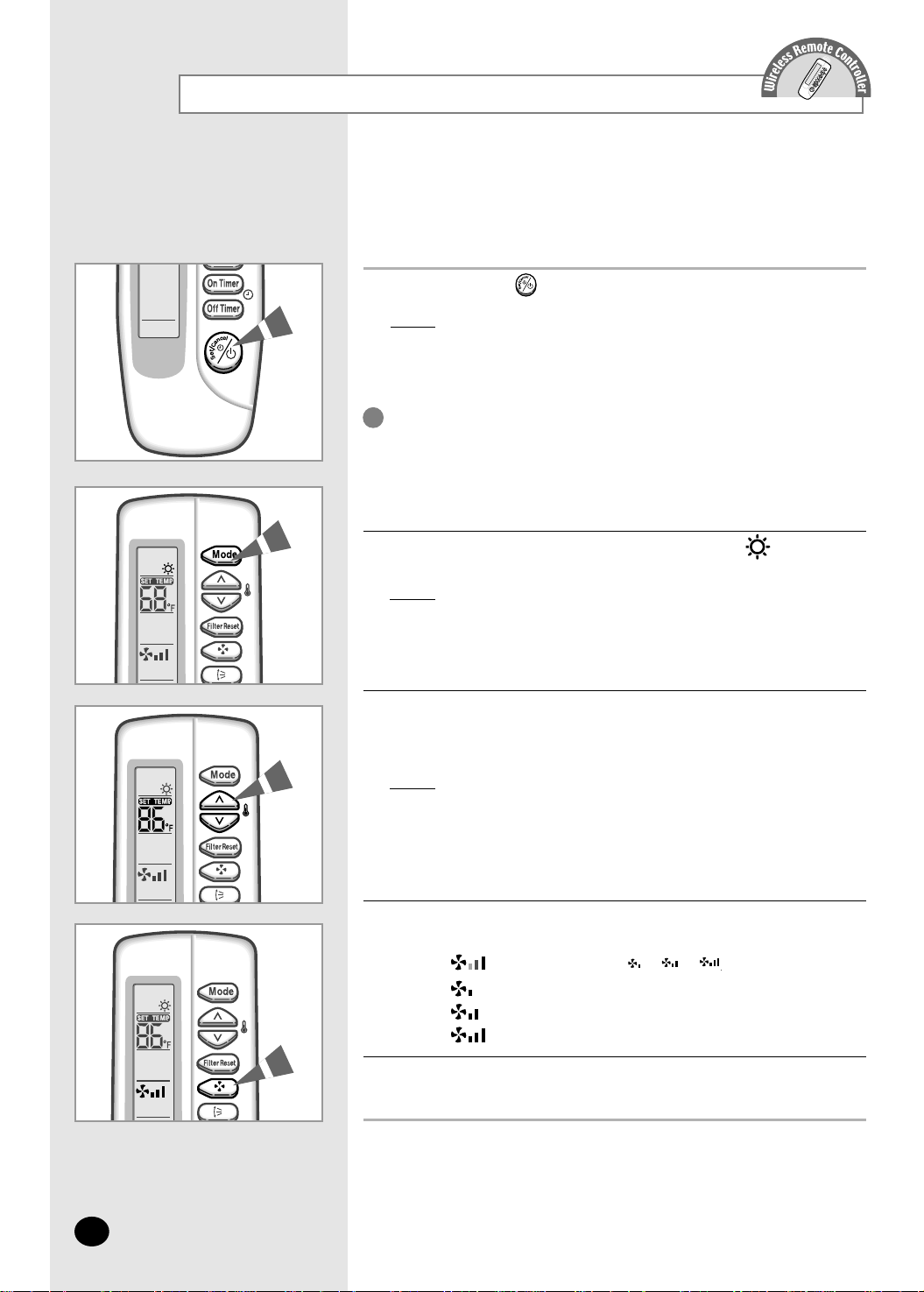

Heating Your Room
(Except Cooling Only Models)
To select the HEAT mode, press the Mode button until is displayed
at the top of the wireless remote controller.
Result:
◆ The indoor unit beeps.
◆ The air conditioner runs in HEATmode.
2
You can change modes at any time.
To adjust the temperature, press the
Temperature
buttons one or more
times until the required temperature is displayed. Possible temperatures
are between 61
O
F and 86OF inclusive.
Result:
◆ Each time you press
Temperature
buttons:
- The temperature is adjusted by 1
O
F.
- The indoor unit beeps.
◆ The air conditioner starts heating, provided that the room
temperature is lower than the selected temperature ; the fan
will, however, operate.
3
You must select the HEAT mode if you wish to adjust the :
◆ Heating temperature
◆ Fan speed when heating
1
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the indoor unit comes on.
◆ The air conditioner runs in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed :
4
To control the direction of the air flow, refer to page 17.
5
NNNNoooottttee
ee
E-14
Automatic(rotated : ➔➔)
Low
Medium
High
You can select the HEAT mode only in heat pump models.
Removing Excess Humidity
To select the DRY mode, press the Mode button until is displayed
at the top of the wireless remote controller.
Result:
◆ The indoor unit beeps.
◆ The air conditioner runs in DRY mode.
2
You can change modes at any time.
To adjust the temperature, press the
Temperature
buttons one or more
times until the required temperature is displayed. Possible temperatures
are between 65
O
F and 86OF inclusive.
Result:
◆ Each time you press
Temperature
buttons:
- The temperature is adjusted by 1
O
F.
- The indoor unit beeps.
◆ The air conditioner starts removing the excess humidity.
The quantity of air is adjusted automatically.
3
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature too
much.
1
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the indoor unit comes on.
◆ The air conditioner runs in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
To control the direction of the air flow, refer to page 17.
4
NNNNoooottttee
ee
In the dry mode, the fan speed is controlled automatically.
NNNNoooottttee
ee
E-15
ENGLISH

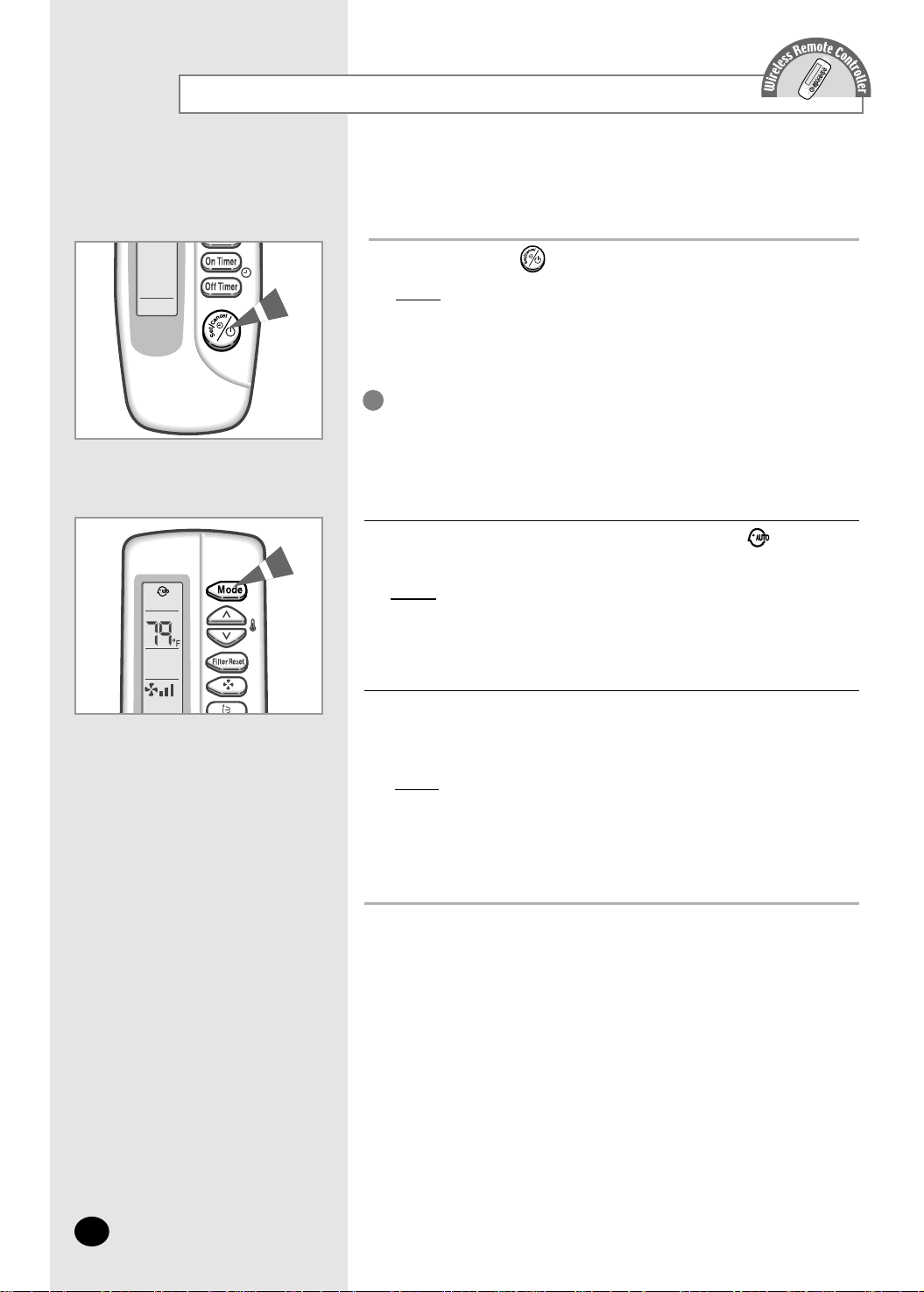

Airing Your Room
If the atmosphere in your room is stale, you can air it using the
FAN feature.
To control the direction of the air flow, refer to page 17.
4
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed:
3
Low
Medium
High
To select the FAN mode, press the Mode button until is displayed at
the top of the wireless remote controller.
Result:
◆ The indoor unit beeps.
Result:
◆ The air conditioner runs in FAN mode.
2
You can change modes at any time.
NNNNoooottttee
ee
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the indoor unit comes on.
◆ The air conditioner runs in the mode selected when
◆ the unit was last used.
◆ The indoor unit beeps.
1
E-16
Adjusting the Air Flow Direction
E-17
ENGLISH
Depending on the position of the indoor unit, you can adjust the position of
the air flow blades, thus increasing the efficiency of the air conditioner.
Press the Swing button.
Result:
◆ The blades are moving between up and down.
Result:
◆ The indoor unit beeps.
1
To stop the blades, press the Swing button again.
To set to the required position, press the Swing button again when the
blades are in the required position.
2
When the air conditioner is first turned on, the blades are moved.
IMPORTANT
Setting the On Timer
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from 30 minutes
to 24 hours.
To set the operating time, press the On Timer button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hour inclusive.
Result:
◆ Each time you press On Timer button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
1
Press the (Set/Cancel) button to complete the setting.
Result:
◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature disappear on the
display after 5 seconds.
◆ The air conditioner will switch on automatically when the
counter displayed on the remote controller reaches the
setting time as disappearing the On timer setting.
2
You can see or change the setting mode and/or the temperature
by pressing the Mode button or the Temperature buttons after
setting the On timer.
NNNNoooottttee
ee
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NNNNoooottttee
ee
To cancel the On Timer, press the On Timer button one or more times
until the timer setting disappears.
1
Press the (Set/Cancel) button.
2
To Cancel the On Timer
E-18

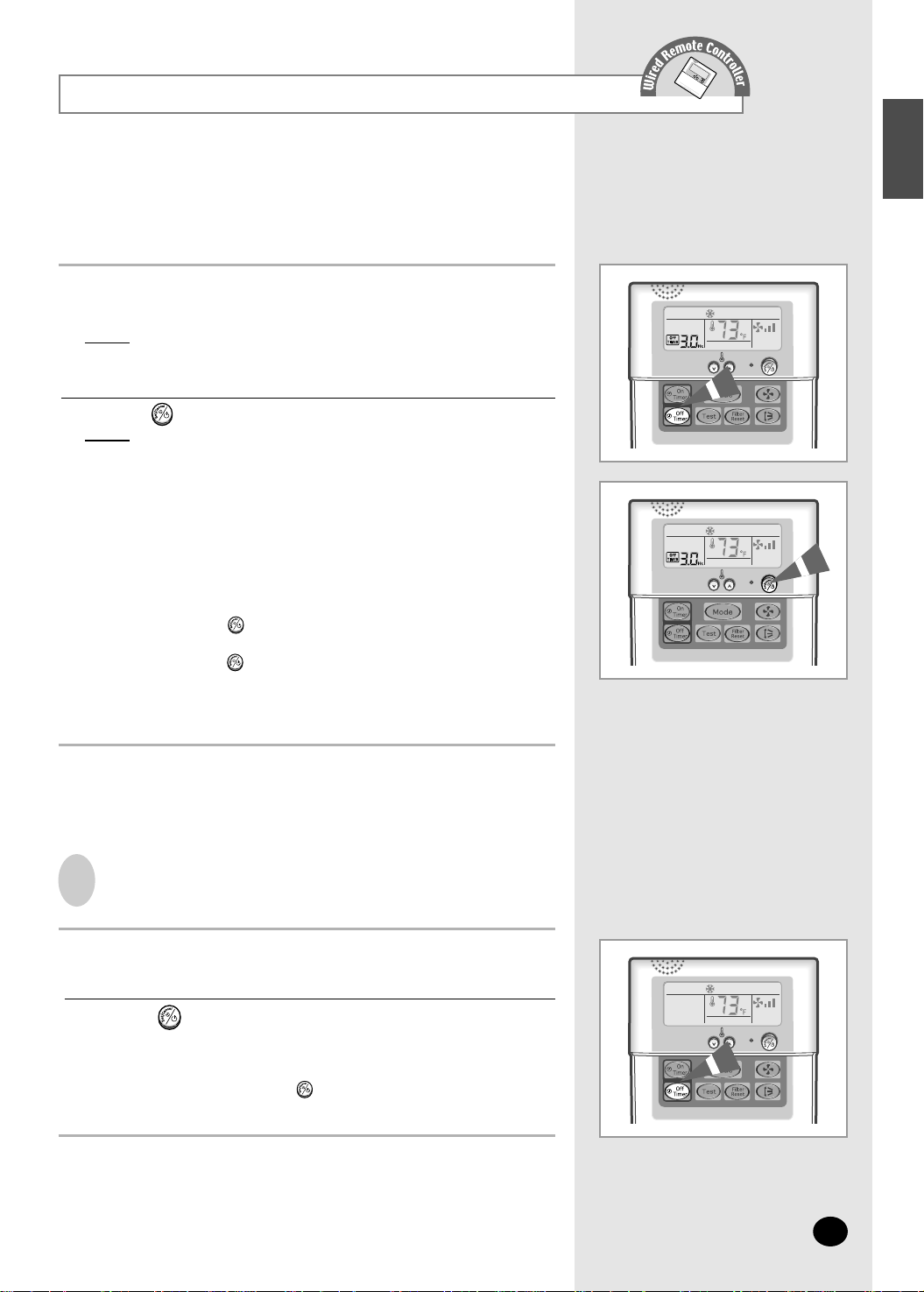

Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from 30 minutes
to 24 hours.
To set the operating time, press the Off Timer button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hour inclusive.
Result:
◆ Each time you press Off Timer button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
1
You can see or change the setting mode and/or the temperature
by pressing the Mode button or the Temperature buttons after
setting the Off timer.
NNNNoooottttee
ee
Press the (Set/Cancel) button to complete the setting.
Result:
◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature disappear on the
display after 5 seconds.
◆ The air conditioner will switch off automatically when the
counter displayed on the remote controller reaches the
setting time as disappearing the Off timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the On Timer button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the Off Timer button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EEEExxxxaaaammmmppppllllee
ee
To cancel the Off Timer, press the Off Timer button one or more times
until the timer setting disappears.
1
Press the (Set/Cancel) button.
2
If you want to turn off the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NNNNoooottttee
ee
To Cancel the Off Timer
E-19
ENGLISH
This chapter indicates how to operate and program
your air conditioner with the wired remote controller.
The wired remote controller is an optional accessory.
UU
UUssssiiiinnnngggg
WW
WWiiiirrrreeeedddd
RR
RReeee
mm
mmooootttteeee
CC
CCoooonnnnttttrrrroooolllllllleeeerrrr
E-20
In the Automatic mode, the room temperature and the fan speed are
controlled automatically.
1
To select the AUTO mode, press the Mode button until is displayed
at the top of the wired remote controller.
Result:
: ◆ The air conditioner runs in AUTO mode.
2
You can change modes at any time.
If necessary, press (ON/OFF) button.
Result:
: ◆ The On/Off indicator on the wired remote controller comes on.
◆ The air conditioner runs in the mode selected when
◆ the unit was last used.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
NNNNoooottttee
ee
Selecting the Automatic Operating Mode
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are
between 65
O
F and 86OF inclusive.
Result:
◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
F.
◆ The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature.
The quantity of air is adjusted automatically.
3
E-21
ENGLISH
Cooling Your Room
You must select the COOL mode if you wish to adjust the :
◆ Cooling temperature
◆ Fan speed when cooling
1
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the wired remote controller comes on.
◆ The air conditioner runs in the mode selected when
◆ the unit was last used.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
To select the COOL mode, press the Mode button until is displayed at
the top of the wired remote controller.
Result:
◆ The air conditioner runs in COOL mode.
2
You can change modes at any time.
NNNNoooottttee
ee
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are between
65
O
F and 86OF inclusive.
Result:
◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
F.
◆ The air conditioner starts cooling, provided that the room
◆ temperature is higher than the selected temperature ;
◆ the fan will, however, operate.
3
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed :
4
To control the direction of the air flow, refer to page 25.
5
E-22
Automatic(rotated : ➔➔)
Low
Medium
High
Heating Your Room
(Except Cooling Only Models)
You must select the HEAT mode if you wish to adjust the :
◆ Heating temperature
◆ Fan speed when heating
1
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the wired remote controller comes on.
◆ The air conditioner runs in the mode selected when
◆ the unit was last used.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
To select the HEAT mode, press the Mode button until is displayed at the
top of the wired remote controller.
Result:
◆ The air conditioner runs in HEATmode.
2
You can change modes at any time.
NNNNoooottttee
ee
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are between
61
O
F and 86OF inclusive.
Result:
◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
F.
◆ The air conditioner starts heating, provided that the room
◆ temperature is lower than the selected temperature ;
◆ the fan will, however, operate.
3
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed :
4
To control the direction of the air flow, refer to page 25.
5
E-23
ENGLISH
Automatic(rotated : ➔➔)
Low
Medium
High
You can select the HEAT mode only in heat pump models.
Removing Excess Humidity
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature
too much.
1
To select the DRY mode, press the Mode button until is displayed at
the top of the wired remote controller.
Result:
◆ The air conditioner runs in DRY mode.
2
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
It will start up normally after three minutes.
You can change modes at any time.
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the wired remote controller comes on.
◆ The air conditioner runs in the mode selected when
◆ the unit was last used.
IMPORTANT
NNNNoooottttee
ee
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are
between 65
O
F and 86OF inclusive.
Result:
◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
F.
◆ The air conditioner starts removing the excess humidity.
The quantity of air is adjusted automatically.
3
In the dry mode, the fan speed is controlled automatically.
NNNNoooottttee
ee
To control the direction of the air flow, refer to page 25.
4
E-24
Airing Your Room
If the atmosphere in your room is stale, you can air it using the
FAN feature.
If necessary, press (ON/OFF) button.
Result:
◆ The On/Off indicator on the wired remote controller comes on.
◆ The air conditioner runs in the mode selected when the unit
was last used.
1
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed:
3
To control the direction of the air flow, refer to below.
4
Low
Medium
High
To select the FAN mode, press the Mode button until is displayed at
the top of the wired remote controller.
Result:
◆ The air conditioner runs in FAN mode.
2
E-25
ENGLISH
Adjusting the Air Flow Direction
Depending on the position of the indoor unit, you can adjust the position of
the air flow blades, thus increasing the efficiency of the air conditioner.
Press the Swing button.
Result:
The blades are moving between up and down.
1
To stop the blades, press the Swing button again.
To set to the required position, press the Swing button again
when the blades are in the required position.
2
When the air conditioner is first turned on, the blades are
moved.
IMPORTANT
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time
from 30 minutes to 24 hours.
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NNNNoooottttee
ee
To set the operating time, press the On Timer button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hours inclusive.
Result:
◆ Each time you press On Timer button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour
from 6 hours to 24 hours.
1
To cancel the On Timer, press the On Timer button one or more times
until the On timer setting disappears.
1
Press the (Set/Cancel) button to complete the setting.
Result:
◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature disappear on the
display after 5 seconds.
◆ The air conditioner will switch on automatically when the
counter displayed on the remote controller reaches the
setting time as disappearing the On timer setting.
2
Press the (Set/Cancel) button.
2
To Cancel the On Timer
You can see or change the setting mode and/or the temperature
by pressing the Mode button or the
Temperature
buttons after
setting the On timer.
NNNNoooottttee
ee
Setting the On Timer
E-26
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time
from 30 minutes to 24 hours.
To cancel the Off Timer, press the Off Timer button one or more times
until the timer setting disappears.
1
Press the (Set/Cancel) button.
2
To set the operating time, press the Off Timer button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hour inclusive.
Result:
◆ Each time you press Off Timer button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour
from 6 hours to 24 hours.
1
If you want to turn off the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NNNNoooottttee
ee
You can see or change the setting mode and/or the temperature
by pressing the Mode button or the
Temperature
buttons after
setting the Off timer.
NNNNoooottttee
ee
Press the (Set/Cancel) button to complete the setting.
Result:
◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature disappear on the
display after 5 seconds.
◆ The air conditioner will switch off automatically when the
counter displayed on the remote controller reaches the
setting time as disappearing the Off timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the On Timer button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the Off Timer button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EEEExxxxaaaammmmppppllllee
ee
To Cancel the Off Timer
Setting the Off Timer
E-27
ENGLISH
Using the Centralized Controller
The centralized controller is an optional accessory.
Up to sixteen air conditioners can be turned on or off by connecting to the
centralized controller. However, you cannot adjust the cooling temperature or
set the timer with it. If you also have the wired remote controller,
CENTRALIZED CONTROL is displayed at the top of the remote controller.
To turn on the all of air conditioners connected to the centralized controller,
press the (All ON) button.
1
To turn on/off a specific air conditioner, press the (ON/OFF) button.
Result:
◆ The On/Off indicator comes on when the air conditioner is
operating.
2
To turn off the all of air conditioners connected to the centralized controller,
press the (All OFF) button.
3
E-28
Operating Recommendations
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from
outside air and brings it indoors. As the temperature of the
outside
air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about ten
minutes.
No intervention is required ; after about ten minutes, the air
conditioner operates again normally.
Frost
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure
E-29
ENGLISH
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at...
Then...
The automatic protection feature may be
triggered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
High humidity levels
❇ If the heating operation is used at below 32°F(outdoor temperature)
then, it does not heat at its full capacity.
If the cooling operation is used at over 91°F(indoor temperature) then,
it does not cool at its full capacity.
Mode
Outdoor Temperature Indoor Temperature
Indoor Humidity
Heating
Cooling
Drying
- 4°F to 75°F approx.
23°F to 109°F approx.
23°F to 109°F approx.
81°F or less
70°F to 90°F approx.
65°F to 90°F approx.
-
80% or less
-
E-30
Cleaning Your Air Conditioner
E-31
ENGLISH
To get the best possible use out of your air conditioner, you must clean
it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
Open the front grille by pushing the tabs on the grille.
1
Remove the front grille.
2-1 Remove the safety clips.
2-2 Open the front grille about 45° and pull it forward.
2
Pull out the air filter.
3
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
4
Dry the air filter.
5
When you have finished, insert the filter into the front grille.
6
Clean the unit with a vacuum cleaner or a brush once a month.
7
Reinstall the front grille and the safety clips.
8
IMPORTANT
You must give attention when disassembling the front grille
and must check the safety clips have been installed.
If you do not check them, the front grille will drop suddenly
and you will be hurt.
IMPORTANT
After cleaning the air conditioner, press the Filter Reset button.
NNNNoooottttee
ee
When you have installed the Bio-Pure filter, do not allow any
liquids to contact the filter. It may lose its properties.
NNNNoooottttee
ee
You can use all 4 points of the indoor unit for installing the front
grille and the safety clips depending on your requirement.
NNNNoooottttee
ee
Wired Remote Controller Wireless Remote Controller
Safety Clip
E-32
Bio-Pure Filter Installation (Optional)
Open the front grille by pulling the tabs on the grille.
2
Remove the front grille.
3-1 Remove the safety clips.
3-2 Open the front grille about 45° and pull it forward.
3
Pull out the air filter.
4
Locate the bio-pure filter on the center of air filter.
5
Secure the bio-pure filter with four screws.
6
Reinstall the air filter, the front grille and the safety clips.
7
Do not remove the packing from a bio-pure filter until you wish
to use the filter, as it will lose its properties.
NNNNoooottttee
ee
The air conditioner can be fitted with a Bio-Pure filter to remove minute dust
particles. The service life of the filter is approximately three months depending
on the time during which the air conditioner is used.
Remove the vinyl packing from the filter.
1
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
◆ Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆ Check that there are no obstacles between you and the remote
control sensor.
◆ Check the wireless remote controller batteries (Refer to page 10).
◆ Check that you are close enough to the remote control sensor.
(seven metres/yards or less).
◆ Check that you are pointing the remote controller at the remote
control sensor on the indoor unit.
◆ Replace the remote controller batteries if necessary.
◆ If there is a strong light around the air conditioner, a
three-wavelength light, a neon sign, etc., for example,
the air conditioner may not be operated with a remote controller.
If this happens, use the remote controller close by the remote
control sensor.
◆ Check that the correct operating mode has been selected.
◆ The room temperature may be too low or too high.
◆ Dust may be blocking the air filter guard; refer to page 31
for cleaning instructions.
◆ Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
Wireless Remote Controller
Wireless Remote Controller
No beep is heard when you
press (ON/OFF) on the
remote controller
The air conditioner does
not cool or heat
◆
is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wired Remote Controller
The air conditioner does not
operate with the remote
controller
◆ In case of
using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wired Remote Controller
When turning on/off the
air conditioner, it is not
turned on/off immediately.
◆ Check that the required temperature has been set correctly.
◆ Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
E-33
ENGLISH
Solving Common Problems
E-34
Technical Specifications
Power Supply
Model
1Ø, 208-230V~, 60Hz
AFPCC052CA0
E-35
ENGLISH
Memo
ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
Printed in Korea
Loading...
