Samsung AC***MNADKH, AC***MNTDEH, AC777MNADCH, AC777MNTDCH User Manual

Air conditioner
User manual
ACMNADKH / ACMNTDEH
• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this user manual carefully and retain it for future reference.
2
Contents
Safety Information 4
Safety Information 4
At a Glance 12
Indoor Unit Overview 12
Remote Control Overview
14
Replacing batteries Storing the remote control
Basic Operation 16
Operation Modes 16
Auto Cool Dry Fan Heat Turning the air conditioner on Selecting the operation mode Adjusting the temperature Selecting the fan speed Selecting air flow direction
Advanced Operation 20
Setting the On or Off timer 20
Setting the On timer Setting the Off timer
Setting the good’sleep Function 22
Using the good’sleep Function
23
Using the T
urbo Function
24
Using the Purity F
unction
25
C
ontrolling Indoor Units
27
3
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html
Cleaning and Maintenance 28
Cleaning the Air Conditioner 28
Cleaning the exterior Cleaning the filter
Maintaining the Air Conditioner 31
Appendix 33
Troubleshooting 33
Operation Ranges 37
Technical specifications 38
4
Safety Information
Safety Information
Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new appliance.
Because the following operating instructions cover various models, the characteristics of your air conditioner may differ slightly from those described in this manual. If you have any questions, call your nearest contact centre or find help and information online at www. samsung.com.
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions. Do NOT attempt. Make sure the machine is grounded to prevent electric shock. Cut off the power supply. Do NOT disassemble.
FOR INSTALLATION
WARNING
Use a power cord with this product's power specifications
or higher and use the power cord for this appliance only. In addition, do not use an extension cord.
• Extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. This may result in electric
shock or fire.
• If the voltage/frequency/rated current condition is different, it may cause fire.
The installation of this appliance must be performed by a
5
Safety Information
qualified technician or service company.
• Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury and may also void warranty on the installed product.
Install an Isolation Switch next to the Air Conditioner (but
not on the panels of the Air Conditioner) and circuit breaker dedicated to the air conditioner.
• Failing to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor unit is not exposed.
• Failing to do so may result in electric shock, fire, explosion, or problems with the product.
Do not install this appliance near a heater, or inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (or rain). Do not install this appliance in a location where gas may leak.
• This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high
external wall where it could fall.
• If the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the
appliance to a gas pipe, plastic water pipe, or telephone line.
• Failing to do so may result in electric shock, fire, and explosion.
• Make sure to use a socket-outlet with ground.
CAUTION
Please cover the air conditioner with PE BAG after installation,
and remove it when you start to run air conditioner.
6
Safety Information
Install your appliance on a level and hard floor that can
support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Install the drain hose properly so that water drains correctly.
• Failing to do so may result in water overflowing and property damage. Avoid adding drain to waste pipes as odours may arise in the future.
When installing the outdoor unit, make sure to connect the
drain hose so that draining is performed correctly.
• The water generated during heating by the outdoor unit may overflow and result in property damage. In particular, in winter, if a block of ice falls, it may result in injury, death or property damage.
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest
service centre.
Do not pull or excessively bend the power line. Do not twist
or tie the power line. Do not hook the power line over a metal object, place a heavy object on the power line, insert the power line between objects, or push the power line into the space behind the appliance.
• This may result in electric shock or fire.
CAUTION
When not using the air conditioner for a long period of time or
during a thunder/lightning storm, cut the power at the circuit breaker.
• Failing to do so may result in electric shock or fire.
Safety Information
7
Safety Information
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service
centre.
• Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or
smoke, cut off the power supply immediately and contact the nearest service centre.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.),
ventilate immediately without touching the power line. Do not touch the appliance or power line.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest
service centre.
• Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
• Delivery service for the product is not provided. If you reinstall the product in another location, additional construction expenses and an installation fee will be charged.
• Especially, when you wish to install the product in an unusual location such as in an industrial area or near the seaside where it is exposed to salt in the air, please contact your nearest service centre.
• In the event of a service issue, please refer to the troubleshooting guide of the relevant supporting technical manuals. It is recommended that a skilled service technician be contacted for support. Should urgent support be required then, using the information provided, contact the local
8
Safety Information
Samsung office via email or telephone so that support can be initiated via our approved service centres (ASC'S) within 24hrs.
Do not touch the circuit breaker with wet hands.
• This may result in electric shock.
Do not turn the air conditioner off with the circuit breaker
while it is operating.
• Turning the air conditioner off and then on again with the circuit breaker may cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging
materials well out of the reach of children, as packaging materials can be dangerous to children.
• If a child places a bag over its head, it may result in suffocation.
Do not touch the air flow blade with your hands or fingers
during heating.
• This may result in electric shock or burns.
Do not insert your fingers or foreign substances into the air
inlet/outlet of the air conditioner.
• Take special care that children do not injure themselves by inserting their fingers into the product.
Do not strike or pull the air conditioner with excessive force.
• This may result in fire, injury, or problems with the product.
Do not place an object near the outdoor unit that allows
children to climb onto the machine.
• This may result in children seriously injuring themselves.
Do not use this air conditioner for long periods of time in badly
ventilated locations or near infirm people.
Safety Information
9
Safety Information
• Since this may be dangerous due to a lack of oxygen, open a window at least once an hour.
If any foreign substance such as water has entered the
appliance, cut off the power supply and contact the nearest service centre.
• Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance
yourself.
• Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
• Failing to do so may result in electric shock, fire, problems with the product, or injury.
CAUTION
Do not place objects or devices under the indoor unit.
• Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not
broken at least once a year.
• Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety
and current is measured according to ISO standard for energy efficiency.
Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
10
Safety Information
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the
surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
Do not drink the water from the air conditioner.
• The water may be harmful to humans.
Do not apply a strong impact to the remote control and do not
disassemble the remote control.
Do not touch the pipes connected with the product.
• This may result in burns or injury.
Do not use this air conditioner to preserve precision
equipment, food, animals, plants or cosmetics, or for any other unusual purposes.
• This may result in property damage.
Avoid directly exposing humans, animals or plants to the air
flow from the air conditioner for long periods of time.
• This may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, without supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
For use in Europe : This appliance can be used by children aged
from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
Safety Information
11
Safety Information
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, cut off the power
supply and wait until the fan stops.
• Failing to do so may result in electric shock or fire.
CAUTION
Take care when cleaning the surface of the heat exchanger of
the outdoor unit since it has sharp edges.
• This should be done by a qualified technician. Please contact your installer or service centre.
Do not clean the inside of the air conditioner by yourself.
• For cleaning inside the appliance, contact your nearest service centre.
• When cleaning the filter, refer to the descriptions in the ‘Cleaning at a Glance’ section.
• Failing to do so may result in damage, electric shock or fire.
12 English
At a Glance
The actual product may differ slightly from the image depicted below.
Indoor Unit Overview
ACMNADKH
Main parts
Air  lter
Air  ow blade
(up and down)
Air  ow blade (left and right)
Air intake
Room temperature sensor
Display
Power button/
Remote controller receiver
Turbo indicator
Timer/Auto clean indicator
Power indicator
13English
At a Glance
ACMNTDEH
Main parts
Air  lter
(under the panel)
Air  ow blade
(up and down)
Blade pin lever
Air intake
Air  ow blade (left and right)
Air intake
Room temperature sensor
Display
Turbo indicator
Timer/Auto clean indicator
Power indicator
Power button
Remote controller receiver
14 English
At a Glance
Remote Control Overview
01
05
06
07
08
09
16
17
18
20
21
02
03
04
11
12
13
19
14
15
10
01 Set temperature indicator 02 Timer option indicator 03 Operation mode indicator 04 Options indicator 05 Low battery indicator 06 Transmit indicator
07 Fan speed indicator 08 Vertcal air swing indicator 09 Horizontal air swing indicator
NOTE
• This function is not available in this model.
10 Settings indicator 11 Power button 12 Temperature button 13 Options button 14 Timer button 15 Direction button/Selection button 16 Vertical air swing button 17 Mode button 18 Fan speed button 19 Horizontal air swing button
NOTE
• This function is not available in this model.
20 Settings button 21 SET button
NOTE
• The air conditioner may not be operated by the remote control if the controller is placed close to strong light such as a fluorescent lamp or neon sign. In this case, use the remote control right in front of the remote control receiver of the indoor unit.
• If other electrical products are operated by the remote control, call your nearest service center.
• To silence the beep sound, press the Settings <, > or Settings (Beep) blinking SET button. When you press the Settings <, > or Settings (Beep) blinking SET button again, the beep sound will be active again.
15English
At a Glance
Replacing batteries
When the icon appears in the remote control display, replace the batteries with new ones. Two
1.5V AAA type batteries are required.
two 1.5V AAA type batteries
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
Storing the remote control
If the remote control will not be used for an extended period of time, store it in the remote control holder with the batteries removed.
CAUTION
• Make sure that water does not come into the remote control.
16 English
Basic Operation
Auto
In Auto mode, the air conditioner will automatically adjust the temperature and fan speed to maintain your fresh environment.
• When the indoor temperature is too high, the powerful cool breeze is generated and when the indoor room becomes cool enough, the soft breeze is generated.
Cool
The Cool mode is frequently used and you can freely control the temperature, fan speed, and air flow direction in Cool mode.
• When you select the Heat mode while the Cool mode is on, the Cool mode is cancelled.
Dry
The air conditioner in Dry mode acts like a dehumidifier by removing moisture from the indoor air. The Dry mode will provide you with fresh air even on a rainy day.
Fan
The Fan mode provides you with a breeze just like a fan to make fresh environment for you.
Operation Modes
17English
Basic Operation
Heat
In Heat mode, you can warm your room even in fall and winter.
• The fan may not commence immediately to avoid generating a cold breeze.
• In Heat mode, defrost operation may be performed to remove the frost formed on the outdoor unit. (When the frost is removed by the defrost operation in Heat mode, steam is generated from the outdoor unit.)
• If you stop operating the air conditioner after heating operation, the fan will operate for some time to cool the indoor unit.
• When you select the Cool mode while the Heat mode is on, the Heat mode is cancelled.
NOTE
• When the outdoor temperature is relatively low and the humidity is relatively high in Heat mode, the outdoor unit's heating capacity may decrease due to the frost formed on the outdoor heat exchanger. The defrost operation removes the frost formed on the heat exchanger of the outdoor unit for 5 to 12 minutes. During the defrost operation, the indoor unit does not generate breeze in order to prevent cold breeze blowing out.
– The interval between defrost operations can decrease
depending on the amount of the frost formed on the outdoor unit.
– The interval between defrost operations can also decrease
depending on the humidity level in the air.
18 English
Basic Operation
Turning the air conditioner on
Press the button to operate the air conditioner.
Selecting the operation mode
Press the button to select an operation mode.
Adjusting the temperature
Press the button to adjust the temperature.
Mode Temperature control
Auto/Cool/
Dry
Adjust by 1 °C between 18 °C and 30 °C.
Heat Adjust by 1 °C between 16 °C and 30 °C.
Fan
Temperature cannot be adjusted.
Selecting the fan speed
Press the button to adjust the fan speed.
Mode Available fan speeds
Auto/Dry
(Auto)
Cool/Heat
(Auto), (Low), (Med), (High)
Fan
(Low), (Med), (High)
Operation Modes
19English
Basic Operation
Selecting air flow direction
Keep the air flow in a constant direction by stopping the movements of the vertical and horizontal air flow blades.
In operation
NOTE
• If you adjust the vertical air flow blade manually, it may not close completely when you turn off the air conditioner.
Horizontal air flow (manual)
Keep the horizontal air flow in a constant direction by changing the directions of the horizontal air flow blades manually.
NOTE
• Although you press the
button, this function does not
work.
CAUTION
• To prevent personal injury, make sure that you change the directions of the horizontal air flow blades after stopping the movements of the vertical air flow blade.
Remote control display
20 English
Advanced Operation
Setting the On timer
When the air conditioner is turned off:
1. Press the
button to select (On).
• The (On) indicator will keep blinking and you can set the time.
2. Press the or button to set the time.
• You can set the time in half hour intervals from 30minutes (0.5 on the display) to 3in hour intervals from 3 to 24 hours.
• The time can be set from minimum 30 minutes to maximum 24hours.
3. Press the button to complete the On timer setting.
• The (On) indicator and the set time of the timer will be displayed on the remote control display.
• On timer setting will be cancelled if you don't press the
button within 10seconds after setting the time.
Therefore, check for the (On) indicator on the remote control display.
Cancel
Press the
button select (On) press
the or button set the timer to
press the button
Remote control display
Additional options available in the On timer
Select the mode in the following order: (Auto) (Cool) (Dry) (Fan) and (Heat).
You can adjust the temperature after timer setting is completed. Temperature adjustment is only available in Auto, Cool, Dry, and Heat modes. In Fan
mode, the temperature cannot be adjusted.
NOTE
• When On timer setting is completed, the setting will be displayed for 3 seconds, and then only the (On) indicator will remain on the remote control display.
• You cannot set the Fan speed when setting the On timer.
The actual product may differ slightly from the image depicted below.
Setting the On or Off timer
21English
Advanced Operation
Setting the Off timer
When the air conditioner is turned on:
1. Press the
button to select (Off).
• The (Off) indicator will keep blinking and you can set the time.
2. Press the or button to set the time.
• You can set the time in half hour intervals from 30minutes (0.5 on the display) to 3 hours and in hour intervals from 3 to 24 hours.
• The time can be set from minimum 30 minutes to maximum 24 hours.
3. Press the button to complete the Off timer setting.
• The (Off) indicator and the set time of the timer will be displayed on the remote control display.
• Off timer setting will be cancelled if you don't press the
button within 10seconds after setting the time.
Therefore, check for the (Off) indicator on the remote control display.
Cancel
Press the
button select (Off) press
the
or button set the timer to
press the button
NOTE
• Only the latest timer setting will be applied between the Off timer and good’ sleep off timer functions.
Remote control display
Combining On timer and Off timer
When the air conditioner is turned off When the air conditioner is turned on
When the set time on On timer is less than that on Off timer
e.g. On timer: 3hours, Off timer: 5hours
• The air conditioner will be turned on after 3hours from the moment you have set the timer and the air conditioner will remain on for 2hours and then be turned off automatically.
When the set time on On timer is greater than that on Off timer
e.g. On timer: 3hours, Off timer: 1hour
• The air conditioner will be turned off after 1hour from the moment you have set the timer and will be automatically turned on after 2hours from the moment it was turned off.
NOTE
• The set times for the On timer and the Off timer should be different from each other.
• After the On timer or the Off timer is set, the setting can be cancelled by pressing the
button.
22 English
Advanced Operation
When the air conditioner is operating in Cool mode;
1. Press the
button to select .
• The ( ) indicator will keep blinking and you can set the time.
2. Press the or button to set the time.
• You can set the time in half hour intervals from 30minutes (0.5 on the display) to 3 hours and in hour intervals from 3 to 12 hours.
• The time can be set from minimum 30minutes to maximum 12hours.
• The default time value for the good'sleep mode is 8hours.
3. Press the button to complete the good'sleep mode setting.
• The ( ) indicator and the set time of the good'sleep
mode will be displayed on the remote control display.
• The good'sleep mode will be cancelled if you don't press
the
button within 10seconds after setting the time.
Therefore, check for the ( ) indicator on the remote control display.
Cancel
Press the
button select ( ) press
the or button set the timer to press the button
Remote control display
Additional options available in good'sleep mode
The temperature can be adjusted by 1°C (1°F) within the range of 18°C (65°F) to 30°C (86°F).
Setting the good’sleep mode
23
Advanced Operation
• Fall asleep mode: Provides you with comfortable environment for a good sleep by rapid cooling and hypnagogue expedition breeze.
• Sound sleep mode: The sound sleep mode adjusts temperature and air flow in waves to maintain healthy skin temperature while it aids deep sleep. According to the change of good’ sleep operation hours, the sound sleep hour can increase or decrease.
• Wake up from good’sleep mode: Provides you with the air flow that adjusts your body temperature to wake you up in a fresh status.
NOTE
• In good'sleep mode, the air conditioner will operate in Cool + (
) mode for first 30 minutes.
The fan speed and air flow direction will be adjusted automatically in good'sleep mode.
• Recommended set temperature is between25 °C (77°F) and 27°C (81°F) and the value 26 °C (79 °F) is the most ideal temperature.
• If the set temperature is too low, you may feel cold while sleeping or catch a cold.
• Optimal operation time in good'sleep mode is 8 hours. Therefore, if the time is set too short
or long, you may not feel as comfortable as you want.
• If the good'sleep mode is set over 5 hours, The Wake up stage will begin when 1 hour is remaining in the operation time and the air conditioner will stop automatically.
• When the On timer and the good'sleep mode are set simultaneously, the air conditioner will only apply the function that was set later.
• While the good'sleep mode is operating, the
mode can be set additionally by pressing the
button.
• If you press the
button and select the Turbo/Quiet function, the good'sleep mode will be
cancelled and the selected mode will begin operation.
• If you press the
button, the good'sleep mode will be cancelled and the selected mode wi
ll
begin operation.
For a comfortable sleep, the air conditioner will operate in order of ‘Fall asleep Sound sleep Wake up’ stages.
Using the good’sleep Function
24 English
Advanced Operation
When the air conditioner is operating in Cool mode;
1. Press the
button.
2. Press the
, or button until the (Turbo)
indicator starts blinking.
3. Press the
button to set the Turbo function.
• The (Turbo) indicator will be displayed on the remote control display and Turbo function will operate for 30 minutes.
Cancel
Press the
button press the , or
to make the (Turbo) indicator blink and press
the
button.
NOTE
• Turbo function is available in Cool or Heat mode.
• If the Turbo function is selected while the Quiet function is
on, the Quiet function will be cancelled.
• The temperature and fan speed cannot be adjusted.
Remote control display
Using the Turbo Function
You can set the Turbo function to provide fast and powerful cooling.
25English
Advanced Operation
When the air conditioner is turned on
1. Press the
button.
2. Press the
, or button until the
( )
indicator starts blinking.
3. Press the
button to set the Purity function.
• (
) ( ) indicator will be displayed on the remote
controller display and Virus Doctor function will begin.
Cancel
Press the
button press the , or
to make the
( ) i
indicator blink and press
the button.
NOTE
• You may select the purity function additionally during Auto/ Cool/Dry/Heat mode and you can adjust the temperature.
• If the purity function is selected additionally in fan mode, the temperature cannot be adjusted.
• When the air conditioner and the purity function are turned on simultaneously and you press the Power button, both air conditioner and purity function will stop operation.
• You can still use the purity function when the On timer is set with the air conditioner is turned off.
• There will not be much difference on energy consumption and operating noise when the purity function is selected additionally while the air conditioner is turned on.
Remote control display
Purity function will remove harmful materials in the air to provide you clean and healthy environment. You can select this function additionally while the air conditioner is in operation.
Using the Purity function
26 English
Advanced Operation
When the air conditioner is turned off
1. Press the
button.
2. Press the
button when ( ) indicator blinks to begin
purity function.
• (
) ( ) indicator will be displayed on the remote
controller display and Virus Doctor function will begin.
Cancel
Press the
button to make the ( ) indicator
blink and press the button.
Remote control display
Using the Purity function
27English
Advanced Operation
When the air conditioner is turned on:
1. Press the
button.
2. Press the
, or button until the (Zone)
indicator starts blinking.
3. Press the
button to select the indoor unit to operate.
• You can select individual units in order of 1 to 4 or select
all indoor units at one time.
Remote control display
You can individually select and operate indoor units among 4 indoor units.
Controlling Indoor Units
28 English
Clea ning and Maintenance
CAUTION
Before cleaning, be sure to turn off the equipment and disconnect the power plug.
Cleaning the exterior
ACMNADKH
Wipe the surface of the unit with a slightly wet or dry cloth when needed. Wipe off dirt from oddshaped areas by using a soft brush.
CAUTION
Do not clean the display by using alkaline detergent.
Do not use sulphuric acid, hydrochloric acid, or organic solvents (such as thinner, kerosene, and acetone) to clean the surfaces. Do not put any stickers on it as this can damage the surface of the air conditioner.
ACMNTDEH
Cleaning the Air Conditioner
Soft brush
Tepid damp cloth
29English
Clea ning and Maintenance

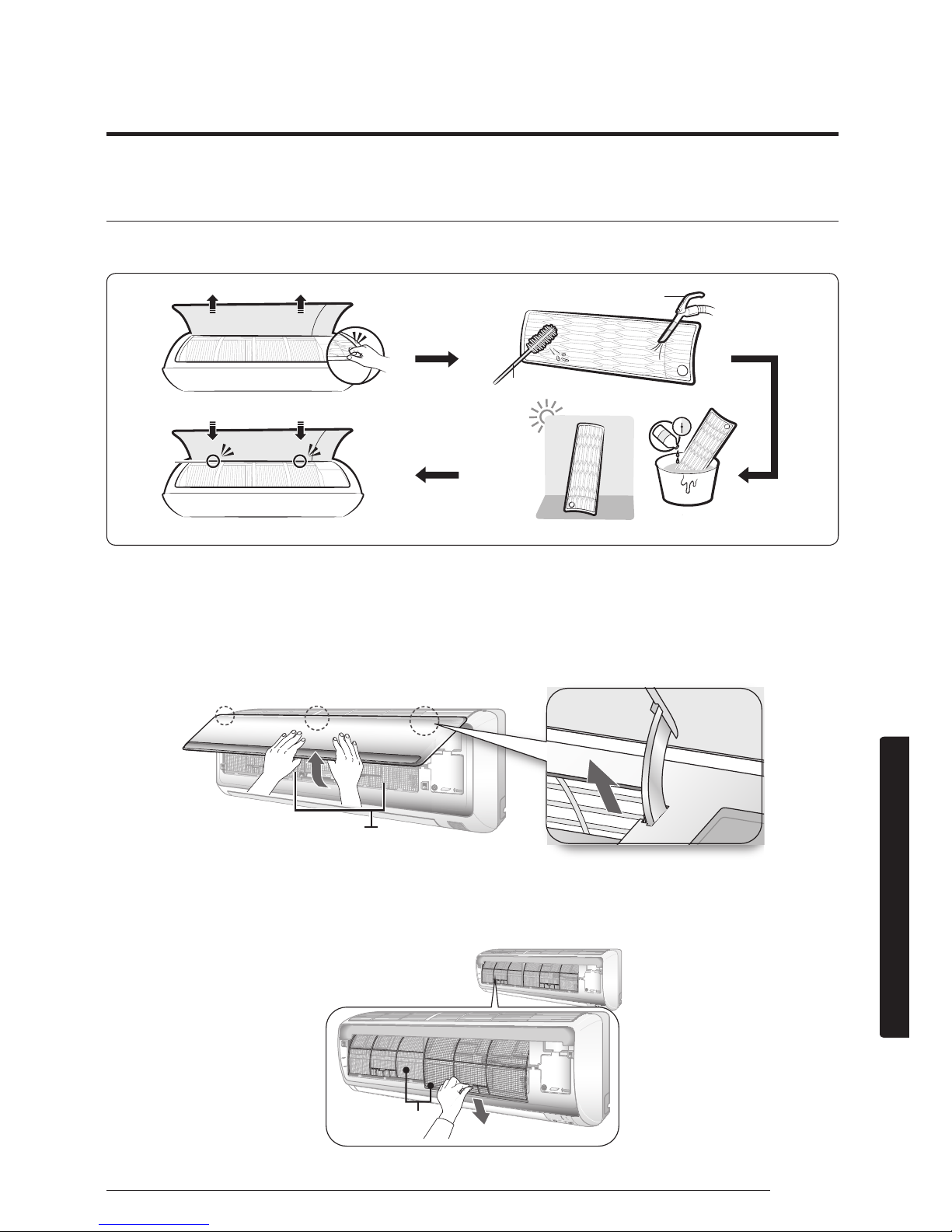

Cleaning the filter
ACMNADKH
ACMNTDEH
1. Opening the panel
Tightly grab top of the front panel and pull it down to open. Then slightly lift the panel up.
Air  lter
2. Removing the Air  lter
Grab the handle and lift it up. Then pull the Air  lter towards you and slide it down.
Air filter
Air  lter
Vacuum cleaner
Soft brush
30 minutes
Mild detergent
Hooks
30 English
Clea ning and Maintenance
3. Cleaning the air  lter
Washable foam based air  lter captures large particles from the air. The  lter is cleaned with a vacuum or by hand washing.
Open the panel and put the Air  lter out.
Insert the Air  lter back in its original position and close the front panel.
Dry the Air  lter in a ventilated area.
Clean the Air  lter with a vacuum cleaner or soft brush. If dust is too heavy, rinse it with running water.
CAUTION
• Do not scrub the air filter with a brush or other cleaning utensil. This may damage the filter.
• Do not expose the air filter to direct sunlight when drying it.
NOTE
• Clean the air filter every 2 weeks. Cleaning term may vary depending on the usage and environmental conditions.
• If the air filter dries in a humid area, it may produce offensive odours. Clean it again and dry it in a well-ventilated area.
Cleaning the Air Conditioner
31English
Clea ning and Maintenance
Maintaining the Air Conditioner
If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain in best conditions.
1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug. There may be internal damage if moisture is left in components.
2. Before using the air conditioner again, dry the inner components of the air conditioner again by running in Fan mode for 3 to 4 hours. This helps remove odours that may have generated from dampness.
Periodical checks
Refer to the following chart to maintain the air conditioner properly.
Type Description Monthly
Every 4
months
Once a
year
Indoor unit
Clean the air filter (1).
l
Clean the condensate drain pan (2).
l
Thoroughly clean the heat exchanger (2).
l
Clean the condensate drain pipe (2).
l
Replace the remote control batteries (1).
l
Outdoor unit
Clean the heat exchanger on the outside of the unit (2).
l
Clean the heat exchanger on the inside of the unit (2).
l
Clean the electric components with jets of air (2).
l
Verify that all the electric components are firmly tightened (2).
l
Clean the fan (2).
l
Verify that all the fan assembly is firmly tightened (2).
l
Clean the condensate drain pan (2).
l
NOTE
• The checks and maintenance operations described above are essential to guarantee the efficiency of the air conditioner. The frequency of these operations may vary depending on the characteristics of the area, the amount of dust, etc.
a. The above mentioned operations should be performed more frequently if the area of
installation is very dusty.
b. These operations must always be performed by qualified personnel. For more detailed
information, refer to Installation Manual.
32 English
Clea ning and Maintenance
This internal protection operates if an internal fault occurs in the air conditioner.
Type Description
Against cold air
The internal fan will be off against cold air when the heat pump is heating.
De-ice cycle
The internal fan will be off against cold air when the heat pump is heating.
Anti-protection of
internal battery
The compressor will be off to protect internal battery when the air conditioner operates in Cool mode.
Protect compressor
The air conditioner does not start operating immediately to protect the compressor of the outdoor unit after it has been started.
NOTE
• If the heat pump is operating in Heat mode, the de-ice cycle is actuated to remove frost from an outdoor unit that may have deposited at low temperatures.
• The internal fan is switched off automatically and restarted only after the de-ice cycle is completed.
• When the de-ice cycle is operating,it may generate strange sound. It is normal operation for product safety.
Internal protections via the unit control system
Maintaining the Air Conditioner
33English
Appendix
If the air conditioner operates abnormally, refer to the following chart to save time and unnecessary expenses.
Problem Solution
The air conditioner does not work at all.
• Check the power status, then operate the air conditioner again.
• Switch on the circuit breaker, plug in the power cord, then operate the air conditioner again.
• Make sure that the isolator is turned on.
• Check whether the Timed off function is
running. Operate the air conditioner again by pressing the Power button.
I cannot change the temperature.
• Check whether the Fan or Fast mode is running. In these modes, the air conditioner controls the set temperature automatically, and you cannot change the set temperature.
Troubleshooting
34 English
Appendix
Problem Solution
Cool/Warm air does not come out the air conditioner or performance is reduced.
• Check whether the set temperature is higher in the Cool mode or lower in the Heat mode than the current temperature. Press the Temperature button on the remote control to change the set temperature.
• Check whether the air filter is blocked with dirt. If the air filter is blocked, the cooling and heating performance may decrease. Remove dirt regularly.
• Check if the outdoor unit is covered or installed near the obstacle. Take the cover off and take the obstacle away. When clearing the obstacle (e.g. snow or ice), use suitable tools so as to be careful not to damage the product nor injure yourself during this process.
• Check whether the air conditioner is running the defrost function. When ice forms in winter or the outdoor temperature is too low, the air conditioner runs the defrost function automatically. While this function is running, the indoor fan stops and warm air does not come out.
• Check whether doors or windows are open. This may cause poor cooling or heating performance. Close the doors and windows.
• Check whether the air conditioner is turned on immediately after the cooling or heating operation stops. In this case, only the fan runs to protect the outdoor unit compressor.
• Check whether the pipe length is too long. When the pipe length exceeds the maximum pipe length, the cooling and heating performance may decrease.
Troubleshooting
35English
Appendix
Problem Solution
I cannot change the air flow direction.
• Check whether the good'sleep function is running. While this function is running, you cannot control the air flow direction. (But you can control the air flow direction if this function is running in the Heat mode.)
I cannot change the fan speed.
• When the Auto, Dry, or Fast mode is running or the good'sleep function is running in the Cool mode, the air conditioner controls the fan speed automatically and you cannot change the fan speed.
The remote control does not work.
• Replace the batteries in the remote control with new ones.
• Make sure that nothing is blocking the remote control sensor.
• Check whether there are strong lighting apparatus near the air conditioner. Strong light which comes from fluorescent bulbs or neon signs may interrupt the electric waves.
The Timed on/off function does not work.
• Check whether you pressed the SET button on the remote control after setting the time.
The indicator blinks continuously.
• Press the Power button to turn off the air conditioner or disconnect the power plug. If the indicator is still blinking, contact the service centre.
36 English
Appendix
Problem Solution
Odours permeate in the room during operation.
• Check whether the air conditioner is running in a smoky area. Ventilate the room or operate the air conditioner in the Fan mode for 3 to 4 hours. (There are no components used in the air conditioner that emit a strong odour.)
• Check whether the drains are clean. Clean them regularly.
An error is indicated.
• If the indoor unit indicator blinks, contact the nearest service centre. Be sure to pass the error code to the service centre.
Noise is generated.
• When refrigerant flow changes, noise may be generated, depending on the status of the air conditioner. This is a normal operation.
'Excessive Noise is Generated' and ‘Reduced Performance'
• If excessive/irregular noise is generated in conjunction with reduced product performance, please refer to your service engineer to ensure the product is operating correctly.
Smoke is generated from the outdoor unit.
• If may not be a fire but it can be a steam generated from the outdoor heat exchanger while the defrost function is running in the Heat mode in winter.
Water drops from the pipe connections of the outdoor unit.
• Condensation may develop when the ambient temperature changes excessively. This is a normal operation.
Troubleshooting
37English
Appendix
The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the table for efficient use.
MODE
OPERATIONAL TEMPERATURE
INDOOR HUMIDITY
INDOOR OUTDOOR
COOLING 18 ˚C to 32 ˚C -15 ˚C to 50 ˚C 80 % or less
HEATING 30 ˚C or less -20 ˚C to 24 ˚C -
DRYING 18 ˚C to 32 ˚C -15 ˚C to 50 ˚C 80 % or less
NOTE
• The standardized temperature for heating is 7 ˚C. If the outdoor temperature drops to 0 ˚C or below, the heating capacity can be reduced depending on the temperature condition.
• If the cooling operation is used at over 32˚C (indoor temperature), it does not cool at its full capacity.
Operation Ranges
38
Appendix
Type Model
Net weight
(kg)
Net dimension (W x D x H)
(mm)
Indoor unit
AC026MNADKH 7.6
750 x 246 x 249
AC035MNADKH 7.6
750 x 246 x 249
AC052MNADKH 10.8
896 x 261 x 261
AC071MNADKH 14.4
1065 x 294 x 301
AC100MNTDEH 18.5
1280 x 253 x 345
Technical specifications
39English
Appendix
Memo
COUNTRY CALL OR VISIT US ONLINE AT
UK
0330 SAMSUNG (7267864) www.samsung.com/uk/support
EIRE
0818 717100
www.samsung.com/ie/
support
GERMANY
"0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem
dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/
Anruf)
[HHP] 0180 6 M SAMSUNG
bzw.
0180 6 67267864*
(*0,20 €/Anruf aus dem
dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/
Anruf)"
www.samsung.com/de/
support
FRANCE 01 48 63 00 00
www.samsung.com/fr/
support
ITALIA
800-SAMSUNG (800.7267864)
www.samsung.com/it/
support
SPAIN
"0034902172678
[HHP] 0034902167267"
www.samsung.com/es/
support
PORTUGAL 808 20 7267
www.samsung.com/pt/
support
LUXEMBURG
261 03 710
www.samsung.com/be_fr/
support
NETHERLANDS
0900-SAMSUNG (0900-
7267864) (€ 0,10/Min)
www.samsung.com/nl/
support
BELGIUM 02-201-24-18
"www.samsung.com/be/
support (Dutch)
www.samsung.com/be_fr/
support (French)"
NORWAY 815 56480
www.samsung.com/no/
support
DENMARK 70 70 19 70
www.samsung.com/dk/
support
FINLAND 030-6227 515
www.samsung.com/fi/
support
SWEDEN
0771 726 7864
(0771-SAMSUNG)
www.samsung.com/se/
support
POLAND
"801-172-678* lub +48 22
607-93-33*
Dedykowana infolinia
do obsługi zapytań
dotyczących telefonów
komórkowych: 801-672-
678* lub +48 22 607-
93-33*
* (koszt połączenia według
taryfy operatora)"
www.samsung.com/pl/
support
COUNTRY CALL OR VISIT US ONLINE AT
HUNGARY
"0680SAMSUNG (0680-
726-786)
0680PREMIUM (0680-
773-648)"
www.samsung.com/hu/
support
AUSTRIA
"0800-SAMSUNG (0800-
7267864)
[Only for Premium HA]
0800-366661
[Only for Dealers] 0810-
112233"
www.samsung.com/at/
support
SWITZERLAND
0800 726 78 64
(0800-SAMSUNG)
"www.samsung.com/ch/
support (German)
www.samsung.com/ch_fr/
support (French)"
CZECH
"800 - SAMSUNG
(800-726786)"
www.samsung.com/cz/
support
SLOVAKIA
"0800 - SAMSUNG
(0800-726 786)"
www.samsung.com/sk/
support
CROATIA 072 726 786
www.samsung.com/hr/
support
BOSNIA 055 233 999 www.samsung.com/support
MONTENEGRO
020 405 888 www.samsung.com/support
SLOVENIA
080 697 267 (brezplačna
številka)
www.samsung.com/si
SERBIA 011 321 6899
www.samsung.com/rs/
support
BULGARIA
*3000 Цена в мрежата
0800 111 31 , Безплатна
телефонна линия
www.samsung.com/bg/
support
ROMANIA
"*8000 (apel in retea)
08008-726-78-64
(08008-SAMSUNG) Apel
GRATUIT"
www.samsung.com/ro/
support
CYPRUS
8009 4000 only from
landline, toll free
www.samsung.com/gr/
support
GREECE
"80111-SAMSUNG (80111
726 7864) only from
land line
(+30) 210 6897691 from
mobile and land line"
www.samsung.com/gr/
support
LITHUANIA 8-800-77777
www.samsung.com/lt/
support
LATVIA 8000-7267
www.samsung.com/lv/
support
ESTONIA 800-7267
www.samsung.com/ee/
support
QUESTIONS OR COMMENTS?
Loading...
