Samsung 901B User Manual

SyncMaster913N/915N/912T/913T/913B/901B

Install drivers Install programs

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.

Prohibited Important to read and understand at all times

Power

Do not disassemble Disconnect the plug from the outlet

Do not touch Grounding to prevent an electric shock

When not used for extended period of time, set your computer to DPMS.
If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.

z This may cause an electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

z This may cause an electric shock or fire.

Use only a properly grounded plug and receptacle.

z An improper ground may cause electric shock or equipmen t da mag e.

Insert the power plug firmly so that it does not come loose.

z A bad connection may cause fire.

Installation

Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.

z This may cause an electric shock or fire.

Do not connect too many extension cords or plugs to an outlet.

z This may cause fire.

Be sure to contact an authorized Service Center when installing your set in a

location with heavy dust, high or low temperatures, high humidity, and
chemical substances, or where it will be operated for 24 hours continuously
such as an airport, train station or etc.

Failure to do so may cause serious damage to your set.

Put your monitor in a location with low humidity and a minimum of dust.

Failure to do so may cause an electric shock or fire inside the monitor.

z

Do not drop the monitor when moving it.

z This may cause damage to the product or human body.

Install the monitor base in a showcase or shelf so that the end of the
base does not protrude from the showcase or shelf.

z Dropping the product may cause damage to the product or personal

injury.

Do not place the product on an unstable or small surface area.

z Place the product on an even, stable surface, as the product may fall

and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

Someone, specifically children could trip over it.

z

Keep any flammable objects such as candles, insecticides or cigarettes
away from the product.

z Otherwise, this may cause a fire.

Keep any heating devices away from the power cable.

A melted coating may lead to electric shock or fire.

z

Do not install the product in places w i th poo r ve ntilation, for instance, a
bookshelf, closet, etc.

Any increase in internal temperature may cause fire.

z

Set down the monitor carefully.

The monitor could be damaged or broken.

z

Do not place the monitor face down.

z The TFT-LCD surface may be damaged.

Installing a wall bracket must be done by a qualified professional.

Installation by unqualified personnel may result in inju ry.

z

z Always use the mounting device specified in the owner's manual .

When installing the product, make sure to keep it away from the wall
(more than 10cm/4inch ) for ventilation purposes.

z Poor ventilation may cause an increase in the internal temperature of

the product, resulting in a shortened component life and degraded
performance.

Clean

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with
a slightly moistened, soft fabric.

Do not spray water or detergent directly on the monitor.

z This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.

A dirty connector may cause an electric shock or fire.

z

Make sure to unplug the power cord before cleaning the product.

z Otherwise, this may cause electric shock or fire.

Others

Unplug the power cord from the power outlet and wipe the product using
a soft, dry cloth.

Do not use any chemicals such as wax, benzene, alcohol, thinners,

z

insecticide, air freshener, lubricant or detergent.

Contact the Service Center or Customer Center for interior cleaning
once a year.

z Keep the product's interior clean. Dust which has accumulated in the

interior over an extended period of time may cause malfunction or fire.

Do not remove cover (or back).

z This may cause an electric shock or fire.
z Refer servicing to qualified service personnel.

If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service.

z This may cause an electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture;
do not install inside a vehicle.

z This may cause malfunction, an electric shock or fire.
z Especially avoid operating the monitor near water or outdoors where the

monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord. Then contact the Service Center.

z The monitor may malfunction, causing an electric shock or fire.

Disconnect the plug from the outlet during storms or lightening or if it is
not used for a long period of time.

Failure to do so may cause an electric shock or fire.

z

Do not try to move the monitor by pulling only the wire or the signal
cable.

This may cause a breakdown, electric shock or fire due to damage to

z

the cable.

Do not move the monitor right or left by pulling only the wire or the
signal cable.

z This may cause a breakdown, electric shock or fire due to damage to

the cable.

Do not cover the vents on the monitor cabinet.

z Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects
on the monitor.

z This may cause malfunction, an electric shock or fire.

If a foreign substance enters the monitor, unplug the power cord and

z

contact the Service Center .

Keep the product away from combustible chemical sprays or
inflammable substances.

z This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

z This may cause an electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and gimlet or
inflammable objects such as paper and match into the vent, headphone
port or AV ports.

z It may cause a fire or an electric shock. If an alien substances or water

flows into the product, turn the product off, unplug the power connector
from the wall outlet and contact Service Center.

If you view a fixed screen for an extended period of time, resi dual image
or blurriness may appear.

z Change the mode to energy save or set a screensaver to moving picture

when you need to be away from the monitor for an extended period of
time.

Adjust the resolution and frequency to the levels appropriate for the
model.

z Inappropriate resolution may cause undesirable picture quality.

19 inch (48 cm) - 1280 X 1024

Watching the monitor continuously at a too close angle may result in
eyesight damage.

To ease eye strain, take at least a five-minute break after every hour of
using the monitor

.

Do not install the product on an unstable, uneven surface or a location
prone to vibrations.

z Dropping the product may cause damage to the product or personal

injury. Using the product in a location prone to vibrations may shorten
the lifetime of the product or may catch fire.

When moving the monitor, turn off and unplug the power cord.
Make sure that all cables, including the antenna cable and cables
connected to other devices, are disconnected before moving the
monitor.

z Failure to disconnect a cable may damage it and lead to fire or an

electric shock.

Place the product out of children's reach, as they could damage it by
hanging onto it.

z A falling product could cause physical damage even de ath.

When not using the product for an extended time period, keep the
product unplugged

z Otherwise, this may cause heat emission from the accumul ated dirt or

degraded insulation, leading to electric shock or fire.

Do not place children's favorite objects (or anything else that may be
tempting) on the product.

z Children may try to climb on the product to retrieve an object. The

product could fall, causing physical damage or even death.

r

p

SyncMaster913N/915N

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Unpacking

Option 1

Contact a local deale

to buy optional items.

Option 2

Manual

Monitor & Sim

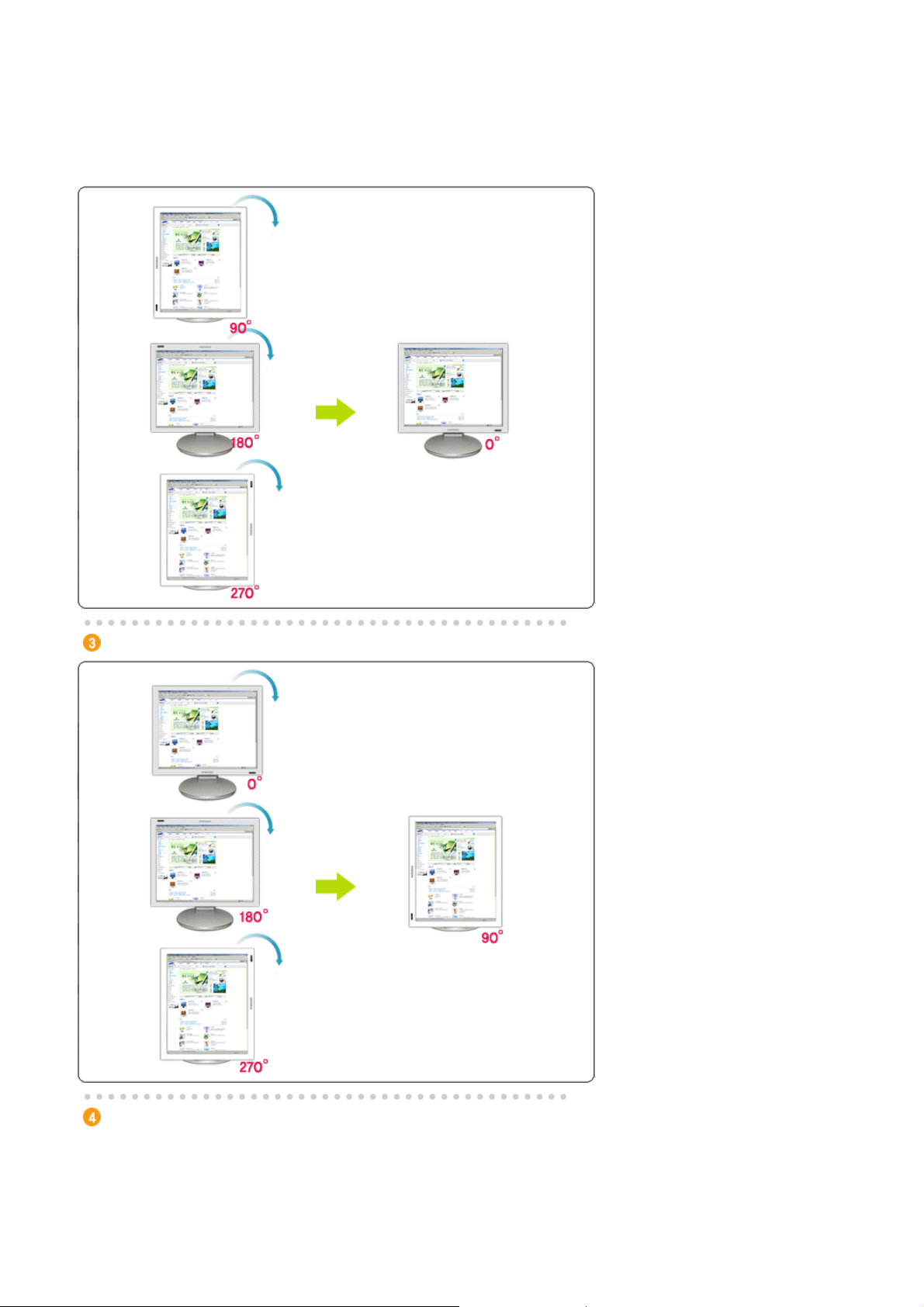

MagicRotation™ program can not be provided as Simple
Stand does not support Pivot function.

Monitor & Pivot stand

le stand Bottom

g

Cable

Quick Setup Guide

Warranty Card

(Not available in all

locations)

User's Guide,

Monitor Driver,
Natural Color software,
MagicTune™ software,

Ma

icRotation software

Front

D-Sub Cable Power Cord

1. Menu button [ ]

2. MagicBright button
[]

Opens the OSD menu. Also use to exit the OSD menu or return to
the previous menu.

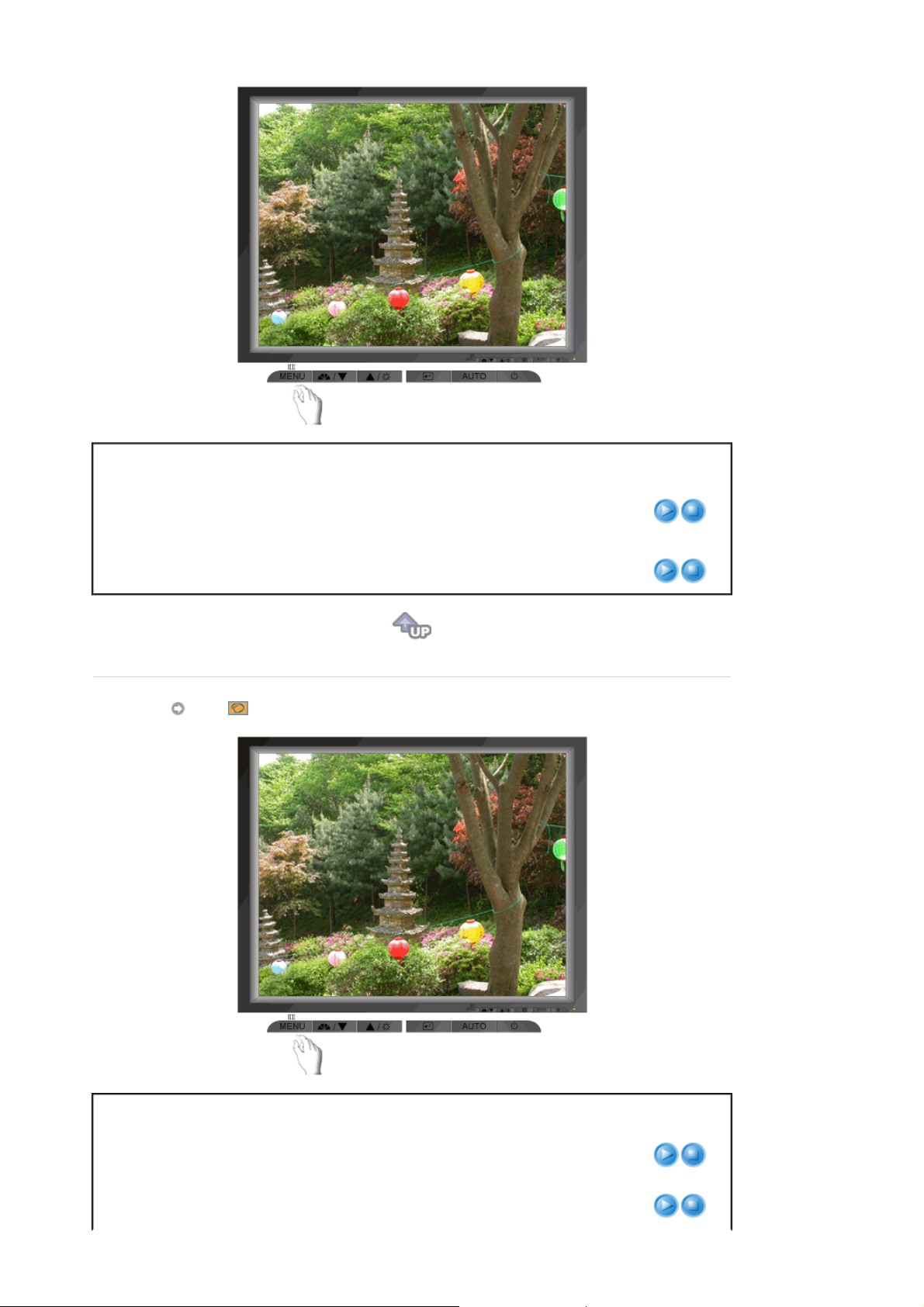

MagicBright is a new feature providing optimum viewing
environment depending on the contents of the image you are
watching. Currently four different modes are available: Custom,
Text, Internet, and Entertain. Each mode has its own pre­configured brightness value. You can easily select one of four
settings by simply pressing MagicBright control button.

1) Custom

Although the values are carefully chosen by our engineers, the
pre-configured values may not be comfortable to your eyes

depending on your taste.
If this is the case, adjust the brightness and contrast by using
the OSD menu.

: Normal brightness

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and
graphics.

4) Entertain

For watching motion pictures such as a DVD or VCD.

>>Click here to see an animation clip

: Medium brightness

: High brightness

3.
Brightness button [ ]

2,3. Adjust buttons [ ]

4. Enter button [ ]

5. Auto button

6. Power button

7. Power indicator

See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor off when it is not needed, or when
leaving it unattended for long periods.

Rear

When OSD is not on the screen, push the button to adjust
brightness.

Adjust items in the menu.
Activates a highlighted menu item.
Use this button for auto adjustment.
Use this button for turn the monitor on and off.
This light glows green during normal operation, and blinks green

once as the monitor saves your adjustments.

(The configuration at the back of the monitor may vary from product to product.)

1. Power port

2. D-su b 15-pin port

3. Kensington Lock

Connect the power cord for your monitor to the power port on the back
of the monitor.
Connect the D-sub cable to the 15-pin, D-sub connector on the back
of your monitor.
The Kensington lock is a device used to physically fix the system
when using it in a public place.
(The locking device has to be purchased separately.)

For usin

g

See Connecting the Monitor for further information regarding cable connections.

a locking device, contact where you purchase it.

r

p

SyncMaster912T/913T/913B/901B

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Unpacking

Option 1

Contact a local deale

to buy optional items.

Option 2

Manual

Monitor & Sim

MagicRotation™ program can not be provided as Simple
Stand does not support Pivot function.

Monitor & Pivot stand

le stand Bottom

g

p

y

Cable

Quick Setup Guide

Warranty Card

(Not available in all

locations)

User's Guide,

Monitor Driver,
Natural Color software,
MagicTune™ software,

Ma

icRotation software

Front

Sold se

D-Sub Cable Power Cord

aratel

DVI Cable

1. Menu button [ ]

Opens the OSD menu. Also use to exit the OSD menu or return to
the previous menu.

2. MagicBright button
[]

MagicBright is a new feature providing optimum viewing
environment depending on the contents of the image you are
watching. Currently four different modes are available: Custom,
Text, Internet, and Entertain. Each mode has its own pre­configured brightness value. You can easily select one of four
settings by simply pressing MagicBright control button.

1) Custom

Although the values are carefully chosen by our engineers, the
pre-configured values may not be comfortable to your eyes
depending on your taste.
If this is the case, adjust the brightness and contrast by using
the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as text and
graphics.

4) Entertain

For watching motion pictures such as a DVD or VCD.

>>Click here to see an animation clip

: Normal brightness

: Medium brightness

: High brightness

3.
Brightness button [ ]

2,3. Adjust buttons [ ]

4. Enter button [ ] /
Source button

5. Auto button

6. Power button

7. Power indicator

See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor off when it is not needed, or when
leaving it unattended for long periods.

When OSD is not on the screen, push the button to adjust
brightness.

Adjust items in the menu.
Activates a highlighted menu item. /

Push the 'Source', then selects the video signal while the OSD is
off. (When the source button is pressed to change the input mode,
a message appears in the center of the screen displaying the
current mode -- analog or digital input signal.) Note : If you select
the digital mode, you must connect your monitor to the graphic
card's port using the DVI cable.

Use this button for auto adjustment.
Use this button for turn the monitor on and off.
This light glows green during normal operation, and blinks green

once as the monitor saves your adjustments.

Rear

(The configuration at the back of the monitor may vary from product to product.)

g

1. Power port

2. DVI port

3. D-sub 15-pin port

4. Kensington Lock

See Connecting the Monitor for further information regarding cable connections.

Connect the power cord for your monitor to the power port on the back
of the monitor.
Connect the DVI cable to the DVI port on the back of your Monitor.

Connect the D-sub cable to the 15-pin, D-sub connector on the back
of your monitor.
The Kensington lock is a device used to physically fix the system
when using it in a public place.
(The locking device has to be purchased separately.)

For usin

a locking device, contact where you purchase it.

SyncMaster913N/915N

1.

2-1.

2-2.

2-3.

3.

Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.

Using the D-sub (Analog) connector on the video card.
Connect the D-sub cable to the 15-pin, D-sub connector on the back of your monitor.

Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.

In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adapter.

Turn on your computer and monitor. If your monitor displays an image, installation is
complete.

Monitor Assembly

Monitor and Bottom

A

r

Pivot Stand

Stand Stoppe

Attaching a Base

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

.

Simple stand Pivot stand

)

Monitor

A.

Mounting interface pad

B.

1. Turn off yo ur monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.

3. Remove four screw s and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure it
with four screws that came with the arm-type base, wall mount hanger or other base.

Installing the Monitor Driver (Automatic

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click

"Windows ME Driver"

.

3. Choose your monitor model in the model list, then click the

"OK"

button.

4. Click the

"Install"

button in the

"Warning"

window.

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click

3. Choose your monitor model in the model list, then click the

4. If you can see following message window, then click the

"Windows XP/2000 Driver"

Then click

"OK"

button.

button.

"OK"

"Continue Anyway"

button.

This monitor driver is under certifying MS logo,and this installation don't
damage your system.The certified driver will be posted on Samsung
Monitor Homepage

http://www.samsung.com/.

5. Monitor driver installation is completed.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" icon.

3. Click "

Display

4. Click the "

" icon and choose the "

Properties

" button on the "

Settings

" tab then click "

Advanced..

".

Monitor

" tab and select "

Driver

" tab.

5. Click "

6. Select "

Update Driver..

Don't search ,I will..

" and select "

Install from a list or..

" then click "

Next

" then click "

" and then click "

Have disk

Next

" button.

".

7. Click the "
model list and click the "

8. If you can see following "
click "OK" button.

Browse

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

Next

Message

" window, then click the "

Continue Anyway

" button. Then

This monitor driver is under certified MS logo,and this installation doesn't damage your
system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

9. Click the "

" button then click "OK" button continually.

Close

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

Browse

" button on the "

Insert disk

" window.

File Needed

" window.

3. Choose A:(D:\Driver) then cli ck the "Open" button and then click "OK" button.

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Start

Monitor

" , "

Setting

Settings

" , "

Control Panel

Display

" Icon.

" tab and then click "

".

".

Advanced..

".

Case1:If th e "Properties" button is inactive, it means your monitor is properly configured.

Please stop installation

Case2:If th e "Properties" button is active, click the "Properties" button then follow next steps

continually.

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

" and then click on "

Driver

Update Driver..

" then click on the "Next" button.

Display a list of the known drivers for this device so that I can choose a

" then click "

Browse
Open

Finish

" button then choose A:(D:\Driver).

" button, then click "OK" button.

" button then the "

" and then click "

Next

Close

Have disk

" button then click "

Next

" button.

".

Next

" button.

Microsoft

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

If you can see the "
And click the "

®

Windows® Millennium Operating System

" , "

Start

Settings
Monitor

Change
Specify the location of the driver
Display a list of all the driver in a specific location..

Have Disk

Digital Signature Not Found

" button then the "

Finish

Setting

Display

" , "

Control Panel

" icon.

" tab and click "

" tab.

" button in the "

" button

9. Specify A:\(D:\driver) then click "OK" button.

10. Select "

Show all devices

" and choose the monitor that corresponds to the one you

connected to your computer and click "OK".

11. Continue choosing "

" button and "OK" button until you close the Display Properties

Close

dialogue box.

" window then click the "

" button.

Close

".

Advanced Properties

Monitor Type

" area.

".

" button.

" then click "

Yes

"button.

" button.

Next

Microsoft

1. Click

2. In Display Registration Information window, click Settings Ta b and then click

Modes

®

Windows® NT Operating System

Start, Settings, Control Panel

.

, and then double-click

Display

icon.

All Display

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)
and then click OK.

4. Click

button if you see the screen working normally after clicking

Apply

. If the screen is

Test

not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at

All Display Modes

, select the level of resolution and vertical

frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and th e second screen after executing the X86Config file.

2. The third screen is for

setting your mouse

.

3. Set a mouse for your computer.

4. The ne xt screen is for

selecting a keyboard

.

5. Set a keyboard for your computer.

6. The ne xt screen is for

7. First of all, set a

horizontal frequency

setting your monitor

.

for your monitor. (You can enter the frequency

directly.)

8. Set a

vertical frequency

9. Enter the

model name of your monitor

for your monitor. (You can enter the frequency directly.)

. This information will not affect the actual execution

of X-Window.

10. You have

Execute

finished

X-Window after setting other requested hardware.

setting up your monitor.

Natural Color

Natural Color Software Program

One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then , the initial
screen of the program Natural Color will be executed. Click Natural Color on the initial screen
to install the Natural Color software.
To install the program manually, insert the CD included with the Samsung mo nitor into the CD­ROM Drive, click the [Start] button of Windows and then select [Execute].
Enter D:\color\eng\setup.exe and then press the <Enter > key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select

"Setting/Control Panel"

program"

Select Natural Color from the list and then click the

.

on the

menu and then double-click

"Start"

"Add/Delete"

"Add/Delete a

button.

SyncMaster912T/913T/913B/901B

1.

2-1.

2-2.

2-3.

2-4.

3.

Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.

Using the D-sub (Analog) connector on the video card.
Connect the D-sub cable to the 15-pin, D-sub connector on the back of your monitor.

Using the DVI (Digital) connector on the video card.
Connect the DVI cable to the DVI port on the back of your monitor.

Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.

In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adapter.

Turn on your computer and monitor. If your monitor displays an image, installation is
complete.

Monitor Assembly

A

Monitor and Bottom

Pivot Stand

Stand Stopper

Attaching a Base

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

.

Simple stand Pivot stand

)

Monitor

A.

Mounting interface pad

B.

1. Turn off yo ur monitor and unplug its power cord.

2. Lay the LCD mo nitor face-down on a flat surface with a cushion beneath it to protect the
screen.

3. Remove four screw s and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting pad an d secure it
with four screws that came with the arm-type base, wall mount hanger or other base.

Installing the Monitor Driver (Automatic

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click

"Windows ME Driver"

.

3. Choose your monitor model in the model list, then click the

"OK"

button.

4. Click the

"Install"

button in the

"Warning"

window.

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click

3. Choose your monitor model in the model list, then click the

4. If you can see following message window, then click the

"Windows XP/2000 Driver"

Then click

"OK"

button.

button.

"OK"

"Continue Anyway"

button.

This monitor driver is under certifying MS logo,and this installation don't
damage your system.The certified driver will be posted on Samsung
Monitor Homepage

http://www.samsung.com/.

5. Monitor driver installation is completed.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" icon.

3. Click "

Display

4. Click the "

" icon and choose the "

Properties

" button on the "

Settings

" tab then click "

Advanced..

".

Monitor

" tab and select "

Driver

" tab.

5. Click "

6. Select "

Update Driver..

Don't search ,I will..

" and select "

Install from a list or..

" then click "

Next

" then click "

" and then click "

Have disk

Next

" button.

".

7. Click the "
model list and click the "

8. If you can see following "
click "OK" button.

Browse

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

Next

Message

" window, then click the "

Continue Anyway

" button. Then

This monitor driver is under certified MS logo,and this installation doesn't damage your
system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

9. Click the "

" button then click "OK" button continually.

Close

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

Browse

" button on the "

Insert disk

" window.

File Needed

" window.

3. Choose A:(D:\Driver) then cli ck the "Open" button and then click "OK" button.

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Start

Monitor

" , "

Setting

Settings

" , "

Control Panel

Display

" Icon.

" tab and then click "

".

".

Advanced..

".

Case1:If th e "Properties" button is inactive, it means your monitor is properly configured.

Please stop installation

Case2:If th e "Properties" button is active, click the "Properties" button then follow next steps

continually.

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

" and then click on "

Driver

Update Driver..

" then click on the "Next" button.

Display a list of the known drivers for this device so that I can choose a

" then click "

Browse
Open

Finish

" button then choose A:(D:\Driver).

" button, then click "OK" button.

" button then the "

" and then click "

Next

Close

Have disk

" button then click "

Next

" button.

".

Next

" button.

Microsoft

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

If you can see the "
And click the "

®

Windows® Millennium Operating System

" , "

Start

Settings
Monitor

Change
Specify the location of the driver
Display a list of all the driver in a specific location..

Have Disk

Digital Signature Not Found

" button then the "

Finish

Setting

Display

" , "

Control Panel

" icon.

" tab and click "

" tab.

" button in the "

" button

9. Specify A:\(D:\driver) then click "OK" button.

10. Select "

Show all devices

" and choose the monitor that corresponds to the one you

connected to your computer and click "OK".

11. Continue choosing "

" button and "OK" button until you close the Display Properties

Close

dialogue box.

" window then click the "

" button.

Close

".

Advanced Properties

Monitor Type

" area.

".

" button.

" then click "

Yes

"button.

" button.

Next

Microsoft

1. Click

2. In Display Registration Information window, click Settings Ta b and then click

Modes

®

Windows® NT Operating System

Start, Settings, Control Panel

.

, and then double-click

Display

icon.

All Display

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)
and then click OK.

4. Click

button if you see the screen working normally after clicking

Apply

. If the screen is

Test

not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at

All Display Modes

, select the level of resolution and vertical

frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and th e second screen after executing the X86Config file.

2. The third screen is for

setting your mouse

.

3. Set a mouse for your computer.

4. The ne xt screen is for

selecting a keyboard

.

5. Set a keyboard for your computer.

6. The ne xt screen is for

7. First of all, set a

horizontal frequency

setting your monitor

.

for your monitor. (You can enter the frequency

directly.)

8. Set a

vertical frequency

9. Enter the

model name of your monitor

for your monitor. (You can enter the frequency directly.)

. This information will not affect the actual execution

of X-Window.

10. You have

Execute

finished

X-Window after setting other requested hardware.

setting up your monitor.

Natural Color

Natural Color Software Program

One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then , the initial
screen of the program Natural Color will be executed. Click Natural Color on the initial screen
to install the Natural Color software.
To install the program manually, insert the CD included with the Samsung mo nitor into the CD­ROM Drive, click the [Start] button of Windows and then select [Execute].
Enter D:\color\eng\setup.exe and then press the <Enter > key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select

"Setting/Control Panel"

program"

Select Natural Color from the list and then click the

.

on the

menu and then double-click

"Start"

"Add/Delete"

"Add/Delete a

button.

SyncMaster913N/915N

1.

[ ]Use this button to open the on-screen menu and exit from the menu screen or close screen
adjustment menu.

[ ]This button allows you to adjust items in the menu.

2.

[ ]This button allows you to adjust items in the menu.

3.

[ ]Press this button to activate a highlighted menu item.

4.

5.[AUTO

]Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are

adjusted automatically.

AUTO

Menu Description

AUTO

MagicBright™

When the '

' button is pressed, the auto adjustment screen appears

AUTO

as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automati cally.

To make the automatic adjustment function sharper, execute the 'AUTO'
function while the AUTO PATTERN is on.

z If auto adjustment does not work properly, press auto button again to

adjust picture with more accuracy.

z If you change resolution in the control panel, auto function will be

executed automatically.

Menu Description

Then push the MagicBright button again to circle through available

MagicBright™

preconfigured modes.

- four different modes(Custom/Text/Internet/Entertain)

Brightness

Menu Description

Brightness

1. Picture

2. Color

3. Image

4. OSD

5. Setup

6. Information


When OSD is not on the screen, push the button to adjust brightness.

Brightness Contrast
Color Tone Color Control Gamma
Coarse Fine Sharpness H-Position V-Position
Language H-Position V-Position Transparency Display Time
Image Reset Color Reset

Menu Description Play/Stop

You can use the on-screen menus to change the

Brightness

brightness according to personal preference.

Direct Access Feature

Push the button to adjust brightness.

: When OSD is not on the screen,

Contrast

Color

You can use the on-screen menus to change the contrast
according to personal preference.

Menu Description Play/Stop

The tone of the color can be changed and one of four

Color Tone

Color Control

modes can be selected - Cool, Normal, Warm and
Custom.

Adjusts individual R,G,B color balance.

Select one of three pre-defined gammas.

Gamma


z Mode 1 : Shows normal gamma
z Mode 2 : Shows higher gamma(brighter)

Mode 3 : Shows lower gamma(darker)

z

Menu Description Play/Stop

Removes noise such as vertical stripes. Coarse

Coarse

adjustment may move the screen image area. You may
relocate it to the center using the Horizontal Control menu.

Removes noise such as horizontal stripes. If the noise

Fine

persists even after Fine tuning, repeat it after adjusting the
frequency (clock speed).

Sharpness

H-Position

V-Position

Changes the clearance of image.

Changes the horizontal position of the monitor's entire
display.

Changes the vertical position of the monitor's entire
display.

OSD

Menu Description Play/Stop

Change the language used in the menu. You can choose
one of the seven languages.

Language

:The language chosen affects only the language of

Note

the OSD. It has no effect on any software running on the
computer.

H-Position

V-Position

Transparency

Display Time

Setup

You can change the horizontal position where the OSD
menu appears on your monitor.

You can change the vertical position where the OSD menu
appears on your monitor.

Change the transparency of the background of the OSD.

The menu will be automatically turned if no adjustments
are made for a certain time period.
You can set the amount of time the menu will wait before it
is turned off.

Menu Description Play/Stop

Image Reset

Color Reset

Information

Image parameters are replaced with the factory default
values.

Color parameters are replaced with the factory default
values.

Menu Description

Information

Shows a video source, display mode on the OSD screen.

SyncMaster912T/913T/913B/901B

1.

[ ]Use this button to open the on-screen menu and exit from the menu screen or close screen
adjustment menu.

[ ]This button allows you to adjust items in the menu.

2.

[ ]This button allows you to adjust items in the menu.

3.

[ ]Press this button to activate a highlighted menu item.

4.

5.[AUTO

]Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are

adjusted automatically.

AUTO

Menu Description

AUTO

MagicBright™

When the '

' button is pressed, the auto adjustment screen appears

AUTO

as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automati cally.
(Available in analog mode only)

To make the automatic adjustment function sharper, execute the 'AUTO'
function while the AUTO PATTERN is on.

z If auto adjustment does not work properly, press auto button again to

adjust picture with more accuracy.

z If you change resolution in the control panel, auto function will be

executed automatically.

Menu Description

MagicBright™

Then push the MagicBright button again to circle through available
preconfigured modes.

Brightness

- four different modes(Custom/Text/Internet/Entertain)

Menu Description

Brightness

SOURCE

When OSD is not on the screen, push the button to adjust brightness.

Menu Description

SOURCE

1. Picture

Selects the video signal while the OSD is off.

Brightness Contrast

2. Color

3. Image

4. OSD

5. Setup

6. Information


Color Tone Color Control Gamma
Coarse Fine Sharpness H-Position V-Position
Language H-Position V-Position Transparency Display Time
Auto Source Image Reset Color Reset

Menu Description Play/Stop

You can use the on-screen menus to change the

Brightness

Contrast

Color

brightness according to personal preference.

Direct Access Feature

Push the button to adjust brightness.
You can use the on-screen menus to change the contrast

according to personal preference.

: When OSD is not on the screen,

Menu Description Play/Stop

The tone of the color can be changed and one of four

Color Tone

modes can be selected - Cool, Normal, Warm and
Custom.

Color Control

Gamma


Adjusts individual R,G,B color balance.

Select one of three pre-defined gammas.

Mode 1 : Shows normal gamma

z

z Mode 2 : Shows higher gamma(brighter)
z Mode 3 : Shows lower gamma(darker)

Menu Description Play/Stop

Removes noise such as vertical stripes. Coarse

Coarse

Fine

adjustment may move the screen image area. You may
relocate it to the center using the horizontal control menu.
(Available in analog mode only)

Removes noise such as horizontal stripes. If the noise
persists even after fine tuning, repeat it after adjusting the
frequency (clock speed).
(Available in analog mode only)

Sharpness

H-Position

V-Position

OSD

Changes the clearance of image.

Changes the horizontal position of the monitor's entire
display.
(Available in analog mode only)

Changes the vertical position of the monitor's entire
display.
(Available in analog mode only)

Menu Description Play/Stop

Change the language used in the menu. You can choose
one of seven languages.

Language

:The language chosen affects only the language of

Note

the OSD. It has no effect on any software running on the
computer.

H-Position

V-Position

Transparency

Display Time

You can change the horizontal position where the OSD
menu appears on your monitor.

You can change the vertical position where the OSD menu
appears on your monitor.

Change the transparency of the background of the OSD.

The menu will be automatically turned if no adjustments
are made for a certain time period.

Setup

You can set the amount of time the menu will wait before it
is turned off.

Menu Description Play/Stop

Auto Source

Image Reset

Color Reset

Information

Select

Auto Source

the signal source.
Image parameters are replaced with the factory default

values.
Color parameters are replaced with the factory default

values.

for the monitor to automatically select

Menu Description

Information

Shows a video source, display mode on the OSD screen.

Color

Overview | Installation | OSD Mode |

Calibration

| Uninstall | Troubleshooting

Overview

What is MagicTune™?

Monitor performance can vary due to the graphics card, host computer lighting conditions and other
environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique
setting. Unfortunately, the manual controls available to tune the image often prove to be challenging. Proper
adjustment (tuning) requires an easy to use program that goes through a step-by-step process to obtain the
best overall picture quality.

In most cases even simple adjustments to Brightness, or Contrast require navigation of the multi-level, on­screen display (OSD) menus that are not easy to understand. Furthermore, there is no feedback to assist in
correctly setting the controls of the monitor. MagicTune™ is a software utility that guides you through the
tuning process with easy to understand instructions and back ground patterns designed for each monitor
control. The display settings for each user can be saved, providing an easy way to select display characteristics
in a multi-user environme or having a single user have multiple defined presets based on content and ambient
lighting.

Basic Functionality

MagicTune™ is a software utility that allows monitor adjustment and color tuning using the Display Data

Channel Command Interface (DDC/CI)

to eliminate the need to use the monitor on-screen display (OSD).
MagicTune™ supports Windows™ 98 SE, Me, 2000, XP Home, and XP Professional.

It is recommended using MagicTune™ in Windows™ 2000 or later.

MagicTune™ allows for quick accurate tuning of the display with the ability to easily save and use monitor
configurations that are best suited for you.

protocol. All adjustments to the display are controlled via software

OSD Mode

The OSD mode allows easy adjustment of monitor settings without taking pre-defined steps. You can access the
desired menu item to set with ease.

Overview | Installation | OSD Mode |

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the MagicTune™ installation file.

3. Select installation Language, Click "Next".

Color

Calibration

| Uninstall | Troubleshooting

4. When the InstallationShield Wizard window appears, click "Next."

5. Select "I agree to the terms of the license agreement" to accept the terms of use.

6. Choose a folder to install the MagicTune™ program.

7. Click "Install."

8. The "Installation Status" window appears.

9. Click "Finish."

10. When the installation is complete, the MagicTune™ executable icon appears on your desktop.

Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on specification of computer
system or monitor. If that happens, press F5 Key.

Installation Problems

The installation of MagicTune™ can be affected by such factors as the video card, motherboard and the network
environment.
See

"Troubleshooting"

if you have trouble during installation.

System Requirements

OS

z Windows™ 98 SE
z Windows™ Me
z Windows™ 2000
z Windows™ XP Home Edition

z

Windows™ XP Professional

Hardware

z 32MB Memory above
z 25MB Hard disk space above

It is recommended using MagicTune™ in Windows™ 2000 or
later.

* For more information, visit the MagicTune™

website.

Overview | Installation | OSD Mode |

g

MagicTune™ allows for quick accurate tuning of the display with the ability to easily
save and use monitor configurations that are best suited for you.

z OSD mode may appear inconsistent with the explanation in guidance

z MagicTune™ control mode will be different according to monitor models.

book depending on specification of each monitor.

z When Pivot is functioning, part of MagicTune™ Program may not

operate normally.

OSD Mode

Color

Calibration

| Uninstall | Troubleshooting

The OSD mode makes the adjustment of settings on all monitors easy. When selected , each tab on top of the
control window displays the general descriptions of the sub-menu items for adjustment.
When selected, each tab displays a list of menus. For quick adjustment of the monitor settings, the OSD mode
allows easy and convenient access to all tabs and sub-menu items.

Button Tab Definition

OK

Reset

Cancel

Applies any changes made and exits MagicTune™.

Restores the display settings to the factory settings.

Exits MagicTune™ without applyin
in the control window, clicking "Cancel" does not cause any actions.

the changes made. If you have not made any changes

Picture Tab Definition

g

Allows the user to adjust the screen settings to the desired values.

Brightness Contrast Resolution MagicBright

nmlkji nmlkj

Brightness

Contrast

Resolution

MagicBright™

nmlkj

Makes the entire screen brighter or darker. The detailed data of the images in the dark
areas can be lost if the brightness is not adjusted to the proper level. Adjust the
brightness for best viewing conditions.

Adjusts the difference in brightness between the bright and dark areas on screen.
Determines the crispness of the images.

Lists all display resolutions supported by the program.

MagicBright™ is a new feature providing the optimum viewing environment depending on
the contents of the image you are watching. Currently four different modes are available:
Text, Internet, Entertain and Custom. Each mode has its own pre-configured brightness
value. You can easily select one of four settings by simply pressing the MagicBright™
control button.

1. Text: For documentations or works involving heavy text.

2. Internet: For working with a mixture of images such as text and graphics.

3. Entertain: For watching motion pictures such as a DVD or VCD.

4. Custom: Although the values are carefully chosen by our engineers, the pre­confi
this is the case, adjust the Brightness and Contrast by using the OSD menu.

nmlkj

ured values may not be comfortable to your eyes depending on your taste. If

Color Tab Definition

Adjusts the "warmth" of the monitor background or image color.

Color Tone Color Control Calibration

nmlkji nmlkj nmlkj

The tone of the color can be changed.

Color Tone

z Warm - Normal - Cool

z

Custom

Adjusts of the monitor image color.

Color Control

You can change the monitor color to your desired color.

z R- G - B

The process through which the colors of your choice are optimized and maintained. You

Calibration

will find MagicTune™ extremely useful if you are one of those who wish to view images
with their full details accurately reproduced - including web images and ones produced by
a digital camera or scanner.

Image Tab Definition

Adjusts the Fine , Coarse and Position values.

Image Setup Position

g

nmlkji nmlkj

z Fine : Removes noise such as horizontal stripes.

If the noise persists even after Fine tuning, repeat it after adjusting the frequency
(clock speed).

Image Setup

z Coarse : Removes noise such as vertical stripes.

Coarse adjustment may move the screen image area.
You may relocate it to the center using the Horizontal Control menu.

z Auto Setup : Auto adjustment allows the monitor to self-adjust to the incoming

video signal. The values of fine, coarse and position are adjusted automatically.

Position

Adjusts the screen location horizontally and vertically.

Option Tab Definition

You can configure MagicTune™ using the following options.

Loads the Preferences Dialo

Box. Preferences in use will have an "V" in the check box. To

turn on or off any Preference, position the cursor over the box and click.

z Enable task tray menu .

- To access the MagicTune™ menus, click the icon on the [task tray menu].

Preferences

The menus are not displayed if the [Enable System Tray] is deselected in
[Options] ' [Basic Settings].

z Select Language - The language chosen affects only the language of the OSD.

Source Select will be shown only in dual monitor.

Source Select

In analog only model source select will not be shown.

z Analog

z

Digital

Support Tab Definition

Shows the Asset ID and the version number of the program, and allows you to use the Help feature.

Visit the MagicTune™ website or click to open the Help files (User Manual) if you need any

Help

help installing or running MagicTune™. The User Manual opens within a basic browser
window.

Asset ID User Name

User ID

Server IP

Department

Location

Version

Displays the version of MagicTune™.

Shows the client monitor's user name.

Shows the client monitor's ID.

Enter the IP Address of server PC.

Enter the department of the client monitor.

Enter the location of the client monitor.

Overview | Installation | OSD Mode |

Color Calibration

1. Color Calibration

Color

Calibration

| Uninstall | Troubleshooting

Color Calibration guides you to get optimal color condition for your monitor.

Proceed following 5steps for getting optimal monitor color condition .

1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background
pattern

2. When you detect specific color tone on "Control patch", move the control cursor toward to the direction of the
color tone referring to "Color reference Circle".
=> Adjustment is finished properly, you won't detect any color tone on Control patch.

3. When you finish adjustment for step1,Click "Next" button .

4. Repeat 1), 2), 3) procedures for remaining step2 ~ step5.

5. You can easily view the calibration effect through clicking "Preview " button!

How multiple users can use adjusted color values
Definition
When monitor is used by multiple users, color values which are adjusted via Color calibration for each users can be
saved and used. Up to 5 users can use the saved color values.

1. How to save adjusted color values:
Press Next to make it change into Apply and then you can save adjusted color values.
As many as 5 values can be saved.

2. How to apply the saved color values:
Press Multi User button on main screen to select and use one of the saved color values.

2. Preview

Press "Preview" button on the Color Calibration.
The above picture will be shown.

1. Press "View Calibrated" button to see the calibration effect which you adjusted.

2. Press "View Uncalibrated" button to see the original image.

Color

Overview | Installation | OSD Mode |

Calibration

| Uninstall | Troubleshooting

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the
Windows™ Control Panel.

Perform the following steps remove MagicTune™.

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on
Windows™ XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add or Remove Programs" icon in Control Panel.

3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune™." Click on it to highlight
it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune™
software upgrades.

website for technical support for MagicTune™, FAQs (questions and answers) and

Overview | Installation | OSD Mode |

Troubleshooting

The current computing system is not compatible with MagicTune™.

Please press OK and click on the "Shortcut to the MagicTune™ site" to view our home

page for further reference.

An error may occur when your video/graphic card is not in the 'Available' list.

(The latest or oldest video cards may not be compatible.)

Color

Calibration

| Uninstall | Troubleshooting

Please visit our homepage to see the Troubleshooting section.

An error may occur if the card maker has modified the video card driver or the

graphics chip even when the video card is in the list.

Please visit our homepage to see the Troubleshooting section.

Check if your monitor is manufactured by Samsung.

Products from other manufacturers may cause errors.

Only Samsung products are able to support this feature.

An error may occur even when your monitor is manufactured by Samsung but is

out of date.

Check if your monitor is able to support MagicTune™.

This feature is only supported by those monitors that are registered on our homepage.

Check for the monitor before purchasing it as out-of-date models are not supported.

An error occurs when no information on EDID (Extended Display Identification

Data) exists for the current monitor.

This happens when from your desktop, Start > Setup > Control Panel > System >

Hardware > Device Manager > Monitor is selected, the current "Plug-and-play

monitor" is removed and new hardware is searched for but the system couldn't find

any "Plug-and-play monitor".

Please visit our homepage to see the Troubleshooting section.

An error occurs when replacing the monitor with a new one when the system

power is off but the system has not been restarted.

Please restart the system each time the monitor is replaced before using

MagicTune™.

An error occurs when the video card driver is not installed properly.

This happens when the current video card list is not displayed normally. You can

check this via Start > Setup > System > Hardware > Device Manager > Display

Adapter.

Visit the video card maker's homepage and download and install the latest driver.

For more information about the video card, contact the card manufacturer.

To ensure normal operation, please restart your system.

An error occurs when the system is not restarted after installing MagicTune™.

(This is for Win98SE and WinMe only.)

Restart the system before use.

For the best performance of MagicTune™, adjust to the optimal resolution. Refer to the

User Guide for the optimal resolution.

If you do not adjust to the optimal resolution and perform Color Calibration, the

monitor cannot be adjusted to the optimal condition.

Refer to the manual for the optimal resolution.

This video card does not support MagicTune™.

Please install a new video card driver.

An error occurs when the video card driver is not installed properly.

This happens when the current video card list is not displayed normally. You can

check this from Start > Setup > System > Hardware > Device Manager > Display

Adapter.

Visit the video card manufacturer's homepage and download and install the latest

driver.

For more information about the video card, contact the card manufacturer.

As the Highlight program uses the communication lines,

please exit the Highlight program before you can access MagicTune™.

Some of Samsung CDT monitors support the Highlight feature.

When using both the Highlight feature and MagicTune™ simultaneously, conflicts

occur, which cause errors.

Make sure to turn OFF Highlight before using MagicTune™.

Troubleshooting

z MagicTune™ may not work in case monitor is replaced or driver of graphic card is updated while

MagicTune™ is operating. If so, please restart the system.

Symptom Check List Solutions

Check when
MagicTune™ does
not function
properly.

MagicTune™ feature is
found only on PC (VGA)
with Window OS that
supports Plug and Play.

* To check whether your PC is available for
MagicTune™ feature, follow the
steps below (When Windows™ is XP);

Control Panel -> Performance and Maintenance

-> System -> Hardware -> Device Manager ->
Monitors -> After deleting Plug and Play
monitor, find 'Plug and Play monitor' by
searching new Hardware.

MagicTune™ is an additional software for the
monitor. Some graphic cards may not support
your monitor. When you have a problem with

the graphic card, visit our website to check the
compatible graphic card list provided.

http://www.samsung.com/monitor/magicTune

.

MagicTune™
doesn't work
properly.

z Visit the MagicTune™

and software upgrades.

z Visit the MagicTune™

Have you changed your PC
or video graphic card?

for technical support for MagicTune™, FAQs (questions and answers)

website

and download the installation software for MagicTune™ MAC.

website

Download the latest program. The program can
be downloaded

http://www.samsung.com/monitor/magicTune.

Overview |

Installation

Overview

What is MagicRotation?

|

Interface

|

Uninstall

|

Troubleshooting

Traditionally, computer displays allowed the user to view only in landscape mode.
In today's information age, more users need to view documents, web pages, emails, etc. in there day to day
life. These types of applications can be better viewed in portrait mode where the entire contents are
available on the screen. This greatly improves the user's productivity allowing him the flexibility to switch
between landscape and portrait modes.

The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90,
180, 270 orientation) that facilitates the optimum utilization of computer display screen, better viewing and
improved user productivity.

Basic Function

MagicRotation will support Windows™ 98 SE, Me, NT 4.0, 2000, XP Home and XP Professional.

* Windows™ is registered trademark of Microsoft Corporation,Inc.

Overview

| Installation |

Interface

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the MagicRotation installation file.

3. Select installation Language, Click "Next".

|

Uninstall

|

Troubleshooting

4. When the InstallShield Wizard window appears, click "Next."

5. Select "I agree to the terms of the license agreement" to accept the terms of use.

6. Choose a folder to install the MagicRotation program.

7. Click "Install."

8. The "Installation Status" window appears.

9. Click "Finish."

Have to reboot the system in order for the MagicRotation to work properly.

10. When the installation is complete, the MagicRotation executable icon appears on your desktop.

Installation Problems

The installation of MagicRotation can be affected by the factors such as video card, motherboard and the
network environment.

"Troubleshooting" if you have trouble during installation.

See

Limitation

1. The "Display Driver" should be properly loaded for the MagicRotation to work properly.
The installed "Display Driver" should be the latest driver supplied by the vendor.

2. If some applications like Windows™ Media Player, Real Player, etc. are not displaying movie files
properly in 90, 180 and 270 orientations then do the following :

{

Close the application.

{ Select the Orientation (90, 180, 270) you want to view the application.
{ Relaunch the application.

In most cases this should fix the problem.

3. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation
mode selected (90, 180, 270).
e.g. 3D games

4. DOS based applications in Full Screen Mode will not function as per the orientation mode selected
(90, 180, 270).

5. Dual is not supported in Windows™ 98, ME, NT 4.0.

6. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality).

7. If you are changing your Graphic Card it is recommended that you uninstall the MagicRotation
Software before doing so.

System Requirements

OS

z Windows™ 98 SE
z Windows™ Me
z Windows™ NT 4.0
z Windows™ 2000
z Windows™ XP Home Edition
z Windows™ XP Professional

Hardware

z 128MB Memory above(recommended)
z 25MB Free Hard disk space above

Service Packs

z It is recommended that your System has the latest Service Pack installed.

z

For Windows™ NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active
Desktop component.

* For more information, visit the MagicRotation

website.

* Windows™ is registered trademark of Microsoft Corporation,Inc.

Overview | Installation | Interface | Uni nstall | Troubleshooting

z

When Rotation is functioning, portion of MagicTune™ program may not
operate normally.

z

AutoRotation : The screens display will automatically rotate when the
monitor is rotated.

To execute Auto Rotation, it should be done as below.

z Please install both MagicRotation and MagicTune™ 3.6 programs in your

computer.

z Launch MagicTune 3.6
z Option → Preference → Click the small box in the enable task tray

menu .

z MagicRotation™ program can not be provided as Simple Stand does

not support Pivot function.

z

The permitted angle of rotation of the monitor is determined by the
model of the monitor.

Interface

Task Bar Menu

Rotate : Display will get rotated by the unit of 90 degree.

Menu pops up when the right mouse

button is click.

Rotate to 0 : Display will get rotated to 0 degree from the current angle of
Rotation.

Rotate to 90 : Display will be rotated 90 degrees from the current angle.

Rotate to 180 : Display will be rotated 180 degrees from the current angle.

Rotate to 270 : Display will be rotated 270 degrees from the current angle.

Hot key : Hot Keys are available by default and can be changed by user.

It can be assigned by user directly with keyboard after changing the existing
HotKey . User can create the hot key with the combination of Shift, Ctrl, Alt and
general keys. In case only general key is pressed, it will be assigned in the form of
Alt+general key.

Help : Shows the HELP of MagicRotation program.

About : Shows the version and copyright of MagicRotation program.

Exit : Exits from MagicRotation program.

Overview

|

Installation

|

Interface

| Uninstall |

Troubleshooting

Uninstall

The MagicRotation program can be removed only by using the "Add/Remove Programs" option of the
Windows™ Control Panel.

Perform the following steps to remove MagicRotation.

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu.
If the program runs on Windows™ XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add/Remove Programs" icon in Control Panel.

3. In the "Add/Remove Programs" screen, scroll down to find "MagicRotation"
Click on it to highlight it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

7. After uninstall restart the system to complete the uninstallation.

Visit the MagicRotation
software upgrades.

* Windows™ is registered trademark of Microsoft Corporation,Inc.

website for technical support for MagicRotation, FAQs (questions and answers) and

Overview

|

Installation

|

Interface

|

Uninstall

| Troubleshooting

Troubleshooting

Before You Call Technical Support

z

MagicRotation Software works with the installed "Display Driver" supplied by your Graphic Card
Vendor to provide screen rotation capabilities. If the installed "Display Driver" is working incorrectly
or has bugs in it, then these bugs would still exist even after MagicRotation Software is installed.
Any incorrect/random behaviour resulting due to problems in the installed "Display Driver" are not
due to MagicRotation Software.

In order to verify if a problem exists in the installed "Display Driver" , you can perform the following
diagonostic steps :

1. Check if the problem is occuring in both 0 orientation (Landscape mode) and 90 orientation
(Portarit mode).

2. Check if the problem occurs with different color depths (8/16/32 bits per pixel) and different
resolution modes (800 x 600, 1024 x 768).

3. Check if the problem occurs without installing MagicRotation Software.

If the problem is repeating in any/all of the following scenarios then it may be the problem with your
installed "Display Driver" :

In order to correct the problem you need to perform the following steps :

1. Uninstall MagicRotation Software.

2. Obtain the latest "Display Driver" from your Graphic Card Vendor.
The latest "Display Driver" from (ATI, NVIDIA, MATROX, INTEL, etc.) are easily available for
download from their respective websites.

3. Install the latest "Display Driver"

4. Install MagicRotation Software. In most of the cases this should correct the problem.

z MagicRotation may not work in case monitor is replaced or driver of graphic card is updated while

MagicRotation is operating.
If so, please restart the system.

z Visit the MagicRotation website for technical support for MagicRotation, FAQs (questions and

answers) and software upgrades.

SyncMaster913N/915N

Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the

Information section or contact your dealer.

Symptom Check List Solutions

No images on the
screen. I cannot turn
on the monitor.

Is the power cord
connected properly?

Can you see

Signal Cable"

screen?
If the power is on, reboot

the computer to see the
initial screen(the login
screen), which can be
seen.

Can you see

Optimum
Mode","Recommanded
Mode 1280 x 1024 60Hz"

on the screen?

"Check

on the

"Not

Check the power cord connection
and supply.

Check the signal cable connection.

If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)

Note: If the initial screen (the login
screen) does not appear, contact

the Service Center or your dealer.

You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
handle properly.

Adjust the maximum resolution and
frequency that the monitor can
handle properly.

If the display exceeds SXGA or
75Hz, a

Mode","Recommanded Mode
1280 x 1024 60Hz"

displayed. If the display exceeds
85Hz, the display will work properly
but the

Mode","Recommanded Mode
1280 x 1024 60Hz"

appears for one minute and then
disappears.
Please change to the recommended

"Not Optimum

message is

"Not Optimum

message

mode during this one-minute period.
(The message is displayed again if

the system is rebooted.)

The screen shows
strange colors or just
black and white.

The screen suddenly
has become
unbalanced.

There is no image on the
screen.
Is the power indicator on
the monitor blinking at 1
second intervals?

Is the screen displaying
only one color as if looking
at the screen through a
cellophane paper?

Have the screen colors
become strange after
running a program or due
to a crash between
applications?

Has the video card been
set properly?

Have you changed the
video card or the driver?

Have you adjusted the
resolution or frequency to
the monitor?

The screen can be unbalanced due to the cycle of the video card signals.
Readjust position by referring to the OSD.

The monitor is in PowerSaver mode.
press any key on the keyboard to

activate the monitor and restore the
image on the screen.

Check the signal cable connection.
Make sure the video card is fully
inserted in it's slot.

Reboot the computer.

Set the video card by referring to the
video card manual.

Adjust screen image position and
size using the OSD.

Adjust the resolution and frequency
at the video card.
(Refer to the Preset Timing Modes).

The screen is out of
focus or OSD cannot
be adjusted.

LED is blinking but no
images on the screen.

There are only 16
colors shown on the
screen.
The screen colors
have changed after
changing the video
card.

There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".

Check when
MagicTune does not
function properly.

Have you adjusted the
resolution or frequency on
the monitor?

Is the frequency properly
adjusted when checking
the Display Timing on the
menu?

Have the Windows colors
been set properly?

Has the video card been
set properly?

Have you installed the
monitor driver?

See the video card
manual to see if the Plug
& Play (VESA DDC)
function can be supported.

MagicTune feature is
found only on PC (VGA)
with Window OS that
supports Plug and Play.

Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).

Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.

(The maximum frequency per
resolution may differ from product to
product.)

Windows ME/2000/XP:
Set the colors properly at the

Control Panel → Display →
Settings

Set the video card by referring to the
video card manual.

Install the monitor driver according
to the Driver Installation Instructions.

Install the monitor driver according
to the Driver Installation Instructions.

* To check whether your PC is
available for MagicTune feature,
follow the
steps below (When Windows is
XP);

Control Panel -> Performance and
Maintenance -> System ->
Hardware -> Device Manager ->
Monitors -> After deleting Plug and
Play monitor, find 'Plug and Play

.

monitor' by searching new
Hardware.

MagicTune is an additional software
for the monitor. Some graphic cards
may not support your monitor. When
you have a problem with the graphic
card, visit our website to check the
compatible graphic card list
provided.

http://www.samsung.com/monitor/magictune

MagicTune™ doesn't
work properly.

Visit our website and download the installation software for MagicTune MAC.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the video cables are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 56Hz ~ 75Hz.
(Do not exceed 75Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Have you changed your
PC or video graphic card?

Control Panel→System→Device Administrator

Download the latest program. The
program can be downloaded

http://www.samsung.com/monitor/magictune.

" and then

Q & A

Question

How can I change the
frequency?

How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control

How can I set the Power Saving
function?

How can I clean the outer
case/LCD Panel?

Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version

of the driver used. (Refer to the computer or the video card
manual for details.)

Panel→Display→Settings.
* Contact the video card manufacturer for details.

Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).

Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.

Answer

Self-Test Feature Check

Y

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

our monitor provides a self test feature that allows you to check whether your monitor is

functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnecte d or
damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the
screen goes blank although the power indicator LED is still on. The messag e may in dicate
that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monito r may influence the quality and other
features of the monitor.

1. if there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.

Useful Tips

z A monitor recreates visual signals received from the computer. The ref ore, if there is trouble with

the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, video mode not supported, etc. In this case, first check the source of the problem, and
then contact the Service Center or your dealer.

z

Judging the monitor's working condition

If there is no image on the screen or a

1024 60Hz"

message comes up, disconnect the cable from the computer while the monitor is still

"Not Optimum Mode","Recommended Mode 1280 x

powered on.

{ If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

{ In this case, check the computer for trouble.

SyncMaster912T/913T/913B/901B

Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the

Information section or contact your dealer.

Symptom Check List Solutions

No images on the
screen. I cannot turn
on the monitor.

Is the power cord
connected properly?

Can you see

Signal Cable"

screen?

If the power is on, reboot
the computer to see the
initial screen(the login
screen), which can be
seen.

Can you see

Optimum
Mode","Recommanded
Mode 1280 x 1024 60Hz"

on the screen?

"Check

on the

"Not

Check the power cord connection
and supply.

(When connecting D-Sub cable)

Check the signal cable connection.

(When connecting DVI cabel)

If you still see an (error) message
on the screen when the monitor is
connected properly, check to see if
the monitor status is set to analog.
Press source button to have the
monitor double-check the input
signal source.

If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)

Note: If the initial screen (the login
screen) does not appear, contact

the Service Center or your dealer.

You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
handle properly.

Adjust the maximum resolution and
frequency that the monitor can
handle properly.

If the display exceeds SXGA or
75Hz, a

Mode","Recommanded Mode
1280 x 1024 60Hz"

displayed. If the display exceeds

"Not Optimum

message is

85Hz, the display will work properly
but the

Mode","Recommanded Mode
1280 x 1024 60Hz"

appears for one minute and then
disappears.
Please change to the recommended
mode during this one-minute period.

(The message is displayed again if
the system is rebooted.)

"Not Optimum

message

The screen shows
strange colors or just
black and white.

There is no image on the
screen.
Is the power indicator on
the monitor blinking at 1
second intervals?

Is the monitor connected
using the DVI cable?

Is the screen displaying
only one color as if looking
at the screen through a
cellophane paper?

Have the screen colors
become strange after
running a program or due
to a crash between
applications?

The monitor is in PowerSaver mode.
press any key on the keyboard to

activate the monitor and restore the
image on the screen.

If there is still no image, press the
'
Then press any key on the keyboard
again to activate the monitor and
restore the image on the screen.

You may get a blank screen if you
boot the system before you connect
the DVI cable, or disconnect and
then reconnect the DVI cable while
the system is running as certain
types of graphic cards do not send
out video signals.
Connect the DVI cable and then
reboot the system.

Check the signal cable connection.
Make sure the video card is fully
inserted in it's slot.

Reboot the computer.

source

' button.

The screen suddenly
has become
unbalanced.

The screen is out of
focus or OSD cannot
be adjusted.

LED is blinking but no
images on the screen.

There are only 16
colors shown on the
screen.
The screen colors

Has the video card been
set properly?

Have you changed the
video card or the driver?

Have you adjusted the
resolution or frequency to
the monitor?

The screen can be unbalanced due to the cycle of the video card signals.
Readjust position by referring to the OSD.

Have you adjusted the
resolution or frequency on
the monitor?

Is the frequency properly
adjusted when checking
the Display Timing on the
menu?

Have the Windows colors
been set properly?

Set the video card by referring to the
video card manual.

Adjust screen image position and
size using the OSD.

Adjust the resolution and frequency
at the video card.
(Refer to the Preset Timing Modes).

Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).

Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.

(The maximum frequency per
resolution may differ from product to
product.)

Windows ME/2000/XP:
Set the colors properly at the

Control Panel → Display →
Settings

.

have changed after
changing the video
card.

Has the video card been
set properly?

Set the video card by referring to the
video card manual.

There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".

Check when
MagicTune does not
function properly.

Have you installed the
monitor driver?

See the video card
manual to see if the Plug
& Play (VESA DDC)
function can be supported.

MagicTune feature is
found only on PC (VGA)
with Window OS that
supports Plug and Play.

Install the monitor driver according
to the Driver Installation Instructions.

Install the monitor driver according
to the Driver Installation Instructions.

* To check whether your PC is
available for MagicTune feature,
follow the
steps below (When Windows is
XP);

Control Panel -> Performance and
Maintenance -> System ->
Hardware -> Device Manager ->
Monitors -> After deleting Plug and
Play monitor, find 'Plug and Play
monitor' by searching new
Hardware.

MagicTune is an additional software
for the monitor. Some graphic cards
may not support your monitor. When
you have a problem with the graphic
card, visit our website to check the
compatible graphic card list
provided.

http://www.samsung.com/monitor/magictune

MagicTune™ doesn't
work properly.

Visit our website and download the installation software for MagicTun e MAC.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the video cables are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 56Hz ~ 75Hz.
(Do not exceed 75Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Have you changed your
PC or video graphic card?

Control Panel→System→Device Administrator

Download the latest program. The
program can be downloaded

http://www.samsung.com/monitor/magictune.

" and then

Q & A

Question

How can I change the
frequency?

Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version

of the driver used. (Refer to the computer or the video card

Answer

manual for details.)

Y

How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control

Panel→Display→Settings.
* Contact the video card manufacturer for details.

How can I set the Power Saving
function?

How can I clean the outer
case/LCD Panel?

Self-Test Feature Check

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

our monitor provides a self test feature that allows you to check whether your monitor is

functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.

Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).

Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.

This box appears during normal operation if the video cable becomes disconnecte d or
damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the
screen goes blank although the power indicator LED is still on. The messag e may in dicate
that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monito r may influence the quality and other
features of the monitor.

1. if there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.

Useful Tips

z A monitor recreates visual signals received from the computer. The ref ore, if there is trouble with

the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, video mode not supported, etc. In this case, first check the source of the problem, and
then contact the Service Center or your dealer.

z

Judging the monitor's working condition

If there is no image on the screen or a

1024 60Hz"

message comes up, disconnect the cable from the computer while the monitor is still

"Not Optimum Mode","Recommended Mode 1280 x

powered on.

{ If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

{ In this case, check the computer for trouble.

General

General

Model Name SyncMaster 913N

LCD Panel

Size 19" Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16,2M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog
0,7Vp-p Positive at 75Ω
Separate H/V sync, Composite sync, SOG, TTL level positive or negative.

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC(+/- 10%) , 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, detachable

Power Consumption

Less than 38W

Dimensions (WxDxH)/ Weight (Simple Stand)

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 215.2 x 424.6 mm / 16.4 x 8.5 x 16.7 inch(With Basic Stand) / 5.6 kg

Dimensions (WxDxH)/ Weight (Pivot Stand)

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 200.0 x 420.6 mm / 16.4 x 7.9 x 16.6 inch(With Basic Stand) / 7.2 kg

VESA Mounting Interface

100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.

z For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.

State

Normal Operation

Power saving mode

EPA/ENERGY 2000

Power Switch off

Power Indicator Green Green, Blinking Black

Power Consumption Less than 38W

Less than 1W

(Off-mode)

Less than 1W

(120Vac)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.

As an ENERGY STAR

®

Partner, SAMSUNG has determined that this

product meets the ENERGY STAR

®

guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.00 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 -/-

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.00 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+

VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 915N

LCD Panel

Size 19" Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16,2M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog
0,7Vp-p Positive at 75Ω
Separate H/V sync, Composite sync, SOG, TTL level positive or negative.

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC(+/- 10%) , 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, detachable

Power Consumption

Less than 38W

Dimensions (WxDxH)/ Weight

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 215.2 x 424.6 mm / 16.4 x 8.5 x 16.7 inch(With Basic Stand) / 5.6 kg

VESA Mounting Interface

100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.

z For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.

State

Normal Operation

Power saving mode

EPA/ENERGY 2000

Power Switch off

Power Indicator Green Green, Blinking Black

Power Consumption Less than 38W

Less than 1W

(Off-mode)

Less than 1W

(120Vac)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.

As an ENERGY STAR

®

Partner, SAMSUNG has determined that this

product meets the ENERGY STAR

®

guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.00 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 -/-

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.00 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+

VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 912T

LCD Panel

Size 19" Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16,7M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog , DVI(Digital Visual Interface) Compliant Digital RGB
0,7Vp-p Positive at 75Ω
Separate H/V sync, Composite sync, SOG, TTL level positive or negative.

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC(+/- 10%) , 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, detachable
DVI-D to DVI-D connector, detachable

Power Consumption

Less than 38W

Dimensions (WxDxH)/ Weight

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 200.0 x 420.6 mm / 16.4 x 7.9 x 16.6 inch(With Basic Stand) / 7.2 kg

VESA Mounting Interface

100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.

z For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.

State

Power saving

Normal

Operation

mode

EPA/ENERGY

2000

Power off

(Power button)

Power off

(Power Switch)

(option)

Power Indicator Green Green, Blinking Black Black

Power

Consumption

Less than 38W

Less than 1W

(Off-mode)

Less than 1W

(120Vac)

Less than 0W

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.

As an ENERGY STAR

®

Partner, SAMSUNG has determined that this

product meets the ENERGY STAR

®

guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.00 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 -/-

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.00 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+

VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 913T

LCD Panel

Size 19" Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16,2M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog , DVI(Digital Visual Interface) Compliant Digital RGB
0,7Vp-p Positive at 75Ω
Separate H/V sync, Composite sync, SOG, TTL level positive or negative.

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC(+/- 10%) , 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, detachable
DVI-D to DVI-D connector, detachable(option)

Power Consumption

Less than 38W

Dimensions (WxDxH)/ Weight (Simple Stand)

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 215.2 x 424.6 mm / 16.4 x 8.5 x 16.7 inch(With Basic Stand) / 5.6 kg

Dimensions (WxDxH)/ Weight (Pivot Stand)

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 200.0 x 420.6 mm / 16.4 x 7.9 x 16.6 inch(With Basic Stand) / 7.2 kg

VESA Mounting Interface

100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.

z For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.

State

Normal Operation

Power saving mode

EPA/ENERGY 2000

Power Switch off

Power Indicator Green Green, Blinking Black

Power Consumption Less than 38W

Less than 1W

(Off-mode)

Less than 1W

(120Vac)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.

As an ENERGY STAR

®

Partner, SAMSUNG has determined that this

product meets the ENERGY STAR

®

guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Horizontal

Display Mode

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.00 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 -/-

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.00 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+

VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 913B / 901B

LCD Panel

Size 19" Diagonal (48 cm)

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel Pitch 0.294 mm (H) x 0.294 mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16,2M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog , DVI(Digital Visual Interface) Compliant Digital RGB
0,7Vp-p Positive at 75Ω
Separate H/V sync, Composite sync, SOG, TTL level positive or negative.

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC(+/- 10%) , 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, detachable
DVI-D to DVI-D connector, detachable(option)

Power Consumption

Less than 38W

Dimensions (WxDxH)/ Weight (Simple Stand)

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 215.2 x 424.6 mm / 16.4 x 8.5 x 16.7 inch(With Basic Stand) / 5.6 kg

Dimensions (WxDxH)/ Weight (Pivot Stand)

416.6 x 60.2 x 349.4 mm / 16.4 x 2.4 x 13.8 inch (Without Stand)

416.6 x 200.0 x 420.6 mm / 16.4 x 7.9 x 16.6 inch(With Basic Stand) / 7.2 kg

VESA Mounting Interface

100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.

z For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.

State

Normal Operation

Power saving mode

EPA/ENERGY 2000

Power Switch off

Power Indicator Green Green, Blinking Black

Power Consumption Less than 38W

Less than 1W

(Off-mode)

Less than 1W

(120Vac)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.

As an ENERGY STAR

®

Partner, SAMSUNG has determined that this

product meets the ENERGY STAR

®

guidelines for energy efficiency.
