SyncMaster 720B/720T/920T/721B
SyncMaster 720B
Install drivers Install
rams
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Power
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock
When not used for extended period of time, set your computer to DPMS.
If using a screen saver, set it to the active screen mode.
Do not use a damaged or loose plug.
z This may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
z This may cause an electric shock or fire.
Use only a properly grounded plug and receptacle.
z An improper ground may cause electric shock or equipmen t da mag e.
Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause da mage.
This may cause an electric shock or fire.
z
Do not connect too many extension cords or plugs to an outlet.
z This may cause fire.
Installation
Put your monitor in a location with low humidity and a minimum of dust.
z Failure to do so may cause an electric shock or fire inside the monitor.
Do not drop the monitor when moving it.
z This may cause damage to the product or human body.
Place the monitor on a flat and stable surface.
z The monitor may cause injury by falling.
Set down the monitor carefully.
z The monitor could be damaged or broken.
Do not place the monitor face down.
The TFT-LCD surface may be damaged.
z
Installing a wall bracket must be done by a qualified professional.
z Installation by unqualified personnel may result in injury.
z Always use the mounting device specified in the owner's manual .
Leave a space for ventilation between the product and the wall.
Clean
z Poor ventilation may cause the interior temperature to rise and lead to
fire.
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with
a slightly moistened, soft fabric.
Do not spray water or detergent directly on the monitor.
This may cause damage, electric shock or fire.
z
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.
z A dirty connector may cause an electric shock or fire.
Others
Contact the Service Center or Customer Center for interior cleaning
once a year.
Keep the product's interior clean. Dust which has accumulated in the
z
interior over an extended period of time may cause malfunction or fire.
Do not remove cover (or back).
z This may cause an electric shock or fire.
z Refer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or service.
z This may cause an electric shock or fire.
Be careful not to let water drip into the monitor or expose the monitor to
moisture.
z This may cause malfunction, an electric shock or fire.
Especially avoid operating the monitor near water or outdoors where it
z
could be exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord.
z The monitor may malfunction, causing an electric shock or fire.
z Then contact the Service Center .
Disconnect the plug from the outlet during storms or lightening or if it is
not used for a long period of time.
z Failure to do so may cause an electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal
cable.
z This may cause a breakdown, electric shock or fire due to damage to
the cable.
Do not move the monitor right or left by pulling only the wire or the
signal cable.
This may cause a breakdown, electric shock or fire due to damage to
z
the cable.
Do not cover the vents on the monitor cabinet.
z Bad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal objects
on the monitor.
This may cause malfunction, an electric shock or fire.
z
z If a foreign substance enters the monitor, unplug the power cord and
contact the Service Center .
Do not use or store inflammable substances near the monitor.
z This may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
z This may cause an electric shock, fire or injury.
Do not insert metal objects such as utensils, wire or drill bits or things
that catch fire easily, such as pieces of paper or matches, into the vents,
the headphone or A/V ports on the monitor.
This may cause malfunction, an electric shock or fire.
z
z Always contact the Service Center if foreign substances/objects enter
into the monitor.
If you view a fixed screen for an extended period of time, residua l ima ge
or blurriness may appear.
Change the mode to energy save or set a screensaver to moving
z
picture when you need to be away from the monitor for an extended
period of time.
Be careful when adjusting the stand angle.
z Applying too much force may cause the monitor topple over or fall,
resulting in injury.
z Your hand or finger(s) may get caught between the monitor and the
stand, causing injury.
Adjust the resolution and frequency to the levels appropriate for the
model.
z Inappropriate resolution may cause undesirable picture quality.
17,19 inch - 1280 X 1024
Be careful that adapter should not be in contact with water and
therefore not be wet.
This may cause malfunction, an electric shock or fire.
z
z Do not use adapter by the waterside or outside particularly when it rains
or snows.
z Be careful that adapter should not be wet while cleaning floor with
water.
Keep all power adapters apart.
z Failure to do so may cause fire.
Keep power adapter away from any other heat source.
z Failure to do so may cause fire.
Remove and discard vinyl bag from power adapter before use.
z Failure to do so may cause fire.
Always keep power adapter in well-ventilated area.
Keep the volume at a proper level when you use the headphones.
z Excessively loud volume levels may damage hearing.
Sitting too close to the monitor on a continuous basis may damage
eyesight.
To ease eye strain, take at least a five-minute break after every hour of
using the monitor
.
Do not use the monitor where it may be exposed to strong vibrations.
Exposure to strong vibrations may cause fire and hazard and shorten
z
the life of the monitor.
When moving the monitor, turn the power switch off and unplug the
power cord.
Make sure that all cables, including the antenna cable and cables
connected to other devices, are disconnected before moving the
monitor.
z Failure to disconnect the cable may damage it and lead to fire or an
electric shock.
y
®
r
SyncMaster 720B/721B
Please make sure the following items are included with your monitor.
If an
items are missing, contact your dealer.
Unpacking
Monitor
Manual
Cable
Quick Setup Guide
Power Cord
Warranty Card
(Not available in all
locations)
DC Adapte
User's Guide,
Monitor Driver,

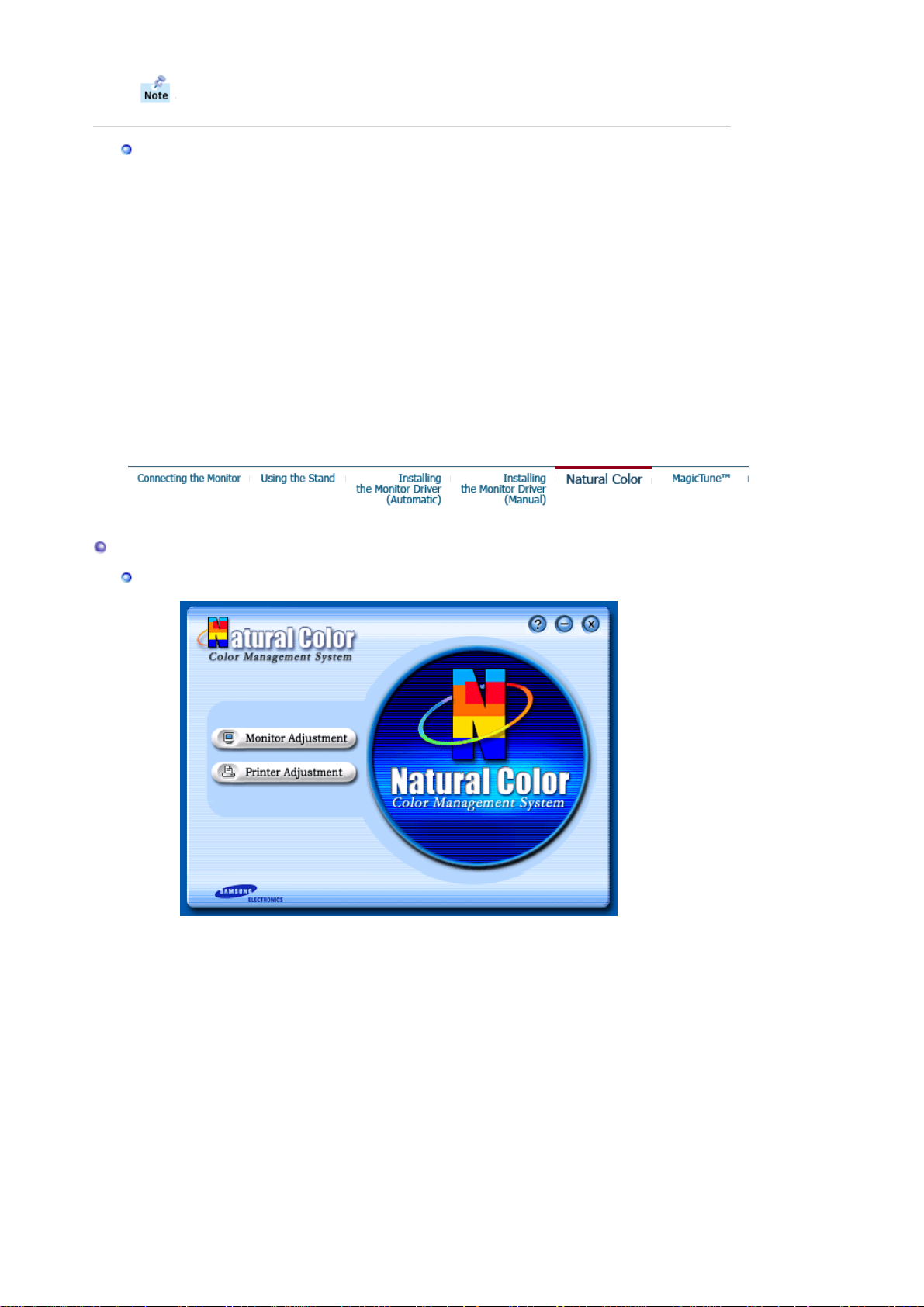

Natural Color software,
MagicTune™ software,
Pivot
Pro software
A
For Multimedia model (Option)
Multimedia model
udio Cable
Front

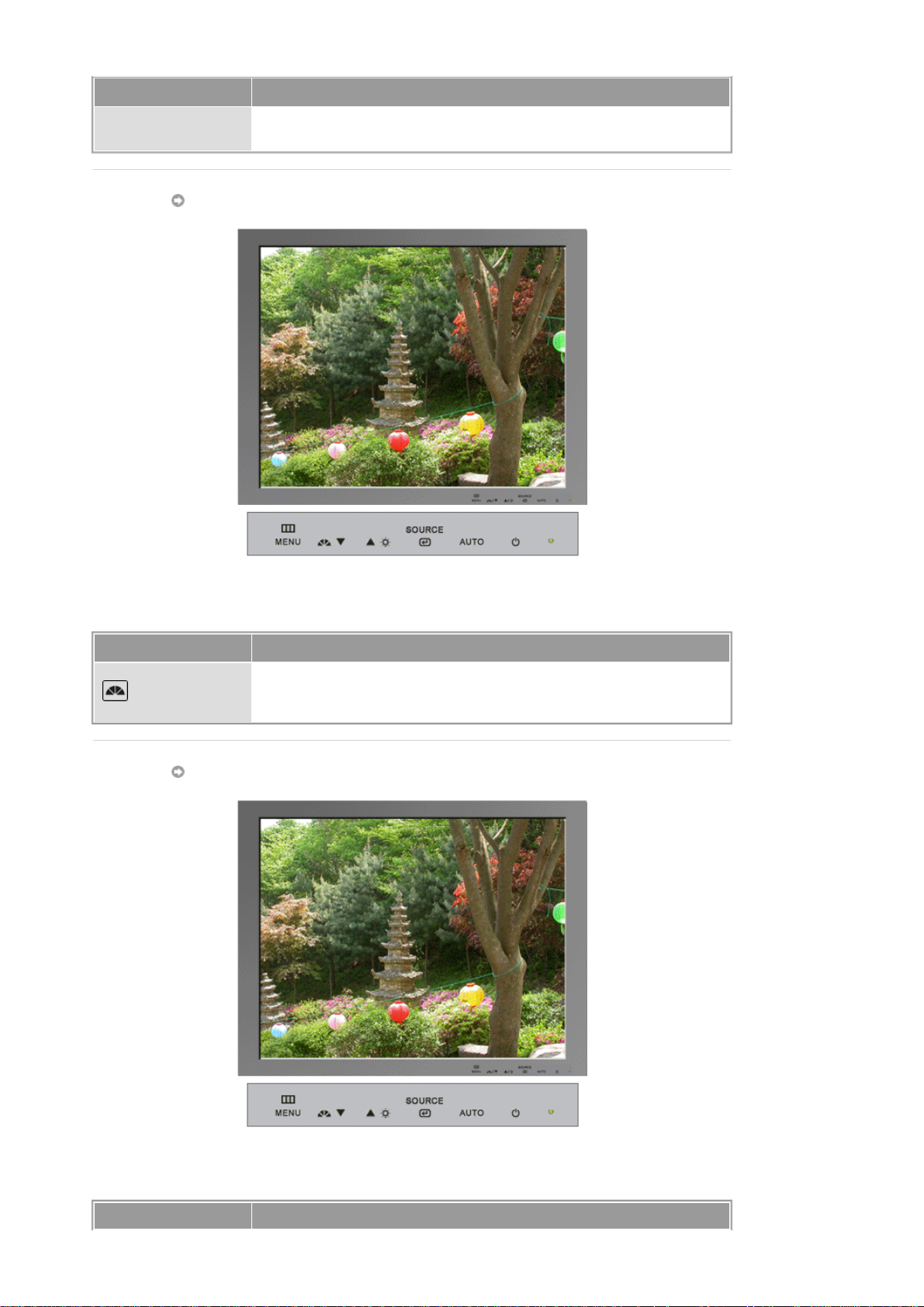

Menu button [ ]
MagicBright button
[]

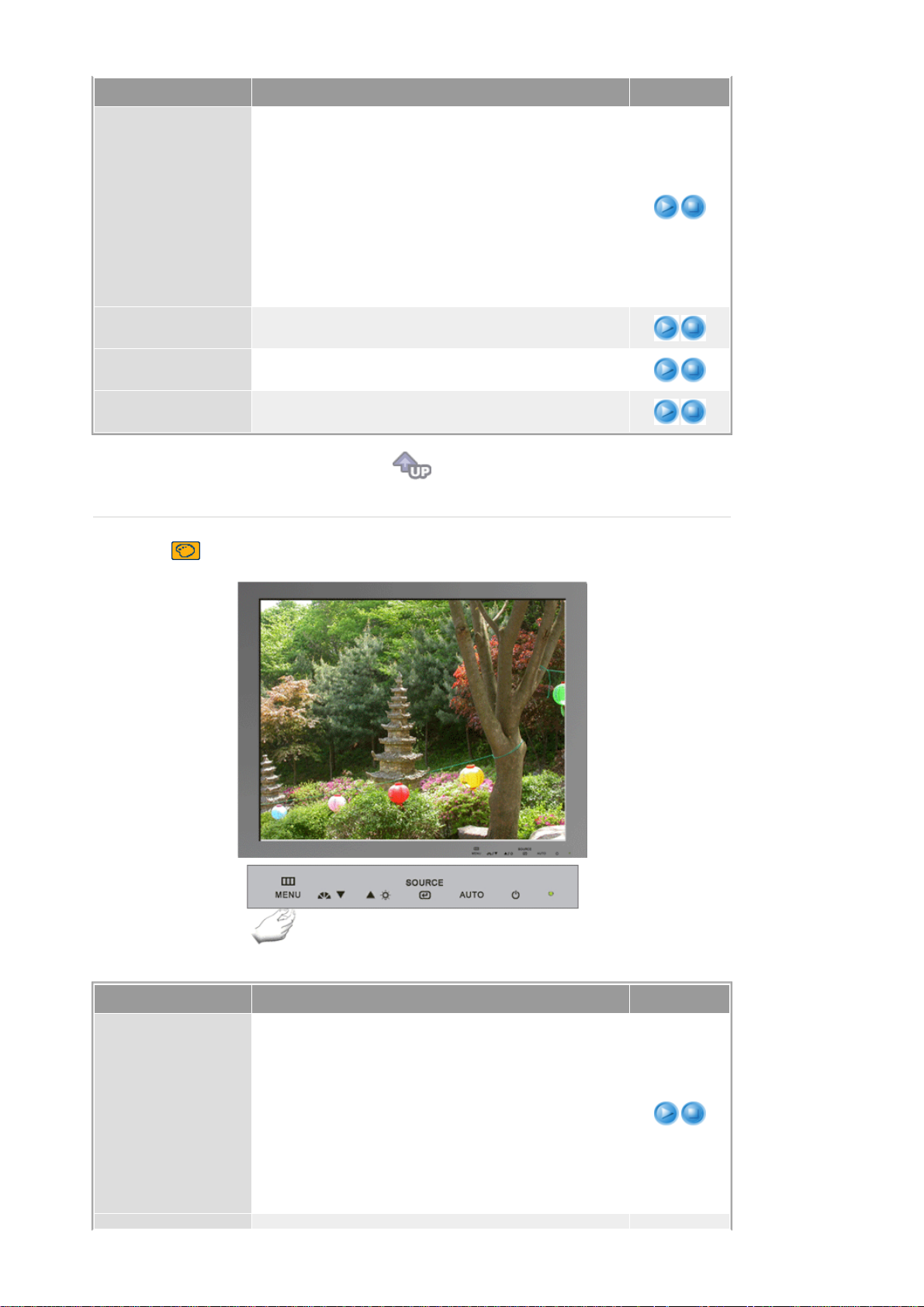

Opens the OSD menu. Also use to exit the OSD menu or return
to the previous menu.
MagicBright is a new feature providing optimum viewing
environment depending on the contents of the image you are
watching. Currently six different modes are available: Custom,
Text, Internet, Game, Sport and Movie. Each mode has its own
pre-configured brightness value. You can easily select one of
six settings by simply pressing MagicBright control buttons.
1) Custom
Although the values are carefully chosen by our engineers,
the pre-configured values may not be comfortable to your
eyes depending on your taste.
If this is the case, adjust the Brightness and Contrast by
using the OSD menu.
: Normal Brightness
2) Text
For documentations or works involving heavy text.
3) Internet
: Medium Brightness
For working with a mixture of images such as text and
graphics.
4) Game
For watching motion pictures such as a Game.
5) Sport
For watching motion pictures such as a Sport.
6) Movie
: High Brightness
For watching motion pictures such as a DVD or Video CD.
Brightness button [ ]
>>Click here to see an animation clip
When OSD is not on the screen, Push the button to adjust
brightness.
Adjust items in the menu.
Adjust buttons [ ]
Enter button [ ]
Auto button
Power button
Power indicator
Activates a highlighted menu item.
Use this button for auto adjustment.
Use this button for turn the monitor on and off.
This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear
(The configuration at the back of the monitor may vary from product to product.)
PC Connection Terminal
Computer Connection Terminal (15 Pin D-SUB)
A
How to disconnect a cable
DC Power Connection Terminal
(DC 14V)
This product may be used with 90 ~ 264VAC.
(Voltage is automatically adjusted by the power
adapter.)
Audio Connection Terminal
(Multimedia Model / Option)
udio Connection Terminal
Headphone connection terminal (Output)
See Connecting the Monitor for further information regarding cable connections.
y
®
r
SyncMaster 720T/920T
Please make sure the following items are included with your monitor.
If an
items are missing, contact your dealer.
Unpacking
Monitor
Manual
Cable
Quick Setup Guide
Power Cord
Warranty Card
(Not available in all
locations)
DC Adapte
User's Guide,
Monitor Driver,
Natural Color software,
MagicTune™ software,
Pivot
Pro software
A
For Multimedia model (Option)
Multimedia model
udio Cable
Front
Menu button [ ]
MagicBright button
[]
Opens the OSD menu. Also use to exit the OSD menu or return
to the previous menu.
MagicBright is a new feature providing optimum viewing
environment depending on the contents of the image you are
watching. Currently six different modes are available: Custom,
Text, Internet, Game, Sport and Movie. Each mode has its own
pre-configured brightness value. You can easily select one of
six settings by simply pressing MagicBright control buttons.
1) Custom
Although the values are carefully chosen by our engineers,
the pre-configured values may not be comfortable to your
eyes depending on your taste.
If this is the case, adjust the Brightness and Contrast by
using the OSD menu.
: Normal Brightness
2) Text
For documentations or works involving heavy text.
3) Internet
: Medium Brightness
For working with a mixture of images such as text and
graphics.
4) Game
For watching motion pictures such as a Game.
5) Sport
For watching motion pictures such as a Sport.
6) Movie
: High Brightness
For watching motion pictures such as a DVD or Video CD.
>>Click here to see an animation clip
Brightness button [ ]
When OSD is not on the screen, Push the button to adjust
brightness.
Adjust items in the menu.
Adjust buttons [ ]
Enter button [ ] /
Source button
Activates a highlighted menu item. /
Push the 'Source', then Selects the Video signal while the OSD
is off. (When the Source button is pressed to change the input
mode, a message appears in the center of the screen displaying
the current mode -- analog or digital input signal.) Note : If you
select the Digital mode, you must connect your monitor to the
graphic card's port using the DVI cable.
Auto button
Power button
Power indicator
Use this button for auto adjustment.
Use this button for turn the monitor on and off.
This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear
(The configuration at the back of the monitor may vary from product to product.)
A
PC Connection Terminal
Computer Connection Terminal (15 Pin D-SUB)
Computer Connection Terminal (DVI)
How to disconnect cables
DC Power Connection Terminal
(DC 14V)
This product may be used with 90 ~ 264VAC.
(Voltage is automatically adjusted by the power
adapter.)
Audio Connection Terminal
(Multimedia Model / Option)
udio Connection Terminal
Headphone connection terminal (Output)
See Connecting the Monitor for further information regarding cable connections.
SyncMaster 720B/721B
1.
2-1.
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2.
2-3.
3.
4.
Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adapter.
Connect the audio cable for your monitor to the audio port on the back of your computer.
Turn on your computer and monitor. If your monitor displays an image, installation is
complete.
Pivot Stand
(
)
(
)
(
)
Pivot Pro Installation
Caution :
Installing a VESA base
When Pivoting the monitor, the corner of the monitor may reach to the floor. Tilt the
monitor backward more than 45 degrees and then Pivot it. Failure to do so may damage
the monitor.
Sold separately
1. Bracket
Set-Mount
3. Anchors (3EA)
(Contact a local Samsung Electro nics service center to buy optional items.)
2. Bracket
Wall-Mount
4. Screws (3EA)
Wall-Mount
5. Screws (4EA)
1. Installing the wall-mount bracket
(2)
2. Installing the set-mount bracket
(1)
Fold the base and put the set-mount bracket into it. Align the set-mount interface holes with the holes
in the base A and secure it tightly with 2 screws.
Fold the base and lay the area connected to cable face-down before putting the set-mo unt bracket into
A
it. Align the set-mount interface holes with the holes in the base B and secure it tightly with 4 screws.
This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.
(3)
Monitor
A.
Mounting interface pad
B.
lign the Mounting Interface Pad with the holes in the Rear Cover Mounting Pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.
3. Wall Mounting the Monitor
(1)
(2)
Caution:
The stand is made of aluminum. Keep it from getting nicked or scratched.
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME
1. Insert CD into the CD-ROM drive.
2. Click
"Windows ME Driver"
.
3. Choose your monitor model in the model list, then click the
"OK"
button.
4. Click the
5. Monitor driver installation is completed.
Windows XP/2000
1. Insert CD into the CD-ROM drive.
2. Click
3. Choose your monitor model in the model list, then click the
"Install"
button in the
"Windows XP/2000 Driver"
"Warning"
window.
"OK"
button.
4. If you can see following message window, then click the
Then click
"OK"
button.
This monitor driver is under certified MS logo and this installation doesn't
damage your system. The certified driver will be posted on Samsung
Monitor homepage.
http://www.samsung-monitor.com/.
5. Monitor driver installation is completed.
"Continue Anyway"
button.
Windows XP | Windows 2000 | Windows Me | Windows NT | Linux
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft® Windows® XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "
Start
" —> "
Control Panel
" then click the "
Appearance and Themes
" icon.
3. Click "
4. Click the "
Display
" icon and choose the "
Properties
" button on the "
Settings
Monitor
" tab then click "
" tab and select "
Advanced..
Driver
".
" tab.
5. Click "
6. Select "
Update Driver..
Don't search ,I will..
" and select "
Install from a list or..
" then click "
Next
" then click "
" and then click "
Have disk
Next
" button.
".
7. Click the "
model list and click the "
8. If you can see following message window, then click the "
click "OK" button.
Browse
" button then choose A:(D:\Driver) and choose your monitor model in the
" button.
Next
Continue Anyway
" button. Then
9. Click the "
This monitor driver is under certified MS logo and this installation doesn't
damage your system. The certified driver will be posted on Samsung
Monitor homepage.
http://www.samsung-monitor.com/.
" button, then click "OK" button continually.
Close
play
10. Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "
2. Click the "
Browse
" button on the "
Insert disk
" window.
File Needed
" window.
3. Choose A:(D:\Driver) then cli ck the "Open" button and then click "OK" button.
How to install
1. Click "
2. Double click the "
3. Choose the "
4. Choose "
Start
Monitor
" , "
Setting
Settings
" , "
Control Panel
Display
" Icon.
" tab and then click "
".
".
Advanced..
".
Case1:If th e "Properties" button is inactive, it means your monitor is properly configured.
Please stop installation
Case2:If th e "Properties" button is active, click the "Properties" button then follow nex t steps
continually.
5. Click "
6. Choose "
specific driver
7. Click the "
8. Click the "
9. Choose your monitor model and click the "
10. Click the "
" and then click on "
Driver
Update Driver..
" then click on the "Next" button.
Display a list of the known drivers for this device so that I can choose a
" then click "
Browse
Open
Finish
" button then choose A:(D:\Driver).
" button, then click "OK" button.
" button then the "
" and then click "
Next
Close
Have disk
" button then click "
Next
" button.
".
Next
" button.
If you can see the "
And click the "
Finish
Digital Signature Not Found
" button then the "
Close
" window then click the "
" button.
Yes
Microsoft
1. Click "
2. Double click "
3. Select the "
4. Select the "
5. Click the "
6. Choose "
7. Choose "
8. Click the "
®
Windows® Millennium Operating System
" , "
Start
Setting
Display
Settings
Monitor
Change
Specify the location of the driver
" , "
Control Panel
" icon.
" tab and click "
" tab.
" button in the "
".
Advanced Properties
Monitor Type
".
" area.
Display a list of all the driver in a specific location..
Have Disk
" button
" button.
" then click "
9. Specify A:\(D:\driver) then click "OK" button.
10. Select "
Show all devices
" and choose the monitor that corresponds to the one you
connected to your computer and click "OK".
11. Continue choosing "
" button and "OK" button until you close the Display Properties
Close
dialogue box.
Microsoft
1. Click
®
Windows® NT Operating System
Start, Settings, Control Panel
, and then double-click
Display
icon.
2. In Display Registration Information window, click Settings Tab and then click
.
Modes
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)
and then click OK.
4. Click
button if you see the screen working normally after clicking
Apply
Test
not normal, change to a different mode (lower mode of resolution, colors or frequency).
"button.
" button.
Next
All Display
. If the screen is
If there is no Mode at
All Dis
Modes
, select the level of resolution and vertical
frequency by referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1. Press Enter at the first and th e second screen after executing the X86Config file.
2. The third screen is for
3. Set a mouse for your computer.
4. The next screen is for
5. Set a Keyboard fo r your computer.
6. The next screen is for
7. First of all, set a
directly.)
8. Set a
9. Enter the
10. You have
vertical frequency
of X-Window.
Execute
model name of your monitor
finished
X-Window after setting other requested hardware.
setting your mouse
selecting a keyboard
setting your monitor
horizontal frequency
for your monitor. (You can enter the frequency directly.)
setting up your monitor.
.
.
.
for your monitor. (You can enter the frequency
. This information will not affect the actual execution
Natural Color
Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial
screen of the program Natural Color will be executed. Click Natural Color on the initial screen
to install the Natural Color software.
To install the program manually, insert the CD included with the Samsung monitor into the CDROM Drive, click the
Enter D:\color\eng\setup.exe and then press the
button of Windows and then select
[Start]
<Enter>
key.
[Execute]
.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
[
]
How to delete the Natural Color software program
Select
[Setting]/[Control Panel]
program]
Select Natural Color from the list and then click the
MagicTune™
Installation
1. Insert the installation CD into the CD-ROM drive.
2. Click the MagicTune™ installation file.
3. Select instal lation Language, Click "Next".
.
on the
menu and then double-click
[Start]
Add/Delete
[Add/Delete a
button.
4. When the InstallationShield Wizard window appears, click "Next."
5. Select "I agree to the terms of the license agreement" to accept the terms of use.
6. Choose a folder to install the MagicTune program.
7. Click "Install."
8. The "Installationation Status" window appears.
9. Click "Finish."
10. When the installation is complete, the MagicTune 2.5 executable icon appears on your
desktop.
Double-click the icon to start the program.
Magictune execution icon may not appear depending on specification of
computer system or monitor. If that happens, press F5 Key.
11. The following window appears if the installation is successful.
Installationation Problems
The installation of MagicTune™ 2.5 can be affected by such factors as the video card,
motherboard and the network environment.
System Requirements
OS
z Windows 98 SE
z Windows Me
z Windows NT
z Windows 2000
z Windows XP Home Edition
z Windows XP Professional
Hardware
32MB Memory above
z
z 25MB Hard disk space above
* For more information, visit the MagicTune website.
Uninstall
The MagicTune program can be removed only by using the "Add or Remove Programs" option of
the Windows Control Panel.
Perform the following steps remove MagicTune.
1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program
runs on Windows XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add or Remove Programs" icon in Control Panel.
3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune." Click on it to
highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.
Visit the MagicTune website for technical support for MagicTune, FAQs (questions and answers)
and software upgrades.
Troubleshooting
MagicTune may not work in case monitor is replaced or driver of graphic card is updated while
MagicTune is operating. If so, please restart the system.
Check when MagicTune does not function properly.
* MagicTune feature is found only on PC (VGA) with Window OS that supports Plug and Play.
* To check whether your PC is available for MagicTune feature, follow the steps
below (When Windows is XP);
Control Panel -> Performance and Maintenance -> System -> Hardware -> Device
Manager -> Monitors -> After deleting Plug and Play monitor, find 'Plug and Play monitor'
by searching new Hardware.
Visit the MagicTune website for technical support for MagicTune, FAQs (questions and answers)
and software upgrades.
SyncMaster 720T/920T
1.
2-1.
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2.
2-3.
2-4.
3.
4.
Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI Port on the back of your Monitor.
Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adapter.
Connect the audio cable for your monitor to the audio port on the back of your computer.
Turn on your computer and monitor. If your monitor displays an image, installation is
complete.
Pivot Stand
(
)
(
)
(
)
Pivot Pro Installation
Caution :
Installing a VESA base
When Pivoting the monitor, the corner of the monitor may reach to the floor. Tilt the
monitor backward more than 45 degrees and then Pivot it. Failure to do so may damage
the monitor.
Sold separately
1. Bracket
Set-Mount
3. Anchors (3EA)
(Contact a local Samsung Electro nics service center to buy optional items.)
2. Bracket
Wall-Mount
4. Screws (3EA)
Wall-Mount
5. Screws (4EA)
1. Installing the wall-mount bracket
(2)
2. Installing the set-mount bracket
(1)
Fold the base and put the set-mount bracket into it. Align the set-mount interface holes with the holes
in the base A and secure it tightly with 2 screws.
Fold the base and lay the area connected to cable face-down before putting the set-mo unt bracket into
A
it. Align the set-mount interface holes with the holes in the base B and secure it tightly with 4 screws.
This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.
(3)
Monitor
A.
Mounting interface pad
B.
lign the Mounting Interface Pad with the holes in the Rear Cover Mounting Pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.
3. Wall Mounting the Monitor
(1)
(2)
Caution:
The stand is made of aluminum. Keep it from getting nicked or scratched.
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME
1. Insert CD into the CD-ROM drive.
2. Click
"Windows ME Driver"
.
3. Choose your monitor model in the model list, then click the
"OK"
button.
4. Click the
5. Monitor driver installation is completed.
Windows XP/2000
1. Insert CD into the CD-ROM drive.
2. Click
3. Choose your monitor model in the model list, then click the
"Install"
button in the
"Windows XP/2000 Driver"
"Warning"
window.
"OK"
button.
4. If you can see following message window, then click the
Then click
"OK"
button.
This monitor driver is under certified MS logo and this installation doesn't
damage your system. The certified driver will be posted on Samsung
Monitor homepage.
http://www.samsung-monitor.com/.
5. Monitor driver installation is completed.
"Continue Anyway"
button.
Windows XP | Windows 2000 | Windows Me | Windows NT | Linux
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft® Windows® XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "
Start
" —> "
Control Panel
" then click the "
Appearance and Themes
" icon.
3. Click "
4. Click the "
Display
" icon and choose the "
Properties
" button on the "
Settings
Monitor
" tab then click "
" tab and select "
Advanced..
Driver
".
" tab.
5. Click "
6. Select "
Update Driver..
Don't search ,I will..
" and select "
Install from a list or..
" then click "
Next
" then click "
" and then click "
Have disk
Next
" button.
".
7. Click the "
model list and click the "
8. If you can see following message window, then click the "
click "OK" button.
Browse
" button then choose A:(D:\Driver) and choose your monitor model in the
" button.
Next
Continue Anyway
" button. Then
9. Click the "
This monitor driver is under certified MS logo and this installation doesn't
damage your system. The certified driver will be posted on Samsung
Monitor homepage.
http://www.samsung-monitor.com/.
" button, then click "OK" button continually.
Close
play
10. Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "
2. Click the "
Browse
" button on the "
Insert disk
" window.
File Needed
" window.
3. Choose A:(D:\Driver) then cli ck the "Open" button and then click "OK" button.
How to install
1. Click "
2. Double click the "
3. Choose the "
4. Choose "
Start
Monitor
" , "
Setting
Settings
" , "
Control Panel
Display
" Icon.
" tab and then click "
".
".
Advanced..
".
Case1:If th e "Properties" button is inactive, it means your monitor is properly configured.
Please stop installation
Case2:If th e "Properties" button is active, click the "Properties" button then follow nex t steps
continually.
5. Click "
6. Choose "
specific driver
7. Click the "
8. Click the "
9. Choose your monitor model and click the "
10. Click the "
" and then click on "
Driver
Update Driver..
" then click on the "Next" button.
Display a list of the known drivers for this device so that I can choose a
" then click "
Browse
Open
Finish
" button then choose A:(D:\Driver).
" button, then click "OK" button.
" button then the "
" and then click "
Next
Close
Have disk
" button then click "
Next
" button.
".
Next
" button.
If you can see the "
And click the "
Finish
Digital Signature Not Found
" button then the "
Close
" window then click the "
" button.
Yes
Microsoft
1. Click "
2. Double click "
3. Select the "
4. Select the "
5. Click the "
6. Choose "
7. Choose "
8. Click the "
®
Windows® Millennium Operating System
" , "
Start
Setting
Display
Settings
Monitor
Change
Specify the location of the driver
" , "
Control Panel
" icon.
" tab and click "
" tab.
" button in the "
".
Advanced Properties
Monitor Type
".
" area.
Display a list of all the driver in a specific location..
Have Disk
" button
" button.
" then click "
9. Specify A:\(D:\driver) then click "OK" button.
10. Select "
Show all devices
" and choose the monitor that corresponds to the one you
connected to your computer and click "OK".
11. Continue choosing "
" button and "OK" button until you close the Display Properties
Close
dialogue box.
Microsoft
1. Click
®
Windows® NT Operating System
Start, Settings, Control Panel
, and then double-click
Display
icon.
2. In Display Registration Information window, click Settings Tab and then click
.
Modes
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)
and then click OK.
4. Click
button if you see the screen working normally after clicking
Apply
Test
not normal, change to a different mode (lower mode of resolution, colors or frequency).
"button.
" button.
Next
All Display
. If the screen is
If there is no Mode at
All Dis
Modes
, select the level of resolution and vertical
frequency by referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1. Press Enter at the first and th e second screen after executing the X86Config file.
2. The third screen is for
3. Set a mouse for your computer.
4. The next screen is for
5. Set a Keyboard fo r your computer.
6. The next screen is for
7. First of all, set a
directly.)
8. Set a
9. Enter the
10. You have
vertical frequency
of X-Window.
Execute
model name of your monitor
finished
X-Window after setting other requested hardware.
setting your mouse
selecting a keyboard
setting your monitor
horizontal frequency
for your monitor. (You can enter the frequency directly.)
setting up your monitor.
.
.
.
for your monitor. (You can enter the frequency
. This information will not affect the actual execution
Natural Color
Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial
screen of the program Natural Color will be executed. Click Natural Color on the initial screen
to install the Natural Color software.
To install the program manually, insert the CD included with the Samsung monitor into the CDROM Drive, click the
Enter D:\color\eng\setup.exe and then press the
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
button of Windows and then select
[Start]
<Enter>
key.
[Execute]
.
How to delete the Natural Color software program
Select
[Setting]/[Control Panel]
program]
Select Natural Color from the list and then click the
MagicTune™
Installation
1. Insert the installation CD into the CD-ROM drive.
2. Click the MagicTune™ installation file.
3. Select instal lation Language, Click "Next".
.
on the
menu and then double-click
[Start]
[Add/Delete]
[Add/Delete a
button.
4. When the InstallationShield Wizard window appears, click "Next."
5. Select "I agree to the terms of the license agreement" to accept the terms of use.
6. Choose a folder to install the MagicTune program.
7. Click "Install."
8. The "Installationation Status" window appears.
9. Click "Finish."
10. When the installation is complete, the MagicTune 2.5 executable icon appears on your
desktop.
Double-click the icon to start the program.
Magictune execution icon may not appear depending on specification of
computer system or monitor. If that happens, press F5 Key.
11. The following window appears if the installation is successful.
Installationation Problems
The installation of MagicTune™ 2.5 can be affected by such factors as the video card,
motherboard and the network environment.
System Requirements
OS
z Windows 98 SE
z Windows Me
z Windows NT
z Windows 2000
z Windows XP Home Edition
z Windows XP Professional
Hardware
32MB Memory above
z
z 25MB Hard disk space above
* For more information, visit the MagicTune website.
Uninstall
The MagicTune program can be removed only by using the "Add or Remove Programs" option of
the Windows Control Panel.
Perform the following steps remove MagicTune.
1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program
runs on Windows XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add or Remove Programs" icon in Control Panel.
3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune." Click on it to
highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.
Visit the MagicTune website for technical support for MagicTune, FAQs (questions and answers)
and software upgrades.
Troubleshooting
MagicTune may not work in case monitor is replaced or driver of graphic card is updated while
MagicTune is operating. If so, please restart the system.
Check when MagicTune does not function properly.
* MagicTune feature is found only on PC (VGA) with Window OS that supports Plug and Play.
* To check whether your PC is available for MagicTune feature, follow the steps
below (When Windows is XP);
Control Panel -> Performance and Maintenance -> System -> Hardware -> Device
Manager -> Monitors -> After deleting Plug and Play monitor, find 'Plug and Play monitor'
by searching new Hardware.
Visit the MagicTune website for technical support for MagicTune, FAQs (questions and answers)
and software upgrades.
SyncMaster 720B/721B
Use this button to open the on-screen menu and exit from the menu screen or close screen
1.
adjustment menu.
This buttons allows you to adjust items in the menu.
2.
This buttons allows you to adjust items in the menu.
3.
This button activates a highlighted menu item.
4.
Press this button to self-adjust to the incoming PC signal. The values of fine,coarse and position
5.
are adjusted automatically.
AUTO
Menu Description
AUTO
OSD Lock & Unlock
When the '
as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automaticall y.
To make the automatic adjustment function sharper, execute the 'AUTO'
function while the AUTO PATTERN is on.
- If Auto Adjustment does not work properly, press Auto button again to
adjust picture with more accuracy.
- If you change resolution in the control panel, Auto function will be
executed automatically.
' button is pressed, the Auto Adjustment screen appears
AUTO
Menu Description
OSD Lock & Unlock
MagicBright™
After push the "MENU" button more than 5 seconds, OSD function is
locked (unlocked).
Menu Description
Then push the MagicBright button again to circle through available
MagicBright™
Brightness
preconfigured modes.
- Six different modes (Custom/Text/Internet/Game/Sport/Movie)
Menu Description
Brightness
(TCO'03)
Color
Color
OSD
Setup
Information
When OSD is not on the screen, push the button to adjust brightness.
Brightness Contrast
MagicColor Color Tone Color Control Gamma
MagicColor Color Tone sRGB Color Control Gamma
Coarse Fine Sharpness H-Position V-Position
Language H-Position V-Position Transparency Display Time
Image Reset Color Reset
Menu Description Play/Stop
You can use the on-screen menus to change the
brightness according to personal preference.
Brightness
Direct Access Feature
: When OSD is not on the screen,
push the button to adjust brightness.
Contrast
You can use the on-screen menus to change the contrast
according to personal preference.
Color (TCO'03 applied model only)
Menu Description Play/Stop
MagicColor is a new technology that Samsung has
exclusively developed to improve digital image and to
display natural color more clearly without disturbing image
quality.
MagicColor
Off – Returns to the original mode.
Demo – The screen before applying MagicColor appears
on the right and the screen after applying MagicColor
appears on the left.
MagicColor1 - Displays vivid natural color with clearness.
MagicColor2 - Displays not only vivid natural color but also
more realistic natural skin color with clearness.
Color Tone
Color Control
Gamma
Color
The tone of the color can be changed.
Adjusts individual R,G,B color balance.
Adjusts the gamma value.
Menu Description Play/Stop
MagicColor is a new technology that Samsung has
exclusively developed to improve digital image and to
display natural color more clearly without disturbing image
quality.
MagicColor
Off – Returns to the original mode.
Demo – The screen before applying MagicColor appears
on the right and the screen after applying MagicColor
appears on the left.
MagicColor1 - Displays vivid natural color with clearness.
MagicColor2 - Displays not only vivid natural color but also
more realistic natural skin color with clearness.
Color Tone
sRGB
Color Control
Gamma
The tone of the color can be changed.
When you adjust the Brightness and Contrast after sRGB
mode is selected, sRGB mode exits.
Adjusts individual R,G,B color balance.
Adjusts the gamma value.
Menu Description Play/Stop
Removes noise such as vertical stripes. Coarse
Coarse
Fine
adjustment may move the screen image area. You may
relocate it to the center using the Horizontal Control menu.
Removes noise such as horizontal stripes. If the noise
persists even after Fine tuning, repeat it after adjusting the
frequency (clock speed).
Sharpness
H-Position
V-Position
Changes the clearance of image.
Changes the horizontal position of the monitor's entire
display.
Changes the vertical position of the monitor's entire
display.
OSD
Menu Description Play/Stop
You can choose one of the seven languages. (English,
German, Spanish, French, Italian, Swedish, Russian)
Language
:The language chosen affects only the language of
Note
the OSD. It has no effect on any software running on the
computer.
H-Position
V-Position
Transparency
Display Time
Setup
You can change the horizontal position where the OSD
menu appears on your monitor.
You can change the vertical position where the OSD menu
appears on your monitor.
Change the transparency of the background of the OSD.
The menu will be automatically turned off if no adjustments
are made for a certain time period.
You can set the amount of time the menu will wait before it
is turned off.
Menu Description Play/Stop
Image Reset
Color Reset
Information
Image parameters are replaced with the factory default
values.
Color parameters are replaced with the factory default
values.
Menu Description
Information
Shows a video source, display mode on the OSD screen.
SyncMaster 720T/920T
Use this button to open the on-screen menu and exit from the menu screen or close screen
1.
adjustment menu.
This buttons allows you to adjust items in the menu.
2.
This buttons allows you to adjust items in the menu.
3.
This button activates a highlighted menu item.
4.
Press this button to self-adjust to the incoming PC signal. The values of fine,coarse and position
5.
are adjusted automatically.
AUTO
Menu Description
AUTO
OSD Lock & Unlock
When the '
as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automaticall y.
(Available in analog Mode Only)
To make the automatic adjustment function sharper, execute the 'AUTO'
function while the AUTO PATTERN is on.
- If Auto Adjustment does not work properly, press Auto button again to
adjust picture with more accuracy.
- If you change resolution in the control panel, Auto function will be
executed automatically.
' button is pressed, the Auto Adjustment screen appears
AUTO
Menu Description
OSD Lock & Unlock
MagicBright™
After push the "MENU" button more than 5 seconds, OSD function is
locked (unlocked).
Menu Description
Then push the MagicBright button again to circle through available
MagicBright™
Brightness
preconfigured modes.
- Six different modes (Custom/Text/Internet/Game/Sport/Movie)
Menu Description
Brightness
When OSD is not on the screen, push the button to adjust brightness.
Source
Menu Description
Source
Selects the Video signal while the OSD is off.
Color
Color
OSD
Setup
(TCO'03)
Brightness Contrast
MagicColor Color Tone Color Control Gamma
MagicColor Color Tone sRGB Color Control Gamma
Coarse Fine Sharpness H-Position V-Position
Language H-Position V-Position Transparency Display Time
Auto Source Image Reset Color Reset
Information
Menu Description Play/Stop
You can use the on-screen menus to change the
brightness according to personal preference.
Brightness
Direct Access Feature
push the button to adjust brightness.
: When OSD is not on the screen,
Contrast
You can use the on-screen menus to change the contrast
according to personal preference.
Color (TCO'03 applied model only)
Menu Description Play/Stop
MagicColor is a new technology that Samsung has
exclusively developed to improve digital image and to
display natural color more clearly without disturbing image
quality.
MagicColor
Off – Returns to the original mode.
Demo – The screen before applying MagicColor appears
on the right and the screen after applying MagicColor
appears on the left.
MagicColor1 - Displays vivid natural color with clearness.
MagicColor2 - Displays not only vivid natural color but also
more realistic natural skin color with clearness.
Color Tone
Color Control
Gamma
Color
The tone of the color can be changed.
Adjusts individual R,G,B color balance.
Adjusts the gamma value.
Menu Description Play/Stop
MagicColor is a new technology that Samsung has
exclusively developed to improve digital image and to
display natural color more clearly without disturbing image
quality.
MagicColor
Off – Returns to the original mode.
Demo – The screen before applying MagicColor appears
on the right and the screen after applying MagicColor
appears on the left.
MagicColor1 - Displays vivid natural color with clearness.
MagicColor2 - Displays not only vivid natural color but also
more realistic natural skin color with clearness.
Color Tone
The tone of the color can be changed.
sRGB
Color Control
Gamma
When you adjust the Brightness and Contrast after sRGB
mode is selected, sRGB mode exits.
Adjusts individual R,G,B color balance.
Adjusts the gamma value.
Menu Description Play/Stop
Removes noise such as vertical stripes. Coarse
Coarse
Fine
Sharpness
H-Position
V-Position
adjustment may move the screen image area. You may
relocate it to the center using the Horizontal Control menu.
(Available in analog Mode Only)
Removes noise such as horizontal stripes. If the noise
persists even after Fine tuning, repeat it after adjusting the
frequency (clock speed).
(Available in analog Mode Only)
Changes the clearance of image.
Changes the horizontal position of the monitor's entire
display.
(Available in analog Mode Only)
Changes the vertical position of the monitor's entire
display.
(Available in analog Mode Only)
OSD
Menu Description Play/Stop
Language
H-Position
V-Position
Transparency
Display Time
Setup
You can choose one of the seven languages. (English,
German, Spanish, French, Italian, Swedish, Russian)
:The language chosen affects only the language of
Note
the OSD. It has no effect on any software running on the
computer.
You can change the horizontal position where the OSD
menu appears on your monitor.
You can change the vertical position where the OSD menu
appears on your monitor.
Change the transparency of the background of the OSD.
The menu will be automatically turned off if no adjustments
are made for a certain time period.
You can set the amount of time the menu will wait before it
is turned off.
Menu Description Play/Stop
Auto Source
Image Reset
Color Reset
Information
Select
Auto Source
the signal source.
Image parameters are replaced with the factory default
values.
Color parameters are replaced with the factory default
values.
for the monitor to automatically select
Menu Description
Information
Shows a video source, display mode on the OSD screen.
SyncMaster 720B/721B
Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the
Information section or contact your dealer.
Symptom Check List Solutions
No images on the
screen. I cannot turn
on the monitor.
Is the power cord connected
properly?
Can you see
on the screen?
If the power is on, reboot the
computer to see the initial screen
(the login screen), which can be
seen.
"Check Signal Cable"
Check the power cord connection
and supply.
Check the signal cable connection.
If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)
Note: If the initial screen (the login
screen) does not appear, contact a
service center or your dealer.
Can you see
Mode", "Recommended mode :
1280 x 1024 60Hz"
"Not Optimum
on the screen?
You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
properly handle.
Adjust the maximum resolution and
frequency that the monitor can
handle properly.
If the display exceeds SXGA or
75Hz, a
"Recommended mode : 1280 x
1024 60Hz"
If the display exceeds 85Hz, the
display will work properly but the
"Not Optimum Mode",
"Recommended mode : 1280 x
1024 60Hz"
one minute and then disappears.
Please change to the recommended
mode during this one-minute period.
"Not Optimum Mode",
message is displayed.
message appears for
(The message is displayed again if
the system is rebooted.)
I cannot see the On
Screen Display.
The screen shows
strange colors or just
black and white.
The screen suddenly
has become
unbalanced.
There is no image on the screen.
Is the power indicator on the monitor
blinking at 1 second intervals?
Have you locked the On Screen
Display (OSD) Menu to prevent
changes?
Is the screen displaying only one
color as if looking at the screen
through a cellophane paper?
Have the screen colors become
strange after running a program or
due to a crash between
applications?
Has the video card been set
properly?
Have you changed the video card or
the driver?
Have you adjusted the resolution or
frequency on the monitor?
The screen can be unbalanced due to the cycle of the video card signals.
Readjust Position by referring to the OSD.
The monitor is in PowerSaver mode.
Press any key on the keyboard to
activate the monitor and restore the
image on the screen.
Unlock the OSD by pressing the
MENU button for at least 5 seconds.
Check the signal cable connection.
Make sure the video card is fully
inserted in it's slot.
Reboot the computer.
Set the video card by referring to the
video card manual.
Adjust screen image position and
size using the OSD.
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
The screen is out of
focus or OSD cannot
be adjusted.
LED is blinking but no
images on the screen.
There are only 16
colors shown on the
screen.
The screen colors
have changed after
changing the video
card.
There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".
Problems related to
Audio
Have you adjusted the resolution or
frequency on the monitor?
Is the frequency properly adjusted
when checking the Display Timing
on the menu?
Have the Windows colors been set
properly?
Has the video card been set
properly?
Have you installed the monitor
driver?
See the video card manual to see if
the Plug & Play (VESA DDC)
function can be supported.
No sound Ensure that the audio cable is firmly
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.
(The maximum frequency per
resolution may differ from product to
product.)
Windows ME/2000/XP:
Set the colors properly at the
Control Panel → Display →
Settings
Set the video card by referring to the
video card manual.
Install the monitor driver according
to the Driver Installation Instructions.
Install the monitor driver according
to the Driver Installation Instructions.
connected to both the audio-in port
on your monitor and the audio-out
port on your sound card.
(Refer to the Connecting the
Monitor)
Check the volume level.
.
Sound level is too low. Check the volume level.
If the volume is still too low after
turning the control to its maximum,
Y
check the volume control on the
computer sound card or software
program.
Check the following items if there is trouble with the monitor.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed adapter (video)
driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 75Hz.
(Do not exceed 60Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
Control Panel→System→Device Administrator
" and then
reboot the computer to reinstall the adapter (video) driver.
If problems repeatedly occur, contact an authorized service center.
Q & A
Question
Answer
How can I change the
frequency?
Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)
How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control
Panel→Display→Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).
How can I clean the outer
case/LCD Panel?
Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.
Self-Test Feature Check
Self-Test Feature Check | Warning Messages | Environment | Useful Tips
our monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or
damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, the message below appears on the screen
or the screen goes blank although the power indicator LED is still on. The message may
indicate that the monitor is out of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other
features of the monitor.
1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.
Useful Tips
A monitor recreates visual signals received from the computer. Therefore, if there is trouble with
z
the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, unavailable video mode, etc. In this case, first check the source of the problem, and then
contact a service center or your dealer.
z
Judging the monitor's working condition
If there is no image on the screen or a
1024 60Hz"
message comes up, disconnect the cable from the computer while the monitor is still
"Not Optimum Mode", "Recommended mode : 1280 x
powered on.
{ If there is a message coming up on the screen or if the screen goes white, this means the
monitor is in working condition.
{ In this case, check the computer for trouble.
SyncMaster 720T/920T
Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the
Information section or contact your dealer.
Symptom Check List Solutions
No images on the
screen. I cannot turn
on the monitor.
Is the power cord connected
properly?
Can you see
on the screen?
If the power is on, reboot the
computer to see the initial screen
(the login screen), which can be
seen.
"Check Signal Cable"
Check the power cord connection
and supply.
(When connecting D-Sub cable)
Check the signal cable connection.
(When connecting DVI cabel)
If you still see an error message on
the screen when the monitor is
connected properly, check to see if
the monitor status is set to analog.
Press Source button to have the
monitor double-check the input
signal source.
If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)
Can you see
Mode", "Recommended mode :
1280 x 1024 60Hz"
"Not Optimum
on the screen?
Note: If the initial screen (the login
screen) does not appear, contact a
service center or your dealer.
You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
properly handle.
Adjust the maximum resolution and
frequency that the monitor can
handle properly.
If the display exceeds SXGA or
75Hz, a
"Recommended mode : 1280 x
1024 60Hz"
If the display exceeds 85Hz, the
"Not Optimum Mode",
message is displayed.
display will work properly but the
"Not Optimum Mode",
"Recommended mode : 1280 x
1024 60Hz"
one minute and then disappears.
Please change to the recommended
mode during this one-minute period.
(The message is displayed again if
the system is rebooted.)
message appears for
I cannot see the On
Screen Display.
The screen shows
strange colors or just
black and white.
There is no image on the screen.
Is the power indicator on the monitor
blinking at 1 second intervals?
Is the monitor connected using the
DVI cable?
Have you locked the On Screen
Display (OSD) Menu to prevent
changes?
Is the screen displaying only one
color as if looking at the screen
through a cellophane paper?
The monitor is in PowerSaver mode.
Press any key on the keyboard to
activate the monitor and restore the
image on the screen.
If there is still no image, press the
'
Source
Then press any key on the keyboard
again to activate the monitor and
restore the image on the screen.
You may get a blank screen if you
boot the system before you connect
the DVI cable, or disconnect and
then reconnect the DVI cable while
the system is running as certain
types of graphic cards do not send
out video signals.
Connect the DVI cable and then
reboot the system.
Unlock the OSD by pressing the
MENU button for at least 5 seconds.
Check the signal cable connection.
Make sure the video card is fully
inserted in it's slot.
' button.
The screen suddenly
has become
unbalanced.
The screen is out of
focus or OSD cannot
be adjusted.
LED is blinking but no
images on the screen.
Have the screen colors become
strange after running a program or
due to a crash between
applications?
Has the video card been set
properly?
Have you changed the video card or
the driver?
Have you adjusted the resolution or
frequency on the monitor?
The screen can be unbalanced due to the cycle of the video card signals.
Readjust Position by referring to the OSD.
Have you adjusted the resolution or
frequency on the monitor?
Is the frequency properly adjusted
when checking the Display Timing
on the menu?
Reboot the computer.
Set the video card by referring to the
video card manual.
Adjust screen image position and
size using the OSD.
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.
(The maximum frequency per
resolution may differ from product to
product.)
There are only 16
colors shown on the
screen.
Have the Windows colors been set
properly?
Windows ME/2000/XP:
Set the colors properly at the
Control Panel → Display →
The screen colors
have changed after
changing the video
card.
Has the video card been set
properly?
Settings
.
Set the video card by referring to the
video card manual.
There is a message
that reads
Have you installed the monitor
driver?
Install the monitor driver according
to the Driver Installation Instructions.
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".
Problems related to
Audio
See the video card manual to see if
the Plug & Play (VESA DDC)
function can be supported.
No sound Ensure that the audio cable is firmly
Install the monitor driver according
to the Driver Installation Instructions.
connected to both the audio-in port
on your monitor and the audio-out
port on your sound card.
(Refer to the Connecting the
Monitor)
Check the volume level.
Sound level is too low. Check the volume level.
If the volume is still too low after
turning the control to its maximum,
check the volume control on the
computer sound card or software
program.
Check the following items if there is trouble with the monitor.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed adapter (video)
driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 75Hz.
(Do not exceed 60Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
Control Panel→System→Device Administrator
" and then
reboot the computer to reinstall the adapter (video) driver.
If problems repeatedly occur, contact an authorized service center.
Q & A
Question
How can I change the
frequency?
Answer
Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)
How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control
Panel→Display→Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).
How can I clean the outer Disconnect the power cord and then clean the monitor with a soft
case/LCD Panel? cloth, using either a cleaning solution or plain water.
Y
Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.
Self-Test Feature Check
Self-Test Feature Check | Warning Messages | Environment | Useful Tips
our monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or
damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, the message below appears on the screen
or the screen goes blank although the power indicator LED is still on. The message may
indicate that the monitor is out of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other
features of the monitor.
1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.
Useful Tips
z A monitor recreates visual signals received from the computer. Therefore, if there is trouble with
the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, unavailable video mode, etc. In this case, first check the source of the problem, and then
contact a service center or your dealer.
z
Judging the monitor's working condition
If there is no image on the screen or a
1024 60Hz"
message comes up, disconnect the cable from the computer while the monitor is still
"Not Optimum Mode", "Recommended mode : 1280 x
powered on.
If there is a message coming up on the screen or if the screen goes white, this means the
{
monitor is in working condition.
In this case, check the computer for trouble.
{
SyncMaster 720B/721B
General
General
Model Name SyncMaster 720B/721B
LCD Panel
Size 17.0 inch diagonal
Display area 337.92(H) x 270.336(V)
Pixel Pitch 0.264(H) x 0.264(V)
Type a-si TFT active matrix
Synchronization
Horizontal 30 ~ 81 kHz
Vertical 56 ~ 75 Hz
Display Color
16,194,277 Colors
Resolution
Optimum resolution 1280 x 1024 @60Hz
Maximum resolution 1280 x 1024 @75Hz
Input Signal, Terminated
RGB Analog , Composite Sync, SOG
0.7Vp-p Positive at 75 ohms, Separate H/V sync, TTL level positive or negative
Maximum Pixel Clock
135 MHz
Power Supply
AC 90 to 264 VAC, 60/50 Hz ± 3Hz
Signal Cable
15pin to 15pin D-sub cable, Detachable
Power Consumption
less than 34 watts
Dimensions (WxDxH)/ Weight
388 x 50.4 x 323.90 mm
388 x 215.7 x 406.3 mm (After installation of Stand)
388 x 77.0 x 323.9 mm (After folding the Stand) / 6.0kg
VESA Mounting Interface
75mm x 75mm (for use with Specialty(Arm) Mounting hardware.)
Environmental considerations
Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)
Humidity: 10% ~ 80%, non-condensing
Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)
Humidity: 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.
z For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.
Note: Design and specifications are subject to change without prior notice.
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unatten ded for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
EPA/ENERGY 2000
Power Switch off
(120Vac)
Power Indicator Green Green Blinking Black
Less than 1W
(115Vac)
Less than 2W
(230Vac)
Power Consumption Less than 34W
Less than 2W (off
mode)
(115Vac/230Vac)
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.
As an ENERGY STAR
®
Partner, SAMSUNG has determined that this
product meets the ENERGY STAR
®
guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blan k while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Horizontal
Display Mode
MAC, 640 x 480 35.000 66.667 30.240 -/MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
IBM, 640 x 350 31.469 70.086 25.175 +/IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 37.500 75.000 31.500 -/VESA, 640 x 480 37.861 72.809 31.500 -/VESA, 800 x 600 35.156 56.250 36.000 +,-/+,VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.00 +/+
VESA, 1280 x 1024 63.981 60.020 108.00 +/+
VESA, 1280 x 1024 79.976 75.025 135.00 +/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz
SyncMaster 720T
General
General
Model Name SyncMaster 720T
LCD Panel
Size 17.0 inch diagonal
Display area 337.92(H) x 270.336(V)
Pixel Pitch 0.264(H) x 0.264(V)
Type a-si TFT active matrix
Synchronization
Horizontal 30 ~ 81 kHz
Vertical 56 ~ 75 Hz
Display Color
16,194,277 Colors
Resolution
Optimum resolution 1280 x 1024 @60Hz
Maximum resolution 1280 x 1024 @75Hz
Input Signal, Terminated
RGB Analog , DVI Compliant Digital RGB
Composite Sync, SOG, 0.7Vp-p Positive at 75 ohms
Separate H/V sync, TTL level positive or negative
Maximum Pixel Clock
135 MHz
Power Supply
AC 90 ~ 264 VAC, 60/50Hz ± 3Hz
Signal Cable
15pin to 15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
Power Consumption
less than 34 watts
Dimensions (WxDxH)/ Weight
388 x 50.4 x 323.90 mm
388 x 215.7 x 406.3 mm (After installation of Stand)
388 x 77.0 x 323.9 mm (After folding the Stand) / 6.0kg
VESA Mounting Interface
75mm x 75mm (for use with Specialty(Arm) Mounting hardware.)
Environmental considerations
Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)
Humidity: 10% ~ 80%, non-condensing
Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)
Humidity: 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.
For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.
z
Note: Design and specifications are subject to change without prior notice.
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unatten ded for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
EPA/ENERGY 2000
Power Switch off
(120Vac)
Power Indicator Green Green Blinking Black
Less than 1W
(115Vac)
Less than 2W
(230Vac)
Power Consumption Less than 34W
Less than 2W (off
mode)
(115Vac/230Vac)
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.
As an ENERGY STAR
®
Partner, SAMSUNG has determined that this
product meets the ENERGY STAR
®
guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blan k while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Horizontal
Display Mode
MAC, 640 x 480 35.000 66.667 30.240 -/MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
IBM, 640 x 350 31.469 70.086 25.175 +/IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 37.500 75.000 31.500 -/VESA, 640 x 480 37.861 72.809 31.500 -/VESA, 800 x 600 35.156 56.250 36.000 +,-/+,VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.00 +/+
VESA, 1280 x 1024 63.981 60.020 108.00 +/+
VESA, 1280 x 1024 79.976 75.025 135.00 +/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz
SyncMaster 920T
General
General
Model Name SyncMaster 920T
LCD Panel
Size 19.0 inch diagonal
Display area 376.32(H) x 301.056(V)
Pixel Pitch 0.294(H) x 0.294(V)
Type a-si TFT active matrix
Synchronization
Horizontal 30 ~ 81 kHz
Vertical 56 ~ 75 Hz
Display Color
16,777,216 Colors
Resolution
Optimum resolution 1280 x 1024 @60Hz
Maximum resolution 1280 x 1024 @75Hz
Input Signal, Terminated
RGB Analog , DVI Compliant Digital RGB
Composite Sync, SOG, 0.7Vp-p Positive at 75 ohms
Separate H/V sync, TTL level positive or negative
Maximum Pixel Clock
135 MHz
Power Supply
AC 90 ~ 264 VAC, 60/50Hz ± 3Hz
Signal Cable
15pin to 15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
Power Consumption
less than 37 watts
Dimensions (WxDxH)/ Weight
434.3 x 52.0 x 358.1 mm
434.3 x 215.7 x 426.3 mm (After installation of Stand)
434.3 x 78.6 x 358.1 mm (After folding the Stand) / 7.0kg
VESA Mounting Interface
75mm x 75mm (for use with Specialty(Arm) Mounting hardware.)
Environmental considerations
Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)
Humidity: 10% ~ 80%, non-condensing
Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)
Humidity: 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.
For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.
z
Note: Design and specifications are subject to change without prior notice.
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unatten ded for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
EPA/ENERGY 2000
Power Switch off
(120Vac)
Power Indicator Green Green Blinking Black
Less than 1W
(115Vac)
Less than 2W
(230Vac)
Power Consumption Less than 37W
Less than 2W (off
mode)
(115Vac/230Vac)
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.
As an ENERGY STAR
®
Partner, SAMSUNG has determined that this
product meets the ENERGY STAR
®
guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Horizontal
Display Mode
MAC, 640 x 480 35.000 66.667 30.240 -/MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
IBM, 640 x 350 31.469 70.086 25.175 +/IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 37.500 75.000 31.500 -/VESA, 640 x 480 37.861 72.809 31.500 -/VESA, 800 x 600 35.156 56.250 36.000 +,-/+,VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.00 +/+
VESA, 1280 x 1024 63.981 60.020 108.00 +/+
VESA, 1280 x 1024 79.976 75.025 135.00 +/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz
Service
AUSTRALIA :
Samsung Electronics Australia Pty Ltd.
Customer Response Centre
7 Parkview Drive, Homebush Bay NSW 2127
Tel : 1300 362 603
http://www.samsung.com.au/
BRAZIL :
Samsung Eletronica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303, Terro B
Chacara Sto. Antonio, CEP : 04719-040
Sao Paulo, SP
SAC : 0800 124 421
http://www.samsung.com.br/
CANADA :
Samsung Electronics Canada Inc.
Samsung Customer Care
7037 Financial Drive
Mississauga, Ontario
L5N 6R3
1-800-SAMSUNG (1-800-726-7864)
http://www.samsung.ca/
CHILE :
SONDA S.A.
Teatinos 550, Santiago Centro, Santiago, Chile
Fono: 56-2-5605000 Fax: 56-2-5605353
56-2-800200211
http://www.sonda.com/
http://www.samsung.cl/
COLOMBIA :
Samsung Electronics Colombia
Cra 9 No 99A-02 Of. 106
Bogota, Colombia
Tel.: 9-800-112-112
Fax: (571) 618 - 2068
http://www.samsung-latin.com/
e-mail : soporte@samsung-latin.com
ESPAÑA :
Samsung Electronics Comercial Iberica, S.A.
Ciencies, 55-65 (Poligono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : (93) 261 67 00
Fax. : (93) 261 67 50
http://samsung.es/
FRANCE :
SAMSUNG ELECTRONICS FRANCE Service
Paris Nord 2
66 rue des Vanesses
BP 50116 Villepinte
95950 Roissy CDG Cedex
Tel : 08 25 08 65 65
Fax : 01 48 63 06 38
http://www.samsungservices.com/
GERMANY :
TELEPLAN Rhein-Main GmbH
Feldstr. 16
64331 Weiterstadt
T. 06151/957-1306
F. 06151/957-1732
* EURO 0.12/Min
http://www.samsung.de/
HUNGARY :
Samsung Electronics Magyar Rt.
1039, Budapest, Lehel u. 15-17.
Tel: 36 1 453 1100
Fax: 36 1 453 1101
http://www.samsung.hu/
ITALY :
Samsung Electronics Italia S.p.a.
Via C. Donat Cattin, 5
20063 Cernusco s/Naviglio (MI)
Servizio Clienti: 199.153.153
http://www.samsung-italia.com/
MEXICO :
MÉXICO :
SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.
SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V.
Via Lopez Portillo No. 6, Col. San Francisco
Vía Lopez Portillo No. 6, Col. San Fco. Chilpan
Chilpan Tultitlan, Estado de Mexico C.P. 54940, Mexico D.F. Mexico
Tultitlán, Estado de México, C.P. 54940
Tel : 01(55) 5317 2551/3410/3409
Tel: 01-55-5747-5100 / 01-800-726-7864
Fax : 01(55) 5317 3377
Fax: 01-55-5747-5202 / 01-800-849-1743
RFC: SEM950215S98
RFC: SEM950215S98
http://www.samsung.com.mx/
http://www.samsung.com.mx/
IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.
IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V.
EXPORTADO POR: Samsung Electronics CO.,LTD.
EXPORTADO POR: Samsung Electronics CO.,LTD.
NETHERLANDS/BELGIUM/LUXEMBOURG :
Samsung Electronics Benelux B. V.
Fleminglaan 12 2289 CP Rijiswijk, NEDERLANDS
Service and informatielijn ;
Belgium :0800-95214, http://www.samsung.be/
Netherlands : 0800-2295214, http://www.samsung.nl/
PANAMA :
Samsung Electronics Latinoamerica( Z.L.) S.A.
Via Lopez Portillo No. 6, Col. San Francisco
Vía Lopez Portillo No. 6, Col. San Fco. Chilpan
Chilpan Tultitlan, Estado de Mexico C.P. 54940, Mexico D.F. Mexico
Tultitlán, Estado de México, C.P. 54940
Tel : 01(55) 5317 2551/3410/3409
Tel: 01-55-5747-5100 / 01-800-726-7864
416, Mae tan-3dong, Yeongtong-gu,
416, Mae tan-3dong, Yeongtong - gu,
Suwon City, Kyoungki-Do Korea
Suwon City, Gyeonggi-do Korea
Calle 50 Edificio Plaza Credicorp, Planta Baja
A
Panama
Tel. : (507) 210-1122, 210-1133
Tel : 800-3278(FAST)
http://www.samsung-latin.com/
PERU :
Servicio Integral Samsung
v.Argentina 1790 Lima1. Peru
Tel: 51-1-336-8686
Fax: 51-1-336-8551
http://www.samsungperu.com/
PORTUGAL :
SAMSUNG ELECTRONICA PORTUGUESA S.A.
Rua Mário Dioniso, N
o
2 - 1º Drt. 2795-140 LINDA-A-VELHA
Tel. 214 148 114/100 Fax. 214 148 133/128
Free Line 800 220 120
http://www.samsung.pt/
SOUTH AFRICA :
Samsung Electronics,5 Libertas Road, Somerset Office Park,
Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa
Tel : 0027-11-549-1621
Fax : 0027-11-549-1629
http://www.samsung.co.za/
SWEDEN/DENMARK/NORWAY/FINLAND :
Samsung Electronics AB
Box 713
S-194 27 UPPLANDS VÄSBY
SVERIGE
Besöksadress : Johanneslundsvägen 4
Samsung support Sverige: 020-46 46 46
Samsung support Danmark : 8088-4646
Samsung support Norge: 8001-1800
Samsung support Finland: 0800-118001
Tel +46 8 590 966 00
Fax +46 8 590 966 50
http://www.samsung.se/
THAILAND :
HAI SAMSUNG SERVICE CENTER
MPA COMPLEX BUILDING,1st-2nd Floor
175 SOI SUEKSA VIDHAYA SATHON SOI 12
SILOM ROAD ,SILOM,BANGRAK
BANGKOK 10500
TEL : 0-2635-2567
FAX : 0-2635-2556
UKRAINE :
SAMSUNG ELECTRONICS REPRESENTATIVE OFFICE IN UKRAINE
4 Glybochitska str.
Kiev, Ukraine
Tel. 8-044-4906878
Fax 8-044-4906887
Toll-free 8-800-502-0000
http://www.samsung.com.ua/
United Kingdom :
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : (0208) 391 0168
Fax. : (0208) 397 9949
< European Service Center & National Service >
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : (0870) 242 0303
Fax. : (01952) 292 033
http://samsungservice.co.uk/
U.S.A. :
Samsung Electronics America
Service Division
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
http://samsungusa.com/monitor/
Terms
Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the
higher the resolution. The distance between two dots of the same color is called the 'Dot
Pitch'. Unit: mm
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image
for the user. The frequency of this repetition per second is called Vertical Frequency or
Refresh Rate. Unit: Hz
Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally
is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal
Frequency. Unit: kHz
Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom in order is called the
Non-Interlace method while showing odd lines and then even lines in turn is called the
Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a
clear image. The Interlace method is the same as that used in TVs.
Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer
and the monitor to exchange information automatically. This monitor follows the international
standard VESA DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called
'resolution'. This number shows the accuracy of the display. High resolution is good for
performing multiple tasks as more image information can be shown on the screen.
Example: If the resolution is 1280 x 1024 , this means the screen is composed of 1280
horizontal dots (horizontal resolution) and 1024 vertical lines (vertical resolution).
For Better Display
1. Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described
below to enjoy the best quality of picture. You can have an uneven quality of picture in the
screen if the best quality of picture is not provided in TFT-LCD.
{ Resolution: 1280 x 1024
Vertical frequency (refresh rate): 60 Hz
{
2. TFT LCD panel manufactured by using advanced semiconductor technology with precision of
1ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE
and WHITE color seem to be bright sometimes or some of black pixels could be seen.
This is not from bad quality and you can use it without uneasiness.
{ For example, the number of TFT LCD sub pixels that is contained in this product are
3,932,160.
3. When you clean the monitor and the panel outside, please apply the recommended small
amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but
to be scrubbed out softly.
If excessive force is applied, you can have a stain on it.
4. If you are not satisfied with the quality of picture, you can get better quality of picture by
executing "auto adjustment function" in display screen that is appeared as window
termination button is pressed.
If there's still noise after automatic adjustment, use FINE/COARSE adjustment function.
5. If you view a fixed screen for an extended period of time, residual image or blurriness may
appear.
Change the mode to energy save or set a screensaver to moving picture when you need to
be away from the monitor for an extended period of time.
Authority
Information in this document is subject to change without notice.
© 2004 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics
Co., Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are
registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and
logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an
ENERGY STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets
the ENERGY STAR® guidelines for energy efficiency. All other product names mentioned herein
may be the trademarks or registered trademarks of their respective owners.
FCC Information
European Notice (Europe onl y) | PCT Notice | VCCI |
TCO'95-Ecological requirements for personal computers (TCO'95 applied model only)
TCO'99-Ecological requirements for personal computers (TCO'99 applied model only)
TCO'03-Ecological requirements for personal computers (TCO'03 applied model only)
TCO'03 Recycling Information (TCO'03 applied model only)
Medical Requirement
Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only)
IC Compliance Notice
|
MPR II Compliance
|
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interfer ence Statement includes
the following warning:
This equipment has been tested and found to comply with the limits for a Class B digital
Note:
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasona ble
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television receptions, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
z Reorient or relocate the receivin g an tenna.
z Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
z
connected.
z Consult the dealer or an experienced radio/TV technician for help.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. If necessary, consult your dealer or an
experienced radio/television technician for additional suggestions. You may find the booklet
called How to Identify and Resolve Radio/TV Interference Problems helpful. This booklet was
prepared by the Federal Communications Commission. It is available from the U.S.
Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
3351 Michelson Drive,
Suite #290, Irvine, CA92612 USA
Tel) 949-975-7310
Fax) 949-922-8301
Warning
User must use shielded signal interface cables to maintain FCC compliance for the product.
Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It
may be suitable for connection to any UL Listed personal computer with similar configuration.
Before making the connection, make sure the voltage rating of the computer convenience outlet
is the same as the monitor and that the ampere rating of the computer convenience outlet is
equal to or exceeds the monitor voltage rating.
For 120 Volt applications, use only UL Listed detachable power cord with NEMA conf ig ura ti o n
5-15P type (parallel blades) plug cap. For 240 Volt applications use only UL Listed Detachable
power supply cord with NEMA configuration 6-15P type (tandem blades) pl ug cap.
IC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interf ere nce -C a using
Equipment Regulations of ICES-003.
Cet appareil Numérique de classe B respecte toutes les exigences du Règlemont NMB-03 sur
les équipements produisant des interférences au Canada.
MPR II Compliance
This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and
magnetic fields.
European Notice(Europe Only)
Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC),
(93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies conformity to the following
European Norms:
z EN55022:1998+A1:2000 - Radio Frequency Interference
z EN55024:1998 - Electromagnetic Immunity
z EN61000-3-2:1995+A1/A2:1998 - Power Line Harmonics
z EN61000-3-3:1995 - Voltage Fluctuations
PCT Notice
VCCI
This is a Class B product based on the standard of the Voluntary Control Council for
Interference by Information Technology Equipment (VCCI). If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference. Install and use
the equipment according to the instruction manual.
TCO'95-Ecological requirements for personal computers (TCO'95 applied model only)
AB general requirements
AB2 Written Eco-document acompanying the products
Congratulations! You have just purchased a TCO'95 approved and labelled product! Your
choice has provided you with a product developed for professional use. Your purchase has also
contributed to reducing the burden on the environment an d to the further development of
environmentally-adapted electronic products.
Why do we have environmentally-labelled monitors?
In many countries, environmental labelling has become an established method for encouraging
the adaptation of goods and services to the environment.The main p roblem as far as monitors
and other electronic equipment are concerned is that environmentally ha rmful substances are
used both in the products and during their manufacture. Since it has not been possible so far
for the majority of electronic equipment to be recycled in a satisfactory way, most of these
potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a monitor, such as energy consumption levels, that are
important from both the working and natural environment viewpoints. Since all types of
conventional electricity generation have a negative effect on the environment (acidic and
climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic
equipment in offices consumes an enormous amount of energy, since it is often routi ne ly left
running continuously.
What does labelling involve?
This product meets the requirements for the TCO'95 scheme, which provides for international
environmental labelling of monitors. The labelling scheme was developed as a jo int effort by the
TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The
Swedish Society for Nature Conservation) and NUTEK (The National Board for Indu strial and
Technical Development in Sweden).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission
of electrical and magnetic fields, energy consumption and electrical and fire safe ty.
The environmental demands concern among other things restricti ons on the presence and use
of heavy metals, brominated and chlorinated flame retardants, CFCs (freons), and chlorinated
solvents. The product must be prepared for recycling and the manufacturer is obliged to have
an environmental plan, which must be adhered to in each country where the company conducts
its operations policy. The energy requirements include a demand that th e monitor after a certain
period of inactivity shall reduce its power consumption to a lower level, in one or more stages.
The length of time to reactivate the monitor shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example in respect of the
reduction of electric and magnetic fields, along with physical and visual ergonomics and good
usability.
TCO Development Unit 1996-11-29
On the page this folder you will find a brief summary of the environmental requirements met by
this product.
The complere environmental criteria document may be ordered from:
TCO Development Unit
S-11494 Stockholm
Sweden
Fax: +46 8 782 92 07
E-mail (Internet):
development@tco.se
Current information regarding TCO'95-approved and labelled products may also
be obtained via the Internet, using the address:
http://www.tco-info.com/
TCO'95 is a co-operative project between(3 logos)
Environmental Requirements
Brominated flame retardants are present in printed circuit boards, cables, wires, casings and
housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer
casing can consist of flame retardant substances. These are related to another group of
environmental toxins, PCBs, which are suspected to give rise to similar harm, including
reproductive damage in fish eating birds and mammals, due to the bioaccumulative processes.
Flame retardants have been found in human blood and researchers fear that disturbances in
foetus development may occur.
TCO'95 demand requires that plastic components weighing more than 25 grams must not
z
contain organically bound chlorine and bromine.
Lead
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning.
z TCO'95 requirement Permits the inclusion of lead since no replacement has yet been
developed.
Cadmium
Cadmium is present in rechargeable batteries and in the colour generating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses.
z TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per
million) of cadmium. The colour-generat in g layers of display screens must not contain any
cadmium.
Mercury
Mercury is sometimes found in batteries, relays and switches. Mercury damages the nervous
system and is toxic in high doses.
z TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per
million) of mercury. It also demands that no mercury is present in any of the electrical or
electronics components concerned with the display un it .
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing
of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone
layer in the stratosphere, causing increased reception on Earth of ultraviolet light with
consequent increased risks of skin cancer (malignant melanoma).
z The relevant TCO'95 requirement: Neither CFCs nor HCFCs may be used during the
manufacturing of the product or its packaging.
TCO'99-Ecological requirements for personal computers (TCO'99 applied model only)
Congratulations!
You have just purchased a TCO'99 approved and labelled product! Your choice ha s provided
you with a product developed for professional use. Your purchase has also contributed to
reducing the burden on the environment and also to the further development of environmentally
adapted electronics products.
This product meets the requirements for the TCO'99 scheme which provides for an
international environmental and quality labelling labelling of personal computers. The labelling
scheme was developed as a joint effort by the TCO(The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen(The Swedish Society for Nature Conservation),
Statens Energimyndighet(The Swedish National Energy Administration) and SEMKO AB.
The requirements cover a wide range of issuse: environment, ergonomics, usability, redu ction
of electric and magnetic fields, energy consumption and electrical safety.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging
the adaptation of goods and services to the environ m ent. The main problem, as far as
computers and other electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during their manufacture. Since it is not so far
possible to satisfactorily recycle the majority of electronics equipment, most of these potentially
damaging substances sooner or later enter nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments.
Since all methods of electricity generation have a negative effect on the environment (e.g.
acidic and climate-influencing emissions, radioactive waste), it is vital to save energy.
Electronics equipment in offices is often left running continuously and thereby consumes a lot of
energy.
What does labelling involve?
The environmental demands has been developed by Svenska Naturskyddsforeningen (The
Swedish Society for Nature Conservation). These demands impose restrictions on the
presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs(freons)
and chlorinated solvents, among other things. The product must be prepared for recycling and
the manufacturer is obliged to have an environmental policy which must be adhered to in e ach
country where the company implements its operational policy.
The energy requirements include a demand that the computer and/or display, after a certain
period of inactivity, shall reduce its power consumption to a lower level in one or more stage s .
The length of time to reactivate the computer shall be reasonable for the user.
Below you will find a brief summary of the environmental requirements met by this product. The
complete environmental criteria document may be ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet):
development@tco.se
Current information regarding TCO'99 approved and labelled products may also be obtained
via the Internet, using the address:
Environmental requirements
http://www.tco-info.com/
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings.
Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a
computer casing can consist of flame retardant substances. Most flame retardants contain
bromine or chloride, and those flame retardants are chemically related to ano ther group of
environmental toxins, PCBs. Both the flame retardants containing bromin e or chloride and the
PCBs are suspected of giving rise to severe health effects, including reproducti ve damage in
fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have
been found in human blood and researchers fear that disturbances in foetus development may
occur.
The relevant TCO'99 demand requires that plastic components weighing more than 25 grams
must not contain flame retardants with organically bound bromine or chlorine. Fl ame retardants
are allowed in the printed circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colo ur-g e ne rating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses. The
relevant TCO'99 requirement states that batteries, the colour-generating layers of display
screens and the electrical or electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It damages the nervous system
and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not
contain any mercury. It also demands that mercury is not present in any of the electrical or
electronics components associated with the labelled unit. There is however one exception.
Mercury is, for the time being, permitted in the back light system of flat panel monitors as today
there is no commercially available alternative. TCO aims on removing this exception when a
Mercury free alternative is available.
CFCs (freons)
The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the
manufacture and assembly of the product. CFCs (freons) are sometimes used for washing
printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the
stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks
of skin cancer (malignant melanoma) as a consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement
permits the inclusion of lead since no replacement has yet been developed.
TCO'03-Ecological requirements for personal computers (TCO'03 applied model only)
Congratulations!
The display you have just purchased carries the TCO'03 Displays label. This means that your
display is designed, manufactured and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a high performance product, designed
with the user in focus that also minimizes the impact on our natural environment.
Some of the features of the TCO'03 Display requirements:
Ergonomics
Good visual ergonomics and image quality in order to improve the working environment for the
user and to reduce sight and strain problems. Important parameters are luminance, contrast,
resolution, reflectance, colour renditio n an d ima ge stab il i ty.
Energy
z Energy-saving mode after a certain time – beneficial both for the user and the environment
z Electrical safety
Emissions
Electromagnetic fields
z
z Noise emissions
Ecology
z The product must be prepared for recycling and the manufacturer must have a certified
environmental management system such as EMAS or ISO 14 000
z Restrictions on
o chlorinated and brominated flame retardants and polymers
o heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been developed by TCO Development in
cooperation with scientists, experts, users as well as manufacturers all over the world. Since
the end of the 1980s TCO has been involved in influencing the developme nt of IT equip m ent in
a more user-friendly direction. Our labelling system started with displays in 1992 and is now
requested by users and IT-manufacturers all over the world.
For more information, Please visit
www.tcodevelopment.com
TCO'03 Recycling Information (TCO'03 applied model only)
For recycling information for TCO'03 certified monitors, for the residents in the followin g
countries, please contact the company corresponding to your region of residence. For those
who reside in other countries, please contact a nearest local Samsung dealer for recycling
information for the products to be treated in environmentally acceptable way.
COMPANY
ADDRESS
TELEPHONE 973-565-0181
FAX
E-
MAIL
HOME
PAGE
[U.S.A. Residents Only]
U.S.A.
Solid Waste Transfer &
Recycling Inc
442 Frelinghuysen Ave
Newark, NJ 07114
Fax: 973-565-9485
none
http://www.bcua.org/Solid
Waste_Disposal.htm
SWEDEN NORWAY GERMANY
ELKRETSEN
ELKRETSEN Box
1357, 111 83
Stockholm
Barnhusgatan 3, 4
tr.
08-545 212 90
08-545 212 99
info@el-kretsen.se adm@elektronikkretur.no vfw.info@vfw-ag.de
http://www.elkretsen.se/
[European Residents Only]
Elektronikkretur AS vfw AG
6454 Etterstad 0602 Oslo
Fyrstikkalln 3B
23 06 07 40 49 0 2234 9587 - 0
23 06 07 41
http://www.elretur.no/
Max Plank Strasse
42
50858 Collogne
Germany
Medical Requirement
Classifications:
In accordance with UL 2601-1/IEC 60601-1, the product is cssified as Continuous duty Class I
equipment, which is not protected against ingress of liquids. The product is not suitable for use
in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.
EMC
This equipment has been tested and found to comply with the limits for medical devices to the
IEC 601-1-2:1994. These limits are designed to provide reasonable protection against harmful
interference in a typical medical installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to other devices in the vicinity. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to other devices, which can be determined by turning the equipment o ff and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
z Reorient or relocate the receivin g de vi ce.
z Increase the separation between the equipment.
Connect the equipment into an outlet on a circuit different from that to which the other
z
device(s) are connected.
z Consult the manufacturer or field service technician for help.
Video In / RS 232 / Video Out
Accessories equipment connected to the analog and digital interfaces must be certi fied to the
respective IEC standards (i.e. IEC 950 for data processing equipment and IEC 601-1 for
medical equipment.) Furthermore all configurations shall comply with the system standard IEC
601-1-1. Everybody who connects additional equipment to the signal input part or signal output
part configures a medical system, and is therefore, responsible that the system complies with
the requirements of the system standard IEC 601-1-1. If in doubt, consult the technical services
department or your local representative.
Transport and Storage Limitations:
Temperature Range of -40¡ÆC to +70¡ÆC
Relative Humidity of 10 -95%, non-condensing
* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only)
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR
DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS
For details see lamprecycle.org, eiae.org, or call 1-800-Samsung
PRODUCT INFORMATION (Image Retention Free)
A
A
LCD Monitors and TVs may have image retention when switching from one image to another
especially after displaying a stationary image for a long time.
This guide is to demonstrate correct usage of LCD products in order to protect them from Image
retention.
What is Image retention ?
During normal operation of a LCD panel, pixel image retention doesn 't occur. However,
if the same image is displayed for a long time, a slight difference in electric charge
accumulates between the two electrodes which encase the liquid crystal. Th is may
cause the liquid crystal to build up in a certain areas of the display. Thus, the previous
image is retained when switching to a new video image. All display products, including
LCD,are subject to image retention. This is not a product defect.
Please follow the suggestions below to protect your LCD from image retention
Power Off, Screen Saver, or Power Save Mode
Ex)
z Turn the power off when using a stationary pattern.
- Turn the power off for 4 hours after 24 hours in use
- Turn the power off for 2 hours after 12 hours in use
z Use a Screen saver if possible
- Screen saver in one color or a moving image is recommended.
z Set the Monitor to power off with the PC Display Properties Power Scheme.
Suggestions for specific applications
Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems
We recommend that you follow set up of your display system program as below:
Display Information together with Logo or Moving image cycle.
Ex) Cycle : Display Information for 1 hour followed by a
Display Logo or moving image for 1 minute.
Change the Color Information periodically (Use 2 different colors).
Ex) Rotate the Color Information with 2 colors every 30 minutes.
void using a combination of characters and background color with large
difference in luminance.
void using Grey colors, which can cause Image retention easily.
z Avoid: Colors with big difference in luminance (Black & White, Grey)
Ex)
z Recommended settings: Bright colors with little difference in luminance
- Change the characters color and background color every 30 minutes
Ex)
- Every 30 minutes, change the characters with movement.
Ex)
The best way to protect your monitor from Imag e retention is to set your PC or
System to operate a Screen Saver program when you are not using it.
Image retention may not occur when a LCD panel is operated under normal conditions.
Normal conditions are defined as continuously changing video patterns. When the LCD
panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be
slight difference in voltage between electrodes that work the liquid crystal (LC) in a
pixel. The voltage difference between electrodes increases with time, forcing the liquid
crystal to lean. When this occurs, the previous image may be seen when the pattern is
changed.
To prevent this, the accumulated voltage difference must be decreased.
Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II
Loading...
