Samsung 62230ANH, 633ANH User Manual

Download

User Guide

Getting Started

Using the Computer

Settings and Upgrade

Backup / Restore

Appendix

Start

Contents

Chapter 1.

Getting Started

Chapter 1. Getting Started



Product Features



Tips



Before You Start



Safety Precautions



Proper Posture During Computer Use



Overview



Turning the Computer On and O

Chapter 2. Using the Computer



Keyboard



Touchpad



External-type CD drive (ODD, To be purchased)



Micro SD Card Slot (Optional)

Chapter 3. Settings and Upgrade



LCD Brightness Control



Control Center (Optional)



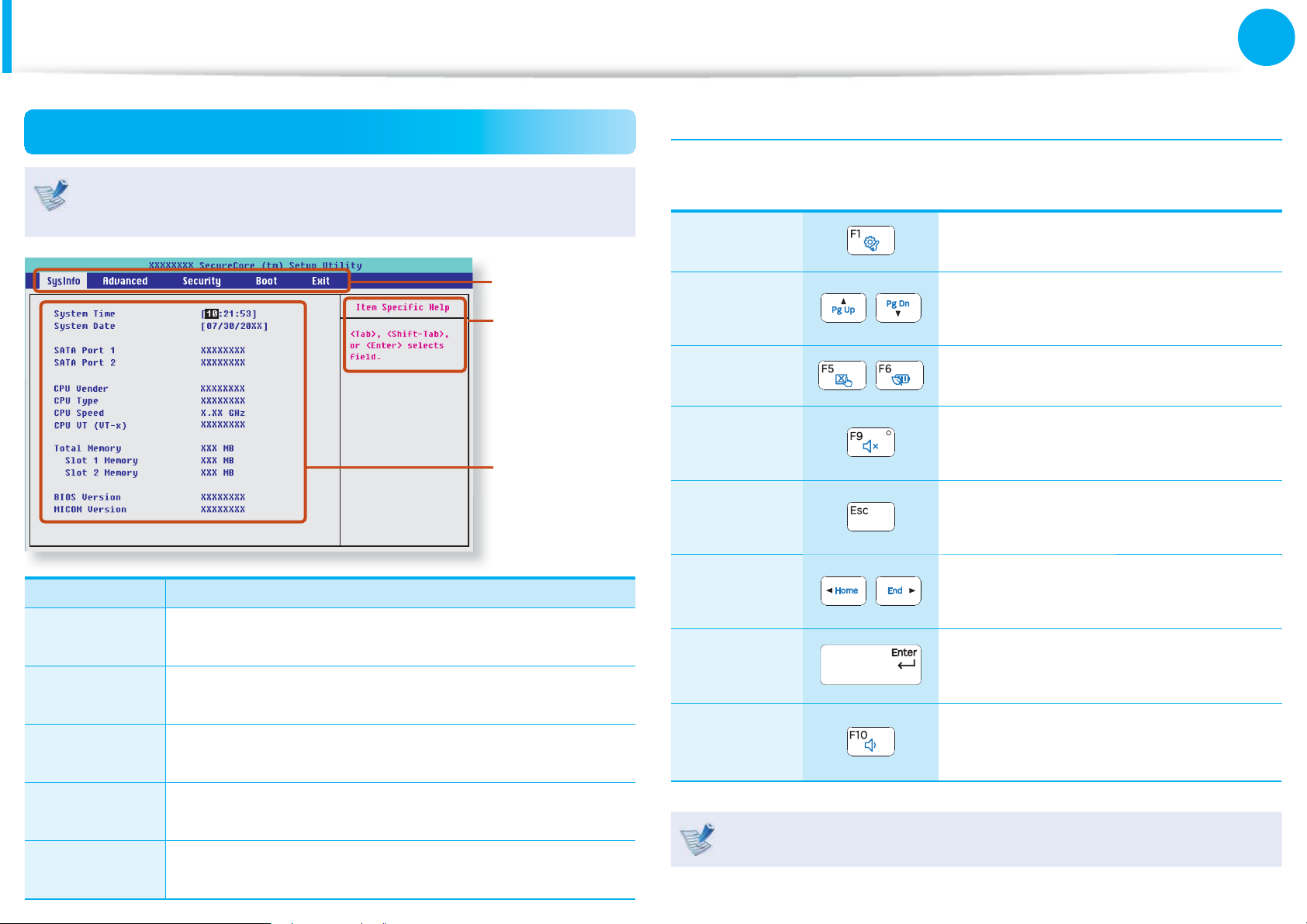

BIOS Setup



Setting a Boot Password



Changing the Boot Priority



Battery



Using the Security Lock Port

Chapter 4. Backup / Restore



Samsung Recovery Solution (Optional)

Chapter 5. Appendix



Connecting an External Display Device



Connecting an External Digital Device



Adjusting the Volume



Wired Network



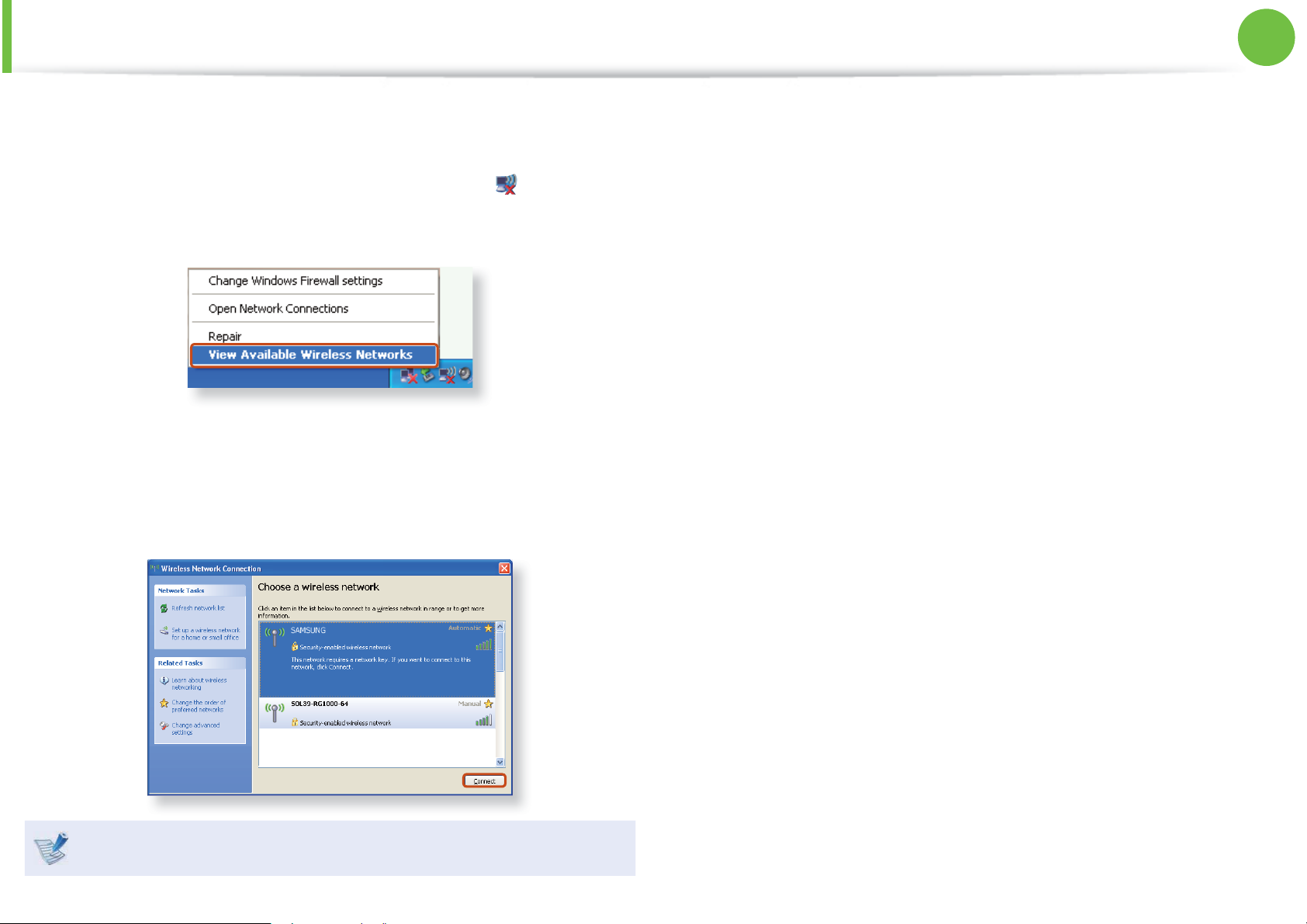

Wireless Network (Optional)



Sharing Content in a Home Network

(Easy Content Share) (Optional)



Important Safety Information



Replacement Parts and Accessories



Regulatory Compliance Statements



WEEE Symbol Information



Product Speci cations



Glossary



Index

Chapter 1. Getting Started

Product Features 3

Tips 4

Before You Start 5

Safety Precautions 8

Proper Posture During Computer Use 23

Overview 26

Turning the Computer On and O 30

Product Features

Chapter 1.

Getting Started

Optimized Performance and Usability

The latest processor has been adopted for t quicker work processing and a slimmer design has been implemented for higher portability.

With the Super Bright LCD, you can enjoy t bright, clear pictures even when outside exposed to direct sunlight. (Optional)

Environmentally-Friendly Eco Design

This is an environmentally friendly system t designed in accordance with international environmental speci cations regarding the use of environmentally friendly materials and the reduction of hazardous materials.

The system ensures minimal noise by verifying t the noise level on the basis of the noise levels of everyday life.

Various Interfaces

You do not need to wait a long time for the t computer to boot up, because it boots up quickly once you press the Power button. (Samsung Fast Start, Optional)

Samsung’s Proprietary Software

With no complex con guration necessary, you t can easily share data over the wireless network. (Easy File Share, Optional)

When you purchase a new PC, you can easily t and quickly move the data and settings of the previous PC to your new PC. (Easy Migration, Optional)

Optional items may be changed or may not be provided depending on the computer model.

Tips

6KR

The computer is not turning on or does not respond and displays a blank screen.

Chapter 1.

Getting Started

I want to connect an external monitor, TV or projector.

Restore the computer using Samsung Recovery Solution.

1. Turn the computer on and press the F4 key when the

booting screen (SAMSUNG logo) appears.

2. The computer will boot up in restore mode after a short while and Samsung Recovery Solution appears.

3. When the start menu screen appears, click Restore.

The keyboard Fn keys (shortcut keys) do not work. Install Easy Display Manager.

I want to restore the computer to the state when it was purchased.

If you use the Samsung Recovery Solution function, you can easily and quickly restore the computer to a previous state even if you do not have a separate OS recovery DVD or recovery CD.

Connect the VGA adapter (Optional) to the computer. Connect the external display device and the computer

with the monitor cable and press the F4 key repeatedly until the desired screen appears on the display device.

When I turn the computer on for the  rst time after purchasing it, the computer does not turn on.

To turn the computer on for the  rst time, you have to connect the AC adapter and then press the power button.

The power from the internal battery of the computer is cut when you purchase the computer for safety purposes.

How can I extend the battery usage time?

The battery usage time may be shortened if you recharge the battery before it is completely discharged.

To resolve this problem, enter the BIOS Setup and select Battery Calibration to discharge the battery completely and then recharge the battery.

For detailed information on a function, refer to the corresponding section of the User Manual.

Before You Start

Chapter 1.

Getting Started

Before reading the User Guide,  rst check the following information.

Optional items, some devices and software referred to in t the User Guide may not be provided and/or changed by upgrade. Note that the computer environment referred in the User Guide may not be the same as your own environment.

The pictures used for the cover and the main body in the t User Manual are those of the representative model of each series and may di er from the actual appearance of the product.

This guide decribes procedures for using both the mouse t and the touchpad.

This manual has been written for the Windows operating t system. The descriptions and  gures may di er depending on the installed operating system.

The User guide supplied with this computer may vary t depending on your model.

Safety Precaution Notations

Icon Notation Description

Failing to follow instructions marked with

Warning

Caution

this symbol, may cause personal injury and or fatality.

Failing to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Icon Notation Description

Using the software

The software described in the main text can be launched t using the following menu path.

- Start > All Programs

- Start > All Programs > Samsung When the programs are not installed, select t Samsung

Recovery Solution > System Software to install the

programs. (Only for models supplied with Samsung Recovery Solution)

Caution

Content included in this section includes information required about the function.

Content included in this section includes

Note

helpful information to use the function.

Before You Start

Chapter 1.

Getting Started

Samsung Electronics Co., Ltd. owns the copyright of this manual. No part of this manual may be reproduced or transmitted in any

form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

Precautions for Operating System Support

About the Product Capacity Representation Standard

About HDD Capacity Representation

The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.

However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the dierence in capacity calculation. (E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)

In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery Solution may reside in a hidden area of the HDD.

If a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of a OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

Before You Start

About Memory Capacity Representation

The memory capacity reported in Windows is less than the actual capacity of memory.

This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

For more information, refer to the Samsung Recovery Solution section.

Chapter 1.

Getting Started

Safety Precautions

For your security and to prevent damage, please read the following safety instructions carefully.

Since this is commonly applied to Samsung Computers,

Chapter 1.

Getting Started

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

some pictures may di er from actual products.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Installation Related

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions speci ed in the Manufacturers User Guide.

Keep the plastic bags out of the reach of children.

There is a danger of su ocation.

This may increase the internal temperature of the computer and may cause an injury.

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Avoid exposing any part of your body to the heat from the computer vent or AC adapter for a long time when the computer is on.

Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.

Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.

If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.

139HU

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Power Related

The power plug and wall outlet  gures may di er depending on the country speci cations and the product model.

Do not touch the main plug or power cord with wet hands.

There is a danger of electric shock.

Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.

There is a danger of electric shock or  re hazard.

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or  re hazard.

Do not use a damaged or loose main plug or power cord or power outlet.

There is a danger of electric shock or  re hazard.

Plug the power cord  rmly into the power outlet and AC adapter.

Failing to do so may cause  re hazard.

Do not unplug the power cord by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or  re.

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Connect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.

Failing to do so may result in electric shock.

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

Damage to the device within the computer may cause electric shock or re hazard.

Keep the power cord or outlet clean so that they are not covered with dust.

AC Adapter Usage Precautions

Connect the power cord to the AC adapter rmly.

Otherwise, there is a danger of re due to an incomplete contact.

Use only the AC adapter supplied with the product.

Using another adapter may cause the screen to icker.

Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.

If the cord is damaged, there is a danger of electric shock or re.

Failing to do so may result in re.

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Battery Usage Related

Please charge the battery fully before using the computer for the rst time.

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

Use an authorized battery and AC adapter only.

Please use an authorized battery and adapter approved by Samsung Electronics.

Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re.

Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with oor heating as it may cause the computer to overheat.

Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.

Do not use the computer in a humid location such as a bathroom or sauna.

Please use the computer within the recommended temperature and humidity range (10~32ºC, 20~80% RH).

Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.

If you put the computer into your bag without turning it o, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Never heat the product(or battery) or put the product(or battery) into a re. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.

There is a danger of an explosion or re.

Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).

If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.

If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.

There is a danger of an explosion or re.

Cutting the power to the internal battery (for corresponding models only.)

For products with built-in batteries, customers cannot remove t the battery.

In the case of ooding, lightning or explosions, you can cut t the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer.

Disconnect the AC adapter and insert an object such as a t paper clip into the hole at the bottom of the computer to cut the battery power.

In the case of ooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.

Thereafter, if you connect the AC adapter, the battery power t will be supplied again.

To use the computer safely, replace a dead battery with a new, authorized battery.

Do not cut the battery power under normal t conditions.

This may result in data loss or a product t malfunction.

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Usage Related

Disconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.

There is a danger of electric shock or damage to the product.

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, re or damage to the product.

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

Using a broken computer may cause electric shock or re hazard.

Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.

There is a danger of a re hazard. The computer may overheat and also present opportunity to thieves.

Do not use your notebook PC for long periods of time while a part of your body is making direct contact with it. The temperature of the product may increase during normal operation.

This may result in harming or burning your skin.

Do not place any container lled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause re or electric shock.

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Upgrade Related

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.

Failing to do so, may cause electric shock.

Use only authorized parts (multiplug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or re hazard.

Safety Precautions

Chapter 1.

Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Security and Movement Related

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

Avoid exposing a drive to magnetic elds. Security devices with magnetic elds include airport walk-through devices and security wands.

When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.

If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.

In this case, place the notebook computer in a separate compartment away from the other objects.

The airport security devices that check carry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.

Safety Precautions

Chapter 1.

Getting Started

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or re.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failing to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

Battery Usage Related

Dispose of worn-out batteries properly.

There is a danger of re or explosion.t The battery disposal method may dier depending on t

your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, re or explosion.

Use only a battery authorized by Samsung Electronics.

Failing to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.

Charge the battery according to the instructions in the manual.

Failing to do so, may cause an explosion or re from damage to the product.

Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or re.

Safety Precautions

Chapter 1.

Getting Started

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Usage Related

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of re.

Use a wall outlet or multi-plug with a grounding part.

Failing to do so may cause electric shock hazard.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re.

Connect only permitted devices to the connectors or ports of the computer.

Failing to do so, may cause electric shock and re.

Close the LCD panel only after checking if the notebook computer is turned o.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not touch the antenna with electricity facility such as the power outlet.

In case of lightning, immediately turn the system o, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.

There is a danger of electric shock or re.

Do not use your computer and AC-Adapter on your lap or soft surfaces.

If the computer temperature increases, there is a danger of burning yourself.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failing to do so, may cause damage to the product.

Safety Precautions

Chapter 1.

Getting Started

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.

There is a danger of re.

Do not use a damaged or modied CD/Floppy Disk.

There is a danger of damaging the product or personal injury.

Do not insert your ngers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

Failing to do so may cause electric shock or re.

Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.

There is a danger of injury.

Safety Precautions

Chapter 1.

Getting Started

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Security and Movement Related

When moving the product, turn the power o and separate all connected cables rst.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

There is a danger of a trac accident. Please concentrate on driving.

Use parts authorized by Samsung Electronics only.

Failing to do so, may cause re or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or re.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Safety Precautions

Chapter 1.

Getting Started

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

A hard disk drive is so sensitive to external impact that an t

external impact may cause loss of data on the surface of the disk.

Take extra care, because moving the computer or an impact t

on the computer when it is turned on may damage the data of the hard disk drive.

The company is not liable for any loss of data on the hard disk t

drive.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

The data may be lost when an external impact is applied to the t

disk while disassembling or assembling the computer.

The data may be lost when the computer is turned o or reset t

by a power failure while the hard disk drive is operating.

The data may be lost and irrecoverable due to a computer virus t

infection.

The data may be lost if the power is turned o while running a t

program.

Moving or causing an impact to the computer while the hard t

disk drive is operating, may cause les to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Safety Precautions

Chapter 1.

Getting Started

Using the power supply in an airplane

Since the power outlet type di ers depending on the type of airplane, connect the power appropriately.

Since the representative  gures of the power plug and the auto adapter are used, they may di er from the actual parts.

When using the AC power plug

Connect the power plug pins perpendicular into the center of the power outlet.

If the plug pins are not inserted into the center of the holes, the t

plug pins are only inserted up to half their length. In this case, reconnect the power plug.

You have to insert the power plug into the outlet when the t

power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green. Otherwise, the power indicator (LED) is turned o . In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.

Power Indicator (LED)

Center Holes

220V Power Plug 110V Power Plug

Good Example

Wrong Example

Safety Precautions

When using the auto adapter

When the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.

Auto Adapter

In- ight Cigar SocketCigar PlugDC Plug

Chapter 1.

Getting Started

When using the Airplane Charging Converter

Depending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.

Charging

Converter

Connect the airplane power

input jack to the power

outlet of the airplane.



Connect this end to



the auto adapter.

Proper Posture During Computer Use

Chapter 1.

Getting Started

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

The instructions in this manual have been prepared so that t they can be applied within the coverage of general users.

If the user is not included in the coverage, the t recommendation is to be applied according to the user’s needs.

Do not use the computer while you are lying down, but only t while you are sitting down.

Do not use the computer on your lap. If the computer t temperature increases, there is a danger of burning yourself.

Work while keeping your waist straight.t Use a chair with a comfortable back.t Keep the center of your leg weight not on the chair but on t

your feet when you are sitting on a chair. To use the computer while talking over the telephone, use a t

headset. Using the computer with the phone on your shoulder is bad for posture.

Keep frequently used items within a comfortable work range t (where you can reach them with your hands).

Proper Posture

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the  oor.

Proper Posture During Computer Use

Chapter 1.

Getting Started

Eye Position

Keep the monitor or LCD away from your eyes by at least 50cm.

Hand Position

Keep your arm at a right angle as shown by the  gure.

Adjust the height of the monitor and the LCD screen so that its t top height is equal to or lower than your eyes.

Avoid setting the monitor and LCD excessively bright.t Keep the monitor and LCD screen clean.t If you wear glasses, clean them before using the computer.t When entering contents printed on a paper into the computer, t

use a static paper holder so that the height of the paper is almost equal to that of the monitor.

Keep the line from your elbow to your hand straight.t Do not place your palm over the keyboard while typing.t Do not hold the mouse with excessive force.t Do not press the keyboard, touchpad or mouse with excessive t

force. It is recommended connecting an external keyboard and t

mouse when using the computer for long periods of time.

Proper Posture During Computer Use

Chapter 1.

Getting Started

Volume Control (Headphones and Speakers)

Check your volume  rst to listen to music.

Check your

volume!

Check if the volume is too loud before using headphones.t It is not recommended using headphones for long periods of t

time. Any deviation from the equalizer default setting could cause t

Use Time (Break Time)

Take a break for 10 minutes or more after a 50-minute period t when working for more than one hour.

Illumination

Do not use the computer in dark locations. The illumination t level for computer use must be as bright so for reading a book.

Indirect illumination is recommended. Use a curtain to prevent t re ection on the LCD screen.

Operation Condition

Do not use the computer in hot and humid locations.t Use the computer within the allowed temperature and t

humidity range speci ed in the User Guide.

hearing impairment. The default setting can be changed through software and t

driver updates without your intervention. Please check the equalizer default setting before  rst usage.

Overview

Chapter 1.

Getting Started

Front View

The pictures used for the cover and the main body in the t User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may di er from the actual appearance of the product depending on the model.

The actual color and appearance of the computer may t di er from the pictures used in this guide.





1 Camera (Optional)

2 LCD The screen images are displayed here.

Microphone

(Optional)

4 Status Indicators

5 Power Button

6 Keyboard

Using this camera, you can take still pictures and record video.

You can use the built-in microphone.

Shows the operating status of the computer. The corresponding operating LED is lit when the corresponding function operates.

Turns the computer on and o .

A device to enter data by pressing the keys.

 

  

Touchpad/

Touchpad Buttons

Using the camera, web cam

Using the Cyberlink YouCam program (optional), you can take pictures or record video by using the computer’s built-in camera by adding the balloon talk or frame e ect.

The touchpad and touchpad buttons provide functions similar to the mouse ball and buttons.

Overview

Status Indicators

Chapter 1.

Getting Started



Illumination

Sensor

2 HDD/ODD

3 Charge Status

This sensor detects the ambient illumination of the PC.

If the ambient illumination becomes dark, the LCD becomes dimmer and the keyboard backlight is lit.

On the contrary, if the ambient illumination becomes brighter, the LCD becomes brighter and the keyboard backlight is turned o .

This turns on when the hard disk is or ODD being accessed.

This shows the power source and the battery charge status.

Green: When the battery is fully

charged or the battery is not installed.

Red: When the battery is being charged.

4 Power

O : When the computer is running on

battery power without being connected to AC adapter.

This shows the computer operating status.

On: When the computer is operating. Blinks: When the computer is in Sleep

mode.

Overview

Right View

Chapter 1.

Getting Started

1 Speaker A device used to generate sound.

/KETQ5&%CTF 5NQV



(Optional)



This slot is for micro SD cards.



Headphones/ Microphone Jack

(Optional)

4 USB Port

Security Lock

Port

You can connect the headphones and the microphone here.

You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.

You can connect a Kensington lock to the Security Lock Port to prevent the computer from being stolen.

Overview

Chapter 1.

Getting Started

Left View

 

What is a chargeable USB port?

USB device accessing and charging functions are t supported.

The USB charging function is supported regardless of t whether the power is turned on or o .

Charging a device through a chargeable USB port may take t longer than general charging.

Using the Chargeable USB function when the computer is t running on battery power reduces the battery usage time.

The user cannot evaluate the charging status of the USB t device from the computer.

This may not be supported for some USB devices.t

1 DC Jack

2 Wired LAN Port



Micro Digital Video /

Audio Port (Micro HDMI) (Optional)

USB 3.0 Port or Chargeable USB 3.0

Port (Optional)

5 Speaker A device used to generate sound.

A jack to connect the AC adapter that supplies power to the computer.

Connect the Ethernet cable to this port.

You can use wired LAN by using the

LAN adapter (Optional).

This is the port for the HDMI to micro HDMI cable.

You can enjoy digital video and audio by connecting the computer to a TV.

You can connect a VGA adapter

(optional). If you connect a VGA adapter, you may not be able to use the USB 3.0 or Chargeable USB 3.0 port. In this case, use the right side USB port.

USB ports to which you can connect USB devices as well as a chargeable USB port are provided.

Using a chargeable USB port, you can access or charge a USB device.

The port can be distinguished by



the  gure ( the port of the product.

) printed on

Turning the Computer On and O

Turning the computer on

Connect the AC adapter.

Chapter 1.

Getting Started

About Windows Activation

When you turn the computer on for the  rst time, the Windows

Lift the LCD panel up.

Press the Power button to turn the computer on.

If the power is turned on, the power LED is lit.

activation screen appears. Follow the activation procedures according to the instructions on

the screen to use the computer.

Entering Sleep mode

When the computer is turned on, press the computer’s power button once brie y.

Adjusting the screen brightness

When the computer runs on battery power, the LCD brightness is automatically set to low.

Press the

brightness.

+ key combination to increase the screen

Turning the Computer On and O

Turning the computer o

Since the procedures to turn the computer o may di er t depending on the installed operating system, please turn the computer o according to the procedures for the purchased operating system.

Save all your data before clicking on t Shut down. If t Samsung Fast Start is installed, the system shutdown

location may di er.

Chapter 1.

Getting Started

For Windows Vista

►

Click on Start > and then click on Shut Down as shown

in the  gure below to shut the computer down.

For Windows 7

►

Click Start > Shut down mode to shutdown the

computer.

Power Button12

Using the Power button in Windows Vista

For Windows Vista, the Power button is set to power saving mode. Therefore, if you click Start > Power button computer enters power saving mode.

To shut down the computer by clicking this icon, refer to the descriptions for Setting up Start menu power button of the Control Panel.

, the

Turning the Computer On and O

For Windows XP

►

Click the Start button on the taskbar.

Click Turn O Computer.

1 2

Click Turn O .

Chapter 1.

Getting Started

If the system cannot be shut down due to a system error, turn it o by pressing and holding the Power Button for a minimum of 4 seconds.

Please note that turning the computer o by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.

Turning the Computer On and O

Samsung Fast Start (Optional)

These descriptions are for Windows 7 and for supported models only.

If you are using the system very often while on the move, use Fast Start to reduce the booting time.

When the Samsung Fast Start function is being used, the computer runs in hybrid power-saving mode when the computer enters standby mode or hibernation mode.

Chapter 1.

Getting Started

Using Fast Start

Press the + key combination to run the Control

Center.

Select Fast Start and check if it is set to ON.

If this option is set to ON, the Fast Start function will run.

While the Fast Start function is enabled

You cannot change some power options in the Control t Panel. To change these,  rst disable the Fast Start function.

The existing power saving mode and maximum power t saving mode functions have been replaced by this function.

The LCD may  icker once if the Fast Start function is turned ON or OFF.

What is hybrid power-saving mode?

In hybrid saving mode, the data you are working on will be saved to memory and the HDD, in the event of a sudden power failure, ensuring the safety of your data.

However, as unexpected accidents can always occur, it is recommended backing up any important data beforehand.

Chapter 2. Using the computer

Keyboard 35

Touchpad 39

External-type CD drive (ODD, To be purchased) 46

Micro SD Card Slot (Optional) 48

Connecting an External Display Device 50

Connecting an External Digital Device 55

Adjusting the Volume 56

Wired Network 59

Wireless Network (Optional) 63

Sharing Content in a Home Network (Easy Content Share) (Optional) 68

Keyboard

Shortcut key functions and procedures are discussed in the following sections.

The keyboard image may di er from the actual keyboard.t The keyboard may di er depending on your country. The following mainly describes the shortcut keys.t

Chapter 2.

Using the computer

Shortcut Keys

You can use the following functions by pressing the keys below with the Fn key. If you press the Fn Lock key and the button LED (Blue Color) is illuminated, you can use the following keys without holding down the Fn

key.



Fn Name Function

Control Center The Samsung software control program, the Control Center, is launched.

Screen



Brightness

Control

CRT/LCD

Controls the screen brightness.

Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.

Keyboard

Fn Name Function

Chapter 2.

Using the computer



Touchpad

Turns the Touchpad function on or o. When using an external mouse only, you can turn the Touchpad o.

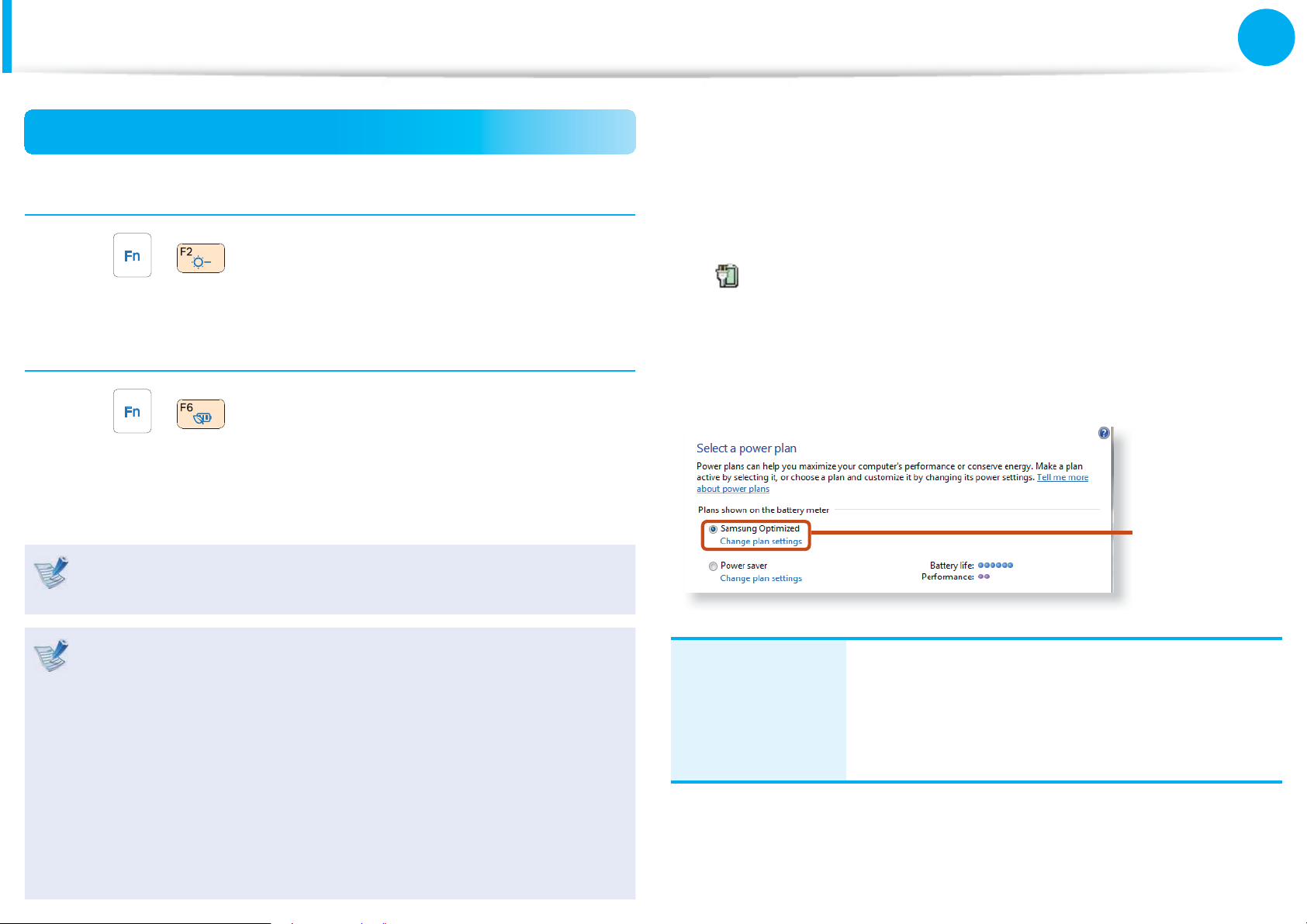

Battery mode To use the battery eciently, you can change the battery mode according to your usage environment.

Keyboard

Backlight

Controls the brightness of the keyboard backlight.

Brightness

Control

Mute Press this button to turn the audio on or o. If the audio is muted, the LED is lit.

Volume Control Controls the volume.

Wireless network

In models with a wireless network device, press this key to turn the wireless network device on or o. If the wireless network device is turned on, the button LED is turned on.

Keyboard

Chapter 2.

Using the computer

Fn Lock key

If you press the Fn Lock key, you can use hot keys even without pressing the Fn key.

If the Fn Lock is turned on, the button LED is lit.

LED (Blue Color)

Caps Lock key

If Caps Lock is turned on, the button LED is lit.

LED (Blue Color)

Home key

PgUp key

The mouse cursor moves to the top of the current page.

PgDn key

The mouse cursor moves to the bottom of the current page.

Other Function Keys

Performs the right-click mouse function (touchpad).

The mouse cursor moves to the beginning of the current row.

End key

The mouse cursor moves to the end of the current row.

If the hot keys do not work properly, you have to install the

Easy Display Manager.

Keyboard

Keyboard Backlit Function (Optional)

The keyboard Backlight are automatically turned on or o depending on the ambient illumination. Therefore, you can easily type with the keyboard when you are in a dark environment or at night.

Chapter 2.

Using the computer

The representative  gure of the keyboard has been used, but they may di er depending on the country or the model.

Touchpad

Chapter 2.

Using the computer

The touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.

To use the touchpad, the touchpad driver is required. A built-in Windows driver and a driver provided by the

manufacturer are provided. For a better performance, using the driver provided by the touchpad manufacturer is recommended.

The driver provided by the touchpad manufacturer is already installed in this product by default when you purchase this product. When you reinstall Windows or change the operating

system, using the driver provided by the corresponding manufacturer is recommended.

Touch the touchpad with your  ngers only. t Anything other than your  ngers, such as a ball-point pen, will not be recognized by the touchpad.

If you touch the Touchpad or press the Touchpad buttons t while booting up, the Windows boot time may be extended.

Checking the touchpad manufacturer Click the t Start

> Control Panel > Hardware and Sound > Mouse > Hardware tab and check the device (E.g. Elan, Synaptics,

etc. ). The Windows driver provides basic touchpad functions t

(moving the pointer, clicking, etc.) but the gesture function is not supported.

Touch Area

Use to move the

cursor.

Scroll Area

This corresponds to the wheel of the mouse and can be moved up, down, left or right.

Touchpad Left Button

You can select or run a

program using this button.

Touchpad Right Button

Plays the role of the right mouse button.

Touchpad

Chapter 2.

Using the computer

Basic Touchpad Functions

Moving the cursor on the screen

Place your nger on the touchpad slightly and move your nger. The mouse cursor will move accordingly. Move your nger in the

direction you wish to move the cursor.

Click Function

Place a nger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.

Double-Click Function

Put your nger on the touchpad and quickly tap twice with your nger on an item you want.

Alternatively, press the left touchpad button twice quickly.

TapTap

ClickClick

Right Button Function

This corresponds to clicking the right mouse button. Press the right touchpad button once. The corresponding pop-up

menu appears.

Tap

Click

Touchpad

Drag Function

Dragging refers to moving an item to another place after selecting it.

Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.

Move

Holding down the left

touchpad button

Chapter 2.

Using the computer

Holding down the left

touchpad button

Move

Touchpad

Chapter 2.

Using the computer

The Gesture Function of the Touchpad (Optional)

The Touchpad Gesture function may not be provided and t the version of the function may di er depending on the model. Some usage procedures may di er depending on the version.

For detailed usage procedures, refer to the description in t the Touchpad Settings window.

Since these descriptions are written on the basis of the t latest operating system, Windows 7, some of the content and the  gures of the descriptions may di er depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

Con guring the Gesture Function

If the Gesture function is not activated, you can activate it according to the following procedures.

When using the Elan driver

►

Click the Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options button.

When using the Synaptics driver

►

Click the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.

The Touchpad Settings window appears. Click over the

corresponding item to select the item in the Select an item and click OK.

Using the Touchpad, you can use the following additional Gesture functions.

Scroll functiont Zoom functionst Rotation function t Page Move Functiont

To cancel the Gesture function, unselect the corresponding t item in the Touchpad Settings window and click OK.

Do not use the gesture function after you have already t touched the touchpad with your  nger.

The gesture function works well when you use it in the t center of the touch area.

Touchpad

Chapter 2.

Using the computer

The Scroll Function

This function is the same as the scroll area of the Touchpad. If you place two ngers over the Touchpad and move them up,

down, left or right, the screen is scrolled up, down, left or right accordingly.

Zoom Functions

Rotation function

Place two ngers over the touchpad and move the ngers as follows to rotate the photo or image.

Page Move Function

You can move to the previous or next page when you are looking at a photo or surng the Internet.

For example, if you lightly brush three ngers to the left while you

If you place two ngers over the Touchpad together or apart, the current image or text is zoomed in or out.

Zoom-in

Zoom-out

are looking at a web site, you will return to the previous page.

Touchpad

Setting the Touchpad Sensitivity

If the touchpad reacts too sensitively or the pointer moves unintentionally, please adjust the touchpad pointer speed and sensitivity.

Chapter 2.

Using the computer

When using the Elan driver

►

Click Start > Control Panel > Hardware and Sound > Mouse

> ELAN > Options > PalmTracking and then adjust the

sensitivity.

When using the Synaptics driver

►

Adjusting the Touchpad Pointer Speed

Click Start > Control Panel > Hardware and Sound > Mouse > Pointer Options and then adjust the pointer speed.

Adjusting the Touchpad Palm Detection Function

The palm detection function is to avoid malfunctions when the palm touches the touchpad by mistake.

This function is provided by the touchpad driver provided by the manufacturer.

Click Start > Control Panel > Hardware and Sound > Mouse

> Device Settings > Settings > SmartSense and then adjust the sensitivity.

When the touchpad pointer does not move smoothly:

Slide the bar appropriately in the direction of Minimum.

Minimum Maximum

When the touchpad pointer moves unintentionally (excessively):

Slide the bar appropriately in the direction of Maximum.

Touchpad

Touchpad On/O Function

Chapter 2.

Using the computer

Locking with shortcut keys

If you want to use the mouse only without using the touchpad, you can turn the touchpad o .

To lock the touchpad function, press the

You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.

+ keys.

Auto-locking when connecting USB mouse

When using the Elan driver

►

Click Start > Control Panel > Hardware and Sound > Mouse

> ELAN, and check the Disable When external USB mouse plug in option. This will turn the touchpad o when a USB

mouse is connected.

When using the Synaptics driver

►

Click Start > Control Panel > Hardware and Sound > Mouse

> Device Settings, and check the Disable internal pointing device when external USB pointing device is attached in

option. This will turn the touchpad o when a USB mouse is connected.

In case of some touch-screen model, checking option locks touchpad even though you did not connect a USB mouse.

This auto-locking function is not provided for some models.

External-type CD drive

(ODD, To be purchased)

Chapter 2.

Using the computer

This computer supports an external USB CD-ROM drive (can be additionally purchased).

Check if the interface type of the external CD-ROM drive is a USB type. For detailed speci cations, refer to the catalog.

Do not insert a cracked or scratched CD.t Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.

When you clean a CD or DVD title, wipe with a soft cloth t from inside to outside.

Do not eject a CD when the CD operating LED is on.t The  gures used for the description are of a representative t

model. Therefore the  gures may di er from the real ones. Using a CD that is not in the shape of a circle is not t

recommended.

Connecting the CD Drive

Connect the CD drive to the USB port.

USB port

External-type CD drive

Inserting and Ejecting a CD

Press the Eject button of the CD drive.

(ODD, To be purchased)

Chapter 2.

Using the computer

Status Indicator

Eject Button

When the CD tray opens, insert a CD or DVD and push the

tray in until it clicks.

Push the CD tray inward until it clicks.

Emergency Hole

The CD drive status indicator is turned on.

A CD drive’s reading and writing speed may di er t depending on the condition and type of the media.

To eject a CD when the CD drive does not work or the t computer is o , place the end of a paper clip ( the Emergency Hole until the CD tray is ejected.

) into

Micro SD Card Slot

(Optional)

Chapter 2.

Using the computer

You can only use the micro SD card slot for micro SD cards.

You can use micro SD cards as removable disks and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.

You have to additionally purchase a micro SD card with the t necessary capacity depending on your requirements.

You can use a micro SD card just like any data storage t device. A copyright protection function is not supported.

Since you can lose a card when moving the computer, t keep the card separately.

The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.

These descriptions are written based on Windows 7, the t latest operating system. Therefore, some descriptions and  gures may di er from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference.

Using the card

Insert the card into the micro SD card slot in the indicated

direction.

Micro SD Card

The card drive appears. Click Open folder and view  les.

If the window does not appear, click Start > Computer.

Micro SD Card Slot

(Optional)

Chapter 2.

Using the computer

If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.

You can save, move and delete data by double-clicking the

corresponding drive. You can only use the card after formatting it.

To format a memory card

When using the memory card for the  rst time, you must format the card before using it.

Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

Click Start > Computer.

Right-click over a card drive with the touchpad and select

Format.

Click Start to the formatting.

The device name of the card drive may di er depending on your computer model.

To remove a memory card

Take hold of the end of the card and remove the card.

To use a card to exchange data with a digital device such t as a digital camera, formatting the data using the digital device is recommended.

When you try to use a card, which is formatted in the t computer, in another digital device, you may have to format the card again in the device.

If the write-protect tab is in the t Lock position, you cannot format, write or delete data on the card.

Take care when you insert or remove a micro SD card. The t micro SD card may be damaged when not treated carefully.

Connecting an External Display Device

Chapter 2.

Using the computer

If you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.

There is an analog monitor port (RGB) and a micro digital video and audio port (Micro HDMI).

Since the visual quality is higher for Micro HDMI than VGA, if more than one port is available, connect the port that provides the higher visual quality.

Before you start, check the port and cable of the external t display device and then connect the display device to the computer.

Due to restrictions of the operating system the DualView t function is not supported for Windows 7 Starter.

About the connection cable

Users should additionally purchase the necessary connection cables.

Analog Monitor (RGB) Cable

HDMI to micro HDMI Cable



Connecting to the monitor port (Optional)

You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.

You can give better presentations by connecting the computer to a projector.

The VGA adapter is optional and may not be provided depending on the model.

Connect the VGA adapter to the monitor port of the

computer.

Connecting an External Display Device

Chapter 2.

Using the computer

Connect the VGA cable (15-pin) to the connected VGA

adapter and then connect the other end of the VGA cable to the VGA port of the monitor or the TV.

External Monitor

VGA

Adapter

Connect the power cord of the connected monitor, TV or

projector and turn the power on.

Projector

Since pressing the

changes the selection, select a display device.

LCD

HDMI

LCD + HDMI Clone

LCD + HDMI

DualView

key while holding down the key

Press the + key combination once. Then the Easy

Display Manager screen appears where you can select a display device.

If the screen is not switched even if you press the t

+ key combination, you have to install the Easy

Display Manager program.

Alternatively, to set up dual view:t

Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to  t to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.

Connecting an External Display Device

Chapter 2.

Using the computer

Connecting through the Micro HDMI port (Optional)

By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.

After connecting a TV through Micro HDMI, you have to con gure the screen and sound.

You have to additionally purchase the HDMI to micro HDMI cable.

Connect the HDMI to micro HDMI cable to the HDMI port of

the TV.

External Monitor

Projector

This is only supported for models that support a TV output t port (HDMI).

When a TV provides more than one HDMI port, connect t the computer to the DVI IN port.

When connecting the computer to a TV, switch the t external input mode of the TV to HDMI.

Press the + key combination once. Then the Easy

Display Manager screen appears where you can select a display device.

Since pressing the

changes the selection, select a display device.

key while holding down the key

HDMI to

micro HDMI

HDMI

LCD + HDMI Clone

LCD + HDMI

DualView

Connecting an External Display Device

For Intel graphics cards

External Monitor / TV is not supported in the DOS t Command Prompt window.

►

Simultaneous output to all 3 (LCD + CRT + HDMI) is not t supported.

If the screen is not switched even if you press the t

+ key combination, you have to install the Easy

Chapter 2.

Using the computer

Right-click over the Desktop and select Graphics Properties.

If a window appears where you can select the mode, select

Basic Mode and click OK.

Display Manager program.

Setting up HDMI TV video (Optional)

If the Desktop screen displayed on the TV does not  t to the TV screen, con gure it as follows depending on the graphics card.

You can view the graphics card type by selecting t Device Manager > Display adapters and then clicking the + symbol.

The screen images and terms may di er from actual product t depending on the computer model and driver version.

Click Display > General Settings, select Customize Aspect

Ratio in the Scaling  eld,  t the Desktop to the TV screen and click OK.

Connecting an External Display Device

Chapter 2.

Using the computer

Setting up HDMI TV audio (Optional)

You can con gure the sound of the computer to be played through the HDMI TV.

You have to con gure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.

The screen images and terms may di er from actual product depending on the computer model.

Right-click over the Volume Control icon in the

noti cation area at the bottom right of the Desktop and select Playback Devices.

(Alternatively, click the Control Panel > Hardware and Sound > Sound.)

Change the setting to Digital Audio (HDMI), HDMI Device or

Digital Output Device, click Set Default and click OK.

HDMI Output Device may not appear on the playback device list depending on the computer model.

In this case, turn on the TV, connect the TV to the computer using a HDMI cable and then switch to HDMI or LCD+HDMI Clone or LCD+HDMI DualView mode using the Shortcut

Key(

To listen to sound on the computer after disconnecting the HDMI TV, you have to set the Playback Device to Speakers.

+ ).

Connecting an External Digital Device

Chapter 2.

Using the computer

You can save a  le stored on a device onto the computer by connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the  le management functions.

Connecting and using a camera or camcorder

If a digital device such as a camera or camcorder is connected with the computer, it is recognized as a removable disk so that you can copy or move the  les on the device.

Connect the USB port of the notebook computer and the

USB port of the digital device such as a camera using the USB cable.

Both the computer and the digital device must be turned t on.

The Auto run window appears. Click Open folder and view

 les. If the window does not appear, click Start > Computer.

You have to additionally purchase the USB cable necessary t to connect the computer and the device.

Camera

Camcorder

Double-click the corresponding drive. You can then save,

move or delete data.

The device name of the card drive may di er depending on the model.

Adjusting the Volume

Chapter 2.

Using the computer

You can adjust the volume using the keyboard and the volume control program.

Adjusting the Volume using the Keyboard

+ o

Alternatively, press the + key combination to turn

the volume on or o .

Adjusting the Volume using the Volume Adjustment Program

Using the Sound Recorder

The procedures to record sound using the Windows Recorder are described below.

For Windows 7/Vista

►

Connect a microphone to the microphone jack.

You can also use the internal MIC.

Right-click over the Volume icon on the taskbar and select

Recording Device.

Check if the microphone is set as the default recording

device. If this is the case, it is already set as the default device. If not,

Click the Volume icon on the taskbar and slide the volume control bar to adjust the volume.

Mute

Windows XPWindows 7/Vista

right-click over the microphone and select Set default.

Click Start > All Programs > Accessories > Sound Recorder

and click Start recording to start a recording.

Adjusting the Volume

Chapter 2.

Using the computer

For Windows XP

►

Connect a microphone to the microphone jack.

You can also use the internal MIC.

Click Start > Control Panel > Sounds, Speech, and Audio

Devices > Sounds and Audio Devices.

Click Advanced from Volume and then, click Options >

Properties.

Select Realtek HD Audio input from the mixer device to

select Recording from Adjust Volume for.

Select Mic Volume from Show the following volume

controls and click OK.

When Recording Control window appears, check the Select

checkbox. Increase the recording volume to increase the recording

sensitivity and close the window.

Click Start > All Programs > Accessories > Entertainment

> Sound Recorder.

Click the Record button to perform recording.

The default recording duration of Windows is 60 seconds. Download a dedicated recording program from the Internet

to record audio data for a long time.

Adjusting the Volume

Chapter 2.

Using the computer

Using SRS Premium Sound

The SRS Premium Sound function enables you to experience more stereophonic sound using stereo speakers.

The software programs provider may vary, depending on t your computer model.

In addition, some pictures may di er from actual product t depending on the computer model and software version.

Click in the system of the Taskbar. Then double-click the

SRS Premium Sound icon

If SRS Premium Sound is disabled, right-click over the SRS Premium Sound icon

and select Enable Process.

If you select an SRS mode, you can listen to sound in that

mode.

SRS Mode

No. SRS Mode Description

1 Music Select this mode to listen to music.

2 Movie Select this mode to watch a movie.

Precautions when removing the sound driver

To remove the driver in Add or Remove Programs, remove the SRS Premium Sound Control Panel item.

Remove the SRS Premium Sound Control Panel item.t Remove the Realtek High De nition Audio Driver and then t

restart the system.

If the programs are not removed in this order, an error may occur or the device may not work properly.

Wired Network

Chapter 2.

Using the computer

A wired network is a network environment used for a company network or broadband internet connection at home.

You can use wired LAN by using the LAN adapter (Optional).t Since these descriptions are written on the basis of the t

latest operating system, Windows 7, some of the content and the  gures of the descriptions may di er depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.

Connect the LAN adapter to the wired LAN port.

Connect the LAN cable to the connected LAN adapter.

For Windows 7

►

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

For Windows Vista

►

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.

LAN

adapter

For Windows XP

►

Click Start > Control Panel > Network and Internet Connections > Network Connection.

Wired Network

Select Local Area Connection and click the right button of

the touch pad and select Properties.

Chapter 2.

Using the computer

The LAN Device name may di er depending on your computer’s Network Device.

For Windows 7/Vista

►

Select Internet Protocol Version 4(TCP/IPv4) from the list of Network Components and click Properties.

For Windows XP

►

Click General tab and select a LAN driver from Connect using:. Select Internet Protocol(TCP/IP) and click Properties.

The Network Component name may di er depending on t the Operating System Installed.

To add a network component, click Install in the screen t shown in the  gure above. You can add clients, services, and protocols.

Wired Network

Chapter 2.

Using the computer

Con gure the IP settings.

When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.

Using the WOL (Wake On LAN) function

<Wake On LAN> is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

For Windows 7

►

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

For Windows Vista

►

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.

For Windows XP

►

When not using DHCP, ask your network administrator for the IP address.

When you have completed the settings, click the OK button.

The network settings have been completed.

Click Start > Control Panel > Network and Internet Connections > Network Connection.

Right-click on the Local Area Connection and select

Properties.

Wired Network

Chapter 2.

Using the computer

Click Con gure > Power Management tab. Select Allow

this device to bring the computer out of standby, then click OK. Restart the system.

- If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the <Wake On LAN> function.

- The LAN LED may not be turned o if System is shoutdown without disabling the WOL (Wake on LAN) option.

Connecting a wired LAN while using a wireless LAN may not

activate the

to Disable to use the <Wake On LAN> function.

- <Wake On LAN> feature may not work while using Hybrid power saving feature.

<Wake On LAN> function. Set the Wireless LAN

When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.

When system is running on battery, some time it takes about 20sec after inserting LAN cable to be able to connect to internet. This symptom happen as a result of power saving feature to reduce battery consumption.

When system is running on battery, the Wired LAN speed is decreased automatically to reduce battery consumption. In such case, a 1Gbps /100Mbps LAN would function at 100Mbps/10Mbps speed.

For Win7, Wake On LAN is not supported by Ping.

Wireless Network

(Optional)

Chapter 2.

Using the computer

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size o ce through wireless LAN devices.

What is an Access Point ( AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. Connect the computer with the wireless LAN function to the AP to use to the network connection.

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.

For Windows 7

►

If you click the Network Connections icon in the system

tray, a list of available APs appears. If you select an AP to

The descriptions below are for computer models with t a Wireless LAN card or device. A Wireless LAN device is optional. The pictures in this manual may di er from the actual product depending on your wireless LAN device model.

If the wireless LAN is turned o , press the t

combination to turn it on.

+ key

connect to, the Connect button appears.

AP List

Wireless Network

(Optional)

Chapter 2.

Using the computer

Click Connect.

If a network key is set for the AP, enter the network key and then click Connect.

For the network key, please ask your network administrator.

For Windows Vista

►

Right-click over the Network Connections icon on the

taskbar and click Connect to the Network.

Select an AP to connect to and click Connect. If there is a

con gured network key for the AP to connect to, enter the network key and then click the Connect button.

When Connected to the AP is displayed, click the Close

button. You can access the network.

When Connected to the AP is displayed, click the Close

button. You can access the network.

Wireless Network

(Optional)

Chapter 2.

Using the computer

For Windows XP

►

Click the Wireless Network Connection icon from the

Taskbar using the right button of the touch pad. Then, click View Available Wireless Networks.

Select an AP to be connected and click Connect.

If a network key is set in the AP, the network key input window will appear. Enter the network key in the input window and click OK.

Once Connected to AP is displayed, you can use a wireless

network.

For a network key, contact the network administrator.

Wireless Network

(Optional)

Chapter 2.

Using the computer

Connecting to a wireless network through Control Center (Optional)

These descriptions are for Windows 7 and for supported t models only.

The screen images and terms may di er from actual t product depending on the computer model.

You can access a wireless network using Control Center.

Press the + key combination to run the Control

Center.

Select Wi-Fi and check if it is set to ON.

If this option is set to ON, the Wi-Fi function will run.

Wi-Fi Connection Status ON Green, OFF Grey

AP List

Normal Wireless Network Status

If the wireless LAN icon is displayed in the system tray of the Taskbar, it indicates that the computer is connected to the Internet properly (see below).

[Windows 7] [Windows Vista] [Windows XP]

Wireless Network

(Optional)

Chapter 2.

Using the computer

Abnormal Wireless Network Status

When the wireless LAN is not connected

If the wireless LAN icon is displayed with an “X” in the system tray of the Taskbar, it indicates that the wireless LAN device is turned o or that there are no available APs. Or the wireless LAN is disconnected.

[Windows 7] [Windows Vista] [Windows XP]

If the wireless LAN is turned o , press the + key

combination to turn it on.

When APs are found but your computer is not connected to the Internet

This is the case when an AP with a weak signal has been set to a high priority. Connect to an AP with a strong signal by clicking

it.

The currently connected AP. The signal strength is low.

An AP with a strong signal strength

Click

When you are not connected to the Internet

This is indicated by the wireless LAN icon in the system tray of the Taskbar. In this case, you have to check the IP address settings.

Please contact your network administrator and recon gure the IP address.

[Windows 7] [Vista] [Windows XP]

[Windows 7]

The currently connected AP. The signal strength is low.

Click

An AP with a strong signal strength

[Windows XP]

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

Easy Content Share is a DLNA application that allows you to play

photos, videos and music  les on your TV.

These descriptions are for Windows 7 and for supported t models only.

The Digital Living Network Alliance (DLNA) aligns industry t leaders in the CE, mobile, and PC industries through digital interoperability, and DLNA-certi ed devices allow users to play videos, photos and music  les stored on a computer on a TV.

To play content using DLNA technology, both your t computer and TV must be DLNA certi ed. For information on whether a product supports DLNA, refer to the respective user manuals.

Con guring the network settings for your computer and TV

To share content, all shared devices must be connected to the same access point.

Con gure the network settings by following the steps below.

Connect your computer and TV to an access point through

a wired or wireless LAN connection, as shown in the  gure below.

[Network connection diagram]

To play videos, photos and music  les stored on a computer, con gure the settings in the order as shown below.

1. Con guring the network settings for your computer and TV

2. Adding shared content on your computer

3. Playing content on your TV using your computer

Con gure the IP address settings for your computer and TV.

You must check the Obtain an IP address automatically (DHCP) checkbox.

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

For more information on how to con gure the IP address t for your computer, refer to Chapter 2. Using the Computer > Network.

For more information on how to con gure the IP address t for your TV, refer to the user manual of your TV.

To check if the network environment has been con gured,

run Easy Content Share. If the connected computer and TV are shown in the program

window, the network settings have been con gured successfully.

Adding shared content on your computer

Add the videos, photos and music  les that you want to play on your TV as shared items.

You can only play shared items on your TV.

Click Settings at the top right of Easy Content Share.

Click My computer > Add Folder . The Browse For

Folder window appears. Select a folder to share and click OK.

Devices that can share content

If connected devices are not displayed, refer to the Easy

Content Share item in the Troubleshooting Guide.

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

The selected folder is added to the shared list.

Playing content on your TV using your computer

After you have set photos, videos and music  les as shared items, you can play them on your TV using your computer.

Select the item you want to play in the playlist, and then click

Play

The selected  le is played on the TV.

Using the Play Control panel, you can control the item being played on the TV.

To stop playing, click Stop .

Easy Content Share does not support subtitles due to DLNA constraints.

To use the caption function, refer to the Easy Content Share item in the Troubleshooting Guide.

In Easy Content Share, select the TV you want to use to play

content.

Playlist

Add content to play

Play control panel

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

Adding a video, photo or music  le to the playlist

Click Add Content in the Playlist screen. The shared

content list is displayed.

In the shared content list, check the checkbox in front of the

item you want to add to the playlist, and then click Add to playlist

Playing the content stored on a computer when Easy Content Share is not installed

You can also play the videos, photos and music  les stored on a computer when Easy Content Share is not installed on your TV by using Windows Media Player.

As described in the steps below, con gure the content sharing settings to play content on your TV.

The computer containing the shared content (when Easy Content Share is not installed) must be connected to the same access point to which the computer where Easy

Content Share is installed and the TV is connected to.

For Windows Media Player 12

►

Add the selected item to the playlist

Shared content list

Click Return to playlist screen .

Return to the

playlist screen

In the playlist screen, you can  nd that the selected item has been added to the playlist.

Run Windows Media Player.

Click Stream and check the Automatically allow devices to

play my media... menu item.

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

Run Windows Explorer.

Right-click the folder to share. From the menu displayed,

point to Include in library. Click Videos, Photos or Music in the displayed sub menu,

according to the type of content contained in the selected folder.

If the selected folder contains two or more types of content, you must click each corresponding menu item (Videos,

Photos or Music) to register each type of content.

For Windows Media Player 11

►

Run Windows Media Player.

Click Library > Media Sharing.

The Media Sharing window is displayed. Check the Share my media checkbox and then click OK.

Sharing Content in a Home Network

(Easy Content Share) (Optional)

Chapter 2.

Using the computer

In the Media Sharing window, click Settings.... The Media

Sharing - Default Settings window is displayed. Check the Allow new devices and computers automatically (not recommended) checkbox.

A popup window is displayed. Click Yes . Then click OK in the Media Sharing- Default Settings window and in the Media Sharing window.

After the registration has been  nished, you can  nd the added folder is listed in the shared content list of Easy Content Share.

For a shared content item, the name of the computer where the item is stored is displayed next to it, allowing you to identify the computer. This is useful when multiple computers are providing content.

A folder added as a

shared item

The name of the PC where

the content is stored

Content sharing is only available with Windows Media Player 11 or later.

If your Windows Media Player is earlier than Windows

Media Player 11, download and install Windows Media Player 11 or later from the Microsoft website.

Chapter 3. Settings and Upgrade

LCD Brightness Control 75

Control Center (Optional) 77

BIOS Setup 78

Setting a Boot Password 80

Changing the Boot Priority 83

Battery 84

Using the Security Lock Port 89

LCD Brightness Control

Chapter 3.

Settings and Upgrade

You can adjust the LCD brightness in 8 levels.

The screen brightness is automatically set to the brightest level (brightness level 8) when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.

Controlling the Brightness Using the Keyboard

Adjust the LCD brightness by pressing the + key or

the

The LCD brightness can change up to 8 levels and the brightness

increases by 1 level when pressing the

+ key.

+ key once.

Maintaining the changed LCD brightness even after t turning the computer on again

To maintain the LCD brightness set by using the brightness

control keys or through the Power Options, follow the procedures below.

For Windows 7/Vista

►

1. Click Control Panel > Hardware and Sound > Power Options.

2. Click Change the settings of the currently con gured

mode.

3. Adjust the display brightness adjustment menu bar and click the Save the changes button.

Saving battery power consumptiont

Decreases the LCD brightness when the computer

is running on battery power to save battery power consumption.

LCD Brightness Control

LCD bad pixels principle of laptop computert

Samsung observes the speci cations regarding strict

quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t a ect the computer performance.

Therefore Samsung observes and manages the following

dot principles:

- Bright dot : 2 or less

- Black dot : 4 or less

- Combination of Bright and Dark : 4 or less

Chapter 3.

Settings and Upgrade

Instructions for Cleaning the LCD

Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.

Cleaning the LCD panel with excessive force can damage the LCD.

Control Center

(Optional)

Chapter 3.

Settings and Upgrade

The Control Center is the integrated Samsung software control program that allows users to con gure various settings.

This description is for models that support this function t running on Windows 7.

The screen image and terminology may change depending t on the model.

Depending on the program version, some functions may t not be provided or di erent functions may be provided.

Press the

Center.

+ key combination to launch the Control

Click on the item you want to use and select ON or OFF to

determine whether to use the function or not.

Items

You can set this to ON or OFF.

BIOS Setup

Chapter 3.

Settings and Upgrade

The BIOS Setup enables you to con gure your computer hardware according to your needs.

Use the BIOS setup to de ne a boot password, change the t booting priority, or add a new device.

Since incorrect settings may cause your system to t malfunction or crash, take care when con guring the BIOS.

The functions of the BIOS setup are subject to change for t product function enhancement purposes.

The BIOS Setup menus and items may di er depending on t your computer model.

Entering the BIOS Setup

Turn the computer on.

When the booting screen (SAMSUNG logo) appears, press the

F2 key to enter the BIOS Setup.

The screen images in this document may di er from actual product.

After a moment, the BIOS setup screen appears.

The items in the BIOS setup may di er depending on the product.

BIOS Setup

Chapter 3.

Settings and Upgrade

The BIOS Setup Screen

The BIOS Setup menus and items may di er depending on your computer model.

Setup Menu

Help

Help for the selected item appears automatically.

Setup Items

System Setup Keys

In the Setup, you have to use the keyboard.

F1 Press to view the Setup Help.

Up & Down

Keys

F5/F6

ESC



Press to move up and down.

Press to change the item value.

Press to load the default Setup settings.

Press to return to a higher level menu or to move to the Exit menu.

Setup Menu Description

SysInfo

Advanced

Security

Boot

Exit

This is a description about the basic speci cations of the computer.

Using this menu, you can con gure the major chipsets and additional functions.

Used to con gure security functions, including passwords.

This menu enables you to con gure peripherals and booting related settings such as the boot priority.

Used to exit the Setup either saving the changes or not.

Left & Right

Keys

Enter

F10

The keyboard image may di er from the actual keyboard.



Press to move to another menu.

Press to select an item or to enter a sub menu.

Press to save the changes and exit Setup.

Setting a Boot Password

Chapter 3.

Settings and Upgrade

When setting a password, you have to enter a password to use the computer or enter the BIOS Setup.

By con guring a password, you can restrict system access to authorized users only and protect data and  les saved on the computer.

Do not lose or forget your password. t If you have forgotten your password, contact a Samsung t

service center. In this case, a service fee will be charged.

Setting a Supervisor Password

A Supervisor Password is required to turn the computer on or to start the System Setup.

In the Set Supervisor Password item, press <Enter>.

Enter a password, press <Enter>, re-enter the password for

con rmation, and press <Enter> again. The password can be up to 8 alphanumeric characters.

Special characters are not allowed.

When setting a Supervisor Password, users other than a supervisor cannot use the computer.

Select the Security menu in the BIOS Setup.

The supervisor password has been set.

The supervisor password is required to turn the computer on or to enter the BIOS Setup.

For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the <Enter> key is pressed.

Setting a Boot Password

Chapter 3.

Settings and Upgrade

Setting a User Password

Users can start the system with a user password, but cannot enter the System Setup. By doing this, you can prevent other users from entering Setup.

Before conguring a user password, a supervisor password must have been congured. Deactivating the supervisor password also deactivates the user password.

In the Set User Password item, press <Enter> and complete the procedures from Step 3 of Setting a Supervisor Password.

Setting Up a Boot Password

To setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.

Set the Password on boot item to Enabled. Once a boot password is set, you have to enter a password to boot

up the computer.

Setting up a Hard Disk Drive Password (Optional)

If you set a password for a hard disk drive, it cannot be accessed from another computer.

Press <Enter> in the Set HDD Password item and dene a password as described in Step 3 of the Setting up the Supervisor Password.

The hard disk drive password setting function is not t provided for some models.

Changing the hard disk drive passwordt

For security purposes, you can only change a hard disk

drive password after restarting the computer by pressing the computer Power button.

If you cannot change the hard disk drive password or the

HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.

Setting a Boot Password

Deactivating the Password

Press <Enter> on the password to be deactivated. For

example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>.

In the Enter Current Password item, enter the currently

con gured password and press <Enter>.

Leave the Enter New Password item  eld empty, and press

<Enter>.

Chapter 3.

Settings and Upgrade

Leave the Con rm New Password  eld empty, and press

<Enter>. The password is deactivated.

For some models the password is only canceled if the <Enter> key is pressed in the Setup Notice window.

Changing the Boot Priority

Chapter 3.

Settings and Upgrade

By default, the highest boot priority device is set to the CD-ROM/ DVD drive. As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.

The screen images and terms may di er from actual product depending on the computer model and driver version.

Select the Boot menu in the BIOS Setup.

Press <Enter> on the Boot Device Priority item.

Press the down key (↓) to move to the AHCI HDD itemand

press the F6 key to move up to the top item.

Boot Device Priority

[Boot priority order]

1. AHCI CD : N/A

2. AHCI HDD : XXXXXXXX

3. USB KEY : N/A

4. USB CD : XXXXXXXX

5. USB FDD : N/A

6. USB HDD : N/A

7. PCI BEV : N/A

[Excluded from boot order]

- IDE HDD : N/A

- IDE CD : N/A

- PCI SCSI : N/A

- USB ZIP : N/A

- USB LS120 : N/A

Press the F10 key to save the settings and exit Setup.

The highest boot priority device is now set to the Hard Drive.

Battery

Chapter 3.

Settings and Upgrade

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

This computer is equipped with an internal battery.

Precautions

Users cannot remove or replace the internal battery. t To remove or replace the battery, use an authorized t

service center in order to protect the product and users. You will be charged for this service.

Use only chargers speci ed in the User Manual.t Never heat the battery pack, put it near or in a  re or use at t

a temperature higher than 60°C, as this may cause  re. Please refer to the system operation environment of t

this manual and operate and store the battery at room temperature.

Before using the computer for the  rst time, make sure to t connect the AC adapter and charge the battery completely.

The images used for the illustration are of a representative t model, therefore the images may di er from the the actual product.

Charging the Battery

An internal battery is embedded. Connect the AC adapter to

the power input jack of the computer. The battery will start charging.

When charging is complete, the Charge LED turns green.

Status Charge LED

Charging

Charging complete

AC adapter not

connected

Red

Green

O

The location of the

internal battery

Battery

Chapter 3.

Settings and Upgrade

Measuring the Remaining Battery Charge

You can view the battery charge status by completing the following procedures.

Con rming the battery charge in the Taskbar

Disconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to con rm the remaining battery charge.

Battery Usage Time Information

A battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.

When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.

Battery

Extending the Battery Usage Time

For Windows 7/Vista

►

Chapter 3.

Settings and Upgrade

Decreasing the LCD Brightness

Press the + keys on the keyboard to decrease the LCD

brightness to extend the battery usage time.

Using the battery mode (optional)

Press the + key combination. The battery mode

window will appear that helps you to use the battery e ciently. battery modes optimized for the operating environment are supported.

These descriptions are for Windows 7 and for supported models only.

Click Start > Control Panel > Hardware and Sound >

Power Options. Alternatively, right-click the power measuring device icon

in the noti cation area of the taskbar and select Power

Options.

If the following screen appears, select one of the modes.

Samsung Optimized

Using the battery modes

To use the power options of the Easy Display Manager program after reinstalling Windows, you can install the Easy Display Manager program using the system software media.

Since the battery mode is optimized to extend the battery use time, programs that require high performance may slow down when the computer is running on battery power.

In this case, it is recommended connecting the AC adapter or selecting high-performance mode.

This mode is appropriate for normal conditions. It maximizes the system performance when

Samsung

the computer is running on AC power while

Optimized

maximizing the battery usage time when the computer is running on battery power.

Battery

Chapter 3.

Settings and Upgrade

Extending the Battery Life (Optional)

The Battery Life Extender is a battery power management program that enables extending the battery life. Users can change the settings depending on their requirements.

The Battery Life Extender is optional and may not be t supplied depending on the model.

The screen images and terms may di er from actual t product depending on the computer model.

Press the + key combination to run the Control

Center.

Select Battery Life Extender > ON.

Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced > Battery Life Cycle Extension, and set it to Enable. Then you can use the battery life cycle extension mode.

Battery

Chapter 3.

Settings and Upgrade

Using the Battery Calibration Function

When charging/discharging the battery repeatedly for a short time only, the battery usage time may be reduced by the di erence between the actual battery charge and the remaining charge display.

In this case, the actual battery charge and the remaining charge display will be the same by discharging the battery completely using the Battery Calibration function, and then recharging it again.

The screen images and terms may di er from actual product depending on the computer model and driver version.

Disconnect the AC power adapter after turning o the

computer.

Move to the Boot > Smart Battery Calibration item using

the direction keys and press <Enter>.

Highlight Yes in the Battery Calibration Con rmation

window and press <Enter>. The Battery Calibration function is activated and the battery

is forcefully discharged. To stop the operation, press the <Esc> button.

Restart your computer and press the F2 button when the

Samsung logo appears, to start the BIOS Setup.

This operation requires 3~5 hours depending on the battery capacity and the remaining battery charge.

Using the Security Lock Port

You can connect a Kensington lock to the Security Lock port to prevent your computer from being stolen when you have to use the computer in a public place.

To use this feature, you have to purchase the Kensington lock additionally. To use the Kensington lock, refer to the product manual.

Tie the Kensington lock cable to a xed object and install the other end of the cable to the Security Lock port.

Chapter 3.

Settings and Upgrade

Chapter 4. Backup / Restore

Samsung Recovery Solution (Optional) 91

Samsung Recovery Solution

(Optional)

Chapter 4.

Backup / Restore

Samsung Recovery Solution is a program that enables restoring or backing up the hard disk drive for when a problem occurs with the computer.

If the computer fails to boot up, you can restore the computer by pressing the

Samsung Recovery Solution may not be provided or the t version may di er depending on the model. In addition, some functions may not be provided or may di er depending on the version.

For more information on using Samsung Recovery

Solution, please refer to the online help of the program. The screen images in this document may di er from actual t

product. If your computer does not have an internal ODD, you need t

an external ODD connected to your computer to use the Backup Function or Restore Function using DVDs.

The System Software function may not be provided t depending on the program version.

key in the booting screen.

Samsung Recovery Solution Functions

Backup/Restore Functions

Backup Function

Backs up drive C or required folders and  les.

Complete Backupt

Backs up drive C.

A problem

occurs

VIRUS

Restores major Windows  les, drive C, or

Basic Restoret

Restores only major Windows  les in a short

time.

Complete Restoret

Restores drive C to the previous, normal

state.

Data Backupt

Backs up important folders and  les.

Restore Function

folders and  les to the previous state.

Data Restoret

Restores important  les or folders to the

previously backed up state.

Samsung Recovery Solution

(Optional)

Chapter 4.

Backup / Restore

System Software Functions

Samsung Recovery Solution provides system software so that you can reinstall or copy the device drivers and system software necessary for normal operations onto a separate storage device.

Restore Function

Not only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let’s learn how to use Samsung Recovery Solution.

Optional functions such as Initial State Image, Initial Status Backup, and Partitioning are only available in some models.

Partition Setup & Initial Status Backup

If you turn your computer on for the  rst time, the Initial Status Backup function is performed after registering Windows. This

If you turn the power on for the  rst time, the Register

Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.

After the computer has been restarted, the Partition Setup

screen appears. To resize the C and D drives, adjust the partition size using

the slide bar and the click Next.

The Partition Setup function is only available when the computer is turned on for the  rst time and will not be available afterwards. Once you have completed the partitioning, it cannot be resized. Partition the disk carefully.

The Initial Status Backup screen appears.

To continue the Initial Status Backup, click Restart Now. The computer will restart.

function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.

The Initial Status Backup is performed to backup the initial

status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status.

When the Initial Status Backup is complete, restart Windows.

Samsung Recovery Solution

(Optional)

Chapter 4.

Backup / Restore

Restoring the computer

Restore is a function that enables restoring the computer to a saved point when the computer was purchased or a user-saved point.

The Restore function provides the Basic Restore and Complete Restore options.

– When Windows is running:

Click Samsung Recovery Solution.

– When Windows does not start:

Turn the computer on and press the

boot screen (SAMSUNG logo) appears. After a moment, the computer boots up in Restoration mode and the Samsung Recovery Solution screen appears.

key when the

If the initial menu screen appears, click Restore.

If you click Select by Symptom, the Select by Symptom menu appears. If you select a symptom, a recommended restoration option will blink. Click the restoration option to continue.

For computers supporting the touch screen function, the touch screen function does not work during Restore Mode. In this case, please use the touchpad or mouse.

Samsung Recovery Solution

(Optional)

Chapter 4.

Backup / Restore

Select either Basic Restore or Complete Restore from the

Restore menu. To restore the computer to the initial state, click Computer

Initial State and perform the restoration process according to the instructions that appear on the screen.

In the Advanced menu, you can change the size of the hard drive partitions (e.g. C: and D:).

Make sure to backup your data in advance, as all data will t be deleted after the partition size is changed.

The t Advanced menu is only activated when the computer boots up in the restoration area.

(by pressing the

Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data  rst using the Data Backup function, before running Complete Restore.

The computer boots up into restoration mode and the

restoration progress message appears. If you click OK, the

key during the booting sequence.)

Run Complete Restore if the computer does not work even after Basic Restore has been completed.

restoration begins. The restoration may take some time, please wait for a moment.

When the ‘Restart the System’ message appears after the

restoration is complete, click OK to restart the system.

Make sure that the power cord is connected while the restoration is in process. The  rst time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.

Samsung Recovery Solution

(Optional)

Complete Backup/Restore

A Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image  le saved by the Complete Backup onto the C drive.

Complete Backup

If you run Complete Backup using a DVD, you can restore the computer even when a problem occurs with the hard disk or when the restoration area is removed.

Chapter 4.

Backup / Restore

Select Drive D. Select the DVD drive.

Click Backup in the start screen of the Samsung Recovery

Solution.

Enter a description of the current status of the computer and

click Next. If a writable DVD drive is installed, you can specify the DVD as the Save Path.

When the option selection item appears, select an option

and click Next.

The LiveImaging and System Software Backup functions are supported as options for the Complete Backup operation.

LiveImaging:t Performs the Complete Backup operation while Windows is running. The backup operation using LiveImaging may slow down if the hard disk drive is accessed frequently by other applications.

System Software Backup: t This function backs up the system software on to the DVD after the completion of the Complete Backup operation.

Samsung Recovery Solution

(Optional)

Chapter 4.

Backup / Restore

When the system restarts in Restoration Mode, the Complete

Backup operation begins. Continue with the backup by following the instructions.

Samsung Recovery Solution supports the DVD+R, DVD-R, t DVD+RW and DVD-RW formats.

If the LiveImaging option has been selected, the Complete t Backup operation begins without the computer being restarted.

Continue with the Complete Backup operation by following

the instructions.

When the ‘Restart the System’ message appears after the

backup is complete, click OK to restart the system.

If the LiveImaging option has been selected, the computer is not restarted.

Samsung Recovery Solution

(Optional)

Chapter 4.

Backup / Restore

Complete Restore

– When backing up onto DVD

Turn the computer on and insert the backup DVD into the

DVD drive. If there are multiple backup DVDs, insert the  rst DVD.

– When backing up to another drive

Proceed to Step 2.

When the Samsung Recovery Solution start screen appears,

click Restore and then click Complete Restore.

Select a Complete Backup restoration point in the

restoration point selection screen and click the Next button. The system is restarted.

The restoration progress message appears after the computer

boots up in restoration mode. If you click OK, the restoration begins.

If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the “Insert the next DVD” message will appear.

When the ‘Restart the System’ message appears after the

restoration is complete, click OK to restart the system. The Complete Restore has been completed.

Samsung Recovery Solution

Data Backup/Restore

Data Backup enables you to save speci c  les or folders onto

another drive or DVD. Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD.

Data Backup

When the Samsung Recovery Solution start screen appears,

click Backup and then click Data Backup.

(Optional)

Chapter 4.

Backup / Restore

Select Drive D. Select the DVD drive.

In the data selection screen, select either Basic Selection or

Select from all, select a folder or  le to be backed up, and then click the Next button.

Enter a description for the backup in the Description  eld

so that you can easily recognize it later and specify the Save Path. If your computer has a DVD-Writer, you can specify the

DVD drive as the Save Path.

If you have speci ed a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:\) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.

If you click the Next button, the Data Backup begins. If you

have selected the DVD drive as the Save Path, the “Insert a blank DVD” message appears. Insert a blank DVD and click the OK button.

The “Backup is completed” message appears.

Samsung Recovery Solution

Data Restore

– When backing up onto DVD

(Optional)

Turn the computer on and insert the backup DVD into the

DVD drive.

– When backing up to another drive

Proceed to Step 2.

When the initial menu screen appears, click Restore and then

click Data Restore.

Chapter 4.

Backup / Restore

Select a backup item to be restored in the backup list and

click the Next button.

Select a folder for the restoration and click the Next button.

Data Restore begins.

When Data Restore is completed, check if the data has been

restored to the specied folder.

Samsung 62230ANH, 633ANH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
