Samsung 275T User Manual

Download

SyncMaster 275T

Install drive

Install programs

Notation

Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Ground to prevent an electric shock

Powe

When not used for extended period of time, set your computer to DPM. If using a screen saver, set it to active screen mode.

The images here are for reference only, and are not applicable in all cases (or countries).

Do not use a damaged or loose plug.

This may cause electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

This may cause electric shock or fire.

Use only a properly grounded plug and receptacle.

An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

Insert the power plug firmly so that it does not come loose.

A bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

This may cause electric shock or fire.

Do not connect too many extension cords or plugs to one outlet.

This may cause fire.

Do not disconnect the power cord while using the monitor.

A surge may be caused by the separation and may damage the monitor.

Do not use the power cord when the connector or plug is dusty.

If the connector or plug of the power cord is dusty, clean it with a dry cloth. Using the power cord with a dusty plug or connector may cause electric shock or

fire.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

This may cause electric shock or fire.

Installation

Be sure to contact an authorized Service Center when installing your set in a location

with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it will be operated for 24 hours continuously such as at airports, train stations etc.

Failure to do so may cause serious damage to your monitor.

Place your monitor in a location with low humidity and a minimum of dust.

Failure to do so may cause electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

This may cause damage to the product or the person carrying it.

Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf.

Dropping the product may cause damage to the product or the person carrying it.

Do not place the product on an unstable or small surface area.

Place the product on an even and stable surface, as the product may fall and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

Take care, as someone, specifically children may trip over it.

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Otherwise, this may cause fire.

Keep any heating devices away from the power cable.

A melted coating may cause electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc.

Any increase in the internal temperature may cause fire.

Put down the monitor carefully.

Failing to do so may damage the monitor.

Do not place the monitor face down.

This may damage the TFT-LCD surface.

The installation of the bracket must be done by a qualified professional.

Installing the bracket by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual.

When installing the product, make sure to keep it away from the wall (more than 10 cm/4 inches) for ventilation purposes.

Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance.

Keep the plastic packaging (bag) out of children's reach.

The plastic packaging (bag) may cause suffocation if children play with it.

Cleaning and Usin

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a

slightly moistened, soft fabric.

Do not spray water or detergent directly onto the monitor.

This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth.

A dirty connector may cause electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

Otherwise, this may cause electric shock or fire.

Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth.

Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

Contact the SAMSUNG customer care center or Customer Center for interior cleaning once a year.

Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause a malfunction or fire.

Others

Do not remove the cover (or back).

This may cause electric shock or fire. Refer to a qualified servicing company.

If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor - contact an authorized dealer or the Service

Center.

This may cause electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

This may cause a malfunction, electric shock or fire. In particular, avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center.

The monitor may malfunction, causing electric shock or fire.

Disconnect the plug from the outlet during storms or lightning or if it is not used for a long period of time.

Failure to do so may cause electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not move the monitor right or left by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not cover the vents on the monitor cabinet.

Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects on the monitor.

This may a malfunction, an electric shock or fire.

If a foreign substance enters the monitor, unplug the power cord and contact the

Service Center.

Keep the product away from combustible chemical sprays or inflammable substances.

This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

This may cause electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and tools or inflammable objects such as paper or matches into the vent, headphone port or AV ports or etc or etc.

This may cause electric shock or fire. If an alien substances or water enters the product, turn the product off, unplug the power connector from the wall outlet and contact the Service Center.

When viewing a fixed screen for an extended period of time, residual image or blurriness may appear.

Change the mode to energy saving mode or set a screensaver to a changing picture when away from the monitor for an extended period of time.

djust the resolution and frequency to the level appropriate for the model.

An inappropriate resolution may cause undesirable picture quality.

27 inch (68 cm) - 1920 x 1200

Viewing the monitor continuously at a too close angle may result in damage to your eyesight.

To ease eye strain, take at least a five-minute break after every hour of using the monitor.

Do not install the product on an unstable, uneven surface or a location prone to vibrations.

Dropping the product may cause damage to the product or the person carrying it.

Using the product in a location prone to vibrations may shorten the lifetime of the product or may cause the product to catch fire.

When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connected to other devices, are disconnected before moving the monitor.

Failure to disconnect cables may damage it and cause fire or electric shock.

Place the product out of children’s reach, as they could damage by hanging onto it.

A falling product may cause injury to the person or even fatality.

When not using the product for an extended period of time, keep the product unplugged.

Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, causing electric shock or fire.

Do not place your children's favorite toys or any other objects of interest on the product.

Children may try to climb on the product to retrieve an object. The product could fall, causing injury or even fatality.

When lifting up or moving the monitor, do not lift the monitor upside down while holding only the stand.

This may cause your monitor to fall, and become damaged or cause personal injury.

Good Postures When Using the Monito

Try to maintain a good posture when using the monitor.

Keep your back straight.

Keep a distance of about 45 ~ 50 cm between your eyes and the

monitor screen. Look at the screen from slightly above it, and have the monitor directly in front of you.

Tilt the monitor upwards by 10 ~20 degrees. Adjust the monitor

height so that the top of the monitor is slightly below eye level.

Adjust the monitor angle so that there is no reflected light on the

screen.Try to maintain your arms perpendicular to your armpits.

Keep your arms level with the back of your hands.

Keep the angle of the elbow perpendicular.

Keep the angle of the knees at more than 90 degree. Do not let your

feet fall up from the floor. Adjust the arm position so that it is below the heart

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

PRODUCT INFORMATION (Image Retention Free)

LCD Monitors and TVs may have an image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate a correct usage of LCD products in order to protect them from Image retention.

Warrant

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

What is Image retention ?

During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained when switching to a new video image. All display products, including LCD,are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode

Ex)

z Turn the power off when using a stationary pattern.

- Turn the power off for 4 hours after 20 hours in use

- Turn the power off for 2 hours after 12 hours in use

z Use a Screen saver if possible

- Screen saver in one color or a moving image is recommended.

z Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:

Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

void using a combination of characters and background color with large

difference in luminance.

void using Grey colors, which can cause Image retention easily.

z Avoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

z Recommended settings: Bright colors with little difference in luminance

- Change the characters color and background color every 30 minutes Ex)

- Every 30 minutes, change the characters with movement.

Ex)

The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed. To prevent this, the accumulated voltage difference must be decreased.

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Package Contents

Please make sure the following items are included with your monitor.

Unpackin

Without Stand

With Stand

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Monitor

Monitor & Sliding Stand

Manual

Warranty Card User's Guide, Monitor Driver,

Quick Setup Guide

Cable

Power Cord D-sub Cable DVI-D Cable

USB Cable

Sold separatel

(Not available in all

locations)

Natural Color,

MagicTune™

S-Video Cable RCA Cable Component Cable

Speaker package(option)

Speaker RCA to stereo cable

our Monito

Front

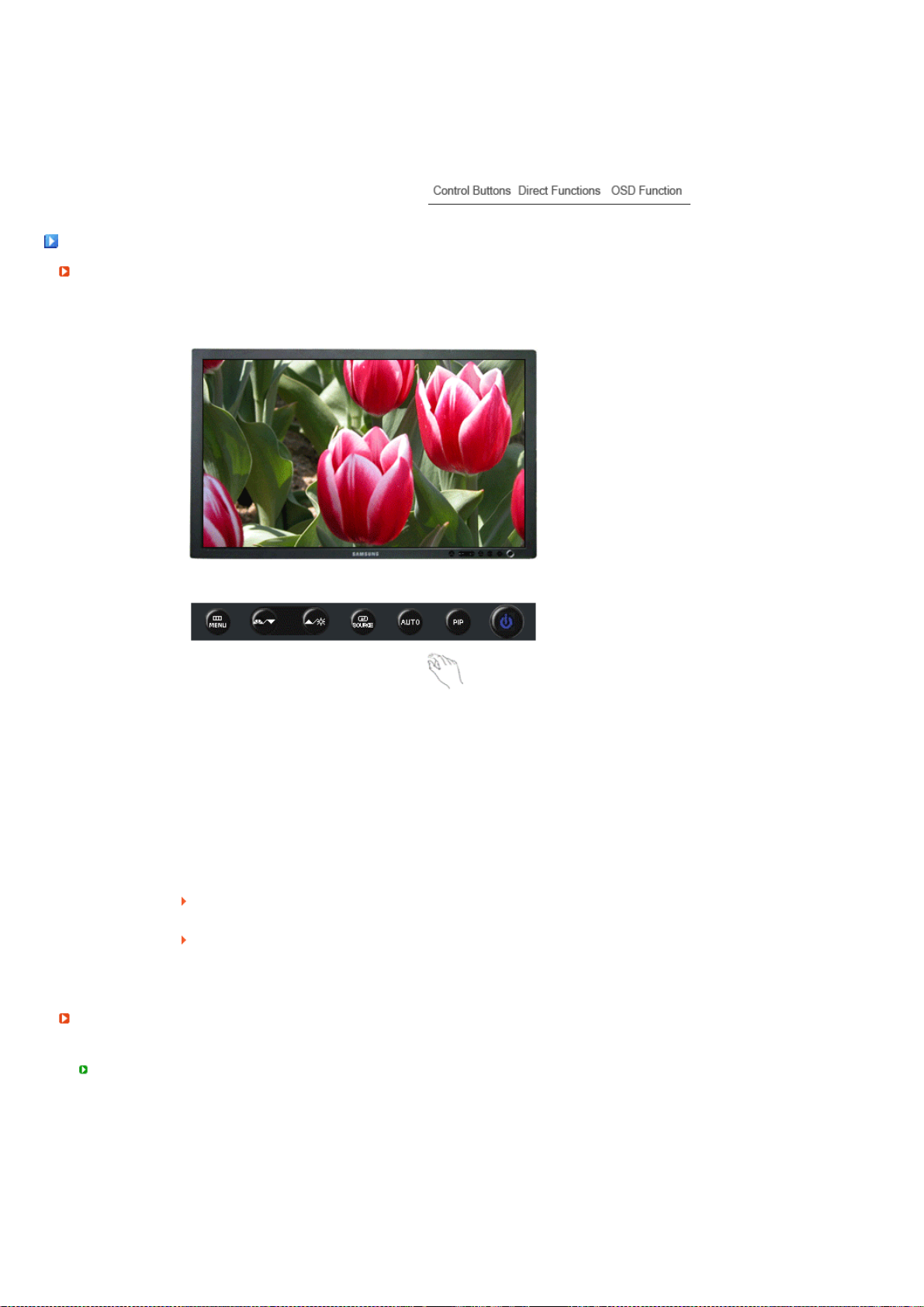

MENU button [ ]

Adjust buttons [ ] These buttons allow you to adjust items in the menu.

Analog/Digital(PC) : MagicBright™ button []

Digital(DVD)/AV

/S-Video/Component : Mode button

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently seven different modes are available: Custom, Text, Internet, Game, Sports, Movie and Dynamic CR. Each mode has its own pre-configured brightness value. You can easily select one of seven settings by simply pressing MagicBright™ control button.

1) Custom Although the values are carefully chosen by our engineers, the pre-

configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text For documentations or works involving heavy text.

3) Internet For working with a mixture of images such as texts and graphics.

4) Game For watching motion pictures such as a game.

5) Sports For watching motion pictures such as a Sports.

6) Movie

For watching motion pictures such as a DVD or Video CD.

7) Dynamic CR Dynamic CR is to automatically detect distribution of inputted visual

signal and adjust to create optimum contrast.

>> Click here to see an animation clip

The Monitor has four automatic picture settings ("Dynamic", "Standard", "Movie" and "Custom") that are preset at the factory. You can activate either Dynamic, Standard, Movie, or Custom. You can select "Custom" which automatically recalls your personalized picture settings.

1) Dynamic Select this mode to view a sharper image than in "Standard" mode.

2) Standard Select this mode when the surroundings are bright. This also provides a

sharp image.

3) Movie

Select this mode when the surroundings are dark.

This will save power and reduce eye fatigue.

4) Custom Select this mode when you want to adjust the image according to your

preferences.

>> Click here to see an animation clip

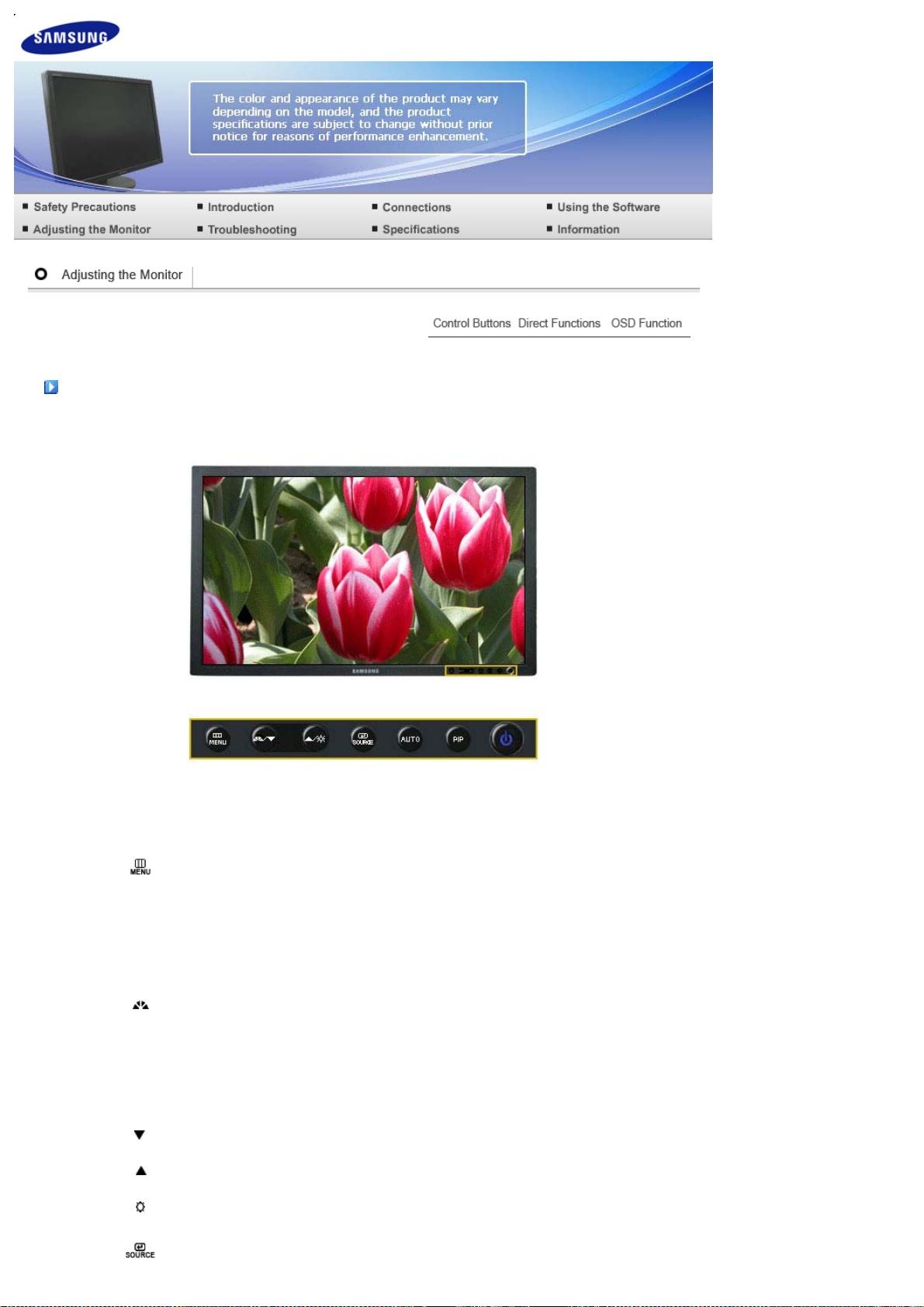

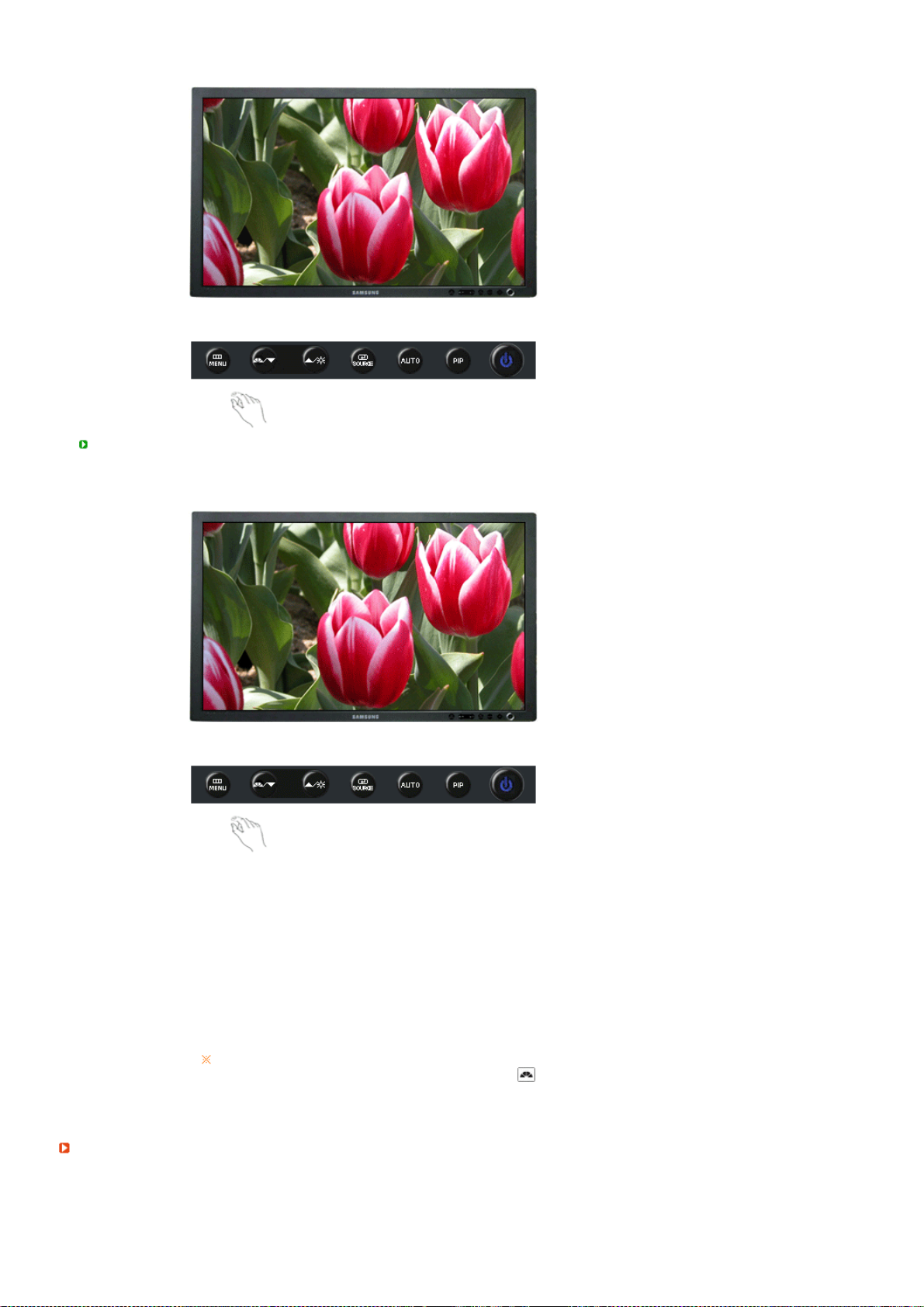

Brightness button [ ] When OSD is not on the screen, push the button to adjust brightness.

Enter button [ ] / SOURCE button

AUTO button (Available in Analog mode only)

PIP button ( Available in Analog/Digital Mode Only )

Power button [ ] Turns the monitor On/Off.

Power indicator This will enable you to see the overall power status of the system. For more

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

Rea

>> Click here to see an animation clip

Activates a highlighted menu item. /

Push the ' ', then selects the video signal while the OSD is off. (When

the button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- Analog, Digital, AV, S-Video and Component input signal.)

Changing the source is only allowed for external devices that are connected to the monitor at the time.

>> Click here to see an animation clip

When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically.

>> Click here to see an animation clip

In Analog or Digital Mode, turns on Video screens in PIP Mode. You can view a picture from AV, S-Video, or Component through the PIP screen in Analog and Digital (PC) mode.

information, see the PowerSaver section.

The configuration at the back of the monitor may vary from product to product.

POWER S/W / POWER

POWER S/W : Switch the monitor on and off.

POWER

: Connect the power cord for your monitor to the POWER port on the back of the monitor.

DVI(HDCP) / RGB

DVI(HDCP) : Connect the DVI cable to the DVI(HDCP) port on the back of your monitor. RGB : Connect the RGB terminal at the back of your monitor to your computer.

VIDEO / S-VIDEO / AUDIO

POWER

VIDEO : External device (video) input terminal S-VIDEO : External device (S-video) input terminal

UDIO POWER

: Connect the speaker power line connected to the speaker to the

UDIO POWER terminal of the monitor

USB connection terminal

UP (USB upstream port) : Connect the UP port of the monitor and the USB port of the

computer with the USB cable. DOWN (USB downstream port)

: Connect the DOWN port of the USB monitor and a USB device with the USB cable.

To use DOWN (Downstream Port), you have to connect the UP (Upstream Cable ) to the PC.

Make sure to use the USB cable supplied with this monitor to connect the monitor's UP port and your computer's USB

port.

Connect the VIDEO OUT port of the DVD / DTV Set-Top Box to the

B,PR input ports using a component video cable (Y, PB,PR ).

Y, P

COMPONENT IN

Kensington Lock

z The Kensington lock is a device used to physically fix the system

when using it in a public place. (The locking device has to be purchased separately.)

For using a locking device, contact where you purchase it.

Stand Stopper

See Connecting Cables for further information regarding cable connections.

Remove the fixing pin on the stand to lift the monitor up and down.

Connecting Cables

Connect the power cord for your monitor to the POWER port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the RGB (Analog) connector on the video card.

- Connect the signal cable to the 15-pin, RGB port on the back of your monitor.

If the monitor and the computer are connected, you can turn them on and use them.

Connecting USB

You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by connecting them to the DOWN port of the monitor without connecting them to the PC.

[ RGB ]

Using the DVI (Digital) connector on the video card.

- Connect the DVI cable to the DVI(HDCP) port on the back of your monitor.

[ DVI(HDCP) ]

Connected to a Macintosh. Connect the monitor to the Macintosh computer using the RGB connection cable.

The USB port of the monitor supports High-Speed Certified USB 2.0.

High speed Full speed Low speed

Data Rate 480 Mbps 12 Mbps 1.5 Mbps

Power Consumption

2.5W

(Max., each port)

2.5W

(Max., each port)

2.5W

(Max., each port)

Connect the UP port of the monitor and the USB port of the computer with the USB cable.

To use DOWN port, you have to connect the UP (Upstream Cable) to the PC.

Make sure to use the USB cable supplied with this monitor to connect the monitor's UP port and your computer's USB port.

Connect the DOWN port of the USB monitor and a USB device with the USB cable.

The use procedures are as the same as those for using an external device connecting to the PC.

You can connect and use a keyboard and mouse.

You can play a file from a media device.

(Examples of media devices: MP3, digital camera, etc.) You can run, move, copy or delete the files on the storage device.

(Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.) You can use other USB devices that can be connected to a computer.

When connecting a device to the DOWN port of the monitor, connect the device using a cable appropriate to the device. (For the purchase of the cable and external devices, ask the service center of the corresponding product.) The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the connection. Some products do not follow the USB standard, and it may cause a malfunction of the device. If the device malfunctions even if it is connected to the computer, contact the service center of the device/computer.

Connecting a Speake

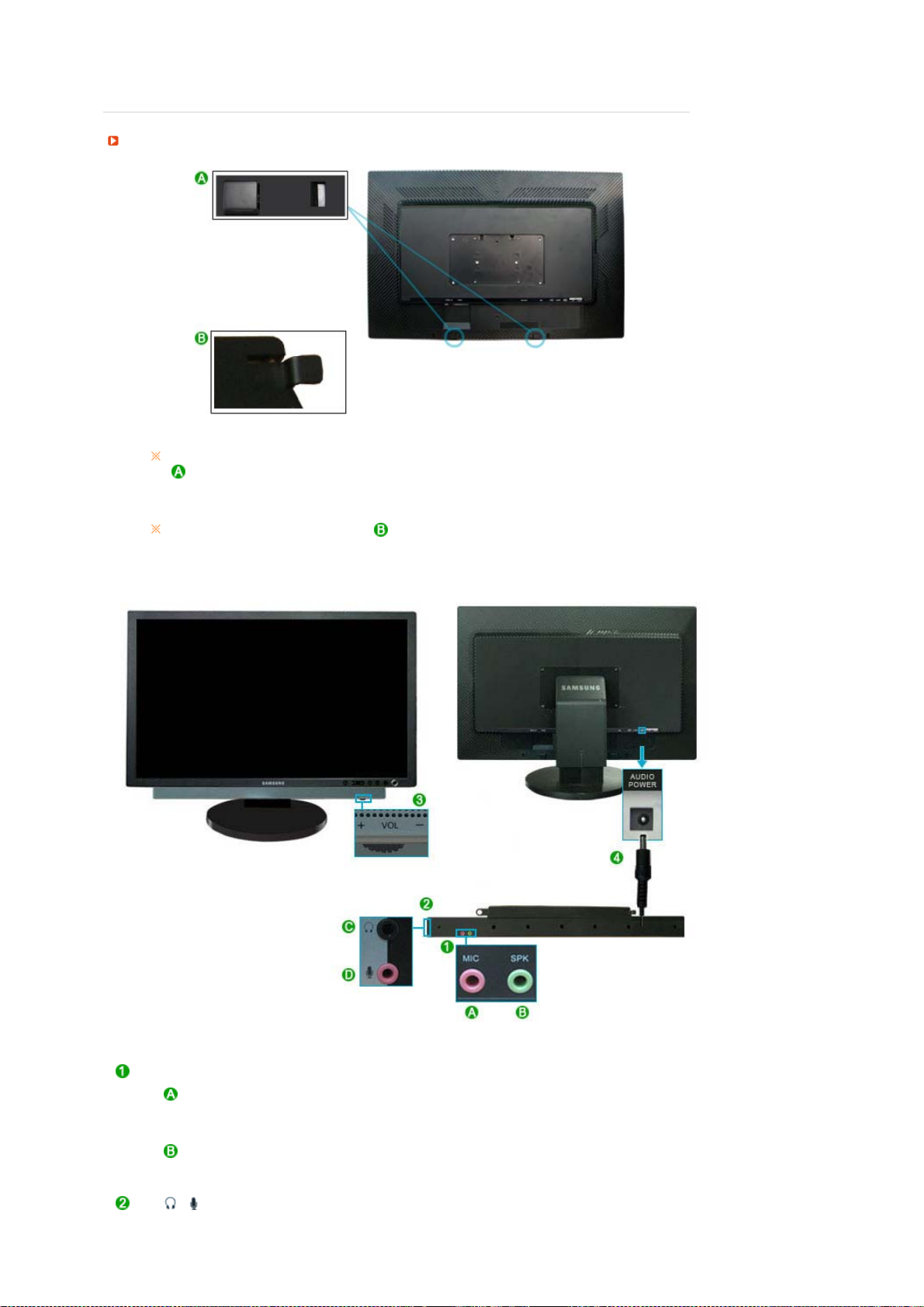

When connecting a speaker, be careful that the grooves of the monitor and the speaker . ( )are aligned with each other.

djust the aligned positions until you hear a ‘click’. If a speaker is connected correctly, you can hear a ‘click’.If a speaker is connected without you hearing a ‘click’, the holding part may become damaged.

If you need to separate, please pull ( ) a little and push to the right.

MIC / SPK

Connect the red cable of the cables provided when the speaker was purchased to the audio output terminal at the back of the computer. Connect the other end of the cable to the red terminal at the back of the speaker.

Connect the light green cable of the cables provided when purchasing the speaker to the audio output terminal at the back of the computer. Connect the other end of the cable to the light green terminal at the back of the speaker.

Connect a headphone to the black terminal at the right of the speaker.

Connect a microphone to the red terminal at the right of the speaker.

By turning part ( + , - ) in the direction shown in the figure below, the speaker turns on and the volume increases.

Connect the power line connected to the speaker to the black terminal of the monitor. This speaker is not connected to an external power source. It is connected to a monitor for the required power.

Connecting to Other devices

This monitor allows the user to connect it to such input devices as a DVD player, a VCR or a camcorder without disconnecting the PC. The configuration at the back of the monitor may vary from product to product.

Connecting AV Devices

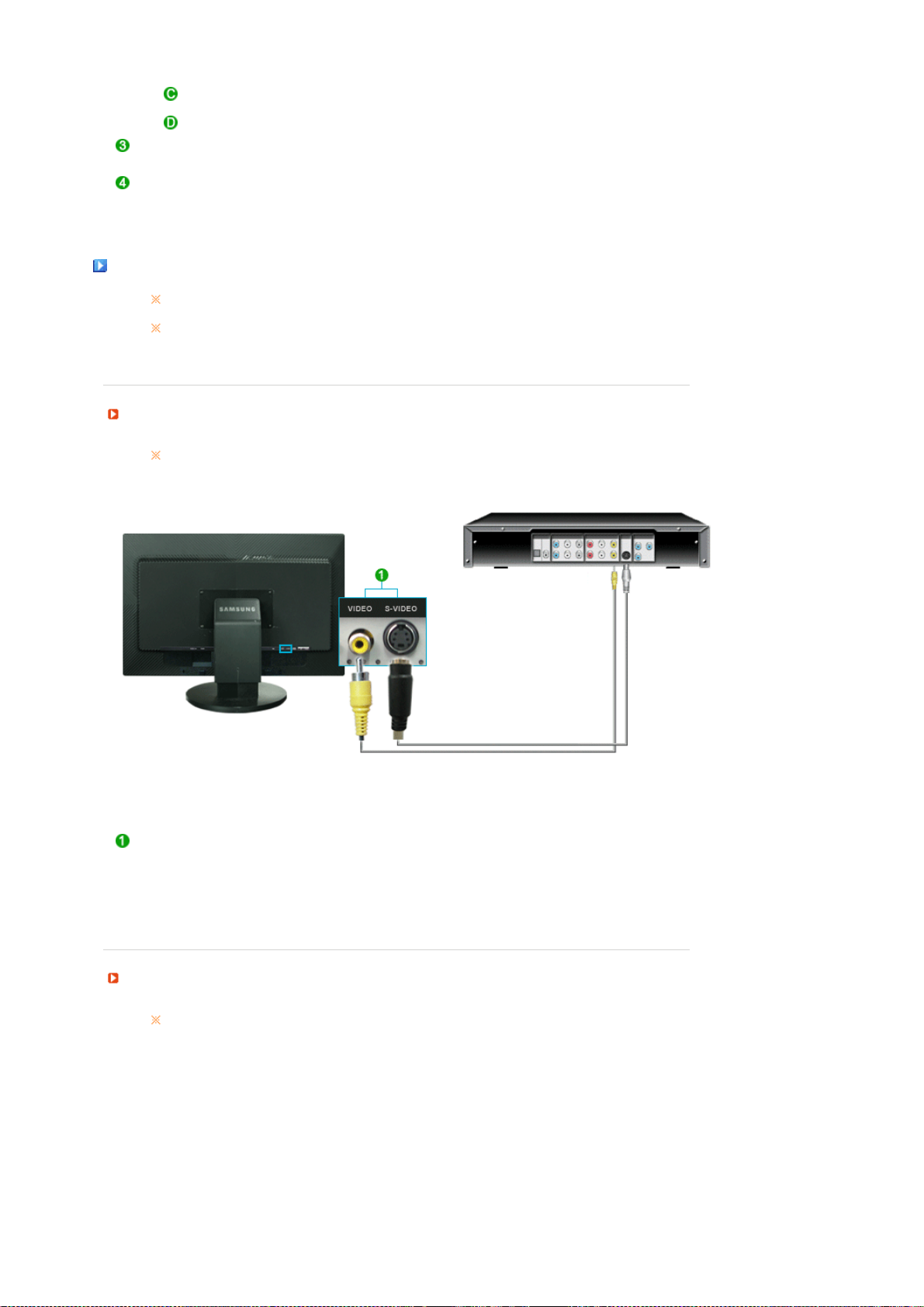

The monitor has AV connection terminals to connect AV input devices like DVD, VCR or Camcorder. You may enjoy AV signals as long as the monitor is turned on.

Input devices such as DVD, VCR or Camcorder are connected to the RCA or S-VIDEO terminal of the monitor using the RCA or S-Video cable. Then, start the DVD, VCR or Camcorder with a DVD disc or tape inserted. Select AV or S-Video using the SOURCE.

Connecting Digital DVD

The monitor has DVI IN connection terminals to connect DVI input devices digital DVD.

Input devices such as digital DVD are connected to the DVI IN terminal of the monitor using the DVI cable. Then, start the DVD with a DVD disc inserted. Select Digital using the SOURCE button.

Connecting DVD/DTV Set Top Box

Connect to the DVD/DTVSet Top Box input if the device has a DVD/DTV connector. You can watch Component simply by hooking up the Component with the monitor as long as the power is on.

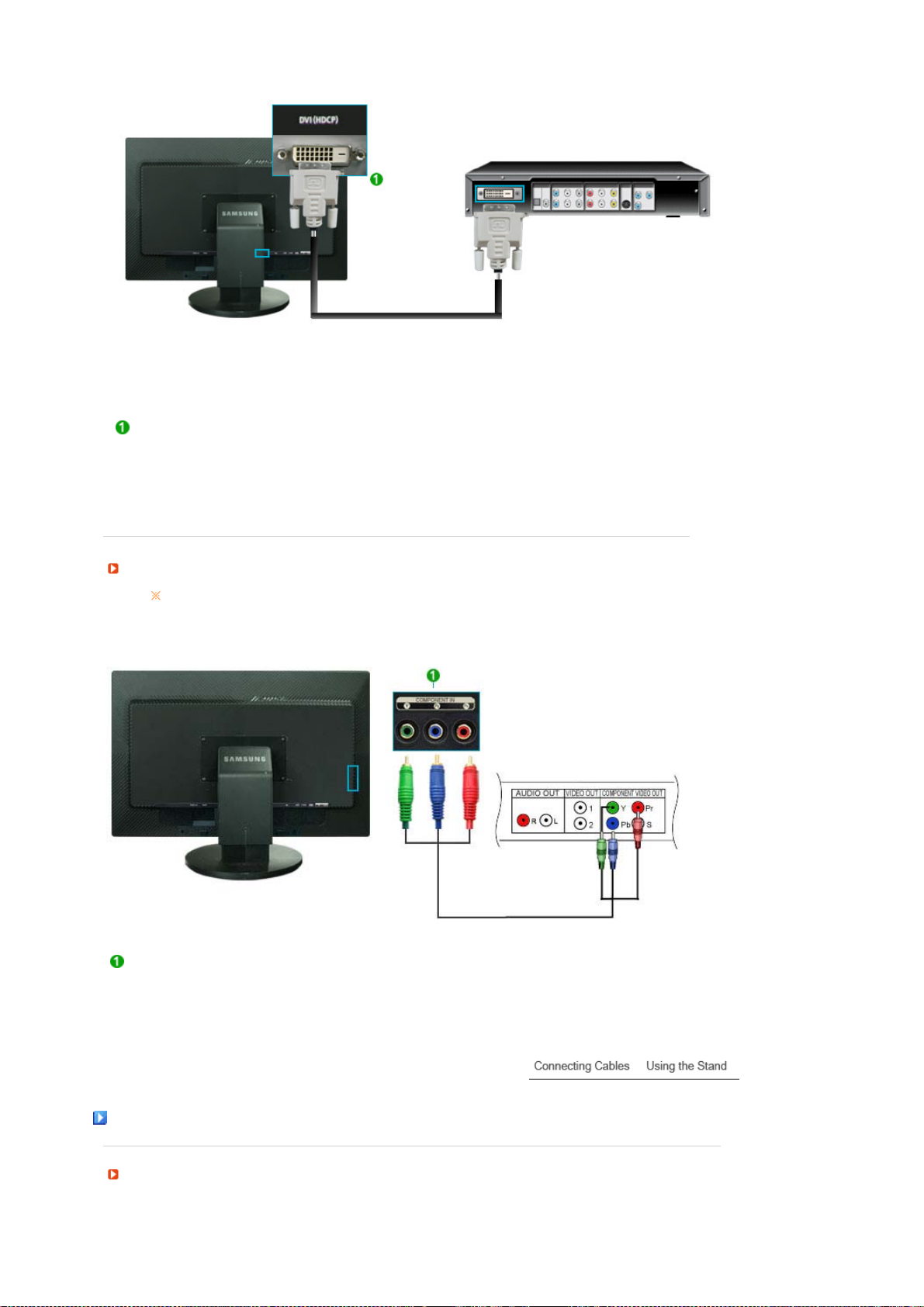

Connect the VIDEO OUT port of the DVD / DTV Set-Top Box to the PR, PB, Y input ports using a component video cable (P Then, start the DVD with a DVD disc inserted. Select Component using the SOURCE button.

Using the Stand

Sliding stand

R, PB, Y).

Swivel stand

Tilt angle

Stand Stopper

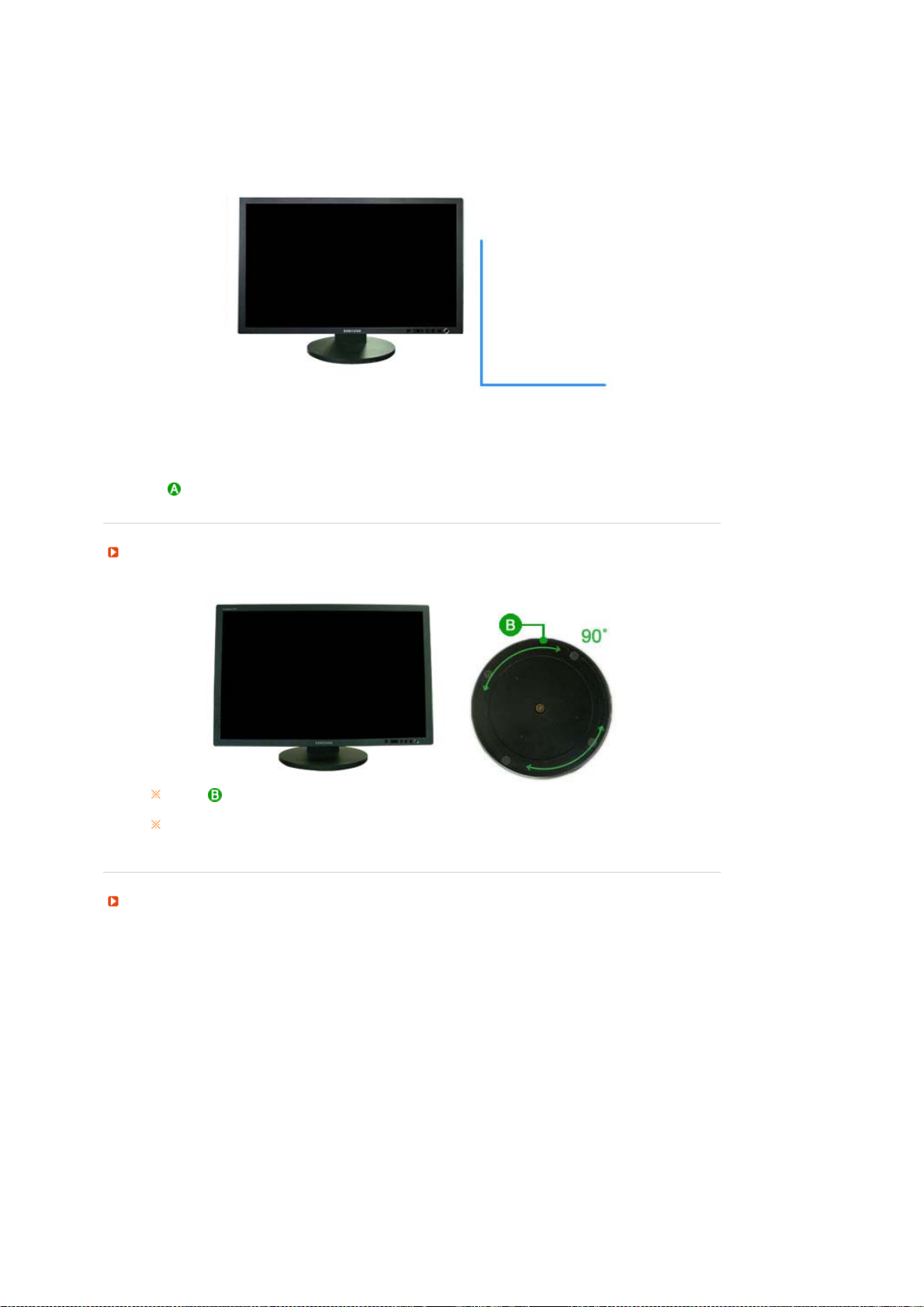

Using ( ),You can swivel the monitor left and right at an angle of 90° to set the monitor lengthwise. The rubber under the stand is to avoid the monitor slide. When you try to rotate the monitor in the state of the power cord or cable connecting to the monitor, the power cord of cable can be destroyed.

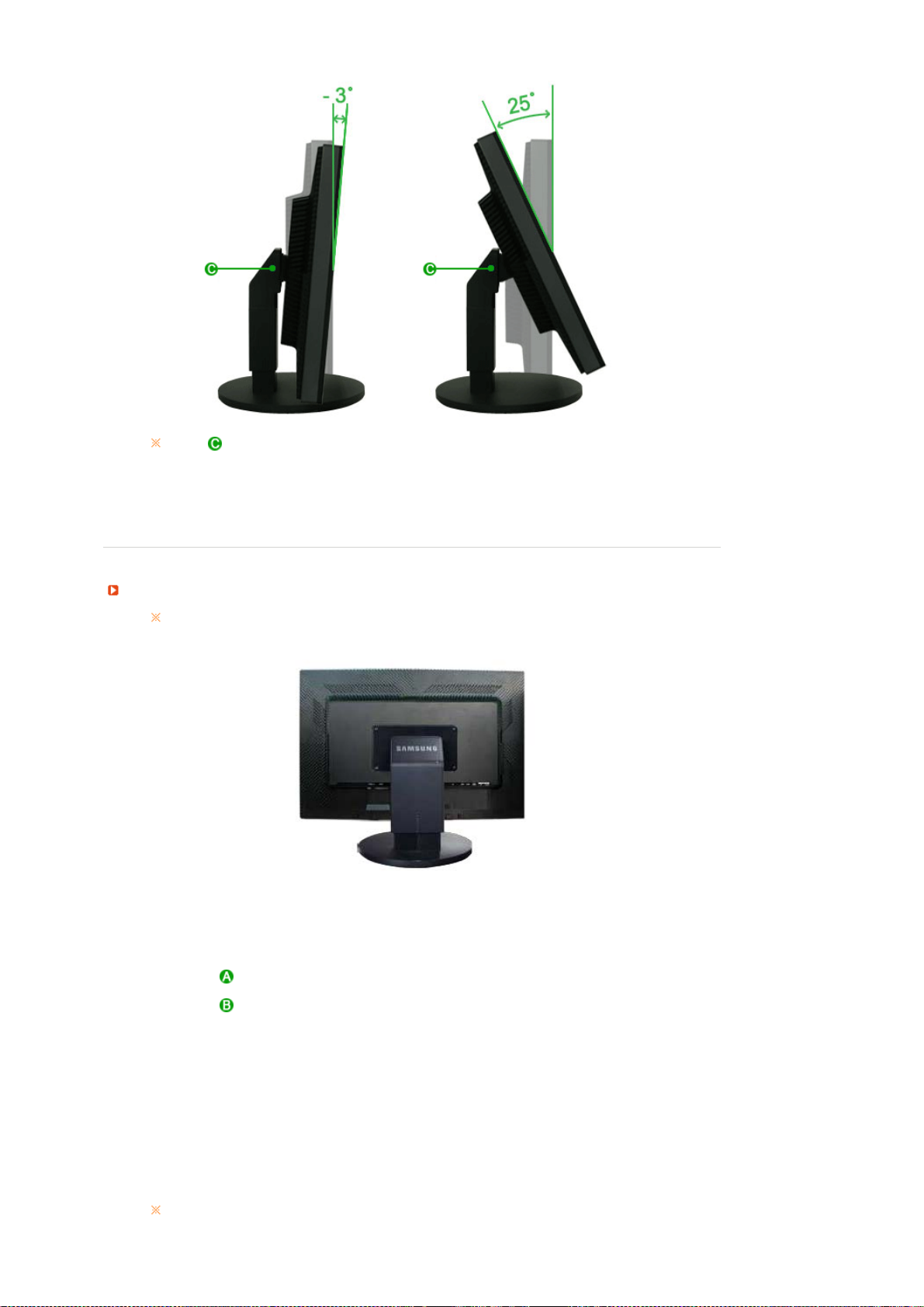

Using ( ), You can adjust the tilt anlgle within a range of 3° forward to 25° backward for the most comfortable viewing angle.

Attaching a Base

This monitor accepts a 200 mm x 100 mm VESA-compliant Mounting interface pad.

Monitor

Mounting interface pad (Sold separately)

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface Pad with the holes in the rear cover mounting pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base.

Do not use screws longer than the standard dimension, as they may damage the

inside of the Monitor. For wall mounts that do not comply with VESA standard screw specifications, the

length of the screws may differ depending on their specifications. Do not use screws that do not comply with the VESA standard screw

specifications. Do not fasten the screws too tightly, as this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or

non-specified wall mount is used or the consumer fails to follow the product installation instructions. To mount the monitor on a wall, you should purchase the wall mounting kit that

allows you to mount the monitor at least 10cm away from the wall surface. Contact the nearest Samsung Service Center for more information. Samsung

Electronics will not be responsible for damages caused by using a base other than those specified.

Please use Wall Mount according to the International standards.

Monitor Driver

)

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this

monitor. Driver installation is slightly different from one operating system to another. Follow the

Prepare a blank disk and download the driver program file at the Internet web site shown below.

Installing the Monitor Driver (Automatic

Insert the CD into the CD-ROM drive. Click

"Windows"

Choose your monitor model in the model list, then click the "OK" button.

directions appropriate for the operating system you have.

Internet web site :http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/ (China)

If you can see following message window, then click the "Continue Anyway" button. Then click the "OK" button (Microsoft

Windows® XP/2000 Operating System).

This monitor driver is under certifying MS logo, and this installation doesn't damage your

)

system. The certified driver will be posted on Samsung Monitor homepage

http://www.samsung.com/

Monitor driver installation is completed.

Installing the Monitor Driver (Manual

Microsoft® Windows Vista™ Operating System

Insert your Manual CD into your CD-ROM drive. Click (Start) and "Control Panel". Then, double-click on "Appearance and Personalization".

Click "Personalization" and then "Display Settings".

Click "Advanced Settings…".

Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message “Windows needs…” is displayed, as shown in the figure below, click "Continue".

This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage

http://www.samsung.com/

Click "Update Driver…" in the "Driver" tab.

Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Click "Have Disk…" and select the folder (for example, D:\Drive) where the driver setup file is located, and click "OK".

Select the model that matches your monitor from the list of monitor models on the screen, and click "Next".

Click "Close"→ "Close" → "OK" → "OK" on the following screens displayed in sequence.

Microsoft® Windows® XP Operating System

Insert the CD into the CD-ROM drive. Click "Start" → "Control Panel" then click the "Appearance and Themes" icon.

Click "Display" icon and choose the "Settings" tab then click "Advanced."

Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

Click "Update Driver." and select "Install from a list or." then click the "Next" button.

Select "Don't search ,I will." then click "Next" and then click "Have disk".

Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

If you can see following "Message" window, then click the "Continue Anyway" button. Then click the "OK" button.

This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage

http://www.samsung.com/

Click the "Close" button then click the "OK" button continually.

Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

Choose the "OK" button on the "Insert disk" window. Click the "Browse" button on the "File Needed" window. Choose A:(D:\Driver) then click the "Open" button and then click the "OK" button.

How to install

Click "Start," "Setting," and then "Control Panel." Double click the "Display" icon. Select the "Settings" tab and click the "Advanced Properties" button. Choose "Monitor."

Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please

Case2 : If the "Properties" button is active, click the "Properties" button then follow next steps

Click "Driver" and then click "Update Driver." then click the "Next" button. Choose "Display a list of the known drivers for this device so that I can choose a specific driver"

then click "Next" and then click "Have disk". Click the "Browse" button then choose A:(D:\Driver). Click the "Open" button, then click the "OK" button. Choose your monitor model and click the "Next" button then click "Next" button. Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click the "Finish" button then the "Close" button.

Microsoft® Windows® Millennium Operating System

Microsoft® Windows® NT Operating System

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

stop installation

continually.

Click "Start," "Setting," and then "Control Panel." Double click the "Display" icon. Select the "Settings" tab and click the "Advanced Properties" button. Select the "Monitor" tab. Click the "Change" button in the "Monitor Type" area. Choose "Specify the location of the driver." Choose "Display a list of all the driver in a specific location." then click the "Next" button. Click the "Have Disk" button. Specify A:\(D:\driver) then click the "OK" button. Select "Show all devices" and choose the monitor that corresponds to the one you connected to

your computer and click "OK". Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue

box.

Click "Start," "Settings," "Control Panel," and then double-click "Display" icon. In the Display Registration Information window, click the Settings tab and then click "All Display

Modes". Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and

then click "OK". Click the "Apply" button if you see the screen working normally after clicking "Test". If the screen

is not normal, change to a different mode (lower mode of resolution, colors, or frequency).

If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by referring to the Preset Timing Modes in the user guide.

Press "Enter" at the first and the second screen after executing the X86Config file. The third screen is for setting your mouse. Set a mouse for your computer. The next screen is for selecting a keyboard. Set a Keyboard for your computer. The next screen is for setting your monitor. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.) Set a vertical frequency for your monitor. (You can enter the frequency directly.) "Enter" the model name of your monitor. This information will not affect the actual execution of X-

Window. You have finished setting up your monitor.

Execute X-Window after setting other requested hardware.

Natural Color

Natural Colo

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. the Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This is only available for Samsung monitors and ensures that the color of the images on the monitor are the same as the printed or scanned images. For more information, refer to Help (F1) in the software program.

Installing the Natural Color Software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. The initial Natural Color screen will appear. Click on Natural Color in the startup window to install the Natural Color software. To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM Drive, click the Windows Enter D:\Color\NCProSetup.exe and then press the <Enter> key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.)

Uninstalling the Natural Color Software Program

Select

"Settings" / "Control Panel"

program"

Select Natural Color from the list and then click the "Add/Delete" button.

[Start]

button, select

from the

[Run...]

"Start"

menu and then double-click

"Add/Delete a

MagicTune™

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the MagicTune™ installation file.

3. Select installation Language, Click "Next".

4. When the Installation Shield Wizard window appears, click "Next."

5. Select "I agree to the terms of the license agreement" to accept the terms of use.

6. Choose a folder to install the MagicTune™ program.

7. Click "Install."

8. The "Installation Status" window appears.

9. Click "Finish."

(Mag

)

10. When the installation is complete, the MagicTune™ executable icon appears on your desktop.

Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key.

Installation Problems

icTune™

The installation of MagicTune™ can be affected by such factors as the video card, motherboard and the network environment.

stem Requirements

Windows 2000

Windows XP Home Edition

Windows XP Professional

Windows Vista™

It is recommended using MagicTune™ in Windows® 2000 or later.

Hardware

32MB Memory above

z z 60MB Hard disk space above

* For more information, visit the MagicTune™ website.

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the Windows® Control Panel.

Perform the following steps remove MagicTune™.

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows® XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add or Remove Programs" icon in Control Panel.

3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune™". Click on it to highlight it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.

Control Buttons

Use this button to open the on-screen menu and exit from the menu screen or close screen adjustment menu.

Analog/Digital(PC) : MagicBright™ MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the image you are watching. Then press the button again to circle through available preconfigured modes. ( Custom → Text → Internet → Game → Sports → Movie → Dynamic CR )

Digital(DVD)/AV/S-Video/Component : Mode The Monitor has four automatic picture settings that are preset at the factory. Then press the button again to circle through available preconfigured modes. ( Dynamic → Standard → Movie → Custom )

This button allows you to adjust items in the menu.

When OSD is not on the screen, push the button to adjust brightness.

Press this button to activate a highlighted menu item. Selects the input signal while the OSD is off.

AUTO

PIP Push the PIP button to turn PIP On/Off.

Press to self-adjust to the incoming Analog signal. The values of fine,coarse and position are adjusted auto matically.

Direct Functions

AUTO

Menu Description

When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming PC signal. The values of fine, coarse and position are adjusted automatically. (Available in Analog mode only)

AUTO

OSD Lock & Unlock

In case of pushing AUTO or PIP button after locking OSD

To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.

If auto adjustment does not work properly, press 'AUTO' button again to adjust picture with more accuracy.

If you change resolution in the control panel, auto function will be executed automatically.

In case of pushing MENU button after locking OSD

Menu Description

This is the function that locks the OSD in order to keep the current states of settings or prevent others from adjusting the current settings.

Lock : Hold down the menu button for more than five (5) seconds to activate the OSD adjustment lock function.

Locked

MagicBright™

Unlock : Hold down the menu button for more than five (5) seconds to deactivate the OSD adjustment lock function.

Though the OSD adjustment lock function is activated, you can still adjust the brightness and contrast, and adjust MagicBright ( ) using the Direct

button.

Menu Description Play/Stop

MagicBright™

/Mode

(Custom → Text → Internet → Game → Sports → Movie → Dynamic CR )

Brightness

MagicBright™

Mode

Menu Description

Brightness When OSD is not on the screen, push the button to adjust brightness.

SOURCE

)

Menu Description

Selects the input signal while the OSD is off. (When the source button is pressed to change the input mode, a message

SOURCE

PIP ( Available in Analog/Digital(PC) Mode Only

appears in the upper left of the screen displaying the current mode -- Analog, Digital, AV, S-Video and Component input signal.)

Changing the source is only allowed for external devices that are connected to the monitor at the time.

Menu Description

PIP

Push the PIP button to turn PIP screen On/Off. You can view a picture from AV, S-Video, or Component through the PIP screen in Analog and Digital (PC) mode.

OSD Function

Input

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu Description Play/Stop

Use to select PC or other external input sources connected to the Monitor. Use to select the screen of your choice.

1) Analog

Source List

2) Digital

3) AV

4) S-Video

5) Component

MENU → → → , →

Name the input device connected to the input jacks to make your input source selection easier.

1) Analog

Edit Name

2) Digital

3) AV

4) S-Video

5) Component

MENU → → , → → , → → , →

Picture (Analog / Digital : PC)

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu Description Play/Stop

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently seven different modes are availa bl e: Custo m, Text, Internet, Game, Sport, Movie and Dynamic CR. Each mode has its own pre-configured brightness value. You can easily select one of seven settings by simply pressing MagicBright™ control button.

1) Custom : Although the values are carefully chosen by our

engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text : For documentations or works involving heavy text.

MagicBright™

3) Internet : For working with a mixture of images such as texts

and graphics.

4) Game : For watching motion pictures such as a game.

5) Sports : For watching motion pictures such as a Sports.

6) Movie : For watching motion pictures such as a DVD or Video

CD.

7) Dynamic CR : Dynamic CR is to automatically detect distribution of

inputted visual signal and adjust to create optimum contrast.

MENU → , → → → , →

You can use the on-screen menus to change the contrast and brightness according to personal preference.

1) Contrast

Custom

: Adjust the Contrast.

2) Brightness : Adjust the Brightness.

- Not available in Dynamic CR Mode

MENU → , → → , → → , → → , →

If you adjust picture using Custom function, MagicBright™will turn to Custom mode.

Contrast

Brightness

Image Lock

Auto Adjustment

Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images with jitter and shimmer. If satisfactory results are not obtained using the Fine adjustment, use the Coarse adjustment and then use Fine again.

- Available in Analog Mode Only

1) Coarse

: Adjust the screen so that all vertical lines (noise) on the screen are removed. Then, use the horizontal position adjustment menu to move the screen to the center, as the screen position may change after the noise has been removed.

2) Fine

: Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).

3) Sharpness

: Adjust the Sharpness.

- Not available in Dynamic CR Mode

4) H-Position

: Adjusts the screen location horizontally.

5) V-Position

: Adjusts the screen location vertically.

MENU → , → → , → → , → → , →

The values of Fine, Coarse, position are adj uste d aut omatically. By changing the resolution in the control panel, auto function is performed.

- Available in Analog Mode Only

MENU → , → → , →

Coarse

Fine

Sharpness

H-Position

V-Position

You can switch the Size.

Size

1) Wide

2) 4:3

MENU → , → → , → → , →

When the PIP is on, you can adjust the PIP screen setting.

1) Contrast

: Adjusts the Contrast of the PIP window on the screen.

2) Brightness

: Adjusts the Brightness of the PIP window on the screen.

3) Sharpness

PIP Picture

: Adjusts the Sharpness of the PIP window on the

screen

4) Color : Adjusts the Color of the PIP window on the screen

5) Tint

: Adds a natural tone to the PIP window.

- Available in AV/S-Video Mode Only

MENU → , → → , → → , → → , →

Picture (Digital : Digital DVD/AV/S-Video/Component)

Contrast

Bightness

Sharpness

Color

Tint

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu Description Play/Stop

1) Dynamic : Select this mode to view a sharper image than in

"Standard" mode.

2) Standard

Mode

: Select this mode when the surroundings are bright. This also provides a sharp image.

3) Movie : Select this mode when the surroundings are dark.

This will save power and reduce eye fatigue.

4) Custom : Select this mode when you want to adjust the image

according to your preferences

MENU → , → → → , →

You can use the on-screen menus to change the contrast and brightness according to personal preference.

Contrast

1) Contrast : Adjust the Contrast.

Brightness

2) Brightness : Adjust the Brightness.

Custom

3) Sharpness : Adjust the Sharpness.

4) Color

Sharpness

Color

: Adjust the picture Color.

5) Tint : Adds a natural tone to the display.

Tint

- Available in AV/S-Video Mode Only

MENU → , → → , → → , → → ,

→

Size

You can switch the Size.

AV / S-Video : Wide / 16:9 / Zoom1 / Zoom2 / 4:3

Digital / Component : Wide / 16:9 / 4:3

MENU → , → → , → → , →

Film Mode

MagicColor Pro

You can turn Film Mode Off / On. The Film Mode feature offers you a theater-quality viewing experience. In Component mode, film mode is only available for 480i and 576i input.

- Not available in Digital(Digital DVD) Mode

MENU → , → → , → → , →

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu Description Play/Stop

Implements the natural color chroma according to the display screen. Automatically adjusts to the display screen. Can improve the skin tones.

1) Off

2) Intelligent Enhance natural color except skin tone.

MagicColor

3) Full Displays both natural skin tones and enhanced colors.

4) Demo Displays the improved image on the left and the original on

the right.

- Not available in Dynamic CR Mode

MENU → , → → → , →

Adjusts color tones to the preference of the user. Analog/Digital(PC) : Cool4 / Cool3 / Cool2 / Cool1 / Normal / Warm1 / Warm2

Color Tone

Digital(Digital DVD)/AV/S-Video/Com po nen t : Cool2 / Cool1 / Normal / Warm1 / Warm2

- Not available in Dynamic CR Mode

MENU → , → → , → → , →

Gamma

Gamma correction changes the lumina nc e of the col ors with intermediate luminance. Increased Mode number - Displays the full screen more naturally and softer and sharpens the dark scale. Decreased Mode number - Displays the full screen sharper and improves the bright scale.

- Not available in Dynamic CR Mode

- Available in Analog/Digi tal(PC) Mode Only

MENU → , → → , → → , →

6 types: Red, Green, Blue, Cya n, Magenta and Yellow - Can adjust each of them to the preference of the user.

1) Saturation Adjusts the color saturation.

2) Hue

6-Color

Adjusts the color tones.

3) Reset Returns to the original screen mode.

- Not available in Dynamic CR Mode

MENU → , → → , → → , → → , → → , →

PIP (Analog / Digital : PC)

Saturation

Hue

Reset

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu Description Play/Stop

Turn the PIP Screen on or off. You can view a picture from AV, S-Video, or Component through the PIP screen in Alalog and Digital mode.

PIP

1) Off

2) On

MENU → , → → → , →

Select the input source for the PIP. You can view a picture from AV, S-Video, or Component through the

Source

PIP screen in Analog and Digital (PC) mode.

MENU → , → → , → → , →

Change the Size of the PIP window.

/ / /

Size

If you select , in Size, Position will not be activated.

MENU → , → → , → → , →

Change the Position of the PIP window.

Position

/ / /

MENU → , → → , → → , →

Setup

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu Description Play/Stop

You can choose one of 11 languages.

Language

Transparency

Blue Screen

Reset

MENU → , → → → , →

Changes the opaqueness of the background of the OSD.

1) High

2) Medium

3) Low

4) Opaque

MENU → , → → , → → , →

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue screen" mode to "Off".

- Operates only for AV, S-Video and Component mode.

MENU → , → → , → → , →

Picture parameters are replaced with the factory default values.

1) Image Reset : Image parameters are replaced with the factory default

values.

- Available in Analog Mode Only

2) Color Reset : Color parameters are replaced with the factory default

values.

- Available in Analog/Digi tal(PC) Mode Only

- Not available in Dynamic CR Mode

MENU → , → → , → → , → → , →

Image Reset

Color Reset

Check List

Before calling for service, check the information in this section to see

if you can remedy any problems yourself. If you do need assistance,

please call the phone number on the Information section or contact your dealer.

Symptom Check List Solutions

No images on the screen. I cannot turn on the monitor.

Is the power cord connected properly?

Can you see "Check signal cable" on the screen?

If the power is on, reboot the computer to see the initial screen(the login screen), which can be seen.

Can you see "Not Optimum Mode", "Recommended Mode 1920 x 1200 60 Hz" on the screen?

Check the power cord connection and supply.

(Connected using the D-sub cable) Check the signal cable connection.

(Connected using the DVI cable) If you still see an error message on the screen when the monitor is connected properly, check to see if the monitor status is set to analog.

Press ' ' button to have the monitor double-check the input signal source.

If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card. (Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear,

contact the Service Center or your dealer.

You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.

Adjust the maximum resolution and frequency that the monitor can handle properly.

If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended Mode 1920 x 1200 60 Hz" message is displayed. If the display exceeds 85 Hz, the display will work properly but the "Not Optimum Mode", "Recommended Mode 1920 x 1200 60 Hz" message appears for one minute and then disappears. Please change to the recommended mode during this one-minute period. (The message is displayed again if the system is rebooted.)

There is no image on the screen.

The monitor is in PowerSaver mode.

Is the power indicator on the monitor blinking at 1 second intervals?

Press a key on the keyboard to activate the monitor and restore the image on the screen.

If there is still no image, press the ' ' button. Then press any key on the keyboard again to activate the monitor and restore the image on the screen.

I cannot see the On Screen Display.

The screen shows strange colors or just black and white.

Connected using the DVI cable?

Have you locked the On Screen Display (OSD) Menu to prevent changes?

Is the screen displaying only one color as if looking at the screen through a cellophane paper?

Have the screen colors become strange after running a program or due to a crash between applications?

Has the video card been set properly?

You may get a blank screen if you boot the system before you connect the DVI cable, or disconnect and then reconnect the DVI cable while the system is running as certain types of graphic cards do not send out video signals. Connect the DVI cable and then reboot the system.

Unlock the OSD by pressing the [ ] button for at least 5 seconds.

Check the signal cable connection.

Make sure the video card is fully inserted in its slot.

Reboot the computer.

Set the video card by referring to the video card manual.

The screen suddenly has become unbalanced.

The screen is out of focus or OSD cannot be adjusted.

LED is blinking but no images on the screen.

There are only 16 colors shown on the screen. The screen colors have changed after changing the video card.

Have you changed

Adjust screen image position and size using the OSD. the video card or the driver?

Have you adjusted the resolution or

Adjust the resolution and frequency at the video card.

(Refer to the Preset Timing Modes). frequency to the monitor?

The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD.

Have you adjusted the resolution or

Adjust the resolution and frequency of the video card.

(Refer to the Preset Timing Modes). frequency on the monitor?

Is the frequency properly adjusted when checking the Display Timing on

Adjust the frequency properly by referring to the video

card manual and the Preset Timing Modes.

(The maximum frequency per resolution may differ from

product to product.) the menu?

Have the Windows colors been set properly?

Windows XP :

Set the resolution at the Control Panel → Appearance

and Themes → Display → Settings.

Windows ME/2000 :

Set the resolution at the Control Panel → Display →

Settings.

Has the video card been set properly?

Set the video card by referring to the video card manual.

There is a message that reads "Unrecognized monitor, Plug & Play (VESA DDC) monitor found".

Have you installed the monitor driver?

See the video card manual to see if the Plug & Play (VESA DDC) function can be supported.

Install the monitor driver according to the Driver

Installation Instructions.

Install the monitor driver according to the Driver

Installation Instructions.

Check when MagicTune™ does not function properly.

MagicTune™ doesn't work properly.

Visit the MagicTune™ website and download the installation software for MagicTune™ MAC.

Check the following items if there is trouble with the monitor.

Check if the power cord and the video cables are properly connected to the computer.

Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.)

If you installed a new video card or assembled the PC, please check if the adapter(video) driver and the monitor driver are properly installed.

Check if the scanning ratio of the video screen is set at 56 Hz ~ 75 Hz. (Do not exceed 60 Hz when using the maximum resolution.)

If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "Control Panel → System → Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.

MagicTune™ feature is found only on PC (VGA) with Window OS that supports Plug and Play.

Have you changed your PC or video graphic card?

Did you install the program?

If problems repeatedly occur, contact an authorized service center.

* To check whether your PC is available for MagicTune™

feature, follow the steps below (When Windows is XP);

Control Panel → Performance and Maintenance →

System → Hardware → Device Manager → Monitors →

After deleting Plug and Play monitor, find 'Plug and Play

monitor' by searching new Hardware.

MagicTune™ is an additional software for the monitor.

Some graphic cards may not support your monitor. When

you have a problem with the graphic card, visit our

website to check the compatible graphic card list

provided.

http://www.samsung.com/monitor/magictune

Download the latest program. The program can be

downloaded http://www.samsung.com/monitor/magictune

Reboot the computer after installing the program for the

first time. If a copy of the program is already installed,

remove it, reboot the computer, and then install the

program again. You need to reboot the computer for it to

operate normally after installing or removing the program.

Q & A

Question Answer

How can I change the frequency? Frequency can be changed by reconfiguring the

How can I adjust the resolution? Windows XP :

video card.

Note that video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.)

Set the resolution at the Control Panel → Appearance and Themes → Display → Settings.

Windows ME/2000 : Set the resolution at the Control Panel → Display → Settings.

Contact the video card manufacturer for details.

How can I set the Power Saving function? Windows XP :

How can I clean the outer case/LCD Panel? Disconnect the power cord and then clean the

Set the resolution at the Control Panel → Appearance and Themes → Display → Screen Saver. Set the function at BIOS-SETUP of the computer.

Windows ME/2000 : Set the resolution at the Control Panel → Display → Screen Saver. Set the function at BIOS-SETUP of the computer.

Refer to Windows/Computer Manual

monitor with a soft cloth, using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case. Do not allow any water to go inside the monitor.

Self-Test

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.

Self-Test Feature Check

Turn off both your computer and the monitor.

Unplug the video cable from the back of the computer.

Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or damaged.

Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is

out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the computer or the video card, this can cause the monitor to become blank, have poor coloring, noise, Video mode not supported, etc. In this case, first check the source of the problem, and then contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1920 x 1200 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition.

In this case, check the computer for trouble.

Specifications

General

Model Name SyncMaster 275T

LCD Panel

Size 27" Wide Diagonal (68 cm)

Display area 581.76 mm (H) x 363.6 mm (V)

Pixel Pitch 0.303 mm (H) x 0.303 mm (V)

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16.7M

Resolution

Optimum resolution 1920x1200@60Hz

Maximum resolution 1920x1200@60Hz

Input Signal, Terminated

RGB Analog, DVI-D, AV, S-Video, Component,USB(1U/4D)

0.7 Vp-p ± 5% TTL level (V high ≥ 2.0V, V low ≤ 0.8V)

Maximum Pixel Clock

154 MHz

Power Supply

AC 100-240 V ( ± 10%), 60/50Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, Detachable

)

DVI-D to DVI-D connector, Detachable (not supplied)

Signal Connectors

15pin 3-row D-sub connector, 24pin 3-row DVI-D connector, Composite, S-Video, Component

Dimensions (W x H x D) / Weight

629.0 X 410.5 X 81.0 mm / 24.8 x 16.2 x 3.2 inch (Without Stand)

629.0 X 486.0 X 280.0 mm / 24.8 x 19.1 x 11.0 inch (With Stand) / 10.4 Kg / 22.9 lbs

VESA Mounting Interface

200 mm x 100 mm

Environmental considerations

Operating Temperature: 50°F ~ 104°F (10°C ~ 40 °C)

Storage Temperature: -4°F ~ 113°F (-20°C ~ 45 °C)

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1 ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 6,912,000.

Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use

This product complies with the Electromagnetic Compatibility Directives for residential use and can be used in all areas including common residential areas.

(Class B equipment emits less electromagnetic waves than Class A equipment.)

Humidity: 10% ~ 80%, non-condensing

Humidity: 5% ~ 95%, non-condensing

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

Power off (Power button) EPA/ENERGY

2000

Power off

(Power Switch)

State

Normal

Operation

Power saving

mode

Power Indicator Blue Blue Blinking Off Off

Power

Consumption

Less than 130

watts

Less than 2

Watts

Less than 1 watt 0 watts

This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPM functionality.

As an ENERGY STAR product meets the ENERGY STAR

Partner, SAMSUNG has determined that this

guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Preset Timing Modes

Display Mode

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC,1152 x 870 68.681 75.062 100.000 -/-

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 +/+

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 64.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.000 +/+

VESA, 1280 x 960 60.000 60.000 108.000 +/+

VESA, 1280 x

1024

63.981 60.020 108.000 +/+

VESA, 1280 x

1024

79.976 75.025 135.000 +/+

VESA, 1600 x

1200

VESA, 1920 x

1200

75.000 60.000 162.000 +/+

74.038 59.950 154.000 +/-

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit : Hz

The supported modes for each external input signal

Supported Resolutions

Input Source 480i @60Hz 480p @60Hz 576p @50Hz 720p @50/60Hz 1080i @50/60Hz

Component O O O O O

Input Source Supported Systems

AV(CVBS) NTSC-3.58, NTSC-4.43, PAL-M/N, SECAM

S-VIDEO NTSC-3.58, NTSC-4.43, PAL-M/N, SECAM

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

North America

U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com

CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 4004-0000 http://www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) http://www.samsung.com/cl

COLOMBIA 01-8000112112 http://www.samsung.com.co

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

EL SALVADOR 800-6225 http://www.samsung.com/latin

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

JAMAICA 1-800-234-7267 http://www.samsung.com/latin

PANAMA 800-7267 http://www.samsung.com/latin

PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 http://www.samsung.com/latin

TRINIDAD & TOBAGO

VENEZUELA 0-800-100-5303 http://www.samsung.com/latin

Europe

1-800-7267-864 http://www.samsung.com/latin

BELGIUM 03 201 2418 http://www.samsung.com/be

CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz

DENMARK 70 70 19 70 http://www.samsung.com/dk

FINLAND 030-6227 515 http://www.samsung.com/fi

FRANCE

3260 SAMSUNG(7267864) (€ 0,15/min)

http://www.samsung.com/fr

GERMANY 01805 - 121213 (€ 0,14/Min) http://www.samsung.de

HUNGARY 06-80-SAMSUNG (7267864) http://www.samsung.com/hu

ITALIA 800 SAMSUNG (7267864) http://www.samsung.com/it

LUXEMBURG 0032 (0)2 201 24 18 http://www.samsung.lu

NETHERLANDS 0900 20 200 88 (€ 0,10/Min) http://www.samsung.com/nl

NORWAY 815-56 480 http://www.samsung.com/no

POLAND 0 801 801 881 http://www.samsung.com/pl

PORTUGAL 80 8 200 128 http://www.samsung.com/pt

REPUBLIC OF IRELAND

0818 717 100 http://www.samsung.com/uk

SLOVAKIA 0800-SAMSUNG (7267864) http://www.samsung.com/sk

SPAIN 903 10 11 30 http://www.samsung.com/es

SWEDEN 0771-400 200 http://www.samsung.com/se

SWITZERLAND 0800-7267864 http://www.samsung.com/ch

U.K 0870 SAMSUNG (7267864) http://www.samsung.com/uk

CIS

ESTONIA 800-7267 http://www.samsung.ee

LATVIA 800-7267 http://www.samsung.com/lv

LITHUANIA 8-800-77777 http://www.samsung.lt

KAZAKHSTAN 8 800 080 1188 http://www.samsung.kz

RUSSIA 8-800-200-0400 http://www.samsung.ru

UKRAINE 8-800-503-0000 http://www.samsung.com/ur

UZBEKISTAN 140-1234 http://www.samsung.uz

Asia Pacific

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA 800-810-5858, 010- 6475 1880 http://www.samsung.com.cn

HONG KONG 3698-4698 http://www.samsung.com/hk

INDIA 3030 8282, 1800 1100 11 http://www.samsung.com/in

INDONESIA 0800-112-8888 http://www.samsung.com/id

JAPAN 0120-327-527 http://www.samsung.com/jp

MALAYSIA 1800-88-9999 http://www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG (7267864) http://www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (7267864) http://www.samsung.com/sg

THAILAND 1800-29-3232, 03-689-3232 http://www.samsung.com/th

TAIWAN 0800-329-999 http://www.samsung.com/tw

VIETNAM 1 800 588 889 http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) http://www.samsung.com/za

U.A.E

800SAMSUNG (7267864) 8000-4726

http://www.samsung.com/mea

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit : mm

ertical Frequenc

The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit : Hz

Example : If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequenc

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit : kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the NonInterlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.

Plug & Pla

This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called 'resolution'.

This number shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen.

Example : If the resolution is 1920 x 1200 , this means the screen is composed of 1920 horizontal

S-Video

Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality video.

External Device Input

External device input refers to video input from such external video devices as VCRs, camcorders and DVD players, separate from a TV broadcast.

DVD

A type of digital disk technology that takes up only the benefits of CD and LD, to implement a high resolution/quality, which enables the user to enjoy clearer images.

dots (horizontal resolution) and 1200 vertical lines (vertical resolution).

For Better Displa

Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described below to enjoy the best quality of picture. You can have an uneven quality of picture in the screen if the best quality of picture is not provided in TFT-LCD.

Resolution : 1920 x 1200 Vertical frequency (refresh rate) : 60 Hz

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

For example, the number of TFT LCD sub pixels that is contained in this product are 6,912,000.

When you clean the monitor and the panel outside, please apply the recommended small amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be scrubbed out softly. If excessive force is applied, you can have a stain on it.

If you are not satisfied with the quality of the picture, you can get better quality of the picture by executing "auto adjustment function" in display screen that is appeared as window termination button is pressed. If there's still noise after automatic adjustment, use FINE/COARSE adjustment function.

If you view a fixed screen for an extended period of time, residual image or blurriness may appear. Change the mode to energy save or set a screensaver to move the picture when you need to be away from the monitor for an extended period of time.

Authorit

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and

Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are

registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.

Samsung 275T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SyncMaster 275T

Notation

Installation

Others

Package Contents

Connecting Cables

Using the Stand

Monitor Driver

Natural Color

MagicTune™

Control Buttons

Direct Functions

OSD Function

Check List

Q & A

Self-Test

Specifications

PowerSaver

Preset Timing Modes

Contact SAMSUNG WORLDWIDE

Terms
