Page 1
Samsung Electronics 2-1
2-1 Mechanical Parts (1) - - - - - - - - - - - - - - - - - - - - - - 2-2
2-2 Mechanical Parts (2) - - - - - - - - - - - - - - - - - - - - - - 2-4
2-3 Mechanical Parts (3) - - - - - - - - - - - - - - - - - - - - - - 2-6
2-4 Ass’y EVF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-8
2-5 Ass’y Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-10
2-6 Ass’y LCD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-12
2-7 Ass’y Left - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-14
2-8 Ass’y Front - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-16
2-9 Ass’y Camera/Deck - - - - - - - - - - - - - - - - - - - - - - 2-18
2-10 Ass’y Rear - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-20
2. Exploded View and Par ts List
Page 2
Samsung Electronics2-2
Exploded View and Parts List

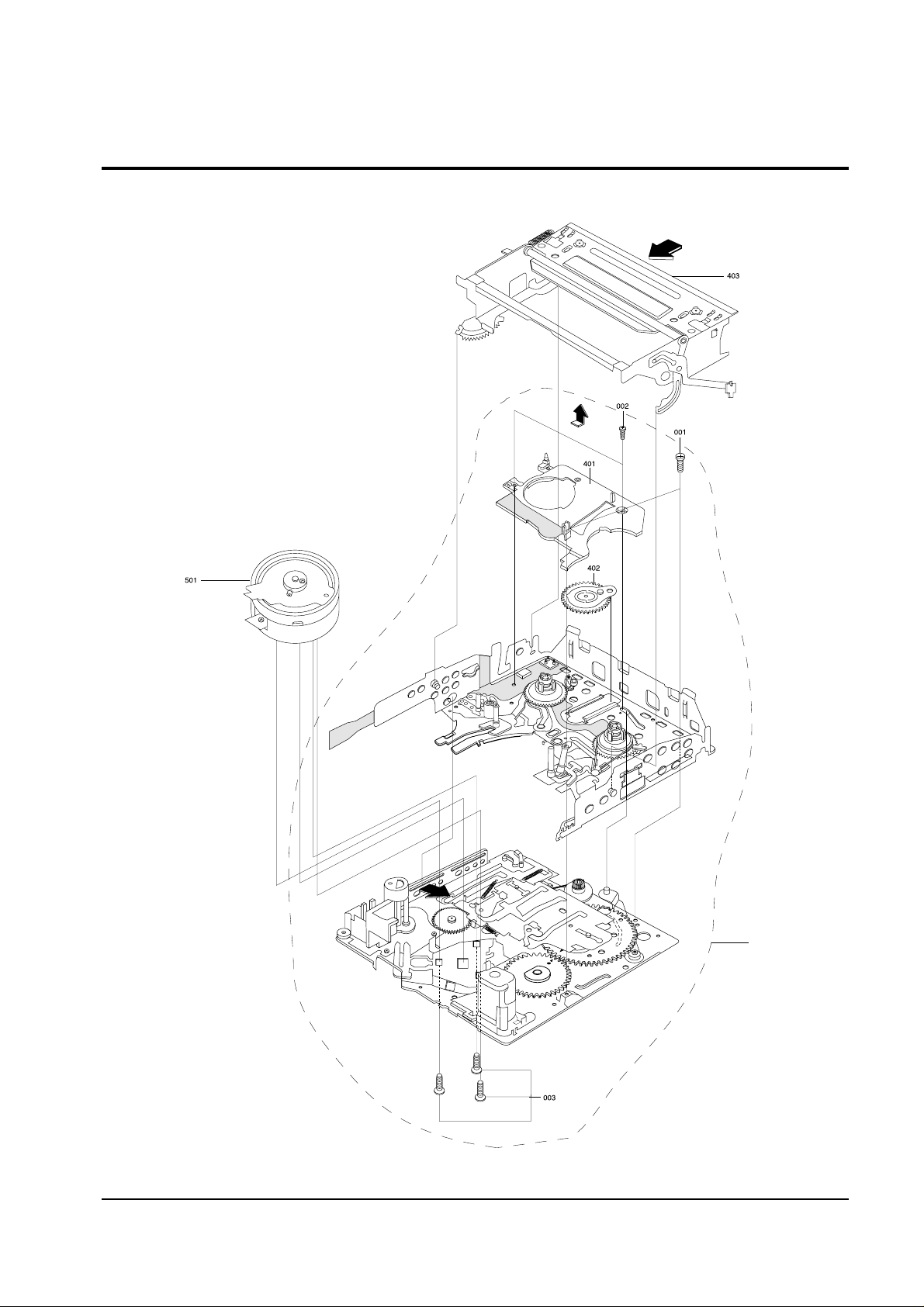

2-1 Mechanical Parts (1)
600
Page 3
Samsung Electronics 2-3
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
001 6009-001287 SCREW-SPECIAL;SM45C,2,TH,+,M1.4,L3.9(3.2)
002 6001-001575 SCREW-MACHINE;PH,+,M1.4,L3.5,ZPC(BLK),SW
003 6001-001417 SCREW-MACHINE
401 AD97-04500A ASSY-COVER-REEL;SUS+ETC,DE-10,ASSY
402 AD97-04498A ASSY-IDLER;POM+ETC,DE-10,ASSY
403 AD97-04757A HOUSING-ASSY;-,-,-,-,-,-,-,DE-6
501 AD97-04439A ASSY-DRUM NTSC;-,DE-10,NTSC
600 AD97-04625A ASSY-SEMI DECK;DE-10
Page 4
Samsung Electronics2-4
Exploded View and Parts List

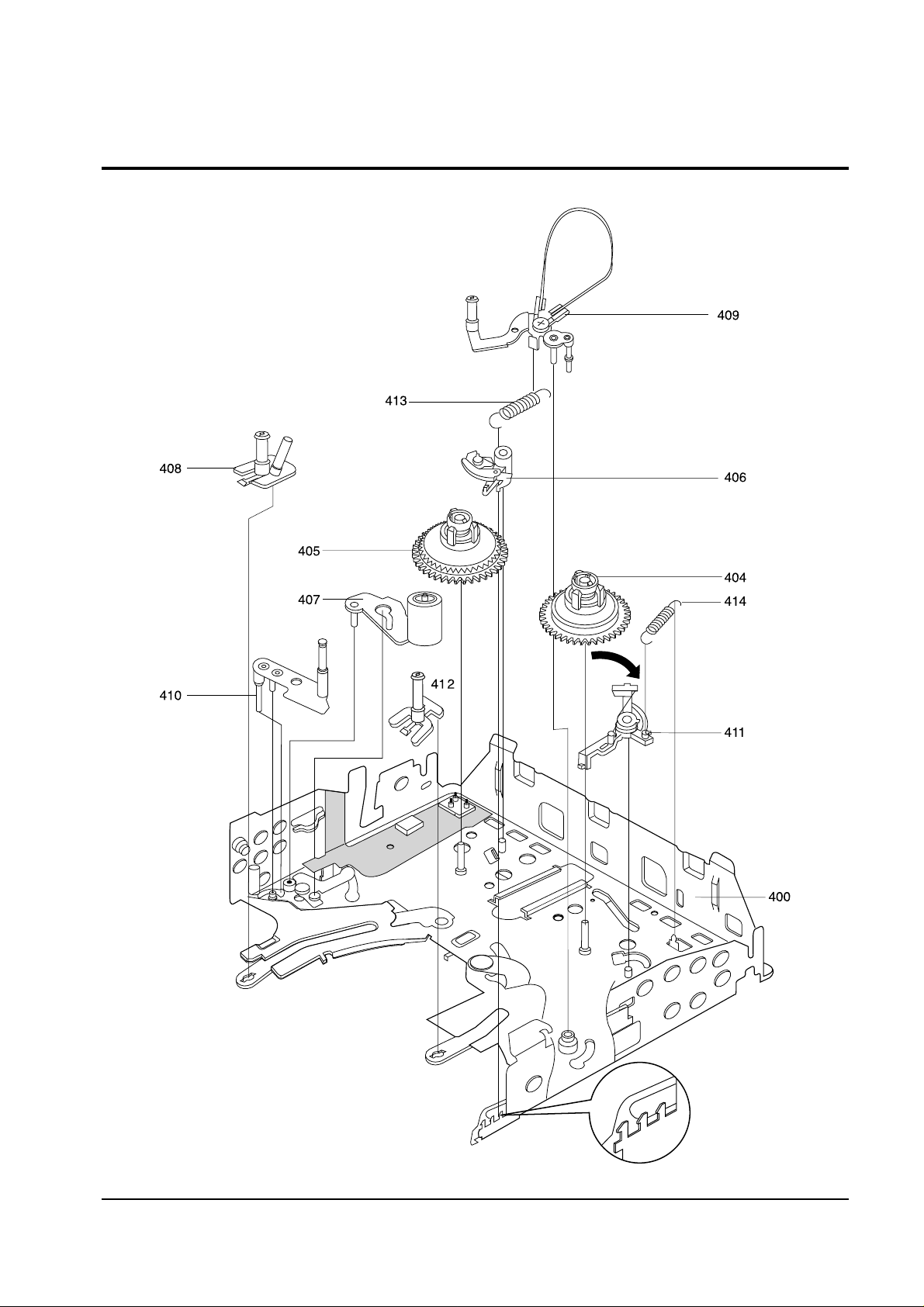

2-2 Mechanical Parts (2)
Page 5
Samsung Electronics 2-5
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
400 AD97-04497A ASSY-SUB-CHASSIS;SECC+ETC,DE-10,ASSY
404 AC66-12041A REEL-S(ASSY);-,-,-,DE-6
405 AC66-12042A REEL-T(ASSY);-,-,-,DE-6
406 AC66-30120A LEVER-BRAKE SOFT T (ASSY);-,-,-,-,DE-6,407 AD97-04490A ASSY-ARM-PINCH;-,DE-10,SUS+ETC
408 AD97-04491A ASSY-POLE-BASE T;-,DE-10,PPS+ETC
409 AD97-04493A ASSY-ARM-TENSION;-,DE-10,ASSY
410 AD97-04494A ASSY-ARM-REVIEW;SUS+ETC,DE-10,ASSY
411 AD97-04499A ASSY-BRAKE-SUB S;DURACON+ETC,DE-10,ASSY
412 AD97-04522A ASSY-POLE-BASE S;PPS+ETC,DE-10,413 AD61-00922A SPRING ETC-TENSION;DE-10,SWPB,-,-,-,-,-,
414 AC61-62022A SPRING ETC-SOFT BRAKE(S);-,-,-,-,-,-,-,-
Page 6
Samsung Electronics2-6
Exploded View and Parts List

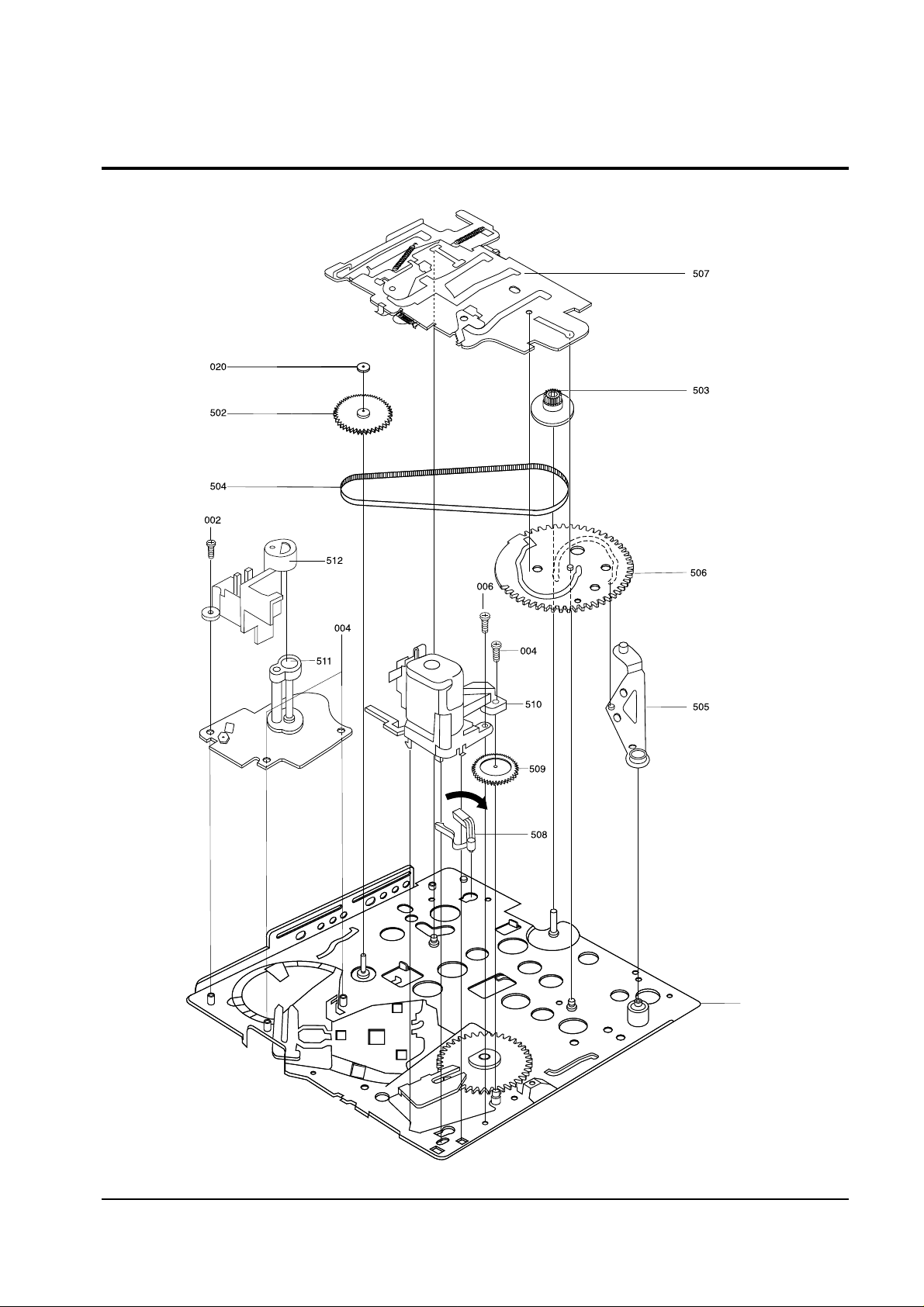

2-3 Mechanical Parts (3)
601
Page 7
Samsung Electronics 2-7
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
002 6001-001575 SCREW-MACHINE;PH,+,M1.4,L3.5,ZPC(BLK),SW
004 AC60-12112A SCREW-BH;-,WHT,L2,L2,BH,+,-,M1.4,WHT,006 AC60-10017A SCREW-MACHINE;-,-,FEFZY,SWCH1018,+,M1.7,
020 AC60-30017A WASHER-SLIT;ID 1,OD 2.6,T 0.4,POLYSLIDER
502 AD66-00141A GEAR-CAPSTAN;DE-10,PA(1724K),-,-,-,-,-,503 AD66-00142A GEAR-PULLEY;DE-10,DURACON M90-44,-,-,-,504 AC66-62001A BELT-TIMMING;-,L137 T0.4,-,-,-,-,-,505 AD66-00130A LEVER-CAM;DE-10,SUS430 CP,0.6,-,-,-,-,506 AD66-00140A GEAR-CAM MAIN;DE-10,ZYTEL 70G-43L,-,-,-,
507 AD97-04496A ASSY-SLIDE-MAIN;SECC+ETC,DE-10,ASSY
508 AD66-00131A LEVER-EJECT;DE-10,DURANEX #3300,-,-,-,-,
509 AD66-00139A GEAR-LOADING;DE-10,DURACON M90-44,-,-,-,
510 AD97-04504A ASSY-LOADING-MOTOR;MOTOR+TEC,DE-10,ASSY
511 AD97-04554A ASSY-CAPSTAN-MOTOR;-,DE-10,ASSY
511 AD97-04555A ASSY-CAPSTAN MOTOR;-,DE-10,ASSY
512 AD61-00950A HOLDER-FPC SUB;DE-10,POM,-,-,-,NATURAL,601 AD97-04495A ASSY-MAIN CHASSIS;DE-10
Page 8
Samsung Electronics2-8
Exploded View and Parts List

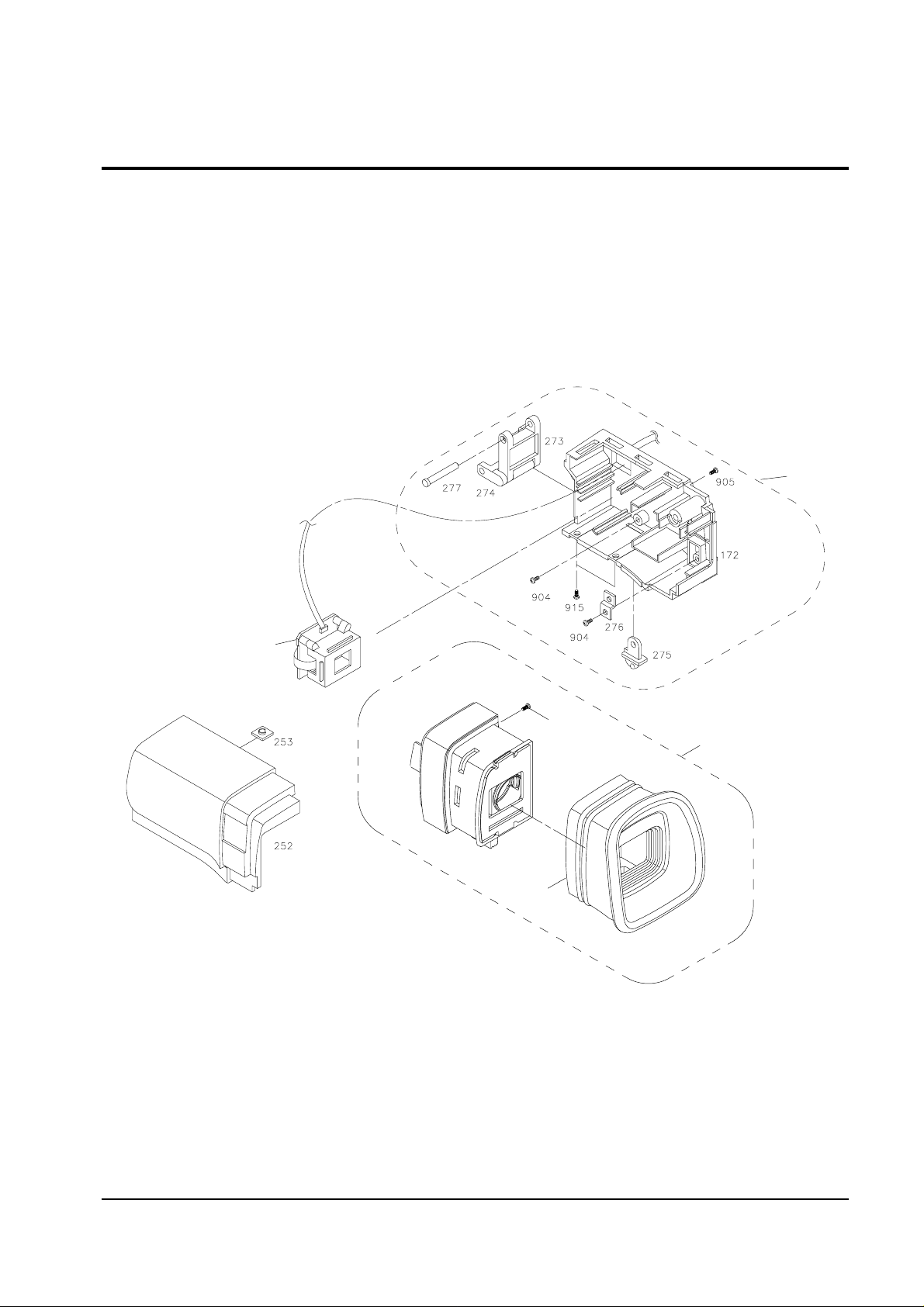

2-4 Ass’y EVF
262
269
904
271
300
Page 9
Samsung Electronics 2-9
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
172 AD64-00703E CASE-EVF R, ABS94VO, EVF
252 AD64-00450M CASE-EVF L;ABS94VO D/GRY VE0812 G6238 ALL
253 AC61-32047A PLATE-NUT;SPTE T0.8 ALL
262 AD97-02441A ASSY-EVF LENS
269 AD97-06589A ASSY-CASE EVF R
271 AD73-00040A RUBBER-EVF CUP
273 AD66-00105A LINK-EVF;POM BLK ALL
274 AD66-00106A LINK-LOCK;ABS 94HB BLK ALL
275 AD64-00458A LOCKER-EVF;POM BLK ALL
276 AD61-00104A GUIDE-PLATE;SPTE T0.8 ALL
277 AD61-00297A SHAFT-EVF;SUS303 ALL
300 AD97-04455A ASSY-UNIT EVF;0.24”,NTSC
904 AC60-10055A SCREW-TAPPING;M2X4 FZB ALL
905 AC60-10054A SCREW-T APPING;M2X6,FZB ALL
915 AC60-10043A SCREW-T APPING;1.7X6,FZB
Page 10
Samsung Electronics2-10
Exploded View and Parts List

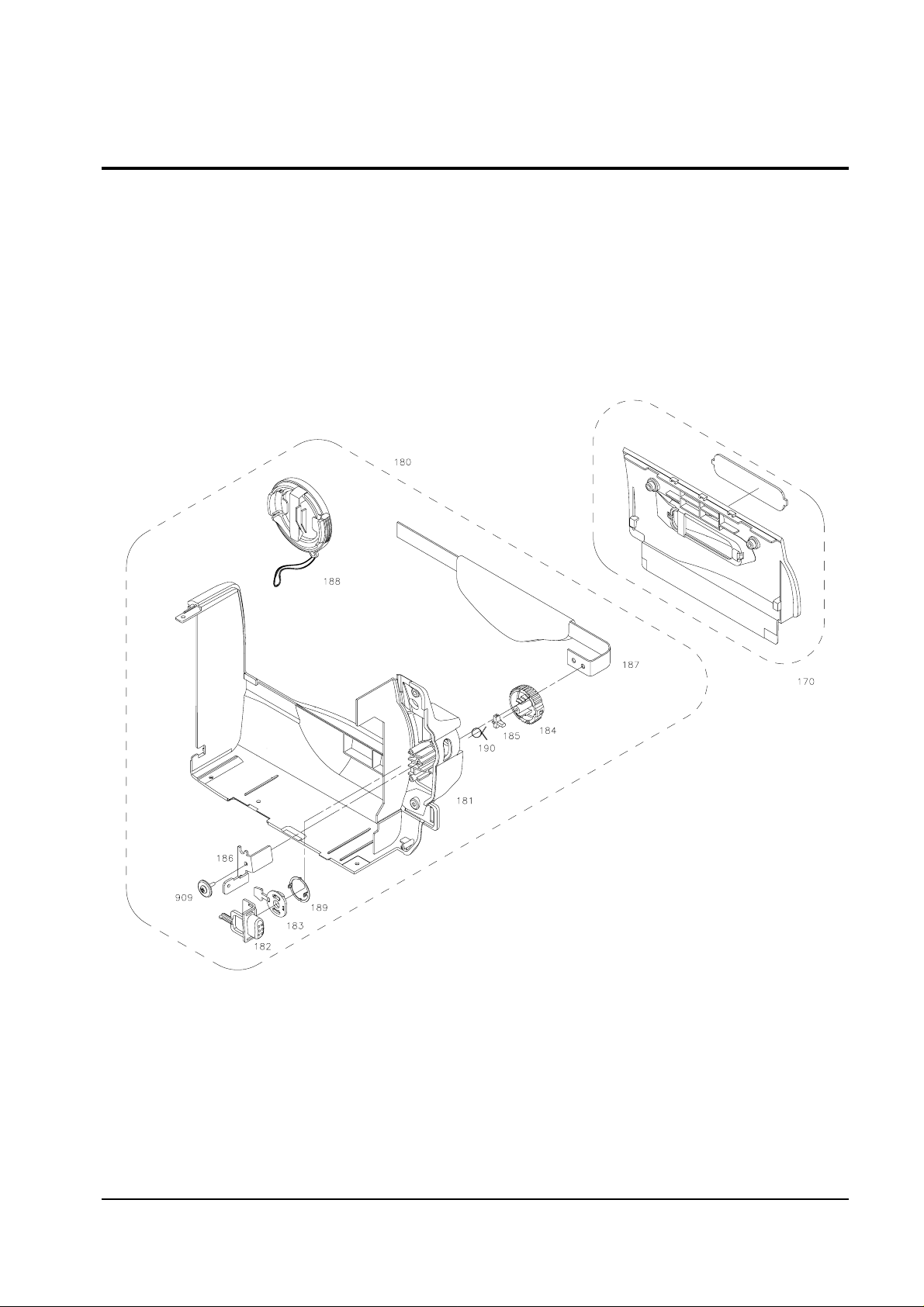

2-5 Ass’y Right
Page 11
Samsung Electronics 2-11
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
170 AD97-02642A ASSY-COVER HOUSING,NORMAL VP-L800U/VP-W80U
AD97-02643A ASSY-COVER HOUSING,Hi8 Hi8 MODEL ALL
180 AD97-04252B ASSY-CASE RIGHT;ASS'Y,EXP ALL
181 AD64-00694A CASE-RIGHT;ABS94HB HF0660I G3532,EXP ALL
182 AD64-00424A BUTTON-REC/STOP;ABS94HB RED ALL
183 AD61-00905A HOLDER-POWER;POM BLK ALL
184 AD64-00695A KNOB-POWER;ABS94HB HF0660I G3532 ALL
185 AD64-00696A LOCKER-POWER;ABS94HB GREEN ALL
186 AD61-00214A BRACKET-GRIP BACK;SUS304 T0.8 ALL
187 AD59-00044A UNIT-BELT GRIP;LEATHER, BLK ALL
188 AD97-03191A ASSY-CAP HOOD;ASS'Y ALL
189 AD61-00906A PLATE-SPRING POWER ALL
190 AD61-00915A SPRING-LOCK POWER ALL
909 AD60-10509A SCREW-TAP PWH
Page 12
Samsung Electronics2-12
Exploded View and Parts List

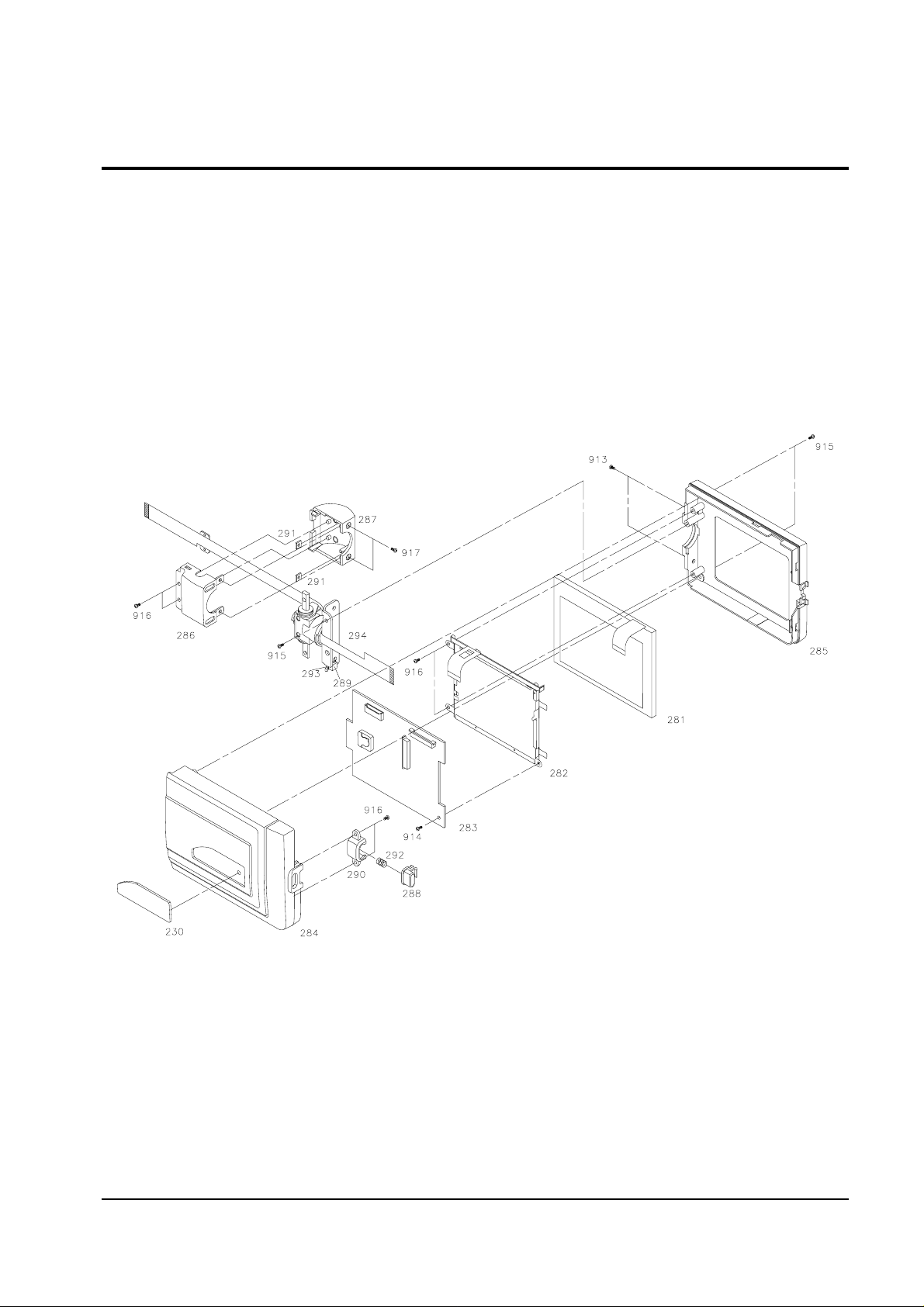

2-6 Ass’y LCD
Page 13
Samsung Electronics 2-13
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
230 AD64-00757A INLAY-DIGITAL;PVC SHEET
281 AD07-00027A PVI LCD;NTSC
282 AD97-02233A ASSY-BACK LIGHT;ASSY,M2, CASIO
283 AD97-04458A ASSY-LCD BOARD;NTSC
284 AD64-00758G CASE-LCD TOP;ABS 94 VO
285 AD64-00464B CASE-LCD BOTTOM;ABS94VO NTSC (COLOR)
286 AD63-00188G COVER-HINGE TOP;ABS 94HB
287 AD63-00190A COVER-HINGE BOTTOM;ABS 94HB
288 AD64-00445A BUTTON-LCD LOCK;PC/ABS
289 AD64-00446A BUTTON-LCD REVERSE;ABS 94HB
290 AD61-00585A GUIDE-LCD LOCK;POM BLK
291 AD61-12033A BRKT -NUT;SECC T0.8
292 AD61-00344A SPRING-LCD LOCK;SWPB
293 AD61-00627A SPRING-LCD REVERSE;SUS304 WPB
294 AD97-02487A ASSY -HINGE;ASSY
913 AC60-10019A SCREW-MACHINE;M2X4 FZB
914 AC60-10028A SCREW-MACHINE;M1.7X3 FZB
915 AC60-10043A SCREW-TAPPING;TAP1.7X6 FZB
916 AC60-12128A SCREW-TAPPING;TAP1.7X4 FEB
917 6001-001291 SCREW-MACHIN;M1.7X4 FZB
Page 14
Samsung Electronics2-14
Exploded View and Parts List

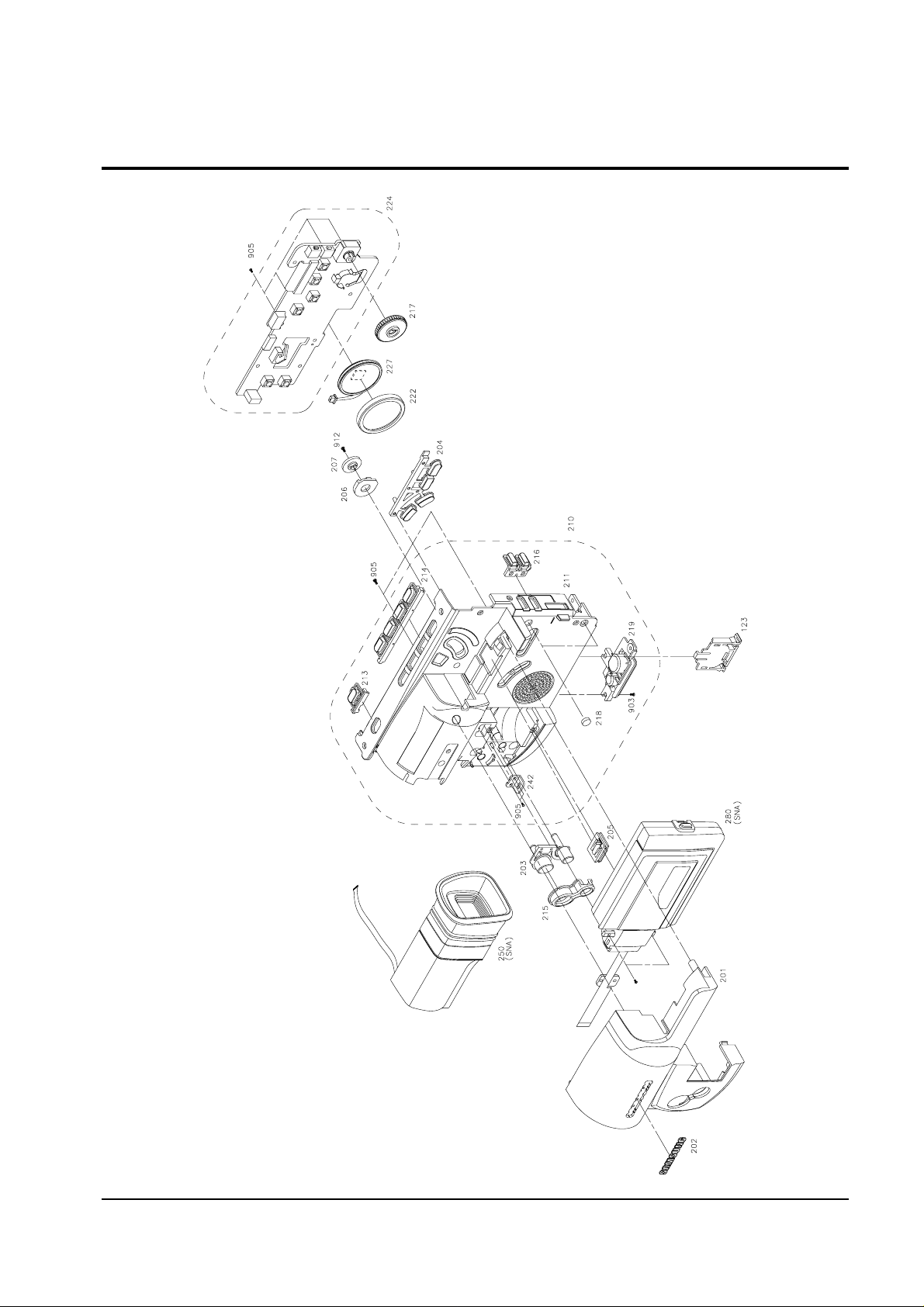

2-7 Ass’y Left
Page 15
Samsung Electronics 2-15
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
123 AD63-00065C COVER-LI BATTERY
201 AD63-00315U COVER-LEFT(W6);ABS94HB HG0760 G6238 SCL810
AD63-00315V COVER-LEFT(W6);ABS94HB HG0760 G6238 SCL860
AD63-00315W COVER-LEFT(W6);ABS94HB HG0760 G6238 VP-L870
AD63-00469A COVER-LEFT(W6);ABS94HB HG0760 G6238 VP-L800U
AD63-00469B COVER-LEFT(W6);ABS94HB HG0760 G6238 VP-L800
AD63-00469C COVER-LEFT(W6);ABS94HB HG0760 G6238 VP-L850
AD63-00469D COVER-LEFT(W6);ABS94HB HG0760 G6238 VP-L850D
AD63-00469E COVER-LEFT(W6);ABS94HB HG0760 G6238 VP-L870
AD63-00315X COVER-LEFT(W6);ABS94HB HG0760 G6238 VM-C300
AD63-00315Y COVER-LEFT(W6);ABS94HB HG0760 G6238 VM-C360
AD63-00315Z COVER-LEFT(W6);ABS94HB HG0760 G6238 VM-C370
202 AD64-70085A BADGE-SAMSUNG(30);AL (30mm)
203 AD64-00753A BUTTON-EASY(W4);ABS94HB NTR
204 AD64-00427A BUTTON-FUNCTION(W2);ABS94HB HF0660I G3532
205 AD61-00600A HOLDER-LOCK EVF;POM BLK
206 AD61-00594A RAIL-EVF;POM BLK
207 AD61-00595A RAIL-LOCK;ABS 94HB BLK
210 AD97-04405A ASSY-CASE LEFT(W4);W4-PJ, LIGHT(X) VP-L800U/L800
AD97-04406A ASSY-CASE LEFT(W4);W4-PJ, LIGHT(O) SCL810/SCL860/SCL870
VP-L850/L850D/L870
211 AD64-00751A CASE-LEFT(W4);W4-PJ, LIGHT(X) VP-L800U/L800
AD64-00751B CASE-LEFT(W4);W4-PJ, LIGHT(O) SCL810/SCL860/SCL870
VP-L850/L850D/L870
213 AD64-00706A BUTTON-TAPE EJECT;ABS94HB HF0660I G3532
214 AD64-00707A BUTTON-VCR;ABS94HB HF0660I G3532
215 AD64-00755A KNOB-DUMMY(W4);ABS94HB NTR
216 AD64-00235B BUTTON-FUNCTION-A(M2);ABS94HB HF0660I G3532
217 AD64-00240C KNOB-DIAL MENU(M2);ABS94HB HF0660I G3532
218 AD69-00045A PAD-LCD;SILICON
219 AD97-03290A ASSY-TRIPOD;PC G3532
222 AD73-10048A RUBBER-SPEAKER;RUBBER BLK
224 AD97-04508A ASSY-FUNCTION B'D(W6) VP-L800U/L800/SCL810
AD97-04464A ASSY-FUNCTION BOARD SCL860/SCL870
VP-L850/L850D/L870
227 AD97-00244A ASSY-SPEAKER;SC-L315C, 2816S
242 AD61-00581A BRACKET-HINGE
250 AD97-06646A ASSY -EVF,NTSC/B&W SCW80/SCL810/SCL860/SCL870
AD97-06930A ASSY-EVF,PAL/B&W VP-W80U/W80/W87/W87D
VP-L800U/L800/L850/L850D/L870
AD97-06956A ASSY-EVF,DOM/B&W VM-C300/C360/C370
AD97-06931A ASSY-CVF,NTSC/COL SCW87
AD97-06932A ASSY-CVF,DOM/COL VM-C170
903 AC60-10020A SCREW-MACHINE(2X5);BLK
905 AC60-10054A SCREW-TAPPING(2X6);W4-PJ
905 AC60-10054A SCREW-TAPPING(2X6);BLK
912 AC60-10073A SCREW -TAP PLAIN(2X6);W-PJ(CASE-L+ASSY-EVF)
Page 16
Samsung Electronics2-16
Exploded View and Parts List

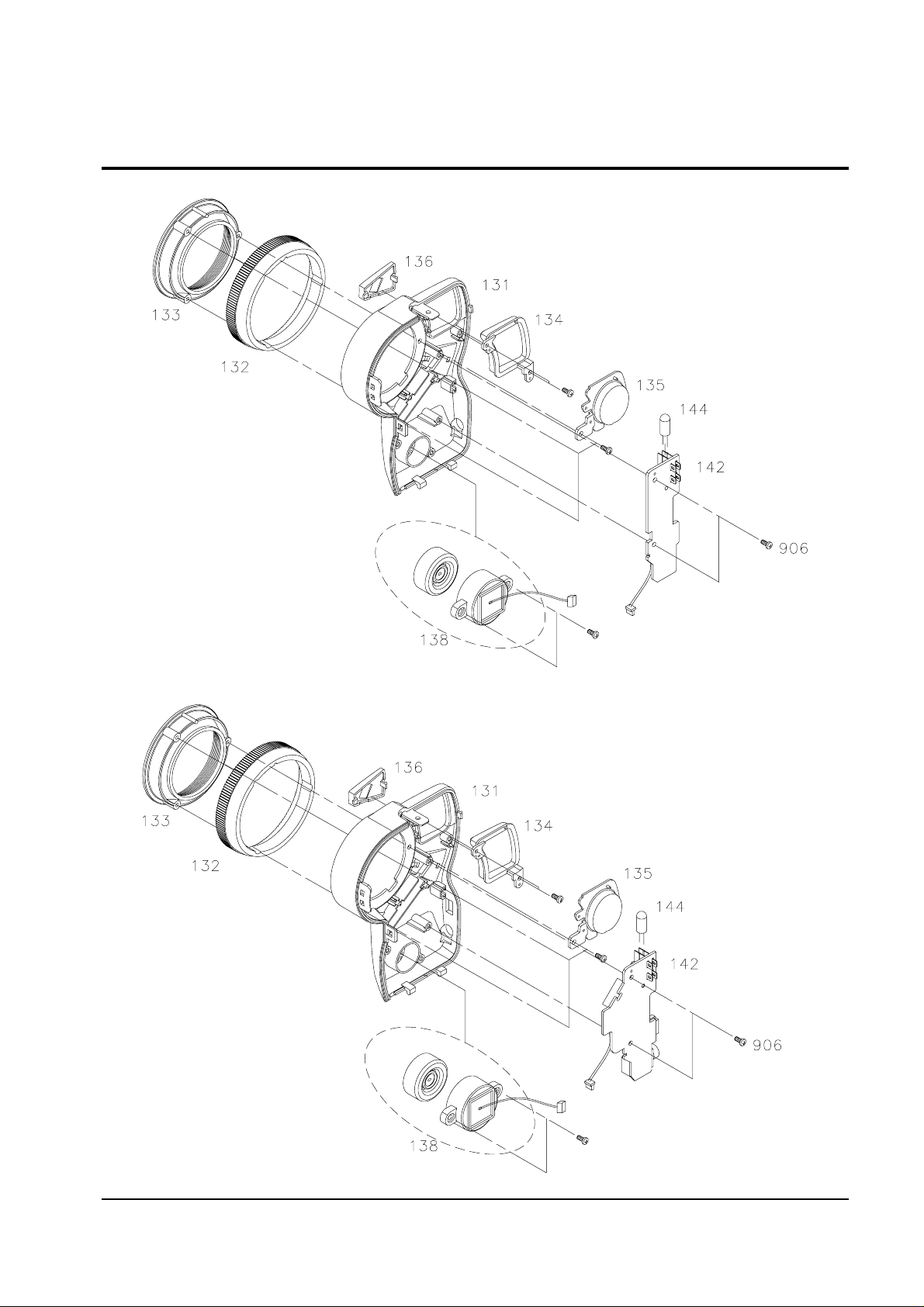

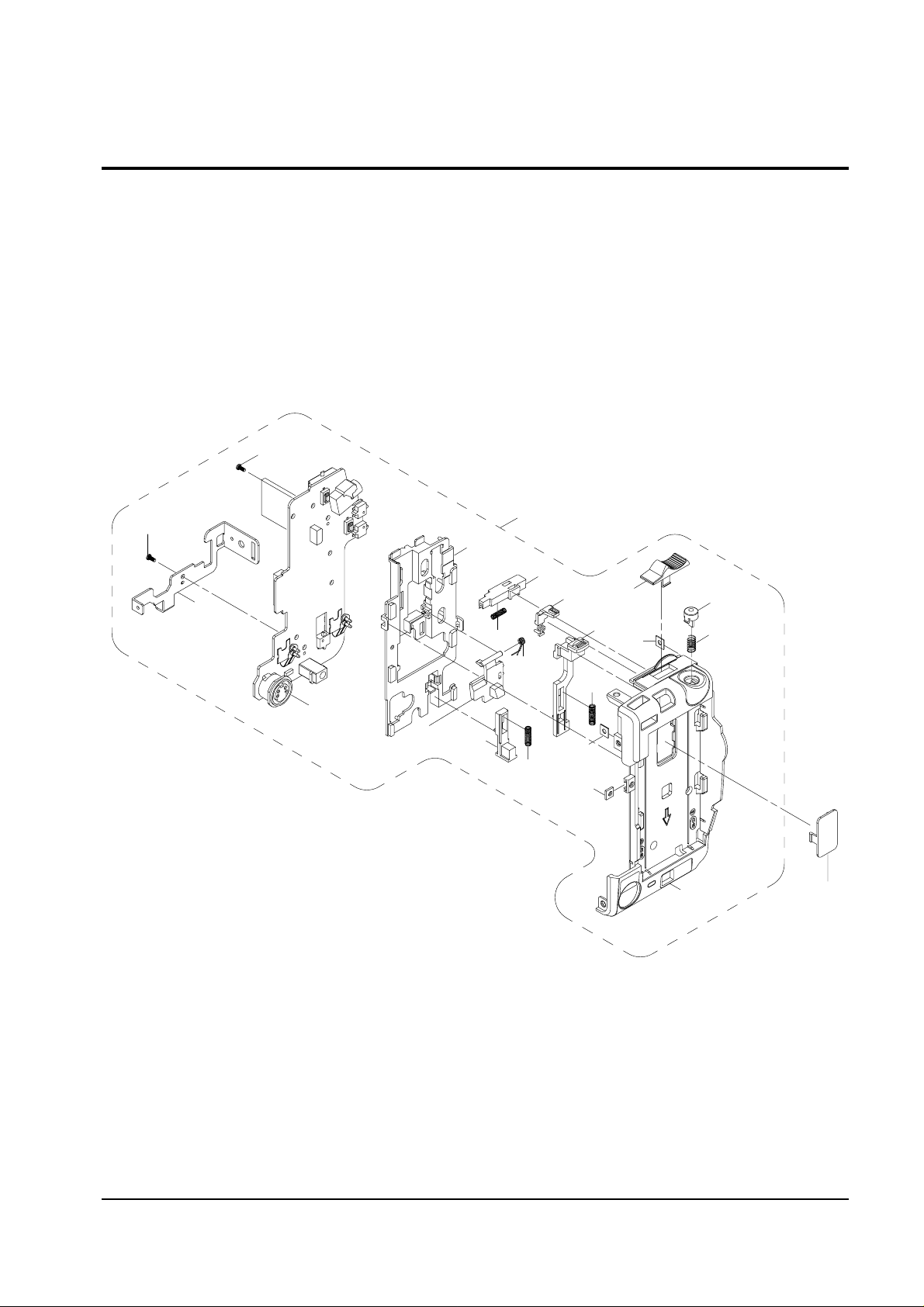

2-9 Ass’y Front
Page 17
Samsung Electronics 2-17
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
131 AD64-00693M CASE-FRONT;880X,MIC(X),USB(X) SCL810/VP-L800U/L800/VM-C300
AD64-00693P CASE-FRONT;880X,MIC(X),USB(O)
AD64-00693N CASE-FRONT;880X,MIC(O),USB(X) SCL860/VP-L850/L850D
AD64-00693Q CASE-FRONT;880X,MIC(O),USB(O) SCL870/VP-L870/VM-C360/C370
AD64-00693R CASE-FRONT;990X,MIC(O),USB(X)
132 AD67-00157A LENS-HOOD(AL);AL
133 AD67-00038C LENS-HOOD(22X);ABS 94HB BLK
134 AD64-00697A MASK-LAMP;PC CLR VP-L850/L850D/L870
SCL810/860/870
AD63-00299E COVER-DUMMY LAMP VP-L800U/L800/VM-C300
135 AD67-00156A MIRROR-LAMP;NYLON66(5232G) VP-L850/L850D/L870
SCL810/860/870
136 AD64-00698A WINDOW-REMOCON;PMMA TITANE
138 AD97-04436A ASSY -MIC;ASS'Y
142 AD97-04471A ASSY-FRONT BOARD;MIC(X),LIGHT(0),USB(X) SCL810
AD97-04472A ASSY-FRONT BOARD;MIC(O),LIGHT(O),USB(X) SCL860/870/VP-L850/L850D
AD97-04738A ASSY-FRONT + USB BOARD VP-L870/SCL870/
VM-C170/C360/C370
144 4713-001152 LAMP-PURE XENON;6V,500mA,3W
906 AC60-10061A SCREW-TAPPING(T2X5);BLK
Page 18
Samsung Electronics2-18
Exploded View and Parts List

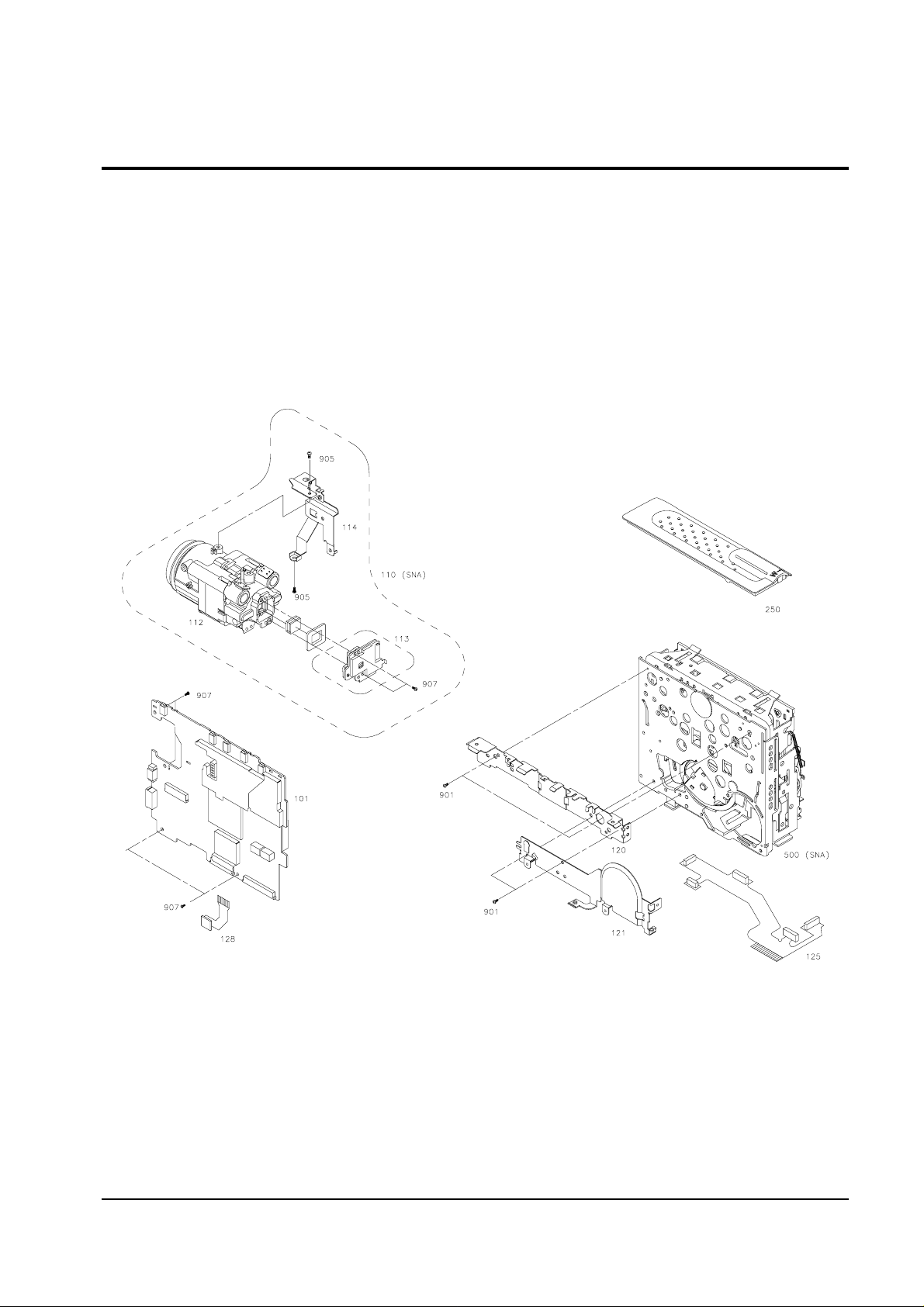

2-10 Ass’y Camera/Deck
116
115
Page 19
Samsung Electronics 2-19
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
101 AD68-06018A ASSY-MAIN BOARD VP-W80
AD68-06018B ASSY-MAIN BOARD VP-W87
AD68-06018C ASSY-MAIN BOARD VP-L800
AD68-06018D ASSY-MAIN BOARD VP-L850
AD68-06018E ASSY-MAIN BOARD VP-L870
AD68-06018F ASSY-MAIN BOARD SCW80
AD68-06018G ASSY-MAIN BOARD SCW87
AD68-06018H ASSY-MAIN BOARD SCL810
AD68-06018J ASSY-MAIN BOARD SCL870
AD68-06018K ASSY-MAIN BOARD VM-C170
AD68-06018L ASSY-MAIN BOARD VM-C300
AD68-06018M ASSY-MAIN BOARD VM-C370
AD68-06018N ASSY-MAIN BOARD SCL860
AD68-06018P ASSY-MAIN BOARD VM-C360
AD68-06018Q ASSY-MAIN BOARD VP-W80U
AD68-06018R ASSY-MAIN BOARD VP-W87D
AD68-06018S ASSY-MAIN BOARD VP-L800U
AD68-06018T ASSY-MAIN BOARD VP-L850D
112 AD97-03040A ASSY-ZOOM LENS;22X ALL
113 AD97-04856A ASSY-CCD
114 AD61-00576A BRACKET-LENS(22X)-180;SUS304 T0.5(22X) ALL
115 AD63-62008A SPACER-CCD;SILICON (Hi8) ALL
116 AD29-92001F FILTER-OLP;OG-BF455
120 AD61-00222A CHASSIS-TOP
121 AD61-00904A CHASSIS-BOTTOM
125 AD92-00005A ASSY-PCB DECK FPC
128 AD97-04462A ASSY-ROTARY FPC ALL
250 AD64-00422A CASE-TOP;W-PJ,ABS94HB
500 AD97-04370A ASSY-DECK;DE-10 NTSC
905 AC60-10054A SCREW-TAPTITE(2X6);BLK ALL
907 AC60-10024A SCREW-MACHINE(2X3);YEL ALL
Page 20
Samsung Electronics2-20
Exploded View and Parts List
2-11 Ass’y Rear
122
152
165
906
906
150
154
158
155
156
153
164
220
220
151
220
160
161
162
162
163
162
157
Page 21
Samsung Electronics 2-21
Exploded View and Parts List
Loc. No New Part No Description and Specification Remark
122 AD63-00064D COVER-JIG;W-PJ/D/GRAY,ABS94HB
150 AD97-03188A ASSY-CASE REAR;ASS'Y:Hi8 (D.ZOOM)- SCL810
AD97-02604A ASSY-CASE REAR;ASS'Y:Hi8 (S.SHOT) SCL860/SCL870
151 AD64-00418E CASE-REAR;Hi8 (D.ZOOM) SCL810
AD64-00418C CASE-REAR;Hi8 (S.SHOT) SCL860/SCL870
152 AD61-00578A BRACKET-REAR(W2);SUS304 T0.8 1/2H
153 AD64-00423A BUTTON-SNAP SHOT;ABS94HB HF0660I G3532
154 AD61-00573A HOLDER-BATTERY EJECT;ABS94HB HF0660I G3532
155 AD61-00574A HOLDER-SNAP SHOT;POM NTR
156 AD64-00431A KNOB-BATTERY EJECT;ABS94HB HF0660I G3532
157 AD64-00432A KNOB-ZOOM;ABS94HB HF0660I G3532
158 AD61-00602A HOLDER-ZOOM;POM NTR
160 AD64-00176B KNOB-DIDECTOR;ABS94HB HF0660I G3532
161 AD64-00182B LOCKER-BATTERY;POM BLK
162 AD61-00218A SPRING-BATTERY EJECT;SUS 304 WPB
163 AD61-00219A SPRING-BATTERY LOCK;SUS 304 WPB
164 AD61-00220A SPRING-SNAP SHOT;SUS 304 WPB
165 AD97-02894A ASSY-REAR B'D;ASSY(Hi8)
220 AC61-32047A PLATE-NUT ;SECC T0.8
906 AC60-10061A SCREW-TAPPING(T2X5);BLK
Page 22
Samsung Electronics2-22
Exploded View and Parts List
MEMO
MEMO
Loading...
