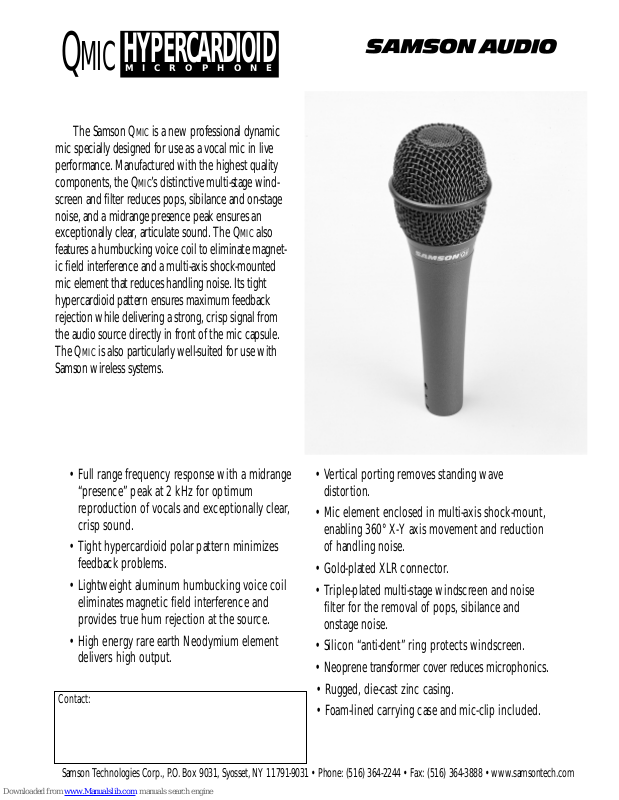

Samson Qmic Specification Sheet

The Samson Q

MIC

is a new professional dynamic
mic specially designed for use as a vocal mic in live
performance. Manufactured with the highest quality
components, the Q

MIC

’s distinctive multi-stage wind­screen and filter reduces pops, sibilance and on-stage
noise, and a midrange presence peak ensures an
exceptionally clear, articulate sound. The Q

MIC

also
features a humbucking voice coil to eliminate magnet­ic field interference and a multi-axis shock-mounted
mic element that reduces handling noise. Its tight
hypercardioid pattern ensures maximum feedback
rejection while delivering a strong, crisp signal from
the audio source directly in front of the mic capsule.
The Q

MIC

is also particularly well-suited for use with

Samson wireless systems.

• Full range frequency response with a midrange
“presence” peak at 2 kHz for optimum
reproduction of vocals and exceptionally clear,
crisp sound.

• Tight hypercardioid polar pattern minimizes
feedback problems.

• Lightweight aluminum humbucking voice coil
eliminates magnetic field interference and
provides true hum rejection at the source.

• High energy rare earth Neodymium element
delivers high output.

• Ver tical porting removes standing wave
distortion.

• Mic element enclosed in multi-axis shock-mount,
enabling 360° X-Y axis movement and reduction
of handling noise.

• Gold-plated XLR connector.

• Triple-plated multi-stage windscreen and noise
filter for the removal of pops, sibilance and
onstage noise.

• Silicon “anti-dent” ring protects windscreen.

• Neoprene transformer cover reduces microphonics.

• Rugged, die-cast zinc casing.

• Foam-lined carrying case and mic-clip included.

MICROPHONE

HYPERCARDIOID

Q

MIC

Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: [phone] • Fax: [phone] • www.samsontech.com

Contact:

ARCHITECT’S & ENGINEER’S

SPECIFICATION

The microphone shall be of a dynamic type
with hypercardioid polar pattern. The micro­phone shall provide its output on a gold-plated
male XLR-type connector. Output impedance
shall be 150 ohms.

The microphone shall be constructed of a
zinc casing and shall contain a triple-plated
multi-stage windscreen and noise filter for the
removal of pops, sibilance and onstage noise, an
aluminum humbucking voice coil for the elimi­nation of magnetic field interference and true
hum rejection, a Neoprene transformer cover
for the reduction of microphonics, a high-out­put Neodymium element, and a multi-axis
shock-mount to minimize handling noise. The
microphone shall have frequency response
from 20 Hz to 18.5 kHz, sensitivity of -47 dBV at
94 dB SPL, and a maximum SPL of 137 dB.
Dimensions shall be 2.25

″ (57 mm) head length,

4.5

″ (114.2 mm) main unit length and 6.75″

(172 mm) total length. Weight shall be 8.7 oz.
(250 g). The microphone shall carr y a three­year warranty.

The microphone shall be a SAMSON Q

MIC

.

QMIC SPECIFICATIONS

Type: Dynamic
Polar pattern: Hypercardioid
Frequency response: 20 Hz - 18.5 kHz
Sensitivity: -47 dBV @ 94 dB SPL
Max.SPL: 137 dB
Output impedance (@ 1 kHz): 150 Ω
Connector: 3-pin gold-plated balanced XLR male
Dimensions

Head length: 2.25

″ • 57 mm

Main unit length: 4.5

″ • 114.2 mm

Total length: 6.75

″ • 172 mm

Weight: 8.7 oz. / 250 g

Specifications subject to change without notice. © 1998 SAMSON

270°

300°

0°

330°

30°

60°

90°

SAMSON

Measuring Obj.;

QMIC

Date:

1/2/96

Span range : ___

A • B

10

5

0

0

-5

-10

-20

-10

-30

-15

-40

-20
dB V

B

Ref. 0dB Level : ___dB

240°

210°

300Hz

1000Hz

3000Hz

Writing Speed : ____sec.0.5

0 Paper Speed :____mm/sec.

5002001005020

1000

FREQUENCY Hz

2000

180°

Scale is 5 decibels per division

10

150°

20000100005000

S / N

120°

LINEAR

(Hz)

1.0

0.8

0.6

0.4

0.2

0
