Page 1
Mounting and
Operating Instructions
EB 8115 EN
Translation of original instructions
Edition May 2018
Type3321CT Valve (Clean Tech)
For combining with actuators, e.g. with Type3379 Pneumatic
Actuator
DIN version
Page 2
2 EB 8115 EN
Note on these mounting and operating instructions
These mounting and operating instructions assist you in mounting and operating the device
safely. The instructions are binding for handling SAMSON devices.
Î For the safe and proper use of these instructions, read them carefully and keep them for
later reference.
Î If you have any questions about these instructions, contact SAMSON‘s After-sales Service
Department (aftersalesservice@samson.de).
The mounting and operating instructions for the devices are included in
the scope of delivery. The latest documentation is available on our website
at www.samson.de > Service & Support > Downloads > Documentation.
Denition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip
Page 3
Contents
EB 8115 EN 3
1 Safety instructions and measures ...................................................................5
1.1 Notes on possible severe personal injury .........................................................8
1.2 Notes on possible personal injury ...................................................................8
1.3 Notes on possible property damage ................................................................9
2 Markings on the device ...............................................................................10
1.4 Valve labeling ..............................................................................................10
1.5 Actuator nameplate ......................................................................................11
3 Design and principle of operation ................................................................12
1.1 Fail-safe positions ........................................................................................12
1.1 Technical data .............................................................................................14
4 Measures for preparation ............................................................................16
1.1 Unpacking ..................................................................................................16
1.2 Transporting and lifting ................................................................................16
1.2.1 Transporting ................................................................................................17
1.2.2 Lifting ..........................................................................................................17
1.1 Storage .......................................................................................................18
1.2 Preparation for installation ............................................................................19
5 Mounting and start-up ................................................................................. 20
1.1 Mounting the actuator onto the valve .............................................................20
1.2 Installing the valve into the pipeline ...............................................................22
1.2.1 Checking the installation conditions ...............................................................22
1.2.2 Additional ttings .........................................................................................24
1.2.3 Installing the control valve .............................................................................24
1.3 Preparing for operation ................................................................................24
1.4 Quick check ................................................................................................25
6 Operation ...................................................................................................26
7 Servicing.....................................................................................................27
1.1 Replacing the gasket ....................................................................................28
1.2 Replacing the packing ..................................................................................30
1.3 Replacing the seat and plug ..........................................................................31
1.4 Preparation for return shipment ..................................................................... 32
Page 4
4 EB 8115 EN
Contents
1.5 Ordering spare parts and operating supplies .................................................33
8 Malfunctions ...............................................................................................34
1.1 Troubleshooting ...........................................................................................34
1.1 Emergency action ........................................................................................35
9 Decommissioning and disassembly ..............................................................36
1.1 Decommissioning .........................................................................................36
1.2 Removing the valve from the pipeline .............................................................36
1.3 Disposal ......................................................................................................36
10 Appendix ....................................................................................................37
1.1 After-sales service ........................................................................................37
1.2 Certicates ..................................................................................................37
1.1 Spare parts .................................................................................................39
Page 5
EB 8115 EN 5
Safety instructions and measures
1 Safety instructions and measures
Intended use
The SAMSON Type3321CT Globe Valve in combination with an actuator (e.g. Type3379
Pneumatic Actuator) is designed to regulate the ow rate, pressure or temperature of liquids,
gases or vapors.
The valve with its actuator is designed to operate under exactly dened conditions (e.g. oper-
ating pressure, process medium, temperature). Therefore, operators must ensure that the con-
trol valve is only used in operating conditions that meet the specications used for sizing the
valve at the ordering stage. In case operators intend to use the control valve in other applica-
tions or conditions than specied, contact SAMSON.
SAMSON does not assume any liability for damage resulting from the failure to use the device for its intended purpose or for damage caused by external forces or any other external
factors.
Î Refer to the technical data and nameplate for limits and elds of application as well as
possible uses.
Reasonably foreseeable misuse
The control valve is not suitable for the following applications:
− Use outside the limits dened during sizing and by the technical data
− Use outside the limits dened by the valve accessories mounted on the control valve
Furthermore, the following activities do not comply with the intended use:
− Use of non-original spare parts
− Performing service and repair work not described in these instructions
Qualications of operating personnel
The control valve must be mounted, started up, serviced and repaired by fully trained and
qualied personnel only; the accepted industry codes and practices are to be observed. According to these mounting and operating instructions, trained personnel refers to individuals
who are able to judge the work they are assigned to and recognize possible hazards due to
their specialized training, their knowledge and experience as well as their knowledge of the
applicable standards.
Page 6
6 EB 8115 EN
Safety instructions and measures
Personal protective equipment
We recommend checking the hazards posed by the process medium being used (e.g.
uGESTIS (CLP) hazardous substance database).
Î Provide protective equipment (e.g. safety gloves, eye protection) appropriate for the pro-
cess medium used.
Î Wear hearing protection when working near the valve.
Î Check with the plant operator for details on further protective equipment.
Revisions and other modications
Revisions, conversions or other modications of the product are not authorized by SAMSON.
They are performed at the user's own risk and may lead to safety hazards, for example. Fur-
thermore, the product may no longer meet the requirements for its intended use.
Safety devices
Upon supply air or control signal failure, the valve moves to its fail-safe position (see sec-
tion3.1). The fail-safe action of the actuator is the same as its direction of action and is specied on the nameplate of SAMSON actuators (see actuator documentation).
Warning against residual hazards
To avoid personal injury or property damage, plant operators and operating personnel must
prevent hazards that could be caused in the control valve by the process medium, the operating pressure, the signal pressure or by moving parts by taking appropriate precautions. They
must observe all hazard statements, warning and caution notes in these mounting and operating instructions, especially for installation, start-up and service work.
We also recommend checking the hazards posed by the process medium being used (e.g.
uGESTIS (CLP) hazardous substance database).
Î Observe safety measures for handling the device.
Responsibilities of the operator
The operator is responsible for proper operation and compliance with the safety regulations.
Operators are obliged to provide these mounting and operating instructions as well as the
referenced documents to the operating personnel and to instruct them in proper operation.
Furthermore, the operator must ensure that operating personnel or third persons are not exposed to any danger.
Page 7
EB 8115 EN 7
Safety instructions and measures
Responsibilities of operating personnel
Operating personnel must read and understand these mounting and operating instructions as
well as the referenced documents and observe the specied hazard statements, warnings
and caution notes. Furthermore, the operating personnel must be familiar with the applicable
health, safety and accident prevention regulations and comply with them.
Referenced standards and regulations
The control valves comply with the requirements of the European Pressure Equipment Directive 2014/68/EU. Valves with a CE marking have an EU declaration of conformity, which
includes information about the applied conformity assessment procedure. This EU declaration
of conformity is included in the Appendix of these instructions (see section10.2).
According to the ignition risk assessment performed in accordance with EN13463-1:2009,
section 5.2, the non-electrical control valves do not have their own potential ignition source
even in the rare incident of an operating fault. As a result, they do not fall within the scope of
Directive 2014/34/EU.
Î For connection to the equipotential bonding system, observe the requirements specied in
section 6.4 of EN60079-14 (VDE0165 Part 1).
Referenced documentation
The following documents apply in addition to these mounting and operating instructions:
− Mounting and operating instructions for the mounted actuator, e.g. uEB8315 for
Type3379 Pneumatic Actuator
− Mounting and operating instructions for mounted valve accessories (positioner, solenoid
valve, etc.)
− uAB0100 for tools, tightening torques and lubricant
Page 8
8 EB 8115 EN
Safety instructions and measures
1.1 Notes on possible severe personal injury
DANGER
!
Risk of bursting in pressure equipment.
Valves and pipelines are pressure equipment. Improper opening can lead to valve
components bursting.
Î Before starting any work on the valve, depressurize all plant sections concerned as
well as the valve.
Î Drain the process medium from all the plant sections concerned as well as the
valve.
Î Wear personal protective equipment.
1.2 Notes on possible personal injury
WARNING
!
Crush hazard arising from moving parts.
The control valve contains moving parts (actuator and plug stems), which can injure
hands or ngers if inserted into the valve.
Î Do not insert hands or ngers into the yoke while the valve is in operation.
Î While working on the control valve, disconnect and lock the pneumatic air supply.
Risk of personal injury when the pneumatic actuator vents.
While the valve is operating, the actuator may vent during closed-loop control or when
the valve opens or closes.
Î Install the control valve in such a way that the actuator does not vent at eye level.
Î Use suitable silencers and vent plugs.
Î Wear eye protection when working in close proximity to the control valve.
Risk of personal injury due to residual process medium in the valve.
While working on the valve, residual process medium can escape and, depending on
its properties, may lead to personal injury, e.g. (chemical) burns.
Î If possible, drain the process medium from all the plant sections concerned and the
valve.
Î Wear protective clothing, safety gloves, and eyewear.
Page 9
EB 8115 EN 9
Safety instructions and measures
WARNING
!
Risk of burn injuries due to hot or cold components and pipelines.
Depending on the process medium, valve components and pipelines may get very hot
or cold and cause burn injuries.
Î Allow components and pipelines to cool down or heat up.
Î Wear protective clothing and safety gloves.
1.3 Notes on possible property damage
NOTICE
!
Risk of valve damage due to contamination (e.g. solid particles) in the pipeline.
The plant operator is responsible for cleaning the pipelines in the plant.
Î Flush the pipelines before start-up.
Î Observe the maximum permissible pressure for valve and plant.
Risk of valve damage due to unsuitable medium properties.
The valve is designed for a process medium with dened properties.
Î Only use the process medium specied for sizing.
Risk of leakage and valve damage due to excessively high or low tightening torques.
Observe the specied torques on tightening control valve components. Excessively tightened torques lead to parts wearing out quicker. Parts that are too loose may cause leak-
age.
Î Observe the specied tightening torques (uAB0100).
Risk of valve damage due to the use of unsuitable tools.
Certain tools are required to work on the valve.
Î Only use tools approved by SAMSON (uAB0100).
Risk of valve damage due to the use of unsuitable lubricants.
The lubricants to be used depend on the valve material. Unsuitable lubricants may corrode and damage the valve surface.
Î Only use lubricants approved by SAMSON (uAB0100).
Page 10
10 EB 8115 EN
Markings on the device
NOTICE
!
Risk of contamination of the process medium through the use of unsuitable lubricant
and/or contaminated tools and components.
Î Keep the valve and the tools used free from solvents and grease.
Î Make sure that only suitable lubricants are used (uAB0100).
2 Markings on the device
2.1 Valve labeling
6 7
12
14
15
16
17
1…5
9
20
1…5 PED (Pressure Equipment Directive), "Art. 4, Abs. 3"
ID of the notied body, uid group and category
6 Type designation
7 Device index
9 Year of manufacture
12 Production number
14 Flow coefcient: K
VS
15 Characteristic: % (equal percentage)
16 Seat-plug seal:
ME: metal
PK: soft seal with PEEK
17 Seat code (trim material): 00 (1.4404)
20 Country of origin
The details on the device version are lasered onto the valve bonnet (Fig.1). No nameplate is
used.
Page 11
EB 8115 EN 11
Markings on the device
Valve labeling
Fig.1: Valve labeling
2.2 Actuator nameplate
See associated actuator documentation.
Page 12
12 EB 8115 EN
Design and principle of operation
3 Design and principle of oper-
ation
The single-seated Type3321CT Globe Valve
is preferably combined with a SAMSON
Type3379 Pneumatic Actuator.
The seat (2) and plug with plug stem (3) are
installed in the body (1). The plug stem has a
thread to screw it onto the actuator stem and
is sealed by the spring-loaded packing (8).
The process medium ows through the valve
in the direction indicated by the arrow in the
ow-to-open direction. The plug position determines the cross-sectional area between
the seat and plug.
The position of the plug is changed by the
control signal acting on the actuator.
3.1 Fail-safe positions
Depending on how the compression springs
are arranged in the pneumatic actuator, the
valve has two fail-safe positions that become
effective when the supply air fails:
− Fail-close: the valve is closed upon air
supply failure.
− Fail-open: the valve is opened upon air
supply failure.
1 Body
2 Seat
3 Plug
4 Guide bushing
7 Valve bonnet
8 V-ring packing
10 Hexagon screw
13 Body gasket
14 Flange

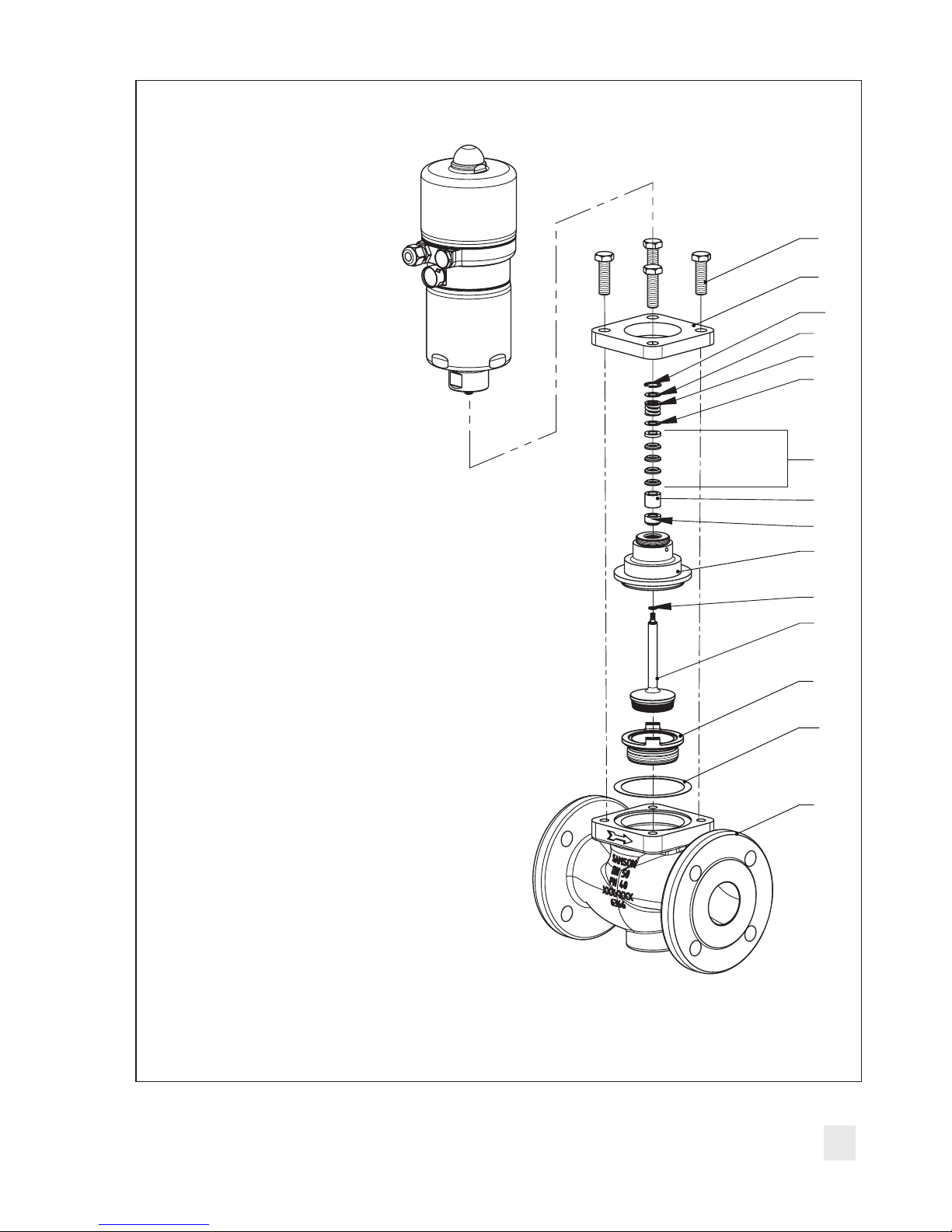

Fig.2: Type3321CT Valve,
DN15 to 25
2
3
10
14
13
4
1
8
7
Page 13
EB 8115 EN 13
Design and principle of operation
1 Body
2 Seat
3 Plug
4 Guide bushing
7 Valve bonnet
8 V-ring packing
10 Hexagon screw
13 Body gasket
14 Flange
2
3
10
14
13
4
1
8
7
Fig.3: Type3321CT Valve, DN32 to 50
Page 14
14 EB 8115 EN
Design and principle of operation
3.2 Technical data
The nameplates on the valve and actuator
provide information on the control valve version. See section2.1 and the actuator documentation.
More information is available in Data Sheet
uT8115.
Noise emission
SAMSON is unable to make general statements about noise emission as it depends on
the valve version, plant facilities and process
medium.
Risk of hearing loss or deafness due to loud
noise.
Wear hearing protection when working near
the valve.
Dimensions and weights
The dimensions and weights are listed in Ta-
ble2.
Refer to the following documents for more
dimensions and weights:
uEB8315 for Type3379 Pneumatic Actua-
tor
uT8395 for Type3724 Electropneumatic
Positioner
Note
WARNING
!
Note
Table1: Technical data
Valve size DN15 to 50
Pressure rating PN16 and 40
Type of connection Flanges with raised face FormB1 according to EN1092-1
Seat-plug seal Metal or soft seal
Characteristic Equal percentage
Rangeability 50 :1
Permissible medium temperature
Standard version 0 to 220°C
Leakage class according to IEC60534-4 or ANSI/FCI70-2
Metal seal IV
Soft seal VI
Compliance
Page 15
EB 8115 EN 15
Design and principle of operation

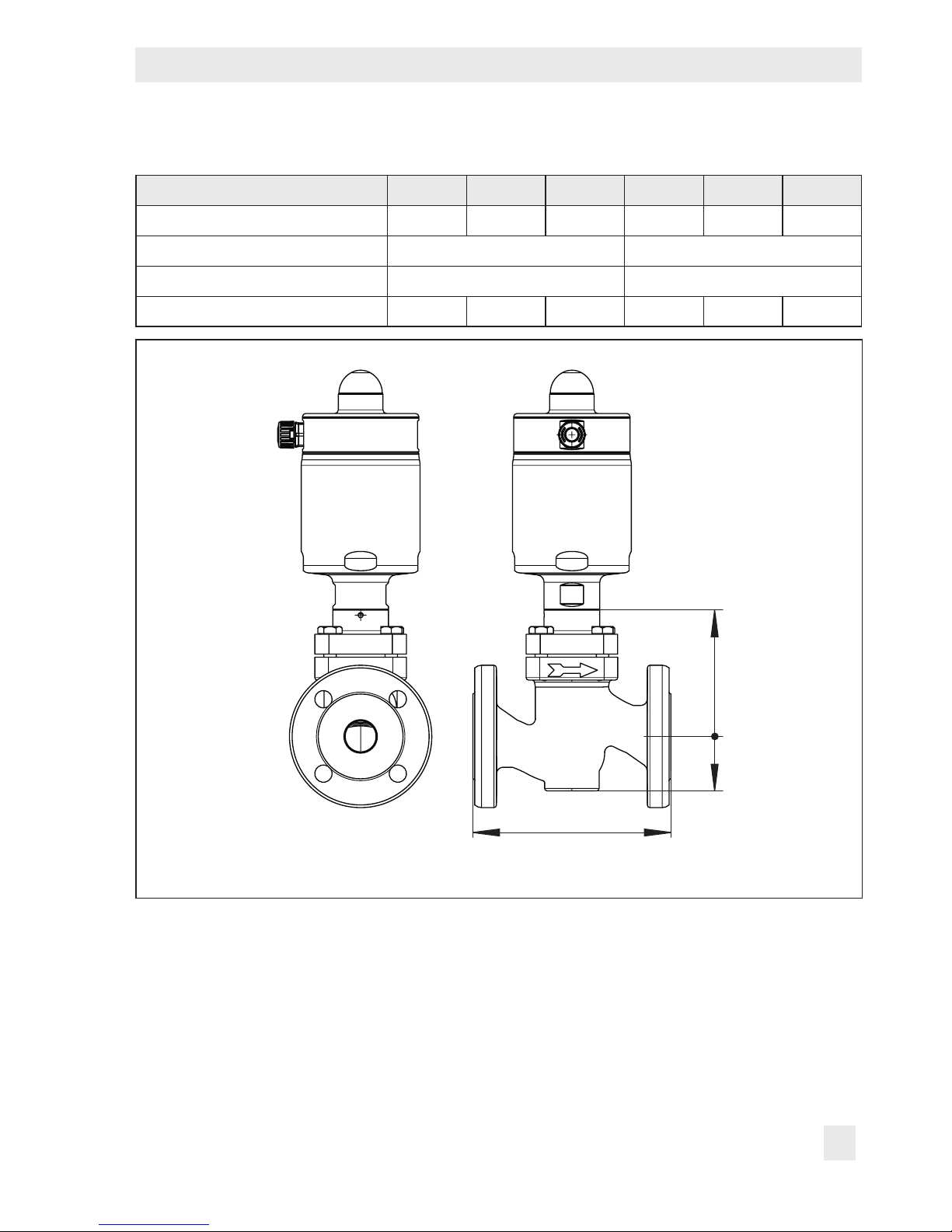

Table2: Dimensions and weights
DN 15 20 25 32 40 50
L 130 150 160 180 200 230
H1 102 114
H2 40 72
Weight 5 6 7 11 12 16
L
H1
H2
Type3321CT
Page 16
16 EB 8115 EN
Measures for preparation
4 Measures for preparation
After receiving the shipment, proceed as follows:
1. Check the scope of delivery. Compare
the shipment received with the delivery
note.
2. Check the shipment for transportation
damage. Report any damage to SAMSON and the forwarding agent (refer to
delivery note).
4.1 Unpacking
Do not remove the packaging until immediately before installing the valve into the pipeline.
Proceed as follows to lift and install the
valve:
1. Remove the packaging from the valve.
2. Dispose of the packaging in accordance
with the valid regulations.
Risk of valve damage due to foreign particles entering the valve.
The protective caps tted on the valve's inlet
and outlet prevent foreign particles from entering the valve and damaging it.
Do not remove the protective caps until immediately before installing the valve into the
pipeline.
4.2 Transporting and lifting
Hazard due to suspended loads falling.
Stay clear of suspended or moving loads.
Risk of lifting equipment tipping and risk of
damage to lifting accessories due to exceeding the rated lifting capacity.
− Only use approved lifting equipment and
accessories whose minimum lifting
capacity is higher than the weight of the
valve (including actuator, if applicable).
− Refer to section3.2 or Data Sheet
uT8115 for weights.
Risk of personal injury due to the control
valve tipping.
− Observe the valve's center of gravity.
− Secure the valve against tipping over or
turning.
Note
NOTICE
!
DANGER
!
WARNING
!
WARNING
!
Page 17
EB 8115 EN 17
Measures for preparation
Risk of valve damage due to incorrectly attached slings.
− When lifting the control valve, make sure
that the slings attached to the valve body
bear the entire load.
− Do not attach load-bearing slings to the
actuator, handwheel or any other parts.
− Observe lifting instructions (see sec-
tion4.2.2).
SAMSON's After-sales Service department
can provide more detailed transport and lifting instructions on request.
4.2.1 Transporting
The control valve can be transported using
lifting equipment (e.g. crane or forklift).
Î Leave the control valve in its transport
container or on the pallet to transport it.
Î Observe the transport instructions.
Transport instructions
− Protect the control valve against external
inuences (e.g. impact).
− Do not damage the corrosion protection
(paint, surface coatings). Repair any
damage immediately.
− Protect the control valve against moisture
and dirt.
− The permissible transportation tempera-
ture of standard control valves is –20 to
+65°C.
Contact SAMSON's After-sales Service department for the transportation temperatures
of other valve versions.
4.2.2 Lifting
To install a large valve into the pipeline, use
lifting equipment (e.g. crane or forklift) to lift
it.
Lifting instructions
− Secure slings against slipping.
− Make sure the slings can be removed
from the valve once it has been installed
into the pipeline.
− Prevent the control valve from tilting or
tipping.
− Do not leave loads suspended when in-
terrupting work for longer periods of
time.
− Make sure that the axis of the pipeline is
always horizontal during lifting and the
axis of the plug stem is always vertical.
NOTICE
!
Tip
Note
Page 18
18 EB 8115 EN
Measures for preparation

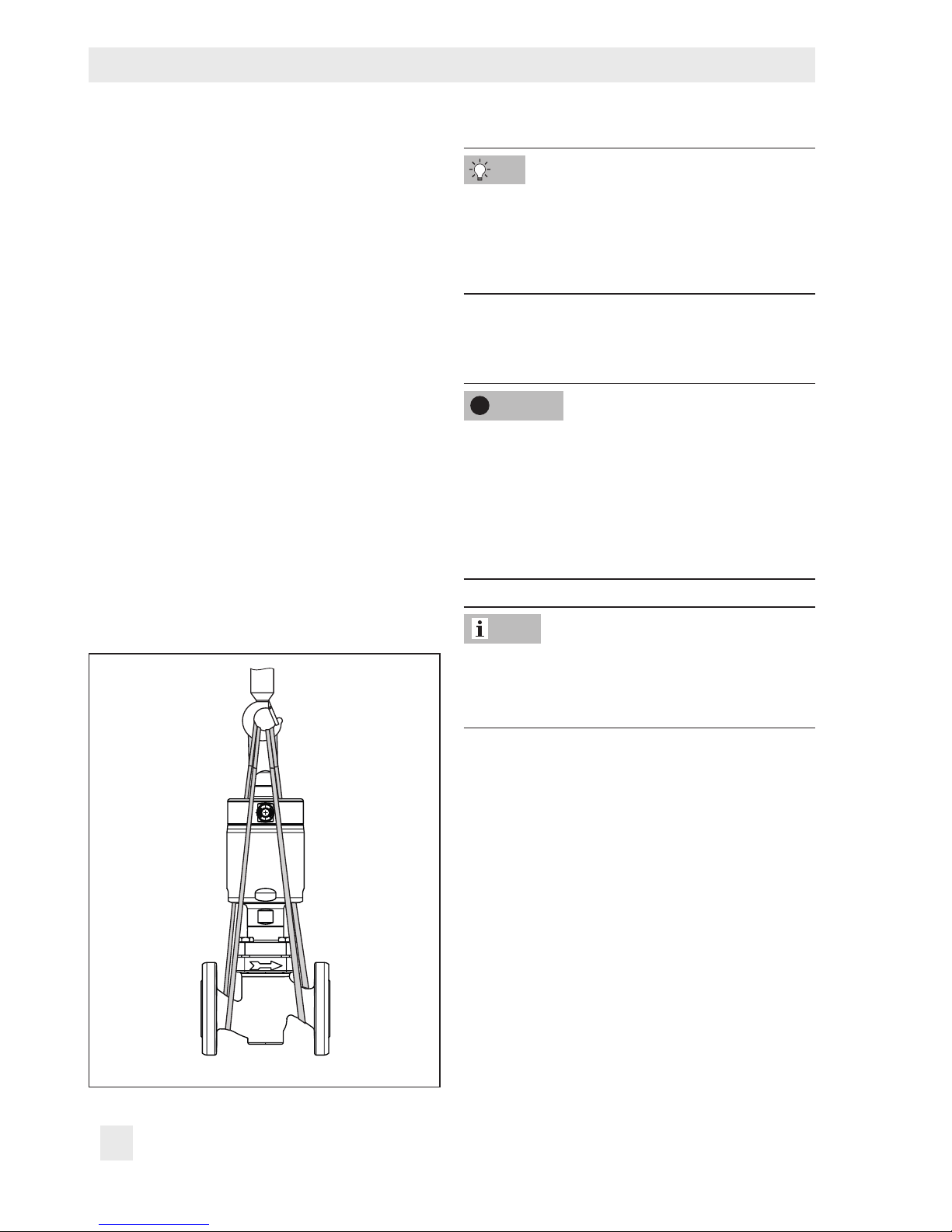

Fig.4: Lifting points on the control valve
Lifting the control valve
1. Attach one sling to each ange of the
body and to the rigging equipment (e.g.
hook) of the crane or forklift (see Fig.4).
2. Carefully guide two slings around the actuator. Secure the slings against slipping
by using a connector.
3. Carefully lift the control valve. Check
whether the lifting equipment and accessories can bear the weight.
4. Move the control valve at an even pace
to the site of installation.
5. Install the valve into the pipeline (see sec-
tion5.2.3).
6. After installation in the pipeline, check
whether the anges are bolted tight and
the valve in the pipeline holds.
7. Remove slings.
We recommend using a hook with safety
latch (see Fig.4). The safety latch prevents
the slings from slipping during lifting and
transporting.
4.3 Storage
Risk of valve damage due to improper storage.
− Observe storage instructions.
− Avoid long storage times.
− Contact SAMSON in case of different stor-
age conditions or long storage periods.
We recommend regularly checking the control valve and the prevailing storage conditions during long storage periods.
Storage instructions
− Protect the control valve against external
inuences (e.g. impact).
− Do not damage the corrosion protection
(paint, surface coatings). Repair any
damage immediately.
− Protect the control valve against moisture
and dirt. Store it at a relative humidity of
less than 75%. In damp spaces, prevent
condensation. If necessary, use a drying
agent or heating.
Tip
NOTICE
!
Note
Page 19
EB 8115 EN 19
Measures for preparation
− Make sure that the ambient air is free of
acids or other corrosive media.
− The permissible storage temperature of
standard control valves is –20 to +65°C.
Contact SAMSON's After-sales Service department for the storage temperatures of other valve versions.
− Do not place any objects on the control
valve.
SAMSON's After-sales Service department
can provide more detailed storage instructions on request.
4.4 Preparation for installation
Proceed as follows:
Î Flush the pipelines.
The plant operator is responsible for cleaning the pipelines in the plant.
Î Check the valve to make sure it is clean.
Risk of contamination of the process medium
through the use of unsuitable lubricant and/
or contaminated tools and components.
− Keep the valve and the tools used free from
solvents and grease.
− Make sure that only suitable lubricants are
used.
Î Check the valve for damage.
Î Check to make sure that the type desig-
nation, valve size, material, pressure rating and temperature range of the valve
match the plant conditions (size and
pressure rating of the pipeline, medium
temperature, etc.).
Î Check any mounted pressure gauges to
make sure they function.
Î When the valve and actuator are al-
ready assembled, check the tightening
torques of the bolted joints (uAB0100).
Components may loosen during transport.
Note
Tip
Note
NOTICE
!
Page 20
20 EB 8115 EN
Mounting and start-up
5 Mounting and start-up
SAMSON valves are delivered ready for
use. In special cases, the valve and actuator
are delivered separately and must be assem-
bled on site. Proceed as follows to mount
and start up the valve.
Risk of valve damage due to excessively high
or low tightening torques.
Observe the specied torques on tightening
control valve components. Excessively tightened torques lead to parts wearing out
quicker. Parts that are too loose may cause
leakage.
Observe the specied tightening torques
(uAB0100).
Risk of valve damage due to the use of unsuitable tools.
Only use tools approved by SAMSON
(uAB0100).
Risk of contamination of the process medium
through the use of unsuitable lubricant and/
or contaminated tools and components.
− Keep the valve and the tools used free from
solvents and grease.
− Make sure that only suitable lubricants are
used.
5.1 Mounting the actuator onto
the valve
1. Make sure that the valve is completely
open (the plug stem is completely retracted).
Version with "actuator stem extends"
fail-safe action: apply a signal pressure
that corresponds to the upper bench
range value to the connection on the bottom diaphragm chamber.
Version with "actuator stem retracts"
fail-safe action: make sure that no signal
pressure is applied to the actuator.
2. Undo the hexagon screws (10) on the
valve bonnet (7).
3. Lift the ange (14), valve bonnet (7) to-
gether with the plug and plug stem (3)
off the body (1).
4. Apply a suitable thread-locking uid to
the female thread of the actuator stem.
5. Screw the plug stem (3) into the actuator
stem. Observe tightening torques.
6. Apply a suitable lubricant to the thread
of the valve bonnet (7).
7. Screw the valve bonnet (7) into the actu-
ator base until it reaches the metal stop.
Observe tightening torques.
8. Carefully place the actuator, valve bon-
net (7), ange (14) and plug with plug
stem (3) onto the body (1).
Make sure that the marking on the valve
bonnet are aligned with the front of the
valve (see Fig.6).
NOTICE
!
NOTICE
!
NOTICE
!
Page 21
EB 8115 EN 21
Mounting and start-up
2
3
10
14
13
4
1
8
7
Marking on the
valve bonnet
Front of the valve
1 Body
2 Seat
3 Plug
4 Guide bushing
7 Valve bonnet
8 V-ring packing
10 Hexagon screw
13 Body gasket
14 Flange
Fig.5: Type3321CT Valve
Fig.6: Aligning the
valve bonnet
Page 22
22 EB 8115 EN
Mounting and start-up
Make sure that the gasket (13) is seated
properly in the body.
9. Apply a suitable lubricant to the hexagon screws (10).
10. Firmly press the plug (3) into the seat (2),
while fastening down the valve bonnet
(7) with the hexagon screws (10). Tighten the screws gradually in a crisscross
pattern. Observe tightening torques.
11. For further instructions concerning
Type3379 Actuator (pneumatic connections, alignment of the actuator, etc.)
uEB8315.
5.2 Installing the valve into the
pipeline
5.2.1 Checking the installation
conditions
Pipeline routing
The inlet and outlet lengths vary depending
on the process medium. To ensure the control
valve functions properly, follow the installation instructions given below:
Î Observe the inlet and outlet lengths (see
Table3). Contact SAMSON if the valve
conditions or state of the medium process
deviate.
Î Install the valve free of stress and with the
least amount of vibrations as possible. If
necessary, attach supports to the valve.
Î Install the valve allowing sufcient space
to remove the actuator and valve or to
perform service and repair work on
them.
Mounting position
Generally, we recommend installing the
valve with the actuator upright and on top of
the valve.
Î Contact SAMSON if the mounting posi-
tion is not as specied above.
Support or suspension
Depending on the valve version and mounting position, the control valve and pipeline
must be supported or suspended. The plant
engineering company is responsible in this
case.
Premature wear and leakage due to insufcient support or suspension.
In the following versions, the control valve
must be supported or suspended:
− Valves that are not installed with the actua-
tor in the upright position on top of the
valve.
Attach a suitable support or suspension to
the valve.
Vent plug
Vent plugs are screwed into the exhaust air
ports of pneumatic and electropneumatic devices. They ensure that any exhaust air that
forms can be vented to the atmosphere (to
avoid excess pressure in the device). Furthermore, the vent plugs allow air intake to prevent a vacuum from forming in the device.
Î Locate the vent plug on the opposite side
to the workplace of operating personnel.
NOTICE
!
Page 23
EB 8115 EN 23
Mounting and start-up
Table3: Inlet and outlet lengths
Q
a x DN b x DN
a x NPS
b x NPS
State of process
medium
Valve conditions Inlet length a Outlet length b
Gas
Ma≤0.3 2 4
0.3≤Ma≤0.7 2 10
Vapor
Ma≤0.3
1)
2 4
0.3≤Ma≤0.7
1)
2 10
Saturated steam (percentage of
condensate >5%)
2 20
Liquid
Free of cavitation/w<10m/s 2 4
Cavitation producing noise/w≤3m/s 2 4
Cavitation producing noise/3<w<5m/s 2 10
1)
No saturated steam
Q Flow rate
a Inlet length
b Outlet length
Page 24
24 EB 8115 EN
Mounting and start-up
Î On mounting valve accessories, make
sure that they can be operated from the
workplace of the operating personnel.
The workplace of operating personnel is the
location from which the valve, actuator and
any mounted valve accessories can be accessed to operate them.
5.2.2 Additional ttings
Strainers
We recommend installing a SAMSON
strainer upstream of the valve. It prevents solid particles in the process medium from
damaging the valve.
Bypass and shut-off valves
We recommend installing a shut-off valve
both upstream of the strainer and downstream of the valve and installing a bypass
line. The bypass ensures that the plant does
not need to be shut down for service and repair work on the valve.
5.2.3 Installing the control
valve
1. Close the shut-off valve in the pipeline
while the valve is being installed.
2. Remove the protective caps from the
valve ports before installing the valve.
3. Lift the valve using suitable lifting equip-
ment to the site of installation (see sec-
tion4.2.2). Observe the ow direction
through the valve. The arrow on the
valve indicates the direction of ow.
4. Make sure that the correct ange gaskets
are used.
5. Bolt the pipe to the valve free of stress.
6. Depending on the eld of application,
allow the valve to cool down or heat up
to reach ambient temperature before
start up.
7. Slowly open the shut-off valve in the
pipeline after the valve has been installed.
Risk of valve damage due to a sudden pressure increase and resulting high ow velocities.
Slowly open the shut-off valve in the pipeline
during start-up.
8. Check the valve to ensure it functions
properly.
5.3 Preparing for operation
Proceed as follows:
Î Flush the pipelines.
Î Check the valve to make sure it is clean.
Risk of contamination of the process medium
through the use of unsuitable lubricant and/
or contaminated tools and components.
− Keep the valve and the tools used free from
solvents and grease.
− Make sure that only suitable lubricants are
used.
Note
NOTICE
!
NOTICE
!
Page 25
EB 8115 EN 25
Mounting and start-up
5.4 Quick check
SAMSON valves are delivered ready for
use. To test the valve's ability to function, the
following quick checks can be performed:
Tight shut-off
1. Close the valve.
2. Slowly open the shut-off valve in the
pipeline.
Risk of valve damage due to a sudden
pressure increase and resulting high ow
velocities.
Slowly open the shut-off valve in the pipeline
during start-up.
3. Check the valve for leakage (visual inspection).
Travel motion
The movement of the actuator stem must be
linear and smooth.
Î Open and close the valve, observing the
movement of the actuator stem.
Î Apply the maximum and minimum con-
trol signals to check the end positions of
the valve.
Fail-safe position
Î Shut off the signal pressure line.
Î Check whether the valve moves to the
fail-safe position.
Pressure test
During the pressure test, make sure the following conditions are met:
− Retract the plug stem to open the valve.
− Observe the maximum permissible pres-
sure for valve and plant.
The plant operator is responsible for
performing the pressure test. SAMSON's
After-sales Service department can support
you to plan and perform a pressure test for
your plant.
NOTICE
!
Note
Page 26
26 EB 8115 EN
Operation
6 Operation
The valve is ready for use when mounting
and start-up (see section5) have been completed.
Risk of personal injury when the actuator
vents.
Wear eye protection when working in close
proximity to the control valve.
Risk of burn injuries due to hot or cold components and pipelines.
Depending on the process medium, valve
components and pipelines may get very hot
or cold and cause burn injuries.
Wear protective clothing and safety gloves.
Operation disturbed by a blocked actuator
or plug stem.
Do not impede the movement of the actuator
or plug stem by inserting objects into their
path.
WARNING
!
WARNING
!
NOTICE
!
Page 27
EB 8115 EN 27
Servicing
7 Servicing
The control valve is subject to normal wear,
especially at the seat, plug and packing. Depending on the operating conditions, check
the valve at regular intervals to prevent possible failure before it can occur.
SAMSON's After-sales Service department
can support you in drawing up an inspection
and test plan for your plant.
We recommend removing the valve from the
pipeline for service or repair work (see sec-
tion9.2).
Risk of bursting in pressure equipment.
Valves and pipelines are pressure equipment. Improper opening can lead to bursting
of the valve.
− Before starting any work on the valve, de-
pressurize all plant sections concerned as
well as the valve.
− Drain the process medium from all the
plant sections concerned as well as the
valve.
− Wear personal protective equipment.
Risk of personal injury due to residual process medium in the valve.
While working on the valve, residual process
medium can escape and, depending on its
properties, may lead to personal injury, e.g.
(chemical) burns.
Wear protective clothing, safety gloves, and
eyewear.
Risk of burn injuries due to hot or cold components and pipeline.
Valve components and the pipeline may become very hot or cold. Risk of burn injuries.
− Allow components and pipelines to cool
down or heat up.
− Wear protective clothing and safety gloves.
Risk of valve damage due to incorrect servicing or repair.
Service and repair work must only be
performed by trained staff.
Risk of valve damage due to excessively high
or low tightening torques.
Observe the specied torques on tightening
control valve components. Excessively tightened torques lead to parts wearing out
quicker. Parts that are too loose may cause
leakage.
Observe the specied tightening torques
(uAB0100).
Risk of valve damage due to the use of unsuitable tools.
Only use tools approved by SAMSON
(uAB0100).
Tip
DANGER
!
WARNING
!
WARNING
!
NOTICE
!
NOTICE
!
NOTICE
!
Page 28
28 EB 8115 EN
Servicing
Risk of valve damage due to the use of unsuitable lubricants.
Only use lubricants approved by SAMSON
(uAB0100).
Risk of contamination of the process medium
through the use of unsuitable lubricant and/
or contaminated tools and components.
− Keep the valve and the tools used free from
solvents and grease.
− Make sure that only suitable lubricants are
used.
The control valve was checked by SAMSON
before it left the factory.
− Certain test results (seat leakage and leak
test) certied by SAMSON lose their
validity when the valve body or actuator
housing is opened.
− The product warranty becomes void if
service or repair work not described in
these instructions is performed without
prior agreement by SAMSON's After-sales
Service department.
− Only use original spare parts by
SAMSON, which comply with the original
specications.
Preparing the valve for servicing
1. Put the control valve out of operation (see
section9.1).
2. Remove the valve from the pipeline (see
section9.2).
3. Make sure that the valve is completely
open (the plug stem is completely retracted).
Version with "actuator stem extends"
fail-safe action: apply a signal pressure
that corresponds to the upper bench
range value to the connection on the bottom diaphragm chamber.
Version with "actuator stem retracts"
fail-safe action: make sure that no signal
pressure is applied to the actuator.
7.1 Replacing the gasket
1. Undo the hexagon screws (10) on the
valve bonnet (7).
2. Lift the actuator, ange (14), valve bonnet (7) and plug with plug stem (3) off
the body (1).
3. Remove the gasket (13). Carefully clean
the sealing faces in the valve body (1)
and on the ange bonnet (7).
4. Insert a new gasket (13) into the body.
5. Carefully place the actuator, valve bon-
net (7), ange (14) and plug with plug
stem (3) onto the body (1).
Make sure that the marking on the valve
bonnet are aligned with the front of the
valve (see Fig.6).
6. Apply a suitable lubricant to the hexagon screws (10).
7. Firmly press the plug (3) into the seat (2),
while fastening down the valve bonnet
(7) with the hexagon screws (10). Tight-
NOTICE
!
NOTICE
!
Note
Page 29
EB 8115 EN 29
Servicing
2
3
10
14
13
4
1
8
7
Marking on the
valve bonnet
Front of the valve
1 Body
2 Seat
3 Plug
4 Guide bushing
7 Valve bonnet
8 V-ring packing
10 Hexagon screw
13 Body gasket
14 Flange
Fig.7: Type3321CT Valve
Fig.8: Aligning the
valve bonnet
Page 30
30 EB 8115 EN
Servicing
3 Plug stem
4 Guide bushing
5 Spring
6 Washer
8 V-ring packing
9 Spacer
11 Retaining washer
12 Snap ring
8
11
9
3
4
5
12
6
Fig.9: Packing
11
3
Fig.10: Aligning the retaining washer
en the screws gradually in a crisscross
pattern. Observe tightening torques.
7.2 Replacing the packing
1. Undo the hexagon screws (10) on the
valve bonnet (7).
2. Lift the actuator, ange (14), valve bonnet (7) and plug with plug stem (3) off
the body (1).
3. Replace the gasket as described in sec-
tion7.1.
4. Unscrew the valve bonnet (7) from the
actuator base.
5. Unscrew the plug stem (3) from the actuator stem.
6. Pull the plug with plug stem (5) out of the
valve bonnet (7).
7. Pull all the packing parts out of the pack-
ing chamber using a suitable tool.
8. Renew damaged parts. Clean the packing chamber thoroughly.
9. Apply a suitable lubricant to all the pack-
ing parts and to the plug stem (3).
10. Make sure that the guide bushing (4)
and spacer (9) are seated correctly in the
valve bonnet (7).
11. Insert the packing parts into the packing
chamber. Observe the proper sequence
(see Fig.9).
12. Place the retaining ring (12) on the pack-
ing parts.
13. Use a suitable tool to press the packing
together until the retaining ring (12) is
seated in the groove of the valve bonnet
(7).
Page 31
EB 8115 EN 31
Servicing
14. Place the retaining washer (11) from
above onto the plug stem (3). Observe
the proper alignment (see Fig.10).
15. Carefully slide the plug stem (3) into the
valve bonnet (7).
16. Apply a suitable thread-locking uid to
the female thread of the actuator stem.
17. Screw the plug stem (3) into the actuator
stem. Observe tightening torques.
18. Apply a suitable lubricant to the thread
of the valve bonnet (7).
19. Screw the valve bonnet (7) into the actu-
ator base until it reaches the metal stop.
Observe tightening torques.
20. Carefully place the actuator, valve bon-
net (7), ange (14) and plug with plug
stem (3) onto the body (1).
Make sure that the marking on the valve
bonnet are aligned with the front of the
valve (see Fig.8).
Make sure that the gasket (13) is seated
properly in the body.
21. Apply a suitable lubricant to the hexagon screws (10).
22. Firmly press the plug (3) into the seat (2),
while fastening down the valve bonnet
(7) with the hexagon screws (10). Tighten the screws gradually in a crisscross
pattern. Observe tightening torques.
23. For further instructions concerning
Type3379 Actuator (pneumatic connec-
tions, alignment of the actuator, etc.)
uEB8315.
7.3 Replacing the seat and
plug
Risk of damage to the facing of the seat and
plug due to incorrect service or repair.
Always replace both the seat and plug.
When replacing the seat and plug, we also
recommend replacing the gasket and packing. See sections7.1 and 7.2.
1. Undo the hexagon screws (10) on the
valve bonnet (7).
2. Lift the actuator, ange (14), valve bon-
net (7) and plug with plug stem (3) off
the body (1).
3. Replace the gasket as described in sec-
tion7.1.
4. Unscrew the seat (4) using a suitable
tool.
5. Apply a suitable lubricant to the thread
and the sealing cone of the new seat.
6. Screw in the seat (4). Observe tightening
torques.
7. Unscrew the valve bonnet (7) from the
actuator base.
8. Unscrew the plug stem (3) from the actu-
ator stem.
9. Pull the plug with plug stem (5) out of the
valve bonnet (7).
10. Pull all the packing parts out of the pack-
ing chamber using a suitable tool.
NOTICE
!
NOTICE
!
Tip
Page 32
32 EB 8115 EN
Servicing
11. Apply a suitable lubricant to all the pack-
ing parts and to the new plug stem (3).
We recommend replacing the packing as
well. See section7.2.
12. Make sure that the guide bushing (4)
and spacer (9) are seated correctly in the
valve bonnet (7).
13. Insert the packing parts into the packing
chamber. Observe the proper sequence
(see Fig.9).
14. Place the retaining ring (12) on the pack-
ing parts.
15. Use a suitable tool to press the packing
together until the retaining ring (12) is
seated in the groove of the valve bonnet
(7).
16. Place the retaining washer (11) from
above onto the new plug stem (3). Observe the proper alignment (see Fig.10).
17. Carefully slide the new plug stem with
plug (3) into the valve bonnet (7).
18. Apply a suitable thread-locking uid to
the female thread of the actuator stem.
19. Screw the plug stem (3) into the actuator
stem. Observe tightening torques.
20. Apply a suitable lubricant to the thread
of the valve bonnet (7).
21. Screw the valve bonnet (7) into the actu-
ator base until it reaches the metal stop.
Observe tightening torques.
22. Carefully place the actuator, valve bon-
net (7), ange (14) and plug with plug
stem (3) onto the body (1).
Make sure that the marking on the valve
bonnet are aligned with the front of the
valve (see Fig.8).
Make sure that the gasket (13) is seated
properly in the body.
23. Apply a suitable lubricant to the hexagon screws (10).
24. Firmly press the plug (3) into the seat (2),
while fastening down the valve bonnet
(7) with the hexagon screws (10). Tighten the screws gradually in a crisscross
pattern. Observe tightening torques.
25. For further instructions concerning
Type3379 Actuator (pneumatic connections, alignment of the actuator, etc.)
uEB8315.
7.4 Preparation for return ship-
ment
Defective valves can be returned to
SAMSON for repair.
Proceed as follows to return devices to
SAMSON:
1. Put the control valve out of operation (see
section9).
2. Decontaminate the valve. Remove any
residual process medium.
3. Fill in the Declaration on Contamination,
which can be downloaded from our
website at uwww.samson.de > SERVICE
& SUPPORT > After-sales Service > Declaration on Contamination.
4. Send the valve together with the lled-in
form to your nearest SAMSON
subsidiary. SAMSON subsidiaries are
Page 33
EB 8115 EN 33
Servicing
listed on our website at
uwww.samson.de > About SAMSON.
7.5 Ordering spare parts and
operating supplies
Contact your nearest SAMSON subsidiary
or the SAMSON After-sales Service department for information on spare parts, lubricants and tools.
Spare parts
See section10.3 for details on spare parts.
Lubricants
Details on suitable lubricants can be found in
the document uAB0100.
Tools
Details on suitable tools can be found in the
document uAB0100.
Page 34
34 EB 8115 EN
Malfunctions
8 Malfunctions
Depending on the operating conditions, check the valve at certain intervals to prevent possible failure before it can occur. Operators are responsible for drawing up an inspection and
test plan.
SAMSON's After-sales Service department can support you in drawing up an inspection and
test plan for your plant.
8.1 Troubleshooting
Faults Possible reasons Recommended action
Actuator or plug stem does not
move on demand.
Actuator is blocked. Check attachment.
Unblock the actuator.
Signal pressure too low Check the signal pressure.
Check the signal pressure line
for leakage.
Actuator or plug stem does not
move through the whole range.
Signal pressure too low Check the signal pressure.
Check the signal pressure line
for leakage.
The valve leaks to the
atmosphere (fugitive emissions).
The packing is defective. Replace packing (see
section7.2) or contact
SAMSON's After-sales Service
department.
Flange joint loose or gasket
worn out.
Check the ange joint.
Replace gasket at the anged
joint (see section7.1 or contact
SAMSON's After-sales Service
department).
Increased ow through closed
valve (seat leakage)
Dirt or other foreign particles
deposited between the seat and
plug.
Shut off the section of the
pipeline and ush the valve.
Valve trim, particularly with soft
seat, is worn.
Replace seat and plug (see
section7.3 or contact
SAMSON's After-sales Service
department).
Tip
Page 35
EB 8115 EN 35
Malfunctions
Contact SAMSON's After-sales Service department for malfunctions not listed in the table.
8.2 Emergency action
Upon supply air or control signal failure, the
valve moves to its fail-safe position (see sec-
tion3.1).
The plant operator is responsible for emergency action to be taken in the plant.
In the event of a valve malfunction:
1. Close the shut-off valves upstream and
downstream of the control valve to stop
the process medium from owing
through the valve.
2. Check the valve for damage. If neces-
sary, contact SAMSON's After-sales Service department.
Putting the valve back into operation after
a malfunction
Î Slowly open the shut-off valves. Allow
the process medium to slowly ow into
the valve.
Note
Page 36
36 EB 8115 EN
Decommissioning and disassembly
9 Decommissioning and disas-
sembly
Risk of bursting in pressure equipment.
Valves and pipelines are pressure equipment. Improper opening can lead to bursting
of the valve.
− Before starting any work on the valve, de-
pressurize all plant sections concerned as
well as the valve.
− Drain the process medium from all the
plant sections concerned as well as the
valve.
− Wear personal protective equipment.
Risk of personal injury due to residual process medium in the valve.
While working on the valve, residual process
medium can escape and, depending on its
properties, may lead to personal injury, e.g.
(chemical) burns.
Wear protective clothing, safety gloves, and
eyewear.
Risk of burn injuries due to hot or cold components and pipeline.
Valve components and the pipeline may become very hot or cold. Risk of burn injuries.
− Allow components and pipelines to cool
down or heat up.
− Wear protective clothing and safety gloves.
9.1 Decommissioning
To decommission the control valve for service
and repair work or disassembly, proceed as
follows:
1. Close the shut-off valves upstream and
downstream of the control valve to stop
the process medium from owing
through the valve.
2. Completely drain the pipelines and
valve.
3. Disconnect and lock the pneumatic air
supply to depressurize the actuator.
4. If necessary, allow the pipeline and valve
components to cool down or heat up.
9.2 Removing the valve from
the pipeline
1. Put the control valve out of operation (see
section9.1).
2. Unbolt the ange joint.
3. Remove the valve from the pipeline (see
section4.2).
9.3 Disposal
Î Observe local, national and internation-
al refuse regulations.
Î Do not dispose of components, lubricants
and hazardous substances together with
your household waste.
DANGER
!
WARNING
!
WARNING
!
Page 37
EB 8115 EN 37
Appendix
10 Appendix
10.1 After-sales service
Contact SAMSON's After-sales Service department for support concerning service or
repair work or when malfunctions or defects
arise.
E-mail
You can reach the After-sales Service Department at aftersalesservice@samson.de.
Addresses of SAMSONAG and its subsidiaries
The addresses of SAMSON AG, its subsidiaries, representatives and service facilities
worldwide can be found on the SAMSON
website (www.samson.de) or in all SAMSON
product catalogs.
Required specications
Please submit the following details:
− Order number and position number in
the order
− Type, model number, nominal size and
valve version
− Pressure and temperature of the process
medium
− Flow rate in m³/h
− Bench range of the actuator (e.g. 2.3 to
3.7bar)
− Is a strainer installed?
− Installation drawing
10.2 Certicates
The EU declaration of conformity is provided
on the next page.
Page 38
38 EB 8115 EN
Vaulx-en-Velin, 10/05/17
B.Lauterjung J. Signoles-Fontaine
Responsable du Bureau d’Etudes/ Leiter der Entwicklung Responsable Qu alité / Leiter der Qualitätssich erung
Design Manager Quality manager
DECLARATION DE CONFORMITE A LA DIRECTIVE
EQUIPEMENTS SOUS PRESSION 2014/68/UE
N° PED-030
Fabricant :
Samson Régulation SA
1, rue Jean Corona
F-69511 Vaulx-en-Velin Cedex
Description de l’équipement sous pression :
Vanne de régulation 2 voies type 3321
Matière des corps: 1.0619/A216WCC, 1.4408/A351 CF8M
DN 15 - 25 NPS ½ - 1
Classement de l’équipement selon la Directive:
Tuyauterie visée à l’article 4 point 3
DN 32 - 100 NPS 1 ½ - 4
Classement de l’équipement selon la Directive:
Tuyauterie visée à l’article 4 point 1.c) tout type de fluide
Procédure d’évaluation de conformité utilisée:
Module H assurance complète de qualité concernée par
l'approbation: N° CE-PED-H-SAM 001-17-FRA émise par le
Bureau Veritas le 28/04/17.
Nom et adresse de l’organisme notifié effectuant le contrôle :
Bureau Veritas S.A.
Newtime
52 Bd du Parc – Ile de la Jatte 92200 NEUILLY-SUR-SEINE
Normes utilisées pour la conception: DIN-EN 12 516-2, ASME B
16.34, DIN-EN 1092-1, DIN-EN 60534-4
Autres Directives Européennes prises en compte le cas échéant :
98/37/CE, 2006/42/CE, 93/68/CEE, 2006/95/CE, 2004/108/CE,
94/9/CE.
KONFORMITÄTSERKLÄRUNG
GEMÄSS DRUCKGERÄTE-RICHTLINIE 2014/68/EG
Nr PED-030
Hersteller :
Samson Régulation SA
1, rue Jean Corona
F-69511 Vaulx-en-Velin Cedex
Beschreibung des Druckgerätes :
Durchgangsventil Typ 3321
Gehäusewerkstoff : 1.0619/A216WCC, 1.4408/A351 CF8M
DN 15 - 25 NPS ½ - 1
Die Geräte sind geeignet für Medien gemäss:
Rohrleitung Artikel 4 Nummer 3
DN 32 - 100 NPS 1 ½ - 4
Die Geräte sind geeignet für Medien gemäss:
Rohrleitung Artikel 4 Nummer 1.c) alle Fluide
Angewandtes Konformitätsbewertungsverfahren:
Modul H umfassende Qualitätversicherung betreffen die
Übereinstimmung: Nr CE-PED-H-SAM 001-17-FRA des
Bureau Veritas vom 28/04/17.
Name und Anschrift der benannten Stelle, welche das
Qualitätssicherungssystem überwacht:
Bureau Veritas S.A.
Newtime
52 Bd du Parc – Ile de la Jatte 92200 NEUILLY-SUR-SEINE
Dem Entwurf zugrundegelegt sind die Verfahren aus: DIN-EN 12
516-2, ASME B 16.34, DIN-EN 1092-1, DIN-EN 60534-4
Andere eventuell angewandte Gemeinschaftsrichtlinien: 98/37/EG,
2006/42/EG, 93/68/EWG, 2006/95/EG, 2004/108/EG, 94/9/EG.
DECLARATION OF CONFORMITY TO THE PRESSURE
EQUIPMENT DIRECTIVE 2014/68/EU
Nb PED-030
Manufacturer:
Samson Régulation SA
1, rue Jean Corona
F-69511 Vaulx-en-Velin Cedex
Description of pressure equipment: 2-way Valve type 3321
Material of the body: 1.0619/A216WCC, 1.4408/A351 CF8M
DN 15 - 25 NPS ½ - 1
Classification of the equipment: Acc. to piping article 4
paragraph 3
DN 32 - 100 NPS 1 ½ - 4
Classification of the equipment: Acc. to piping article 4
paragraph 1.c) all kinds of fluids
Conformity assessment procedure followed:
Module H complete insurance of quality concerned by the
approval: Nb. CE-PED-H-SAM 001-17-FRA from Bureau
Veritas on 28/04/17.
Name and address of notified body:
Bureau Veritas S.A.
Newtime
52 Bd du Parc – Ile de la Jatte 92200 NEUILLY-SUR-SEINE
Standards and specifications used: DIN-EN 12 516-2, ASME B
16.34, DIN-EN 1092-1, DIN-EN 60534-4.
Other eventual Community Directives applied: 98/37/EC,
2006/42/EC, 93/68/EEC, 2006/95/EC, 2004/108/EC, 94/9/EC.
Page 39
EB 8115 EN 39
10.3 Spare parts
1
Body
2
Seat
3
Plug
4
Guide bushing
5
Spring
6
Washer
7
Valve bonnet
8
V-ring packing
9
Spacer
10
Hexagon screw
11
Retaining washer
12
Snap ring
13
Body gasket
14
Flange
1
13
2
3
7
14
10
4
9
8
6
5
6
12
9
Type3379
Type3321CT
Page 40
SAMSON AG · MESS- UND REGELTECHNIK
Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany
Phone: +49 69 4009-0 · Fax: +49 69 4009-1507
samson@samson.de · www.samson.de
EB 8115 EN
2019-01-16 · English
Loading...
