AC IN
AUDIO IN
L
AUDIO N
R
V
arious Connector
s
V
R L
AV
OUT
AV IN
VIDEO R-AUDIO-L

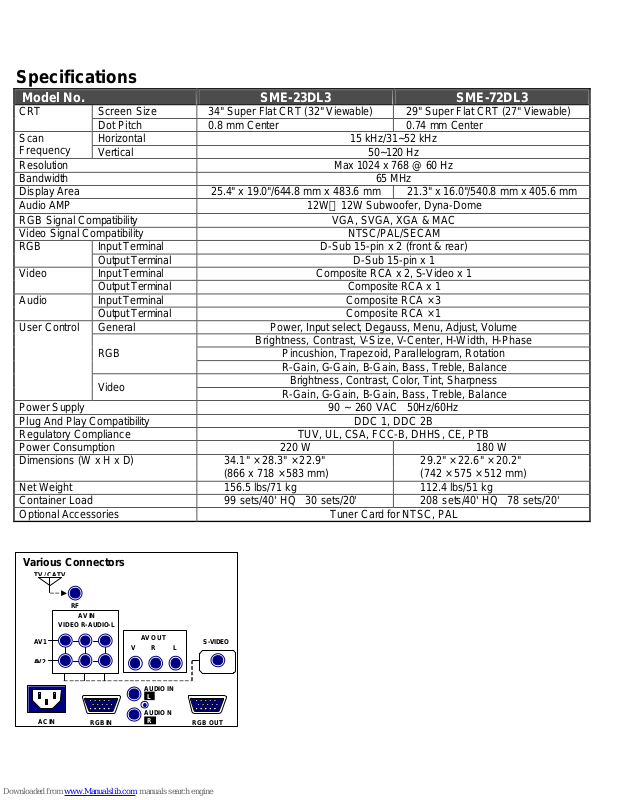

Specifications
Model No. SME-23DL3 SME-72DL3
CRT Screen Size 34" Super Flat CRT (32" Viewable) 29" Super Flat CRT (27" Viewable)
Dot Pitch 0.8 mm Center 0.74 mm Center
Horizontal 15 kHz/31~52 kHz Scan
Frequency
Vertical 50~120 Hz
Resolution Max 1024 x 768 @ 60 Hz
Bandwidth 65 MHz
Display Area 25.4" x 19.0"/644.8 mm x 483.6 mm 21.3" x 16.0"/540.8 mm x 405.6 mm
Audio AMP
12W＋12W Subwoofer, Dyna-Dome
RGB Signal Compatibility VGA, SVGA, XGA & MAC
Video Signal Compatibility NTSC/PAL/SECAM
Input Terminal D-Sub 15-pin x 2 (front & rear) RGB
Output Terminal D-Sub 15-pin x 1
Input Terminal Composite RCA x 2, S-Video x 1 Video
Output Terminal Composite RCA x 1
Input Terminal Composite RCA × 3 Audio
Output Terminal Composite RCA × 1
General Power, Input select, Degauss, Menu, Adjust, Volume
Brightness, Contrast, V-Size, V-Center, H-Width, H-Phase
Pincushion, Trapezoid, Parallelogram, Rotation RGB
R-Gain, G-Gain, B-Gain, Bass, Treble, Balance
Brightness, Contrast, Color, Tint, Sharpness
User Control
Video
R-Gain, G-Gain, B-Gain, Bass, Treble, Balance
Power Supply 90 ~ 260 VAC 50Hz/60Hz
Plug And Play Compatibility DDC 1, DDC 2B
Regulatory Compliance TUV, UL, CSA, FCC-B, DHHS, CE, PTB
Power Consumption 220 W 180 W
Dimensions (W x H x D)
34.1" × 28.3" × 22.9"
(866 x 718 × 583 mm)
29.2" × 22.6" × 20.2"
(742 × 575 × 512 mm)
Net Weight 156.5 lbs/71 kg 112.4 lbs/51 kg
Container Load 99 sets/40' HQ 30 sets/20' 208 sets/40' HQ 78 sets/20'
Optional Accessories Tuner Card for NTSC, PAL
