DDVVD
UUsseer
D PPllaayyeerr
r MMaannuuaa
l
l
1
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOTEXPOSE
CAUTION
CAUTION
FCC NOTE:
Note
THIS APPLIANCE TO RAIN OR MOISTURE.
:TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USERSERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
This symbol warns the user of
uninsulated voltage within the
unit that can cause dangerous
electric shocks.
:
THIS DVD VIDEO PLAYER IS A CLASS1 LASER PRODUCT. USE OF CONTROLS
ORADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSESPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE｡DDO NOTOFEN COVERS AND
DO NOT REPAIR YOUSELF. REFER SERVICING TO QUALIFIEDPERSONNEL.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference, and (2) this device must accept any
interference received, Including interference that may cause undesired operation.
This equitment has been tested and found to comply with the limits for a Class B device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communication. However, there is no quarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try correct the interference by one or more of the following measures
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect this equipment into an outlet on a circuit different from that to which the
receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
This symbol alerts the user that
there are important operating and
maintenance instruction in the
literature accompanying this unit.
: This product incorporates copyright protection technology that is protected by method claims
of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Marcovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
IMPORTANT SAFETY INSTRUCTION
READ THE SAFETY AND OPERATING INSTRUCTION before operating your DVD player
FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your DVD player in this manual.
1. Save these instructions for later use
2. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
3. Do not use this DVD player near water
4. Do not place this DVD player on an unstable cart, stand or table. The DVD Player may fall, causing
serious damage to the DVD player.
5. Slots and openings in the cabinet and the back or bottom are provided for ventilation . To ensure reliable
operation of the DVD player and to protect it from overheating, those openings must not be blocked or
covered. The openings should never be blocked by placing the DVD player on a bed, sofa, rug, or other
similar surface. This DVD player should never be placed near or over a radiator or heat register. This DVD
player should not be placed in a built-in installation unless proper ventilation is provided.
6. This DVD player should be operated from the type of power source indicated on the marketing label
you are not sure of the type of power available, consult your dealer or local service.
7. This DVD player is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This
plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of
the grounding-type plug.
8. Do not allow anything to rest on the power cord. Do not locate this DVD player where persons will walk
on the cord.
9. If an extension cord is used with this DVD player, make sure that the total of the ampere ratings on the
products plugged into the extension cord do not exceed the extension cord ampere rating.
10. Never push objects of any kind into this DVD player through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on the DVD player.
11. Do not attempt to service this DVD player yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks. Refer all servicing to service personnel.
12. An appliance and cart combination should be moved with care. Quick stop, excessive force, and uneven
surfaces may cause the appliance and cart combination to overturn.
13. Unplug this DVD player during lightning storms or unused for long periods of time.
14. Unplug this DVD player from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power cord or plug is damaged or frayed
B. If liquid has been spilled into the DVD player
C. If the DVD player has been exposed to rain or water
D. If the product has been dropped or the cabinet has been damaged
E. If the product exhibits a distinct change in performance, indicating a need for service
FEATURES
Package Contents
p Compatible with Video CD, CD, Super
VCD, and CVD as well as DVD-video
This DVD player can playback not only the Video CD,
CD, and DVD-video but also the super VCD and CVD,
which are popular in China. In addition, it also can
playback the MP3 audio recorded in CD-ROM.
p Compatible with NTSC-video Disc and
PAL-video disc
This unit can playback NTSC and PAL discs and
converts the video format to match its video output.
For example, when the video output is set to PAL and
a NTSC disc is played back, the unit will convert
NTSC video to PAL video to output terminal.
p Multiple video output formats including
NTSC, PAL, or AUTO (Factory setting)
When NTSC or PAL is set for video output format,
the other video will be converted to NTSC or PAL,
p Main Unit 1
p Remote control unit 1
p Batteries (R6 AA) 2
respectively. When AUTO is set, the output video
format will be the same as the video on the disc.
This is just suitable for multiple-format TV set.
p High quality audio
1 Built-in decoder for Dolby Digital (AC-3), MPEGII
audio/Linear PCM up to 96KHz/24bit.
1 Bypassed DTS digital audio.
p Many convenient features
1 In-time OSD message is always displayed for the
disc information and operation status.
1 Multiple-speed fast forward/reverse scan -- 2X, 4X,
8X, 12X, 15X, 30X.
1 Multiple-speed slow-motion forward/reverse scan –
1/2X, 1/4X, 1/8X.
1 Supporting Up to five markers for program memory.
p Video and Stereo sound
signal lines 1
p Instructions manual 1
1 Repeated playback – chapter/track, title/disc, A-B.
2
INDEX
FEATURES..................................................................................1
PACKAGE CONTENTS............................................................2
INDEX...........................................................................................3
PRECAUTIONS..........................................................................4
BACKGROUND INFORMATION ..........................................6
FRONT PANEL/DISPLAY WINDOW....................................7
FRONT PANEL ........................................................................7
DISPLAY WINDOW .................................................................8

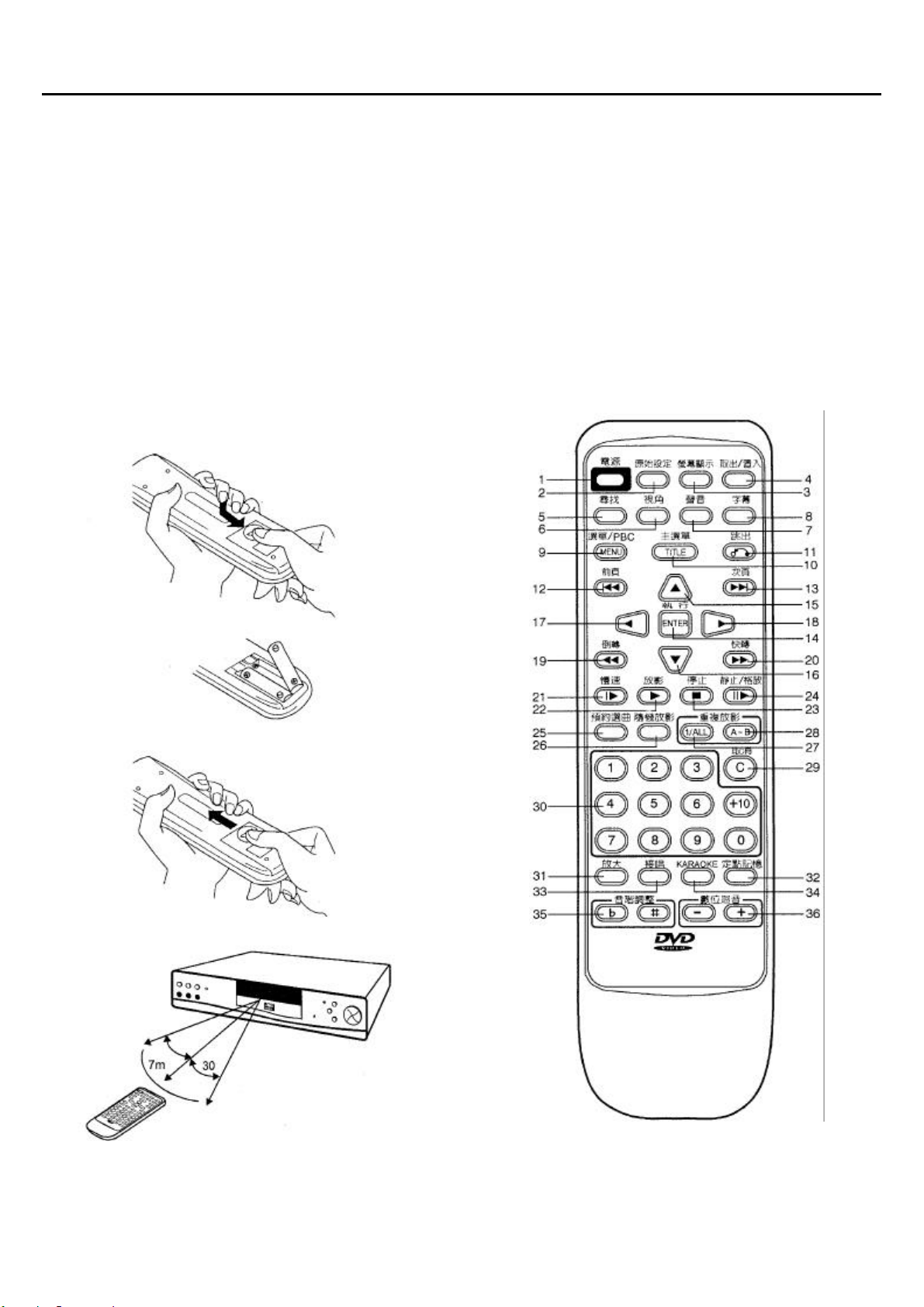

REMOTE CONTROL UNIT.....................................................9

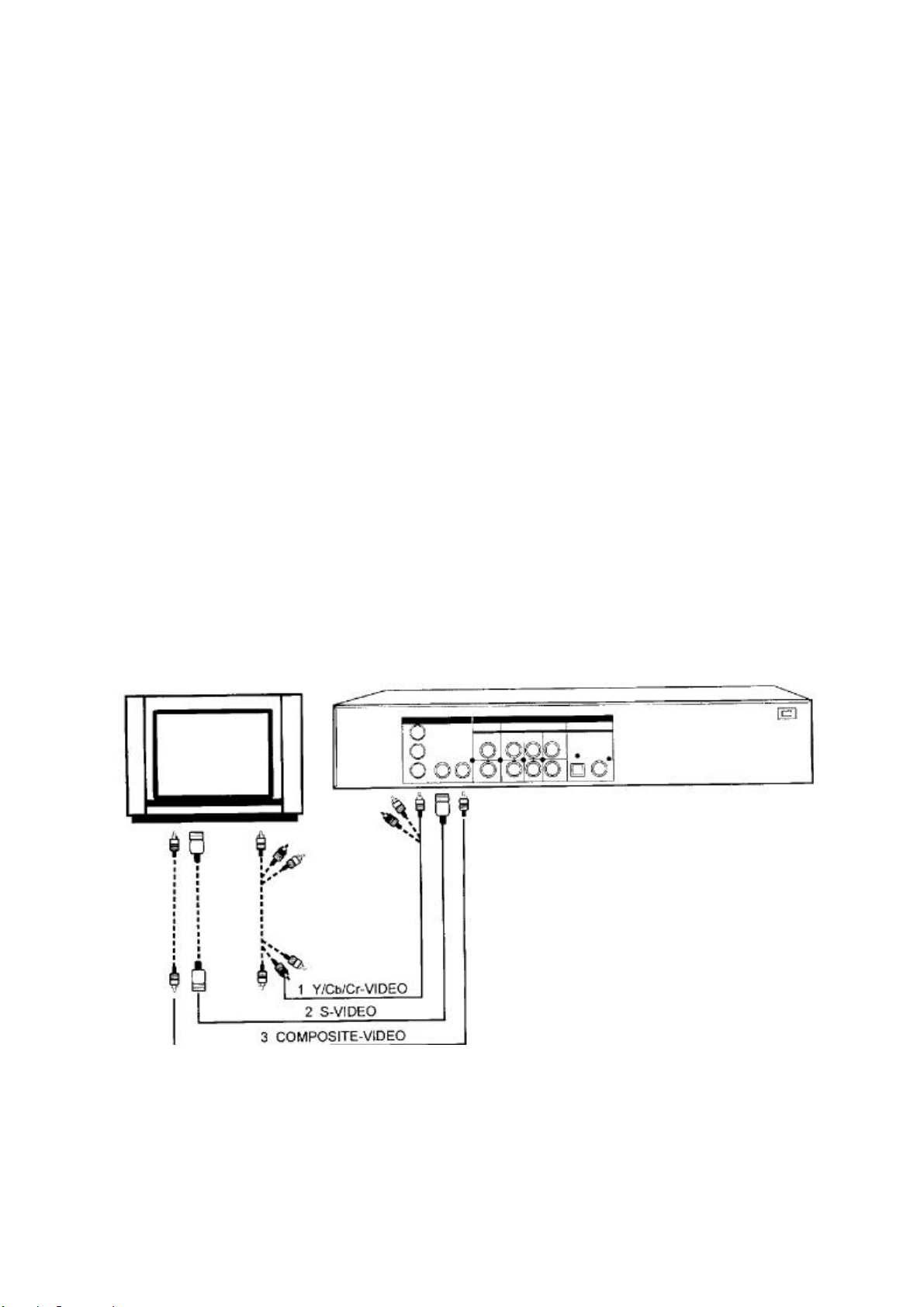

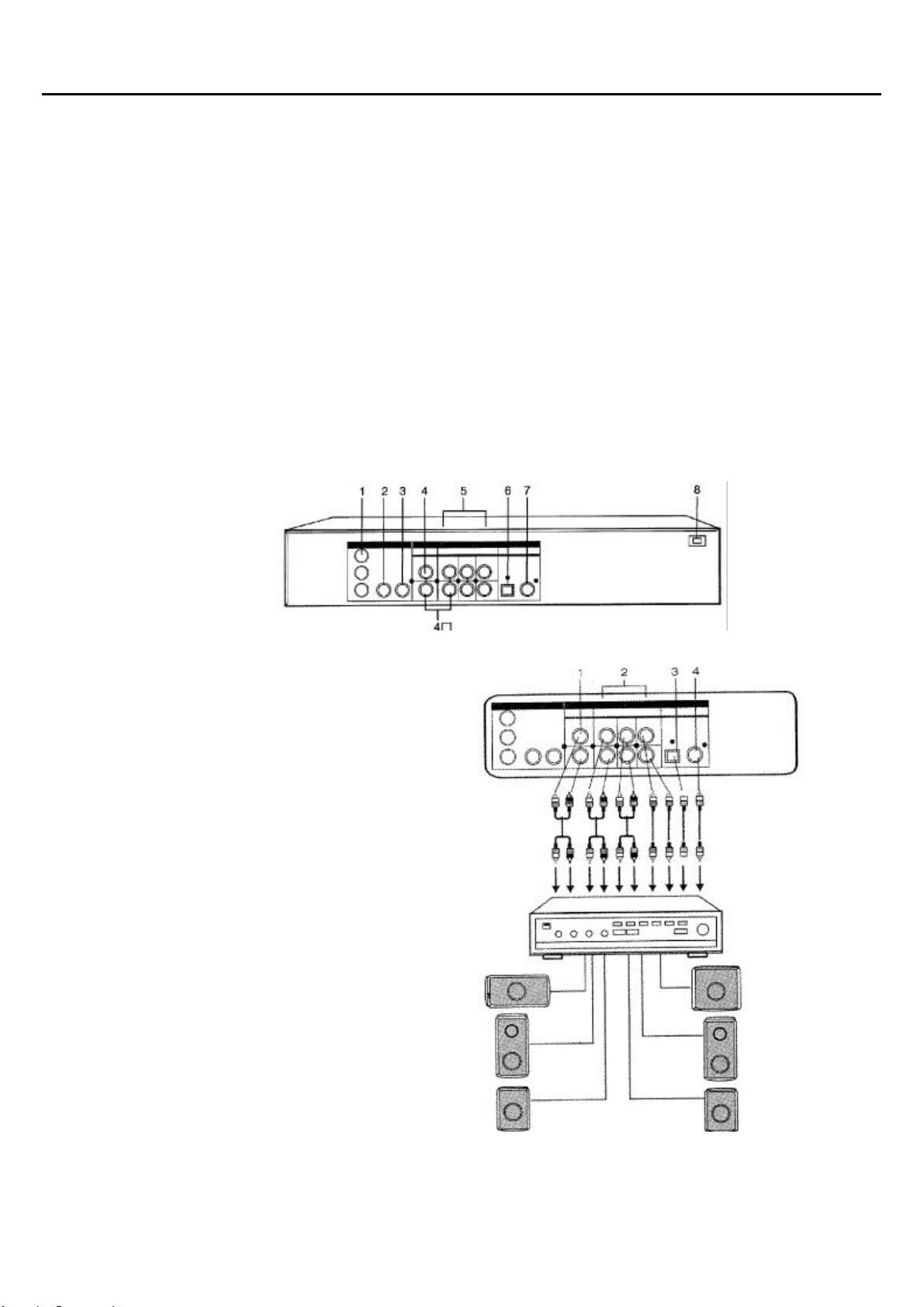

REAR PANEL AND CONNECTIONS..................................11
INITIAL SETTING...................................................................13
Defaults................................................................................18
ON-SCREEN DISPLAY (OSD)...............................................19
DVD OSD MODES ..............................................................19
CD/VCD OSD MODES .......................................................19
BASIC OPERATION................................................................20
START PLAYBACK................................................................20
STOP PLAYBACK ..................................................................20
SKIP PLAYBACK...................................................................20
STILL/PAUSE PLAYBACK.....................................................20
STEP PLAYBACK...................................................................20
FAST FORWARD/REVERSE SCAN.........................................20
SLOW-MOTION FORWARD/REVERSE PLAYBACK .................21
ADVANCED OPERATION .....................................................22
REPEATED PLAYBACK .........................................................22
A-B REPEATED PLAYBACK .................................................22
GENERAL SETUP .................................................................13
TV Display...........................................................................13
Angle Mark..........................................................................13
OSD Language....................................................................14
Audio Output........................................................................14
Video Output........................................................................14
SCART Out...........................................................................14
Screen Saver........................................................................15
SPEAKER SETUP..................................................................15
Center Speaker....................................................................15
Rear Speaker........................................................................15
Subwoofer............................................................................15
Center Delay........................................................................16
Rear Delay...........................................................................16
DIGITAL AUDIO OUT...........................................................16
PREFERENCES......................................................................16
Audio....................................................................................17
Subtitle.................................................................................17
Disc Menu............................................................................17
RANDOM PLAYBACK ...........................................................22
PROGRAM PLAYBACK..........................................................22
MARK.................................................................................23
TITLE MENU (DVD ONLY).................................................24
DVD MENU (DVD ONLY)...................................................24

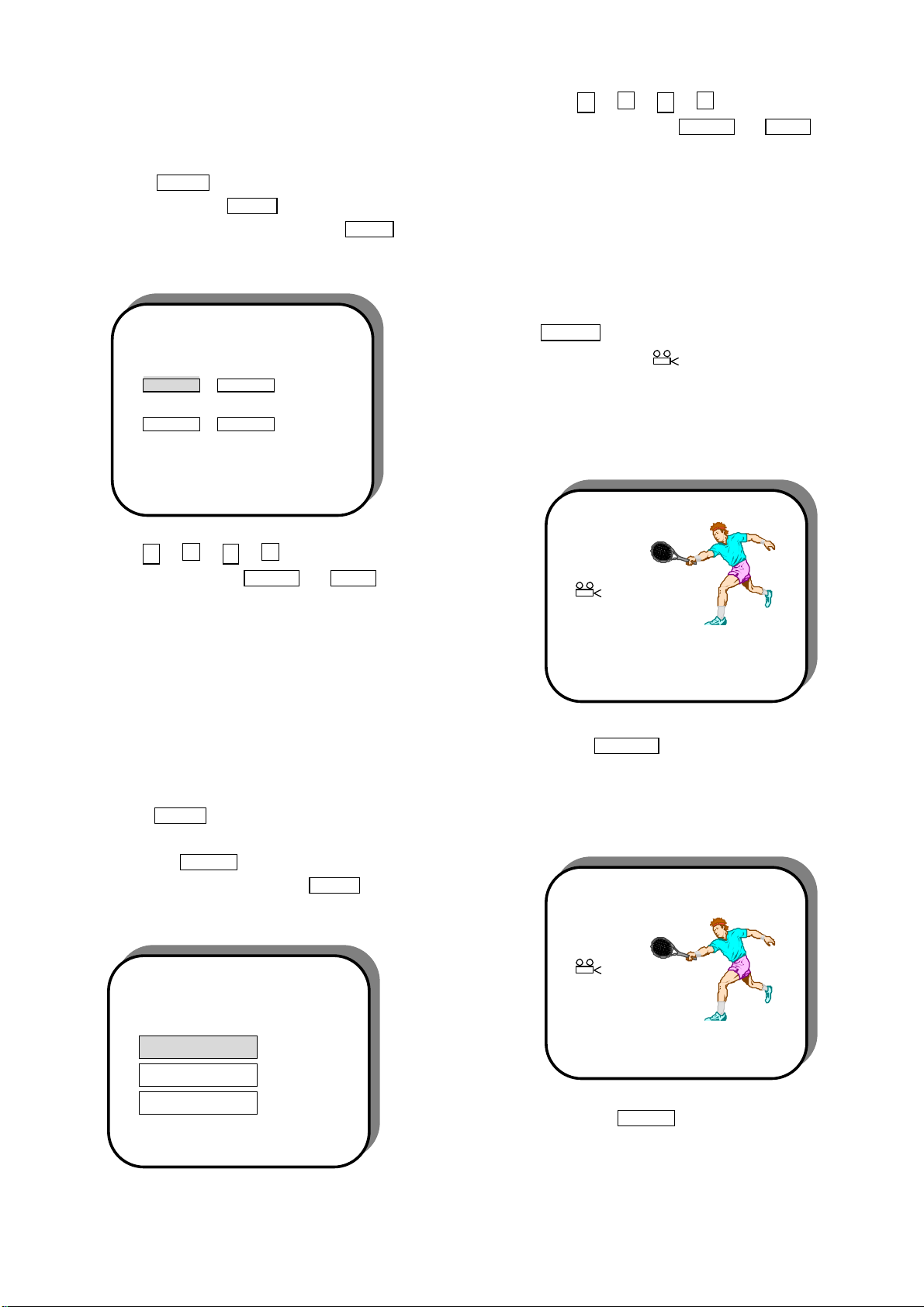

MULTI-ANGLE PLAYBACK...................................................24
CHANGING SUBTITLE DURING PLAYBACK..........................25
CHANGING AUDIO DURING PLAYBACK...............................25
SEARCH................................................................................25
DVD search functions..........................................................25
VCD/CD search functions...................................................25
VCD’S PLAYBACK CONTROL (PBC)...................................26
TROUBLESHOOTING............................................................27
SPECIFICATION......................................................................28
Label.....................................................................................28
Dolby License......................................................................28

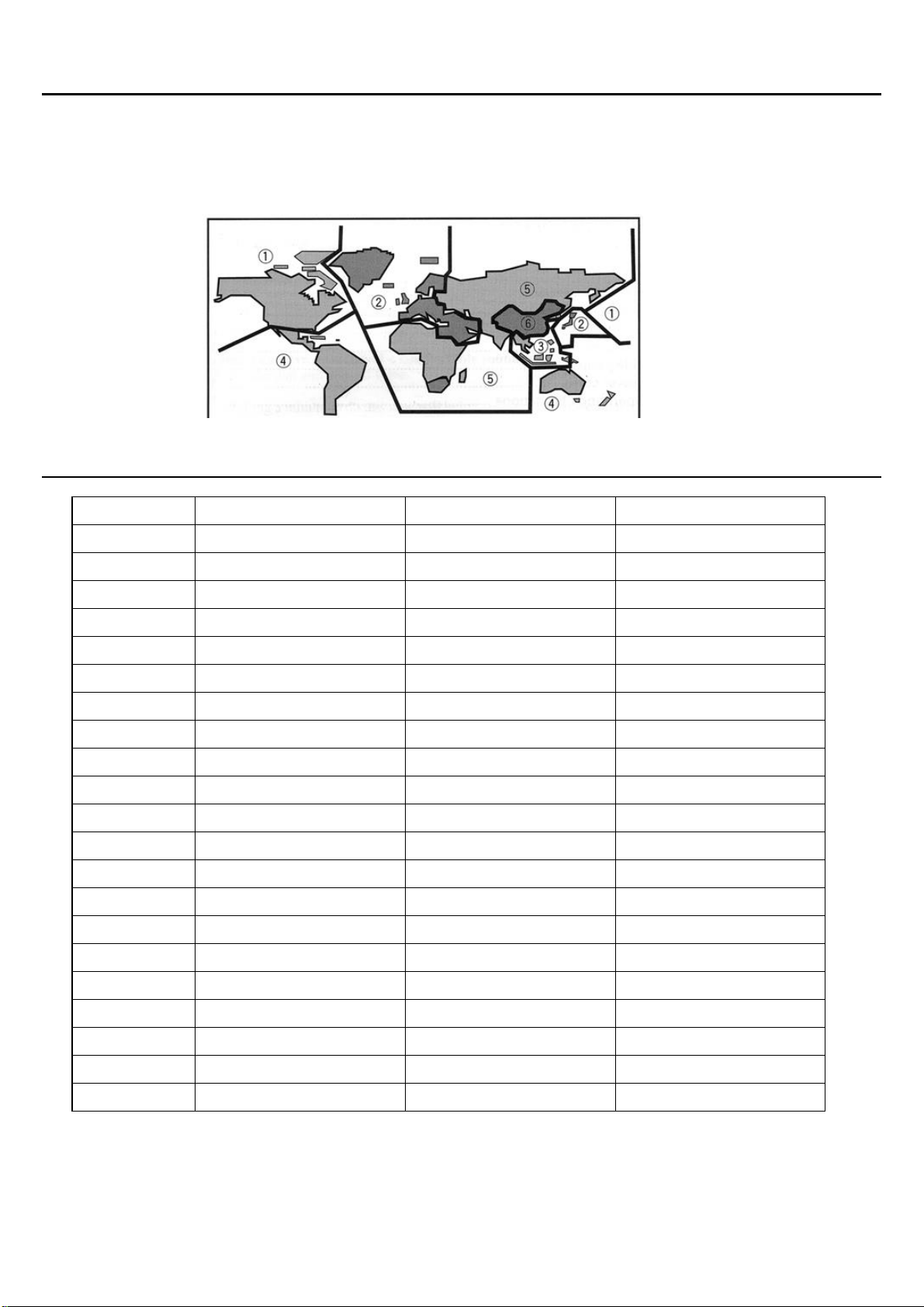

REGION MANAGEMENT INFORMATION......................29
Parental................................................................................17
Password..............................................................................17
3
DESCRIPTION OF SCART TERMINAL............................29
Precautions
Please read the followings carefully so that this DVD
player can be used correctly and safely.
p Power supply
Make sure that the correct power outlet is used
(AC100~240V)
p Power cord
1 Do not put any heavy objects on top of the power
cord to avoid fires or current leaks caused by the
cord damage.
p Location
1 Do not place this unit at the following locations :
ü Prone to be affected by vibrations
ü With high humidity
ü With poor ventilation
ü With direct sunlight
ü With extremely high or low temperatures
1 This unit should be placed on a horizontal surface.
1 Please keep this unit away from television sets,
radios, computers and loudspeakers to avoid
magnetic field interference
p Usage and storage
1 Do not remove the top cover by yourself to avoid
possible electric shock resulting from touching the
inside of this unit
1 Do not place any heavy objects on top of this unit.
p Condensation
1 Please unplug the power cord if the unit will not be
used for a long time.
Please turn on the power for 1~2 hours before using
this unit if condensation happens, which may result
from moving the unit from a cold place to a hot one.
4
p Disc usage
1 Please hold all discs by their edges or the center
opening as shown below. Do not touch the shiny
signal surface of the discs.
1 Do not stick labels or tapes on the discs, and do not
scratch or damage the discs.
be weakened. The poor the signal quality, the poor
the playback performance. Therefore, do keep the
disc clean by wiping straight out from the center with
a dry soft cloth.
1
1 If the disc is very dirty, apply a moist soft cloth to wipe
it first and then clean it with another dry soft cloth.
1 Do not use record cleaning sprays, benzene, thinner,
anti-static electricity liquids or any other solvent.
Those may make the disc surface damaged.
p Disc storage
1 The unit spins the disc at high speed during playback.
Do not use damaged discs such as cracked or
warped ones because they could let the unit
damaged
1 Please keep the discs in boxes to avoid the discs
bent. Do not keep the discs in the locations with high
temperature, high humidity, or direct sunshine. Those
may cause damage to the discs.
1 Please read carefully the instructions on the disc
label.
p Unit cleaning
Please clean the front panel and the body of the unit
by dry soft clothes. The other areas can be cleaned
using soft clothes moistened with neutral detergent.
Do not clean by the evaporative solutions to avoid
possible damage to the unit.
p Disc cleaning
1 Fingerprints or dirt on disc surface can directly
influence the signal quality. That is because the
laser light being reflected from the disc surface may
5
BACKGROUND INFORMATION
This DVD player can play the following types of discs
Disc type/Logo Dimension/side/layer Max. playback time(storage capacity)
DVD Video
Video CD
12 cm/single sided/single layer
12 cm/single sided/double layer
12 cm/double sided/single layer
12 cm/double sided/double layer
8 cm/single sided/single layer
8 cm/single sided/double layer
8 cm/double sided/single layer
8 cm/double sided/double layer
12 cm/single sided/single layer
DVD
VCD
MPEG2 TYPE
133 min. (4.7 GB)
242 min. (8.5 GB)
266 min. (9.4 GB)
484 min. (17 GB)
41 min.
75 min.
82 min.
150 min.
MPEG1 TYPE
74 min.
CD-DA
Ø DVD and VCD: Discs with both images and sounds, including multiple sounds
Ø CD-DA: Disks with audio only.
Ø Please do not insert DVD-ROM, CD-ROM or Photo CD in this DVD player to avoid some playback problems.
Ø This unit complies with VCD ver. 1.1, ver. 2.0, and ver. 3.0.
8 cm/single sided/single layer 20 min.
CD-DA
12 cm/single sided/single layer
8 cm/single sided/single layer 20 min.
74 min.
Ø This unit support 128Kbps/44.1KHz MP3 disc that formatted by ISO9660 CD-ROM mode 1 file type.
6
Front panel/Display window
p Front panel
1. Headphone volume level control
Adjust the volume level of the headphone
2. Headphone jack
Connect the headphone
3. Display window
Display the operation information
4. Disc tray
5. OPEN/CLOSE button
Open/close the disc tray
6. STILL button
9. PREVIOUS button
Go to the previous chapter/track during playback
DVD/VCD/CD. However, it works as “Go to the
previous page” in the PBC menu of VCD disc.
10. PLAY button
Play the inserted disc.
11. STOP button
Stop playback
12. NEXT button
Go to the next chapter/track during playback except it
Go into “Step” playback mode
7. POWER button
Turn on/off the unit
8. STANDBY indicator
Light up in standby mode and go out when the unit is
turned on.
7
works as “Go to the next page” in the PBC menu of
VCD disc.
p Display window
1. CD/VCD indicator
2. PBC indicator for VCD disc
3. DVD indicator
4. Operation status indicator - playback
5. Operation status indicator – pause or stop
6. Title number indicator
7. Chapter/track number indicator
8. Elapsed playback time / remaining playback time
indicator
9. Multi-angle indicator
10. Dolby AC-3 audio indicator
11. Repeat playback mode indicator
12. Random playback indicator
13. Program playback indicator
14. Marker setting indicator
8
Remote Control Unit
In order to use the remote control unit to operate the DVD
player, please insert two R6 batteries (size AA) into the
remote control unit. Make sure that the + and – ends of
the batteries are matched to the +/- marks inside the
battery compartment.
Please point the remote control unit at the remote sensor
of the DVD player unit during remote control operation.
Notes on the remote control unit
i Do not use different types of batteries together, or mix
old and new ones.
1.
i When the remote control unit does not function
correctly or its operation range reduces, please
replace both batteries at the same time.
i If the remote control unit will be not used for a long
time, please remove the batteries to avoid possible
damage from battery leakage or corrosion.
i Keep the remote control away from an extremely hot
or humid location.
i Do not open the remote control unit
9
POWER button
19. REV button
Turn on/off the DVD player unit
2. SETUP button
Customize the settings. Refer to p. 12
3. DISPLAY button
Display the operation status
4. OPEN/CLOSE button
Open or close disc tray
5. SEARCH button
Title search, chapter search, and time search. Refer
to p. 24
6. ANGLE button
Change the view angle. Refer to p. 23.
7. AUDIO button
Change the soundtrack. Refer to p. 24.
8. SUB-T button
Change the subtitle. Refer to p. 24.
Fast reverse playback during playback
20. FWD button
Fast forward playback during playback
21. SLOW button
Slow forward/reverse playback. Refer to p. 20
22. PLAY button
Start playing the disc.
23. STOP button
Stop playback
24. STILL/STEP button
Step playback.
25. PROGRAM button
Program playback for CD/VCD. Refer to p.21
26. RANDOM button
Random playback for CD/VCD. Refer to p.21
27. 1/ALL button
9. PBC/MENU button
Enter the menu for DVD title or turn on/off the PBC
function for VCD. Refer to pp.23/25
10. TITLE button
Enter the title menu for DVD disc. Refer to p.23.
11. RETURN button
Go back to the previous page of the menu
12. PREV button
Go back to the previous chapter during playback
13. NEXT button
Skip to the next chapter during playback
14. ENTER button
Select an item in the menu
15. 5 button
Move upward on the menu window
16. 6 button
Repeat playback a title or all on the disc. Refer to p.21
28. A-B button
A-B Repeat playback. Refer to p.21
29. CLEAR button
Clear the program playback, the repeat playback, the
input password, or marker.
30. Digits
Directly make a selection on the menu, select the
sound track during playback, or input the time and the
password.
31. ZOOM button
Zoom the playback picture.
32. MARK button
Enter the menu of markers . Refer to p.22
Move downward on the menu window
17. 3 button
Move left on the menu window
18. 4 button
Move right on the menu window
10
REAR PANEL AND CONNECTIONS
p Rear panel
There are the following AV output terminals in the rear panel
1 Video output terminals including
ü 0ne Y/Cb/Cr Component-video terminal Œ
ü One S-video terminal •
ü One composite video terminal. Ž
1 Audio output terminals including
ü One with two jacks for stereo sound •
ü One terminal with six RCA jacks for Dolby AC3 5.1ch analog audio outputs •
ü One optical jack for digital audio out ‘
ü One coaxial jack for digital audio out ’
1 One SCART terminal for RGB-video, S-video, or Composite-video with stereo sound. “
p Audio Connection
There are stereo audio output terminal Πand
analog 5.1ch audio output terminal • for you to
connect with the TV set or AV amplifier with up to
6ch inputs. Also, an optical terminal Ž and a
coaxial one • are equipped for digital audio
output, which you can connect with a standalone
AV amplifier with Dolby AC-3 and DTS decoder
for the better audio quality
11
p Video Connection
1 Y/Cb/Cr component video output terminal can be connected to the TV set equipped with a component video
input terminal for the best possible picture quality Œ.
i Whenever the component video output terminal is equipped for display, please set the VIDEO OUT setting to
Y/CR/CB in the initial setting (Refer to p. 13)
1 S-Video output terminal can be connected to the TV set equipped with an S-video input terminal for the better
possible picture quality.•
i Whenever the S-video output terminal is equipped for display, please set the VIDEO OUT setting to S-VIDEO in
the initial setting (Refer to p. 13)
1 Composite Video output terminal always supports the video signal at all time no matter what VIDEO OUT
setting is. It can be connected to the TV set for the normal picture quality Ž.
p SCART Connection
The SCART terminal can be connected to the TV set equipped with SCART connectors •. The audio transmitted on
the SCART is stereo sound and the video can be selected among RGB-video, S-video and Composite video.
i Whenever the SCART terminal is connected for display, please set the VIDEO OUT to SCART and choose the
correct video format by setting SCART OUT among RGB-video, S-video and Composite video (Refer to p. 13).
If the VIDEO OUT is not at SCART, the SCART terminal also supports AV signal output, but the AV format is
“composite video + stereo audio”
12
INITIAL SETTING
16:9
16:9
Press the SETUP button on the remote control into the
initial setting, while the OSD for initial setting will be
displayed as follows,
SETUP MENU – MAIN PAGE
4GENERAL SETUP
4SPEAKER SETUP
4DIGITAL AUDIO OUT
4PREFERENCES
3EXIT SETUP
GOTO SPEAKER SETUP PAGE
Four items are available in initial setting, which are
1. General Setup : general function setting for this unit
2. Speaker Setup : speaker output mode setting
3. Digital Audio Out : digital audio output setting
4. Preferences : your personal preferences
p General Setup
TV DISPLAY >>
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER
GENERAL SETUP
There are seven items in the general setup, which are
TV Display
--GENERAL PAGE—
4:3
4:3
--GENERAL PAGE—
TV DISPLAY >>
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER
GENERAL SETUP
4:3
4:3
1 4:3
4:3 pan & scan video output for normal TV set
1 4:3
4:3 letter box video output for normal TV set
1 16:9
16:9 video out for wide screen TV set
Angle Mark
During playback of a title with multi-angle section, the
message " " will appear on the lower corner of the
screen.
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK >> ON
OSD LANGUAGE OFF
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER
ANGLE MARK ON/OFF
1 When ANGLE MARK is set at "ON", the angle mark
always stays on the screen until the end of the
playback title.
1 When ANGLE MARK is set at "OFF", the angle mark
also appears on the screen but just lasts 3 seconds.
This DVD player provides three TV video modes :
13
OSD Language
SELECT AUDIO OUTPUT
SET VIDEO OUTPUT TYPE
There are three OSD languages, which can be selected in
this DVD player. They are ENGLISH, FRANCH, and
GERMAN
TV DISPLAY
ANGLE MARK
OSD LANGUAGE >> ENGLISH
AUDIO OUTPUT 中文
VIDEO OUT FRANCAIS
SCART OUT DEUJSCH
SCREEN SAVER
--GENERAL PAGE—
Audio Output
Two audio output modes can be set
1 Analog : Analog audio is output from Dolby AC3
5.1audio terminal and stereo audio terminal. There is
no digital audio output
1 Digital : Digital audio is output from the optical
terminal and the coaxial terminals simultaneously.
There is no analog audio output.
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT >> ANALOG
VIDEO OUT DIGITAL
SCART OUT
SCREEN SAVER
--GENERAL PAGE—
Video Output
The unit has four video output terminals, Y/Cb/Cr
component video terminal, S-video terminal, composite
video terminal, and SCART terminal. All these terminals
can not output the related videos simultaneously.
Therefore, the VIDEO OUTPUT setting is used to set what
video terminal can output video.
14
When S-video terminals is used to connect with TV, set
VIDEO OUTPUT at "S-VIDEO"
1 When Component video terminal is used, set VIDEO
OUTPUT at "Y/CB/CR"
1 When composite video terminal is used, any setting
of VIDEO OUTPUT is available.
1 When SCART terminal is used, if VIDEO OUTPUT is
set at "S-VIDEO" or "Y/CB/CR", the composite video
is output from the SCART terminal. If VIDEO
OUTPUT is set at " SCART", the video output from
the SCART terminal can be set by SCART OUT
setting as shown below.
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT >> S-VIDEO
SCART OUT Y/CR/CB
SCREEN SAVER SCART
SET VIDEO OUTPUT TYPE
--GENERAL PAGE—
SCART Out
This DVD player has only one SCART terminal but
supports three different types of video output from this
terminal. They are composite video, RGB video, and
S-video, which are dedicated by setting SCART OUT at
"COMPOSITE", "RGB", and "S-VIDEO", respectively.
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT >> COMPOSITE
SCREEN SAVER RGB
S-VIDEO
--GENERAL PAGE—
Screen Saver
SCREEN SAVER
SETUP CENTER SPEAKER
SETUP CENTER SPEAKER
SETUP REAR/SURROUND SPEAKER
SUBWOOFER ON/OFF
When this DVD player is idle such as stop, stay at setup
menu, or no disc inserted, the screen saver can be
triggered to prolong the TV life-time.
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER>> ON
OFF
p Speaker Setup
This setting is only available for the models with analog
Dolby AC3 5.1ch audio output. All the settings are
dependent on the number of your speakers. For example,
if you have no the center speaker in your AV system, set
CNTR SPEAKER at “OFF”. The DVD player will down-mix
the disabled audio channels into the other audio ones
according to the Dolby AC3 decoding rule.
Because the center speaker or the surround speakers
may not be installed at an equal distance compared with
the front speakers for the listening position. Here, this
DVD player also supports the delay time setting for center
speaker and the surround speakers.
Center Speaker
SPEAKER SETUP PAGE –
CNTR SPEAKER >> ON
REAR SPEAKER OFF
SUBWOOFER
CNTR DELAY
REAR DELAY
3MAIN PAGE
SPEAKER SETUP PAGE –
CNTR SPEAKER >> ON
REAR SPEAKER OFF
SUBWOOFER
CNTR DELAY
REAR DELAY
3MAIN PAGE
Rear Speaker
Enable/Disable the surround channels output.
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER >> ON
SUBWOOFER OFF
CNTR DELAY
REAR DELAY
3MAIN PAGE
Subwoofer
Enable/Disable the subwoofer channel output. However,
this setting also controls the bass management of Dolby
digital.
When SUBWOOFER is “ON”, the bass of all the other
channels will be redirected to Subwoofer speaker
When SUBWOOFER is “OFF”, all the bass signals will be
redirected to the front L/R channels.
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER
SUBWOOFER >> ON
CNTR DELAY OFF
REAR DELAY
3MAIN PAGE
Enable/Disable the center channel output. “ON” means
“enable output” and “OFF” means “disable output”.
15
Center Delay
Linear PCM (48/
LPCM up to 48kHz/20bit
SET CENTER DELAY
SET REAR DELAY
SET AC
-
3 DIGITAL OUT
PREFERRED AUDIO LANGUAGE
This unit supports the center time delay range of 0 to 5 ms
in 1ms steps.
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER
SUBWOOFER
CNTR DELAY >>
REAR DELAY
3MAIN PAGE
Rear Delay
This unit supports the surround time delay range of 0 to
15 ms in 3ms steps.
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER
SUBWOOFER
CNTR DELAY
REAR DELAY >>
3MAIN PAGE
p Digital Audio Out
This setting concerns the audio output format from the
unit’s optical/coaxial digital audio output terminal.
16
-- DIGITAL AUDIO OUT –
AC-3 >> BITSTREEM
DTS LPCM
MPEG
LPCM
3MAIN PAGE

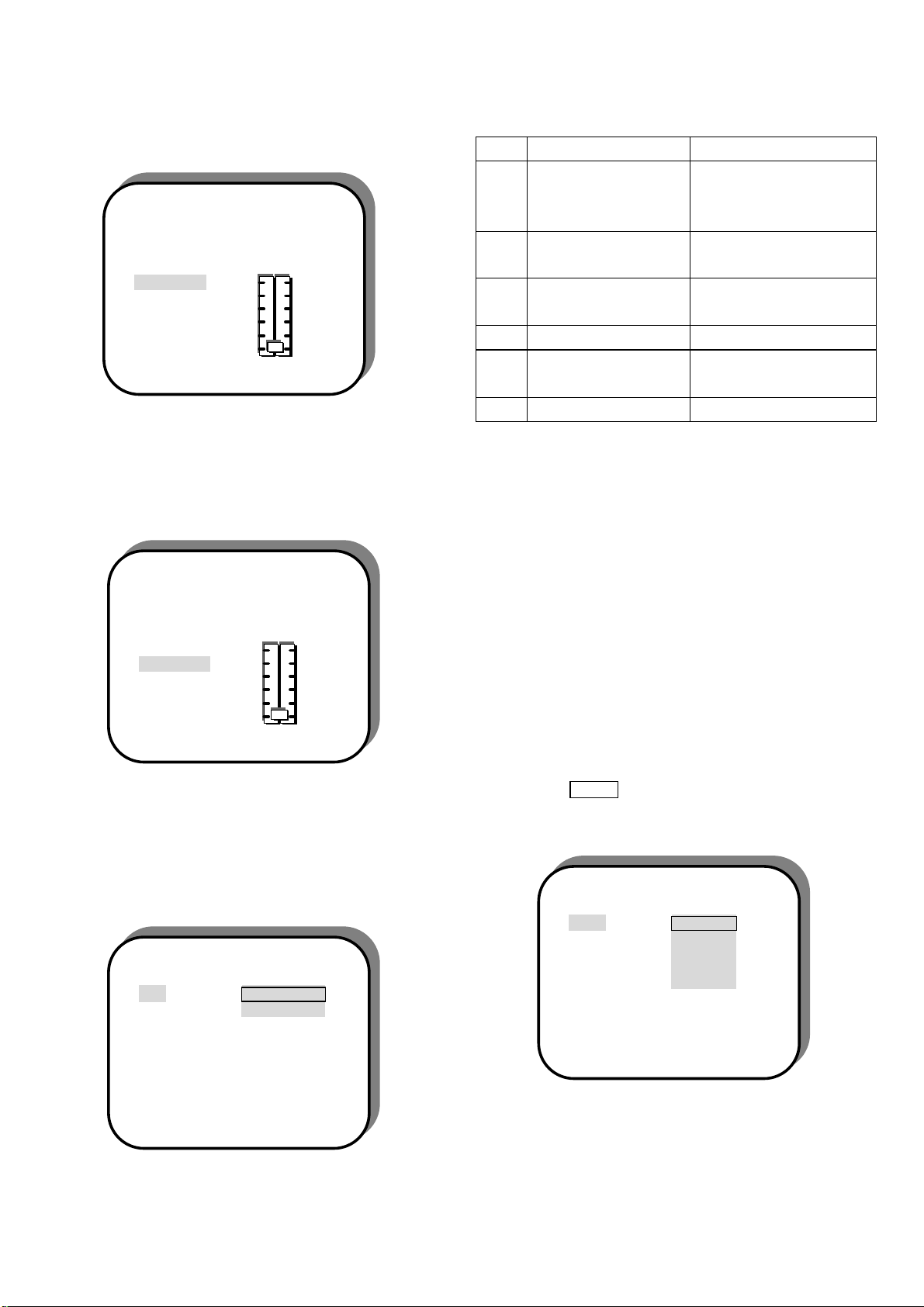

Disc Audio encoding format Digital output format
DVD Dolby Digital
(AC-3)
Bit stream(2-5.1ch) or
48kHz/2ch LPCM
(up to 20bits)
DTS Bit stream or
OFF
96kHz up to 24bits)
or up to 96kHz
MPEG 2ch LPCM (16bits)
Video
MPEG I LPCM
CD
CD Linear PCM LPCM
Where the digital output format is dedicated by this
DIGITAL AUDIO OUT setting.
In the LPCM setting,
1 “48K” means “the maximum output sampling rate is
48KHz”. Therefore, when the encoding sampling rate
is 96KHz, the audio will be converted to 48kHz.
1 “96KHz” means “ the maximum output sampling rate
is 96KHz”. There is no converting process.
p Preferences
Here, you can set the default audio/subtitle/disc language,
and the parental level for a DVD disc. This setting is only
available when the DVD player is in the STOP mode by
pressing the STOP button twice.
-- PREFERENCES PAGE –
AUDIO >> ENGLISH
SUBTITLE FRENCH
DISC MENU SPANISH
PARENTAL CHINES
PASSWORD JAPANES
DEFAULTS
3MAIN PAGE
Audio
PREFERRED SUBTITLE LANGUAGE
SE
T PARENTAL CONTROL
CHANGE
PREFERRED AUDIO LANGUAGE
PREFERRED MENU LANGUAGE
Parental
This unit supports five audio selections, as shown below,
for your preferred default audio.
-- PREFERENCES PAGE –
AUDIO >> ENGLISH
SUBTITLE FRENCH
DISC MENU SPANISH
PARENTAL CHINESE
PASSWORD JAPANESE
DEFAULTS
3MAIN PAGE
Subtitle
This unit supports five subtitle selections, as shown below,
for your preferred default subtitle. When “OFF” is selected,
there will be no subtitle to display default.
-- PREFERENCESPAGE –
AUDIO
SUBTITLE >> ENGLISH
DISC MENU FRENCH
PARENTAL SPANISH
PASSWORD CHINESE
DEFAULTS JAPANESE
OFF
3MAIN PAGE
Disc Menu
This unit supports five disc languages for your default.
-- PREFERENCESPAGE –
AUDIO
SUBTITLE
DISC MENU >>ENGLISH
PARENTAL FRENCH
PASSWORD SPANISH
DEFAULTS CHINESE
JAPANESE
3MAIN PAGE
17
1 At ”KIDS SAFE” rating level, DVDs for children can
be played back, but those for adults/general
audiences are prohibited
1 At ”THEATER” rating level, DVDs for children/
general audiences can be played back, but those for
adults are prohibited
1 At ”ADULT” rating level, all DVDs can be played
back.
-- PREFERENCESPAGE –
AUDIO
SUBTITLE
DISC MENU
PARENTAL >> KIDS SAFE
PASSWORD THEATER
DEFAULTS AUDLT
3MAIN PAGE
When you want to change the parental rating level, you
will be asked to enter the password as shown below.
Password
Here is the password setting and the password is 4 digit.
When you want to change the current password, select
“CHANGE” as shown below.
-- PREFERENCESPAGE –
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD >> CHANGE
DEFAULTS
3MAIN PAGE
You will be first asked to enter the old password, then
enter the new password, and confirm it again.
LOAD FACTORY SETTINGS
PLASE ENTER OLD PASSWORD
PASSWORD CHANGE PAGE
OLD PASSWORD
NEW PASSWORD
CONFIRM PASSOWRD
Defaults
When you select “RESET’, all the initial setting will be
reset to the default setting.
-- PREFERENCESPAGE –
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS RESET
3MAIN PAGE
18
ON-SCREEN DISPLAY (OSD)
TIME 00:10:00
p DVD OSD modes
Whenever the DISPLAY button is pressed, the OSD
mode changes among the following modes:
Mode 1
Only the status of pressed button and some special
playback messages are displayed. The OSD message
lasts only three seconds. For example, when the
TITLE 002/04 CHAPTER 02/05
SUBTITLE 01/06:ENGLISH
AUDIO 1/4:AC-3 2CH ENGLISH
TIME 00:10:00
OPEN/CLOSE button is pressed, the OSD message
becomes
OPEN
Mode 2
Only title number, chapter number, and elapsed time are
displayed as shown below
TITLE 002/04 CHAPTER 02/05
TIME 00:10:00
Mode 3
Title number, chapter number, information of the sub-title
and the audio, and elapsed time are all displayed as
shown below
p CD/VCD OSD modes
The CD/VCD OSD modes are described as follows
When PBC is on
There are three OSD modes possible:
1 OFF mode – only display the function status of the
pressed button or some messages.
1 SINGLE ELAPSED mode – display elapsed time of
the playback sound track.
1 SINGLE REMAIN mode – display remaining time
of the playback sound track.
When PBC is off or CD playback
Two more OSD modes are available:
1 TOTAL ELAPSED mode – display elapsed time of
all disc.
1 TOTAL REMAIN mode – display remaining time of
all disc.
The mode is displayed on the left top screen corner and
time is on the left bottom screen corner as shown below
TOTAL REMAIN
19
BASIC OPERATION
Preparation:
1 If you use a television set, turn on its power and set
the TV/Video switch to “Video”.
1 If a sound system is used, the amplifier must be
turned on first and make sure that its outputs are set
properly.
p Start playback
¬ Press the POWER button to turn on the DVD
player.
- Press the OPEN/CLOSE button to open the disc
tray
® Place a disc onto the tray and make sure that it is
placed properly.
¯ Press the OPEN/CLOSE or PLAY buttons to
playback the disc.
1 For a DVD disc, menu selection or some DVD
playback functions can be used after playback.
1 For a VCD disc with PBC, PBC menu will be
displayed on the screen. You can operate using the
PBC menu, or press the PBC button to set PBC off
and the disc will be played back straightforward.
1 For a VCD disc without PBC or a CD-DA, the disc will
be played back straightforward.
the current track or chapter.
p Still/Pause playback
Pause playback is only available during the playback of a
CD-DA.
l Pressing the STILL/STEP button during the playback
of a CD-DA, the playback will be paused.
l Pressing the STILL/STEP button during pausing
playback, return to normal playback.
p Step playback
Step playback is available during the playback of the other
disc than the CD-DA. It supports a frame-by-frame still
picture display.
l Press the STILL/STEP button to freeze the image.
l Press the STILL/STEP button again to skip to the
next frame and so on.
l Press the PLAY button to return to the normal
playback.
p Fast Forward/Reverse scan
Fast forward scan and fast reverse scan can be operated
by using the FWR and REV buttons, respectively.
1 Whenever the FWR or REV button is pressed,
the fast forward/reverse scan is triggered and the
p Stop playback
Press the STOP button to stop playback.
i When the unit is not used, please remove the disc
and press the POWER button to switch the power to
the standby mode.
p Skip playback
Skip playback is not available during the playback of a
VCD with PBC ON.
1 Press the NEXT button to search the beginning of
next track (VCD/CD) or next chapter (DVD) for
playback.
1 Press the PREV button to search the beginning of
20
speed changes in circles of 2X Õ 4X Õ 8X Õ 12X Õ
15X Õ 30X Õ normal Õ2X.
1 When the PLAY or ENTER button is pressed
during fast forward/reverse scan, the normal
playback will be resumed.
1 It is quite normal that the images may become
discontinuous during fast forward/reverse scan.
1 When the fast forward scan reaches the end of a
track (CD/VCD) or a title (DVD), the normal playback
of the next track/title will be resumed.
1 When the fast reverse scan reaches the beginning of
a track (CD/VCD) or a title (DVD), the normal
playback of this track/title will be resumed.
p Slow-motion forward/reverse playback
Press the SLOW button can trigger the slow-motion
forward/reverse playback.
1 DVD
Whenever the SLOW button is pressed, the
slow-motion playback is triggered and the speed
changes in circles of fwd 1/2Õ fwd 1/4 Õ fwd 1/8Õ rev
1/2 Õ rev 1/4 Õ rev 1/8 Õ normalÕ fwd 1/2.
1 VCD
Whenever the SLOW button is pressed, the
slow-motion playback is triggered in speed circles of
fwd 1/2 Õ fwd 1/4Õ fwd 1/8Õ fwd1/2.
1 Pressing the PLAY or ENTER button, the normal
playback can be resumed.
1 During the slow-motion playback, the audio will be
disappeared.
21
Advanced Operation
p Repeated playback
Whenever the 1/ALL button is pressed, the repeated
playback is triggered and the message OSD is changed in
circles of “ 1”, “ ALL”, and “ OFF”.
1 “ 1”
ü Trigger the repeated playback of a chapter for a
after another track is finished.
1 Pressing the RANDOM button again, the normal
playback is resumed, while the OSD message
“RANDOM OFF” is displayed and lasts few seconds.
p Program playback
The program playback is only available for a CD-DA or a
DVD disc.
ü Trigger the repeated playback of a track for a CD
disc or a VCD disc.
1 “ ALL”
ü Trigger the repeated playback of a title for a DVD
disc.
ü Trigger the repeated playback of all disc for a CD
disc or a VCD disc.
1 “ OFF”
Resume the normal playback.
p A-B Repeated playback
Do repeated playback between any two points of a track
or a chapter, which you can set randomly.
Press the A-B button during playback to set the
beginning point (A) at the current playback time, while the
OSD message “A “ is shown on the right lower screen
corner.
Press the A-B button again to set the end point (B) at
the current play time, while the “A B” OSD message is
shown. At the mean time, the repeated playback between
the two points, A and B, starts.
Pressing the A-B button again, the normal playback is
resumed, while the OSD message “ OFF” is shown.
VCD with PBC off.
Track program
1. Press the STOP button to stop the playback.
2. Press the PROGRAM to program the tracks for
program playback, while the following OSD message is
displayed,
Where “Pxx:yy” denotes the yyth track in the disc is
programmed at the xxth position
3. Press the numbers to program
For example: To program the 2nd track at the 1st position,
the 4th one at the 2nd position, and the 6th on at the 3rd
PROGRAM P00:00
p Random playback (only for a VCD with
PBC off or a CD-DA)
1 Press the RANDOM button to trigger the random
playback, while the OSD message “ RANDOM ON” is
displayed and lasts few seconds. During the random
playback, a track will be chose randomly to playback
22
position, key digit 2 , digit 4 , digit 6 sequentially,
while the OSD message changes as follows,
i The number bigger than 10 must be keyed by using
[+10] additionally. For example, “22” is keyed in by
pressing [+10] twice and then [2] once.
i The maximum program capability is 99 tracks.
PROGRAM P06:03
Start/Cancel the program playback
1 Press the PLAY button to start the program
playback in order that you program.
1 Press the STOP button to cancel the program
playback and the program order is reset.
1 During the program playback, the tracks you program
will be played back in circles and the NEXT button
and the PREV button can also be used for
operation.
p MARK
This DVD player supports 5 memory points for you to
store markers.
Store makers
Press the MARK button during playback and the mark
menu will be shown on screen. Press the MARK button
again to exit from the mark menu.
Where the digit means there is a marker stored in this
memory, and “+” means no marker.
1 Press the 4 or 3 button to select a “+” position.
1 During playback, press the ENTER button to mark
MARK 1 2 + + +
PRESS ENTER TO SETUP MEMORY
the current time in the memory and, then, the position
will be numbered.
MARK 1 2 3 + +
PRESS ENTER TO SETUP MEMORY
Playback/Cancel marker
1 When you press the 3 or 4 button to select a
numbered position, the mark menu becomes
MARK 1 2 + + +
PRESS ENTER TO SETUP MEMORY
1 Press the ENTER button to playback from the
marker and, then, the mark menu will be cleared
automatically.
1 Press the CLEAR button to clear a marker and,
then, the mark menu becomes
MARK 1 2 3 + +
PRESS ENTER TO SETUP MEMORY
PRESS CLEAR TO CANCEL
23
p Title Menu (DVD only)
Some of DVD discs has a title menu recorded on it used
to select title for playback. The operation details for the
title menu depends on the disc.
1 Press the TITLE button during playback to title
menu. Pressing the TITLE button again resumes
the playback of the scene when the TITLE button
was first pressed. For example,
TITLE MENU
TITLE #1 TITLE #2
TITLE #3 TITLE #4
1 Use the 5 , 3 , 6 , 4 buttons to control the
direction and press the ENTER or PLAY button to
select the preferred title. Or you can directly press the
numeric buttons to select.
p DVD menu (DVD only)
Some DVDs has complex contents such as multi-subtitle,
multi-audio, or multi-angle. Therefore, they may provide
guide menus for a title for audio language, subtitle
language, or angle.
1 Press the MENU button during playback and the
DVD menu is displayed, if it is available on the disc.
Pressing the MENU button again resumes the
playback of the scene when the MENU button was
first pressed
24
DVD MENU
SUBTITLE MENU
AUDI MENU
ANGLE MENU
1 Use the 5 , 3 , 6 , 4 buttons to control the
direction and press the ENTER or PLAY button to
select the preferred item. Or you can directly press
the numeric buttons to select.
p Multi-angle playback
1 Some DVD discs may contain the scenes with a
number of different angle views. Whenever a scene
with multiple angle views is played back, you can use
the ANGLE button to view this scene from each
angle. (The mark " " will appear on the screen
during the playback of a scene with multi-angle views,
if the "ANGLE MARK" in the initial setting is "ON".)
1/5
1 Press the ANGLE button and the angle OSD
message will appear to show the current angle
number. If no selection is made, this message will
disappear automatically after 3 seconds.
3/5
1 Whenever the ANGLE button is pressed, the angle
for playback will change in circles among the
available angle numbers.
p Changing subtitle during playback
During playback of a DVD disc with more than two subtitle
languages, you can change the subtitle or disable the
subtitle by press the SUBTITLE button.
1 Press the SUBTITLE button and the subtitle OSD
message will appear to show the current subtitle
number. If no selection is made, this message will
disappear automatically after 3 seconds.
SUBTITLE 01/06:ENGLISH
1 Whenever the SUBTITLE button is pressed, the
subtitle for playback will change in circles among the
available subtitle numbers and “OFF” status, where
“ OFF” means “Disable the subtitle display”.
p Changing audio during playback
During playback of a DVD disc with more than two audio
languages, you can change the audio language by press
the AUDIO button.
1 Press the AUDIO button and the audio OSD
message will appear to show the current audio
number. If no selection is made, this message will
disappear automatically after 3 seconds.
AUDIO 1/4:AC-3 5.1CH ENGLISH
1 Whenever the AUDIO button is pressed, the audio
for playback will change in circles among the
available audio numbers.
p Search
Under the search mode, specific title, chapter, or time can
be dedicated for playback immediately,.
DVD search functions
During a DVD playback, the search function can be
triggered by pressing the SEARCH button and the OSD
will show three search areas— title, chapter, and time.
Press the SEARCH again to cancel the search mode.
Press: 5 , 3 , 6 , 4 to go to the search
area you want. Search operation can be done only in
one area at a time.
Press ENTER to trigger the playback from the position
you set.
VCD/CD search functions
During a VCD or CD playback, this unit only supports time
search function.
Pressing the SEARCH button during playback, the OSD
for VCD/CD search.
When the time is set, the playback from this position will
start immediately.
GOTO _ _:_ _
25
p VCD’s playback control (PBC)
This function is only available for the playback of a
Video-CD Ver. 2.0 or more. The PBC operation may be
different by disc. Therefore, please refer to all
explanations in each disc package.
MENU/PBC button
Press the MENU/PBC button to switch on/off the PBC
function, while the OSD messages “PBC ON” and “PBC
OFF” will be displayed, respectively.
PREV and NEXT buttons
1 On the PBC menu, the PREV and NEXT buttons
are dedicated for “go back to previous page” and “go
to next page” of the PBC menu, if exist.
1 During playback, press the NEXT button to return
to the PBC menu.
Digit buttons
On the PBC menu, all the items must be selected and
executed by using the digit buttons directly.
26
TROUBLESHOOTING
Before requesting service for this unit, please check the following chart for a possible cause of the problem you are
experiencing. Some simple checks or minor adjustment on your AV system may eliminate the problem and resume
proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem,
consult your dealer for instructions.
Common Symptom Possible cause Remedy
No power ü Power cord is not properly
connected to the power outlet
Disc tray can not be
closed
No playback ü Power is OFF
Too much mosaic image ü Poor disc ü Change to a new disc
No audio ü Slow or fast playback
No Video ü Disconnection of video equipment
Remote control unit does
not work
ü Disc is not properly placed ü Re-place the disc properly.
ü No disc is inserted (“no disc” will be
shown on screen.
ü Disc is upside down. (‘no disc” will
be shown on screen.)
ü Dirty disk
ü Deformed disk
ü Condensation happens
ü Audio terminals are disconnected.
ü TV volume is too small
ü Wrong AUDIO OUTPUT Setting
ü Wrong input setting of video
equipment
ü No battery in remote control
ü Dead batteries
ü Do not point the remote control to
the remote sensor
ü Make sure the connection between the power
cord and the outlet.
ü Turn ON the power.
ü Insert a disc
ü Reload disk. The label side should face
upward.
ü Clean disc surface
ü Change a new disc
ü Turn power on and idle for 1-2 hours.
ü Press [PLAY] to resume normal playback
ü Check audio connections
ü Adjust TV volume
ü Check AUDIO OUTPUT Setting
ü Check video connections
ü Check video input setting of video equipment
ü Put in new batteries.
ü Replace batteries
ü Use the remote control properly
DVD Symptom Possible cause Remedy
Do not Playback even when a title
is selected
Audio or subtitle language is not
that selected at the initial setting.
Setting language is not that you
want
Audio or Subtitle can not be
changed
The password for parental rating
has been forgotten
27
ü Prohibited by the parental
rating
ü Those selected language
does not exists in the disc
ü Wrong OSD language setting ü Check the OSD language setting
ü The disc just contains one
language
ü ü Except the password you set, a super
ü Confirm the PRENTAL setting.
ü Select the other language using [AUDIO]
or [SUBTITLE]
ü Check the disc contents
password “0000” always can help you
SPECIFICATION
Power requirement AC 100~240 V, 50/60 Hz
Power consumption 26 W ( approx. 6W at standby mode)
Weight 4.2Kg
Dimensions (W x D x H) 430x310x86 (mm)
Operating temperature range
Operating humidity range 5 to 90 % (no condensation)
Video system NTSC 525/60 Hz or PAL 625/50 Hz
Component video terminal Y output level 1 Vp-p (75 Ω)
Cb output level 0.7 Vp-p (75 Ω)
Cr output level 0.7 Vp-p(75 Ω)
S-video terminal Y output level 1 Vp-p (75 Ω)
C output level 0.286 Vp-p (75 Ω)
Video terminal 1 Vp-p (75 Ω)
RGB video (SCART terminal) R output level 0.7 Vp-p (75 Ω)
G output level 0.7 Vp-p (75 Ω)
B output level 0.7 Vp-p (75 Ω)
Frequency range 20Hz ~ 20kHz
Dynamic range Over 90 dB
Audio parameters
S/N ratio Over 90 dB
Distortion Under 0.01%
Output level 2 Vrms
+5 to 40 °C
Label
1. First class laser product Rating labels on the back of the machine
2. Danger: when the internal functions are out of order or
damaged, opening the cover may cause unseen radioactivity.
It should be kept away from direct light.
3. Caution: Do not open the top cover. No internal part should
be maintained or serviced by the user. All such work should
be carried out by qualified personnel.
Dolby License
1 Product Manual LICENSE NOTICE
Manufactured under license from Dolby Laboratories
1 TRADEMARK ACKNOWLEDGEMENT
“Dolby”, “AC-3”, “Pro logic” and the double-D symbol are trademarks of Dolby Laboratories.
COPYRIGHT NOTICE
1 Confidential Unpublished Work. 1992-1997 Dolby Laboratories, Inc. All rights reserved.
CLASS 1
LASER PRODUCT
28
Region Management Information
This DVD player is designed and manufactured to respond to the Region Management Information recorded on a DVD
disc. If the region number described on the DVD disc does not correspond to the region number of this DVD player, this
DVD player will not playback this disc, while the OSD message “WRONG REGION” will show on the screen.
Description of SCART Terminal
Pin No Video RGB-Video S-Video
1 Audio Output ( R ) Audio Output ( R ) Audio Output ( R )
2 Audio Output ( L ) Audio Output ( L ) Audio Output ( L )
3 No Connection No Connection No Connection
4 Audio GND Audio GND Audio GND
5 No Connection Blue GND No Connection
6 No Connection No Connection No Connection
7 No Connection Blue No Connection
8 Switching Voltage Switching Voltage Switching Voltage
9 No Connection Green GND No Connection
10 No Connection No Connection No Connection
11 No Connection Green No Connection
12 No Connection No Connection No Connection
13 No Connection Red GND S-Video ( C ) Output GND
14 Blanking GND Blanking GND Blanking GND
15 No Connection Red S-Video ( C ) Output
16 Blanking Blanking Blanking
17 Video Output GND Video Output GND S-Video (Y ) Output GND
18 No Connection No Connection No Connection
19 Video Output Video Output S-Video (Y ) Output
20 No Connection No Connection No Connection
21 GND GND GND
29
Loading...
