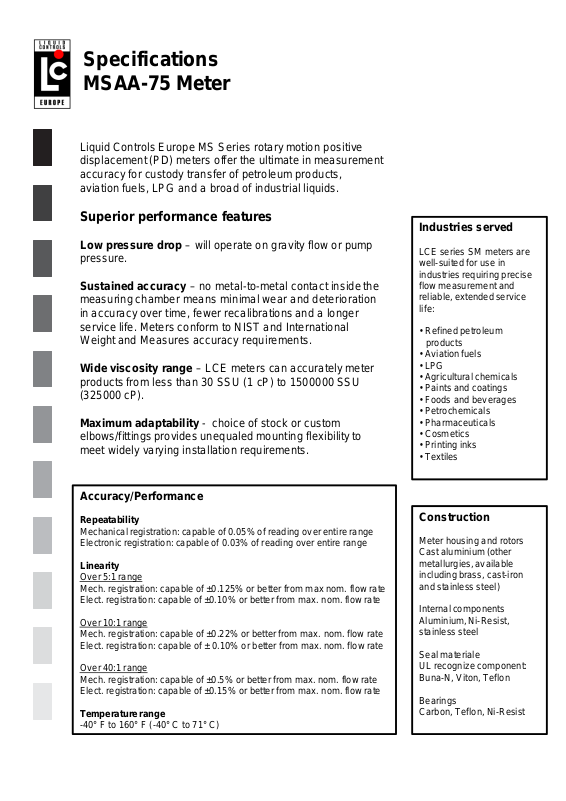

Specifications
MSAA-75 Meter

Liquid Controls Europe MS Series rotary m otion positive
displacement (PD) meters offer the ultimate in m easu rem ent
accuracy for custody transfer of petroleum products,
aviation fuels, LPG and a broad of industrial liquids.

Superior performance featur es

Low pressu r e dr op – w ill operate on gravity flow or pump

pressure.
Sustained accur acy – no metal-to-metal contact inside the

measuring chamber means minimal wear and deterioration
in accuracy over time, fewer recalibrations and a longer
service life. Meters conform to NIST and International
Weight and Measu res accuracy requirem ent s.

Wide viscosity range – LCE meters can accurately meter
products from less than 30 SSU (1 cP) to 1500000 SSU
(325000 cP).

Maximum adaptability - choice of stock or custom
elbows/fittings provides unequaled mounting flexibility to
meet widely varying installation requirements.

Industries served

LCE series SM meters are
well-suited for use in
industries requiring precise
flow measurement and
reliable, extended service
life:

• Refined petroleum
products

• Aviation fuels

• LPG

• Agricultural chemicals

• Paints and coatings

• Foods and beverages

• Petrochemicals

• Pharmaceuticals

• Cosmetics

• Printing inks

• Textiles

Accuracy/Performance

Repeatability

Mechanical registration: capable of 0.05% of reading over entire range
Electronic registration: capable of 0.03% of reading over entire range

Linearity

Over 5:1 range
Mech. registration: capable of ±0.125% or bette r from max nom. flow rate
Elect. registration: capable of ±0.10% or better from max. nom. flow rate

Over 10:1 range
Mech. registration: capable of ±0.22% or better from max. nom. flow rate
Elect. registration: capable of ± 0.10% or better from max. nom. flow rate

Over 40:1 range
Mech. registration: capable of ±0.5% or better from max. nom. flow rate
Elect. registration: capable of ±0.15% or better from max. nom. flow rate

Temperature range

-40° F to 160° F (-40° C to 71° C)

Construction

Meter housing and rotors
Cast aluminium (other
metallurgies, available
including brass, cast-iron
and stainless steel)

Internal components
Aluminium, Ni-Resist,
stainless steel

Seal materiale
UL recognize component:
Buna-N, Viton, Teflon

Bearings
Carbon, Teflon, Ni-Resist

Dimensions: steel case flow m eter s

Note: Dim ensions sh ow n are not for construction use. C onsult fact ory w hen certified
engineering prints are required.

Model

MSAA-75 4”

Dimensions E F G H I J K L M

mm 356 135 19 331 147 798 716 34 335

in 14 5.3 .75 13 5.8 31.4 28.2 3.3 13.2

Flange

size

Construction and application classes

LCE steel-case P D m eters are suitable for m etering a
broad range of products as listed below. The
appropriate meter class can be used to specify a
desired meter by using the table on the next page of
this publication.

Max nom.

Flow rate

2650 l/min

(700 GPM)

Working
pressure

19 bar

(285 PSI)

Net

weight

174,6 kg

(385 lbs)

Dimensions A B C D

mm 762 691 526 178

in 30 27.2 20.7 7

Class Description

1 Refined petroleum products Ni-Resist
2 Aviation and jet fuel Ni-Resist
7 Chlorinated solvents Carbon

Acid pH liquids includes: nitric,

8

phosphoric, glacial acetic acids,

citric juices, vinegar
10 LPG Carbon
14 Crude oil Ni-Resist
16 General solvents Carbon

37

Sodium Hydroxide solutions,

high sulfur crude oil, alkaline

pH liquids

Bearing

Material

Carbon

Ni-Resist
