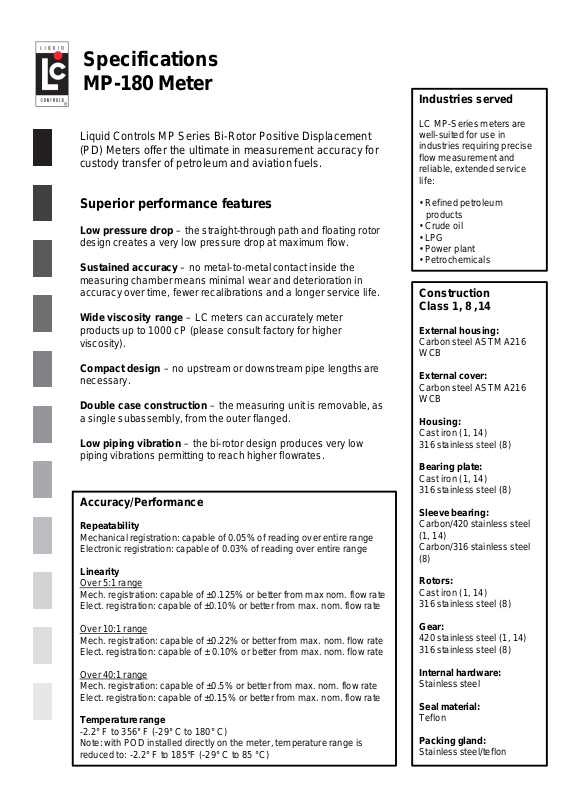

Specifications
MP-180 Meter
Liquid Controls MP Series Bi-Rotor Positive Displacement
(PD) Meters offer the ultimate in m easu rement accuracy for
custody transfer of petroleum and aviation fuels.
Superior performance featur es
Low pressure drop – the straight-thr ough path and floating rotor
design cr eates a very low pressure dr op at maxi mum flow.
Sustai n ed accur acy – no metal-to-metal contact insi de the
measuring ch amber means mi nimal wear and deterioration i n
accuracy over t ime, fewer recal ibr ations and a longer se rvi ce life.
Wide viscosity range – LC meter s can accuratel y meter
products up to 1000 cP (please consult factor y for higher
viscosity).
Compact design – no upstream or downstream pipe lengths are
necessary.
Double case construction – the measuring unit i s removable, as
a single subassembl y, from the outer flanged.
Low piping vibration – the bi-rotor desi gn produce s very low
piping vi brati ons perm itti ng to reach hi gher flowrates.
Accuracy/Performance
Repeatability
Mechanical registration: capable of 0.05% of reading over entire range
Electronic registration: capable of 0.03% of reading over entire range
Linearity
Over 5:1 range
Mech. registration: capable of ±0.125% or better from max nom. flow rate
Elect. registration: capable of ±0.10% or better from max. nom. flow rate
Over 10:1 range
Mech. registration: capable of ±0.22% or better from max. nom. flow rate
Elect. registration: capable of ± 0.10% or better from max. nom. flow rate
Over 40:1 range
Mech. registration: capable of ±0.5% or better from max. nom. flow rate
Elect. registration: capable of ±0.15% or better from max. nom. flow rate
Temperature range
-2.2° F to 356° F (-29° C to 180° C)
Note: with POD installed directly on the meter, temperature range is
reduced to: -2.2° F to 185°F (-29° C to 85 °C)
Industries served
LC MP-Series meters are
well-suited for use in
industries requiring precise
flow measurement and
reliable, extended service
life:
• Refined petroleum
products
• Crude oil
• LPG
• Power plant
• Petrochemicals
Construction
Class 1, 8 ,14
External housing:
Carbon steel ASTM A216
WCB
External cover:
Carbon steel ASTM A216
WCB
Housing:
Cast iron (1, 14)
316 stainless steel (8)
Bearing plate:
Cast iron (1, 14)
316 stainless steel (8)
Sleeve bearing:
Carbon/420 stainless steel
(1, 14)
Carbon/316 stainless steel
(8)
Rotors:
Cast iron (1, 14)
316 stainless steel (8)
Gear:
420 stainless steel (1, 14)
316 stainless steel (8)
Internal hardware:
Stainless steel
Seal material:
Teflon
Packing gla nd:
Stainless steel/teflon
Dimensions: flow meters w ith pulse tr ansmitter
Model Flow rate Flange size Net weight Max working pressure
19 bar @ -29°C to 38°C
MP180
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
3968 lbs
(1800 kg)
4189 lbs
(1900 kg)
32.6
828
32.6
828
32.6
828
32.6
828
32.6
828
32.6
828
13.8
350
13.8
350
13.8
350
13.8
350
13.8
350
13.8
350
16” ANSI 150
16” ANSI 300
Dimensions
27.3
693
27.3
693
27.3
693
27.3
693
27.3
693
27.3
693
Intermittent (1):
7926 GPM
(1800 m³/h)
Nominal (2):
6341 GPM
(1440 m³/h)
C D E Q1 Q2 L
23.6
600
23.6
600
23.6
600
23.6
600
23.6
600
23.6
600
18 bar @ -29°C to 85°C
14 bar @ -29°C to 180°C
49 bar @ -29°C to 38°C
47 bar @ -29°C to 85°C
44 bar @ -29°C to 180°C
34.3
871
34.3
871
34.3
871
34.3
871
34.3
871
34.3
871
55.1
1400
55.1
1400
55.1
1400
56.7
1440
56.7
1440
56.7
1440
Note (1): Maximum intermittent flow rate (batch use) means 8/24 hours of operation per day.
Note (2): Maximum nominal flow rate (continuous use) means 24/24 hours of operation per day.
Construction and application classes
LC MP series PD m eters are suitable for metering a
broad range of products as listed below . The
appropriate meter class can be used to specify a
desired meter by using the table below.
Class Description
1 Refined petroleum products
8
14 Crude oil
Acid pH liquids includes: nitric,
phosphoric, glacial acetic acids, citric
juices, vinegar
