Sammy GHOST TRAIN REDEMPTION GAME User Manual

OPERATING MANUAL
®
American Sammy Corporation
901 Cambridge Drive Elk Grove Village, IL 60007-2434 Phone: (847) 364-9787 Fax: (847) 364-9831 Internet: www.sammyusa.com
TABLE OF CONTENTS
SPECIFICATIONS
POWER, DIMENSIONS & WEIGHT Page 1
GAME PLAY Page 2 ♦ WIN COMBINATIONS & PAYOUT
MATCH WIN & LINE WIN Page 2
SPECIAL FEATURES
BONUS CHANCE & JACKPOT Page 2
LOCATION OF BUTTONS & SWITCHES
PLAYFIELD, CONTROL PANEL & INSIDE OF THE BACK DOOR Page 3 INSIDE OF THE FRONT DOOR Page 4
DIAGNOSTICS
AUDIT MODE Page 5 SETTING MODE & TEST MODE Page 6
ELECTRICAL WIRING DIAGRAM
MAIN WIRING Page 7 CABLE 1 Page 8 CABLE 5, 6, 7, 8 & 9 Page 9 CABLE 10, 11 & 12 Page 10 CABLE 13, 14 & 15 Page 11 CABLE 16, 20 & 21 Page 12 INTERFACE BOARD Page 13

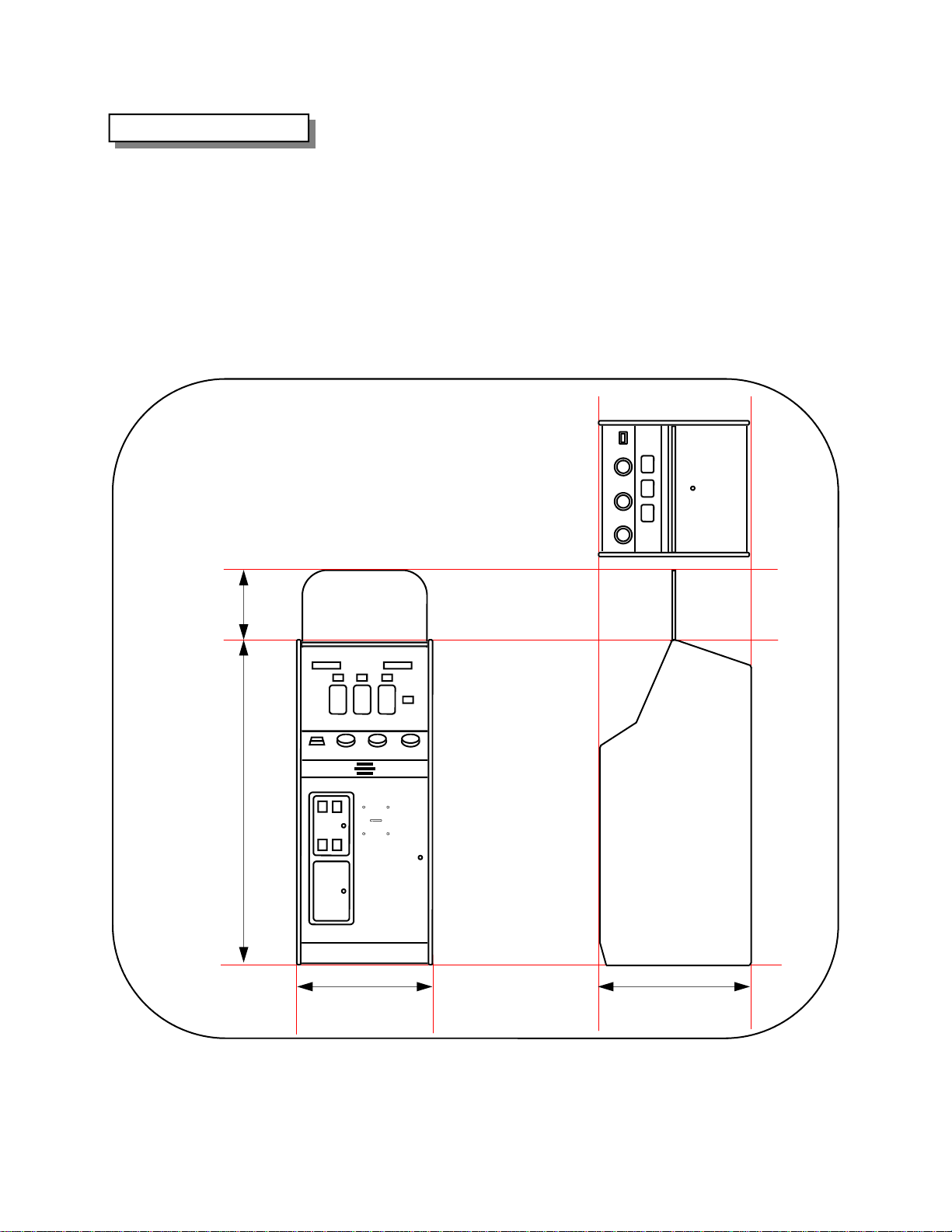

Specifications
POWER
DIMENSION
WEIGHT
12”
Volts : 120 VAC Watt : 180 W Amps : 3 Amps Hz : 60 Hz
Width : 20” (Approx.) Depth : 25 1/4” (Approx.) Height : 66” (Approx.)
160 lbs. (Approx.)
54”
25 1/4” 20”
1
Game Play
Insert coin(s)
You can play a maximum of 4 or 8 coins by changing the machine setting. 1 coin gives 1 credit for REEL #1, REEL #2, REEL #3 and SIDE LINE.
Press the Start Button and Reels will spin.
Stop the Reels by pressing the 3 STOP Buttons in any order. Then the Bonus Lamps around the
Reels will start and stop automatically. If you match the same characters on the Reels or in the Bonus, you will win.
Win Combinations & Payout
MATCH WIN
When you match the same characters in the Reels and the Bonus, tick e ts are paid out as below.
1 Crown X 50 Tickets per Coin
1 Ghost Chest X 30 Tickets per Coin 1 Money Bag X 25 Tickets per Coin 1 Candelabra X 15 T ickets per Coin 1 Bat X 8 Tickets per Coin 1 Spider X 5 Tickets per Coin 1 Apple X 3 Tickets per Coin
LINE WIN
When you match the same 3 characters in the Reels, tickets are paid out as below.
3 Crowns X 150 Tickets per Coin
3 Ghost Chests X 100 Tickets per Coin 3 Money Bags X 50 Tickets per Coin 3 Candelabra X 30 Ti ckets per Coin 3 Bats X 20 Tickets per Coin 3 Spiders X 15 Tickets per Coin 3 Apples X 7 Tickets per Coin
Special Features
BONUS CHANCE
When you hit the LOCOMOTIVE (Train) or the TNT (Dynamite) in the Bonus Game, you get a BONUS CHANCE.
LOCOMOTIVE: After you get the LOCOMOTIVE, the Bonus Lamps will turn and stop on 4 characters.
TNT: After you get the TNT, the Bonus Lamps will turn and stop on 6 characters.
JACKPOT
When you get the CROWN in the 3 Reels and the Bonus Game, you get the JACKPOT and win “Total inserted coins X 500”. (Example: When 4 coins are inserted, you will win “2000” Tickets.)
2

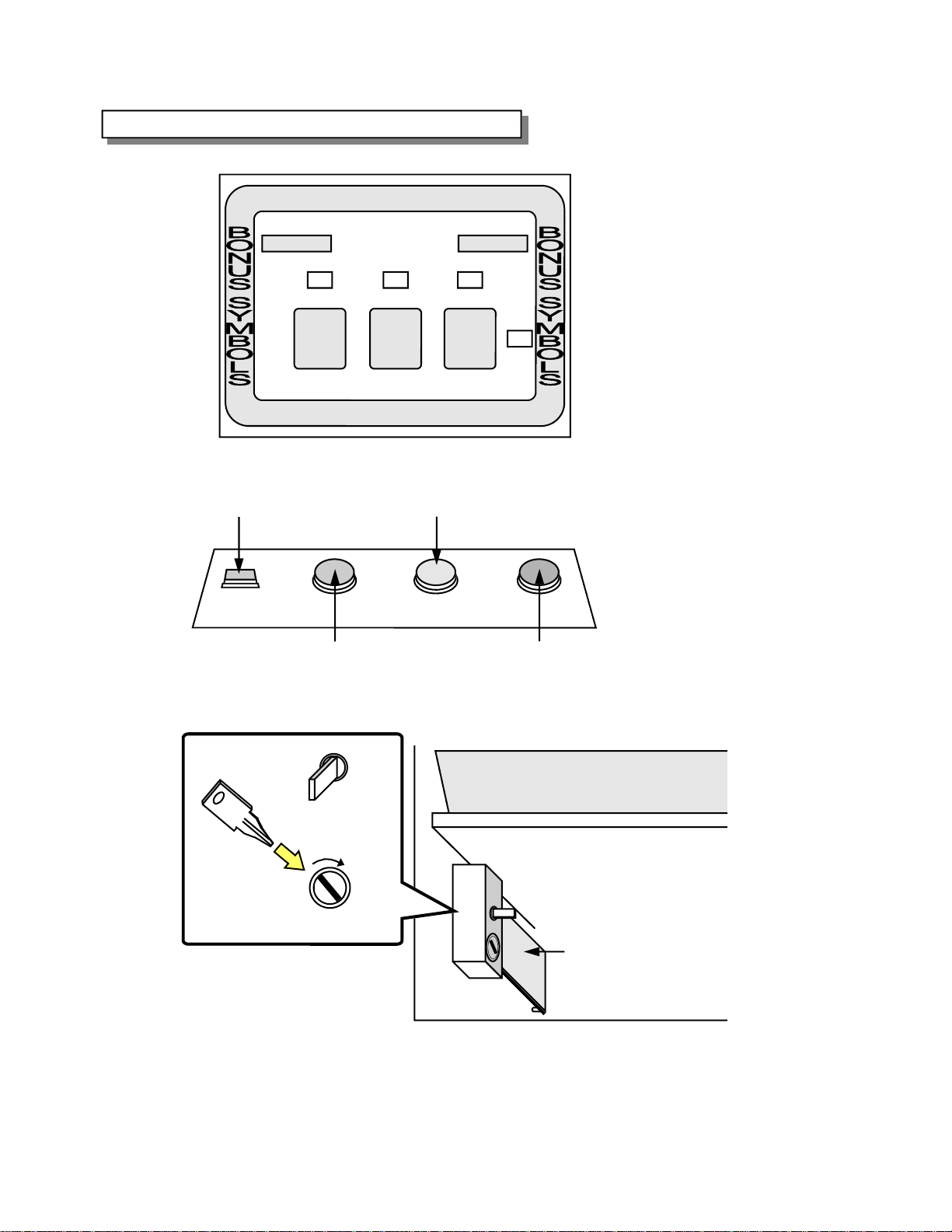

Location Of Buttons & Switches
PLAYFIELD
BONUS SYMBOLS
CREDIT LED
WIN LED
REEL #1 REEL #2
BONUS SYMBOLS
CONTROL PANEL
START Button
REEL #1 STOP Button
REEL #2 STOP Button
INSIDE OF THE BACK DOOR
Use the KEY!
RESET Switch
REEL #3
REEL #3 STOP Button
Main P.C.Board
ON
KEY Switch
INSIDE OF THE BACK DOOR
Terminal Board
3

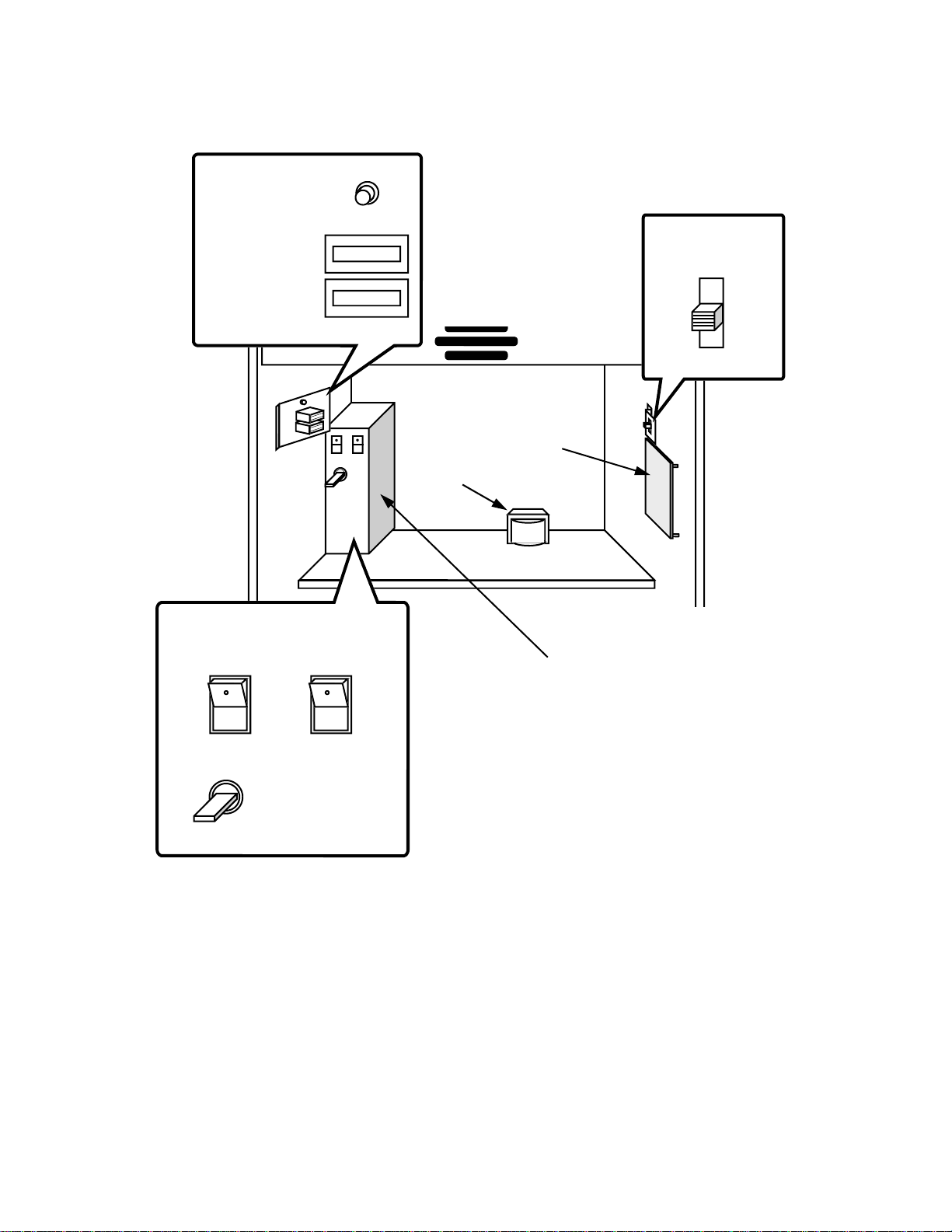

INSIDE OF THE FRONT DOOR
TICKET RESUME
Switch
COIN Meter
TICKET Meter
LIGHT Switch
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
CIRCUIT
BREAKER
VOLUME Switch
HI MID LOW
INSIDE OF
THE FRONT DOOR
Interface Board
Transformer
Power Supply Box
Not Used
4
Diagnostic
There are 3 Diagnostic Modes as below:
AUDIT MODE: Check audit data of game. SETTING MODE: Check or change the game settings. TEST MODE: Check hardware and software.
AUDIT MODE
Turn ON the KEY Switch during power ON, you will be in the AUDIT MODE.
CREDIT LED (Left side of 7 Segments Display) shows Audit Number. WIN LED (Right side of 7
Segments Display) shows Audit Data.
Choose the Audits Number by pressing the START Button and the REEL #3 STOP Button.
Turn OFF the KEY Switch during power ON and the game will return to regular play. If you want to reset all Audit Data not including AUDITS #08 and #25, Turn ON the KEY Switch,
AUDITS #
AUDITS
#
01 02 03 04 05 06 07 08 09 10 11 12 13
CREDIT(S)
(CREDIT LED)
CONTENTS
KEY IN (Not Used) KEY OUT (Not Used) COINS IN TICKETS OUT Number of TOTAL GAMES Number of TOTAL BETS Number of TOTAL WINS Number of RE-POWER ON Number of JACKPOTS WON Number of 3 CROWNS matched Number of 3 GHOST CHESTS matched Number of 3 MONEY BAGS matched Number of 3 CANDELABRA matched
AUDITS
#
14 15 16 17 18 19 20 21 22 23 24 25
WIN
(WIN LED)
CONTENTS
Number of 3 BATS matched Number of 3 SPIDERS matched Number of 3 APPLES matched Number of CROWNS matched Number of GHOST CHESTS matched Number of MONEY BAGS matched Number of CANDELABRA matched Number of BATS matched Number of SPIDERS matched Number of APPLES matched Number of MACHINE ERROR Version # of Program EP-ROM
5
SETTING MODE
Turn ON the KEY Switch during power OFF of the game. Then turn ON the MAIN POWER and you will be in the SETTING MODE.
CREDIT LED (Left side of 7 Segments Display) shows the number of each setting.
Choose the FUNCTION by pressing the START Button. (Selected digit will be flashing)
Decide the Setting Number by pressing the REEL #3 STOP Button.
(CREDIT LED)
SETTING #
SETTING #
CREDIT(S)
PAYOUT
%
MAX.
COIN IN
MERCY TICKET
PER COIN
FUNCTIONS 1 2 3 4 5 6 7 8
PAYOUT % 23% 25% 28% 30% 33% 35% 38%
MAX. COIN IN 4
MERCY TICKET
PER COIN
0
8 1
2 3 4
40%
“FACTORY INSTALLED” SETTING
TEST MODE
Hit the RESET Switch down during power OFF of the game. Then re-power ON the game and you
will be in the TEST MODE.
Press START Button and you go to next test.
After finishing the 5 tests, re-power ON the game to return to regular play.
7 SEG. DISPLAY TEST: Each 7 Segments Display show numbers 0 to 9 one by one. LAMP TEST 1: All Bonus Lamps will light. LAMP TEST 2: Each Bonus Lamp will light one by one. REEL TEST: All 3 Reels will spin and stop auto matically. SOUND TEST: You can check the 23 kinds of game sounds.
Choose the test menu by pressing the START Button and the REEL #2 STOP Button. You will be able to listen to each sound pressing the REEL #3 STOP Button.
6

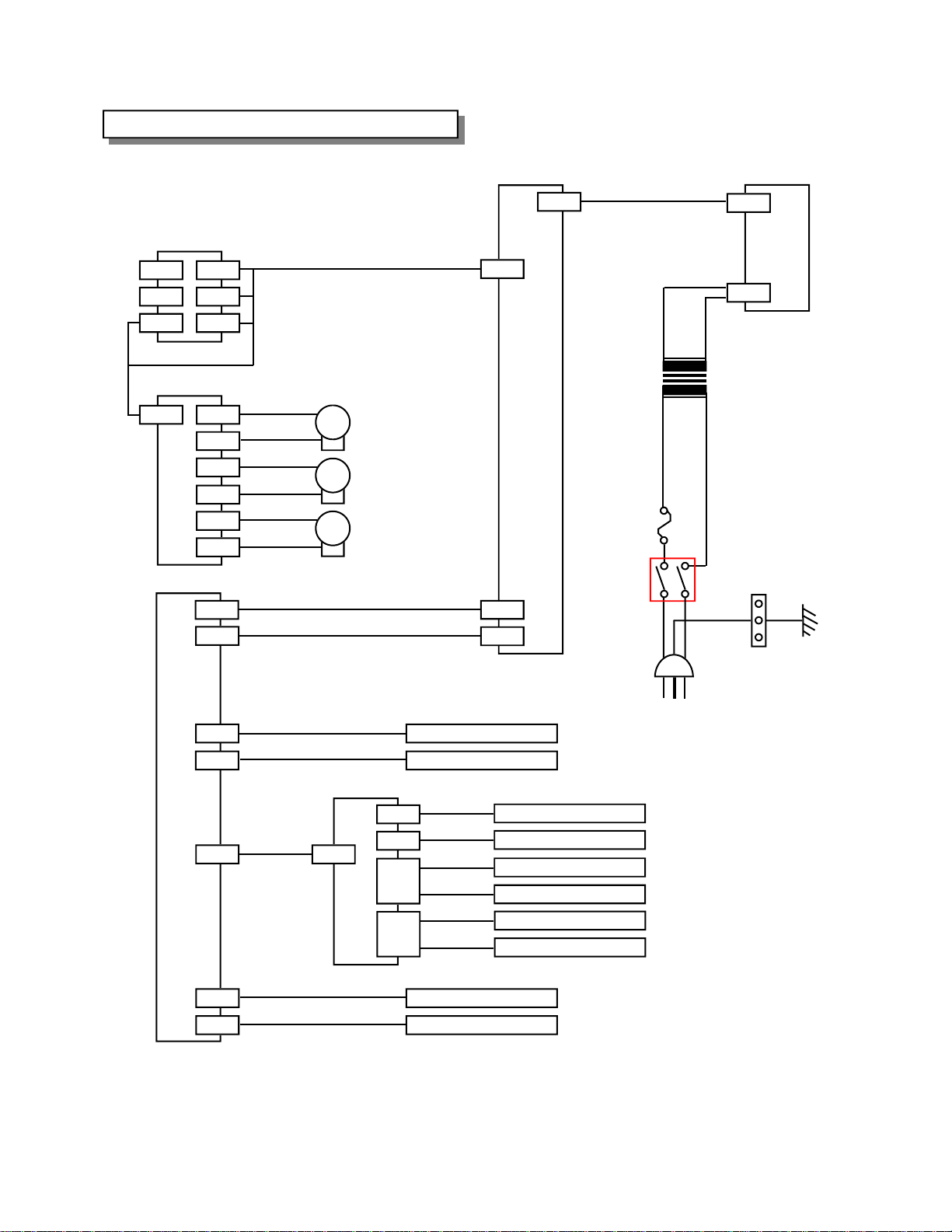

Electrical Wiring Diagram
MAIN WIRING
TERMINAL BOARD
CN-5 CN-4 CN-2
REEL BOARD
CN-1 CN-2
LAMP BOARD
CN-1 CN-3 CN-7
CN-3 CN-4
CN-5 CN-6 CN-7
CON3 CON2
CABLE
CABLE CABLE CABLE
CABLE
CABLE
CABLE 1
STEPPING MOTOR 1 SENSOR 1
STEPPING MOTOR 2 SENSOR 2
STEPPING MOTOR 3 SENSOR 3
CABLE 12 CABLE 13
MAIN P.C.BOARD
CN-3
CN-2
CN-1
CON1
CABLE 5
FUSE
3 AMP SB
MAIN
SWITCH
POWER SUPPLY BOX
CN-1
CN-4
24VAC
OUT
120VA
C
GROUND
TERMINAL
Ground to Coin/Ticket door, Transformer
CN-1
CN-2
CN-3
CN-7
CN-8
CABLE 16
CABLE CABLE
INTERFACE BOARD
J1
CABLE
CABLE
START BUTTON
REEL STOP BUTTON
J2 J3
J4
J5
TICKET RESUME SW
SPEAKER
A/C CORD
COIN SWITCH
TICKET DISPENSER
DC+12V
GND
COIN METER
TICKET METER
7

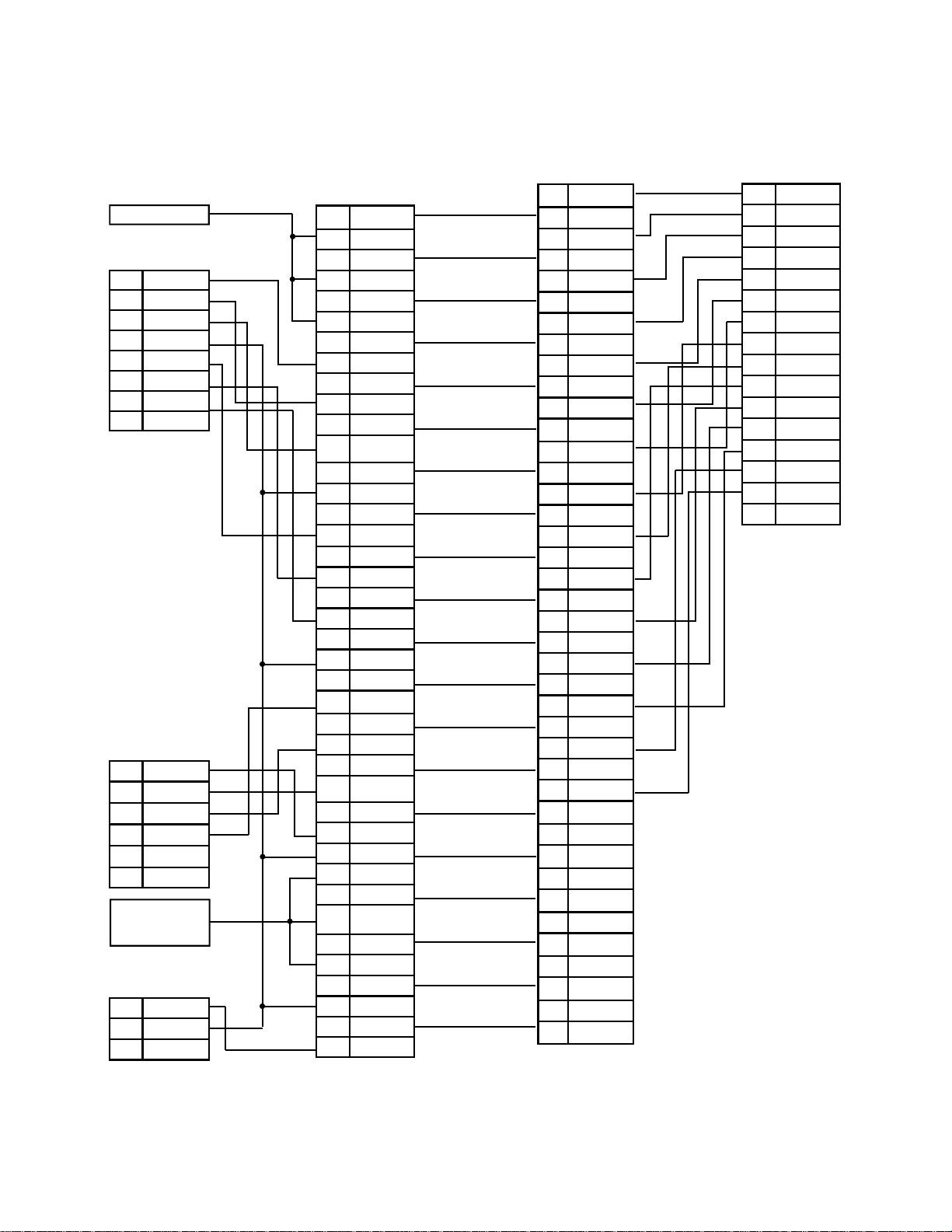

CABLE 1
RESET/KEY SW
TERMINAL BOARD SIDE
TERMINAL BOARD SIDE
TERMINAL BOARD SIDE
CN-1
01 STP OUT3 02 STP OUT2 03 STP OUT1 04 GND 05 STP IN3 06 STP IN2 07 STP IN1 08 GND
CN-3
1 COIN IN-C 2 TIX OUT-C 3 SB - C 4 BB - C 5 NOT USED 6 NOT USED
FOR WIN LAMP
BOARD
CN-7
1 DC+24V 2 GND 3 NOT USED
MAIN P.C.BO A RD SI DE
CN-2
A1 DC+30V
B1 DC+12V A2 SM3-/B B2 KEY-S A3 SM3-/A B3 REST-S A4 SM3-B B4 STP OUT3 A5 SM3-A B5 STP OUT2 A6 DC+30V B6 STP OUT1
A7 SM2-/B B7 GND A8 SM2-/A B8 STP IN3 A9 SM2-B
B9 STP IN2 A10 SM2-A B10 STP IN1 A11 DC+30V B11 GND A12 SM1-/B B12 BB-C
A13 SM1-/A B13 SB-C A14 SM1-B B14 TIX OUT-C
A15 SM1-A B15 COIN IN-C A16 GND B16 F.L.2 A17 R.SEN3 B17 F.L.1
A18 R.SEN2 B18 DC+24V A19 R. SEN1 B19 GND A20 DC+12V B20 DC+24V
REEL BOARD SIDE
CN-1
A1 DC+30V
B1 DC+30V A2 SM3-/B B2 SM3-/B A3 SM3-/A B3 SM3-/A A4 SM3-B B4 SM3-B A5 SM3-A B5 SM3-A A6 DC+30V B6 DC+30V
A7 SM2-/B B7 SM2-/B A8 SM2-/A B8 SM2-/A A9 SM2-B
B9 SM2-B A10 SM2-A B10 SM2-A A11 DC+30V B11 DC+30V A12 SM1-/B B12 SM1-/B A13 SM1-/A B13 SM1-/A A14 SM1-B B14 SM1-B A15 SM1-A B15 SM1-A
A16 NOT USED B16 GND
A17 NOT USED B17 R.SEN3
A18 NOT USED B18 R. SEN2
A19 NOT USED B19 R.SEN1
A20 NOT USED B20 DC+12V
TERMINAL BOARD
SIDE
01 DC+30V 02 SM3-/B 03 SM3-/A 04 SM3-B 05 SM3-A 06 DC+30V 07 SM2-/B 08 SM2-/A 09 SM2-B 10 SM2-A 11 DC+30V 12 SM1-/B 13 SM1-/A 14 SM1-B 15 SM1-A 16 NOT US E D
8

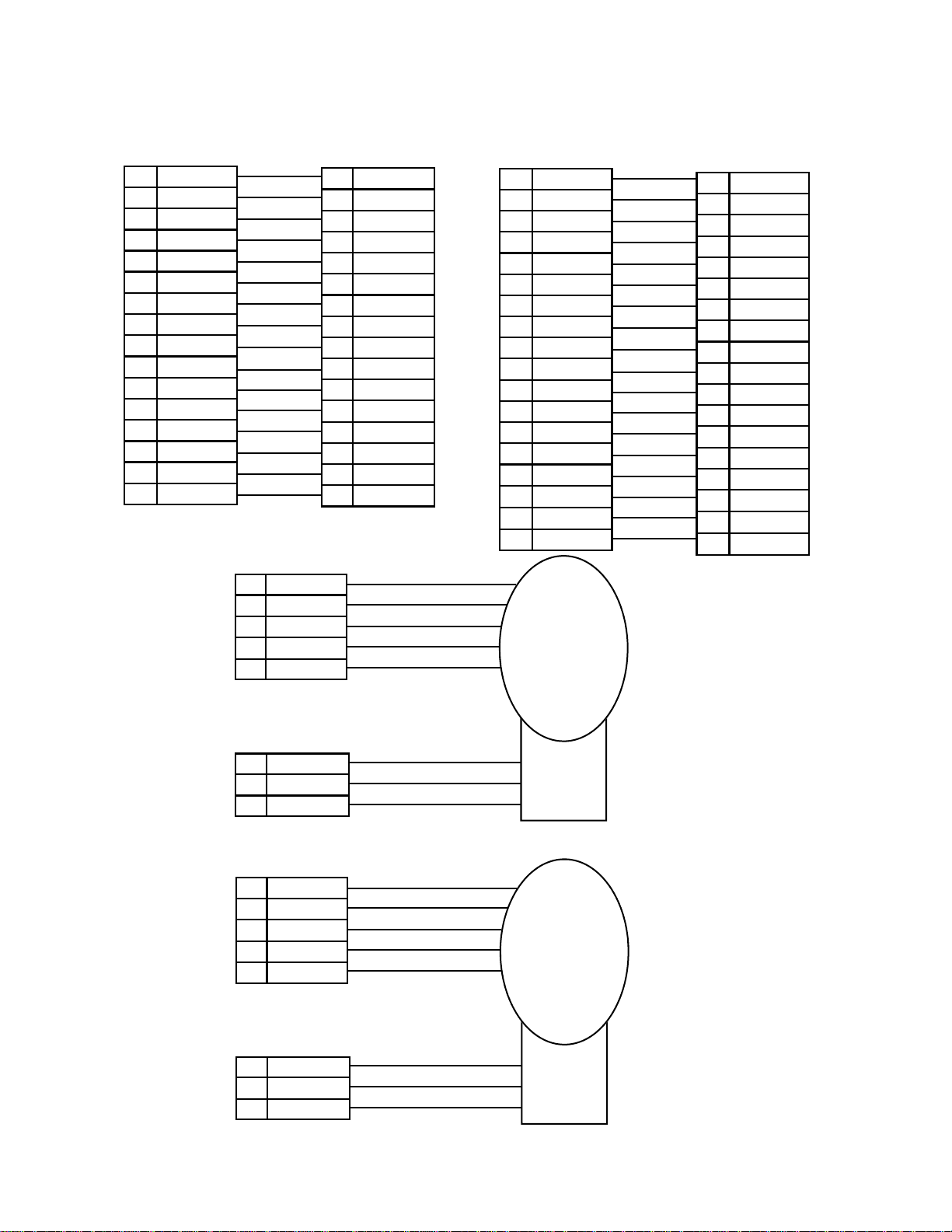

CABLE 5
NOTE: WE USE 2 KINDS OF POWER SUPPLY
1ST VERSION 2ND VERSION
MAIN P.C.BOARD SIDE
CN-3
01 DC+30V 02 DC+24V 03 24VR 04 24VR 05 LOW POWER 06 DC+12V 07 GND 08 TICKET OUT 09 DC+30V 10 DC+24V 11 24VR 12 24VR 13 24VR 14 DC+12V 15 GND 16 HOP ON
CABLE 6
REEL BOARD SIDE
01 DC+30V 02 SM1-/B 03 SM1-/A 04 SM1-B 05 SM1-A
POWER SUPPLY BOX SIDE
CN-1
01 DC+30V 02 DC+24V 03 24VR 04 24VR 05 LOW POWER 06 DC+12V 07 GND 08 TICKET OUT 09 DC+30V 10 DC+24V 11 24VR 12 24VR 13 24VR 14 DC+24V 15 GND 16 HOP ON
CN-2
MAIN P.C.BOARD SIDE
CN-3
01 +VB 02 DC+30V 03 DC+24V 04 24VH 05 24VR 06 LOW POWER 07 DC +12V 08 GND 09 TICKET OUT 10 - VB 11 DC+30V 12 DC+24V 13 24VR 14 24VR 15 24VR 16 DC+12V 17 GND 16 HOP ON
STEPPING
MOTOR 1
POWER SUPPLY BOX SIDE
CN-1
01 +VB 02 DC+30V 03 DC+24V 04 24VH 05 24VR 06 LOW POWER 07 DC +12V 08 GND 09 TICKET OUT 10 - VB 11 DC+30V 12 DC+24V 13 24VR 14 24VR 15 24VR 16 DC+12V 17 GND 16 HOP ON
CABLE 7
CABLE 8
CABLE 9
REEL BOARD SIDE
CN-2
01 DC-12V 02 R.SEN1 03 GND
REEL BOARD SIDE
CN-4 01 DC+30V 02 SM2-/B 03 SM2-/A 04 SM2-B 05 SM2-A
REEL BOARD SIDE
CN-5
01 DC-12V 02 R.SEN2 03 GND
9
REEL
SENSOR 1
STEPPING
MOTOR 2
REEL
SENSOR 2

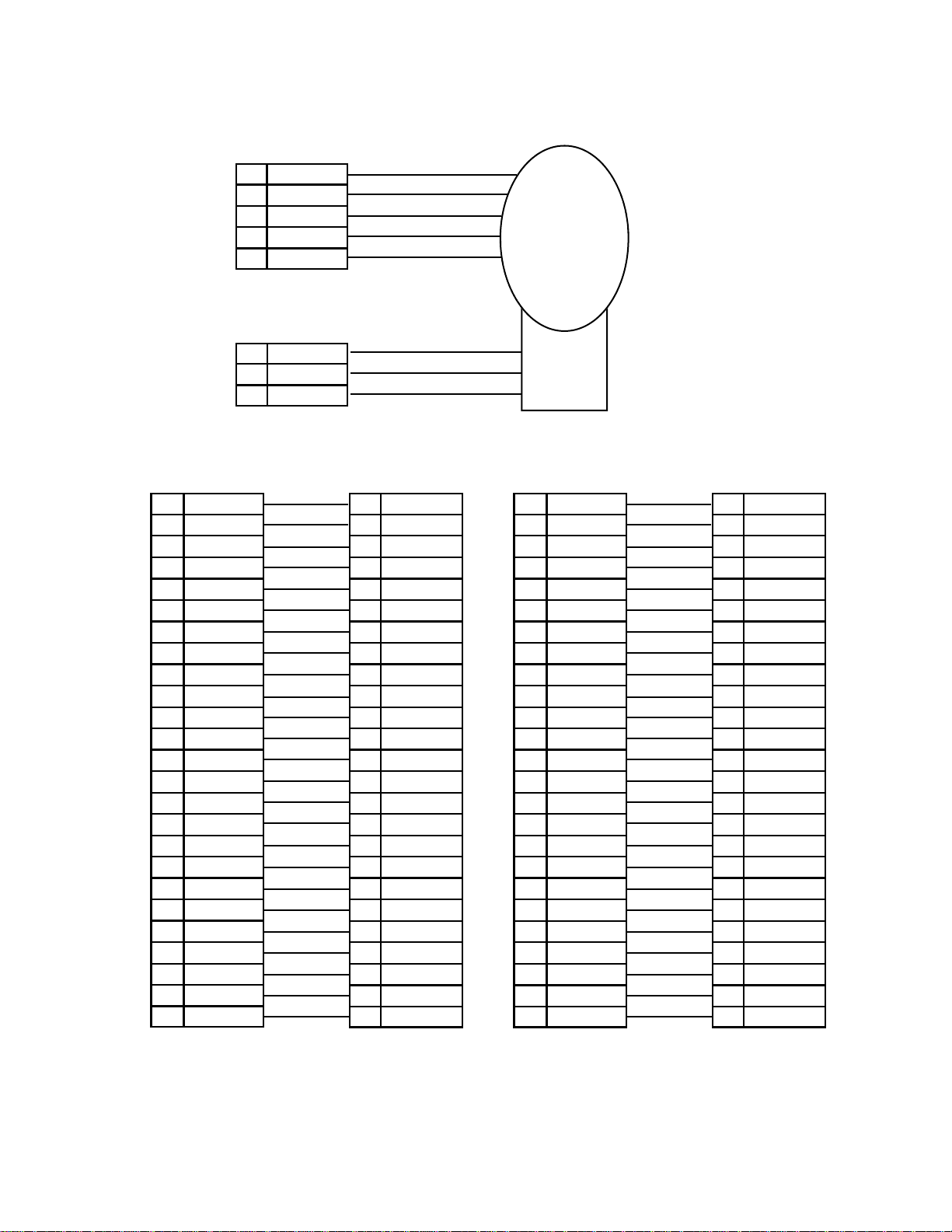

CABLE 10
REEL BOARD SIDE
CN-6 01 DC+30V 02 SM3-/B 03 SM3-/A 04 SM3-B 05 SM3-A
STEPPING
MOTOR 3
CABLE 11
CABLE 12

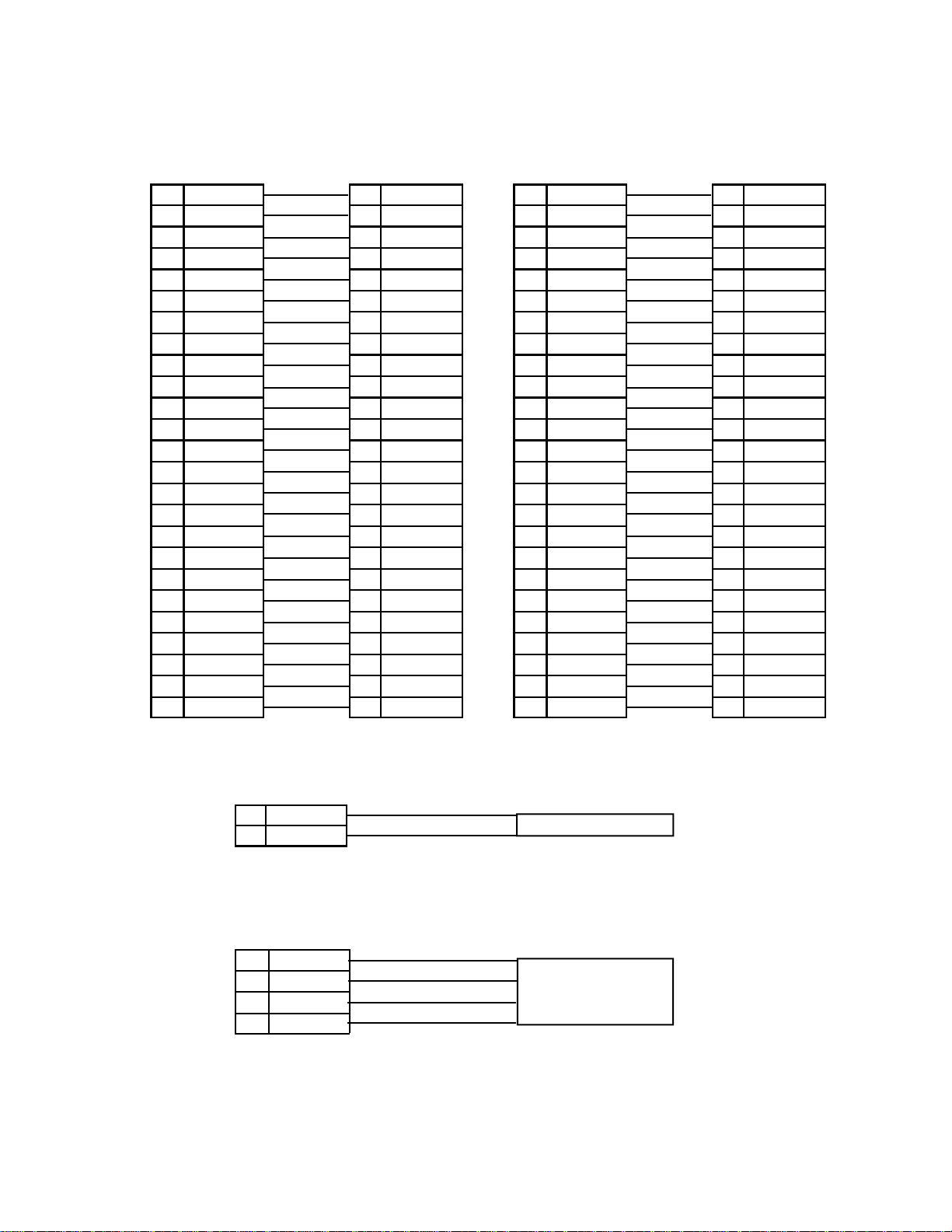

LAMP BOARD SIDE
CON3
A1 +12V B1 +12V A2 GND B2 GND A3 B.RESET B3 +24V A4 CD DOWN B4 +24V A5 M.RESET B5 +24V A6 BET B6 +24V A7 AUTO.MD B7 SP+ A8 M.SEN2 B8 SP­A9 M.SEN1
B9 LAMP11 A10 STOP3 B10 LAMP10 A11 STOP2 B11 LAMP9 A12 STOP1 B12 LAMP8 A13 START
REEL BOARD SIDE
CN-7
01 DC-12V 02 R.SEN3 03 GND
MAIN P.C.BOARD
SIDE
A1 +12V B1 +12V A2 GND B2 GND A3 B.RESET B3 +24V A4 CD DOWN B4 +24V A5 M.RESET B5 +24V A6 BET B6 +24V A7 AUTO.MD B7 SP+ A8 M.SEN2 B8 SP­A9 M.SEN1
B9 LAMP11 A10 STOP3 B10 LAMP10 A11 STOP2 B11 LAMP9 A12 STOP1 B12 LAMP8 A13 START
REEL
SENSOR 3
LAMP BOARD SIDE
CON3
B13 LAMP7 A14 H.RESET B14 SEG4 A15 BLOCKER B15 SEG.3 A16 LAMP14 B16 SEG2 A17 LAMP13 B17 SEG1 A18 LAMP12 B18 SEG.AP A19 G.OVER B19 SEG.AC 20A LAMP6 20B SEG.AF 21A LAMP5 21B SEG.AE 22A LAMP4 22B SEG.AD 23A LAMP3 23B SEG.AC 24A LAMP2 24B SEG.AB 25A LAMP1 25B SEG.AA
MAIN P.C.BOARD
SIDE
B13 LAMP7 A14 H.REST B14 SEG4 A15 BLOCKER B15 SEG3 A16 LAMP14 B16 SEG2 A17 LAMP13 B17 SEG1 A18 LAMP12 B18 SEG.AP A19 G.OVER B19 SEG.AC 20A LAMP6 20B SEG.AF 21A LAMP5 21B SEG.AE 22A LAMP4 22B SEG.AD 23A LAMP3 23B SEG.AC 24A LAMP2 24B SEG.AB 25A LAMP1 25B SEG.AA
10
CABLE 13
LAMP BOARD SIDE
CON2
A1 LAMP15 B1 SEG5 A2 LAMP16 B2 SEG6 A3 LAMP17 B3 SEG7 A4 LAMP18 B4 SEG8 A5 LAMP19 B5 SEG9 A6 LAMP20 B6 SEG10 A7 LAMP21 B7 SEG11 A8 LAMP22 B8 SEG12 A9 LAMP23
B9 SEG13 A10 LAMP24 B10 SEG24 A11 LAMP25 B11 SEG11 A12 LAMP26 B12 SEG16 A13 LAMP27
MAIN P.C.BO A RD
SIDE
A1 LAMP15 B1 SEG5 A2 LAMP16 B2 SEG6 A3 LAMP17 B3 SEG7 A4 LAMP18 B4 SEG8 A5 LAMP19 B5 SEG9 A6 LAMP20 B6 SEG10 A7 LAMP21 B7 SEG11 A8 LAMP22 B8 SEG12 A9 LAMP23
B9 SEG13 A10 LAMP24 B10 SEG24 A11 LAMP25 B11 SEG11 A12 LAMP26 B12 SEG16 A13 LAMP27
LAMP BOARD SIDE
CON2
B13 SEG17 A14 LAMP28 B14 SEG18 A15 LAMP29 B15 SEG19 A16 LAMP30 B16 SEG20 A17 L0 B17 S.BA A18 L1 B18 S.BB A19 L2 B19 S.BC A20 +24V B20 S.BD A21 +24V B21 S.BE A22 +24V B22 S.BF A23 + 12V B23 S.BG A24 +12V B24 S.BP A25 GND B25 GND
MAIN P.C.BOARD SIDE
CON1
B13 SEG17 A14 LAMP28 B14 SEG18 A15 LAMP29 B15 SEG19 A16 LAMP30 B16 SEG20 A17 L0 B17 S.BA A18 L1 B18 S.BB A19 L2 B19 S.BC A20 +24V B20 S.BD A21 +24V B21 S.BE A22 +24V B22 S.BF A23 +12V B23 S.BG A24 +12V B24 S.BP A25 GND B25 GND
CABLE 14
CABLE 15
LAMP BOARD SIDE
CN-1 01 DC+12V 02 START
LAMP BOARD SIDE
CN-2
01 STOP#1 02 STOP#2 03 STOP#3 04 GND
11
START BUTTON
REEL STOP BUTTON
(REEL STOP #1, #2, #3)

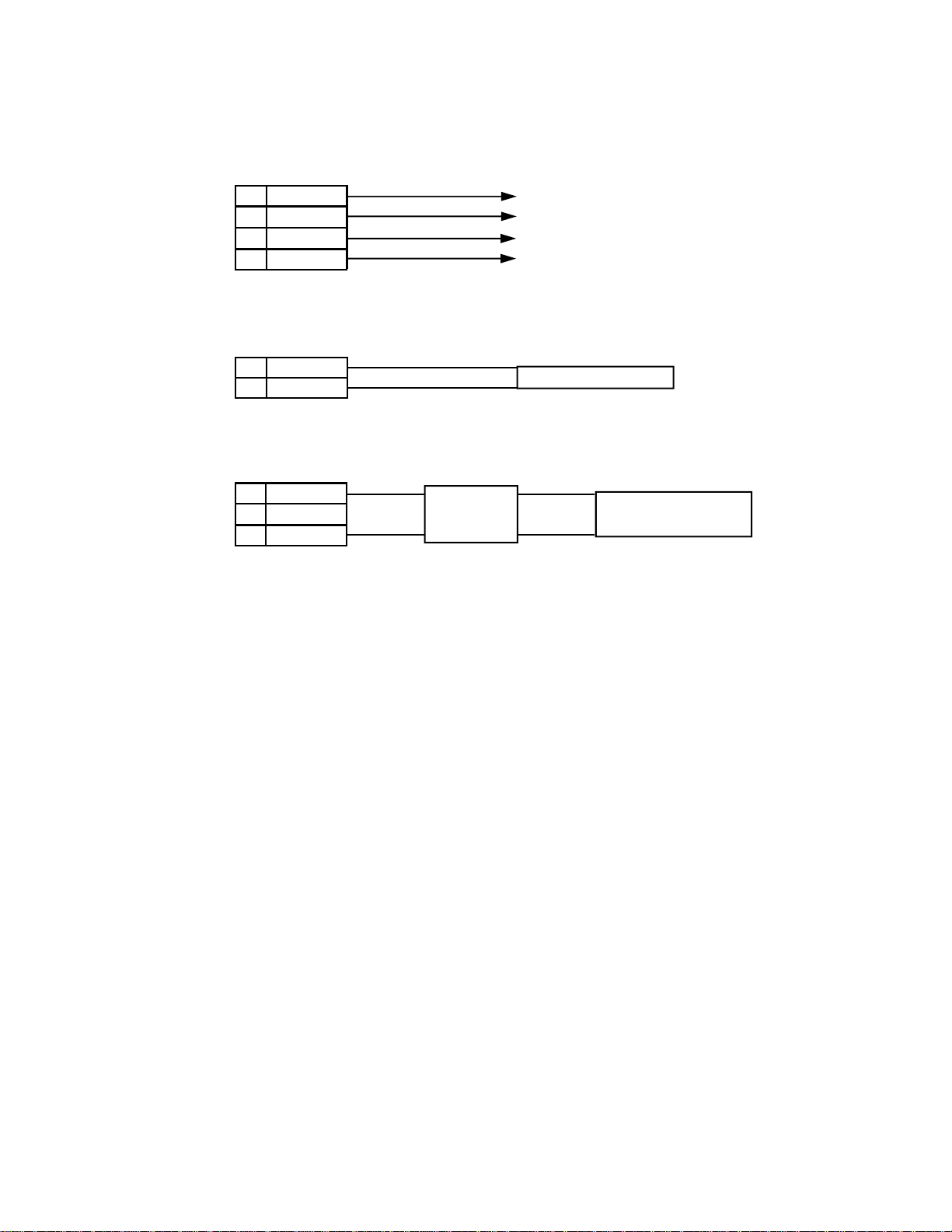

CABLE 16
CABLE 20
CABLE 21
LAMP BOARD SIDE
CN-3 01 DC+12V
02 M.SEN1 03 M.SEN2 04 GND
LAMP BOARD SIDE
CN-7 01 DC+12V 02 B.RESET
LAMP BOARD SIDE
CN-8 01 SP+
02 NOT USED 03 SP-
VOLUME
CONTROLLER
DC+12V INTERFACE BOARD CONNECTOR J1 PIN 3 INTERFACE BOARD CONNECTOR J1 PIN 4 GND
TICKET RESUME SW
SPEAKER
12

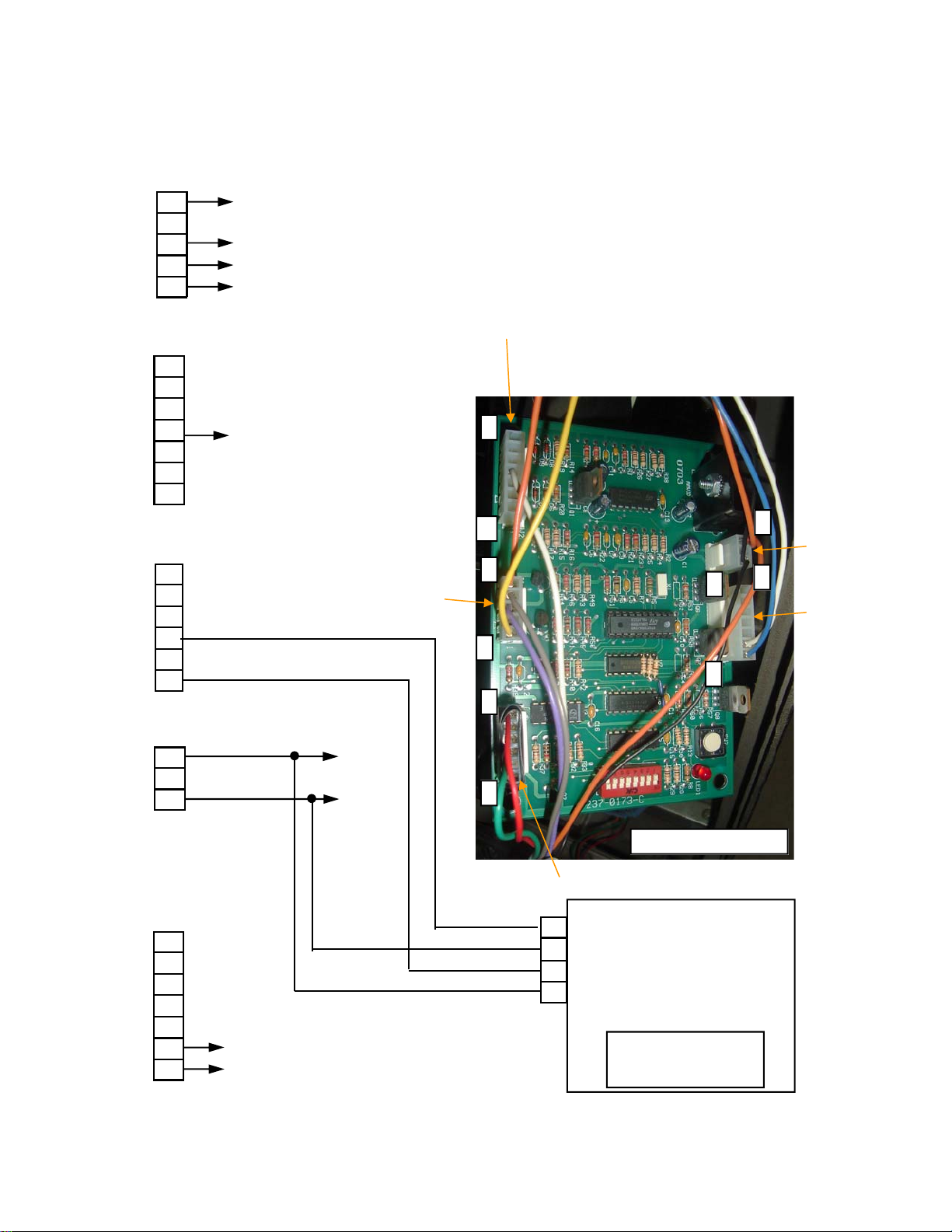

INTERFACE BOARD
CONNECTOR J 1
5 PINS
1 2 3 4 5
CN-3 PIN 8 on MAIN CPU BOARD
COIN SENSOR 1 (GO TO CN-3, PIN 02, ON LAMP BOARD) COIN SENSOR 2 (GO TO CN-3, PIN 03, ON LAMP BOARD) CN-3 PIN 6 on MAIN CPU BOARD
CONNECTOR J 2
7 PINS
1 2 3 4 5 6 7
CONNECTOR J 3
6 PINS
1 2 3 4 5 6
CONNECTOR J4
3 PINS
1 2 3
COIN SWITCH of COIN DOOR
DC+12V
GND
J1 (5pin)
J2 (7pin)
7
1
5
1
6
1
1
J4 (3pin)
1
3
J5 (7pin)
7
CONNECTOR J 5
5 PINS
1 2 3 4 5 6 7
COIN METER TICKET METER
13
INTERFACE BOARD
J3 (6pin)
TICKET DISPENSER NOTCH
1 2
GND TICKET DISPENSER MOTOR ENABLE
3 4
DC+12V
TICKET DISPENSER (DL-1275)
®
