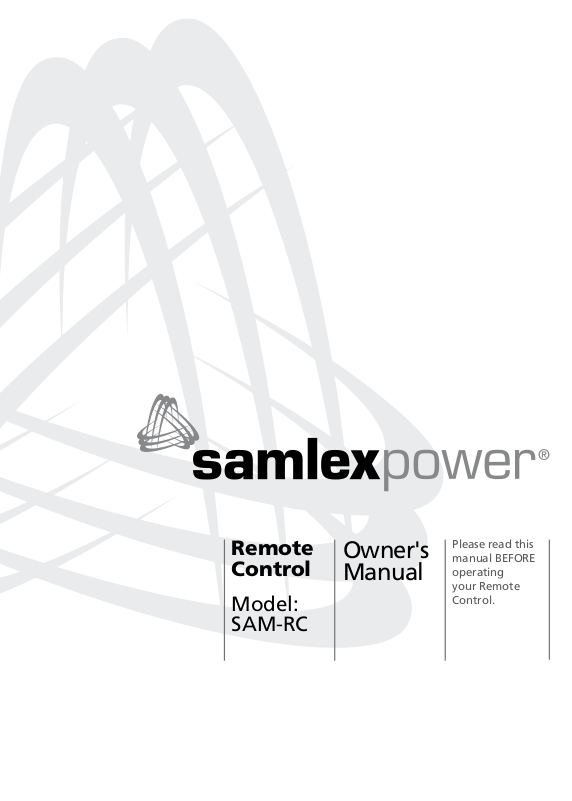

Samlex America SAM-RC User Manual
Remote
Control
Model:
SAM-RC
Owner's
Manual
Please read this
manual BEFORE
operating
your Remote
Control.
INDEX
1. Introduction......................................................................................................2
2. General Information........................................................................................3
3. Operation..........................................................................................................6
4. Specications....................................................................................................6
5. Warranty...........................................................................................................7
1
INTRODUCTION
Description
The SAM-RC is a wired Remote Control used with selected models of SAM Series of
Inverters to switch on and switch off the Inverter from a remote location. It also displays
the operational status of the Inverter using colored LEDs.
Applicable Models of SAM Inverters
The SAM-RC Remote Control is designed to work with the following models of the SAM
Series:
- SAM-1000-12
- SAM-1500-12
- SAM-2000-12
- SAM-3000-12
2
GENERAL INFORMATION
Layout and Operation of Controls and LED Indications
2
4.4
4.3
4.2
4.1
7
8
9
Voltage Warning
Inverter Remote
1. On / Off Push Button. Used to switch on and switch off the Inverter.
NOTE: For switching on and switching off the Inverter using this Remote Control, the
Main On / Off Switch on the Inverter should be in the Off position.
If the On / Off Switch on the Inverter is left in On position, the Inverter cannot be
switched off using this Remote Control. The Remote Control will, however, continue
to display the status of operation.
Full High
Battery
Output Fault
Input Fault
Low Input
Output
ON/OFF
PUSH
Model
SAM-RC
6.3
6.2
6.1
5.1
5.2
3
1
2
2. Annular ring with White LED backlighting around the On / Off Push Button
for assistance in identifying the location of the On / Off Push Button in dark
conditions.
3
