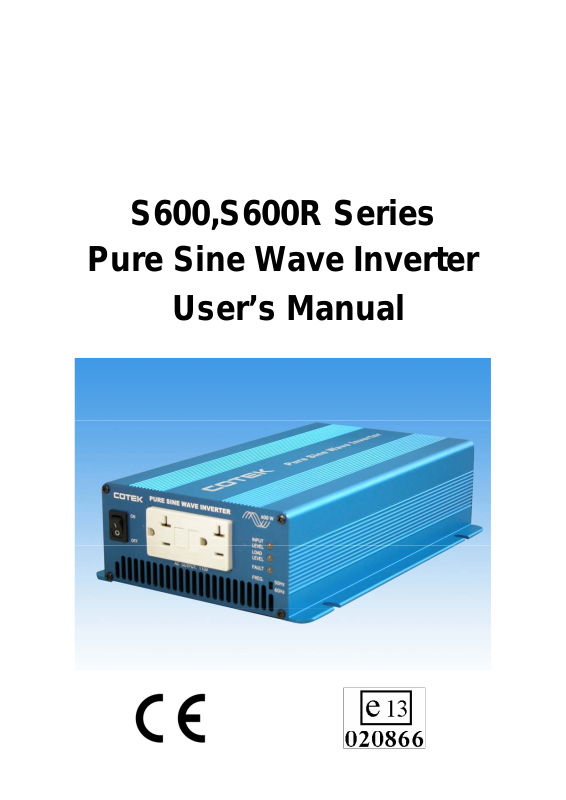

Samlex America S600R User Manual

S600,S600R Series
Pure Sine Wave Inverter
User’s Manual
1. Important Safety Information.……………………………………………… 1
1-1 General Safety Precautions…………………………………………… 1 1-2 Batteries Precautions………………………………………………….. 1
2. Features………………………………………………………………………... 2 2-1 Applications.……………………………………………………………. 2 2-2 Electrical Performance………………………………………………… 3 2-3 Mechanical Drawings………………………………………………….. 4
3. Instructions………………………………………………….………………… 5 3-1 Front Panel Operation..………………………………………………... 5~6 3-2 Rear Panel Operation..………………………………………………… 7~8 3-3 Installation………………………………………………………………. 9 3-4 Quick hook – up and Testing.………………………………………... 10~11 3-5 AC Safety Grounding………………………………………………….. 12~13 3-6 DC Wiring Connections…………………….…………………………. 13~14 3-7 Inverter Operation……………………………………………………… 15
4. Troubleshooting……….……………………………………………………… 16
5. Maintenance…………………………………………………………………… 17
6. Warranty……………………………………………………………………….. 17
7. Appendices……………………………………………………………………. 18
7-1 CE (LVD EN60950-1) Declaration of Conformity…………………... 18 7-2 FCC (Class B) Declaration of Conformity…………………………… 19 7-3 e-mark (e13 020866) Declaration of Conformity…………………… 20~21 7-4
DCopyright :This manual is the copyright of COTEK Electronic lnd. Co., Ltd. And may not be reproduced or copied

UL (UL458) Notice of Completion…………………..……………….. 22

without the express permission of the owner.
1
1. Important Safety Information
1-1. General Safety Precautions
1-1-1. Do not expose the Inverter to water, mist, snow, or dust. To reduce
the risk of hazard, do not cover or obstruct the ventilation shaft. Do not install the Inverter in a zero-clearance compartment. Overheating may occur.
1-1-2. To avoid the risk of fire and electronic shock, make sure that existing
wiring is in good electrical condition and not undersize. Do not operate the Inverter with damaged or substandard Wiring.
1-1-3. There are some components in the inverter can cause arcs and sparks.

To prevent from fire or explosion, do not put batteries, flammable materials, or anything should be ignition–protected around the inverter.

WARNING!
Before installing and using the Inverter, you need to read Following safety information carefully.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts your skin or clothing, you need to wash it out
immediately with soap and water. If acid enters into your eyes, immediately flush your eyes with running cold water for at least 20 minutes and get medical attention immediately.
1-2-2. Never smoke or make a spark or flame in the vicinity of batteries or
Engines.
1-2-3. Do not drop a metal tools on the battery. The resulting spark or short-
circuit on the battery or other electrical parts may cause an explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with a lead-acid battery, A lead-acid battery may produce a short-circuit current who’s temperature is high enough to weld these metal items and cause a severe burn.
1
2. Features
Pure sine wave output (THD < 3%)
Output frequency50 / 60Hz switch selections
Input & output fully isolated design High efficiency 88~94% Driving highly reactive & capacitive load at start moment. Tri-Color indicators show input voltage & output load level Loading controlled cooling fan Advanced microprocessor ProtectionInput low voltage Overload Short circuit
Low battery alarm Input over voltage Over temperature
2-1. Applications
2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed and
hedge trimmers, air compressors, etc.
2-1-2. Office equipment – computers, printers, monitors, facsimile machines,
and scanners, etc.
2-1-3. Household appliances – vacuum cleaners, fans, fluorescent and
incandescent lights, shavers, sewing machines, etc.
2-1-4. Kitchen appliances – microwave ovens, refrigerators and freezers,
coffee makers, blenders, ice makers, toasters, etc.
2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp,
etc.
2-1-6. Home entertainment electronics – television, VCRs, video games,
stereos, musical instruments, satellite equipment, etc.
2
2-2. Electrical Performance
Specification
Model No.
Item S600-112 S600-124 S600-148 S600-212 S600-224 S600-248
Continuous Output Power 600W
Maximum Output Power (3Min.) 680W
Surge Rating 800W Input voltage 12V 24V 48V 12V 24V 48V
Output Voltage
100 / 110 / 120V +/- 3% 220 / 230 / 240V +/- 3%
Frequency
50 / 60Hz +/- 0.05%
(Switch Selections)
Efficiency (full load) 87.0% 90.0% 92.0% 90.0% 93.0% 94.0%
No Load Current Draw 0.87A 0.43A 0.23A 0.83A 0.43A 0.22A
Output Waveform Pure Sine Wave ( THD < 3% )
Output voltage Regulation 100 / 110 / 120V RMS -10%/+4% 220 / 230 / 240V RMS -10%/+4%
10.5-15
21.0-30
42-60
10.5-15
21.0-30
42-60
Input Voltage Regulation
VDC
VDC
VDC
VDC
VDC
VDC
Input Level Indicator
Red / Orange / Green LED
Load Level Indicator
Failure Indicator Red LED
Overload, Short Circuit, Reverse Polarity (Fuse),
Protection
Over / Under Input Voltage, Over Temperature.
Safety Certification UL458 EN60950-1
EN50081-1: 1992 EN50082-1: 1992
EMC FCC Class B
EN55022B: 1994 EN61000-4-2: 1995
e-mark
e13-020866
EN61000-4-3: 1996 ENV50204: 1995
Operating Temperature Range
Storage Temperature Range
0 - 33 0 - 40
-30 to 70
Cooling Loading controlled cooling fan
Dimensions 295(L) x 180(w) x 72(H) mm / 11.61(L) x 7.09(W) x 2.83(H) Inch
Weight 2.7 kgs. / 5.4 Lbs.
Note: The specifications are subject to change without notice.
3
2-3. Mechanical Drawing
4
3. Instructions

This power inverter series is one of the most advanced line of mobile AC power systems.

To get the most effective power inverter, it must be installed and used properly. Please read the instructions of this manual before you install and operate this model.

3-1. Front Panel Operation
3-1-1. Front view
PURE SINE WAVE INVERTER
3-1-2. ON / OFF switch
Leave the switch in the down position (OFF) during installation.
3-1-3. Input LevelDisplay Input Voltage
LED Status DC 12V DC 24V DC 48V
Slow Red Blink 10.5~10.9 21.0~21.8 42.0~43.6
Red 10.9~11.3 21.8~22.6 43.6~45.2
Orange 11.3~12.0 22.6~24.0 45.2~48.0
Green 12.0~14.0 24.0~28.0 48.0~56.0
Orange Blink 14.0~14.7 28.0~29.4 56.0~58.8
Over Red Blink 14.7q 29.4q 58.8q
5
3-1-4. Load LevelDisplay AC Load Watts
LED Status Load Condition
Dark 0 ~ 30W
Green 30W ~ 200W
Orange 200W ~ 450W
Red 450W ~ 580W
Red Blink Over 580W
3-1-5. FailureDisplay failure status
OVPover voltage protection UVPunder voltage protection OTPover temperature protection OLPover load protection
3-1-6. AC outlet (Outlet Sockets available)
North America (GFCI) North America Continental Europe (SCHUKO) Australia / New Zealand United Kingdom
6
