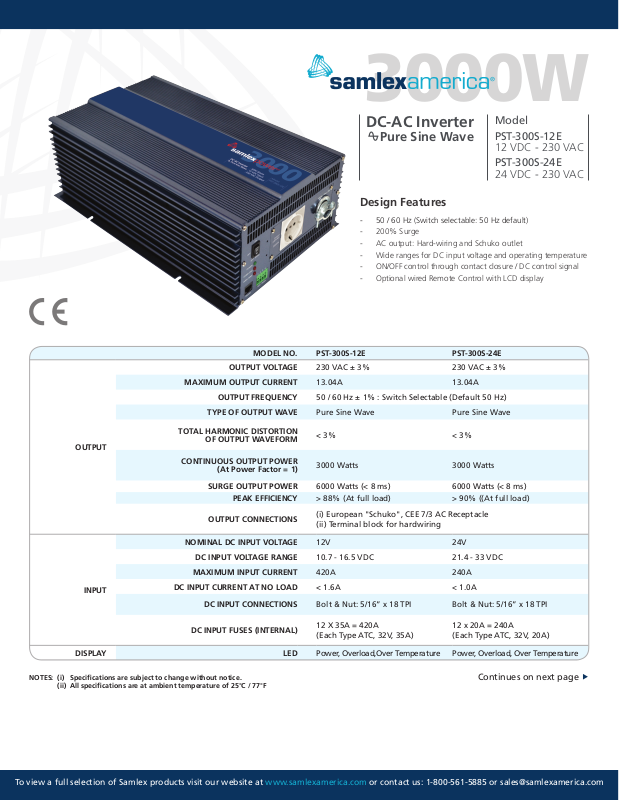

Page 1
3000W
MODEL NO. PST-300S-12E PST-300S-24E
OUTPUT
OUTPUT VOLTAGE 230 VAC ± 3% 230 VAC ± 3%
MAXIMUM OUTPUT CURRENT 13.04A 13.04A
OUTPUT FREQUENCY 50 / 60 Hz ± 1% : Switch Selectable (Default 50 Hz)
TYPE OF OUTPUT WAVE Pure Sine Wave Pure Sine Wave
TOTAL HARMONIC DISTORTION
OF OUTPUT WAVEFORM
< 3% < 3%
CONTINUOUS OUTPUT POWER
(At Power Factor = 1)
3000 Watts 3000 Watts
SURGE OUTPUT POWER 6000 Watts (< 8 ms) 6000 Watts (< 8 ms)
PEAK EFFICIENCY > 88% (At full load) > 90% ((At full load)
OUTPUT CONNECTIONS
(i) European "Schuko", CEE 7/3 AC Receptacle
(ii) Terminal block for hardwiring
INPUT
NOMINAL DC INPUT VOLTAGE 12V 24V
DC INPUT VOLTAGE RANGE 10.7 - 16.5 VDC 21.4 - 33 VDC
MAXIMUM INPUT CURRENT 420A 240A
DC INPUT CURRENT AT NO LOAD < 1.6A < 1.0A
DC INPUT CONNECTIONS Bolt & Nut: 5/16” x 18 TPI Bolt & Nut: 5/16” x 18 TPI
DC INPUT FUSES (INTERNAL)
12 X 35A = 420A
(Each Type ATC, 32V, 35A)
12 x 20A = 240A
(Each Type ATC, 32V, 20A)
DISPLAY LED Power, Overload,Over Temperature Power, Overload, Over Temperature
DC-AC Inverter
Pure Sine Wave
Model
PST-300S-12E
12 VDC - 230 VAC
PST-300S-24E
24 VDC - 230 VAC
Design Features
- 50 / 60 Hz (Switch selectable: 50 Hz default)
- 200% Surge
- AC output: Hard-wiring and Schuko outlet
- Wide ranges for DC input voltage and operating temperature
- ON/OFF control through contact closure / DC control signal
- Optional wired Remote Control with LCD display
NOTES: (i) Specications are subject to change without notice.
(ii) All specications are at ambient temperature of 25°C / 77°F
To view a full selection of Samlex products visit our website at www.samlexamerica.com or contact us: 1-800-561-5885 or [email protected]
Continues on next page
Page 2
3000W
MODEL NO. PST-300S-12E PST-300S-24E
PROTECTIONS
LOW DC INPUT VOLTAGE ALARM 10.7V ± 0.1V 21.4V ± 0.2V
LOW DC INPUT VOLTAGE SHUTDOWN 10V ± 0.1V ; Auto-reset: 11.5V ± 0.3V 20V ± 0.2V ; Auto-reset: 23V ± 0.5V
HIGH DC INPUT VOLTAGE SHUTDOWN 16.5V ; Auto-reset: < 16.5V 33V ; Auto-reset: < 33V
SHORT CIRCUIT SHUTDOWN When output voltage drops to 170VAC or lower for 1 to 1.5 sec
OVERLOAD SHUTDOWN At overload of 110% to 115% for 2 to 2.5 sec
OVER TEMPERATURE SHUTDOWN 90°C ± 5°C (Sensed at Transformer T3) ; Auto reset at 65°C ± 5°C
REVERSE POLARITY ON DC INPUT SIDE External / internal DC sides fuses will blow
CONTROL REMOTE
WIRED REMOTE CONTROL WITH LED / LED DISPLAY RC-300 (sold separately) with 25’ of cable
WIRED ON / OFF CONTROL (i) By switching external contact (ii) By switching external 12V/24V signal
COOLING FORCED AIR COOLING
Temperature controlled fan (Sensed at Transformer T6)
Fan ON at 55°C ± 3°C; Fan OFF at 45°C ± 3°C
COMPLIANCE
EUROPEAN CONFORMITY CE marked
SAFETY
European Low Voltage Directive 2014/35/EU
• Standard : EN 60950-1
EMC
European EMC Directive 2014/30/EU per following Standards:
• EMI: EN55022, Class A ; EN61000-3-2, -3-3
• EMS: EN55024; EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11
ENVIRONMENT
WORKING ENVIRONMENT Indoor use
OPERATING TEMPERATURE RANGE
Operating temperature -20 to 40C / -4 to 104F
Storage temperature -30 to 70C / -22 to 158F
RELATIVE HUMIDITY 90% non condensing
DIMENSIONS
(W X D X H), MM 263 x 456.5 x 145 263 x 456.5 x 145
(W X D X H), IN 10.35 x 17.97 x 5.71 10.35 x 17.97 x 5.71
WEIGHT
KG / LB 9.8 / 21.6 9.8 / 21.6
Continues from previous page
DC-AC Inverter
Pure Sine Wave
Model
PST-300S-12E
12 VDC - 230 VAC
PST-300S-24E
24 VDC - 230 VAC
NOTES: (i) Specications are subject to change without notice.
(ii) All specications are at ambient temperature of 25°C / 77°F
To view a full selection of Samlex products visit our website at www.samlexamerica.com or contact us: 1-800-561-5885 or [email protected]
12001-PST-300S-12E-24E-0418
