8A

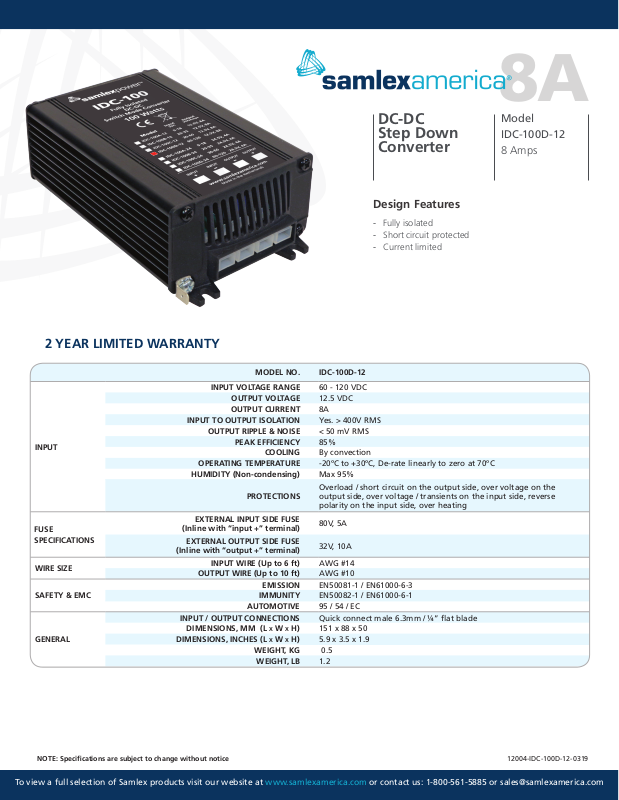

MODEL NO. IDC-100D-12
INPUT
INPUT VOLTAGE RANGE 60 - 120 VDC
OUTPUT VOLTAGE 12.5 VDC
OUTPUT CURRENT 8A
INPUT TO OUTPUT ISOLATION Yes. > 400V RMS
OUTPUT RIPPLE & NOISE < 50 mV RMS
PEAK EFFICIENCY 85%
COOLING By convection
OPERATING TEMPERATURE -20C to +30C, De-rate linearly to zero at 70C
HUMIDITY (Non-condensing) Max 95%
PROTECTIONS
Overload / short circuit on the output side, over voltage on the
output side, over voltage / transients on the input side, reverse
polarity on the input side, over heating
FUSE
SPECIFICATIONS
EXTERNAL INPUT SIDE FUSE
(Inline with “input +” terminal)
80V, 5A
EXTERNAL OUTPUT SIDE FUSE
(Inline with “output +” terminal)
32V, 10A
WIRE SIZE
INPUT WIRE (Up to 6 ft) AWG #14
OUTPUT WIRE (Up to 10 ft) AWG #10
SAFETY & EMC
EMISSION EN50081-1 / EN61000-6-3
IMMUNITY EN50082-1 / EN61000-6-1
AUTOMOTIVE 95 / 54 / EC
GENERAL
INPUT / OUTPUT CONNECTIONS Quick connect male 6.3mm / ¼” flat blade
DIMENSIONS, MM (L
x W x H) 151 x 88 x 50
DIMENSIONS, INCHES (L x W x H)
5.9 x 3.5 x 1.9
WEIGHT, KG
0.5
WEIGHT, LB 1.2
2 YEAR LIMITED WARRANTY
DC-DC
Step Down
Converter
Design Features
- Fully isolated
- Short circuit protected
- Current limited
Model
IDC-100D-12
8 Amps
To view a full selection of Samlex products visit our website at www.samlexamerica.com or contact us: 1-800-561-5885 or sales@samlexamerica.com
12004-IDC-100D-12-0319NOTE: Specications are subject to change without notice
