EvolutionTM Series Inverter/Charger

Pure Sine Wave

Models:

EVO-2212E EVO-3012E EVO-2224E EVO-4024E

For use with 230 VAC Models

Owner's Manual

Please read this manual BEFORE operating.

Firmware: Rev 0.70

Page 2

EVOTM INVERTER/CHARGER MANUAL | Index

SECTION 1

Safety Instructions & General Information ............................ 3

SECTION 2

Components & Layout ....................................................... 22

SECTION 3

Installation ......................................................................... 26

SECTION 4

General Description and Principles of Operation ................. 58

SECTION 5

Battery Charging in EvolutionTM Series ................................ 67

SECTION 6

Operation, Protections and Troubleshooting ...................... 77

SECTION 7

Specications ...................................................................... 86

SECTION 8

Warranty ........................................................................ 89

APPENDIX A

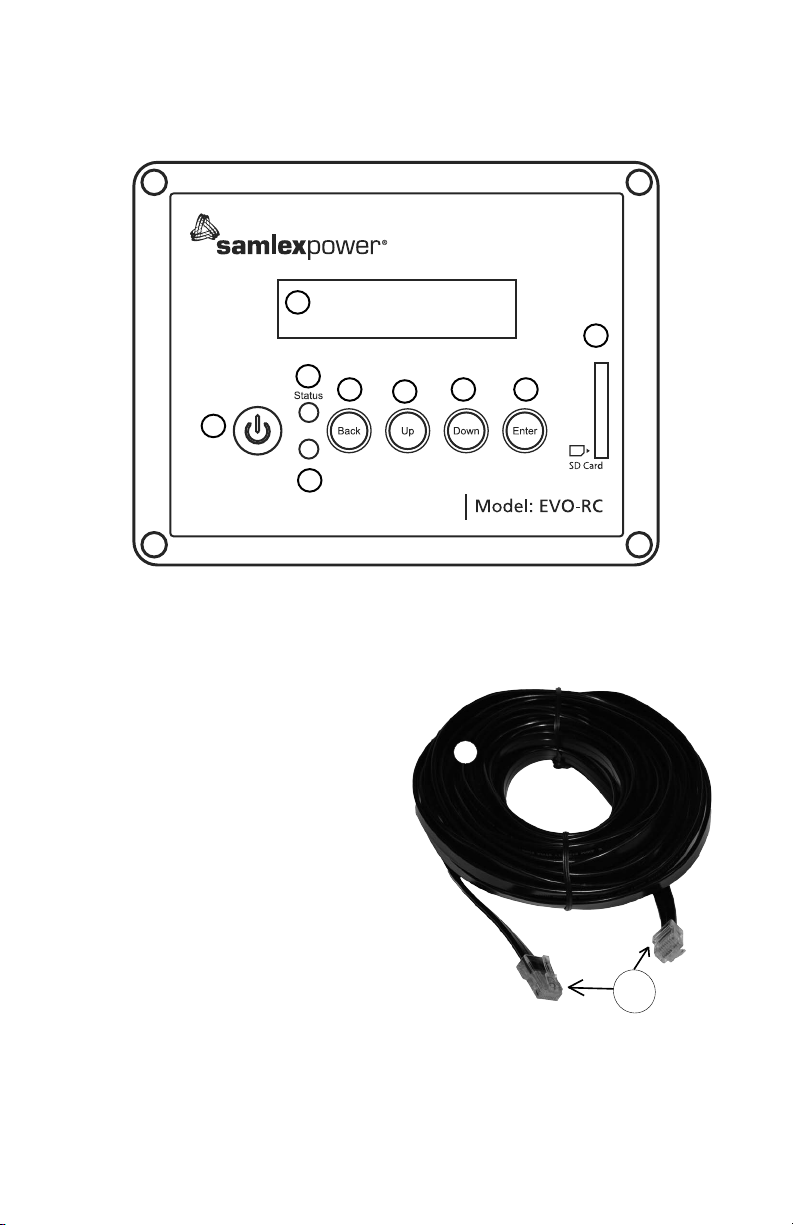

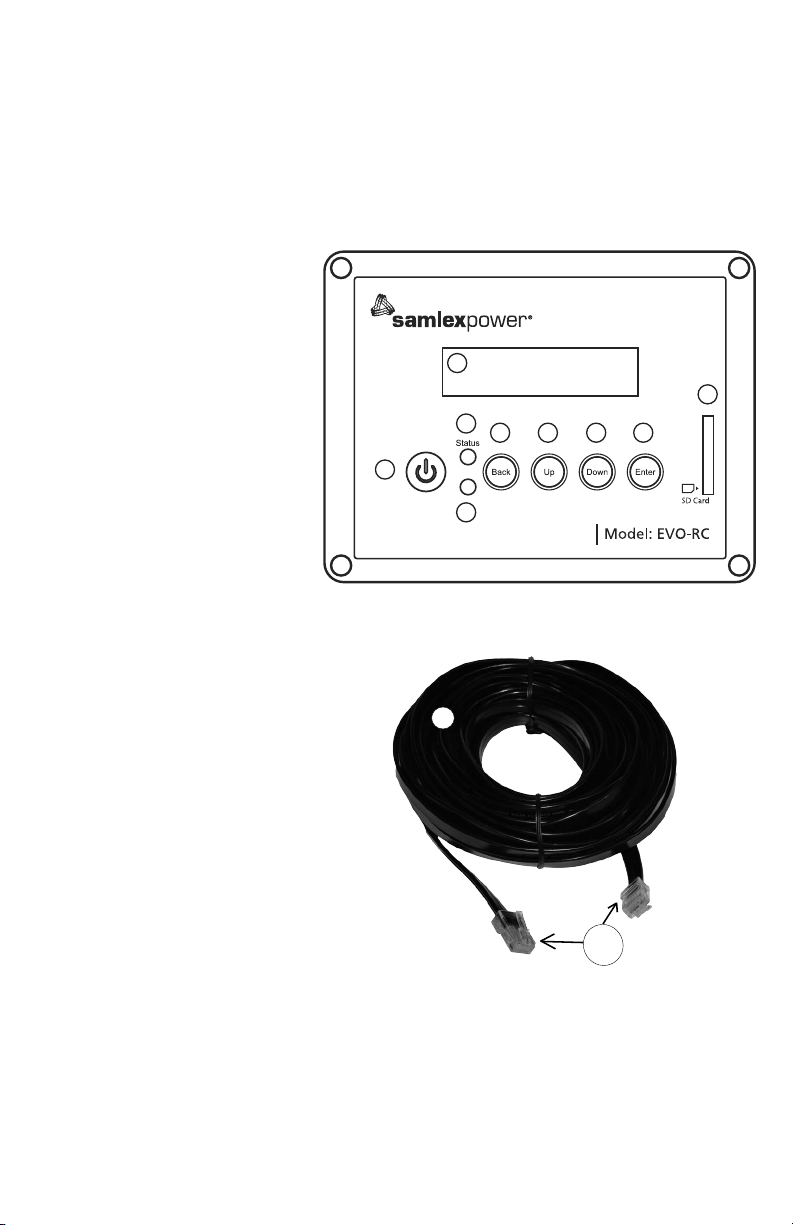

EVO-RC (Optional Remote Control) Owner's Manual

Disclaimer of Liability

UNLESS SPECIFICALLY AGREED TO IN WRITING, SAMLEX AMERICA, INC.:

1. MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.

2. ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDI-

ECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY

R SUCH INFORMATION WILL BE ENTIRELY AT THE USERS RISK.

Samlex America reserves the right to revise this document and to periodically make changes to the content hereof without obligation or organization of such revisions or changes.

2 | SAMLEX AMERICA INC.

Page 3

SECTION 1 | Safety Instructions & General Information

1.1 IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS. THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS F

OR MODELS: EVO-2212E, EVO-2224E, EVO-3012E, EVO-4024E THAT SHALL BE

FOLLOWED DURING INSTALLATION & MAINTENANCE OF THE INVERTER/CHARGER.

THE FOLLOWING SYMBOLS WILL BE USED IN THIS MANUAL TO HIGHLIGHT SAFETY AND

ANT INFORMATION:

IMPORT

Please read these instructions BEFORE installing or operating the unit to prevent personal injury or damage to the unit.

2 CAUTIONS! (a) To prevent damage due to excessive vibration / shock, use on marine

3. CAUTIONS! (a) EVO

4. For indoors use only.

5. Hot Surfaces! To prevent burns, do not touch.

WARNING!

Indicates possibility of physical harm to the user in case of non-compliance.

TTENTION

Il y a une possibilité de faire du mal physique à l'utilisateur si les consignes de sécurités sont pas suivies

CAUTION!

Indicates possibility of damage to the equipment in case of non-compliance.

TTENTION

Il y a une risque de faire des dégâts à l'équipement si l'utilisateur ne suit pas les instructions

Indicates useful supplemental information.

WARNING!

DANGE which ignition-protected equipment is required to be used.

vessels with lengths more than 65 ft. (19.8M). (b) This unit is NOT designed for weatherdeck installation. To reduce risk of electrical shock, do not expose to rain or spray.

properly rated 12V (6 Cell) / 24V (12 Cell) Lead Acid Batteries (Gel Cell, AGM, Flooded, Lead Antimony / Lead Calcium) and (b) When EVO Mode, Green LED marked "ON" would be ashing.

R! To reduce risk of explosion, do not install in machinery space or in area in

Inverter/Charger with fully automatic charging circuit charges only

Inverter/Charger is in Charge

Page 4

SECTION 1 | Safety Instructions & General Information

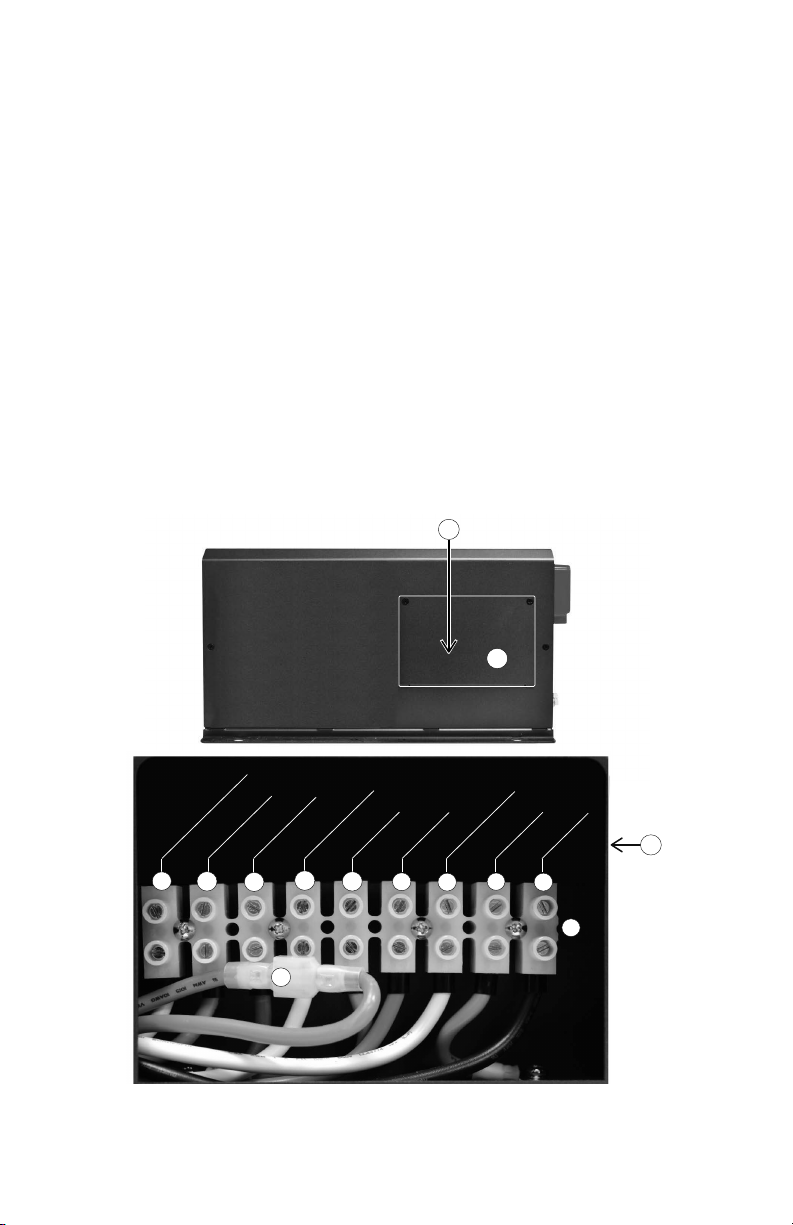

6. The AC input / output wiring terminals are intended for eld connection using Copper conductors that are to be sized based on 70°C. See Tables 3.2.1, 3.2.2 and 3.2.3 for sizing of conductors for AC INPUT circuits and Table 3.3 for sizing of conductors for AC OUTPUT circuits.

7. Over current protection (AC Breakers) for the AC input / output circuits has NOT been provided and has to be provided by the installer / user. See guidelines at Tables 3.2.1,

3.2.2 and 3.3.3 for sizing of breakers for AC INPUT circuits and Table 3.3 for sizing of breakers for AC OUTPUT circuits. National and Local Electrical Codes will supersede these guidelines.

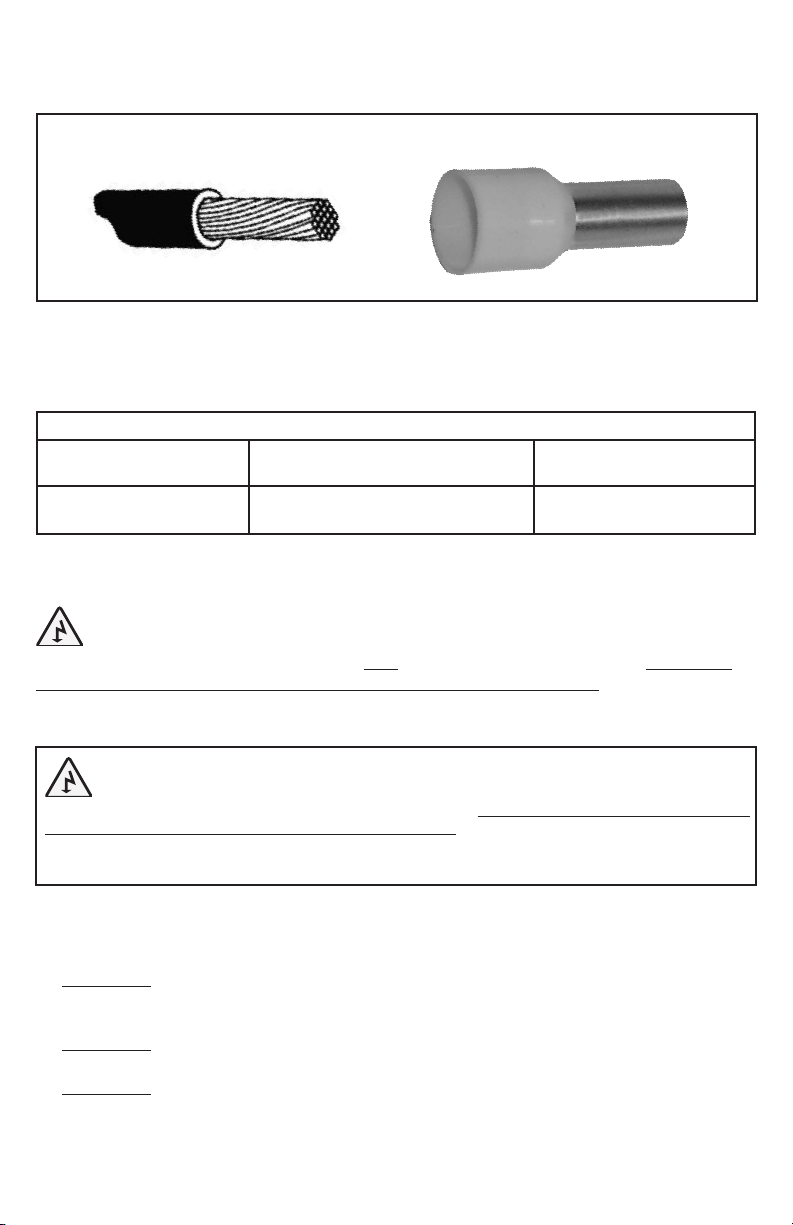

8. The battery terminals are intended for eld connection using Copper conductors that are sized based on 90°C. See Table 3.1 for recommended sizes for installation.

9. Over current protection (fuse) for battery and External Charger circuits has NOT been provided and has to provided by the installer / user. See guidelines at Table 3.1 for recommended sizes for installation. National and Local Electrical Codes will supersede these guidelines.

10. Tightening torques to be applied to the wiring terminals are given in Section 3.7.2.

11. This unit has been provided with integral protections against overloads.

12. WARNING! To reduce risk of electric shock and re:  Installation should be carried out by certied installer and as per Local and National

Electrical Codes.  Do not connect to circuit operating at more than 280 Volts to Ground.  Both AC and DC voltage sources are terminated inside this equipment. Each circuit

must be individually disconnected before servicing.  Do not remove cover. No user serviceable part inside. Refer servicing to qualied

servicing personnel.  Do not mount in zero clearance compartment.  Do not cover or obstruct ventilation openings.  Fuse(s) should be replaced with the same type and rating as of the original installed

fuse(s).

13. GROUNDING: The Grounding symbol shown below is used for identifying only the eld wiring equipment-grounding terminal. However, this symbol is usable with the circle omitted for identifying various points within the unit that are bonded to Ground.

Grounding Symbol / Défaut à la terre

14. Precautions When Working With Batteries.

4 | SAMLEX AMERICA INC.

 Batteries contain very corrosive diluted Sulphuric Acid as electrolyte. Precautions

should be taken to prevent contact with skin, eyes or clothing. Wear eye protection.

 Batteries generate Hydrogen and Oxygen during charging resulting in evolution of

explosive gas mixture. Care should be taken to ventilate the battery area and follow the battery manufacturer’s recommendations.

 Never smoke or allow a spark or ame near the batteries.

Page 5

SECTION 1 | Safety Instructions & General Information

 Use caution to reduce the risk of dropping a metal tool on the battery. It could spark

or short circuit the battery or other electrical parts and could cause an explosion. Always use insulated tools.

 Remove metal items like rings, bracelets and watches when working with batteries.

Batteries can produce a short circuit current high enough to weld a ring or the like to metal and thus cause a severe burn.

 If you need to remove a battery, always remove the Ground terminal from the battery

rst. Make sure that all the accessories are off so that you do not cause a spark.

ATTENTION!

1. DANGER! Pour réduire les risques d’explosion, ne pas installer dans les locaux de machines ou dans la zone où l’équipement protégé contre les incendies doit être utilisé.

2. 2 ATTENTION! Cet appareil est conçu pour une installation PAS Météo-pont. Pour réduire les risques de choc électrique, ne pas exposer à la pluie ou à la neige.

3. Pour une utilisation en intérieur uniquement.

4. Pour éviter les dommages dus à des vibrations excessives / choc, ne pas utiliser sur les navires plus petits avec des longueurs de moins de 65 pi. (19,8).

5. Surfaces chaudes! Pour éviter les brûlures, ne touchez pas.

6. Les bornes de câblage entrée / sortie CA sont prévus pour un raccordement sur le terrain avec des conducteurs de cuivre qui doivent être dimensionnés en fonction de 70 ° C. Voir les tableaux 13.2.1, 3.2.2 et 3.2.3 pour le dimensionnement des conducteurs pour les circuits d’entrée CA et le tableau 3.3 pour le dimensionnement des conducteurs pour les circuits de sortie AC.

7. Protection contre les surintensités (AC Breakers) pour les circuits d’entrée / sortie AC n’a pas été fournis et doit fourni par l’installateur / utilisateur. Voir les lignes directrices à tableaux 3.2.1, 3.2.2 et 3.3.3 pour le dimensionnement des disjoncteurs pour les circuits d’entrée CA et le tableau 3.3 pour le dimensionnement des disjoncteurs pour les circuits de sortie AC. Codes électriques nationaux et locaux remplaceront ces lignes directrices.

8. Les bornes de la batterie sont conçus pour se connecter sur le terrain avec des conducteurs en cuivre qui sont dimensionnés en fonction de 90 ° C. Voir le tableaux 3.1 pour les tailles recommandées pour l’installation.

9. Protection contre les surintensités (fusible) pour la batterie et les circuits chargeur externe n’a pas été fournis et a fourni à l’installateur / utilisateur. Voir les lignes directrices à tableaux 3.1 pour les tailles recommandées pour l’installation. Codes électriques nationaux et locaux remplaceront ces lignes directrices.

10. Couples de serrage pour être appliqués sur les bornes de câblage sont donnés dans le section 3.7.2.

11. Cet appareil a été fourni avec des protections intégrées contre les surcharges.

12. ATTENTION! Pour réduire les risques de choc électrique et d’incendie:

 L’installation doit être effectuée par un installateur certié et selon les codes électriques locaux et nationaux  Ne pas se connecter au circuit fonctionnant à plus de 280 volts à la terre  Les deux sources de tension AC et DC sont terminées à l’intérieur de cet équipement. Chaque circuit doit

être déconnecté individuellement avant l’entretien

 Ne pas retirer le couvercle. Aucune partie réparable par l’utilisateur à l’intérieur. Faites appel à un installateur

qualié  Ne pas monter dans zéro compartiment de jeu  Ne pas couvrir ou obstruer les ouvertures de ventilation.  Fusible (s) doit être remplacé par le même type de fusible du fusible installé d’origine (s)

13. MISE À LA TERRE: Le symbole de mise à la terre ci-dessous est utilisé pour identier uniquement l’équipement terminal de terre-câblage. Toutefois, ce symbole est utilisable avec le cercle omis pour identier divers points de l’unité qui sont liés à la masse.

Grounding Symbol / Défaut à la terre

Page 6

SECTION 1 | Safety Instructions & General Information

14. Précautions lorsque vous travaillez avec des piles.  Les piles contiennent très corrosif acide sulfurique dilué comme électrolyte. Des précau

prises pour empêcher tout contact avec la peau, les yeux ou les vêtements. Porter des lunettes de protection

 Les batteries produisent de l’hydrogène et de l’oxygène lors de la charge résultant de l’évolution du mélange

de gaz explosif. Il faut prendre soin de ventiler la zone de la batterie et de suivre les recommandations du

fabricant de la batterie.  Ne jamais fumer ou permettre une étincelle ou une amme près des batteries.  Faites preuve de prudence an de réduire le risque de chute d’un outil métallique sur la batterie. Il pourrait

provoquer un court-circuit ou la batterie ou d’autres pièces électriques et pourrait causer une explosion.

oujours utiliser des outils isolés

T  Retirez les articles métalliques tels que des bagues, des bracelets et des montres lorsque vous travaillez avec

des batteries. Les batteries peuvent produire un court-circuit sufsamment élevé pour souder une bague ou

autre métal et ainsi causer de graves brûlures.  Si vous devez retirer la batterie, retirez toujours la borne de terre de la batterie. Assurez-vous que tous les

accessoires sont hors de sorte que vous ne causent pas une étincelle.

tions doivent être

1.2 DEFINITIONS

The following denitions are used in this manual for explaining various electrical concepts, specications and operations:

Peak Value: It is the maximum value of electrical parameter like voltage / current.

RMS (Root Mean Square) Value: It is a statistical average value of a quantity that varies in

value with respect to time. For example, a pure sine wave that alternates between peak values of Positive 169.68V and Negative 169.68V has an RMS value of 120 VAC. Also, for a pure sine wave, the RMS value = Peak value ÷ 1.414.

Voltage (V), Volts: It is denoted by “V” and the unit is “Volts”. It is the electrical force that drives electrical current (I) when connected to a load. It can be DC (Direct Current – ow in one direction only) or AC (Alternating Current – direction of ow changes periodically). The AC value shown in the specications is the RMS (Root Mean Square) value.

Current (I), Amps, A: It is denoted by “I” and the unit is Amperes – shown as “A”. It is the ow of electrons through a conductor when a voltage (V) is applied across it.

Frequency (F),

Hz: It is a measure of the number of occurrences of a repeating event per unit

time. For example, cycles per second (or Hertz) in a sinusoidal voltage.

Efciency, (η): This is the ratio of Power Output ÷ Power Input.

Phase Angle, (φ): It is denoted by “φ” and species the angle in degrees by which the current

vector leads or lags the voltage vector in a sinusoidal voltage. In a purely inductive load, the current vector lags the voltage vector by Phase Angle (φ) = 90°. In a purely capacitive load, the current vector leads the voltage vector by Phase Angle, (φ) = 90°. In a purely resistive load, the current vector is in phase with the voltage vector and hence, the Phase Angle, (φ) = 0°. In a load consisting of a combination of resistances, inductances and capacitances, the Phase Angle (φ) of the net current vector will be > 0° < 90° and may lag or lead the voltage vector.

Resistance (R), Ohm, : It is the property of a conductor that opposes the ow of current when a voltage is applied across it. In a resistance, the current is in phase with the voltage. It is denoted by “R” and its unit is “Ohm” - also denoted as “”.

6 | SAMLEX AMERICA INC.

Page 7

SECTION 1 | Safety Instructions & General Information

Inductive Reactance (XL), Capacitive Reactance (XC) and Reactance (X): Reactance is the opposition of a circuit element to a change of electric current or voltage due to that element’s inductance or capacitance. Inductive Reactance (X any change of electric current through the coil. It is proportional to frequency and inductance and causes the current vector to lag the voltage vector by Phase Angle (φ) = 90°. Capacitive reactance (X proportional to the frequency and capacitance and causes the current vector to lead the voltage

) is the property of capacitive elements to oppose changes in voltage. XC is inversely

vector by Phase Angle (φ) = 90°. The unit of both X The effects of inductive reactance X the capacitive reactance X site and the net effect is a tendency to cancel each other. Hence, in a circuit containing both

to cause the current to lead the voltage by 90° are exactly oppo-

to cause the current to lag the voltage by 90° and that of

inductances and capacitances, the net Reactance (X) will be equal to the difference between the values of the inductive and capacitive reactances. The net Reactance (X) will be inductive if

> XC and capacitive if XC > XL.

Impedance, Z: It is the vectorial sum of Resistance and Reactance vectors in a circuit.

Active Power (P), Watts: It is denoted as “P” and the unit is “Watt”. It is the power that is

consumed in the resistive elements of the load. A load will require additional Reactive Power for powering the inductive and capacitive elements. The effective power required would be the Apparent Power that is a vectorial sum of the Active and Reactive Powers.

Reactive Power (Q), VAR: Is denoted as “Q” and the unit is VAR . Over a cycle, this power is alternatively stored and returned by the inductive and capacitive elements of the load. It is not consumed by the inductive and capacitive elements in the load but a certain value travels from the AC source to these elements in the (+) half cycle of the sinusoidal voltage (Positive value) and the same value is returned back to the AC source in the (-) half cycle of the sinusoidal voltage (Negative value). Hence, when averaged over a span of one cycle, the net value of this power is 0. However, on an instantaneous basis, this power has to be provided by the AC source. Hence, the

inverter, AC wiring and over current protection devices have to be sized based on the combined effect of the Active and Reactive Powers that is called the Apparent Power.

) is the property of a coil of wire in resisting

and XC is “Ohm” - also denoted as “”.

Apparent Power (S), VA: This power, denoted by “S”, is the vectorial sum of the Active

Power in Watts and the

Reactive Power in “VAR”. In magnitude, it is equal to the RMS value of

voltage “V” X the RMS value of current “A”. The Unit is VA. Please note that Apparent Power

VA is more than the Active Power in Watts. Hence, the inverter, AC wiring and over current protection devices have to be sized based on the Apparent Power.

Maximum Continuous Running AC Power Rating: This rating may be specied as “Active Power” in Watts (W) or “Apparent Power” in Volt Amps (VA). It is normally specied in “Active Power (P)” in Watts for Resistive type of loads that have Power Factor =1. Reactive types of loads will draw higher value of “Apparent Power” that is the sum of “Active and Reactive Powers”. Thus, AC power source should be sized based on the higher “Apparent Power”

ating in (VA) for all Reactive Types of AC loads. If the AC power source is sized based on the

R lower “Active Power” Rating in Watts (W), the AC power source may be subjected to overload conditions when powering Reactive Type of loads.

Starting Surge Power

Rating: Certain loads require considerably higher Starting Surge Power

for short duration (lasting from tens of millisecs to few seconds) as compared to their Maximum Continuous Running Power Rating. Some examples of such loads are given on next page:

Page 8

SECTION 1 | Safety Instructions & General Information

 • Electric Motors: At the moment when an electric motor is powered ON, the rotor is

stationary (equivalent to being “Locked”), there is no “Back EMF” and the windings draw a very heavy starting current (Amperes) called “Locked Rotor Amperes” (LRA) due to low DC resistance of the windings. For example, in motor driven loads like Air-conditioning and Refrigeration Compressors and in Well Pumps (using Pressure Tank), LRA may be as high as 10 times its rated Full Load Amps (FLA) / Maximum Continuous Running Power Rating. The value and duration of LRA of the motor depends upon the winding design of the motor and the inertia / resistance to movement of mechanical load being driven by the motor. As the motor speed rises to its rated RPM, “Back EMF” proportional to the RPM is generated in the windings and the current draw reduces proportionately till it draws the running FLA / Maximum Continuous Running Power Rating at the rated RPM.

Transformers (e.g.

 •

Power T

supplied to a transformer, the transformer draws very heavy “Magnetization Inrush Current” for a few millisecs that can reach up to 10 times the Maximum Continuous R

 •

Devices like Infrared Quartz Halogen Heaters (also used in Laser Printers) / Quartz H

Tungsten has a very high Positive Temperature Coefcient of Resistance i.e. it has lower resistance when cold and higher resistance when hot. As Tungsten heating element will be cold at the time of powering ON, its resistance will be low and hence, the device will draw very heavy Starting Surge Current with consequent very heavy Starting Surge Power with a value of up to 8 times the Maximum Continuous Running AC Power.

 • AC to DC Switched Mode Power Supplies (SMPS): This type of power supply is used

as stand-alone power supply or as front end in all electronic devices powered from Utility / Grid e.g. in audio/video/ computing devices and battery chargers (Please see Section 4 for more details on SMPS). When this power supply is switched ON, its internal input side capacitors start charging resulting in very high Inrush Current for a few millisecs (Please see Maximum Running Power Rating. The inrush current / power will, however, be limited by the Starting Surge Power Rating of the AC source.

ransformer in Micr

ating of the Transformer.

alogen Lights / Incandescent Light Bulbs using T

Fig 4.1). This inrush current / power may reach up to 15 times the Continuous

Isolation T

ransformers, Step-up / Step-down Transformers,

owave Oven etc.): At the moment when AC power is

ungsten heating elements:

Power Factor, (PF): It is denoted by “P

Watts to the Apparent Power (S) in VA. The maximum value is 1 for resistive types of loads where the Active Power (P) in Watts = the Apparent Power (S) in VA. It is 0 for purely inductive or purely capacitive loads. Practically, the loads will be a combination of resistive, inductive and capacitive elements and hence, its value will be > 0 <1. Normally it ranges from 0.5 to 0.8.

Load: Electrical appliance or device to which an electrical voltage is fed.

Linear Load: A load that draws sinusoidal current when a sinusoidal voltage is fed to it. Examples

are, incandescent lamp, heater, electric motor, etc.

on-Linear Load: A load that does not draw a sinusoidal current when a sinusoidal voltage is

fed to it. For example, non-power factor corrected Switched Mode Power Supplies (SMPS) used in computers, audio video equipment, battery chargers, etc.

Resistive Load: A device or appliance that consists of pure resistance (like lament lamps, cook tops, toaster, coffee maker etc.) and draws only Active Power (Watts) from the inverter. The inverter can be sized based on the Active Power rating (Watts) of the Resistive Load without creating overload (except for resistive loads with Tungsten based heating element like lament

8 | SAMLEX AMERICA INC.

F” and is equal to the ratio of the Active Power (P) in

Page 9

SECTION 1 | Safety Instructions & General Information

lamps, Quartz/Halogen lamps and Quartz / Halogen Infrared heaters. These require higher starting surge power due to lower resistance value when the heating elements are cold).

Reactive Load: A device or appliance that consists of a combination of resistive, inductive and capacitive elements (like motor driven tools, refrigeration compressors, microwaves, computers, audio/ video etc.). The Power Factor (PF) of this type of load is < 1 e.g. AC Motors (PF = 0.4 to

0.8), AC to DC Switch Mode Power Supplies (PF = 0.5 to 0.6), Transformers (PF = 0.8) etc. These devices require Apparent Power (VA) from the inverter to operate. The Apparent Power is a vectorial sum of Active Power (Watts) and Reactive Power (VAR). The inverter has to be sized based on

the higher Apparent Power (VA) and also based on the Starting Surge Power.

1.3 GENERAL INFORMATION - INVERTER RELATED

General information related to operation and sizing of inverters is given in succeeding sub-sections.

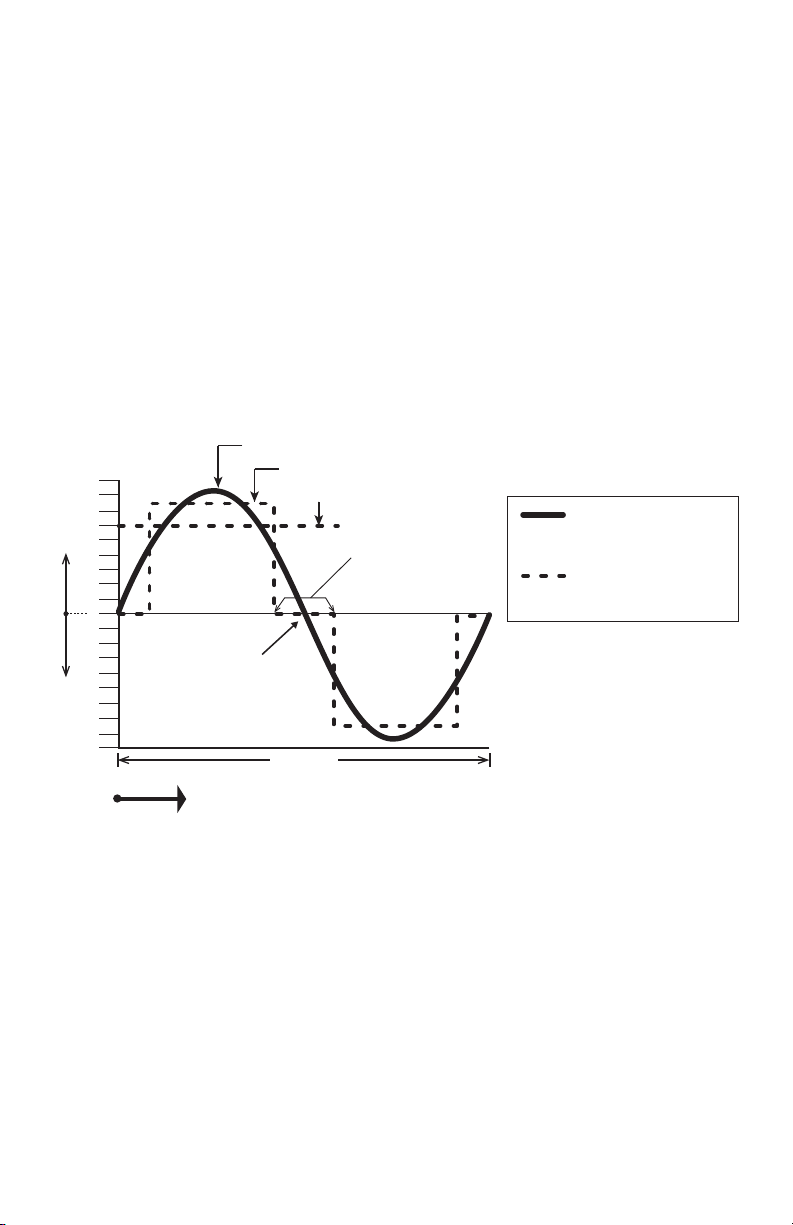

1.3.1 AC Voltage Waveforms

= 325.22V

peak

= 250 to 320V

360 320 280 240 200 160 120

80 40

0 40 80

120 160 200 240 280

VOLTS − VOLTS +

320 360

Pure Sine Wave crosses zero V instantaneously

TIME

peak

20 ms

= 230 VAC

RMS

Modied Sine Wave sits at ZERO for some time and then rises or falls

Sine Wave

• V

= 230VAC

RMS

• V

= 325.22V

peak

Modied Sine Wave

• V

= 230V

RMS

• V

= 250 to 320V

peak

Fig 1.1 Pure and Modied Sine Waveforms for 230VAC, 50 Hz

The 230VAC output waveform of the EvolutionTM series inverters is a Pure Sine Wave like the waveform of Utility / Grid power. Please see Sine Waveform represented in the Fig. 1.1 that also shows equivalent Modied Waveform for comparison.

In a Sine Wave, the voltage rises and falls smoothly with a smoothly changing phase angle and also changes its polarity instantly when it crosses 0 Volts. In a Modied Sine Wave, the voltage rises and falls abruptly, the phase angle also changes abruptly and it sits at 0V for some time before changing its polarity. Thus, any device that uses a control circuitry that senses the phase (for voltage / speed control) or instantaneous zero voltage crossing (for timing control) will not work properly from a voltage that has a Modied Sine Waveform.

Also, as the Modied Sine Wave is a form of Square Wave, it is comprised of multiple Sine Waves of odd harmonics (multiples) of the fundamental frequency of the Modied Sine Wave. For example, a 50 Hz Modied Sine Wave will consist of Sine Waves with odd harmonic frequencies of 3rd

Page 10

SECTION 1 | Safety Instructions & General Information

(150 Hz), 5th (250 Hz), 7th (350 Hz) and so on. The high frequency harmonic content in a Modied Sine Wave produces enhanced radio interference, higher heating effect in inductive loads like microwaves and motor driven devices like hand tools, refrigeration / air-conditioning compressors, pumps etc. The higher frequency harmonics also produce overloading effect in low frequency capacitors due to lowering of their capacitive reactance by the higher harmonic frequencies. These capacitors are used in ballasts for uorescent lighting for Power Factor improvement and in singlephase induction motors as start and run capacitors. Thus, Modied and Square Wave Inverters may shut down due to overload when powering these devices.

1.3.2 Advantages of Pure Sine Wave Inverters

 The output waveform is a Sine Wave with very low harmonic distortion and cleaner power

like Grid / Utility supplied electricity.

 Inductive loads like microwaves, motors, transformers etc. run faster, quieter and cooler.

e suitable for powering uorescent lighting xtures containing Power Factor Improve-

 Mor

ment Capacitors and single phase motors containing Start and Run Capacitors.

educes audible and electrical noise in fans, uorescent lights, audio ampliers, TV, fax and

 R

answering machines.

 Does not contribute to the possibility of crashes in computers, weir

monitors.

Some examples of devices that may not work properly with Modied Sine Wave and may also get damaged are given below:

 Laser printers, photocopiers, and magneto-optical hard drives.

uilt-in clocks in devices such as clock radios, alarm clocks, coffee makers, bread-makers,

 B

VCR, microwave ovens etc. may not keep time correctly.

 Output voltage contr

properly (dimming / speed control may not function).  Sewing machines with speed / microprocessor control.  Transformer-less capacitive input powered devices like (i) Razors, ashlights, night-lights, smoke

detectors etc. (ii) Some re-chargers for battery packs used in hand power tools. These may get

damaged. Please check with the manufacturer of these types of devices for suitability.

 Devices that use radio frequency signals carried by the AC distribution wiring.  Some new fur  High intensity discharge (HID) lamps like Metal Halide lamps. These may get damaged. Please

check with the manufacturer of these types of devices for suitability.

 Some uor

inverter may shut down indicating overload.

 Induction Cooktops.

escent lamps / light xtures that have Power Factor Correction Capacitors. The

ol devices like dimmers, ceiling fan / motor speed control may not work

naces with microprocessor control / Oil burner primary controls.

d print outs and glitches in

1.3.3 Power Rating of Inverters

INFO

For proper understanding of explanations given below, please refer to denitions of Active / Reactive / Apparent / Continuous / Surge Powers, Power Factor, and Resistive / Reactive Loads at Section 1.2 under “DEFINITIONS”

10 | SAMLEX AMERICA INC.

Page 11

SECTION 1 | Safety Instructions & General Information

The power rating of inverters is specied as follows:

 • MaximumContinuousRunningPowerRating  • StartingSurgePowerRating

Please read details of the above two types of power ratings in Section 1.2 under “DEFINITIONS”

The manufacturers’ specication for power rating of AC appliances and devices indicates only the Maximum Continuous Running Power Rating. The Starting Surge Power required by some specic types of devices as explained above has to be determined by actual testing or by checking with the manufacturer. This may not be possible in all cases and hence, can be guessed at best, based on some general Rules of Thumb.

Table 1.6 provides a list of some common AC appliances / devices that require high Starting Surge Power. An “Inverter Sizing Factor” has been recommended against each which is a Multiplication Factor to be applied to the Maximum Continuous Running Power Rating (Active Power Rating in Watts) of the AC appliance / device to arrive at the Maximum Continuous R

unning Power Rating of the inverter (Multiply the Maximum Continuous Running Power

ating (Active Power Rating in Watts) of the appliance / device by recommended Sizing Factor

to arrive at the Maximum Continuous Running Power Rating of the inverter.

TABLE 1.6 INVERTER SIZING FACTOR

Type of Device or Appliance

Air Conditioner / Refrigerator / Freezer (Compressor based) 5

Air Compressor 4

Sump Pump / Well Pump / Submersible Pump 3

Dishwasher / Clothes Washer 3

Microwave (where rated output power is the Cooking Power) 2

Furnace Fan 3

Industrial Motor 3

Portable Kerosene / Diesel Fuel Heater 3

Circular Saw / Bench Grinder 3

Incandescent / Halogen / Quartz Lamps 3

Laser Printer / Other Devices using Infrared, Quartz Halogen Heaters 4

Switch Mode Power Supplies (SMPS): no Power Factor correction 2

Photographic Strobe / Flash Lights 4 (See Note 2)

nverter Sizing Factor

(See Note 1)

NOTES FOR TABLE 1.6: 1 Multiply the Maximum Continuous Power Rating (Active Power Rating in Watts) of the appliance

/ device by the recommended sizing factor to arrive at the Maximum Continuous Running Power Rating of the Inverter.

2 For photographic strobe / ash unit, the Surge Power of the inverter should be > 4 times the

Watt Sec rating of photographic strobe / ash unit.

Page 12

SECTION 1 | Safety Instructions & General Information

1.3.4 Electro-Magnetic Interference (EMI) and EMC Compliance

These inverters contain internal switching devices that generate conducted and radiated electromagnetic interference (EMI). The EMI is unintentional and cannot be entirely eliminated. The magnitude of EMI is, however, limited by circuit design to acceptable levels as per limits laid down in the European EMC Directive 2014/30/EU for Class A limits. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. These inverters can conduct and radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. The effects of EMI will also depend upon a number of factors external to the inverter like proximity of the inverter to the EMI receptors, types and quality of connecting wires and cables etc. EMI due to factors external to the inverter may be reduced as follows:

• Ensure that the inverter is rmly grounded to the Ground System of the building or the vehicle.

• Locate the inverter as far away from the EMI receptors like radio, audio and video devices

as possible.

• Keep the DC side wires between the battery and the inverter as short as possible.

• Do NOT keep the battery wires far apart. Keep them taped together to reduce their

inductance and induced voltages. This reduces ripple in the battery wires and improves performance and efciency.

• Shield the DC side wires with metal sheathing / copper foil / braiding.

• Use coaxial shielded cable for all antenna inputs (instead of 300 ohm twin leads).

• Use high quality shielded cables to attach audio and video devices to one another.

• Limit operation of other high power loads when operating audio / video equipment.

1.3.5 Characteristics of Switch Mode Power Supplies (SMPS)

Switch Mode Power Supplies (SMPS) are extensively used to convert the incoming AC power into various voltages like 3.3V, 5V, 12V, 24V etc. that are used to power various devices and circuits used in electronic equipment like battery chargers, computers, audio and video devices, radios etc. These power supplies use large capacitors in their input section for ltration. When the power supply is rst turned on, there is a very large inrush current drawn by the power supply as the input capacitors are charged (The capacitors act almost like a short circuit at the instant the power is turned on). The inrush current at turn-on is several to tens of times larger than the rated RMS input current and lasts for a few milliseconds. An example of the input voltage versus input current waveforms is given in Fig. 1.2. It will be seen that the initial input current pulse just after turn-on is > 15 times larger than the steady state RMS current. The inrush dissipates in around 2 or 3 cycles i.e. in around 40 to 60 milliseconds for 50 Hz sine wave.

Further, due to the presence of high value of input lter capacitors, the current drawn by an SMPS (With no Power Factor correction) is not sinusoidal but non-linear as shown in Fig 1.3. The steady state input current of SMPS is a train of non-linear pulses instead of a sinusoidal wave. These pulses are two to four milliseconds duration each with a very high Crest Factor of around 3. Crest Factor is dened by the following equation: CREST FACTOR = PEAK VALUE ÷ RMS VALUE

Many SMPS units incorporate “Inrush Current Limiting”. The most common method is the NTC (Negative Temperature Coefcient) resistor. The NTC resistor has a high resistance when cold and a low resistance when hot. The NTC resistor is placed in series with the input to the power supply. The higher cold resistance limits the input current as the input capacitors charge up. The input current heats up the NTC and the resistance drops during normal operation. However, if the power supply is quickly turned OFF and back ON, the NTC resistor will be hot so its low resistance state will not prevent an inrush current event.

12 | SAMLEX AMERICA INC.

Page 13

SECTION 1 | Safety Instructions & General Information

The inverter should, therefore, be sized adequately to withstand the high inrush current and the high Crest Factor of the current drawn by the SMPS. Normally, inverters have short duration Surge Power Rating of 2 times their Maximum Continuous Power Rating. Hence, it is recommended

that for purposes of sizing the inverter, to accommodate Crest Factor of 3, the Maximum Continuous Power Rating of the inverter should be > 2 times the Maximum Continuous Rated Power of the SMPS. For example, an SMPS rated at 100 Watts should be powered from an inverter that has Maximum Continuous Power Rating of > 200 Watts.

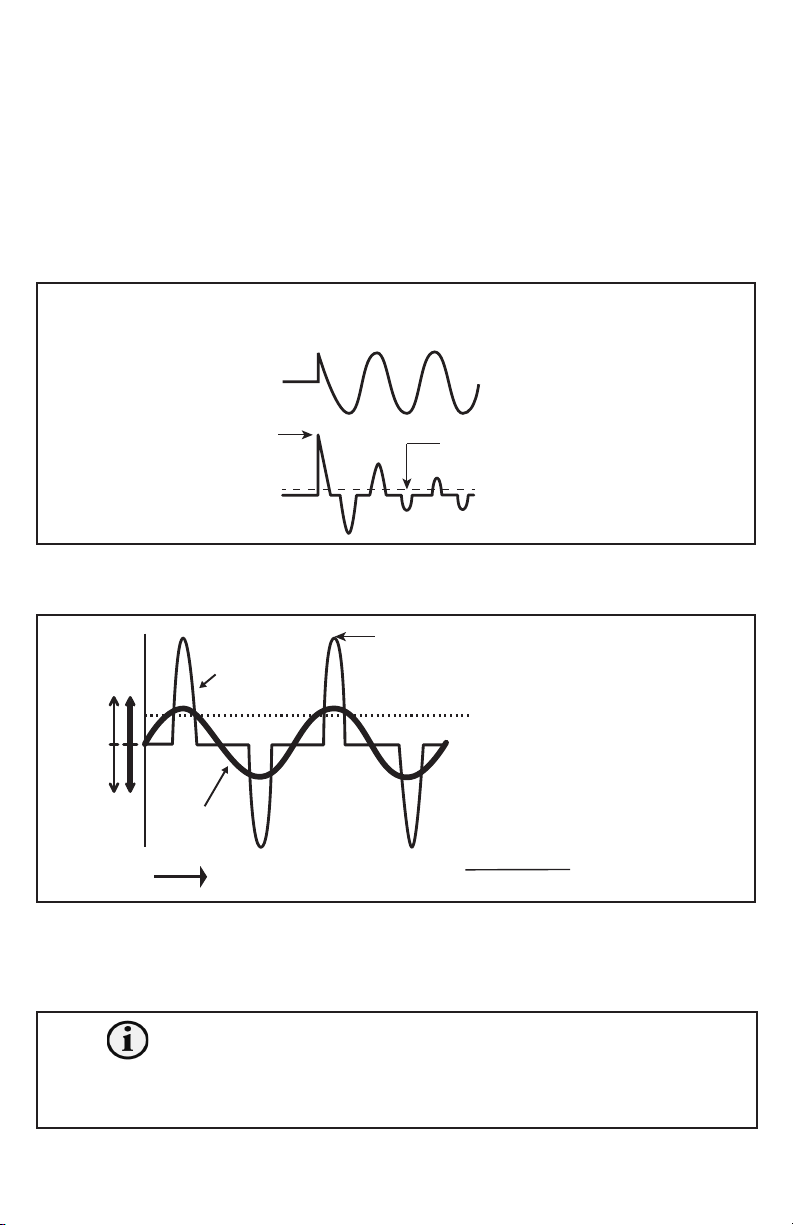

NOTE: Voltage and Current scales are dierent

Input voltage

Peak Inrush Current

Inrush current

Non-linear Input Current

Fig 1.2 Inrush current in an SMPS

Peak Current

Rated Steady State Input RMS Current

NOTE: Voltage and Current scales are dierent

RMS Current

Input Sine Wave Voltage

Current − Current +

Volatge − Voltage +

TIME

Fig 1.3 High Crest Factor of current drawn by SMPS

CREST FACTOR = PEAK CURRENT = 3 RMS CURRENT

1.4 GENERAL INFORMATION - LEAD ACID BATTERIES

INFO

For complete background information on Lead Acid Batteries and Charging Process, visit www. samlexamerica.com>Support>White Papers>Whitepaper - Batteries, Chargers and Alternators.

Page 14

SECTION 1 | Safety Instructions & General Information

Lead-acid batteries can be categorized by the type of application:

Automotive service - Starting/Lighting/Ignition (SLI, a.k.a. cranking), and

1. Deep cycle service.

Deep Cycle Lead Acid Batteries of appropriate capacity are recommended for powering of inverters.

1.4.1 Deep Cycle Lead Acid Batteries

Deep cycle batteries are designed with thick-plate electrodes to serve as primary power sources, to have a constant discharge rate, to have the capability to be deeply discharged to up to 80 % capacity and to repeatedly accept recharging. They are marketed for use in recreation vehicles (RV), boats and electric golf carts – so they may be referred to as RV batteries, marine batteries or golf cart batteries. Use Deep Cycle batteries for powering inverters.

1.4.2 Rated Capacity Specied in Ampere-hour (Ah)

Battery capacity “C” is specied in Ampere-hours (Ah). An Ampere is the unit of measurement for electrical current and is dened as a Coulomb of charge passing through an electrical conductor in one second. The Capacity “C” in Ah relates to the ability of the battery to provide a constant specied value of discharge current (also called “C-Rate” - see page 17) over a specied time in hours before the battery reaches a specied discharged terminal voltage (Also called “End Point Voltage”) at a specied temperature of the electrolyte. As a benchmark, the automotive battery industry rates batteries at a discharge current or C-Rate of C/20 Amperes corresponding to 20 Hour discharge period. The rated capacity “C” in Ah in this case will be the number of Amperes of current the battery can deliver for 20 Hours at 80ºF (26.7ºC) till the voltage drops to 1.75V / Cell. i.e. 10.5V for 12V battery or 21V for 24V battery. For example, a 100 Ah battery will deliver 5A for 20 Hours.

1.4.3 Rated Capacity Specied in Reserve Capacity (RC)

Battery capacity may also be expressed as Reserve Capacity (RC) in minutes typically for automotive SLI (Starting, Lighting and Ignition) batteries. It is the time in minutes a vehicle can be driven after the charging system fails. This is roughly equivalent to the conditions after the alternator fails while the vehicle is being driven at night with the headlights on. The battery alone must supply current to the headlights and the computer/ignition system. The assumed battery load is a constant discharge current of 25A.

Reserve capacity is the time in minutes for which the battery can deliver 25 Amperes at 80ºF (26.7ºC) till the voltage drops to 1.75V / Cell i.e. 10.5V for 12V battery or 21V for 24V battery.

Approximate relationship between the two units is: Capacity “C” in Ah = Reserve Capacity in

RC minutes x 0.6

1.4.4 Typical Battery Sizes

Table 1.7 shows details of some popular battery sizes:

TABLE 1.7 POPULAR BATTERY SIZES

BCI* Group Battery Voltage, V Battery Capacity, Ah

27 / 31 12 105

4D 12 160

8D 12 225

GC2** 6 220

* Battery Council International; ** Golf Cart

14 | SAMLEX AMERICA INC.

Page 15

SECTION 1 | Safety Instructions & General Information

1.4.5 Specifying Charging / Discharging Currents: C-Rate

Electrical energy is stored in a cell / battery in the form of DC power. The value of the stored energy is related to the amount of the active materials pasted on the battery plates, the surface area of the plates and the amount of electrolyte covering the plates. As explained above, the amount of stored electrical energy is also called the Capacity of the battery and is designated by the symbol “C”.

The time in Hours over which the battery is discharged to the “End Point Voltage” for purposes of specifying Ah capacity depends upon the type of application. Let us denote this discharge time in hours by “T”. Let us denote the rate of discharge current of the battery as a multiple of Ah capacity "C" and call it as the "C-Rate”. If the battery delivers a very high discharge current, the battery will be discharged to the “End Point Voltage” in a shorter period of time. On the other hand, if the battery delivers a lower discharge current, the battery will be discharged to the “End Point Voltage” after a longer period of time. Mathematically, C-Rate is dened as:

“C-RA

Table 1.8 gives some examples of C-Rate specications and applications:

ours of discharge time “T” till

the “End Point Voltage”

0.5 Hrs. 2C 200A

1 Hrs. 1C 100A

5 Hrs.

8 Hrs.

10 Hrs.

20 Hrs. (

100 Hrs. C/100 or 0.01C 1A

NOTE: When a battery is discharged over a shorter time, its specied “C-Rate” will be higher. For example, the “C-Rate” at 5 Hour discharge period i.e. C/5 Amps will be 4 times higher than the “C-Rate” at 20 Hour discharge period i.e. C/20 Amps.

APACITY “C” in Ah ÷ DISCHARGE TIME “T”

TE” = C

TABLE 1.8 DISCHARGE CURRENT RATES - “C-RATES”

“C-Rate” Discharge Current

in Amps = Capacity “C” in Ah

÷ Discharge Time “T” in Hrs.

(Inverter application) C/5 or 0.2C 20A

(UPS application) C/8 or 0.125C 12.5A

(Telecom application) C/10 or 0.1C 10A

Automotive application) C/20 or 0.05C 5A

xample of C-Rate

Discharge Currents

for 100 Ah battery

Page 16

SECTION 1 | Safety Instructions & General Information

1.4.6 Charging / Discharging Curves

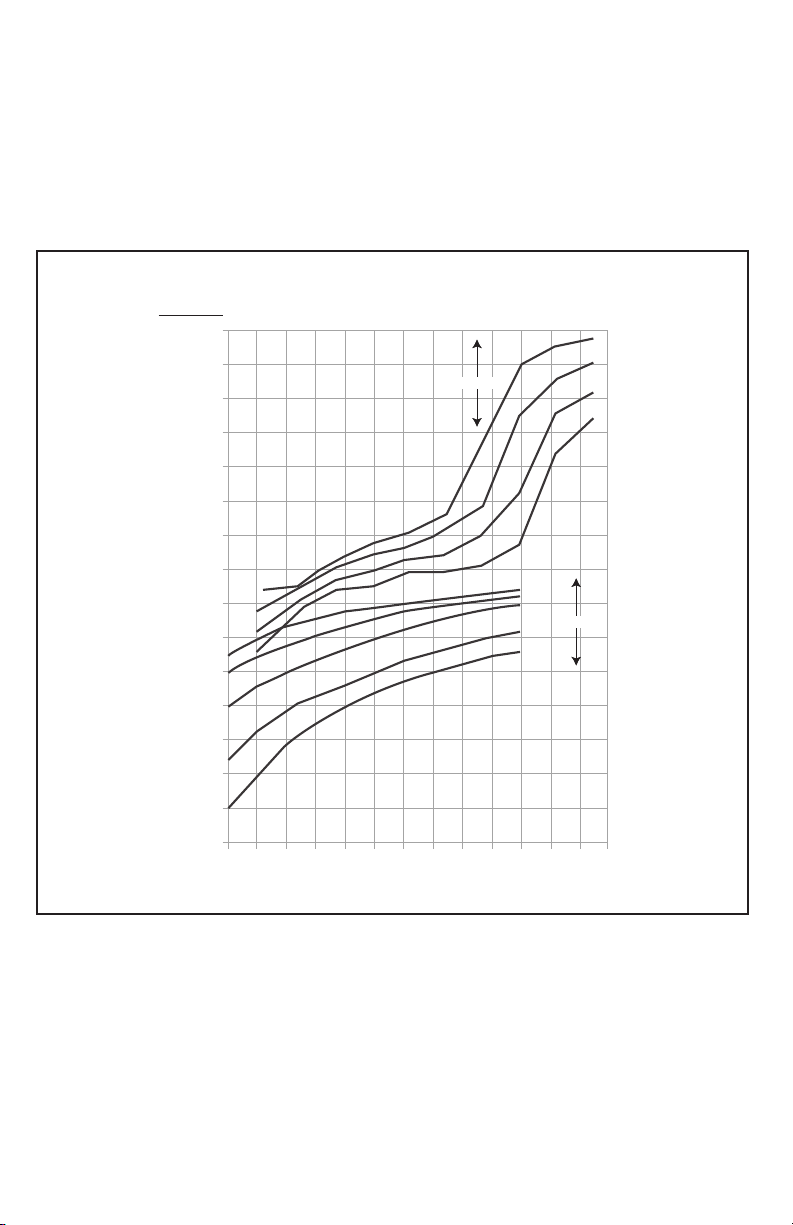

Fig. 1.4 shows the charging and discharging characteristics of a typical 12V / 24V Flooded Lead Acid battery at electrolyte temperature of 80°F / 26.7°C. The curves show the % State of Charge (X-axis) versus terminal voltage (Y-axis) during charging and discharging at different C-Rates. Please note that X-axis shows % State of Charge. State of Discharge will be = 100% - % State of Charge. These curves will be referred to in the subsequent explanations.

Typical Flooded Lead-Acid Battery Chart - 80˚F / 26.7˚C

24V 12V

16.5

33.0

16.0

32.0

15.5

31.0

15.0

30.0

14.5

29.0

14.0

28.0

13.5

27.0

13.0

26.0

12.5

25.0

Battery Voltage in VDC

12.0

24.0

11.5

23.0

CHARGE

C/100

C/20 C/10

C/5

C/3

DISCHARGE

C/5

C/10

C/20

C/40

11.0

22.0

10.5

21.0

10.0

20.0

9.5

19.0

9.0

18.0

0 10 20 30 40 50 60 70 80 90 100 110 120 130

Battery State of Charge in Percent (%)

Fig 1.4 Charging / Discharging Curves for Typical Flooded Lead Acid Battery

1.4.7 Reduction in Usable Capacity at Higher Discharge Rates – Typical in

Inverter Application

As stated earlier, the Ah capacity of automotive battery is normally applicable at a discharge rate of 20 Hours. As the discharge rate is increased as in cases where the inverters are driving higher capacity loads, the usable Ah capacity reduces due to “Peukert Effect”. This relationship is not linear but is more or less according to the Table 1.9.

16 | SAMLEX AMERICA INC.

Page 17

SECTION 1 | Safety Instructions & General Information

TABLE 1.9 BATTERY CAPACITY VERSUS RATE OF DISCHARGE – C-RATE

C-Rate Discharge Current

C/20 100% C/10 87%

C/8 83% C/6 75% C/5 70% C/3 60% C/2 50%

1C 40%

Table 1.9 shows that a 100 Ah capacity battery will deliver 100% (i.e. full 100 Ah) capacity if it is slowly discharged over 20 Hours at the rate of 5 Amperes (50W output for a 12V inverter and 100W output for a 24V inverter). However, if it is discharged at a rate of 50 Amperes (500W output for a 12V inverter and 1000W output for a 24V inverter) then theoretically, it should provide 100 Ah ÷ 50 = 2 Hours. However, Table 1.9 above shows that for 2 Hours discharge rate, the capacity is reduced to 50% i.e. 50 Ah. Therefore, at 50 Ampere discharge rate (500W output for a 12V inverter and 1000W output for a 24V inverter) the battery will actually last for 50 Ah ÷ 50 Amperes = 1 Hour.

1.4.8 State of Charge (SOC) of a Battery – Based on “Standing Voltage”

The “Standing Voltage” of a battery under open circuit conditions (no load connected to it) can approximately indicate the State of Charge (SOC) of the battery. The “Standing Voltage”

is measured after disconnecting any charging device(s) and the battery load(s) and letting the battery “stand” idle for 3 to 8 hours before the voltage measurement is taken. Table 1.10 shows the State of Charge versus Standing Voltage for a typical 12V/24V

battery system at 80°F (26.7ºC).

sable Capacity (%)

TABLE 1.10 SOC VERSUS STANDING VOLTAGE (TYPICAL FLOODED BATTERY)

Percentage of

Full Charge

100% 2.105V 12.63V 25.26V

90% 2.10V 12.6V 25.20V

80% 2.08V 12.5V 25.00V

70% 2.05V 12.3V 24.60V

60% 2.03V 12.2V 24.40V

50% 2.02V 12.1V 24.20V

40% 2.00V 12.0V 24.00V

30% 1.97V 11.8V 23.60V

20% 1.95V 11.7V 23.40V

10% 1.93V 11.6V 23.20V

0% = / < 1.93V = / < 11.6V = / < 23.20V

Standing Voltage

of Individual Cells

Standing Voltage of

12V Battery

Standing Voltage

of 24V Battery

Page 18

SECTION 1 | Safety Instructions & General Information

Check the individual cell voltages / specic gravity. If the inter-cell voltage difference is more than a 0.2V, or the specic gravity difference is 0.015 or more, the cells will require equalization.

Please note that only non-sealed / vented / ooded / wet cell batteries are equalized. Do not equalize sealed / VRLA type of AGM or Gel Cell Batteries.

1.4.9 State of Discharge of a Loaded Battery – Low Battery / DC Input Voltage Alarm and Shutdown in Inverters

Most inverter hardware estimate the State of Discharge of the loaded battery by measuring the voltage at the inverter’s DC input terminals (considering that the DC input cables are thick enough to allow a negligible voltage drop between the battery and the inverter).

Inverters are provided with a buzzer alarm to warn that the loaded battery has been deeply discharged to around 80% of the rated capacity. Normally, the buzzer alarm is triggered

when the voltage at the DC input terminals of the inverter has dropped to around

10.5V for a 12V battery or 21V for 24V battery at C-Rate discharge current of C/5

Amps and electrolyte temp. of 80°F. The inverter is shut down if the terminal voltage at C/5

discharge current falls further to 10V for 12V battery or 20V for 24V battery.

The State of Discharge of a battery is estimated based on the measured terminal voltage of the battery. The terminal voltage of the battery is dependent upon the following:

emperatur

- T

reactions inside the battery and produces a Negative Voltage Coefcient – during charging / discharging, the terminal voltage drops with rise in temperature and rises with drop in temperature

- The amount of discharging current or “C-Rate”: A battery has non linear internal resistance

and hence, as the discharge current increases, the battery terminal voltage decreases non-linearly

e of the battery electrolyte: Temperature of the electrolyte affects the electrochemical

The discharge curves in Fig. 1.4 show the % State of Charge versus the terminal voltage of typical Flooded Lead Acid Battery under different charge /discharge currents, i.e. “C-Rates” and xed temperature of 80°

State of Charge. The % of State of Discharge will be 100% - % State of Charge).

F. (Please note that the X-Axis of the curves shows the % of

1.4.10 Low DC Input Voltage Alarm in Inverters

As stated earlier, the buzzer alarm is triggered when the voltage at the DC input terminals of the inverter has dropped to around 10.5V for a 12V battery or 21V for 24V battery at C-Rate discharge current of C/5 Amps. Please note that the terminal voltage relative to a particular State of Discharge decreases with the rise in the value of the discharge current. For example, terminal voltages for a State of Discharge of 80% (State of Charge of 20%) for various discharge currents will be as given at Table 1.11 (Refer to Fig. 1.4 for parameters and values shown in Table 1.11):

Table 1.11 TERMINAL VOLTAGE AND SOC OF LOADED BATTERY

Discharge

Current:

C-Rate

C/3 A 10.45V 20.9V 09.50V 19.0V C/5 A 10.90V 21.8V 10.30V 20.6V

C/10 A 11.95V 23.9V 11.00V 22.0V C/20 A 11.85V 23.7V 11.50V 23.0V

C/100 A 12.15V 24.3V 11.75V 23.5V

18 | SAMLEX AMERICA INC.

Terminal Voltage at 80% State

of Discharge (20% SOC)

12V 24V 12V 24V

Terminal Voltage When Completely

Discharged (0% SOC)

Page 19

SECTION 1 | Safety Instructions & General Information

In the example given above, the 10.5V / 21.0V Low Battery / DC Input Alarm would trigger at around 80% discharged state (20% SOC) when the C-Rate discharge current is C/5 Amps. However, for lower C-Rate discharge current of C/10 Amps and lower, the battery will be almost completely discharged when the alarm is sounded. Hence, if the C-Rate discharge current

is lower than C/5 Amps, the battery may have completely discharged by the time the Low DC Input Alarm is sounded.

1.4.11 Low DC Input Voltage Shut-down In Inverters

As explained above, at around 80% State of Discharge of the battery at C-Rate discharge current of around C/5 Amps, the Low DC Input Voltage Alarm is sounded at around 10.5V for a 12V battery (at around 21V for 24V battery) to warn the user to disconnect the battery to prevent further draining of the battery. If the load is not disconnected at this stage, the batteries will be drained further to a lower voltage and to a completely discharged condition that is harmful for the battery and for the inverter.

Inverters are normally provided with a protection to shut down the output of the inverter if the DC voltage at the input terminals of the inverter drops below a threshold of around 10V for a 12V battery (20V for 24V battery). Referring to the Discharge Curves given in Fig 1.4, the State of Discharge for various C-Rate discharge currents for battery voltage of 10V / 20V is as follows: (Please note that the X-Axis of the curves shows the % of State of Charge. The % of State of Discharge will be 100% - % State of Charge):

85% State of Discharge (15% State of Charge) at very high C-rate discharge current of C/3 Amps.

- 100% State of Discharge (0 % State of Charge) at high C-Rate discharge current of C/5 Amps.

- 100% discharged (0% State of charge) at lower C-rate Discharge current of C/10 Amps.

It is seen that at DC input voltage of 10V / 20V, the battery is completely discharged for C-rate discharge current of C/5 and lower

In view of the above, it may be seen that a xed Low DC Input Voltage Alarm is not useful. Temperature of the battery further complicates the situation. All the above analysis is

based on battery electrolyte temperature of 80°F. The battery capacity varies with temperature. Battery capacity is also a function of age and charging history. Older batteries have lower capacity because of shedding of active materials, sulfation, corrosion, increasing number of charge / discharge cycles etc. Hence, the State of Discharge of a battery under load cannot be estimated accurately. However, the low DC input voltage alarm and shut-down functions are designed to protect the inverter from excessive current drawn at the lower voltage.

1.4.12 Depth of Discharge of Battery and Battery Life

The more deeply a battery is discharged on each cycle, the shorter the battery life. Using more batteries than the minimum required will result in longer life for the battery bank. A typical cycle life chart is given in the Table 1.12 below:

TABLE 1.12 TYPICAL CYCLE LIFE CHART

Depth of Discharge

% of Ah Capacity

10 1000 1500 3800 50 320 480 1100 80 200 300 675

100 150 225 550

NOTE: It is recommended that the depth of discharge should be limited to 50%.

Cycle Life of

Group 27 /31

Cycle Life of

Group 8D

Cycle Life of

Group GC2

Page 20

SECTION 1 | Safety Instructions & General Information

1.4.13 Series and Parallel Connection of Batteries

Refer to details at Section 3.4.

1.4.14 Sizing the Inverter Battery Bank

One of the most frequently asked questions is, “how long will the batteries last?” This question cannot be answered without knowing the size of the battery system and the load on the inverter. Usually this question is turned around to ask “How long do you want your load to run?”, and then specic calculation can be done to determine the proper battery bank size. There are a few basic formulae and estimation rules that are used:

Active Power in W

2. For an inverter running from a 12V battery system, the approximate DC current required

from the 12V batteries is the AC power delivered by the inverter to the load in Watts (W) divided by 10 & for an inverter running from a 24V battery system, the approximate DC current required from the 24V batteries is the AC power delivered by the inverter to the load in Watts (W) divided by 20.

Energy r

The rst step is to estimate the total AC watts (W) of load(s) and for how long the load(s) will operate in hours (H). The AC watts are normally indicated in the electrical nameplate for each appliance or equipment. In case AC watts (W) are not indicated, Formula 1 given above may be used to calculate the AC watts. The next step is to estimate the DC current in Amperes (A) from the AC watts as per Formula 2 above. An example of this calculation for a 12V inverter is given below:

Let us say that the total AC W

Then, using = 1000W ÷10 = 100 Amperes, or by 24V batteries = 1000W ÷ 20 = 50A.

ext, the energy required by the load in Ampere Hours (Ah) is determined.

For example, if the load is to operate for 3 hours then as per Formula 3 above, the energy to be delivered by the 12V batteries = 100 Amperes × 3 Hours = 300 Ampere Hours (Ah), or by the 24V batteries = 50A x 3 Hrs = 150 Ah.

ow, the capacity of the batteries is determined based on the run time and the usable

N capacity.

rom Table 1.9 “Battery Capacity versus Rate of Discharge”, the usable capacity at 3 Hour

F discharge rate is 60%. Hence, the actual capacity of the 12V batteries to deliver 300 Ah will be equal to: 300 Ah ÷ 0.6 = 500 Ah, and the actual capacity of the 24V battery to deliver 150 Ah will be equal to 150 Ah ÷ 0.6 = 250 Ah.

And nally, the actual desired rated capacity of the batteries is determined based on the fact that normally only 80% of the capacity will be available with respect to the rated capacity due to non availability of ideal and optimum operating and charging conditions. So the nal requirements will be equal to:

FOR 12V BATTERY: 500 Ah ÷ 0.8 = 625 Ah (note that the actual energy required by the load was 300 Ah).

FOR 24V BATTERY: 250 Ah ÷ 0.8 = 312.5 Ah (Note that the actual energy required was 150 Ah).

equired from the battery = DC current to be delivered (A) x Time in Hours (H).

Formula 2 above, the approximate DC current to be delivered by the 12V batteries

atts (W) = Voltage in Volts (V) x Current in Amperes (A) x Power Factor

atts deliver

ed by the inverter = 1000W.

20 | SAMLEX AMERICA INC.

Page 21

SECTION 1 | Safety Instructions & General Information

It will be seen from the above that the nal rated capacity of the batteries is almost 2 times the energy required by the load in Ah. Thus, as a Rule of Thumb, the Ah capacity of the

batteries should be twice the energy required by the load in Ah.

1.14.15 Charging Batteries

Batteries can be charged by using good quality AC powered battery charger or from alternative energy sources like solar panels, wind or hydro systems. Make sure an appropriate Battery Charge Controller is used. It is recommended that batteries may be charged at 10% to 20% of their Ah capacity (Ah capacity based on 20 Hr Discharge Rate). Also, for complete charging (return of 100% capacity), it is recommended that 4-Stage Charger may be used as follows:

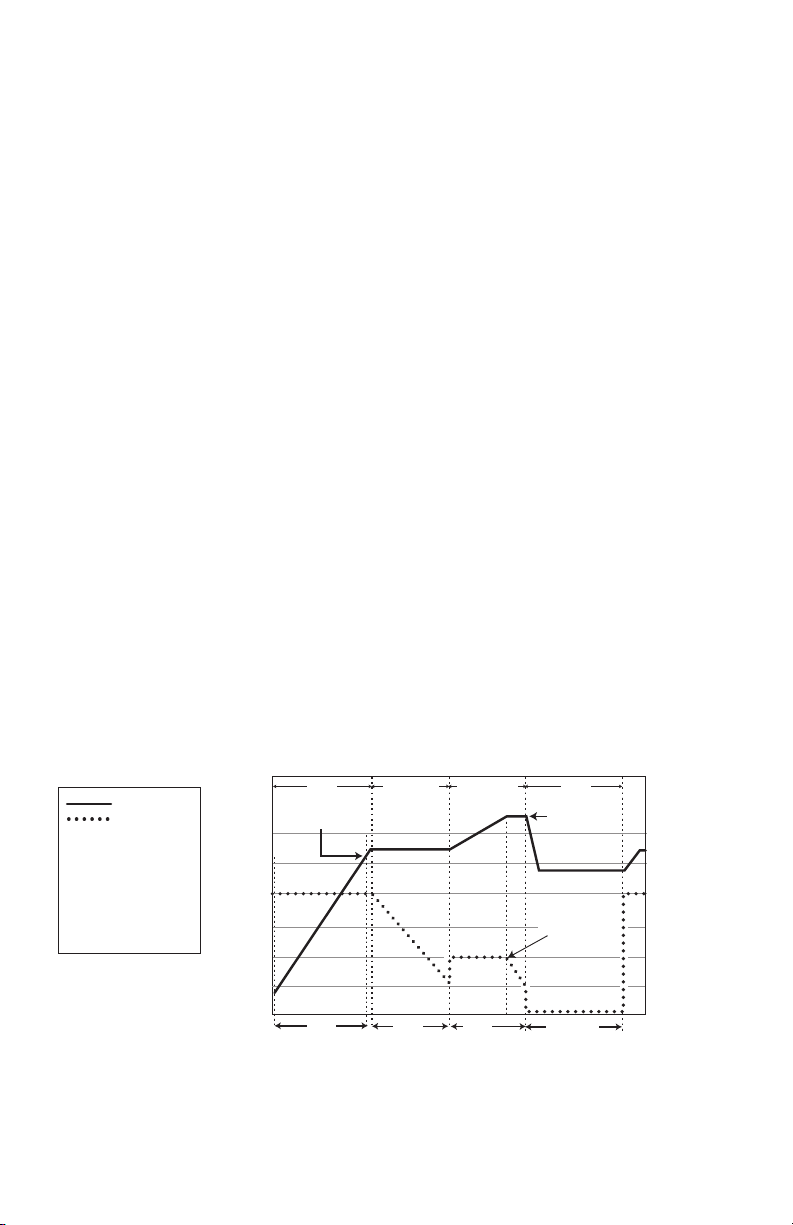

 Normal Charging (3-Stages)

Stage 1 (Bulk Stage at constant current) " Stage 2 (Absorption Stage at constant voltage) " Stage 3 (Float Stage at constant voltage)

 Equalization Charging (4-Stages)

Stage 1 (Bulk Stage at constant current) " Stage 2 (Absorption Stage at constant voltage) " Stage 3 (Equalization Stage at constant voltage) " Stage 4 (Float Stage at constant voltage)

Please refer to Section 5 for details of charging algorithm used in the Battery Charger Section of

Series Inverter/Charger.

EVO

Page 22

SECTION 2 | Components & Layout

12 13

3 4

Protection Covers for Battery Terminals

1a Red

1b Black

9C69D

10A

10B

10C

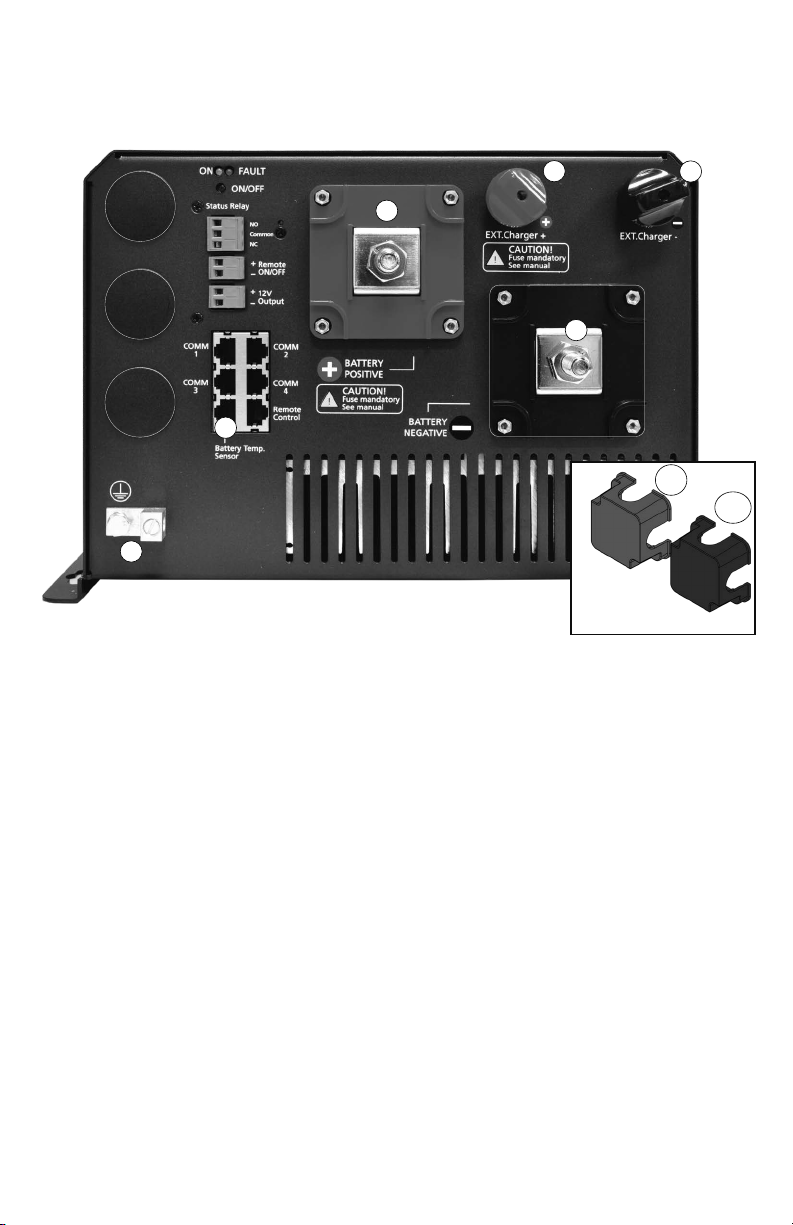

2.1 MAIN UNIT: LAYOUT-FRONT (FIG 2.1)

Fig 2.1 Layout-Front

1. Battery Positive (+) Input Connector – M10 x 1.50 Nut & Bolt (RED Protection Cover 1(a) is Removed)

1a. RED Protection Cover For Battery Positive (+) Input Connector

2. Battery Negative (-) Input Connector – M10 x 1.50 Nut & Bolt (Black Protection Cover 1(b) is Removed) 2a. Black Protection Cover for Battery Negative (-) Input Connector

3. External Charger (+) Input Connector – M12 x 0.75 Thumb Nut and Bolt

4. External Charger (-) Input Connector - M12 x 0.75 Thumb Nut and Bolt

5. DC Side Grounding Connector – Hole Dia 6.5mm for wire sizes up to 25mm2 (AWG #4). Set Screw

M-8. This is internally connected to the metal chassis of the unit.

6. RJ-45 Jack for Temperature Sensor “EVO-BCTS” (Fig. 2.5)

7. RJ-45 Jack for EVO-RC Remote

8. Air inlet vents for 2 internal cooling fans [Additional air inlet vents at the bottom (not shown)] 9A, 9B. RJ-45 Jacks for Communication Ports “COMM 1” and “COMM 2” - For RS-485 networking and

9C, 9D. RJ-45 Jacks for Communication Ports “COM 3” and “COM 4” - For “CANbus” Serial

10A to 10C. Knock outs for AC wiring inlet/exit wiring entry (Diameter: 27.8mm / 1 3/32”) (For ¾” conduit/ttings)

11. ON/OFF Push Button

12. Green LED “ON”

13. Red LED “Fault”

14. Output Terminals for Status Relay - Screw M 2.5; Wire size: up to 4mm2 / AWG #12

 • NO(NormallyOpen)  • Common  • NC(NormallyClosed)

15. +12V Input Terminals for “Remote On Off” (9 to 15V, 3mA) - Screw M 2.5; 0.05 to 3.31mm

16. Output Terminals for +12VDC source (up to 100mA) (available only when the unit is ON) - Screw

M 2.5; Wire size: up to 4mm2 / AWG#12

 • Contactratings:125VAC/30VDC;3A

22 | SAMLEX AMERICA INC.

MODBUS Serial Communication Protocol (for future use)

Communication Protocol (for future use)

(i) When the Relay is OFF, "NO" and "Common" contacts are open and

"NC" and "Common" contacts are closed.

(ii) When the Relay is ON, "NO" and "Common" contacts are closed and

"NC" and "Common" contacts are open.

AWG #30 to #12

Page 23

SECTION 2 | Components & Layout

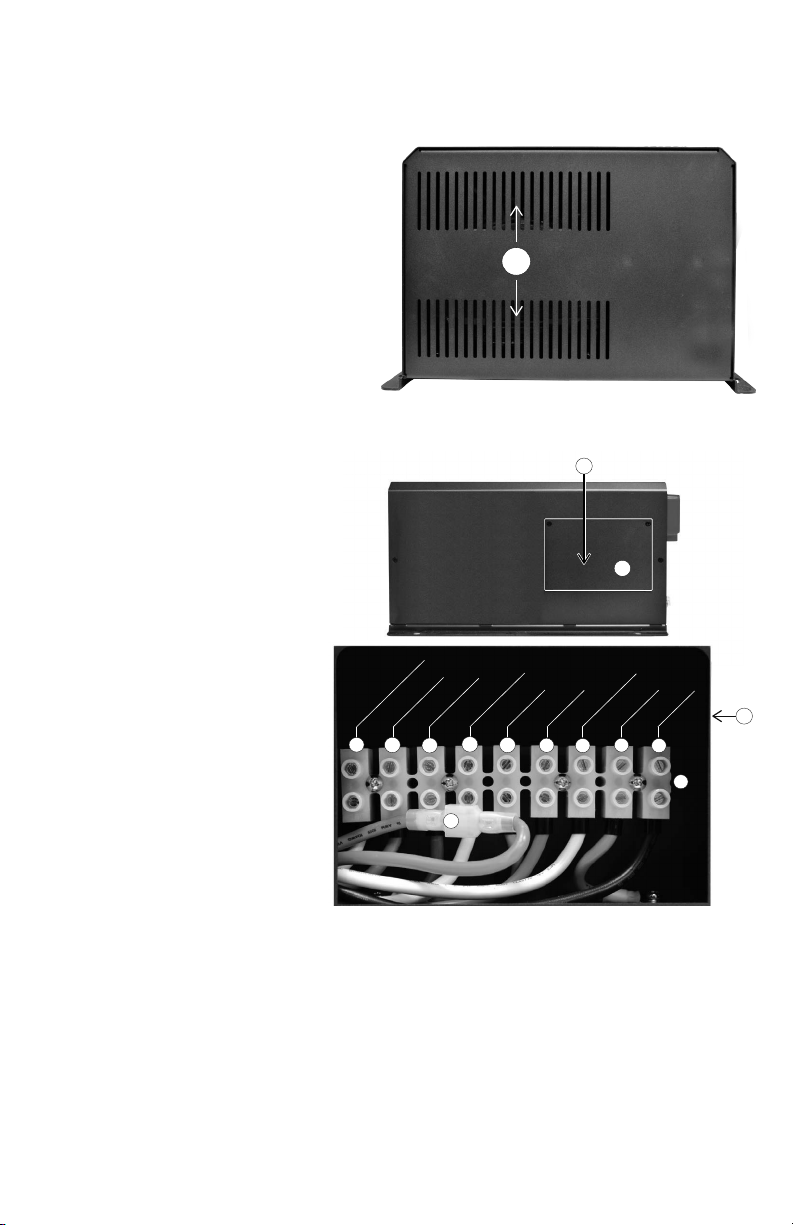

2.2 MAIN UNIT: LAYOUT-BACK (FIG 2.2)

1. Air outlet vents for 2 internal fans

2.3 MAIN UNIT: LAYOUT-AC SIDE (FIG 2.3)

1. Cover plate for pocket for AC Input/Output terminals

2. Pocket for AC Input/Output Terminals (behind cover plate 1)

3. AC Input/Output Terminal Block  Terminal hole diameter: 6mm

for up to AWG #6

 Set Screw: M4

4. Grid Input - Line

5. Grid Input - Ground

6. Grid Input - Neutral

7. Generator Input - Line

8. Generator Input - Ground

9. Generator Input - Neutral

10. AC Output - Line

11. AC Output - Ground

12. AC Output - Neutral

13. Male/Female Insulated Quick

Disconnect for disabling Output Neutral to Chassis Ground bond in Inverter Mode (Please see Sections 4.5.1 to 4.5.3 and Fig 3.12)

OUTPUT NEUTRAL

OUTPUT LINE

OUTPUT GND

Fig 2.2 Layout-Back

GEN LINE

GEN GND

GEN NEUTRAL

[Behind Cover Plate ]

GRID GND

GRID NEUTRAL

GRID LINE

Fig 2.3 Layout-AC Side

Page 24

SECTION 2 | Components & Layout

2.4 REMOTE CONTROL EVO-RC (FIG 2.4) [OPTIONAL]

Fault

Fig 2.4(a) Optional Remote Control EVO-RC

1. LCD Screen - 2 rows of 16 characters each

2. ON/OFF Key

3. Green LED “Status”

4. Red LED “Fault"

5. Navigation Key “Back”

6. Navigation Key “Up”

7. Navigation Key “Down”

8. Navigation Key “Enter”

9. SD Card Slot - FAT16/32 format; Up to 16GB

10. RJ-45 Jack (At the back-not shown)

11. RJ-45 Data Cable (Straight Wired), 10 meter/33 feet length {Fig 2.4(b)}

24 | SAMLEX AMERICA INC.

RJ-45

Plug

Fig 2.4(b) Cable for Remote Control

Page 25

SECTION 2 | Components & Layout

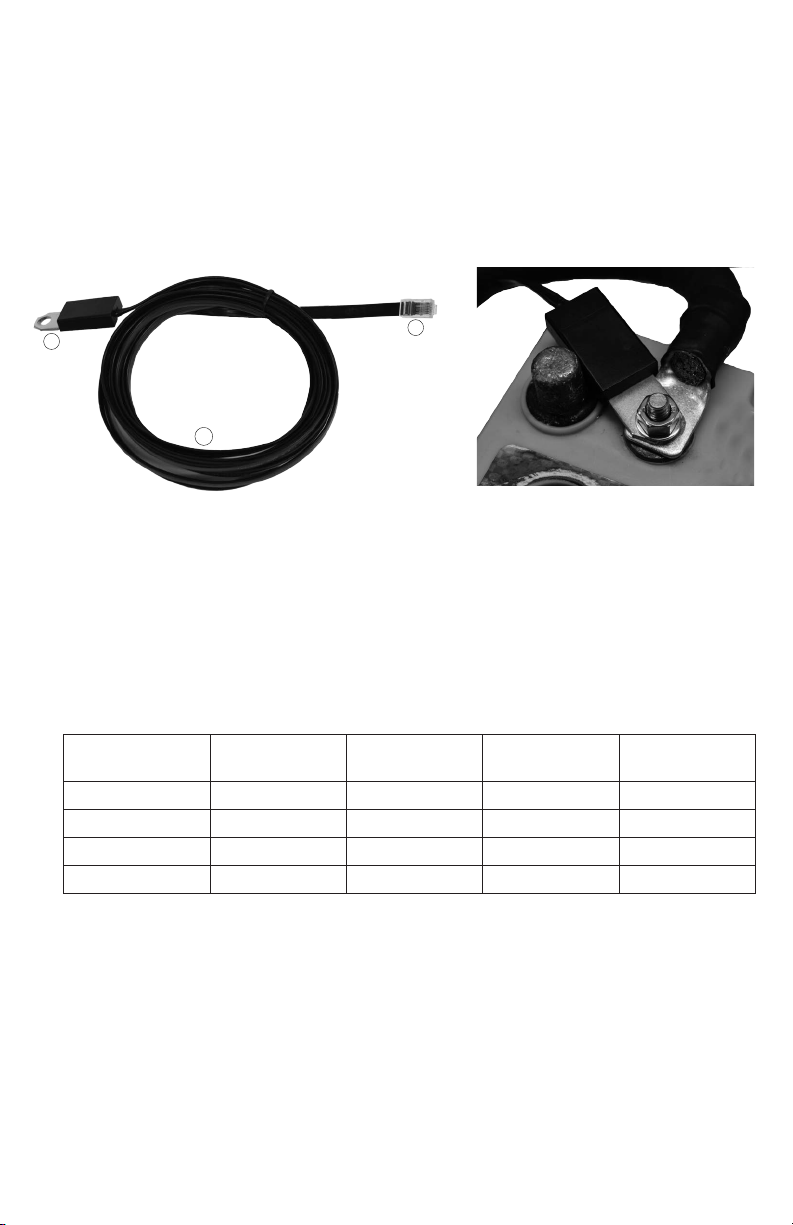

2.5 BATTERY TEMPERATURE SENSOR EVO-BCTS [FIG 2.5 (a)]

1. Temperature Sensor: Mounting hole: 10mm/0.39” suitable for 3/8” or 5/16” battery studs

2. RJ-45 Plug

3. 5 meter/16.5 ft cable

Note: Mount the sensor on the Positive or Negative terminal stud on the battery as shown in Fig 2.5(b)

Fig 2.5(a) Temperature Sensor Model EVO-BCTS Fig 2.5(b) Temperature Sensor Installation

2.6 CONTENTS OF PACKAGE

EVO Inverter/Charger Temperature Sensor EVO-BCTS [Fig 2.5(a)] DC Terminal Covers (1a, 1b: Fig 2.1) (Fitted on the unit with 2 screws each) Mating Connectors (14, 15, 16: Fig 2.1) Wire End Terminals for AC Wiring (Fig 3.11)

Model

EVO-2212E 3 6 - -

EVO-2224E 3 6 - -

EVO-3012E 3 - 6 -

EVO-4024E - 3 - 6

1.5 mm

AWG #16

AWG #14

2.5 mm

4 mm

AWG #12

Owner's Manual

Quick Start Guide

6 mm

AWG #10

Page 26

SECTION 3 | Installation

90 mm

3.1 SAFETY OF INSTALLATION

RNING!

Please ensure safety instructions given under Section 1 are strictly followed.

ATTENTION!

Se il vous plaît assurer consignes de sécurité fournies à la section 1 sont strictement suivies.

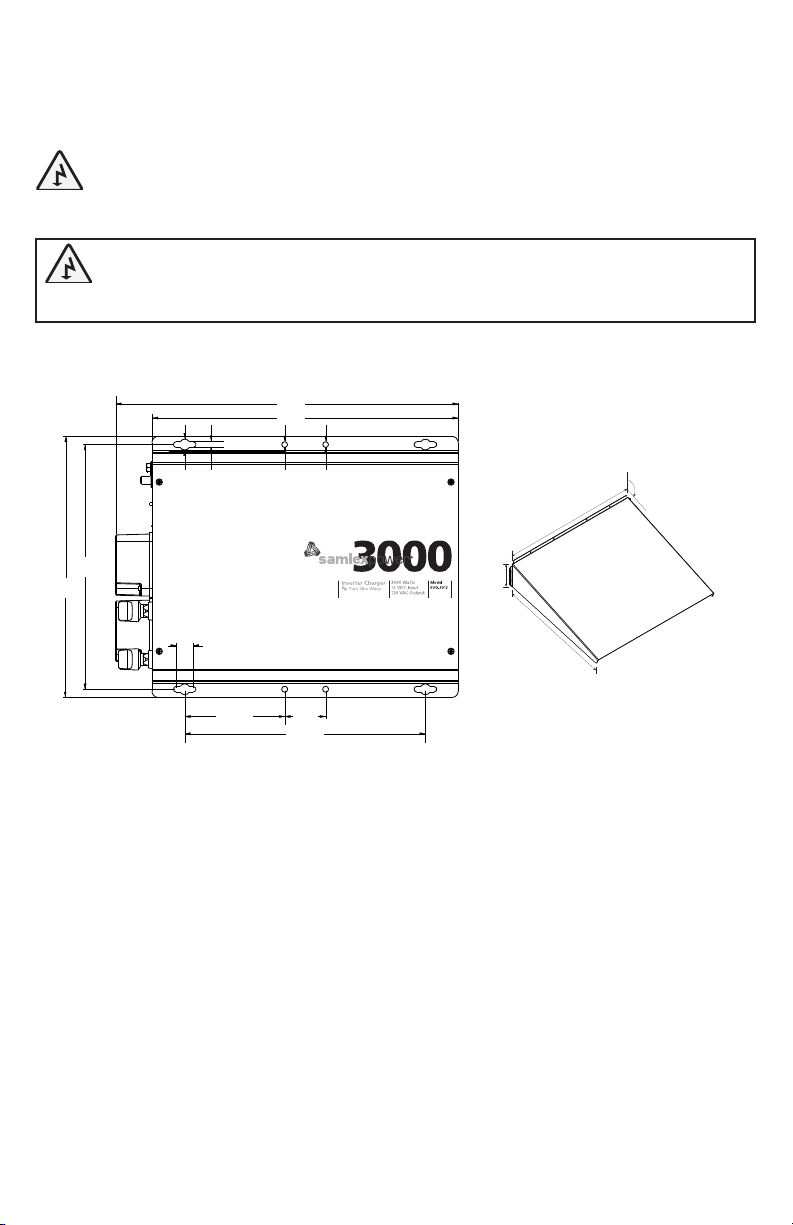

3.2 OVERALL DIMENSIONS

The overall dimensions and the location of the mounting holes are shown in Fig. 3.1.

426

380

13 7

Mounting Holes: 7mm/0.28” Mounting Bolts: 1/4” or M6

303,5

325

20,9

123,9

7 7

50,8

298,6

Height: 207.2

Dimensions in mm

Fig. 3.1 Mounting Dimensions

Slope of top surface

should be minimum 115˚

880 mm

720 mm

115˚

Fig. 3.1(a) Dimensions of Drip Shield

3.3 MOUNTING OF THE UNIT

In order to meet the regulatory safety requirements, the mounting has to satisfy the following requirements:

• Mountonanon-combustiblematerial

• Themountingsurfaceshouldbeabletosupportaweightofatleast60Kg/132lbs.

Use 4 pcs of 1/4" or M6 mounting bolts and lock washers

• InstallationonmarinecraftandvesselswillrequireuseofDripShieldontopoftheunitto

protect against ingress of water dripping from top. Drawing of Drip Shield is given at Fig

3.1(a). Congurations using the Drip Shield are shown under "Mounting Orientation".



Cooling: The unit has openings on the front, bottom and back for cooling and ventilation. Ensure that these openings are not blocked or restricted. Install in cool, dry and well ventilated area.

26 | SAMLEX AMERICA INC.

Page 27

SECTION 3 | Installation

Wall

CAUTION! Ensure there is OVER 200 mm clear space surrounding the inverter for ventilation.

ATTENTION! Assurer qu’il y a PLUS QUE 200 mm d’espace DÉGAGÉ entourant l’onduleur pour faciliter la ventilation.

Mounting Orientation:

• Mounthorizontallyonahorizontalsurface(e.g.tabletoporashelf).PleaseseeFig.3.2.

115°

Top surface of

Drip Shield

10 mm Gap

55 mm

(a) Non Marine Installation (b) Marine Installation

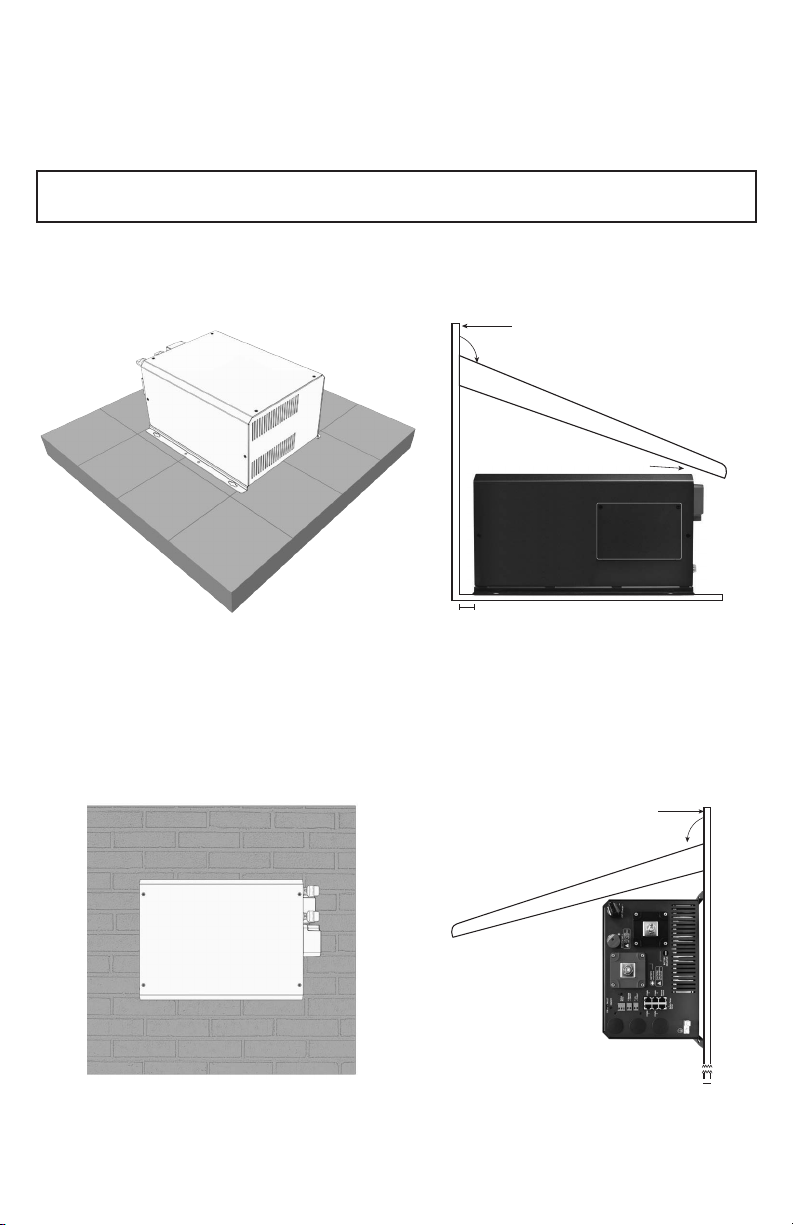

Fig 3.2 Mounting Arrangement: Horizontally On Horizontal Surface

• Mounthorizontallyonaverticalsurface(likeawall)withthefanaxishorizontalandthe

DC input terminals facing left. Please see Fig. 3.3.

Wall

105°

Top surface of Drip Shield

(a) Non Marine Installation (b) Marine Installation

Fig 3.3 Mounting Arrangement 1: On Vertical Surface

Page 28

SECTION 3 | Installation

• Mountverticallyonaverticalsurface,seeFig.3.4.Protectagainstpossibilityofsmall

objects or water entering the ventilation openings on the top. (If necessary, install a suitable sloping guard at least 200mm from the top surface). Also, ensure there is no combustible material directly under the unit.

Wall

115°

Top surface of

Drip Shield

10 mm Gap

(a) Non Marine Installation (b) Marine Installation

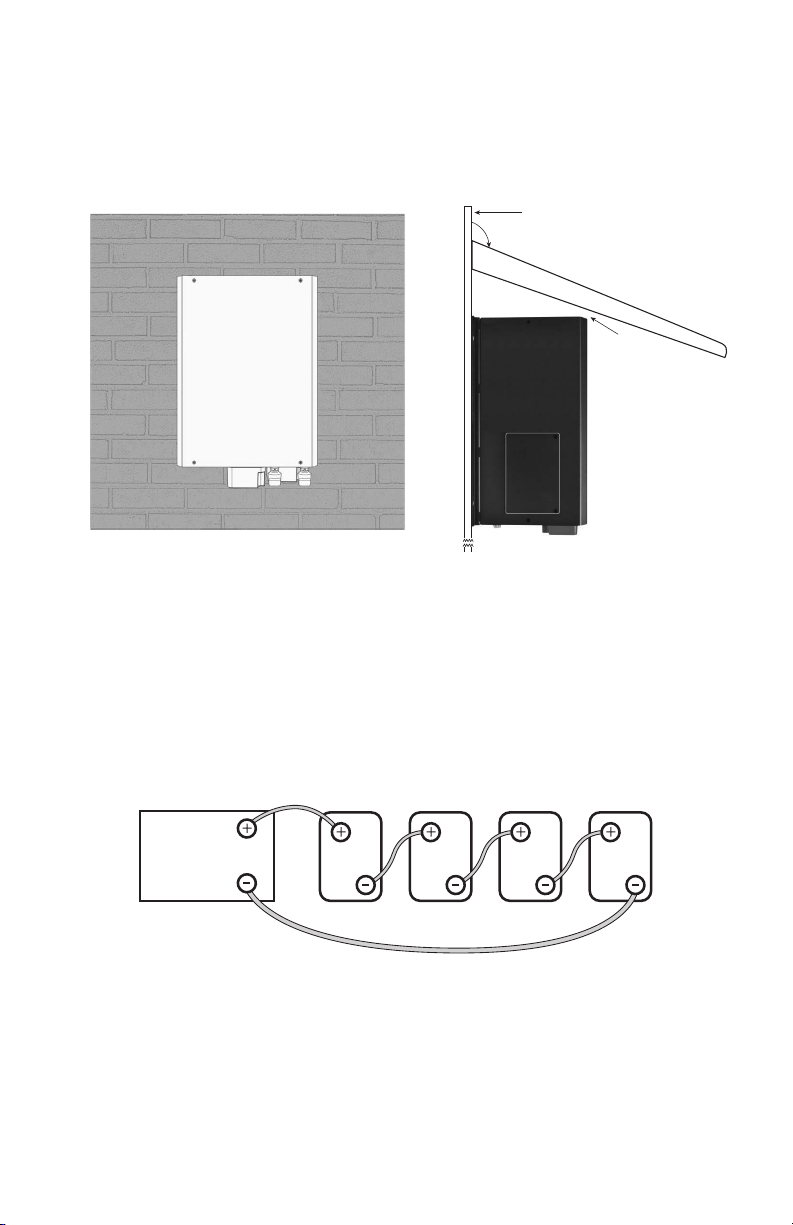

Fig 3.4 Mounting Arrangement 2: On Vertical Surface

3.4 INSTALLING BATTERIES - SERIES AND PARALLEL CONNECTION

Batteries are normally available in voltages of 2V, 6V and 12V and with different Ah capacities. A number of individual batteries can be connected in series and in parallel to form a bank of batteries with the desired increased voltage and capacity.

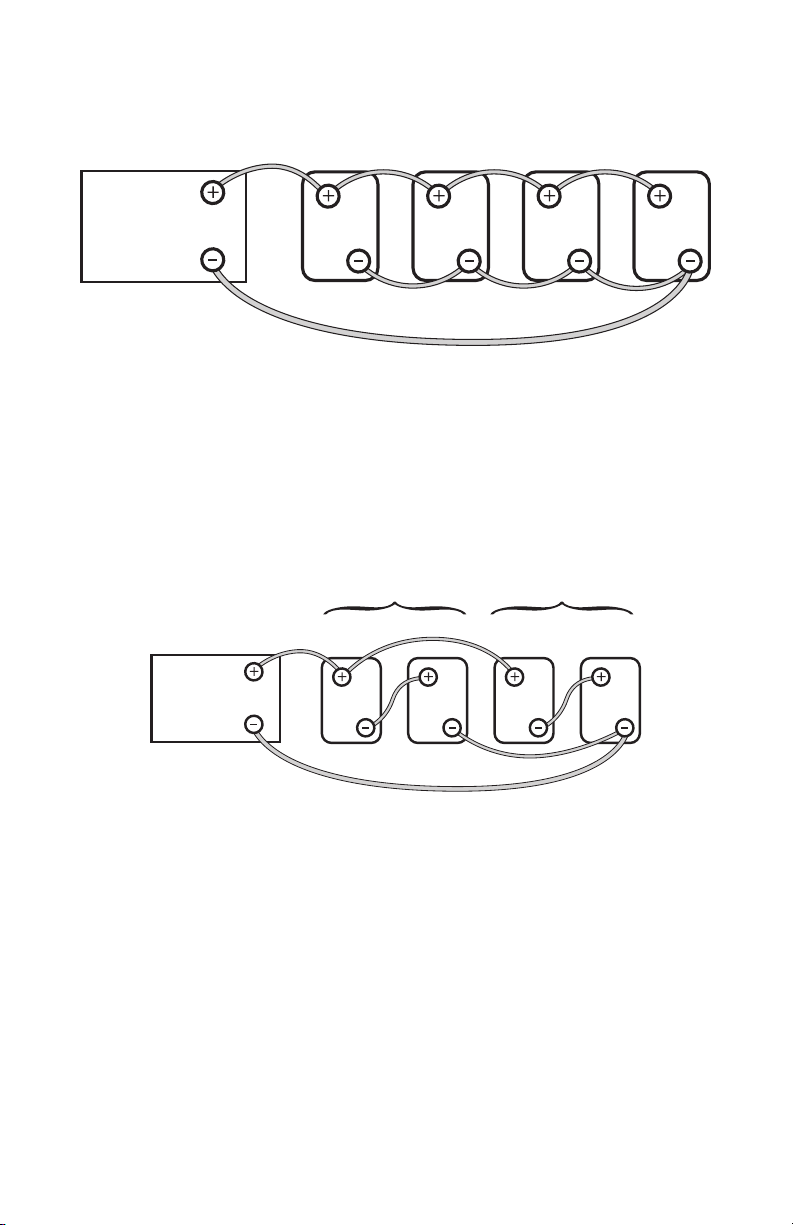

3.4.1 Series Connection

Cable “A”

24V Inverter or 24V Charger

Cable “B”

When two or more batteries are connected in series, their voltages add up but their Ah capacity remains the same. Fig. 3.5 shows 4 pieces of 6V, 200 Ah batteries connected in series to form a battery bank of 24V with a capacity of 200 Ah. The Positive terminal of battery 4 becomes the Positive terminal of the 24V bank. The Negative terminal of battery 4 is connected to the Positive terminal of battery 3. The Negative terminal of battery 3 is connected to the Positive terminal of battery 2. The Negative terminal of battery 2 is connected to the Positive terminal of battery 1. The Negative terminal of battery 1 becomes the Negative terminal of the 24V battery bank.

28 | SAMLEX AMERICA INC.

Battery 4 Battery 3

6V 6V

Fig 3.5 Series Connection

Battery 2

Battery 1

Page 29

SECTION 3 | Installation

3.4.2 Parallel Connection

Cable “A”

Battery 1 Battery 3Battery 2 Battery 4

12V Inverter or 12V Charger

Cable “B”

12V 12V 12V 12V

Fig 3.6 Parallel Connection

When two or more batteries are connected in parallel, their voltage remains the same but their Ah capacities add up. Fig. 3.6 above shows 4 pieces of 12V, 100 Ah batteries connected in parallel to form a battery bank of 12V with a capacity of 400 Ah. The four Positive terminals of batteries 1 to 4 are paralleled (connected together) and this common Positive connection becomes the Positive terminal of the 12V bank. Similarly, the four Negative terminals of batteries 1 to 4 are paralleled (connected together) and this common Negative connection becomes the Negative terminal of the 12V battery bank.

3.4.3 Series – Parallel Connection

12V String 1 12V String 2

Battery 1 Batter y 3Battery 2 Batter y 4

6V 6V 6V 6V

12V Inverter or 12V Charger

Cable “B”

Cable “A”

Fig. 3.7 Series-Parallel Connection

Figure 3.7 shows a series – parallel connection consisting of four 6V, 200 Ah batteries to form a 12V, 400 Ah battery bank. Two 6V, 200 Ah batteries, Batteries 1 and 2 are connected in series to form a 12V, 200 Ah battery (String 1). Similarly, two 6V, 200 Ah batteries, Batteries 3 and 4 are connected in series to form a 12V, 200 Ah battery (String 2). These two 12V, 200 Ah Strings 1 and 2 are connected in parallel to form a 12V, 400 Ah bank.

Page 30

SECTION 3 | Installation

3.4.4 Wiring Order in Parallel Connection of Batteries

CAUTION!

When 2 or more batteries / battery strings are connected in parallel and are then connected to inverter/charger (See Figs 3.6 and 3.7), attention should be paid to the manner in which the inverter/charger is connected to the battery bank. Please ensure that if the Positive output cable of the inverter/charger (Cable “A”) is connected to the Positive battery post of the rst battery (Battery 1 in Fig 3.6) or to the Positive battery post of the rst battery string (Battery 1 of String 1 in Fig. 3.7), then the Negative output cable of the inverter/charger (Cable “B”) should be connected to the Negative battery post of the last battery (Battery 4 as in Fig. 3.6) or to the Negative Post of the last battery string (Battery 4 of Battery String 2 as in Fig. 3.7). This connection ensures the following:

- The resistances of the interconnecting cables will be balanced.

- All the individual batteries / battery strings will see the same series resistance.

- All the individual batteries will charge/discharge at the same charging/discharging current and thus, will be charged/discharged to the same state at the same time.

- None of the batteries will see an overcharge/overdischarge condition.

If the Positive output cable of the inverter/charger (Cable “A”) is connected to the Positive battery post of the rst battery (Battery 1 in Fig. 3.6) or to the Positive battery post of the rst battery string (Battery 1 of String 1 in Fig. 3.7), and the Negative output cable of the inverter/ charger (Cable “B”) is connected to the Negative battery post of the rst battery (Battery 1 as in Fig. 3.6) or to the Negative Post of the rst battery string (Battery 1 of Battery String 1 as in Fig 3.7), the following abnormal conditions will result:

- The resistances of the connecting cables will not be balanced.

- The individual batteries will see different series resistances.

- All the individual batteries will be charged/discharged at different charging/discharging current and thus, will reach fully charged/discharged state at different times.

- The battery with lower series resistance will take shorter time to charge/discharge as compared to the battery which sees higher series resistance and hence, will experience over charging/over discharging and its life will be reduced.

30 | SAMLEX AMERICA INC.

Page 31

SECTION 3 | Installation

Quand il y a 2 batteries/ls de batterie ou plus qui sont liés en parallèle et branché à la fois, à un chargeur (Voir Figs. 3.6 et 3.7), il faut faire attention à la manière dont le chargeur est branché à la banque de batterie. Veuillez assurer que le câble positif de sortie du chargeur de batterie (Câble A) est lié à la borne positive de la première batterie (La batterie 1 dans la Fig. 3.6) ou à la borne positive de batterie qui est liée au premier l (Le l 1 et la batterie 1, Fig 3.7), et puis le câble négatif de sortie du chargeur de batterie (Câble B) est lié à la borne négative de la dernière batterie (La Batterie 4 dans la Fig. 3.6) ou à la borne négative de batterie qui est liée au dernier l (Le l 2 et La batterie 4 dans la Fig. 3.7). Cette connexion assure la suivante:

- Les résistances des câbles interconnectés seront équilibrées

- Tous les batteries/ ls de batterie dans la série auront la même résistance

- Toutes les batteries individuelles vont recharger au même courant, ainsi elles seront rechargées à l’état pareille, au même temps

- Aucune des batteries auront une condition de surcharge.

Si le câble positif de sortie du chargeur de batterie (Câble A) est lié à la borne positive de la première batterie (La batterie 1 dans la Fig. 3.6) ou à la borne positive de batterie qui est liée au premier l (Le l 1 et La Batterie 1, Fig 3.7), et puis le câble négatif de sortie du chargeur de batterie (Câble B) est lié à la borne négative de la première batterie (La batterie 1 dans la Fig. 3.6) ou à la borne négative de batterie qui est liée au premier l (Le l 1 de La Batterie 1 dans la Fig. 3.7), les conditions anormales résulteront:

- Les résistances des câbles interconnectés seront pas équilibrées

- Tous les batteries/ ls de batterie dans la série n’auront pas la même résistance

- Toutes les batteries individuelles vont recharger à des courants différentes, ainsi elles atteindront un état de rechargement complèt mais en décalage.

- La batterie ayant le moins de résistance dans la série prendrait moins de temps pour être rechargée comparé aux autres batteries. Alors elle serait surchargée et, en conséquence aurait une vie plus courte.

Page 32

SECTION 3 | Installation

3.5 DC SIDE CONNECTIONS

3 4

1a Red

1b Black

Fig 3.8 DC Side Connections

Protection Covers for Battery Terminals

1. Battery Positive (+) Input Connector – M10 x 1.50 Nut & Bolt (RED Protection Cover 1(a) is Removed)

1a. RED Protection Cover For Battery Positive (+) Input Connector

2. Battery Negative (-) Input Connector – M10 x 1.50 Nut & Bolt (Black Protection Cover 1(b) is Removed)

2a.Black Protection Cover for Battery Negative (-) Input Connector

3. External Charger (+) Input Connector – M12 x 0.75 Thumb Nut and Bolt

4. External Charger (-) Input Connector - M12 x 0.75 Thumb Nut and Bolt

5. DC Side Grounding Connector – Hole Dia 6.5mm for up to 25mm2 (AWG #4). Set Screw M-8. This is internally connected to the metal chassis of the unit

6. RJ-45 Jack for Battery Temperature Sensor EVO-BCTS

The following DC side connections are required to be made (see Fig 3.8):

 Deep cycle batteries are connected to the battery input terminals (1) and (2). The terminals

are provided with protective covers – RED for Positive and BLACK for Negative. Fit these covers once connections have been made. For details on sizing and charging of batteries,

please refer to Section 1.4 under "General Information-Lead Acid Batteries".  Use appropriate external fuse (Refer to Table 3.1) within 7” of battery Positive terminal.  External charging source, if any, is connected to the connectors (3) and (4) as shown

above. The maximum capacity of the external charging source is 50A.  Battery Temperature Sensor EVO-BCTS is connected to the RJ-45 Jack (6). See Fig 2.5 (a)

and 2.5 (b) for details.

32 | SAMLEX AMERICA INC.

Page 33

SECTION 3 | Installation

 DC Side Grounding Connector (5) is connected to the Earth ground / vehicle chassis

ground as per recommendations at Section 3.14.

3.5.1 Preventing DC Input Over Voltage

It is to be ensured that the DC input voltage of this unit does not exceed 17 VDC for the 12V battery version EVO-2212E and EVO-3012E, and 35 VDC for the 24V battery versions EVO-2224E and EVO-4024E to prevent permanent damage to the unit.

3.5.2 Preventing Reverse Polarity On The Input Side

CAUTION!

When making battery connections on the input side, make sure that the polarity of battery connections is correct (Connect the Positive of the battery to the Positive terminal of the unit and the Negative of the battery to the Negative terminal of the unit). If the input is connected in reverse polarity, external DC fuse in the input side will blow and may also cause permanent damage to the inverter.

Damage caused by reverse polarity is not covered by warranty.

3.5.3 Connection From Batteries / External Charger To The DC Input Side – Sizing of Cables And Fuses

T input terminals. As soon as the DC input connection loop (Battery (+) terminal → Fuse → Positive input terminal of EVO Battery (–) terminal) is completed, these capacitors will start charging and the unit will momentarily draw very heavy current that will produce sparking on the last contact in the input loop even when the unit is in powered down condition.

Ensure that the fuse is inserted only after all the connections in the loop have been completed so that sparking is limited to the fuse area.

Flow of electric current in a conductor is opposed by the resistance of the conductor. The resistance of the conductor is directly proportional to the length of the conductor and inversely proportional to its cross-section (thickness). The resistance in the conductor produces undesirable effects of voltage

drop and heating. The size (thickness / cross-section) of the conductors is designated in mm AWG (American Wire Gauge). Conductors thicker than AWG #4/0 are sized in MCM/kcmil.

Conductors are protected with insulating material rated for specic temperature e.g. 90˚C/194˚F. As current ow produces heat that affects insulation, there is a maximum permissible value of current (called “Ampacity”) for each size of conductor based on temperature rating of its insulation. The insulating material of the cables will also be affected by the elevated operating temperature of the terminals to which these are connected. Ampacity of cables is based on British Standard BS7671. Please see details given under “Notes for Table 3.1”.

The DC input circuit is required to handle very large DC currents and hence, the size of the cables and connectors should be selected to ensure minimum voltage drop between the battery and the inverter. Thinner cables and loose connections will result in poor inverter performance

WARNING!

he input section of the inverter has large value capacitors connected across the

→ Negative input terminal of the EVOTM →

or by

Page 34

SECTION 3 | Installation

and will produce abnormal heating leading to risk of insulation melt down and re. Normally, the thickness of the cable should be such that the voltage drop due to the current & the resistance of the length of the cable should be less than 2%. Use oil resistant, multi-stranded copper wire cables rated at 90º C minimum. Do not use aluminum cable as it has higher resistance per unit length. Cables can be bought at a marine / welding supply store.

Effects of low voltage on common electrical loads are given below:

• Lighting circuits - incandescent and Quartz Halogen: A 5% voltage drop causes an

approximate 10% loss in light output. This is because the bulb not only receives less power, but the cooler lament drops from white-hot towards red-hot, emitting much less visible light.

• Lighting circuits - uorescent: Voltage drop causes a nearly proportional drop in light

output.

• AC induction motors - These are commonly found in power tools, appliances, well pumps

etc. They exhibit very high surge demands when starting. Signicant voltage drop in these circuits may cause failure to start and possible motor damage.

attery charging circuits - These are critical because voltage drop can cause a

• B

disproportionate loss of charge current to charge a battery. A voltage drop greater than 5% can reduce charge current to the battery by a much greater percentage.

ATTENTION!

Des dégats causés par un renversement des polarités n’est pas couverts par la garantie.

Quand vous faites des connexions à la batterie du côté d’entrée, veuillez assurer que les polarités sont mise du bon côté (Lié le positif de la batterie à la borne positive de l’appareil et le négatif de la batterie à la borne négative de l’appareil. Si les polarité de l’entrée sont mise à l’envers, le fusible CC externe du côté d’entrée va s’exploser et peut causer des dégâts permanent à l’onduleur.

ATTENTION!

La section d’entrée de l’onduleur a des condensateurs de grande valeur qui sont connecté aux bornes d’entrées. Tant que le boucle de connexion d’entrée CC (la borne (+) de la batterie → le fusible la borne → d’entrée positive du EVOTM → la borne d’entrée négative du EVOTM → la borne (-) de la batterie est complèt, les condesateurs commençeront à recharger. L’appareil prendra un courant fort brièvement pour s’alimenter qui va produire une étincelle sur le dernier contact du boucle d’entrée même si l’interrupteur ON/OFF du l’onduleur est dans la position OFF.

Assurez que le fusible est insèrer seulement après que toutes les connexions sont faites dans le boucle pour que des étincelles se produisent seulement à l’endroit du fusible

Le ux du courant dans un conducteur est opposé par la résistance du conducteur. La résistance du conducteur est corrélative à la longueur du conducteur et inversement corrélatif à son diamètre (l’épaisseur). La résistance dans un conducteur produit des effects indésirables comme une perte de tension et une surchaffe. La taille (l’épaisseur) des conducteurs est classée par le AWG (American Wire Guage). Les conducteurs qui sont plus épais que la taille AWG #4/0 sont classé par MCM/kcmil.

Les conducteurs sont protègés par des matériaux isolants classés pour une température spécique, par exemple,une température de 90˚C/194˚F. Le ux de courant produit de la chaleur et affecte l’isolation. Alors, il y a une valeur de courant maximale (aussi appellé « L’ampacité ») qui est permise pour chaque taille de conducteur et pour la classication température de l’isolation. Les matériaux isolants des câbles seront aussi affecter par la température de fonctionnement

34 | SAMLEX AMERICA INC.

Page 35

SECTION 3 | Installation

élèvée des bornes, à qui ils sont connectés. L’ampacité des câbles est basé sur UL-1741 et la Norme Nationale Électrique (NEC)-2014. « Notes for table 3.1 »

Le circuit d’entrée CC doit subir à des courants CC forts et ainsi, il faut que la taille des câbles et des connecteurs est sélectionnée pour réduire la perte de tension entre la batterie et l’onduleur. Avec des câbles moins épais et des connexions lâches la performance de l’onduleur est diminuée et en plus, ça pourrait produire une réchauffement anormale qui risque de fondre l’isolation ou commencer un incendie. Normalement, il faut que le câble soit assez épais pour réduire la perte de tension, dû au courant/ la résistance du câble, à moins que 2%. Utilisez des câble multiliares (ls en cuivre et résistant à l’huile) qui sont classés au moins à 90º C. N’utilisez pas des câbles en aluminium car ils ont une résistance plus haute (par la longueur de l’unité). On peut achèter des câbles aux magasins de fournitures pour marin/ soudage.

Les effets d’une faible tension pour des charges électriques communes

Circuits d’allumage

- lumière émise. Cet effet est grâce à deux choses, non seulement l’ampoule reçoive moins de puissance mais, aussi le lament refroidi change de la chaleur-blanc à la chaleur-rouge, qui émet moins de lumière visible.

Circuits d’allumage

Moteurs à Induction CA

démarrage, ils exigent une surcharge de puissance. Si la tension baisse trop, ils pourraient pas marcher et même seront endommager.

Circuit de rechargement de batterie -

Par exemple, une perte de tension à 5% peut réduire le courant de charge par une pourcentage beaucoup plus grande que 5%.

3.5.4 Fuse Protection In The Battery Circuit

A battery is an unlimited source of current. Under short circuit conditions, a battery can supply thousands of Amperes of current. If there is a short circuit along the length of the cables that connects the battery to the inverter, thousands of Amperes of current can ow from the battery to the point of shorting and that section of the cable will become red-hot, the insulation will melt and the cable will ultimately break. This interruption of very high current will generate a hazardous, high temperature, high-energy arc with accompanying high-pressure wave that may cause re, damage nearby objects and cause injury. To prevent occurrence of hazardous conditions under short circuit conditions, the fuse used in the battery circuit should limit the current (should be "Current Limiting T

ype)

low T

fuse or equivalent should be used (As per UL Standard 248-15) or Type HRC per British

Standard BS882/IEC60269-2. This special purpose current limiting, very fast acting fuse will blow in less than 8 ms under short circuit conditions. Appropriate capacity of the above

Class T fuse or equivalent should be installed within 7” of the battery Plus (+) T (Please see T

and at the same time, quench the arc in a safe manner. For this purpose, UL Class

able 3.1 for fuse sizing).

- incandescent et Halogène Quartz: Une perte de tension à 5% causera une perte de 10% de la

- uorescent: la perte de tension est presque proportionelle à la perte de la lumière émise.

- Souvent, Ils font partie des outils électriques, des dispositifs, pompe à puits, etc. Au

La perte de tension pourrais causer une perte de puissance disproportionée.

ype")

, blow in a very short time (should be Fast

erminal

Marine

Rated Battery Fuses, MRBF-xxx Series made by Cooper Bussmann may also be used.

These fuses comply with ISO 8820-6 for road vehicles.

Page 36

SECTION 3 | Installation

It is mandatory to use appropriately sized external fuse in the battery and External Charger Circuits. If external fuse is not used and reverse polarity connection is made by oversight, the input section of the unit will be damaged/burnt. Warranty will be voided in such a situation.

Il est obligatoire d’utiliser un fusible externe de taille appropriée à la batterie et les circuits chargeur externe . Si le fusible externe est pas utilisé et les inversions de polarité est faite par la surveillance , la section d’entrée de l’unité est endommagée / brûlé . La garantie sera annulée dans une telle situation .

3.5.5 DC Input Connection for Battery

Battery is connected to terminals 1, 2 shown in Fig 3.8. The terminal consists of M10 Stud & Nut. Tightening torque for the nut is 70 kgf.cm (5 lbf.ft). Sizes of cables and fuses are shown in Table 3.1. Sizing is based on safety considerations specied in British Standard BS7671. See details under “Notes for Table 3.1”.

3.5.6 DC Input Connection for External Charger

External charger is connected to terminals consisting of M12 Stud with Thumb Nut (3, 4 in Fig. 5.3).

- Max current fed through these terminals should be < 50A

- Use wire size given in Table 3.1.

- Tightening torque for the Thumb Nut is 35 kgf.cm (2.5 lbf.ft)

- Use 50A fuse in series with the Positive wire to protect against short circuit along the length

of the connecting wires. Fuse should be close to the Positive Input Terminal 3.

- Please refer to Section 5.4 for details of charging using external charger.

36 | SAMLEX AMERICA INC.

Page 37

SECTION 3 | Installation

TABLE 3.1 SIZING OF BATTERY SIDE CABLES AND EXTERNAL BATTERY SIDE FUSES

Item

(Column 1)

EVO-2212E 266A 300A

EVO-2224E 133A 150A

EVO-3012E 373A 400A

EVO-4024E 266A 300A

External Charger 50A 50A

* Size is based on 2% voltage drop as it is thicker than the size based on BS 7671 (See Note 3)

Rated Continuous

DC Input Current

(See Note 1)

(Column 2)

NOTES FOR TABLE 3.1 - SIZING OF BATTERY SIDE CABLES AND EXTERNAL BATTERY SIDE FUSES

Column 2 indicates the

1) battery in Inverter Mode

Column 3 indicates size of exter

2) Current at Column 2. Next standard capacity is to be used.

Columns 5 and 6 indicate cable conductor size that is based on the following

3) 2 considerations. Thicker conductor out of the following 2 considerations has been chosen:

As per guidelines in

Method "C" for 2 cables). Following have been considered: (i) Ampacity = the brecker size at Column 3, (ii) Copper conductor with temperature rating of 90°C, (iii) Ambient temperature of 30°C / 86°F and (iv) Positive and Negative cables in free air, clipped on direct to masonary or wooden wall.

oltage drop across the length of cables has been limited to 2% of 12V

/ 24V. Voltage drop has been calculated by multiplying the Rated DC Input Current (Column 2) and the resistance of the total length of Copper conductor (the total length of conductor has been taken as 2 times the running distance between the unit and the battery to cover 2 lengths of Positive and Negative cable conductors).

Column 3 indicates the size of exter

4) mandatory to install this fuse within 7” of the battery Positive terminal to protect the internal DC Input Section of the unit and also to protect the battery cables against short circuit. Amp rating of the fuse is based on the following considerations:

Size of External

Fuse Based on DC

nput Current at

Column 2

(See Note 2)

(Column 3)

90°C Copper Conductor. Size Based on Ampacity at Column

(3) or 2%Voltage Drop, whichever is Thicker (See Note 3)

Cable Running Distance between the Unit and the Battery

(Cable Routing In Free Air)

Up to 5 ft.

(Column 5)

95 mm

AWG #3/0

35 mm

AWG #2

120 mm

AWG #4/0

95 mm

AWG #3/0

*16 mm

AWG #6

Up to 10 ft.

(Column 6)

*120 mm2 or

AWG #4/0

35 mm2 or

AWG #2

*2x 95 mm2 in parallel or

2x AWG #3/0 in parallel

95 mm2 or AWG #3/0

35 mm2 or

AWG #2

Rated Continuous DC Input Current drawn from the

nal fuse not less than the Rated DC Input

British Standard BS 7671 - Table 4E 1A (Reference

nal fuse in the battery circuit. It is

Page 38

SECTION 3 | Installation

a) Not less than the Rated Continuous DC Input Current (Column 2)

Closest Standar

c) Type of fuse: Fast-acting, Current Limiting, UL Class – Type "Class T" as per

UL Standard 248-15 or Type "HRC" as per BS 88-2 / IEC60269-2

3.5.7 Using Proper DC Cable Termination

The battery end and the inverter end of the wires should have proper terminal lugs that will ensure a rm and tight connection. Choose lugs to t the wire size and the stud sizes on the inverter and battery ends.

3.5.8 Reducing RF Interference

To reduce the effect of radiated interference, shield the wires with sheathing / copper foil / braiding. For details, refer to Limiting Electro-Magnetic Interference" at Section 1.3.4.

3.5.9 Taping Battery Wires Together To Reduce Inductance

Do not keep the battery wires far apart. Keep them taped together to reduce their inductance.

educed inductance of the battery wires helps to reduce induced voltages. This reduces ripple in the

R battery wires and improves performance and efciency. For details, refer to Limiting Electro-Magnetic Interference" at Section 1.3.4.

d Ampere Rating of Fuse has been used

38 | SAMLEX AMERICA INC.

Page 39

SECTION 3 | Installation

3.6 AC INPUT AND OUTPUT - LAYOUT AND CONNECTION ARRANGEMENT

AC side layout and connection arrangement are shown in Fig 3.9.

1. Cover plate for pocket for AC Input/Output terminals

2. Pocket for AC Input/Output Terminals (behind cover plate 1)

3. AC Input/Output Terminal Block

- Terminal hole diameter: 6mm for wire size up to 13.3 mm2 AWG #6

- Set Screw: M4

4. Grid Input - Line

5. Grid Input - Ground

6. Grid Input - Neutral

7. Generator Input - Line

8. Generator Input - Ground

9. Generator Input - Neutral

10. AC Output - Line

11. AC Output - Ground

12. AC Output - Neutral

13. Male/Female Insulated Quick Disconnect for disabling Ouptut Neutral to chassis Ground bond in Inverter Mode (Please see Section 4.5.1 to 4.5.3 and Fig 3.1.2)

[Behind Cover Plate ]

OUTPUT GND

OUTPUT NEUTRAL

GEN GND

GEN NEUTRAL

OUTPUT LINE

Fig 3.9 AC Input and Output

GEN LINE

GRID GND

GRID NEUTRAL

GRID LINE

Page 40

SECTION 3 | Installation

3.6.1 System Grounding and Output Neutral to Chassis Ground Bond Switching

RNING!

• In "Inverting Mode" (default condition), the Neutral of the AC output of the unit gets bonded to the metal chassis of the unit through the internal “Neutral to Chassis Switching Relay” (Relay K4 in Fig 4.1).

• In “Charging Mode”, the internal “Output Neutral to Chassis Switching Relay” disconnects the Neutral of the AC output connection from the chassis of the unit. The Neutral of the AC output connection of the unit will get bonded to the Earth Ground through the Neutral to Earth Ground bond in the AC Breaker Panel/Load Center supplying Grid power / AC output connections of the generator.

• Disabling Neutral to Ground Bond: In some applications, the Output Neutral may be required to remain isolated from chassis/Ground at all times. For this, automatic Output Neutral to chassis Ground bond can be disabled by disconnecting the Male/Female Disconnect (13, Fig 3.9) located in the AC Wiring Compartment.

• System grounding, as required by National / Local Electrical Codes / Standards, is the responsibility of the user / system installer.

For further details please refer to Sections 4.5.1 to 4.5.3.

ATTENTION!

• En état de défaut, le neutre de la sortie CA de l’unité dans le “Mode de l’onduleur / décharge” obtient lié au châssis métallique de l’unité à travers la interne “Neutre à châssis relais de commutation”. (Relais K-4, Fig 4.1)

• Dans “Mode de chargement”, l’interne “Neutre à châssis relais de commutation” déconnecte le neutre de la connexion de sortie AC du châssis de l’unité. Le neutre de la connexion de sortie CA de l’unité va obtenir lié à la

terre des masses à travers le neutre à la terre liaison au sol dans le centre de panneau de disjoncteurs AC / charge alimenter Grille / connexions de sortie CA du générateur.

• Désactivation du lien neutre à mise a terre: Dans certaines applications, il est nécessaire que la sortie neutre soit isolé du châssis/mise a terre à tout moment. Pour cela, le lien de la sortie automatique neutre au châssis/mise a terre peut être désactivé en débranchant la connexion male/femme ( 13 , gure 3,9) situé dans le compartiment câblage CA .

• Mise à la terre du système, tel que requis par la National / codes électriques locaux / normes, est de la responsabilité de l’installateur utilisateur / système.

3.6.2 AC Input Considerations – Voltage And Frequency

The EVOTM unit is designed to accept 230 VAC, 50 Hz / 60 Hz single phase AC power from Grid or generator. These 230 VAC versions come preset for 50 Hz operation. Frequency can be programmed at 60 Hz using optional Remote Control EVO-RC (see Appendix A).

40 | SAMLEX AMERICA INC.

Page 41

SECTION 3 | Installation

3.6.3 Preventing Paralleling of the AC Output

RNING!

The AC output of the unit cannot be synchronized with another AC source and hence, it is not suitable for paralleling on the output side. The AC output of the unit should never be connected directly to an electrical breaker panel / load center which is also fed from another AC source. Such a connection may result in parallel operation of different power sources and AC power from the other AC source will be fed back into the unit which will instantly damage the output section of the unit and may also pose a re and safety hazard. If an electrical breaker panel / load center is fed from this unit and this panel is also required to be powered from additional alternate AC source, the AC power from the additional AC source should rst be fed to a suitable Manual/Automatic Transfer Switch and the output of the transfer switch should be connected to the electrical breaker panel / load center. To prevent possibility of paralleling and severe damage to the inverter, never use a simple jumper cable with a male plug on both ends to connect the AC output of the inverter to a handy wall receptacle in the home / RV.

ATTENTION!

La sortie de courant alternatif de l’unité ne peut pas être synchronisée avec une autre source de courant alternatif et, par conséquent, il ne convient pas pour mise en parallèle du côté de la sortie. La sortie AC de l’unité ne doit jamais être connecté directement à un panneau central / de charge disjoncteur électrique qui est également alimenté par une autre source de courant alternatif. Une telle connexion peut entraîner un fonctionnement parallèle de différentes sources d’énergie et la puissance AC de l’autre source de courant alternatif est réinjecté dans l’unité qui va instantanément endommager la section de sortie de l’unité et peuvent aussi poser un risque d’incendie et de sécurité. Si un centre panneau de disjoncteur électrique / charge est alimentée à partir de cette unité et ce panneau est également nécessaire pour être alimenté à partir de suppléant supplémentaire source de courant alternatif, l’alimentation de la source de courant alternatif supplémentaire doit d’abord être introduit dans un manuel approprié / commutateur de transfert automatique et le sortie du commutateur de transfert doit être relié au centre panneau / de la charge électrique du disjoncteur. Pour éviter possibilité de mise en parallèle et de graves dommages à l’onduleur, ne jamais utiliser un câble de raccordement simple avec une che mâle sur les deux extrémités pour raccorder la sortie AC de l’onduleur à une prise murale à portée de main à la maison / RV.

3.7 AC INPUT & OUTPUT WIRING

WARNING!

Please ensure that the AC input voltage from the Grid / Generator is connected to the AC input terminals and not to the AC output terminals and that this connection is made only when the unit is in off condition.

Please note that when the unit is powered on, a Self Test is carried out which includes a check if the AC input voltage from the Grid / Generator connection has been erroneously connected to the AC output terminals instead of AC input terminals. If this wrong connection is detected, (voltage > 20 VAC is seen on terminals OUTPUT LINE & OUTPUT NEUTRAL at the

Page 42

SECTION 3 | Installation

time of switching on of the unit), the unit will not be powered on and a message “Output failure!” will be displayed. This protection against error in connection of the AC input wiring is active only when this wrong connection is made when the unit is in off condition and is switched on subsequently.

If the AC input voltage from the Grid / Generator is erroneously connected / fed to the AC output connections when the unit is ON condition, the above protection will not work and the Inverter Section will be burnt instantaneously and may become a re hazard.

TTENTION

Se il vous plaît faire en sorte que la tension d’entrée d’alimentation de la grille / générateur est reliée aux bornes d’entrée de courant alternatif, et non aux bornes de sortie à courant alternatif et que cette connexion est établie uniquement lorsque l’appareil est dans un état hors tension.

Se il vous plaît noter que lorsque l’appareil est sous tension, un auto-test est effectué qui inclut un contrôle si la tension d’entrée CA de la connexion réseau / générateur a été à tort connecté aux bornes de sortie CA à la place de bornes d’entrée AC. Si cette mauvaise connexion est détectée, (tension> 10 V ca se voit sur les bornes de sortie LINE et neutre de sortie au moment de la mise sous tension de l’appareil), l’unité ne sera pas allumé et un message “Sortie défaut” sera afché. Cette protection contre les erreurs dans le cadre du câblage d’alimentation est active uniquement lorsque cette mauvaise connexion est établie lorsque l’appareil est en état hors et est allumé par la suite.

Si la tension d’entrée CA de la Grille / générateur est erronée connecté / nourri aux connexions de sortie CA lorsque l’appareil est en état , la protection ci-dessus ne fonctionnera pas et la Section de l’onduleur sera brûlé instantanément et peut devenir un risque d’incendie.

3.7.1 AC Input/Output Supply Connections

The AC input and output supply connections are located in a pocket protected by a cover with a removable front plate (1,2 Fig 3.9). Three 27.8mm / 1

2.1) have been provided for cable / conduit entry. Remove the caps covering the holes and install appropriate ¾” Trade Size Fitting for routing the AC input and output wires/conduits.

Screw down type of terminal block (3, Fig 3.9) is used for connecting the wires. The hole size for wire entry is 6 mm and set screw size is M4. It can accommodate conductors with solid or multi-stranded wire size range of AWG #6 to AWG #20 (13.3 mm

Strip adequate insulation from the end of the wire (Fig. 3.11). Avoid nicking the wire when stripping the insulation. Wire End Terminals have been provided (see Section 2.6, page 23) for rm connection under the set screw. Insert the bare end of the wire into the barrel portion of the Wire End Terminal & crimp barrel portion using suitable crimping tool (Fig 3.11).

Insert the terminated end of the wire fully into the terminal slot till it stops. Tighten the screw rmly. Tightening torque for the screws – 7 to 12 Kgf*cm / 0.5 to 0.9 lbf*ft.

42 | SAMLEX AMERICA INC.

” diameter holes (10A to 10C, Fig

to 0.5mm2).

Page 43

SECTION 3 | Installation

Crimp Barrel Portion

↓

→

Stripped Wire End

Fig 3.11 Stripped Wire End Terminal on AC Wiring

Wire End Terminal

3.7.2 Tightening Torques

Tightening torques to be applied to the wiring terminals are given in Table below:

TIGHTENING TORQUES

Battery Input

Connectors

70 kgf.cm (5.0 lbf.ft)

External Charger Input

Connectors

35 kgf.cm

(2.5 lbf.ft)

AC Input and Output

Connectors

7 to 12 kgf.cm

(0.5 to 0.9 lbf.ft)

3.8 SIZING OF WIRING AND BREAKERS - AC INPUT SIDE

AC Breakers for the AC input circuits have NOT been provided internally. These have to be provided externally by the installer / user based on guidelines given below. Please note that guidelines given below on wire sizing and over-current protection will be superseded by the applicable National / Local Electrical Codes.

WARNING!

ATTENTION!

Breakers AC pour les circuits d’entrée AC ont pas été fournis en interne. Ceux-ci doivent être fournies à l’extérieur par l’installateur / utilisateur sur la base des directives données ci-dessous. Se il vous plaît noter que les directives ci-dessous sur dimensionnement des câbles et protection contre les surintensités seront remplacées par les nationaux / codes électriques locaux applicables.

3.8.1 Tables for Wire and Breaker Sizing - AC Input Side

Tables 3.2.1 to 3.2.3 provide details of wire and breaker sizing for the AC input side.

 Table 3.2.1: For EVO-2212E and 2224E for full rated capacity [AC Input Current Limit

("GRID MAX CURRENT" and "GEN MAX CURRENT") programmed at 19A for EVO-2212E and 20A for EVO-2224E]

 Table 3.2.2: For EVO-3012E for full rated capacity [AC Input Current Limit ("GRID MAX

CURRENT" and "GEN MAX CURRENT") programmed at 25A]

 Table 3.2.3: For EVO-4024E for full rated capacity [AC Input Current Limit ("GRID MAX

CURRENT" and "GEN MAX CURRENT") programmed at 35A]

Page 44

SECTION 3 | Installation

AC input side wiring and breaker sizes depend upon the maximum continuous AC input current under various operating conditions described in the succeeding paragraphs.

 The Maximum Load Curr

capacity of the specic model when operating in Inverter Mode (Column 1 ).

 When Grid / Generator input is available and the unit is operating in Charging / Pass

ough Mode, the AC Input Current will be determined as follows:

Thr

- The maximum possible AC Input Curr equal to the sum of the Rated AC Side Battery Charging Current (Column 3) and the R

ated Pass Through current (Column 2). Rated Pass Through Current (Column 2) = the ated Output Current in Inverter Mode (Column 1).

- The AC Input current in Charging / Pass Through Mode will be restricted by the maximum Amp rating of the Generator or the Amp rating of the breaker in the Grid Branch Circuit that is feeding the unit. The AC Input Current drawn by the unit can be programmed to the desired limit (Column 5) to match the output Amp rating of the Generator or the Amp rating of breaker in the Grid Branch Circuit. Optional Remote Control EVO-RC is required to change this limit (See page 26 of Appendix A under Section 4.5, Group 2 Parameter Setup for Input Settings -"G

- All the 4 models EVO-2212E, 2224E, 3012E and 4024E come with Input "GRI CUR

RENT" and "GEN MAX CURRENT"" set at safe default value of 16A. This default value has been used for convenience of powering the units from the standard 16A mains power inlet plug on 230 VAC, 50Hz motorhome / caravan / vehicle.

TABLE 3.2.1 SIZING OF GRID AND GENERATOR INPUT WIRING

Model No. and

ated Output

Power in Inverter

Mode

(Column 1)

EVO-2212E

(2200VA, 10A)

EVO-2224E

(2200VA, 10A)

Rated AC

Pass Through

Current

(See Note 1)

(Column 2)

ent on the output side has to be limited to the rated output Amp

ent (Column 4) for a particular model will be

RID MAX CURRENT" and "GEN MAX CURRENT").

AND BREAKERS FOR EVO-2212E AND EVO-2224E

Rated AC Charging

Current

(See Note 2)

(Column 3)

10A 9A 19A 19A 20A

10A 10A 20A 20A 20A

Total Rated AC

nput Current

(Columns 2 +3)

(See Note 3)

(Column 4)

Programmed

Value of

"GRID MAX

CURRENT" and

"GEN MAX CURRENT"

(See Note 4)

(Column 5)

External

reaker Size

ased on

B Column 5

(See Note 5)

(Column 6)

D MAX

Conductor

Size Based on

reaker Size

B at Column 6

(See Note 6)

(Column 7)

2.5 mm AWG #14

TABLE 3.2.2 SIZING OF GRID AND GENERATOR INPUT WIRING AND BREAKERS FOR EVO-3012E

Model No. and

Rated Output

Power in Inverter

Mode

(Column 1)

EVO-3012E

(3000VA, 13A)

Rated AC

Pass Through

Current

(See Note 1)

(Column 2)

13A 12A 25A 25A 25A

Rated AC

Charging

Current

(See Note 2)

(Column 3)

Total Rated AC

Input Current

(Columns 2 +3)

(See Note 3)

(Column 4)

Programmed

Value of

"GRID MAX

CURRENT" and

"GEN MAX

CURRENT"

(See Note 4)

(Column 5)

External

Breaker Size

ased on

Column 5

(See Note 5)

(Column 6)

44 | SAMLEX AMERICA INC.

Conductor

Size Based on

reaker Size

at Column 6

(See Note 6)

(Column 7)

4 mm AWG #12

Page 45

SECTION 3 | Installation

TABLE 3.2.3 SIZING OF GRID AND GENERATOR INPUT WIRING AND BREAKERS FOR EVO-4024E

Model No. and

ated Output

Power in Inverter

Mode

(Column 1)

EVO-4024E

(4000VA, 18A) 18A 18A 36A 35A

Rated AC

Pass Through

Current

(See Note 1)

(Column 2)

Rated AC Charging

Current

(See Note 2)

(Column 3)

Total Rated AC

nput Current

(Columns 2 +3)

(See Note 3)

(Column 4)

NOTES FOR TABLES 3.2.1 TO 3.2.3 - SIZING OF GRID AND GENERATOR INPUT WIRING AND BREAKERS

1) Column 2 indicates the Rated AC Pass Through Current when in Charger / Pass Through Mode (value of this current = Rated AC Output Current in Inverter Mode).

2) Column 3 indicates the Rated AC Side Charging Current in Charger / Pass Through Mode.

Column 4 indicates the total

Rated AC Input Current which is the sum of the Rated AC

Pass Through Current (Column 2) and the Rated AC Side Charging Current (Column 3).

4) Column 5 indicates the programmed value of the AC input current limit. The value of this current limit is called "GRID MAX CURRENT" and "GEN MAX CURRENT" for programming purposes and can be programmed using the optional Remote Control EVO-RC (Please see page 26 at Appendix A under Section 4.5 - Group 2 Parameter Setup for input setting – "GRID MAX CURRENT" and "GEN MAX

RRENT"). The desired value can be programmed to match the available Ampere

CU capacity of grid feeder circuit / rated Ampere capacity of the generator. The default value of "G

RID MAX CURRENT" and "GEN MAX CURRENT" for all 4 models has been set at 16A based on convenience of powering the units from the standard 16A mains power inlet plug on 230 VAC, 50 Hz caravan / motorhome / RV. Details of various values of "G

RID MAX CURRENT" and "GEN MAX CURRENT" are given

below:

i. Table 3.2.1 is for EVO-2212E and 2224E and is based on the AC Input Current

Limit ("G

RID MAX CURRENT" and"GEN MAX CURRENT") set as follows:

a. EVO-2212E: The AC Input Current Limit ("GRID MAX CURRENT" and"GEN

MAX CURRENT") is set at 19A which is its full rated AC input current requirement and is equal to the sum of the full rated AC side charging current of 9A ( for full rated DC side charging current of 100A) and full rated AC pass through current of 10A (equal to the full rated AC output current of 10A in Inverting Mode)

b. EVO-2224E: The AC Input Current Limit ("GRID MAX CURRENT" and"GEN

MAX CURRENT") is set at 20A which is its full rated AC input current requirement and is equal to the sum of the full rated AC side charging current of 10A ( for full rated DC side charging current of 70A) and full rated AC pass through current of 10A (equal to the full rated AC output current of 10A in Inverting Mode)

Programmed

Value of

"GRID MAX

CURRENT" and

"GEN MAX CURRENT"

(See Note 4)

(Column 5)

External

reaker Size

ased on

Column 5

(See Note 5)

(Column 6)

35A

(Use 40A if 35A

is not available)

Conductor

Size Based on

reaker Size

B at Column 6

(See Note 6)

(Column 7)

6 mm

AWG #10

Page 46

SECTION 3 | Installation

ii. Table 3.2.2 is for EVO-3012E and is based on the AC Input Current Limit

("GRID MAX CURRENT" and"GEN MAX CURRENT") set at 25A which is its full rated AC input current requirement and is equal to the sum of the full rated AC side charging current of 12A ( for full rated DC side charging current of 130A) and full rated AC pass through current of 13A (equal to the full rated AC output current of 13A in Inverting Mode)

iii. Table 3.2.3 is for EVO-4024E and is based on the AC Input Current Limit

("GRID MAX CURRENT" and"GEN MAX CURRENT") set at 36A which is its full rated AC input current requirement and is equal to the sum of the full rated AC side charging current of 18A ( for full rated DC side charging current of 110A) and full rated AC pass through current of 18A (equal to the full rated AC output current of 18A in Inverting Mode)

Column 6 indicates the Amp rating of EXTE installed in the Consumer Unit / Load Center / Breaker Panel feeding the unit. The Amp rating of this breaker is based on the following considerations:

a. Not less than the programmed value of the AC Input Current Limit ("GRID

MAX CURRENT" and"GEN MAX CURRENT" at Column 5)

b. Type of breaker: Standard Moulded Case Circuit Breaker (MCCB) for 230VAC,

50Hz Consumer Unit / Load Center /

6) Column 7 indicates conductor size based on the following guidelines:

a. British Standard BS 7671 : 2008 - Requirements for Electrical Installations:

able 4D2A for multi-core, 70°C copper conductor cable

(i) T

(ii) Ambient temperature of 30°C

(iii)

Reference method "B"- enclosed in conduit on a wall or in trunking, etc. (iv) 1 two-core cable with Protective Earth (PE) conductor (v) Conductor temperature rating has been taken as 70°C to meet 70°C

maximum temperature of MCCB terminals as per BS EN-60947-2

b. Current carrying capacity = the MCCB rating at Column 6

RNAL breaker that is required to be

Breaker Panel

3.9 SIZING OF WIRING AND BREAKERS - AC OUTPUT SIDE

WARNING!

AC Breakers for the AC output circuits have NOT been provided internally. These have to be provided externally by the installer / user based on guidelines given below. Please note that guidelines given below on wire sizing and over-current protection will be superseded by the applicable National / Local Electrical Codes.

ATTENTION!

46 | SAMLEX AMERICA INC.

Page 47

SECTION 3 | Installation

3.9.1 Tables for Wire and Breaker Sizing - AC Output Side

Table 3.3 provides details of wire and breaker sizing for the AC output side.

AC wiring and breaker sizes on the AC output side are required to be determined by the

ated Load Current when operating in Inverter Mode (Column 1).

Table 3.3

External Breaker

Size Based on

Column 2

(See Note 2)

(Column 3)

10A 10A 1.5 mm

13A 16A 1.5 mm

18A 20A 2.5 mm

Conductor Size

Based on External

Breaker Size at

(See Note 3)

(Column 4)

Column 3

or AWG #16

or AWG #14

Model No. and

Rated Output Power in

Inverter Mode

(Column 1)

EVO-2212E

(2200VA, 10A)

EVO-2224E

(2200VA, 10A)

EVO-3012E

(3000VA, 13A)

EVO-4024E

(4000VA, 18A)

SIZING OF AC OUTPUT WIRING AND BREAKERS

Rated AC Output

Current in

Inverter Mode

(See Note 1)

(Column 2)

NOTES FOR TABLE 3.3 - AC OUTPUT WIRING AND BREAKERS

1) Column 2 indicates the Rated AC Output Current in Inverter Mode

2) Column 3 indicates the Amp rating of EXTERNAL breaker that is required to be

installed in the Load Consumer Unit / Center / Breaker Panel that is being fed from the AC output from this unit. Amp rating of the breaker is based on the following considerations:

a) Not less than the rated output current at Column 2

ype of breaker: Standard Moulded Case Circuit Breaker (MCCB) for 230VAC,

50Hz Consumer Unit / Load Center / Breaker Panel

3) Column 4 indicates conductor size based on the following guidelines:

British Standard BS 7671 : 2008 - Requirements for Electrical Installations:

(i) Table 4D2A for multi-core, 70°C copper conduct cable (ii) Ambient temperature of 30°C (iii) Reference method "B"- enclosed in coduit on a wall or in trunking, etc. (iv) 1 two-core cable with Protective Earth (PE) conductor (v) Conductor temperature rating has been taken as 70°C to meet 70°C

maximum temperature of MCCB terminals as per BS EN-60947-2

b. Current carrying capacity = the MCCB rating at Column 3

Page 48

SECTION 3 | Installation

3.10 RESIDUAL CURRENT DEVICE (RCD) PROTECTION FOR 230VAC MOTORHOME / CARAVAN APPLICATION

When this unit is installed in 230VAC motorhome / caravan, ensure that appropriate capacity of Residual Current Device (RCD) is used in the vehicle wiring system to protect all load circuits. (Refere to Fig 3.14)

3.11 GROUNDING TO EARTH OR TO OTHER DESIGNATED GROUND

Grounding means connecting (bonding) to Earth Ground or to other designated Ground. F

or example, in a motorhome / caravan / RV, the metal frame of the motorhome / caravan / RV is normally designated as the Negative DC Ground. Similarly, all metal portions of boats / marine craft are bonded together and called Boat Ground.

Grounding is required for (i) protection against damage due to lightning strike and (ii) protection against electric shock due to “Ground Fault”. In case of EVO

, “Ground Fault” may occur due to inadvertent contact between an energized ungrounded current carrying conductor and exposed metal surface resulting in voltage getting fed to (i) the metal chassis of the EVO

or (ii) to the metal chassis of the devices connected to EVOTM or (iii) to the metal frame/ chassis in a motorhome / caravan. When this energized exposed surface is touched, the voltage will drive current through the body to Earth Ground producing electric shock. When properly grounded to Earth Ground (or Frame / Chassis Ground in motorhome or caravan), the Leakage Current Protection Device (like RCD, GFCI etc.) or Over Current Protection Device (like Circuit Breaker or Fuse) will trip and interrupt the circuit feeding power from the AC source (EVO

/ Grid / Generator) or the DC source (12V / 24V battery). Proper grounding will ensure that all exposed metal surfaces will have equal potential and will be bonded to (i) a single common Earth Ground point i.e. the Ground Rod / buried metallic water / gas pipe at the premises or (ii) the Frame / Chassis Ground in a motorhome / caravan.

Please read the following on-line White Papers for complete understanding of G

rounding at www.samlexamerica.com (Home > Support > White Papers):

 “Grounding System and Lightning / Ground Fault Protection”

3.12 GROUNDING ARRANGEMENT IN EVOTM SERIES

Schematic at Fig 3.12 illustrates typical grounding arrangement of EVOTM Series for shore based installations with TN-C-S / Protective Multiple Earthing (PME) Power Distribution System. Schematic at Fig. 3.14 shows grounding arrangement in typical mobile installation. Internally, EVO

consists of AC and DC Sections isolated by a transformer (Fig 3.12). Both

these sections are required to be grounded appropriately.

3.13 GROUNDING - AC SECTION

For Typical Shore Based Installations using TN-C-S / PME Distribution System (Please see Fig. 3.12)

 The bus bars for Protective Earth (PE) conductors “PE-B” located in (i) the Main AC Dis-

tribution Panel of the Premises (ii) the DC Distribution Panel and (iii) the AC Distribution Panel for AC Loads Backed Up by EVO

are all electrically bonded to the “Main Earthing

48 | SAMLEX AMERICA INC.

Page 49

SECTION 3 | Installation

Terminal” of the premises “ME” which, in turn, is bonded to the Earth Ground through the Ground Rod or through the buried metallic pipe (water / gas). Similarly, the Earthing Terminal “EG” of the Generator is also bonded to the Earth Ground through the Main Earthing Terminal of the Premises “ME”

{Grid GND (5) and GEN GND (8)} and the

are all internally bonded to

(G1)

”

e acces-

 The terminals for AC Input Gr

ound of EVO terminal for AC Output Ground {OUTUT GND (11)} of EVO the metal frame / chassis of the EVO



For proper operation of the Residual Current Device (RCD) on the output side of the generator, it is to be ensured that the Neutral of the generator is either bonded internally to the frame / chassis of the generator or externally to the Earthing Terminal “EG” on the generator. This will create a Neutral to Earth Ground bond in the generator (Neutral of generator " Frame / chassis of generator " Earthing Terminal “EG” on the generator " Main Earthing Terminal “ME” of the Premises " Earth Ground). Also, this will ensure that if a ground fault occurs, leakage current is able to return back to the Neutral of generator winding through the Earth ground path for tripping of the RCD.

For Typical Mobile Installation (Please refer to Fig. 3.14)

 All structural metallic parts of the frame of the motorhome / caravan which ar

sible from within the motorhome / caravan are electrically bonded together to ensure protective equi-potential surfaces. Any such electrically bonded structural metallic parts is termed “chassis” and is shown by symbol “

 The Negatives of the

 (i) The Gr

ounding Terminal “G” of the 230VAC, 16A Mains Inlet / Hook-up Connector (ii) bus bar “PE-B” for Protective Earth (PE) conductors of the Distribution Panel for loads backed up by EVO

Battery System and the alternator are bonded to the “Chassis

and (iii) the metallic frame / Earthing Terminal “EG” of the

”

generator are all electrically bonded to the Main Earthing Terminal “ME” of the motorhome / caravan which, in turn, is bonded to the “chassis

 The terminals for AC Input Gr

minal for AC Output Ground {OUTUT GND (11)} of EVO metal frame / chassis of the EVO

ound of EVO

(This internal bonding is shown as “G1” in Fig 3.12)

{Grid GND (5) and GEN GND (8)} and the ter-

”

are all internally bonded to the

 For proper operation of RCD on the output side of the generator, it is to be ensured that

the Neutral of the generator is either bonded internally to the frame / chassis of the generator or externally to the Earthing Terminal “EG” on the generator. This will ensure that if a ground fault occurs, leakage current is able to return back to the Neutral of genera-

tor winding through the “Chassis

” path for tripping of the RCD.

3.14 GROUNDING - DC SECTION

DC side grounding involves bonding of the metal chassis of EVO, the metal chassis of the DC Electrical Panel and the Battery Negative Terminal to the Earth Ground in shore based instal-

lation or to the metal frame / “Chassis case of a ground fault in the +12V / +24V circuit, the fuse in the +Battery line blows to clear the fault. This fuse in the +Battery line has Ampere capacity matching the rated DC input current of the EVO

in Inverter Mode i.e. 150A to 400A depending upon the model of the

” of the motorhome / caravan. This ensures that in

Page 50

SECTION 3 | Installation

EVOTM being used. The wire size used for DC side grounding should be minimum 10mm2 or of the same size as the battery cable, whichever is thicker (Battery cable size should have minimum Ampacity ≥ the Ampere rating of this battery fuse (150A to 400A) depending upon the model of the EVOTM being used). This recommendation on sizing of the DC Side Ground-

ing Wire will be superseded by the National / Local Electrical Codes.

CAUTION!

As per American Boat and Yacht Council (ABYC) Safety Standard E-11 for the AC and DC Electrical Systems on Boats, the size of DC side grounding wire shall not be smaller than one size under that required for current carrying conductors supplying the device. Hence, for application on EVOTM on boat / yacht, the size of the DC side grounding conductor should be of the same or one size smaller than the size of battery cable specied in Table 3.1.

ATTENTION!

Conformément « American Boat et Yacht Council » ( ABYC ) la norme de sécurité E - 11 , la taille du l de mise a terre du côté CC ne doit pas être inférieure à un format sous celle requise pour les conducteurs tenant le courant pour alimenter l'appareil. Par conséquent, pour l’application EVOTM sur le bateau / yacht, la taille du conducteur de mise a terre côté CC devrait être de la même ou strictement une taille plus petite que la taille du câble de batterie indiqué dans le tableau 3.1.

INFO

As described at Section 3.13, the metal frame / chassis of the EVOTM (Fig 3.12, G1) is bonded to the Main Earthing Terminal “ME” for AC side grounding. It may be argued that if the metal frame / chassis of EVO is it necessary to provide an additional DC side grounding wiring? (Wiring that bonds DC Grounding Terminals "GE", "PE-B" and "ME" in Fig 3.1). If separate thicker grounding wire of the same size as the battery cable was not provided for the DC side grounding and there was a ground fault in the battery circuit, very large DC fault current from Battery+ would ow through the smaller size AC grounding wires to the Battery Negative through the Main Earthing Terminal “ME”. These smaller size AC side grounding wires would be damaged due to very high DC side fault current (150A to 400A depending on the Model of the EVO

is already bonded to Main Earthing Terminal “ME” for AC side grounding, why

being used).

DC Side Grounding Arrangement for Typical Shore Based Installations using Protective Multiple Earthing (PME) or “TN-C-S” Earthing System (Please refer to Fig. 3.12)

A DC Side Grounding Connector (G2) (5 in the DC side layout in Fig. 2.1) is provided in the EVOTM. This connector is internally bonded to the metal frame/chassis of the EVOTM. Connect this DC Side Grounding Connector (G2) to the Negative (-) Bus in the DC Distribution Panel (In case DC Distribution Panel is not used, connect it directly to the Battery Negative Terminal). The wire size should be minimum 10mm2 or of the same size as the battery cable, whichever is thicker. Battery cable size should have minimum Ampacity ≥ the Ampere rating of the battery fuse (150A to 400A) depending on the model of the EVOTM being used). The Negative Terminal of the battery gets connected to the Earth Ground through the path: Battery Negative " Negative (-) Bus in the DC Distribution Panel " Bus bar for Equipment Grounding Conductors (PE-B) in the DC Distribution Panel " Main Earthing Terminal “ME”

50 | SAMLEX AMERICA INC.

Page 51

SECTION 3 | Installation

" Earth Ground through Ground Rod / buried metallic water / gas pipe. Hence, the Battery Negative, the metal frame/chassis of the DC Distributional Panel and the metal frame/chassis of the EVO in the EVO being used) from Battery+ would ow through the larger DC side grounding wires to the Battery Negative and will blow the Battery fuse.

will all be bonded to the Earth Ground. If there was a +12V / +24V ground fault

, very large DC fault current (150A to 400A depending on the Model of EVOTM

DC Side Grounding Arrangement for T

A DC Side Grounding Connector (5) is provided in the EVO to the metal frame/chassis of the EVO Main Earthing Terminal “ME” in the motorhome / caravan. The wire size should be minimum

or of the same size as the battery cable, whichever is thicker. Battery cable size should

10mm have minimum Ampacity ≥ the Ampere rating of the battery fuse (150A to 400A) depending on the model of EVO

attery Negative Terminal through the path: DC Side Grounding Connector (5) " Main Earthing

B Terminal “ME” " “Chassis

being used. The DC Side Grounding Connector (5) will get connected to the

” of the motorhome / caravan " Battery Negative Terminal. Hence, the metal frame / chassis of the EVO was a +12V / +24V ground fault in the EVO ing on the Model of the EVO

being used) from Battery+ would ow through the larger DC side

ypical Mobile

. Connect this DC Side Grounding Connector (5) to the

will be bonded to the Battery Negative Terminal. If there

, very large DC fault current (150A to 400A depend-

Installation (Please refer to Fig. 3.14)

. This connector is internally bonded

grounding wire to the Battery Negative and will blow the Battery fuse.

3.14.1 Switching of Bonding of Output Neutral To Chassis Ground

Automatic Output Neutral to Chassis Ground bond switching arrangement has been provided in these units through “Output Neutral to Chassis Ground Bond Switching Relay” [K4 in F

ig 4.1] to switch bonding of the Output Neutral Terminal of the Inverter Charger as follows:

 When operating as an inverter, the current carrying conductor of the Inverter Section that is

connected to the Output Neutral Terminal of the Inverter Charger is bonded to the metal chassis of the inverter by the “Output Neutral to Chassis Ground Bond Switching Relay”

[K4 in Fig 4.1]. As the metal chassis of the inverter is in turn bonded to the “Chassis of the motorhome / caravan / vehicle or to the Boat Ground (DC Negative Grounding Bus Bar and the Main AC Grounding Bus Bar are tied together in a boat and this is called the “Boat Ground”), this current carrying conductor of the Inverter Section (connected to the Output Neutral Terminal) will become the Grounded Conductor (GC) or the Neutral of the Inverter Section.

 When in Charging Mode, the Neutral conductor of the Grid power/Generator will be

connected to the Output Neutral Terminal of the Inverter Charger. At the same time, the “Output Neutral to Chassis Ground Bond Switching Relay” [K4 in Fig 4.1] will unbond (disconnect) the Output Neutral connector of the Inverter Charger from the chassis of the Inverter Charger. This will ensure that the Grounded Conductor (GC) / Neutral of the Grid power/Generator is bonded to the Earth Ground at one single point at the location of the AC Power Distribution System of the Motorhome and Caravan Park / Marina.

 Disabling Neutral to Ground Bond: In some applications, the Output Neutral may be

required to remain isolated from the chassis/Ground at all times. For this, automatic Ouput Neutral to Chassis Ground bond can be disabled by disconnecting the Male/Female Quick Disconnect located in the AC wiring compartment. [Please see (i) 13, Fig 3.9 and (ii) "QD" in Fig 4.1]

”

Page 52

SECTION 3 | Installation

586

749

101211

AC DISTRIBUTION PANEL

Panel for AC loads backed up by EVO

MAIN AC DISTRIBUTION

PANEL OF THE PREMISES

DC DISTRIBUTION PANEL

N-B

RCD

L N

Service

Cutout

of the

premises

L PEN

L-B

PE-B

L-B

N-B

A.C. Section D.C. Section

Neg. (-)

Bus

Pos. (+)

Bus

PE-B

EVO

Inverter/Charger

TO LOAD

CIRCUIT

BACKED UP

BY EVO

L-B. Bus bar for Line conductors

N-B. Bus bar for Neutral conductors

PE-B. Bus bar for Protective Earthing (PE) conductors

G1. Internal grounding of AC Input and Output

Terminals to the metal frame / chasis of EVO

G2. Grounding Terminal on EVO

(5, Fig 3.8)

EG. Earth Terminal on generator (bonded to frame /

chasis of the generator

ME Main Earthing Terminal of the premises

4. GRID LINE

5. GRID GND

6. GRID NEUTRAL

7. GENERATOR LINE

8. GENERATOR GND

9. GENERATOR NEUTRAL

10. OUTPUT LINE

11. OUTPUT GROUND

12. OUTPUT NEUTRAL

13. Quick Disconnect

Circuit Breaker

Fuse

Refer to AC

Input/Output

Connectors

at Fig 3.9

Lead Acid

Battery

Bank

L N

PE-B

230VAC GENERATOR

Bonded to

Ground Rod

or to buried

metallic pipe

(water/gas) for

Earth Ground

Multiple Earthing (PME) or TN-C-S Earthing System

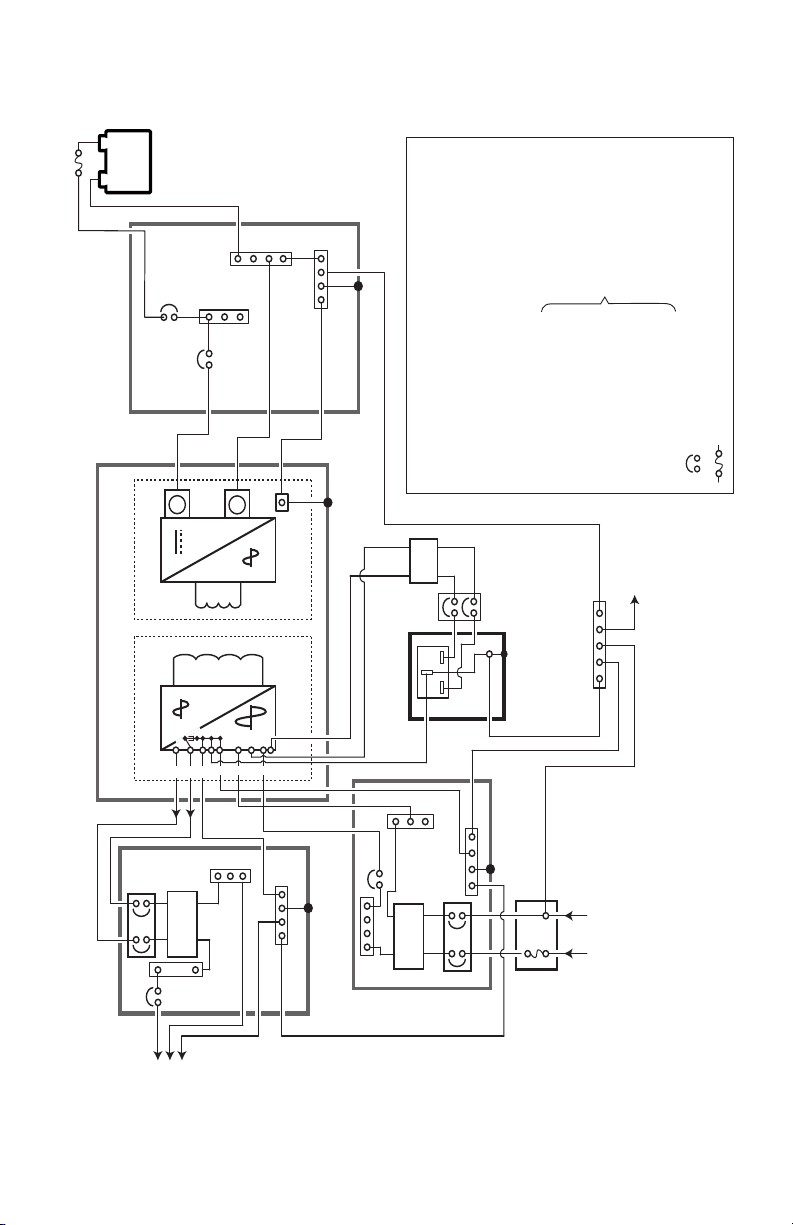

Fig 3.12 Typical Shore Based Grounding Arrangement for Protective

52 | SAMLEX AMERICA INC.

Page 53

SECTION 3 | Installation

3.15 SHORE BASED INSTALLATION

3.15.1 Typical Shore Based Installation

Fig. 3.13 illustrates a typical shore based installation

attery is connected to the DC input connections through an appropriate fuse in the Battery

 B

+ line to protect the DC input cables against short circuit

 Battery Temperature Sensor Model EVO-BCTS is installed on the Positive or Negative post

of the battery and connected to the port for the Temperature Sensor

 Supplementary battery charging is being carried out thr

Controller connected to the DC input provided for external battery charger.

 AC input to the EVO

 AC output fr

EVO

om the EVO

is fed from the Grid and Generator Panels

is fed to the AC Distribution Panel for AC loads backed up by

 Automatic Generator start/stop is possible as follows: (Please see

- Start operation is initiated by closur R

elay (14, Fig 2.1) when the battery voltage drops to the programmed value of the Low

e of "NO" and "Common" contacts of the Status

Voltage Alarm. Stop sequence is initiated by opening of the above 2 contacts when the battery voltage rises to the programmed “Reset Value”. Please refer to programming of "Relay Function" on page 29, Section 4.8 of EVO-RC Manual at Appendix A.

- Contact closure/opening signal is fed to the optional Generator Auto Start/Stop Module which in turn feeds required start stop signals to the generator (the generator should be capable of remote start/stop function).

 When using generator, please ensure the following (Please see Fig 3.13):

- Neutral of the generator is bonded to the chassis of the generator either inter ternally through the Earthing Terminal "EG" and the chassis of the generator is bonded to the Earth Ground. Path: Neutral of Generator " Earthing Terminal "EG" " Bus Bar for Protective Earthing "PE-B" " Main Earthing Terminal "ME" " Earth Ground.

ough a solar array and a Charge

Fig 3.13)

nally or ex-

Page 54

SECTION 3 | Installation

To Remote Start/Stop Terminals on the Generator

Optional Generator Auto Start/Stop Module

Optional Remote Control EVO-RC

Grounding Terminal (5)

NO - Normally Open Contact

Common

NC - Normally Closed Contact

A B

EVO INVERTER CHARGER

FRONT

(See Fig 2.1)

Fuse

(Within 7”

of battery

terminal)

Fuse

Battery Temperature Sensor

AC SIDE

(See Fig 2.3)

- Model EVO-BCTS

Lead Acid

Battery Bank

121110

ELECTRICAL SUB-PANEL FOR EVO

Panel for AC loads backed up by EVO

TO LOAD CIRCUIT BACKED UP

BY EVO

L N G

L-B

LLN

RCD

PE-B

N-B

Battery -

External Battery Charger

DC SIDE OF EVO

1. Battery Positive

2. Battery Negative

3. External Charger Positive

4. External Charger Negative

5. Ground Terminal

6. RJ-45 Jack for Temperature Sensor

7. RJ-45 Jack for Optional Remote Control EVO-RC

14. Status Relay Terminals for initiating automatic generator start / stop (”NO” & Common)

Battery +

MAIN AC DISTRIBUTION PANEL OF THE PREMISES

Service Cutout

of the

premises

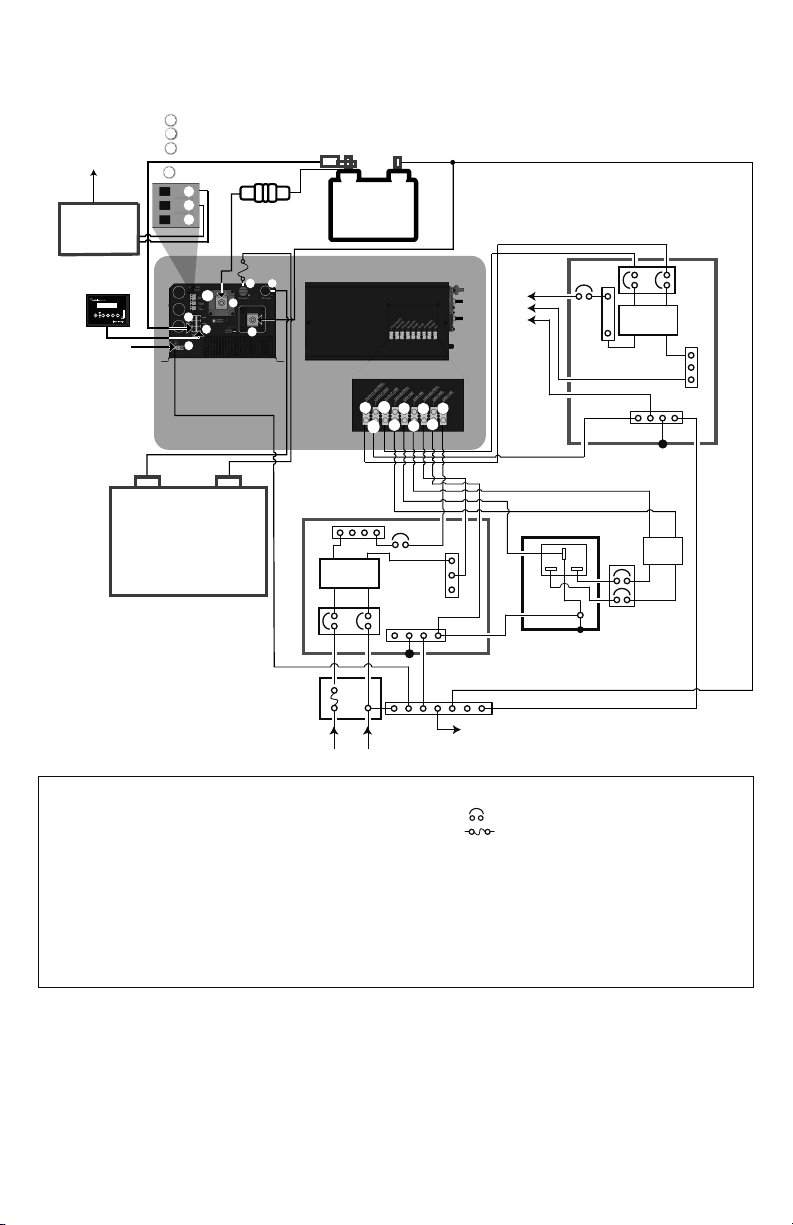

Fig 3.13 Typical Shore Based Installation for TN-C-S / Protective

Multiple Earthing (PME) Distribution System

L-B

LLN

RCD

L N

L PEN

AC SIDE OF EVO

4. GRID LINE

5. GRID GND

6. GRID NEUTRAL

7. GEN LINE

8. GEN GND

9. GEN NEUTRAL

10. OUTPUT LINE

11. OUTPUT GND

12. OUTPUT NEUTRAL

PE-B

N-B

Bonded to Ground Rod

or to buried metallic pipe (water / gas) for Earth Ground

OTHER

Circuit Breaker

Fuse

L-B. Bus bar for Line conductors N-B. Bus bar for Neutral conductors PE-B. Bus bar for Protective Earthing (PE) conductors PEN. Conductor with Protective Earthing (PE) and Neutral (N) combined RCD. Residual Current Device L. Line terminal N. Neutral terminal G. Grounding terminal EG. Earthing terminal on Generator (Bonded to frame) ME. Main Earthing terminal of the premises

230VAC GENERATOR

LGN

L N

RCD

L N

54 | SAMLEX AMERICA INC.

Page 55

SECTION 3 | Installation

3.16 MOBILE INSTALLATION - GENERAL INFORMATION

3.16.1 RCD Protection For Motorhome / Caravan / Vehicle Application

WARNING!

When this unit is installed in a motorhome / caravan please ensur rent Devices (RCD) are installed as recommended in the typical installation diagram at Fig 3.14.

2. Installation shown in Fig 3.14 is based on Section 721 of British Standard BS 7671 : 2008.

3. Please Ensure that your installation complies with the national / local Electrical Codes.

ATTENTION!

1. Lorsque l'appareil est installé dans un camping-car / caravane s'il vous plaît assurer que les dispositifs appropriés résiduels ACTUELLES ( RCD ) sont installés ainsi comme recommandé dans le schéma d'installation typique à la gure 3,14.

2. L’installation de la gure 3,14 est basée sur l'article 721 de la norme britannique BS 7671 : 2008.

3. S'il vous plaît assurez-vous que votre installation se conforme aux codes électriques nationaux / locaux.

3.16.2 Requirement Of Deep Cycle, Auxiliary Battery And Battery Isolator For Powering Inverters In Mobile Installations

Basic information on Lead Acid Batteries is given in Section 1.4 under "General I

nformation - Lead Acid batteries".

For details, read on-line White Paper titled “Batteries, Chargers & Alternator” at: www.samlexamerica.com (Home > Support > White Papers).

A motorhome / caravan / vehicle has Starter, Lighting and Ignition (SLI) battery. As explained in White Paper titled “Batteries, Chargers and Alternators”, SLI batteries are designed to produce high power in short bursts for cranking.

SLI batteries use lots of thin plates to maximize the surface area of the plates for providing very large bursts of current (also specied as Cranking Amps). This allows very high starting current but causes the plates to warp when the battery is cycled. Vehicle starting typically discharges 1%–3% of a healthy SLI battery’s capacity. The automotive SLI battery is not designed for repeated deep discharge where up to 80% of the battery capacity is discharged and then recharged. If an SLI battery is used for this type of deep discharge application, its useful service life will be drastically reduced. Hence, this type of battery is not recommended for the storage of energy for inverter applications. A second deep cycle auxiliary battery must be installed in the motorhome / caravan / vehicle for powering the EVO

When the second auxiliary deep cycle battery is used, a Battery Isolator is required that will allow parallel connection of the two batteries for charging when the alternator is ON and disconnecting the parallel connection when the alternator is stopped (Isolator is shown in Fig. 3.14). The capacity of the Battery Isolator should be as follows:

 For EVO-2012E: The maximum continuous DC current required is 266A. The capacity of

the Battery Isolator should be more than 266A or more than the capacity of the alternator, whichever is higher

 For EVO-2224E: The maximum continuous DC current required is 133A. The capacity of

the Battery Isolator should be more than 133A or more than the capacity of the alternator, whichever is higher

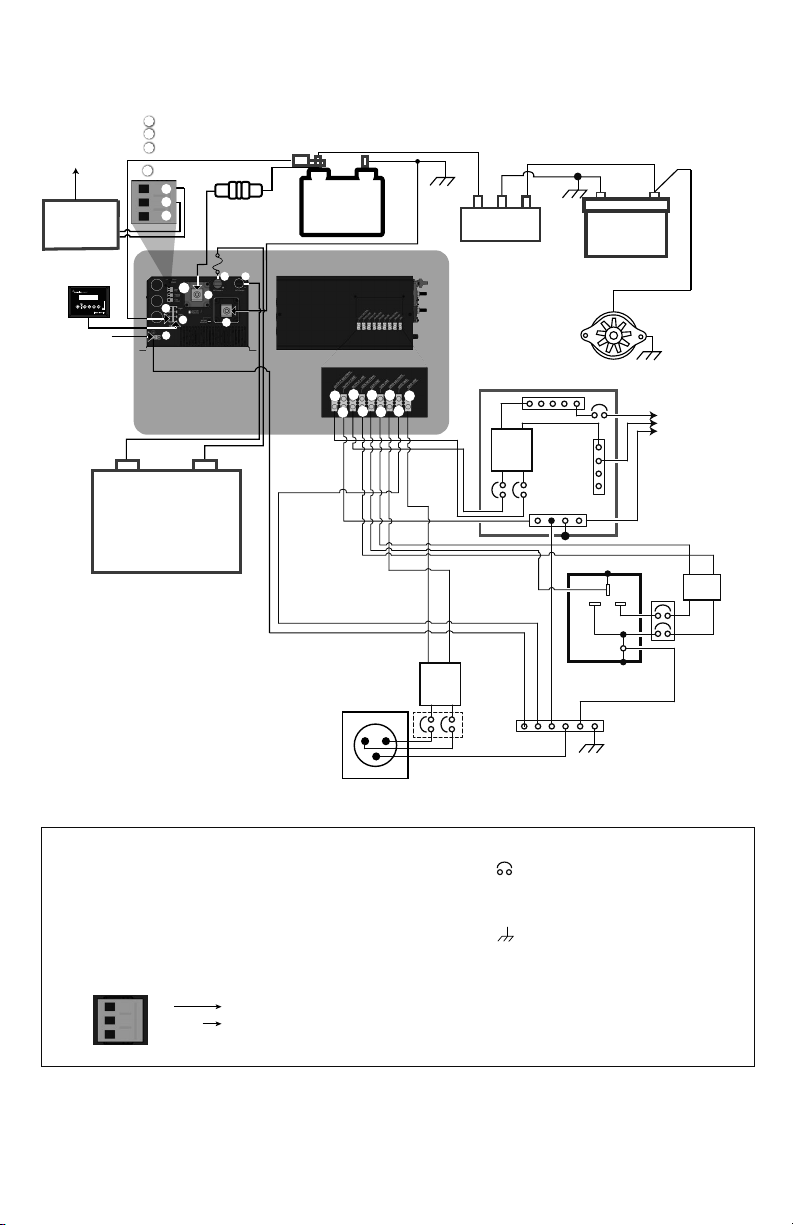

(A deep cycle, auxiliary battery is shown in Fig. 3.14).

e that appropriate Residual Cur-

Page 56

SECTION 3 | Installation

 For EVO-3012E: The maximum continuous DC current required is 373A. The capacity of

the Battery Isolator should be more than 373A or more than the capacity of the alternator, whichever is higher

EVO-4024E: The maximum continuous DC current required is 266A. The capacity of

 For

the Battery Isolator should be more than 266A or more than the capacity of the alternator, whichever is higher

3.16.3 Requirement To Keep The Neutral Conductor Of Shore Power Isolated From The Chassis Ground Of The Motorhome / Caravan / Vehicle

As per Section 721 of British Standard BS 7671 : 2008 the Neutral conductor in electrical installations in motorhomes / caravans / vehicles is NOT bonded to the "chassis the motorhome / caravan / vehicle. The Neutral is oating with respect to the "chassis

This is necessary for safety because if the Neutral was bonded to the chassis of the RV and if the Neutral and the Hot got reversed by mistake, the chassis of the R

V will be at 230 V respect to the Earth Ground. If a person standing on the Earth Ground touches the chassis of the RV, he will be fed with 230 VAC and will receive electrical shock!

3.16.4 Typical Mobile Installation

Fig. 3.14 illustrates a typical installation on motorhome / caravan / vehicle using 230VAC, 16A Service Inlet for 16A motorhome / caravan / vehicle Power Supply Cord. The installation is based on Section 721 of British Standard BS 7671 : 2008. Please check that your installation complies with the national and local Electrical Codes.

 Auxiliary Battery is connected to the DC input connections through an appropriate fuse

to protect the DC input cables against short circuit

 Auxiliary battery will be charged by the alter

attery Temperature Sensor Model BTS-EVO is installed on the Positive or Negative post

 B

of the auxiliary battery and connected to the port for the Temperature Sensor

 Supplementary battery charging is being carried out through a solar array and a

Charge Controller connected to the DC input provided for external battery charger

 AC input to the EVO

is fed from typical 230VAC, 16A Power Inet (through suitable double pole breaker and RCD (Residual Current Device) and from the generator (through suitable breaker and RCD)

 AC output from the EVO

backed up by EVO

is fed to the double pole Distribution Panel Board for loads

 Automatic Generator start/stop is possible as follows (Please see Fig 3.14):

- Start operation is initiated by closure of "No" and "Common" contacts of the Status

Relay (14, Fig 2.1) when the battery voltage drops to the programmed value of the Low Voltage Alarm. Stop sequence is initiated by opening of above contacts when the battery voltage rises to the programmed “Restart Value”. Please refer to programming of "Relay Function"on page 29, Section 4.8 of EVO-RC Manual at Appendix A.

- Contact closure/opening signal is fed to the optional Generator Auto Start/Stop

Module which in turn feeds required start stop signals to the generator (the generator should be capable of remote start/stop function).

 When using generator, please ensure the following (please see Fig 3.14):

- Neutral of the generator is bonded to the chassis of the generator either internally

or externally through the Earthing Terminal "EG" and the chassis of the generator is bonded to Main Earthing Terminal "M" on the motorhome / caravan / vehicle.

56 | SAMLEX AMERICA INC.

nator through the Battery Isolator

" of

AC with

Page 57

SECTION 3 | Installation

To Remote Start/Stop Terminals on the Generator

Optional Generator Auto Start/Stop Module

Optional Remote Control EVO-RC

Grounding Terminal (5)

Battery -

External Battery Charger

NO - Normally Open Contact

Common

NC - Normally Closed Contact

A B

EVO INVERTER CHARGER

FRONT

(See Fig 2.1)

Battery +

(Within 7”

of battery

terminal)

Fuse

Battery Temperature Sensor

Battery Bank

AC SIDE

(See Fig 2.3)

230VAC, 16A Mains Inlet / Hook-up

Complies with BS EN 60309-2

- Model EVO-BCTS

Lead Acid

Connector on motorhome.

L-B

N-B

PE-B

230V Generator

− +

SLI Battery

(Starter, Lighting

and Ignition)

VEHICLE ALTERNATOR

LGN

To load circuit

backed up

by EVO

L N

RCD

L N

+ − +

Battery Isolator

AC DISTRIBUTION PANEL FOR LOADS

BACKED UP BY EVO

L RCD LNN

LLN

RCD

N L

DC SIDE OF EVO

1. Battery Positive

2. Battery Negative

3. External Charger Positive

4. External Charger Negative

5. Ground Terminal

6. RJ-45 Jack for Temperature Sensor

7. RJ-45 Jack for Optional Remote Control EVO-RC

14. Status Relay Terminals for initiating automatic generator start / stop (see below)

Status Relay

Common NC

To optional Generator Auto Start/Stop

}

Module

AC SIDE OF EVO

4. GRID LINE

5. GRID GND

6. GRID NEUTRAL

7. GEN LINE

8. GEN GND

9. GEN NEUTRAL

10. OUTPUT LINE

11. OUTPUT GND

12. OUTPUT NEUTRAL

OTHER

Circuit Breaker

L-B. Bus bar for Line conductors N-B. Bus bar for Neutral conductors PE-B. Bus bar for Protective Earthing (PE) conductors Chassis of the motorhome / caravan / vehicle

RCD. Residual Current Device L. Line terminal N. Neutral terminal G. Grounding terminal EG. Earthing terminal on Generator (bonded to frame) ME. Main Earthing terminal on the motorhome / caravan / vehicle

Fig 3.14 Typical Mobile Installation for Motorhome / Caravan / Vehicle

Page 58

SECTION 4 | General Description & Principles of Operations

4.1 GENERAL DESCRIPTION

EVOTM is a Pure Sine Wave, Bi-directional, Single-Phase Inverter / Charger with a Transfer Relay that operates either as an inverter OR as a smart battery charger. It uses a common Converter Section that can work in two directions – in one direction it converts external AC power to DC power to charge the batteries using Grid or Generator (Charging Mode) and in the other direction, it converts DC power from the battery to AC power (Inverting Mode). This allows the same power components to be used in both directions resulting in high-energy transfer efciency with fewer components. Please note that it can NOT work in both the directions at the same time (i.e. it cannot work as an inverter and as a charger at the same time).

High performance 100 MHz DSP (Digital Signal Processing) type of micro-controller and Pulse Width Modulated (PWM) conversion circuits are used for the above implementation.

4.2 COMPONENTS OF THE SYSTEM

It consists of 3 Sections – Inverter Section, Battery Charger Section and AC Input/Transfer Relay Section. The unit is fed with the following inputs:

 Up to 2 exter

Grid if both Grid and Generator inputs are available at the same time

 DC Battery Source consisting of 12V/24V battery bank. 4 versions of EVO

2 versions for 12 VDC battery input (EVO-2212E and EVO-3012E) & 2 for 24 VDC battery input (EVO-2224E and EVO-4024E)

 Additional external charging source: The output of the external charger of up to 50A

capacity is routed through this unit and operates in parallel with the internal charger. The internal charging current is controlled to ensure that the combined current fed to the battery does not exceed the programmed Bulk Charging Current. This improves the life of the battery. Please see Section 5.4 for more details.

nal AC input power sources – Grid or Generator or both with PRIORITY for

are available.

4.3 INVERTER SECTION

The Inverter Section is a heavy-duty, continuous rated, DSP micro-controller based inverter generating a Pure Sine Wave output of 230 VAC, 50 Hz / 60 Hz (50 Hz default) from the DC Battery Source. It is able to supply AC power to various types of AC loads such as resistive loads (heaters, incandescent lamps etc) or reactive loads (motors, air conditioners, refrigerators, vacuum cleaners, fans, pumps, Switched Mode Power Supplies (SMPS) used in audio / video equipment and computers, etc.).

4.3.1 Principle of working of Inverter Section

The low DC voltage from the DC Battery Source is inverted to the AC voltage in two steps. The low DC voltage from the DC Battery Source is rst converted to low frequency (50 Hz or 60 Hz ; 50 Hz default), low voltage synthesized sine wave AC using an H-bridge conguration and high frequency PWM (Pulse Width Modulation) technique. The low frequency, low voltage synthesized sine wave is then stepped up to 230 VAC pure sine wave voltage using a low frequency Isolation Transformer and ltration circuit. This type of DC to AC inversion is called Hybrid Type – a combination of low frequency and high frequency implementation. Other distinctive features of the Inverter Section are given below:

Soft Start: The inverter design incorporates “Soft Start” feature with the following advantages and protections:

58 | SAMLEX AMERICA INC.

Page 59

SECTION 4 | General Description & Principles of Operations

- When the unit powers up, it starts in Inverting Mode rst. The output voltage ramps up gradually from around 96 VAC to 230 VAC in around 200 ms. This reduces otherwise very high starting inrush current drawn by AC loads like Switched Mode Power Supplies (SMPS) and motor driven loads like fans, pumps, compressors etc. This will result in lower motor inrush current (which typically can be up to 650% of the full load current of the motor), which means lesser mechanical stresses, wear and tear and increased lifetime of the motor, coupling and fan. Additionally, the impact on the load side components is greatly reduced, meaning less likelihood of causing problematic voltage drops during starting.

Power Surge – Up to 300%:

The inverter is able to deliver very high surge power / curr

by 200% for 100 ms. This range of high instantaneous power is delivered at the rated voltage and hence, it is able to provide very high starting torque for difcult motor driven loads like compressors and pumps that require higher Locked Rotor Current during startup.

If the power drawn by the load exceeds the above surge ratings, the inverter pr itself by limiting the load current to 300% / 200% which results in reduction of output voltage and consequent reduction in load current. The output voltage recovers automatically when power drawn by the load drops below the above surge limits

Power Boost up to 150%: Higher percentage of rated power can be provided for limited time periods as follows:

• 150% for 5 sec

• 140% for 30 sec

• 120% for 5 min

• 110% for 30 min

ent of up to 300% for 1 ms followed

otects

4.4 DIRECT DUAL AC INPUT ARCHITECTURE

For higher reliability and redundancy, direct AC input from Grid and Generator can be fed simultaneously to separate AC Input Circuits. Only one AC source is selected at one time. When both Grid and Generator are available simultaneously, Grid is given priority. Transfer from Grid to Generator or from Generator to Grid is always routed through the inverter. Please see details under “Synchronized Transfer of Power”.

4.5 TRANSFER RELAY SECTION

Transfer Relay Section is used to either feed AC power to the Battery Charger Section and at the same time, pass through the AC power from the external AC input power source to the load (As long as the external AC input power from Grid/Generator is available and is within the programmed limits of voltage and frequency) or to transfer the load to the Inverter Section (In case of loss of the external AC input power source or if this source is not within the programmed limits of voltage and frequency). Typical transfer time is 16 milliseconds from Grid/Generator to Inverter and <1ms from Inverter to Grid/Generator. Heavy duty 40A, Transfer Relay is used for reliable transfer of up to 300% surge power and for Neutral to Ground Bond Switching.

4.5.1 AC Transfer and Output Neutral To Chassis Ground Bond Switching

Automatic switching of bonding between the Ouput Neutral and Chassis Ground has been provided in EVO Switching of bonding is carried out as follows:

through “Output Neutral to Chassis Ground Bond Switching Relay” (K4 in Fig 4.1).

Page 60

SECTION 4 | General Description & Principles of Operations

• Whenoperatingasaninverter,thecurrentcarryingconductoroftheInverterSectionthatisconnected to the Output Neutral terminal of EVO “Output Neutral to Chassis Ground Bond Switching Relay” (K4 in Fig 4.1). As the metal chassis

of EVO sis of the R

is in turn bonded to the Earth Ground (in shore installations) or to the RV Ground (chas-

V) or to the

Boat Ground (DC Negative Grounding Bus Bar and the Main AC Ground-

is bonded to the metal chassis of EVOTM by the

ing Bus Bar are tied together in a boat and this is called the “Boat Ground”), this current carrying conductor of the Inverter Section (connected to the output terminal) will become the Grounded Conductor (GC) or the Neutral of the Inverter Section.

• WheninChargingMode,theNeutralconductoroftheGridpower/Generatorwillbeconnected to the Output Neutral terminal of EVO Chassis Ground Bond Switching Relay” (K4 in Fig 4.1) will unbond (disconnect) the Output Neutral connector of EVO

from the metal chassis of EVOTM. This will ensure that the

. At the same time, the “Output Neutral to

Grounded Conductor (GC) i.e. the Neutral of the Grid power/Generator is bonded to the Earth Ground at one single point at the location of the AC Power Distribution System of the Marina/RV Park/Shore Power.

• Disabling Neutral to Ground Bond: In some applications, the Output Neutral of EVO may be required to remain isolated from the chassis/Ground at all times. For this, automatic Output Neutral to Ground bond can be disabled by disconnecting the Male/Female Quick Disconnect located in the AC wiring compartment. [Please see (i) 13, Fig 3.9 and (ii) "QD' in Figs 4.1]

Please read the following on-line White Papers for more details at www.samlexamerica.com (Home > Support > White Papers):

- “Neutral to Ground Switching in RV and Marine Applications”

4.5.2 Operation of Transfer Relay and Output Neutral to Chassis Ground

Bond Switching Relay

Refer to Schematic at Fig 4.1.

The Bi-directional Transformer is used as follows:

o Feeds AC output from the Inverter Section when Grid / Generator power is not available. o Feeds Grid / Generator power to the Battery Charger Section when Grid / Generator are

available.

Switching of Hot Output (OUTPUT LINE)

o 40A rated SPDT Relays K2 and K3 are used to switch the Hot Output Connector

(OUTPUT LINE) to either the Inverter Section or to Grid / Generator

o When Grid / Generator Power is available, relays K2 or K3 will be energized and contact

4 switches over to contact 5 (Grid has PRIORITY over Generator if both are present simultaneously). The Bidirectional Transformer works as a battery Charger. The Hot AC input from the Grid (GRID LINE) or from the Generator (GEN LINE) is fed to the Hot input

Bi-directional Transformer for battery charging and at the same time, it is passed

of the through to the Hot Out (OUTPUT LINE) for powering the AC loads

When Grid / Generator power fails, relays K2 / K3 will be de-energized and contact 4

switches back to contact 3. Output from the Inverter Section is fed to the

Bi-directional

Transformer and onwards to the Hot Out (OUTPUT LINE) for powering the AC loads

60 | SAMLEX AMERICA INC.

Page 61

NEUTRAL

LINE

GND

NEUTRAL

LINE

GND

NEUTRAL

LINE

GND

SECTION 4 | General Description & Principles of Operations

Switching of Bonding of Output Neutral to Chassis Ground

40A rated SPDT

(OUTPUT NEUTRAL) to the chassis of the unit

When Grid / Generator Power is available, r switches over to contact 5. Neutral input from the Grid (GRID NEUTRAL) or from the Generator (GEN NEUTRAL) is fed to the Neutral input of the Bi-directional Transformer for battery charging and at the same time, it is passed through to the Output Neutral (OUTPUT NEUTRAL) for powering the AC loads. Please note that in this condition, the Output Neutral (OUTPUT NEUTRAL) is isolated from the chassis of the unit

When Grid / Generator power fails, r back to contact 3. Neutral output from the Inverter Section is fed the Neutral of the

i-directional Transformer and onwards to the output Neutral (OUTPUT NEUTRAL) for

B powering the AC loads. At the same time, the output Neutral (OUTPUT NEUTRAL) gets bonded to the metal chassis of the unit through the mated contacts of the Insulated Quick Disconnect "QD" located in the AC Wiring Compartment (13, Fig 3.9)

INVERTING CHARGING

BI-DIRECTIONAL TRANSFORMER

Relay K4 is used to switch the bonding of the Output Neutral Connector

elay K4 will be energized and contact 4

elay K4 will be de-energized and contact 4 switches

NEUTRAL

LINE

METAL CHASSIS GROUND OF THE EVO

GRID

GEN

OUTPUT

GEN

OUTPUT

GRID

GEN

K2 Transfer Relay (40A) for Grid, Line

K3 Transfer Relay (40A) for Generator, Line

K4 Relay (40A) for Neutral to Ground bond Switching

4, 3 Normally Closed Contacts

4, 5 Normally Open Contacts

Quick Disconnect (13, Fig 3.9) for disconnecting Output Neutral to Chassis Ground bond in Inverting Mode (Default - connected)

NOTE: Relays are de-energized in Inverting Mode and are energized in Charging Mode

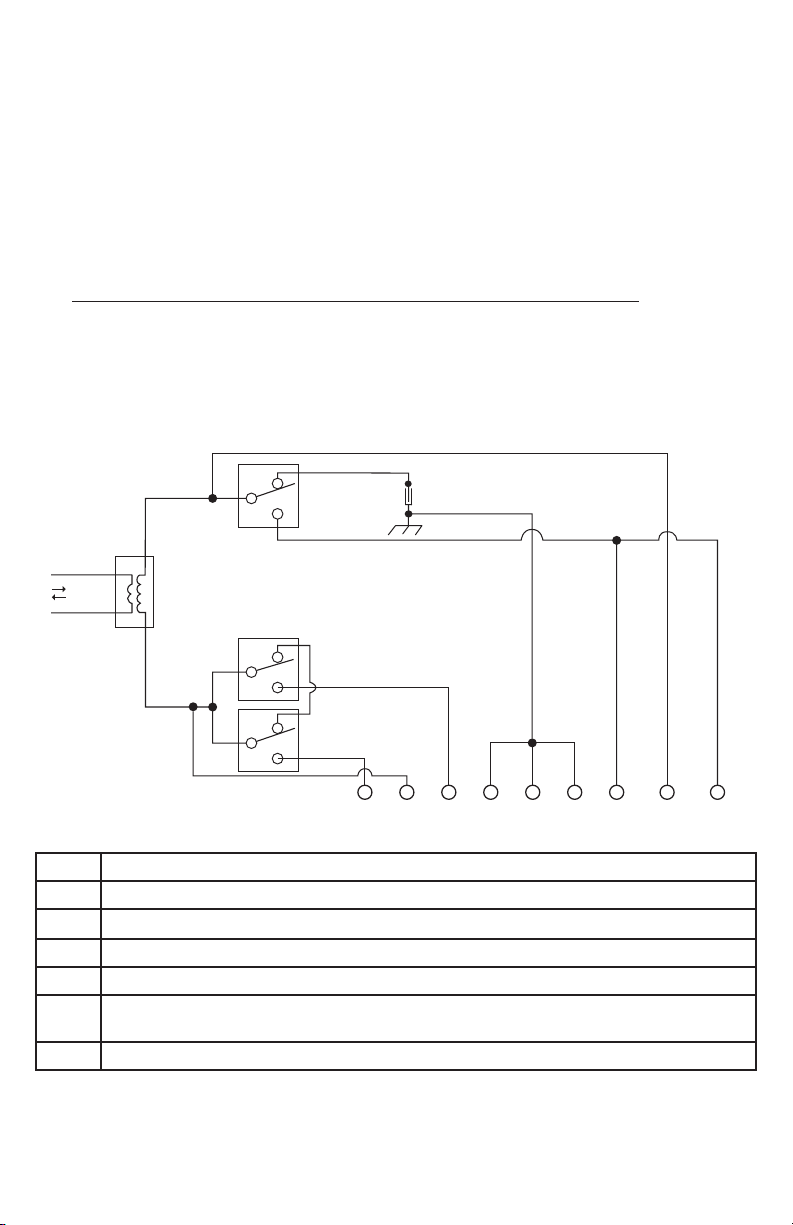

Fig 4.1 Operation of Transfer Relay and Neutral to Ground Bond Switching

OUTPUT

GRID

Page 62

SECTION 4 | General Description & Principles of Operations

4.5.3 Synchronized Transfer of Power

Direct AC input from Grid and Generator can be fed simultaneously to separate AC Input Circuits. Only one AC source is selected at one time. When both Grid and Generator are available simultaneously, Grid has priority. To facilitate synchronization, transfer of power from Grid to Generator or from Generator to Grid is always routed through the inverter.

4.5.4 Transfer From Inverter to Grid / Generator

When Grid / Generator becomes available, its voltage and frequency are checked if these are within the programmed limits. If yes, the output voltage of the Inverter Section is synchronized with Grid / Generator through Phase Locked Loop” (PLL). This synchronization process takes few seconds. Once synchronization is completed, the load is transferred instantly (within 1 ms) to Grid / Generator at Zero Crossing of the voltage waveform for seamless transfer and for better protection of Transfer Relay contacts. The unit now operates in “Charging Mode” with the AC power from the Grid / Generator charging the batteries as well as providing power to the AC loads.

4.5.5 Transfer From Grid / Generator to Inverter

When the unit is operating in “Charging Mode” with the AC power from the Grid / Generator charging the batteries as well as providing power to the AC loads, the phase and frequency of Grid / Generator are tracked continuously. In case Grid / Generator fails or is disconnected, the inverter will be forced into transfer at voltage which is at the same phase and frequency at which Grid / Generator had been disconnected. Load will be transferred to the inverter within 16ms at zero crossing. The unit will now work in “Inverting Mode” and the batteries will start discharging.

4.5.6 Transfer Between Grid and Generator

As discussed in “Transfer from Inverter to Grid/Generator” above, the EVOTM prioritizes the Grid over the Generator input. If the EVO the Grid input is restored, the EVO transfer back to the Grid input. Both operations are synchronized and the transfer is at the zero crossing for a seamless transfer.

is operating with the Generator input active and

will transfer the load to its Inverter Section, and then

4.6 BATTERY CHARGER SECTION

The Battery Charger Section of these units is a powerful, 3/4 Stage, fully automatic battery charging circuit. The same Isolation Transformer and the H-Bridge conguration are used to work in the reverse direction, ie. rectify the AC voltage from the Primary AC Power Source to PWM controlled low voltage DC to charge the DC Battery Source. That is why it is called a Bi-directional device. Normal 3-Stage Charging Mode consists of Bulk, Absorption and Float stages (Default). 4-Stage Equalization Mode consists of Bulk, Absorption, Equalization and Float. (The Equalization Mode is selectable). Equalization Mode is desirable for the proper health of Wet Cell Batteries. Further, the charging voltages and currents are programmable to take care of a wide range of battery types like ooded, AGM, Gel Cell, Lead Calcium, etc.

Important battery charging features are as follows:

• Adaptive Charging Control

• Dynamic Input Power Diversion Control

• Parallel charging through External Charge Controller

• Temperature compensated charging

62 | SAMLEX AMERICA INC.

Page 63

SECTION 4 | General Description & Principles of Operations

Please see details under Section 5 titled “Battery Charging in EvolutionTM Series”.

4.7 AUTO GENERATOR START / STOP

Auto Generator Start / Stop functionality has been provided using “Common” and Normally Open “NO” contacts of Status Relay (14, Fig 2.1). The relay is SPDT Type with contacts rated at 3A, 125 VAC / 30 VDC. Appropriate external Generator Auto Start / Stop Module will be required for using this function. 3 options (Functions 2, 3 and 4) are available for carrying out this function depending upon user requirements. Please refer to Sub-Section titled “Automatic starting and Stopping of Generator (Functions 2, 3 and 4)” at page 34 of EVOR

C Manual at Appendix A.

The “Common” and “NO” terminals are wired to the optional Generator Auto Start / Stop Control Module which, in turn, is wired to the Remote Start / Stop connections on the Generator. The AC output terminals of the Generator are wired to the Generator Input Terminals on the EVO / Fig 3.13 and Section 3.16 / Fig 3.14 in the EVO

It is r

ecommended that “GSCM-Mini” Series of Generator Start / Stop Control Module, appropriate for the generator to be used, may ordered directly from Atkinson Electronics www.atkinsonelectronics.com

(7, 8, 9 in Fig 2.3) For installation details, please refer to Section 3.15

Manual.

Based on the Generator Start Logic contained in of one of the selected Functions 2, 3 or 4 (explained at Sub-Section titled “Automatic starting and Stopping of Generator (Functions 2, 3 and 4)” at page 34 of EVO-RC Manual at Appendix A), the Status Relay will be switched ON (energized), its “Common” and “NO” contacts will close and the external Generator Start / Stop Control Module will initiate automatic starting of the Generator. Once the Generator has started and starts feeding AC output to EVO and frequency), the EVO

will be synchronized with the Generator and once synchronization

(within the programmed limits of voltage

is completed, the load will be transferred instantly (within 1 ms) to the Generator at Zero Crossing of the voltage waveform for seamless transfer and for better protection of Transfer Relay contacts. The EVO

will now operate in “Charging Mode” with the AC power from the

Generator charging the batteries as well as providing power to the AC load(s).

Based on the Generator Stop Logic contained in one of the selected Functions 2, 3 or 4 (explained at Sub-Section titled “Automatic starting and Stopping of Generator (Functions 2, 3 and 4)” at page 34 of EVO-RC Manual at Appendix A), the Status Relay will be switched OFF (deenergized), its “Common” and “NO” contacts will open and the external Generator Auto Start Control Control Module will initiate automatic stopping of the Generator. When AC output of the generator is shut down, the EVO

will automatically transfer the AC load(s) to the “Inverter

Section” within 16 ms.

Page 64

SECTION 4 | General Description & Principles of Operations

4.8 MODES OF OPERATION

4.8.1 Charging Mode

As long as the external AC input power from the Grid/Generator is available and is within the programmed limits of voltage and frequency, it is passed through to the AC load through the Transfer Relay Section. At the same time, the Battery Charger Section converts the external AC input power from the Grid/Generator to DC power to charge the DC Battery Source.

4.8.2 Inverting Mode

If at any instant, the external AC input power from the Grid/Generator is interrupted or is not within the programmed limits of voltage and frequency, the Transfer Relay is de-energized and the load is transferred to the Inverter Section and internal battery charging is terminated. This is called the Inverting Mode.

4.8.3 Power Saving Mode

When the unit is operating without any load connected to it, it requires some minimum input power from the battery to keep all the sections inside the unit alive and ready to deliver power to the AC load as soon as the load is switched on. This power is called the “No Load Power Draw” or the “Idle Power” or “Self Power Consumption”. The “No Load Power Draw” of these units in the Normal Mode is around 25W to 30W. The EVO if required (Applicable only when the unit is in “Inverter Mode”). This is achieved by enabling the “Power Saving Mode”. The unit is shipped in default “Disabled” condition i.e. Power Saving Mode will be NOT active. Optional Remote Control EVO-RC (see Appendix A) is required to disable this mode. When this mode is enabled, the unit does not provide continuous output power. A pulsing output power consisting of only 3 cycles of reduced 48 VAC output voltage that are made available every 0.5 seconds is used to sense if a minimum load is present or not. As continuous

power is not being supplied, the “No Load Power Draw” is reduced to less than 8W

load greater than the programmed value of “Wake-up Point” is sensed, the unit exits Power Save Mode and starts providing normal continuous output power. If the load drops to the programmed value of “Enter Point”, the unit once again reverts to Power Saving Mode. Programmable and Default Values of “Enter Point” and “Wake-up Point” are shown in Table 6.6. Further details are available in the Owners Manual for the Remote Control EVO-RC (See Appendix A).

Power Saving Mode should be disabled for the following loads:

 Low power loads that draw < 5W e.g. digital clocks, satellite r

machines etc.

 Audio / video / computing devices that consume normal operating power > 50 W but draw less than

5W on entering Sleep Mode when switched off or when no activity is seen for a specied time.

4.8.4 Power Saving Mode - Transfer Characteristics in Grid / Generator Mode

• Transfer from Grid / Generator to Inverter: If qualied Grid or Generator AC input

power is available (its voltage and frequency are within the programmed range), the Transfer Relay remains energized and the AC input power is passed through to the load and at the same time, the unit operates as a battery charger. If AC input power from Grid / Generator fails or is not qualied (its voltage and frequency are not within the programmed range), the Transfer Relay is de-energized and the load is transferred to the inverter. When this transfer takes place, the inverter initially operates in Normal Mode. If the AC load was greater than the programmed value of “Wake-up Point”, the inverter continues in Normal Mode. However, if it sees a load less than the programmed value of “Enter Point” for around 5 sec, it enters Power Saving Mode.

has a provision to minimize this “No Load Power Draw”,

If a

eceivers, phones / answering

64 | SAMLEX AMERICA INC.

Page 65

SECTION 4 | General Description & Principles of Operations

• Transfer from Inverter to Grid / Generator: As soon as qualied AC input power

from Grid / Generator is available, the inverter will exit Power Saving Mode and will switch over to Normal Mode. This switch over is necessary for synchronizing the AC output of the inverter with the AC input before transfer (Synchronization can not be carried out with pulsing wave form during Power Saving Mode). After synchronization is completed, the load is transferred to the Grid/Generator at zero crossing of the voltage waveform.

4.8.5 Ofine / Online UPS Modes

Description given below provides general capability of this function. For details of programming, please refer to sub-headings “ONLINE MODE” and "ONLINE OPTION" at Section 4.4 in the Owner’s Manual for Remote Control Model EVO-RC at Appendix A.

The EVO

is able to operate in two modes – Ofine Mode and Online Mode. Ofine Mode is

the Default Mode. Mode can be changed to Online Mode through optional Remote Control Model EVO-RC (Please see Section 4.4 in the attached Owner’s Manual for EVO-RC –

Appendix A).

Ofine Mode: This is the Default Mode. In this mode, the AC input from the Grid /

Generator is the PRIMARY source of AC power and the batteries / Inverter Section of EVO

is the BACK-UP source of DC-AC power. If qualied AC input (within the programmed voltage and frequency limits) is available at the Grid / Generator AC input, the Transfer Relay will be switched ON (energized), the EVO

will operate in “Charging Mode” and qualied AC input from the Grid / Generator will be passed through to the AC output and at the same time, the Internal AC Charger will start charging the battery. If an external charger is also connected to the External Charging Terminals (3 and 4, Fig 2.1), the internal AC Charger will limit the charging current to a value = (Programmed Value of Charging Current – Value of Current fed from the external charger). When the Grid / Generator AC input fails or, is not within the programmed values of voltage and frequency, the Transfer Relay will be switched OFF (de-energized), the unit will change over to “Inverting Mode” and the AC Output will be fed from the internal Inverter Section. When Grid / Generator input is restored, the unit will revert back to “Charging Mode” to charge the batteries and at the same time, pass through the AC input to the AC output.

nline Mode: In this mode, the Inverter Section of the EVO

is the PRIMARY DC-AC source

of power. The Grid / Generator is the BACK-UP source of AC power. Online Mode has 2

options of operation that can be programmed through optional Remote Control Model EVO-RC (Please see Section 4.4 in the attached Owner’s Manual for EVO-RC – Appendix A). In this mode, even if qualied Grid / Generator AC input is available (within

the programmed voltage and frequency limits), the EVO

always operates in “Inverting Mode” and AC output is provided by the Inverter Section as long as the battery is in charged condition above the specied programmed value of low battery voltage (This specied value of low battery voltage is selected through programmable parameter “LOW VOLT ALARM”). When the battery discharges to the programmed voltage threshold of “LOW VOLT ALARM”, or lower and remains at this threshold, or below for a sustained programmed time period, the Transfer Relay will be switched ON (energized) and the EVO

will change over to

“Charging Mode” [The sustained programmed time period is selected using parameter called

Page 66

SECTION 4 | General Description & Principles of Operations

“GS DETECT TIME” (0-600 sec; Default 10 sec)]. On changing over to “Charging Mode”, qualied AC input from the Grid / Generator is passed through to the AC Output and at the same time, the Internal AC Charger starts charging the battery. If an external charger is also connected to the External Charging Terminals (3 and 4, Fig 2.1), the internal AC Charger will limit the charging current to a value = (Programmed Value of Charging Current – Value of Current fed from the external charger). When the battery has been re-charged either fully through complete, 3-Stage Charging algorithm (Option 1) or, for a programmed specied time period (Option 2), the Transfer Relay will be switched OFF (de-energized), charging will stop and the unit will change over to “Inverting Mode”.

4.9 TEMPERATURE SENSOR FOR BATTERY CHARGING

Battery Temperature Sensor Model EVO-BCTS (Fig 2.5) has been provided to ensure optimum charging by modifying the charging voltages based on temperature if the battery sees very wide temperature swings. Temperature compensation can be programmed with the help of optional Remote Control EVO-RC (see Section 4.4 at Appendix A). Range is -3 to -4 mv/ °C/ cell (Default is -4 mv/ °C/cell). Without temperature compensation, the battery life is likely to be drastically reduced because the battery will be undercharged during cold conditions (will build up sulfation) or will be overcharged during hot conditions (will boil and lose excessive water). Please read White Paper titled “Batteries, Chargers & Alternators” available

online at www.samlexamerica.com (Home > Support > White Papers) and Section 5 titled “Battery Charging in EVO

4.10 PARALLEL OPERATION WITH EXTERNAL CHARGE CONTROLLER

The Battery Charger Section is able to operate in parallel with external charger with a charging capacity of up to 50 A. The output of the external charging source is routed through this unit and operates in parallel with the internal charger. The internal charging current is controlled to ensure that the combined current fed to the battery does not exceed the programmed Bulk Charging Current. This improves the life of the battery. Please see Section 5.4 for more details.

Series” for more details.

4.11.1 Cooling Fans

The unit is cooled by convection and by forced air cooling using 2 variable speed cooling fans. Temperature is sensed at the Power Transformer and H-Bridge Power Mosfets / Heat Sink. The fans will be switched ON at specied temperatures measured at the above sense points. The speed of the fans is increased as the temperature rises.

4.11.2 Over Temperature Protection

Refer to Fault Messages and Troubleshooting Guide at Table 7.1 of the attached Owner's Manual for R

emote Control EVO-RC at Appendix A. The unit goes to Fault Mode and shuts down due to over temperature sensed at the Main Power Transformer and the Heat Sink for the Power Mosfets: Fault messages and temperature thresholds for shut down and auto-reset are as follows:

• “Transformer over heat!” : Shut down at 150C and auto-reset at 80C

• “Heat sink over heat!” : Shut down at 70C and auto-reset at 40C

4.11.3 Automatic Reduction Of Charging Current In Higher Ambient Temperatures

In order to protect against over temperature shut down when operating in higher ambient temperatures of 50C to 60C, the charging current is automatically reduced as follows based on temperature sensed at the Power Transformer and at the Heat Sink for the Power Mosfets:

• Power Transformer: In cast the temperature is >130C, the charging current is reduced by

4A (EVO-2212E) / 20A (EVO-3012E) / 1A (EVO-2224E) / 5A (EVO-4024E) every 10 sec

66 | SAMLEX AMERICA INC.

Page 67

SECTION 4 | General Description & Principles of Operations

• Heat Sink: In cast the temperature is >65C, the charging current is reduced by 4A

(EVO-2212E) / 20A (EVO-3012E) / 1A (EVO-2224E) / 5A (EVO-4024E) every 10 sec

4.12 OPTIONAL REMOTE CONTROL EVO-RC FOR PROGRAMMING OF MODES

OF OPERATION AND PARAMETERS

Optional Remote Control Model EVO-RC [Fig 2.4(a)] will be required for more advanced control and monitoring. Please see separate Owner’s Manual for EVO-RC at Appendix A. The Remote Control comes with 10M / 33 ft., RJ-45 Data Cable. The Remote plugs into RJ-45 Jack on the front panel of the unit (7, Fig 2.1). It has provision for Data Logging using SD Card of up to 16

GB (F

T16 / FAT32). It also has its own Real Time Clock and Super Capacitor Type of Internal

Battery. The Remote Control will be required for Firmware upgrade through the SD Card.

Detailed messaging is available through its LCD display and LEDs. This remote will also be required for programming of various parameters to suit specic requirements. Each programmable parameter has a Default Value. This unit has been shipped with the various parameters set

at the Default Values. Programmable and Default values are shown in Tables 6.2 to 6.6.

INFO

For backgr

1.4, “General Information - Lead Acid Batteries”. All battery charging voltages are

specied at battery temperature of 25˚C / 77˚F.

ound information on batteries and charging process, please read Section

SECTION 5 | Battery Charging in Evolution Series

5.1 PRINCIPLE OF OPERATION OF BATTERY CHARGING SECTION

EVOTM Series is a Bi-directional Inverter / Charger with a Transfer Relay that operates either as an inverter OR as a battery charger. It uses a common Converter Section that can work in two directions – in one direction it converts external AC power to DC power to charge the batteries (Charging Mode) and in the other direction, it converts the DC power from the battery to AC power (Inverting Mode). PWM design is used for both the charging and inverting sections. Please note that it cannot work in both the directions at the same time (i.e. it cannot work as an inverter and as a charger at the same time). High performance, 100 MHz DSP (Digital Signal Processing) type of micro-controller and Pulse Width Modulated (PWM) conversion circuits are used for the above implementation.

When AC input power from Grid / Generator is available within the programmed limits of voltage and frequency, the internal Transfer Relay passes through the AC input to the AC loads and at the same time, the AC input is fed to the Battery Charger Section.

First, the AC input voltage is stepped down by the Low Frequency Isolation Transformer and is then rectied by 4 sets of H-Bridge Mosfets and fed to the batteries for charging. When charging starts, the current does not rise sharply, but ramps up slowly to the full programmed Bulk Charge curent.

Page 68

SECTION 5 | Battery Charging in Evolution

Series

The Battery Charger Section of the EVOTM is a powerful, 100 MHz DSP micro-controller based, 3 Stage or a 4 Stage Charger. Battery charging parameters are detailed at Table 6.2.

3 Stage Charging Algorithm (Default) is used for normal day to day charging. The 3 stages are – Bulk, Absorption and Float. The charging voltages and currents are programmable within the ranges given in Table 6.2 to take care of a wide range of battery types like ooded, AGM, Gel Cell, Lead Calcium etc. For details, see Section 5.6 and Charging Curves at Fig 6.2.

4 Stage Charging Algorithm is used in the Equalization Mode. Equalization Mode is selected using optional Remote Control EVO-RC (see Appendix A). This mode is used only for Flooded or Wet Cell batteries. The 4 stages will be - Bulk, Absorption, Equalization and Float. For details, see Section 6.2 and Charging Curves at Fig 5.2. Equalization Mode is desirable for the proper health of Wet Cell Batteries. Equalization voltage is programmable. Equalization current and Equalization time are computed automatically. Please see Table 6.2 for details.

5.2.1 Dynamic AC Input Current Diversion Control Between AC Pass Through

Current And Battery Charging Current

EVOTM Models have very powerful Battery Charger Section that will require very high AC input current from the Grid / Generator (See Table 5.1).

TABLE 5.1 CHARGING CURRENTS AND PASS THROUGH LOAD CURRENTS

Rated Charging

Current

Max. DC Side

Charging

Current

EVO-3012E 130A 12A 3000 VA 13A EVO-2212E 100A 9A 2200 VA 10A EVO-4024E 110A 18A 4000 VA 18A EVO-2224E 70A 10A 2200VA 10A

Equivalent AC Side Charging

Current

Maximum Pass Through

Load Power and Current

Pass Through

Power

Pass Through

Amps

When batteries are being charged at or near the maximum value of charging current (See TABLE

5.1) and the pass through load current increases, the Grid / Generator supply circuit breaker may trip if the combined value of the AC side charging current (equivalent to the DC side charging current) and the pass through load current exceeds the Grid / Generator supply circuit breaker capacity. This situation is prevented by “Dynamic AC Input Current Diversion Control between AC Pass through Current and Battery Charging Current”. This is accomplished through appropriate setting of programmable parameters “GRID MAX CURRENT” / “GEN MAX CURRENT”. Optional Remote Control Model EVO-RC will be required for the desired setting (Please refer to Section 4.5 and TABLE 4.5 of the attached EVO-RC Owner's Manual at Appendix A).

“GRID MAX CURRENT” / “GEN MAX CURRENT” (Default = 16A) should be set equal to the Ampere rating of the external Grid / Generator supply breakers. During Battery Charging Mode, if the AC pass through load current is increased resulting in the net AC input current increasing to a value more than the programmed “GRID MAX CURRENT” / “GEN MAX CURRENT”, the

EVO

will automatically reduce the charging current to ensure that the equivalent AC Side Charging Current + Pass Through Load Current is not more than the set value of “GRID MAX /GEN MAX CURRENT”.

68 | SAMLEX AMERICA INC.

Page 69

SECTION 5 | Battery Charging in Evolution

•

• AssumethattheACpassthroughloadis5A.TotalACinputcurrentwillbe14A(5AAC

•

• If

If the AC side charging curr through load current is still 1A more than the programmed value of the “GRID MAX CURRENT” / “GEN MAX CURRENT” for 5 sec, the EVO MODE and display “Input over current!”

XAMPLE:

AssumeEVO-2212EisbeingfedwithGridinputsupplycircuitbreakercapacityof16A.The

“GRID MAX CURRENT” setting = the Default value of 16A. The “Bulk Charging Current” has been programmed at 100A (DC). When charging at 100A (DC), the corresponding AC side current draw will be 9A (Based on Conversion Factor of 1A DC side charging current =

0.09A AC side charging current).

pass through load current + 9A AC side charging current corresponding to 100A DC side charging current) and will be below the set “GRID MAX CURRENT” of 16A.

now,theACpassthroughloadcurrentisincreasedto10A,thetotalACinputcurrentwill

If

be 19A (10A pass through load current + 9A AC side charging current corresponding to 100A DC side charging current). As the “GRID MAX CURRENT” is set at 16A, the AC input side charging current will be reduced from 9A to 6A (6A AC side charging current corresponds to

66.6A DC side charging current) so that the total AC input current is limited to 16A.

now,theACpassthroughloadcurrentisincreasedto18A,thetotalACinputcurrent

will be 24A (18A pass thr to 66.6A DC side charging current) . The AC side charging current will be reduced from 5A (corresponding to 66.6A DC side charging current) to 0A (corresponding to 0A DC side charging current). However, now the AC input current will be 18A. After 5 sec, the EVO will shut down due to FAULT MODE and display “Input over current!” (AC input current will be 1A more than the “GRID MAX” current setting of 16A for 5 sec).

ent has been automatically reduced to 0A and the pass

ough load current + 6A AC side charging current corresponding

Series

will shut down due to FAULT



5.2.2 Automatic Reduction Of Charging Current In Higher Ambient Temperatures

•

Power Transformer:

4A (EVO-2212E) / 20A (EVO-3012E) / 1A (EVO-2224E) / 5A (EVO-4024E) every 10 sec

•Heat Sink: In cast the temperature is >65C, the charging current is reduced by 4A

(EVO-2212E) / 20A (EVO-3012E) / 1A (EVO-2224E) / 5A (EVO-4024E) every 10 sec

In case the temperature is >130C, the charging current is reduced by

5.3 ADAPTIVE CHARGING CONTROL FOR COMPLETE CHARGING AND

PREVENTION OF OVER CHARGING / BOILING OF BATTERIES

An automatic Adaptive Charging Algorithm is used to ensure that the battery is completely charged in a safe manner for longer battery life. In this algorithm, the time the battery remains in Absorption and Equalization Stages is proportional to the time the battery remains in the Bulk Charge Stage. A battery that is deeply discharged will remain in Bulk Stage for a longer duration and will require longer time in the Absorption and Equalization Stages for complete charging. On the other hand, a battery that is almost completely charged will remain in the Bulk Stage for a shorter duration and consequently, will remain in Absorption and Equalization stages for a shorter duration. This will prevent overcharging / boiling of the battery.

Page 70

SECTION 5 | Battery Charging in Evolution

Series

Note: In other inverter chargers that execute Absorption and Equalization Stages for a xed time of 4 to 8 Hours, a nearly fully charged battery may overcharge / boil and hence, will reduce battery life.

5.4 PARALLEL CHARGING USING EXTERNAL CHARGER

The batteries feeding the EVOTM can also be charged using appropriately sized external charger. Output of the external charger is fed to the input terminals marked “EXT Charger” (3,4 in Fig

2.1). Maximum charging current on these terminals is to be limited to 50A. This limit

should not be exceeded!

The charging current received from the external charger is directly fed to the battery terminals (1,2 in Fig 2.1) through a series connected Hall-effect Current Sensing IC with integrated shunt. The value of this current is displayed under “BAT EXT” on the optional Remote Control EVO-RC (Please see display screen in Section 3, Fig 3.2 in the attached Owner’s Manual for EVO-RC: (i) Row – Screen No. 9; Column – Group 2 and (ii) Row – Screen No. 16; Column – Group 3)

The net Bulk Charging Current fed to the battery bank will, thus, be as follows:

• NetBulkChargingCurrentfedtothebatterybank=AdjustedBulkChargingCurrentfrom

the inter

Normally, Lead Acid batteries should not be charged at very high Bulk Charging Current as this will damage the batteries due to overheating and cell degradation. Normal Bulk Charging Current is in the range of 10% to 20% of the Ah capacity of the battery bank at C/20 Discharge Rate. Check with the battery manufacturer regarding recommended Bulk Charging Current for your battery bank. This value of “

URRENT” using the optional Remote Control EVO-RC (Refer to Section 4.4 and Table 4.4 in

C the attached Owner’s Manual for EVO-RC at Appendix A)

nal Battery Charging Section + Current available from the external charger

Bulk Charging Current” should be programmed as “BULK

The measured value of the charging current received from the external Solar Charge Controller is monitored by the control circuitry of the internal Battery Charging Section. The amount of Bulk Charging Current produced by the internal Battery Charging Section is adjusted in real time to satisfy the following condition:

•

nalBulkChargingCurrent=ProgrammedValueof“BULK CURRENT” – External

Inter

Charging Current

For example, if the “BULK CURRENT” in the EVO

is programmed at say 40A and the external charger is generating 15A, the internal Battery Charging Section will reduce its current from 40A to 25A so that the net charging current is equal to the programmed value of 40A

In other Inverter Chargers where this design feature is not available and the Bulk Charging Current of the internal Battery Charger Section is xed, the batteries are likely to be charged at high Bulk Charging Current = Fixed value of Bulk Charging Current from the internal Battery Charging Section + Current available from the external charger.

CAUTION!

Ensure that charging parameters like Absorption, Float and Equalization Voltages and Temperature Compensation of the external charger are set / programmed to match the programmed / default parameters of the internal Battery Charger Section of EVO

based on the battery bank being used (Please refer to (i) Section 6, Table 6.2 and (ii) Section 4.4, Table 4.4 of the Owner’s Manual for Remote Control EVO-RC at Appendix A).

70 | SAMLEX AMERICA INC.

Page 71

SECTION 5 | Battery Charging in Evolution

TTENTION

S'assurer que les paramètres de charge comme l'absorption, otter et tensions de péréquation et compensation de la température de la charge externe contrôleur sont set / programmé pour correspondre aux paramètres par défaut / programmée de la batterie interne de chargeur d'EVOTM basé sur la banque de la pile utilisée (reportez-vous à (i) La Section 6, tableau 6.2 et (ii) l'article 4.4, le tableau 4.4 du Manuel du propriétaire pour télécommande EVO-RC à l'annexe A).

Series

5.5 BATTERY TEMPERATURE SENSOR

A Battery Temperature Sensor Model EVO-BCTS has been provided [Fig 2.5(a)]. It comes with 5 m / 16.5 ft cable. Connect the ring terminal end (houses the sensor) on the battery Positive or Negative post [Fig 2.5(b)]. Connect the RJ-45 plug to the Temperature Sensor Jack (6, Fig.

2.1). The Temperature Sensor is used to ensure optimum charging by modifying the charging voltages based on temperature if the battery sees very wide temperature swings. In addition to compensating ABSORPTION, EQUALIZATION AND FLOAT VOLTAGES, the thresholds of “LOW VOLT ALARM”, “BATT LOW VOLTAGE” shut down, “RESET VOLTAGE” and “BATTERY OVER VOLT” are also temperature compensated. Temperature compensation will be carried out over a temperature range of –20°C to + 60°C. Table 6.2 shows the programmable range. Default settings for the temperature coefcient is -4mV/°C/Cell.

5.6 3 STAGE CHARGING MODE: BULK, ABSORPTION & FLOAT FOR

NORMAL CHARGING

Normal day to day charging is performed in a 3 Stage, Normal "CHARGE MODE"—BULK, ABSORPTION and FLOAT— to provide rapid and complete charge cycles without undue battery gassing. Please see Table 6.2 for details of programmable settings and Default Values. This 3 Stage Charging is the Default "CHARGE MODE" (Refer to parameter "CHARGE MODE" at Screen No. 12 of Table 4.4 of Owner's Manual for EVO-RC at Apendix A).

Fig. 5.1 shows the voltage and current charging curves with respect to time and different charging stages.

NOTE: With the optional Remote Control Model EVO-RC (see Owner's Manual at Appendix A), it is possible to program and activate 4 Stage Charging Mode including the 4th Equalization Stage. 4-Stage charging is required to be carried out only on ooded / wet cell batteries. This 4 Stage Charging Mode is discussed separately under “4 Stage Charging Mode in Equalization Mode” at Section 5.7.

5.6.1 Bulk Charge Stage

In the rst stage, known as the "BULK" Charge Stage, the charger delivers the maximum "BULK CURRENT" (“Io”) that has been programmed through the “Parameter Setting Menu” of the optional Remote Control Model EVO-RC. Range and Default value are shown at Table

6.2. This current is delivered to the batteries until the battery voltage approaches its Gassing Voltage i.e. Absorption Voltage (programmed as "ABSORP VOLTAGE"—typically around 14.4 volts for 12 volt batteries and 28.8 volts for 24 volt batteries (again, this voltage can vary based upon the desired values programmed through the “Parameter Setting Menu” of the optional Remote Control Model EVO-RC (see Appendix A). The Bulk Charge Stage restores about 75% of the battery’s charge. The Gassing Voltage is the voltage at which the electrolyte in the battery begins to break down into Hydrogen and Oxygen gases. Under normal circumstances, a battery should not be charged at a voltage above its Gassing Voltage (except in the manually selected Equalization Stage) since this will cause the battery to lose electrolyte and dry out over time.

Page 72

SECTION 5 | Battery Charging in Evolution

Series

This stage is displayed as "N-CC" in the Charging Mode screens in the Remote Control E

VO-RC (Please see Section 3.6.1 of the attached Owner's Manual for EVO-RC at Appendix A).

LEGEND

CURRENT (%) of Set Bulk

BULK

(Displayed as “N-CC”) (Displayed as “N-CV”) (Displayed as “Float”)

- 0.3V

Absorp

12 11 10

Charger Voltage, VDC

To T1 10 Days

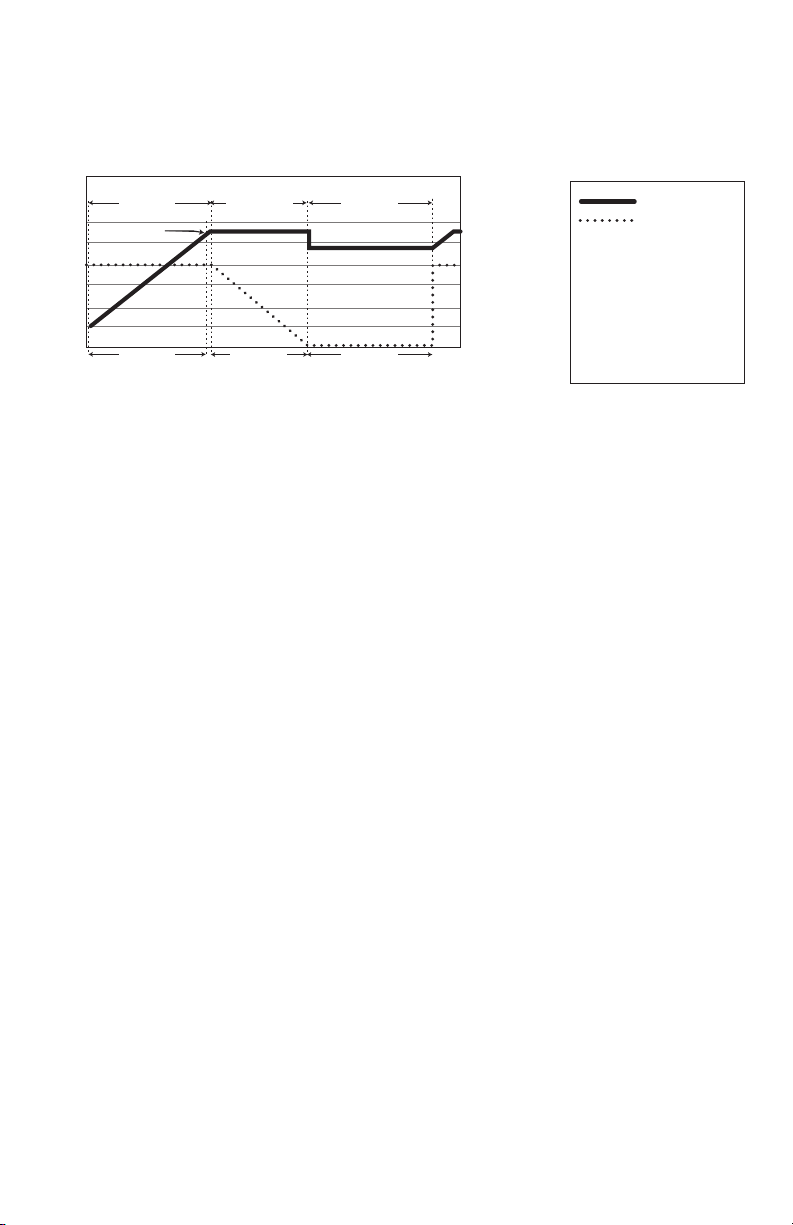

Fig 5.1 Charging Curve for Normal 3 Stage Charging

ABSORPTION

TIME

FL OAT

100%

60%

Charge Current “Io”

Note 1: The voltage curve shows the voltage output of charger. The intrinsic battery voltage may be dierent and will be proportional to the state of charge.

Note 2: The graph is for 12V version. For 24V version, double the voltages.

Voltage Curve Current Curve

The value of the "BULK CURRENT" (“Io”) depends upon the total Ampere Hour (Ah) capacity of the battery or bank of batteries. A battery should never be charged at very high charging current as very high rate of charging will not return the full 100 percent capacity as the Gassing Voltage rises with higher charging current. As a general Rule of Thumb, the Bulk Charging

Current “Io” should be limited to 10% to 20% of the Ah capacity of the battery (20 Hr R

ate). Higher charging current may be used if permitted by the battery manufacturer.

Programmable range and Default values of "BULK CURRENT" (“Io”) are shown in Table 6.2. The units are shipped with the "BULK CURRENT" set at the Default Value of 40A.

When the unit enters Charging Mode, it starts working as a battery charger and the charger will run at full programmed "BULK CURRENT" until the charger reaches the programmed Absorption Voltage.

As part of the Adaptive Charging Algorithm, a software timer will measure the time taken from the instant the unit enters the Bulk Charging Mode until the instant the battery voltage reaches

0.3V below the programmed Absorption Voltage, then registers this time as Bulk Charge Time To and computes the Absorption Time T1 as 10 times the Bulk Charge Time To in the internal “T1 Timer” i.e. T1 = To x 10. The “T1 Timer” is used to determine the time the charging will take place in the next Absorption Stage.

5.6.1.1 Automatic Adjustments of Internal AC Charger Current when External

Charger is also Charging in Parallel

Please note that if an external charger is also used to charge the batteries at the same time in parallel with the internal AC charger of the unit [through input terminals marked EXT.charger (3,4 in Fig 2.1)], the charging current of the internal AC charger will be controlled so that the total charging current of the external charger and the internal charger is = the programmed "BULK CURRENT (“Io”).

For example, if the programmed "BULK CURRENT (“Io”) is say 40A and the charging current of the external charger is 30A, the internal AC charger will output only 10A (Programmed setting of 40A – external charging current of 30A = 10A). Similarly, if the programmed setting is say 30A and the external charger is 50A, the internal AC charger will NOT provide any charging.

Please refer to Section 5.4 for more details.

72 | SAMLEX AMERICA INC.

Page 73

SECTION 5 | Battery Charging in Evolution

Series

5.6.2 Absorption Stage

During the Absorption Stage, the charging voltage is held constant near the Gassing / Absorption Voltage to ensure that the battery is further charged to the full capacity without overcharging. The Absorption Stage restores the remaining 25% of the battery’s charge. The time the charger remains in the Absorption Stage is proportional to the depth of discharge of the battery. When the battery is more discharged, it will take longer time in the Bulk Charge Stage to reach the Gassing / Absorption Voltage. As a part of the Adaptive Charging Algorithm, the “T1 Timer” (explained above) computes the time the charging takes place in this stage.

 Absorption Time T1 = Bulk Charge Time To x 10 (To = Time from entering Bulk

Charge Stage till battery voltage rises to 0.3V below Absorption Voltage).  The “T1 Timer” has minimum time of 1 hour and a maximum time of 12 hours.  When the T1 Timer runs out, the charger will enter the next Float Stage.  Pr

ogrammable range and Default values of Absorption Voltage are shown in Table 6.2.

his stage is displayed as "N-CV" in the Charging Mode screens in the Remote Control

T EVO-RC (Please see Section 3.6.1 of Owner's Manual for EVO-RC at Appendix A).

5.6.3 Float Stage

loat Stage is a maintenance stage in which the output voltage is reduced to a lower level, typically about 13.5 volts, (27 volts for 24V models) to maintain the battery’s charge without losing electrolyte through gassing and also prevent corrosion of Positive plate by maintaining proper Positive plate Polarization Voltage. Programmable range value of "FLOATING VOLTAGE" are shown in Table 6.2.

his stage is displayed as "Float" in the Charging Mode screens in the Remote Control

T EVO-RC (Please see Section 3.6.1 of Owner's Manual for EVO-RC at Appendix A).

5.6.4 Automatic Resetting of Charging Cycle in 3 Stage Charging Prole

The charging cycle will be reset to the Bulk Stage as follows:

If the AC input from the Grid/Generator is disconnected and is reconnected or the battery

voltage drops below 12 VDC / 24 VDC (Default). Programmable range for this voltage is 10 to 13V for 12V battery and 20 to 26V for 24V battery (This parameter is called "FLOATING EXIT". See Table 6.2 and Table 4.4 of Section 4.4 of Owner's Manual for EVO-RC at Appendix A).

- If the charger remains in the Float Mode for 10 days.

5.7 4 STAGE CHARGING IN EQUALIZATION MODE

CAUTION!

Equalization Mode should be performed only on vented, ooded (non-sealed or “wet”) batteries and not on the sealed AGM / Gel Cell batteries and only as often as recommended by the battery manufacturer.

ATTENTION!

La mode d’égalisation devrait être faite sur des batteries ventillées, inondées (batteries non-scellées ou «mouillées») et pas sur des batteries scellées (AGM) ou cellulles gelées et, aussi souvent que les recommandations du fabricant.

4 Stage Battery Charging Cycle is used in the Equalization Mode. Equalization Mode is selected using optional Remote Control EVO-RC [Refer to parameter "CHARGE MODE" at Screen No.12 of Table 4.4 of Owner's Manual at Appendix A. The "CHARGE MODE" is required to be set at

Page 74

SECTION 5 | Battery Charging in Evolution

Series

1 = Equalize (4-stage)]. Equalization of the batteries is carried out periodically - normally once per month for battery under heavy duty service and every two to four months for battery under light duty service. As equalization is a deliberate overcharge of the battery for a specied time period, equalizing your ooded / wet cell batteries will reduce sulfation, stir up the electrolyte to remove stratication, equalize voltages of individual cells and thus, help reach and maintain the peak capacity of the battery.

Please read about the necessity and details of equalizing batteries under White Paper titled “Batteries, Chargers and Alternators,” available online at www.samlexamerica. com (Home > Support > White Papers).

The 4 stages of the cycle will be - Bulk, Absorption, Equalization, and Float. Equalization Mode is desirable for the proper health of Wet Cell Batteries. "EQUALIZE VOLTAGE" is programmable through the optional Remote Control Model EVO-RC (see Screen No.3 in Table 4.4 of Owner's Manual for EVO-RC at Appendix A). Programmable voltage range and default values are shown in Table 6.2.

Equalization current and Equalization time are computed automatically. (See Section 5.8)

ig 5.2 shows the voltage and current curves during the 4 stages of charging in this mode. When Equalization is selected (requires optional Remote Control Model EVO-RC (see Appendix A), the charger will rst execute Bulk Stage followed by Absorption Stage. On completion of Absorption Stage, the charger will execute Equalization Stage. After completion of Equalization Stage, the charger will enter Float Stage. The stage transitions will thus be: Bulk Stage (Constant Current)  Absorption stage (Constant Voltage)  Equalization Stage (Constant Voltage)  Float Stage (Constant Voltage).

As part of the Adaptive Charging Algorithm, the charging prole in the Equalization Stage is based on the time

To which is the time the charger remains in the initial Bulk Stage. The

charger will remain in the initial Bulk Stage for a longer duration when the battery is deeply discharged and for a shorter duration if the battery has a shallow discharge.

LEGEND

Voltage Curve Current Curve

Note 1: The voltage curve shows the voltage output of charger. The intrinsic battery voltage may be dierent and will be proportional to the state of charge. Note 2: The graph is for 12V version. For 24V version, double the voltages.

VDC

Fig 5.2 Charging Curve for 4 Stage Charging in Equalization Mode

74 | SAMLEX AMERICA INC.

BULK ABSORPTION EQUALIZATION FLO AT

(Displayed as “E-CC”) (Displayed

- 0.3V

Absorp

To T1’

as “E-CVA”)

TIME

(Displayed as “Float”)

(Displayed

as “E-CVE”)

Set value of Equalization Voltage

I2 = 0.5 x lo

10 Days

100

Bulk Charge Current Io

CURRENT (%) of Set

Page 75

SECTION 5 | Battery Charging in Evolution

CAUTION!

Series

For effective equalization to take place, it is desirable that the batteries undergo a longer Bulk Stage applicable to the deeply discharged condition of the battery.

 Please ensur

e that before the batteries are equalized, they should be deeply discharged to 20% of its capacity. The Standing Voltage (Terminal Voltage after disconnecting charging source[s] and load[s] for at least 3 hours) at 20% capacity will be:

Battery: Around 11.7V

12V

o 24V Battery: Around 23.4V

 Do not equalize partially or fully charged batteries

ATTENTION!

Pour une égalisation efcace, il faut que les batteries subissent à une étape majeure plus long en fonction de la condition déchargée de la batterie.

euillez assurer que les batteries sont profondément déchargées (à 20% de sa capacité), avant de les

 V

égaliser. La tension constante (la tension de la borne après avoir déconnecter toutes sources de charge pour un minimum de 3 heures) quand elles sont déchargées à à 20% de sa capacité, serait:

Une batterie de 12V

o Une batterie de 24V: Environ 23,4V

 N’égalisez pas des batteries qui sont partiellement ou complètement chargées

: Environ 11,7V

5.8 DETAILS OF EQUALIZTION MODE CHARGING CYCLE (Fig 5.2)

 During the Bulk Stage, the charger will charge at the programmed "BULK CURRENT"

(“Io“) (see programmable range at Table 6.2. Default value is 40A). "BULK CURRENT" (“Io”) is normally limited to 10%-20% of the Ah capacity of the battery (20Hr Rate). Higher current may be used if permitted by the battery manufacturer in Equalization Mode. The Bulk Stage is displayed as "E-CC" in the Charging Mode screens of the

optional Remote Control EVO-RC (Please refer to Section 3.6.1 of Owner's Manual for EVO-RC at Appendix A).

 A Software Timer is used to measure the time taken from the time the unit transfers to the

Utility / Generator Mode / enters Bulk Stage until the battery charger reaches 0.3V below the Absorption Voltage, then registered this time as time To. The following times are computed based on the time To:

 Absorption T

 Equalization Time T2 is then computed based on the following logic:

T2 = T1’ + 1 hr = 0.5 T T2 = T1’ + 2 hrs = 0.5 To + 2 hrs ; if 2 < T1’ < 4 hrs T2 = T1’ + 4 hrs = 0.5 To + 4 hrs ; if T1’ > 4 hrs

 When the battery r

range and defaults at Table 6.2), it transitions to the Absorption Stage and remains in this stage for the computed time T1’. This stage is displayed as "E-CVA" in the Charging

Mode screens in Remote Control EVO-RC (Please refer to Section 3.6.1 of Owner's Manual for EVO-RC at Appendix A).

ime T1’ = To x 0.5

o + 1 hr ; if T1’ < 2 hrs

eaches the programmed Absorption Voltage (see programmable

Page 76

SECTION 5 | Battery Charging in Evolution

Series

 At the end of Absorption Stage, it transitions to the programmed "EQUALIZE VOLT-

AGE" (see programmable range and defaults at Table 6.2). It remains in this stage for the computed time T2. This stage is displayed as"E-CVE" in the Charging Mode screens

in Remote Control EVO-RC (Please refer to Section 3.6.1 of Owner's Manual for EVO-RC at Appendix A).

” is normally 5% to 10% of the Ah capacity of the battery.

 The equalization curr

ent “I

This current is indirectly computed from the programmed "BULK CURRENT" ("Io"). As

recommended under the S

URRENT" (“Io”) is expected to be set at 10% to 20% of the Ah capacity of the battery.

Hence, the Equalization current “I

etting Mode for the

” will be automatically computed at 50% of the set "BULK

Bulk Charge Current, the "BULK

CURRENT" (“Io”) which will effectively amount to 5% to 10% of the Ah capacity of the battery.

or example, the Equalization Current “I

” for a 200 Ah capacity battery will be 10 A - 20A. The

"BULK CURRENT" (“Io”) for a 200 Ah capacity at 10% - 20% will be set at 20 A - 40A. The rmware will compute the Equalization Current “I

” at 50% of 20 A (i.e. 10A) or at 50% of 40A

(i.e. 20A).

 At the end of Equalization Stage, the charger transitions to the pr

ogrammed "FLOAT

VOLTAGE" (see programmable range and defaults at Table 6.2). This stage is displayed

as"Float" in the Charging Mode screens in Remote Control EVO-RC (Please refer to Section 3.6.1 of Owner's Manual for EVO-RC at Appendix A).

Automatic Resetting of Charging Cycle

The charging cycle will be reset to the Bulk Stage of 3 Stage Charging Prole as follows:

- If the AC is reconnected or the battery voltage drops below 12 VDC / 24 VDC (Default). Programmable range for this voltage is 10 to 13V for 12V battery and 20 to 26V for 24V battery. (This parameter is called "FLOATING EXIT". Please see Table 6.2 and Table 4.4 of Section 4.4 of Owner's Manual for EVO-RC at Appendix A)

If the charger r

emains in the Float Mode for 10 days.

5.9 SWITCHING ON AND SWITCHING OFF OF EQUALIZATION MODE

(4 STAGE CHARGING)

The unit comes preset for charging in Normal "CHARGE MODE" (3 Stage Charging Prole). "EQUALIZE MODE" (4 Stage Charging Prole) is required to be selected manually as follows:

Using ON/OFF Push Button on the Front Panel: When the unit is in Charging Mode (qualied Grid / Generator Input is available), the Green LED “Status” will be ashing once per second. Press the ON/OFF Button for 1 second. The ongoing Normal "CHARGE MODE" will be terminated and Equalize "CHARGE MODE" will be initiated. The Green “Status” LED will start ashing 2 times per sec to show that Equalize "CHARGE MODE" is active. The unit will complete Equalization Cycle and terminate in Float Stage. At the same time, the "CHARGE MODE" Setting will again reset to Normal Mode and the Green LED “Status” will return to 1 ash per second. To terminate Equalization Mode prematurely before its completion, press the ON/OFF Push Button for 1 second.

If the unit was in Inverting Mode (Green LED “Status” steady) and the Mode is set to Equalization as above by pressing the ON/OFF Push Button for 1 second, the unit will undergo Equalization Mode whenever qualied AC input is available from Grid / Generator and the unit enters Charging Mode. To terminate Equalization Mode prematurely before its completion, press the ON/OFF Push Button for 1 second.

76 | SAMLEX AMERICA INC.

Page 77

SECTION 5 | Battery Charging in Evolution

Series

NOTE: Procedure described above is to be used when the optional Remote

Control EVO-RC has NOT been plugged into the RJ-45 Remote Control Jack. Please note if the Remote Control has been plugged into the RJ45 Jack, the above procedure cannot be activated and the ON/OFF of Equalization Mode will be controlled by the Remote Control EVO-RC.

Using Optional Remote Control EVO-RC: Please refer to the attached Owner's Manual for EVO-RC at Appendix A.

SECTION 6 | Operation, Protections and Troubleshooting

BEFORE OPERATING THE UNIT, PLEASE ENSURE THAT THE UNIT HAS BEEN INSTALLED PROPERLY AS PER INSTRUCTIONS AT SECTION 3 OF THIS MANUAL.

PLEASE ENSURE THAT ALL SAFETY INSTRUCTIONS AT SECTION 1 OF THIS MANUAL ARE READ AND UNDERSTOOD BEFORE OPERATING THE UNIT.

INFO

a) Minimum battery voltage required for initiating manual switching ON of the unit is as follows:

• 12V units ----- Higher than 9V

• 24V units ---- Higher than 18V

b) Please note that this unit is designed to POWER ON AUTOMATICALLY if (i) AC voltage

of 140 ± 10 VAC is available at the Grid / Generator Input and (ii) DC input voltage is > 12 VDC for EVO-3012E / 2212E and > 24 VDC for EVO-4024E / 2224E. If the AC input voltage and frequency are within the programmed limits, the unit will automatically operate in “Charging Mode”. If the AC input voltage and frequency are not within the programmed limits, the unit will operate in “Discharging / Inverter Mode”. Further, as long as AC input voltage 140 ± 10 VAC is present, the unit CANNOT BE POWERED OFF using the ON / OFF Button on the front panel of the unit or on the optional Remote Control EVO-RC (see Appendix A). Switch OFF the AC input rst if the unit is required to be powered off. However, if the unit is in “Fault Mode”, it will be possible to power OFF the unit with the help of the ON/OFF Push Button

c) Before proceeding, conrm that the unit is NOT in Standby Mode by pressing ON/

OFF Button briey. (Standby Mode is used for Firmware upload through the optional Remote Control EVO-RC (see Appendix A))

o If LED marked “ON” (12, Fig 2.1) stays OFF, then unit is OFF.

o If this LED is ON or is ashing, the unit was in Standby Mode and is now ON

6.1 POWERING ON USING ON/OFF BUTTON ON THE FRONT PANEL

(11, Fig 2.1)

6.1.1 Powering ON

To power ON the unit, press and hold the ON/OFF Button (11, Fig 2.1) for 2 seconds.

 Green LED marked “ON” (12, Fig 2.1) will ash 3 times, will go off momentarily and will

then be steady Green. Now, release the ON/OFF Button. Subsequently, the lighting pattern of this LED will be controlled by various operating conditions given in Table 6.1.

Page 78

SECTION 6 | Operation, Protections and Troubleshooting

6.1.2 Powering OFF

To power OFF the unit, press and hold the ON/OFF Button (11, Fig 2.1) for 5 seconds.

ait for the Green LED marked “ON” (12, Fig 2.1) and Red LED marked

 W

“F

T” (13, Fig 2.1) to light steady and then release the ON/OFF Button. The

AUL

unit will power OFF after the ON/OFF Button is released. (NOTE: Power OFF will not take place unless the Power ON/OFF Button is released)

 NOTE

6.2 POWERING ON / OFF BY FEEDING EXTERNAL +12V CONTROL

SIGNAL TO TERMINALS MARKED “REMOTE ON/OFF” ON THE FRONT PANEL (15, FIG 2.1)

Programming option is available through the Parameter Setting Menu (Parameter is called "REMOTE SWITCH") of the optional Remote Control Model No. EVO-RC (Please see Section

4.8 of Appendix A) for 2 types of external +12V control signal fed through Remote ON/OFF

Terminal (15, Fig 2.1). Details of these options are given below:

6.2.1 Button Type (Default)

This type of logic is applicable when the +12V Control Signal is fed through a series connected Push Button contact. Control logic used is as follows:

• When the unit is in OFF condition, a momentary contact of the Push Button > 2 seconds will turn the unit ON.

• When the unit is in ON condition, pressing of the Push Button < 5 seconds will have no effect and the unit will continue to remain in ON condition.

• When the unit is in ON condition, pressing the Push Button > 5 seconds will turn the unit OFF

6.2.2 Switch Type

This type of logic is applicable when the +12V Control Signal is fed through a series connected external manual Switch or through an external relay contact. Logic used is as follows:

• When the unit is in OFF condition, toggling the external manual switch to ON position or closing the external relay contact will immediately turn the unit ON.

• When the unit is in ON condition, toggling the external manual switch to OFF position for 2 seconds or opening the relay contact for 2 sec will turn the unit OFF.

CAUTION: When “Switch Type” of ON/OFF control described above is selected, the ON/OFF Button on the front panel of the unit (12, Fig 2.1) should NOT be used to turn ON or turn OFF the unit. The front panel ON/OFF Push Button will now follow the above “Switch Type” control logic wherein the unit will remain ON only as long as the Button is kept pressed and will turn OFF in 2 seconds after it is released.

: As explained under paragraph (b) of “Info” at page 77, as long as AC input voltage > POWERED OFF using the ON/OFF Button on the front panel of the unit or on the optional Remote Control EVO-RC (see Appendix A). In order to power off using the Power ON/Off Button, switch OFF the AC input rst. Further, if the unit is in “Fault Mode”, it will be possible to power OFF the unit with the ON/OFF Push Button.

140 ± 10 VAC is present, the unit CANNOT BE

78 | SAMLEX AMERICA INC.

Page 79

SECTION 6 | Operation, Protections and Troubleshooting

6.3 OPERATIONAL INFORMATION THROUGH LEDS AND BUZZER

Table 6.1 shows the operational states of the unit indicated by the following LEDs on the front panel of the unit and Buzzer:

o Green LED marked “ON” (12, Fig 2.1) o Red LED marked “Fault” (13, Fig 2.1)

Optional Remote Control Model EVO-RC (see Appendix A) will be required for more detailed messaging that is available through its LCD display and LEDs. This remote will also be required for programming of various parameters to suit specic requirements.

TABLE 6.1 LED AND BUZZER INDICATIONS

Green LED

Status

Seen during Power-On Sequence

Indicates completion of Power-On Sequence after Power ON/OFF Button is pressed for 2 sec

Seen during Power-Off Sequence

Indicates completion of Power-Off Sequence after Power ON/OFF Button is pressed for 5 sec

Normal charging F

Equalization charging Flash 2 times per

Inverting (Discharging) On Off B

Low battery alarm On Flash 1 per sec Beep per 1 second

Power saving Flash 1 time per

Standby (See CAUTION! at page 85)

Fault Off On On

marked “ON”

(12, Fig 2.1)

lash 3 times Off Off

On On Off

lash 1 time per sec Off Off

sec

3 sec

Off Off Off

Red LED

marked

“Fault” (13, Fig

2.1)

Off Off

Buzzer

(Default Off)

eep per 3 second

Page 80

SECTION 6 | Operation, Protections and Troubleshooting

6.4 OPTIONAL REMOTE CONTROL EVO-RC (see Appendix A) FOR PROGRAMMING OF MODES OF OPERA

Optional Remote Control Model EVO-RC (Fig 2.4) will be required for more advanced control and monitoring. Please see separate Owner’s Manual for EVO-RC at Appendix A. The Remote Control comes with 10M / 33 ft., RJ-45 Data Cable. The Remote plugs into RJ-45 Jack on the front panel of the unit (7, Fig 2.1). It has provision for Data Logging using SD Card of up to 16 GB (F Battery.

6.2 to 6.6:

“BULK CURRENT”

(Bulk Charge Current “Io”)

“ABSORP VOLTAGE”

(Absorption Voltage)

“EQUALIZE VOLTAGE”

(Equalization Voltage)

“FLOATING VOLTAGE"

Float Voltage)

(

“COMPENSA

(Temperature Compensation)

“LOW VOL

(Battery Low Voltage Alarm)

“BA

(Battery Low Voltage Shut Down)

“LV DETECT TIME”

(Low Voltage Detect Time)

“LV C

(Low Voltage Cut Off Time)

“

RESET VOLTAGE”

Battery Low Voltage Reset)

(

“

BATT OVER VOLT”

(Battery Over Voltage Shut Down)

HARGE MODE”

“C

( 3 or 4 Stage Charging)

ONLINE MODE" or

" "OFFLINE MODE"

T16 / FAT32). It also has its own Real Time Clock and Super Capacitor Type of

TABLE 6.2 PROGRAMMABLE AND DEFAULT PARAMETERS: GROUP CHARGING CURVE

ogramming Range

(Programming requires optional

Parameter

”

ALARM”

LOW VOLTAGE”

UT OFF TIME”

Remote Control Model EVO-RC)

EVO-

2212E

0-100A 0-130A 0-70A 0-110A 40A

Normal (3-Stage) / Equalization (4-Stage) Normal (3-Stage)

EVO-

3012E

13.5V - 16.0V 27.0V - 32.0V 14.4V 28.8V

14.0V - 16.0V 28.0V - 32.0V 14.4V 28.8V

13.0V - 15.0V 26.0V - 30.0V 13.5V 27.0V

-3mV to -5mV /°C/Cell -4mV /°C/Cell

9.5V - 12.5V 19.0V - 25.0V 11.0V 22.0V

9.1V - 12.0V 18.1V - 24.0V 10.5V 21.0V

12.0V - 17.0V 24.0V - 35.0V 14.0V 28.0V

14.0V - 17.0V 28.0V - 35.0V 16.0V 32.0V

0 = Off 1 = On 0 = Off

EVO-

2224E

0-600 sec 10 sec

0-7200 sec 1200 sec

AND PARAMETERS

TION

EVO-

4024E

EVO-

2212E

EVO-

3012E

Default

EVO-

2224E

EVO-

4024E

80 | SAMLEX AMERICA INC.

Page 81

SECTION 6 | Operation, Protections and Troubleshooting

TABLE 6.2 PROGRAMMABLE AND DEFAULT PARAMETERS: GROUP CHARGING CURVE (Continued)

Programming Range

(Programming requires optional

emote Control Model EVO-RC)

Parameter

ONLINE OPTIONS"

" (For On-Line and Off Line Modes)

"FLOA

"GS DETECT TIME" 0 - 600 sec 10 sec

"GEN ON TIME" 0 - 240 min 60 min

"GEN OFF TIME" 0 - 240 min 60 min

SETTING

EXIT" 10.00V to 13.00V 20.00V to 26.00V 12.00V 24.00V

TING

TABLE 6.3 PROGRAMMABLE AND DEFAULT PARAMETERS - GROUP "INPUT SETTING"

Group

INPUT

Parameter

name

EFAULT FREQ

GRID MAX CURRENT

GEN MAX CURRENT

HIGH CUT OFF 50 – 70Hz 55Hz

RESET

HIGH

LOW CUT OFF 40 – 60Hz 45Hz

LOW RESET 40 – 60Hz 46Hz

VO-

2212E

EVO-

3012E

Programming Range Default value

VO-

2212E

5 – 20A 5 – 25A 5 – 20A 5 – 35A 16A

EVO-

2224E

0 = Option 1 1 = Option 2

EVO-

3012E

0 = 50Hz 1 = 60Hz

50 – 70Hz 54Hz

EVO-

2224E

EVO-

4024E

EVO-

4024E

EVO-

2212E

EVO-

2212E

Default

EVO-

3012E

0 = Option 1

EVO-

3012E

0 = 50Hz

EVO-

2224E

EVO-

2224E

EVO-

4024E

EVO-

4024E

TABLE 6.4 PROGRAMMABLE AND DEFAULT PARAMETERS - GROUP "INPUT LOW LIMIT"

Group Parameter name

RESET VOLTAGE 140.0 – 200.0V 190.0V

CUT OFF POINT 1 140.0 – 200.0V 180.0V

INPUT -

LOW LIMIT

DETECT TIME 1 0 – 2000 cycle 300 cycle

CUT OFF POINT 2 140.0 – 200.0V 170.0V

DETECT TIME 2 0 – 2000 cycle 60 cycle

CUT OFF POINT 3 140.0 – 200.0V 160.0V

DETECT TIME 3 0 – 2000 cycle 1 cycle

Setting range Default value

EVO-

2212E

3012E

2224E

EVO-

4024E

EVO-

2212E

EVO-

3012E

EVO-

2224E

EVO-

4024E

Page 82

SECTION 6 | Operation, Protections and Troubleshooting

TABLE 6.5 PROGRAMMABLE AND DEFAULT PARAMETERS - GROUP "INPUT HIGH LIMIT"

Setting range Default value

Group Parameter name

RESET VOLTAGE 200.0 – 280.0V 260.0V

CUT OFF POINT 1 200.0 – 280.0V 265.0V

INPUT -

HIGH LIMIT

Parameter name

OWER SAVING” 1 = Enable 0 = Disable 0 = Disable

“P

 “

 “WAKE UP POINT” 5 – 50W 7W 10W 7W 10W

“REMOTE SWITCH”

 For ON /OFF control

through external 12V signal fed to Remote ON / O the Front Panel (15,

ig 2.1)

“RELA (for Status Relay)

DETECT TIME 1 0 – 2000 cycle 300 cycle

CUT OFF POINT 2 200.0 – 280.0V 270.0V

DETECT TIME 2 0 – 2000 cycle 60 cycle

CUT OFF POINT 3 200.0 – 280.0V 275.0V

DETECT TIME 3 0 – 2000 cycle 1 cycle

TABLE 6.6 PROGRAMMABLE AND DEFAULT PARAMETERS - GROUP "OTHER FUNCTIONS"

VO-

2212E

ENTER POINT” 4 – 50W 6W 8W 6W 8W

0 = Button T

through Push Button Type of Switch

FF terminals on

1 = Switch Type:

through contacts of Toggle Type of Switch or relay contact

FUNCTION”

0 = Charge / Other

1 = Normal / Fault

2 = Generator 0

VO-

EVO-

2212E

3012E

Setting range Default Value

EVO-

3012E

: 12V signal is fed

ype

essing of Push Button > 2 sec

 Pr

will switch the unit ON

 When ON, pr

> 5 sec will turn the unit OFF

 ON condition (contacts closed)

will tur

FF condition (contacts open)

 O

for 2 sec will switch the unit OFF

FF in "Charging" Mode

 O  ON in other Modes i.e. "Inverting",

"Power Saving" or "Standby"

 OFF in normal operating conditions  ON in Fault Modes

 ON when batteries dr

VOLT ALARM" or lower for period = "GS DETECT TIME" - Initiates Generator start

 OFF after batteries are completely

charged till Generator stop

essing Push Button

12V signal is fed

n the unit ON

Float Stage - initiates

EVO-

2224E

EVO-

2224E

op to "LOW

EVO-

4024E

EVO-

4024E

EVO-

2212E

EVO-

2212E

CAUTION! ON/OFF Logic also controls the

operation of the ON/OFF Button on the front panel (11, "

Button Type". If the ON/OFF Control is changed to external "Remote Switch", it will not be possible to switch ON/OFF the EVO from the front panel ON/OFF Push Button because it will work with Switch Type Logic. It will be ON only as long as the Push Buttom is kept pressed and will switch OFF when released.

EVO-

3012E

Fig 2.1). The Default setting is

EVO-

3012E

2224E

EVO-

2224E

= Button Type

Inverter/Charger

2 = Generator 0

EVO-

4024E

EVO-

4024E

82 | SAMLEX AMERICA INC.

Page 83

SECTION 6 | Operation, Protections and Troubleshooting

TABLE 6.6 PROGRAMMABLE AND DEFAULT PARAMETERS - GROUP "OTHER FUNCTIONS" (Continued)

Setting range Default Value

Parameter name

RELAY FUNCTION”

“ (for Status Relay)

“COMM ID”

(Communication ID for

optional Remote Control EVO-RC)

“

BUZZER” 0 = OFF ; 1 = ON 1 = On

ISCHARGE BEEP”

“D

(Beeping in “Discharging / Inverter Mode”)

EFAULT RESET” 0 = No ; 1 = Yes 0 = No

“D

TA LOG TIME

(For Optional Remote

Control EVO-RC)

RAMETER SAVE

For Optional Remote

(

Control EVO-RC)

VO-

2212E

3 = Generator 1

4 = Generator 2

0 = Disable 3 = 30 sec 6 = 10 min 1 = 1 sec 4 = 60 sec 1

2 = 10 sec 5 = 5 min 1

EVO-

3012E

 ON when batteries drop to "LOW

VOLT ALARM" or lower for period = "GS DETECT TIME" - initiates Generator start

FF when batteries are charged

 O

to "RESET VOLTAGE" for period = "GEN OFF TIME" - initiates Generator stop

 ON when batteries drop to "LOW

VOLT ALARM" or lower for period = "GS DETECT TIME" - initiates Generator start

 OFF after period = "GEN ON TIME"

from the time relay switched ON initiates Generator stop

0 = OFF ; 1 = ON 0 = Off

EVO-

2224E

1 - 255 1

0 = No 1 = Yes

EVO-

4024E

EVO-

2212E

EVO-

3012E

2224E

2 = Generator 0

1 = 1 sec

0 = No

EVO-

4024E

6.5 PROTECTIONS, FAULT MESSAGES AND TROUBLESHOOTING GUIDE

The front panel of the unit has a Red LED marked “FAULT” (13, Fig 2.1). This LED will light up (steady) when the unit registers any of the FAULT MODE situations shown in Table 7.1 of EVO-RC Manual at Appendix A.

Table 7.1 of EVO-RC Manual at Appendix A shows details of protections and associated Fault/ Error Messages that will be displayed on the LCD screen of the optional Remote Control EVO-RC.

NOTE: If the optional Remote Control EVO-RC (see Appendix A) is not used, it may be

difcult to narrow down the probable cause of the fault.

Page 84

SECTION 6 | Operation, Protections and Troubleshooting

6.6 POWERING OFF THE UNIT IN FAULT MODE

If the unit is in “Fault Mode”, it will be possible to power OFF the unit with the ON/OFF Push B

utton.

(As explained under paragraph 6.1.2, as long as AC input voltage > 140 ± 10 VAC is present, the unit CANNOT BE POWERED OFF using the ON / OFF Button on the front panel of the unit or on the optional Remote Control EVO-RC (see Appendix A). In order to power off using the Power ON/Off Button, switch OFF the AC input rst).

6.7 12V, 100mA CAPACITY DC SOURCE FOR SIGNALING

A 12V, 100mA capacity DC source has been provided (16, Fig 2.1). This voltage may be routed through the contacts of the Status Relay (14, Fig 2.1) to feed 12V ON / OFF control signal to drive circuits of remote monitoring control of the programmable conditions of operation of the unit (Refer to Table 6.6 under Relay Function).

6.8 STANDBY MODE

When EVOTM is in Standby Mode, it will stop inverting or charging / pass through.

This Mode is required to be switched ON manually during rmware uploading procedure for

Inverter Charger. Firmware upload is carried out through the SD Card slot provided

EVO on the optional Remote Control Model EVO-RC [9, Fig 2.4(a)]. When rmware uploading procedure is initiated, the user will be prompted to switch ON Standby Mode – message on the LCD screen on the EVO-RC will show “Press power key to stop inverter”. Once rmware upload is completed, the EVO

3.4 of the EVO-RC Remote Control Owner’s Manual at Appendix A.

exits the Standby Mode automatically. Please refer to Section

INFO

For the Standby Mode to be switched ON, the EVOTM should be in ON condition and should be operating in one of the 3 Operating Modes – “Inverting” or “Charging” or “Power Saving” (See Fig 3.1 of the EVO-RC Owner’s Manual at Appendix A). When Standby Mode is switched ON, the EVO

Standby Mode is toggled between ON and OFF conditions as follows:

84 | SAMLEX AMERICA INC.

Standby Mode may also be used to temporary halt normal operation of the Inverter Charger without switching O

will exit its Operating Mode.

y momentary pressing (0.1 sec) of ON/OFF Push Button on the front panel of the unit

 B

(11, Fig 2.1)

 By momentary pressing (0.1 sec) of ON/OFF Push Key on the optional Remote Control

EVO-RC [2, Fig 2.4(a)]

FF the unit completely.

Page 85

SECTION 6 | Operation, Protections and Troubleshooting

When the EVOTM is in “Standby Mode”, operational status will be displayed as follows:

 O

n the front panel of EVO

No LED display

. Green LED marked “ON” (12, Fig 2.1) and Red LED marked “F

(13, Fig 2.1) will both be OFF

AUL

T”

- No buzzer

n the Remote Control EVO-RC:

 O

No LED display

T” (4, Fig 2.4a) will both be off

“F

AUL The LCD will display Appendix A)

. Green LED marked “Status” (3, Fig 2.4a) and Red LED marked

STANDBY BATTERY XX.XXV

(Fig 3.1 in the EVO-RC Owner’s Manual at

- No buzzer

CAUTION!

When EVO will be ON or ashing based on the operational status of EVO Push Button (11, Fig 2.1) gets accidentally pressed momentarily, the EVO to Standby Mode and normal operation will be interrupted. There will be no LED display on the front panel of the EVO

AUL

“F RC was not being used for monitoring, the user may think that the unit has quit working / become defective. Hence, if at any time during the operation of EVO

is operating normally, the front panel Green LED marked “ON” (12, Fig 2.1)

: Green LED marked “ON” (12, Fig 2.1) and Red LED marked

T” (13, Fig 2.1) will both be OFF

. The buzzer will also be OFF. If

(TABLE 6.1). If the ON / OFF

will switch over

Remote Control EVO-

, no LED activity is seen on the front panel of the unit, it is likely that the unit may have been switched over to “Standby Mode” accidentally. To exit from “Standby Mode” and revert to the normal operating mode, press the ON/OFF Push Button on the front panel of the unit (11, Fig 2.1) momentarily (0.1 sec). If the EVO

does not switch over to normal operating mode, carry out further

troubleshooting.

TTENTION

Lorsque l’EVOTM fonctionne normalement, le panneau d’avant LED verte marquée «ON» (12, gure 2,1) sera ON ou clignotera en fonction de l'état opérationnel de l’EVOTM (tableau 6,1). Si le bouton ON/OFF (11, gure 2,1) est accidentellement poussé momentanément, l'EVOTM déclenchera en mode veille et le fonctionnement normal sera interrompu. Il n'y aura pas d'afchage LED sur la face avant de l'EVOTM: LED verte marquée «ON» (12, gure 2,1) et LED rouge marqué "FAUTE" (13, gure 2,1) seront tous les deux OFF. La sonnerie sera également OFF. Si le RC-EVO n'a pas été utilisé pour la surveillance, l'utilisateur peut penser que l'appareil a cessé de travailler / devenu défectueux. Ainsi, si à tout moment pendant le fonctionnement de l’EVOTM, aucune activité de LED est visible sur la face avant de l'appareil, il est probable que l'unité peut avoir été mise en "mode veille" accidentellement. Pour sortir du "mode veille" et revenir au mode de fonctionnement normal, appuyez sur le bouton ON/ OFF sur le panneau avant de l'appareil (11, gure 2,1) momentanément (0,1 sec). Si l'EVO

ne se met pas en mode de fonctionnement normal, effectuer un dépannage plus approfondi.

Page 86

SECTION 7 | Specications

Models EVO-2212E EVO-3012E EVO-2224E EVO-4024E

INVERTER SECTION

Output W

nput Battery Voltage Range 9.1 - 17 VDC 18.1 - 34 VDC

Nominal AC Output Voltage 230 VAC ± 5%

Output Frequency 50 / 60 Hz ± 0.1 Hz (Default 50 ± 0.1 Hz)

Total Sine W

Continuous Output Power 2200 VA 3000 VA 2200 VA 4000 VA

Continuous AC Output Current 10A 13A 10A 18A

Surge Power for 1 msec

Surge Power for 100 msec

Power Boost for 5 sec

Power Boost for 30 sec

Power Boost for 5 min

Power

Maximum Continuous DC Input Current

nverter Efciency (Peak)

No Load Power Consumption in

Power Saving Mode

No Load Power Consumption in

Maximum Programmable (Default) AC Input Current

Transfer

Transfer G

Transfer Time – Grid / Generator to

aveform Pur

Harmonic Distortion of Pure

ave Form (

Boost for 30 min

ormal Mode

INPUT FROM GRID / GENERA

Input Voltage 230VAC (140 - 280VAC +/- 5% selectable)

Input Frequency 50 Hz / 60 Hz (40 - 70 Hz selectable)

ANSFER CHARACTERISTICS

enerator

Inverter

THD)

Relay T

ype and Capacity SPDT

Time – Inverter to Grid /

(6600 VA, 30A)

(4400VA, 20A)

TOR

(Default 16A)

300%

200%

150%

(3300W)

140%

(3080W)

120%

(2640W)

110%

(2420W)

266 A 373 A 133 A 266 A

90% 90% 93% 94%

5-20A

, 40A SPDT, 40A SPDT, 40A SPDT, 40A

(9000VA, 39A)

(6000VA, 26A)

(4500W)

(4200W)

(3600W)

(3300W)

30 watts 25 watts

(Default 16A)

< 1 ms (Synchronized transfer at zero crossing)

Up to 16ms (Synchronized transfer)

300%

200%

150%

140%

120%

110%

5-25A

e Sine Wave

< 5%

(6600VA, 30A)

(4400VA, 20A)

(3300W)

(3080W)

(2640W)

(2420W)

< 8 W

(Default 16A)

300%

200%

150%

140%

120%

110%

5-20A

300%

(12,000 VA, 52A)

200%

(8000VA, 35A)

150%

(6000W)

140%

(5600W)

120%

(4800W)

110%

(4400W)

5-35A

(Default 16A)

86 | SAMLEX AMERICA INC.

Page 87

SECTION 7 | Specications

Models EVO-2212E EVO-3012E EVO-2224E EVO-4024E

OPERA

OFF-LINE Mode

INTERN

AC Input Voltage Range

Max Continuous AC Input Current 9A, AC 12A, AC 10A, AC 18A, AC

AC Input Power Factor

Programmable DC Bulk Charging Current and Voltage

Charger Efciency 75% 86% 85%

Charging Stages & Control

Battery Temperature Compensation

EXTERNAL BATTERY CHARGER SECTION

Charging Voltage Range 13 - 16VDC 13 - 16VDC 26 - 32VDC 26 - 32VDC

Maximum Charging Current 50A

COOLING, PROTECTIONS AND ALARMS

Cooling

Protections and Alarms

PTIONAL REMOTE CONTROL

Model No.

Specications

MODES

TING

-LINE Mode

AL BA

Y CHARGER SECTION

TTER

Grid/Generator Priority (Default)

• Grid/Generator supplies AC loads and charges batteries

• Inverter is standby

Battery / Inverter Priority (Programmable)

• Inverter supplies AC loads even if Grid/Generator is available

• Grid/Generator takes over when batteries are discharged to "Battery

Low Alarm" to charge batteries and to power AC loads. AC loads are transferred back to Inverter under various programmed conditions

230 VAC (140 - 280 VAC +/-5% selectable) ;

50 Hz / 60 Hz (40 - 70 Hz selectable

> 0.95

0 - 100A, DC

13 - 16VDC

ormal Mode: 3 Stages – Bulk, Absorption and Float

 N  Equalization Mode: 4 Stages – Bulk, Absorption, Equalization and Float

 Adaptive Charging Control

 Battery Temperature Sensor included  Compensation

Battery Low Voltage Alarm and Low / Over Voltage Shut Down

Shut Down under Input Over Current, Output Over Current, Output Over-

Immunity Against Conducted Electrical Transients in Vehicles

 Advanced Features for programming various parameters and modes of

operation

Rows of 16 Character Alpha Numeric LCD Display for messaging

 2  Up to 16 G  Comes with 10M / 33ft RJ-45 Data Cable

0 - 130A, DC

13 - 16VDC

Range from -20° C to 60° C

2 Fans – Temperature Controlled, Variable Speed

load and Output Short

Transformer and Heat Sink Overheat Shut Down

EVO-RC (see Appendix A)

B SD Card Slot for Data Logging

0 - 70A, DC 26 - 32VDC

0 - 110A, DC

26 - 32VDC

Page 88

SECTION 7 | Specications

SAFETY AND COMPLIANCE

 CE Marked  Low V

oltage Directive 2014/35/EU

Safety Compliance

MC (EMI and EMS) Compliance

RoHS

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Storage Temperature

Operating Humidity

WEIGHTS AND DIMENSIONS

Dimensions:

Weights: 27 Kg / 59 lb. 29 Kg / 64 lb. 26 Kg / 57 lb. 29 Kg / 64 lb.

W x D x H 325 x 426 x 207 mm; 12.79 x 16.77 x 8.15 in

 IEC60950-1:2005 (2nd Edition) + A1:2009 + A2:2013  EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013  AS/NZS 60950-1:2011

 CE Marked  EMC Dir  EMI Standar

 EMS Standar

 2011/65/EU (RoHS 2)

ective 2014/30/EU

ds: EN 55022:2010 + AC:2011 (Class A), CISPR 22:2008,

EN61000-3-2:2014, EN61000-3-3:2013

ds: EN 55024:2010, CISPR 24:2010, IEC 61000-4-2:2008, IEC 610004-3:2006/A1:2007/A2:2010, IEC 61000-4-4:2012 IEC 61000-4-5:2005, IEC 61000-4-6:2013, IEC 610004-8:2009, IEC 61000-4-11:2004

-20° C to +60° C (-4° F to 140° F)

-40° C to +70° C (-40° F to 158° F)

0 to 95% RH non condensing

NOTES:

(1) All AC power ratings in the Inverter Section are specied at Power Factor = 0.95

(2) All specications given above are at Ambient Temperature of 25°C unless specied

otherwise

(3) Specications are subject to change without notice

88 | SAMLEX AMERICA INC.

Page 89

SECTION 8 | Warranty

2 YEAR LIMITED WARRANTY

EVOTM Series Inverter/Chargers manufactured by Samlex America, Inc. (the “Warrantor“) are warranted to be free from defects in workmanship and materials under normal use and service. The warranty period is 2 years for the United States and Canada, and is in effect from the date of purchase by the user (the “Purchaser“).

Warranty outside of the United States and Canada is limited to 6 months. For a warranty claim, the Purchaser should contact the place of purchase to obtain a Return Authorization Number.

The defective part or unit should be returned at the Purchaser’s expense to the authorized location. A written statement describing the nature of the defect, the date of purchase, the place of purchase, and the Purchaser’s name, address and telephone number should also be included.

If upon the Warrantor’s examination, the defect proves to be the result of defective material or workmanship, the equipment will be repaired or replaced at the Warrantor’s option without charge, and returned to the Purchaser at the Warrantor’s expense. (Contiguous US and Canada only) using a carrier of the warrantor’s choice.

Warranty service shall be performed only by the Warrantor. Any attempt to remedy the defect by anyone other than the Warrantor shall render this warranty void. The warranty does not apply to units with a serial number that has been altered, removed or modied in any way.

There is no warranty for defects or damages to equipment or parts caused by:

• Installation, alternation, inspection or removal

• Normal wear and tear

• Abuse or misuse of the equipment including exposure to excessive heat, salt or fresh water spray, or

water immersion

• Corrosion, re, lightening, biological infestations or Acts of God R

•

epairs attempted by anyone other than the Warrantor

• Improper use, contrary to operational instructions provided in product manual

• Shipping or transport

No other express warranty is hereby given and there are no warranties which extend beyond those described herein. This warranty is expressly in lieu of any other expressed or implied warranties, including any implied warranty of merchantability, tness for the ordinary purposes for which such goods are used, or tness for a particular purpose, or any other obligations on the part of the Warrantor or its employees and representatives.

There shall be no responsibility or liability whatsoever on the part of the Warrantor or its employees and representatives for injury to any persons, or damage to person or persons, or damage to property, or loss of income or prot, or any other consequential or resulting damage which may be claimed to have been incurred through the use or sale of the equipment, including any possible failure of malfunction of the equipment, or part thereof. The Warrantor assumes no liability for incidental or consequential damages of any kind.

Samlex America www

.samlexamerica.com

Inc. (the “W

arrantor”)

Page 90

Contact

Information

Toll Free Numbers

Ph: 1 800 561 5885

Fax: 1 888 814 5210

Local Numbers

Ph: 604 525 3836

Fax: 604 525 5221

Website

www.samlexamerica.com

USA Shipping Warehouses

Kent, WA

Plymouth, MI

Canadian Shipping Warehouse

Delta, BC

Email purchase orders to

[email protected]

11025-EVO-2212E-3012E-2224E-4024E-0317

Page 91

APPENDIX A

Remote Control for Evolution

Owner's Manual

Please read this manual bEfORE operating.

Series Inverter/ Charger

irmware:

Model: EVO-RC

For use with 230 VAC Models

NOTE: REMOTE CONTROL MODEL NO. EVO-RC IS OPTIONAL AND IS REQUIRED TO BE ORDERED SEPARATELY.

f Rev 020

Page 92

EVO-RC OWNER'S MANUAL | Index

SECTION 1

Safety Instructions, Introduction and Layout ......................... 3

SECTION 2

Installation ........................................................................... 4

SECTION 3

Operation .......................................................................... 6

SECTION 4

Parameter Setup ................................................................ 11

SECTION 5

SD Card ......................................................................... 38

SECTION 6

Monitoring of Operation Using LED and Buzzer ................ 43

SECTION 7

Fault Messages and Troubleshooting Guide ....................... 44

APPENDIX A

SECTION 8

Specications ..................................................................... 47

SECTION 9

Warranty ......................................................................... 48

Disclaimer of Liability

UNLESS SPECIFICALLY AGREED TO IN WRITING, SAMLEX AMERICA, INC.:

1. MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.

2. ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USERS RISK.

Samlex America reserves the right to revise this document and to periodically make changes to the content hereof without obligation or organization of such revisions or changes.

Page 93

APPENDIX A

SECTION 1 | Safety Instructions,

Fault

Introduction and Layout

1.0 INTRODUCTION AND LAYOUT

The EVO-RC Remote Control allows you to monitor and customize the operating parameters of Samlex EvolutionTM Series Inverter/Charger Models EVO-2212, 2224, 3012 and 4024. Layout is shown in Fig. 1.1(a) and (b) below.

1. LCD Screen – 2 rows of 16 characters each

2. ON/OFF Key

3. Green LED "Status"

4. Red LED "Fault"

5. Navigation Key "Back"

6. Navigation Key "Up"

7. Navigation Key "Down"

8. Navigation Key "Enter"

9. SD Card Slot – FAT16/32 format; Up to 16 GB

10. RJ-45 Jack (At the back-not shown)

11. RJ-45 Data Cable (Straight Wired), 10 meter/33 feet length {Fig1.1(b)}

Fig. 1.1(a) Optional Remote Control EVO-RC – Layout

RJ-45

Plug

Fig. 1.1(b) Cable For Remote Control EVO-RC

SAMLEX AMERICA INC. | 3

Page 94

APPENDIX A

SECTION 2 | Installation

2.1 INSTALLATION GUIDELINES

The remote control is provided with 10M/33ft, RJ-45 Data Cable (Straight Wired). Check the proposed routing distance of the wire and use longer wire, if necessary.

• Flush mounting of the Remote requires appropriate cut-out in the wall/panel. Take necessary precautions to ensure any wiring/plumbing running behind the wall/panel is not damaged.

• Route the wire to ensure there are no kinks.

• Use appropriate grommets when the wire is passed through holes in studs/partitions to

prevent damage to insulation.

2.1.2 Tools Required

Following tools are recommended:

• PhillipsHeadScrewdriver • Level  • HandDrill

• Knife/Saw • Pencil  • DrillBit(2.5mm/#39)

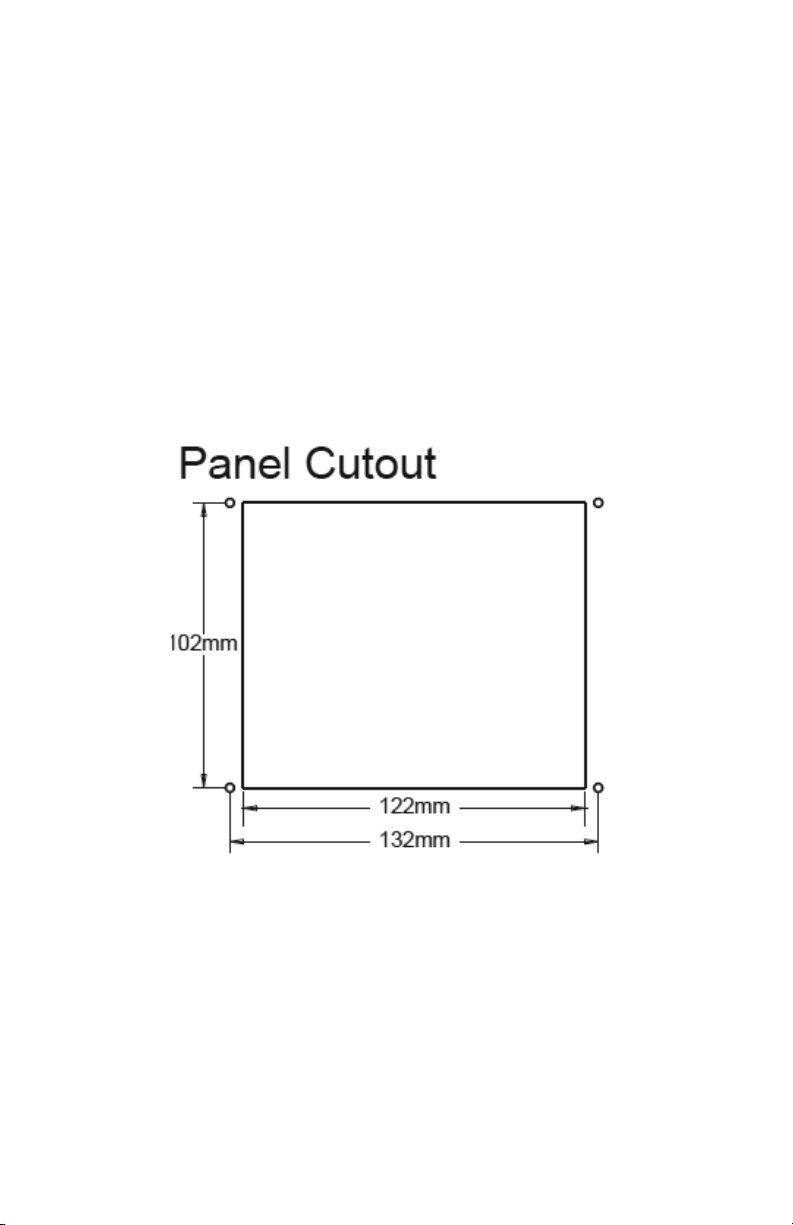

Fig 2.1 EVO-RC Remote Cutout Dimensions

2.2 FLUSH MOUNT INSTALLATION

To ush mount, the wall opening must have at least a 2” (5 cm) depth to make room for the remote and cable. Also, the thickness of wall/panel board at the place of mounting should not be more than 13 mm to ensure that the RJ-45 jack opening is not obstructed (see Fig. 2.3).

1. Cut an opening in the wall using the supplied paper template (based on Fig 2.1).

2. Drillfourpilotholes(use2.5mmdiameter/#39drillbit)forthe4screws(3mmdiameter,

16mm long) that will attach the remote to wall (refer to Figure 2.1 for hole locations and dimensions).

3. Route one end of the cable through wall opening to the EVOTM Inverter/Charger, and then plug it into the RJ45 Remote Control Jack port on the EVOTM Inverter/Charger.

4 | SAMLEX AMERICA INC.

Page 95

APPENDIX A

SECTION 2 | Installation

4. Take the other end of remote cable and plug it into the RJ-45 Jack at the back of the EVO-RC (Fig. 2.3).

5. Check the remote display to ensure the Power-up self test initiates.

6. If the self test is successful, secure the EVO-RC to the wall using the four screws. (Fig 2.2)

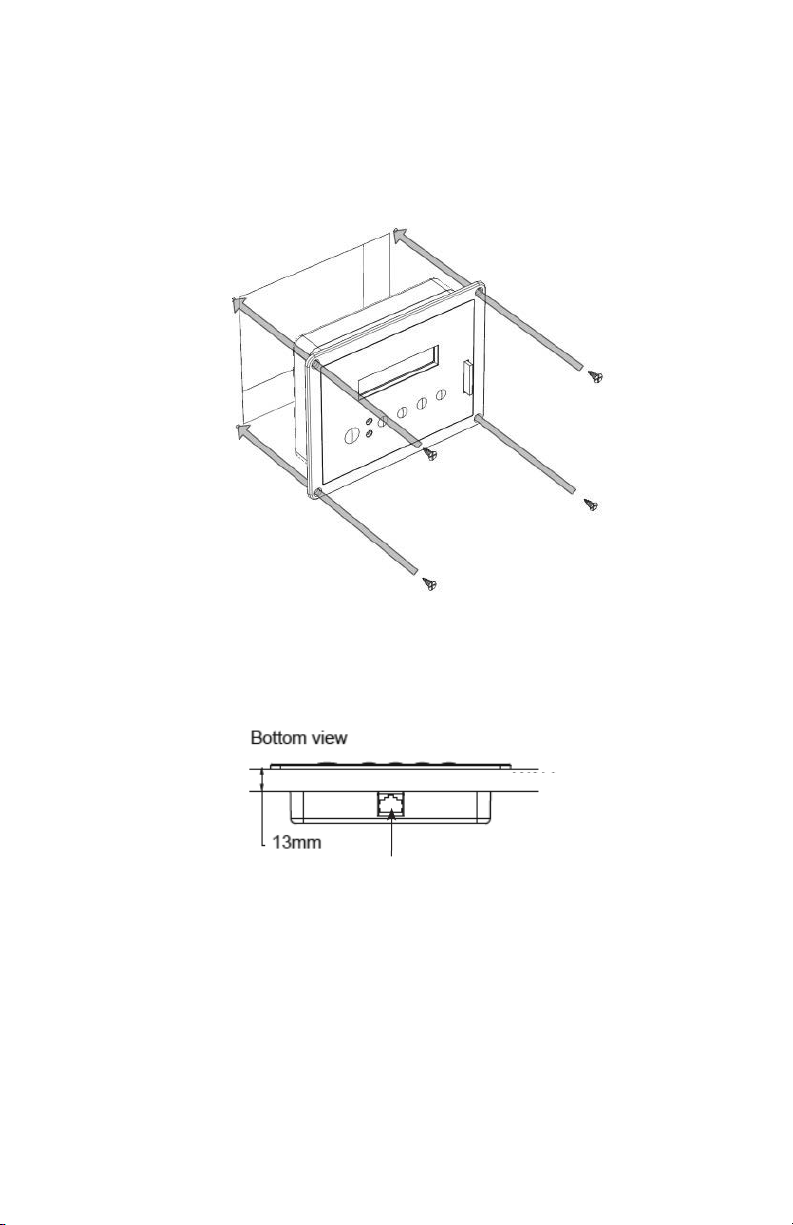

Flush mounting the EVO-RC on the wall with 4pcs, Φ3mm self-tapping screws (at head).

Fig 2.2 EVO-RC Flush Mounting

WALL / PANEL BOARD

RJ-45 Jack

The thickness of the wall/panel board at the place of mounting should not be more than 13mm to ensure that the RJ-45 jack opening is not

obstructed.

Fig 2.3 Wall/Panel Thickness

Page 96

SECTION 3 | Operation

APPENDIX A

3.0 GENERAL INFORMATION

EVO-RC Remote Control provides the user with the ability to modify EVOTM Inverter/Charger’s operating parameters. The default settings in EVO installations but may have to be modied for others. This Section provides details on the remote functions, status and menu maps and displays, fault messages and parameter settings.

3.1 NAVIGATING THE REMOTE

The EVO-RC provides menu items and adjustable settings to congure your EVOTM Inverter/ Charger to your specic parameters. Please refer to the layout at Fig 1.1(a).

• LCD Display (1) – The 2-line (16 characters each) LCD display shows status and information for the EVO the LCD display.

• ON/OFF Key (2) – The ON/OFF Key is used for switching ON/switching OFF the EVO Inverter/Charger.

• Navigation Keys (5, 6, 7, 8) – These four Keys allow simple access to menu items that assists conguring, monitoring, and troubleshooting the EVO o Navigation Key Functions:

 Back – Return to previous selection  Up – Move to (i) Upper Reference No. for Status / Parameter Group or (ii) Upper

Reference No. for Parameter Screen in various Menu Maps.

 Down – Move to (i) Lower Reference No. for Status / Parameter Groups or (ii)

Lower Reference No. for Parameter Screens in various Menu Maps.

nter – Enter the selected option

 E

• Status – Green LED indicator for indicating operating status (see details at Section 6, Table 6.1)

• Alarm (Fault) – Red LED indicatorfor indicating fault conditions (see details at Section 6, Table 6.1)

• SD Card socket – This slot supports SD memory card (up to 16GB; FAT 16/32). The SD Card is used for (i) Data logging of EVO and events, (ii) Saving and uploading of programmed parameters. See Section 5: SD Card, and (iii) Upgrading rmware for Evolution Remote Control EVO-RC.

Inverter/Charger. All Setup Menus and faults also appear on

Inverter/Charger are adequate for some

Inverter/Charger.

Inverter/Charger's operational statistics

Series (EVOTM) Inverter/Charger / EVOTM

6 | SAMLEX AMERICA INC.

Page 97

SECTION 3 | Operation

APPENDIX A

3.2 POWER ON / POWER OFF

Power ON

To power ON the EVO around 2 sec until competion of sequence explained below:

POWER ON...

SEARCHING ID... ID= 1

EVO-XXXXE VX.XX

INVERTER/CHARGER

Inverter/Charger, press and hold the ON/OFF Key continuously for

When the EVOTM Inverter/Charger is OFF and the ON/OFF key is pressed and held, the LCD screen shows “POWER ON…” and the Status LED ashes 3 times. EVO-RC starts to search for the communication ID of the EVO

Inverter/Charger it is attached

to. The LCD screen shows “SEARCHING ID” on the rst line and shows the ID number found on the second line. The ON/OFF Key may be released now (At this point, around 2 sec would have elapsed from the time the ON/OFF Key is kept pressed continuously). When the default ID of “1” is found, the display will then show the EVO

Inverter/Charger Model No. EVO-

XXXXE and Firmware Version VX.XX.

Power OFF

Press ON/OFF Key and hold for 5 seconds to turn OFF the EVOTM Inverter/Charger.

POWER OFF...

When EVOTM Inverter/Charger is ON and the ON/OFF key is pressed and held for minimum of 5 seconds, the LCD screen will show “POWER OFF…” and both the Status and Alarm LEDs will turn ON. Now release the ON/OFF key (Please note that Power Off sequence will be completed and display "POWER OFF..." will disappear only when the ON/OFF key is released).

NOTE

: If the EVO

Inverter/Charger has AC input voltage over 140 ± 10 VAC available at the Grid / Generator inputs, the Power OFF function is disabled and the unit will remain in the ON condition if the power off sequence is attempted. The AC input must be removed before the unit can be powered OFF.

3.3 DATE AND TIME SETUP

Set date and time as per procedure given at Section 4.9: "GROUP 6 PARAMETER SETUP: TIME SETTING".

3.4 STANDBY MODE

When the EVO

This Mode is required to be switched ON manually during rmware uploading procedure for

EVO

Inverter/Charger. Firmware upload is carried out through the SD Card slot [9, Fig 1.1(a)]. When rmware uploading procedure is initiated, the user will be prompted to switch ON Standby Mode – message on the LCD screen will show “Press power key to stop inverter”. Once rmware upload is completed, the EVO

TMis

is in Standby Mode, inverting or charging / AC pass through will be suspended.

exits the Standby Mode automatically.

Page 98

SECTION 3 | Operation

For the Standby Mode to be switched ON, the EVO operating in one of the 3 Operating Modes – “Inverting” or “Charging” or “Power Saving” (See Fig 3.1). When Standby Mode is switched ON, the EVO

Standby Mode may also be used to temporary halt normal operation of the Inverter/ Charger without switching OFF the unit completely

should be in ON condition and should be

will exit its Operating Mode i.e.

APPENDIX A

inverting or charging / AC pass through will be suspended.

Standby Mode is toggled between ON and OFF conditions as follows:

• By momentary pressing (0.1 sec) of ON/OFF Push Key [2, Fig 2.4(a)], OR

• By momentary pressing (0.1 sec) of ON/OFF Push Button on the front panel of the unit (11,

Fig 2.1 in the Owner’s Manual for Evolution

Series Inverter/Charger)

When the EVO

is in “Standby Mode”, operational status will be displayed as follows:

•On the Remote Control EVO-RC:

- No LED display. Green LED marked “Status” (3, Fig 2.4a) and Red LED marked

“FAULT” (4, Fig 2.4a) will both be off

- The LCD will display

- No buzzer

On the front panel of EVOTM:

•

No LED display Evolution

. Green LED marked “ON” (12, Fig 2.1 in the Owner’s Manual for

Series Inverter/Charger ) and Red LED marked “FAULT” (13, Fig 2.1 in the

Owner’s Manual for Evolution

STANDbY b

ATTERY XX.XXV

Series Inverter/Charger ) will both be OFF.

(Fig 3.1)

- No buzzer

3.5. FAULT CLEARING

If any fault occurs, the LCD screen will display the Fault Message, Red LED Alarm (Fault) will be lighted. Remove cause of the fault and the unit will remain in Fault Mode. A short press (0.1 seconds) of the ON/OFF button will clear the Fault Message and the EVOTM Inverter/Charger will return to operational status (if the fault condition no longer exists). Refer to section 7 on “Fault Messages”.

3.6 OPERATING MODES AND DISPLAY SCREENS

There are 4 Operating Modes for the EVOTM Inverter/Charger that will be displayed on the Remote Screen at any given time (see Fig 3.1): (i) Standby (ii) Inverting (iii) Charging and (iv) Power Saving. Each mode has several screens of status information such as Voltage/Current/Power etc. as detailed at Section 3.6.2 and Fig 3.2. The majority of Mode Screens shown in Fig 3.1 are self explanatory, but the Charging Mode Status Screens require additional details which are shown at Section 3.6.1.

8 | SAMLEX AMERICA INC.

Page 99

SECTION 3 | Operation

APPENDIX A

POWER SAVING BATTERY

XX.XXXV

STANDBY BATTERY

XX.XXXV

INVERTING OUTPUT

CHARGING GRID

120.00V

N-CC

120.00V

Fig 3.1 EVO-RC Mode Screens

3.6.1 Charging Mode Screens Explanations

Please refer to 19 Screens shown against Screens 1 to 19 under Group 3: "CHARGING MODE" at Fig 3.2. The 1 the left and abbreviated information format "Charging Mode - Charging Stage" on the right corner. The following abbreviations have been used:

Abbreviation

(Group 3 Screens)

N-CC Constant Current (CC), Bulk Stage –

N-CV Constant Voltage (CV), Absorption Stage –

E-CC – Constant Current (CC), Bulk Stage

E-CVA – Constant Voltage Absorption (CVA) Stage

E-CVE – Constant Voltage Equalization (CVE) Stage

FLOAT Float Stage Float Stage

line of the Display Screen for Charging Mode shows CHARGING on

Normal (N), 3 Stage Charging:

Bulk, Absorption, Float

Equalization (E), 4-Stage Charging:

Bulk, Absorption, Equalization, Float

For example, in Fig 3.2, the 1st line of information under Column 4 (Group 3) "Charging" shows "N-CC" in the right corner. This means that the unit is in Normal (N), 3-Stage Charging Mode and is in Constant Current (CC) Bulk Stage.

3.6.2 Overall Operating Mode Display Screen Menu Map

Overall Operating Mode Display Screen Menu Map is shown at Fig 3.2. Any screen within the Menu Map can be identied by 2 co-ordinates: "Operating Mode Group No." (Column) and "Screen No." (Row).

Page 100

SECTION 3 | Operation

Fault Message

Fault

SCREEN

No.

GROUP 1:

STANDBY MODE

GROUP 2:

INVERTING MODE

GROUP 3:

CHARGING MODE

GROUP 4:

POWER SAVING MODE

Up key: Move down to higher Screen No. (See Note 3) Down key: Move up to lower Screen No. (See Note 4)

Fault

NOTE:

Please refer to Page 11 for notes.

STANDBY BATTERY

12.000V

INVERTING OUTPUT

230.00V

POWER SAVING BATTERY

12.000V

CHARGING GRID

230.00V

N-CC

INVERTING BATTERY

CHARGING INPUT

INVERTING BATTERY

CHARGING INPUT

INVERTING BAT EXT

CHARGING OUTPUT

INVERTING BATTERY

CHARGING OUTPUT

INVERTING GRID

CHARGING OUTPUT

INVERTING GEN

CHARGING OUTPUT

INVERTING ID= 1

CHARGING OUTPUT

CHARGING BATTERY

CHARGING ID= 1

STANDBY OUTPUT

0.00V

INVERTING OUTPUT

POWER SAVING BAT EXT

0.0A

CHARGING GRID

STANDBY GRID

0.00V

INVERTING OUTPUT

POWER SAVING ID= 1

RC=XXX

CHARGING GEN

STANDBY GEN

0.00V

INVERTING OUTPUT

CHARGING GEN

STANDBY 2014/10/16

16:00

12.000V

140.0A

0.0A

25.0C

0.00V

RC=XXX

50.00Hz

10.00A

2300W

2300VA

PF=1.000

INVERTING OUTPUT

CHARGING INPUT

10.00A

N-CC

STANDBY ID= 1

RC=XXX

INVERTING OUTPUT

CHARGING INPUT

CHARGING BAT EXT

POWER SAVING EVO-XXXX

VX.XX

òò

INVERTING EVO-XXXX

VX.XX

Enter key: Move to next Group towards the right Back key: Move to next Group towards the left

STANDBY EVO-XXXX

VX.XX

2300VA

N-CC

PF=1.000

N-CC

230.00V

N-CC

7.00A

N-CC

1610W

N-CC

1610VA

N-CC

PF= 1.000

N-CC

12.000V

N-CC

40.00A

N-CC

25.0C

N-CC

RC=XXX

N-CC

CHARGING EVO-XXXX

VX.XX

N-CC

50.00Hz

N-CC

0.00V

N-CC

0.00Hz

N-CC

2300W

N-CC

0.00A

N-CC

APPENDIX A

10 | SAMLEX AMERICA INC.

Fig 3.2 Overall Operating Mode Display Screen Menu Map
