OPERATOR'S MANUAL
TWO-ROTOR RAKE
TANGO 730
Serial number
Translation of the original manual
IN307USA001
2016.06.15
EDITION No. 1
WARNING:
Do not turn the rakes’ drive on until the machine is in
operating position.
NOTE:
The Manufacturer has the right to introduce design modifications.
NOTE:
Machine’s parts, which have been bent after collision with obstacles or
stones are repaired on charge by SaMASZ.
WARNING:
Do not fold the rakes until all operating parts are stopped.
WARNING:
Do not operate the rake when any person remains in the
danger area of 170'.
NOTE:
Keep this manual for future use.
Well-proven design with thousands of machines in regular use in many countries and
quality materials ensure high durability and reliability of SaMASZ rakes.
We congratulate you on the purchase of your new SaMASZ rake and wish you much
pleasure and the very best work results through the years to come.
Contents page
1. IDENTIFYING THE MACHINE ..................................................................................................................... 2
2. INTRODUCTION............................................................................................................................................... 2
3. INTENDED USE ................................................................................................................................................. 3
3.1. Technical data ............................................................................................................................................... 3
3.2. Design and working principle ....................................................................................................................... 4
3.3. Equipment and spare parts ............................................................................................................................ 5
4. SAFETY PRECAUTIONS ................................................................................................................................. 5
4.1. Safety rules and regulations .......................................................................................................................... 5
4.2. Transport ....................................................................................................................................................... 7
4.3. Putting the machines onto another vehicle for transport ............................................................................... 7
4.4. Working parts ............................................................................................................................................... 8
4.5. Telescopic articulated shaft ........................................................................................................................... 9
4.6. Hydraulic assembly ....................................................................................................................................... 9
4.7. Residual risk ................................................................................................................................................. 9
4.7.1 Risk of being caught or pulled in ............................................................................................................. 9
4.7.2 Risk of injury, abrasion and damage of skin ......................................................................................... 10
4.7.3 Prohibited actions .................................................................................................................................. 10
4.7.4 Residual risk assessment........................................................................................................................ 10
4.8. Safety labels and their meaning .................................................................................................................. 11
5. USE OF RAKE .................................................................................................................................................. 14
5.1. Mounting rake on tractor ............................................................................................................................ 14
5.1.1. Control panel ....................................................................................................................................... 14
5.2. Preparing rake for transport ........................................................................................................................ 15
5.3. Preparing rake for transport on public roads ............................................................................................... 16
5.4. Mounting telescopic articulated shaft ......................................................................................................... 16
5.5. Switching the rake from transport to working position .............................................................................. 17
5.6. Preparing rake for operation ....................................................................................................................... 17
5.7. Operation .................................................................................................................................................... 20
5.8. Mechanism for sequential lifting and lowering of working units ............................................................... 21
5.8.1. Sequential lifting ................................................................................................................................... 21
5.8.2. Sequential lowering .............................................................................................................................. 22
5.9. Setting rake for forming one row ................................................................................................................ 22
5.10. Switching rake from forming one row to forming two single rows ............................................................ 23
5.10.1. Protection mechanism of front safety curtain ..................................................................................... 24
5.11. Lifting rake on headlands............................................................................................................................ 24
5.12. Removing clogging and jams ...................................................................................................................... 25
5.13. Dismounting machine from tractor ............................................................................................................. 25
6. MOUNTING AND ADJUSTMENTS ............................................................................................................. 26
6.1. Installing tines ............................................................................................................................................. 26
6.2. Replacing connecting rods .......................................................................................................................... 26
6.3. Daily maintenance ...................................................................................................................................... 27
6.4. After-season maintenance and storing ........................................................................................................ 27
6.3.1 Restarting the machine after longer idle periods ................................................................................... 27
7. LUBRICATION ................................................................................................................................................ 28
7.1. Gear ............................................................................................................................................................. 28
7.2. Joints and bearings ...................................................................................................................................... 28
7.3. Risks present when lubricating ................................................................................................................... 29
8. DEFECTS AND THEIR REPAIR .................................................................................................................. 30
9. REPAIR AND WITHDRAWAL FROM USE ............................................................................................... 30
9.1. Repair .......................................................................................................................................................... 30
9.2. Disassembly and withdrawal from use ....................................................................................................... 31
10. WARRANTY CARD ........................................................................................................................................ 31
11. WARRANTY TERMS ..................................................................................................................................... 31
11.1. Warranty claims procedures ....................................................................................................................... 31
11.2. Warranty repairs record .............................................................................................................................. 33
Instruction manual
Two rotor rake
TANGO
- 1 -
Data plate includes:
- full name of the manufacturer,
-
machine’s weight,
- id number,
-
quality management sign,
- rake
symbol,
Directive 2006/42/EC and harmonized standards,
-
date of manufacture,
- bar code.
Instruction manual
1. IDENTIFYING THE MACHINE
Data plate is attached on the rake's main frame as shown below in Figure 1.
Fig. 1. Data plate location Fig. 2. Data plate
Two rotor rake
TANGO
- CE marking means, that the machine is conform with
- version number, - country of manufacture,
NOTE:
Should the contents of the herein manual be unclear, ask the manufacturer or your dealer for
more detailed information on the machine.
2. INTRODUCTION
This operator's manual should be considered the rake's basic equipment and should be kept for
further reference. If the rake is handed over to another user, it should be serviceable, and include
this operator's manual, CE declaration of conformity and its required basic equipment.
Before operating the rake its user must familiarize himself with this manual as well as current
work safety rules.
The rake is manufactured according to international safety rules.
Respecting recommendations herein shall ensure use safety.
Should you have any questions relating to the operation and service of the rake, please contact
the manufacturer.
GENERAL PRECAUTION
When operating the machine always respect warnings and safety rules
marked with this sign.
NOTE:
Operating the rake without reading the contents of the manual, and by unauthorized
personnel, children in particular, is strictly forbidden.
- 2 -
Instruction manual
Two rotor rake
TANGO
3. INTENDED USE
Rotary rake is designed to rake up green forage, dried forage and hay. The machine
cooperates with tractors with power from 60 HP. The rake can be used only by personnel
familiarized with its technical characteristics, and aware of risks associated with its operation and
methods to avoid them.
WARNING!
Do not use the rake for purposes other than those listed in this manual.
Otherwise it will be classified as misuse and could release the manufacturer
from responsibility for any damages. The rake should be used, serviced and
repaired only by personnel familiar with its characteristics and with safety
regulations. Tampering with the rake may release the manufacturer from
responsibility for any resulting malfunctions or damages.
3.1. Technical data
Tab. 1. General specification
Rake type: TANGO 730
Working width [ft in / m] 21′ 8″-23′ 11″ / 6.60-7.30
Transport width [ft in / m] 9′ 10″ / 2.99
Transport height [ft in / m] 13′ / 3.97
Transport length [ft in / m] 25′ 5″ / 7.75
Tractor's PTO rears [rpm] 300÷350
Cooperating tractor power [HP] 60
Operating capacity [ha/h] ~ 8.00
Number of rotors [pcs] 2
Number of rotor arms [pcs] 2 x 11
Axes on carousels Tandem axis
Tires under rotors 16 x 6.50-8
Rear driving tires 340/55/R16
Nominal pressure in wheels under rotors [bar] 1.8
Nominal pressure in driving wheels [bar] 1.8
Weight [lbs / kg] 5820 / 2640
Load onto hitch [lbs / kg] 2646 / 1200
Load onto rear axis [lbs / kg] 2998 / 1360
- 3 -
7
Instruction manual
3.2. Design and working principle
3
11
8
1 – Hitch
2 – Linkage frame
3 – Carousel gear I
4 – PTO shaft
5 – Carousel gear II
6 – Raking arms
Fig. 3. Overview of two rotor rake TANGO
9
TANGO
2
1
Two rotor rake
4
10
9
5
8
10
6
12
7 – Raking tines
8 – Safety guards
9 – Adjustment crank
10 – Swath screen
11 – Rear driving axis
12 – Driving trolley
Hitch (1) allows for connecting the rake to tractor's lower pull-cables. Drive from the tractor's
PTO shaft is transmitted by a shaft located under the rake's linkage (2) onto bevel gear which
distributes the drive with shafts (4) on carousel gear I (3), and carousel gear II. Then the drive from
the carousel gear II is transmitted with the shaft onto the carousel gear II (5). On the rotor, there are
arms (6) installed to which raking tines (7) are mounted. Carousel gears are equipped with safety
guards (8). For the transport the extreme-most arms can be detached and placed in holders.
Adjustment cranks (9) are used to set the raking height. The rake is also equipped with swath
screens (10) used to form the row. Rate of components lowering, and rate of swath screen lowering
and lifting is adjusted with throttle and control flow valves. Below the carousel gears there are
driving trolleys (12).
- 4 -
HP ft in /
mm Nm
/
To be
3.3. Equipment and spare parts
Instruction manual
Two rotor rake
TANGO
Rakes are sold with the following standard equipment:
warranty card,
operator's manual with spare part list,
telescopic articulated shaft,
spray paint (150 ml),
warning plates.
Optional extra equipment:
warning triangle.
NOTE:
Optional extra equipment should be ordered separately.
Tab. 2. Recommended telescopic articulated shaft for mounting rake on tractor
Model
TANGO 730 55
Power Length Torque
2′ 4″-3′ 6″
710-1058
Symbol Joint / coupling
716 7G7R071CE007WR7A
Wide-angle /
unidirectional
Manufacture
r
Bondioli &
Pavesi
Remarks
PTO shaft end without coupling –
To be mounted on the tractor side.
PTO shaft end with wide-angle joint –
mounted on the rake side.
Fig. 4. PTO shaft lubrication. Mounting directions.
IMPORTANT:
Make sure to follow the PTO shaft lubrication frequency. Lubrication points marked
in Fig. 4 should be lubricated every 50 hours. Always lubricate the PTO shaft before and
after a period of longer idleness.
PTO shafts of other brands with equivalent technical parameters may be used on the SaMASZ
permission.
4. SAFETY PRECAUTIONS
4.1. Safety rules and regulations
Front axis of the tractor should be balanced to enable its steering. If necessary, use front wheel
weights.
In order to keep steering conditions, make sure that impact on the front axis is at least 20% of
the complete impact on the tractor.
Any operation with the hydraulic lift lever should be done from the operator's seat; never
operate the lever from outside of the tractor.
- 5 -
For tractors equipped with EHR, control with hydraulic lift is done with a button located outside
Instruction manual
Two rotor rake
TANGO
the tractor's cabin. When operating, please exercise particular caution.
When mounting the rake on a tractor, risk of wounding is likely. It is recommended that
operator wears protective gloves.
Do not operate without safety guards. Neither operation with damaged nor raised guard is
allowed (risk of stones, etc. being thrown out). Damaged safety curtain should be replaced.
Please make sure that no unauthorized personnel remains within the danger area of at least 170
ft (50m). Keep particular caution when operating near roads and in stony areas.
Perform any maintenance and adjustment work only when the drive is disconnected and rotor
has stopped completely.
When driving on public roads always comply with local traffic regulations, especially on the
warning lights.
CAUTION!
Make sure to perform any service and repair operations with the tractor drive
shut off and after all rotating parts have stopped completely.
WARNING!
Keep children away from the rake when operating and idle.

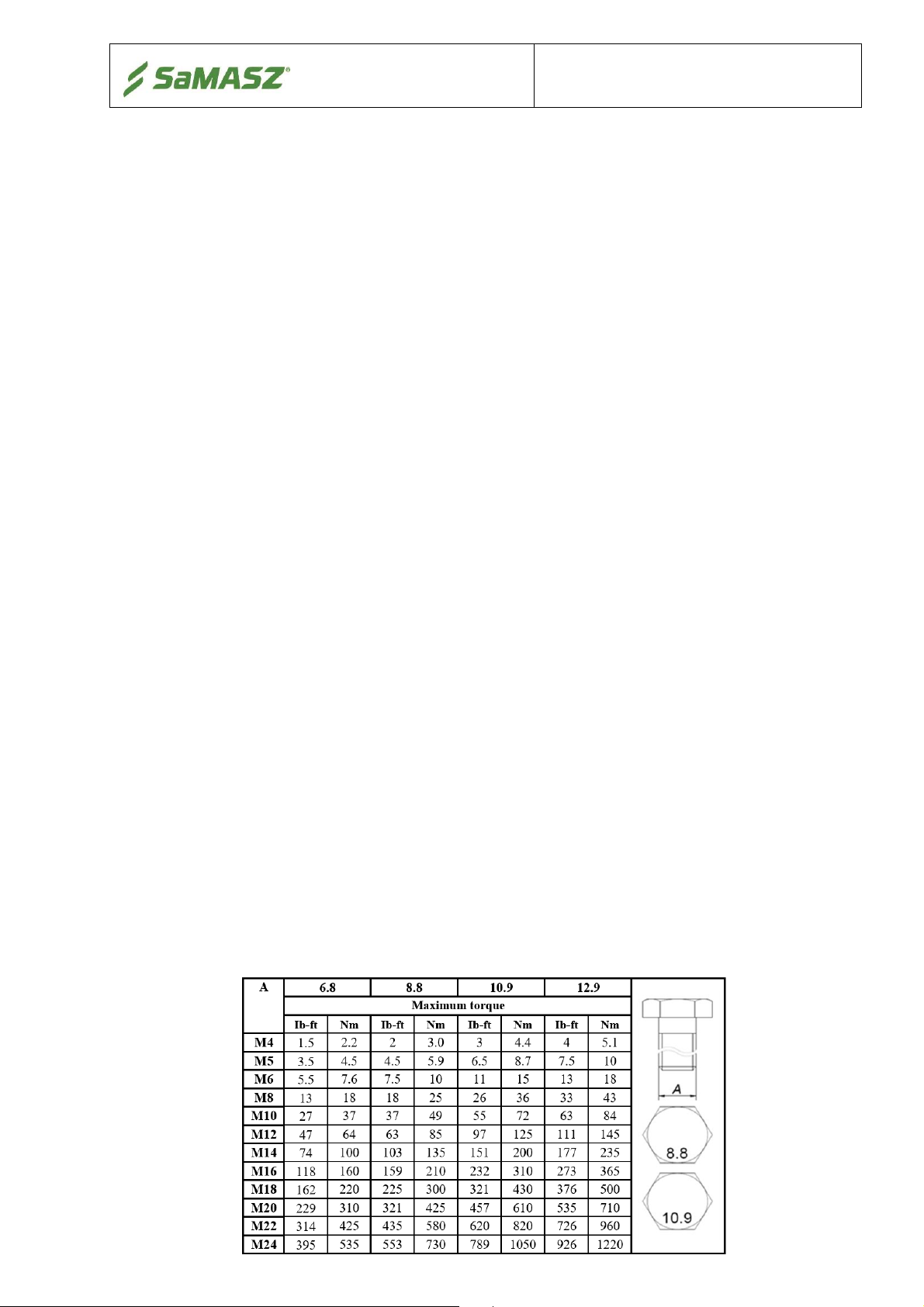

Check bolts and other fasteners regularly. Do not operate with damaged or worn fasteners.
Do not leave a running tractor without supervision. Before leaving the tractor turn off the engine
and remove the ignition key
If any break in the machine operation occurs, turn off the drive
Tractor cooperating with the rake should be equipped with a driver's cabin
Rake should not be operated when the tractor-rake aggregate is not well balanced
Never start the rake if any people or animals are around the rake
Always follow safety labels describing hazards, and warning signs placed on the machine
Before starting the tractor make sure that each drive is disconnected and control levers for
hydraulics are in neutral position
Do not drive the rake backwards when operating
Never get onto the rake
Never stand between the tractor and the rake, unless the tractor-rake aggregate is protected
against moving with the tractor's parking brake
Any inspections and adjustments may be conducted only when the rake is disconnected from the
tractor and on the ground
For repairs or adjustments to be done under the rake make sure to secure it against falling using
a proper support
If any part of the rake needs to be replaced, use only original spare parts according to spare part
list
Pay particular attention to PTO shaft guards and rake and tractor spline shaft guards. Never
operate with damaged guards
Inspect hydraulic hoses on regular basis and if any damage is found or their service life expires,
replace them. Service life for a hydraulic hose should be no longer than 5 years.
Never repair damaged hydraulic hoses using a tape.
When connecting hydraulic hoses to tractor’s hydraulic connectors make sure, that either tractor
or rake hydraulics are pressure free.
When servicing hydraulic unit, always wear protective gloves and eyewear. Hydraulic oil
leaking under pressure (16MPa) may permeate through the skin and cause its infection
thereafter. If this is the case, immediately visit a doctor.
The rake should be stored under a roof and in such way so as to effectively prevent animals and
people from being injured
- 6 -
Before starting the rake, make sure there are no animals underneath the guard
Before operating the rake, make sure all safety devices are in place and working. If not working
Instruction manual
Two rotor rake
TANGO
or damaged have them replaced
Before any maintenance, assembly, disassembly works and when parking position the machine
on a solid ground and secure it against accidental movements.
When cleaning the machine, use personal protective equipment for health protection.
Do not leave agricultural machinery on slopes or other descents without providing protection
against free runaway.
When operating on a stony field or nearby roads there is a risk of throwing out stones or other
objects which may pose a danger for passing-by vehicles on the road or for passers-by.
Therefore keep the safe distance.
If any break in the equipment operation occurs, turn off the drive. Before leaving the tractor turn
off the engine and remove the ignition key, leave the cabin and make sure there are no
unauthorized personnel in the cabin and close the door.
The operator is not allowed to leave the tractor while driving.
In case of a major failure, stop the machine's drive, turn off the tractor's engine and remove the
ignition key. Next, please contact technical service, and if accident (i.e.: road accident) occurs,
respect first aid rules and call appropriate authorities.
Keep the rake clean, so as to avoid a risk of fire.
Pay particular attention to both PTO shaft and spline shaft guards. Never operate with damaged
guards.
Rotating spring tines and other rotary elements present a danger to health and life of persons
present nearby the machine. Do not touch any moving machine parts
Check pressure in the machine wheels regularly.
In the event of any break in the equipment operation, turn off the drive.
In the event of a fatal failure, please call for technical service, and if an accident (in this case:
road accident) occurs, respect first aid rules and contact responsible services.
4.2. Transport
Any modifications in the rake’s position are possible only if no unauthorized personnel is
around (children in particular).
For transport make sure that the rake has portable light board and the triangular safety sign
identifying a slow moving vehicle mounted.
When transporting the rake make sure it is always placed in the transport position
Before moving the rake to transport position make sure, that the tractor’s PTO is turned off and
all rotating parts have come to a complete stop.
Always adjust driving speed to current road conditions and local traffic code.
Do not exceed permissible speed of 19mph (30km/h).
Do not transport any people or objects on the machine.
When taking turns pay particular attention and keep in mind the machine's weight and
dimensions.
Bear in mind that when operating and transporting the machine in areas where high voltage
lines are present, exercise special caution as it is likely for the aggregate to touch the lines.
It is forbidden for the operator to leave the vehicles when driving.
Reckless driving and speeding may cause a traffic accident or collision.
4.3. Putting the machines onto another vehicle for transport
The driver and the carrier are responsible for rake’s transport safety. Equipment and parts
must be secured during transport.
To put the rake onto another vehicle in a safe way, please follow the procedure below:
Grab the machine by any lifting devices only in places indicated by hook sign,
For hoisting please use hoists with capacity bigger than the machine weight as indicated on its
data plate. It also applies to the necessary cables and chains,
- 7 -
13' 6'' /
4115 mm
Transport belts, belt suspensions, ropes cannot be damaged. Whenever damages to these parts
Instruction manual
Two rotor rake
TANGO
are found, replace them,
When mounting slings, chains, clamps, etc. always keep in mind the center of gravity of the
machine,
For seizing the machines pick lines of adequate length, so that the angle between them was no
greater than 120°, and the angle of inclination between the cable and the vertical was no greater
than 60°,
Collapsible parts should be blocked in transport position,
When relocating the rake onto another vehicle, there should be no unauthorized personnel
permitted to remain within the danger area,
The rake should be protected against moving on the vehicle's trailer.
WARNING!
Securing the maneuver area and providing safety for operation performed is
the responsibility of the person in charge of moving of the machine.
Fig. 5. Moving machine onto another vehicle for transport
Fig. 6. Location of center of gravity
4.4. Working parts
Before operating the rake check condition of both the rotor and raking tines.
Replace any worn or damaged tines immediately.
- 8 -
5' 9'' / 1750 mm
Instruction manual
Two rotor rake
TANGO
WARNING!
When replacing working parts, always use protective gloves.
4.5. Telescopic articulated shaft
Before operating learn provisions found in the shaft manufacturer's manual placed on the shaft.
Use the shafts recommended by the manufacturer of the rake only.
In order to operate safely use only fully technically fit, undamaged telescopic articulated shafts.
Damaged telescopic articulated shaft shall be repaired or replaced.
Before any operation make sure whether PTO rpm have proper rotational direction.
4.6. Hydraulic assembly
Note! Hydraulic assembly is under pressure! Hydraulic oil under pressure may permeate
through skin and cause serious injury, therefore skin and eyes should be protected in particular.
In case of injuries caused by liquid under pressure, call a doctor immediately.
Hydraulic hoses can be connected to tractor's hydraulics, provided that both the tractor's and the
rake's hydraulic assemblies are not under pressure. To remove the pressure from the hoses just
simply restart the tractor's hydraulic valves several times, once the tractor is off.
When dismounting the machine from the tractor, set the equipment aside, deflate the pressure
from hydraulics and turn tractor's engine off.
When inspecting hydraulic assembly's malfunction and looking for oil leaks, it is forbidden to
touch any potential leaks until the entire assembly is under pressure.
Note! It is recommended that the hydraulic oil used should not exceed 10 oil purity class in
accordance with NAS 1638.
When using hydraulic hoses:
Avoid stretching the hoses when operating.
Do not allow hydraulic hoses to get deflected.
Do not expose hydraulic hoses to contact with any sharp edges.
If damaged or worn, replace the hoses.
Service life for hydraulic hoses is 5 years from their production date
4.7. Residual risk
Despite the fact, that SaMASZ Sp. z o.o. company – the manufacturer of the rake takes the
responsibility for the rake design and manufacturing, in order to eliminate hazard, certain risk when
operating the rake is unavoidable.
Major source of risk results from the following operations:
operation of rake by minors and operators not being familiarized with operator's manual,
operation of rake by personnel under influence of alcohol or other abusive substances,
failure to keep caution while transporting and moving the rake during operation,
transport of personnel on the rake,
presence of personnel and animals within the rake operating range,
service and adjustment operations with engine running.
4.7.1 Risk of being caught or pulled in
This risk occurs when repositioning of the rake, or working on the rake while the rotating
elements are in motion and with guards removed.
During operation, maintenance or adjustment works on the rake always use protective gloves,
covered footwear, protective clothing without loose elements, such as belts etc. Always observe
the warnings placed on the rake.
- 9 -
Instruction manual
Two rotor rake
TANGO
When operating, maintenance and regulation works are conducted always wear protective
gloves, footwear and clothing with no loose parts, belts, etc. Always comply with warnings placed
on the rake.
4.7.2 Risk of injury, abrasion and damage of skin
This risk occurs when replacing working parts with sharp edges, cleaning the machine and
removal of any clogging and jams. For any repair and maintenance works always wear safety
gloves.
NOTE:
Present residual risk results mainly from erroneous actions of the rake’s operator and failure
to follow the instruction manual.
4.7.3 Prohibited actions
Bear in mind the following prohibited actions when operating the rake:
Do not unblock the rake, make any adjustments or repairs when the rake is operating,
Never change the sequence of operation and maintenance works specified in the operator's
manual,
Never operate the rake when its working condition is poor or its safety guards are damaged,
Never get your limbs close to rake's rotating parts,
During repair and maintenance works on the rake always comply with the descriptions included
in the operator's manual, while making sure the tractor’s drive is turned off,
Before any works, focus your attention solely on the tasks to do,
Never operate the rake being under influence of alcohol, drugs, or strong medicines,
Wear clothing that is not too loose, or too tight. Too loose clothing elements may be pulled in
by the rake's rotating parts,
Make sure the rake is not operated by children no handicapped people.
When describing residual risk, the rake shall be considered a machine, which until the
moment of production launching had been designed and manufactured in accordance with the state
of the art at the day of the manufacture.
WARNING!
Despite following the specified instructions and prohibitions, residual risk is
still present.
4.7.4 Residual risk assessment
Keep the following recommendations:
read operator’s manual thoroughly,
make sure no person remains on the rake when operating and driving,
make sure no person remains within the rake’s operating range,
before any adjustment, maintenance and lubrication works on the rake, make sure its engine is
turned off,
repair works on the rake can be done by properly qualified and skilled personnel only,
before operating the rake, carefully read the operator’s manual,
make sure that no children and unauthorized personnel stays around the rake
- 10 -
when PTO shaft is rotating
before use
d
isconnect the power supply
machine
hoist
N-55 N-82
Instruction manual
Two rotor rake
TANGO
When the risk of being exposed to noise cannot be avoided or eliminated by any
group protective means or organization of work, employer (operator) must:
1) provide the operator with individual means of noise protection, if the noise
level in work place exceeds 80 dB.
2) provide the operator with individual means of noise protection and supervise
its proper use, if the noise level in work place reaches or exceeds 85 dB.
4.8. Safety labels and their meaning
IMPORTANT:
a) All warning labels should be clean and legible,
b) Lost or damaged labels must be replaced,
c)
New labels can be ordered at the Manufacturer.
N-01
Exercise particular caution
N-07
Do not operate the if any
personnel remains within
170 ft (50m) from the
N-03
Read the operator’s manual
N-11
Lubrication point
N-04
Before any service or repair
N-06
WARNING! pulling-in parts
N-15
Caution: power lines
N-23
N-40
Transport holder for
machine handling
N-49
Do not get too close to
the hoist of the tractor
during operation of the
- 11 -
N-50
Do not remain in the
machine swinging area
elements
coming out under pressure
slip or tilt
not come to a complete
stop
in of legs
rake's wheels
transporting
Instruction manual
Two rotor rake
TANGO
N-105
WARNING! cutting
N-133
Do not drive on slopes
where the vehicle is likely to
N-162
N-117
Avoid contact with liquid
N-156 N-157 N-167
N-124
N-168
Do not touch the machine
before the rotating parts have
Do not remain on the
machine while driving
N-179
N-180 N-182 N-183
N-184 N-196
Recommended pressure in
- 12 -
Caution: danger of pulling
N-200 N-202
Admissible speed when
Instruction manual
Two rotor rake
TANGO
N-204
Use the required Personal
Protective
Use the required Personal
N-200
N-205
Protective
N-182
N-206
Use the required Personal
Protective
N-202
N-03; N-04
N-06; N-07
N-23; N-50
N-105; N-133
N-117; N-167
N-168; N-183
N-124
N-01; N-49
N-15; N-82; N-162
N-204; N-205; N-206
N-184
N-156; N-157
N-179; N-180
N-200
N-182
Fig. 7. Location of warning labels
NOTE:
Any spare part used for repair of the rake should have all safety labels provided by the
manufacturer.
- 13 -
Instruction manual
Two rotor rake
TANGO
5. USE OF RAKE
5.1. Mounting rake on tractor
Rake TANGO 730 cooperates with tractors with power from 60
The rake should be attached to a tractor with use of tractor's lower pull-cables as provided in
Fig. 8. For this purpose drive the tractor at the rake's catch, and then place hangers W of
tractor's lower pull-cables on pins S on the rake's linkage.
Once the rake is mounted turn support leg back (Fig. 8).
Connect hydraulic hoses.
Connect machine's controller to tractor's lighter outlet (12V) by means of a plug and a three-pin
plug to socket on the rake's linkage. Fix the controller in tractor's cabin by means of magnetic
holder in a visible place.
Connect the machine's lighting cables to the tractor and check the lights for operation.
Connect telescopic articulated shaft. If need be shorten the shaft as per item 5.4.
S
W
Fig. 8. Rake mounted on tractor
5.1.1. Control panel
Controller (Fig. 9) enables switching the rake's working units to working position (lowering)
and transport position (lifting). During the machine operation, if diode (1) is lit the sequential lifting
and lowering of working units function is enabled. Button (C) is for switching between the panel
functions. Once button (C) is pressed the diode (1) goes off, a diode (2) will light up to indicate
deactivation of sequential lifting and lowering function and thus activation of folding the machine
for transport and unfolding it for operation function. Once this option is enabled the working units
will fold and unfold steadily. Note: once diode (2) lights up the function remains active for 60
seconds. This time is sufficient to fold the machine to transport position or unfold it to working
position. As the 60 s time elapses the panel will go to sequential operation mode.
HP.
Fig. 9. Control panel
- 14 -
13'
'''
(after taking out the
extreme most
''
7400 mm / 24
' 3''
Instruction manual
Two rotor rake
TANGO
5.2. Preparing rake for transport
CAUTION!
Exercise particular caution when mounting rake on vehicle. During mounting
make sure there are no people between the rake and the tractor.
NOTE
Mount the machine on a level ground.
In order to prepare the rake for transport and- drive on a road-:
due to safety reasons, before setting the rake to transport position turn off the PTO shaft; raking
arms cannot be in motion,
lift safety guards to transport position,
take out the extreme most raking arms from a rotor, place them in transport holes (depending on
max. height of obstacles under way) (Fig. 10),
lower and secure a support leg,
lift working assemblies and secure them with a pawl,
raking arms)
3480 mm / 11' 5
490 mm / 1' 7
7750 mm / 25' 5''
Fig. 10. Transport dimensions
NOTE:
Once the machine is set to transport position, check whether mechanical locking pawls are
properly locked on pins.
Fig. 11. Rake in transport position
- 15 -
Instruction manual
Two rotor rake
TANGO
5.3. Preparing rake for transport on public roads
To meet safety precautions concerning transport on the public roads the rake should be
equipped with warning triangle, attached at the rake's rear (the plates are standard-delivered with
the machine.) To improve safety during the transport the machine should be fitted with a warning
triangle – to be purchased at the manufacturer.
When transporting on public roads respect provisions valid in the country of use.
NOTE:
If the rake's owner does not own the above warning lights and plates, these can be ordered at
the manufacturer.
5.4. Mounting telescopic articulated shaft
Mount the shaft with wide-angle joint from the rake side.
The guard should be protected against rotating by securing the shaft set chains to immovable
parts of the tractor and the rake.
NOTE:
If necessary shorten the shaft as provided in the corresponding operator's manual (Fig. 12).
Fig. 12. Telescopic articulated shaft shortening instructions
CAUTION!
The articulated telescopic shaft should remain connected only during rake
operation. During transport or any servicing operations the shaft should be
disconnected from the PTO of the tractor.
CAUTION!
Use machines with correspondingly designed driving PTO shafts. Before
work, safety guards should be inspected whether they (in the tractor, the rake
and the PTO shaft) are placed correctly and are not damaged. Damaged or
missing parts must be replaced. Make sure that the PTO shaft is mounted
properly. Approaching the rotating parts is strictly forbidden, as it may cause
serious injuries or even death. For any service and repair works on the shaft
and the rake, makes sure that the tractor’s engine and its drive is turned off.
Before operation, read the operator's manuals of both the machine and the
PTO shaft
.
NOTE
PTO shaft’s end with friction clutch should be mounted at the rake’s side.
- 16 -
Instruction manual
Two rotor rake
TANGO
5.5. Switching rake from transport to working position
make sure there is no person around the danger area where the machine is to be lowered,
lower rake's arms by means of hydraulic lifter as slow as possible in order to better absorb it
when touching the ground,
remove raking arms from transport holes, mount them in the rotor and secure with cotters,
lower safety guards.
5.6. Preparing rake for operation
NOTE:
For the machine storing period, cylinder rods are lubricated as SaMASZ with protective
grease in order to protect them against weather conditions able to shorten their service life.
Before operating the machine remove excess grease coming out from cylinder rods.
Due to large dimensions of rake TANGO 730, extreme most arms are originally dismounted
on each rotor for transport purposes (TIR). In order to dismount these quicker they are mounted in
factory with bolts. For operation purposes put expansion pins which are provided with the machine
instead of factory bolts as given below:
unscrew bolts from rake's arms on each gear (Fig. 13),
support rake's arm to avoid damaging the gear's connecting rod (Fig. 14),
Fig. 13. Temporary mounting of arms Fig. 14. Supporting rake arm
hammer expansion pins into holes where bolts were previously placed. put pin Ø10 and Ø6 into
each one hole (Fig. 14).
Fig. 15. Hammering dowel pins Fig. 16. Properly hammered pins
Before commissioning of the rake, in driving wheels (Fig. 17), replace provisional bolts (S)
on joints of steering heads with rear wheel axis for expansion pins Ø16 and Ø10 (K) delivered with
the machine. Install the pins as shown in Fig. 16.
- 17 -
S
K
Instruction manual
Two rotor rake
TANGO
Fig. 17. Preparing drive system of the rake
The following should be performed in workplace and as rake is in working position:
connect PTO shaft extension onto tractor's spline shaft (if only one extension was taken out) or
connect the complete PTO shaft,
set the tractor and rake aggregate on an even, level ground,
lift or lower adjustment lever (Fig. 18) to set the required raking height. Recommended distance
of raking tines and the ground is 0.4'' (1 cm) (Fig. 21).
Fig. 18. Raking height adjustment lever
WARNING!
It is forbidden to lower raking arms below 0.4'' (1 cm) from the ground as
this may cause damages to the machine such as bending the raking arms,
breaking the linkage or the gear, faster wearing of raking tines, damaging the
turf and causing contamination to the collected forage, etc. Too high a raking
set may cause the swath not be collected completely.
- 18 -
1' 3''
1'
6
''
1
2
3
4
5
6
8
7
9
SUPPORT
Instruction manual
Two rotor rake
TANGO
IMPORTANT:
The raking arms' height should be controlled on an on-going basis while
operating the machine, and if need be, adjusted. Adjustments are performed
with tractor's drive off.
for turf meadows it is possible to increase the distance between raking tines from the ground by
mounting the driving trolley's wheel arms in a different way. For this lift up the driving trolley
and secure against an uncontrolled fall. Unscrew nuts (1), remove washers (2), and then draw
out the arm of front wheels (3) and insert the locking pin (4) into lower sleeve (5). Trolley's pin
(6) should be located in upper sleeve (7). Left (8) and right (9) arm to be switched analogically.
Fig. 19. Increasing raking height with driving trolley
Fig. 20. Trolley's height in a) normal setting, b) increased setting
start the spline drive and operate at middle rpm, e.g. 300÷350 rpm. Prolonged operation at 540
rpm may lead to premature wear of the gear,
engage proper tractor's gear and drive the rake into a windrow. Driving speed is the result of
raking cleanness.
- 19 -
min.
0.4'' (1 cm)
Instruction manual
Two rotor rake
TANGO
Fig. 21. Rake in working position
Fig. 22. Forbidden rake's setting
NOTE:
Operating with one side of the rake is possible only after dismounting telescopic articulated
shaft from the rake's other gear.
5.7. Operation
Rotary rake is used for raking up swath or grass after tedders. The driving speed should be the
result of ground configuration, quantity of grass, and raking cleanness. Depending on setting the
working assemblies' operating widths, the rake will be able to form either one, or two rows. When
forming two rows, both swath screens should be lowered.
a) b)
Fig. 23. Rake TANGO forming a) one row, and b) two rows
- 20 -
a)
0º
0º
5º
5º
Instruction manual
Two rotor rake
TANGO
Movable setting of hitch L (Fig. 24) provide decent ground following.
L
L
Fig. 24. Hitch on rake TANGO 730
To provide even better ground following, the rake has been equipped with transverse and
length-wise ground following function.
b)
20º
8º
Fig. 25. Ground following: a) transverse, and b) length-wise
Applying 6-wheel trolleys as standard enabled reducing the pressure exerted by the rake onto
the ground, what is of particular significance when operating on soft grounds, e.g, turfs. Any minor
ground unevenness (e.g. stones) is levelled by movable, tandem wheels on the driving trolley.
5.8. Mechanism for sequential lifting and lowering of working units
Due to the rake's design, where working units are arranged in different distances in relation to
the tractor, a mechanism for sequential lifting and lowering of working units is applied, and it is
used when driving the machine to and from a meadow. When driving to a meadow and after
switching hydraulic section to floating position, the front working unit lowers and starts raking, and
in a while the rear enters the grass, lowers and starts raking as well. When leaving a meadow the
rotor at the tractor's side lifts up to headland position as first.
5.8.1. Sequential lifting
When switching to transport position, the rear rotor's hydraulic assembly remains locked until
the front rotor reaches the transport position. Only afterwards hydraulic lowering of the rear rotor is
released. When switching from transport position to working position the rotors lower in the reverse
order.
Switching time of the control valve (Z) is adjusted with screw (S) on the cam (K) (Fig. 26).
Turn the screw counter clockwise to set shorter time of delay in lifting of the rear unit against the
first unit. Turn the screw clockwise to set longer time of delay in lifting of the rear unit.
- 21 -
control valve
Instruction manual
Two rotor rake
TANGO
Z
S
K
Fig. 26. Adjusting lifting time of front rotor against first rotor
S – Adjustment screw, Z – Valve, K – Cam
5.8.2. Sequential lowering
To set sequential lowering of the rake's working units do the following:
switch the tractor's section lever to floating position,
set the required rate of lowering of the rear rotor by means of valve on the cylinder of the rear
working unit (Fig. 27).
Lowering rate
Fig. 27. Rear working unit lowering control valve
5.9. Setting rake for forming one row
In order to prepare the machine for forming one row, perform the following:
using the tractor's hydraulics lift the front guard Fig. 28 maximally up,
secure the lifting mechanism by closing the cylinder valve,
OFF
Fig. 28. Lifting front tarpaulin cover Fig. 29. Securing lifting mechanism
- 22 -
D
move away the rear tarpaulin cover from raking arms for a required distance, and secure
Instruction manual
Two rotor rake
TANGO
against retracting with clamps (D) (Fig. 30),
Fig. 30. Setting rear cover
get both of working assemblies as near to each other as possible (Fig. 31).
Fig. 31. Rake set for forming one row
5.10. Switching rake from forming one row to forming two single rows
In order to switch the machine for raking two rows, perform the following:
fold out working assemblies with tractor's hydraulics, so that raking tines on front working
assembly do not overlap with tines on the rear assembly,
open valve on tarpaulin cover mechanism cylinder.
Switching the valve shall cause the cover to get lifted as headlands with working assemblies,
and be set for operation as the machine starts raking.
When forming two rows the rear cover is set the same as when forming a single one.
Once the work is completed, first lift the tarpaulin cover mechanism (Fig. 28) and secure the
valve on cylinder (Fig. 29). Working assemblies can be slid down only when the mechanism is
secured.
CAUTION:
When sliding down the working assemblies, pay particular attention to
tarpaulin cover on the front working assembly – if in lower position its
damage may follow.
- 23 -
1
2
2
4
5
3
Control panel
lifting
2 1
Instruction manual
Two rotor rake
TANGO
5.10.1. Protection mechanism of front safety curtain
The mechanism is designed to provide protection of front safety curtain against damage in the
event the curtain was not locked in the upper position by shut-off valve, and the rotating working
units will be slid down.
Fig. 32. Protection mechanism of front safety curtain
This mechanism is operated by means of lever (1), which, as the working unit approaches the
rake's linkage, is pushed away by pin (4) located on pull-out arm. The lever has a line (2) attached,
and with its use, along with the lever, push-off arm (3) operates. It is intended to protect the curtain
against damage by pushing it to a safe distance away from an operating rotor. With adjusting nut (5)
it is possible to set a safe distance for safety curtain from raking arms of the working unit.
5.11. Lifting rake on headlands
When lifting arms with working assemblies (A) and (B) the pawl (3) will be locked
automatically in position for headlands (Fig. 34). To lift working units to transport position, on the
control panel switch to lifting function (S), and then in the initial stage of lifting the working units,
pull the pawl by means of string (4) (Fig. 33).
4
3
Fig. 33. Preparing rake for headlands
(1)
Sequential
(2) Folding-
unfolding of
working units
- 24 -
B
Instruction manual
A
Two rotor rake
TANGO
Fig. 34. Rake in position for headlands
CAUTION:
When preparing the rake for position for headlands, there is a risk of tilting
and falling of the aggregate, thus this should be carried out on an even
ground. When turning back, reduce the driving speed accordingly!
5.12. Removing clogging and jams
When operating the machine pay attention to variable conditions in field, which may
influence the clogging and blocking, such as: terrain unevenness, height and density of grass as well
as other objects in the grass (stones, branches, piles of soil). In order to avoid clogging and
blocking, operating speed should be adjusted to the mentioned conditions.
CAUTION:
Removing clogs and jams while the machine is in operation can lead to the
accident !
In case of machine blockage caused by wrapped material, set the machine on a flat surface,
remove excess material using sharp tool. After clearing the machine check if nothing has been
damaged.
To remove any clogging it is obligatory to disconnect the drive and the motor, take out the
ignition key. When eliminating any clogging on the machine, use also safety means for operator, so
protective gloves and tight wear.
5.13. Dismounting machine from tractor
CAUTION:
When dismounting, make sure there is no person in between the machine
and the tractor.
To dismount the machine from the tractor:
Set the machine onto an even, stable ground,
Turn the tractor's ignition off and take the key out,
Secure the machine against moving by placing wedges at wheels,
Fold out the support leg and protect with safety pin,
Disconnect the machine's hydraulics and electrics from the tractor,
Disconnect control panel,
Dismount the telescopic articulated shaft and place it on the shaft holder, which is standard-
delivered with the machine,
Detach the machine from the tractor.
- 25 -
1
2
Instruction manual
Two rotor rake
TANGO
6. MOUNTING AND ADJUSTMENTS
6.1. Installing tines
Tines should be installed according to scheme provided in Fig. 35.
Fig. 35. Installing raking tines
WARNING!
- Use only tines recommended by manufacturer.
- Before each operation check condition of tines and holders. Worn or
damaged tines should be replaced immediately.
IMPORTANT:
Before changing the tine check direction of rotor turns (Fig. 35).
6.2. Replacing connecting rods
In case of connecting rod damage, a simple replacement is possible by removing the damaged
part. Replace as follows:
Secure raking arm with support (Fig. 14),
Remove expansion pins (1) from arm mount,
Once pins are removed slide down arm mount from connecting rod,
Loosen four screws (2) that fix connecting rod to gearbox body,
Remove damaged connecting rod module,
Install new connecting rod,
Re-tighten the screws (2) with adequate torque,
Use support again when installing arm mount, securing it with expansion pins.
When replacing connecting rod it is not necessary to drain oil from the gear.
Fig. 36. Replacing connecting rod
- 26 -
Instruction manual
Two rotor rake
TANGO
6.3. Daily maintenance
It is recommended for the operator to wear protective gloves when performing maintenance works.
Daily after completion of operation make sure to do the following:
inspect all visible external parts and assemblies and their connection; tighten all loosen screws if
worn or replace any damaged parts,
after each raking wash the rake with water under pressure,
remove any grass, dirt and mud from the machine,
examine condition of the rotor,
lubricate the PTO shaft telescopic tubes with STP grease,
if necessary, lubricate the other parts and assemblies in accordance with the lubrication
instructions (item 7).
6.4. After-season maintenance and storing
At the end of the season the rake should be cleaned, washed and dried. Carefully grease
unpainted surfaces and 3-point linkage pins.
Make sure to do the following:
perform any necessary paintwork repair,
check oil level in gears (item 7). If leaks are found remove them immediately and refill the oil,
perform periodic checkups of the rake and protect all operating parts with grease in order to
prevent their baking and creating any sources of corrosion, which significantly influences the
rake's proper operation.
The detached machine should be stored in a standstill position (unfolded tine arms together with
rotors, drive chassis set on the ground like in position to work, main frame rest on secured support
stand). It is recommended to store the set on a paved ground, preferably in dry, roofed places,
inaccessible to unauthorized personnel (mainly children). If the machine is exposed to weather
conditions, apply lubrication regularly.
If stored for adequate period, prior to operating the machine, its technical condition should be
examined and special attention should be paid to the hydraulics and the drive. Paintwork should be
complemented and lubricated and hydraulic hoses checked.
6.3.1 Restarting the machine after longer idle periods
Make sure that all nuts and screws are tightened with correct torque (Tab. 3).
Make sure that all guards are installed in place.
After the storing lubricate the whole machine.
Check pressure in tires.
Tab. 3. Torque values for bolts
- 27 -
Instruction manual
Two rotor rake
TANGO
In the absence of specific torque values, the following chart can be used as a guide to the
maximum safe torque for a particular size and grade of fastener. There is no torque difference for
fine or coarse threads. Torque values are based on clean, dry threads. Reduce value by 10% if
threads are oiled before assembly.
7. LUBRICATION
7.1. Gear
On a daily basis before work, check the oil level and, if needed, refill once removing the vent
A (Fig. 37) in upper section of the gear. The oil level in the gear can be checked by opening check
plug A. If the oil level is too low, refill the oil (preferably Transol or other gearbox oil) until it is
visible in the check opening A. To drain oil use plug B. The oil capacity in the gear is approx. 8 l.
A
B
Fig. 37. Oil inspection points in gear
7.2. Joints and bearings
Every 50 hours of the rake's operation lubricate points C and D on the gear (Fig. 38), driving
trolley (Fig. 39) with grease ŁT43 (or other lubricant dedicated for rolling or sliding bearings
operating under temperatures between -30oC and +130oC).
C
D
Fig. 38. Gear lubrication point
- 28 -
Instruction manual
Every 50 hours of the rake's operation joints (Fig. 40) need to be lubricated with grease STP.
7.3. Risks present when lubricating
If risk of splashing is present, make sure to wear protective eyewear with side guards.
When lubricating protect eyes and skin against contact with the substance. Therefore use
adequate protective wear with long sleeves and protective footwear. Also use protective
gloves. In case of a contact with skin, immediately wash the infected area with plenty of
water with soap.
Do not allow the product to contaminate water outlets, water courses and soils.
In case of an unintentional release to the environment plug the leak, limit the spillage, and
then collect the oil with non-flammable absorbent material (e.g. sand).
The product is flammable. In case of fire, use adequate fire-extinguishing means (e.g. foam,
water mist, extinguishing powders). Do not use water jets.
Disposal of the used product must be made according to official regulations. Improper
disposal of the used oil poses danger to the environment.
Fig. 39. Trolley lubricating points
Fig. 40. Joints lubrication points
Two rotor rake
TANGO
- 29 -
Instruction manual
8. DEFECTS AND THEIR REPAIR
Defect type Cause Recommendations
Damaged or soiled elements of
The rake will not
lift/lower hydraulically
Leaking cylinder
The rake leaves
considerably large part of
Too low or too high rotating speed
swath
Excess vibrations when
operating
Damaged raking tines Raking arms set too low
Contamination of raked
swath
Oil leak in gear Assembly not tight enough
hydraulic assembly
Damaged tractor's hydraulic
assembly
Contaminated oil in tractor's
hydraulic assembly
Bent or missing raking tines
Incorrect raking height
Deflected telescopic articulated
shaft
Raking tines immersed too deep
Twisted raking tines Replace with new ones
TANGO
Replace or clean fastening
elements of hydraulic assembly
Examine condition of tractor's
hydraulic assembly
Replace oil in tractor's hydraulic
assembly (recommended oil purity
class acc. to NAS 1638 a
minimum is 9-10). Provide brand
new cylinder repair kit and replace
worn gaskets
Replace with new ones and mount
properly
Increase / reduce rpm rate
Adjust the raking height in
accordance with item 5.6.
Preparing rake for operation
Examine condition of the shaft and
if need be, replace with new one
Set raking height properly with
adjustment lever or with trolley
(turf soils)
Set bigger distance between raking
arms and the ground
Examine tightness and check oil
level.
Two rotor rake
9. REPAIR AND WITHDRAWAL FROM USE
9.1. Repair
REMEMBER:
Before repair works make sure the rake is disconnected from the tractor.
Before repairing or assessing whether the rake is still serviceable, it should be carefully
cleaned of dirt, mud and plant remains.
After checking nuts and bolts, proper slack in joints and gears we can assess if the machine is
still serviceable. Worn out bolts, pegs, pins, discs, holders, tines etc. should be replaced.
Once the rake is repaired perform the following:
make sure that all elements are installed properly,
install the removed guards,
check whether screws and nuts are tightened,
check proper slack in joints and in gears
once all the guards are installed, perform a warm-up start to make sure the repaired machine
operates properly.
,
- 30 -
Instruction manual
Two rotor rake
TANGO
9.2. Disassembly and withdrawal from use
If the rake cannot be repaired anymore, it should be withdrawn from use. Therefore oil from
the frame gearbox should be drained and thoroughly clean any excess oil with cleaning agent, take
parts made of plastic off. They should be used further on or delivered to a proper waste treatment
company. Upon completing the required activities the rake should be sold to breaker's yard.
IMPORTANT:
When dismounting the machine pay particular attention to and additional
dangers, as crushing, cutting, wounding, concussion and abrasion. Use
proper tools and personal protective equipment: protective gloves, clothing
and footwear, eye wear, etc. Pay attention so that the machine works
efficiently, and thus it is required to secure the machine with supports.
10. WARRANTY CARD
ROTARY RAKE
Serial number
Manufacture date
Warrantor’s stamp
Controller’s signature
Date of sale
Seller’s stamp
Seller’s signature
This product has been checked and deemed fully serviceable and cleared for use
.
NOTE:
Warranty card – if not filled in, corrected or illegible – is not valid.
11. WARRANTY TERMS
11.1. Warranty claim procedure
1. The manufacturer warrants good quality and defect-free operation of the rake under this
warranty if the rake is operated in accordance with the operator's manual
2. Faults or damages to the machine found within 24-month period from the date of purchase shall
be removed free of charge at the purchaser’s or the manufacturer’s.
3. Faults or damages should be submitted personally, in writing or by telephone. Repairs shall be
carried out within 14 days. Any repairs under the warranty should be carried out by authorized
SaMASZ service facilities.
4. Warranty claims regarding the product replacement or repayment are considered within 14
days by the manufacturer.
5. The following conditions are not covered by warranty:
a) wear and tear of parts such as: rotors, intersecting axis gears and parts inside the
gearboxes, bushings and sliding elements, clutches, joints, tine holders, raking tines,
bearings, safety curtains, swath guides rubbers, connective elements, etc. These repairs
may be carried out only at the purchaser cost.
b) use of the machine for any purpose other than described in the operator's manual,
.
- 31 -
Instruction manual
Two rotor rake
TANGO
c) working on stony fields and consequences,
d) running into any obstacle,
e) too fast lowering of the machine onto the ground,
f) setting raking tines lower than 0.4 in / 1 cm above the ground,
g) bending or breaking transmission connecting rod,
h) random events or other occurrences, for which the Manufacturer cannot be held
responsible.
6. The Purchaser bears the costs of technical evaluation – if the Manufacturer finds that a claimed
product is free of defects and this is confirmed by technical report.
7. The Manufacturer has the right to cancel the warranty in the following cases:
a) hampering with the rake, modifications to its mechanical design or intentional
damages.
b) vast damage caused by random events or others, for which the Manufacturer does not
bear any responsibility,
c) lack of required records in the warranty card or filling in the warranty card
independently,
d) use of the rake for any purpose other than described in the operator's manual.
8. The Manufacturer can break the service agreement with immediate effect when the user does
not pay the invoice according to that agreement in a timely manner and the delay in payment is
longer than 30 days from maturity date. Breaking the service agreement by the Contractor due
to causes dependent on the user shall lead to termination of the warranty given for the particular
machine.
9. The Manufacturer shall not bear any compensation responsibility for the loss caused by the
machine breakdown during its operation.
NOTE
Please ask your dealer to complete and return the warranty card with date and place of
purchase, and dealer's stamp and signature. Otherwise you may lose your warranty rights.
NOTE
The Manufacturer reserves the right to introduce design changes.
NOTE
The SaMASZ company is constantly working on the development of all of its machine
types and models. Therefore, any modifications of our machinery due to their form,
equipment and technology are likely. No claims can arise from data, drawings and
descriptions included herein as well as the spare parts list.
SaMASZ is not responsible for printing errors.
- 32 -
Date, stamp and signature of repair shop.
Date, stamp and signature of repair shop.
Date, stamp and signature of repair shop.
Instruction manual
11.2. Warranty repairs record
Repair scope and spare parts replaced:
TANGO
Two rotor rake
- 33 -
Loading...
