Sam SAM-EK1 User Manual

User Manual

Accessory Kit

www.

securedbysam.com

self activated monitoring

DIY

Wireless
Security

Made Easy.

SAM Security, LLC. J1308-1

Model No. SAM-EK1

self activated monitoring

Table of Contents

1

13-15

15-18
19-20

Contents
Wireless PIR motion Detector

Door/Window Sensors

About SAM Security, LLc.

- Installation

- PIR Detector Specifications

- Features

- Installation

- Door/Window Sensor Specifications

3-7

9-10

11
12

Warranty

Notes

8

1 2

www.securedbysam.com

Stay Secured.

Anytime, Anywhere.

SAM EXpansion Kit Includes:

The SAM-900 is an intelligent passive infrared
motion detector, designed to detect human
movement within an approximate range of
26ft from the detector. The SAM-900 includes fuzzy
logic to minimize false alarms from unwanted
heat sources. The detector includes a battery
save feature, which prevents the detector from
sending wireless signals once it has detected
movement and sent a signal to the control panel
more than twice within three (3) minutes.

The SAM-DW1 is a magnetic sensor which will
send a wireless signal to the control panel when a
door or window is opened.

SAM-900 Wireless PIR Motion Detector x 1

SAM-DW1 Door/Window Sensor x 6

3 4

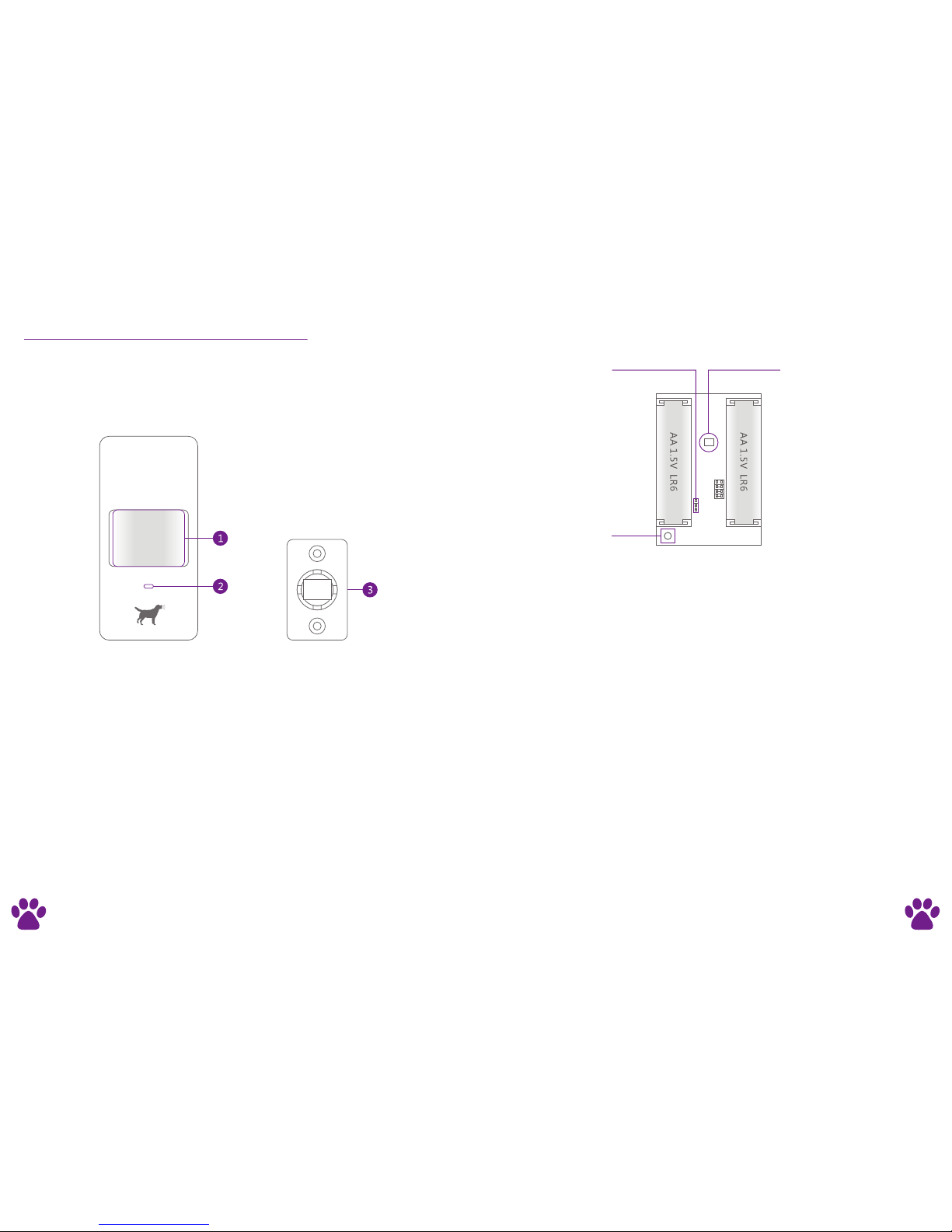

Wireless PIR Motion Detector PCB Layout

Usage

Appearance

Infrared Sensor: Detects the infrared rays released by human

body motion. Do not touch the surface.

Tamper Switch: Once the case is opened in the detector’s

working state, the tamper switch will be
triggered, generating an alarm signal.

Remove the battery activation strip to activate the batteries.
It will start self-testing for one minute.

1. Detection Window

2. LED Indicator

3. Bracket

LED ON/OFF INFRARED SENSOR

TAMPER SWITCH

LED Indication

Flash Continuously: Self-testing state.
Flash Once: Movement is detected.
Flash Twice: Self-testing is finished, enters the working mode.
ON ConTINUOUSLY:

Flash once per 3 seconds: Under voltage
indication, please change the batteries
immediately. (User will get SMS alert
warning of low battery if the PIR detector
is connected to the GSM system.)

5 6

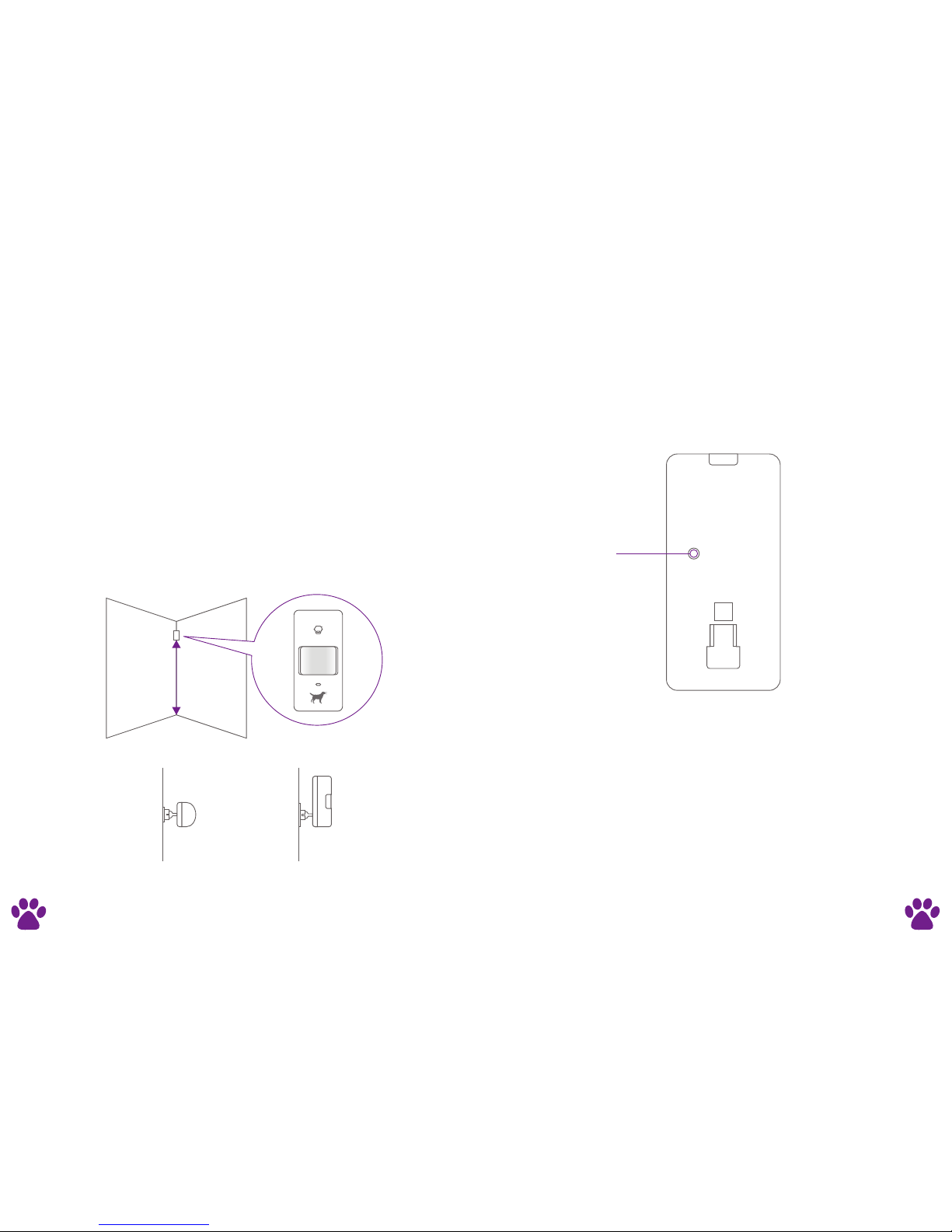

Installation

- Activate the PIR detector by removing the battery activation
strip. The PIR detector will immediatly self-test. After one
minute of self-testing, install the PIR detector.

- Avoid mounting the detector close to places where the
temperature changes fast or the air stream flows frequently
(ie. AC units and heating vents.)

- Fix the bracket to the wall with screws.

- Attach the detector to the bracket. Adjust installation height or
bracket to change the detection distance and angle. Installation
height is 6.5 Ft (2m) from the ground.

Note: The detector is more sensitive to cross-movement than to
direct movement. The performance of the detector is optimal
when the detection direction is across the walking direction
of intruders.

- Press the test button. Walk in the detection area (from left to
right or from right to left) and watch the LED indicator to make
sure the detector is working. The LED indicator should flash
once when body movement is detected.

- Adjust the detector’s viewing angle to achieve the best
detection.

TEST BUTTON

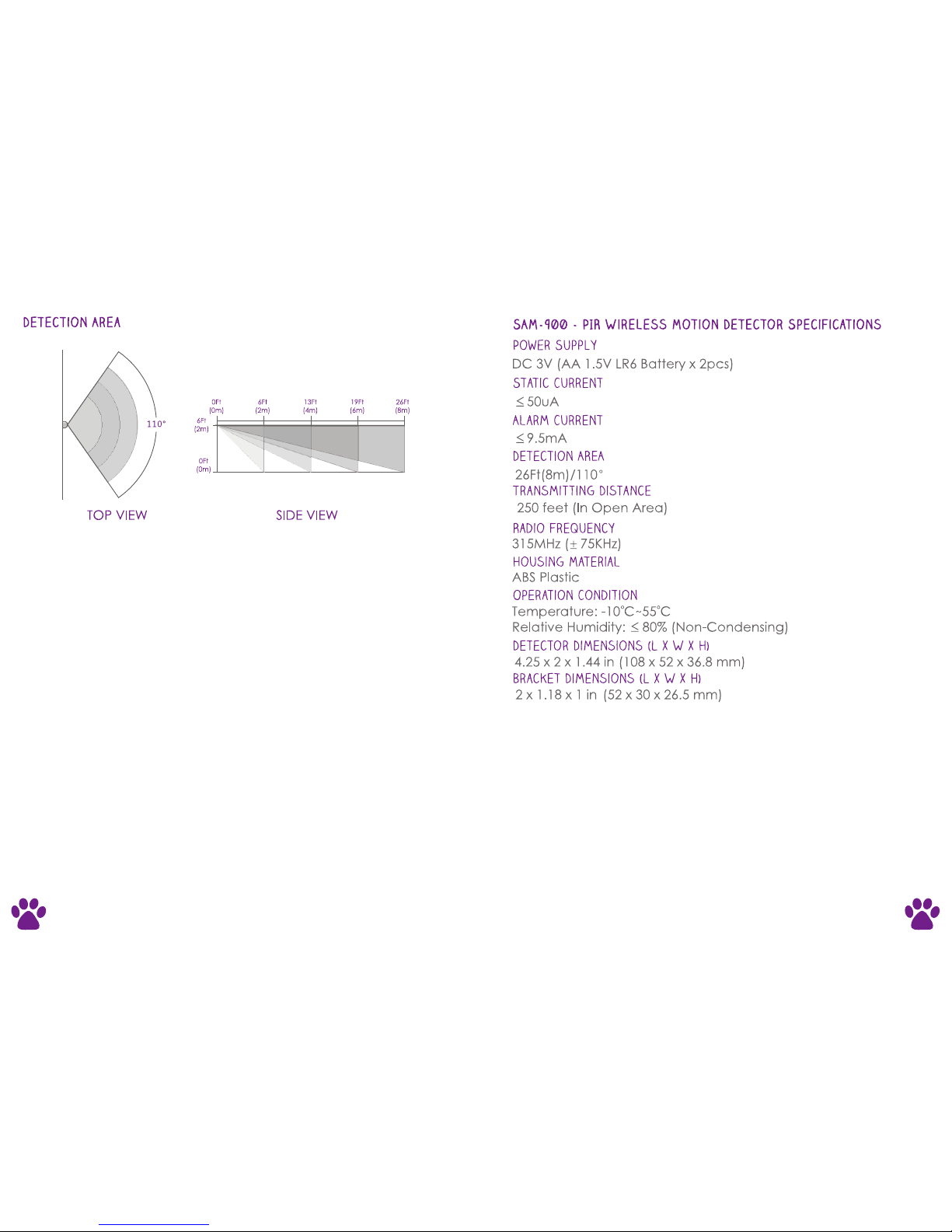

6.5Ft (2m)

TOP VIEW

GROUND

SIDE VIEW

7 8

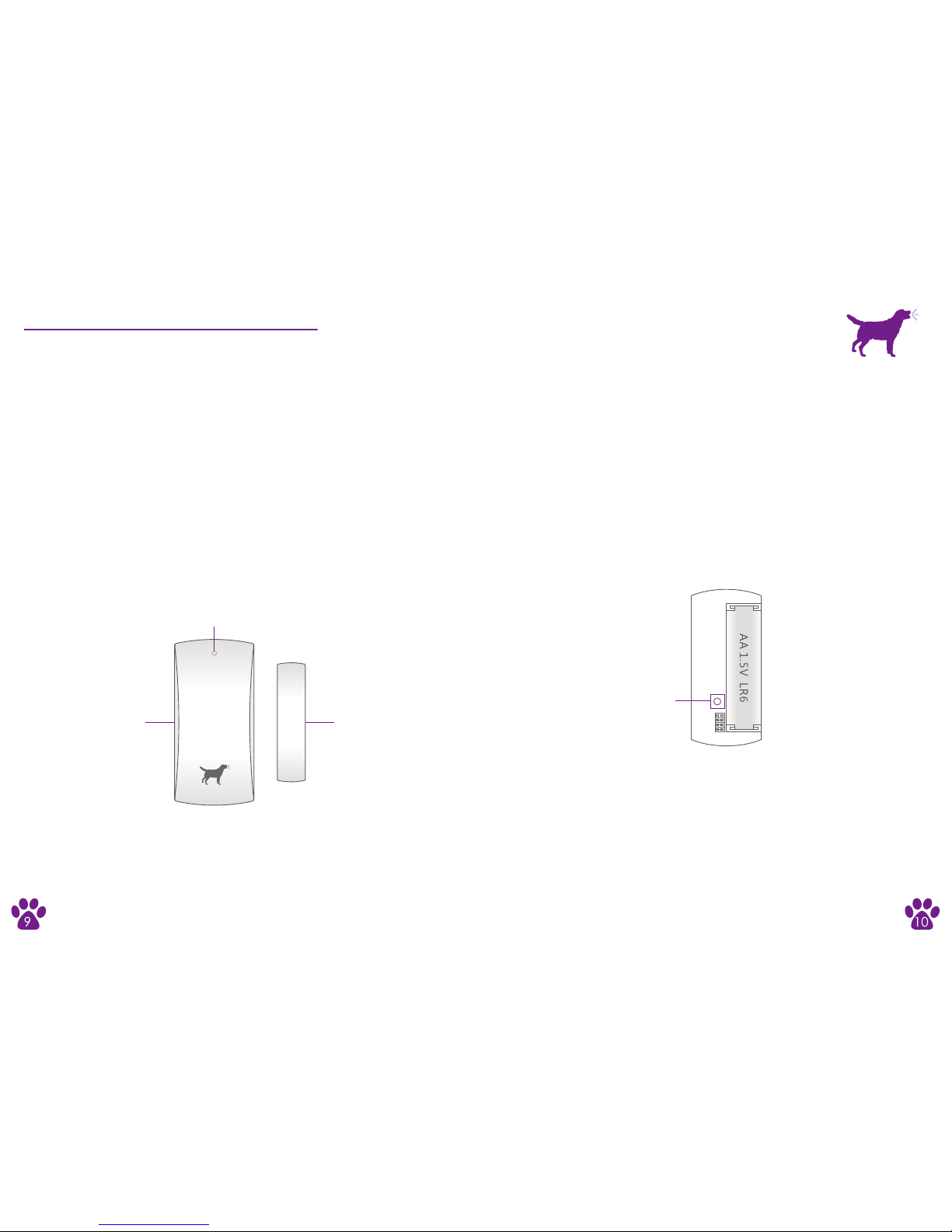

Wireless Door/Window Contact

Features

Appearance

LED INDICATOR

MAGNET

TAMPER SWITCH

TRANSMITTER

LED Indication

PCB Layout

LED Flashes Once: Door/window is opened and transmitter

sends signal to the control panel.

LED flashes
continuously:

Low battery; replace the battery
immediately.

The SAM-DW1 is a Door/Window Contact that can be installed on
doors, windows, and any other objects that open and close. The
sensor transmits signals to the control panel when a magnet
mounted near the sensor is moved away. The tamper
protection ensures that attempts to move the magnetic contact
will result in an alarm activation.

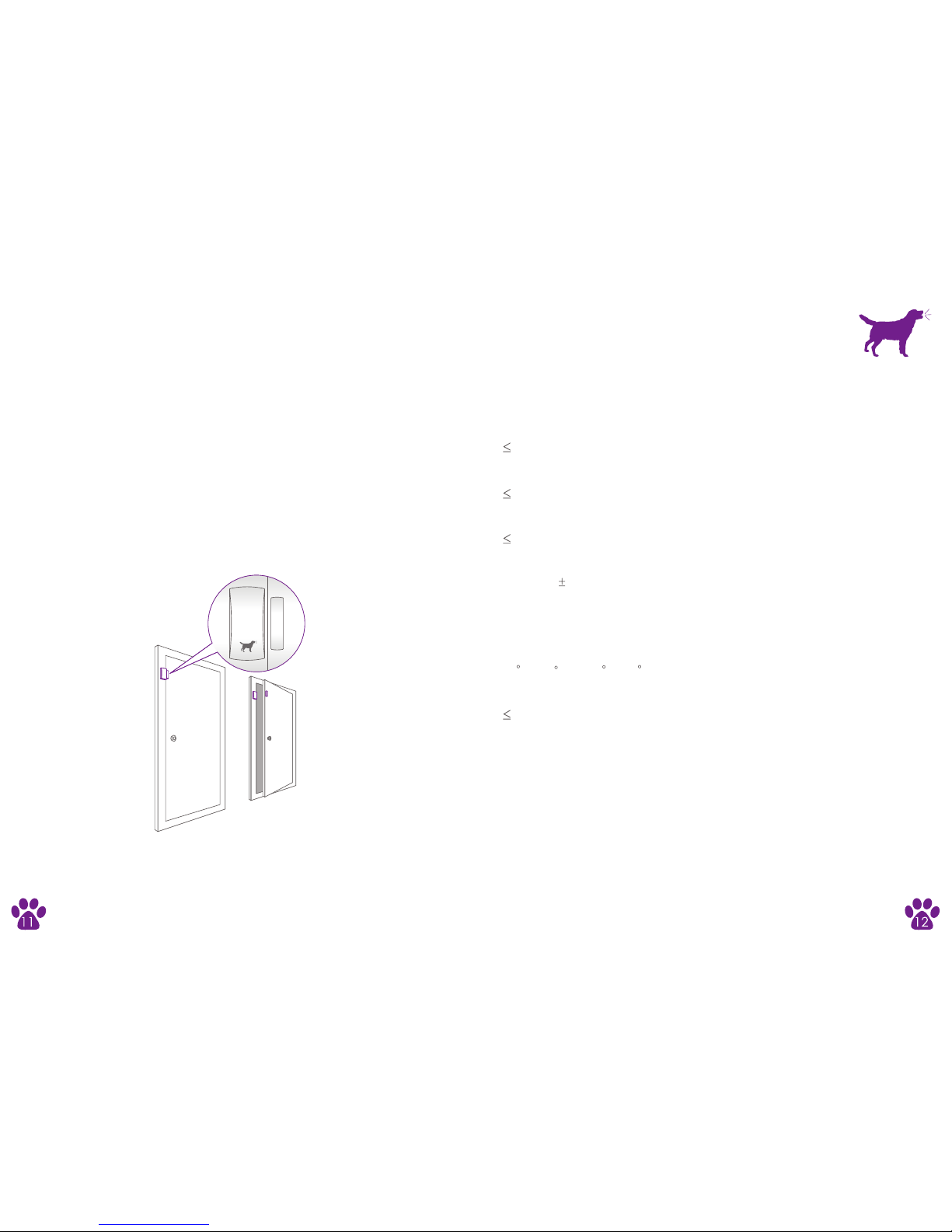

Installing the wireless door/window contact

SAM-DW1 - Wireless Door/Window Contact
Specifications

- Avoid mounting sensors in areas with a large quantity of metal
or electrical wiring, such as a furnace or utility room.

- Place the transmitter in the desired location, mount the magnet
no more than 0.39 in (1 cm) away from the transmitter and secure
the transmitter and magnet with double-sided tape (included)
or screws (included.) The top of the door is recommended
on the side furthest from the hinge.

- Make sure the magnet is on the right side of the transmitter. The
two triangles visible on the sensor and the magnet should be next
to each other; as close as possible.

Power Supply

DC 1.5V (AA 1.5V LR6 Battery x 1pc)

315MHz (

75KHz)

Static Current

Alarm Current

30uA

40mA

260ft (80m) (Line of Sight)

80% (Non-Condensing)

Transmitting Distance

Radio Frequency

ABS Plastic

14 F -(10 C)~131 F (55 C)

Housing Material

Operation Condition

Relative Humidity

2.8 x 1.3 x 0.6in (71 x 34 x 17.5 mm)

Transmitter Dimensions (L x W x H)

2 x 0.47 x 0.53in (51 x 12 x 13.5 mm)

Magnet Dimensions (L x W x H)

- Mount the transmitter on the door frame and the magnet on
the door. Make sure the SAM logo is at the bottom.

- Remove the battery activation strip.

13 14

What is the SA M-C5 Expa nsi on Kit?

- 1 PIR Motion Detector

- 6 Door/Window sensors

About SAM Security, LLC.

What is SAM-C5?

STAY secu red, a nytime, a nyw h ere .

SAM Security, LLC is a provider of DIY home security and technology services.
SAM’s wireless technology platform allows affordable security and home
monitoring made easy.

SAM C5 is wireless DIY security made easy and affordable. SAM is a wireless
self-activated monitoring security system which provides security without costly,
long-term contracts. SAM provides you with peace of mind and puts you
in the driver’s seat in keeping your loved ones and home secure.

The SAM mobile app makes it easy to monitor and control your
security system from anywhere through your smartphone. Based on a
pay-per-use platform with a small monthly access fee, SAM allows you to
turn your alarm on or off remotely from your cell phone. SAM notifies of
security alerts by SMS and voice call, indicating which sensors have been
triggered. SAM then leaves it up to the homeowner to decide whether or
not to call emergency services eliminating false alarms and penalties.

With SAM’s self-activated-monitoring, you are in charge of managing the
security of your home and loved ones.

Whether you own a house, rent an apartment, have an RV or a vacation
home, protecting your home and loved ones has never been easier and
more cost effective. Visit www.securedbysam.com for more details.

You can easily expand your system by adding other wireless security
accessories including pet-immune PIR motion detectors, window break
detectors, flood detectors, and more. We continue to add new
accessories. Please visit www.securedbysam.com for more information.

what d oes pay-per-use m ean?

How Doe s SaM Wo rk?

Simple. When we say SAM is based on a pay-per-use platform, it means

simply that. The rate per SMS is $0.03 and the rate per minute for voice is
$0.12. If you send a security instruction such as an instruction to remotely arm
the house by SMS, you will incur a $0.03 fee for the SMS. If a security event
was triggered and a call goes out to your cellphone to alert you, then you
will incur $0.12 per minute Voice rate.
If your system has been suspended, you will incur a re-activation fee to
re-activate your system.

SAM C5 is easy to set up right out of the box.

Follow the simple instructions to install the SAM security panel and
accompanying wireless devices.

Visit www.securedbysam.com or contact toll free at 1.855.325.5005 to
register and activate your system. Once activated, you are ready to
monitor your home!

SAM C5 includes with a promotional $25 credit for SMS and/or Voice.
Based on an average of 2 SMS’ per day you should get approximately
5 month’s usage and 60 minutes of Voice available to call out and to
alert user of security events. This also allows for listen-in functionality.
When your $25 credit is depleted to $5, you will be notified to trefil
online at www.securedbysam.com. You may get less or more than
5 months’ usage depending on your SMS and Voice usage.

It is as simple as that. No costly monitoring contracts. No hassle. You
manage your own security.

1.

2.

3.

4.

5.

15 16

Limited Warranty

SAM Security, LLC (“SAM”) warrants to the end user (Customer”) that this
product will be free from defects in workmanship and materials under normal
use and service for two years from the date the product is purchased by the
Customer. SAM warrants that the battery in the unit where applicable is free
from defects in workmanship and materials under normal use and service
for six months. You will be required to demonstrate proof of purchase to
make warranty claims.

This Limited Warranty is transferable to subsequent owners but only for the
unexpired portion of the Warranty Period. Subsequent owners also require
original proof of purchase as described in “What proof of purchase is required?”

What does this limited warranty cover?

SAM will, at its option, repair or replace the defective product free of charge,
provided that you notify SAM of the defect within the Warranty Period, and
provided that SAM through inspection establishes the existence of such a
defect and that it is covered by this Limited Warranty. SAM will, at its option,
use new and/or reconditioned parts in performing warranty repair and
building replacement products. SAM reserves the right to use parts or
products of original or improved design in the repair or replacement.
If SAM repairs or replaces a product, its warranty continues for the
remaining portion of the original Warranty Period. All replaced products
and all parts removed from repaired products become the property of
SAM. SAM covers both parts and labor necessary to repair the product,
and return shipment to the customer via a SAM-selected non-expedited
surface freight within the contiguous United States and Canada. Alaska and
Hawaii are excluded. Contact SAM Customer Care for details on freight
policy for return shipments outside of the contiguous United States and
Canada.

What will SAM do?

If your product requires troubleshooting or warranty service, please contact
SAM Customer Care toll free at 1.855.325.5005 or at
[e-mail].

How do you get service?

In any warranty claim, dated proof of purchase must accompany the
product and the product must not have been dissembled or modified
without prior written authorization by SAM. Proof of purchase may be in
any one of the following forms:

• The dated purchase receipt from the original purchase of the product

at point of sale to the end user, or

• The dated dealer invoice or purchase receipt showing original equipment

manufacturer (OEM) status, or

• The dated invoice or purchase receipt showing the product exchanged

under warranty.

What proof of purchase is required?

This Limited Warranty does not cover normal wear and tear of the product
or costs related to the removal, installations,or troubleshooting of the
customer’s electrical systems. This warranty does not apply to and SAM
will not be responsible for any defect in or damage to:

What does the warranty not cover?

HOW is sam diy so state-of-the-art, yet so
competitively priced?

Misson staTEMENT

COMMITMENT TO EXCELLENCE

SAM’s mission is to provide customers with value wireless security solutions
that are user-friendly, state-of-the-art, reliable and affordable. Every
apartment and home should have a self- monitored security system.
It is our mission to place SAM in every home – no one should have to opt
out when it comes to the safety and security of your home and loved ones.

- We strive to collaborate, learn, innovate, and excell.

- We are dedicated to service that is above and beyond.

- We are devoted to continuous pursuit of customer satisfaction.

- We are committed to doing business responsibly.

SAM DIY is a smart wireless security system that has been created with
performance and affordability in mind. It is our belief that everyone should
be able to own a security system to secure their home without having to
have a phone line and entering into an expensive contract that auto-renews.
With SAM, we take the costly third-party monitoring fees out of the equation
and put you in control of monitoring the security of your loved ones and home.

17 18

a) The product if it has been misused, neglected, improperly installed, physically
damaged or altered, either internally or externally, or damaged from improper
use or use in an unsuitable environment;

b) The product if it has been subjected to fire, water, generalized corrosion,
biological infestations, or input voltage that creates operating conditions
beyond the maximum or minimum limits listed in the SAM product and
lightning strikes;

c) The product if repairs have been done to it other than by SAM;

d) The product if it is used as a component part of a product expressly
warranted by another manufacturer;

e) The product if its original identification (trademark, serial number) markings
have been defaced, altered or removed.

This limited warranty is the sole and exclusive warranty provided by SAM in
connection with your SAM product and is, where permitted by law, in lieu of all
other warranties, conditions, guarantees, representations, obligations and
liabilities, express or implied, statutory or otherwise in connection with the
product, however arising (whether by contract, tort, negligence, principles of
manufacturer’s liability, operation of law, conduct, statement or otherwise),
including without restriction any implied warranty or condition of quality,
merchantability or fitness for a particular purpose. Any implied warranty of
merchantability or fitness for a particular purpose to the extent required under
applicable law to apply to the product shall be limited in duration to the period
stipulated under this limited warranty.

In no event will SAM be liable for any special, indirect, incidental or
consequential damages, losses, costs or expenses however arising whether
in contract or tort including without restriction any economic losses of any kind,
any loss or damage to property, any personal injury, any damage or injury
arising from or as a result of misuse or abuse, or the incorrect installation,
integration or operation of the product.

Disclaimer

Product

Before returning a product directly to SAM you must obtain a Return Material
Authorization (RMA) number by contacting SAM Customer Care toll free at

1.855.325.5005 and product must also be shipped prepaid. Product shipments
will be refused and returned at your expense if they are unauthorized,
returned without an RMA number clearly marked on the outside of the
shipping box, if they are shipped collect, or if they are shipped to the
wrong location. When you contact SAM Customer Care to obtain warranty
service, please have your instruction manual ready for reference and be
prepared to supply:

In addition to the above, if you are returning product from Canada or
outside of the USA, you MUST include return freight funds and are fully
responsible for all documents, duties, tariffs and deposits.

• The serial number of your product

• Information about the installation and use of the unit

• Information about the failure and/or reason for the return

• A copy of your dated proof of purchase

Return Policy

1. Package the unit safely, preferably using the original box and packing
materials. Please ensure that your product is shipped fully insured in the
original packaging or equivalent. This warranty will not apply where the
product is damaged due to improper packaging.

2. Include the following:

• The RMA number supplied by SAM clearly marked on the outside of the box.

• A return address where the unit can be shipped. Post office boxes are not

acceptable.

• A contact telephone number where you can be reached during work hours

• A brief description of the problem

3. Ship the unit prepaid to the address provided by your SAM Customer
Care Representative.

When you have been given an RMA number and you are ready to return
your product for warranty service, please note the following:

To the extent you are entitled to implied warranties under federal law, to the
extent permitted by applicable law they are limited to the duration of this
Limited Warranty. Some states and provinces do not allow limitations or
exclusions on implied warranties or on the duration of an implied warranty
or on the limitation or exclusion of incidental or consequential
damages, so the above limitation(s) or exclusion(s) may not apply to you.
This Limited Warranty gives you specific legal rights. You may have other
rights which may vary from state to state or province to province.

Exclusions

19 20

Notes
