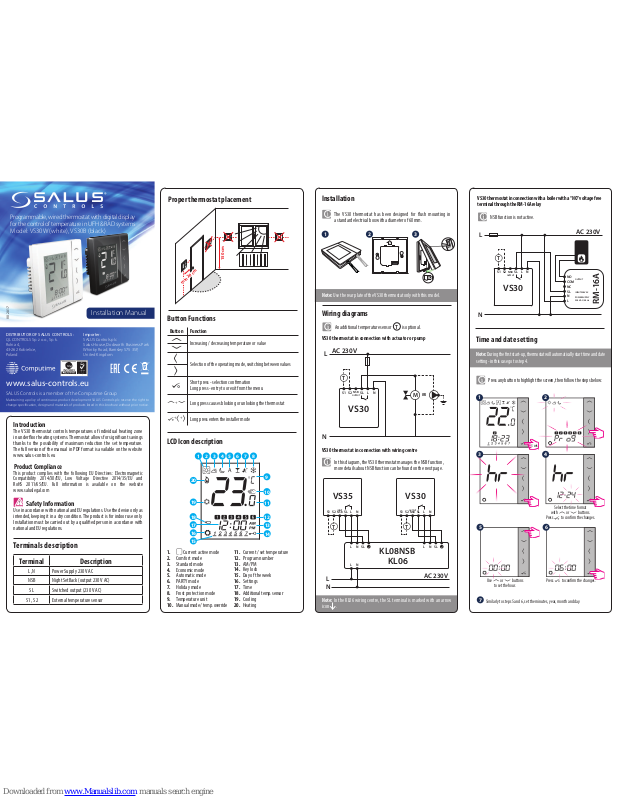

Salus VS30W, VS30B Installation Manual

L

VS30

L NSLS1 S2

NSB

OUTPUT

N

M

T

AC 230V

Note: Use the rear plate of the VS30 thermostat only with this model.

Note: During the rst start-up, thermostat will automatically start time and date

setting - in this case go to step 4.

Note: In the KL06 wiring centre, the SL terminal is marked with an arrow
icon .

Installation Manual

Programmable, wired thermostat with digital display
for the control of temperature in UFH & RAD systems
Model: VS30W (white), VS30B (black)

VII 2017

Introduction

The VS30 thermostat controls temperatures of individual heating zone
in underoor heating systems. Thermostat allows for signicant savings
thanks to the possibility of maximum reduction the set temperature.
The full version of the manual in PDF format is available on the website
www.salus-controls.eu

Product Compliance

This product complies with the following EU Directives: Electromagnetic
Compatibility 2014/30/EU, Low Voltage Directive 2014/35/EU and
RoHS 2011/65/EU. Full information is available on the website
www.saluslegal.com

Safety Information

Use in accordance with national and EU regulations. Use the device only as
intended, keeping it in a dry condition. The product is for indoor use only.
Installation must be carried out by a qualied person in accordance with
national and EU regulations.

Terminals description

Terminal Description

L,N Power Supply 230 V AC

NSB Night SetBack (output 230 V AC)

SL Switched output (230 V AC)

S1, S2 External temperature sensor

Proper thermostat placement

LCD Icon description

Wiring diagrams

Time and date setting

Installation

M

M

150 cm

min 20 cm

Button

Function

Increasing / decreasing temperature or value

Selection of the operating mode, switching between values

Short press - selection conrmation
Long press - entry to or exit from the menu

Long press causes blocking or unlocking the thermostat

Long press enters the installer mode

+

++

Button Functions

2 3 4 5 678

9

10

11

12

13

14

16

19

20

1. Current active mode

2. Comfor t mode

3. Standard mode

4. Economic mode

5. Automatic mode

6. PARTY mode

7. Holiday mode

8. Frost protection mode

9. Temperature unit

10. Manual mode / temp. override

11. Current / set temperature

12. Program number

13. AM/PM

14. Key lock

15. Day of the week

16. Settings

17. Time

18. Additional temp. sensor

19. Cooling

20. Heating

Importer:

SALUS Controls plc
Salus House, Dodworth Business Park
Whinby Road, Barnsley S75 3SP,
United Kingdom

DISTRIBUTOR OF SALUS CONTROLS:

QL CONTROLS Sp. z o.o., Sp. k.
Rolna 4,
43-262 Kobielice,
Poland

www.salus-controls.eu

SALUS Controls is a member of the Computime Group

Maintaining a policy of continuous product development SALUS Controls plc reserve the right to
change specification, design and materials of products listed in this brochure without prior notice.

VS30 thermostat in connection with actuator or pump

OR

VS30 thermostat in connection with a boiler with a “NO” voltage free
terminal through the RM-16A relay

VS30 thermostat in connection with wiring centre

VS35

LLN

N

L

N

SL

SL

S1 S2

NSB

INPUT

T

LNSL

KL08NSB

KL06

VS30

L NSLS1 S2

NSB

OUTPUT

T

L
N

AC 230V

In this diagram, the VS30 thermostat manages the NSB function,
more details about NSB function can be found on the next page.

NSB function is not active.

The VS30 thermostat has been designed for ush mounting in
a standard electrical box with a diameter of 60 mm.

L

AC 230V

VS30

RM-16A

L

NO
COM

INPUT 230 V AC

OUTPUT

POWER SUPPLY
230 V AC / 50 Hz

NC
SL
N
L

NSLS1 S2

NSB

OUTPUT

N

T

1 2 3

1

15

17

18

1

5

4

3 sek.

Press any button to highlight the screen, then follow the steps below:

2

6

7

3

Select the time format

with or buttons.

Press to conrm the changes.

Press to conrm the changes.

Similarly to steps 5 and 6, set the minutes, year, month and day.

Use or buttons

to set the hour.

An additional temperature sensor is optional.

T

Temperature setting

Programming

Manual mode - temperature settings

NSB function - automatic mode

Installer settings

Error codes

dxx Function Value Description

Default

value

d01

Control method

temperature

0 PWM algorithm

0

1 Span ±0.5°C

2 Span ±1.0°C

d02 Oset temperature

from -3.0°C

to +3.0°C

If the thermostat indicates

wrong temperature, you
can correct it by ± 3.0°C

0°C

d03

Using a oor tempera-

ture sensor (S1, S2)

0 No sensor

0

1 Sensor is connected

d04

External sensor

used for air

or oor temperature

measurement

(Function is active,

when d03=1)

0

Thermostat measures the

temperature only on the

external sensor

0

1

The sensor is used

as a protection against

overheating the oor

d05

Cooling mode control

method

1 Span ±0.5°C

2

2 Span ±1.0°C

d06

Type of thermoelectric

actuator

0 NO - normally open

1

1 NC - normally closed

d07 Valve protection

0 OFF

1

1 ON

d08

Frost protection

temperature

5-17°C

Frost protection / Holiday

mode temperature

5°C

d09 Clock format

0 12 hour

1

1 24 hour

d11 Daylight Saving Time

0 OFF

1

1 ON

d12

Heating temperature

limit

5-35°C

The maximum heating

temperature that can be set

by the user

35°C

d13

Cooling temperature

limit

5-40°C

The minimum cooling
temperature that can

be set by the user

5°C

d14

Maximum oor

temperature
(this function is active
in heating mode when

d04 = 1)

6-45°C

In order to protect the oor

from overheating, heating
will be turned OFF, when the
maximum temp. of the oor

sensor will be reached

27°C

d15

Minimum oor

temperature
(this function is active
in heating mode when

d04 = 1)

6-45°C

In order to protect

the oor, heating will

be turned ON, when the

minimum temp. of the oor

sensor will be reached

10°C

d16

Lower oor temperature

limit for cooling

(this function is active

when d04 = 1)

6-45°C

In order to protect the oor,

cooling will

be turned OFF, when

the minimum temp. will

be reached

6°C

d17

Choice of the default

program

1-5

Selection 1 of the 5 default

programs

1

d18

Operating mode

HEATING / COOLING

0 Heating system

0

1 Cooling system

Error code Description

Err02 The maximum / minimum oor temperature has been exceeded

Err03 Temperature sensor is faulty

Err04 Temperature sensor is shorted

1

4

3 sek.

3 sek.

3 sek.

Set the temperature

with or buttons.

Select the service parameter

using or buttons.

The parameter value

is set by or .

Press to conrm the changes.

Press to conrm the changes.

Press to conrm the changes.

Current temperature.

Temperature set in the selected

operating mode

Select the automatic mode

using or buttons.

Press any button to highlight the screen, then follow the steps below:

Press any button to highlight the screen, then follow the steps below:

Thermostat also has 2 additional modes:

The NSB (Night SetBack) function can automatically change temperatures
on VS35 daily thermostats via VS30 programmable thermostat connected to
a wiring centre (or another external clock). NSB function switches between
comfortable temperature and economic temperature .

To activate the automatic mode, select the icon. On display together with
the icon, the controller indicates active temperature mode: or .

- Comfort mode

- Standard mode

- Economic mode (when this mode is selected on the NSB output
appears 230 V AC voltage)

- PARTY mode sets the comfort temperature for a dened time
by the user (maximum 9 hours 50 minutes).

- The HOLIDAY mode sets the frost protection temperature for a user
dened period of time (maximum 99 days).

- Frost protection mode. Usually used in a longer period of absence
or during the holidays (available only in heating mode).

Press any button to highlight the screen, then follow the steps below:

Note: For the NSB function to work, it is necessary to connect the wirings
properly. Connection diagrams can be found on the previous page.

2

3

Note: To restore the thermostat’s factory settings, in step 2 set the PSuu
to 47 code, and conrm the selection with the button.

2

1

1

1

3

5

7

4

6

8

3 sek.

Press any button to highlight the screen, then follow the steps below:

2

9

11

10

Use button to choose days

range for schedule:

Wybierz tryb pracy.

Set the program start time:

Repeat steps 5 - 10 to set time
and temperatures for next time
ranges. No hour (--:--) on the
display means whole day
is planned already.
Schedule can be divided into
maximum 6 time ranges.

- whole week

- weekdays

- weekends

- each day separately

There are 4 temperature levels available. In manual mode only one temperature
level is active (icon in the frame indicates which mode is currently chosen).
For each temperature levels you can set a dierent temperature.

Press any button to highlight the screen, then follow the steps below:

Choose the temperature mode

using or buttons.

21

2

3

4
