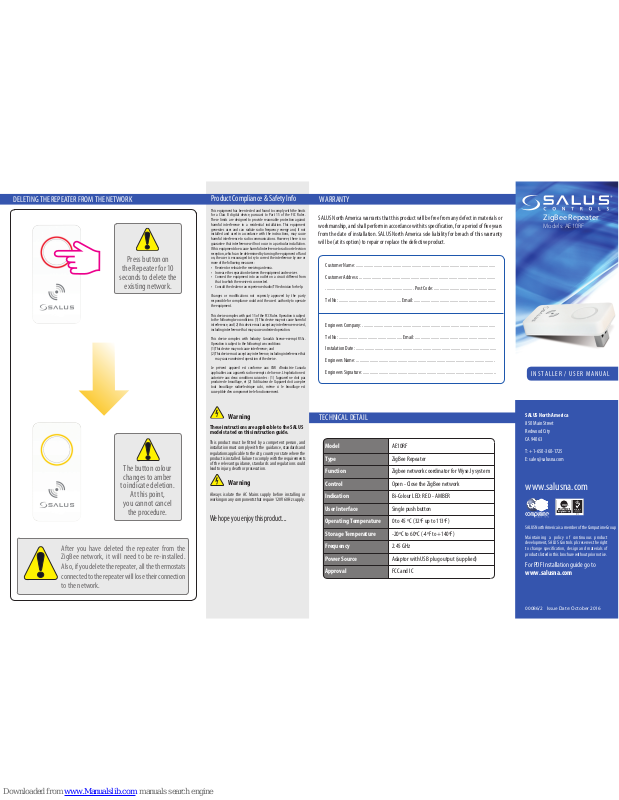

Salus AE10RF Installer's/user's Manual

www.salusna.com

SALUS North America

850 Main Street
Redwood City
CA 94063

T: [phone]
E: [e-mail]

For PDF Installation guide go to

www.salusna.com

Maintaining a policy of continuous product
development, SALUS Controls plc reserves the right
to change specication, design and materials of
products listed in this brochure without prior notice.

SALUS North America is a member of the Computime Group

00086/2 Issue Date: October 2016

INSTALLER / USER MANUAL

ZigBee Repeater

Models: AE10RF

SALUS North America warrants that this product will be free from any defect in materials or
workmanship, and shall perform in accordance with its specication, for a period of ve years
from the date of installation. SALUS North America sole liability for breach of this warranty
will be (at its option) to repair or replace the defective product.

Customer Name: .............................................................................................................................

Customer Address: ..........................................................................................................................

............................................................................... Post Code: ........................................................

Tel No: ........................................................ Email: .........................................................................

Engineers Company: .......................................................................................................................

Tel No: ......................................................... Email: ........................................................................

Instalation Date: ..............................................................................................................................

Engineers Name: ............................................................................................................................

Engineers Signature: .......................................................................................................................

WARRANTY

TECHNICAL DETAIL

DELETING THE REPEATER FROM THE NETWORK

Model AE10RF

Type ZigBee Repeater

Function Zigbee network coordinator for Wyse.ly system

Control Open - Close the ZigBee network

Indication Bi-Colour LED: RED - AMBER

User Interface Single push button

Operating Temperature 0 to 45 ºC (

32ºF up to 113ºF)

Storage Temperature -20ºC to 60ºC

(-4ºF to +140ºF)

Frequency 2.45 GHz

Power Source Adaptor with USB plug output (supplied)

Approval FCC and IC

The button colour
changes to amber

to indicate deletion.

At this point,

you cannot cancel

the procedure.

Press button on

the Repeater for 10

seconds to delete the

existing network.

After you have deleted the repeater from the
ZigBee network, it will need to be re-installed.
Also, if you delete the repeater, all the thermostats
connected to the repeater will lose their connection
to the network.

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.

Warning

These instructions are applicable to the SALUS
model stated on this instruction guide.

This product must be tted by a competent person, and
installation must comply with the guidance, standards and
regulations applicable to the city, country or state where the
product is installed. Failure to comply with the requirements
of the relevant guidance, standards and regulations could
lead to injury, death or prosecution.

Warning

Always isolate the AC Mains supply before installing or
working on any components that require 120 V 60Hz supply.

We hope you enjoy this product...

Product Compliance & Safety Info

INSTALLATION

Box Contents

1 x Installer / User manual

1 x AE10RF

1 x Plug Adapter

Press and hold the button on
the Coordinator for ve seconds
to enter pairing mode. The LED
ashes red.

Plug

Repeater

Plug the repeater
into the adaptor.

SYSTEM OVERVIEW

Press and release the repeater
button. The LED goes solid red
to show it is connected to the
network.

AKL08RF

AX10RF

AS20RF

Thermostat

AC10RF

INTRODUCTION

If your Wyse.ly system has more than 32 battery-powered devices, alongside
the AC10RF ZigBee coordinator you must add an AE10RF ZigBee repeater.
You must also add an AE10RF repeater if the battery-powered devices in your
iT600 Wyse.ly are too far away from the mains-powered devices.

Refer to individual device
manuals for more information.

The ZigBee repeater must be used with
the RF range of the products below:

6

4

The system installation is now
complete. Press and hold the
button on the Coordinator for
ve seconds to close pairing
mode. The LED goes solid red.
Also refer to the coordinator
and individual device manuals.

7

Plug the repeater into the120V
POwer outlet. The button ashes
red.

5

Plug in the coordinator as
described in the Coordinator
Instruction Manual. All device
pairing is done through the
coordinator.
