Salamander Designs SMS40B-A User Manual

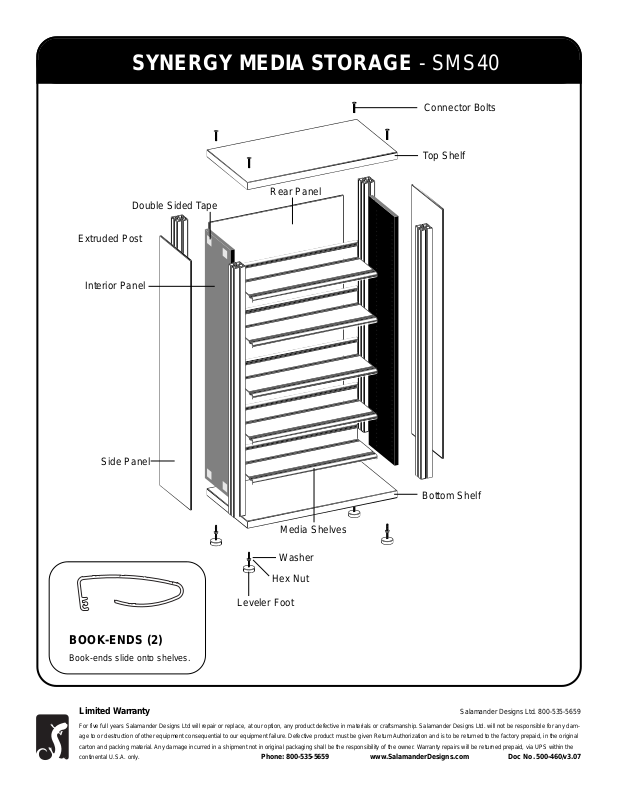

SYNERGY MEDIA ST ORAGE - SMS40

Double Sided

Extruded Post

Interior Panel

Connector Bolts

Top Shelf

Rear Panel

Tape

Side Panel

Bottom Shelf

Media Shelves

Washer

Hex Nut

Leveler Foot

BOOK-ENDS (2)

Book-ends slide onto shelves.

Limited Warranty Salamander Designs Ltd. 800-535-5659

For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any dam­age to or destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original
carton and packing material. Any damage incurred in a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the
continental U.S.A. only. Phone: [phone] www.SalamanderDesigns.com Doc No. 500-460/v3.07

Connect Post

1.

s to

Bottom Shelf

The top and bottom shelves are
the same. Choose your favorite
grain pattern for the top shelf.
Screw leveler foot through bot­tom shelf onto the end of an
extruded post (A). Hand tighten
fully then use wrench on hex
nut to back tighten nut onto
underside of shelf. Make sure to
square the post to the bottom
shelf (B).

NOTE: T
Shelf Pegs have been included
to be used as door stops should
an optional door be fitted to the
rack. Install the pegs at the top
and bottom of the post opposite
the door hinges.

wo standard Synergy

A

B

2. Insert Rear Panel and Sides

Insert Rear Panel

A.

Slide Rear Panel into the channels facing
each other on the rear post

s.

B. Insert Sides

Slide the side p
the posts.

anels down the channels on

C. Attach Top

Align top shelf over the post
connector bolt
shelf and secure top.

s through the holes in the top

s. Insert the four

3. Insert Interior Panels
A. Prepare Interior

Panels

The two p
shelf pins are identical. The
holes face inward with the unfin­ished side against the side p
els. The black finished edge
faces front.

anels for inserting the

an-

B. Apply Tape

Apply the provided tabs of dou­ble sided t
corners of the unfinished
that will go against the
inside of the side p

ape to the

anels.

C. Insert Panels

Slide Panels in and press cor­ners firmly against side p

anels.

D. Finished View

If you have made a mistake the
top can be removed and the
panels rotated to fit in correctly.

4. Inserting Pegs and adjusting shelf angles

A. Insert Shelf Pins and add book-ends

The shelves can be inserted at various height

ferent media types. By adjusting the height of the pins the angle of the

dif
shelves can be adjusted, from level to angled back.

Add book-ends to shelves. Slide the book-end onto the back of the
extruded shelves.

They may be on any shelf, we recommend the top and

bottom

Shelf Pin

Book-end assembly

s and angles to accomodate

B. Install remaining shelves

Finish inst
A

CDs, 13 holes for DVDs and 15 holes for VHS. These are based
on gap
one or two holes

alling the remaining shelves.

general guideline for pin count between shelves is: 9 holes for

s between front pins. Adjust angle by lowering back pins
