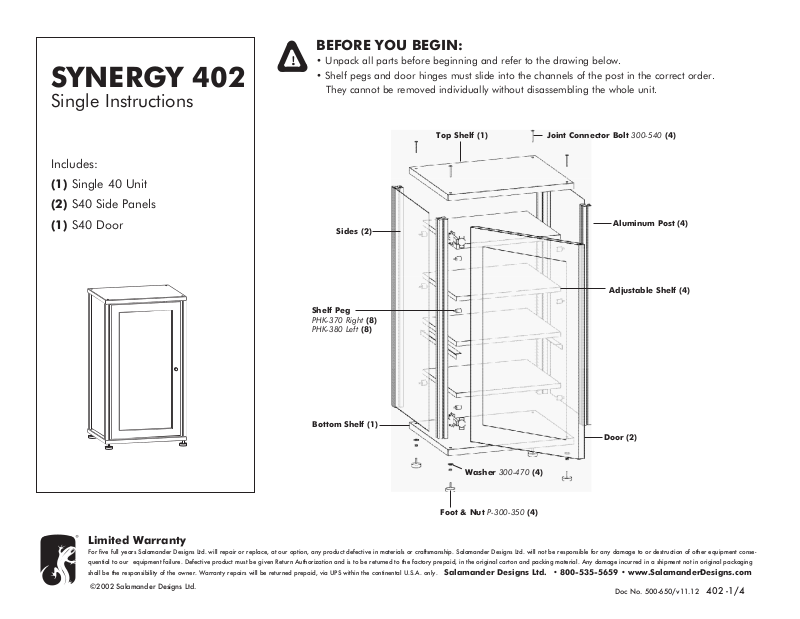

SYNERGY 402
!
Single Instructions
BEFORE YOU BEGIN:
• Unpack all parts before beginning and refer to the drawing below.
!
• Shelf pegs and door hinges must slide into the channels of the post in the correct order.
They cannot be removed individually without disassembling the whole unit.
Includes:
(1) Single 40 Unit
(2) S40 Side Panels
(1) S40 Door
Sides (2)
Shelf Peg
PHK-370 Right (8)
PHK-380 Left (8)
Bottom Shelf (1)
Top Shelf (1)
Joint Connector Bolt 300-540 (4)
Aluminum Post (4)
Adjustable Shelf (4)
Door (2)
Washer 300-470 (4)
Foot & Nut P-300-350 (4)
Limited Warranty
For five full years Salamander Designs Ltd. will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a shipment not in original packaging
shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only. Salamander Designs Ltd. • 800-535-5659 • www.SalamanderDesigns.com
©2002 Salamander Designs Ltd.
Doc No. 500-650/v11.12 402 -1/4
Page 2
!
1
Connect Posts to Bottom Shelf
WARNING: Tighten by screwing the leveler foot NOT the post.
!
A. Square Post
Square the post to the bottom shelf.
O
90
2
Add Shelf Pegs & Door Hinges
A. Group Shelf Pegs
There are two varieties of shelf pegs (A and B).
They are designed to cradle the shelf in place.
Refer to drawing.
A
B
B. Insert Hinges & Add Shelf Pegs
Note: The door can be either left or right side opening. Select a side to open each door.
1. Hold door above the post and slide the bottom
hinge plate through the post channel.
2. Insert two shelf pegs.
3. Slide top hinge plate through.
4. Gently tighten all remaining pegs with the
hex key to desired position.
Washer
Hex Nut
Leveler Foot
B. Connect Post
Screw foot with metal washer
through bottom shelf and
onto the end of an extruded
post. Hand tighten fully and
use wrench on hex nut to tighten
nut onto underside of shelf.
B
A
Doc No. 500-650/v11.12 402 -2/4
A
B
Page 3
3
Attach Door
A. Attach Hinges to Door Frames
Insert the hinges into the corresponding holes on
the doors. Turn the screws 1/4 turn to the right to
lock hinges in place.NOTE: Do not over tighten
or the hinge will break.
Note: The hinge can be separated by pulling the
black tab and pulling apart the hinge from the
hinge base. Separated hinges snap back together.
PULL
B. Adjust Clearance
Doors should be 1/8” above the bottom shelf before
fully tightening hinges to post. Use the wrench thickness
as a guide for the bottom gap.
C. Rubber Stops
Attach the rubber stops to the inside of the door frame
where it hits the shelf pegs when closing the door.
D. Door Pull
Screw the Door Pull into place.
Doc No. 500-650/v11.12 402 -3/4
Page 4
4
Attach Rear Panels
A.
Insert Hardware
Combine the 1” threaded studs with the flat nuts. Slide 2 sets of hardware down the two outside posts and 4 sets down the two center posts.
Allow studs to remain loose at bottom of post.
2X
8"
TOOL
SPACER
6"
"
1/2
4
S30 / S40
REAR PANEL
S20 / SVDO
REAR PANEL
EXTENDED
REAR PANEL
www.salamanderdesigns.com
1 2 3 4 5 6 7 8 9
2X
8"
TOOL
SPACER
6"
"
1/2
4
L
S30 / S40
REAR PANE
S20 / SVDO
REAR PANEL
L
EXTENDED
REAR PANE
www.salamanderdesigns.com
1 2 3 4 5 6 7 8 9
5
Adjustable Shelves
A. Placing & Adjusting
Place shelves from the bottom up.
Angle the shelf in between the front
post and set on top of shelf pegs.
Use the Spacer Tool to adjust spacing
between shelves. Position the peg
through the Spacer and tighten.
B. Fine Tuning
Use the bubble level to precisely adjust
the shelves. Be sure to level both sides
as well as front to back. Use the hex
key to tighten each peg.
B. Position & Secure Studs
Align the Spacer Tool at the top of each post, then
position top studs through the small “Rear Panel”
hole. Repeat this step with the bottom studs
aligning the Tool along the bottom of post to set
spacing for cable passage. Use the hex key to
secure the top and bottom studs to the posts.
C. Place Rear Panels
Secure each panel in place with thumb nuts.
REAR
6
Insert Side Panels
Carefully slide side panels
down center channel of
outside posts as shown. Be
sure the posts are square to
the bottom shelf to prevent
any damage to side panels.
SOFT CLOSE INSTALLATION
A
B
SLOW CLOSE
FAST CLOSE
7
Secure Top
Secure top with the 4 connector
bolts with hex key.
Doc No. 500-650/v11.12 402 - 4/4
