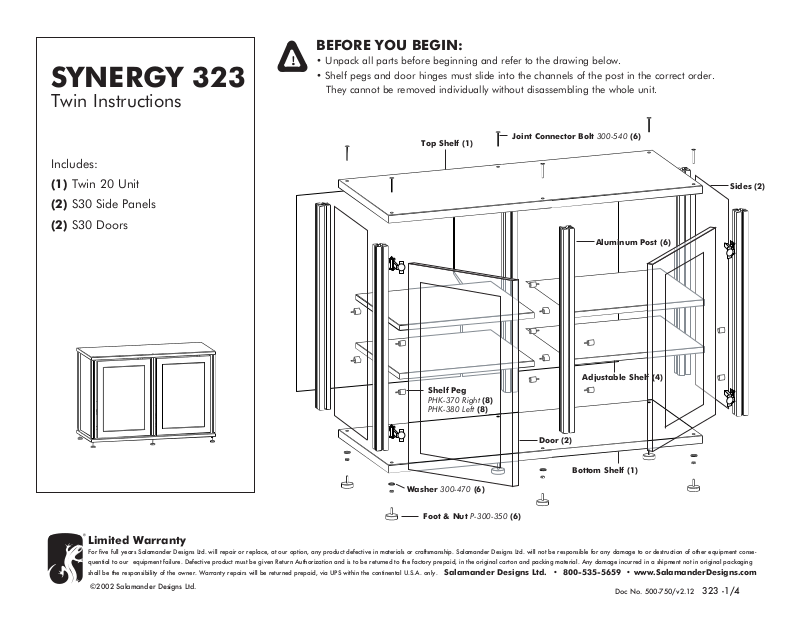

Page 1
SYNERGY 323
!
Twin Instructions
BEFORE YOU BEGIN:
• Unpack all parts before beginning and refer to the drawing below.
!
• Shelf pegs and door hinges must slide into the channels of the post in the correct order.
They cannot be removed individually without disassembling the whole unit.
Includes:
(1) Twin 20 Unit
(2) S30 Side Panels
(2) S30 Doors
Top Shelf (1)
Shelf Peg
PHK-370 Right (8)
PHK-380 Left (8)
Joint Connector Bolt 300-540 (6)
Sides (2)
Aluminum Post (6)
Adjustable Shelf (4)
Door (2)
Bottom Shelf (1)
Washer 300-470 (6)
Foot & Nut P-300-350 (6)
Limited Warranty
For five full years Salamander Designs Ltd. will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a shipment not in original packaging
shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only. Salamander Designs Ltd. • 800-535-5659 • www.SalamanderDesigns.com
©2002 Salamander Designs Ltd.
Doc No. 500-750/v2.12 323 -1/4
Page 2
!
1
Connect Posts to Bottom Shelf
WARNING: Tighten by screwing the leveler foot NOT the post.
!
A. Square Post
Square the post to the bottom shelf.
O
90
2
Add Shelf Pegs & Door Hinges
A. Group Shelf Pegs
There are two varieties of shelf pegs (A and B).
They are designed to cradle the shelf in place.
Refer to drawing.
A
B
B. Insert Hinges & Add Shelf Pegs
Note: The doors can be either left or right side opening. Select a side to open each door.
1. Hold door above the post and slide the bottom
hinge plate through the post channel.
2. Insert two shelf pegs.
3. Slide top hinge plate through.
4. Repeat Steps 1-3 on second door.
5. Gently tighten all remaining pegs with the
hex key to desired position.
Washer
Hex Nut
Leveler Foot
B. Connect Post
Screw foot with metal washer
through bottom shelf and onto
the end of an extruded post. Hand
tighten fully and use wrench on
hex nut to tighten nut onto
underside of shelf.
B
A
A
B
Doc No. 500-750/v2.12 323 -2/4
Page 3
3
Attach Door
A. Attach Hinges to Door Frames
Insert the hinges into the corresponding holes on
the doors. Turn the screws 1/4 turn to the right to
lock hinges in place.NOTE: Do not over tighten
or the hinge will break.
Note: The hinge can be separated by pulling the
black tab and pulling apart the hinge from the
hinge base. Separated hinges snap back together.
PULL
B. Adjust Clearance
Doors should be 1/8” above the bottom shelf before
fully tightening hinges to post. Use the wrench thickness
as a guide for the bottom gap.
C. Rubber Stops
Attach the rubber stops to the inside of the door frame
where it hits the shelf pegs when closing the door.
D. Door Pull
Screw the Door Pull into place.
Doc No. 500-750/v2.12 323 -3/4
Page 4
4
Attach Rear Panel
5
Final Assembly
A. Insert Hardware
Combine the 1” threaded studs with the flat
nuts. Slide hardware into rear channel.
B. Place Panel
Allow bottom studs to remain
loose at bottom of post. Align the
Spacer Tool at the top of the post,
then position top studs through the
small “Rear Panel” hole. Repeat this
step with the bottom studs aligning
the Tool along the bottom of post to
set spacing for cable passage.
2X
www.salamanderdesigns.com
"
SPACER
TOOL
A. Placing & Adjusting Shelves
Place shelves from the bottom up. Angle the
shelf in between the front post and set on top
of shelf pegs. Use the Spacer Tool to adjust
spacing between shelves. Position the peg
through the Spacer and tighten.
B. Fine Tuning
2X
1 2 3 4 5 6 7 8 9
REAR PANEL
EXTENDED
REAR PANEL
S20 / SVDO
REAR PANEL
S30 / S40
4
1/2
6"
8"
8"
TOOL
6"
SPACER
"
1/2
4
S30 / S40
REAR PANEL
S20 / SVDO
REAR PANEL
EXTENDED
REAR PANEL
1 2 3 4 5 6 7 8 9
www.salamanderdesigns.com
2X
Use the bubble level to precisely adjust
the shelves. Be sure to level both sides
as well as front to back. Use the hex
key to tighten each peg.
C. Insert Side Panels
Carefully slide side panels down center
channel of outside post. Be sure the
posts are square to the bottom shelf to
prevent any damage to side panels.
D. Secure Rear & Top
Put the remaining thumb nuts on
to complete panel installation.
C. Secure Studs
Use the hex key to secure the all
studs to the posts.
REAR
SOFT CLOSE INSTALLATION
A
Doc No. 500-750/v2.12 323 -4/4
B
SLOW CLOSE
FAST CLOSE
