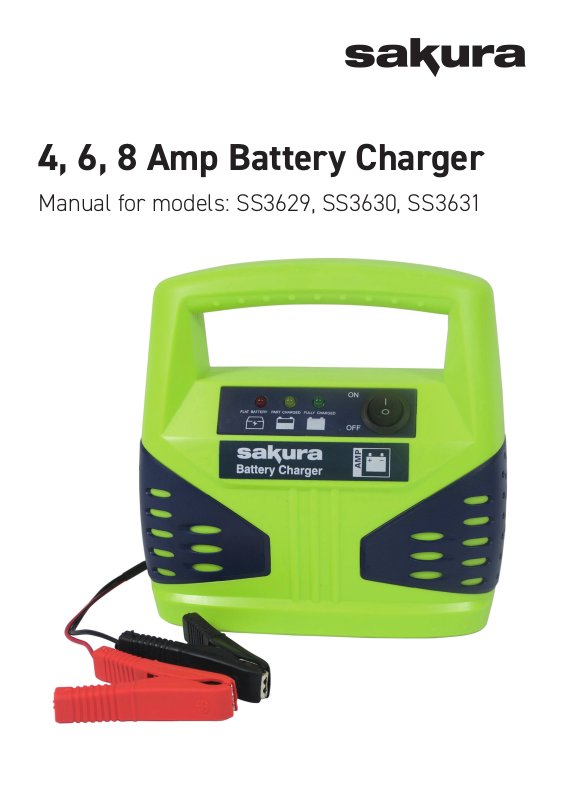

Page 1
4, 6, 8 Amp Battery Charger
Manual for models: SS3629, SS3630, SS3631
Page 2
Read these Operating Instructions carefully before use. Keep these instructions
for later reference. Always operate the charger according to these instructions
Operation
1. Consult the vehicle manufacturer owner’s manual to determine whether the battery
must be disconnected from the vehicle electrical system. For standard batteries,
loosen cell plugs and check electrolyte level. (The electrolyte must cover the plates
in the individual cells. If it does not, top up with distilled water). Maintenance-free
batteries should not be opened; this can be done only at an authorized repair facility
using special equipment. For maintenance-free batteries, discontinue charging once
out-gassing voltage (14.4V) has been reached.
2. Connect the red clamp to the positive terminal (+) of the
battery, then the black clamp to the negative terminal (-).
When charging a battery that has not been removed from
the vehicle, first attach the charging clamp to the battery
terminal that is not electrically connected to the vehicle
chassis. Make the other connection to the chassis at a
location away from the battery and fuel line. The charge
status red LED will illuminate to show the battery is
connected.
3. Plug the charger into the 240V mains socket and set the charger power switch to
‘ON’; the charger will begin charging the battery. The charge status of the battery
is displayed by the LED’s. When the battery is fully charged the corresponding ‘Full
charge’ LED will illuminate.
1
2
4. Once charging is complete, remove the power plug from the 240V mains socket and
set the charger power switch to ‘OFF’.
CAUTION: Always pull on the plug itself, never on the cord. Only then can terminal
clamps be removed from the battery. If the battery has not been removed from the
vehicle, first disconnect the clamp from the chassis then from the battery, in that order.
Re-tighten the battery cell plugs if fitted.
Charger Characteristics
This unit contains a temperature-sensitive switch that automatically shuts the charger
off in the event of power overload or excessively high temperatures. The unit will automatically switch back on after a cooling period. Not suitable for continuous charging. DO
NOT use for trickle charging. Use this unit with caution on completely maintenance-free
batteries; the charging operation must be monitored.
Page 3
Warnings
• Be sure to turn off the power source before disconnecting clamps from the battery.
Likewise, only turn on power once clamps have been fitted
• When not in use, store the charger in a dry area to avoid any possible moisture damage
• You should not attempt to open or attempt any maintenance on the battery charger
• Battery acid is corrosive and can cause burning. If skin comes into contact with any
acid, rinse and seek immediate medical advice
• Whilst charging, it’s possible that the battery may emit gasses. Ensure that there is
no potential of sparks or flames near the engine whilst in use
• Never use the charger if cables or the unit itself is damaged
• Never charge from a damaged or frozen battery
• Make sure that the cables and battery do not come into contact with water
• DO NOT place the charger on the battery whilst charging
• Always provide suitable ventilation when charging and do not cover the charger
• The charger may become slightly hot when in use which is normal
• DO NOT use in any areas which are accessible to children
• DO NOT leave the charger unattended for long periods
• DO NOT use the charger in rain or damp conditions
• DO NOT smoke, and avoid open flames or sparks
• DO NOT charge non-rechargeable batteries
• For indoor use only
• Wear protective gloves and safety glasses when working on the battery
• Provide good ventilation when charging. Ensure good air flow around the charger.
Never block the charger’s ventilation slots
Safety features
• The Charger has a built in temperature protection mode, which it will enter
automatically if the unit overheats. When the temperature has dropped to a normal
level, the charger will restart normal charging automatically
• DO NOT charge the battery whilst the engine is turned on
• When charging a battery, do not close the bonnet, door or the cover to prevent any
possible cause for a high current or short circuit
WARNING
Explosive gases. Prevent flames and sparks. Provide adequate ventilation
Page 4
CAUTION: If you smell an unpleasant gas odour, there is a risk of explosion
• DO NOT switch off the charger
• DO NOT remove charging clamps
• IMMEDIATELY provide good ventilation of the area
• Disconnect power only after thorough ventilation
• Have the battery checked by a qualified automotive electrical technician
Technical Data
SS3629 SS3630 SS3631
Output Current 4 Amp 6 Amp 8 Amp
Input Voltage AC 230-240V / 50Hz, 0.5A
Output Voltage 12V DC
Battery
Min 15Ah 15Ah 15Ah
Capacity 6 Cell
Max 50Ah 80Ah 120Ah
Vehicle Size
TMAP-1204K TMAP-1206K TMAP-1208K
SS3629 | SS3630 | SS3631
Everland Road, Hungerford,
Berkshire, RG17 0DX, UK
01488 689 400
info@saxon-brands.com
www.saxon-brands.com
SAKURA® is a registered trademark of
Saxon © 2021 by Saxon
Up to
1.2 litres
Up to
1.8 litres
Up to
2.5 litres
