Saia PCD7.D410VTCF, PCD7.D457VTCFH, PCD7.D457VMCF, PCD7.D457VTCF User Manual

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Saia

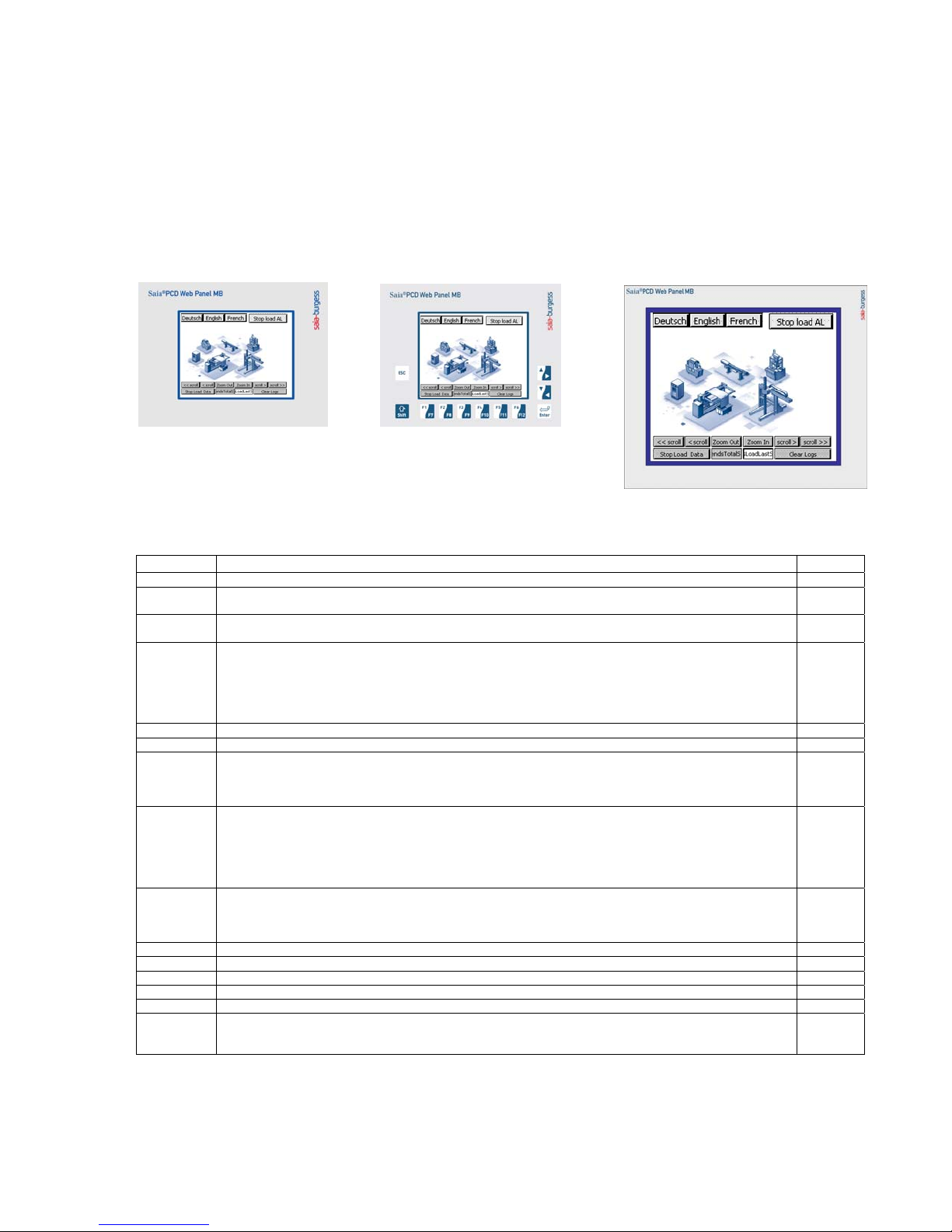

5.7” VGA / TFT: PCD7. D457VTCF / VMCF & VTCFH

10.4” VGA / TFT: PCD7.D410VTCF

Manual /user’s guide

®

PCD Web panel with MicroBrowser

Revision Description date

Rev 0 Release Edition – Manual/User’s guide for 5.7 MB panels VGA version 26/858 PE1 – valid from FW 1.00.00 05.12.08
Rev 1 Manual/User’s guide for 5.7 and 10.4 MB panels VGA – version 26/858 PE2 – valid from FW 1.01.00. Add

Rev2 Section 6.4: add comment * / Section 6.4.5 : Default s-bus timeout = 500ms / Section:6.7 adaptation /
Rev 3 a Based on FW 1.11.35: new log.txt, Portrait landscape (rotation), QVGA / VGA (resolution), Save changes.

Rev 3 b - Same as Rev 3a with FW 1.12.01 + Add “power request” on section 4. 30.9.09
Rev 3 c Revision of the section 17: “recommendation”. Please read this section in first 12.10.09
Rev 4 Add section 11.2: multi languages: examples

Rev 5 - New FW version 1.12.11 supporting new features of the Web Editor 5.14.27 as: Web-editor scalable func-

Rev 6 Section 9: uB_Terminal containers  updated descriptions (+ new uBT_BackLightOn, uBT_DisplayRotation

Rev 7 Additional info regarding Font size  see the SECTION 10 10.05.10
Rev 8 In progress :16 list of message-box
Rev 9 Main: Add the user’s guide part regarding the haptic MB Panel 12.01.11
Rev 10 Not released
Rev 11 Not released
Rev 12 For next release: Multi connection / Support macro save logs to files / DHCP DNS / info video cache

section: 12.3
Section 8: Full updated !!New section 16 : known bugs
New rules for missing fonts. New numbering of the sections.

Additional sections: 16 = List of message-box messages + example of calculation of size memory
requirement of online Trends.
18 = error message advanced.
Index a  Add “Some rules regarding gif image” section 17

Section 16: List of message box message: Out of memory in heap 2 can appears in case of “offline” trends
too.
Section 18: Error messages advanced: additional information

tion (up scaling), Moving painter object, Polygon rotation, tacho Macro, New macro dialogs (new teq format)

- Alarming/trending works with a different port other than 80.

- Alarming/trending works through S-Bus
Section 7.5: Adaptation: Add build.in keyboard layout (MB comfort line)
Add new section 9.1: uBT_Backlight container diagram

and uBT_ScaleMode) + info regarding the “Not active containers”.
Section 12.1:using equally Standard or “crossed” Ethernet cable when using X2 port in http direct or
EtherSbus

calculation / Gif files decompression into video cache at starting. This revision is corresponding to the
firmware version 1.18.xx

19.01.09

09.04.09

07.08.09
&

18.08.09

20.11.09

12.02.10

01.04.10

 This document is regularly updated.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 1/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Saia®PCD VGA Web panel with MicroBrowser

Types:

5.7” TFT VGA PCD7. D457VTCF / VMCF and VTCFH

10.4” TFT VGA PCD7.D410VTCF

1.

DIMENSIONS AND CUT-OUT (ALL IN MM) .........................................................................................................5

2. MOUNTING ....................................................................................................................................................................5

Table of contents

3. OPERATION AND HANDLING............................. ..... .. .. ..... .. ... .. ..... .. .. ..... .. ... .. ..... .. ... .... ... .. .. ..... .. ... ... .........................6

3.1. BASE LINE 5.7” MB PANELS AND 10.4” .................................... ................................................................................6

3.2. COMFORT LINE MB PANELS (COMBINED TOUCH AND KEYPAD)........................................ ...................................... 6

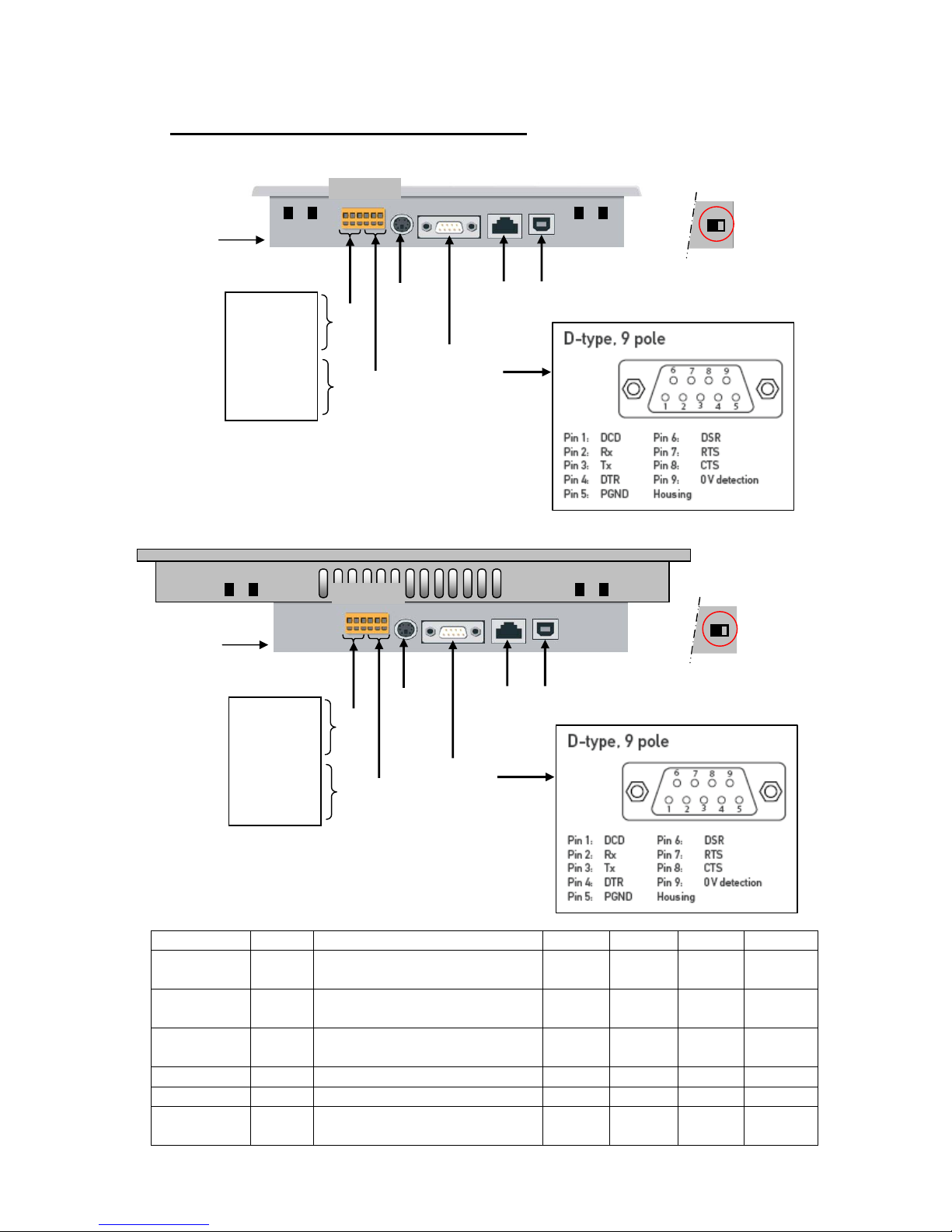

4. CONNECTIONS AND POWER REQUEST...............................................................................................................7

5. TITLE............................................................................... .......................................................... ............................ .......... 8

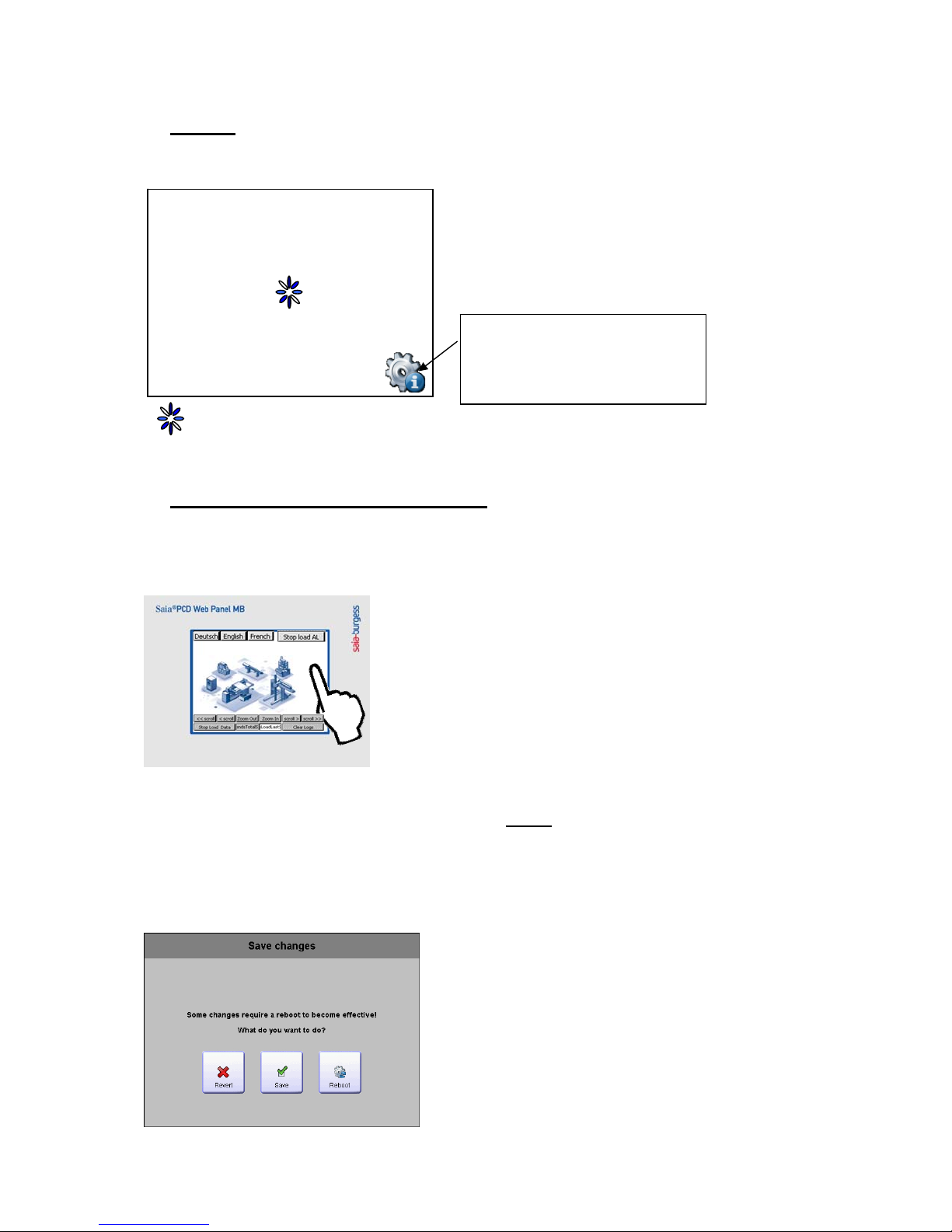

6. ENTER & QUIT THE SETUP MENU...................................................................................... ................................... 8

6.1. PASSWORD ...................... ......................................................... ..................................................................................8

6.2. SAVE AND QUIT....................................... .................................................................................... ...............................8

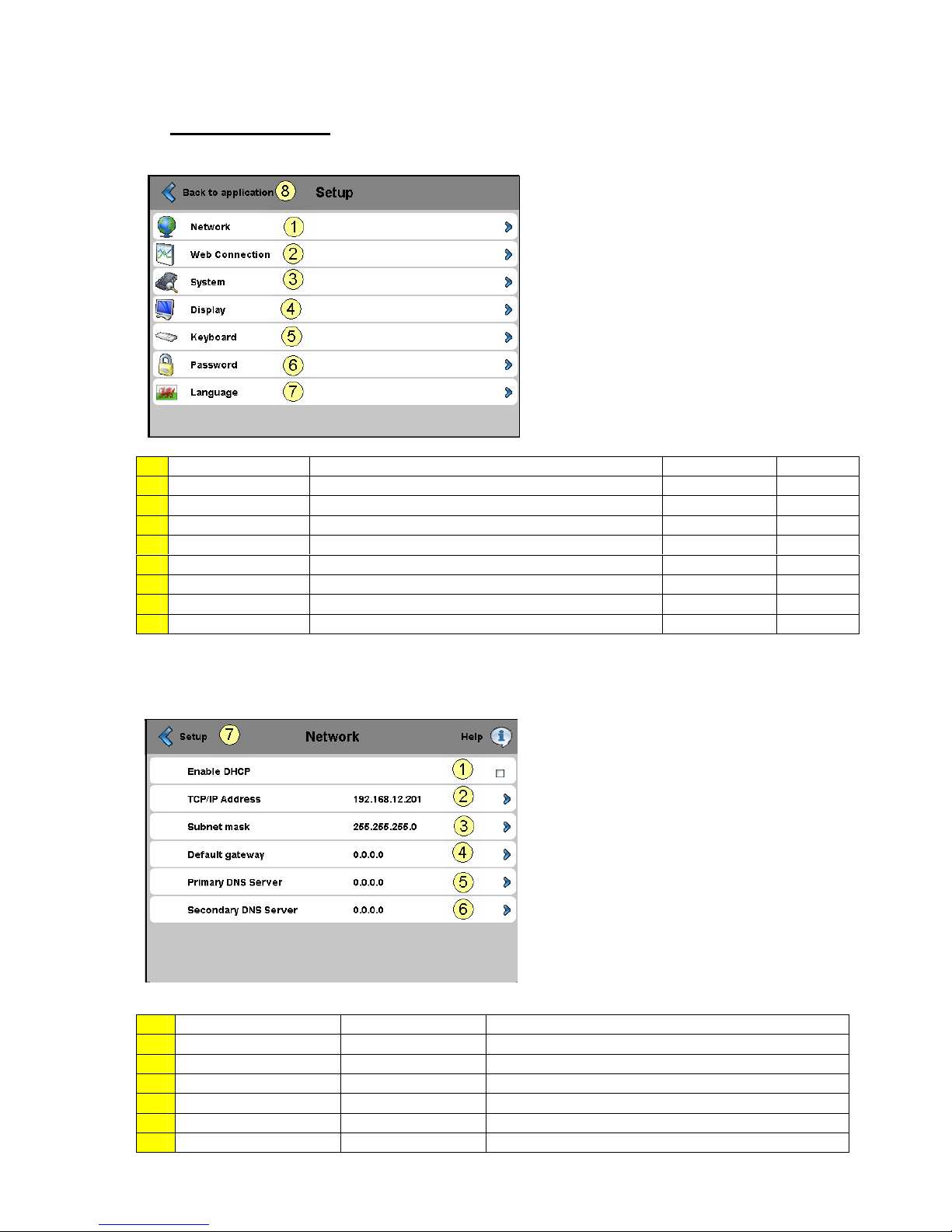

7. SETUP SCREEN....................................... ..... ... .. ..... .. .. ... .... ... .. .. ..... .. ... .. ..... .. .. ..... ... .. .. ..... .. ... .. ........................................ 9

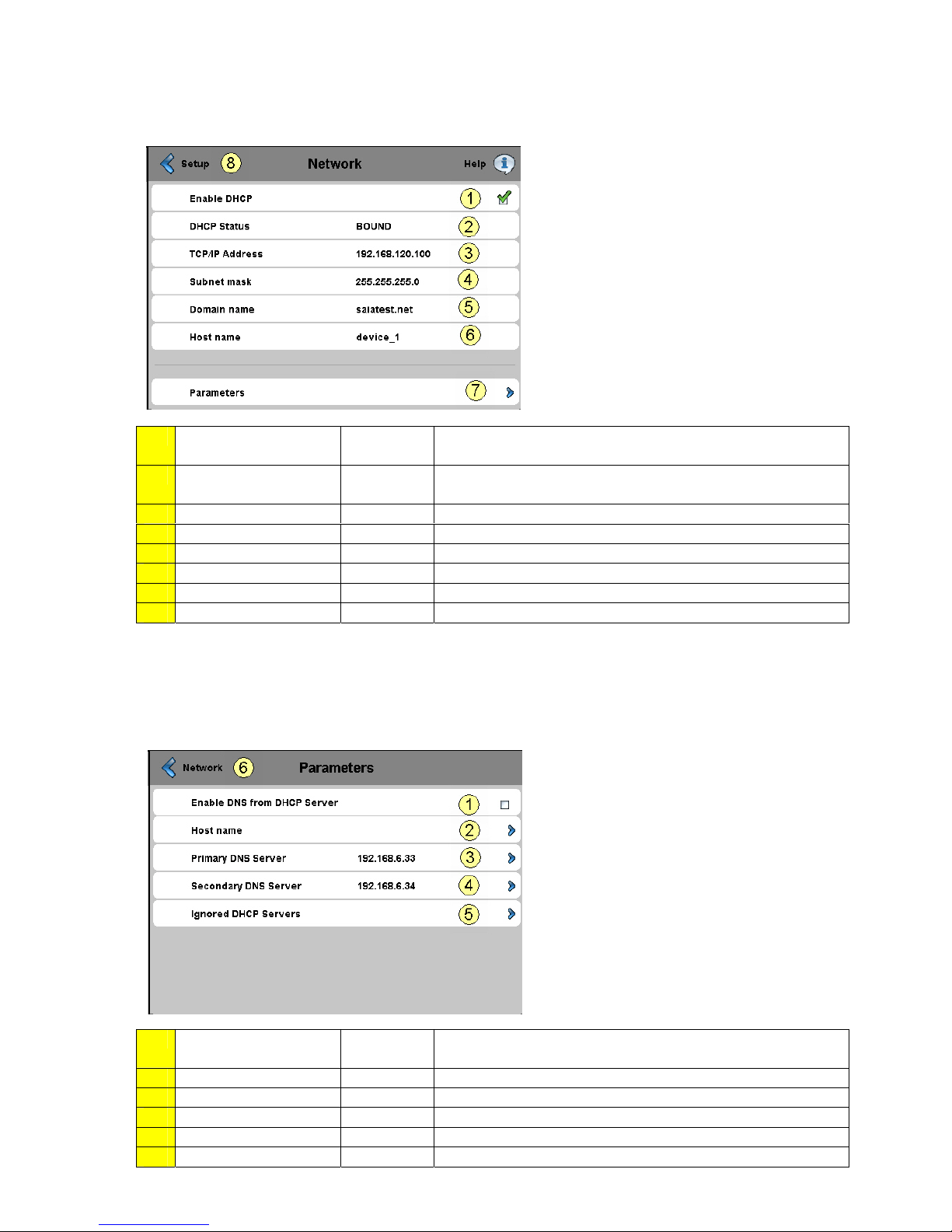

7.1. NETWORK................................................................................................................................................................... 9

7.1.1. No DHCP server is used (Standard configuration)......................................................................................... 9

7.1.2. DHCP server is used........................................................... ............................ ................................................10

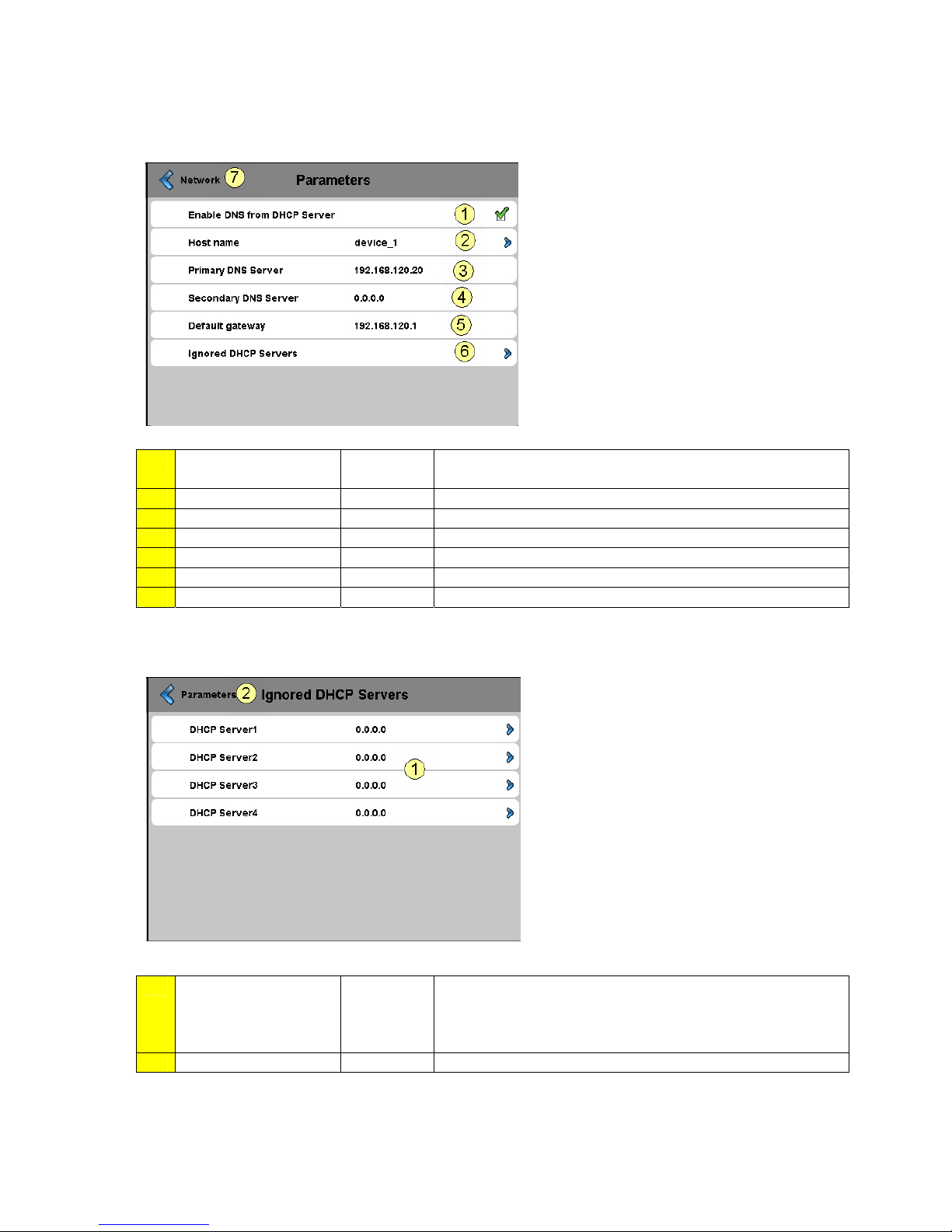

7.1.3. Parameters ( Disable or Enable DNS from DHCP server)..........................................................................10

7.1.4. Ignored DHCP server........................... ..........................................................................................................11

7.2. WEB CONNECTION .................................... ...............................................................................................................12

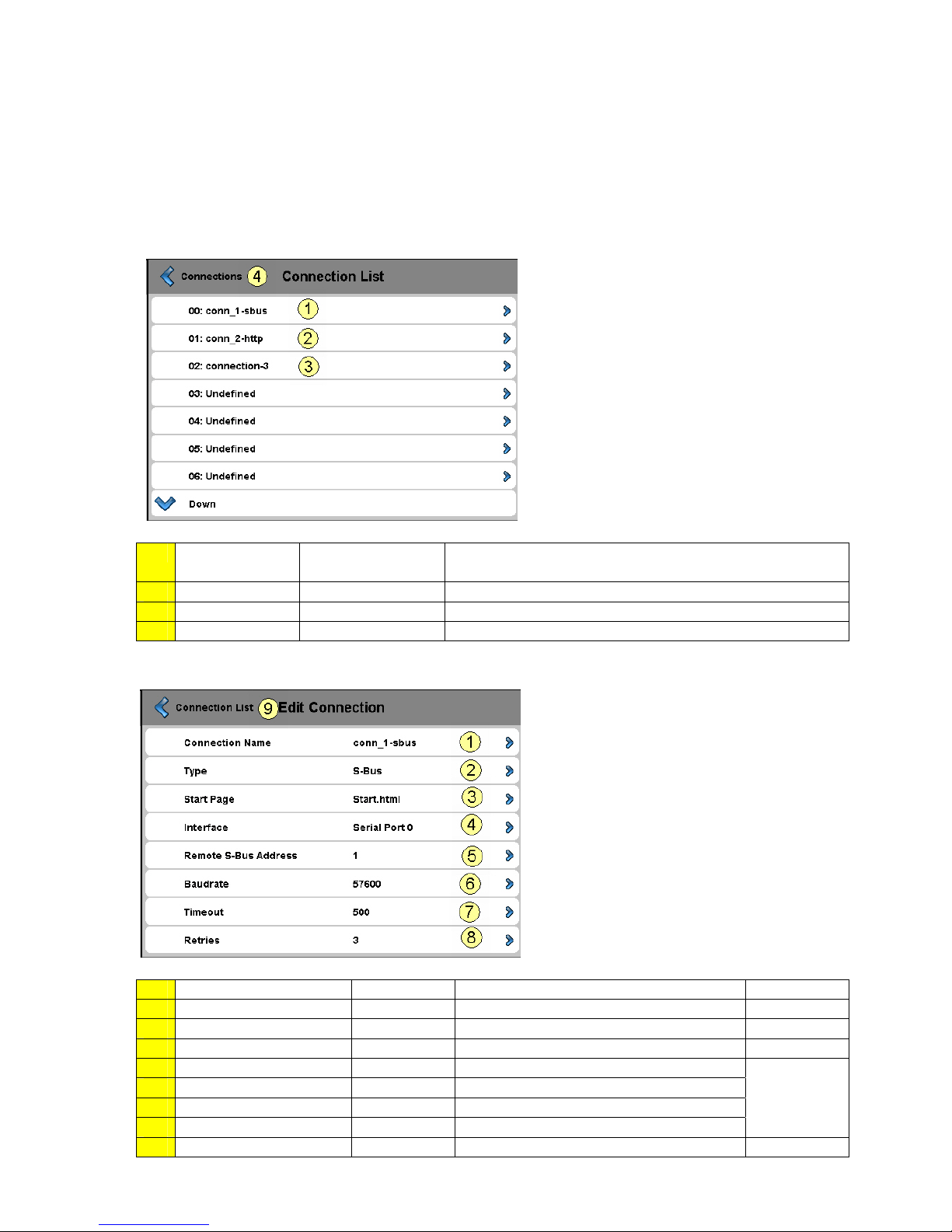

7.2.1. Connection List (NEW)................................................................................................................. .................12

7.2.2. Edit an S-Bus Connection............................................ ...................................................................................12

7.2.3. Edit an http direct Connection............................................................................................................ ............ 13

7.2.4. Choose the Startup Connection ......................................................................................................................13

7.2.5. URL Jump on web-Editor ........................................ ...................................................... ................................. 13

7.2.6. Further info regarding types & parameters of connections.................... ............................ ..........................14

7.2.6.1. TYPE of connection.......................................................................................................................................................14

7.2.6.2. Type of S-bus Interface connection................................................................................................................... ............14

7.2.6.3. Parameters of Ether-S-bus connection ......................................................................... .................................................14

7.2.6.4. Parameters of Serial S-bus connection..........................................................................................................................14

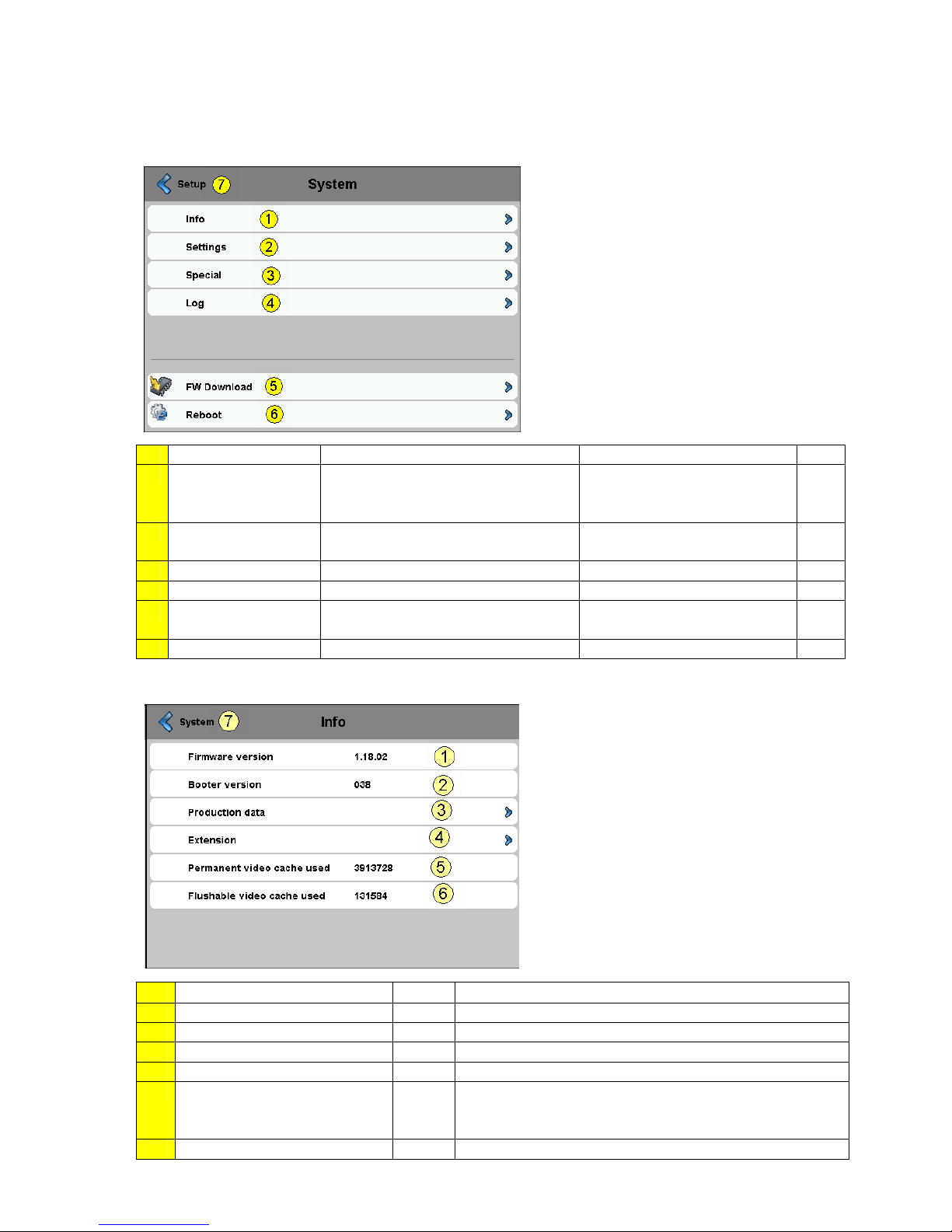

7.3. SYSTEM................................................... .................................................................................... .............................15

7.3.1. Sytem info .................................................................................................................. ...................................... 15

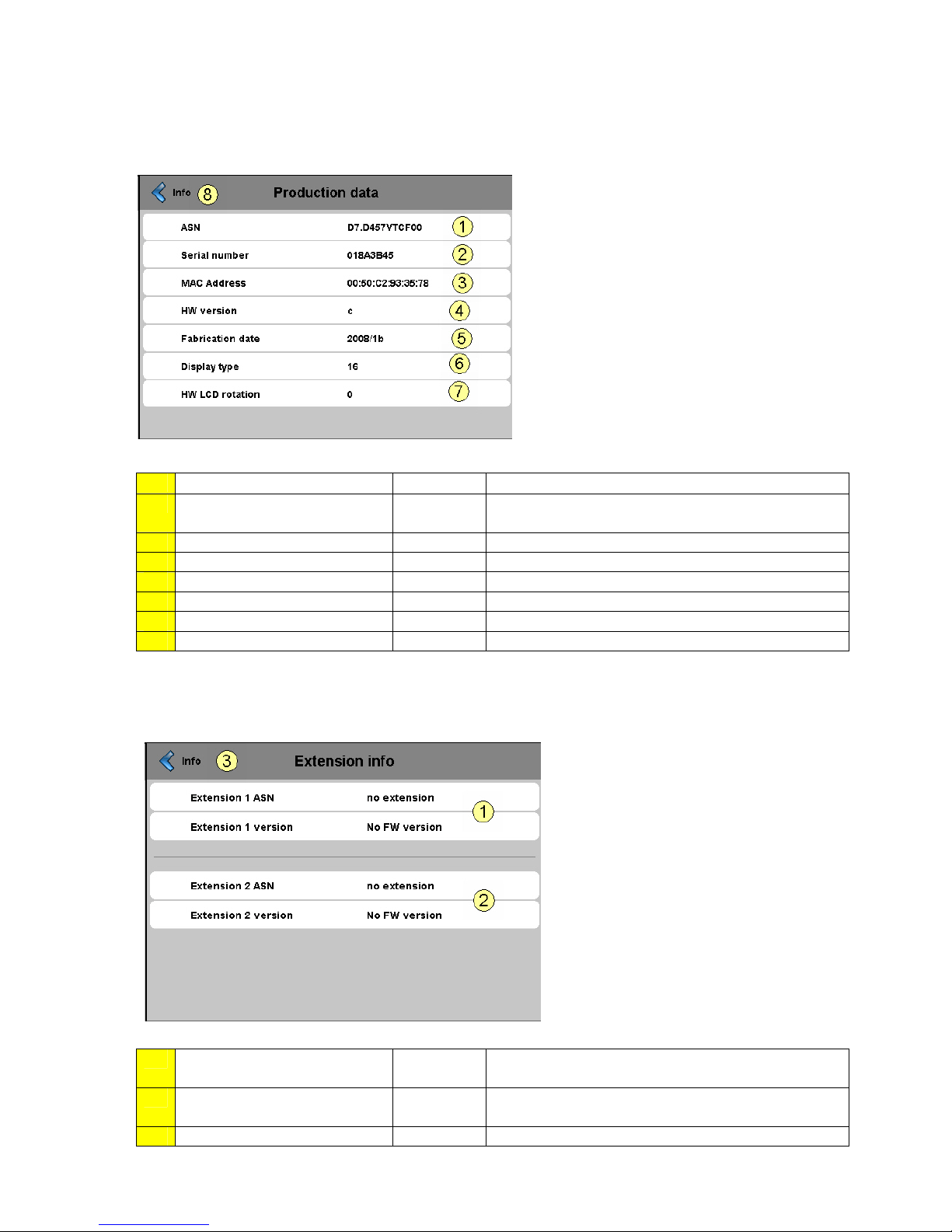

7.3.1.1. Production data ............................................................. ................................................................ .................................16

7.3.1.2. Extension info (only for special configuration).............................................................................................................16

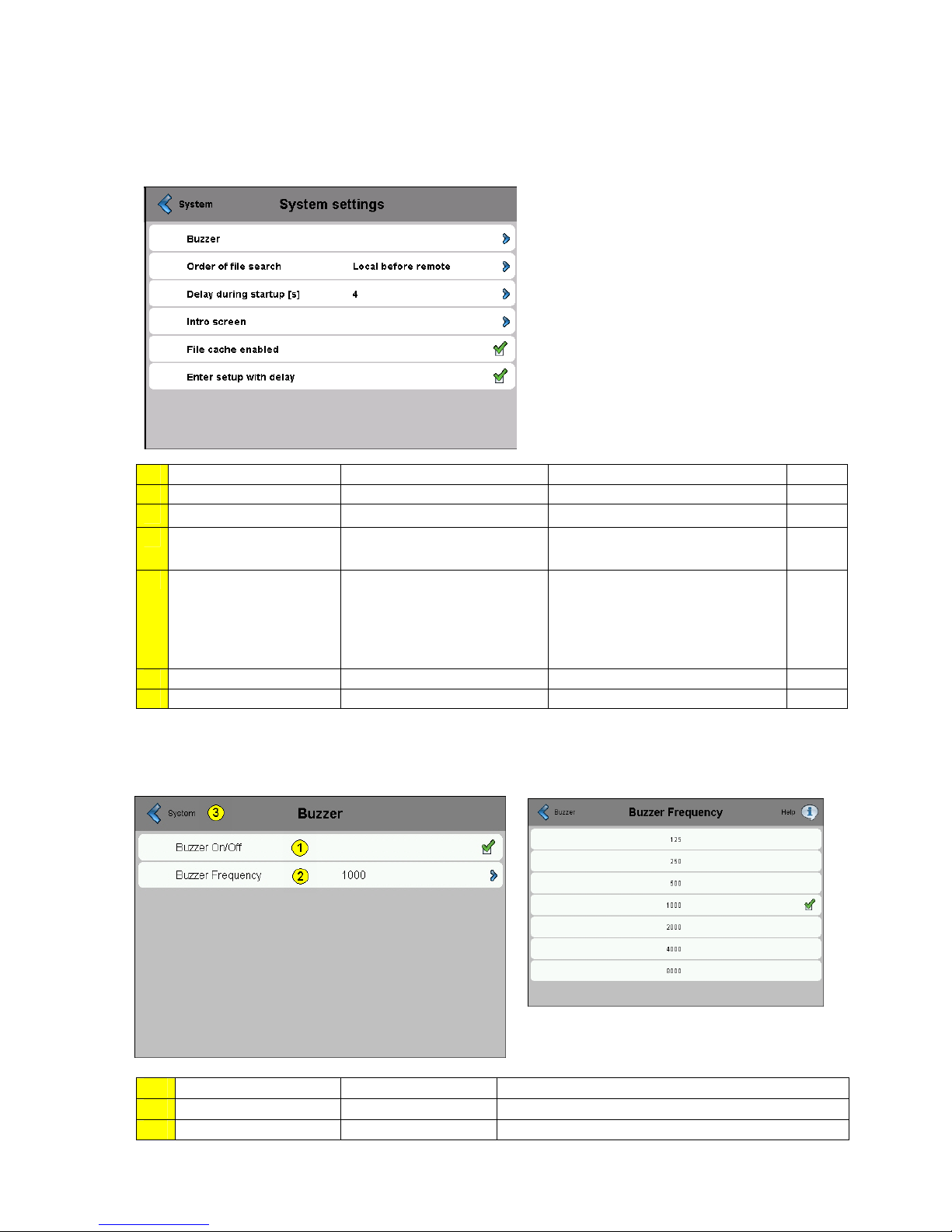

7.3.2. Settings ................................................................................................... .........................................................17

7.3.2.1. Buzzer.. ...........................................................................................................................................................................17

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 2/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

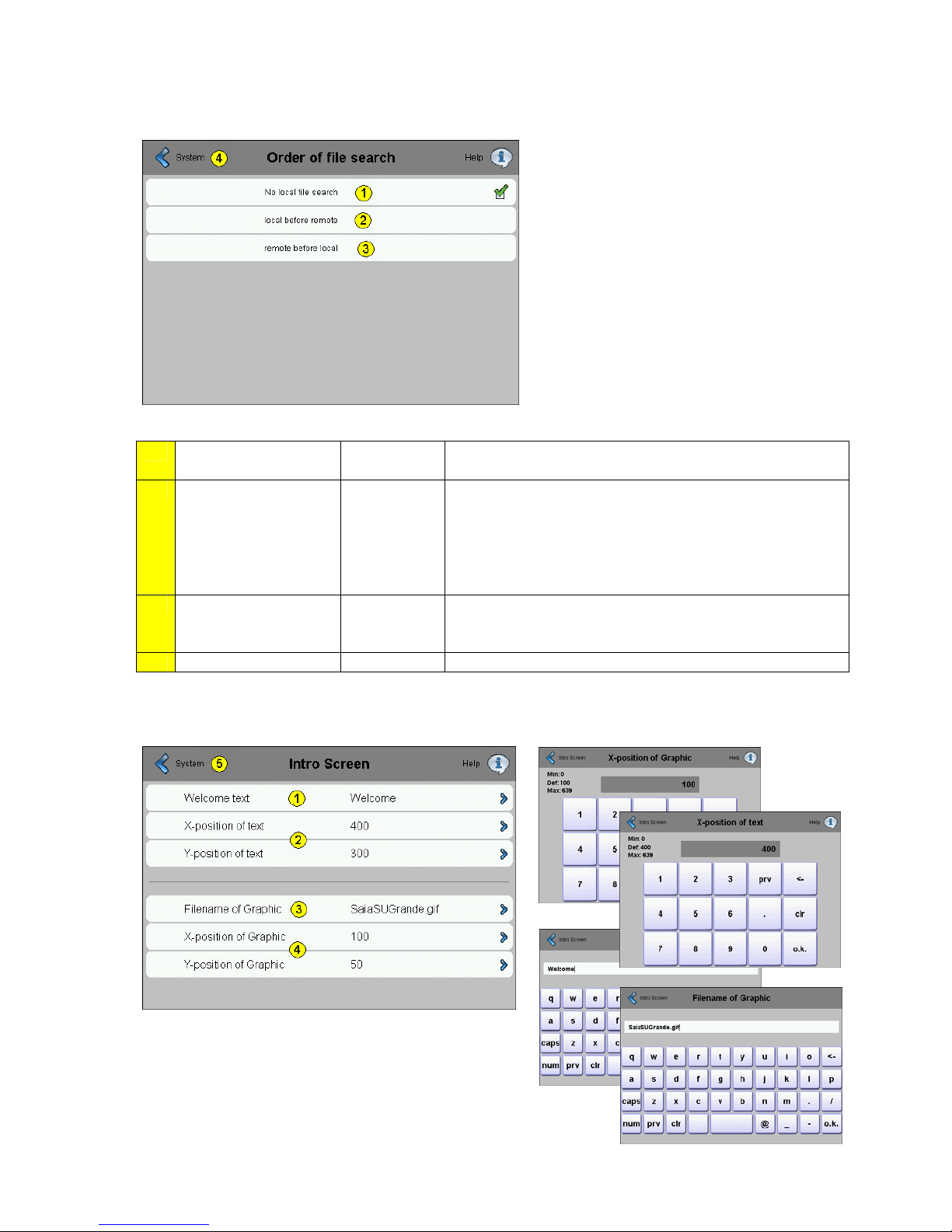

7.3.2.2. Order of file search.................................................................................................. ......................................................18

7.3.2.3. Intro screen.....................................................................................................................................................................18

7.3.3. System Special............................................ .... ... .. .. ... .... ... .. .. ..... .. ... .. ..... .. ... .. .... ... .. .. ..... ... ................................. 19

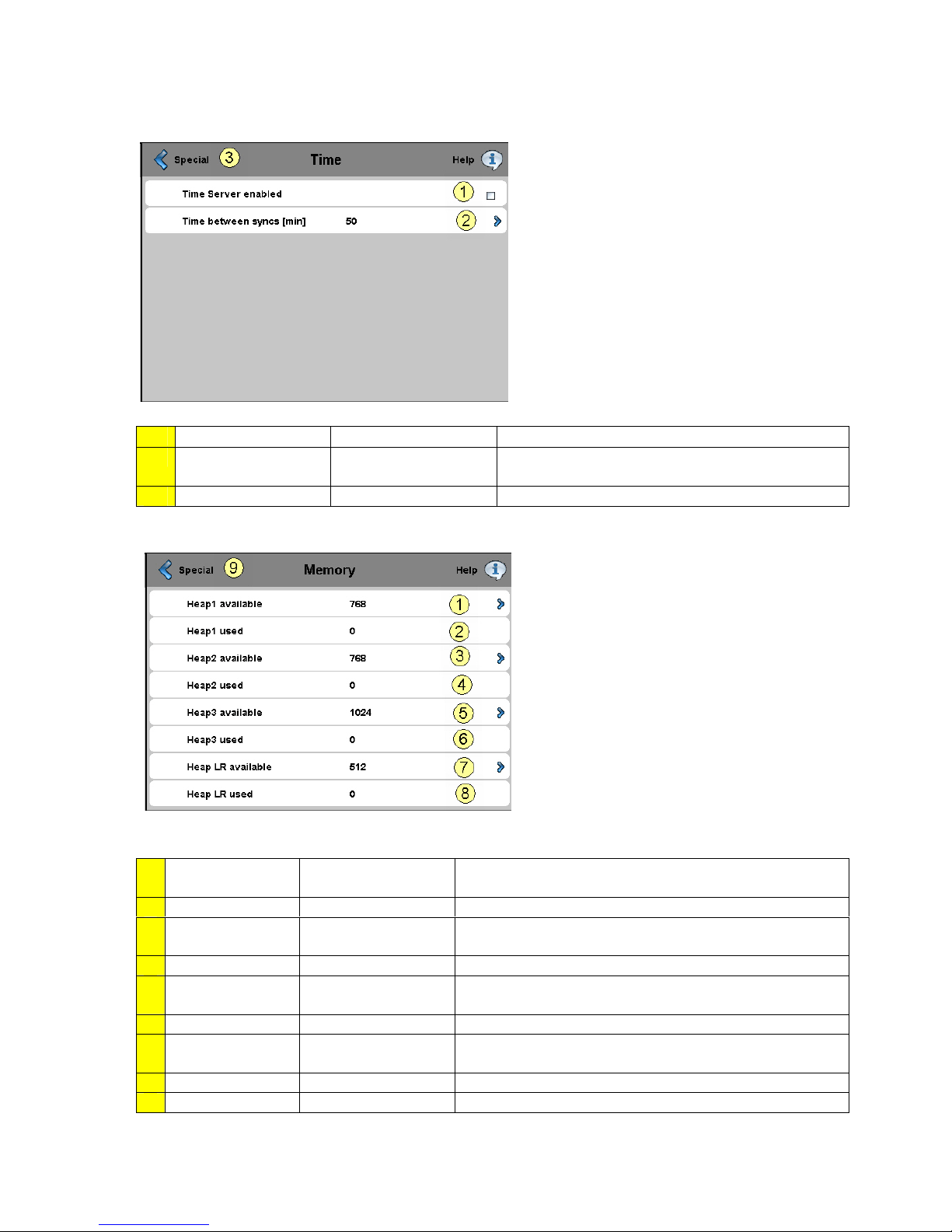

7.3.3.1. Time............................................... ............................................................... .................................................................20

7.3.3.2. Memory..........................................................................................................................................................................20

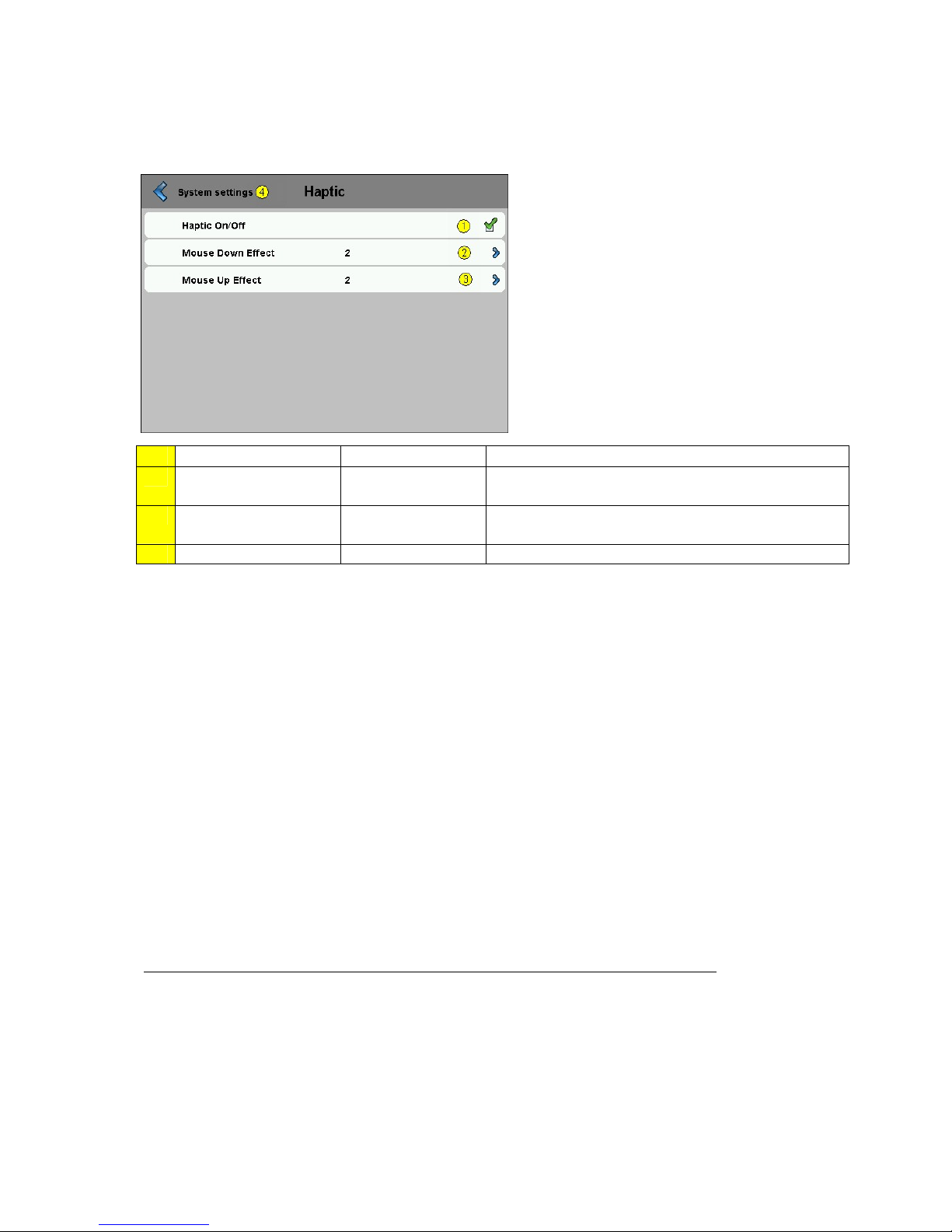

7.3.3.3. Haptic version (PCD7.D457VTCFH) ..................................................... ......................................................................21

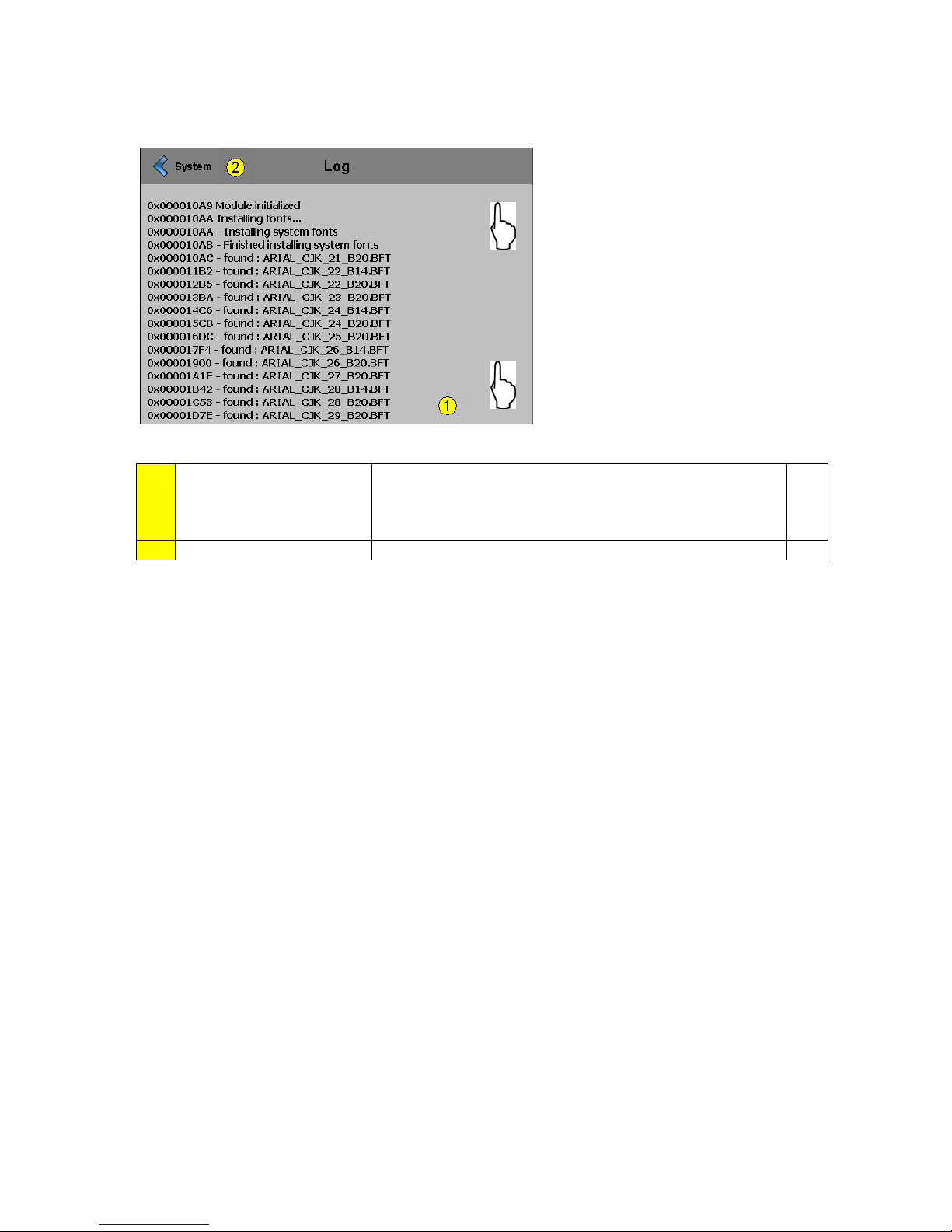

7.3.4. Log......................................................................................................................................................... .......... 22

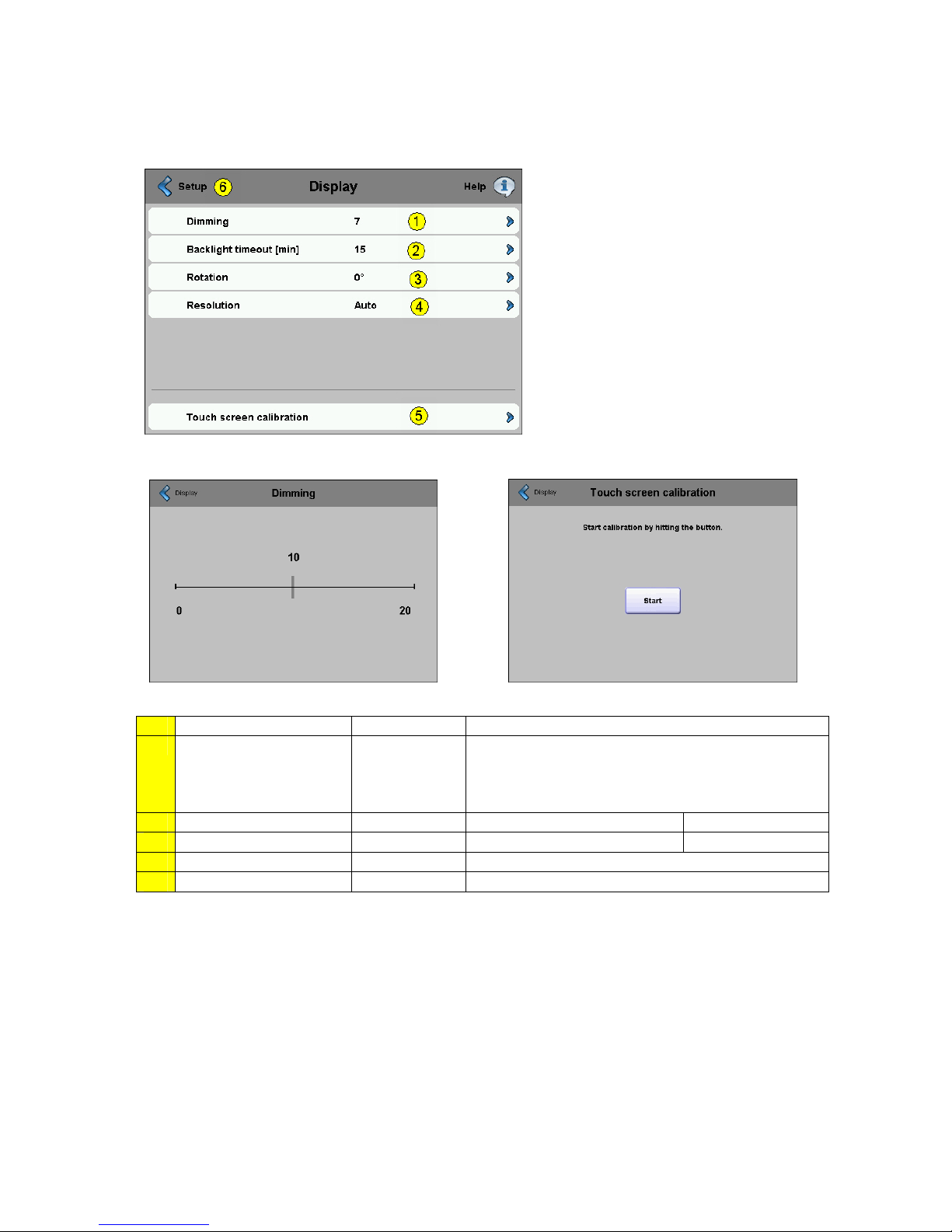

7.4. DISPLAY............................................... ......................................................... ........................................................... 23

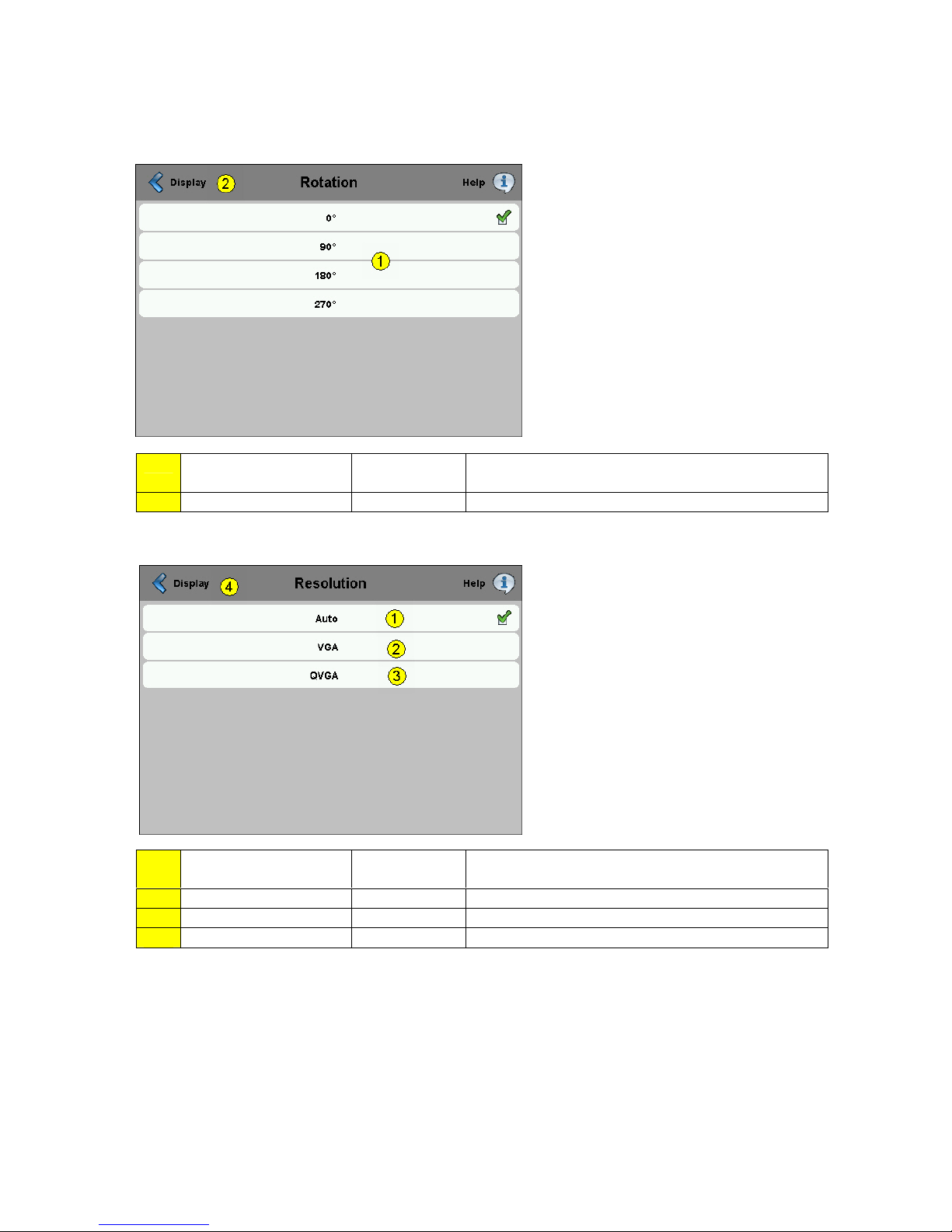

7.4.1. Rotation ................................ ............................. ............................ ............................ ............................ .......... 24

7.4.2. Resolution................................................................................................. .......................................................24

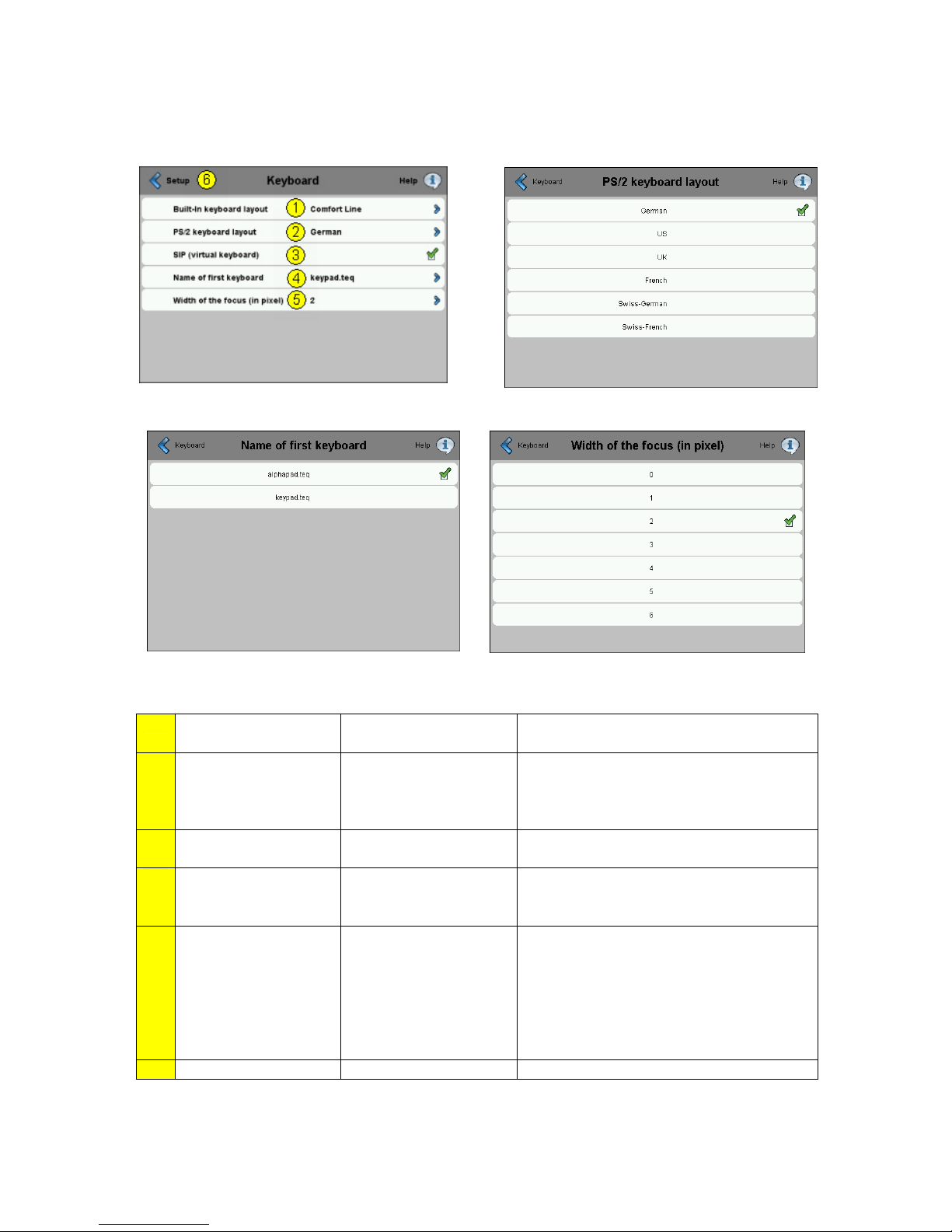

7.5. KEYBOARD............................................................................................................................................................... 25

7.5.1. Build-in keyboard layout................................................................................................................................. 26

7.6. ENTER PASSWORD ................................................................................................................................................... 26

7.7. FIRMWARE DOWNLOAD (MB PANEL SIDE)..............................................................................................................27

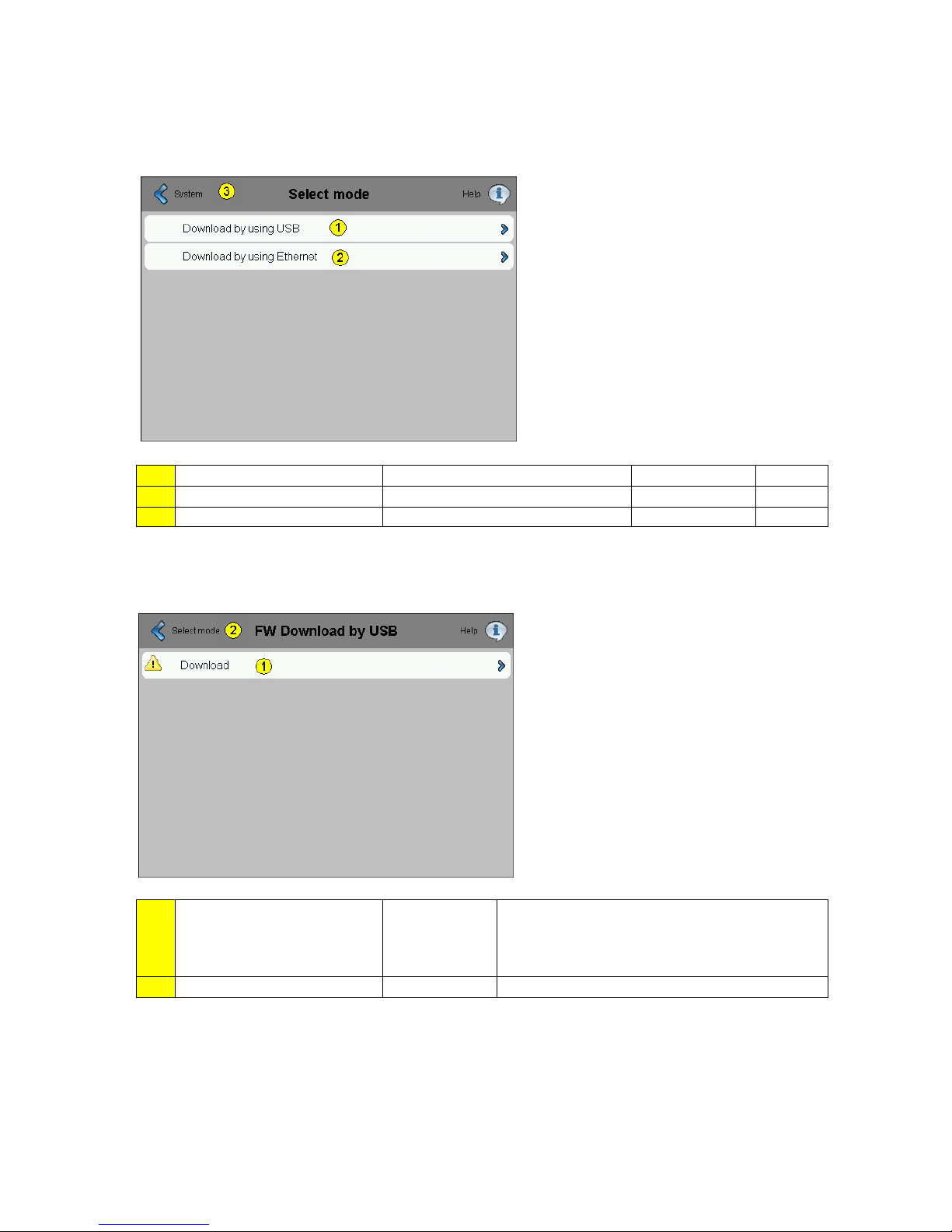

7.7.1. FW Download by USB....................... ... .. ..... .. ... .. ..... .. .. ... .... ... .. .. ..... .. ... .. .. ..... ... .. .. ..... .. ... .. ..... .. ........................27

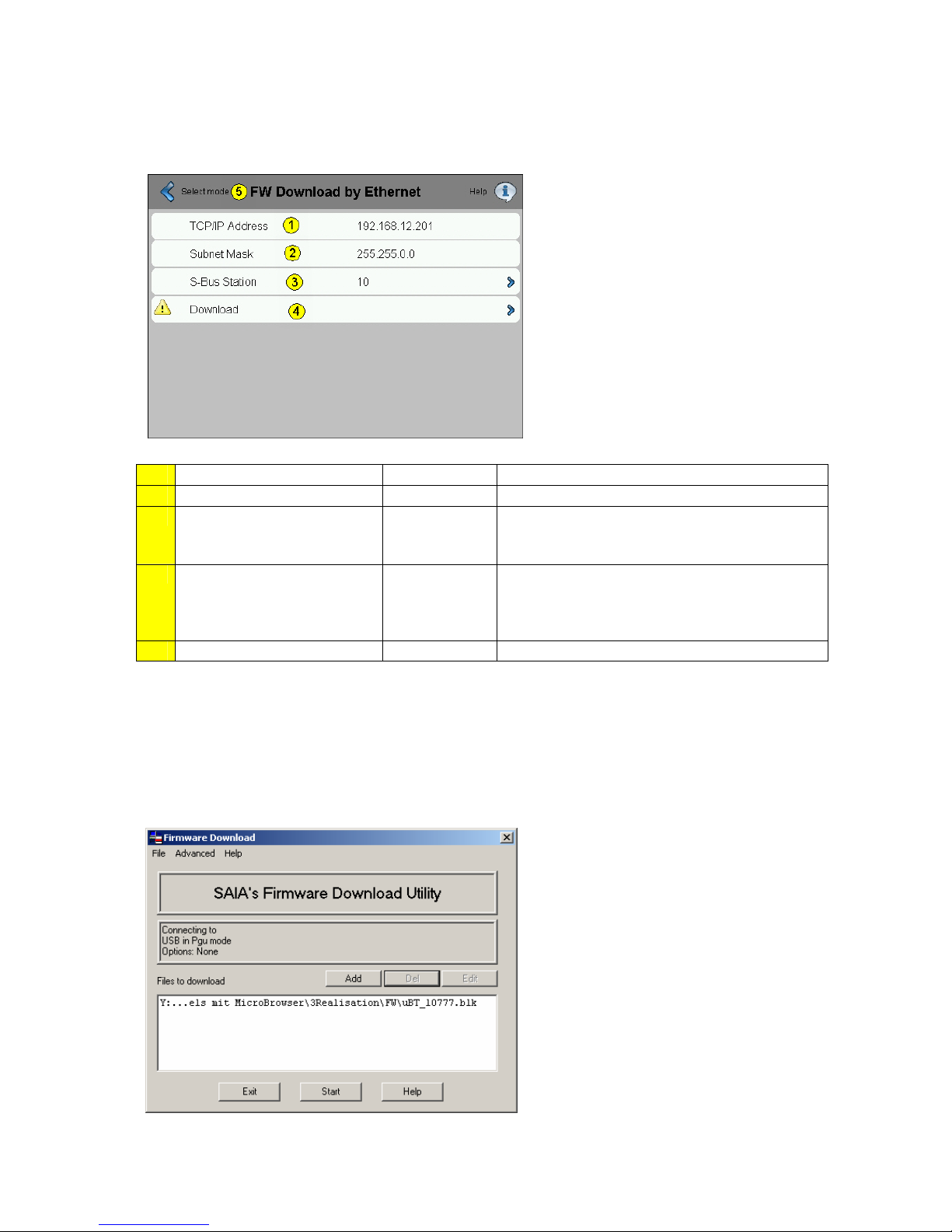

7.7.2. FW Download by Ethernet.................................... ... .. .. ... .... ... .. .. ..... .. ... .. ..... .. ... .. .. ..... .. ... .. ..... .. ..... ...................28

7.7.3. Firmware Download (Saia’s firmware download utility).............................................................................. 28

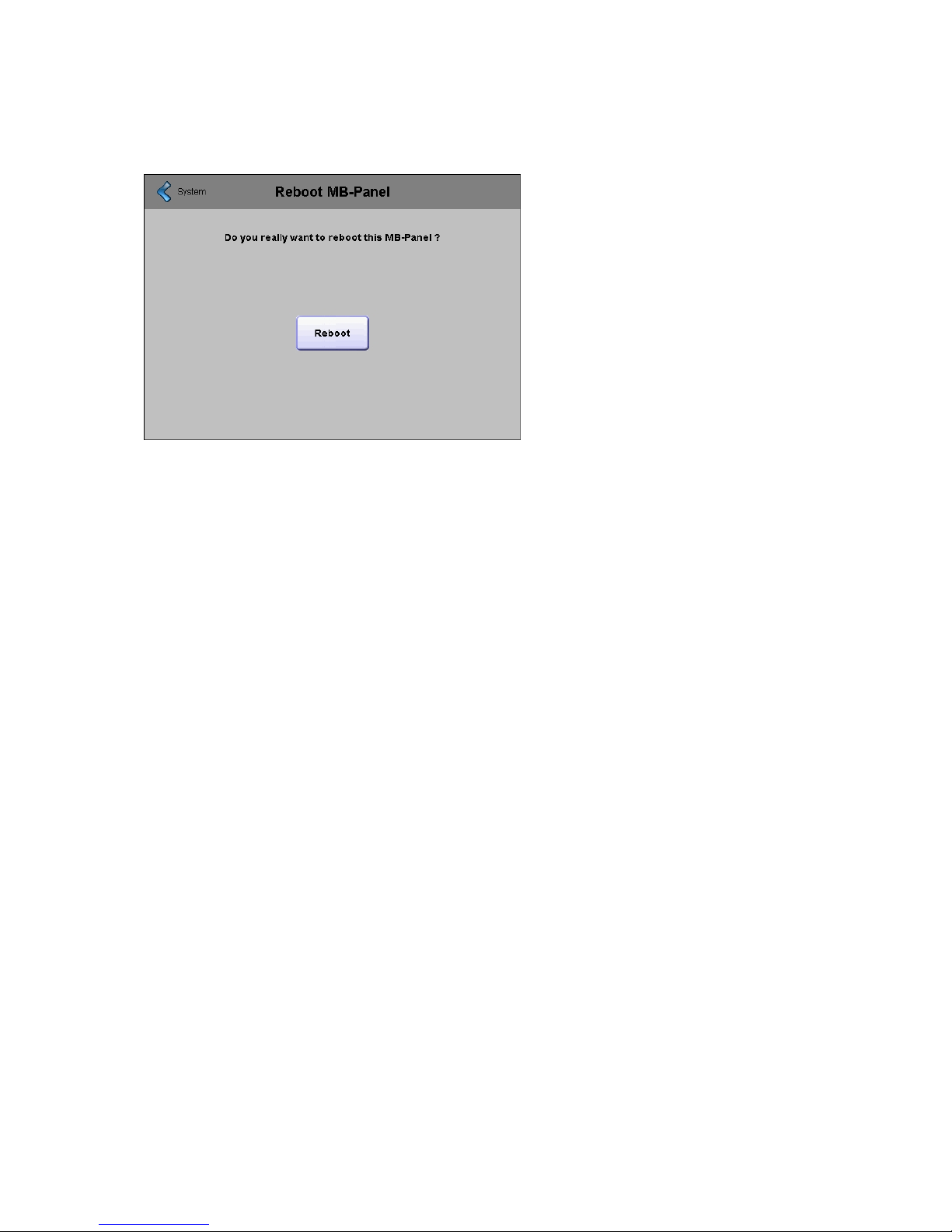

7.8. REBOOT MB PANEL ................................................ ................................................................................................. 29

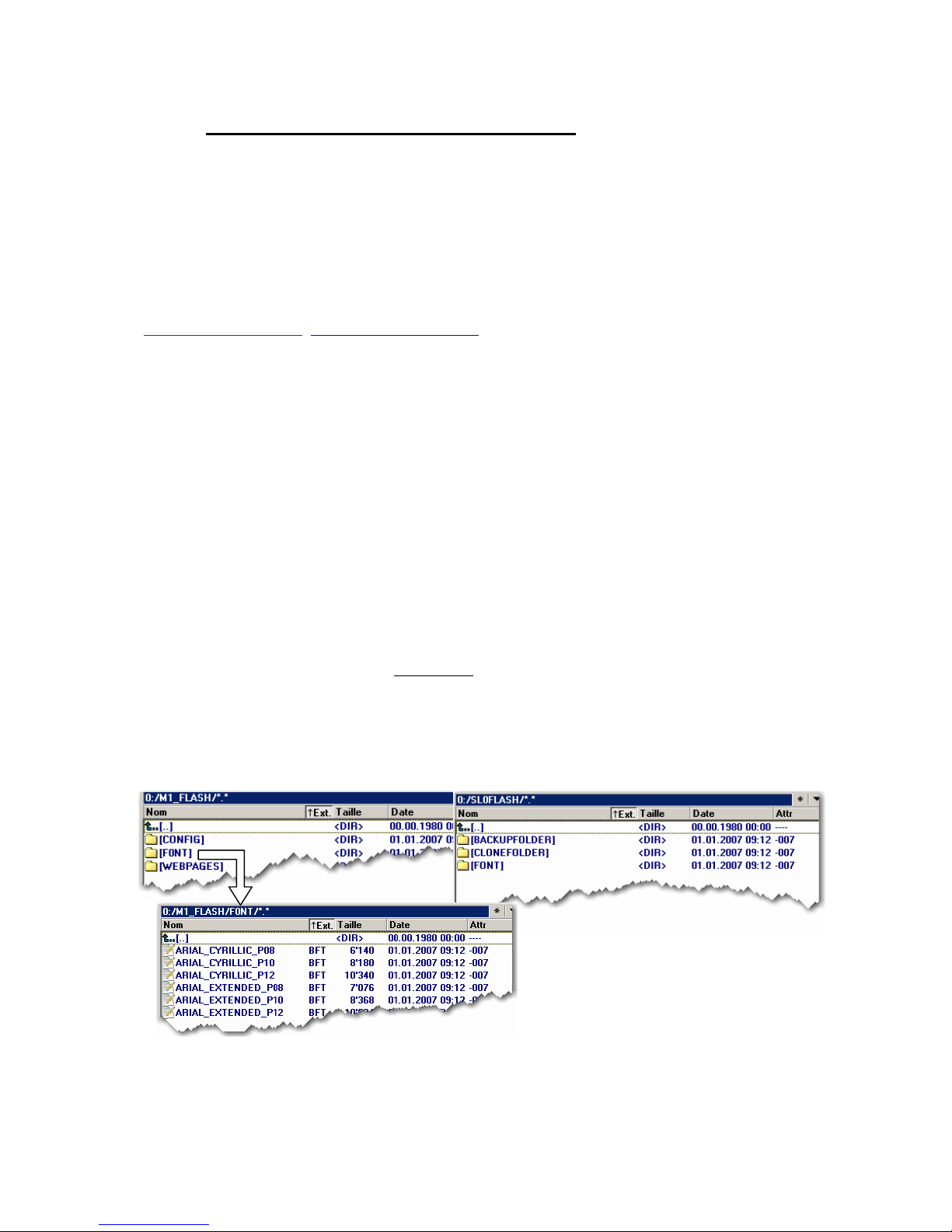

8. LOCAL FILES / LOCAL SERVER...........................................................................................................................30

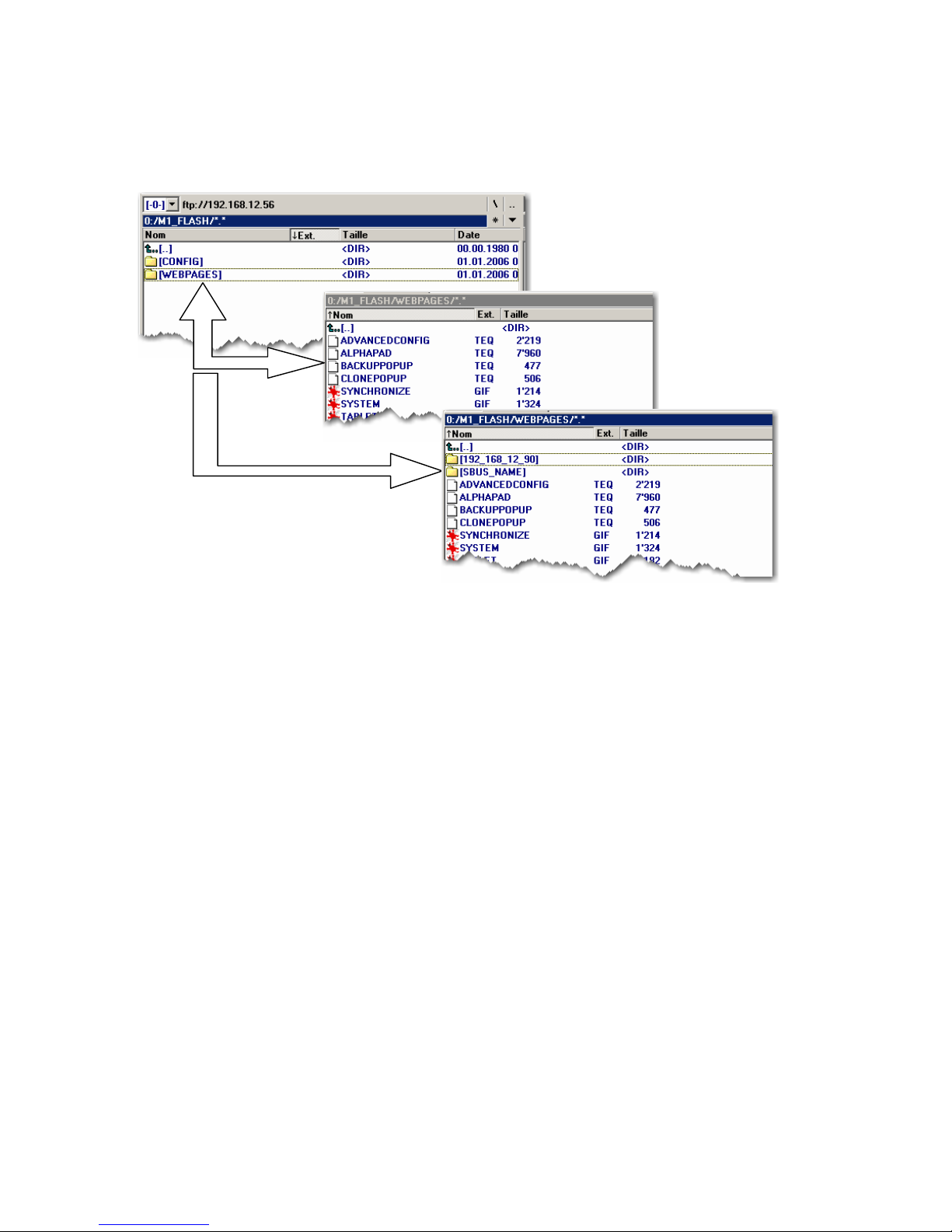

8.1. M1_FLASH/WEBPAGES.............................. ..................................................................................... ...................31

8.2. COPY TO M1_FLASH (LOCAL FTP SERVER) ......................................................................................................... 31

9. UBTERMINAL CONTAINERS (VGA)............................................................................. .............................. .......... 32

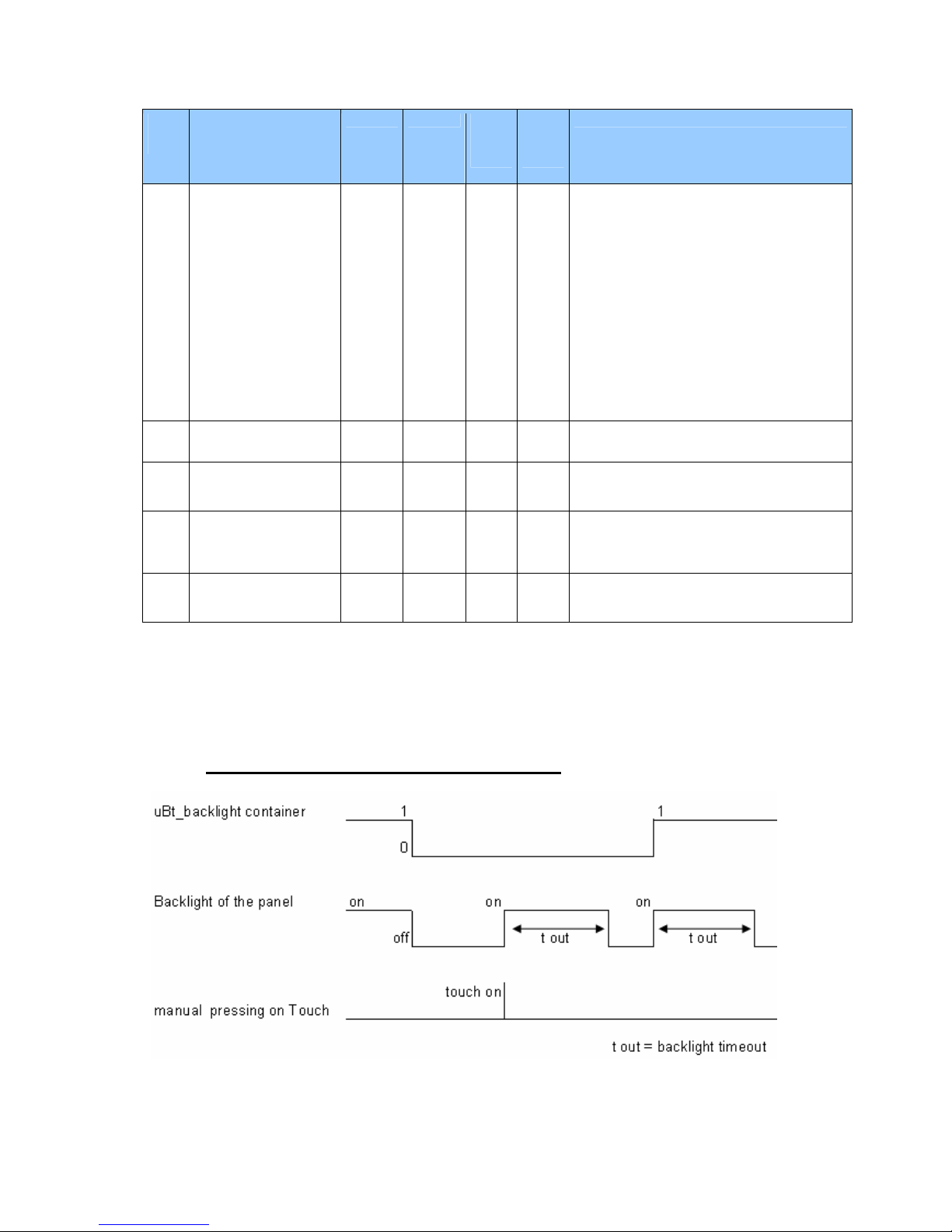

10. USING UBT_BACKLIGHT CONTAINER................................. ........................................................ .................36

11. ADDITIONAL UBTERMINAL CONTAINERS FOR “SAVE LOGS TO FILE” FUNCTION....................37

12. ADDITIONAL UBTERMINAL CONTAINERS FOR “HAPTIC” PANELS ...................................... ............38

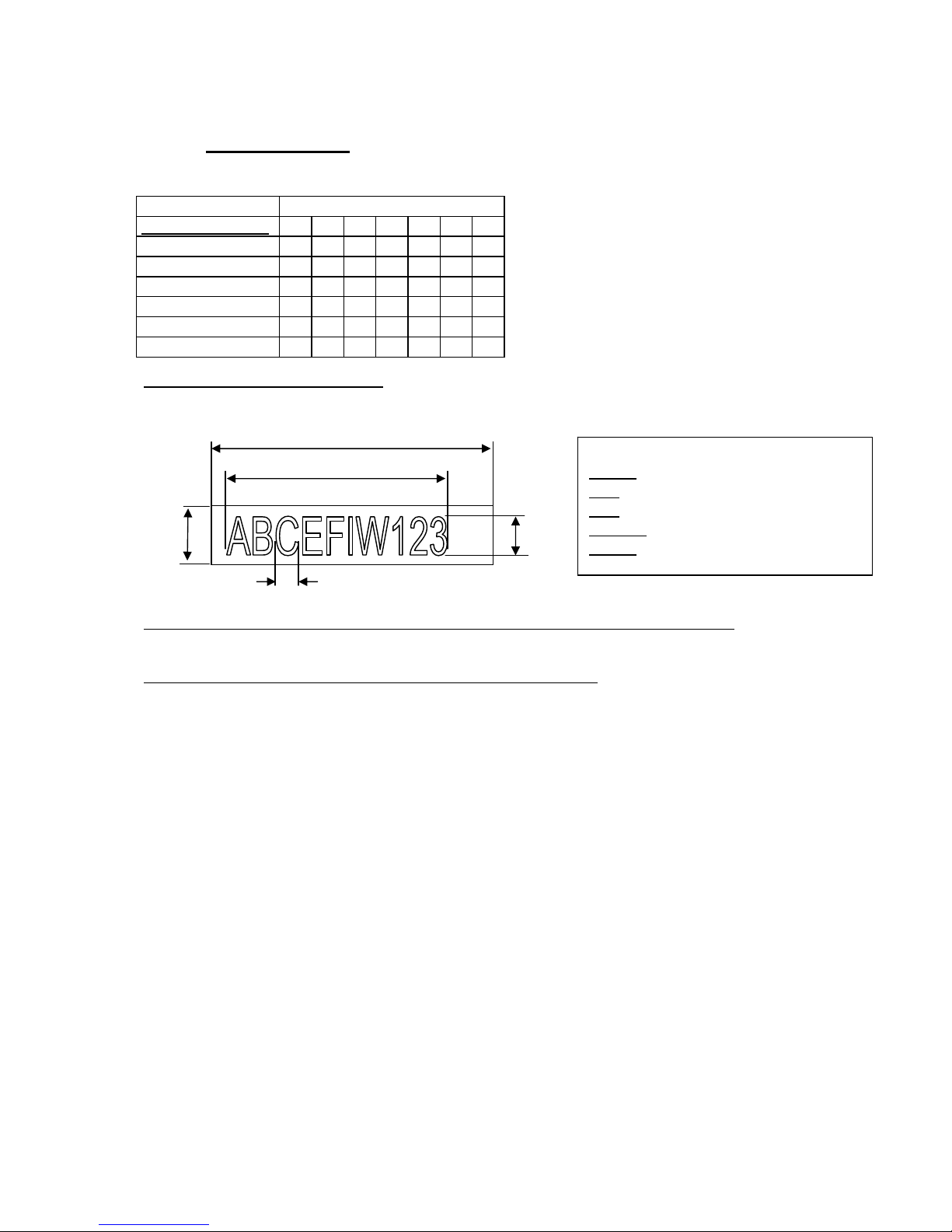

13. DEFAULT FONTS .......................................................................... ............................ .............................................39

14. SPECIAL FONTS AND UNICODE FONTS............................. ... .... ... .. ..... .. .. ... ..... .. .. ..... .. ... .. ..... .. .. ..... .. ... .. .......... 40

14.1. GENERALITY .................................... ............................. ....................................................................................... 40

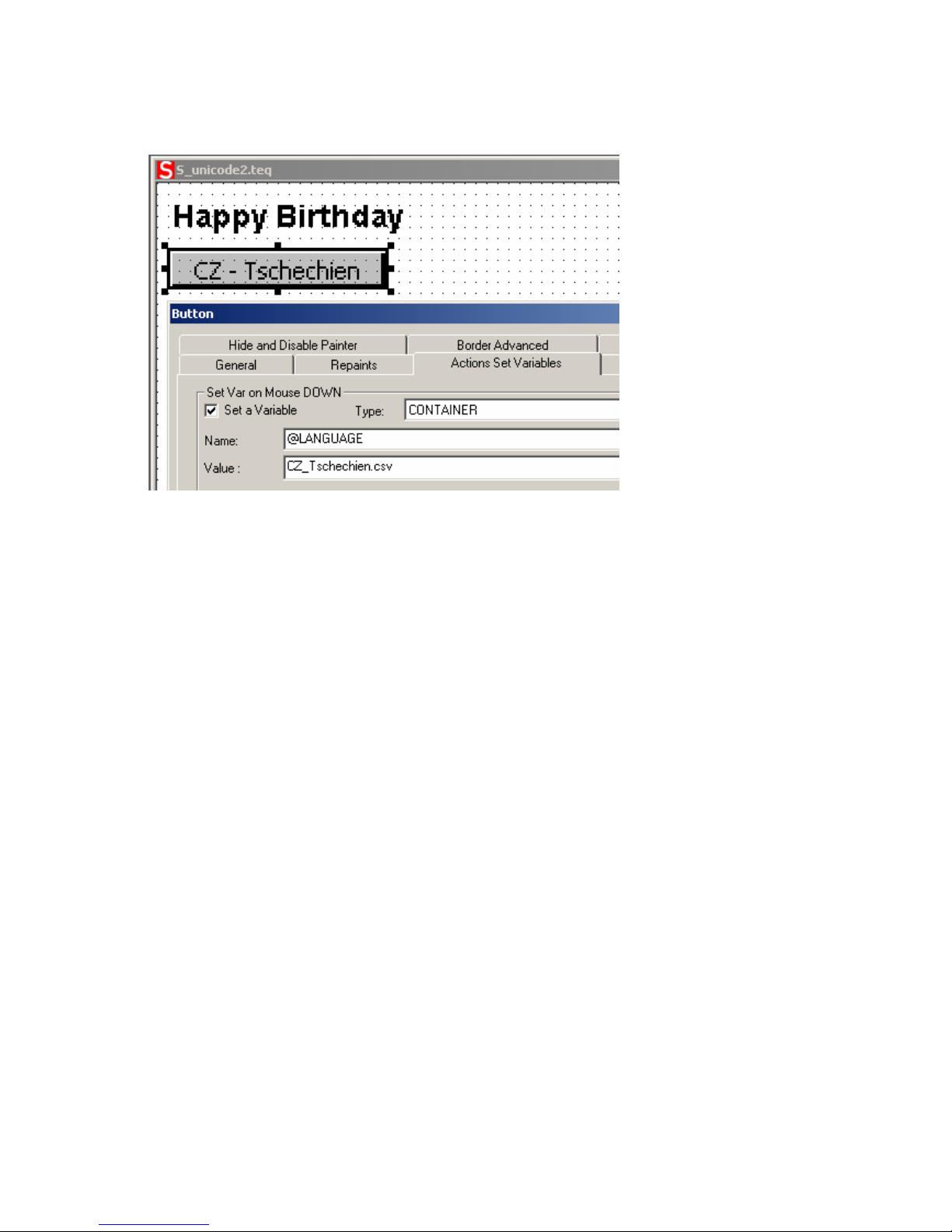

14.2. MULTI LANGUAGES: EXAMPLE ............................................................................................................................41

14.3. INTERPRETATION OF WRONG FONTS (TYPES, SIZES OR STYLES)..........................................................................43

14.4. WEB-EDITOR ........................................................................................................................................................43

15. INTERFACE CONNECTION.............................. ..... .. .. ... .... ... .. ..... .. .. ... .... ... .. ..... .. .. ... .... ... .. ..... .. ... .. ........................44

15.1. ETHERNET PORT RJ45, X2...................................................................................................................................44

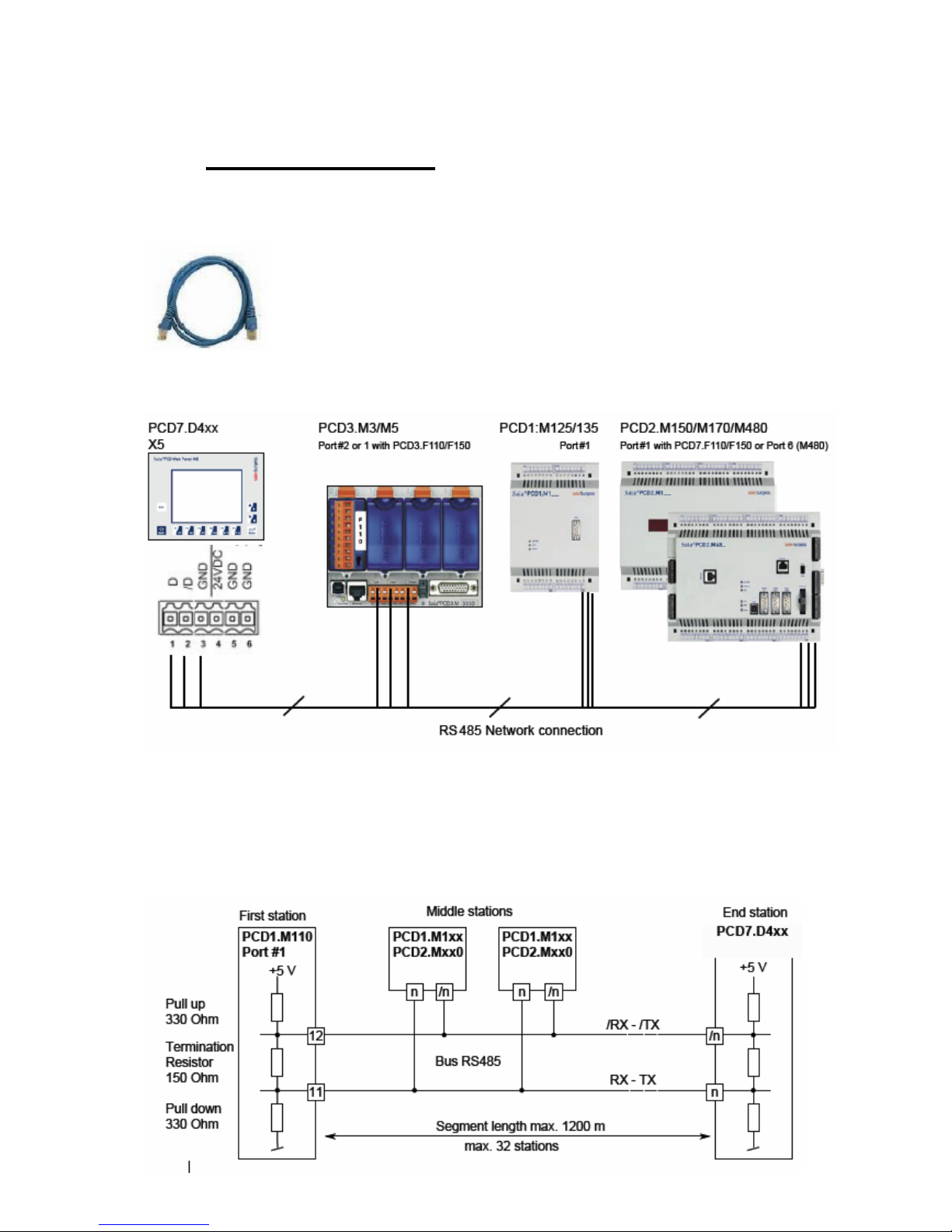

15.2. S-BUS ON RS 485 :...............................................................................................................................................44

15.3. S-BUS ON RS 232 :...............................................................................................................................................45

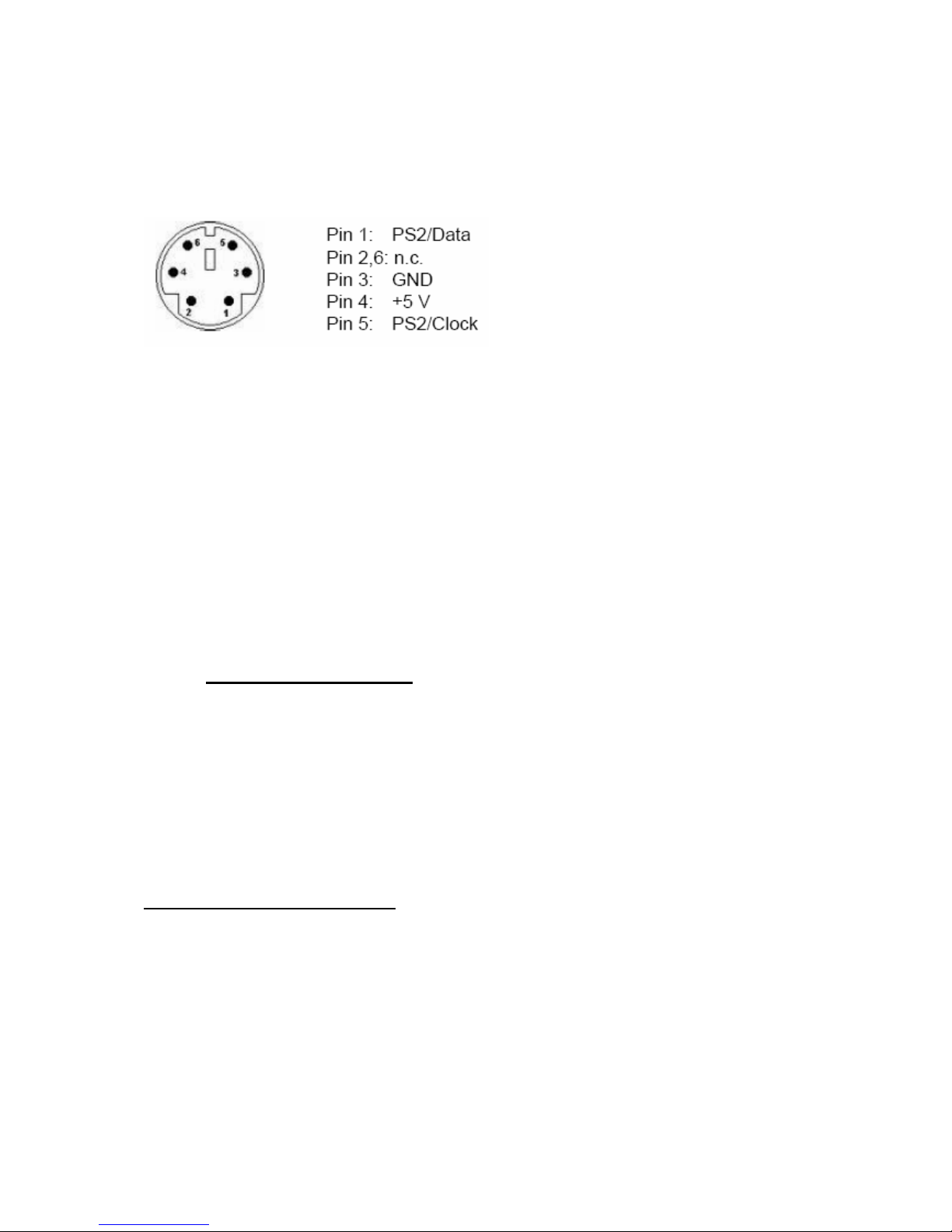

15.4. PS/2 INTERFACE................................................................................................................................................... 46

15.5. USB SERVICE INTERFACE............................ ........................................................................................................46

16. WEB-EDITOR PROJECT...................................................................................................................... .................46

16.1. WED-EDITOR VERSION ....................................................................................................... ................................. 46

16.2. QVGA  VGA AND VGA (WIN PANEL)  VGA (MB PANEL)...............................................................46

16.3. ADAPTING VIRTUAL KEYBOARD (SIP) ................................................................... ............................ .................47

17. ADVANCED............................ ................................................................................................................. .................48

17.1. ADVANCED INFORMATION CONCERNING FW DOWNLOAD..................................................................................48

17.2. THE SAFETY PROCEDURE TO DOWNLOAD A FIRMWARE............................................... ........................................ 48

17.2.1. The safety procedure to download a firmware is always via USB................................................................48

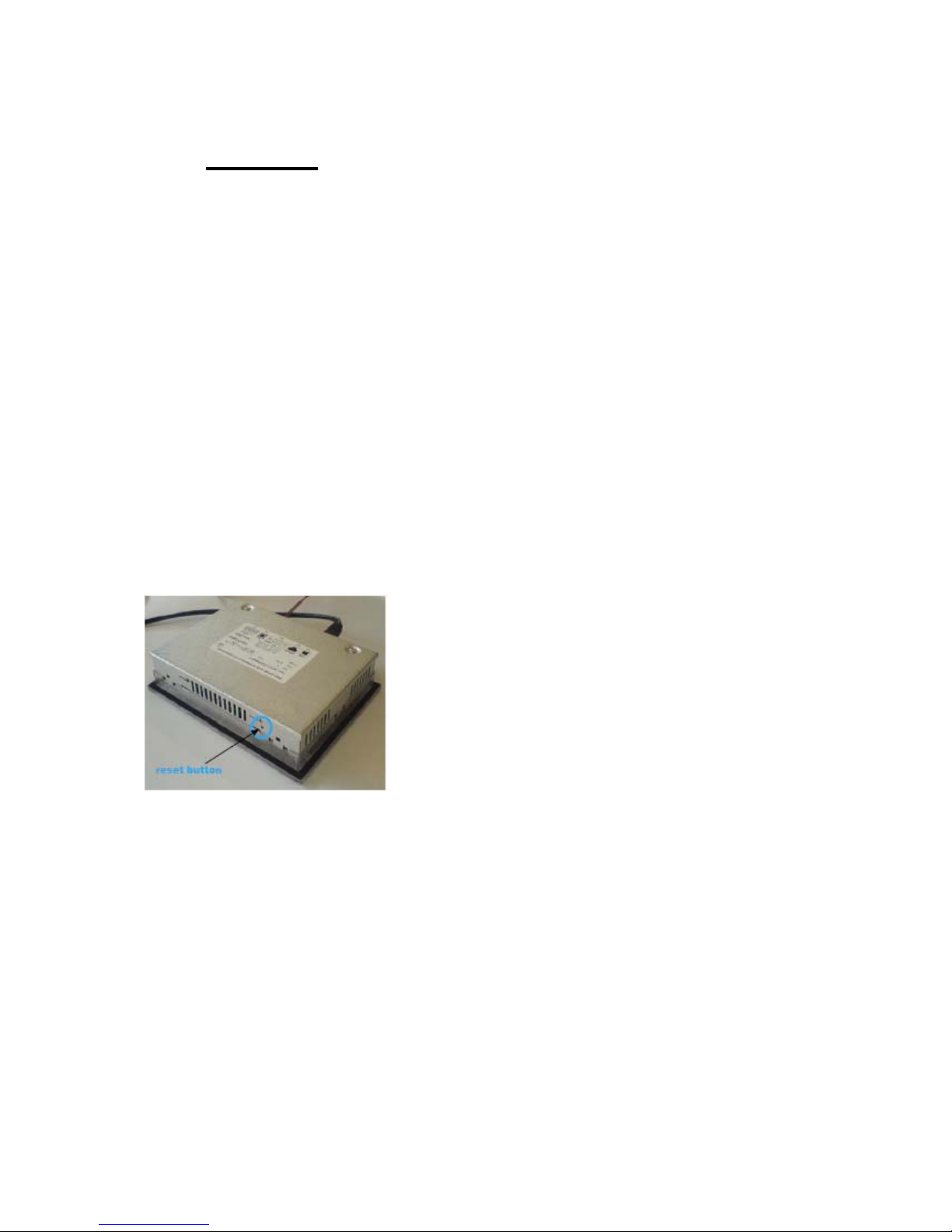

17.2.2. Reset / Device Back to default parameters.....................................................................................................48

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 3/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

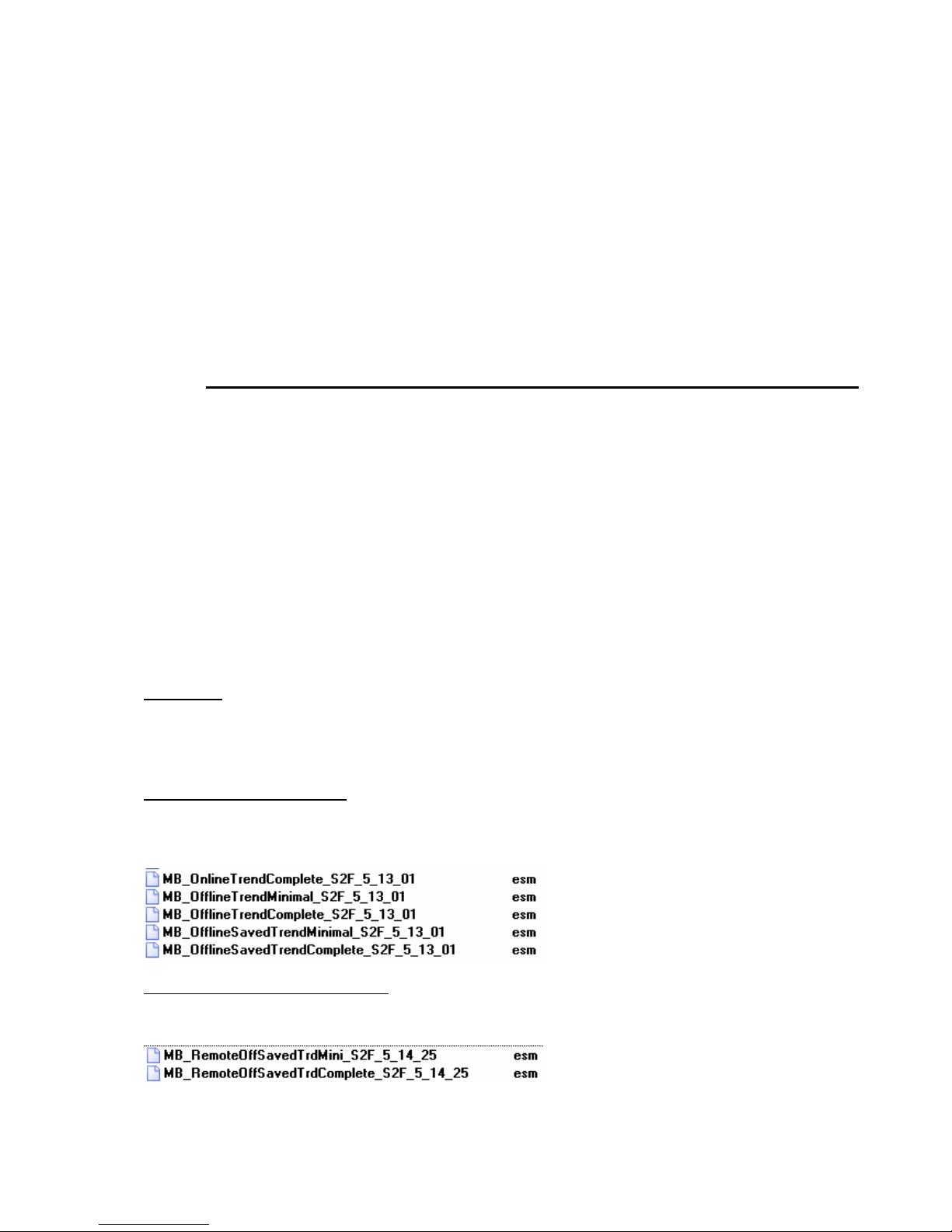

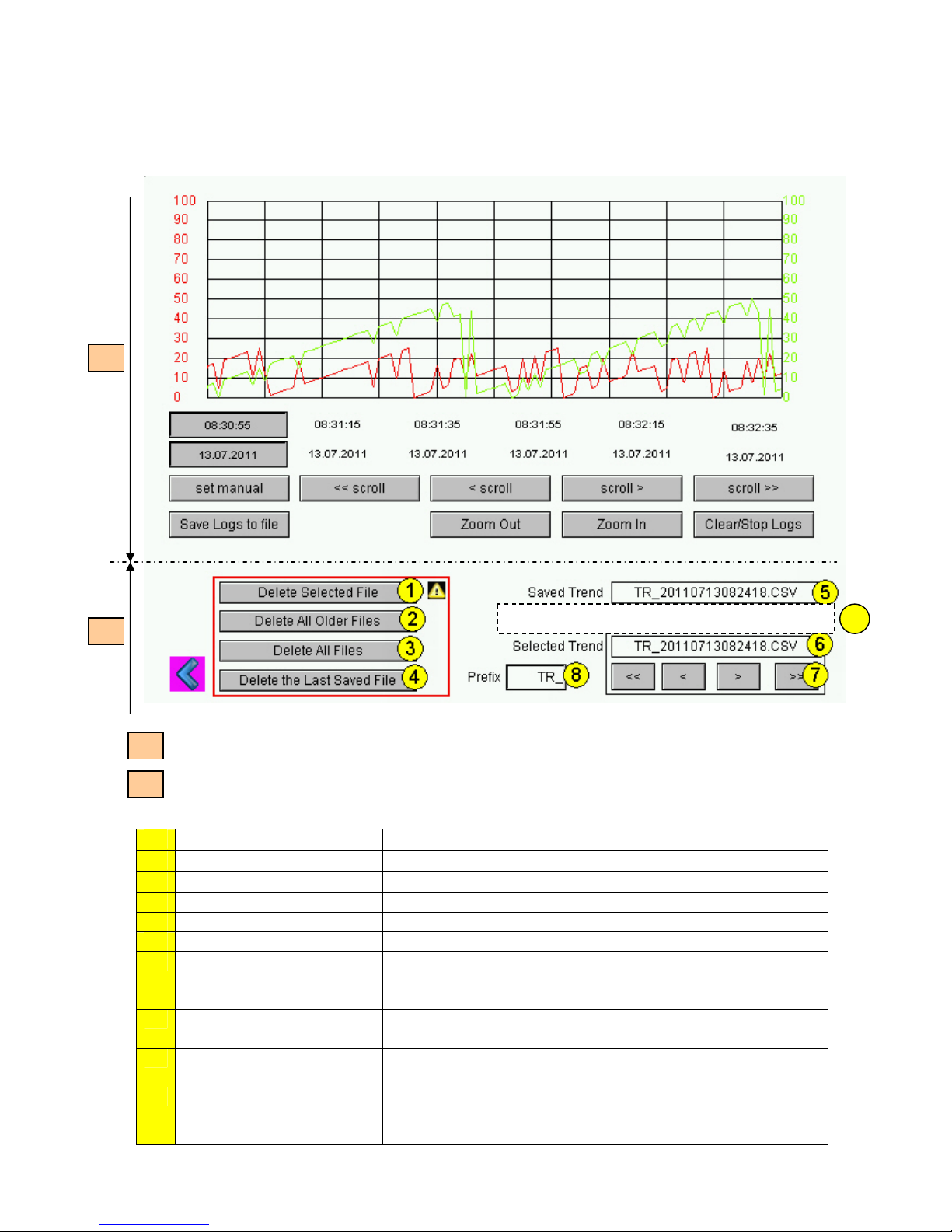

SPECIAL TREND MACROS FOR MB PANELS WITH SAVE LOGS TO FILES.......................................49

18.

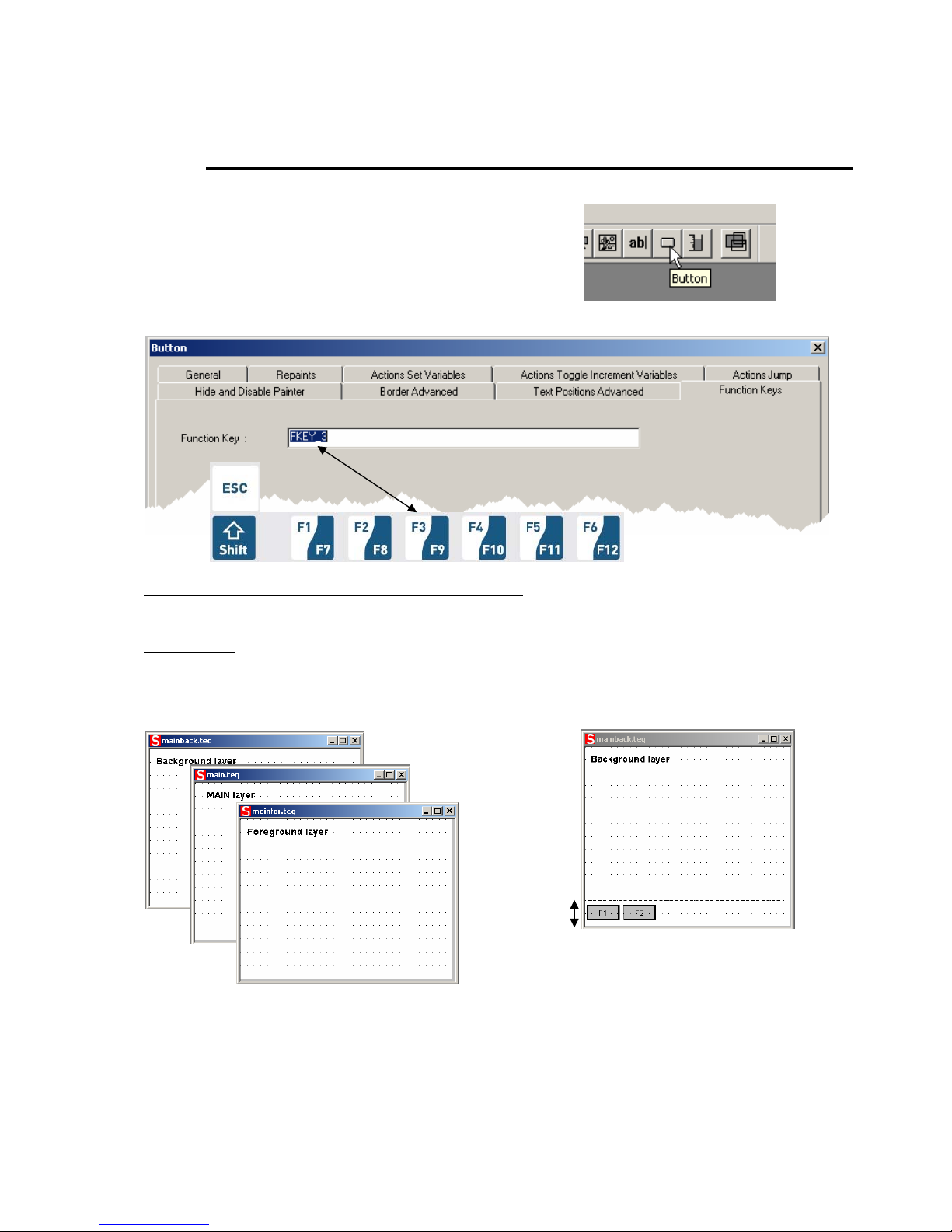

19. PROGRAMMING FUNCTION KEYS FOR WEB PANELS WITH FKEYPADS.........................................52

20. LIST OF MESSAGE-BOX MESSAGES. ......................................... ... .... ... .. .. ..... ... .. .. ..... .. ... .. ..... .. .. ... .... ... ............ 53

21. RECOMMENDATIONS..........................................................................................................................................54

21.1. IN THE “PROJECT CONFIGU RATIONS”...................................................................................................................54

21.2. IN THE WEB-EDITOR PROJECT (GLOBAL) ............................................................................................................. 54

21.3. DEFINITION OF AN OBJECT IN THE WEB-EDITOR ............................................................................................. ..... 54

21.4. HANDLING............................................. ............................ ...................................................................................54

21.5. SOME RULES REGARDING GIF IMAGE .................................................................................................................. 55

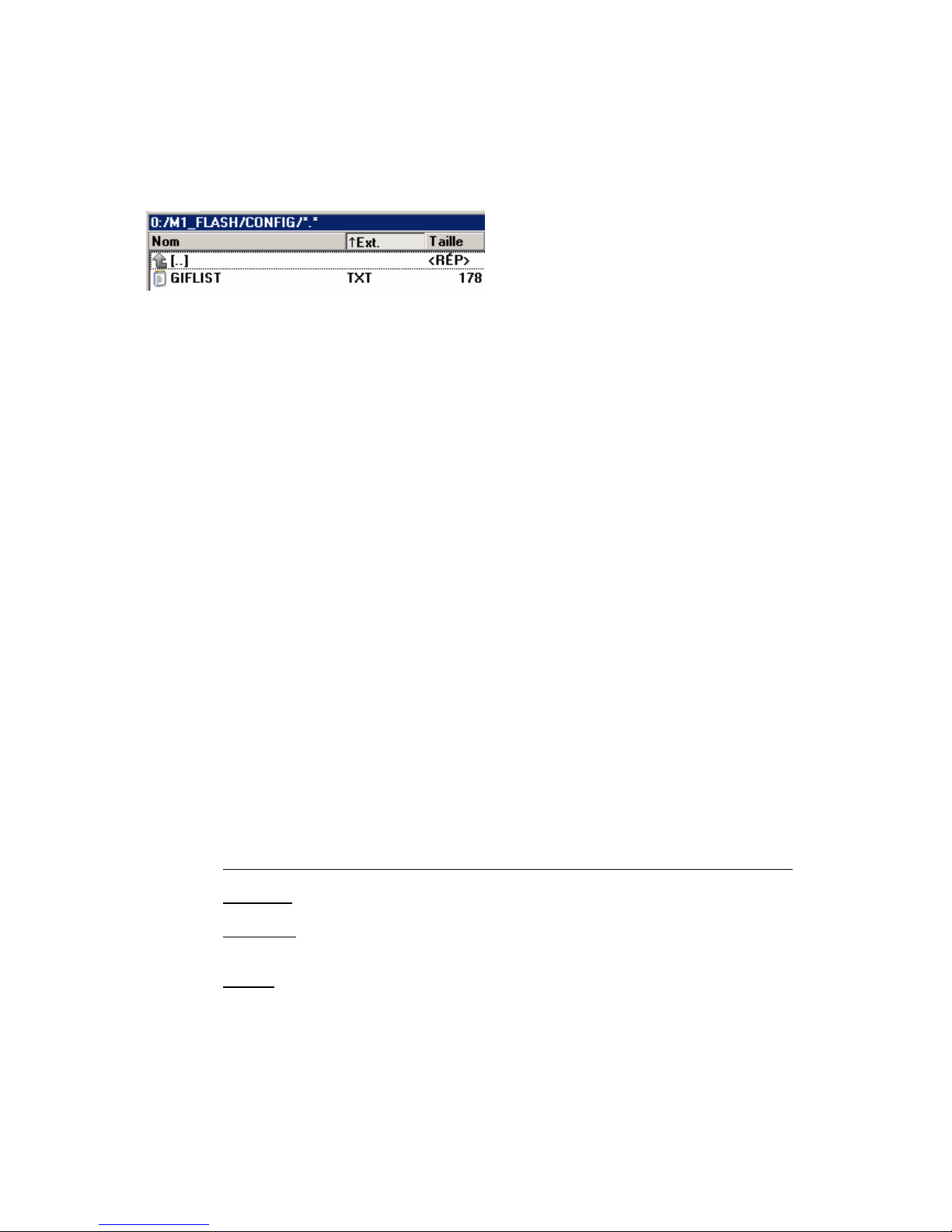

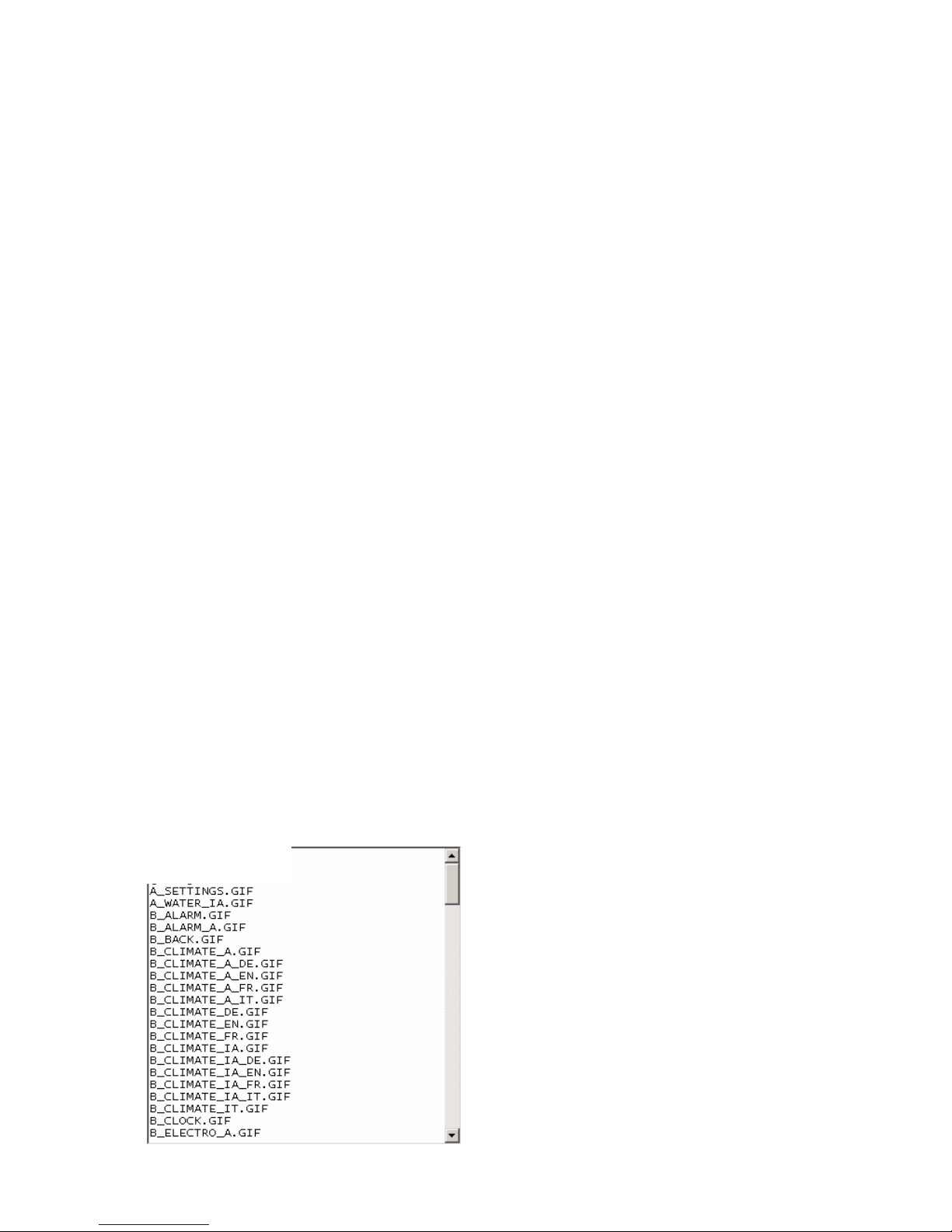

21.6. GIF FILES DECOMPRESSION INTO VIDEO CACHE AT START............................... ....................................................55

21.6.1. Gif files: decompression into video cache at start using Gif List................................................. ..... .. .. ... .....55

21.6.2. Gif file decompression into video cache at start using dummy first page......................................... ............ 56

21.6.3. Gif file decompression: evaluation/calculation..............................................................................................56

22. ERROR MESSAGES ADVANCED .................................................. ... .... ... .. ..... .. .. ... ..... .. .. ..... .. ... .. ..... .. .. ... ............57

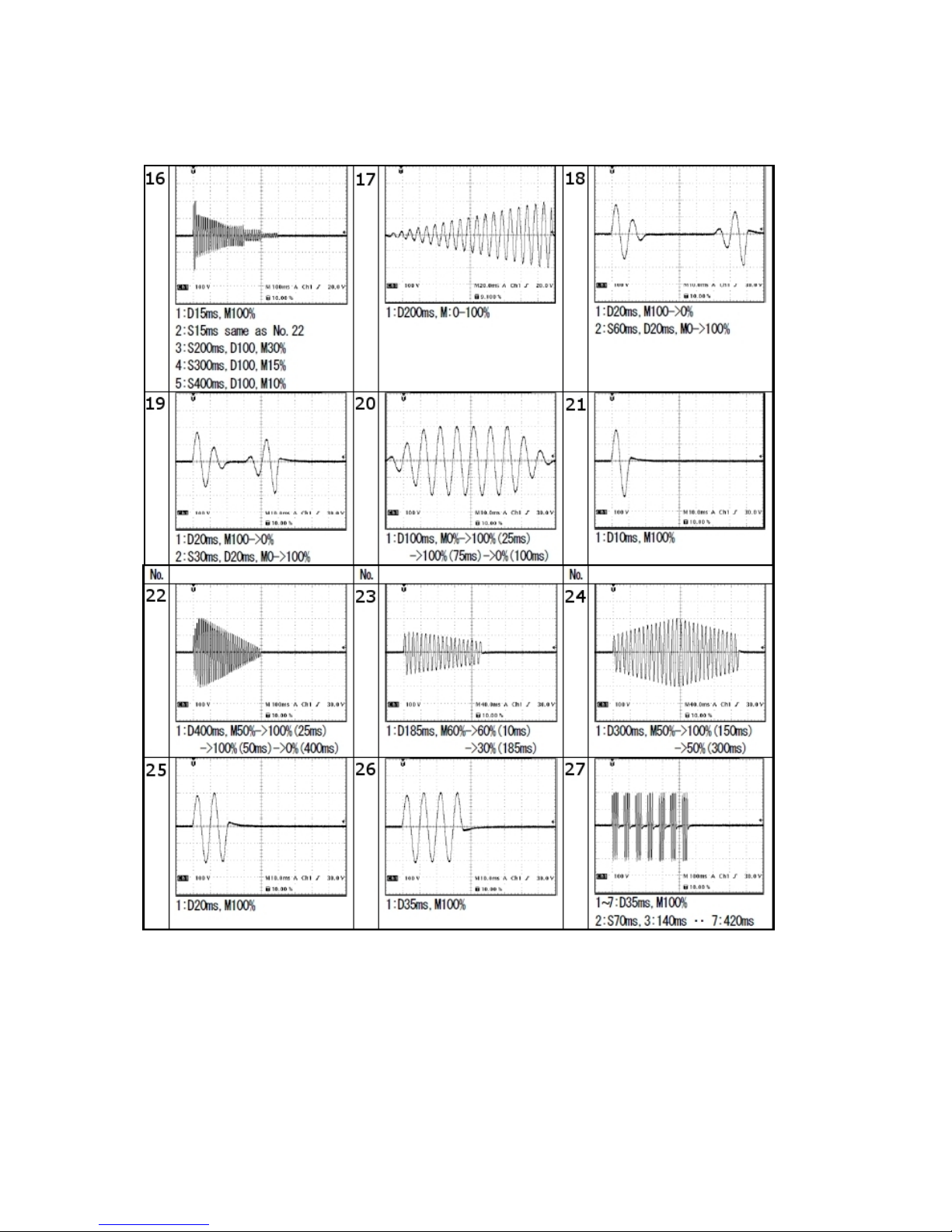

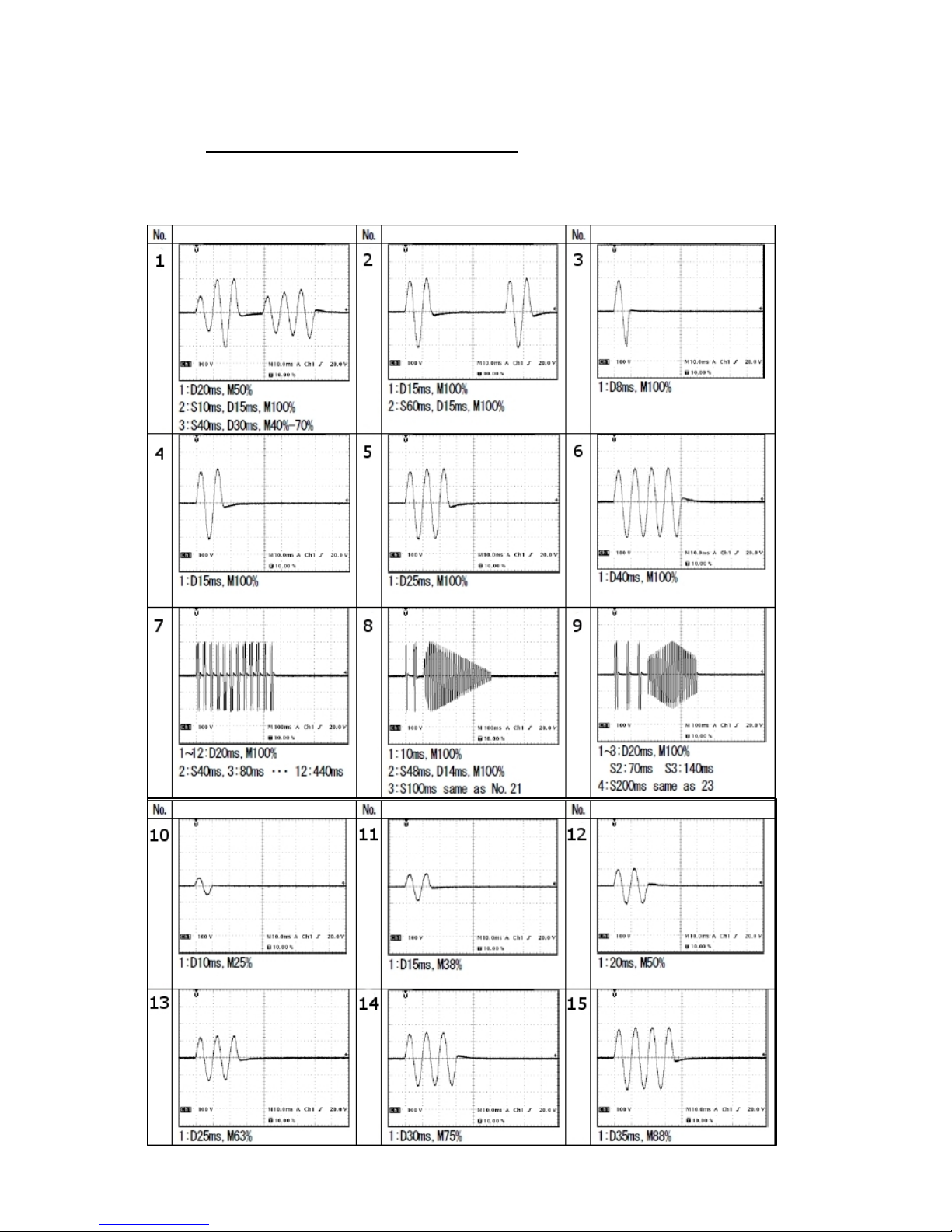

23. APPENDIX A – HAPTIC EFFECTS ................................................ ... .. .. ..... ... .. .. ..... .. ... .. .. ..... .. ... .. ..... .. .................58

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 4/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

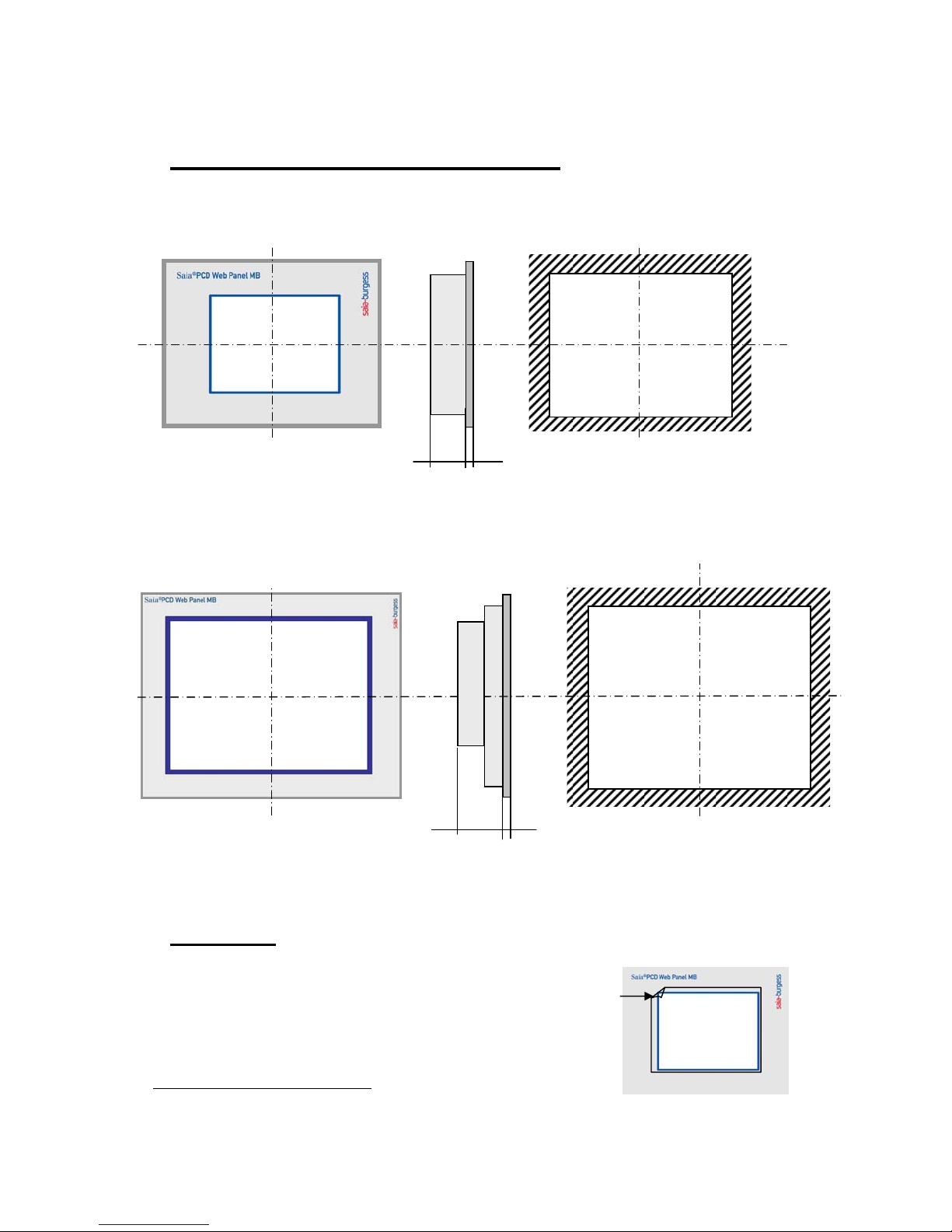

1. Dimensions and cut-out (all in mm)

PCD7.D457VTCF / VMCF and VTCFH

PCD7.D410VTCF

Front panel W x H: 202 x 156

Display W x H: 117 x 99

Front panel W x H: 281 x 221

Display W x H: 211 x 159

42 6

56 6

Cut-out W x H: 189 x 142

Cut-out W x H: 262 x 202

2. Mounting

- REMOVE the protective transparent film (if need) - - - - - - 

- Flush mounting by 4 (x6 for the 10,4”) brackets with grub screw M5x30

- Mounting position is horizontal or vertical position (see section 7.4.1)

- Ensure that the ventilation slits are positioned above
and below in mounting position.

- Operation temperature: 0…50 °C

- Extended operation temperature  contact the PCD support.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 5/59

(portrait or landscape positions)

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

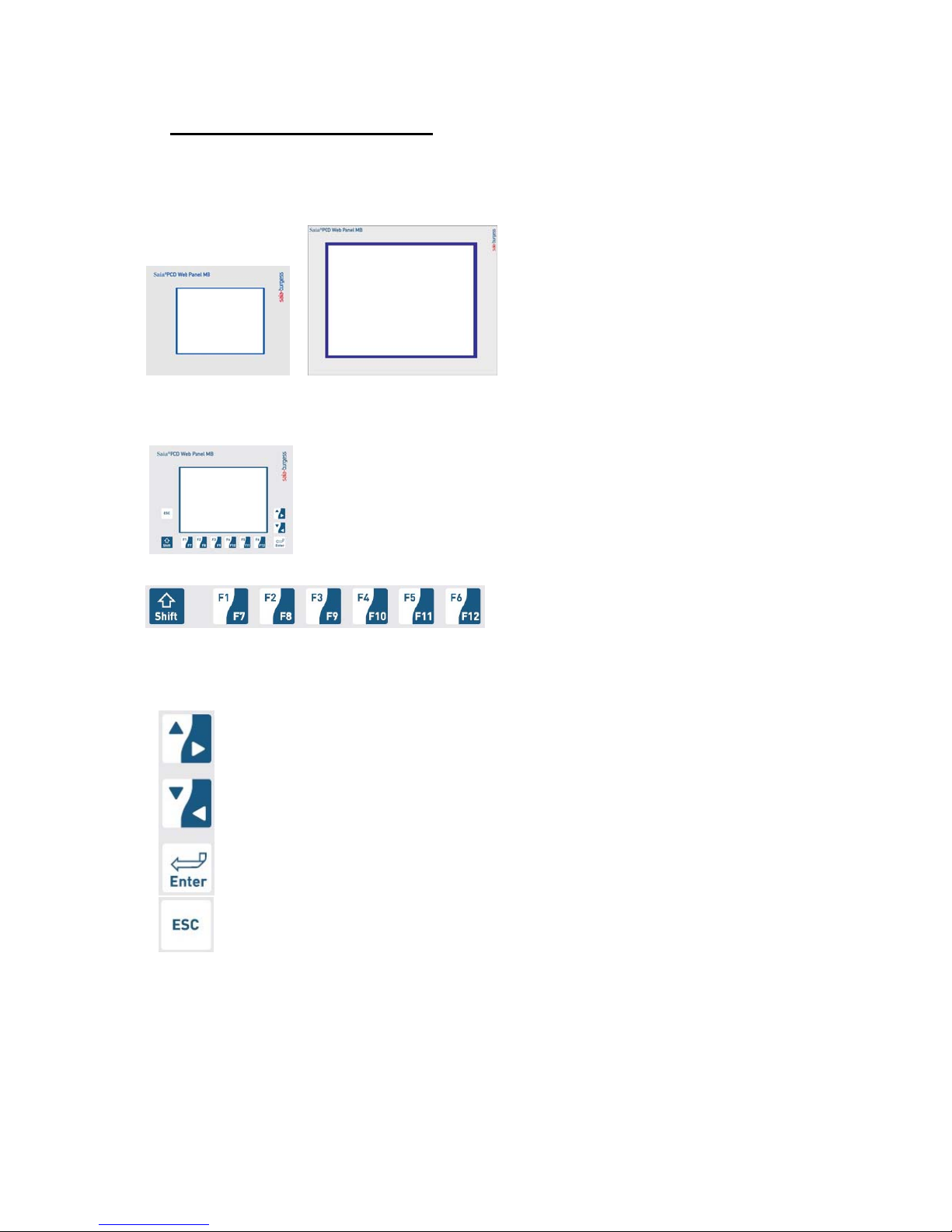

3. Operation and handling

3.1. Base Line 5.7” MB panels and 10.4”

Touch-screen operated by finger or pen (stylus). Do not operate with sharp tools (e.g. screw drivers)

3.2. Comfort Line MB panels (combined touch and keypad)

Functions F1 to F6  directly with F key depression.
Functions F7 to F12  with key combination: shift + F key
(programming with the web-editor: see section 14)

Up/down navigation. Combine with shift key for right/left navigation.

Enter key: “Enter” function

Escape key

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 6/59

Saia-Burgess Controls Ltd.

(

)

(

)

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

4. Connections and power request

PCD7.D457VTCF / VMCF and VTCFH

Power request: 500mA (~12W)

PCD7.D410VTCF

Power request: 600mA (~15W)

Title Description PCD7.D 457VTCF 457VMCF 410VTCF 457VTCFH
Power Supply Gnd (-) /

Communication PS /2 Standard Mini DIN 6 (external keyboard

RS232

Ethernet RJ 45 with LED control x x x x
USB Standard USB slave x x x x
RS485

A

A

6 = GND
5 = GND
4 = +24 VDC
3 = GND
2 = /D
1 = D

6 = GND
5 = GND
4 = +24 VDC
3 = GND
2 = /D
1 = D

24V (+)

(port 0)

(port 1)

6 5 4 3 2 1

6

1

Power
supply

6 5 4 3 2 1

6

Power
supply

Spring connector, 6-pole, in combination
with RS-485 communication

/barcode reader )
D-type 9 x x x

Spring connector, 6-pole, in combination
with power supply

PS/2

RS 232 (port 0)

RS 485

port 1

1

PS/2

RS 485

port 1

Ethernet USB

Ethernet USB

RS 232

(port 0)

x x x x

x x

x x x x

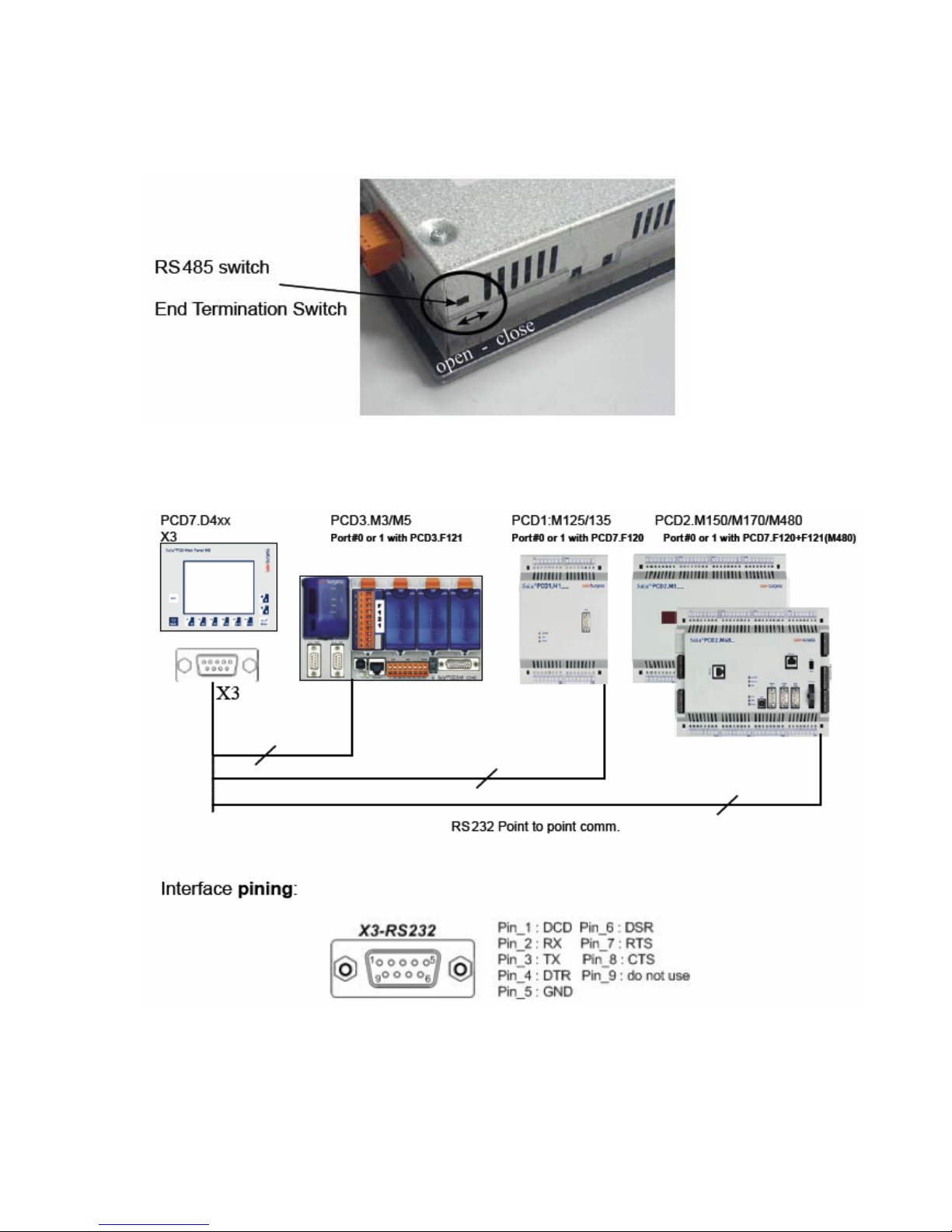

Termination resistors

switch:

Close   open

A

Termination resistors

switch:

Close   open

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 7/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

5. TITLE

The title screen is displayed for a few seconds. It is the first screen that appears after a power ON. The
Welcome text and the splash image are defined in  system / intro screen (section xx)

= Animated Icon for “please wait, activity in progress, loading”

Custom your start page: See section 7.3.2.3

6. Enter & Quit the Setup Menu

For a few seconds and by
pressing on this icon, you enter
immediately on the setup menu.
Or see section 6: setup menu

Enter in the setup menu:

 By pressing at any time and anywhere (except on the buttons areas) during 4 seconds
 By pressing on an Icon at start ( see section 5.TITLE)
 SETUP menu contains an ON-LINE Help (press help icons)

6.1. Password

MB panels from the PCD7.D4 xxxx series are delivered without a Setup password.
However, if a password has subsequently been defined for access to the Setup menu, you will have
to enter the correct password and confirm it with OK.

Setting password see section 7.6

6.2. Save and quit

By changing one or several parameters, you must confirm that you want to save, save & reboot or not save the
new parameters.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 8/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7. SETUP screen

Setup screen is the first screen that appears by entering in the setup menu.

1 Network MB panel settings See section 7.1
2 Web connection Configuration of the Web connection See section 7.2
3 System Info/settings/special/FW download and reboot See section 7.3
4 Display Display settings See section 7.4

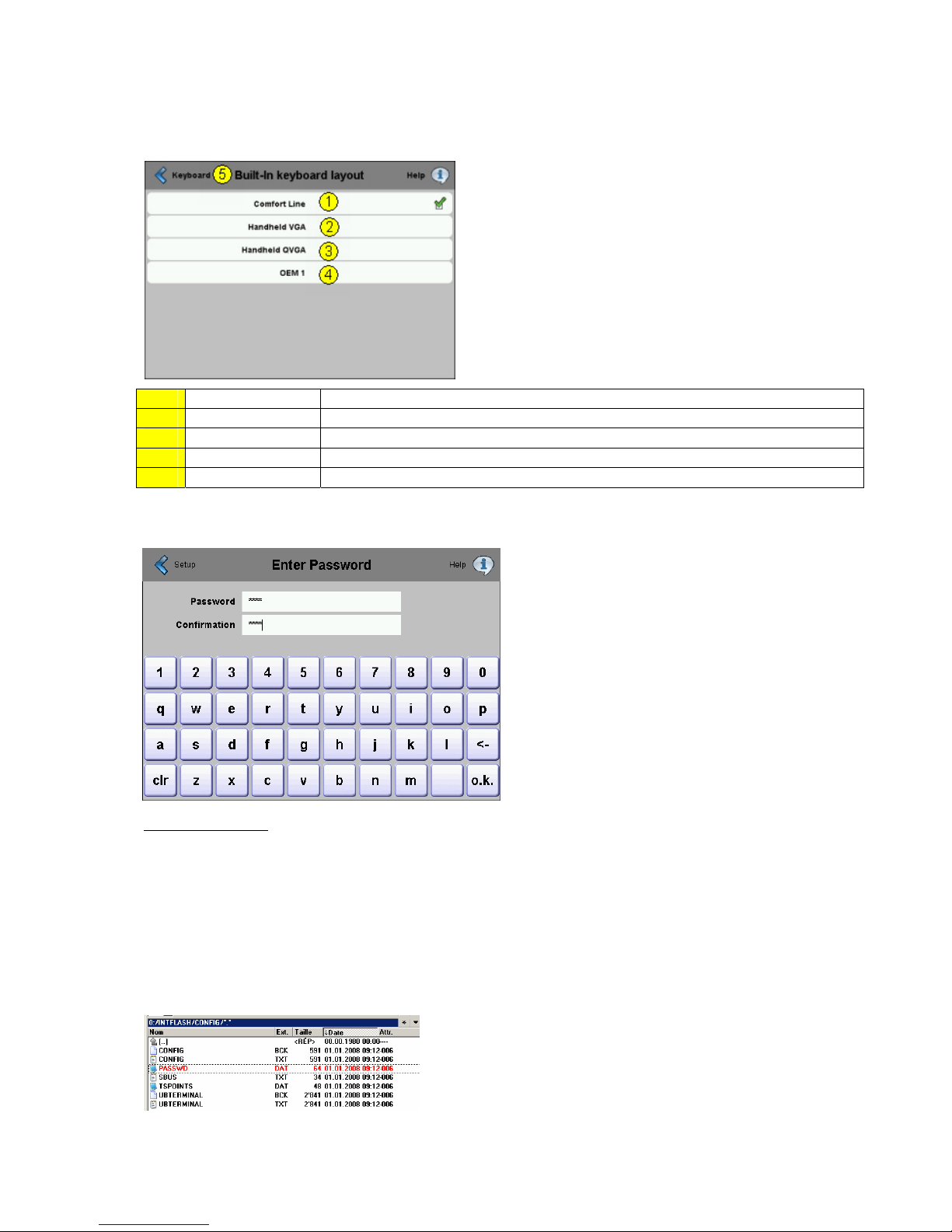

5 Keyboard Virtual Keyboard and PS2 settings See section 7.5
6 Password Enter a password See section 7.6
7 Language Selection of the language (E, G, F, I and Dutch)
7 Back to application Back to application

7.1. Network

7.1.1. No DHCP server is used (Standard configuration)

1 Enabled DHCP  Default is dis abled  no selected: The user must supply IP address,..
2 TCP/IP Address Read/write IP address of the MB panel
3 Subnet Mask Read/write Subnet Mask IP address
4 Default gateway Read/write Default gateway IP address
5 Primary DNS server Read/write IP address of the primary DNS server
6 Secondary DNS server Read/write IP address of the secondary DNS server
7 Setup Return the main setup menu

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 9/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.1.2. DHCP server is used

1 Enabled DHCP  Default is

disabled

 selected: Enabled . the configuration is supplied by the
DHCP server.

2 DHCP status Read only INIT , INIT-REBOOT, REBOOTING, BOUND = gets an

address from the server
3 TCP/IP Address Read only IP address of the MB panel provides by the DHCP server.
4 Subnet mask Read only Subnet Mask IP address provides by the DHCP server.
5 Domain name Read only Provides by the DHCP server.
6 Host name Read only
7 Parameters > Write See the section 7.1.3
8 Setup Return the main setup menu

 See also the Document 26-867 section 4 (TCP/IP Enhancements DHCP and DNS)

7.1.3. Parameters ( Disable or Enable DNS from DHCP server)

Is DISABLED

1 Enable DNS from

DHCP server 
2 Host name Read/write Free Host name
3 Primary DNS server Read/write IP address of the primary DNS server
4 Secondary DNS server Read/write IP address of the secondary DNS server
5 Ignored DHCP servers See the section 7.1.4
6 Network Return to Network menu

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 10/59

Default is
disabled

 not selected: DNS from DHCP server is disabled
(Don’t get DNS from DHCP server)

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Is ENABLED

1 Enable DNS from

DHCP server 
2 Host name Read/write Free Host name (example: device_1)
3 Primary DNS server Read only IP address of the primary DNS server
4 Secondary DNS server Read only IP address of the secondary DNS server
5 Default gateway Read only IP address of the default gateway
6 Ignored DHCP servers See the section XXX X XXXX
7 Network Return to Network menu

7.1.4. Ignored DHCP server

1 DHCP Server1

DHCP Server2

DHCP Server3

DHCP Server4
2 Parameters Return to Parameters menu

Default is
disabled

Read/Write
Default is

0.0.0.0

 selected: DNS from DHCP server is Enabled
(Get DNS from DHCP server)

IP addresses of Ignored DHC P servers 1,2,3 4

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 11/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.2. Web connection

We advise you to create one connection or more ( till x16) in using the “Connection List” in first.
Edit the connection or connections, and chose the connection witch must be used in your project.
Each connection may be edited in anytime.
The names of connections are necessary for the URL jump (see section 7.2.5)

7.2.1. Connection List (NEW)

1 conn_1-sbus > Undefined (default) Name of the first connection: example conn_1-sbus

2 conn_2-http > Undefined (default) Name of the second connection: example conn_2 -http
3 connection-3 > Undefined (default) Name of a third connection: example connection-3
4 Connections Return to the Connections menu

7.2.2. Edit an S-Bus Connection

1 Connection name Conn_1-sbus Name of the connection
2 Type S-bus Type of connection See 7.2.5
3 Start Page Start.html Name of the start-page of this connection
4 Interface Serial Port 0 Serial interface number See 7.2.6
5 Remote S-bus Address 1 S-bus address of the connected PCD
6 Baudrate 57600 Baudrate of the serial com. Kbytes/sec
7 Timeout 500 Timeout of S-bus protocol msec
8 Retries 3 Number of retries
9 Connection list Return to the connection list

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 12/59

See 7.2.7

7.2.8

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

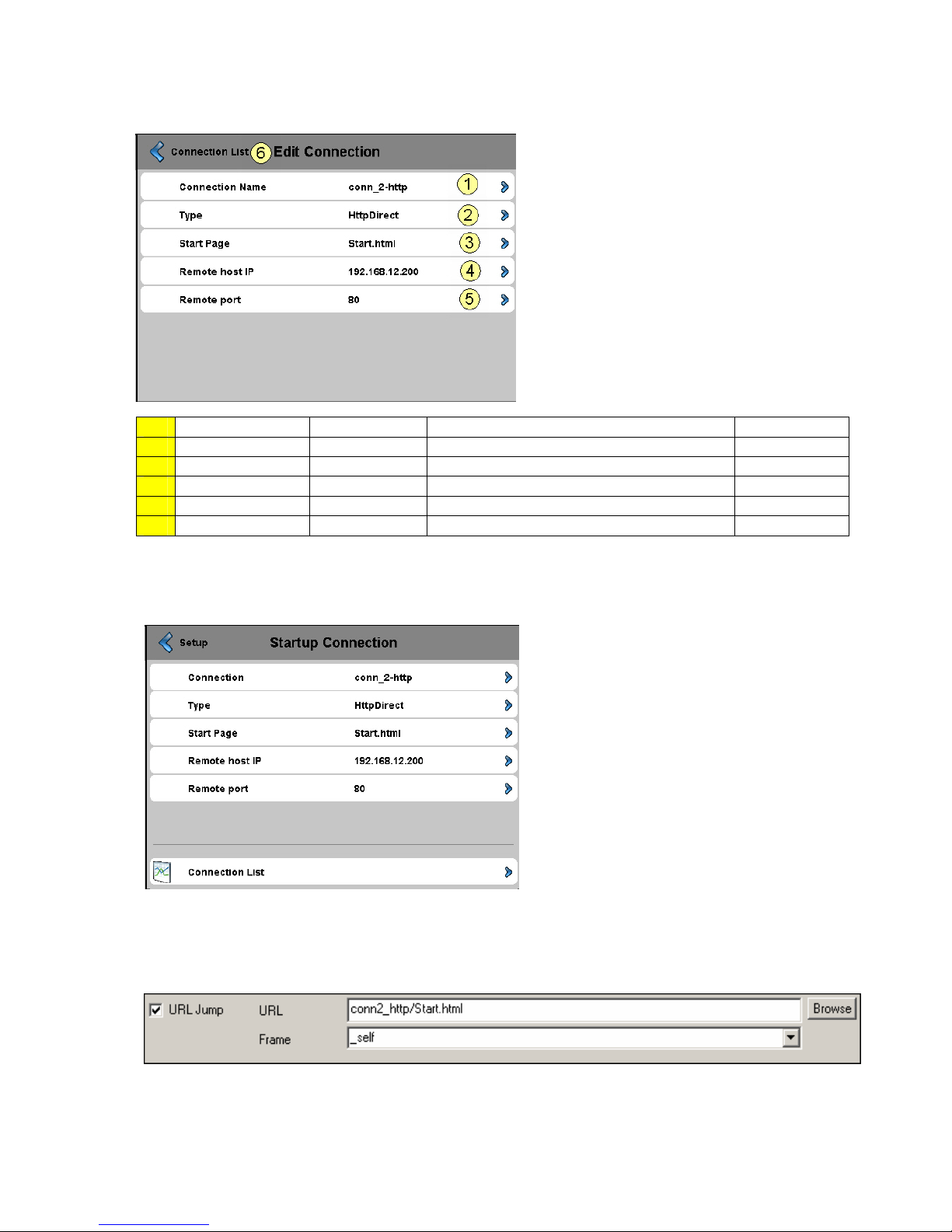

7.2.3. Edit an http direct Connection

1 Connection name conn_2 -http Name of the connection
2 Type HttpDirect Type of connection See 7.2.5
3 Start Page Start.html Name of the start-page of this connection
4 Remote host IP 192.168.12.200 IP address of the connected PCD
5 Remote port 80 (default) Remote port
6 Connection list Return to the connection List

7.2.4. Choose the Startup Connection

 In Fine, choose the Startup connection

7.2.5. URL Jump on web-Editor

The string contains: the name of the connection list / the name of the html start page

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 13/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.2.6. Further info regarding types & parameters of connections

7.2.6.1. TYPE of connection

Local No connection with any PCD

Httpdirect http direct connection (Ethernet only)
S-Bus S-bus connection (Serial or Ethernet)

7.2.6.2. Type of S-bus Interface connection

Ethernet Ether-Sbus connection
Serial port 0 Serial S-bu s connecti on

Serial port 1 Serial S-bu s connecti on

The connection is to the local IP address 127.0.0.1

Port 0 RS 232 (D-Sub 9)

Port 1 RS 485 (orange spring connector no.1,2,3)

7.2.6.3. Parameters of Ether-S-bus connection

Remote S-Bus Address 1 ( default) Up to 253 S-bus address of the PCD
Remote IP Address xx.xx.xx.xx IP address of the PCD
Timeout (ms) Default 500 (100 to 2000) Ether S-bus timeout: 600 ms is recommended

in most case.

Retries Default 3 (1 to 20) Number of attempts: try + retries

7.2.6.4. Parameters of Serial S-bus connection

Type S-Bus Read only
Interface Serial Port 0 (or 1) Serial S-bu s connection
Remote S-Bus Address 1 ( default) Up to 253 S-bus address of the PCD
Baudrate 9600 KBits/s (default)

1200-2400-4800-9600-19200­38400-57600-115200

Timeout (ms) Default 500 (100 to 2000) S-bus timeout : 500 ms is recommended in

Retries Default 3 (1 to 20) Number of attempts: try + retries

Selection of the conmunication Baudrate

most case.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 14/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3. System

1 Info System info (FW , booter versions…) See section 7.3.1
2 Settings Concern: buzzer, order of file search,

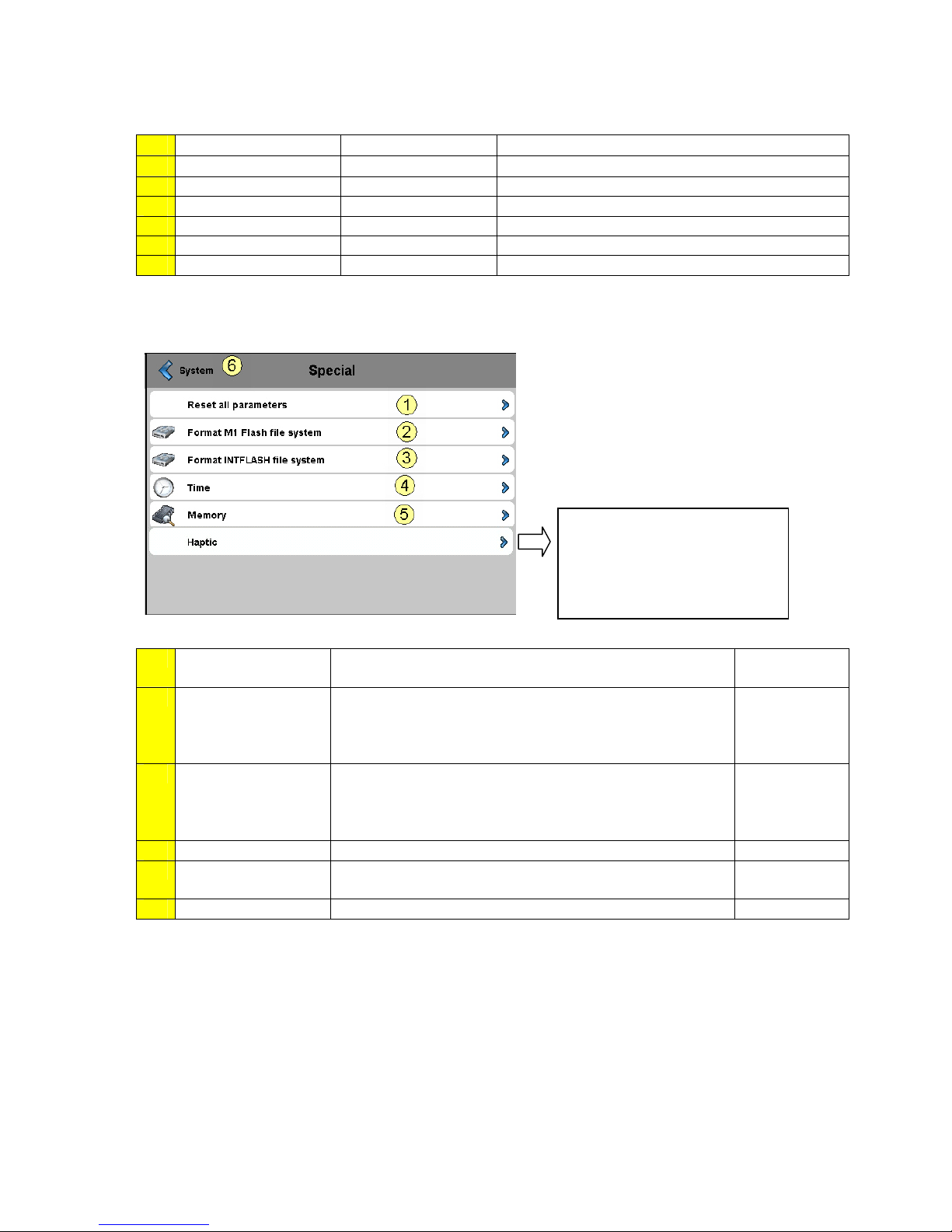

3 Special Reset parameters, Format M1_flash

4 Log Overview log.txt See section 7.3.4
5 FW Download Select mode of downloading See section 7.7
6 Reboot Reboot MB panels (with

7 Setup Return the main setup menu

7.3.1. Sytem info

startup timeout, infoscreen, file
cache, Autorepeat.

and Intflash.

confirmation)

See section 7.3.2

See section 7.3.3

Like a power OFF and ON, but

without any HW switching

7.8

1 Firmware version V xxxx Firmware version of the MB panel (Read only)
2 Booter version V xxxx Booter version of the MB panel (Read only)
3 Production data See Section
4 Extension See Section
5 Permanent video cache used xxxxxx Info: Permanent video cache used / read only ~ 4 MByte
6 Flushable video cache used xxxxx

7 System Return to system page

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 15/59

Byte

Flushable video cache used / read only. Memory used in
cache of the pictures. It is depending of the size and nber
of gif files in caching. (see section 21)

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3.1.1. Production data

All are READ ONLY
1 ASN PCD7. Code of Product

2 Serial Number xxxxxx Serial number of the panel. This number is unique

3 Mac address 12 Charact. Unique Mac address
4 HW version XX Hardware version
5 Fabrication date xxxxxx Fabrication date
6 Display type xx Type of display on board
7 HW LCD rotation x Code of rotation of the display
8 System Return to info page

and it can be used for product traceability.

7.3.1.2. Extension info (only for special configuration)

1 Extension 1 ASN

Extension 1 version
2 Extension 2 ASN

Extension 2 version
3 Info Return to info page

Special code and FW for special configuration 1

Special code and FW for special configuration 2

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 16/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3.2. Settings

1 Buzzer On / Off / frequency See section 7.3.2.1
2 Order of file search Local / remote files See section 7.3.2.2
3 Delay during Startup ( s) 4 ( default) Min: 0 & Max:15

4 Intro screen Entry welcome text and

5 File Cache enabled Default: Enabled

6 Enter setup with delay Default: Enabled Delay is enabled or disabled
7 System Return to system page

splash image

In normal operation, the file
cache should always be
enabled.

See section 7.3.2.3

The file cache can be enabled/
disabled. Disabling is particularly
useful for projects in development
in order to see the visible change
in files cached.

7.3.2.1. Buzzer

1 Buzzer on/off Default is on Change by pressing once
2 Buzzer Frequency Default is 1000 Select between 125 and 8000 Hz
3 System Return to system page

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 17/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3.2.2. Order of file search

1 No local file search Default "No local file search" means that no files (.teq or .gif) will be

2 Local before remote "Local file search before remote" means that files (.teq or

3 Remote before local "Local file search after remote" means that files (.teq or .gif)

4 System Return to system page

searched in the local server (= uBrowser server).

.gif) will be searched in the local server before searching in
the PLC server.

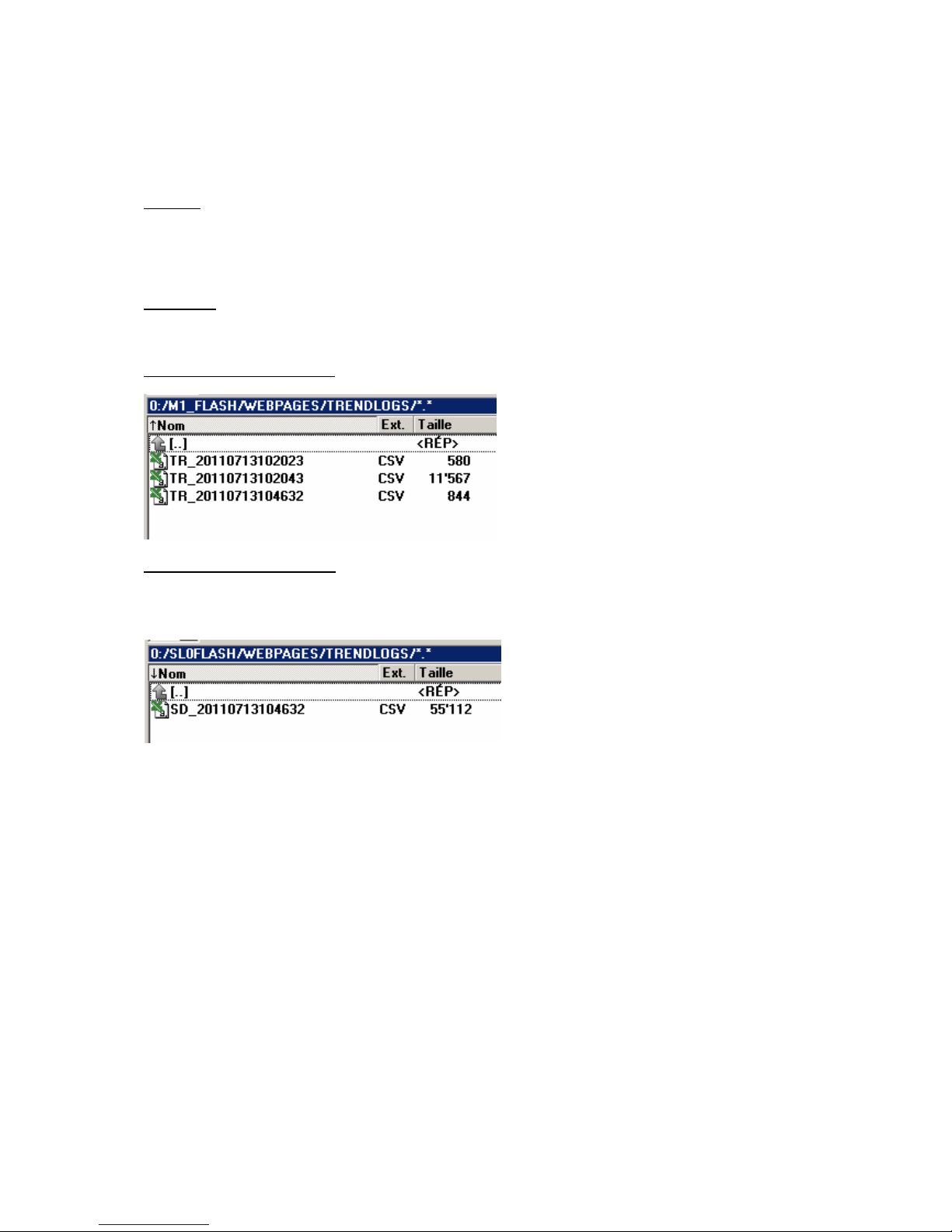

With additional SD-card, files will be searched first in
M1_FLASH (embedded 4MB flash), then in SLOFLASH
(SD-card flash).

will be searched in the remote server before searching in
the local server (MB panel)

7.3.2.3. Intro screen

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 18/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

1 Welcome text Default: Welcome Free welcome text
2 X position of text Default X= 400 pixel Value between 0 and 639
2 Y position of text Default Y= 300 pixel Value between 0 and 479
3 Filename of Graphic SaiaSUGrande.gif Gif file
4 X position of Graphic Default X= 100 pixel Value between 0 and 639
4 Y position of Graphic Default Y= 50 pixel Value between 0 and 479
5 System Return to system page

7.3.3. System Special

Appear only for Haptic MB panel
VTCFH
Warning "! S-Bus on Port 0 is not

working if haptic is enabled!"

See the section 7.3.3.1



on

1 Reset all parameters This command allows to reset all parameters to the default

values

2 Format M1_FLASH

file system

Advanced function with this message of confirmation: “Do
you really want to format the M1 flash?” This command
erases flash and creates files system. When format is Ok.
Return to the system menu (see 4)

3 Format INTFLASH

file system

Advanced function with this message of confirmation: “Do
you really want to format Intflash?” Be careful you lose all
the parameters of configuration, s-bus and MBterminal,

Including the calibration. The panel reboots automatically.
4 Time Default is Disabled !!! See section
5 Memory Only in case of problems: out of range of memories 

See section

Heap 1, 2, 3 and LR.
6 System Return to the system menu

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 19/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3.3.1. Time

1 Time server enabled Default is disable d  Is enabled by selecting 
2 Time between syncs

(min)

3 Special Return to Special menu

Default is 50 minutes The time is synchronized on startup and re-

synchronized periodically after this value.

7.3.3.2. Memory

1 Heap1 available Read/Write

Default:768 kbytes
2 Heap1 used Read only See list of Message-Box messages - section 20
3 Heap2 available Read/Write

Default:768 kbytes
4 Heap2 used Read only See list of Message-Box messages - section 20
5 Heap3 available Read/Write

Default:1024 kbytes
6 Heap3 used Read only See list of Message-Box messages - section 20
7 Heap LR

available

Read/Write

Default: 512 kbytes
8 Heap LR used Read only See list of Message-Box messages - section 20
9 Special Return to the Special menu

max: 2048 kbytes

max: 4096 kbytes

max: 4096 kbytes

Min 512 max: 1024 kbytes

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 20/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3.3.3. Haptic version (PCD7.D457VTCFH)

Setup menu of the MB haptic panel with “Global effects “

1 Haptic On/off Default: On Cha nge by pressing once
2 Mouse Down Effect Default: 8 Mouse down effect  number 1 to 27, which are

3 Mouse Up Effect Default: 2 Mouse Up effect  number 1 to 27, which are

4 System settings Return to system settings page

The haptic-enabled HMI device will come with a library of haptic effects. Which effect is denoted by a numeric
value, starting from 1. The total number of effects available has not been defined and will vary for different
hardware. The effects index described here will be exposed by the firmware to the Microbrowser/Web Editor.
The firmware will be responsible for managing the effects library, such that the haptic effect for each number
remains consistent over different hardware versions.

 Effect 0 – no effect
 Effect 1 – 6: Various clicks to simulate button presses
 Effect 7 – 9: Various buzzes to simulate alarms
 Effect 10 – 15: Effects gradually increasing in amplitude and duration
 Effect 16: Spring effect
 Effect 17: Thud effect
 Effect 18 – 19: double click
 Effect 20 – 27: Various spec i a l ef fects
 Effect 28 or greater: Don’t use it (no effect)

- Mouse down effect is the very most sensitive effect. Mouse up effect can be omitted in most case

- Effect numbers 6 to 9, 20, 22, 24 and 27 are the stronger effect numbers.
Please see the appendix A Section 21 for detailed wave form and duration of each effect

configured globally and apply to the buttons only

configured globally and apply to the buttons only

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 21/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.3.4. Log

1 LOG.TXT/ Read only Glance over the list by pressing on t he tou c h . T hat al lows

controlling, for example, if the fonts are found. At the ba ck
page: Info regarding the errors.

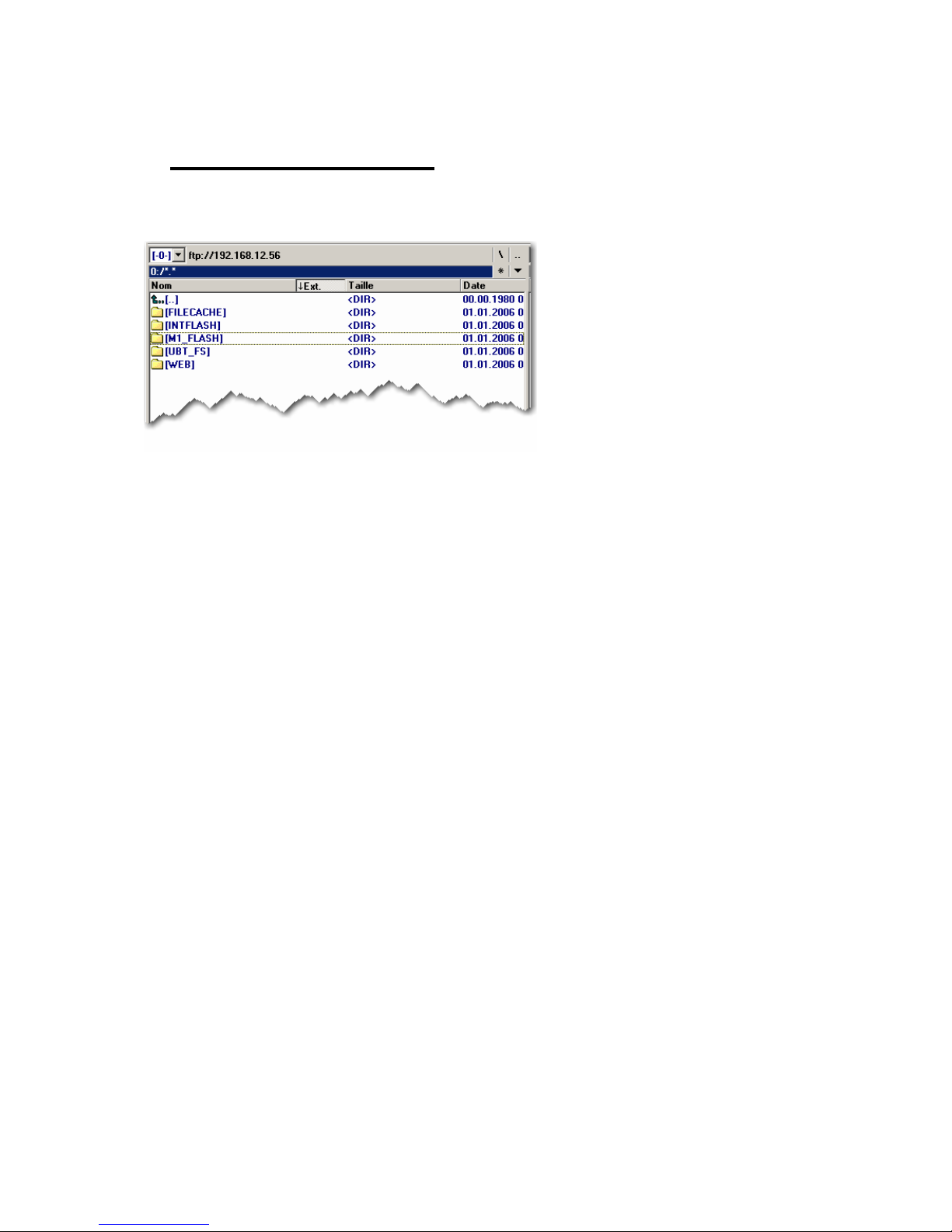

Access to log.txt via FTP: uBT_FS/LOG.TXT

2 System Return to the system menu

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 22/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.4. Display

Dimming RE-calibration

1 Dimming Default:10 Adjustable between 0 and 20
2 Backlight timeout (min) Default:15

minutes

The backlight turns off if neither the touch-screen nor
any keys are pressed during this time. The backlight
reactivates as soon as the blank screen or keys are

pressed. Adjustable between 0 and 5000.
3 Rotation Def. 0° Landscape portrait See section 7.4.1
4 Resolution Def. Auto Auto,VGA or QVGA resolution See section 7.4.2
5 Touch screen calibration Re-calibration Use carefully a stylus or a fine pen
6 Setup Return the main setup menu

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 23/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.4.1. Rotation

1 0°, 90° , 180° , 270° Default: 0° Chang e the orie nt ation landscape to portrait +

2 Display Return to display menu

7.4.2. Resolution

inverted

1 Auto Default The panel tries to determine the resolution of each

2 VGA All teq’s are displayed with VGA resolution
3 QVGA All teq’s are displayed with QVGA resolution
4 Display Return to display menu

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 24/59

teq.

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.5. Keyboard

1 Build-in keyboard

layout

2 PS/2 keyboard layout Default: GE (German) PS/2 External Keyboard languages

3 SIP (virtual keyboard) Default: Enabled Enable/Disable SIP (Soft Input Panel).

4 Name of the first

keyboard

5 Width of the focus (in

pixel)

6 Setup Return the main setup menu

Default panel with keys:

See the section 7.5.1

Comfort line panel

GE (German) or US (English US) or UK
(English UK) or FR (French) CH-GE (Swiss
German) or CH-F R (Swiss French)

Virtual keyboards
Default: Alphapad.teq,
alphanumeric keyboard
is opened in first

You can choose: Alphapad.teq or

keypad.teq in first. (respectively

alphanumeric or Numeric keyboard)
Default is 2 pixel Selection between 0 to 6 pixel.

A border is drawn around the currently

active button or edit field. The width of this

border is controlled by the property and is

measured in pixel. If a width of 0 is selected

no border is drawn. This is useful if only

touch screen operation is used.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 25/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.5.1. Build-in keyboard layout

1 Comfort line Keyboard layout VGA MB panel with keys/Fkeys
2 Handheld VGA Keyboard layout VGA Handheld.
3 Handheld QVGA keyboard layout QVGA Handheld. (old version)
4 OEM 1 Customer specific
5 Keyboard Return to the keyboard menu

7.6. Enter Password

Setting a passwor d
Alpha, numeric or alphanumeric password is possible (maximum characters = 32 , spaces included)
If setting a password, a confirmation is required.

If setting a new password , a confirmation is required and if th e entered phrases do no match, the old password
is retained.
If you want to remove password protection, just enter and confirm no characters

 Forgot your password  delete the passwd.dat file (FTP connexion) it’s all

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 26/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.7. Firmware Download (MB panel side)

1 Download by using USB See section 7.7.1
2 Download by using Ethernet See section 7.7.2
3 System Return to system page

7.7.1. FW Download by USB

1 Download Hit the download button to put the MB panel into

2 Select mode Return to the Firmware select mode page

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 27/59

download mode.
After a successful update of the FW, the MB
panel will restart automatically after ~ 15 sec.

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.7.2. FW Download by Ethernet

1 TCP/IP address Read only
2 Subnet Mask Read only
3 S-Bus station Read/write You may change the S-Bus station number

4 Download Hit the download button to put the MB panel into

5 Select mode Return to the Firmware select mode page

7.7.3. Firmware Download (Saia’s firmware download utility)

Firmware can be updated in using the firmware download utility.
The microBrowser panels must be connected to the PC via its USB or via Ethernet

Then select "Firmware Download" from the terminal settings menu.
Start the firmware download utility of the PG5 programming tool (PG5 1.4, PG5 2.0)
Only one .blk file to download is necessary
After downloading, the display is freeze for about 15 seconds.

before hitting the download to put the MB panel
into download mode.

download mode.
After a successful update of the FW, the MB
panel will restart automatically after ~ 15 sec.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 28/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

7.8. Reboot MB panel

Like a power OFF and ON, but without any HW switching

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 29/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

8. Local files / local server

FTP is the only way of accessing its internal structure: Saia files system (ftp access: user name and
password).

ftp:// IP address

FFIILLEECCAACCHHE
IINNTTFFLLAASSH

INTFLASH/CONFIG

KEYMAP.DAT  keymap configuration (only for MB with keys(Fkeys)
PASSWD.DAT  password (forgot your password delete it)
TSPOINTS.DAT  for internal usage !
FTPCONFIG.TXT  FTP configuration
CONTAINER.DAT  for internal usage !
DHCPCCONFIG.TXT  DHCP configuration
DNSCONFIG.TXT  DNS configuration

SBUS.TXT  IP proxi / station number

SBUS 

SLOFLASH Automatically created by pluging S D-card inter face with SDflash

MM11__FFLLAASSHH

UUBBTT__FFSS

B : for internal usage

WWEEB

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 30/59

E : contains the cache memory 1 MB RAM

H :  4 MB flash (  512 KB F ile system) contains:

:  4 MB flash (File system)

: UBT_FS/LOG.TXT Listing of the Startup Process + info errors (read only)

CONFIG.TXT  Description of modules (examples: .Filename of

SNTP /PPP config files or direct config of M1_FLASH)

UBTERMINAL.TXT  MB panel configuration file (contains also all uBT

containers)

As well as all BACKUP files of the DHCPCCONFIG, DNSCONFIG, CONFIG
and UBTERMINAL .TXT files

INTFLASH/WEBPAGES
xxx.GIF files  reserved for Setup Menu

directory

M1_FLASH/CONFIG

M1_FLASH/WEBPAGES  Directory reserved for all the project files that you
want to “LOCAL”
M1_FLASH/TRENDLOGS  TRENDLOGS directory is created au t om a t i c al l y by

saving logs to files. The .CSV files containing the logs
will be saved automatically in this place.(by using web­editor MB macro S2F)

M1_FLASH/FONT  FONT directory must create by the user. It will

contain all special or additional .bft font files.

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

8.1. M1_FLASH/WEBPAGES

ftp:// IP address / M1_FLASH/WEBPAGES

8.2. Copy to M1_FLASH (local FTP server)

1) Recommended and the easier: Copy all common files (.teq, .gif) to M1_FLASH/WEBPAGES.

N.B.: When local server use involves copying .teq or .gif files to it (or even .itq, .csv and .html files), you must
build (web builder) .tcr at the minimum, because it contains all the PPO data.
Remember to change the setup option from "No local file search" to "Local file search before remote".

2) Copy all dedicated files (.teq + .gif ) to M1_FLASH/WEBPAGES, into the respective sub-directories.
Each dedicated station has its own sub-directory.

 Name of files: maxim um 24 ASCII charac t er s without spaces , format name included.

Sub-directory names reflect communication type:

 SBus communication  SBus name of station (e.g.: Station_trans1)
 http direct communication  IP address of station, but with “underlines” instead of “dots”

(e.g.: IP address 192.168.12.90 becomes 192_168_12_90)

N.B.: When local server use involves copying .teq or .gif files to it (or even .itq, .csv and .html files), you must
build (web builder) .tcr at the minimum, because it contains all the PPO data.
Remember to change the setup option from "No local file search" to "Local file search before remote".

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 31/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

9. uBTerminal containers (VGA)

Container variables, available to the user, are included in the firmware of these terminals.
Containers let the application program exchange information with the firmware. All container variables

have the prefix "uBT_". Caution: case sensitive !!!
A limited nu mber of containers is also visible / accessible over the configuration file entries in directory

INTFLASH/CONFIG.
These settings can be read over a file read of these files over FTP.
Overwriting the files over FTP causes the terminal to take all changes that are given within the files.
To use FTP an Ethernet c onnection is required.
Do not use write access on the container from the application and over FTP at the same time.
This may lead to undefined results.

Config

Container

file

(Source HN 10.03.10)

entry

Type Default Min

Value
Min
Length

Max
Value
Max
Length

Description

R/W uBT_AlarmFrequency Decimal

value
string

No uBT_AlarmStart Decimal

value
string

R/W uBT_AlarmVolume Decimal

value
string

R/W uBT_AutoRepeat Boolean

value
string

No uBT_BackLight Boolean

value
string

1000 125 8000 Frequency setting of the acoustic alarm (Hz)

0 0 30000=

30 Sec

10 0 20:

100%

0 0 1 At Soft Input Panel SIP (keyboard on the screen)

1 0 1 Read/write1, 0  Remote backlight control OFF

(Rounded down to
125,250,500,1000,2000,4000,8000)
Use this before starting the alarm.
Renewed setting during running alarm will be first
used at the next start of the alarm.

Write a value to start or stop the pulsed acoustic
alarm.
The acoustic alarm can be started with a setting of
the interval time (0 ..30000 mSec) of the pulsed
signal.
A 50% duty cycle is used with pulse time equal to
pause time.
If already running a renewed setting is ignored.
Setting it to 0 however switches it off immediately.

The alarm also stops by any touch on the
screen.

Acoustic alarm volume setting (0 … 20).
As pulse width modulation is used to control the
volume this setting has an influence on the sensed
pitch of the alarm.
Use this before starting the alarm.
Renewed setting during running alarm will be first
used at the next start of the alarm.

use:
SIP Key board: Autorepeat on(1), off (0

The backlight is switched OFF if the control is ‘1’
before. Any touch on the screen switches the
backlight on again.

Read/write 0,1  Remote backlight control ON
The backlight is switched ON if the control is ‘0’
before. The backlight may switch off afterwards
again after a time out.

For remote control over PPO <-> container coupling
only.

The use in the Button and Edit painters is not
supported.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 32/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Config

Container

file

(Source HN 10.03.10)

entry

Type Default Min

Value
Min
Length

Max
Value
Max
Length

Description

No uBT_BackLightOn

(added at FW version

1.12.11 upwards)

R/W uBT_BackLightTimeout Decimal

Read

uBT_BooterVersion ANSI text

only

R/W uBT_BuzzFreq ANSI text

R/W uBT_BuzzOnOff Boolean

R/W uBT_BuzzVol Decimal

Read

uBT_ConfigType ANSI text

only

Read

uBT_ConfigVersion ANSI text

only

R/W uBT_DefaultGateway IP

No uBT_DispResolution ANSI text

Boolean
value
string

value
string

string

string

value
string

enum.
value
string

string

string

address
string

string

1 0 1 Direct control of the back light at a write to this

15 0 5000 Time (min) after which the backlight switches off.

Current
version
string

1000 125 8000 Frequency setting of the acoustic beep at touch

1 (On) 0 1 Acoustic beep at touch on (1)/off (0)

1 0 20 :

Current
Config
Type

Current
Config
Version

0x00 00
00 00

<Screen
width>
<Screen
height>
<Color
depth>

container (1: 0n, 0 : off).
It returns the status of the back light at read back.

The container is set with the activation of the
backlight at the touch of the screen, and reset with
the switch of of the backlight after a switch off of the
backlight over uBT_BackLightTimeout.

It can be used for remote monitoring and remote
control over PPO <-> c ontainer coupling, local user
control on the terminal over the Button painter
(Mouse down, Mouse up), and locally used over the
Edit box painter in the Web project.

At any touch of the screen, or at a switch on over
container, the back light switches on and the count
down restarts.
If the value is 0 the backlight time out supervisory is
inactive. A switched on back light is kept switched
on forever in that case.

0 8 Firmware booter version

100%

0 24 Configuration Type

0 4 The container is not available for the users yet.

* * Read/write IP address of the gateway within the

0 16 Resolution information

Read only string

(125,250,500,1000,2000,4000,8000)
This sets the pitch of the acoustic signal at the use
of the touch function of the touch panel.

Read/write buzzer volume setting (0 … 20).
This sets the volume of the acoustic signal at the
use of the touch function of the touch panel.
As pulse width modulation is used to control the
volume this setting has an influence on the sensed
pitch of the alarm.
Volume 0 setting switches it off.

Read only string

used subnet (forced setting, default override). *
0 setting deactivates this forced setting.
With 0 setting, depending on the used router,
external addresses that are outside the subnet can
not be reached.

Modifications force a restart.
FTP connections are lost with that.

Read only string

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 33/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Config

Container

file

(Source HN 10.03.10)

entry

uBT_DisplayRotation

Yes

R/W uBT_EnableCache Boolean

R/W uBT_EnableSIP Boolean

R/W uBT_FirstPadName Decimal

No uBT_FlashStatus Decimal

R/W uBT_FocusBorderWidth Decimal

R/W uBT_InactivityPollTime ANSI text

Type Default Min

UTF8 1) !!!
text
string

value
string

value
string

enum.
value
string

value
string

value
string

string

0°
(0x30
C2
B0)

1
(Enabled)

1
(Enabled)

alphapad.
Teq

0 0 255 M1 Flash

2 0 5 On the Edit and Button Painter visualization a

0 0 5 Touch / Keyboard inactivaty supervisory selection

Value
Min
Length

0° 270° Rotation 0°,90°,180°,270°

0 1 File cache use (1), 0 no file cache for all non-ima ge

0 1 Read/write SIP  Select Soft Input Panel (keyboard

1 24 File name entry for an alternative virtual keyboard

Max
Value
Max
Length

Description

Modifications force a restart.
FTP connections are lost with that.

!!!! 1) FTP client may not support direct display of

UTF8.
The display is rotated ‘as such’ with part of the
screen possibly not displayed – also in the auto
scale mode.
If up scaling is active the scaling from the non
rotated display is kept at rotation.

Rotated screens take the calibration on non rotated
screens. To calibrate the screen please return to
non-rotated use.

visualization files.
Files first are cached the moment they are used.
The cache is the place where files are searched
first, independent of local file use settings.
The cache is cleared at start-up and at URL jumps.

Image files are decompressed and cached in a
separate video cache that is always active.
This video cache is cleared at start-up and URL
jumps and at too much data loaded, in which case
all required files are reloaded and decompressed
again.

on the screen)
Write 0  SIP is disabled. Virtual keyboards are
disabled.
Write 1  SIP is enabled. Virtual keyboards
(alphapad.teq and keypad.teq) are enabled.

file as replacement for alphapad.teq at local file use.
At local file use alphapad.teq from the setup menu
(from INTFLASH/WEB) is used by default.
The alternative file – that must be named otherwise
than alphapad.teq - can be placed in M1 or SD flash
over FTP, or included in the stored web project in
the remote server.
The maximum number of characters (file extension
with dot included) is 24.

status20: Device present,no file system
21: Device present,file system OK
22: Device present, error at file system creation
23: Device present, busy creating file system
24: Device present, busy with flash sector based
compression

-1: Unknown error

rectangle focus frame is drawn to indicate it’s
activation.
This setting is used for the object focus frame line
width (pixel): 1-5
0 switches the focus off.

(1), at 0 off.
Used for a switch to a less frequent touch / keyboard
entry polling mode.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 34/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Config

Container

file

(Source HN 10.03.10)

entry

Type Default Min

Value
Min
Length

Max
Value
Max
Length

Description

No uBT_IntFlashStatus Decimal

value
string

R/W uBT_IntroGraphicName ANSI text

string

R/W uBT_IntroGraphicXPos Decimal

value
string

R/W uBT_IntroGraphicYPos Decimal

value
string

R/W uBT_IntroText ANSI text

string

R/W uBT_IntroTextXPos Decimal

value
string

R/W uBT_IntroTextYPos Decimal

value
string

R/W uBT_TCPIPAddr IP

address
string

No uBT_IsTSPresent Decimal

value
string

No uBT_LastKeyEvent ANSI text

string

0 0 255 Internal Flash status

SaiaSU
Grande.gi
f

100 0 639 Intro Graphic position

50 0 479 Intro Graphic position

Welcome 0 32 Intro text

350 0 639 Intro text position

300 0 479 Intro text position

0xC0 A8
0C 5A:

192.168.

12.90

Current
value

0 32 The container is not available for the users yet.

20: Device present,no file system
21: Device present,file system OK
22: Device present, error at file system creation
23: Device present, busy creating file system
24: Device present, busy with flash sector based
compression

-1: Unknown error

0 20 Intro Graphic

(Horizontal position from the left)

(Vertical position, downwards from the top)

(Horizontal position from the left)

(Vertical position, downwards from the top)

* * Read/write TCP/IP address of terminal (own

address) within the used subnet.*
Modification forces a restart.

FTP connections are lost.

0 255 Touch screen detected (1).

If 0 the calibration at start-up has / will be skipped.

Last key event code

No uBT_LastKeyEventUp ANSI text

string

R/W uBT_LcdContrast Decimal

value
string

R/W uBT_LocalFileSearch Decimal

enum.
value
string

No uBT_MACAddr ANSI text

string

No uBT_MultiKeyValue ANSI text

string

R/W uBT_SbusAddr Decimal

value
string

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 35/59

0 32 The container is not available for the users yet.

10 0 20:

Local
before
remote
(1)

0 20 Own MAC address

0 0 1 The container is not available for the users yet.

10 0 253 Own Sbus address

0 2 Select local filesearch mode

100%

Last key up event code

Contrast dimming / Backlight brightness setting
(0:20).
A higher value puts the brightness up.

0: no local file use
1: use local files before remote
2: use remote files before local
The local search order is fixed, in order of use:

- Video cache (image only)

- File cache (if enabled)

- Internal Flash

- M1_Flash

- SD Card Flash if used

(read only)

External SIP Keyboard multi key indication (1).
At 0 no actual multi key active

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Config

Container

file

(Source HN 10.03.10)

entry

Type Default Min

Value
Min
Length

Max
Value
Max
Length

Description

R/W uBT_ ScaleMode Decimal

Read

uBT_SerialNumber ANSI text

only

No uBT_Setup Boolean

R/W uBT_SubNetMask IP

Read

uBT_Version ANSI text

only

*:Generally IPv4 private addresses are used. Standard settings are:

- 1 x A class, with subnet addresses 10.x.x.x, and mask 255.0.0.0 - parts may be used also

- 16 x B class, with subnet addresses 172.16.x.x up to 172.31.x.x and mask 255,255,0,0 – parts or combinations may be used also

- or 256 x C class, with subnet addresses 192.168.0.x up to 192.168.255.x and mask 255,255,255,0 -combinations may be used also

enum.
value
string

string

value
string

address
string

string

Auto (0) 0 2 U pscale mode setting

0 12 Serial Number

0 0 1 The container is not available for the users yet.

0xFF FF
FF 00

Current
version
string

* * Read/write subnet mask of the subnet that is used

0 32 Firmware version

Auto (0): Smaller views are automatically adjusted to
the terminal screen size on a view by view base.
QVGA views are expanded to full screen use on
VGA terminals (horizontal and vertical two fold
expansion with pixel doubling).

VGA (1): Forced setting to VGA without up-scaling
of smaller views. This switches the up-scaling off on
VGA terminals.

QVGA (2): Forced up-scaling with pixel doubling on
VGA terminals.

The setting gets effective at the next view jump or
URL jump, or after r estart.

(read only)

A setting to 1 cause the terminal to pop up and jump
in the setup menu.

by the terminal. *
Modification forces a restart.
FTP connections are lost.

Read only string

10. Using uBT_BackLight container

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 36/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

11. Additional uBTerminal containers for “Save logs to File”
function

Container Name Default Meaning Access

uBT_TrendPath Dynamically concatenated file path. ronly
uBT_TrendDevice M1_FLASH: Current saving device. ronly
uBT_TrendDir WEBPAGES/

uBT_TrendSDFlash 0 0: M1_FLASH (VGA)

uBT_TrendPrefix TR Filename prefix, max 5 characters rw
uBT_TrendSave Latest saved file. ronly
uBT_TrendLoad Current loaded file. rw
uBT_TrendSelect Latest file in the

uBT_TrendOldest Select the oldest file. wonly
uBT_TrendNewest Select the newest file. wonly
uBT_TrendPrev Select a previous file. wonly
uBT_TrendNext
uBT_TrendDelAll Delete all files in directory. wonly
uBT_TrendDelSel Delete the current selected file. wonly
uBT_TrendDelLast Deleted the last saved file. wonly
uBT_TrendDelOld

 Example with the online minimal S2F macro for MB panel “MB_OnlineTrendMinimal_5_13_01_S2F.esm”

See the section 18.

TRENDLOGS

directory.
Modifies the
uBT_TrendSelect
container. Use with
actions on buttons.

Use with actions on
buttons.

Sub Directory to store all trends. rd

rw
INTFLASH (SVGA)
1: SL0FLASH*

Current selected file. When saving a trend this value gets set
with the saved file name.

Select a next file. wonly

Deleted all files older than the selected file. wonly

rw

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 37/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

12. Additional uBTerminal containers for “Haptic” panels

Container variables, available to the user, are included in the firmware of these terminals.
Containers let the application program exchange information with the firmware. All container variables

have the prefix "uBT_". Caution: case sensitive !!!

Container names FTP

uBT_HapticOn yes - 1 Be careful!!!! : NEVER change (in all case) the default

uBT_HapticEnable no 0 or 1 1 If set to 1, haptic effects are enabled.

uBT_HapticMouseDownEffect yes 0 to 27 1 Defines the effect that is played when the user presses

uBT_HapticMouseUpEffect yes 0 to 27 1 Defines the effect that is played when the user releases

Range Default Description

access

value (1) of this container!!!

If set to 0, haptic effects are disabled.
can be changed dynamically from the Web Project.

a BUTTON object.

a BUTTON object.

uBT_HapticRepeatEffect no 0 to 27 1 Defines the effect that is played when the user presses

and holds a BUTTON object. The effect is repeated
according to the “uBT_HapticRepeatPeriod”. Stops
when the user releases the BUTTON object.

uBT_HapticRepeatPeriod no 10 to

3000ms

300ms Defines the time between each

“uBT_HapticRepeatEffect”.
All values are in millisecond.

Important points:

When programming the haptic effects, there are two important points which you shoul d be aware of:

1. The above Container variables above apply to ALL BUTTON objects,

2. The Container variables are evaluated at the time the haptic effect plays.
These two points means that the Web Project programmer has to take care of the state of the variables. In
order to simplify the programming, we suggest the following programming method.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 38/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

13. Default fonts

Default fonts available for VGA MB panel

FONT SIZES
Fonts and font st y le 10 12 14 16 20 24 36
Arial x x x x x x
Arial Bold x x x x
Courier New x x x
Courier New Bold x x
Tahoma x x x x
Tahoma Bold x x x

Calculation of reserved margins regarding:

Simple text box, multiline text box, edits box text field and button with text.

YSize

General recommendation regarding the Text field (info already in the online-help of the first Web-editor Version)
It is recommended to use text fields that are up to 20% larger than the size that is displayed in the editor. For very precise text field length,
you can also use the table below min xSize and max xSize.

General recommendation regarding the Ysize in comparison with the fo nt size and style
The rule is generally that text in written WITHIN the outline that is INWARD drawn - so the outline subtracts twice from the available height
& width.
At Button and editor box use a 2 pixel shading is added (on the inside of the outline at buttons, on the outside at edit box functions).
The text field on the edit box is currently still written on the whole area and will be overwritten with the outline and 3D shading at outline
use if chosen too big. The button text field is written on the inside is correctly written within, as with the simple text box and (new for the
firmware) multiline text box use.
The added margins to be reckoned with are:

 simple and multiline text boxes: 2 x outline width + 1
 buttons: 2 x outline width + 5
 edit fields : 2 x outline width + 5

Arial 36 41 7 36
Arial 24 28 7 24
Arial 20 23 6 20
Arial 16 19 3 16
Arial 12 15 3 12
Arial 10 12 3 10
Arial Bold 36 41 9 35
Arial Bold 24 28 7 23
Arial Bold 20 23 6 20
Arial Bold 14 16 4 15
CourierNew 20 23 12 12
CourierNew 16 19 10 10
CourierNew 12 14 7 7
CourierNew 10 12 6 6
CourierNew Bold 20 23 12 12
CourierNew Bold 14 17 8 8
Tahoma 24 29 5 24
Tahoma 20 25 4 20
Tahoma 16 20 4 16
Tahoma 12 15 4 12
Tahoma 10 13 3 10
Tahoma Bold 24 29 7 29
Tahoma Bold 20 25 6 24
Tahoma Bold 14 17 4 17

Text field

Text length

XSize

Fontsize ySize min xSize max xSize

Definitions :

Font Size

Font size
YSize
XSize
Text length
Text field

: size of the character (font size in pixel)
: size of the painter (in pixel)
: width of one character

: length of an one line text.

: length of the painter

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 39/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

14. Special Fonts and Unicode Fonts

14.1. Generality

The user is able to provide additional fonts to satisfy his requirements regarding the languages he is using or
regarding special fonts/style/size which are not standard in the MB panel .
Examples of languages: Russian, Greek, Chinese, Japanese, Korean
Examples of fonts: Comic sans MS, Charleworth, Book Antica, Century, Trebuchet, Verdana
All the fonts can be combined with different sizes: 10,12, 14 … or styles: plain (or regular), bold …

Fonts and Uni c od e f on t s
 Additional information for Sales Companies (restricted Area)

It is possible to install other font files on an MB Panel in order to satisfy the requirement for special languages
and fonts/styles/sizes which are not present in the list. In this case, contact the sbc-support.

Arial font could be recommended to be sure to cover all the characters. This is especially for languages using
a lot of characters as the Chinese.
This is done through the use of Unicode font files (.bft) , which are being generated and provided by Saia­Burgess. The firmware searches at the following locations for the font files:

M1_FLASH/FONT
SL0FLASH/FONT (in the case of SD card is installed)

INTFLASH/FONT ( not recommended, is for internal usage)

A font file contains the data for one continuous range of characters. In case one needs for example Greek and
Cyrillic two files should be loaded, one containing the Greek alphabet, the other one containing the Cyrillic
characters.
The size of a font file must not exceed 128 KBytes.
(There are several files to cover the Chinese language)

If a font file is found it is registered. It is possible to register a maximum of 65 different files. As soon as a
character is needed, the font file will be opened and the data of the character retrieved. These data will be
cached for later reuse.

: http://www.sbc-support.ch  them Product info  HMI  Web-Panel PCD7.D4xxx



 Font file name: 24 ASCII characters max without spaces (extension file included)
 Font files installation: By copying the files via a FTP connection to the FTP server of the MB panel.
 Chinese fonts: size 12 is the minimum size readable.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 40/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

14.2. Multi languages: example

 Change a language by pressing on a button (set variable on mouse down)
Basic example is a translation of Happy Birthday in “Czech” in using “HTML TAG” type.
The “Czech” language needs extended European characters which are downloadable from sbc-support site in
restricted area.
What’s the drill?

1) The Unicode Font(s).bft file(s) with extended European characters must be copied under … /FONT (see the
above section 11.1)

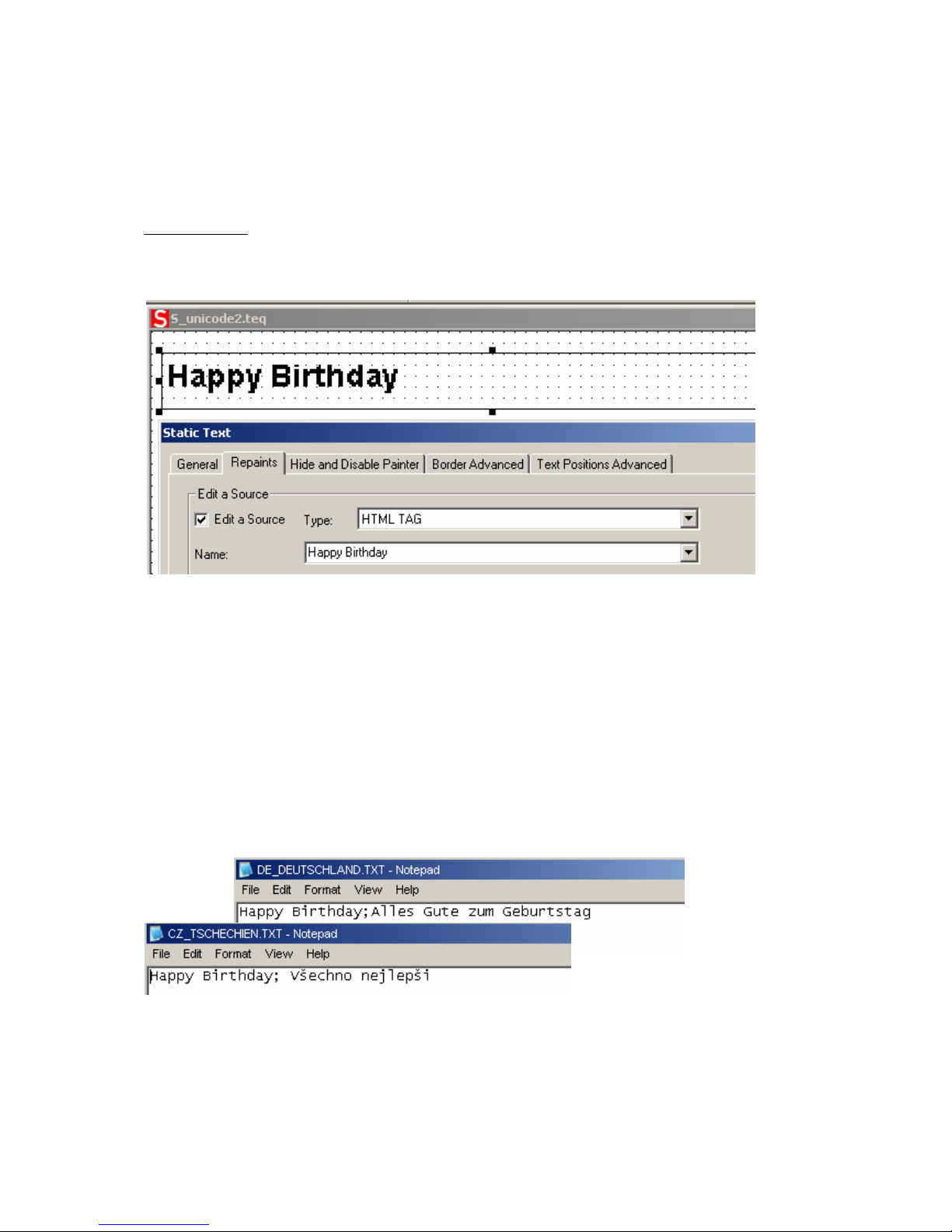

2) Web-editor: Edit a static text with the text “Happy Birthday” and chos e the “HTML TAG” type.

Remark regarding “Text positions Advanced Tab”: When using exotic characters (like Katakana, Chinese ..) it
is recommended to keep the default text positions (not centered, not justified)

3) Some fonts can not display all of th e Unicode characters. It is recommende d to use the f onts “Arial Unicode
MS” or 'MS Sans Serif' which are a good choices for Unicode characters.

Don't edit your CSV file directly in the S-Web Editor, because the text window of the S-Web Editor saves
the CSV file in ASCII mode. You can use Notepad for example to edit your CSV files (or any other text editor
which allows you to save files in Unicode format). In the 'Save As' dialogue in Notepad you can choose
'Unicode' in the DropDown 'Encoding'. Use the format 'Unicode Text' in MS Excel.

If you saved your CSV file in Unicode format and you have chosen a font in your HMI which is able to display
Unicode characters, the Unicode strings should be displayed correctly. You needn't make additional settings in
the S-Web Editor, if you want to use Unicode.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 41/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

4) Web-editor: create a button with the following “Actions Set variables” parameters:
type is “container”, name is “@LANGUAGE” them the Unicode .csv file.

We advise you to copy the .csv files in the local server of the MicroBrowser Panel under INTFLASH/
Webpages/…

 Read also the topc: “Multilingual HMIs” in the online help of the Web-editor.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 42/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

14.3. Interpretation of wrong fonts (types, sizes or styles)

1. Arial, same style,keep size

2. Arial, plain,keep size
If this size does not exist for Arial :

3. Same font name, same style,reduce size to the next best

4. Same font name, plain,reduce size to the next best
If a smaller font does not exist for this font name:

5. Arial, same style,reduce size to the next best

6. Arial, plain,reduce size to the next best
If a smaller font also does not exist for Arial:

7. Arial, same style or plain ,use the smallest availa ble size

The substitution of a font with a other font is reported in the log file (see the section 6.7.3)

14.4. Web-editor

The Unicode characters set are available:

 by using the source type “HTML tag” in the web editor and via a .CSV file.

 by entering directly the text as a “string” in the web editor , in this case “Not necessary to use .CSV

files. In this case doesn’t import Web-Editor project which was compiled with a Microsoft Windows
using Unicode characters set A to anothe r Microsoft Windows using Un icode characters set B.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 43/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

15. Interface connection

15.1. Ethernet port RJ45, X2

15.2. S-Bus on RS 485 :

Connection between terminal PCD7.D4xx and Saia® PLCs PCD1.M135,
PCD2.M150/M170 and PCD2.M480 can be made.
You can use Standard or CAT5 “crossed” Ethernet cable equally when using the X2 Port
in http direct or Ether-S-Bus. To multiple the network connections, please use Fast
Ethernet Switch 10/100 Mbps resp. through a Router.

Pining nr of each PLC connected is defined in their dedicated manual. (will be integrated here in next manual
release)
Termination resistors for proper End of line
In the example below, you see a possible interconnection between terminals and PLCs. In order to avoid
reflexions on the communication line please terminate the network with termination resistors. On the
PCD7.D4xx, a switch is available:

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 44/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

The next image shows you where it is loc ated.--> When the switch is placed on t he top position, the network
is closed.--> When the switch is placed on the bottom position, the network is open.

15.3. S-Bus on RS 232 :

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 45/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

15.4. PS/2 Interface

This interface uses a standard MiniDIN connector 6-pin as follow :

What can we c onnect to?
Instead of using the virtual Keyboard from the MB-Panel, you can use this interface to branch a PS/2 Keyboard
or a Barcode reader or simply BOTH together connected on a Y cable special.
If you only want to use this external keyboard/barcode, it is better to disable a function called SIP (Virtual
Keyboard) in the Setup Menu/Configuration/Special/. Normally, on MB-Panel where a Touchscreen is taking
place, this SIP function is always enabled.
When using a Y connection with both keyboard and barcode reader, you must be careful to use each device
separately not simultaneously.
See also the point 1.5.7 in the QuickStart Section for more information.

15.5. USB Service Interface

Standard cable from the market, type Master to Slave can be used.
This interface is only use for service purpose (like a FW update), but not for any other communication.

16. Web-editor project

16.1. Wed-editor Version

For VGA MB panel, we recommend using, of course, the up-to-date version

16.2. QVGA  VGA and VGA (Win panel)  VGA (MB panel)

A - From QVGA project to VGA proj ect

First solution (simpler)  adapt the resolution:
This option is selectable in the setup menu (see section 7.4.2) All teq’s are displayed with QVGA resolution
(pixel doubling).

Other solution:
Texts, edit boxes, button and bargraph as well as drawings, gif images should be resized (enlarged).
QVGA macro-functions (trending, alarming) are available. You can resize (enlarge) them and keep therefore
only one macro by screen or you can place several macros on the same teq views, thus you reduce the
number of page.
You can also exchange them by standard macro-functions which are already designed for VGA resolution n

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 46/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

B - From VGA project for Win panel to VGA project for MB panel
The project is , in most case, compatible.

- The standard VGA macros, trending and alarming macro are supported.
Only “Online trends macro with time scale” and “Save / load to file functions” of some macros are not
supported.

- The number of default fonts of the new VGA panels has increased (x22 default fonts: see the list of the user’s
guide), but they are, nevertheless, limited.

- The animated gif are not supported by the MB panels. Only the first picture of the animated gif will be
displayed on the VGA MB panel.

We ask you therefore:

 to control the texts and the length of texts (can be cut at end) and to adapt eventually the fonts
 to replace eventually animated gif by the macro “ animatedGif x_xx_xx.”

16.3. Adapting virtual Keyboard (SIP)

 The virtual keyboard appears only if SIP option is enabled (See the section 7.5)

Best way to use customized virtual keyboards

You can customized the standard virtual (alpha and keypad) keyboard.
Don’t change the original Alpha and keypads in the /INTFLASH/WEBPAGES/
but

Via FTP, select in the /INTFLASH/WEBPAGES/ the ALPHAPAD.TEQ ; KEYPAD.TEQ ; ALPHAPAD90.TEQ ;
KEYPAD90.TEQ files and copy them in a web-editor project.
Modify the teq views and save them without changing the file names.
Then copy the new files in M1_FLASH/WEBPAGES/

Thanks of the option: “Local file search before remote”, the new (modified) ALPHAPAD.TEQ ; KEYPAD.TEQ ;
ALPHAPAD90.TEQ KEYPAD90.TEQ will be displayed.

Be careful.

- Don’t modify deeply these TEQ views (keep the inside macros…)

- Customized the standard virtual keyboard is not “harmless”

- We recommend changing only the “décor” (background colours, …)

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 47/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

17. Advanced

17.1. Advanced Information concerning FW download

Recommendations if you met with difficulties in downloading via USB.
Power on the MB-Panel, with the USB cable REMOVED. Hit the download button to put the MB panel into
download mode then you are able to connect the USB Cable on the MB-Panel and to press Start on the FW
Download utility.

Recommendations if you met with difficulties in downloading via USB or Ethernet
If you stop or loose the communication during the downloading procedure, the system won’t show you again
any display. It is then normal because the FW Flash Memory is erased at the beginning of the procedure.

17.2. The safety procedure to download a firmware

17.2.1. The safety procedure to download a firmware is always via USB.

A. Power off the MB-Panel
B. On the Top of the Back Cover there is a hole of 3mm diameter. Inside you’ll find a button. Take a fine pen or
a little screwdriver (the best is a cylinder with Dia 3mm) and press continuously (hold it) on that button. Here
below the position of that reset button:

C. Then at the same time Power ON the MB-Panel. Wait about 3-4 sec. until the LED is flashing. Then
Download the FW with the Saia firmware download utility.

ATTENTION: the named *blk file corresponds to a full FW file. Use only files provided by SAIA-Burgess
Controls SA and for a Panel PCD7.D4xx.

17.2.2. Reset / Device Back to default parameters

The reset button can also be used in some special cases to make a full reset of the MB-Panel and to restore
the default parameters set from the manufacturer.

When can this function be useful?
When doing a FTP connection to the local server, it can be that you did copy in wrong directory the local file

desired. Or may be you did erase inadvertently some files needed for the Setup Menu display.
The most known Error is when the display is writing: “uBTerminal not found” and the screen stays for a while
without changing the page displayed. In that case do the following steps:

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 48/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

1. Power off the MB-Panel

2. On the Top of the Back Cover, activate the reset button (see previoused 14.2.1) by holding it

3. At the same time, power on the MB-Panel. After about 5 seconds, the buzzer is switched on and its
frequency is increasing.

4. Once the sound (resp. frequency) of the buzzer is stabilized, after about 10 seconds, you can release the
reset button and wait.

The waiting time can last between 1 or 2 minutes. In that time the FW does rebuild the whole memory
organization and recover every necessary default files. At the end the MB-Panel will do an automatic reboot
and ask you for a new Touch screen calibration. Calibrate it and your system will be fully restored.

18. Special Trend macros for MB panels with save logs to files

-The web-editor Macro-library contains trend macros which are specific for Microbrowser panels.

-These trend macros are 100% based on the Standard Trend macros (Minimal and Complete) with some
additional edit fields and buttons (container variables) which allow to display and manage the csv files and
erase them if need.

-The names of the Macros are the same as the standard macros with the prefix “MB_”

-The online and offline trend logs can be saved as “CSV format file” in the MB panel itself and can be replayed
on it. These .CSV files are readable as text via an FTP access. These files are saved in the MB panels under a
sub-directories of the M1_FLASH/ WEBPAGES/ "TRENDLOGS" (or SD flash in option).

-The name of the CSV file is create automatically except a free prefix of max 5 characters. The name contains
the full date of the creation of the file: the year, the month, the day and the hour/minute/second.

example: TR_20110713081305.CSV (TR_is the prefix)

Web-Editor
After downloading the macros, create two sub-directories and copy them.

MacroLib/SaiaTrendMacro/MB_ trend macros with S2F
MacroLib/ SaiaHDLogTrendMacro/MB_ HDlog macros with S2F

 MacroLib /SaiaTrendMacro /
This concerns the “online trends”, “offline trends” (DBs) and “offline saved trends”, which allow all saved files to

be replayed.

MB_ trend macros with S2F

 MacroLib/Sai aH D L o gT rendMacro /
This concerns the “remote offline saved trends” (H Dlog macros )

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 49/59

MB_ HDlog macros with S2F

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Section 11 shows the list of containers required by the special MB_ trend macros.
MB panels  Example of Trend teq view with the macro “MB_OnlineTrendMinimal_5_13_01_S2F.esm”

Loaded trend ………………

Standard online Trend minimal macro
Additional buttons and edit fields which allow: displaying the saved file names, the list of saved files as

well as navigating in the list of .CSV files .

Nr. Designation Action
1 Delete Selected File By pressing Delete the Selected Trend file (6)
2 Delete All Older files By pressing Delete all files older than the selected file.
3 Delete All files By pressing Delete all saved files
4 Delete the last Saved File By pressing Delete the last saved file
5 Saved Trend Read only Full name of the last saved file
6 Selected Trend Read only Latest file in the directory. By pressing on the

navigating buttons you can show the list of
saved files and select one of them.

7 << < > >> By pressing Allows to navigate in the file list with the same

prefix

8 Prefix name Read/write Free characters using as prefix (5 characters

max)

9 Loaded trend Read only Not in the online trend but only with the

MB_OfflineSavedTrend macros.
Name of the loaded file which is selected

9

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 50/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Important: According to the application, some buttons or edit fields are not necessary.
What‘s the drill? Ungroup the macro and delete buttons edit fields that you do not use. Re-group it.

Example

: the Edit Bo x with the Prefix name can be remove without changing the trend function

You may also to redesign t he macro: enlarge the buttons… but the position of the dates and times (X axis)
must be not changed.( reversed..)

FTP acess
By FTP access, you can display the list of .CSV files and read them.

In M1_FLASH/TRENDLOGS/

In SLOFLASH/TRENDLOGS/
If you have an SD_card on board, you can save the files on it.

The uBT_TrendSDFlash container variable (default value is 0) must be forced to 1.

Choose to save the files in the M1_fFash or in the SD card.
!!!! Saving files alternatively in the M1_Flash then in the SD-card can cause problems.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 51/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

19. Programming function keys for web panels with Fkeypads

Place a button on the view and open the function k eys tab.
Use the syntax: FKEY_1, FKEY_2 … FKEY_12 , …and ESC
The number of buttons depends on how many Fkeys you want to
use.
N.B.: case sensitive.

Example: With the comfort line MB panel, 12 function keys are available.

Do not use the “Hide Painter” command to hide the button.
A button hidden in this way will, in fact, be briefly visible on-screen when the page is changing.
We advise you to place the buttons on an enlarged part of the background layer.
Further detail:
Use the advan ced features of TEQ views .
One TEQ view can be made with three different layers. Each layer can be edited separately by the user. At
runtime, the three layers will merge into one view.

.
What's the drill?
Create a background TEQ and enlarge it. Buttons corresponding to the Fkeys can be placed in the enlarged

area. In this way, they will be invisible on the screen panel.
(Example with MB VGA panels: size is 640 x 480, enlarged size is 640 x 520).

Enlarged part
not visible on
the screen.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 52/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

20. List of Message-Box messages.

Messages Remarks

Out of memory in Ramdisk May appear if a file (most commonly a .gif) is too large. VGA MB panel: < 256 Kb

Failed to parse .csv No memo ry is available to parse a .csv file.
LR: out of memory! or out of memory for

language resource
Failed to initialize LR heap! The memory for the .csv file will be initialized every time a file is parsed. This message means it

Failed to initialize heap 1 On the heap1 the painter objects and the list of current PPO's are allocated. This heap will be

Out of memory in heap 1 the total size memory used by the painters is > 768 Kbytes (see also the section 22)
Failed to initialize heap 2 Container variables, Html tags, TCR table + source & Emit Objects of online trend are stored on

Out of memory in heap 2

Out of memory in heap 3  Can appears mainly in case of too many data points.

Maximum number of object reached! The maximum amount of objects (like buttons, rectangles etc) in one .teq view has been

OrderValues on remote host has failed ! Ordering of the list of current PPO's on the remote host has failed.
ReadFile on remote host has failed ! Periodic polling of PPO's has failed.

buffer OVF in Spider_fileReadln()! During loading of a file more data has been received than the buffer will hold.
Range is null! The calculation of the range of a bar graph has been faulty.

value out of range ! The min/max limits of a TCR value have been exceeded.
value out of default range ! The value of a TCR is not valid, foe example “aa” for hour.

Reading UTF string failed; Probably the end of the file was reached during reading of a string.

(see also the section 22)

Language

No memory is available to parse a .csv file. or the total size memory used is > 512 kbytes (see
also the section 22)

has failed.

Memory

erased after each .teq jump

heap 2. This heap will be initialized on every URL jump.
The total size memory used by the html tags and containers variable > 768

probable cause for this message is that to many offline trends are active.
 Can appears in case of offline trends and online trends too.

Offline trend, Alarms Events, HD log and online trend are stored on heap 3.

- The total size memory used by the offline trend Data and HD log > 1024 kbytes also the
section 13) The memory requirement must be calculated before using trends
Example: In case of the Update period of process points (web-editor parameter) = 1000
milliseconds
(store time in sec) x (total nber of trends) x (Size of one Data point  28 Bytes) < ~ 750 Kbytes
1800 sec x 12 trends x 28 Bytes = `600 Kbytes

Object

exceeded. Maximum object = 512

PPO

Communication

TCR

TEQ

Painter

 See also the definition of an object in the section xx.

Kbytes. Most

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 53/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

21. Recommendations

21.1. In the “Project configurations”

 - Don’t forget to select the default font that will be the most used in the project.

21.2. In the web-editor project (Global)

 It is recommended to use text fields that are up to 20% larger than the size that is displayed in the

editor. Detail, see the SECTION 10.

 IMasterSaia5_xx_xx.jar is not necessary to display web page on a MB panel.
 At the minimum the .tcr file is the only one file which must be built in the web serv er project (.wsp),

all the other file of the project can be copied in the flash (PLC or local M1_flash of the MB panel)
under Mx_flash/webpages/

 gif file <250 Kbytes and max 638 x 478 pixel (one pixel free around)
 add Unicode fonts  check in the list: http://www.sbc-support.ch  them Product info  HMI 

Web-Panel PCD7.D4xxx  Additional information for Sales Companies (restricted Area)

 Container offset name (containername) must not contain “underscore” or @ characters.

(example: PDP-ADDRESS+@COFF_containername@,PDP-FORMAT)

 Don’t forget !: Containers offset suffix is ,d for decimal and ,k for the format HH:MM
 You don’t find the right font in the list  Contact the PCD support in Murten. We are willing to help

you.

 MB VGA panels don’t support yet “Online trends macros” (they are not correct time stamp).
 Calculation of the memory requirement see the section 16..
 Maximum of objects (painters) by page is 512 objects (VGA Panels) and 256 (QVGA panels)
 Number of PPOs per page: tested  320 registers or 500 Flags.
 Project configuration  scalable html: Define HTM Ls that resi ze the HMI during runtime according

to a defined factor. Scale your HMI up to 200% for example without need to change your TEQ­Views. MicroBrowser will resize the TEQ-Views at runtime if you type in the UR L of your new
'scalable' HTML file instead of your standard HTML.
Examples: Factor 2.000000 means 200% of 640x480 which is 1280x960
Factor < 1 (< 100%) is not recommended for application using MB panels.

21.3. Definition of an object in the web-editor

 An object is a static text, a multiline label, a line, a rectangle, an el lipse, a polygon, an edit box, a

button, or a bargraph. The macros contain many objects (offline trend contains 44 objects).

21.4. Handling

 Touch screen: the basic material of the touch screen is the glass. Don’t use screwdriver or hard

tool to touc h the touch. Touch only with the finger or a special “touch pen stylus”.


 Key-pads (for comfort line) : the

use screwdriver or hard tool to press on it. Press the key-pads only with the finger.

 Advanced: use the right tool to process to a hardware reset (section 14.2). Don’t use a paper clip

or a needle. Use a drill 3 and press softly on the microswitch.

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 54/59

tactile sensation being obtained by pressing a metal dome 12 mm. Don’t

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

21.5. Some rules regarding gif image

 The three time items on the image display of the MB panel are:

 1 bigger picture (max 512 Kbytes) is better than 2 with the same total size of gif file .

Recommended max size 798x 598 pixel (one pixel free around)

 It is better to use the same picture x times (in the same project) because it will transferred,

decompressed and stored in video cache only once. For example : put it in t he common background teq.

21.6. Gif files decompression into video cache at start.

21.6.1. Gif files: decompression into video cache at start using Gif List

This solution allows gif files to be decompressed into video cache in the “background”.
Advantage: You don’t wait for the end of decompression before showing the first page.

The first page appears immediately (as with a project without gif list) and does not wait until all the gif files on
the giflist have been decompressed. Decompression continues in the background until video memory is full in
the case of multiple gif files in the giflist.

How to operate:

- Open Microsoft

- Write the following Head text for the file:
[PATH]

M1_FLASH:/WebPages
[FILE]

- Then enter the name of all the gif files (the same as under the local directory M1_FLASH/WebPages).

- Save the file under “GifList.txt” name.
Example of Gif List.txt

[PATH]
M1_FLASH:/WebPages
[FILE]

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 55/59

- Repaint from video cache

- Decompression into the video cache with URL jump and after startup (nearly linear
with the number of pixels) .See section 7.3.1

- File transfer time over the link, if not local

®

Notepad” editor

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

- In LOG.TXT (UBT_FS/LOG.TXT) for checking
Start Process Gif

{PATH]
M1_FLASH:/Webpages
{FILE]
Stop Process Gif

21.6.2. Gif file decompression into video cache at start using dummy first page

 Put all gifs into a dummy first teq page.
This solution allows decompression of gif files into video cache before showing the real first page of the
project.

Advantage: Decompression is finished when you show the first page of the project
Disadvantage: You wait until the end of decompression before displaying the first page.

Tip: Display a dummy page containing:

- and ViewJump_onTimeout macro which jumps to the right first page of the project

21.6.3. Gif file decompression: evaluation/calculation

Available for solution of sections 21.6.1 and 21.6.2
How to evaluate the number of gifs in video cache based on number of pixels in the gif pictures?.

Total video cache (permanent and flushable) is 16 MBytes. Including 4.. 6 Mbytes for permanent.
Remaining ~ 10 -12 Mbyte are at disposal.

Examples of calculation of number of pictures using permanent video cache of 4 Mbytes
Example 1

12 000 000 Byte / (640 x 480)x2 = 19 that means max 19 gif files can be in cache
Example 2:
12 000 000 Byte / (120 x 120)x2 = that means max 400 gif files can be in cache

Remark

- Copy of GifList.txt under M1_FLASH/Config/

-

- a text “Please wait while loading pictures”

: Pixel number for pictures is 640 x 480 pixels (full screen).

Pixel number for pictures is ~ 120 x 120 pixels

: The ratio between the size of the gif file and the number of pixels is not a “constant”

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 56/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

22. Error messages advanced

Advanced: These following messages * can appear:
If size memories used by the gif files, the painters, the html tags and containers var, the online trending and
HD log, the language resources (.csv files) are too big.

Some uBT_parameters must be adapted by changing values in the file uBTeminall.txt under
:/INTFLASH/CONFIG/ (and over a ftp connection)  Available only for VGA panels
After modification the Panel has to be restart.
Recommendations:
We advise not to have the maximum value in first time and try with the medium value because if we
increased all the memories to max. values it might create big problems and decrease significantly the
performances.

Error messages *

- out of memory in ramdisk

- out of memory in heap 1

- out of memory in heap 2

- out of memory in heap 3

- out of memory for language
resource (or LR: out of
memory)

Defaults values Mid values
256 kbytes

768 kbytes
768 kbytes
1024 kbytes
512 kbytes

384 kbytes
1024 kbytes
2048 kbytes
2048 kbytes
768 kbytes

Max values

512 kbytes
2048 kbytes
4096 kbytes
4096 kbytes
1024 kbytes

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 57/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

23. Appendix A – Haptic Effects

D = duration in milliseconds
M = magnitude
S = start time in milliseconds

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 58/59

Saia-Burgess Controls Ltd.

Bahnhofstrasse 18 I CH-3280 Murten I Switzerland
T [phone] I F [phone]

Saia MicroBrowser panels PCD7.D4xxVxxx Manual&user guide VGA MB panel 26-858 E1– Rev12.docpage 59/59
