Thank you for choosing Sagemcom. The F@st 5260 router is
built with a host of features to deliver maximum speed and
performance:

 Wireless-AC technology. Using the latest 802.11 ac

wireless technology, the router provides you with
maximum speed and range without the hassle of
cumbersome wires.

 Double your bandwidth. The dual-band feature

supports next-generation technology while providing
compatibility for legacy devices. Designed to avoid
wireless interference, the router ensures high WiFi
speeds and smooth, reliable connections for gaming,
HD video streaming and file transfers.

 Security. Protect your network from intruders using

WPA2 encryption and an SPI firewall.

 Customizable to your needs. Sagemcom's Web GUI

allows you to easily tailor your router settings and
manage your devices.

 Parental controls. The F@st 5260 router enables you

to easily control access to the Internet.

 Built-in USB ports and DLNA media server. Easily

plug-in your USB storage devices or printer and share
them throughout your network.

 Gigabit Connections. Transfer files at blazing fast

speeds with Gigabit Ethernet technology.

 IPv6 enabled. Built with IPv6 technology, the F@st

5260 supports next-generation networks.

This chapter will quickly familiarize you with your hardware
and review important information which you will need to install
your router.

Package Contents

 F@st 5260 router (referred throughout the guide as

F5260).

 a power adapter
 an Ethernet cable
 WiFi configuration stickers
 Quick Install Guide
 Safety Sheet

Sagemcom F@st 5260

Chapter 1: Product Overview

4

Hardware Overview

Front view

There are 6 indicator lights located at the top right-hand corner
of your router. See the icon descriptions below to understand
what each light indicates.

Power

 Solid Green. Router is powered on.
 Solid Red. Firmware is upgrading.
 Off. Device is powered off or factory reset

button was held down for more than 15s.

USB

 Solid Green. Storage or printer device is

connected by USB.

 Flashing Green. USB storage device is in

use.

 Off. No devices are connected by USB.

WPS

 Solid Green. WPS (WiFi Protected Setup) is

enabled and ready for use.

 Flashing Green. WPS Push Button pairing is

in progress.

 Off. WPS (WiFi Protected Setup) is disabled.

(Default. To enable, login to Web GUI).

Wireless

 Solid Green. Wireless network is ready.
 Flashing Green. Transmitting or receiving

wireless data.

 Off. Wireless network is disabled.

LAN

 Solid Green. Connected to least one LAN

(Local Area Network) Ethernet link.

 Flashing Green. Transmitting or receiving

data over LAN Ethernet.

 Off. No LAN Ethernet links.

Internet/WAN

 Solid Green. Device has a WAN Internet IP

address and is ready to use.

 Solid Red. Device has a Wide Area Network

(WAN) Ethernet link, but no WAN IP address.

 Flashing Green. Transmitting or receiving

data over WAN Ethernet link.

 Off. Device has no WAN Ethernet link.

Indicator lights

Sagemcom F@st 5260

Chapter 1: Product Overview

5

Back view

The back side of your router contains a number of items:

1. Power Switch. Turns your router on or off completely.

2. LAN Network Ports. Connects to your devices using

network cables (aka Ethernet cables).

3. Internet port (or WAN Network port). Connects to the

modem using the provided Ethernet cable.

4. Power Input. Connects to the provided power

adapter.

Each network port is flanked with a pair of indicator lights. See
the descriptions below to understand what each type of light
indicates.

Off. No Ethernet link present.
Solid Green LED. Ethernet link

present.

Flashing Green LED. Passing Ethernet
traffic.

Label

4

3

2

1

Sagemcom F@st 5260

Chapter 1: Product Overview

6

Solid Orange LED. Gigabit Ethernet
link present.

Solid Orange LED with Flashing
Green LED. Gigabit Ethernet link

present with and passing Ethernet
traffic.

Side View

USB Port:

Connects to your
storage and printing
devices.

Reset Button:

Press and release to
reboot.

Press and hold for
15 seconds or more
for factory reset.

WPS Button:

Press and hold for 5
seconds until WPS
light flashes to enable
WPS push-button
pairing mode.

Label

The label is located on the back of your router. It contains
important information such as your SSID and router login
username and password as well your MAC address which you
will need to set up your router.

WAN MAC Address

Serial Number

Preset WiFi SSIDs and Password

Router Web GUI

Access

information

NOTE:

WPS push-button pairing mode must be enabled

through the Web UI before use.

The WPS button applies to both 2.4 GHz and 5 GHz

according to which is enabled.

Sagemcom F@st 5260

Chapter 1: Product Overview

7

Router Positioning

The F5260 router provides network access from anywhere
within range of your wireless (WiFi) network. However, WiFi
signal strength diminishes over distance and as it passes
through the construction material of your home (e.g. walls,
metal and water).

For best results, follow the guidelines below.

 Improve range by positioning your router at a central

location and minimizing the number of walls or ceilings
between your router and network devices.

 Ensure optimum reception by positioning your device

so that the signal moves straight through drywall or
open doorways instead of at an angle.

 Maintain wireless signal strength by positioning your

router away from glass, metal, water, mirrors, brick and
concrete.

 Avoid signal interference by keeping your router away

from electrical devices (e.g. microwaves, baby monitors
and wireless headsets).

 Keep your router and its cables accessible by placing it

in an open area near a power outlet.

Wall Mounting (optional)

The F5260 router can be optionally mounted on the wall.
Before you mount the unit on the wall, write down the required
information from the label.

1. The unit is mounted with the top of the unit facing up.
Ensure that the wall you use is smooth, flat, dry, and
sturdy.

2. The unit is mounted using two M3x20 or equivalent
compact head screws (20mm length and 3mm in
diameter).

3. Install the two screws 5 1/4 inches (135 mm) apart
approximately 3/4 inches (20 mm) below the desired
top of the unit per the following figure.

4. Adjust the screws in the wall leaving their heads
extending approximately 1/8 inch to 3/16 inch (3.5 mm

- 4 mm) from the wall surface.

5. Carefully align the screw heads in the keyholes on the
back of the unit and gently push it onto the wall moving
it downward to secure it in the narrow portion of the
keyhole slots.

Sagemcom F@st 5260

Chapter 2: Getting Started

8

Chapter 2: Getting Started

Before you begin

This chapter will outline the procedures required for installing
and configuring your router.

Installing your router is comprised of two parts:

 installing the hardware; and
 configuring the router through the Web GUI.

Before you begin, please review the system requirements
outlined below and write down the router information located
on the router's label.

System Requirements

Wireless Network Requirements:

 WPA or WPA2 security enabled device

Web-based Graphic User Interface Requirements:

Computers with:

 Windows®, Macintosh or Linux-based operating

system

Supported browsers:

 Internet Explorer 8 and higher
 Mozilla Firefox 26 and higher
 Safari 6 and higher
 Chrome 32 and higher

For mobile:

 Safari on IOS5 and higher
 Google Chrome 32 and higher

Router and Account Information

For future use, print this page and write your router information
below.

Network Name (SSID):

Network Password:

Guest Network Name:

Guest Network Password:

Web GUI Address:

Web GUI Username:

Web GUI Password:

NOTE:

Some Internet Service Providers (ISP) require that you login
to their web portal to enable your Internet connection.
Should you require more information, please contact your
ISP.

Sagemcom F@st 5260

Chapter 2: Getting Started

9

Install your Wireless Router

1. Unplug your modem.

2. Re-plug your modem. Wait approximately 2 minutes
until your modem turns on.

3. Connect one end of the Ethernet cable to your modem.
Connect the other end to the yellow Internet port on
your router.

4. Connect the power adapter to the power input of your
router, then plug it in. Press the power switch.

5. The router is ready to use when the following indicator
lights are solid green:

6. After installing the hardware, you can now connect to
the Internet.

a. On your device (PC, laptop, phone, tablet, etc.)

open the software utility that manages WiFi
connections.

b. Find the Network Name (SSID) as listed on the

label of your router.

c. Enter the password listed on the label of your

router. You should now be connected to the
Internet.

NOTE:

If there is an Ethernet cable currently connecting your
modem to another device, disconnect the Ethernet
cable from the device before you install your router.

NOTE:

When searching on your device, 2 network names
that may appear:

 MyCharterWiFixx-2G
 MyCharterWiFixx-5G

(where xx is specific to your router)

If you see the name ending in ‘5G’, your device is
5GHz-capable. Connecting to the ‘5G’ network
may provide a better experience.

Sagemcom F@st 5260

Chapter 2: Getting Started

10

If you wish to customize your router settings further, see the
instructions below.

Configure your Wireless Router

The F5260 can be easily configured to meet your wireless
needs. This section provides instructions on how to:

 Connect to the Web GUI
 Change your network name and password
 Configuring your WiFi
 Enabling WPS
 Change your local access password
 Change your time zone
 Customize your device lists
 Set up parental controls
 Set up a guest network

Configuration of your router begins with logging into your Web
GUI.

Login to the Web GUI

1. Open your web browser. Go to http://192.168.1.1

2. Enter the router login username and password listed on
the back of your router (you can change this later).

The default username and password are as follows:
Username: Admin
Password: admin

3. Your router’s home page (or dashboard) should now
appear.

Sagemcom F@st 5260

Chapter 2: Getting Started

11

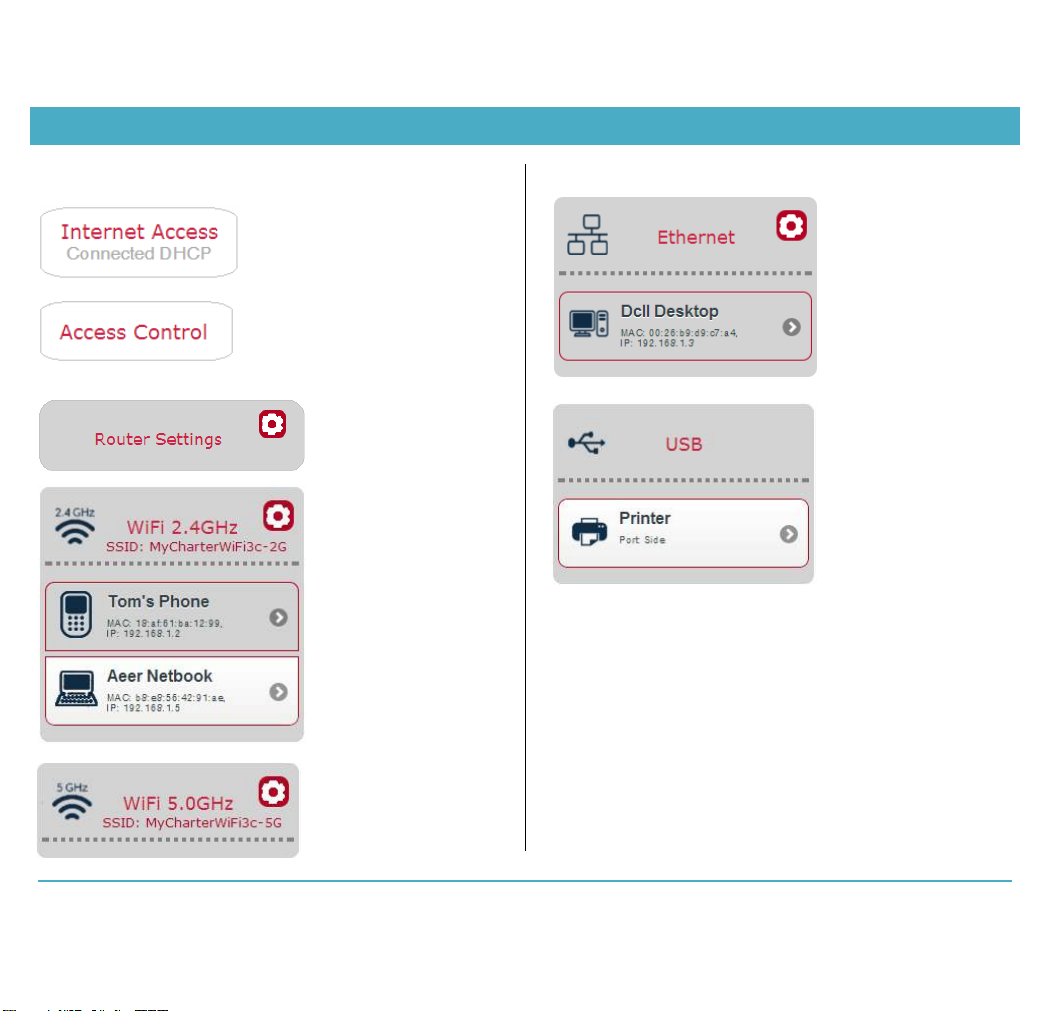

A tour of your Web GUI Dashboard

Provides status and
information configuration
about your Internet
connection.

Provides access to Parental
Controls, Passwords and
Firewall.

Configures router reset
and local network
settings.

Configures 2.4GHz WiFi
and Guest network
settings.

Devices connected to

2.4GHz WiFi appear
below the dotted line.

Throughout the
dashboard, devices
highlighted in white are
currently active.
Inactive devices are
grayed out.

Configures 5 GHz and
Guest network settings.
Devices connected to
5GHz WiFi appear below
the dotted line.

Provides statistics on
LAN Ethernet ports.

Devices connected by
Ethernet appear below
the dotted line.

Configures or safely
removes USB-connected
devices.

Sagemcom F@st 5260

Chapter 2: Getting Started

12

A Tour of your Web GUI (Mobile Edition)

You may also access the Web GUI through your mobile device
(mobile phone, tablet, etc.). The mobile version of the Web
GUI allows you to access the same controls as the PC
version. The dashboard will appear condensed as follows to
fit your mobile screen.

Change your Local Access Password

Your local access username and password provides access to
your Web GUI account. Do not share this information as it

allows users to change your router settings or disable your
Internet connection.

1. Log in to the Web GUI.

2. Click on Access Control.

3. Click on User tab.

4. Ensure "Admin" is selected as user.

5. Enter new password under "New Password" field.

6. Confirm new password under "Confirm Password" field.

7. Click Ok.

Sagemcom F@st 5260

Chapter 2: Getting Started

13

Change your Wireless Network Name and Password

Your wireless (WiFi) network name and password provides
Internet access to your network. Provide this information to
users whom you wish to access to your wireless Internet
connection.

1. Log in to the Web GUI.

2. Select the network to be configured by clicking on its
Gear icon.

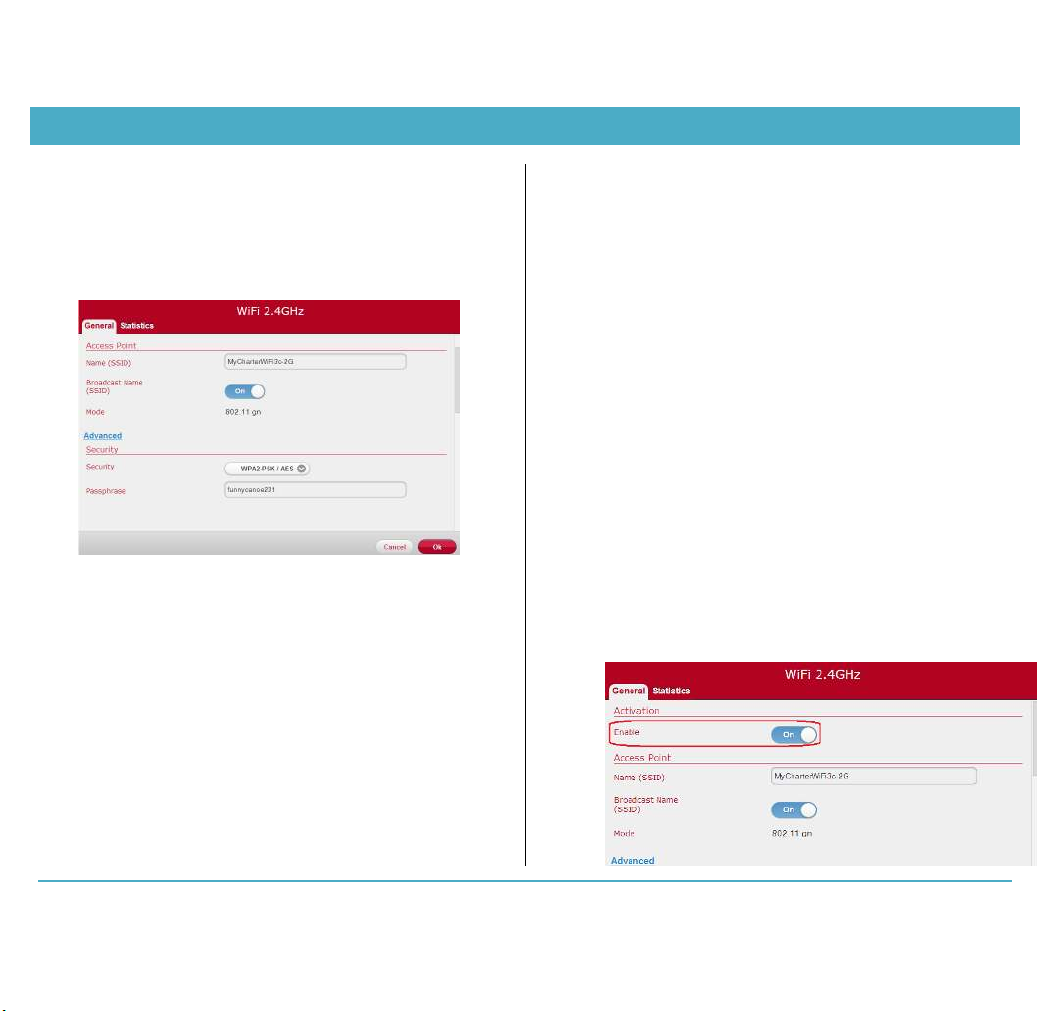

3. Under the General tab, in the Access Point section,
enter the new network name in the "Name (SSID)"
field.

4. In the Security section, you can select the security
encryption mode. The default is WPA2-PSK / AES. It
is highly recommended that you retain the default
setting unless you have devices that do not support
WPA2.

5. Enter the new password in the "Passphrase" field.

6. Click Ok.

Configuring your WiFi Network

The following procedures will review how to:

 turn your WiFi on and off;
 broadcast your SSID
 change your WiFi channel

Turn your WiFi on / off

1. Log in to the Web GUI

2. Select the network which you wish to turn on or off.
Note: By default, both the 2.4GHz and 5GHz WiFi
networks are enabled.

3. In the General Tab, under the Activation section:

 slide the Enable switch to On to power the

network on; the Wireless indicator light should
turn a solid green.

 slide the Enable switch to Off to power off the

network.

Sagemcom F@st 5260

Chapter 2: Getting Started

14

4. Click Ok.

Broadcasting your network name (SSID)

Broadcasting your network name (SSID) allows you to more
easily detect and identify your WiFi network. By default, your
SSID Broadcast is enabled. Should you wish stop
broadcasting your SSID, follow the instructions below:

1. Log in to the Web GUI

2. Select the network you wish to stop broadcasting.

3. In the General Tab, under the Access Point section,
slide the Broadcast Name (SSID) switch to Off. Should
you wish to turn it on again, slide the switch to On.

4. Click Ok.

Change the WiFi Channel

You may wish to change your WiFi network channel to avoid
other WiFi networks or interfering devices such as
microwaves. If you select “Auto” the router will select the best
available channel for your wireless network.

1. Log in to the Web GUI

2. Select the network for which you wish to change the
WiFi channel.

3. In the General Tab, under the Access Point section,
click on Advanced.

4. Under Channel, open the pull-down menu and select a
channel you wish to switch to.

5. Click Ok.

Sagemcom F@st 5260

Chapter 2: Getting Started

15

Enabling WPS Push Button pairing

WPS (WiFi Protected Setup) push button pairing provides an
easy way to join devices to your WiFi network with the push of
a button. By default, WPS is disabled. To enable it, follow the
instructions below:

1. Log in to the Web GUI.

2. Select the network you wish to configure. You should
enable WPS on both WiFi networks to easily pair
devices to either network using the WPS button.

3. In the General Tab, under the Security section, click on
Advanced.

4. Slide the Enable WPS switch to On.

5. Under WPS Mode, leave the selection to the Push
Button default.

6. Click Ok.

7. Prior to adding a device, you may now press the WPS
button located on the side panel of your router to
enable easy pairing. Press and hold the WPS button
for 5 seconds until WPS light flashes to enable WPS
push-button pairing mode. If your device supports WPS
pairing, it should connect as soon as you select the
WiFi network name.

Change your time zone

You may wish to change your time zone to ensure that times
for parental controls are administered accurately. The default
time zone is Central time with automatic adjustment for
daylight savings time enabled.

Sagemcom F@st 5260

Chapter 2: Getting Started

16

1. Log in to the Web GUI.

2. Click on Router Settings.

3. Click on Time tab.

4. Under Time Zone, select your time zone from the pull­down menu.
 DST Enabled options automatically adjust for

daylight savings time

 DST Disabled options can be used where daylight

savings time is not followed.

5. Click Ok.

Customize your Device List

Customizing your device list allows you to change the name
and icon of your devices to help you easily identify what is
connected to your network.

1. Log in to the Web GUI.

2. Search for the device to be configured under the
network it is connected to. Remember: devices
highlighted in white are currently active and inactive
devices are gray.

3. Select the device you wish to customize by clicking on
the right arrow.

4. Type the name your wish to appear in the "Friendly
Name" field to identify your device.

5. Under the Device tab, click on the pull-down menu
beside "Device Icon".

Sagemcom F@st 5260

Chapter 2: Getting Started

17

6. Select the desired icon for your device.

7. Click Ok.

How to set up Parental Controls

Parental Controls can be configured to:

 Limit access to the Internet at certain times on

particular devices;

 Block certain websites across all devices.

To begin:

1. Log in to the Web GUI.

2. Click on Access Control.

3. Select Parental Control tab.

Limit Internet Access times

1. Under Access Control Planning, click on pull-down
menu beside "Select devices". Or, click on Select All to
select all devices.

2. Review Internet Access schedule. Click and drag
across a block of time during which you want to limit
Internet access.

3. Click Ok.

Sagemcom F@st 5260

Chapter 2: Getting Started

18

Blocking Web Sites

1. Under Site Blocking, click on Add Sites button.

2. Type or copy/paste website address you wish to block.

3. Click Add.

4. Click Ok.

How to set up your guest network

Provide guests with Internet access while limiting their access
to local resources by setting up a separate guest wireless
network.

1. Log in to the Web GUI.

2. Select the network (2.4 GHz or 5 GHz) in which you
wish to configure Guest network access. For the
convenience of guests, configure Guest network
access on both WiFi networks.

3. Under General tab, scroll down to Guest WiFi network
section.

4. Under Enable, slide tab from "Off" to "On".

5. Enter desired guest network name under then "Name
(Guest SSID)" field.

6. Enter guest network password under "Passphrase"
field.

7. Leave "Allow Local Network Access" at "Off" mode.

8. Click Ok.

NOTE:

Entering a site on the blocked sites list prohibits all
devices connected to your network from accessing
the site at all times of the day.

Sagemcom F@st 5260

Chapter 3: USB Sharing

19

Chapter 3: USB Sharing

The router allows you to share storage and media files as well
as printers and multi-function devices with others on your
network. This chapter will provide instruction on how to:

 share files using a USB storage device;
 share a printer or multi-function device.

USB Storage

Files may be shared within your network by connecting a USB
storage device (e.g. flash drive, external hard drive, etc.) to
your router. All users connected to your network will be able
to view, add, modify and delete any files on your storage
device.

Connecting a Storage Device

To connect USB hard drive or flash drive, attach it to the USB
port located on the side panel of the router. The USB indicator
light will turn on when the device is recognized.

1.

Enabling File Sharing

File sharing is enabled by default. Should you need to enable
it manually:

1. Login to the Web GUI.

NOTE:

 The F5260 supports USB 2.0.
 The following file systems are supported: FAT16,

FAT32, NTFS, Ext2, Ext3, HFS, HFS+

 Some file systems function as read only depending

on the permissions configured on your storage
device.

WARNING:

To safeguard your data, ensure that you:

 Always keep a second copy (backup) of

all data; and

 stop the USB storage device BEFORE

removing it from your router.

Sagemcom F@st 5260

Chapter 3: USB Sharing

20

2. Click on Router Settings.

3. Select USB Storage tab.

4. In the Share Files field, slide the tab to ON.

5. Click Ok.

Media Sharing

Enabling DLNA (Digital Living Network Alliance) allows you to
play media files such as pictures, music and movies through
media devices such as game consoles, mobile video players
and other network connected devices.

DLNA is off by default. To enable DLNA:

1. Login to the Web GUI.

2. Click on Router Settings.

3. Select USB Storage tab.

4. In the Share Media (via DLNA) field, slide the tab to
ON.

5. Click Ok.

Safely Disconnecting a Storage Device

To safely disconnect a USB storage device from your router,
you must first eject it. Please wait at least 5 minutes after
connecting a USB storage device before ejecting it from your
drive.

To safely disconnect a USB storage device from your router:

1. Log in to the Web GUI.

2. Under USB section, select the device you wish to eject.

3. Under Eject Device, click the Eject button.

WARNING:

To safeguard your data, ensure that you:

 Always keep a second copy (backup) of

all data; and

 stop the USB storage device BEFORE

removing the USB connection.

Sagemcom F@st 5260

Chapter 3: USB Sharing

21

4. You will receive the following message if the device
ejected safely:

5. IF the eject button does not work, check the Force
Eject checkbox. Then click on the Eject button again.

6. Click Ok.

Deleting a Device

After you eject the device, it will remain on your dashboard. If
you want to remove it from the dashboard:

1. Click on the device.

2. Under the Device tab, scroll down to the bottom of the
page and click on the Delete button.

3. You will then be taken back to the Web GUI dashboard
and the device will no longer appear.

Accessing Shared Files

If you wish to access USB storage devices that are connected
to your router, please follow the instructions below according
to your type of computer.

Sagemcom F@st 5260

Chapter 3: USB Sharing

22

For Windows:

1. Connect a USB storage device to your Router’s USB
port.

2. Open Windows Explorer.

 Click on the Start menu.
 Select All Programs and click Accessories.
 Click on Windows Explorer.

3. Once open, enter \\192.168.1.1 in the address bar.
Your window will now show your connected USB
storage device.

For Mac:

1. Connect a USB drive to your router.

2. On your Mac, click on Go, then Connect to Server.

3. Type smb://192.168.1.1 under Server Address.

4. Click Connect.

5. You will be asked for your Mac password. Please enter
the password and click Connect.

6. A window will appear with the contents of your USB
drive.

7. You can locate the USB storage device under
Computer.

Printer Sharing

Printers may be shared within your network by connecting a
USB printer device to your router. All users connected to your
network will be able to use the device attached to your router.

Connecting a Printer

Printer sharing is enabled by default. To connect a printer,
attach it to the USB port located on the side panel of the router
(there is only one USB port). The USB indicator light will turn
on when the device is recognized.

WARNING:

To safely disconnect a USB storage device, please
ensure that you follow the directions outlined in this
manual (p. 17). It is your responsibility to create
data backups prior to using USB storage devices
with your Wireless Router.

WARNING:

To safely disconnect a USB storage device, please
ensure that you follow the directions outlined in this
manual (p. 17). It is your responsibility to create
data backups prior to using USB storage devices
with your Wireless Router.

Sagemcom F@st 5260

Chapter 3: USB Sharing

23

Configuring a Printer (PC)

Windows XP

1. Start the Add Printer Wizard:

 Click Start.
 Select Settings  Printers and Faxes  Add

Printer. OR

 Select Control Panel  Printers and Faxes 

Add Printer.

2. Choose "A network printer, or a printer attached to
another computer". Click Next.

3. Choose "Connect to a printer on the Internet or on a
home or office network".

 Enter the URL: http://192.168.1.1:631/IPP
 Click Next.

The specific URL may vary for different models of

printer. Please refer to printer manufacturer's
documentation. Some common printer URLs are:

 http://192.168.1.1:631/
 http://192.168.1.1:631/IPP/
 http:// 192.168.1.1:631/IPP/port1

NOTE:

Check your printer's specifications to ensure that it
supports IPP/1.1 as not all USB printers support
this protocol.

Ensure the printer driver supports your operating
system.

To ensure that your printer driver is working
properly on a PC, you can connect the printer to
the PC directly before attempting to install the
printer over the network.

NOTE:

This step will fail if your printer is not connected or
does not support IPP.

You may also have to power-cycle your printer
when changing USB hosts.

Sagemcom F@st 5260

Chapter 3: USB Sharing

24

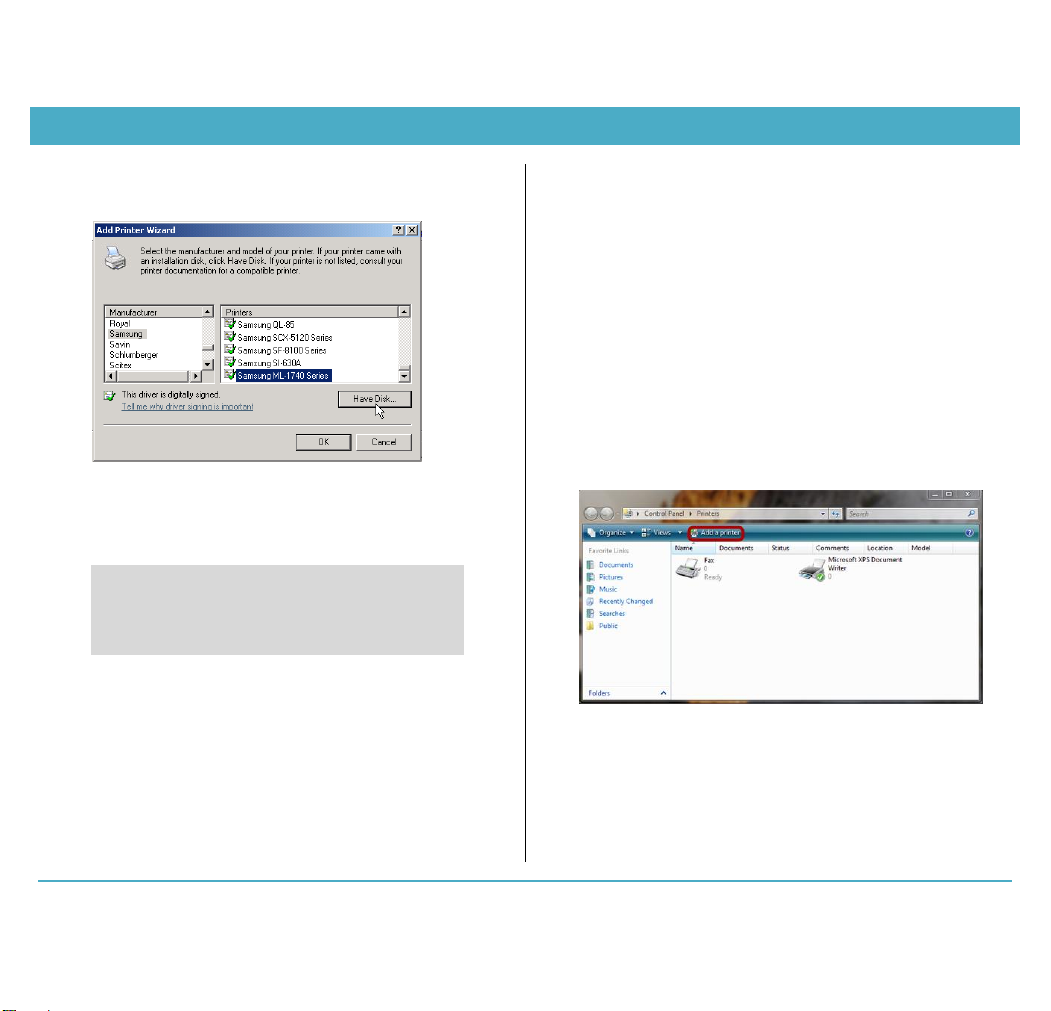

4. Choose correct printer driver. Click Ok.

If the printer was previously installed on this PC, then
the driver should appear in the list under the proper
manufacturer and printer name.

If your driver does not appear, you will need to locate
the correct driver and click Have Disk to install it.

5. (Optional). You can choose to set this printer as your
system Default Printer. Click Next.

6. If everything is configured correctly, the Wizard will
display the message, "You have successfully
completed the Add Printer Wizard." Click Finish to
complete.

Windows 7

1. Start the Add Printer Wizard:

 Click Start.
 Select Devices and Printer  Add Printer. OR
 Select Control Panel  Devices and Printer 

Add Printer.

2. Choose "Add a network, wireless or Bluetooth printer".
Click Next.

NOTE:

Check the bottom of the list for your manufacturer.
Printers are not always listed alphabetically.

Sagemcom F@st 5260

Chapter 3: USB Sharing

25

3. Skip the search by clicking "The printer that I want is

not listed."

4. Choose "Select a shared printer by name".

 Enter the URL: http://192.168.1.1:631/IPP
 Click Next.

The specific URL may vary for different models of
printer. Please refer to printer manufacturer's
documentation. Some common printer URLs are:

 http://192.168.1.1:631/
 http://192.168.1.1:631/IPP/
 http:// 192.168.1.1:631/IPP/port1

5. Choose correct printer driver. Click Ok.

NOTE:

This step will fail if your printer is not connected or
does not support IPP.

You may also have to power-cycle your printer
when changing USB hosts.

Sagemcom F@st 5260

Chapter 3: USB Sharing

26

If the printer was previously installed on this PC, then
the driver should appear in the list under the proper
manufacturer and printer name.

If your driver does not appear, you will need to locate
the correct driver and click Have Disk to install it.

6. (Optional). You can choose to set this printer as your
system Default Printer by selecting the checkbox next
to "Set as default printer". Click Next.

7. If everything is configured correctly, the Wizard will
display the message, "You have successfully
completed the Add Printer Wizard." Installation can be
verified using the "Print Test Page" button. Click Finish
to complete.

Configuring a Printer (MAC)

1. In the "Print & Fax" dialog, click + to add a printer.

2. Click the IP tab.

 Change the protocol to IPP.
 Set address to http://192.168.1.1:631/IPP
 Set Queue name to (blank).

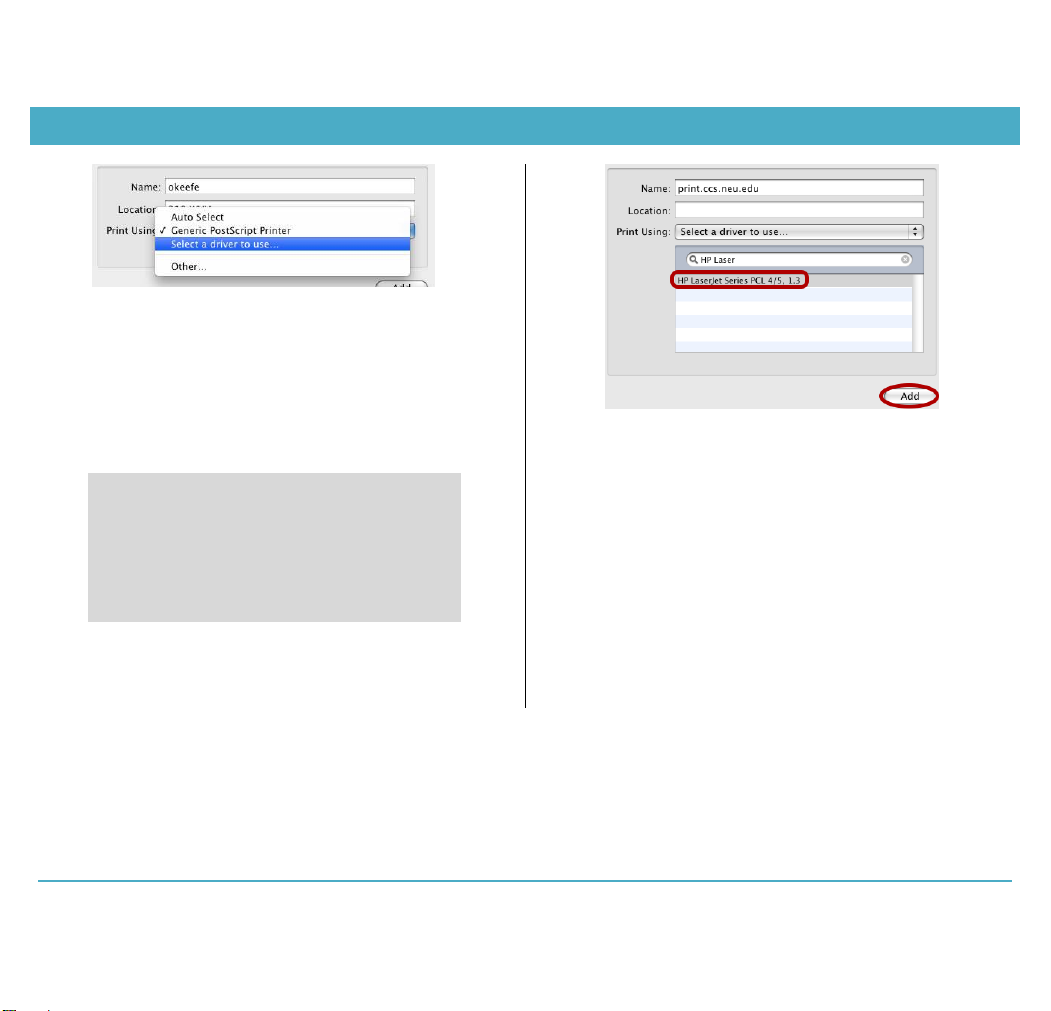

 Under Print Using, choose "Select a device

driver to use".

NOTE:

Check the bottom of the list for your manufacturer.
Printers are not always listed alphabetically.

Sagemcom F@st 5260

Chapter 3: USB Sharing

27

The specific URL may vary for different models of
printer. Please refer to printer manufacturer's
documentation. Some common printer URLs are:

 http://192.168.1.1:631/
 http://192.168.1.1:631/IPP/
 http:// 192.168.1.1:631/IPP/port1

3. Locate and select your printer's specific driver. Click
Add.

4. If everything is in order, the printer will be listed. The
status will read as "Idle" and will be lit as green.

NOTE:

This step will fail if your printer is not connected or
does not support IPP.

You may also have to power-cycle your printer
when changing USB hosts.

Sagemcom F@st 5260

Chapter 4: Administration

28

Chapter 4: Administration

Rebooting your router

Occasionally, your router may encounter difficulties in
connecting to the Internet and you may need to reboot your
router. There are two ways you can do this:

 through the Web GUI or
 using the reset button.

Web GUI

1. Log in to the Web GUI.

2. Click on Router Settings.

3. Select Maintenance tab.

4. Click on Restart button.

Reset Button

The reset button is located on the left side panel of the router.
Press and hold the button for less than 15 seconds, then
release.

Press and hold for 15 seconds or more for factory reset.

Back Up and Restore Router Configuration

Should you ever reset your router to its factory defaults, any
customized settings would be lost. Follow the directions below
to backup and restore your router settings.

Back Up Router Configuration

1. Log in to the Web GUI.

2. Click on Router Settings.

3. Select Maintenance tab.

4. Under Configuration section, click on "Backup" button.

Sagemcom F@st 5260

Chapter 4: Administration

29

Restore Router Configuration

1. Log in to the Web GUI.

2. Click on Router Settings.

3. Select Maintenance tab.

4. Under Configuration section, select file to restore under
"Restore File".

5. Click Restore button.

6. Click Ok.

Upgrade Router's Firmware

The F5260 automatically searches and installs upgrades
which may add features or fix issues in your router.

Use the following instructions to manually upgrade the
firmware if required.

1. Log in to the Web GUI.

2. Click on Router Settings.

3. Select Maintenance tab.

4. Under the Upgrade section, select File Type from pull­down menu.

5. Choose file under Image file.

6. Click Upgrade.

7. Click Ok.

Restore Factory Defaults

There are two ways to restore factory defaults:

IMPORTANT:

While the firmware is upgrading, the Power indicator
light will turn a solid red. Do NOT interrupt the
upgrade process as it may permanently damage the
router.

Sagemcom F@st 5260

Chapter 4: Administration

30

 through the Web GUI or
 the reset button

1. Log in to the Web GUI.

2. Click on Router Settings.

3. Select Maintenance tab.

4. Under Reset section, click on Reset button. The router
will reboot to complete the factory reset.

5. Click Ok.

Reset Button

The reset button is located on the left side panel of the router.
Press and hold the button for 15 seconds or more for factory
reset.

Note: The Power indicator light on the right hand side of the
front of the router will turn off to indicate that the factory reset
function is being performed. The router will then reboot to
complete the factory reset.

CAUTION:

Restoring Factory Defaults will erase customized
router settings. Ensure that you backup customized
settings before continuing.

Sagemcom F@st 5260

Chapter 5: Troubleshooting

31

Chapter 5: Troubleshooting

This chapter provides information on how to resolve some
common problems you may encounter with your router.

Problem 1: Indicator lights are not turning on.

There are a number reasons as to why an indicator light would
be inactive. Please review the icons below to resolve issues
you may be experiencing.

The Power indicator should be a
solid green when the router is
powered on. If the Power indicator

light is off:

 Check the Power Switch on the back panel of the

router and ensure that it is switched on.

 Check the provided Power Adapter. If it is

plugged in and there is power running through it,
then its indicator light should be a solid green.

 Check the electrical outlet that the Power Adapter

is plugged into to see if it is providing power. You
can check this by plugging another device into it.

The USB indicator light is off by
default. It will only turn on if a USB

device is connected to your router. If
the USB indicator light is off and you
have a USB device attached to it:

 Check your USB device and ensure that it is

powered on and it supports USB 2.0 or USB 1.1.

 For printers: Unplug and re-plug the printer.

Some printers need to be turned on and off after
changing the hosts to which they are connected.
If it remains unchanged, check to ensure that the
printer supports IPP (Internet Printing Protocol),
which is required to share the printer within your
network.

 For storage devices: Unplug and re-plug the

device. Some disk drives require external power
to connect by USB. Should this be the case,
ensure that your drive is connected. Otherwise,
please ensure that your device is not drawing
more than the maximum current allowed by the
USB 2.0 standard.

The WPS indicator light is off by
default. It will only turn on if you

have enabled WiFi Protected Setup
on your network through the Web
GUI. Note: The WPS light applies to
both 2.4 GHz and 5 GHz according to
which is enabled.

 For instructions on how to the WPS (WiFi Protected

Setup), please see p.15.

Sagemcom F@st 5260

Chapter 5: Troubleshooting

32

The Wireless (WiFi) indicator light
will turn on when the wireless
network is ready for use. If the

Wireless indicator light is off:

 Login to the Web GUI. Check to see that one or

more of the wireless networks are turned on. For
instructions on how to turn your WiFi on, please
see p. 13.

The LAN indicator light is off by
default. It will turn on if you plug any

device into the LAN Ethernet ports
located on the back of the router. If
the Wireless indicator light is off and
you have a device attached:

 Check the Ethernet cable attaching the device to

the router and ensure that they are securely
fastened. If both ends are secure, try replacing
the cable.

The WAN indicator light should be
a solid green when the router is
connected to the modem. If:

 The indicator light is off, check that both ends of

the Ethernet cable connecting the router to the
modem is securely fastened. If both ends are
secure, try replacing the cable.

 The indicator light is red, reboot your modem and

wait a few minutes. Some ISPs (Internet Service
Provider) require that the MAC address of your
router is registered in their portal. Refer to your
ISP.

 The indicator light is green but there is still no

Internet access, restart your network. Check the
WAN IP address of your router to see if it registers
as 192.168.100.x. If this is the case, check your
modem as it may have difficulties contacting the
network.

Problem 2: The Internet stopped working.

Try one of the following solutions:

 Check to see if your WiFi signal is on. If it is off, login

to Web GUI and check that your wireless network is
enabled.

 Restart your computer and attempt to reconnect to your

WiFi.

 Check cables.

 Check and tighten the coaxial cable connection

from the wall to the back of your modem. Verify
that the coaxial connectors are not damaged at
each end. The connector's metal pins should
be intact and straight.

 Ensure that one end of the Ethernet cable is

plugged into the Ethernet port on the back of
the modem and that the other end is connected
to the WAN/Internet (yellow) port on the back of
your router.

Sagemcom F@st 5260

Chapter 5: Troubleshooting

33

 If you still cannot reconnect, restart your network:

 Turn both the modem and the router off. If you

are using a battery backup, you will also need
to disconnect the battery from the modem.

 Wait 2 minutes.
 Turn modem on. Wait two minutes.
 Turn router on. Wait two minutes.

 If you still cannot connect, refer to your ISP.

Problem 3: The Internet is slow.

Try one of the following solutions:

 Reboot your router. Refer to p. 27 "Rebooting your

router" for instructions.

 Check your WiFi band. Most devices including your

router works on the 2.4 GHz band (e.g. microwave
ovens, baby monitors, and other electronic devices).
Reposition your router away from other electronic
devices to avoid interference.

 On your device: If you see the network name ending in

-5G, your device is 5GHz-capable. Connecting to the
‘5G’ network may provide a better experience.

 Change the WiFi channel used on your device. For

instructions, please see p. 14.

 Reposition your device to be within 10 feet of your

router. Connection speed decreases as you move
farther away from the router. By repositioning your
device, you can determine whether the performance is
related to wireless range.

Problem 4: The WiFi signal drops.

 Check to see if another device is using the 2.4 GHz

band or a material such as glass, water or metal are
causing interference. If so, reposition your router away
from the item. Refer to p. 6 "Router Positioning".

Problem 5: Cannot connect wireless device to
router.

Try one of the following solutions:

 Ensure that your device's WiFi is enabled and that the

WiFi light is green. If it is not, refer to p.13 to enable
WiFi.

 Ensure that your device supports WPA2 encryption. If

not, refer to p.13 to change the encryption mode.

 Verify that you are connecting to the correct network by

checking the SSID (name of network) and its
password.

Problem 6: Locked out of the Web GUI.

 Restore factory defaults on your router. Refer to p. 29

for instructions.

 Thereafter, login to the Web GUI using the default

username and password listed on the router label.

 Refer to p. 11 to change your local access password.

Sagemcom F@st 5260

Appendices

34

Appendices

Appendix A: Technical Specifications

Sagemcom F@st 5260 Specifications

Model Name

Sagemcom F@st 5260

Ethernet Port Speed

IEEE 802.3 Ethernet: 10-BASE-T, 100­BASE-T, 1000-BASE-T

Wireless Standards

5GHz: IEEE 802.11ac 2.0, 802.11n,

802.11a

2.4GHz: IEEE 802.11n, 802.11g,

802.11b

Wireless
Frequencies

2400MHz – 2483.5MHz

5150MHz to 5350MHz

5470MHz-5850MHz (excluding
5600MHz – 5650MHz)

Wireless Security
Support

WEP, WPA, WPA2, WPA2-Enterprise
with RADIUS

Ports

Power, USB, Ethernet WAN, Ethernet
LAN (1-4)

Buttons

Reset, WiFi Protected Setup, Power
Switch

LEDs

Front: WAN/Internet, LAN/Ethernet,
WiFi, WiFi Protected Setup, Power

Back: Internet WAN, Ethernet LAN (1-4)

UPnP

Supported

DLNA

Supported

Storage File System
Support

FAT16, FAT32, NTFS, Ext2, Ext3, Hfs,
Hfs+

Printer Protocol

IPP

Browser Support

Internet Explorer 8 or higher, Firefox 26
or higher, Chrome 32 or higher, and
Safari 4 or higher

Sagemcom F@st 5260 Physical Characteristics

Dimensions

8.7” x 2.6” x 8.1” (220 x 65.4 x 206 mm)

Weight

1.17 lbs (529 g)

Power

Input: 100V to 120V ~60Hz

Output: 12V DC @ 2.5A

Environmental
Characteristics

Temperature 32°F to 104°F (0 °C to 40 °C)

Relative humidity 20 % to 90 %, non­condensing

Altitude 6562 ft (2000m)

Sagemcom F@st 5260

Appendices

35

Appendix B: Notification of Compliance

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.

Modifications:

You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void
your authority to operate the equipment.

FCC Responsible Party: Sagemcom USA
14651 N. Dallas Parkway
Suite 900
Dallas, TX 75254
Phone: [phone]

Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following
measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and
receiver.

3. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV
technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This transmitter
must not be co-located or operating in conjunction with any
other antenna or transmitter.

This device produces radio frequency energy in the 2.4 GHz
and 5 GHz spectrums. The antenna must be positioned to
keep a minimum distance of 20 cm (0.65 ft) from the radiating
element to any nearby person.

Issued by Sagemcom Broadband SAS

Sagemcom

250, route de l'Empereur - 92848 RUEIL MALMAISON CEDEX

FRANCE

© Sagemcom Broadband SAS 2013

All rights reserved. Subject to availability.

Rights of modifications reserved.

www.sagemcom.com
