Sagem SG-KI1A Software Installation Guide

SOFTWARE
SETUP GUIDE
(for network printer)
Page
• INTRODUCTION
• SETUP IN A WINDOWS ENVIRONMENT
• SETUP IN A MACINTOSH ENVIRONMENT
Inside cover
2
29
INTRODUCTION
This manual explains how to install and configure the software that is required for the printer function of the SAGEM digital multifunctional system. The procedure for viewing the online manual is also explained.
Note
• The explanations of screens and procedures in this manual are primarily for Windows® XP in Windows® environments, and Mac OS X v10.4 in Macintosh environments. The screens may vary in other versions of the operating systems.
• This manual contains references to the fax function. However, please note that the fax function is not available in some countries and regions.
• This manual contains explanations of the PC-Fax driver and PPD driver. However, please note that the PC-Fax driver and PPD driver are not available and do not appear on the software for installation in some countries and regions.
• Where "MF 93xx" appears in this manual, please substitute the name of your model for "xx".
• This manual refers to the "Software CD-ROM" that accompanies the MF 9325/9331 and the printer expansion kit (SG-KI1A) simply as "CD-ROM".
• The PS3 expansion kit (SG-PEK) mentioned in this manual is an option.
SOFTWARE LICENSE
The SOFTWARE LICENSE will appear when you install the software from the CD-ROM. By using all or any portion of the software on the CD-ROM or in the machine, you are agreeing to be bound by the terms of the SOFTWARE LICENSE.
The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product improvements and modifications.
CONTENTS
SETUP IN A WINDOWS ENVIRONMENT
ABOUT THE SOFTWARE..................................................................................................... 2
BEFORE INSTALLATION ..................................................................................................... 3
HARDWARE AND SOFTWARE REQUIREMENTS ................................................................... 3
INSTALLATION ENVIRONMENT AND INSTALLATION PROCEDURE.................................... 3
USING THE MACHINE AS A NETWORK PRINTER ............................................................ 4
CONNECTING TO A NETWORK ............................................................................................... 4
INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER......................................................... 5
INSTALLING THE PRINTER STATUS MONITOR ...................................................................11
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION.............................. 12
INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER .......................................................12
CONNECTING TO A COMPUTER ........................................................................................... 19
USING THE MACHINE AS A SHARED PRINTER ............................................................. 20

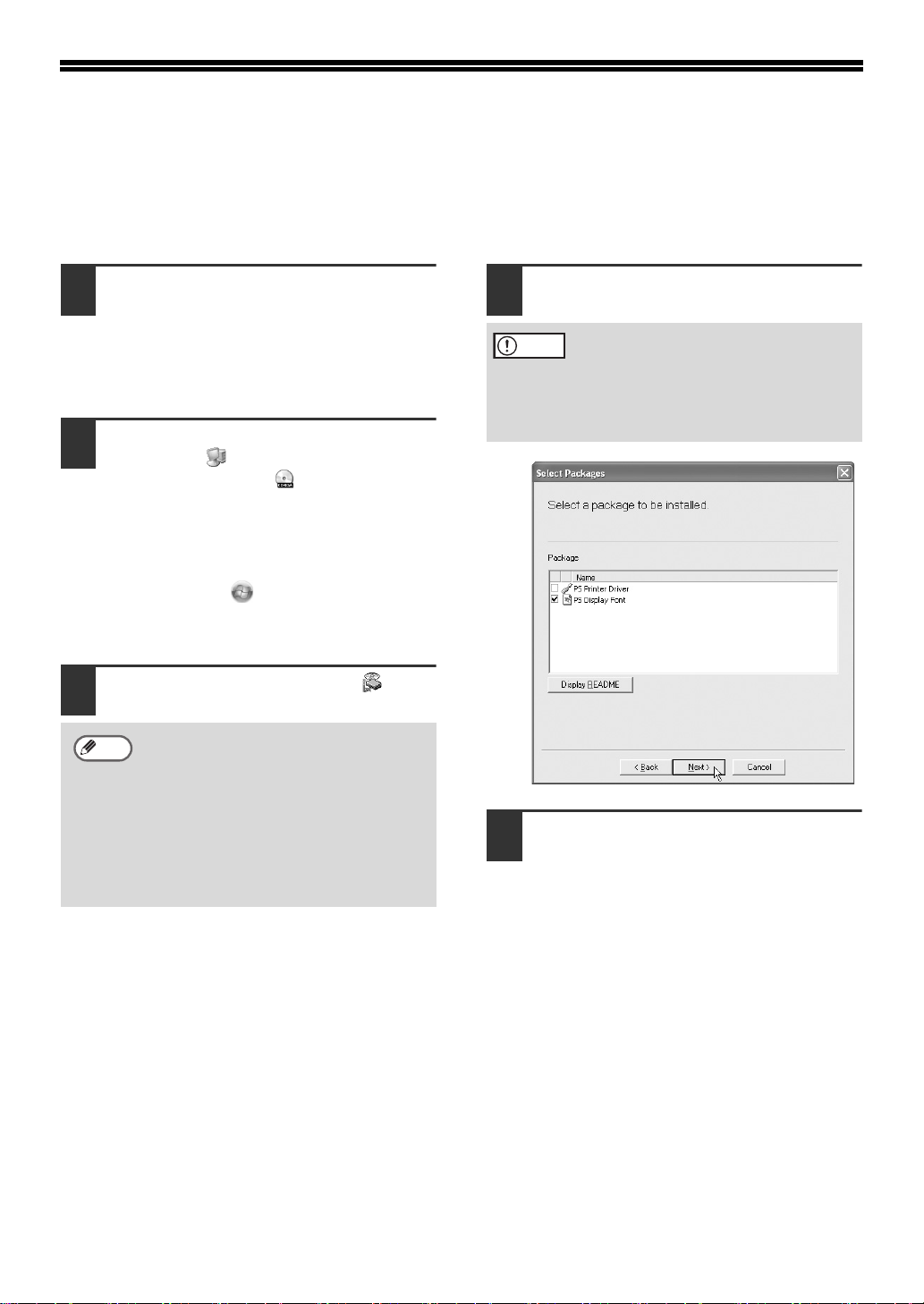

INSTALLING THE PS DISPLAY FONTS ............................................................................ 22
USING THE STANDARD WINDOWS PS PRINTER DRIVER (Windows 98/Me/NT 4.0) CONFIGURING THE PRINTER DRIVER
HOW TO USE THE ONLINE MANUAL............................................................................... 26
TROUBLESHOOTING......................................................................................................... 27
.................................................................................. 24
........ 23
SETUP IN A MACINTOSH ENVIRONMENT
ABOUT THE SOFTWARE................................................................................................... 29
BEFORE INSTALLATION ................................................................................................... 29
HARDWARE AND SOFTWARE REQUIREMENTS ................................................................. 29
CONNECTING TO A NETWORK ............................................................................................. 29

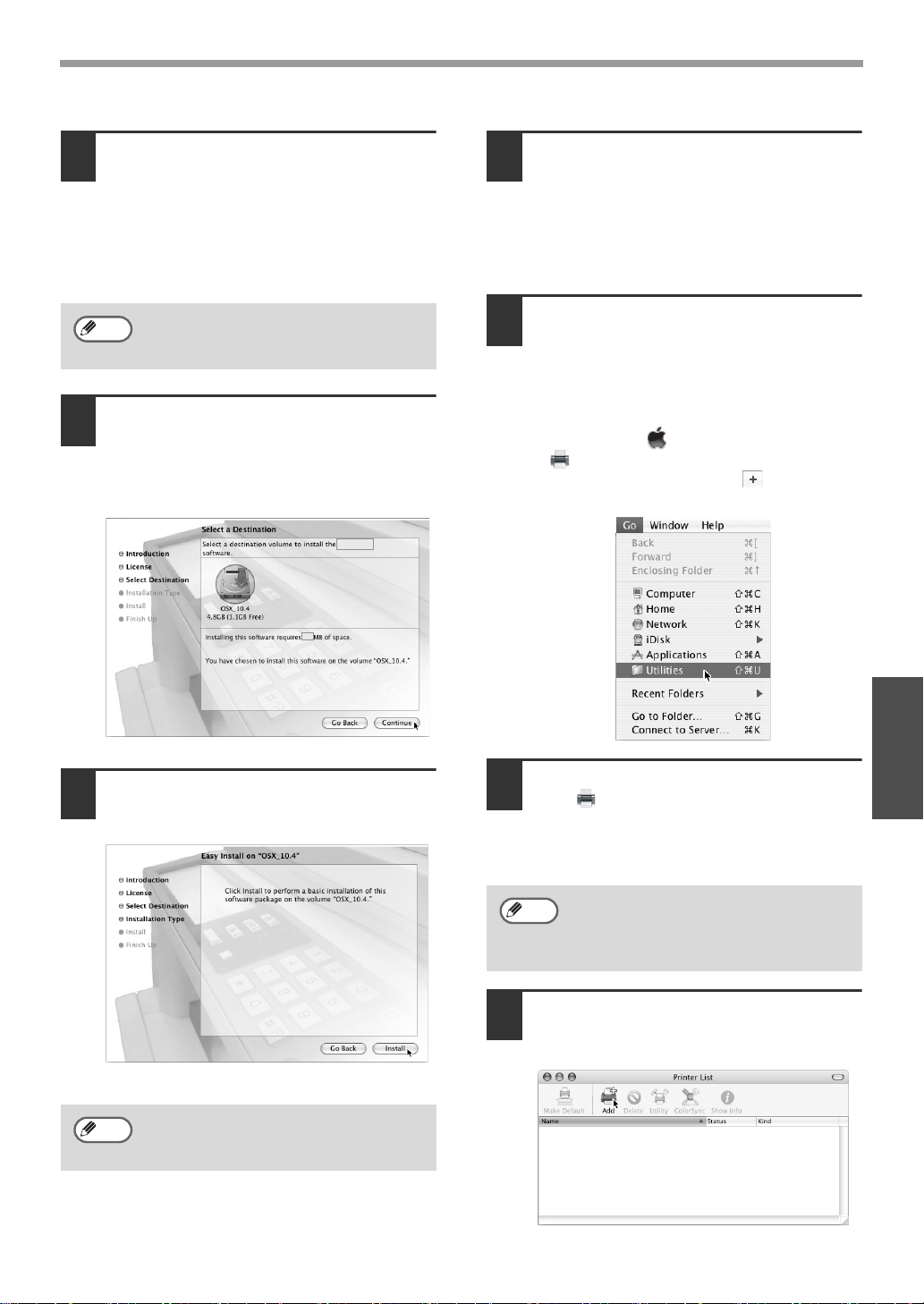

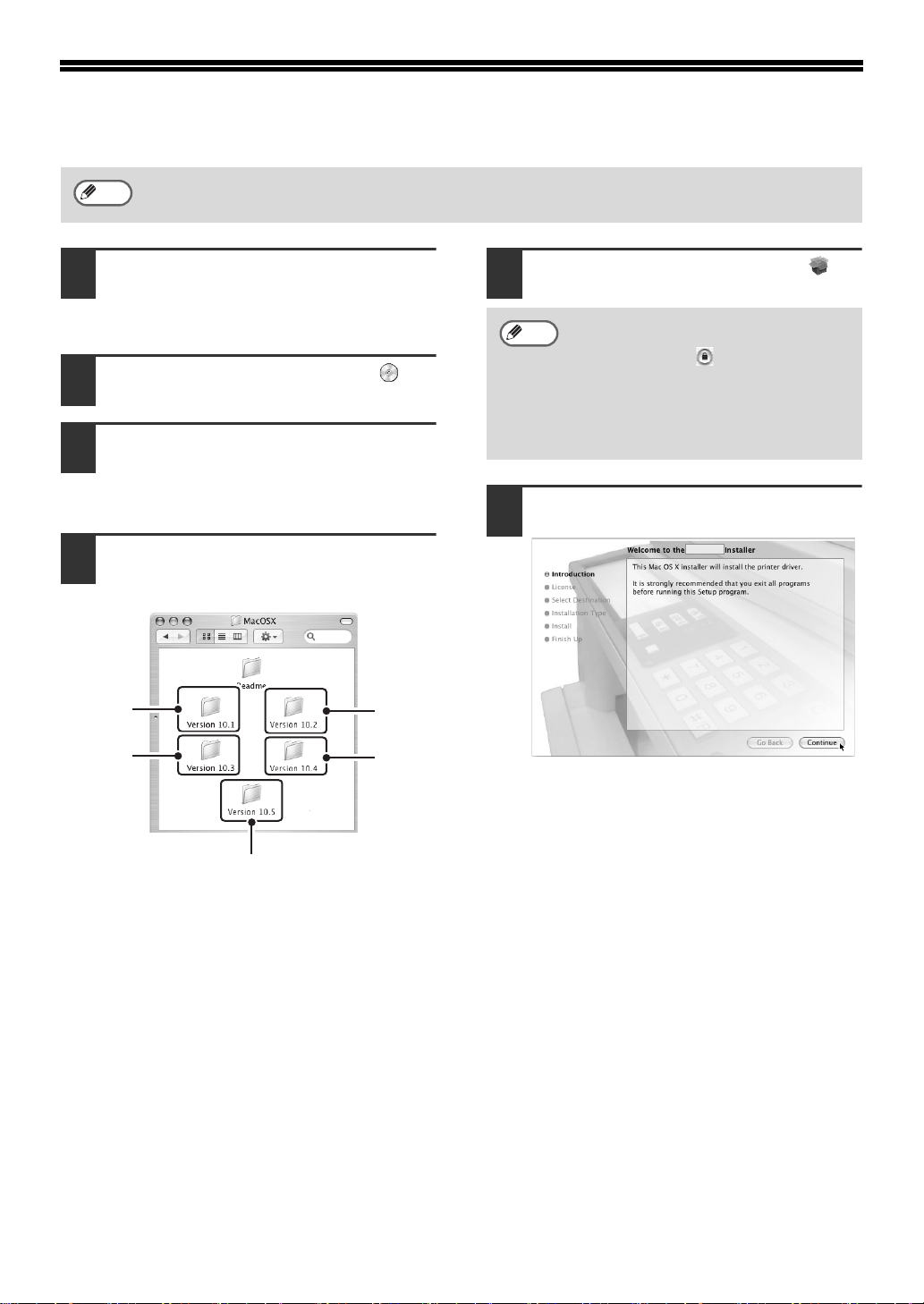

MAC OS X............................................................................................................................ 30
MAC OS 9.0 - 9.2.2..............................................................................................................35
HOW TO USE THE ONLINE MANUAL............................................................................... 37
1
SETUP IN A WINDOWS ENVIRONMENT
ABOUT THE SOFTWARE
The "Software CD-ROM" consists of 2 discs. The CD-ROM contains the following software:
Note
For users of Windows NT 4.0
The CD-ROM does not include software for Windows NT 4.0. Contact your dealer or nearest authorized service representative if you want the software for Windows NT 4.0.
Disc 1
Printer driver
These allow the machine to be used as a printer.
- PCL6 and PCL5e printer driver
The machine supports the Hewlett-Packard PCL6 and PCL5e printer control languages. It is recommended that you use the PCL6 printer driver. If you have a problem printing from older software using the PCL6 printer driver, use the PCL5e printer driver.
- PS printer driver*
The PS printer driver supports the PostScript 3 page description language developed by Adobe Systems Incorporated.
- PPD driver*
The PPD driver enables the machine to use the standard Windows PS printer driver.
Printer Status Monitor*
This allows you to monitor the status of the machine on your computer screen.
1
1
2
Disc 2
PC-Fax driver*
This enables you to send a file from your computer as a fax using the same procedure as when printing the file. (When the fax option is installed.)
Printer Administration Utility*
This allows the administrator to monitor the machine and configure machine settings from a computer. To install and use the Printer Administration Utility, see the Readme file and the manual in PDF format on the "Software CD-ROM" (Disc 2). The Readme file and manual are in the following folder on the CD-ROM. (Substitute the letter of your CD-ROM drive for "R" in the following path.)
R:\Sadmin\Documents\English
3
2
*1 To use the PS printer driver or the PPD driver, the PS3 expansion kit must be installed. *2 To use the Printer Status Monitor and the Printer Administration Utility, the printer must be connected to a
network running TCP/IP protocol.
*3 To use the PC-Fax driver, Internet Explorer 4.0 or later must be installed on your computer.
2
BEFORE INSTALLATION
HARDWARE AND SOFTWARE REQUIREMENTS
Check the following hardware and software requirements before installing the software.
Computer type IBM PC/AT or compatible computer equipped with a USB 2.0/1.1*1, bi-directional
parallel interface (IEEE 1284), or 10Base-T/100Base-TX LAN card
Operating system Windows 98, Windows Me,
Windows NT Workstation 4.0 (Service Pack 5 or later)* Windows 2000 Professional* Windows XP Home Edition*2, Windows Server 2003*2, Windows Vista*2, Windows Server 2008*
Other hardware requirements An environment that allows any of the above operating systems to fully operate
*1 Compatible with Windows 98, Windows Me, Windows 2000 Professional, Windows XP Professional,
Windows XP Home Edition, Windows Server 2003, Windows Vista or Windows Server 2008 preinstalled models equipped with a USB interface as standard.
*2 Administrator's rights are required to install the software using the installer.
2
, Windows XP Professional*2,
2
INSTALLATION ENVIRONMENT AND INSTALLATION PROCEDURE
2
,
Windows
Follow the appropriate installation procedure for your operating system and type of cable as indicated below.
Cable Operating system Procedure to follow
LAN
USB
Parallel
Printer sharing
Note
Windows 98/Me/ NT 4.0/2000/XP/ Server 2003/Vista/ Server 2008
Windows 98/Me/2000 Installation in Windows 98/Me/2000 (USB cable) (page 14) Windows XP/Server 2003/
Vista/Server 2008 Windows 98/Me/
NT 4.0/2000 Windows XP/Server 2003/
Vista/Server 2008 Windows 98/Me/
NT 4.0/2000/XP/ Server 2003/Vista/ Server 2008
For users of Windows NT 4.0
The CD-ROM does not include software for Windows NT 4.0. Contact your dealer or nearest authorized service representative if you want the software for Windows NT 4.0.
1. CONNECTING TO A NETWORK (page 4)
2. INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER (page 5)
Installation in Windows XP/Server 2003/Vista/Server 2008 (USB/parallel cable) (page 12)
Installation in Windows 98/Me/NT 4.0/2000 (parallel cable) (page 16)
Installation in Windows XP/Server 2003/Vista/Server 2008 (USB/parallel cable) (page 12)
USING THE MACHINE AS A SHARED PRINTER (page 20)
3
USING THE MACHINE AS A NETWORK PRINTER
This section explains how to install the software when the machine is connected to a Windows network (TCP/IP network).
TCP/IP network (Local area network)
Printing using LPR protocol
Windows computer connected to the same network as the machine
CONNECTING TO A NETWORK
To connect the machine to a network, connect the LAN cable to the machine's network connector. Use a shielded LAN cable. After connecting the machine to a network, be sure to configure the IP address and other network settings before installing the software. (The factory default setting for the IP address is to receive the IP address automatically when the machine is used in a DHCP environment.) Network settings can be configured using "NETWORK SETTINGS" in the key operator programs on the machine.
Caution
If the machine is used in a DHCP environment, the IP address of the machine may change. If this happens, printing will not be possible. This problem can be avoided by using a WINS server or by assigning a permanent IP address to the machine.
Checking the IP address of the machine
You can check the IP address of the machine by printing out the "PRINTER SETTINGS LIST" in the custom settings. Follow these steps to print out the "PRINTER SETTINGS LIST". Press the [CUSTOM SETTINGS] key, touch the [LIST PRINT] key, touch the [PRINTER TEST PAGE] key, and then touch the [PRINTER SETTINGS LIST] key.
4
USING THE MACHINE AS A NETWORK PRINTER
INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER
Supported operating systems: Windows 98/Me/NT 4.0*/2000*/XP*/Server 2003*/Vista*/Server 2008*
* Administrator's rights are required to install the software.
Note
1
2
For users of Windows NT 4.0
• The CD-ROM does not include software for Windows NT 4.0. Contact your dealer or nearest authorized service representative if you want the software for Windows NT 4.0.
To use the machine as a network printer in Windows NT 4.0, "TCP/IP Protocol" must be installed on your computer. If this is not installed, see Windows NT 4.0 Help to install "TCP/IP Protocol".
• The PS3 expansion kit is required to use the PS printer driver or the PPD driver.
• To install the PPD driver when Windows 98/Me/NT 4.0 is used, see "USING THE STANDARD WINDOWS PS PRINTER DRIVER (Windows 98/Me/NT 4.0)" (page 23) and install the driver using the Add Printer Wizard.
To print to the machine over the Internet using the IPP function when the machine is installed in a remote location, or to print using the SSL (encrypted communication) function, see "Printing using the IPP function and the SSL function" (page 8) and install the printer driver or the PC-Fax driver.
• The installation procedure in this section is for both the printer driver and the PC-Fax driver, although the explanations are centered on the printer driver.

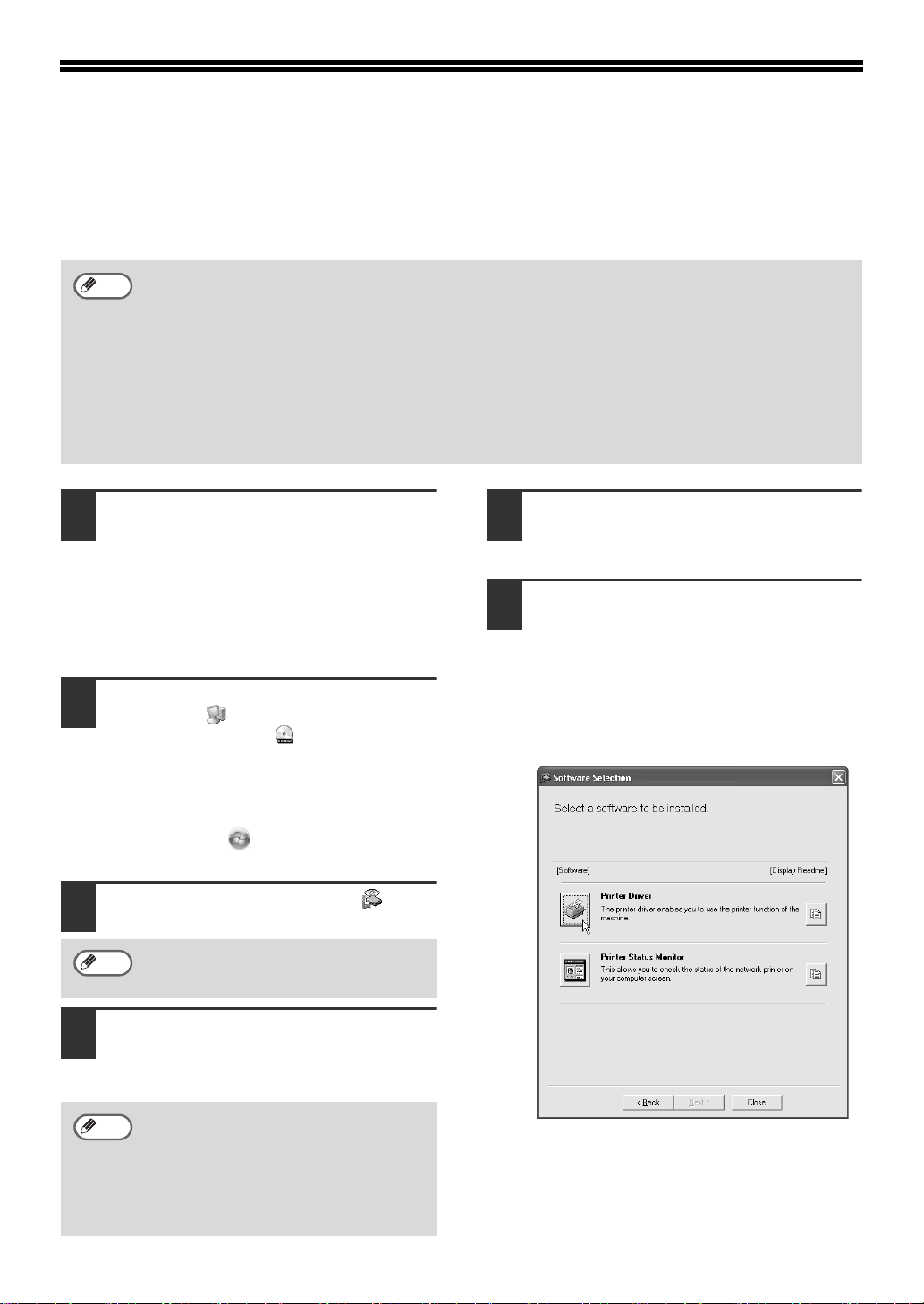

Insert the "Software CD-ROM" into your computer's CD-ROM drive.
If you are installing the printer driver, insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
If you are installing the PC-Fax driver, insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Click the [start] button, click [My Computer] ( ), and then double-click the [CD-ROM] icon ( ).
• In Windows 98/Me/2000, double-click [My Computer] and then double-click the [CD-ROM] icon.
In Windows Vista/Server 2008, click the [Start] button ( ), click [Computer], and then double-click the [CD-ROM] icon.
Read the message in the "Welcome"
5
window and then click the [Next] button.
Click the [Printer Driver] button.
6
• To install the PC-Fax driver, click the [PC-Fax Driver] button.
• Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
Windows
Double-click the [Setup] icon ( ).
3
Note
4
Note
In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click [Allow].
The "SOFTWARE LICENSE" window will appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
* The above screen appears when the printer
driver is being installed.
5
USING THE MACHINE AS A NETWORK PRINTER

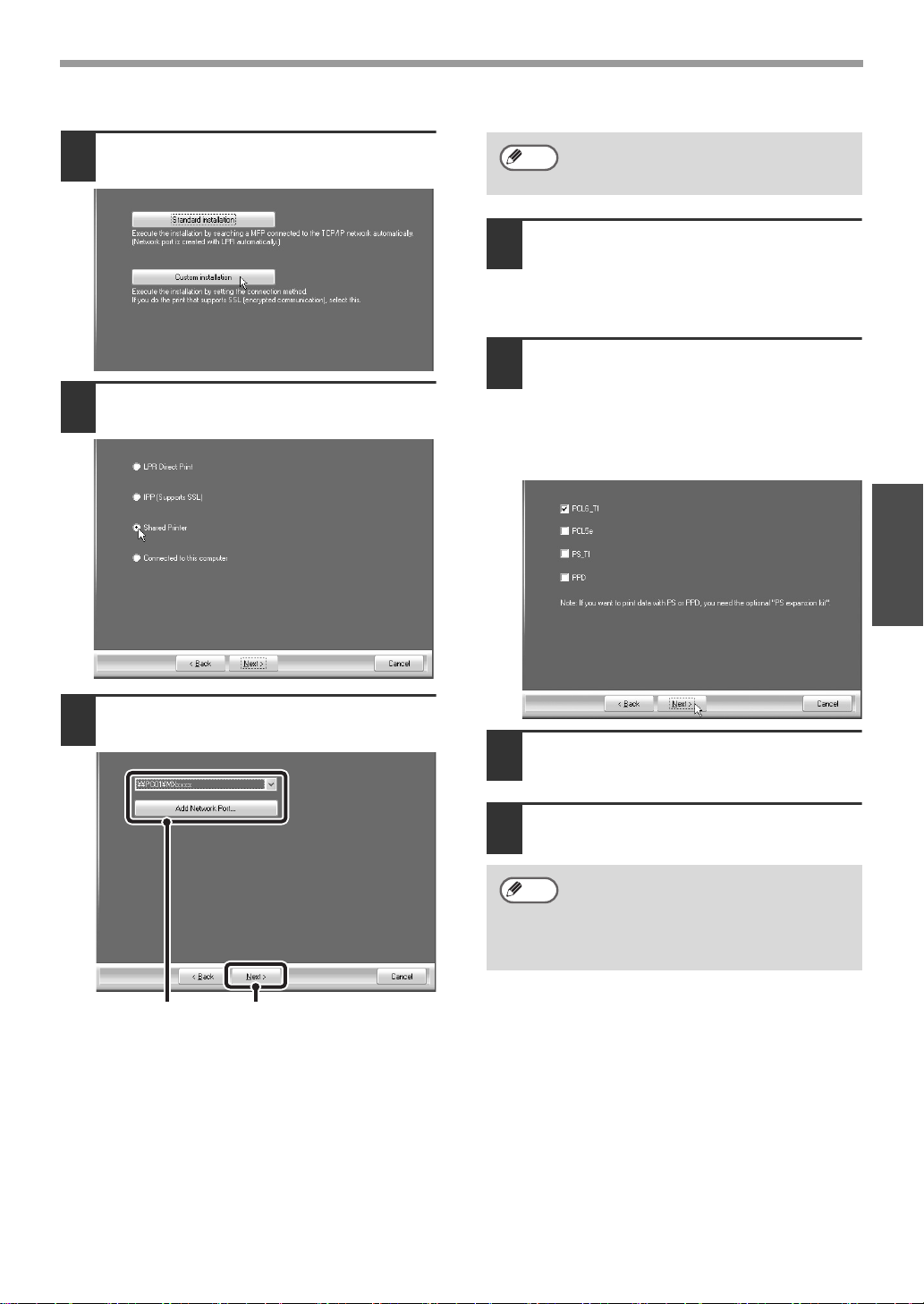

Click the [Standard installation] button.
7
Note
When [Custom installation] is selected, you can change any of the items below. When [Standard installation] is selected, the installation will take place as indicated below.
• Machine connection method: LPR Direct Print
• Set as default printer: Yes (excluding the PC-Fax driver)
• Printer driver name: Cannot be changed
• PCL printer display fonts: Installed
If you selected [Custom installation], select [LPR Direct Print] and click the [Next] button. If you selected other than [LPR Direct Print], see the following pages:
• IPP: page 8
• Shared printer: page 20 Connected to this computer: page 12
Printers connected to the network are
8
detected. Select the machine and click the [Next] button.
Note
9
10
• If the machine is not found, make sure that the machine is powered on and that the machine is connected to the network, and then click the [Re-search] button.
• You can also click the [Specify condition] button and search for the machine by entering the machine's name (host name) or IP address. For information about checking the IP address, see "Checking the IP address of the machine" (page 4).
A confirmation window appears. Check the contents and then click the [Next] button.
When the printer driver selection window appears, select the printer driver to be installed and click the [Next] button.
Click the checkbox of the printer driver to be installed so that a checkmark ( ) appears.
6
USING THE MACHINE AS A NETWORK PRINTER
Note
11
• When the PC-Fax driver is being installed, this screen does not appear. Go to the next step.
• The PS3 expansion kit is required to use the PS printer driver or the PPD driver.
• The [PPD] checkbox only appears if you are using Windows 2000/XP/ Server 2003/Vista/Server 2008.
When you are asked whether or not you want the printer to be your default printer, make a selection and click the [Next] button.
If you are installing multiple drivers, select the printer driver to be used as the default printer. If you do not wish to set one of the printer drivers as the default printer, select [No].
Note
If you clicked the [Custom installation] button in step 7, the following windows will appear.
Printer name window If you wish to change the printer name, enter the desired name and click the [Next] button.
Window confirming installation of
the display fonts
To install the display fonts for the PCL printer driver, select [Yes] and click the [Next] button.
• When the PC-Fax driver is being
installed, this screen does not appear. Go to the next step.
• If you are not installing the PCL
printer driver (you are installing the PS printer driver or the PPD driver), select [No] and click the [Next] button.
Follow the on-screen instructions.
12
Read the message in the window that appears and click the [Next] button. Installation begins.
Caution
13

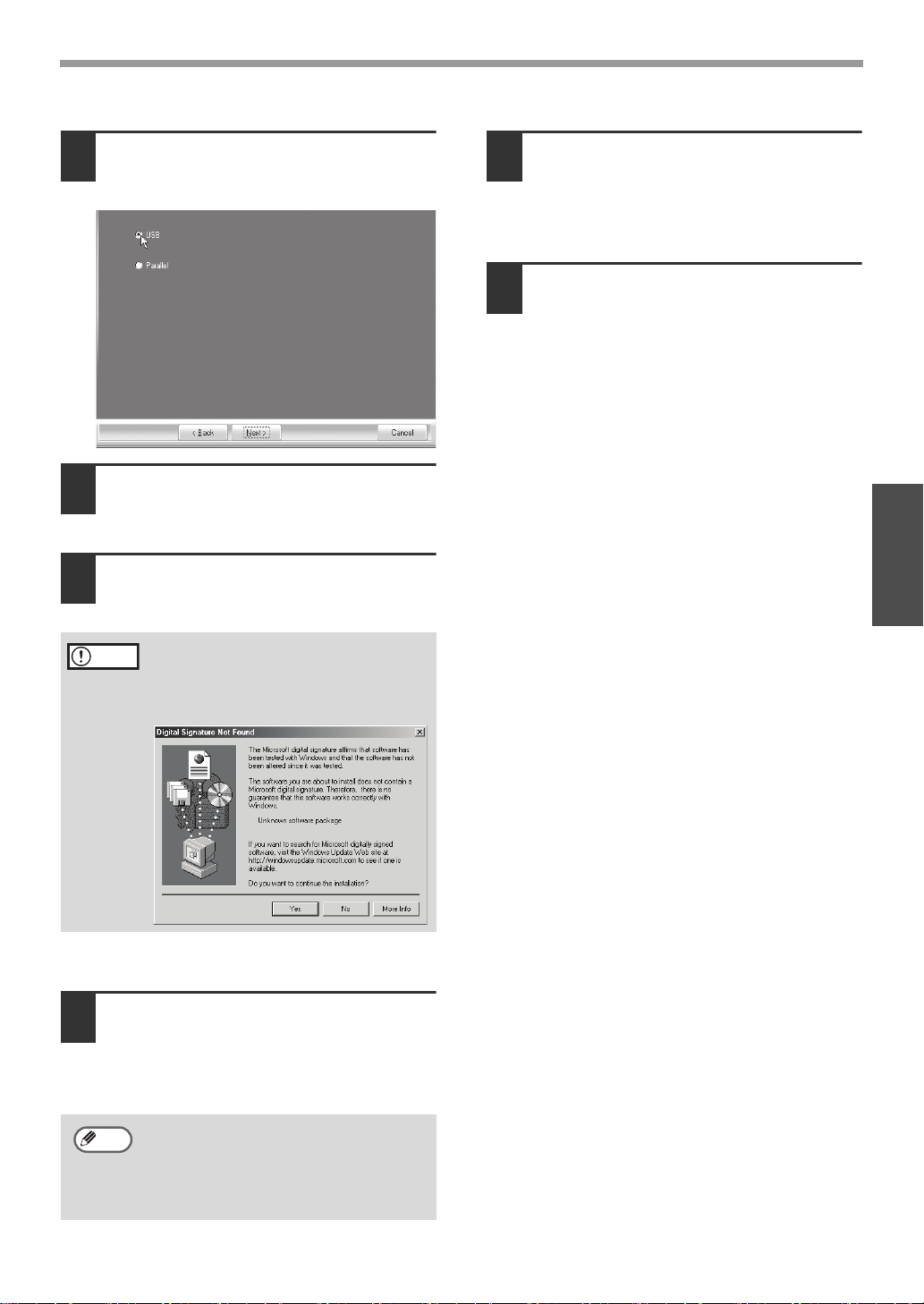

If you are using Windows 2000/XP/Server 2003
If a warning message regarding the Windows logo test or digital signature appears, be sure to click the [Continue Anyway] or [Yes] button.
If you are using Windows
Vista/Server 2008
If a security warning window appears, be sure to click [Install this driver software anyway].
When the installation completed screen appears, click the [OK] button.
Click the [Close] button in the window
14
of step 6.
Note
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
This completes the installation.
• After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
• If you installed the PS printer driver or the PPD driver, the PS display fonts can be installed from the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. See "INSTALLING THE PS DISPLAY FONTS" (page 22).
• If you are using the machine as a shared printer, see "USING THE MACHINE AS A SHARED PRINTER" (page 20) to install the printer driver on each of the client computers.
Windows
7
USING THE MACHINE AS A NETWORK PRINTER

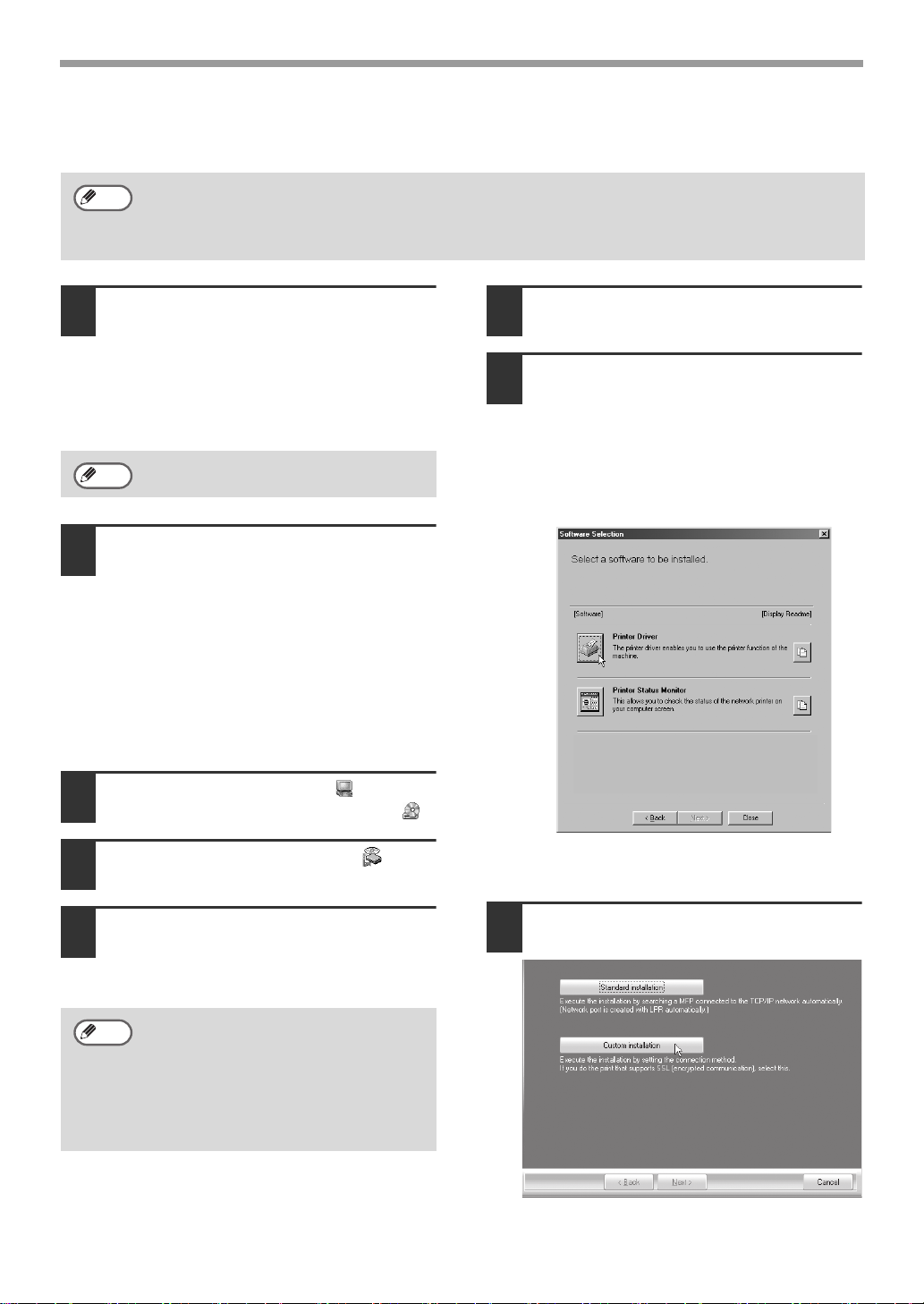

Printing using the IPP function and the SSL function
The IPP function can be used to print to the machine over a network using HTTP protocol. When the machine is in a remote location, this function can be used in place of the fax function to print a higher quality image than a fax. The IPP function can also be used in combination with the SSL (encrypted communication) function to encrypt the print data. This enables secure printing with no concern that the data will be leaked to others.
Note
1
2
3
To use the SSL function, configure the "SSL SETTINGS" in the key operator programs of the machine. To configure the settings, see the "Key operator's guide".
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
• If you are installing the printer driver, insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
• If you are installing the PC-Fax driver, insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Click the [start] button, click [My Computer] ( ), and then double-click the [CD-ROM] icon ( ).
In Windows 98/Me/2000, double-click [My Computer] and then double-click the [CD-ROM] icon.
In Windows Vista/Server 2008, click the [Start] button ( ), click [Computer], and then double-click the [CD-ROM] icon.
Double-click the [Setup] icon ( ).
Click the [Printer Driver] button.
6
• To install the PC-Fax driver, click the [PC-Fax Driver] button.
Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
Note
4
Note
5
In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click [Allow].
The "SOFTWARE LICENSE" window will appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
Read the message in the "Welcome" window and then click the [Next] button.
8
* The above screen appears when the printer
driver is being installed.
Click the [Custom installation] button.
7
USING THE MACHINE AS A NETWORK PRINTER
When you are asked how the printer is
8
connected, select [IPP] and click the [Next] button.
If a proxy server is used, specify the
9
proxy server and click the [Next] button.
To specify a proxy server, select [Print via the proxy server] and then enter the [Address] and [Port number].
Enter the machine's URL and click the
10
[Next] button.
Enter the URL in the following format:
Normal format:
http://<the machine's domain name or IP address>:631* *1 Normally "631" should be entered for
the port number. If the IPP port number has been changed on the machine, enter the new port number.
When SSL is used:
https://< the machine's domain name or IP address>:<port number* *2 Normally the port number and the colon
":" immediately preceding the port number can be omitted. If the IPP port number for SSL has been changed on the machine, enter the new port number.
1
/ipp
2
>/ipp
Windows
Note
11
If your computer and the machine are connected to the same local area network, you can click the [Search] button to search for the machine. The machine's URL will appear. Select the URL and click the [OK] button. You will return to the above screen and the machine's URL will be automatically entered.
When the model selection window appears, select the model name of your machine and click the [Next] button.
9
USING THE MACHINE AS A NETWORK PRINTER
When the printer driver selection window
12
appears, select the printer driver to be installed and click the [Next] button.
Click the checkbox of the printer driver to be installed so that a checkmark ( ) appears.
Note
13
14
15
• When the PC-Fax driver is being installed, this screen does not appear. Go to the next step.
• The PS3 expansion kit is required to use the PS printer driver or the PPD driver.
• The [PPD] checkbox only appears if you are using Windows 2000/XP/ Server 2003/Vista/Server 2008.
Select whether or not you wish the printer to be your default printer and click the [Next] button.
If you are installing multiple drivers, select the printer driver to be used as the default printer. If you do not wish to set one of the printer drivers as the default printer, select [No].
When the printer name window appears, click the [Next] button.
If you wish to change the printer name, enter the desired name.
When you are asked if you wish to install the display fonts, select an answer and click the [Next] button.
• When the PC-Fax driver is being installed, this screen does not appear. Go to the next step.
• If you are not installing the PCL printer driver (you are installing the PS printer driver or the PPD driver), select [No] and click the [Next] button.
Follow the on-screen instructions.
16
Read the message in the window that appears and click the [Next] button. Installation begins.
Caution
17
18
Note
This completes the installation.
• After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
• If you installed the PS printer driver or the PPD driver, the PS display fonts can be installed from the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. See "INSTALLING THE PS DISPLAY FONTS" (page 22).
If you are using Windows
2000/XP/Server 2003
If a warning message regarding the Windows logo test or digital signature appears, be sure to click the [Continue Anyway] or [Yes] button.
If you are using Windows
Vista/Server 2008
If a security warning window appears, be sure to click [Install this driver software anyway].
When the installation completed screen appears, click the [OK] button.
Click the [Close] button in the window of step 6.
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
10
USING THE MACHINE AS A NETWORK PRINTER
INSTALLING THE PRINTER STATUS MONITOR
Note
Supported operating systems: Windows 98/Me/NT 4.0*/2000*/XP*/Server 2003*/Vista*/Server 2008*
* Administrator's rights are required to install the software.
1
2
3
Note
The Printer Status Monitor cannot be used when printing to the machine using the IPP function.
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
Click the [start] button, click [My Computer] ( ), and then double-click the [CD-ROM] icon ( ).
• In Windows 98/Me/2000, double-click [My Computer] and then double-click the [CD-ROM] icon.
In Windows Vista/Server 2008, click the [Start] button ( ), click [Computer], and then double-click the [CD-ROM] icon.
Double-click the [Setup] icon ( ).
In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click [Allow].
Click the [Printer Status Monitor] button.
6
Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
Follow the on-screen instructions.
7
Windows
The "SOFTWARE LICENSE" window will
4
appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
Note
5
This completes the installation.
For the procedures for using the Printer Status Monitor, see the Help file. Follow these steps to view the Help file: Click the Windows [start] button, select [All Programs] ([Programs] in versions of Windows other than Windows XP/Server 2003/Vista/Server 2008), select [SAGEM Printer Status Monitor] and then select [Help].
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
Read the message in the "Welcome" window and then click the [Next] button.
When the installation completed screen
8
appears, click the [Finish] button.
To have the Printer Status Monitor start automatically when your computer is started, select the [Add this program to your Startup folder] checkbox and click the [Finish] button.
Click the [Close] button in the window
9
of step 6.
Note
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
11
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER
Note
• The PS3 expansion kit is required to use the PS printer driver or the PPD driver.
• To install the PPD driver when Windows 98/Me is used, see "USING THE STANDARD WINDOWS PS PRINTER DRIVER (Windows 98/Me/NT 4.0)" (page 23) and install the driver using the Add Printer Wizard.
• To use the port created when the printer driver is installed for fax data transfer, install the printer driver first and then install the PC-Fax driver.
Installation in Windows XP/Server 2003/Vista/Server 2008 (USB/parallel cable)
The USB or parallel cable must not be
1
connected to the machine. Make sure that the cable is not connected before proceeding.
If a cable is connected, a Plug and Play window will appear. If this happens, click the [Cancel] button to close the window and disconnect the cable.
Note
2
The cable will be connected in step 13.
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.

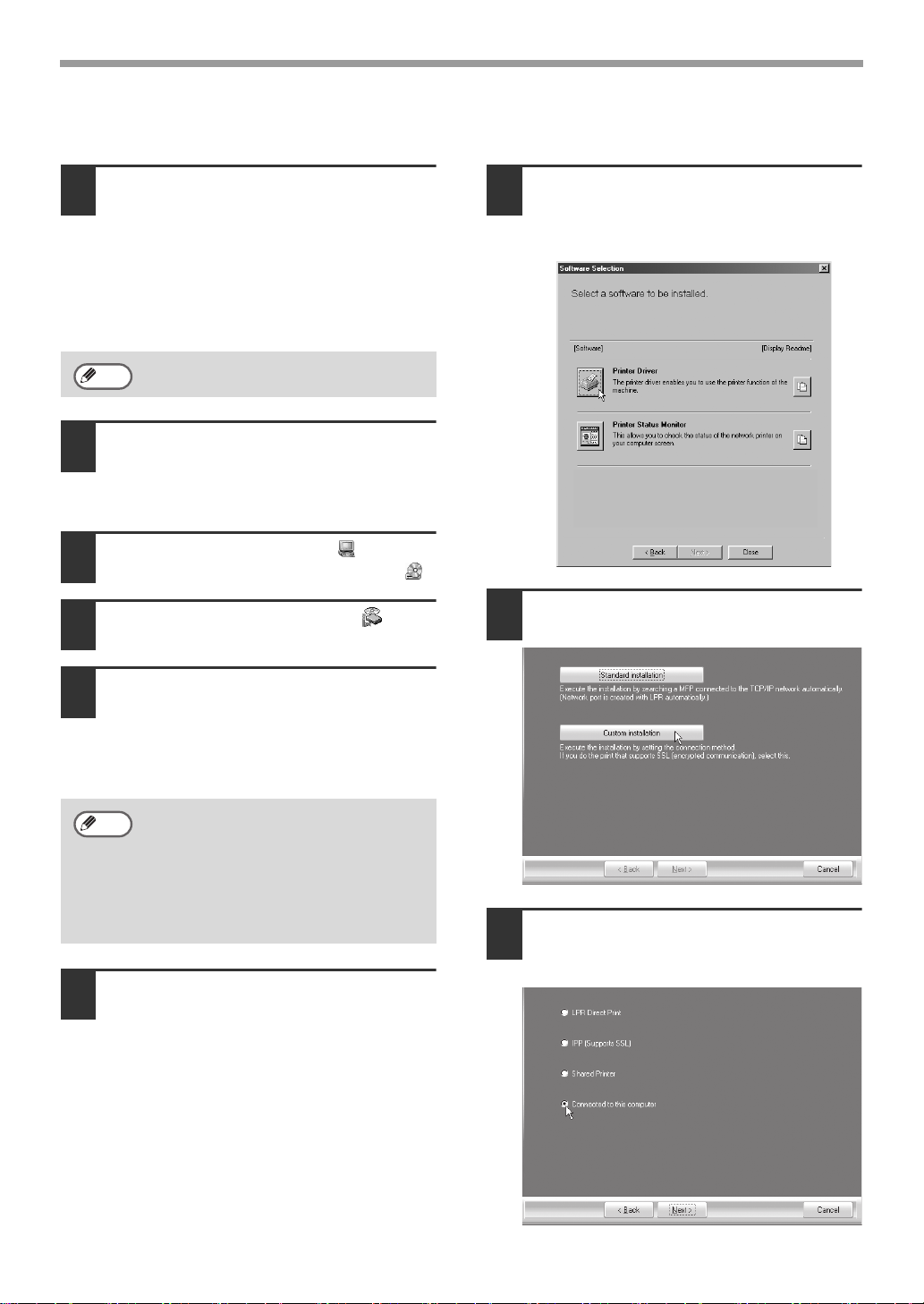

Read the message in the "Welcome"
6
window and then click the [Next] button.
Click the [Printer Driver] button.
7
Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
Click the [start] button, click [My
3
Computer] ( ), and then double-click the [CD-ROM] icon ( ).
Double-click the [Setup] icon ( ).
4
The "SOFTWARE LICENSE" window will
5
appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
Note
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
12
Click the [Custom installation] button.
8
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION

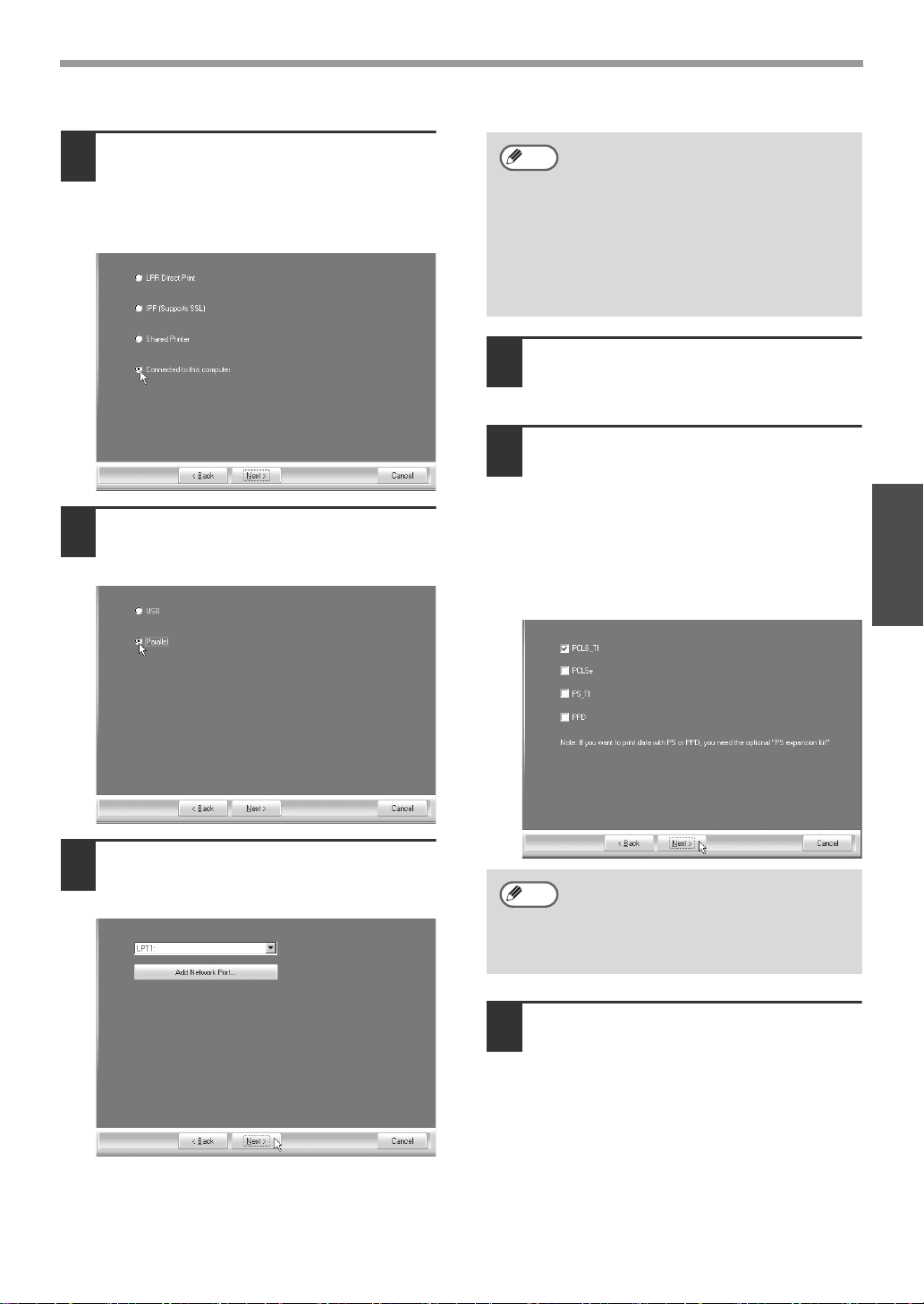

When you are asked how the printer is
9
connected, select [Connected to this computer] and click the [Next] button.
When you are asked if you wish to
10
install the display fonts, select an answer and click the [Next] button.
Follow the on-screen instructions.
11
Read the message in the window that appears and click the [Next] button. When the installation completed screen appears, click the [OK] button.
Caution
12
Note
If you are using Windows XP/Server 2003
If a warning message regarding the Windows logo test or digital signature appears, be sure to click the [Continue Anyway] or [Yes] button.
If you are using Windows
Vista/Server 2008
If a security warning window appears, be sure to click [Install this driver software anyway].
Click the [Close] button in the window of step 7.
When a message appears prompting you to connect the machine to your computer, click the [OK] button.
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
Connect the interface cable to the
13
machine and your computer (page 19).
If you are using a USB cable, make sure the machine's power is turned on and then connect the cable.
If you are using a parallel cable,
power of the machine and your computer, connect the cable, turn on the power of the machine, and then turn on your computer.
Windows will detect the machine and the Plug and Play screen will appear.
Installation of the PCL6 printer driver
14
begins.
When the "Found New Hardware Wizard" appears, select [Install the software automatically (Recommended)], click the [Next] button, and follow the on-screen instructions.
Caution
After completing the above steps, repeat the installation procedure from step 2 if you are installing the PCL5e, PS, PPD, or PC-Fax driver.
1.
Repeat the installation procedure from step 2. If you are installing the PC-Fax driver, insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM and click the [PC-Fax Driver] button in step 7.
2. When the select printer driver to install screen appears, remove the checkmark from [PCL6] and select the checkbox of the printer driver that you wish to install.
This completes the installation.
• After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
• If you installed the PS printer driver or the PPD driver, the PS display fonts can be installed from the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. See "INSTALLING THE PS DISPLAY FONTS" (page 22).
• If you are using the machine as a shared printer, see "USING THE MACHINE AS A SHARED PRINTER" (page 20) to install the printer driver on each of the client computers.
If you are using Windows
XP/Server 2003
If a warning message regarding the Windows logo test or digital signature appears, be sure to click the [Continue Anyway] or [Yes] button.
If you are using Windows
Vista/Server 2008
If a security warning window appears, be sure to click [Install this driver software anyway].
turn off the
Windows
13
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
Installation in Windows 98/Me/2000 (USB cable)
The USB cable must not be connected
1
to the machine. Make sure that the cable is not connected before proceeding.
If a cable is connected, a Plug and Play window will appear. If this happens, click the [Cancel] button to close the window and disconnect the cable.
Note
2
3
4
5
The cable will be connected in step 14.
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
Double-click [My Computer] ( ), and then double-click the [CD-ROM] icon ( ).
Double-click the [Setup] icon ( ).
The "SOFTWARE LICENSE" window will appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
Click the [Printer Driver] button.
7
Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
Click the [Custom installation] button.
8
Note
6
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
Read the message in the "Welcome" window and then click the [Next] button.
14
When you are asked how the printer is
9
connected, select [Connected to this computer] and click the [Next] button.
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
When the interface selection screen
10
appears, select [USB] and click the [Next] button.
When you are asked if you wish to
11
install the display fonts, select an answer and click the [Next] button.
Follow the on-screen instructions.
12
Read the message in the window that appears and click the [Next] button.
Caution
In Windows 2000, if the following screen appears while the files are being copied (the message may appear more than once), click the [Yes] button.
When the installation completed screen appears, click the [OK] button.
Make sure that the power of the
14
machine is turned on, and then connect the USB cable (page 19).
Windows will detect the machine and the Plug and Play screen will appear.
Follow the instructions in the Plug and
15
Play screen that appears in your version of Windows to begin the installation.
After completing the above steps, repeat the installation procedure from step 2 if you are installing the PCL5e, PS, PPD, or PC-Fax driver.
1.
Repeat the installation procedure from step 2. If you are installing the PC-Fax driver, insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM and click the [PC-Fax Driver] button in step 7.
2. When the select printer driver to install screen appears, remove the checkmark from [PCL6] and select the checkbox of the printer driver that you wish to install.
This completes the installation.
• After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
• If you installed the PS printer driver or the PPD driver, the PS display fonts can be installed from the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. See "INSTALLING THE PS DISPLAY FONTS" (page 22).
• If you are using the machine as a shared printer, see "USING THE MACHINE AS A SHARED PRINTER" (page 20) to install the printer driver on each of the client computers.
Windows
Click the [Close] button in the window
13
of step 7.
When a message appears prompting you to connect the machine to your computer, click the [OK] button.
Note
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
15
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
Installation in Windows 98/Me/NT 4.0/2000 (parallel cable)
Note
1
Note
2
For users of Windows NT 4.0
The CD-ROM does not include software for Windows NT 4.0. Contact your dealer or nearest authorized service representative if you want the software for Windows NT 4.0.
The parallel cable must not be connected to the machine. Make sure that the cable is not connected before proceeding.
If a cable is connected, a Plug and Play window will appear. If this happens, click the [Cancel] button to close the window and disconnect the cable.
The cable will be connected in step 19.
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
• If you are installing the printer driver, insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
• If you are installing the PC-Fax driver, insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Read the message in the "Welcome"
6
window and then click the [Next] button.
Click the [Printer Driver] button.
7
• To install the PC-Fax driver, click the [PC-Fax Driver] button.
• Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
Double-click [My Computer] ( ), and
3
then double-click the [CD-ROM] icon ( ).
Double-click the [Setup] icon ( ).
4
The "SOFTWARE LICENSE" window will
5
appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
Note
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
16
* The above screen appears when the printer
driver is being installed.
Click the [Custom installation] button.
8
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
When you are asked how the printer is
9
connected, select [Connected to this computer] and click the [Next] button.
If you are using Windows NT 4.0, go to step 11.
When the interface selection screen
10
appears, select [Parallel] and click the [Next] button.
Note
12
13
If "LPT1" does not appear, another printer or peripheral device is using LPT1. In this case continue the installation, and after the installation is finished, change the port setting so that the machine can use LPT1. This procedure is explained in "Another printer is using the parallel port (when using a parallel cable)" on page 27.
When the model selection window appears, select the model name of your machine and click the [Next] button.
When the printer driver selection window appears, select the printer driver to be installed and click the [Next] button.
• Select the checkboxes of the printer drivers to be installed.
• When the PC-Fax driver is being installed, this screen does not appear. Go to the next step.
Windows
Select the printer port and click the
11
[Next] button.
Select "LPT1" for the printer port.
Note
14
• To use the PS printer driver or the PPD driver, the PS3 expansion kit must be installed.
• The [PPD] checkbox only appears if you are using Windows 2000.
Select whether or not you wish the printer to be your default printer and click the [Next] button.
If you are installing multiple drivers, select the printer driver to be used as the default printer. If you do not wish to set one of the printer drivers as the default printer, select [No].
17
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
When the printer name window
15
appears, click the [Next] button.
If you wish to change the printer name, enter the desired name.
When you are asked if you wish to
16
install the display fonts, select an answer and click the [Next] button.
When the PC-Fax driver is being installed, this screen does not appear. Go to the next step.
Follow the on-screen instructions.
17
Read the message in the window that appears and click the [Next] button. When the installation completed screen appears, click the [OK] button.
Click the [Close] button in the window
18
of step 7.
When a message appears prompting you to connect the machine to your computer, click the [OK] button.
Turn off the power of the machine and your
19
computer, and connect the machine to your computer with the parallel cable (page 19).
After connecting the machine to your computer, turn on the power of the machine and then start up your computer.
This completes the installation.
• After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
• If you installed the PS printer driver or the PPD driver, the PS display fonts can be installed from the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. See "INSTALLING THE PS DISPLAY FONTS" (page 22).
• If you are using the machine as a shared printer, see "USING THE MACHINE AS A SHARED PRINTER" (page 20) to install the printer driver on each of the client computers.
Note
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
18
USING THE MACHINE WITH A PARALLEL OR USB CONNECTION
CONNECTING TO A COMPUTER
Follow the procedure below to connect the machine to your computer. Interface cables for connecting the machine to your computer are not included with the machine. Please purchase the appropriate cable for your computer.
Interface cable
USB cable
Shielded twisted pair cable, high-speed transmission equivalent (9 feet (3 m) max.) If the machine will be connected using a USB 2.0 interface, please purchase a USB cable that supports USB 2.0.
Parallel cable
IEEE 1284-Shielded type bi-directional parallel interface cable (9 feet (3 m) max.)
Caution
USB is available on a PC/AT compatible computer that was originally equipped with USB and had Windows 98, Windows Me, Windows 2000 Professional, Windows XP Professional, Windows XP Home Edition, Windows Server 2003, Windows Vista or Windows Server 2008 preinstalled.
Do not connect the interface cable before installing the printer driver. The interface cable must be connected during installation of the printer driver.
CONNECTING A USB CABLE
Insert the cable into the USB connector
1
on the machine.
Insert the other end of the cable into
2
your computer's USB connector.
CONNECTING A PARALLEL CABLE
Ensure that your computer and the
1
machine are turned off.
Insert the cable into the parallel
2
connector on the machine and fasten with the clasps.
Windows
Note
The cable can also be inserted into a USB 1.1 connector.
Insert the other end of the cable into
3
your computer's parallel connector.
19
USING THE MACHINE AS A SHARED PRINTER
If you are going to use the machine as a shared printer on a Windows network with the printer driver or the PC-Fax driver installed on a print server, follow the steps below to install the printer driver or the PC-Fax driver on the client computers.
Note
Ask your network administrator for the server name and printer name of the machine on the network.
• For the procedure for configuring settings on the print server, see the operation manual or the Help file of the operating system. The "print server" explained here is a computer that is connected directly to the machine, and "clients" are other computers connected to the same network as the print server.
• Install the same printer driver on client computers as the printer driver that is installed on the print server.
• If the PPD driver is installed on the print server and the client computers are running Windows 98/Me/NT 4.0, see "USING THE STANDARD WINDOWS PS PRINTER DRIVER (Windows 98/Me/NT 4.0)" (page 23) to install the printer driver using the Add Printer Wizard.
Insert the "Software CD-ROM" into
1
your computer's CD-ROM drive.
If you are installing the printer driver, insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
If you are installing the PC-Fax driver, insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Click the [start] button, click [My
2
Computer] ( ), and then double-click the [CD-ROM] icon ( ).
• In Windows 98/Me/2000, double-click [My Computer], and then double-click the [CD-ROM] icon.
In Windows Vista/Server 2008, click the [Start] button ( ), click [Computer], and then double-click the [CD-ROM] icon.
Double-click the [Setup] icon ( ).
3
Note
4
In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click [Allow].
The "SOFTWARE LICENSE" window will appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
Read the message in the "Welcome"
5
window and then click the [Next] button.
Click the [Printer Driver] button.
6
• To install the PC-Fax driver, click the [PC-Fax Driver] button.
• Before installing the software, be sure to click the [Display Readme] button and view the detailed information on the software.
20
Note
You can show the "SOFTWARE LICENSE" in a different language by selecting the desired language from the language menu. To install the software in the selected language, continue the installation with that language selected.
* The above screen appears when the printer
driver is being installed.
USING THE MACHINE AS A SHARED PRINTER
Click the [Custom installation] button.
7
Select [Shared Printer] and click the
8
[Next] button.
Note
10
11
If the shared printer does not appear in the list, check the settings in the printer server.
When the model selection window appears, select the model name of your machine and click the [Next] button.
If you are installing the PC-Fax driver, go to step 12.
When the printer driver selection window appears, select the printer driver to be installed and click the [Next] button.
Be sure to select the same printer driver as the printer driver used in the print server (the machine).
Windows
Select the printer name (configured as
9
a shared printer).
(2)(1)
(1) Select the printer name (configured as
a shared printer on6 a print server) from the list.
If you are using Windows 98/Me/NT 4.0/ 2000/XP, you can also click the [Add Network Port] button and select the printer to be shared by browsing the network in the window that appears. (In Windows Vista, the [Add Network Port] button does not appear.)
(2) Click the [Next] button.
Follow the on-screen instructions.
12
When the "Finish" screen appears,
13
click the [Close] button.
Note
This completes the installation.
• After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
• If you installed the PS printer driver or the PPD driver, the PS display fonts can be installed from the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. See "INSTALLING THE PS DISPLAY FONTS" (page 22).
After the installation, a message prompting you to restart your computer may appear. If this message appears, click the [Yes] button to restart your computer.
21
INSTALLING THE PS DISPLAY FONTS
Fonts that can be used by the PS printer driver are contained on the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. Install these fonts as needed for the PS printer driver.
Insert the "PRINTER UTILITIES"
1
CD-ROM that accompanies the PS3 expansion kit into your computer's CD-ROM drive.
If your computer is configured for auto start on the CD-ROM, proceed to step 4.
Click the [start] button, click [My
2
Computer] ( ), and then double-click the [CD-ROM] icon ( ).
• If you are using Windows 98/Me/NT 4.0/ 2000, double-click [My Computer], and then double-click the [CD-ROM] icon.
• In Windows Vista/Server 2008, click the [Start] button ( ), click [Computer], and then double-click the [CD-ROM] icon.
Double-click the [Setup] icon ( ).
3
Note
• In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click [Allow].
• If the language selection screen appears after you double click the [Setup] icon, select the language that you wish to use and click the [Next] button. (Normally the correct language is selected automatically.)
Select the [PS Display Font] checkbox
4
and click the [Next] button.
Caution
5
Do not select "PS Printer Driver". The PS printer driver for the machine should only be installed from the CD-ROM that accompanies the MF 9325/9331 and the SG-KI1A printer expansion kit.
Follow the on-screen instructions.
22
USING THE STANDARD WINDOWS PS PRINTER DRIVER (Windows 98/Me/NT 4.0)
If the PS3 expansion kit is installed on the machine and you wish to use the standard Windows 98/Me/NT
4.0 PS printer driver, follow the steps below to install the PPD driver using the Add Printer Wizard.
Note
The CD-ROM does not include software for Windows NT 4.0. Contact your dealer or nearest authorized service representative if you want the software for Windows NT 4.0.
• If you are using Windows 2000/XP/Server 2003/Vista/Server 2008, you can install the PPD driver from the installer.
• Be sure to view the Readme file (Readme.txt) before installing the PPD driver. If you are using Windows 98/Me, the Readme file is in the [English] folder of the "Software CD-ROM". If you are using Windows NT 4.0, the Readme file will be in the [English] folder inside the folder that contains the extracted files after you get the software. For the location of the folder, see step 4.
Insert the "Software CD-ROM" into
1
your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
Click the [Start] button, select [Settings] and
2
then click [Printers].
Double-click the [Add printer] icon.
3
The "Add Printer Wizard" will appear.
Follow the on-screen instructions.
4
When you are asked to specify the path of the PPD file, enter the path as follows. (Substitute the letter of your CD-ROM drive for "R" in the following paths.)
Operating system PPD file path
Windows 98/Me R:\Drivers\Printer
\English\PPD\9xMe
Windows NT 4.0 (Folder containing
extracted files) \English\PPD\NT40
Note
After installation, see "CONFIGURING THE PRINTER DRIVER" (page 24) to configure the printer driver settings.
Installing the resident font information (Windows 98/Me)
If you have installed the PPD driver on Windows 98/Me and will be using the resident fonts in the machine, you must install the resident font information. Follow the procedure below to install the resident font information.
Note
• Before installing the resident font information, be sure to install the PPD driver.
• In the event that a resident font cannot be selected in a software application, install the resident font information again.
Windows
Insert the "Software CD-ROM" into
1
your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 1" on the front of the CD-ROM.
Double-click [My Computer] ( ) and
2
then double-click the [CD-ROM] icon ().
Double-click the [Drivers] folder, the
3
[Printer] folder, the [English] folder, the [PPD] folder, the [9xMe] folder, and then [PFMSetup.exe].
Follow the on-screen instructions.
4
After the resident font information has been installed, restart your computer.
23
CONFIGURING THE PRINTER DRIVER
After installing the printer driver, you must configure the printer driver settings appropriately for the options that have been installed and the size and type of paper loaded in the machine. Follow the steps below to configure the printer driver.
Note
1
Note
2
3
If the PPD driver is installed, see "When the PPD driver is installed" (page 25).
Click the [start] button and then click [Printers and Faxes].
• In Windows 98/Me/NT 4.0/2000, click the [Start] button, select [Settings], and then click [Printers].
• In Windows Vista/Server 2008, click the [Start] button ( ), click [Control Panel], and then click [Printer].
If [Printers and Faxes] does not appear in the [start] menu in Windows XP, click the [start] button, click [Control Panel], click [Printers and Other Hardware], and then click [Printers and Faxes].
Open the printer properties window.
(1) Right-click the printer driver icon of
the machine.
(2) Select [Properties].
If you are using Windows NT 4.0/2000/XP/ Server 2003/Vista/Server 2008, go to step 4.
In Windows 98/Me, click the [Setup] tab.
Note
5
If the machine is used as a network printer, you can click the [Auto Configuration] button to automatically configure the settings based on the detected machine status.
Click the [Set Tray Status] button and set the size and type of paper loaded in each tray.
Select a tray from the "Paper source" menu, set the size of paper loaded in the tray from the "Set Paper Size" menu, and select the type of paper from the "Set Paper Type" menu. Repeat for each of the trays.
Click the [Configuration] tab and set
4
the printer configuration based on the options that have been installed.
Set the printer configuration properly. Otherwise, printing may not take place correctly.
24
Click the [OK] button in the "Set Tray
6
Status" window.
Click the [OK] button in the printer
7
properties window.
Note
You can check the options that are installed and the tray settings by printing out the "PRINTER SETTINGS LIST" in the custom settings of the machine. Follow these steps to print out the "PRINTER SETTINGS LIST": Press the [CUSTOM SETTINGS] key, touch the [LIST PRINT] key, touch the [PRINTER TEST PAGE] key, and then touch the [PRINTER SETTINGS LIST] key.
When the PPD driver is installed
CONFIGURING THE PRINTER DRIVER
Click the [start] button and then click
1
[Printers and Faxes].
• In Windows 98/Me/NT 4.0/2000, click the [Start] button, select [Settings], and then click [Printers].
• In Windows Vista/Server 2008, click the [Start] button ( ), click [Control Panel], and then click [Printer].
Note
2
If [Printers and Faxes] does not appear in the [start] menu in Windows XP, click the [start] button, click [Control Panel], click [Printers and Other Hardware], and then click [Printers and Faxes].
Open the printer properties window.
(1) Right-click the printer driver icon of
the machine.
(2) Select [Properties].
Configure the printer driver for the
3
options installed on the machine.
(1)
(2)
(1) Click the [Device Settings] tab.
In Windows 98/Me, click the [Device Options] tab.
(2) Configure each item based on the
machine configuration.
The items and the procedures for configuring the items vary depending on the operating system version.
(3) Click the [OK] button.
(3)
Windows
Note
You can check the options that are installed and the tray settings by printing out the "PRINTER SETTINGS LIST" in the custom settings of the machine. Follow these steps to print out the "PRINTER SETTINGS LIST": Press the [CUSTOM SETTINGS] key, touch the [LIST PRINT] key, touch the [PRINTER TEST PAGE] key, and then touch the [PRINTER SETTINGS LIST] key.
25
HOW TO USE THE ONLINE MANUAL
The online manual provides detailed instructions for operating the machine as a printer. View the online manual to use the printer function after the initial setup is completed.
Note
1
2
3
To view the manuals in PDF format, Acrobat® Reader or Adobe® ReaderTM of Adobe Systems Incorporated is required. If neither program is installed on your computer, the programs can be downloaded from the following URL:
http://www.adobe.com/
Insert the CD-ROM into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Click the [start] button, click [My Computer] ( ), and then double-click the [CD-ROM] icon ( ).
• In Windows 98/Me/NT 4.0/2000, double-click [My Computer] and then double-click the [CD-ROM] icon.
• In Windows Vista/Server 2008, click the [Start] button ( ), click [Computer], and then double-click the [CD-ROM] icon.
Double-click the [Manual] folder, double-click the [English] folder, and then double-click the [SG-KI1A.pdf] icon.
The online manual will appear.
26
TROUBLESHOOTING
If the software does not install correctly, check the following items on your computer. To remove the software, see "Removing the software" in the online manual. Troubleshooting information can also be found in the README files for each of the software programs. To view a README file, click the [Display Readme] button in the "Software Selection" screen.
Printer driver cannot be installed (Windows 2000/XP/Server 2003)
If the printer driver cannot be installed in Windows 2000/XP/Server 2003, follow these steps to check your computer's settings.
Click the [start] button and then click
1
[Control Panel].
In Windows 2000, click the [Start] button, select [Settings], and then click [Control Panel].
Click [Performance and Maintenance],
2
and then click [System].
In Windows 2000, double-click the [System] icon.
Click the [Hardware] tab and then click
3
the [Driver Signing] button.
Check [What action do you want
4
Windows to take?] ([File signature verification] in Windows 2000).
Another printer is using the parallel port (when using a parallel cable)
If another printer is using the parallel port and printing is not possible using the machine, follow the steps below to change the port setting of the other printer driver, and make sure that the port of the printer driver for the machine is set to LPT1.
Click the [start] button and then click
1
[Printers and Faxes].
• In Windows 98/Me/NT 4.0/2000, click the [Start] button, select [Settings], and then click [Printers].
• In Windows Vista/Server 2008, click the [Start] button ( ), click [Control Panel], and then click [Printer].
Note
2
If [Printers and Faxes] does not appear in the [start] menu in Windows XP, click the [start] button, click [Control Panel], click [Printers and Other Hardware], and then click [Printers and Faxes].
Right-click the icon of the printer driver for which you wish to change the port setting, and select [Properties].
Windows
If the option [Block] has been selected, it will not be possible to install the printer driver. Select the option [Warn] and then install the printer driver.
Click the [Ports] tab.
3
In Windows 98/Me, click the [Details] tab.
Select [FILE:] in the "Print to the
4
following port" list box, and click the [OK] button.
Right-click
5
driver icon and select [Properties].
Click the [Ports] tab.
6
In Windows 98/Me, click the [Details] tab.
Select [LPT1] in the "Print to the
7
following port" list box, and click the [OK] button.
Note
the "SAGEM MF 93xx" printer
In the event that you need to use the other printer, repeat the above steps to set the port of the machine to "FILE:", and change the port setting of the other printer back to "LPT1".
27
TROUBLESHOOTING
The printer driver cannot be correctly installed by Plug and Play (Windows 2000/XP/ Server 2003/Vista/Server 2008)
In Windows 2000/XP/Server 2003/Vista/ Server 2008, if the printer driver cannot be correctly installed by Plug and Play (for example, Plug and Play takes place without copying the required files for the printer driver installation), follow these steps to remove unneeded devices and then install the printer driver as explained in "USING THE MACHINE WITH A PARALLEL OR USB CONNECTION".
Click the [start] button, click [Control
1
Panel], and then click [Performance and Maintenance].
• In Windows 2000, click the [Start] button, select [Settings], and then click [Control Panel].
• In Windows Vista/Server 2008, click the [Start] button ( ), click [Control Panel], and then click [System and Maintenance].
Click [System], click the [Hardware] tab,
2
and click the [Device Manager] button.
In Windows Vista/Server 2008, click [Device Manager].
Note
3
• In Windows 2000, double-click the [System] icon, click the [Hardware] tab, and click the [Device Manager] button.
In Windows Vista/Server 2008, if a message screen appears asking you for confirmation, click [Continue].
Click the ( ) icon beside "Other devices".
Plug and play screen does not appear (when using a USB cable)
If the Plug and Play screen does not appear after you connect the machine to your computer with a USB cable and turn on the machine, follow the steps below to verify that the USB port is available.
Click the [start] button, click [Control
1
Panel], and then click [Performance and Maintenance].
• In Windows 2000, click the [Start] button, select [Settings], and then click [Control Panel].
In Windows Vista/Server 2008, click the [Start] button ( ), click [Control Panel], and then click [System and Maintenance].
Click [System], click the [Hardware] tab,
2
and click the [Device Manager] button.
"Universal Serial Bus controllers" will appear in the list of devices.
Note
3
• In Windows 98/Me, double-click the [System] icon and click the [Device Manager] tab.
• In Windows 2000, double-click the [System] icon, click the [Hardware] tab, and click the [Device Manager] button.
• In Windows Vista/Server 2008, click [Device Manager]. If a message screen appears asking you for confirmation, click [Continue].
• If the [System] icon does not appear in Windows Me, click [view all Control Panel options].
Click the ( ) icon beside "Universal Serial Bus controllers".
If "SAGEM MF 93xx" appears, select and delete it.
Note
4
If "Other devices" does not appear, close the "Device Manager" window.
Install the software.
28
Two items should appear: your controller chipset type and Root Hub. If these items appear, you can use the USB port. If the "Universal Serial Bus controllers" shows a yellow exclamation point or does not appear, you must check your computer manual for USB troubleshooting or contact your computer manufacturer.
Once you have verified that the USB
4
port is enabled, install the software.
SETUP IN A MACINTOSH ENVIRONMENT
Install the PPD file needed to use the machine as a printer from the Software CD-ROM that accompanies the MF 9325/9331 and the printer expansion kit (SG-KI1A).
Note
• The PS3 expansion kit is required to use the machine as a printer in a Macintosh environment. In addition, the printer function can only be used when the machine is connected to a network. The printer function cannot be used when the machine is connected with a USB cable.
• The PC-Fax driver cannot be used in a Macintosh environment.
ABOUT THE SOFTWARE
The CD-ROM contains the following software:
Disc 2
PPD file
This is the printer description file which enables the machine to be used as a PostScript 3 compatible printer. The PS3 expansion kit is required to use the machine in a Macintosh environment. MAC OS X (page 30) (v10.1.5, v10.2.8, v10.3.9, v10.4 - v10.4.10, v10.5 - v10.5.5) MAC OS 9.0 - 9.2.2: page 35
BEFORE INSTALLATION
HARDWARE AND SOFTWARE REQUIREMENTS
You will need the following hardware and software in order to install the PPD file for Macintosh.
Operating system Mac OS 9.0 to 9.2.2, 10.1.5, 10.2.8, 10.3.9, 10.4 to 10.4.10, 10.5 to
10.5.5
Other hardware requirements
CONNECTING TO A NETWORK
For the procedure for connecting to a network, see "CONNECTING TO A NETWORK" (page 4).
An environment in which any of the operating systems listed above can fully operate (including Macintosh computers with an Intel processor).
29
MAC OS X
Note
1
2
3
4
The explanations of screens and procedures are primarily for Mac OS X v10.4. The screens may vary in other versions of the operating system.
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Double-click the [CD-ROM] icon ( ) on the desktop.
Double-click the [MacOSX] folder.
Before installing the software, be sure to read "ReadMe First". "ReadMe First" is in the [English] folder in the [Readme] folder.
Double-click the folder corresponding to the versions of the operating system.
Double-click the [SG-KI1A] icon ( ).
5
Note
6
• If the "Authorization" window appears in Mac OS X v10.1.5, click the lock icon ( ), enter the password, and click the [OK] button.
• If the "Authenticate" window appears in Mac OS X v10.2.8, enter the password and click the [OK] button.
Click the [Continue] button.
v10.1.5
v10.3.9
v10.2.8
v10.4 -
10.4.10
v10.5 - 10.5.5
30
MAC OS X
The License Agreement window will
7
appear. Make sure that you understand the contents of the license agreement and then click the [Continue] button.
A message will appear asking you if you agree to the terms of the license. Click the [Agree] button.
Note
8
If the license appears in the different language, change the language in the language menu.
Select the hard drive where the PPD file will be installed and click the [Continue] button.
Be sure to select the hard drive on which your operating system is installed.
When the message "The software was
10
successfully installed" appears in the installation window, click the [Close] button.
This completes the installation of the software. Next, configure the printer driver settings.
Select [Utilities] from the [Go] menu.
11
• If you are using Mac OS X v10.1.5 or v10.2.8, select [Applications] from the [Go] menu.
• If you are using Mac OS X v10.5 to
10.5.5, click [System Preferences] in the Apple menu ( ) and select [Print & Fax] ( ). When the screen for adding a printer appears, click the button and go to step 14.
Click the [Install] button.
9
Installation begins.
Note
If the "Authenticate" window appears, enter the password and click the [OK] button.
Double-click the [Printer Setup Utility]
12
icon ( ).
If you are using Mac OS X v10.1.5 or v10.2.8, double-click the [Utilities] folder and then double-click the [Print Center] icon.
Note
13
If this is the first time you are installing a printer driver on your computer, a confirmation message will appear. Click the [Add] button.
Click [Add].
If you are using Mac OS X v10.1.5, click the [Add Printer] button.
Macintosh
31
MAC OS X

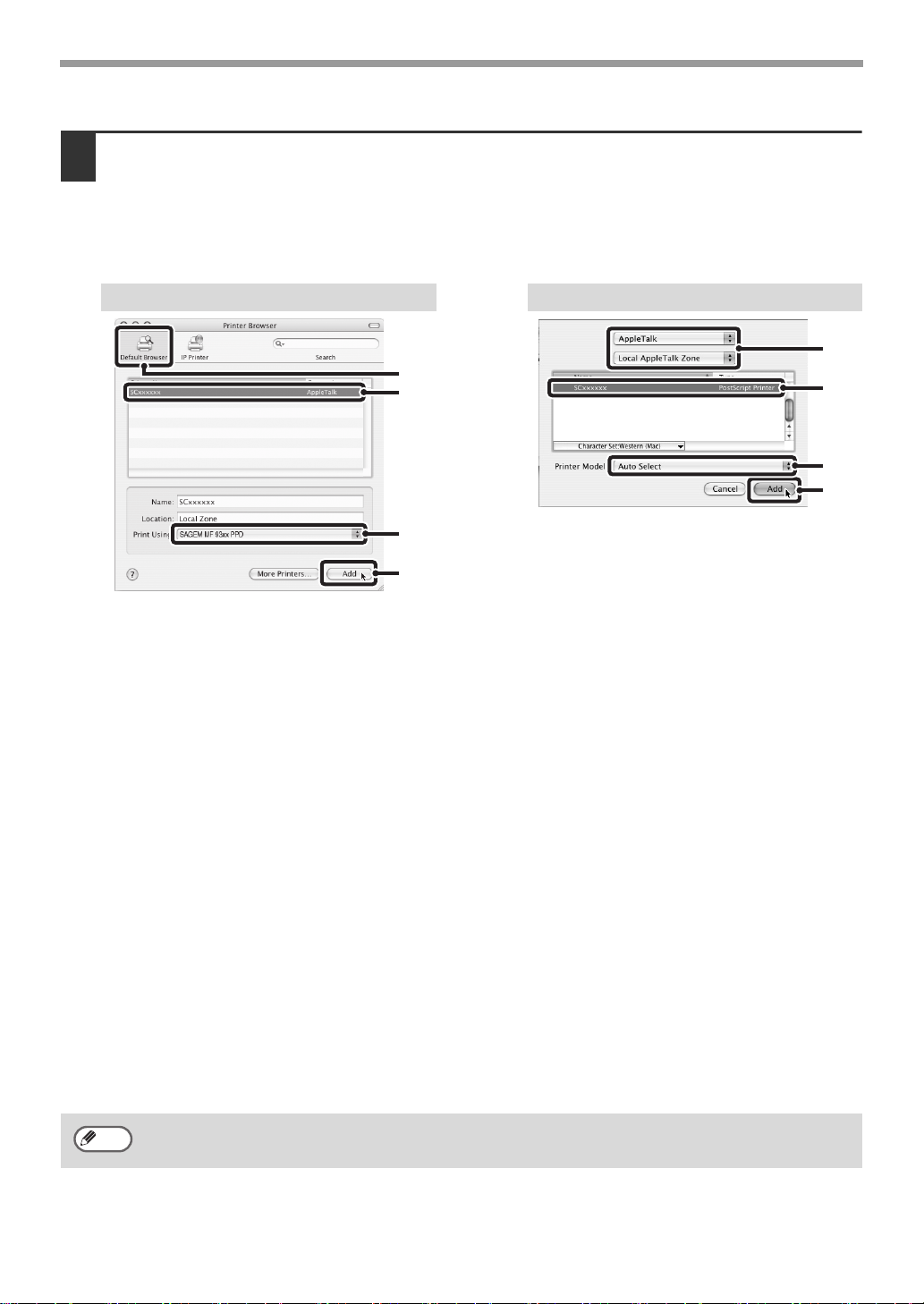

Configure the printer driver.
14
• The procedure for configuring the printer driver varies depending on the operating system version. The procedure for versions 10.4 - 10.4.10 and 10.5 - 10.5.5 and the procedure for other versions are explained separately below.
• The machine can print using the IPP function. If you wish to use the IPP function, see "Printing using the IPP function" (page 34) to configure the printer driver settings.
v10.4 - 10.4.10, v10.5 - 10.5.5
(1) Click the [Default Browser] icon.
• If multiple AppleTalk zones are displayed, select the zone that includes the printer from the menu.
• If you are using Mac OS X v10.5 to
10.5.5, click the [Default] icon.
(2) Click the machine's model name.
• The machine's model name usually appears as [SCxxxxxx]. ("xxxxxx" is a sequence of characters that varies depending on your model.)
• The PPD file of the machine is automatically selected.
(3) Make sure that the PPD file of your
model is selected.
(4) Click the [Add] button.
The PPD file of the machine is automatically selected and the peripheral devices installed on the machine are detected and automatically configured.
(1) (2)
(3)
(4)
v10.1.5, v10.2.8, v10.3.9
(1)
(2)
(3) (4)
(1) Select [AppleTalk].
If multiple AppleTalk zones are displayed, select the zone that includes the printer from the menu.
(2) Click the machine's model name.
The machine's model name usually appears as [SCxxxxxx]. ("xxxxxx" is a sequence of characters that varies depending on your model.)
(3) Select the PPD file of the machine.
• If you are using Mac OS X v10.1.5, select [Other]. The PPD file selection window will appear. Click [Startup disk name] - [Library] - [Printers] - [PPDs] ­[Contents] - [Resources] - [en.lproj] ­"PPD file for your model", and then click the [Choose] button.
• If you are using Mac OS X v10.2.8, select [SAGEM] and click the PPD file of your model.
• If you are using Mac OS X v10.3.9, select [Auto Select].
(4) Click the [Add] button.
If you are using Mac OS X v10.3.9, the PPD file of the machine is automatically selected and the peripheral devices installed on the machine are detected and automatically configured.
Note
The PPD file is installed in the following folders on the startup disk. [Library] - [Printers] - [PPDs] - [Contents] - [Resources] - [en.lproj]
If you are using Mac OS X v10.1.5, this completes the configuration of the printer driver. If you are using a version other than Mac OS X v10.1.5, go to the next step.
32
MAC OS X

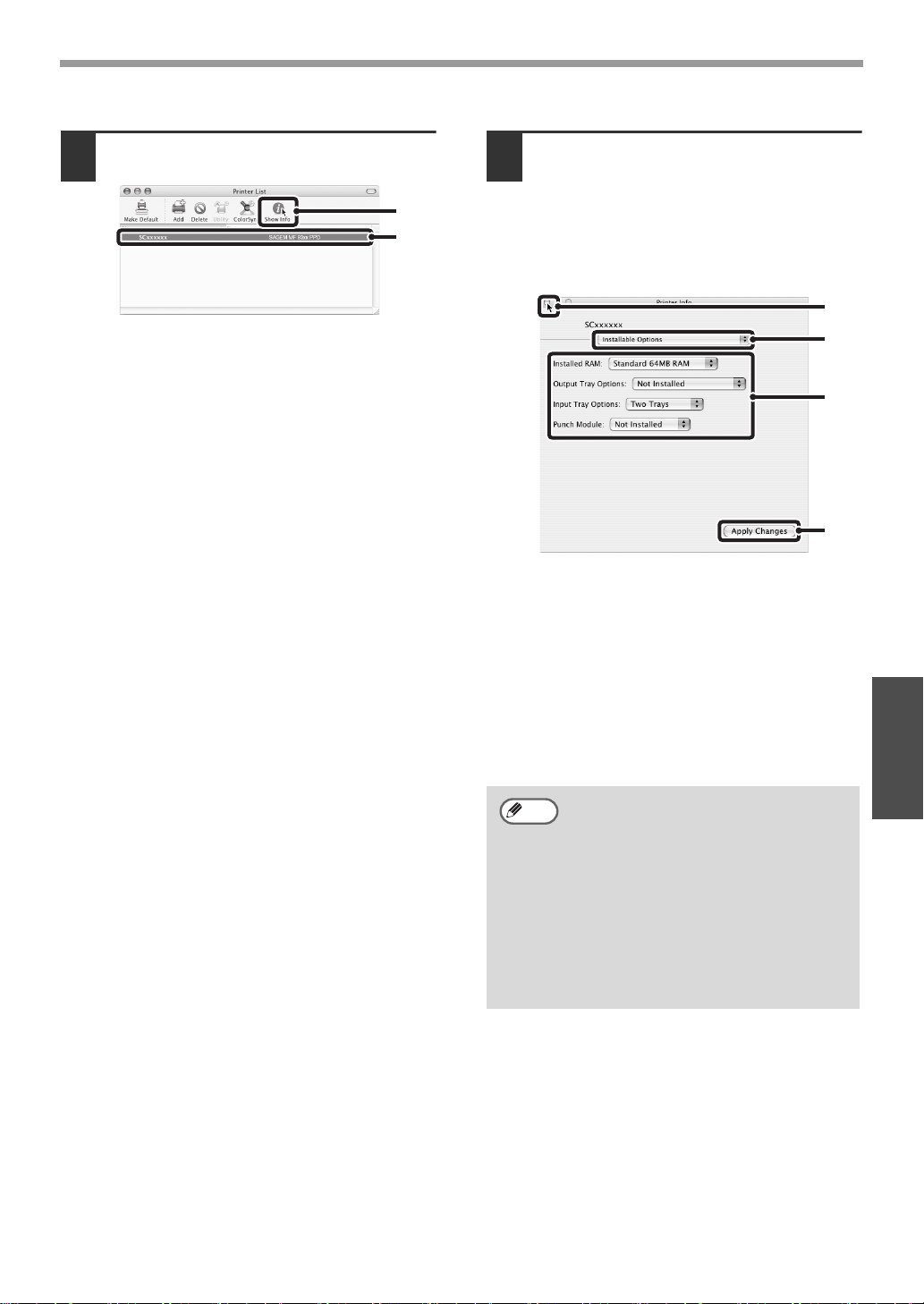

Display printer information.
15
(1) Click the machine's name.
If you are using Mac OS X v10.5 to 10.5.5, click the [Options & Supplies] button, click the [Driver] tab and go to step 16.
(2) Click [Show Info].
If you are using Mac OS X v10.2.8, select [Show Info] from the [Printers] menu.
(2) (1)
Select the machine configuration.
16
If you selected [Auto Select] in (3) of step 14, the machine configuration is detected and automatically configured. Check the configured settings to make sure they are correct.
(1) Select [Installable Options].
If you are using Mac OS X v10.5 to 10.5.5, it does not appear.
(2) Select the options that are installed on
the machine.
(3) Click the [Apply Changes] button.
If you are using Mac OS X v10.5 to 10.5.5, click the [OK] button.
(4) Click to close the window.
(4)
(1)
(2)
(3)
Macintosh
Note
You can check the options that are installed and the tray settings by printing out the "PRINTER SETTINGS LIST" in the custom settings of the machine. Follow these steps to print out the "PRINTER SETTINGS LIST": Press the [CUSTOM SETTINGS] key, touch the [LIST PRINT] key, touch the [PRINTER TEST PAGE] key, and then touch the [PRINTER SETTINGS LIST] key.
This completes the configuration of the printer driver.
33
MAC OS X
Printing using the IPP function
The machine can print using the IPP function. When the machine is in a remote location, this function can be used in place of the fax function to print a higher quality image than a fax. If you wish to use the IPP function, follow these steps to select the PPD file when configuring the printer driver (step 14 on page 32).
v10.4 - 10.4.10, v10.5 - 10.5.5
(1)
(2)
(3)
(4)
(1) Click the [IP Printer] icon.
If you are using Mac OS X v10.5 to 10.5.5, click the [IP] icon.
(2) Select [Internet Printing Protocol] in
"Protocol". Enter the address of the machine (IP address or domain name) and the "Queue".
Enter "ipp" in "Queue".
(3) Select [SAGEM] in "Print Using" and
click the PPD file of your model.
If you are using Mac OS X v 10.5 to 10.5.5, select [Select a driver to use] from "Print Using" and click the PPD file for your model.
(4) Click the [Add] button.
If you are using Mac OS X v 10.5 to 10.5.5, the "Installable Options" screen will appear. Make sure that the settings are correct and click the [Continue] button.
v10.1.5, v10.2.8, v10.3.9
(1)
(2)
(3)
(4)
(1) Select [IP Printing].
If you are using Mac OS X v10.1.5, select [LPR Printers using IP].
(2) Select [Internet Printing Protocol] in
"Printer Type". Enter the address of the machine (IP address or domain name) and the "Queue Name".
• If you are using Mac OS X v10.1.5, enter the address of the machine (IP address or domain name) in "LPR Printer's Address".
• If you are using Mac OS X v10.2.8, enter the address of the machine (IP address or domain name) in "Printer's Address".
• Enter "ipp" in "Queue Name".
(3) Select [SAGEM] in "Printer Model"
and click the PPD file of your model.
If you are using Mac OS X v10.1.5, select [Other]. The PPD file selection window will appear. Click [Startup disk name] - [Library]
- [Printers] - [PPDs] - [Contents] ­[Resources] - [en.lproj] - "PPD file for your model", and then click the [Choose] button.
(4) Click the [Add] button.
34
Note
For information about checking the IP address, see "Checking the IP address of the machine" (page 4).

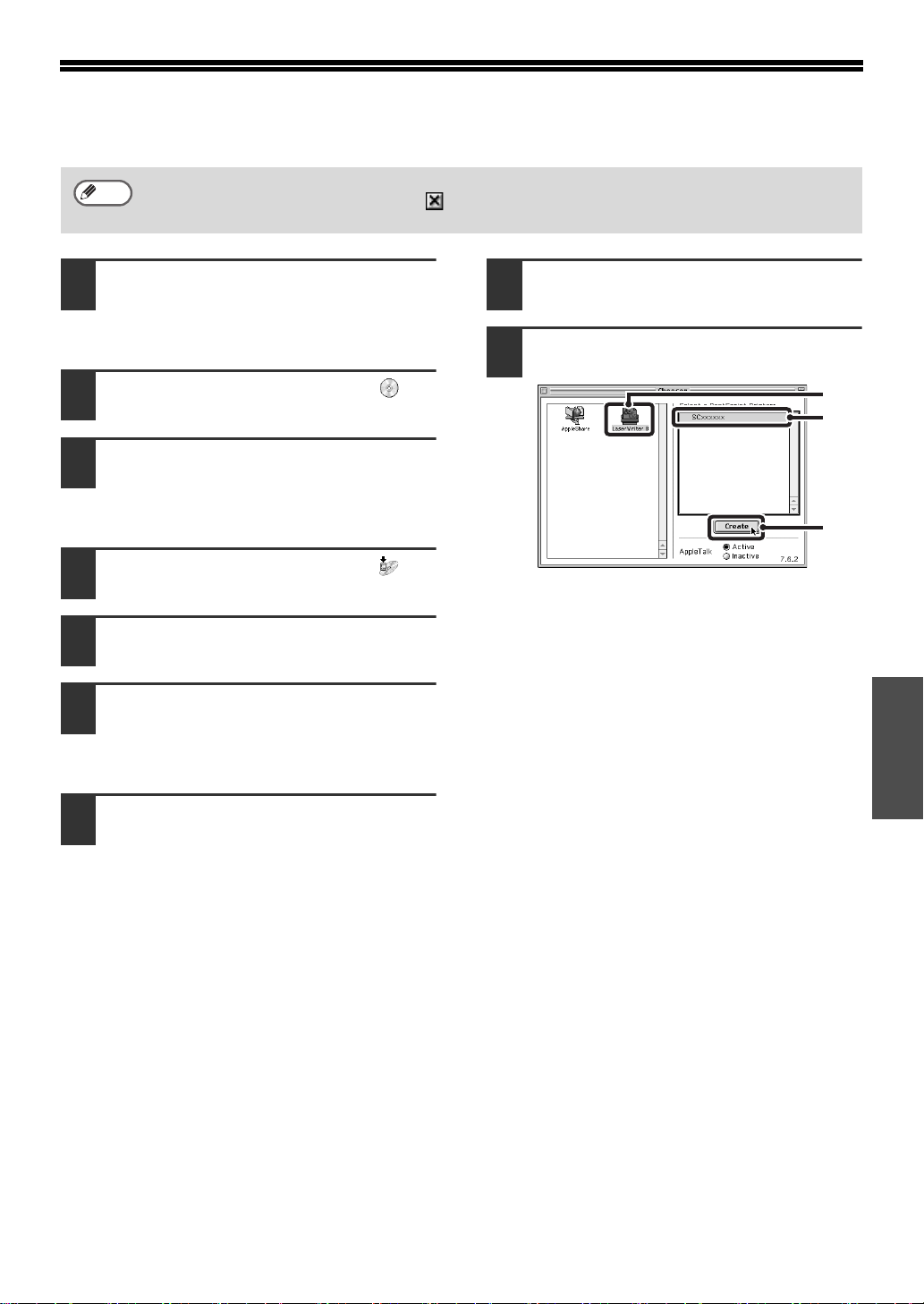

MAC OS 9.0 - 9.2.2
Note
1
2
3
4
5
6
If you are using Mac OS 9.0 to 9.2.2, make sure that "LaserWriter 8" has been installed and that the "LaserWriter 8" checkbox is selected ( ) in "Extensions Manager" in "Control Panels". If not, install it from the system CD-ROM supplied with your Macintosh computer.
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Double-click the [CD-ROM] icon ( ) on the desktop.
Double-click the [MacOS] folder.
Before installing the software, be sure to read "ReadMe First". "ReadMe First" is in the [English] folder in the [Readme] folder.
Double-click the [Installer] icon ( ).
Click the [Install] button.
The License Agreement window will appear. Make sure that you understand the contents of the license agreement and then click the [Yes] button.
Select [Chooser] from the Apple Menu.
8
Create a printer.
9
(1) Click the [LaserWriter 8] icon.
If multiple AppleTalk zones are displayed, select the zone that includes the printer.
(2) Click the machine's model name.
The machine's model name usually appears as [SCxxxxxx]. ("xxxxxx" is a sequence of characters that varies depending on your model.)
(3) Click the [Create] button.
(1) (2)
(3)
Macintosh
Read the message in the window that
7
appears and click the [Continue] button.
Installation of the PPD file begins. After the installation, a message prompting you to restart your computer will appear. Click the [OK] button and restart your computer.
This completes the installation of the software. Next, configure the printer driver settings.
35

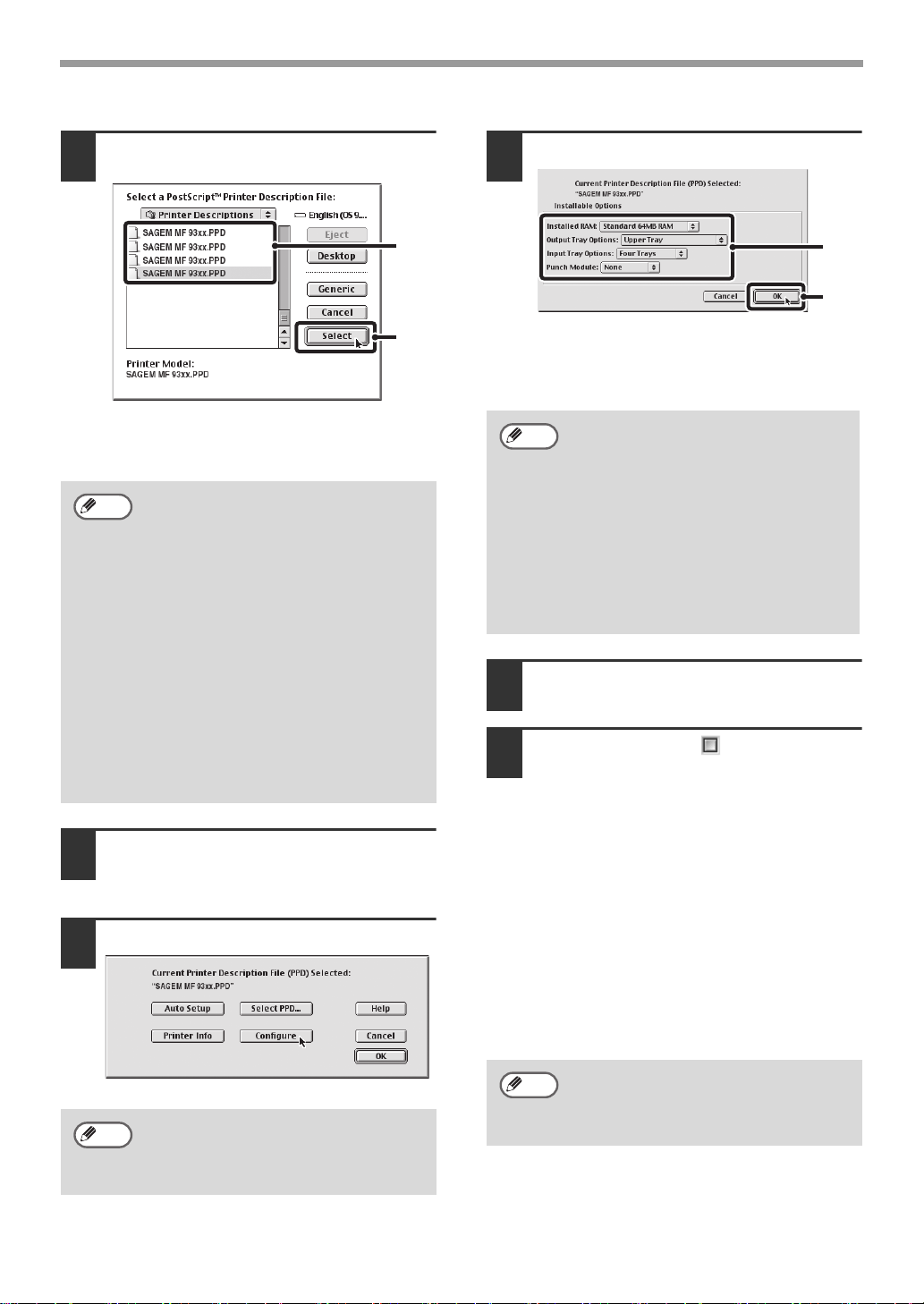

MAC OS 9.0 - 9.2.2
Select the PPD file.
10
(1) Click the PPD file for your model.
(2) Click the [Select] button.
Note
If the above dialog box does not appear and you return to the "Chooser" dialog box, follow these steps to select the PPD file manually. (1) Make sure that the machine is
selected in the "Select a PostScript Printer" list, and then click the [Setup] button followed by the [Select PPD] button.
(2) Select the PPD file for your
model and click the [Open] button.
(3) Click the [OK] button.
• The PPD file is installed in the [Printer Descriptions] folder in the [Extensions] folder.
(1)
(2)
Select the machine configuration.
13
(1) Select the options that are installed on
the machine.
(2) Click the [OK] button.
Note
14
15
You can check the options that are installed and the tray settings by printing out the "PRINTER SETTINGS LIST" in the custom settings of the machine. Follow these steps to print out the "PRINTER SETTINGS LIST": Press the [CUSTOM SETTINGS] key, touch the [LIST PRINT] key, touch the [PRINTER TEST PAGE] key, and then touch the [PRINTER SETTINGS LIST] key.
Click the [OK] button in the window of step 12 to close the window.
Click the close box ( ) to close the "Chooser".
(1)
(2)
Make sure that the machine is selected
11
in the "Select a PostScript Printer" list and then click the [Setup] button.
Click the [Configure] button.
12
Note
To automatically configure the settings based on the installed machine options that are detected, click the [Auto Setup] button.
36
This completes the configuration of the printer driver.
Installing the screen fonts
The screen fonts for Mac OS 9.0 - 9.2.2 are contained in the [Font] folder of the "PRINTER UTILITIES" CD-ROM that accompanies the PS3 expansion kit. Copy the fonts that you wish to install to the [System Folder] of the startup disk.
Note
If you experience problems that may be due to the installed screen fonts, immediately delete the installed fonts from the system.
HOW TO USE THE ONLINE MANUAL
Follow the steps below to view the online manual. This manual contains information needed for using the machine as a printer.
Note
1
2
3
4
To view the manuals in PDF format, Acrobat® Reader or Adobe® ReaderTM of Adobe Systems Incorporated is required. If neither program is installed on your computer, the programs can be downloaded from the following URL:
http://www.adobe.com/
Insert the "Software CD-ROM" into your computer's CD-ROM drive.
Insert the "Software CD-ROM" that shows "Disc 2" on the front of the CD-ROM.
Double-click the [CD-ROM] icon ( ) on the desktop.
Double-click the [Printer Manual] folder.
Double-click the [English] folder and then double-click the [SG-KI1A] icon.
Macintosh
37
MF 9325 - MF 9331 SOFTWARE SETUP GUIDE
Loading...
