Sagem SG341i User Manual

ENGLISH

You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions.

Your phone can be used internationally in the various networks (GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz, depending on model) depending on the roaming arrangements with your operator.

We remind you that this phone is approved to meet European standards.

WARNING

Depending on the model, network configuration and associated subscription cards, certain functions may not be available.

Ensure that your SIM card is a 3 V SIM type that is compatible with your phone. Inserting an incompatible card will be indicated by a message when your phone is switched on. Contact your operator.

Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card. In order to display the IMEI on your phone's screen, type: *#06#.

SAGEM is a trademark of SAGEM SA. AT is a registered trademark of Hayes Microcomputer Products Inc. Hayes is a registered trademark of Hayes Microcomputer Products Inc. T9 is protected by one or more of the following US patents: 5,818,437, 5,953,541, 5,187,480, 5,945,928, 6,011,554 and other patents are being applied for worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. The WAP navigator and some message softwares (i-mode) are under licence Openwave. The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of these softwares. © 2003 GAMELOFT - All rights reserved - GAMELOFT is a registered trademark of GAMELOFT S.A. - All rights reserved. Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom SARL France.

Conformance Document

FCC Conformance Document

FCC Part 24 Network NAPRD03.ver 2.11.2 Health Draft IEEE Std 1528-200x

Exposure to Radio Frequency Signals

- Your wireless handheld portable phone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out frequency (RF) signals.

- In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:

ANSI C95.1 (1992)* NCPR Report 86 (1986)* ICNIRP (1996)* (*) American National Standards Institute; National Council on Radiation Protection and Measurements; International Commission on Non-Ionizing Radiation Protection.

- Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1).

- The design of your phone complies with the FCC guidelines (and those standards).

- For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body.

Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

Menus

Settings

Sounds

Profiles

Display

Camera

Calls

Languages

Security

Networks

Date / Time

Connectivity

Help

Java Applis™

Accessories

Organizer

ToDo

Calculator

Converter

Alarm

Timer

Phonebook

Camera

-mode

Messages

SMS

e-mail

Local info.

Multimedia

My Pictures

My Sounds

Memory

Help

Services

Page 3 Menus

Page 8 Your phone package - Accessories

Page 9 Description

Page 13 Navigation principles

Page 14 Activating your phone

Page 20 Using your phone

Page 22 Phonebook

Necklace attachment Changing cover Reassembling the keypad in case of involuntary removing Icons

Information on the SIM card Installing the SIM card and the battery Getting started PIN number Setting time and date Network First call Receiving a call Switching off

Freeing the antenna Increase the efficiency of your phone Hands-free mode Charging the battery

Using the phonebook Storing a new contact Contacts menu options Options from a contact saved Sending a vCard Receiving a vCard

Contents

Page 27 Messages

Page 36 i-mode™

Page 38 Camera

Page 40 Multimedia

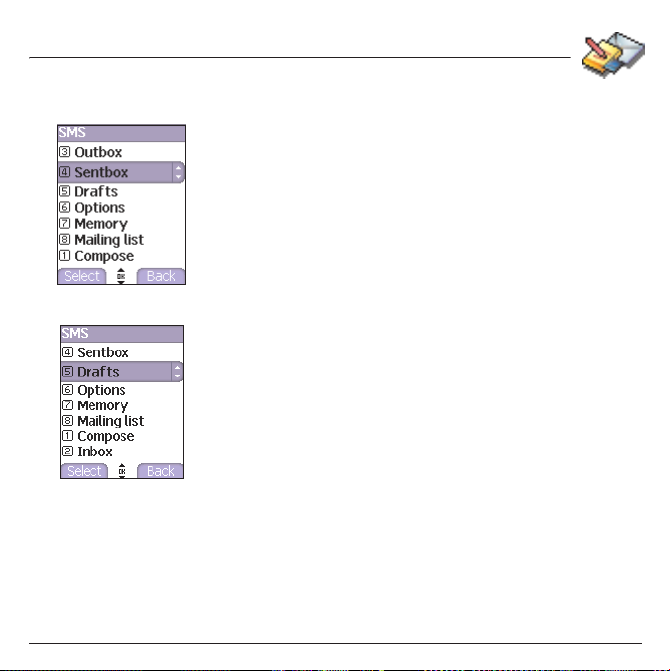

SMS

Compose a SMS Receiving a SMS Outbox Sentbox Drafts Options Memory Mailing list

e-mail

Options

Local information

i-mode™ services Customizing your phone Games and Java Applis™ Access to i-mode™ functions

Take and send a photo

My Pictures

Edit a photo My Sounds Memory

Page 43 Java Applis™

Page 44 Accessories

Organizer

Calendar menu ToDo Exchange of data with a PC Calculator

Contents

Converter Alarm Timer

Page 50 Settings

Sounds

Volume and ring tone

Vibrate

Silent mode

Beeps

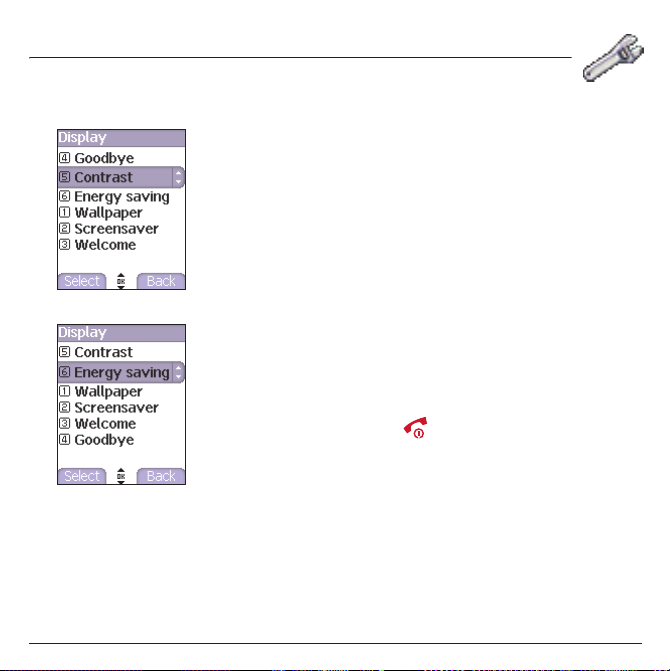

Recorder Display

Wallpaper

Screensaver

Welcome

Contrast

Energy saving Camera Calls

Call forward

View last calls

Counters

Display numbers

Call waiting

Automatic redial

Blacklist

Voicemail Languages Security

Keypad locking

PIN number

PIN2 number

Phone code

Confidentiality

Operator

Contents

Call barring

Fixed dialling

Cost Networks Date / Time

Set Date/Time

Display

Time zone

Summer time Connectivity

IrDA

Serial Speed

Car kit Help

Page 70 Care and safety information

Page 72 Warranty

Page 75 End User Licence Agreement (EULA), for the software

Page 79 Java™

Page 83 Troubleshooting

Page 87 Index

Safety SAR Advice for limiting exposure to radiofrequency (RF) fields

Your phone package

When you open the box, check that all items are present:

1 - Phone 2 - Charger 3 - Battery 4 - User guide 5 - CD

(depending on model)

6 - Pedestrian kit

Accessories

You can also find (as an option) or order the following accessories: Pedestrian kit (*) Additional battery Additional charger (*) USB cable (with associated drivers) and serial cable to connect your phone to a PC Cigar lighter charger (*) Colored covers

(*) These accessories are identical to the ones provided for the earlier 3000 series and MYX-X.

Description

Microphone Necklace

attachment

Hold down: Switch on/off

In a call context: Reject a call - hang up In menus: Return to initial screen

Long press

In call context: Call - receiving a call In i-modeTM function: access to a contextual menu when the green

key appears on the screen with the M letter

In the initial screen:

- press briefly: direct access to the i-mode™ menu,

- hold down: access to the Java Applis™ .

In the menus: access to the selection shown on screen in the tab (*) In the initial screen:

- press briefly: direct access to the e-mail menu,

- hold down: direct access to the e-mail inbox. In the menus: access to the selection shown on screen in the tab (*)

Previous choice/increase value/up During call: Increase volume

Next choice/reduce value/down During call: Reduce volume

Up input field/move left

Down input field/move right

In initial screen: access to main menu. In the menus: context-sensitive access to different functions During a call: take a call.

Press briefly

When composing a message:

Short press: switches from one input mode to another (T9, ABC, 123) Long press Hold down

In call reception mode: Short press stops ring tone In ring tone setting mode: Activate/deactivate ring tone

(*) In this manual, when a function is chosen by pressing on this key,

: Activate/Deactivate hands-free mode

and OK key: activate or deactivate keypad locking

: upper case/lower case

: In initial screen: Silent mode

square brackets are used (e.g.: [

Save

]).

Description

Necklace attachment

Camera

Mirror

IrDA

Insert the necklace into the notch located in the right bottom of the inside part of the phone.

Description

123

456

Changing cover

Turn the phone back and push lock button upwards.

Remove the back cover by lifting bottom end first.

Lift the front cover in same way as the back cover. Remove panel (electronic card).

Insert the panel into the front cover.

Do as above to replace the back cover.

Push button back into locked position (downwards).

Reassembling the keypad in case of involuntary removing

First insert the two clips of the lower part of the keypad (1) then set it up inserting the two side clips (2).

Sometimes, it may be necessary to remove the keypad and set it again if it moved after a fall.

Description

Icons

Battery

Calls forwarded

Call (establishing the call)

Call (hands free)

Receiving SMS

Full SMS inbox

e-mail available on server

Receiving e-mail

Full e-mail inbox

FAX communication

DATA communication

Silent mode

Message in voicemail

GPRS network available

Connection to the i-mode™ service

i-mode™, transmissions with the server in progress

i-mode™ service locked by the user

Keypad locking

Protected i-mode™ connection

Network signal (maximum 5 bars). The R letter indicates if the network is different from the subscription network. If the

icon flashes the phone is searching for a network. If the

icon is displayed, only emergency call is possible.

Navigation principles

These basic principles bring a great intuitiveness to your phone.

Valid at e Cancel

The thumbnails at the bottom of the screen refer to the

In the menus, a title bar reminds you of the previous level.

The T S navigation keys are used to navigate among the different options proposed in a menu.

From the home page, pressing the OK key displays the icons of the main menus. Pressing the OK key followed by one or two figures gives directly access to a menu. For example, pressing OK then 1 directly displays the

The key (press briefly) is used to go back to the initial screen (current function is abandoned).

In some menus there is a the various functions of the sub-menus.

by pressing the key or the OK key.

by pressing the key.

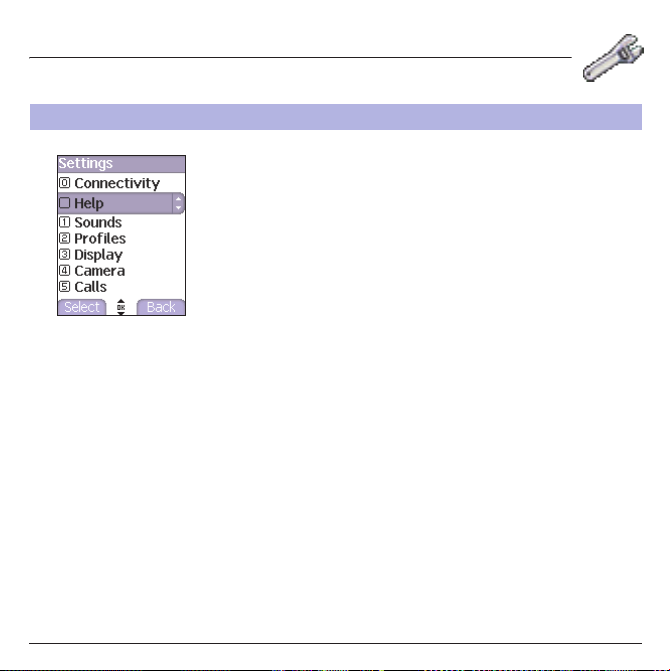

Settings

menu, pressing OK then 11 the

Help

menu ( icon) which informs you on

Sounds

menu.

keys.

Activating your phone

Information on the SIM card

To use your phone, you need a card called SIM card. It contains personal information that you can modify:

Secret codes (PIN(s): Personal Identification Numbers), these codes allow you to protect access to your SIM card and phone.

Phonebook,

Messages,

How special services work.

Your phone is compatible with the SIM 3V cards.

WARNI NG

This card must be handled and stored with care in order not to be damaged. If you should lose your SIM card, contact your network provider or your SMC (Services Marketing Company) immediately.

Please keep your SIM card out of reach of young children.

Activating your phone

123

Installing the SIM card and the battery

The SIM card is inserted under the phone's battery. Ensure that the phone is switched off and the charger disconnected.

Turn the phone back and push lock button upwards.

Remove the back cover by lifting bottom end first.

Take out battery if already installed.

Slide the SIM card, with cut corner as shown on the phone, into the card

holder with fold face down.

Place the battery by positioning first the top of it, as shown on the

battery.

Replace the back cover, clicking in first the upper part then the lower and

pushing the back catch downwards into the lock position.

Activating your phone

Getting started

PIN number

Warning

If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then:

- Enter « **05* ».

- Enter the PUK (Personal Unblocking Key) code provided by your operator, and validate.

- Enter your PIN number and validate.

- Enter your PIN number again and validate. After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You

must then contact your operator or your SMC to obtain a new card.

You are now ready to use your phone for the first time.

Switch on the phone by pressing the key. A short display appears.

When you switch on your phone for the first time, you must configure it with various settings that will remain by default until you choose to modify them (depending on model).

After entering your PIN code and the date and time, make your choice for the following settings: time zone, daylight savings, skin, wallpaper, screensaver, ring tone, volume, vibrate and voicemail number.

This is your SIM's secret code.

If access to the SIM card is protected, the device prompts you to enter the PIN number:

Enter the code

was issued. These digits do not appear on the screen for security reasons.

Press the OK key or the key to validate. If your phone indicates that the SIM is missing, press the key to switch off your phone and check that the SIM card is correctly installed.

between 4 and 8 digits given to you when the SIM card

Activating your phone

Setting time and date

Valid date?

When you use your phone for the first time, you need to set the date and time.

In due course, when the battery is completely discharged, or if it has been removed, you will be prompted systematically to confirm date and time.

Setting the date:

Set the date by entering it directly in numerical form or by using the

T S

keys to increase or decrease the default values. Use the X key (or W key) to access the Once the date is correct, press the key to validate.

Setting the time:

Same procedure as for setting the date.

(or last) data input field.

Network

From now on the phone hunts for a network on which it can make calls. If it finds one, it displays the name of the network on the screen. You are then ready to send or receive a call.

If the network icon appears, calls are possible on your operator's network. If the letter R and a network name are displayed, calls are possible on the network of a different operator. If the letter R is displayed without any network name, only the emergency services are accessible

(ambulance, police, fire brigade). If the network icon flashes, the phone is in permanent search mode. There is no network available. The

signal strength indicator received allows you to display the quality of reception. If it indicates less than three bars, search for better reception in order to call in good conditions.

Activating your phone

First call

Dial the number of your correspondent. Press the key.

During the call, the call in progress icon flashes on screen and tones may indicate the establishment of the call.

Once communication has been established, the call icon stops flashing.

You can adjust the sound level (volume) using the

At the end of the conversation press the key to hang up.

International call

Press 0 (hold down) to display « + », then dial the country code without waiting for the dial tone, then the number of the called party.

Emergency services

Depending on the operators you can obtain the emergency service with or without SIM card or when the keypad is locked. It is enough to be in an area served by a network.

To obtain the international emergency service, dial

112

then press the key.

T S keys.

Activating your phone

Receiving a call

When you receive a call, the number of your correspondent is displayed when it is presented by the network.

Press the key or the key to answer, and speak.

To refuse the call, press the key or the key.

To stop the ring tone or the vibrate, without refusing the call, press the

key.

Hands-free mode

During a call, press twice the key or the OK key to switch into hands-free mode.

WARNING:

All the numbers corresponding to incoming and outgoing calls are logged in the list of recent calls.

Switching off

Press the key for one second. The end message is displayed. The phone switches off.

in this mode do not bring the phone up to your ear.

Using your phone

Freeing the antenna

The antenna is integrated in your phone, under the back cover at the top.

Avoid putting your fingers on this area when the phone is switched ON.

If your fingers obstruct the antenna, the phone may have to operate with a higher power level than usual; decreasing its efficiency quickly. It could also affect the quality of your communications.

Non ionising radiation

To obtain maximum satisfaction from your phone, use it in a vertical position. Your personal safety can only be improved by doing so.

Increase the efficiency of your phone

- Don't press the keys when not necessary: each keypress activates

the backlight, and uses much power.

- Don't obstruct the antenna with your fingers.

Hands-free mode

During a call, press twice the key or the OK key to switch into hands-free mode.

WARNING:

or you may suffer hearing loss.

do not use the phone in hands-free mode near to your ear,

Using your phone

Charging the battery

Your phone is powered by a rechargeable battery. A new battery must be charged for 4 hours at least before being used for the first time. It reaches its optimum capacity after a few cycles of use. When your battery has been discharged, the phone displays the state (empty battery icon flashes). In this case recharge your battery for at least 15 minutes before making any calls in order not to be cut off in the middle of a call.

To recharge the battery:

Connect the charger to a socket. Plug the end of the cable into the bottom connector of the phone. The phone is then charging up. The battery icon is scrolling up and down to indicate that it is charging. When the battery is fully charged, the charging stops on its own. Disconnect the cable. When charging, the battery may warm up, this phenomenon is normal.

WARNI NG

There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire. Do not short circuit it. The battery does not have any part that you can change. Do not try to open the battery casing. Use only the appropriate chargers and batteries as shown in the phone manufacturer's catalogue. The use of other types of chargers or batteries may be dangerous or invalidate the warranty. Used batteries must be disposed of in the appropriate places. We advise you to take the battery out if you plan not to use the phone for extended periods. You are strongly advised not to connect your phone to the charger if it doesn’t contain a battery. The charger is a safety step-down transformer, it is forbidden to modify, alter or replace it by another component (power supply plug, etc).

Phonebook

The phonebook allows you to store numbers that you call regularly. These numbers can be stored in the SIM card or in the phone. To store a contact in the phone memory, the following fields can be filled: last name, first name, numbers, email, URL, address, company, comments, ringtone, photo.

The fields coloured with red are mandatory.

To store a contact in the SIM card, only the last name and number fields must be filled.

The storage capacity will depend on the SIM card. Please contact your network provider to get that information.

Using the phonebook

Display the

If contacts have already been stored, you are either in the SIM phonebook or in the phone phonebook. This is indicated by the icon at the top right of the screen when the cursor is located on a contact:

Phonebook

contact stored in the SIM card

contact stored in the phone

if the Fixed Dialling option is activated, only those contacts may be called. See Menu for more details about this activation.

menu.

PIN number 2

and

Fixed Dialling

Security

Phonebook

Storing a new contact

Depending on the location where you want to store a new contact, select

Add phone contact contact

to store it in the SIM card memory or in the Fixed Dialling (Fixed Dialling is available depending on PIN number 2 options of your SIM card).

Adding a contact in the SIM card memory

- Select

Add SIM contact

- Select

SIM card

- Enter the last name and press the

- Enter the number and press the

- Press [

Save

Adding a contact in the phone memory

- Select

Add phone contact

- Enter the last name and press the

- Enter the number and press the

- Fill in other fields if you want.

- Press [

Save

to store it in the phone memory or

Fixed directory

] to store it.

and press the

and press the OK key.

key.

Add SIM

key.

Phonebook

Contacts menu options

Mailing list

You can create a mailing list with contacts to whom you want to send SMS or e-mails.

- Select

Mailing list

confirm the creation of a new list.

- Enter a name and press the

- Then, on a list press [

want to add a contact in the list.

Memory

Select

Memory

Phone: the screen displays the amount of memory used. The memory capacity is shared between the phonebook and various other features. If you lack memory, check if you can free some space from another feature. SIM: available memory only for contacts.

My numbers

You can create the entries corresponding to your own numbers in order to consult them when necessary. Select

My numbers

validate.

and press the

Options

and validate. Select SIM or Phone and validate.

and validate. Enter the different details and

key.

]. Select

key. The phone asks you to

Add contact

each time you

Phonebook

Options from a contact saved

Displaying a contact

Select a contact from the list using the T S keys and press the

key. The name and the number are displayed.

Note

: By directly pressing one character, the phone will display the first

contact saved in the phonebook, starting with it.

To display the different options, select a contact from the list using the

T S

keys and press [

Modify contact

Modify what you want and validate then select modifications completed.

Copy to SIM / Copy to phone

This allows you to copy your phonebook entries from one memory to the other. Only the name and the first phone number will be copied.

Delete

Validate deletion of entry.

Send message

To send a message (SMS, e-mail or animated message) (see chapter

Messages

Send by IrDA

To send by IrDA the details of a contact.

Options

Save

once the

Phonebook

Sending a vCard

Receiving a vCard

Calling a contact

Several ways:

- Select a contact. Press the key to start the call.

- Select a contact, press the OK key, his number is displayed, press

[

Call

] to start the call.

- Direct call from the initial screen: type the number with which the

contact was saved then (example : 21 ) or the number then , the number is displayed, confirm.

It is possible to send a vCard from each contact stored in the phonebook.

vCards can be sent to another phone supporting vCard.

On a contact in the phonebook, please select the menu item.

If the vCard is sent successfully, an information message is displayed.

When a vCard is received enclosed to an e-mail message, the message « You have received 1 message » is displayed.

Open the e-mail from the inbox. Press [ select the vCard among the list of objects attached to this e-mail, and add this contact to the phonebook by pressing the is displayed to confirm the action.

Options

Send by IrDA

] and select

key. A message

option

Extract

;

+ 64 hidden pages
