Sagem RTI90-320 T2 HD UK User Manual

Draft 1.2 - 11/3/10

LU 253311796A RTI90-320 T2 HD UK.book Page 1 Jeudi, 8. av ril 2010 8:06 08

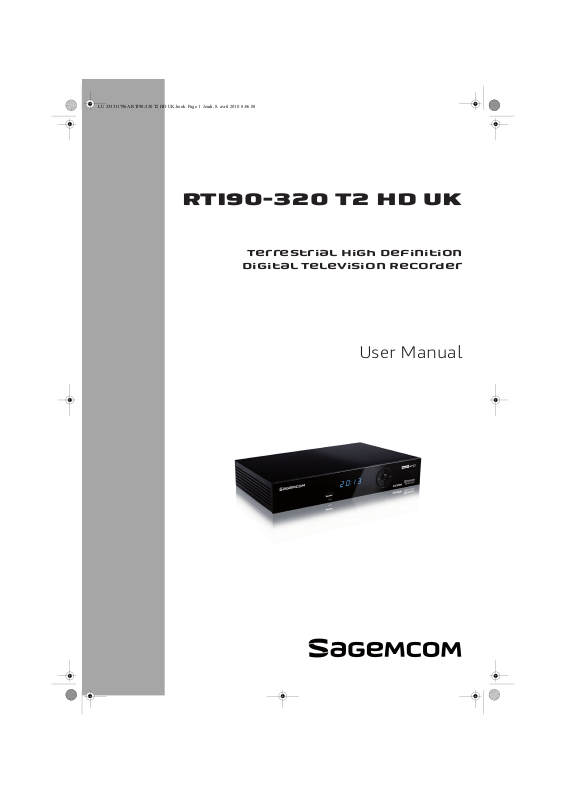

RTI90-320 T2 HD UK

Terrestrial High Definition

Digital Television Recorder

User Manual

LU 253311796A RTI90-320 T2 HD UK.book Page 2 Jeudi, 8. av ril 2010 8:06 08

High Definition Digital Television Recorder

Congratulations!

This High Definition Digital Television Recorder (DTR) is an innovative product from the latest generation of Sagemcom digital TV recorders, dedicated to Digital Terrestrial Television. Equipped with a silent hard disk drive, it allows easy reception and recording of digital programmes, including those broadcast in High Definition.

Once you have connected your recorder and performed the initial installation, you will be able to watch and enjoy all the FREEVIEW channels available in your geographical area. Thanks to its embedded ’over the air’ upgrade feature, you can update your recorder with new features or services when they become available.

The Sagemcom recorder follows a continuous development strategy. Therefore, we reserve the right to make changes and improvements to the product described in this user manual without any prior notice.

This product complies with EMC directive 89/336/EEC.

CE Marking :

The CE marking certifies that the product complies with the essential requirements of the Directive 1999/5/EC concerning radio equipment and telecommunication equipment, and of Directives 2006/95/EC concerning safety and 2004/108/EC concerning electromagnetic compatibility, defined by the European Parliament and Council to reduce electromagnetic interferences and protect the health and safety of users.

The CE marking also certifies that the product complies with the following harmonised standards: EN60065, EN55013, EN55020, EN61000-3-2, EN61000-3-3.

The CE declaration of conformity can be viewed in the support section of the Sagemcom site www.sagemcom.com, or it can be obtained from the following address:

Sagemcom - Customer relations department

92848 Rueil-Malmaison Cedex - FRANCE

250 route de l’Empereur

This "HD TV" Television Receiver complies with the "HD TV" Minimum Requirements. The "HD TV" Logo is a trademark of EICTA. HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

DTS is a registered trademark of Digital Theater Systems, Inc. The FREEVIEW and FREEVIEW+HD words and logos are trademarks of DTV Services Ltd and are used under licence.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories Inc.

Should your Store be unable to help, please check the following Websites for

Please note: In order to receive digital signal of good quality you may need an antenna upgrade.

Telephone number for your local store is on your till receipt.

Digital Television Terrestrial signal coverage:

http://www.dtg.org.uk/consumer/freeview.html

http://www.freeview.co.uk

http://www.bbc.co.uk/digital

LU 253311796A RTI90-320 T2 HD UK.book Page 3 Jeudi, 8. av ril 2010 8:06 08

Contents

RTI90-320 T2 HD UK

1. Safety recommendations............. 5

Where to put your recorder? .............................. 5

Warnings and safety instructions ....................... 5

Batteries ............................................................. 6

Interference ........................................................ 6

Hard disk ............................................................ 6

USB Storage devices ......................................... 6

Cleaning the recorder......................................... 6

2. Environment ................................. 7

Meaning of logos present on the product or

its packaging..................................................... 7

Product recycling and disposal........................... 7

European Directive on Waste Electrical and

Electronic Equipment (WEEE).......................... 7

Directive on the Restriction of use of certain

hazardous substances in electronic

equipment (ROHS) ........................................... 8

Electrical consumption of the recorder ............... 8

3. Product Overview......................... 9

Package contents............................................... 9

Front panel of the Recorder ............................. 10

Rear panel of the Recorder .............................. 10

Remote control ................................................. 11

Batteries ................................................................11

4. Connections ............................... 12

Connection to a hi-fi unit ................................... 15

5. First installation.......................... 16

Language Selection .......................................... 16

Country Selection ............................................. 16

Video Settings................................................... 16

Parental code.................................................... 17

Channel Search ................................................ 17

6. Everyday use .............................. 18

Selecting a TV channel ..................................... 18

Using the keys PROG+ and PROG-, or

keys 0-9 ................................................................ 18

Using the channel list ............................................ 18

Programme information banner ............................ 18

Detailed programme information ........................... 19

Selecting a Radio channel ................................ 19

Adjusting the audio volume............................... 19

Changing the favourites list .............................. 20

Temporarily selecting audio languages

and subtitles.................................................... 20

Activating and Using Audio description ................. 20

Teletext and interactive services ...................... 21

Temporarily selecting display formats .............. 21

Electronic programme guide ............................ 22

Live mode/Deferred mode ................................ 23

Pause / Play .......................................................... 23

Rewind .................................................................. 23

Fast forward .......................................................... 23

Stop ....................................................................... 23

Connection to the terrestrial antenna ............... 12

Standard outdoor antenna .....................................12

Indoor antenna ......................................................12

Connection to the antenna ....................................13

Connection to the TV set.................................. 13

Connection to a High-Definition television set

using a HDMI lead ................................................13

Connection to a Standard-Definition

television set .........................................................14

Connection to a VCR/DVD recorder................. 14

Connection to a home theatre system.............. 15

7. Video Recordings ...................... 24

Immediate recording (Live or Deferred

programme) .................................................... 24

Recording programmes from the menu ........... 25

Scheduling a recording manually .......................... 25

Editing scheduled recordings ................................ 25

Recording programmes from the Electronic

programme guide............................................ 26

Recording List .................................................. 27

Accessing Locked Recordings .............................. 27

LU 253311796A RTI90-320 T2 HD UK.book Page 4 Jeudi, 8. av ril 2010 8:06 08

High Definition Digital Television Recorder

Managing the Recording list............................. 28

Selecting recorded programmes ...........................28

Sorting your recordings .........................................28

Creating folders .....................................................29

Erasing recordings .................................................29

Moving recordings .................................................29

Renaming recordings ............................................29

Merging recordings ................................................30

8. Installation menus...................... 31

Icons................................................................. 31

User settings ................................................... 31

Setting your language options ...............................31

Setting your User Preferences ..............................32

Recorder Locking and Parental control

options ..................................................................33

Changing your Parental code ................................33

Creating and Managing favourite lists ............. 34

Recorder settings ............................................ 35

Searching for channels ..........................................35

Searching manually for channels ..........................35

Picture settings ......................................................36

Audio settings ........................................................36

Resetting the recorder ...........................................37

Information Menu ............................................ 38

Antenna Signal Information ...................................38

Recorder Information .............................................38

Hard disk drive Information ....................................38

9. Troubleshooting ......................... 39

Using the recorder............................................ 39

Updating the software ...................................... 40

10. Customer Support...................... 41

11. Guarantee Terms........................ 42

12. Specifications............................. 44

LU 253311796A RTI90-320 T2 HD UK.book Page 5 Jeudi, 8. av ril 2010 8:06 08

RTI90-320 T2 HD UK

1. Safety recommendations

Use of the recorder is subject to safety measures designed to protect users and their environment.

Where to put your recorder?

In order to guarantee the correct operation of your recorder, you must:

• place it indoors to protect it from lightning, rain, and sun rays,

• place it in a dry and well ventilated area,

• keep it away from heat sources such as radiators, candles, lamps,

etc.

• protect it from dampness, place it on a flat surface from where it will not fall and is out of reach of the children,

• do not place anything on top of your recorder (as it would restrict ventilation): the ventilation slots located on the casing prevent your recorder from overheating. If you place the recorder in a compartment, leave a space of at least 10 cm on each side and 20 cm on the front and back of the recorder,

• connect it directly to the mains with the provided cords, the socket must be near the recorder and easy to access. The use of an extension cable (with multi-points) is not recommended.

Warnings and safety instructions

NEVER OPEN THE RECORDER OR THE POWER SUPPLY UNIT! YOU RISK GETTING AN ELECTRIC SHOCK.

•Use only the power supply unit supplied with the recorder to connect it to the mains.

Other practice may be dangerous.

•As a precaution, in case of danger, the power supply unit acts as a disconnecting mechanism for the 230V power supply. That is why it is imperative that you connect the recorder to a power outlet located nearby and easily accessible.

•You must imperatively connect the power supply unit to the recorder before connecting the power supply unit to the power socket.

• To avoid short-circuits (fire or electrocution hazard), do not expose your recorder to dampness. Do not place any object containing liquid (vase for example) on the appliance. The recorder must not be splashed with liquid. If liquid is spilled onto the recorder, unplug it immediately from the mains and consult your supplier.

• Take care not to allow liquids or metal objects to enter the recorder through the ventilation slots.

• Avoid reconnecting the recorder after it has been subjected to large changes in temperature.

• The recorder must be disconnected from mains supply (from the power outlet or rear panel) before

any modification of connection between TV, VCR or antenna.

• In the event of a storm, it is advisable to unplug the antenna. Even if the recorder and the television set are disconnected from the power supply, lightning can still damage them.

• Only personnel approved by the manufacturer can repair the recorder. Failure to comply with these safety precautions will invalidate the guarantee.

LU 253311796A RTI90-320 T2 HD UK.book Page 6 Jeudi, 8. av ril 2010 8:06 08

High Definition Digital Television Recorder

Batteries

Batteries are easily swallowed by young children. Do not allow young children to play with the remote control.

To avoid damaging the remote control, only use identical batteries or batteries of an equivalent type. The batteries provided are not rechargeable.

Interference

Do not place the recorder near appliances that may cause electromagnetic interferences (for example loudspeakers). This could affect recorder operation and distort the picture or sound.

Hard disk

This unit contains a hard disk drive. Please wait for the unit to go into standby mode before unplugging and moving it.

USB Storage devices

Please wait until the recorder is in standby mode before disconnecting your storage devices. Else, you could lose data or damage your storage device.

Cleaning the recorder

The outer casing of the recorder can be cleaned with a soft and dry cloth. Do not use any type of abrasive pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage the surface of the recorder.

LU 253311796A RTI90-320 T2 HD UK.book Page 7 Jeudi, 8. av ril 2010 8:06 08

RTI90-320 T2 HD UK

2. Environment

Preservation of the environment is an essential concern of the manufacturer. The desire of the manufacturer is to operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of its products, from manufacturing to commissioning, use and elimination.

Meaning of logos present on the product or its packaging

The crossed-out dustbin sign stuck on the product or its accessories means that at the end of its life, the product is subject to selective collection and must not be thrown away in unsorted household waste.

The looped arrow sign means that the packaging may be recycled and must not be disposed of with household waste.

The green logo means that a financial contribution is paid to an approved national organisation to improve packaging recovery and recycling infrastructures.

The logo with three arrows shown on the plastic parts means that they may be recycled and that they must not be disposed of with household waste.

Product recycling and disposal

To facilitate recycling, please respect the sorting rules set up locally for this kind of waste.

If your product contains batteries, they must be disposed of at appropriate collection points.

European regulations ask you to dispose of products belonging to the family of electrical and electronic

equipments ( ) selectively:

• At the collection points made available to you locally (drop-off centre, selective collection, etc.),

• At sales points in the event of the purchase of similar equipment.

In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health.

European Directive on Waste Electrical and Electronic Equipment (WEEE)

In the context of sustainable development, the reduction of wastes to be eliminated by reusing, recycling, composting and energy recovery is strongly advised.

In order to comply with this directive which is applicable to EEEs sold after 13/08/2005, your recorder will be taken back free of charge and recycled by the distributor of the EEE within the limits of the quantity and types of equipment bought from them. These appliances which contain substances potentially dangerous to human health and the environment will be recycled.

LU 253311796A RTI90-320 T2 HD UK.book Page 8 Jeudi, 8. av ril 2010 8:06 08

High Definition Digital Television Recorder

Directive on the Restriction of use of certain hazardous substances in electronic equipment (ROHS)

Your recorder along with the batteries supplied comply with the directive relating to the RoHS – dangerous materials such as lead, mercury or cadmium are not used. This avoids environmental hazards and any risks to the health of personnel at the recycling centres. The batteries of the remote control can be removed simply.

Note: When the batteries of the remote control are worn out, please dispose of them at a collection point and not with household waste.

Electrical consumption of the recorder

To reduce the consumption of your recorder, you are recommended to place it in standby mode when not in use. We recommend that you turn off the recorder or unplug it from the mains if you will not be using it for a prolonged period of time.

LU 253311796A RTI90-320 T2 HD UK.book Page 9 Jeudi, 8. av ril 2010 8:06 08

RTI90-320 T2 HD UK

3. Product Overview

Your High Definition Digital Television Recorder allows you to watch and record FREEWIEW channels.

Package contents

Your new equipment includes:

Item Description

1 1 High Definition Digital Television Recorder (DTR)

2 1 power supply unit (power adaptor and power cord)

3 1 remote control with 2 batteries (AAA)

4 1 HDMI lead for connection to an High Definition TV set

5 this user manual

LU 253311796A RTI90-320 T2 H D UK.book Page 10 Jeudi, 8. avril 2010 8:06 08

High Definition Digital Television Recorder

Front panel of the Recorder

Item Description Item Description

USB port (for future use)

Status indicator

Digital display

• Shows the current time when the

recorder is in standby.

• Shows the programme number when the recorder is on.

• Shows hard disk activity (recording in progress, programme playback, ...)

P-

• Change channel (Down)

Standby button

• Put the recorder in standby

mode/Wake up the recorder from standby mode (press and let go)

• Restart the recorder (press and hold for 5 sec.)

P+

• Change channel (Up)

Rear panel of the Recorder

Item Description Item Description

7 Power supply unit connector 11 Digital audio connector (S/PDIF)

8 Ethernet port (for future use) 12 SCART connector (to TV)

9 HDMI Digital video audio connector 13 Antenna input

Analogue audio connectors (to hi-fi

unit)

14 Antenna output

LU 253311796A RTI90-320 T2 H D UK.book Page 11 Jeudi, 8. avril 2010 8:06 08

Remote control

RTI90-320 T2 HD UK

Key(s) Description

Put the recorder in standby mode/Wake up the

recorder from standby mode.

2 Access channels and various on-screen options

3 Display the electronic programme guide (EPG)

4 Turn the sound off/on

5 Increase or decrease the audio volume

6 Access menus

7 Move in a page, a menu…

8 Display the channel list, confirm a selection

9 Go back to the previous channel, screen or mode

10 Select subtitles

This key is by default deactivated. Becomes active when Audio description is activated in your User

Preferences, and allows then to set Audio description on the current programme (see Setting

your language options, page 31).

12 Display programme information and options

13 Change channel

14 Video resizing (if TV set connected via HDMI).

On-screen options (MHEG, Teletext pages and

menu)

16 Access the recording list

17 Exit a screen, a mode

18 Display Teletext pages when available

19 Switch from TV mode to Radio mode

20 Skip backward / Rewind / Fast forward / Skip forward

21 Stop / Play / Pause

Launch immediate recording, Schedule a recording

from the electronic programme guide (EPG)

Undocumented keys are not used on this product.

Batteries

The remote control needs two batteries (AAA) to operate. The drawing in the battery compartment indicates how to install them. The batteries provided are not rechargeable.

LU 253311796A RTI90-320 T2 H D UK.book Page 12 Jeudi, 8. avril 2010 8:06 08

High Definition Digital Television Recorder

4. Connections

Before installing your recorder:

• Please check that the delivery is complete (see Package contents, page 9).

• Please ensure that the appliances to be connected together (recorder, TV set, VCR…) are unplugged

before making any connections.

• Please ensure that Digital Terrestrial Television (DTT) is available in your area.

Connection to the terrestrial antenna

Very often to get the best reception, you may simply need to adjust your antenna. Alternatively, you can connect an indoor antenna to your system. For more information, please contact your specialised distributor.

Standard outdoor antenna

Preferably use an outside roof antenna that is designed to receive UHF channels (21 to 69). However:

• if your building is equipped with an old antenna model, digital channels may be difficult or even impossible to receive. The problem can only be resolved by changing the antenna.

• if your building is equipped with a common antenna which contains selective filters devised for analogue channels, reception will most probably not work correctly. In this case, you will have to contact the administrator of the building.

• some antennas directed towards an analogue TV transmitter must be re-adjusted towards a digital TV transmitter. If you encounter reception problems, you can also try placing the antenna at different heights.

Indoor antenna

In ideal reception conditions, this type of antenna is sufficient. Here, however, are some useful tips:

• use an antenna designed to receive channels 21 to 69.

• install the antenna close to the window and direct it towards the digital TV transmitter.

• if possible, use an antenna with an amplifier. The recorder can provide remote power supply to your indoor antenna (see Antenna Signal Information, page 38).

LU 253311796A RTI90-320 T2 H D UK.book Page 13 Jeudi, 8. avril 2010 8:06 08

RTI90-320 T2 HD UK

Connection to the antenna

1. Plug the antenna cable (not supplied) into the ANTENNA IN input connector on your recorder.

2. You can connect the RF output connector of your recorder to the antenna input of the television set or

VCR/DVD recorder (cable not supplied).

Connection to the TV set

Connection to a High-Definition television set using a HDMI lead

1. To take advantage of High Definition picture quality, you must connect the HDMI connector of your recorder to the HDMI connector on your television set (cable supplied).

2. To connect other devices to the recorder (VCR, home theatre cinema...), refer to the following pages.

3. Connect the power adaptor to the power cable. Then, connect the power cable into the 12V connector

on the recorder.

4. Plug the power cord into the wall socket.

LU 253311796A RTI90-320 T2 H D UK.book Page 14 Jeudi, 8. avril 2010 8:06 08

High Definition Digital Television Recorder

Connection to a Standard-Definition television set

1. You must connect the television set to your recorder using a SCART connector (not supplied).

2. To connect other devices to the recorder (home theatre cinema...), refer to the following sections.

3. Connect the power adaptor to the power cable. Then, connect the power cable into the 12V connector

on the recorder.

4. Plug the power cord into the wall socket.

Connection to a VCR/DVD recorder

See the diagram below to connect your recorder to a VCR/DVD recorder.

Note

If your VCR/DVD recorder has more than one SCART connector, choose the TV or EXT1 socket.

LU 253311796A RTI90-320 T2 H D UK.book Page 15 Jeudi, 8. avril 2010 8:06 08

RTI90-320 T2 HD UK

Connection to a home theatre system

Some programmes are broadcast with a high quality multichannel digital sound. The connection of your recorder to a home theatre system will give you a cinematic surround sound experience when watching these programmes.

This can easily be done by connecting with a coaxial cable (not supplied) the DIGITAL AUDIO output of your recorder to the digital audio coaxial input of your home theatre amplifier

Dolby® Digital Plus is one of the latest innovations of Dolby Laboratories in high quality digital audio. Compatible with Dolby Digital systems, it addresses the expectations of most demanding viewers, and is scalable to the diverse world of content delivery, such as, for instance, High Definition TV broadcast.

Note

For more information, please visit the following website: http://www.dolby.com/consumer/setup/index.html

Connection to a hi-fi unit

To make the most of the digital quality sound and listen to radio channels with the TV turned off, just connect the right and left audio outputs of the recorder to the auxiliary input of your hi-fi system (cable not supplied).

+ 33 hidden pages
