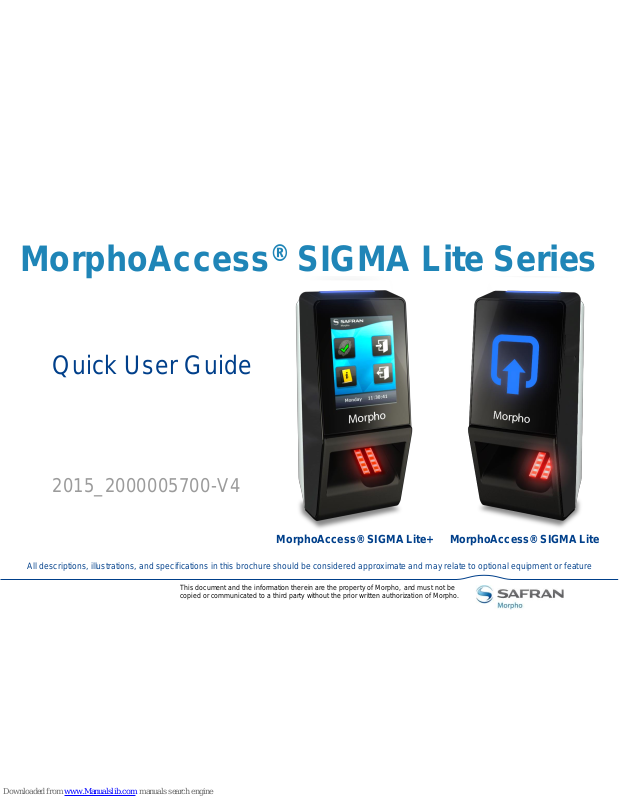

MorphoAccess
®
SIGMA Lite Series
Quick User Guide
2015_2000005700-V4
All descriptions, illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature
MorphoAccess® SIGMA Lite+ MorphoAccess® SIGMA Lite
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
1
Table of Contents
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Color
Step
Content
One
Overview
Two
Wiring
Three
Communication
Four
ACP or SDAC
Five
Administration
Six
Software
Seven
Enrollment
Eight
Optional features
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
2
Product Overview
The MorphoAccess®SIGMA Lite Series
terminal has a simple and ergonomic manmachine interface designed for access
control and Time & Attendance, with
fingerprint recognition, contactless card
authentication and PIN authentication
options.
(for configuration with a
USB mass storage key)
Power consumption shall
not exceed 200mA
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Optical biometrical sensor
Status LED
Optional 2,8“
touchscreen LCD
(SIGMA Lite+)
Embedded web server
(configuration & enrolment)
Status LED
HID® iCLASS™ 13,56MHz (SIGMA … ICLASS)
Or MIFARE™ DESFire ™ 13,56MHz (SIGMA .. MULTI)
Or HID® Prox ® 125kHz (SIGMA .. PROX)
Optional RF
Card reader
Large User
feedback
LED panel
(SIGMA Lite)
USB host port
Buzzer
Optional
sensor
protection cap
MorphoAccess
® SIGMA
Lite+
(none)
ICLASS
Lite
MULTI
PROX
Terminal designation
Optional Wi-Fi™
USB adaptor
(plugged at the back
of the terminal)
Step one : overview
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
3
MorphoAccess®SIGMA Lite Checklist
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Electronic documentation is provided in Adobe® Acrobat® format (PDF). Adobe® Acrobat® Reader is available at http://www.adobe.com.
Step one : overview
Product packaging checklist:
QTY
ITEM
1
MorphoAccess
®
SIGMA Lite or Lite+ terminal
1
Back door equipped with cables and screws
1
Protection Accessory (optional)
1
Wall
Mounting Plate
1
Documentation package
Lite Lite+
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
4
MorphoAccess®SIGMA Lite terminal Implementation
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Step one : overview
The MorphoAccess®SIGMA Lite Series terminal
Its role is to process the access request from the user. It performs access
right checks using one-to-many biometric identification or one-to-one
biometric verification, and/or RF card authentication, and/or PIN check.
A Door Electric Latch or equivalent (3rd party product)
The Access Controller sends a command to activate the latch if the access is granted (i.e. if the individual's User ID is listed in the
Controller authorized user List). Control of the latch is made through a dry contact..
An Alarm (3rd party product)
The MorphoAccess®terminal sends a message to the Access Controller, to
activate the Alarm as soon as a malicious activity, such as tamper or pulling, is
detected
To secure an access, Morpho recommends installing the MorphoAccess®SIGMA Lite Series terminal as a part of a typical Access
Control system, which consists of the components described below.
An Access Controller (3rd party product)
The MorphoAccess®terminal interfaces with an Access Controller
(using TCP/IP, Wiegand, Data Clock or RS485 protocol):
After access request, the MorphoAccess
®
terminal sends the
result of user’s access rights to the Access Controller (this
message contains at least the User ID)
The Access Controller performs additional checks, and returns
the final decision (access granted/denied) to the MorphoAccess
®
terminal (which displays the result to the user), and to the door
controller which opens the door (if the access has been granted).
A
A
B
B
D
D
C
C
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
5
Typical Access Control Process
On Access
Request, the
terminal checks
user’s access
rights using a
biometric check.
If the result of the
check is successful
(user recognized ),
a message is sent
to the Central
Access Controller
for additional
access rights
check.
If the user is
allowed to access
to the protected
zone, the central
access controller
returns an "access
granted" message
to the terminal and
a “open” command
to the gate
controller.
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Step one : overview
User’s fingerprints must be stored in the terminal database or in contactless card, to enable biometric check.
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
6
MorphoAccess®SIGMA Lite Access Control Modes
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Step one : overview
The terminal can be configured in one of the modes described in the table below
Identification
Authentication
Multifactor
Proxy
Access
control
a
pplication
Application that runs
on the terminal when
it starts.
Application that runs
on the terminal when
it starts.
Application that runs
on the terminal when
it starts.
Remote application
that controls the
terminal through
network commands
Access
control
triggering
event
A
user places a
finger on the
biometric sensor.
A user places
a
contactless
card in
front of
the reader.
(*)
Both
Identification
and Authentication
triggers are enabled.
Triggering events are
selected
by the
remote application
Biometric
check (if
enabled)
The user’s captured
fingerprint is
matched against all
fingerprints in the
terminal database.
The user’s captured
fingerprint is
matched against
their reference
fingerprint. (**)
As per Identification
or Authentication,
depending on the
triggering event
Selected
by the
remote application
Decision
to
display
result
signal to user
By Identification
standalone
application
By Authentication
standalone
application
By
running
s
tandalone
application
By remote
application
(* ) or the user enter their Identifier on the keypad, or a Wiegand frame is received from an external device
(**) stored on the contactless card or in the user record in the terminal’s local database
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
7
Deployment Environments
General precautions
Do not expose the terminal to extreme temperatures.
When the environment is very dry, avoid synthetic carpeting near the MorphoAccess
®
SIGMA Lite terminal,
to reduce the risk of unwanted electrostatic discharge.
Areas containing combustibles
Do not install the terminal in the vicinity of gas stations or any other installation containing flammable or
combustible gases or materials. The terminal is not designed to be intrinsically safe.
The terminal should be installed in controlled lighting conditions
Avoid biometric sensor exposure to a blinking light
Avoid direct exposure of the biometric sensor to sunlight or to UV lights.
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
Step one : overview
Operating temperature
-
10°to + 55 °C (14°to 131°F)
Operating
humidity
10 % < RH < 80 % (non condensing)
Storage
temperature
-
25°to + 70 °C (-13°to 158°F)
Storage
humidity
5% < RH < 95 %
IP code
IP65 rated, once backdoor fixed with the
4 screws
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
8
Power supply from electrical source shall be switched off before starting the installation.
Before proceeding, make sure that the person in charge of installation and connections, is properly connected to
earth, in order to prevent Electrostatic Discharges (ESD).
Wiring Overview
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
All connections of the terminal are of SELV (Safety Electrical Low Voltage) type.
Step two : wiring
7 wires
RJ-45
Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against
power failure, by a dedicated component during a least 24 hours (at 25oC) without external power supply.
RJ-45 : Ethernet & PoE
25 ETH TX+ Orange 1
27 ETH TX- Orange / White 2
29 ETH RX+ Green 3
31 ETH RX- Green / White 6
30 ETH VPORT+ Blue 4&5
32 ETH VPORT- Blue / White 7&8
28 ETH GND Drain wire (no color) shell
Internal Relay
19 RELAY_NO Yellow
21 RELAY_NC Orange
22 RELAY_COM Grey
Wiegand IN & Wiegand OUT
13 WIEGAND_IN0 Green / Red
15 WIEGAND_IN1 White / Red
14 WIEGAND_OUT0 Green
16 WIEGAND_OUT1 White
17 WIEGAND_LEDOUT1 Blue
18 WIEGAND_LEDOUT2 Blue / Red
20 WIEGAND_GND Black / Red
RS-485, GP IN & OUT
5 RS485_A Blue
7 RS485_B Blue / Red
6 RS485_GND Black / Red
9 GPI_0 Orange
10 GPI_1 Orange / Red
11 GPO_0 Yellow
12 GPO_1 Yellow / Red
8 GPIO_GND Black / Red
Power supply & Tamper switch
1 Power + 12V Red
2 Power GND Black
3 SWITCH_PIN1 Light Blue
4 SWITCH_PIN2 Pink
This document and the information therein are the property of Morpho, and must not be
copied or communicated to a third party without the prior written authorization of Morpho.
9
Power Wiring
External Power Supply: 12-24 Volts (regulated and filtered) 1 Amp min @12V, CEE/EEC EN60950 standard
compliant. A12 Volts power supply compliant with SIA's Wiegand standard will also be suitable. If sharing
power between devices, each unit must receive 1A (e.g. two units would require a 12vDC, 2A supply).
Power Over Ethernet (POE): power can be provided through RJ-45 connector using
a PSE (Power Sourcing Equipment) IEEE 802.3af or IEEE802.3at type 1 compliant.
The terminal is a Class 0 (15.4W) PD (Powered Device).
Step two : wiring
RJ-45
1 Power + 12V Red
2 Power GND Black
PoE Injector Specs
Output Voltage: 48VDC
Output Current: 0.32A
Power: 15.36W
A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended.
WARNING: Under powering may cause memory and data corruption; over powering may cause hardware damage.
Both of these situations will void the warranty
Gauge
AWG
Diameter
(mm)
Maximum drop voltage
(V)
at 1m
at 5m
at 10m
20 0.81 0.03 0.17 0.33
22 0.64 0.05 0.26 0.53
24 0.51 0.08 0.42 0.84
Morpho recommends using a gauge AWG20 for 12V power supply.
The voltage measured on the product block connector of the terminal
must be equal to 12V-24V (-15% / +10%).
The table at the right, shows the maximum voltage drop between the
power source and the terminal, depending on the length of the cable.
MorphoAccess® SIGMA Lite Series –
Quick User Guide - 2015_2000005700-V4
