ICOP™ PRO

USER GUIDE

Page 2

ICOP PRO USER GUIDE

Important Notices

Title: ICOP™ PRO User Guide Document Version: 2.1

Firmware Version: X15-4-T521082

Safety Vision attempts to provide information contained in this manual based on the latest product information available at the time of publication. However, because of Safety Vision’s policy of continual product improvement, Safety Vision reserves the right to amend the information in this document at any time without prior notice.

This material is condential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.

Safety Vision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and tness for a particular purpose. Safety Vision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Safety Vision expressly disclaims all responsibility and liability for the installation, use, performance, maintenance, and support of third-party products. Customers are advised to make their independent evaluation of such products.

No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Safety Vision.

Safety Vision® is a registered trademark of Safety Vision, LLC. All other products or name brands mentioned in this document are trademarks of their respective owners. For more information about Safety Vision and its products, go to www. safetyvision.com or call 800-880-8855.

Page 3

ICOP PRO USER GUIDE

Table of Contents

Overview 2 Main Wiring Diagrams 3 Installation 5 Components - DVR 8 DVR Status LCD 10 Components - Power Control Monitor (PCM) 11 PCM Functions 12 MCAM2 13 ICPMICKIT Wireless Microphone 14 Remote Control 15 Video Playback 17

Exporting Video Files 19

Conguration 20

System Menu 20

Record Menu 28

Network Menu 36

Event Menu 42

Peripheral Menu 52

System Information 54 Appendix A: Specications 58 Appendix B: Dimensions 59

Page 4

Overview

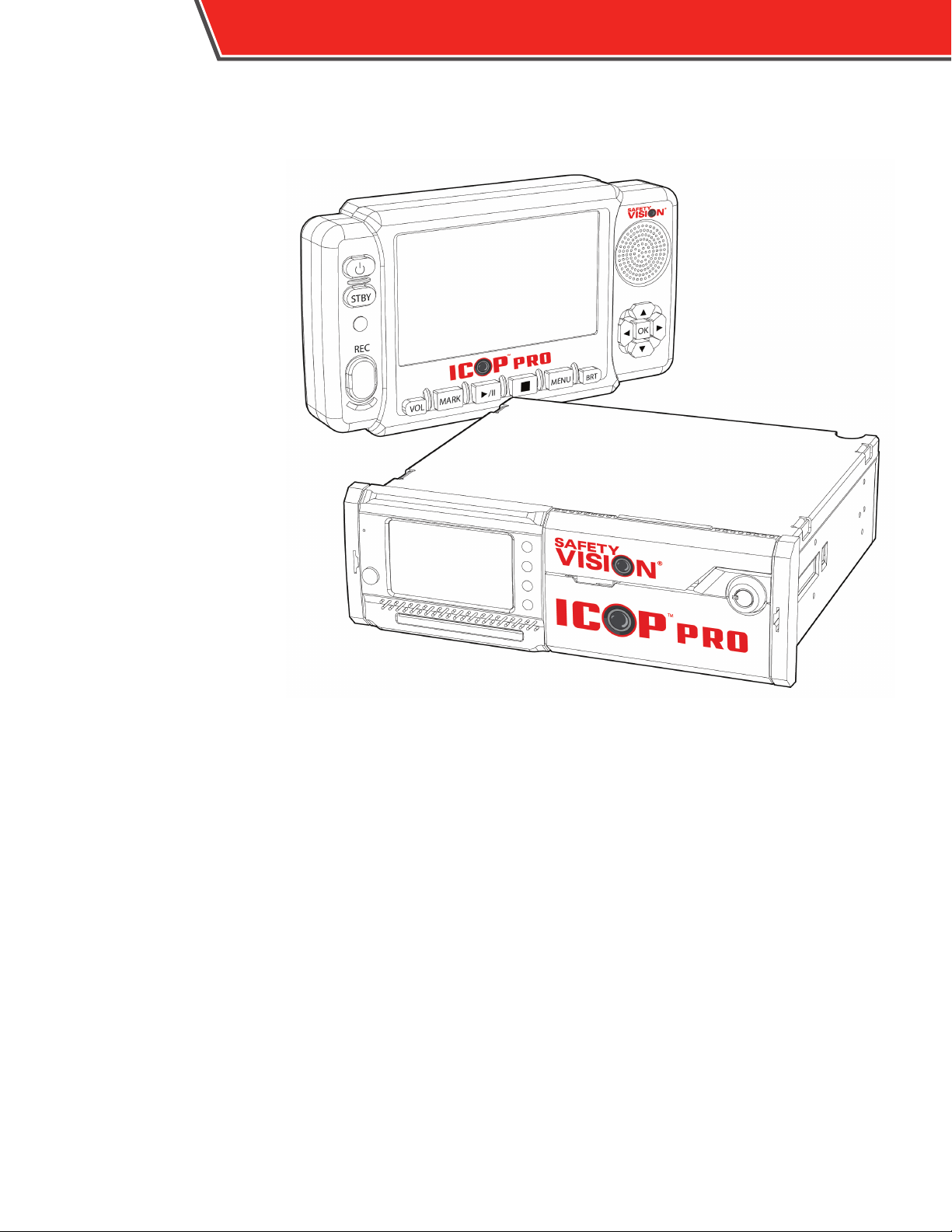

The ICOP™ PRO system is comprised of several advanced pieces of hardware that provide the complete law enforcement solution:

Digital Video Recorder (DVR)

the DVR contains video storage and provides a convienent status LCD display.

Power Control Monitor (PCM)

augmenting a mobile data terminal (MDT), the PCM provides a large monitor to review recorded video and provides convienent controls to start and stop recordings.

- The heart of the system,

- Replacing or

ICOP PRO USER GUIDE

EXTREME™ Wireless Microphone

microphones record sound and start and stop recordings while an ocer is away from the

vehicle.

- Rugged remote

MCAM2 Windshield Camera

windshield and has several zoom options.

- The advanced MCAM2 camera faces out the

Backseat Camera - The backseat camera records video

and audio from inside the vehicle’s rear cabin, and utilizes IR illuminators for low light conditions.

Important Notice: Proper maintenance procedures for digital media require that recorded data be reviewed on a regular basis to ensure the DVR is operating correctly. Consult with your eet or vehicle maintenance manager to implement a regular data review policy that ts with your facility routines to ensure data integrity.

Page 5

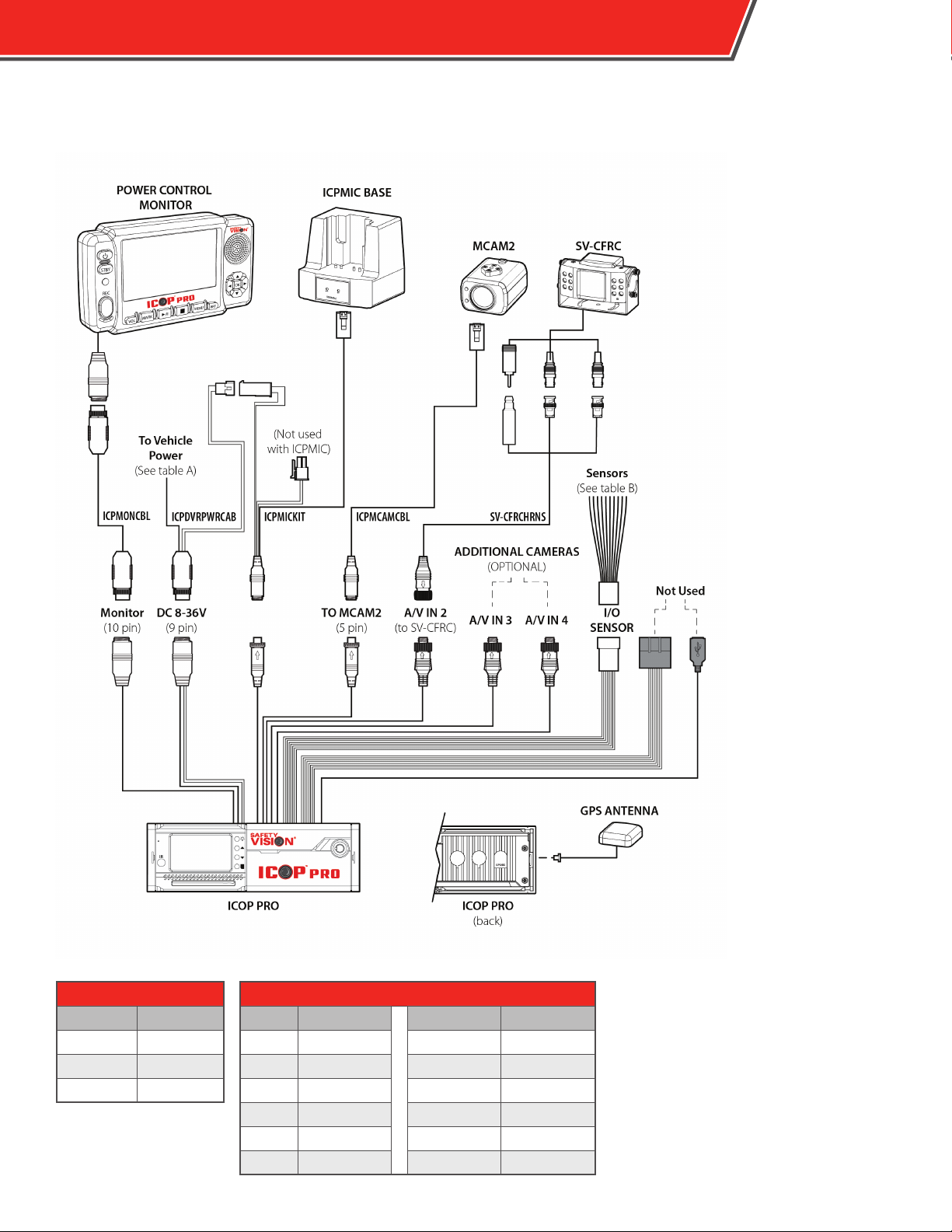

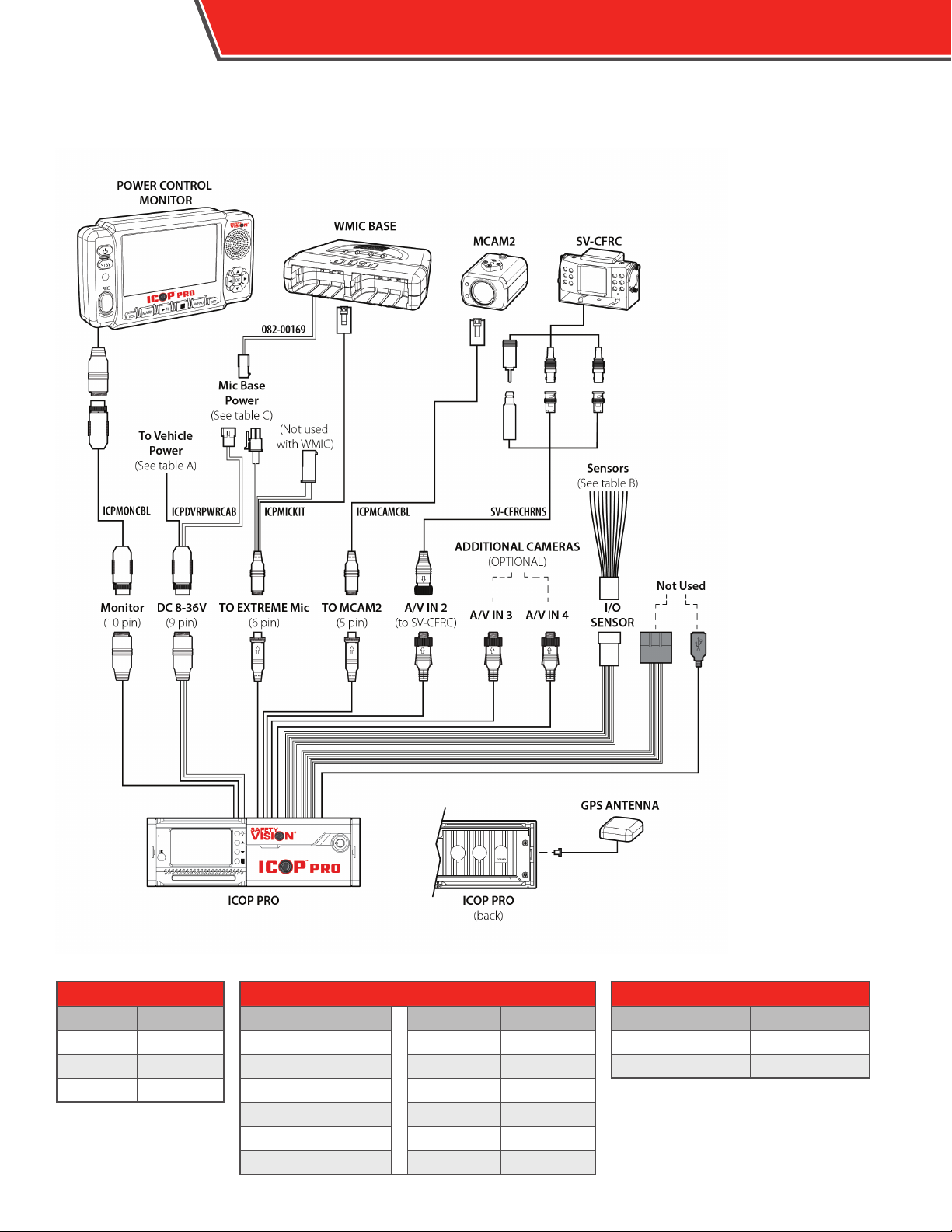

Main Wiring Diagrams

With ICPMIC

Tab le A

Color To

Red +12 V Co ns ta nt

Yellow +12V Switch IGN

Black Vehicle GND

Tab le B

Sensor Description Sensor Description

1 INPUT

2 INPUT

3 INPUT

4 INPUT

5 INPUT

6 INPUT

SENSOR 1

SENSOR 2

SENSOR 3

SENSOR 4

SENSOR 5

SENSOR 6

7 INPUT

8 INPUT

1 OUTPUT

2 OUTPUT

NOT USED

Page 6

With EXTREME Wireless Mic

ICOP PRO USER GUIDE

Tab le A

Color To

Red +12 V Co ns ta nt

Yellow +12V Switch IGN

Black Vehicle GND

Tab le B

Sensor Description Sensor Description

1 INPUT

2 INPUT

3 INPUT

4 INPUT

5 INPUT

6 INPUT

SENSOR 1

SENSOR 2

SENSOR 3

SENSOR 4

SENSOR 5

SENSOR 6

7 INPUT

8 INPUT

1 OUTPUT

2 OUTPUT

NOT USED

Tab le C

From To Description

ICPDVRPWRCAB 082 -00169

ICPWMICCBL 082- 00169

FOR CONSTANT +12V

FOR SWITCHED +12V

Page 7

ICOP PRO USER GUIDE

Installation - DVR

Console Mount

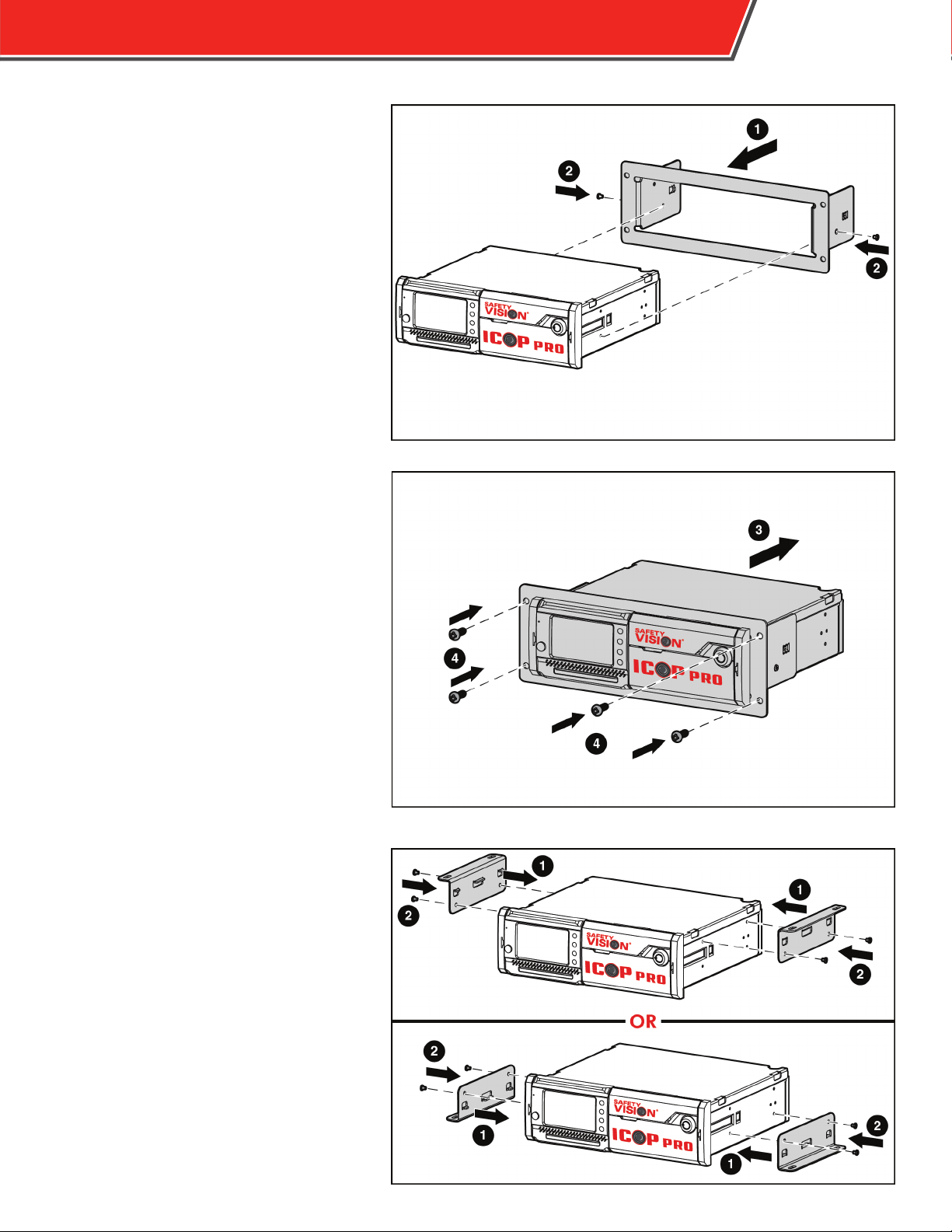

The ICOP PRO DVR can be installed in any standard console with an available single DIN slot.

1. Thread the DVR cable pigtails through

the console mount and slide it up from the back as shown.

Do not attempt to remove the DVR faceplate.

2. Secure the mount with the two supplied

Phillips-head screws, one on each side.

3. Make all necessary wire connections.

4. Slide the DVR into the DIN slot and

secure the mount with four appropriate screws.

Flat Mount

1. Place the supplied L-brackets on each

side of the DVR, oriented up or down, depending on the intended installation.

2. Secure the L-brackets to the side of the

DVR with two supplied Phillips-head screws each.

3. Secure the DVR assembly to a at surface

with self-tapping screws or rivets.

Ensure a minimum of 1/2 inch clearance at the rear of the unit for the fan to provide adequate cooling.

Ensure that the front panel of the DVR remains accessible and there is a minimum

2.5 inches of clearance for cables. Do not install the DVR in an area of the vehicle cabin that could interfere with the safe operation of the vehicle.

Page 8

ICOP PRO USER GUIDE

Installation - PCM

The PCM can be mounted by three dierent means:

RAM Mount

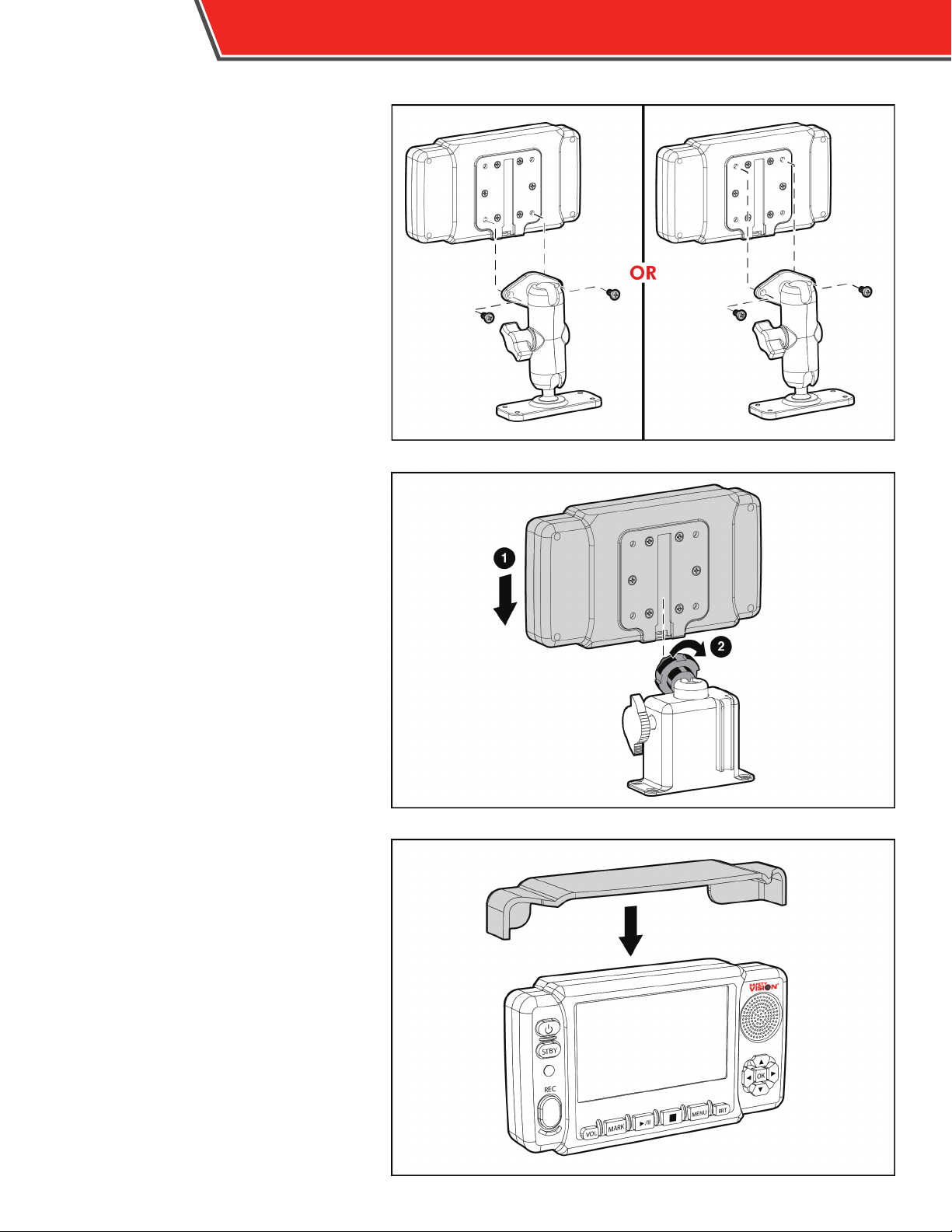

Attach the RAM mount to the back of the PCM with the two provided Phillips-head screws horizontally in either the high or low position.

SV LCD Mount

Slide the PCM onto the LCD mount and twist the locking ring clockwise to secure the mount.

Visor

Snap the visor into place as shown to shield the PCM display from glare.

Page 9

ICOP PRO USER GUIDE

Installation - ICPMICKIT Microphone Cradle

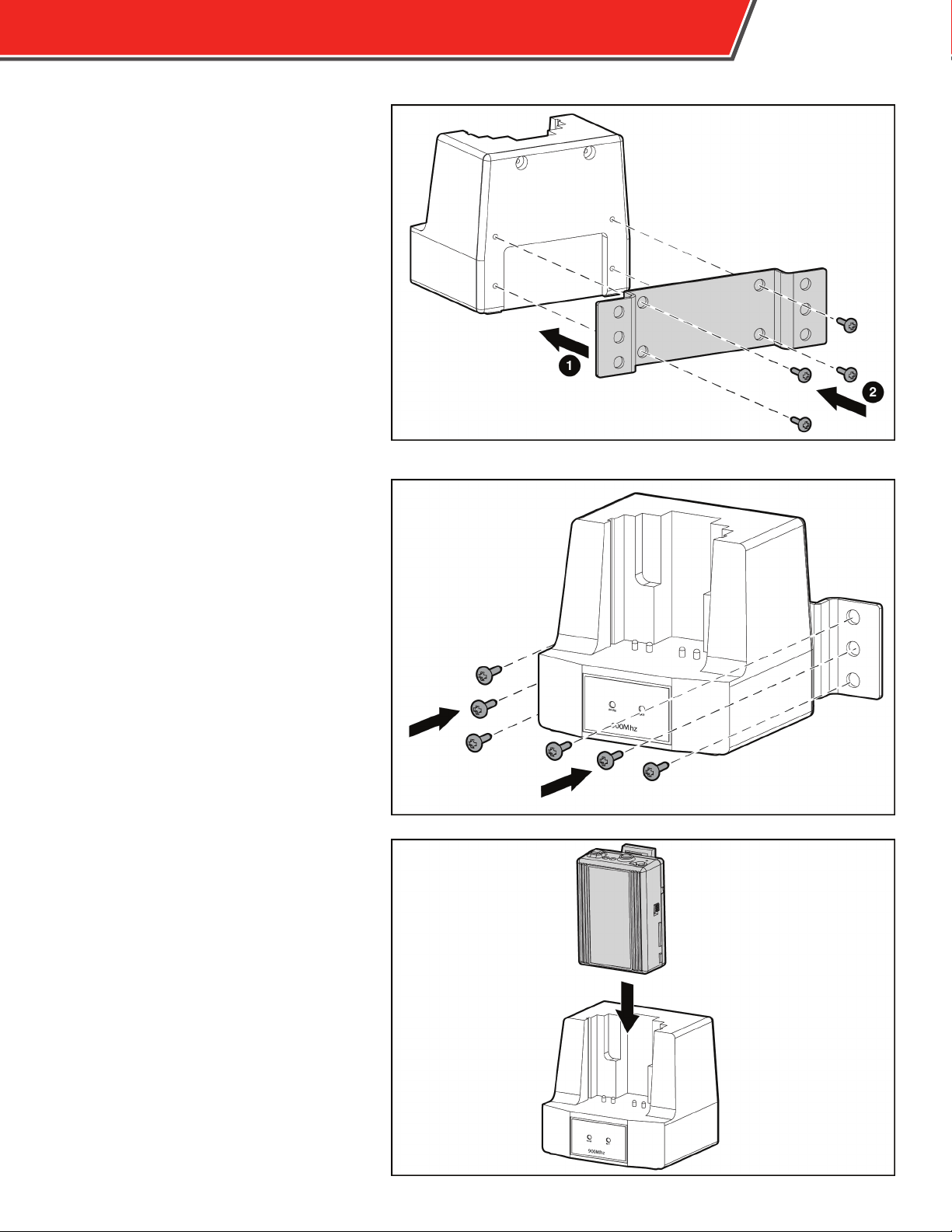

Use the following procedure to mount the ICPMICKIT Microphone cradle:

1. Secure the bracket to the rear of the

cradle with the four supplied Phillipshead screws as shown.

2. Secure the cradle/bracket assembly to

a suitable location inside the vehicle with six supplied Phillips-head screws or other appropriate fasteners.

Note: Do not install the cradle in an area that could interfere with the safe operation of the vehicle.

3. Ensure the Power Switch on the micro-

phone is in the ON position.

4. Place microphone in base as shown.

The BATT status LED on the front of the cradle displays red as the microphone charges. A full charge from a new or depleted battery takes approximately four (4) hours. When charging is complete, the BATT status LED displays green.

Page 10

ICOP PRO USER GUIDE

Components - DVR

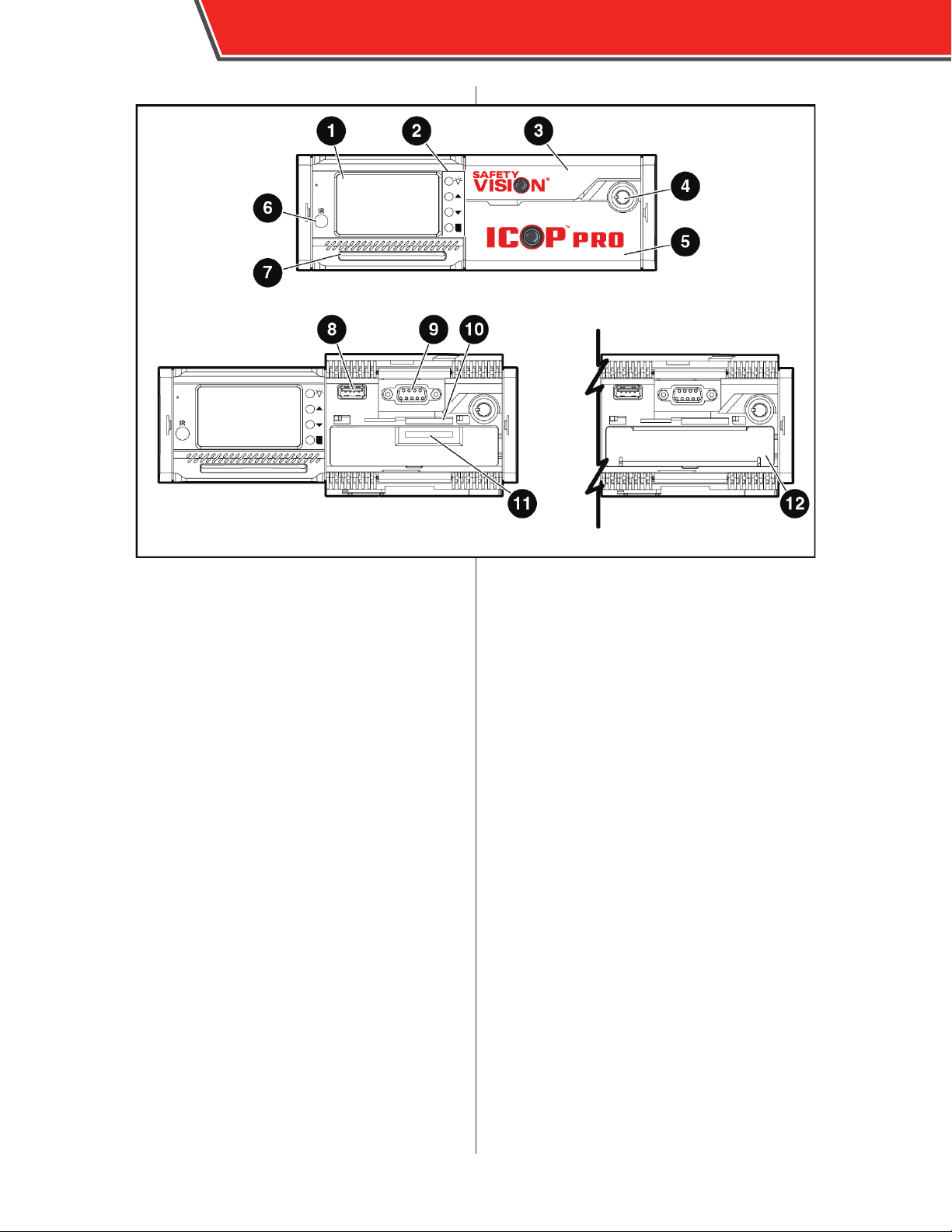

1 - Status LCD - The Status LCD provides the system date

and time, health status, and remaining storage available in a convienent display.

2 - Status LCD Buttons - The Status LCD buttons turn

the display light on and o, cycle the data displayed, and other functions (see table).

3 - I/O Door - The I/O Door conceals the USB and DC-9

connectors. It is accessible even when the Storage Media Door is locked.

4 - Lock - The Lock secures the Storage Media Door and

turns the ICOP PRO DVR on and o.

5 - Storage Media Door - The Storage Media Door

protects and conceals the main and mirror storage media devices.

6 - IR Remote Sensor - The IR Remote Sensor receives

signals from the DVR Remote Control.

8 - USB Port - The USB port provides access to several

ICOP PRO features, such as downloading video clips, uploading congurations, and more.

9 - DE-9 Connector - For Safety Vision Technical Service

use only.

10 - Mirror SD Card Slot - Mirror SD card storage.

11 - Main SD Card Slot - Main storage device for SD

card models.

12 - Solid State Drive (SSD) - Main storage device for

SSD models.

7 - Mag Strip Reader - The Mag Strip Reader is currently

in development at this time.

Page 11

ICOP PRO USER GUIDE

Storage Media

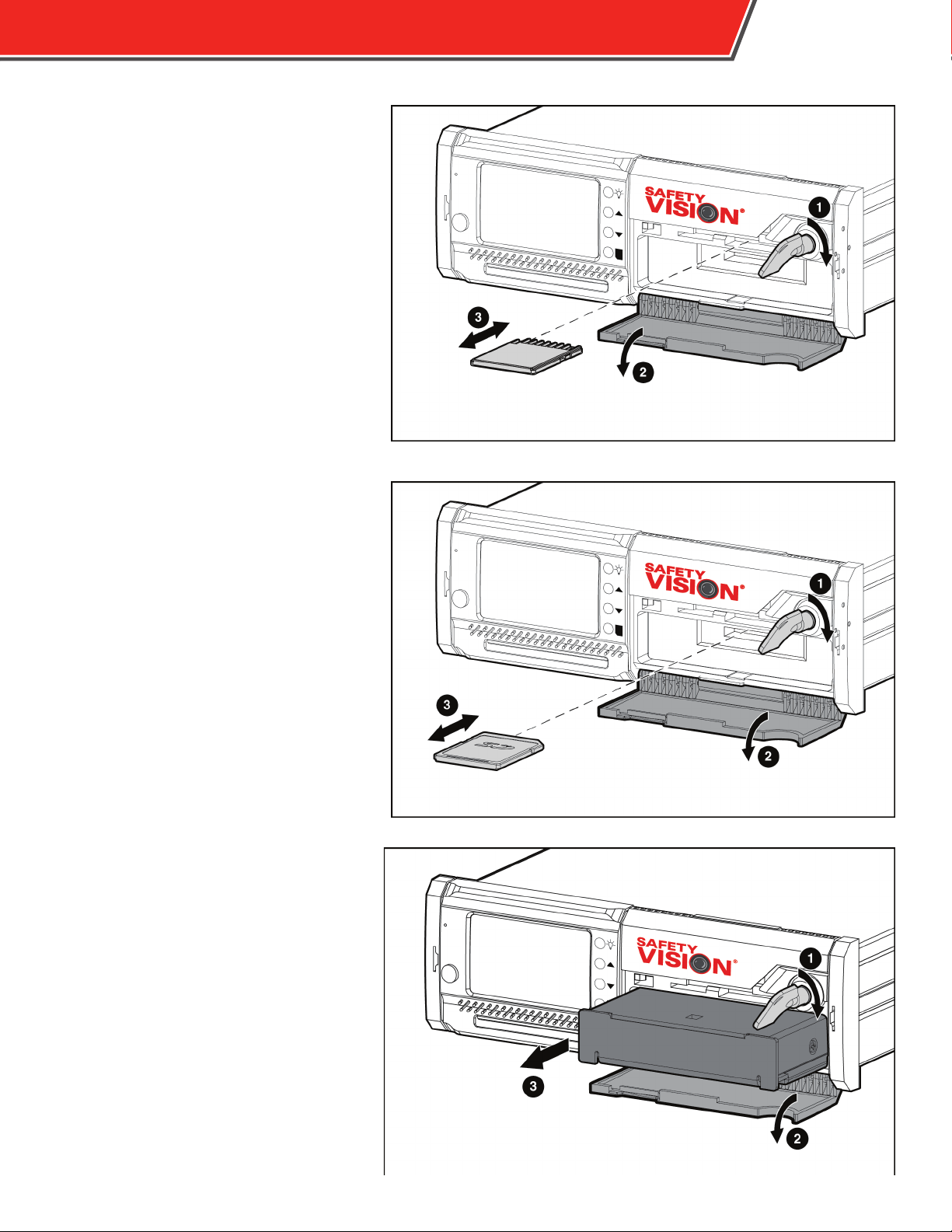

To access the SD card(s) or hard drive:

1. Insert the key into the lock and

turn it clockwise.

Unlocking the Media Storage Door powers the DVR o.

2. Open the Media Storage Door.

3. When nished, replace the storage

media and close the Media Storage Door.

4. Turn the key in the lock counter-

clockwise.

Locking the Media Storage Door powers the DVR on.

SD Card Insertion/Removal

Do not force the SD card into the slot upside down or backwards.

Ensure the SD card’s write protection slider is in the “unlocked” position.

Do not remove or insert an SD card while the DVR is powered on.

Insert an SD card into the SD card slot until it clicks in place as shown in the diagram.

SD card models:

The top SD card (mirror) is inserted with the label FACE DOWN. The bottom SD card (main) is inserted with the label FACE UP.

SSD models:

The top SD card (mirror) is inserted with the label FACE DOWN.

To remove the SD card, press the SD card as far as it will go in the slot, then allow it to “spring” out.

SSD Insertion/Removal

Use a blunt, at object to carefully pry the SSD out of the drive bay.

Page 12

ICOP PRO USER GUIDE

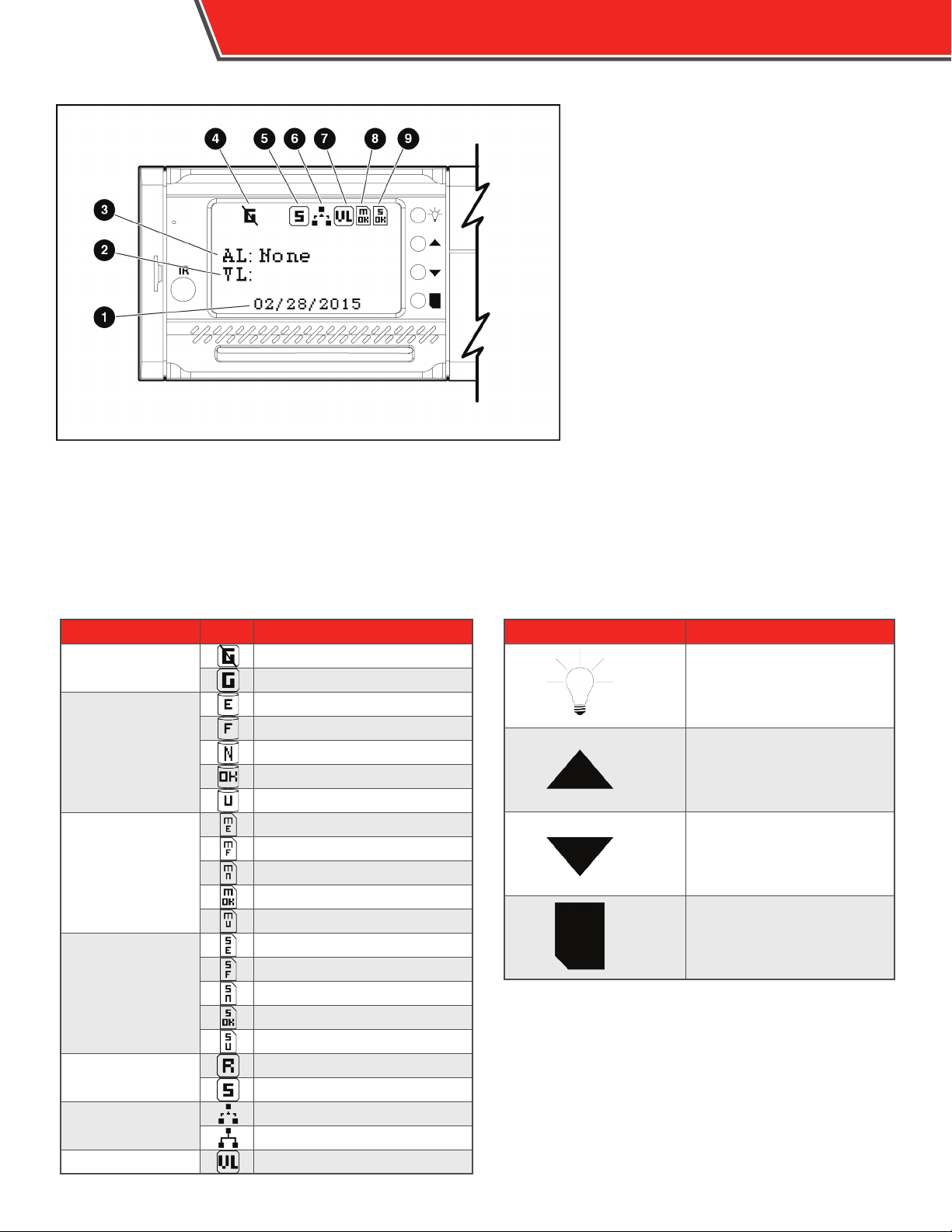

DVR Status LCD

ICON TYPE ICON DESCRIPTION

GPS GPS signal not acquired

GPS signal acquired

Hard disk status Hard disk error

Hard disk full

No hard disk

Hard disk OK

Hard disk not formatted

Main SD status Main SD card error

Main SD card full

Main SD card not installed

Main SD card OK

Main SD card not formatted

tedMirror SD status Mirror SD card error

Mirror SD card full

Mirror SD card not installed

Mirror SD card OK

Mirror SD card not format

Record status Recording

Recording stopped

Server connection status

Video Loss Video Loss

Not connected to the server

Connected to the server

Front Panel Buttons

ICON DESCRIPTION

LCD backlight control

Go to previous page

Go to next page

Press once:begin export data to USB drive

Press and hold for 2 seconds: administrator login

Page 13

ICOP PRO USER GUIDE

Components - Power Control Monitor (PCM)

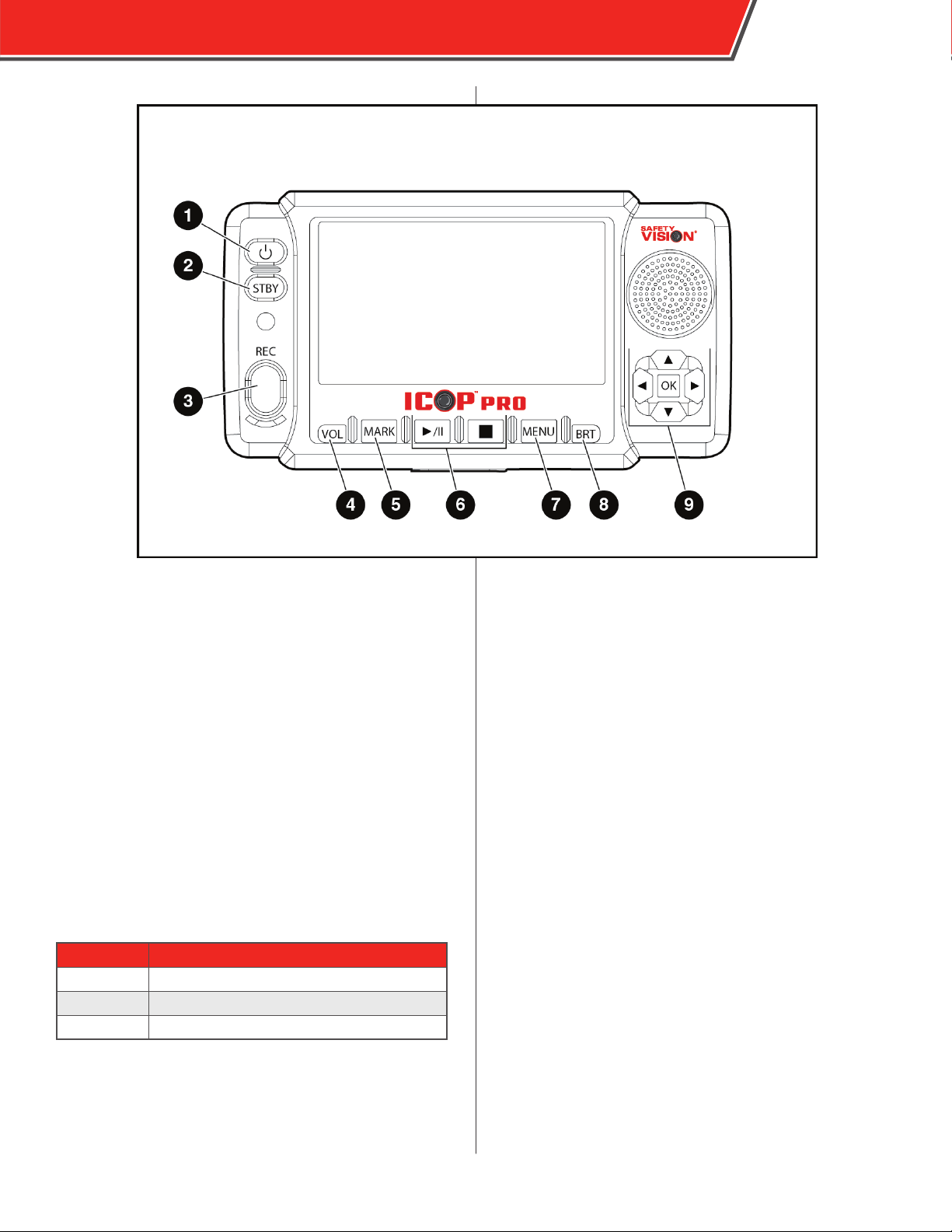

1 - Power Button - Press the power button to turn the

PCM on or o. The power button turns o both the display and all of the controls. The Power button does NOT turn o the DVR.

2 - Standby Button - Press the Standby button to turn

o only the PCM’s display. All controls are still active; press any control to automatically turn the display on again.

3 - Record Button - Press the Record button to manually

initiate a recording. The Record button’s color changes depending on status:

STATUS DESCRIPTION

Green Standby

Red Recording

Flashing Red Error (storage full or not present)

5 - Mark Button - Press the Mark button while recording

to create a digital ag that can be easily referenced or returned to.

6 - Playback Control Buttons - Press the Play/Pause

and Stop buttons to play, pause, or stop video playback, respectively. The Stop button also stops a recording.

7 - Menu Button - Press the Menu button to access the

Video Playback and Conguration menus. You must be logged in to perform this action.

8 - Brightness Button - Press the Brightness button to

cycle through four levels of brightness from low to high, for the PCM’s display.

9 - Menu Navigation Buttons - Use the menu

navigation keys to make and conrm inputs in the Video Playback and Conguration menus. The Menu Navigation buttons also controls the live display (see detailed explaination in the PCM Functions chapter).

4 - Volume Button - Press the Volume button to cycle

through four levels of volume, from low to high, for the PCM’s speaker.

Page 14

PCM Functions

ICOP PRO USER GUIDE

Logging In

Users are prompted to login when the ICOP PRO system starts. To change users or display the prompt again, press and hold the OK button.

Users can access only video playback, and administrators can access both video playback and conguration menus.

If a user does not log in, the ICOP PRO can still record video by pressing the Record button or by the congured sensors.

• Not logged in: Record video

• User Record video, view video playback

• Administrator: Record video, view video playback,

access conguration menus

Contact Safety Vision Technical Support for information about passwords for your system.

Power and Standby

The Power and Standby buttons only aect the PCM, and do not power the DVR on or o. These buttons are useful for dark situations where the light from the PCM could be distracting.

Press the power button to turn the PCM o. The power button turns o both the display and all of the controls, including backlights. Press the Power button again to turn the PCM on.

Press the Standby button to turn o only the PCM’s display. All controls are still active; press any control to automatically turn the display on again.

Alternatively, a recording can be started automatically whenever a sensor is triggered. Sensors can include the lights or siren being activated, excessive g-forces detected, or others, depending on the specications of your agency.

To manually stop a recording, press the Stop button.

Once an alarm has concluded, the Post Alarm Details screen appears. Enter any appropriate information regarding the case and select SAVE to save the entered information as

metadata with the recorded video.

Changing Camera Views

While the PCM displays the live view, press the Up and Down navigation buttons to cycle between a front and rear combination screen and full screen views of each camera.

Viewing Metadata and the Compass

When the PCM displays the live view, press the OK button to display all available metadata. The displayed metadata can be congured in OSD Overlay in the Record conguration menu.

Recording a Video

The ICOP PRO can be congured to record video on a continuous basis (any time the vehicle is running) or on an alarm basis (when the record button is pressed or a sensor is triggered). These settings are adjusted in the Record and Event conguration menus.

Press the record button to manually start a recording. The Record button turns from green to red, and two “R” icons appear on the bottom of the live video display, to indicate recording to both the main and mirror storage devices.

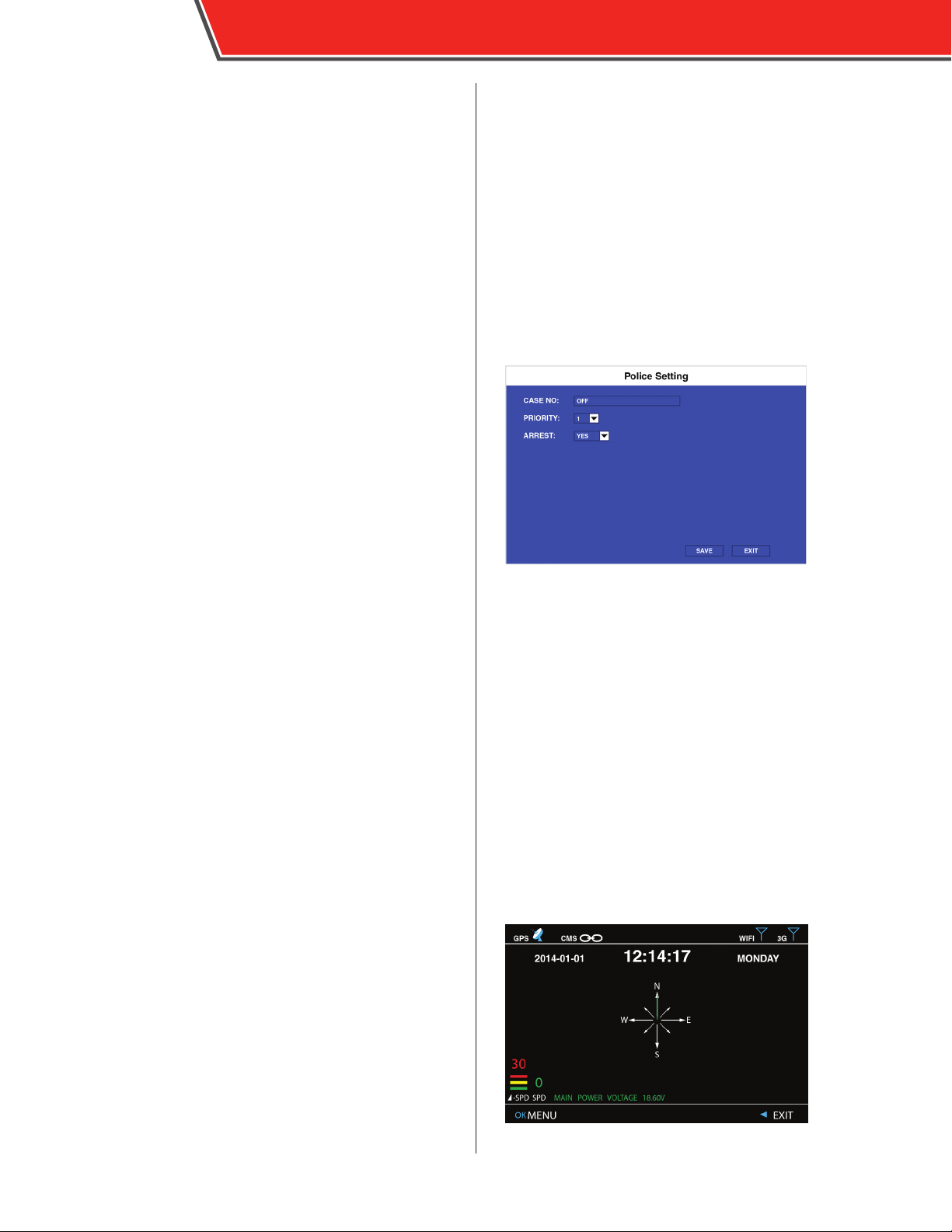

Press the Right navigation button to display a compass that displays the vehicle’s current direction of travel, as well as the time and date. Press the Left navigation button to return the the live view.

Page 15

ICOP PRO USER GUIDE

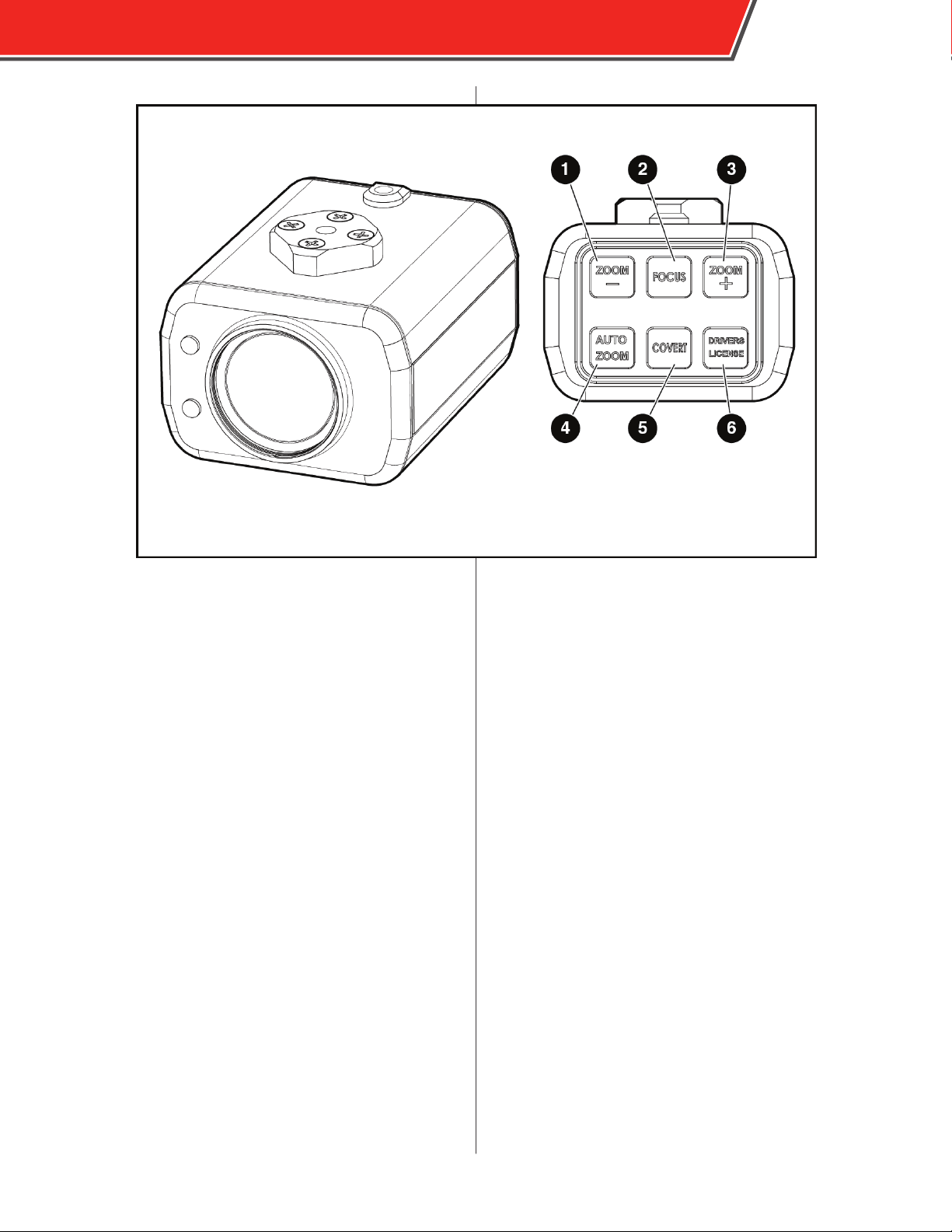

MCAM2

1 - Zoom - - Adjusts zoom to wide end.

• Single Press: Decrement zoom step x1

• Double Press: Decrement zoom to Wide End position

• Press and Hold: Decrement smooth sweep of zoom

value

2 - Focus - Switch between Auto Focus and Manual Focus.

• Press and Hold: After beep, focus button will ash

(Manual Focus mode enabled)

• Press Zoom +: Increment Focus to Tele End

• Press Zoom -: Decrement Focus to Wide End

• Single Press: Focus button stops ashing (Auto Focus

mode enabled)

3 - Zoom + - Adjusts zoom to tele end.

• Single Press: Increment zoom step x1

• Double Press: Increment zoom to Tele End position

• Press and Hold: Increment smooth sweep of zoom value

4 - Auto Zoom - Zoom to a preset value for 10 seconds,

then return to wide end.

• Single Press: Perform Auto Zoom

• Preset Auto Zoom Value:

1. Adjust Zoom to desired position

2. Press and hold Auto Zoom button

Audible alert sounds to conrm setting

5 - Covert - Toggle on/o for keypad backlight.

• Single Press: Toggle Covert Mode

6 - Driver’s License - Changes camera to allow close up

focus to capture a driver’s license held in front of the camera.

• Single Press: Button ashes; Driver’s License Mode

enabled for 30 seconds

• Second Single Press: Exit Driver’s License Mode

Page 16

ICOP PRO USER GUIDE

ICPMICKIT Wireless Microphone

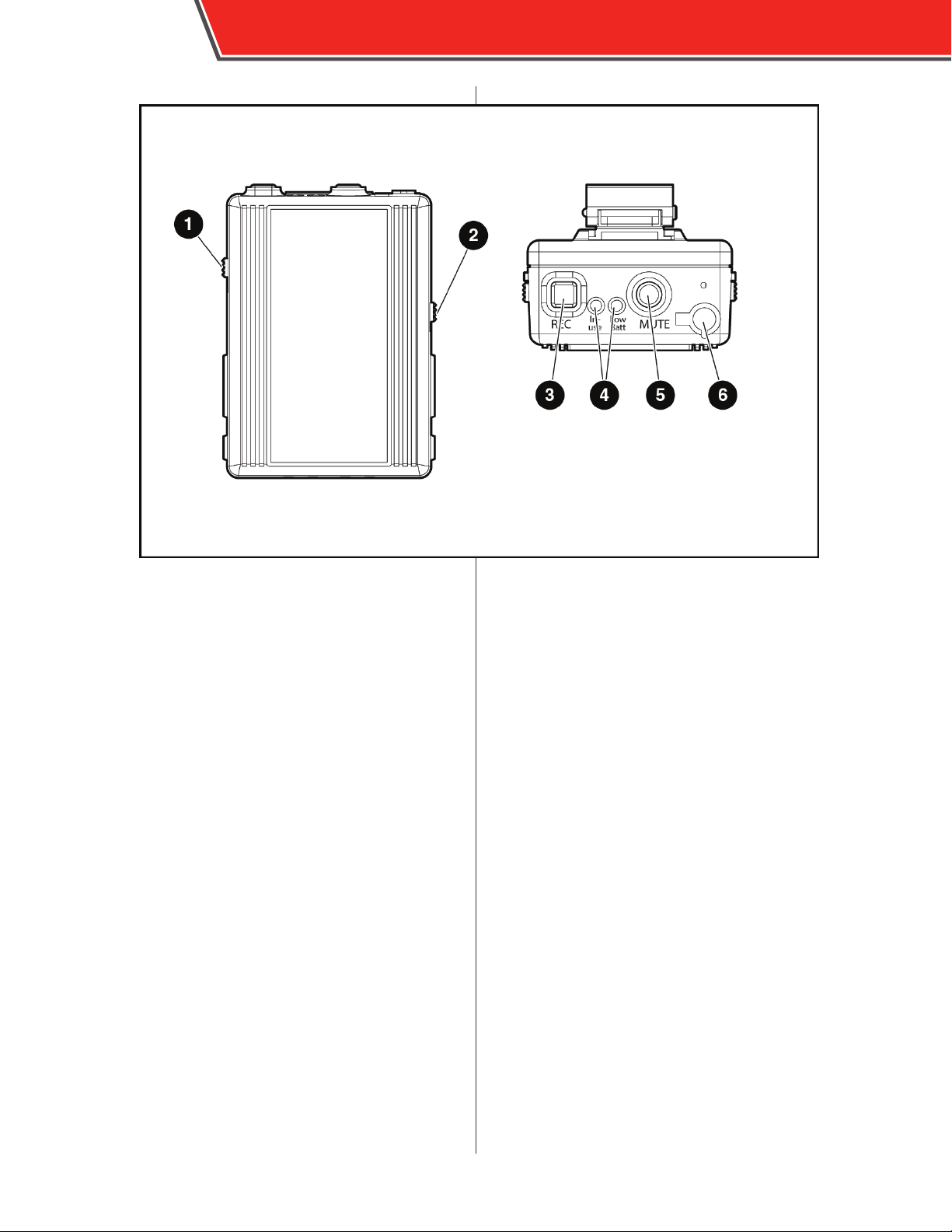

1 - Beep/Vibration Switch - Use the Beep/Vibration

Switch to toggle notications.

• BEEP: audible beeps sound

• VIB: unit is silent, vibrates for notications

• OFF: disables all sound and vibration notications,

observe status LEDs for unit status

2 - Power Switch - Use the Power Switch to turn the

microphone on and o.

3 - Record Button - Use the Record button to start and

stop video recordings:

1. Remove the microphone from the cradle and ensure

the power switch is in the ON position.

2. Press the Record button once to begin recording.

The In-USE status LED displays green.

3. Press the Record button once more to conclude re-

cording.

The In-USE status LED turns o.

4. Replace the microphone in the cradle when not in use

or when the battery is low.

4 - Status LEDs - The In-USE and Low Batt LEDs display

the microphone’s current status:

In-USE (green):

• Solid - video and audio is recording

• Flashing - microphone is close to going out of range of

the receiver

Low Batt (red):

• Solid - battery is low, return the microphone to the

cradle to recharge

• Flashing - voice recording is muted

5 - Mute Button - Press the Mute button once during

a recording to mute voice recording (Low Batt status LED ashes red). Press the Mute button once more to un-mute voice recording.

6 - Ext. Microphone Port - Attach an external lapel

microphone using a 2.5 mm connector.

Page 17

ICOP PRO USER GUIDE

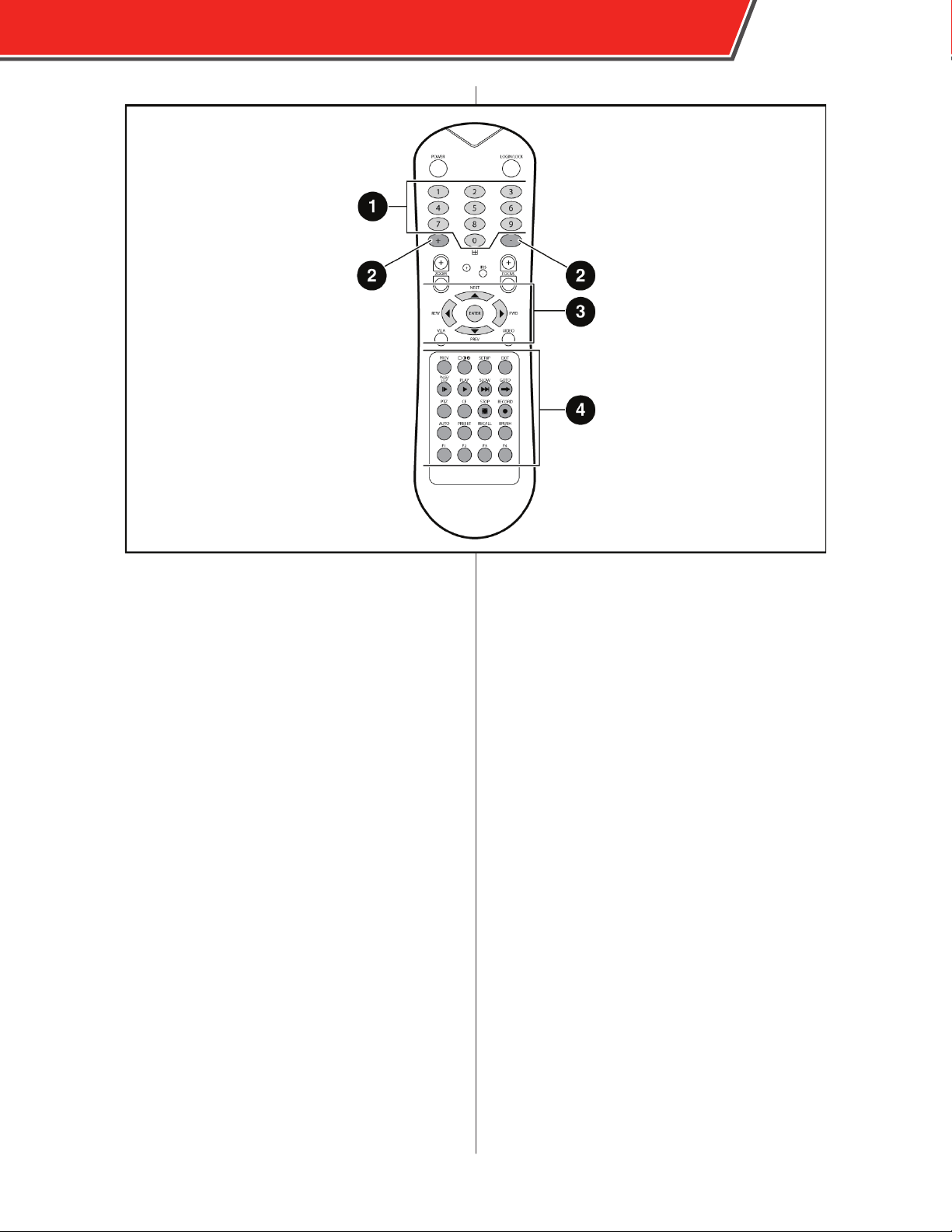

Remote Control

The DVR remote control can be used to navigate through the conguration menus or to control video playback if the PCM is not available or convienent. Point the remote control at the IR receiver on the front panel of the DVR or the PCM to make selections.

Power - For Safety Vision Service Technician use only.

1 - Numeric Keypad - Use the numeric keypad to

input numerical values when conguring the system. Additionally, you can use the 1, 2, 3, and 4 keys to display that numbered video channel during video playback. Press the 0 key to switch between displaying individual channels and a quad view.

2 - + and - Keys - Use the + and - keys to increase or

decrease values by one.

3 - Navigation Buttons - Use the four arrow keys to

navigate between input elds or menu selections when conguring the system. Use the Enter key in the center of the arrow keys to make selections. During video playback the left and right arrow keys can be used to rewind or fastforward. Press the Enter key while viewing the live view to display a comprehensive status screen.

4 - Additional Remote Control Keys

Setup - Quickly access the conguration menu. Login may

be required.

Exit - Quickly return to the previous menu while viewing conguration menus. Pressing this key on the main conguration menu returns to the live view.

Pause/Step - During video playback, press this key to pause the video. Press this key again to advance video playback by one frame.

Play - Press this key to resume regular speed video playback when video is paused or stopped.

Slow - Press this key to slow down video playback.

GoTo - Press this key to quickly access video recorded at a

certain time. When playing back video, press this key and input the desired time. Press Play to begin video playback.

Stop - Press this key to manually stop video recording.

Record - Press this key to manually begin recording again

once it has stopped.

All additional buttons are unused at this time.

Page 18

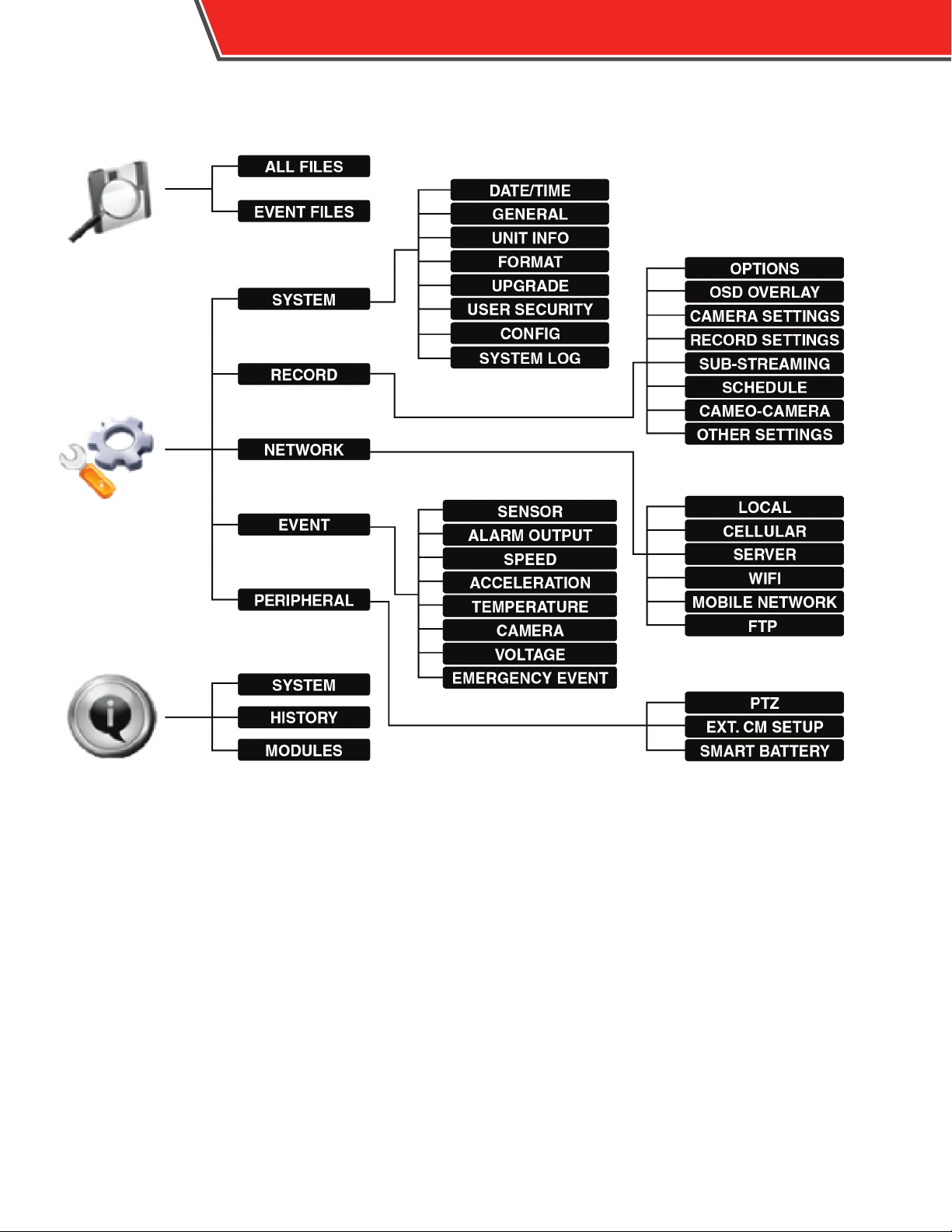

Menu Navigation

ICOP PRO USER GUIDE

Press the MENU button to access the menu. You must be logged in as an administrator to access the conguration menu. Contact Safety Vision Technical Support for more information about

administrator passwords.

Use the up and down arrow navigational keys to switch between the Video Playback, Conguration, and Information icons and display their associated menus.

Use the right arrow key to select and expand successive menu options. Use the left arrow key to return to collapse the current menu option and return to the previous menu option.

The DVR does not record video when menus are displayed.

Page 19

ICOP PRO USER GUIDE

Video Playback

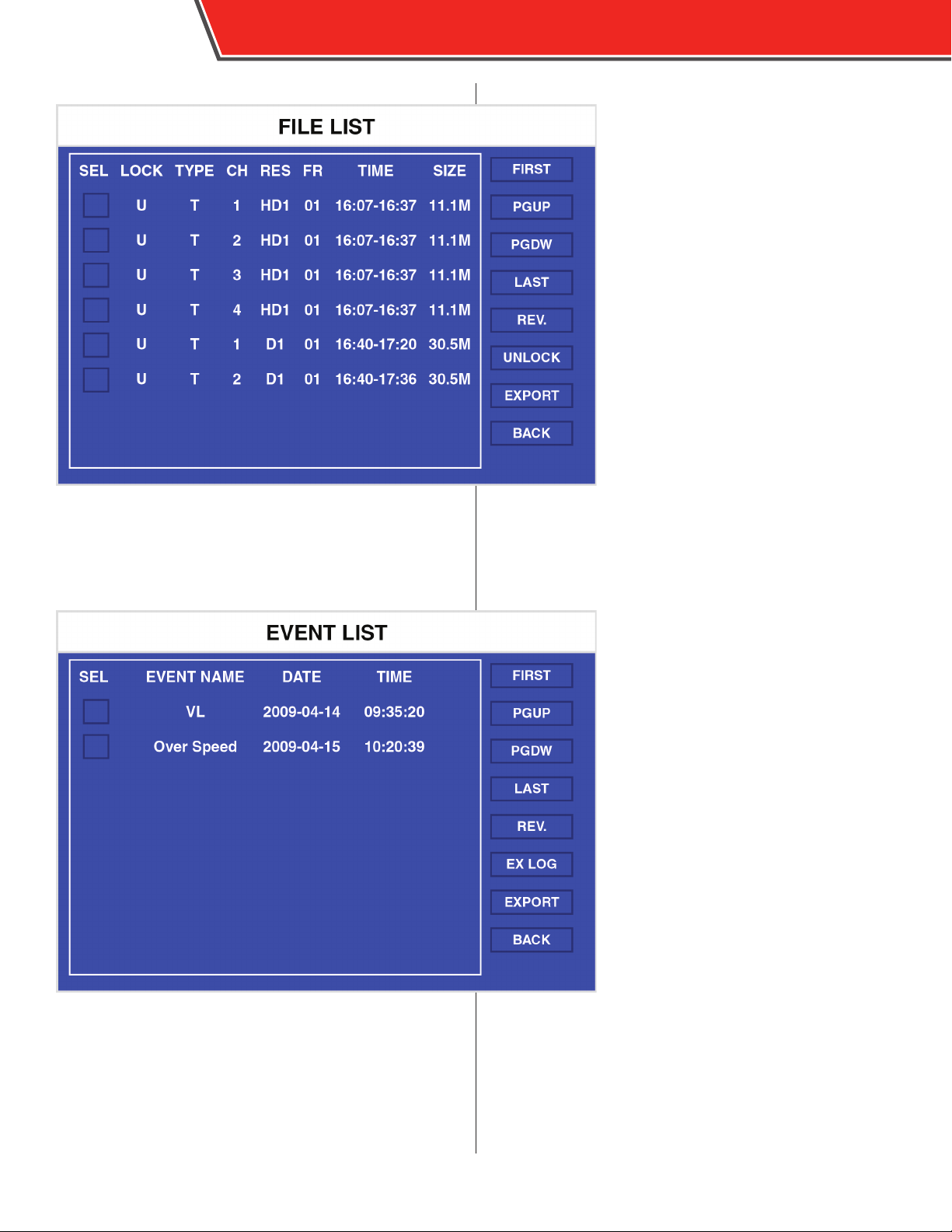

To view recorded video, press the Play button on the PCM, or access the menu, then select the rst icon. The All Files and Event Files options appear.

Select the All Files option to review all recorded video stored.

Select the Event Files option to review only video marked as events.

All Files

Use the elds on the right side of the screen to select the appropriate criteria of the recorded video for which you want to search. The select SEARCH. Available video appears on the calendar display. Green days indicate normal video was recorded, red days indicate event les were recorded. Use the remote control to select the day and press the enter key.

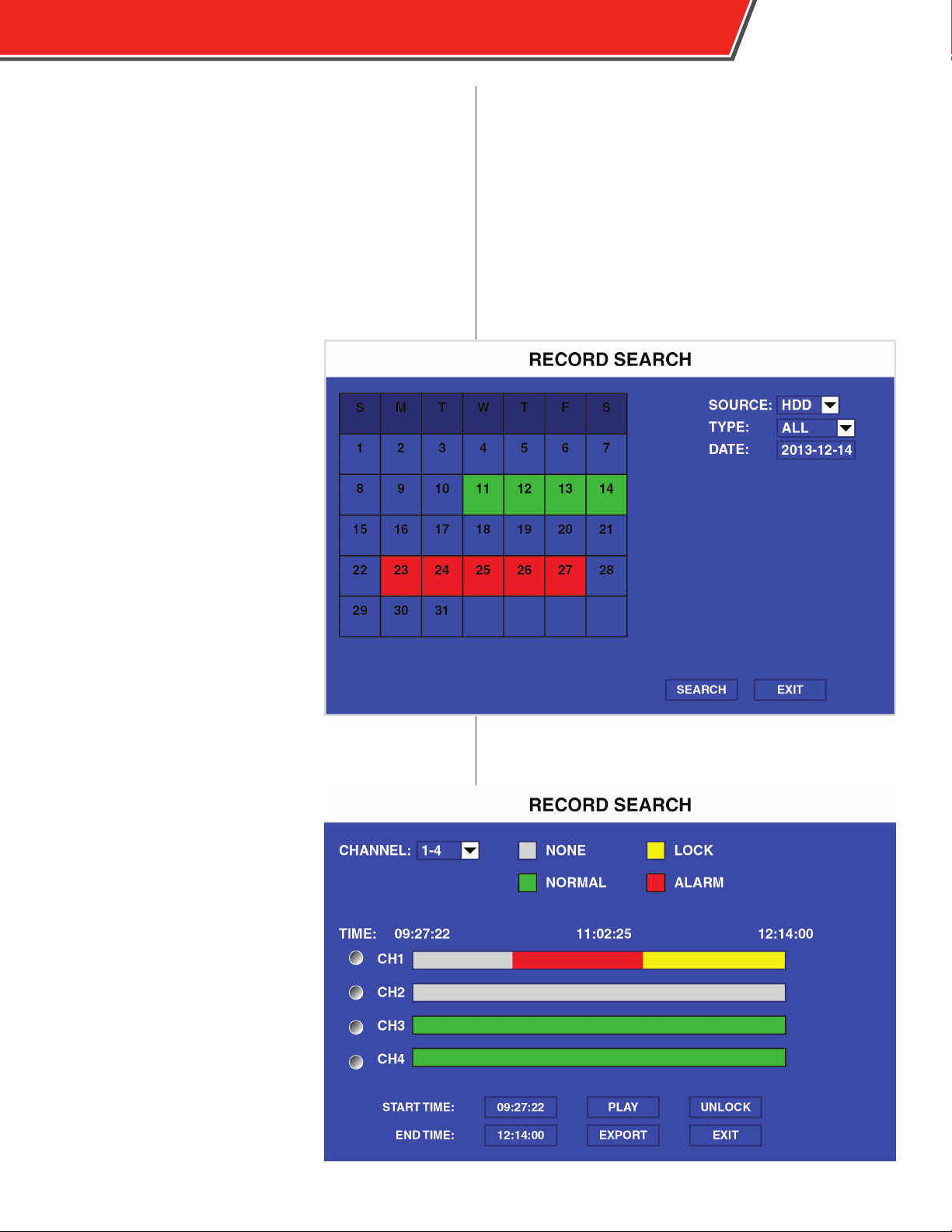

The Record Search screen displays. Select channels 1-4 or channels 5-8 in the CHANNEL eld. For each channel, the type of video recorded is indicated by dierent colors. Use the START TIME and END TIME elds to display the selected time of day. When the video you are searching for is displayed, select PLAY, EXPORT, or LOCK/UNLOCK.

Page 20

ICOP PRO USER GUIDE

Event Files

SEL: Use the arrow and Enter keys on the remote control to select or unselect each le. Selected les can then be exported. Multiple les can be selected at one time. EVENT NAME: Displays the type of event that triggered the video recording. DATE: Displays the date on which the video was recorded. TIME: Displays the time the video recording started. FIRST, PGUP, PGDW, LAST: Use the arrow and Enter keys to select these options to scroll through screens of the displayed les (if there are more les than can be displayed on one screen).

Page 21

ICOP PRO USER GUIDE

Exporting Video Files

Video les can be exported to a USB thumb drive inserted into the USB port on the front of the DVR.

Note: Users must be logged in as an administrator in order to perform this procedure.

To manually export video les, use the following procedure:

1. Select each le you want to export

in the SEL column.

2. Insert a USB thumb drive into the

USB port on the front panel of the DVR.

3. Select the Export option on the

right side of the screen.

A Remark window appears.

4. Select Sure.

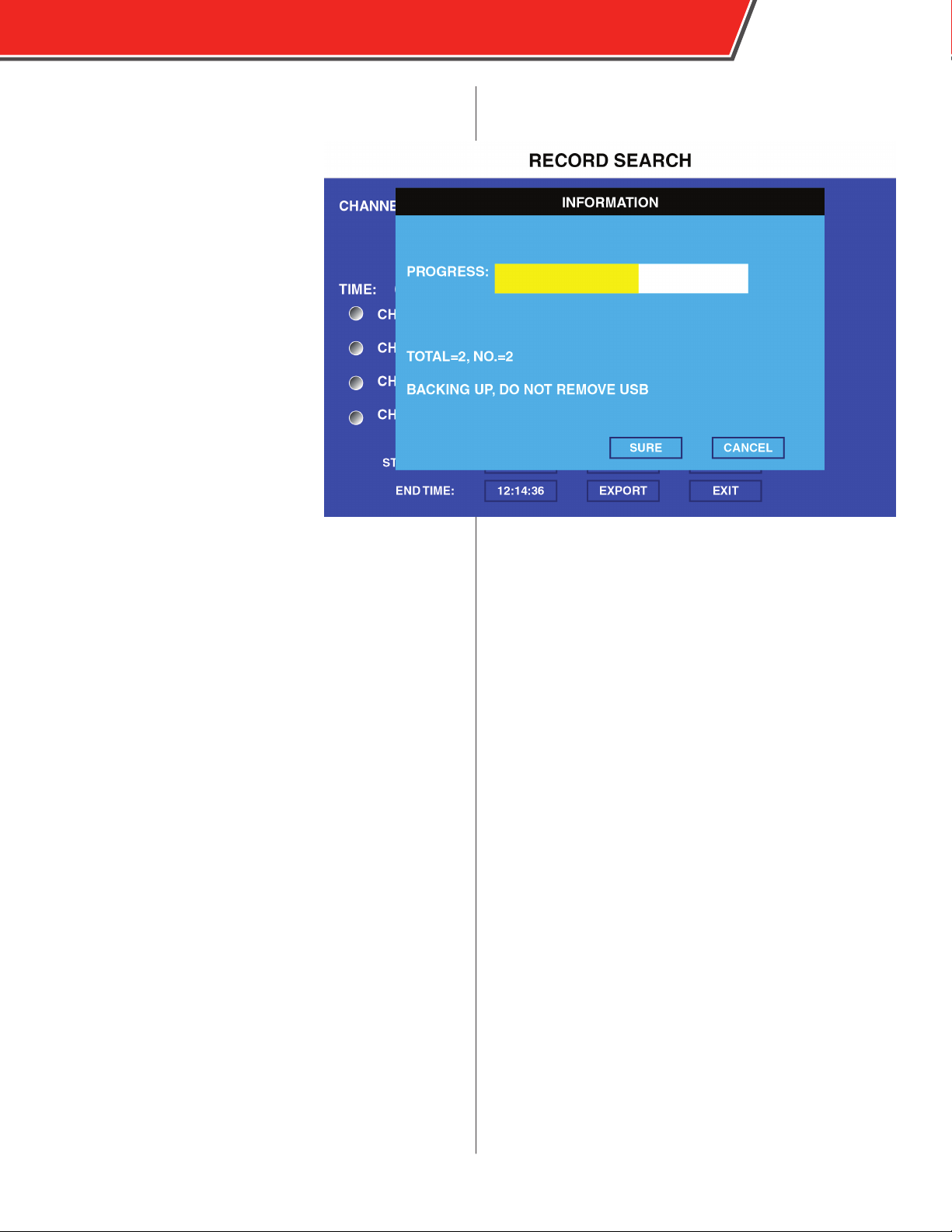

A progress bar appears, as well as the total number of les being exported.

5. When the “Backup Successful” message appears,

select OK.

6. Remove the USB thumb drive.

To automatically export alarm video les recorded the same day as the present, use the following procedure:

1. Ensure ON is selected in the EVENT FILES AUTO-

EXPORT (USB) eld in the General menu.

2. Insert a USB thumb drive into the USB port on the

front panel of the DVR.

3. Press the F1 key on the remote control.

A message appears to indicate video is automatically exporting to the USB drive. If no alarm video les are present, a message will appear. For video to be marked as alarm, the recording must be initiated by a sensor congured as an alarm. For more information about conguring a sensor as an alarm, see page 33.

4. When the “Backup Successful” message appears,

select OK.

5. Remove the USB thumb drive.

If the amount of video being downloaded exceeds the capacity of the USB thumb drive being used, a prompt appears requesting that an additional thumb drive be inserted to conclude the export.

Exported les are saved on the root directory of the USB thumb drive. Files are titled rst by Unit ID, then Alarm Log, then the date recorded.

Page 22

ICOP PRO USER GUIDE

Conguration

Select the Conguration icon to display the System, Record, Network, and Event menus.

These menu options allow you to congure how the DVR operates, in addition to setting passwords and updating the rmware.

System Menu

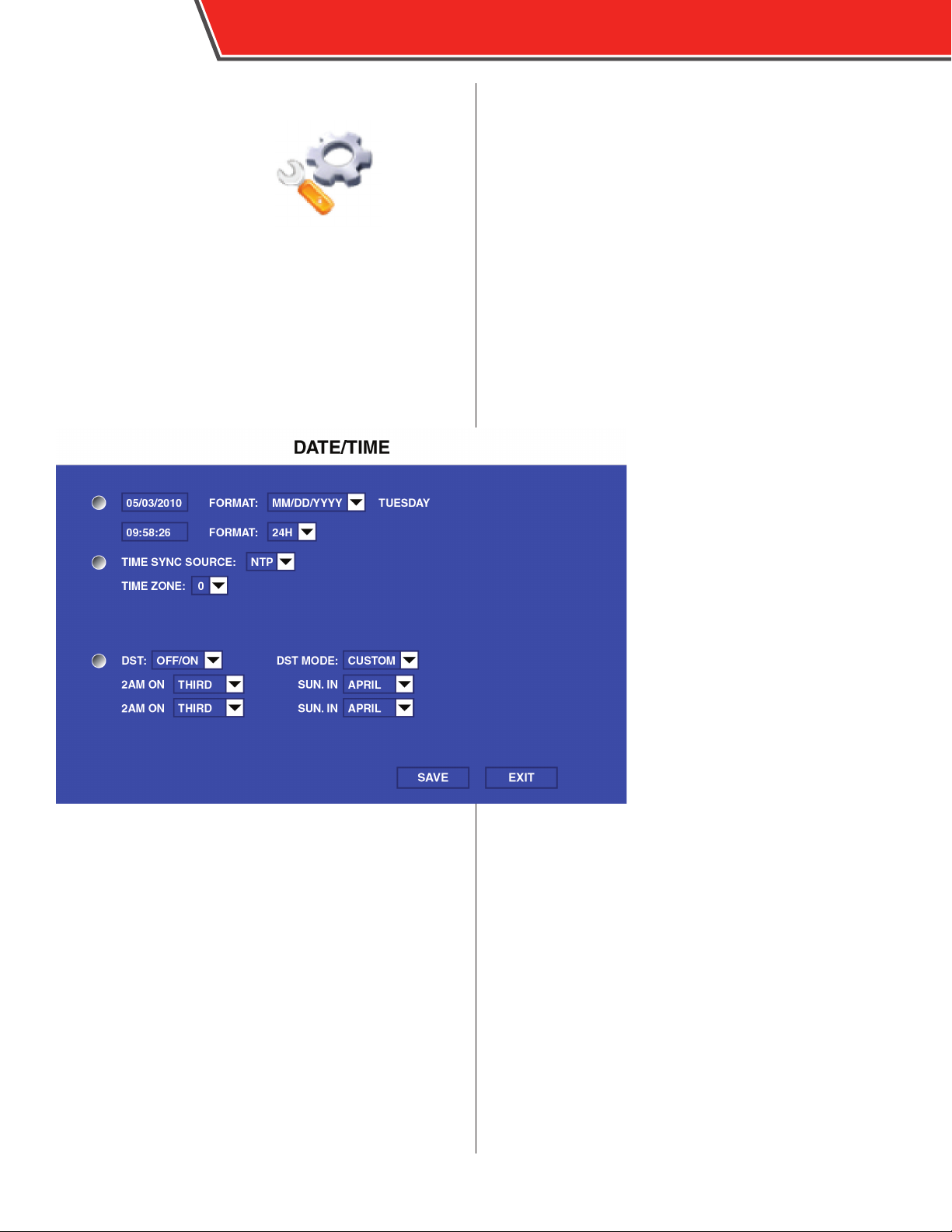

Date/Time

The Date/Time menu determines the system time that appears on recorded video.

Date: Use the number keys on the remote to set the current date manually. FORMAT: Select from middle endian (MM/DD/YYYY), little endian (DD/MM/ YYYY), or big endian (YYYY-MM-DD) date formats.

Time: Use the number keys on the remote to set the current time manually. FORMAT: Select from 12 hour (12H) or 24 hour (24H) time formats. TIME SYNC SOURCE: Select Global Positioning System (GPS), Network

Time Protocol (NTP), or manual (NONE). TIME ZONE: Select how many hours the local time zone is deviated from GMT. (In the United States, Eastern is “-5”, Central is “-6”, Mountain is “-7”, and Pacic is “-8”.) SYNC TIME: Use the number keys on the remote to manually enter the time at which the DVR synchronizes the time by N T P. NTP SERVER IP: Use the number keys on the remote control to manually enter the IP address of the server by which the DVR: synchronizes time by NTP. DST: Turn Daylight Savings Time adjustments on (ON) or o (OFF). DST MODE: Only available when DST is set to ON. Select AUTO to adjust the time automatically at 2:00 AM on the selected Sunday in March and the rst Sunday in November, or select MANUAL to select which days in which months.

Page 23

ICOP PRO USER GUIDE

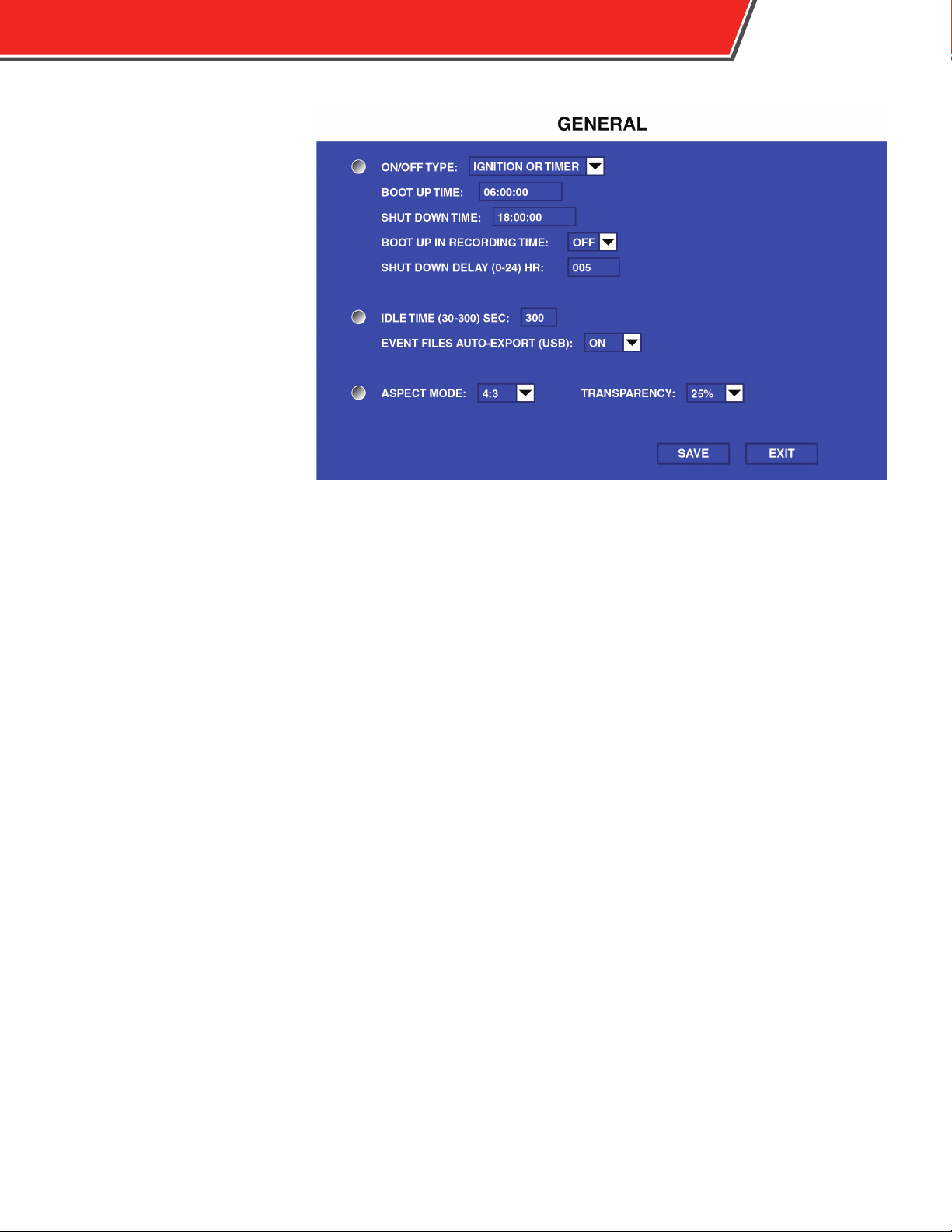

General

The General menu determines the behavior of the DVR upon start up and shutdown, in addition to other controls.

ON/OFF TYPE: Select TIMER to display the START UP TIME, SHUT

DOWN TIME, and BOOT UP ON SCHEDULE elds. This option

automatically starts and shuts down the DVR at the specied time. Select the IGNITION option to power the DVR only when the vehicle starts. This displays the SHUT DOWN DELAY MIN eld. Select TIMER OR IGNITION to include both types of start up and shutdown parameters.

(ON/OFF TYPE: TIMER) BOOT UP TIME: Use the number keys

on the remote control to manually enter the time the DVR starts up each day. SHUT DOWN TIME: Use the number keys on the remote control to manually enter the time the DVR shuts down each day. AUTO BOOT UP ON SCHEDULE: Select ON to begin recording automatically upon start up. Select OFF to require recording be manually triggered.

When the ON/OFF TIME eld is set to TIMER, the DVR automatically shuts down after ve minutes when it is turned on outside of the time specied. To turn this feature o, enter this menu and select IGNITION in the ON/OFF TYPE eld.

(ON/OFF TYPE: IGNITION) SHUT DOWN DELAY MIN: Use the number keys on the

remote control to manually enter the time (in minutes) that the DVR continues to record after the vehicle has been powered down.

IDLE TIME SEC: Use the number keys on the remote control to enter the time (in seconds) that the conguration menus display without input before automatically exiting to the live view. EVENT FILES TO AUTO-EXPORT (USB): This eld is not currently active.

ASPECT MODE: Select 4:3 or 16:9 to match the aspect ratio of the external monitor. TRANSPARANCY: Select the level of transparency of the onscreen menus.

Page 24

ICOP PRO USER GUIDE

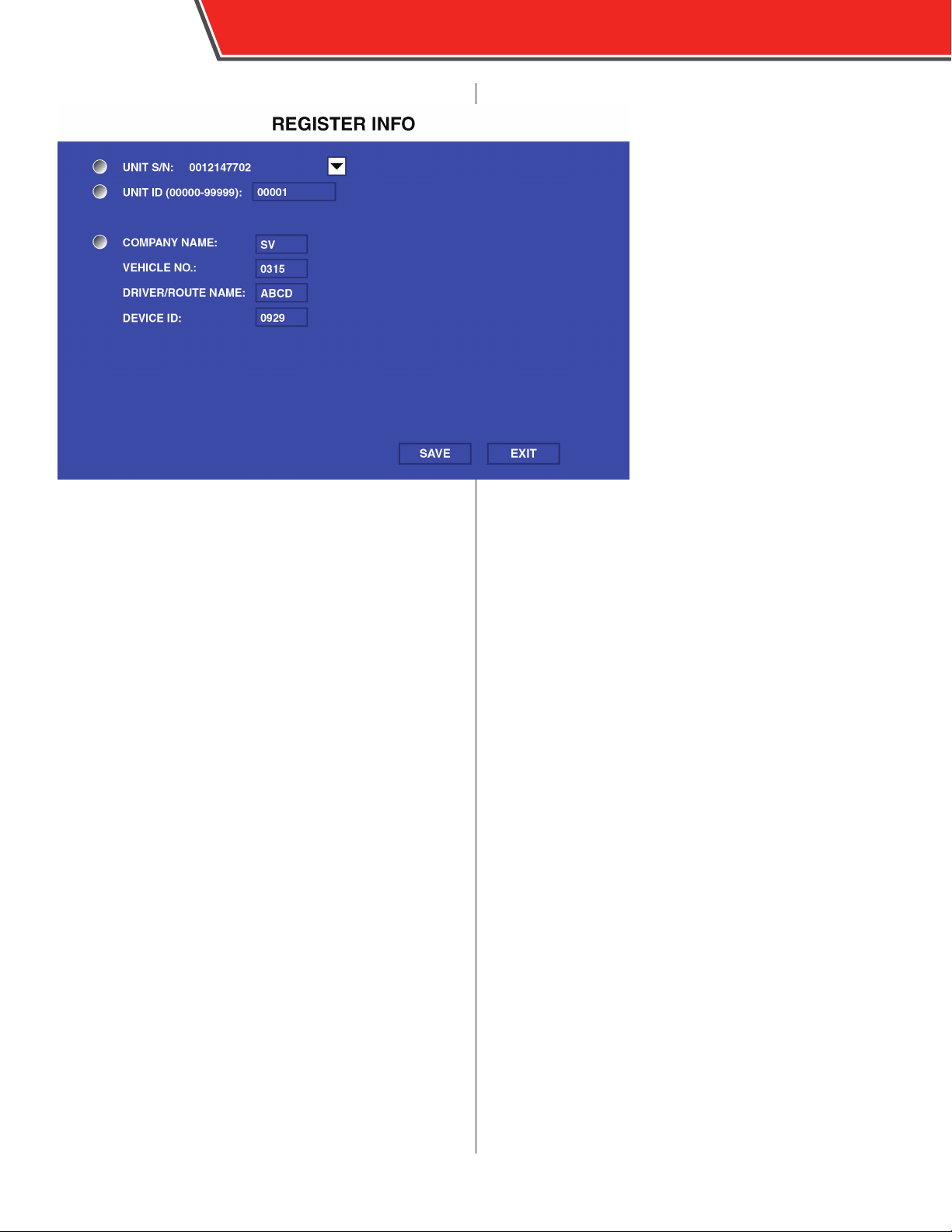

The Register menu includes the assorted serial numbers and names unique to the DVR for identication.

UNIT S/N: The DVR’s serial number. This number is unique and cannot be changed. UNIT ID: The DVR’s identifying number. Use the number keys on the remote control to input a unique number ranging from “00000” to “99999”. COMPANY NAME.: Use the arrow keys on the remote control to enter the name of the agency to which the DVR belongs. VEHICLE NO.: Use the number keys on the remote control to enter the number of the vehicle in which the DVR is installed.

DRIVER/ROUTE NAME: Use the arrow keys on the remote control to enter the driver’s name and/or their route name, up to 5 characters. DEVICE ID: Enter a 7 digit facility-dened serial number that identies this specic DVR in the Observer Management System (OMS).

Page 25

Format

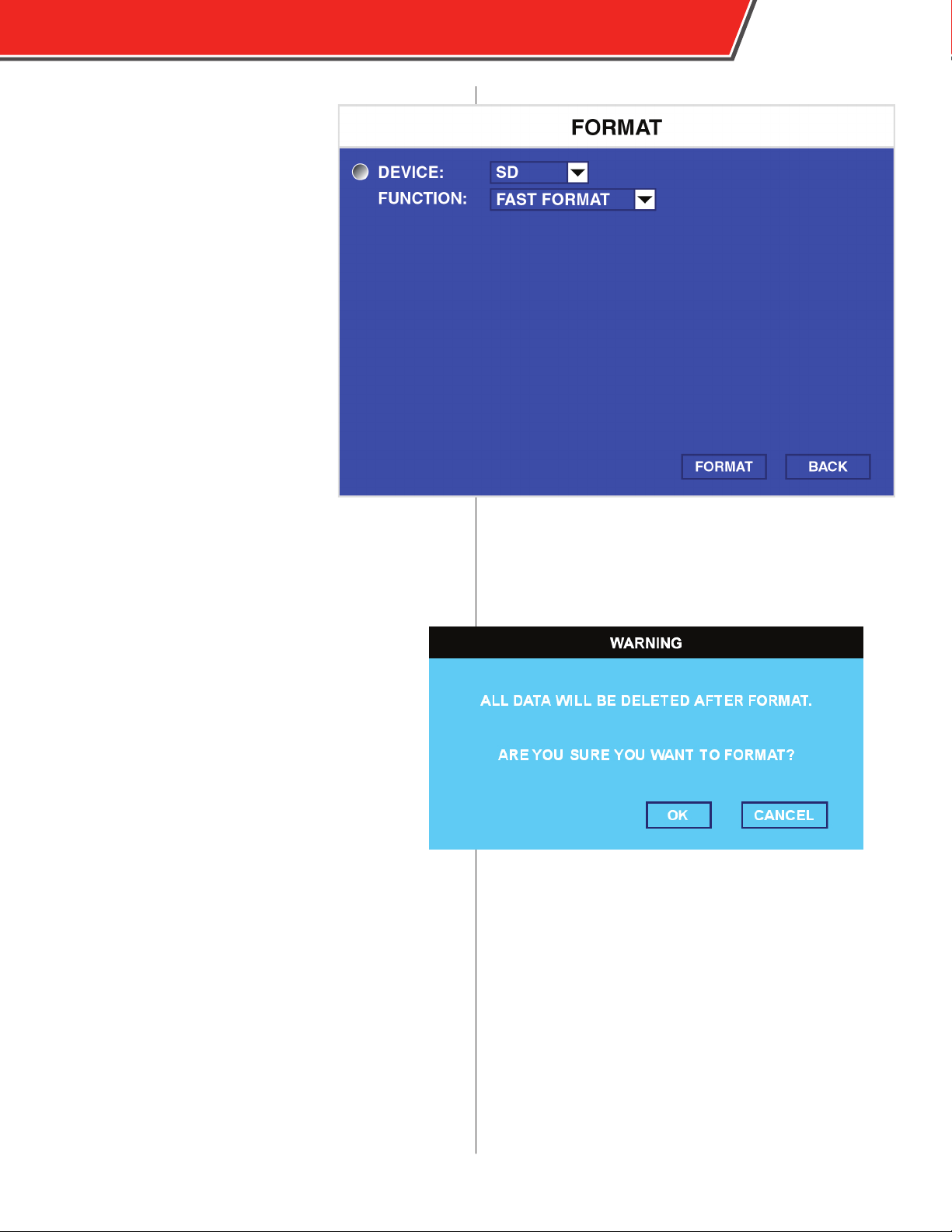

Formatting a device erases all existing data, including recorded video.

Use the following procedure to format a device:

1. Use the arrow keys on the remote

control to select a device from the drop-down menu.

Available devices include Main Storage, Mirror Storage, or USB.

2. In the FUNCTION eld, select FAST

FORMAT (to format normally) or SLOW FORMAT (to search for bad

storage sectors before formatting)

3. Select OK.

A Warning message appears.

4. Select OK.

5. The format process begins.

When nished, the DVR restarts automatically.

ICOP PRO USER GUIDE

Formatting a device erases all data, including recorded video. Use with caution.

Page 26

ICOP PRO USER GUIDE

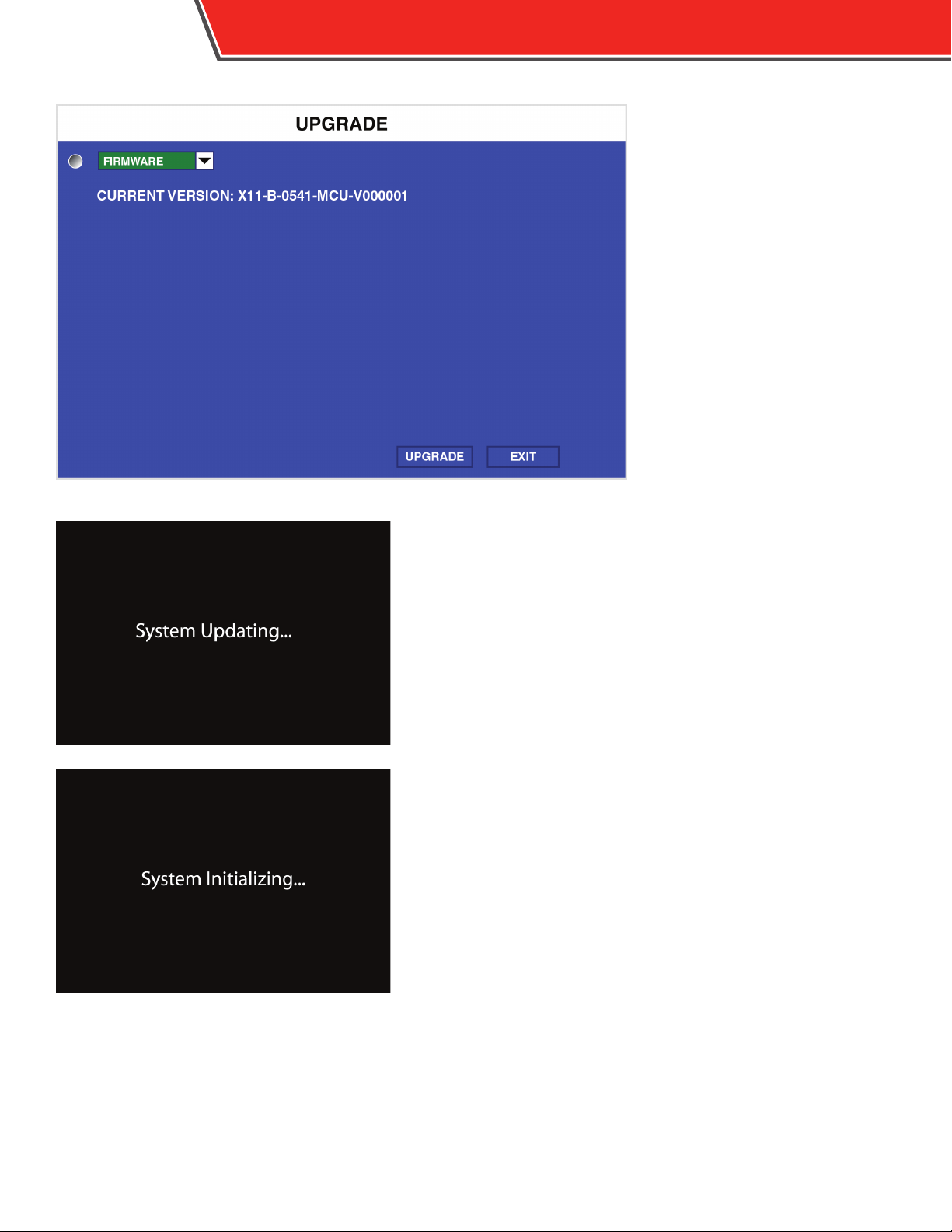

Upgrade

Periodically Safety Vision releases new rmware updates for the DVR to increase functionality and features.

Use the following procedure to update the DVR rmware:

1. Obtain the rmware update le

from Safety Vision Technical Support.

2. In the root directory of a USB ash drive create a

folder titled dvrupgrade.

3. Place the rmware update le in the dvrupgrade

folder.

4. Insert the USB ash drive in the front USB port of the

DVR.

5. Access the Upgrade menu.

6. Ensure FIRMWARE is selected in the drop-down menu.

7. The MCU update function is not active at this time.

8. Select UPGRADE.

The update process begins. The DVR rst checks for an appropriate upgrade le. If one is detected, it automatically restarts. Upon restarting, the DVR displays “System Updating...” on the external monitor while it installs the upgrade. When complete, “System Initializing...” is displayed, and the DVR starts as normal. The rmware update has been successfully installed and it is safe to remove the USB ash drive.

The rmware can only be updated to a version more current the rmware currently installed.

Page 27

ICOP PRO USER GUIDE

is on the root directory of a USB ash drive, insert it into the front USB port, and select IMPORT.

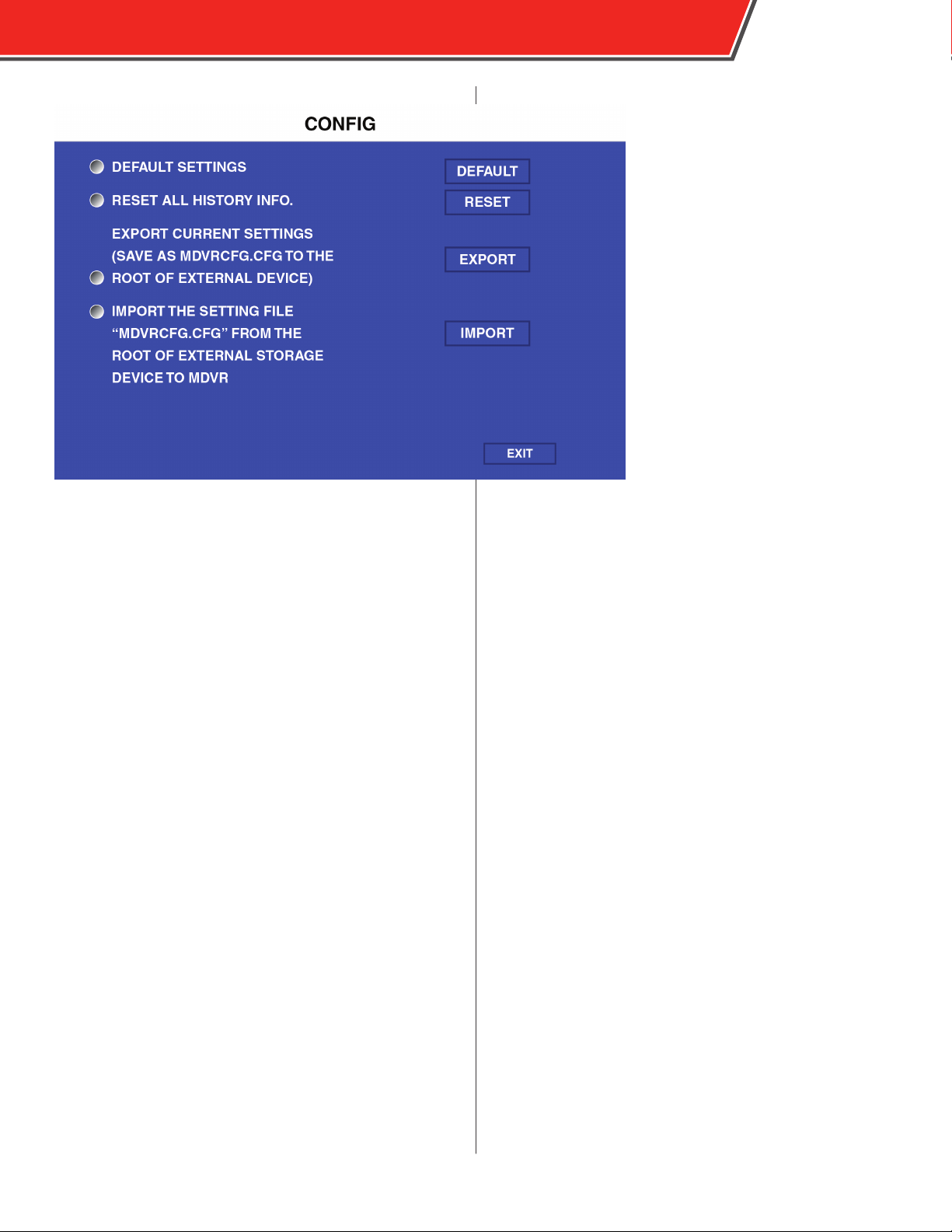

Cong

The Cong menu allows you to export to or import from a USB drive all of the DVR’s settings, which is useful when conguring multiple units in the same manner or creating a backup.

DEFAULT SETTINGS: Select RESTORE to revert all settings to the factory defaults. RESET ALL HISTORY INFO: Select RESET to erase all stored data in the History menu in System Information. EXPORT CURRENT SETTINGS: To export all of the current settings to a USB ash drive, insert one in the front USB port and select EXPORT. The settings are automatically saved as DVRcfg.cfg on the root directory of the USB ash drive. IMPORT SETTING FILE: To import a

settings le, ensure the DVRcfg.cfg le

Page 28

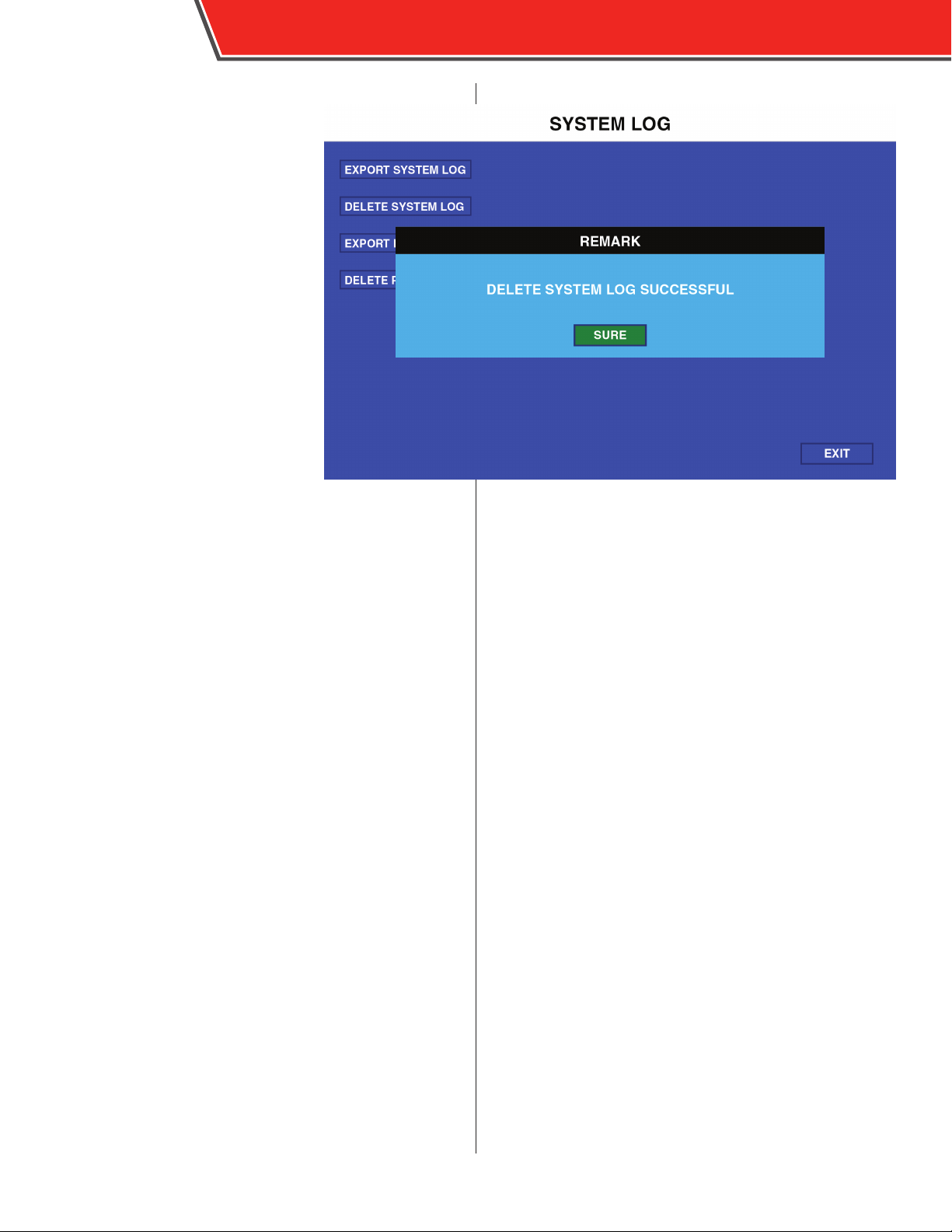

System Log

The System Log menu allows the user log or pictures to be exported or deleted. The system log le contains a log of which users accessed the DVRs conguration menus and at what time and date.

To export the user log le:

1. Insert a USB ash drive into the

front USB port.

2. Select EXPORT SYSTEM LOG.

The system log is automatically exported to the USB ash drive.

To delete the user log:

1. Select DELETE SYSTEM LOG.

A remark window appears.

2. Select OK/SURE.

The system log is deleted.

ICOP PRO USER GUIDE

Pictures can be exported and deleted using the EXPORT PICTURES and DELETE PICTURES buttons using the same procedures as described above.

Page 29

Blackbox File

The Blackbox File menu downloads a “blackbox” le to a USB drive inserted into the DVR’s USB port. This blackbox le contains metadata on assorted parameters of the DVR.

1. Insert a USB ash drive into the

DVR’s USB port.

2. Select the BLACKBOX FILE op-

tion.

A prompt appears as the blackbox le is automatically downloaded to the USB drive.

ICOP PRO USER GUIDE

Page 30

ICOP PRO USER GUIDE

Record Menu

The Record Menu contains parameters that control how

video is recorded.

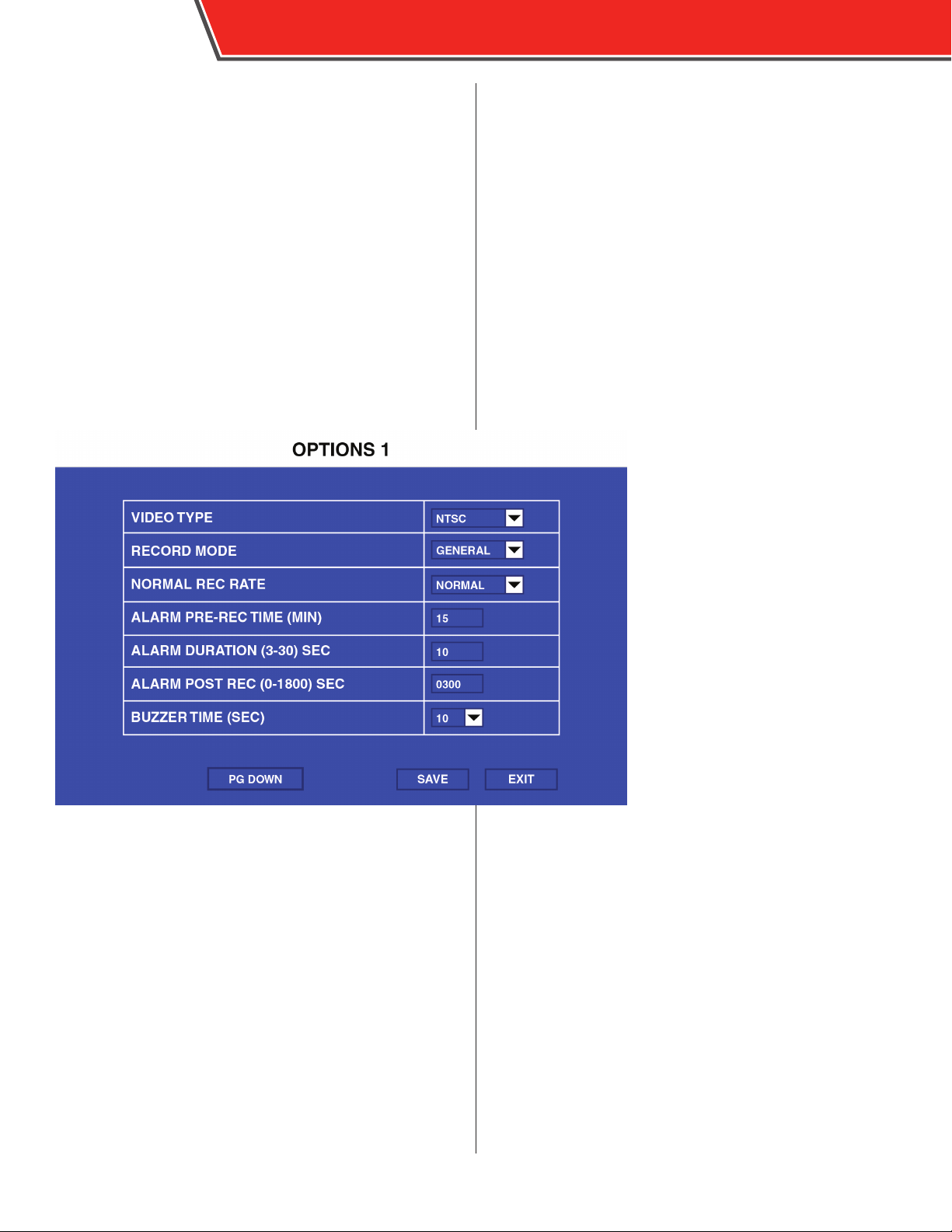

Options (Page 1)

The Options menu contains most of the parameters that control how long and when the DVR records video.

If an event is trigger while another event is being recorded it will be considered one event. The event will end after the second trigger and the time specied in the ALARM DURATION eld.

VIDEO TYPE: Select NTSC or PAL. RECORD MODE: Select one of the

following options: CONTINUOUS: the DVR records at all times. ALARM: the DVR only records when recording is manually activated or a sensor is triggered. BACKGROUND: the DVR records at all times at a reduced resolution, and increases when an alarm is triggered The video quuality settings for these modes can be adjusted in the Record Setup menu. NORMAL RECORD RATE: Select

NORMAL to record video at the quality specied in the Record Setting menu at all times. Select 1 FRAME to normally record only 1 frame per second, until an event is triggered, when recording will automatically switch to the quality specied in the Record Setting menu. This option is useful to conserve storage space. RECORD FILE TIME: Select the duration (15, 30, 45, 60 minutes) of recording packets.

ALARM DURATION: Select the amount of time, from 3 to 30 seconds, to be recorded and marked as an event. ALARM POST REC TIME: Select the amount of time, up to 1800 seconds, to be recorded after triggering an event. OUTPUT PLUS TIME: Select the duration of time (15, 30, 45, or 60 seconds) that an output is sent, or select ALWAYS to keep the output on until the unit is turned o.

Page 31

ICOP PRO USER GUIDE

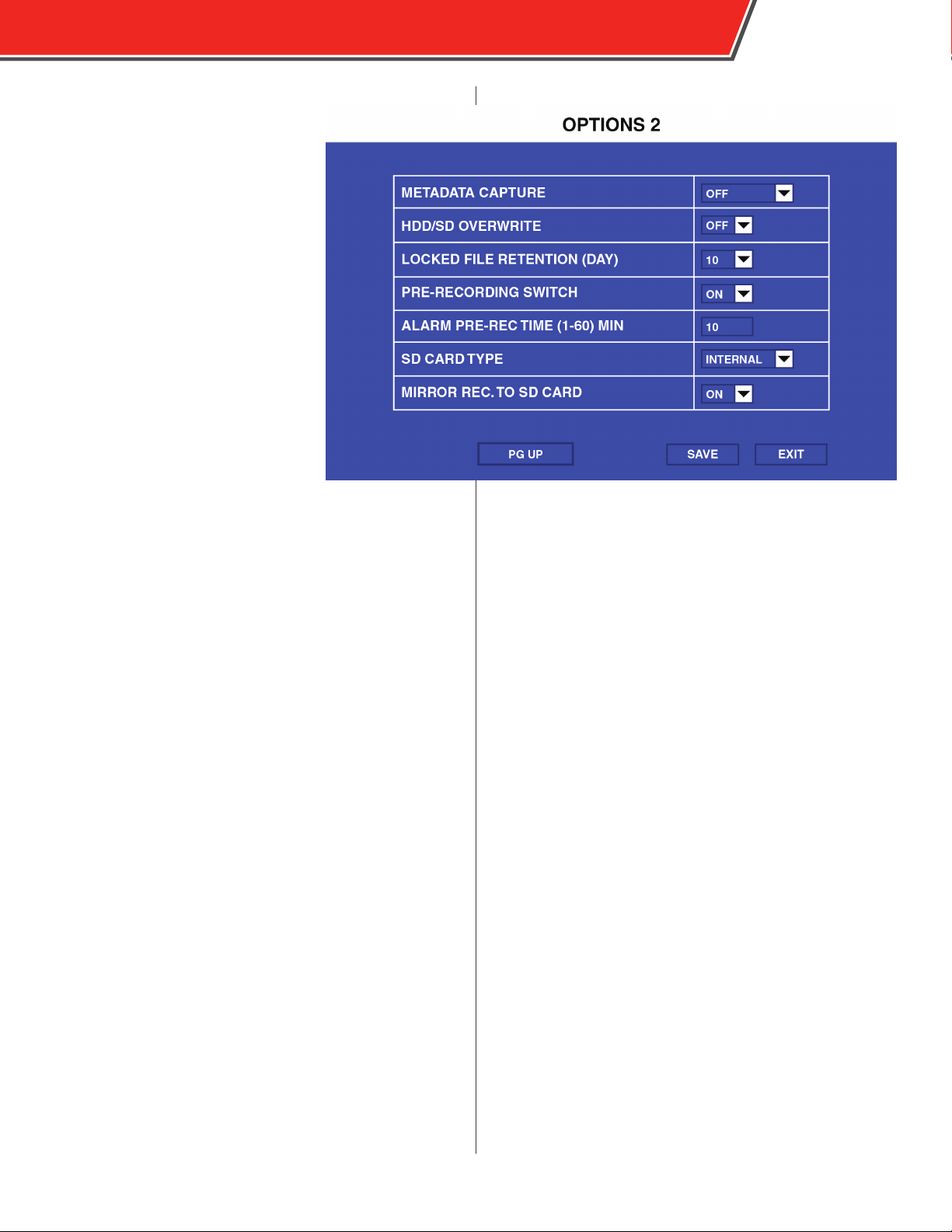

Options (Page 2)

METADATA C APTUR E: Select ON to record meta-data with recorded video. Select OFF to record video only. HDD/SD OVERWRITE: Select ON to overwrite the oldest video existent on the storage media when storage space is near capacity. Select OFF to stop all recording video after the storage media is full (necessitating manual le deletion). LOCKED FILE RETENTION: Select the number of days locked les remain locked, before they become unlocked (and able to be overwritten). Select 7, 10, 15, 20, 30, or 45 days. PRE-RECORDING SWITCH: Select 15, 30, 45 or 60 minute le packing sizes (optional) ALARM PRE-REC TIME: Select prealarm recording times between 1 and 60 minutes. MIRROR SD CARD POSITION: Select the storage device that the records to. MIRROR REC. TO SD CARD POSITION: Select ON to enable the Mirror function. When the Mirror function is enabled, data is recorded to the specied storage device as well as the primary storage device, providing backup should the primary device fail.

See the Event List section for more information on locked and unlocked les.

The 41-FP-BUD is a steel reproof box that contains an SD card that contains an SD card for mirror recording. The 41-FP-BUD can provide up to 20 minutes of protection in 500°C temperatures. Contact your Safety Vision Account Executive for more information.

Page 32

ICOP PRO USER GUIDE

OSD Overlay

The OSD Overlay menu selects what elements appear on the on-screen display.

Select OFF or ON from the LIVE VIEW column to display the associated element when you press the Enter key on the PCM or remote control when the DVR is in Live View.

Additionally the DATE/TIME eld can be moved to the TOP or BOTTOM of the screen.

The following information is available to be displayed:

DATE/TIME: The date and time of the recording. ALARM: The trigger that initiated the recording (if active) ACCEL. DATA: The acceleration of the vehicle as determined

by the internal accelerometers.

TEMPERATURE: The internal temperature of the DVR. FIRMWARE VER.: The current rmware version installed on

the DVR. GPS INFO: The direction the vehicle is traveling as determined by the optional GPS module.

CH NAME: The name of the camera displayed. VEHICLE NO.: The vehicle number as entered in the Register

Info menu. SPEED: The vehicle’s current speed in MPH.

Page 33

Camera Settings

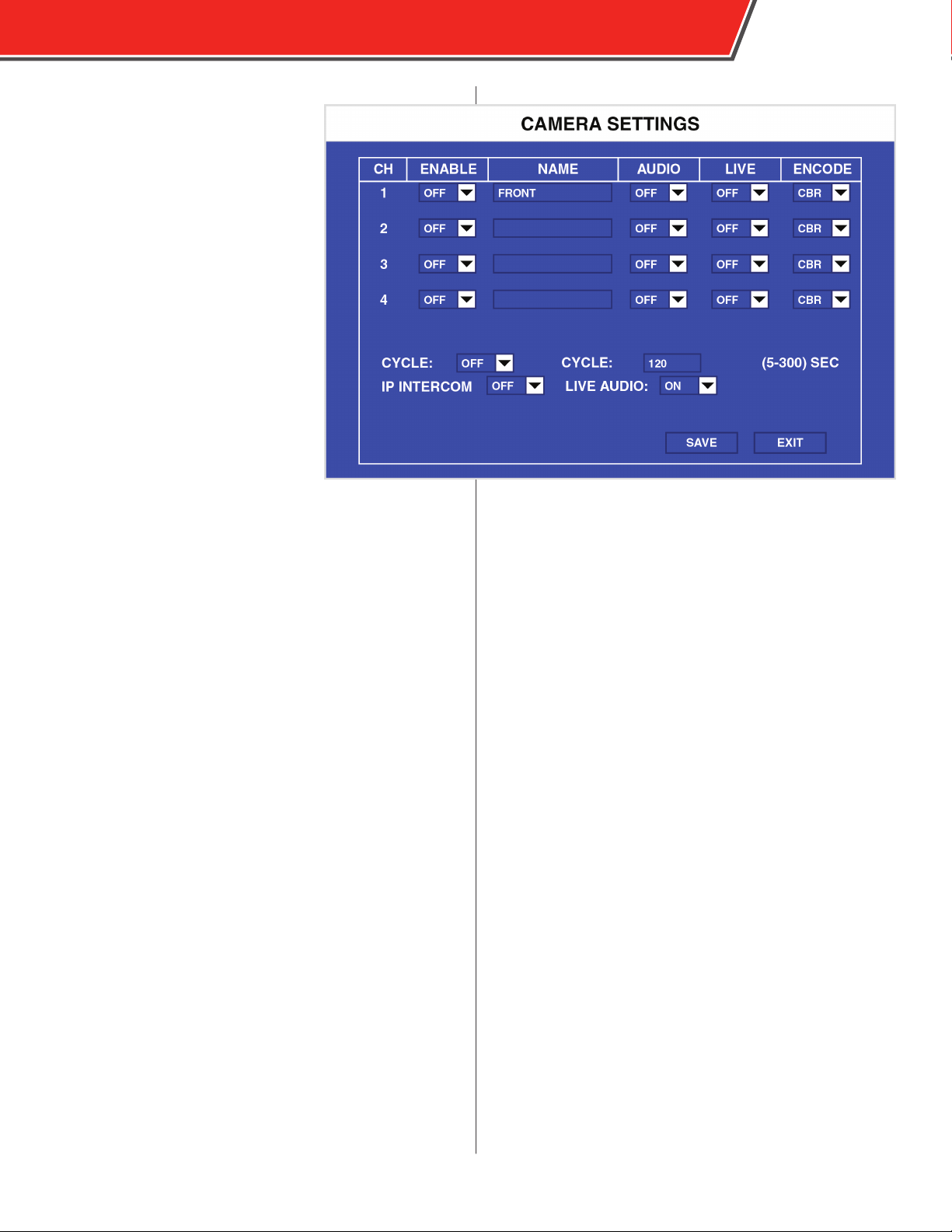

The Camera Setting menu controls which cameras are recorded and displayed in the live view.

Select the following for each camera:

ENABLE: Select ON to enable recording of this camera. NAME: Enter an optional alphanumeric name for each specic camera. AUDIO: Select ON to enable audio recording for this camera. LIVE: Select ON to display this camera in the live view. ENCODE: Select CBR for constant bit rate (keeps camera bit rate constant regardless of motion, but less ecent in using storage space) or VBR for variable bit rate (varies bit rate depending on motion for for ecent storage usage).

ICOP PRO USER GUIDE

CYCLE: Select ON to display the cameras in a loop (the cameras display in succession in full screen mode). CYCLE TIME: Enter the amount of time (between 5 and 300 seconds) to display each camera before advancing to the next one. IP INTERCOM: Select ON to record the intercom/2-way radio connection to a connected server into Channel 4 (Observer Management System [OMS] Client required) LIVE AUDIO: Select ON to enable audio to play during the Live View.

Page 34

ICOP PRO USER GUIDE

Record Setting

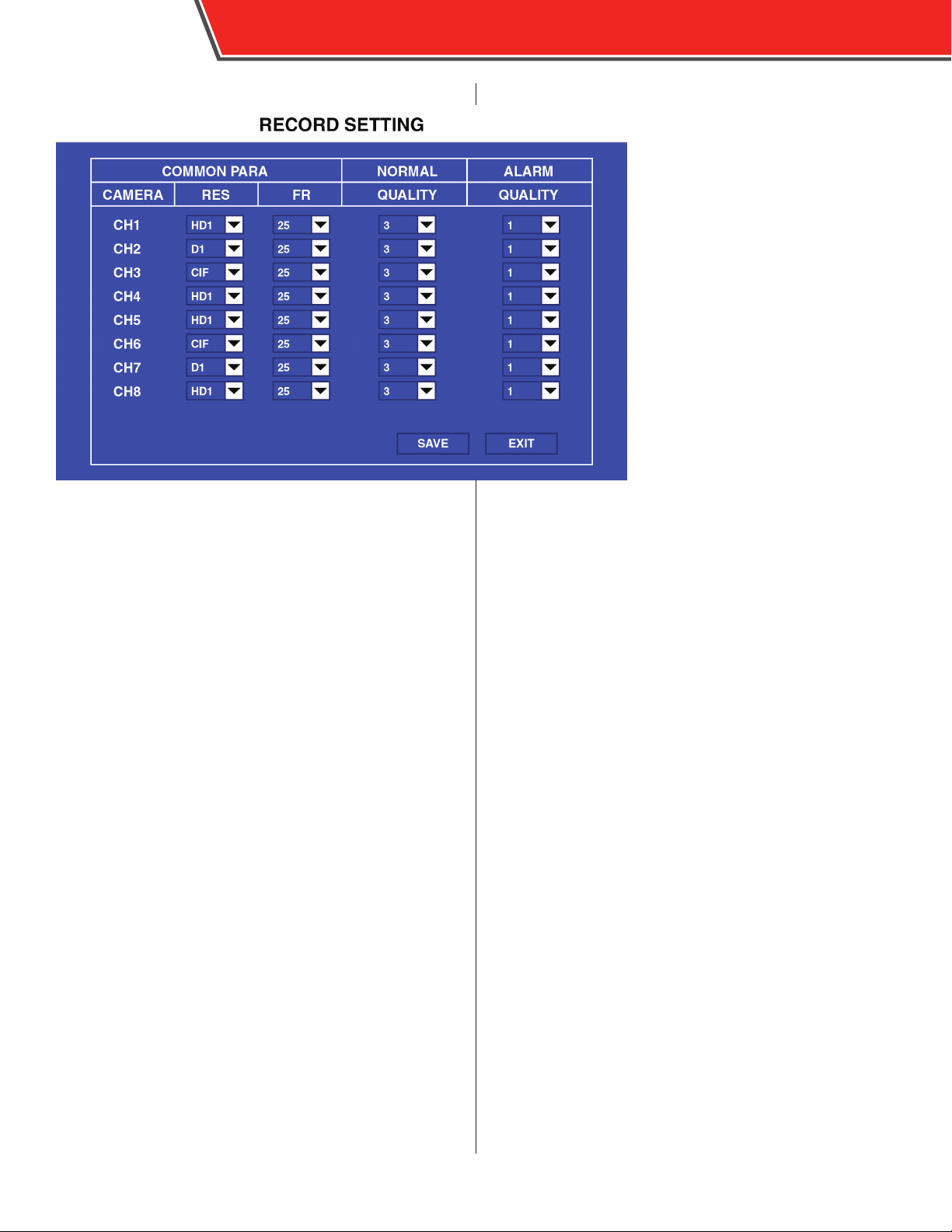

The Record Setting menu controls the framerate and resolution of recorded video. Each camera’s parameters can be set independently.

Select the following for each channel:

RES: Select the resolution of this camera. Select from D1 (704×576),

HD1 (704×288), or CIF (354×288). FR: Select the frame rate in seconds of this camera. Select from 1 to 30 FPS. NORMAL QUALITY: Select the quality

of recording during normal recording, with 1 being the best (for optimal images) and 8 being the lowest (for optimized recording time). ALARM QUALITY: Select the quality of recording during an event, with 1

being the best (for optimal images)

and 8 being the lowest (for optimized recording time).

Page 35

Sub-Streaming

The Sub-Streaming menu is similar to the Record Setting menu, except it controls the quality of camera’s substream.

BANDWIDTH: Select a bit-rate (in Kbps) consistent with your agency’s wireless hardware.

Select the following for each channel:

ENABLE: Select ON to enable this camera for sub-streaming. Select OFF to disable it. RES: Select the resolution for this camera when sub-streaming. Select from CIF or QCIF. FR: Select the frame rate in seconds of this camera when sub-streaming. Select from 1 to 30 FPS.

ICOP PRO USER GUIDE

SUB MODE: The Sub Mode eld helps live-view video when using a cellular modem. Select FIX or ADAPT. NET TRANS POLICY: Select PRIOR IMG QUALITY (preserves image quality but may take longer), PRIOR TRANS SPEED (faster transfer speed but may lower image quality), or BALANCE (balance between the two previous options).

Page 36

Cameo-Camera Settings

The Cameo-Camera Settings menu controls the cameo camera feature.

Select ON in a channel’s respective ENABLE eld to turn on the cameo functionality. The selected channel’s camera is then turned o during normal operation, and only turns on when an alarm is triggered.

Only one camera can be enabled with the cameo functionality at once, and pre-event recording is disabled for that camera.

ICOP PRO USER GUIDE

Page 37

ICOP PRO USER GUIDE

Other Settings

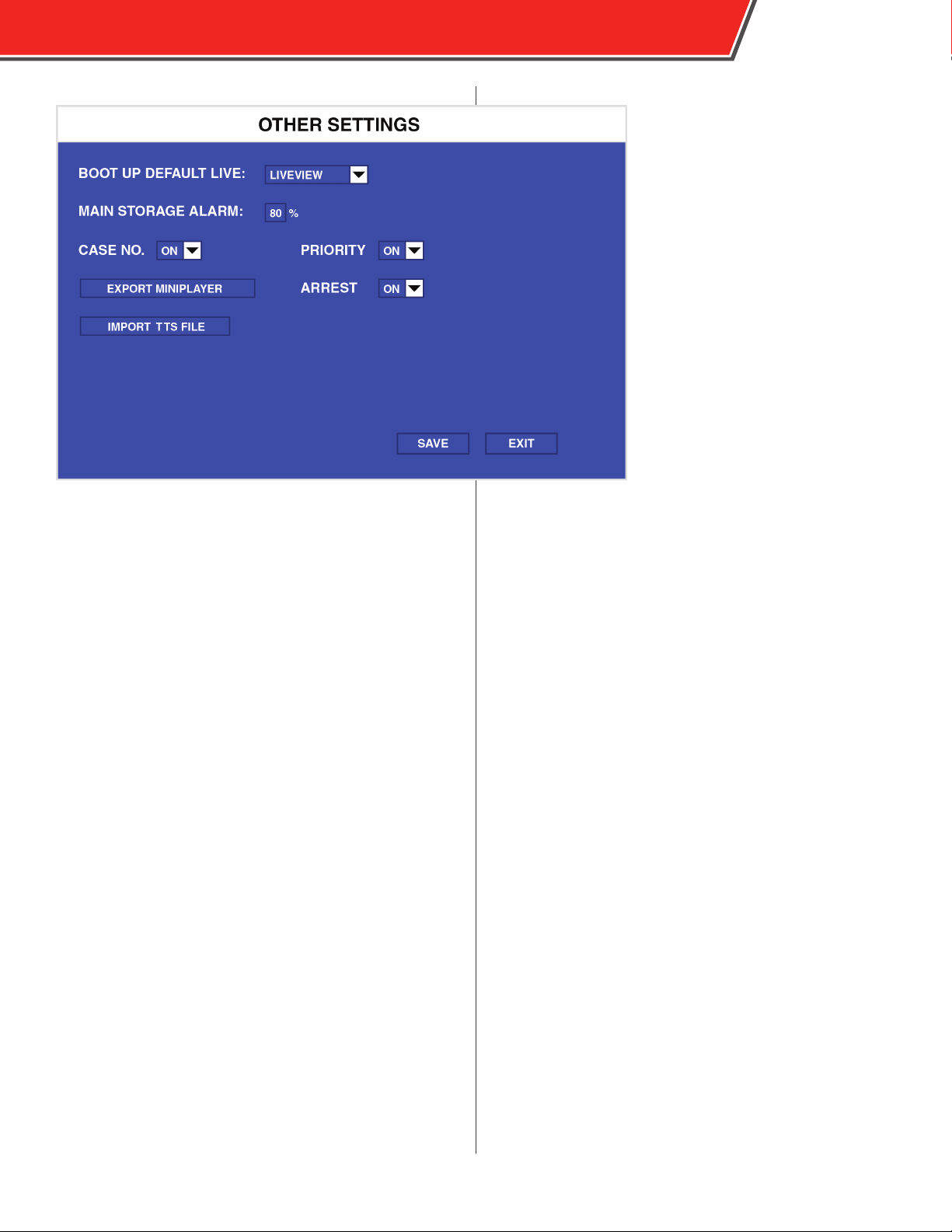

The Other Settings menu controls video encryption and the view on an attached monitor when the DVR rst boots up.

BOOT UP DEFAULT LIVE: Select LIVEVIEW to view live feeds of the

connected cameras. MAIN STORAGE ALARM: Enter the percentage of storage used at which a warning is displayed. CASE NO.: Select ON to enable the CASE NO. eld in the post-event detail entry screen that appears after events. PRIORITY: Select ON to enable the PRIORITY eld in the post-event detail entry screen that appears after events. ARREST: Select ON to enable the ARREST eld in the post-event detail

entry screen that appears after events.

EXPORT MINIPLAYER: Select this option to export the MIniplayer program to an attached external device, which allows recorded les to be viewed on a PC. IMPORT TTS FILE: Select this option to import a TTS le resident on an inserted USB drive.

Page 38

ICOP PRO USER GUIDE

Network Menu

The Network Menu contains parameters that dene how the DVR interacts with computers and a wireless central management system.

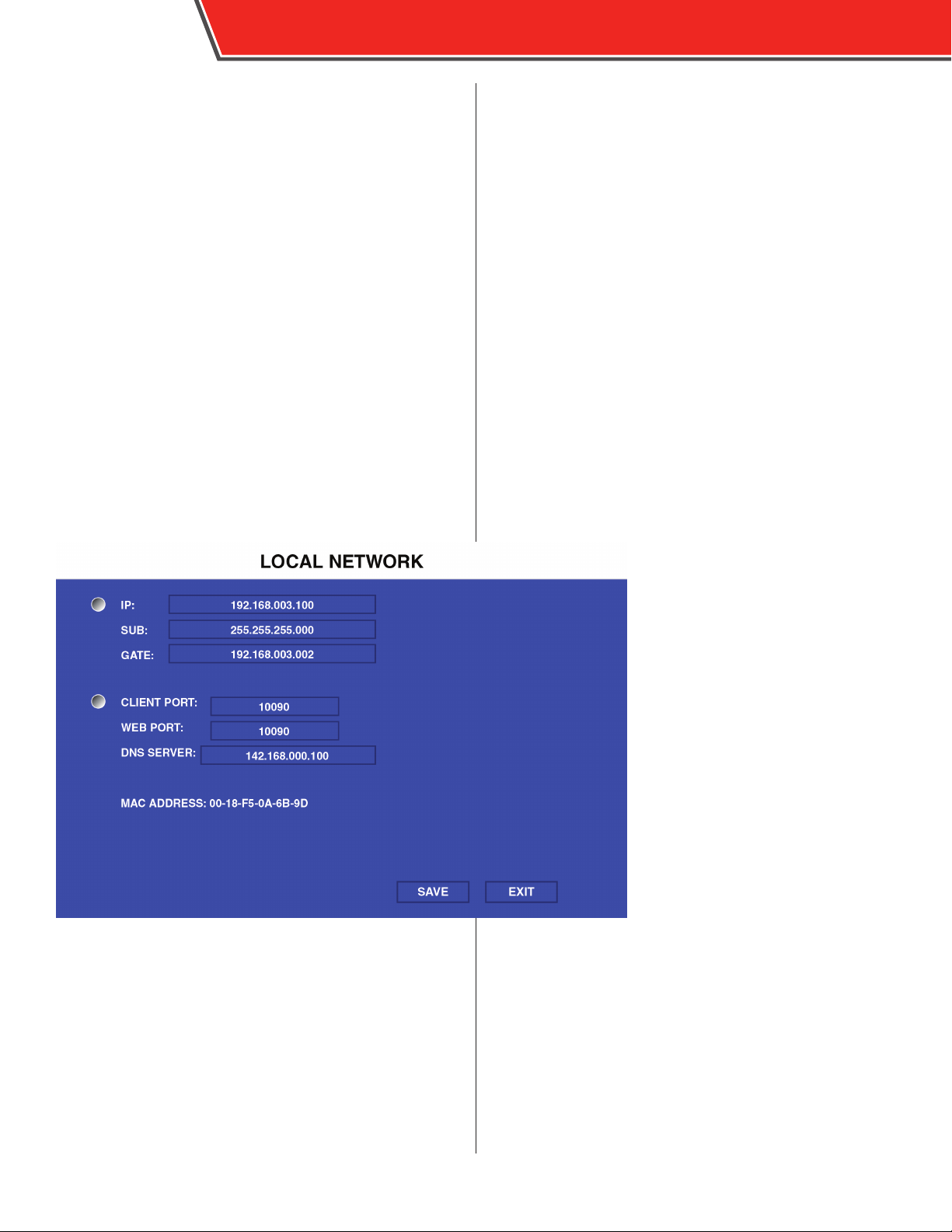

Local

The Local menu controls network information for the DVR unit when conguring networks.

Use the number keys on the remote control to enter the following:

IP: Static internet protocol (IP) address of the DVR.

SUB: Subnet mask. GATE: Default gateway. CLIENT/WEB PORT: Enter alternative

port numbers if necessary. DNS SERVER: Enter the DNS server address. MAC ADDRESS: The MAC address is unique and cannot be changed.

Page 39

ICOP PRO USER GUIDE

PO R T: Enter the appropriate port number. The default port is

5556.

MEDIA SERVER: Select STATIC IP or DYNAMIC IP depending on the settings of the server. (IP): Enter the IP address of the computer where the Media Server is installed. PO R T: The default port is 3306 and cannot be changed.

Server Network

The Server Network screen congures server information when communicating with the Message Server, part of the CMS.

CENTER SERVER 1/2: Up to two servers can be set up at the same time, such as a WiFi or cabled network and a 4G or 3G cellular network. Select PGDOWN at the bottom of the screen to access Center Server 2. NETWORK OPTION: Select WIFI NET> for WiFi or cable networks, or MOBILE NET. for cellular networks. MESSAGE SERVER: Select STATIC IP or DYNAMIC IP depending on the settings of the server. (IP): Enter the IP address of the computer where the Message Server is

installed.

Page 40

WiFi

The WiFi menu controls settings of the wireless access point the DVR communicates with.

Select CLIENT in the ENABLE eld and use the number keys on the remote control to enter the following:

GET IP TYPE: Select STATIC IP for WiFi networks requiring a static IP address. Select AUTO IP for DHCP-enabled WiFi networks.

IP: Static IP address of the access point. SUB: Subnet mask of the access point. GATE: Default gateway of the access

point. ESSID: AP of the server to which the DVR is connecting. PASSWORD ENABLE: Select ON if security is enabled for this access point to display the PASSWORD eld. PASSWORD: Use the remote control to enter a numeric password up to 63 characters.

ICOP PRO USER GUIDE

Page 41

ICOP PRO USER GUIDE

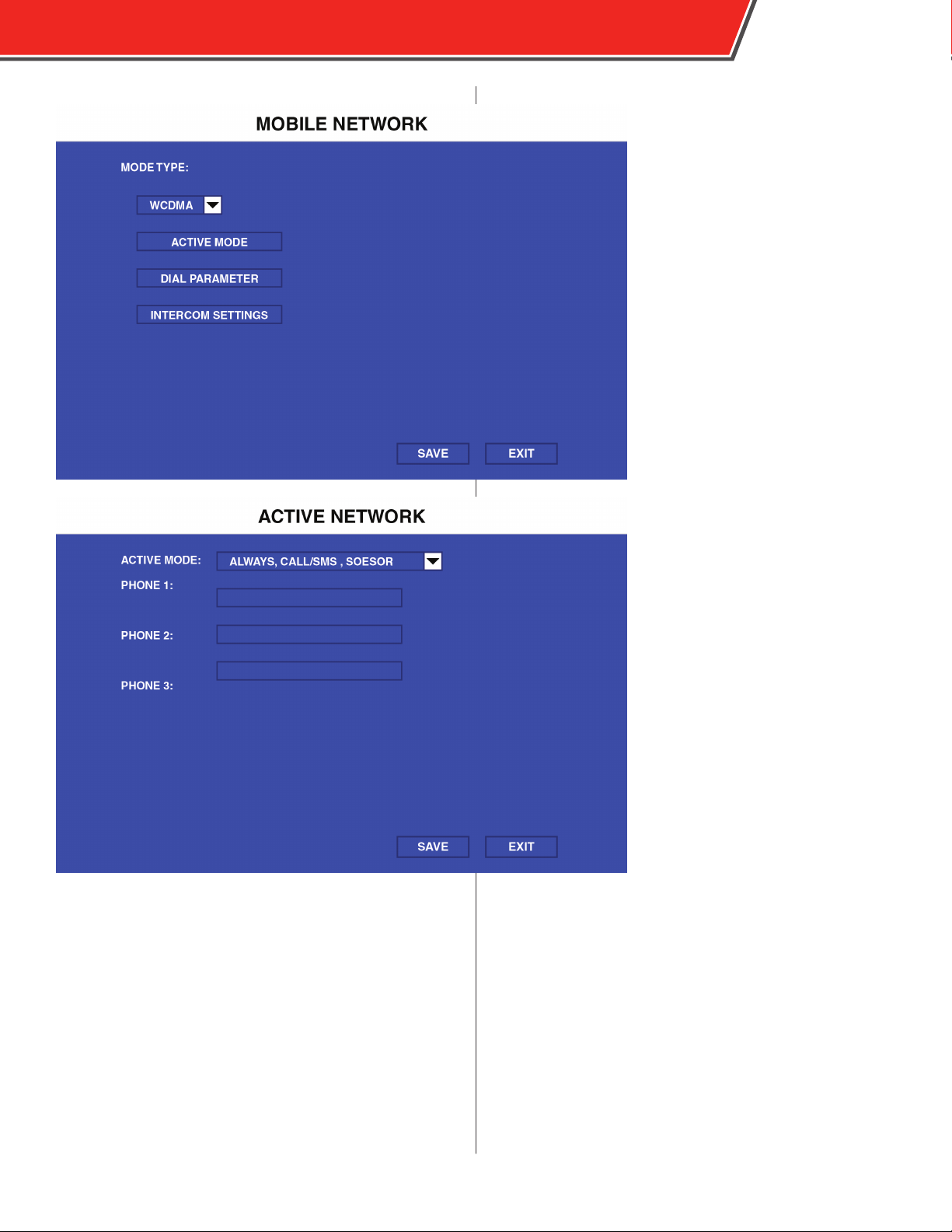

Mobile Network

The Mobile Network menus congure assorted optional wireless modules.

First select 2G, 3G, or MIXED. Then select the mode type. If you are using a cabled or WiFi network, select NONE.

Then Select ACTIVE MODE, DIAL PARAMETER, or INTERCOM SETTINGS to open those submenus.

Active Network

ACTIVE MODE: Select ALWAYS to always dial up and attempt to connect to the Message Server, CALL/SMS to only activate the wireless module when the SIM card is called, or SENSOR to setup a sensor to activate the wireless module. PHONE 1/2/3: Enter availavle SIM card phone numbers.

Page 42

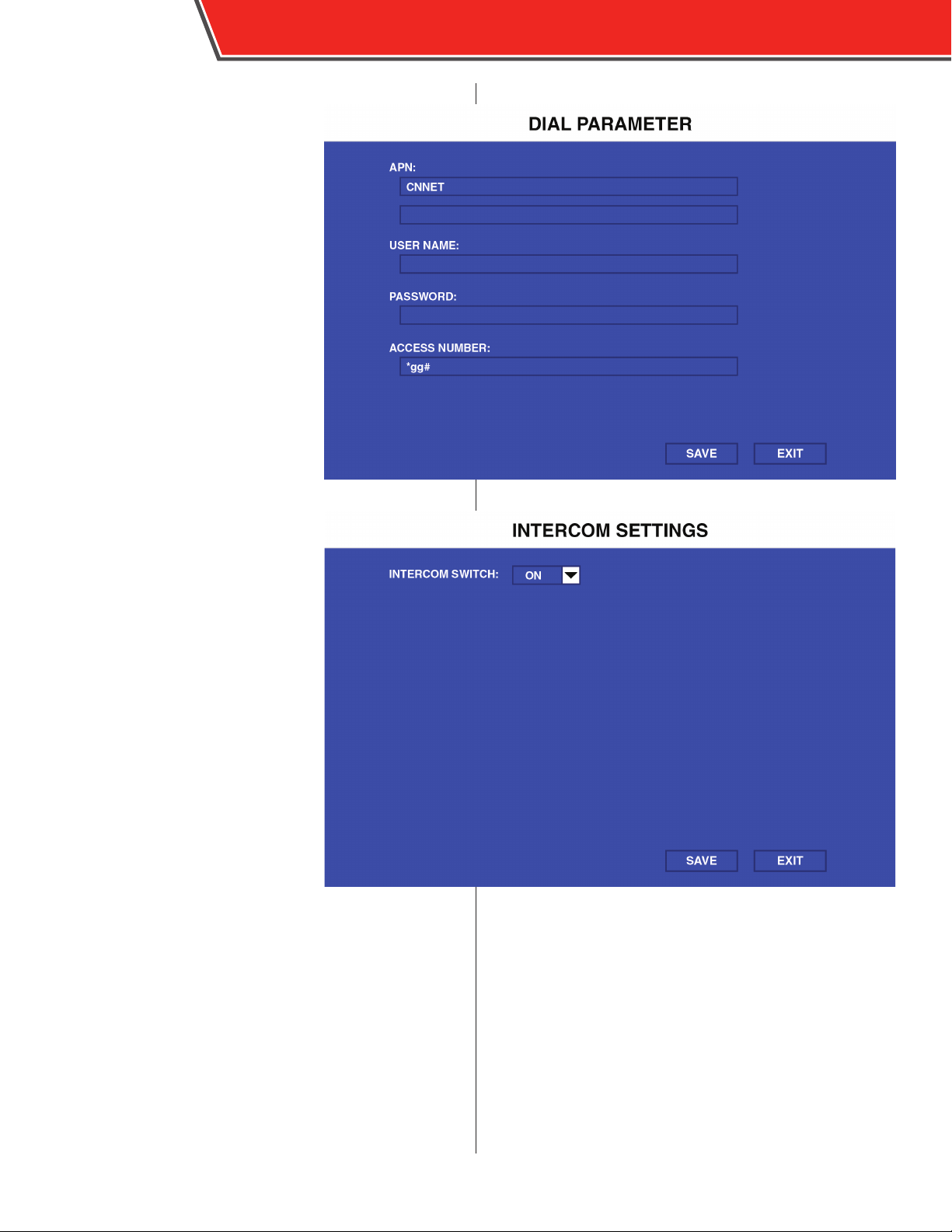

Dial Parameter

The Dial Parameter submenu congures SIM card settings. Please check with the manufacturer of your SIM card for the following information and enter them in the appropriate elds:

APN USER NAME PASSWORD ACCESS NUMBER

ICOP PRO USER GUIDE

Intercom Settings

Select ON to enable the intercom function while using a SIM card.

Page 43

ICOP PRO USER GUIDE

FTP Settings

The FTP Settings screen allows a password to be congured when the DVR is used as an FTP server.

PASSWORD ENABLE: Select ON to enable security for the FTP feature. USERNAME: Enter an alphanumeric username. PASSWORD: Enter a password up to 12 alphanumeric characters in length.

The default username is admin and the default password is 88888888.

Page 44

ICOP PRO USER GUIDE

Event Menu

The Event Menu contains parameters that control connected

sensor inputs and how events are recorded.

Sensor

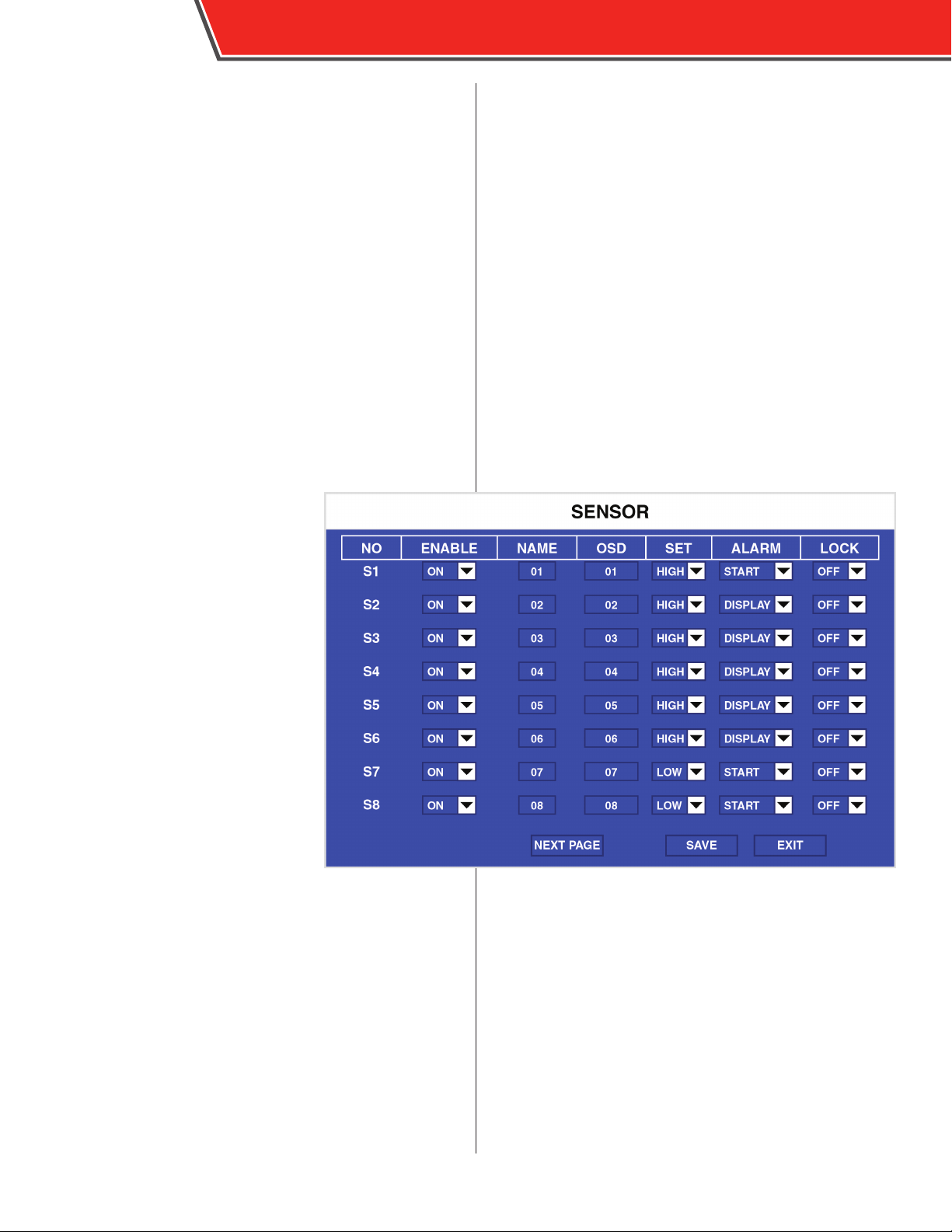

The Sensor menu controls each sensor input that triggers events. The DVR supports up to eight inputs and can congure each one individually.

Use the remote control to congure the following for each individual input:

ENABLE: Select ON to enable this sensor for input. Select OFF to disable it. NAME: Press Enter on the remote control to display an on-screen keyboard and enter the name for this sensor here. OSD: Press Enter on the remote control to display an on-screen keyboard and enter an abbreviated or truncated name of the sensor here. This name appears in the OSD while reviewing video in Foresight SD. SE T: Select LOW for low to high (normally closed, NC), or select HIGH for high to low (normally open, NO). ALARM: Select ON to enable the ALM LED on the front of the DVR when a sensor is triggered and marks video as “R” so that it can be automatically downloaded (see page 13). This LED continues to ash after an event is triggered until the conguration menus are accessed. LOCK: Select ON to lock the video of the event recorded when this sensor is triggered (not allowing it to be overwritten).

A sensor must be installed and wired properly to the DVR in order for it to function properly. For more information see the Installation section.

Page 45

ICOP PRO USER GUIDE

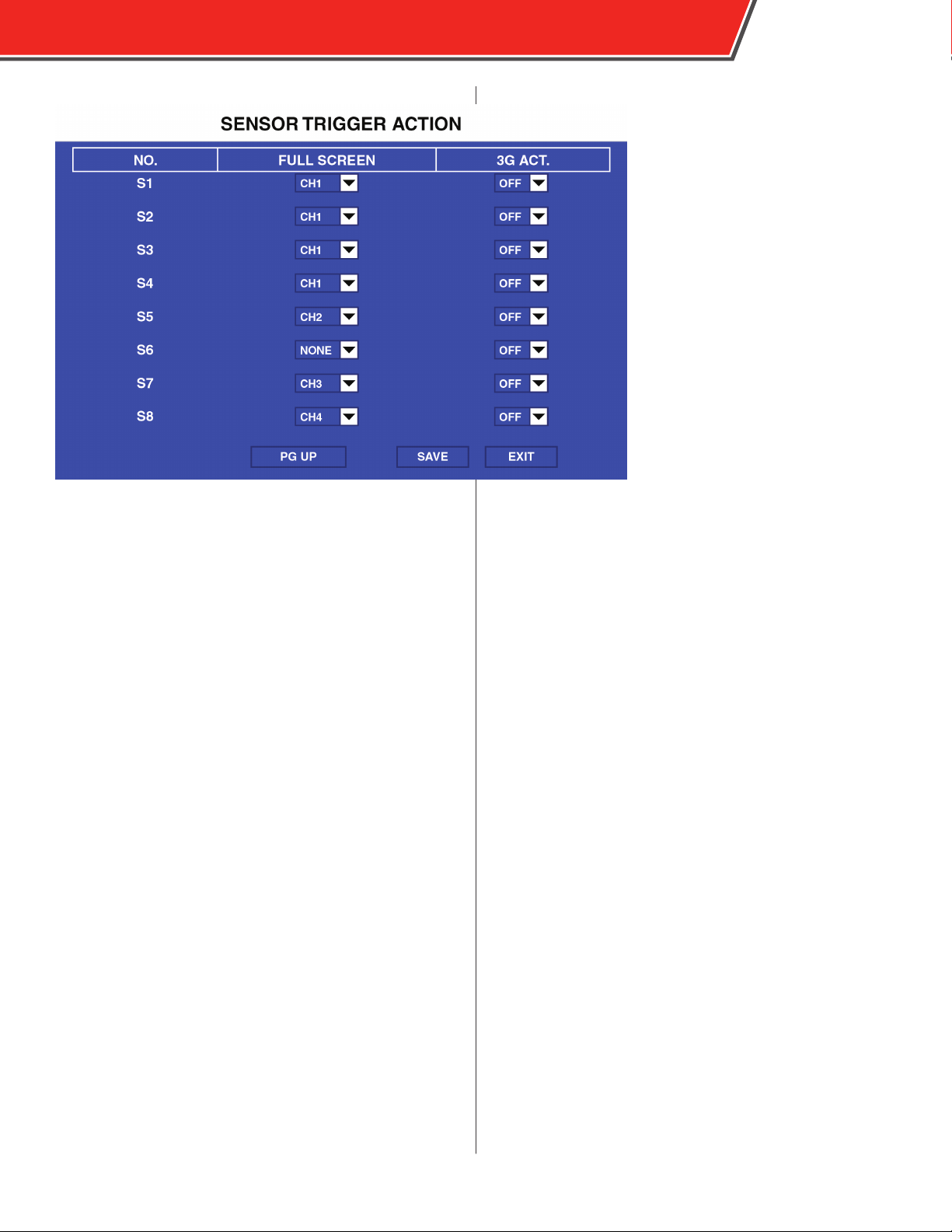

Sensor Trigger Action

Select NEX T PAGE on the Sensor menu to access this menu.

The Sensor Trigger Action menu allows a channel to be displayed in fullscreen when an event is triggered.

For each sensor, select a channel to displayed in the FULL SCREEN eld when that sensor is active. Select an individual camera or the “1-4” option, which displays a quad-view.

Lower numbered sensors override later ones. For example, if both sensor 1 and sensor 4 are active, the camera assigned to sensor 1 is displayed.

The 3G AC T. elds are not active at this

time.

Page 46

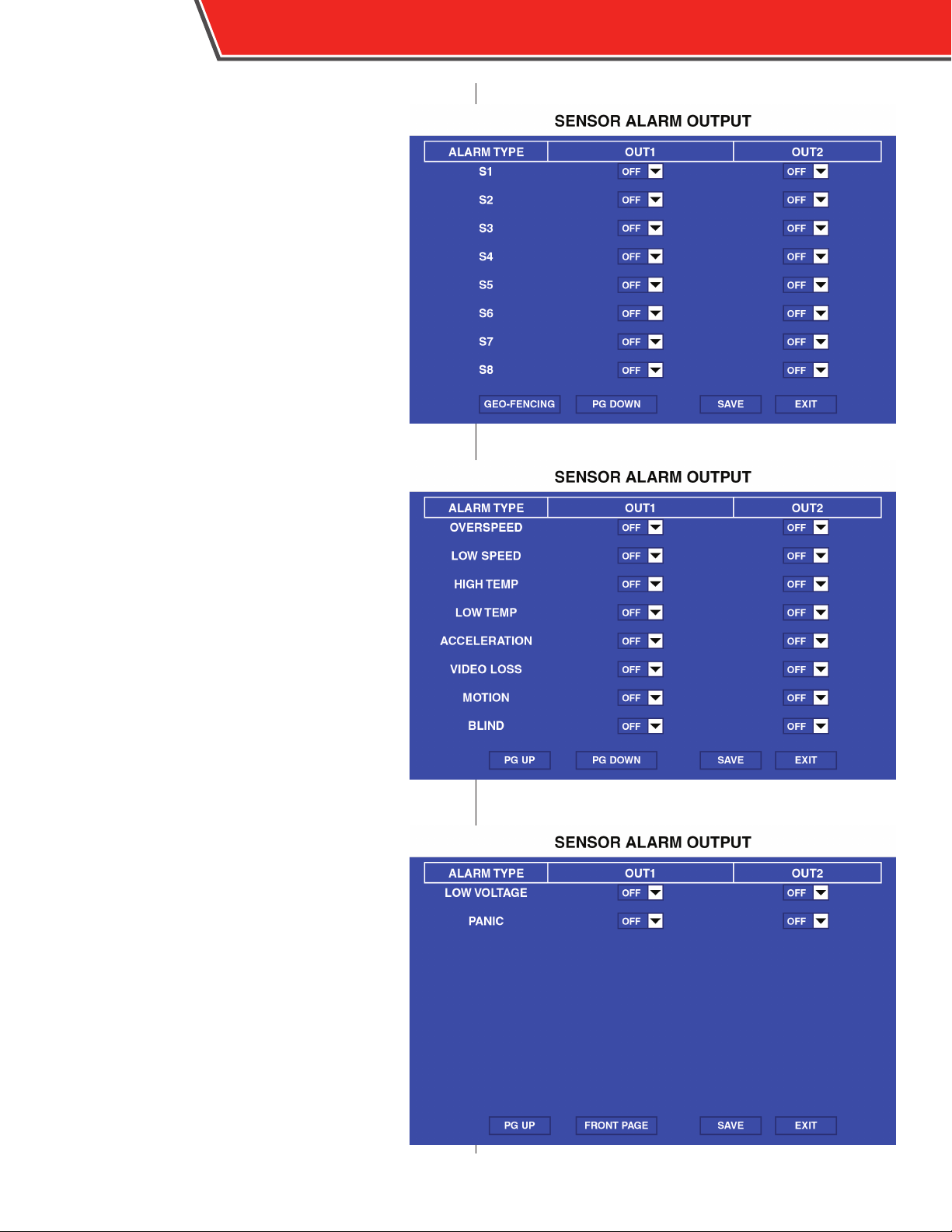

Sensor Alarm Output

The Sensor Alarm Output menus select which outputs are active when certain alarms are triggered.

For each alarm type, select ON or OFF for outputs 1 and 2 (OUT1 and SNAPSHOT).

OVERSPEED, LOW SPEED, HIGH TEMP., LOW TEMP., ACCERATION type alarms are controlled by settings in the Speed, Temperature, and Accerlation menus, respectively.

ICOP PRO USER GUIDE

Page 47

ICOP PRO USER GUIDE

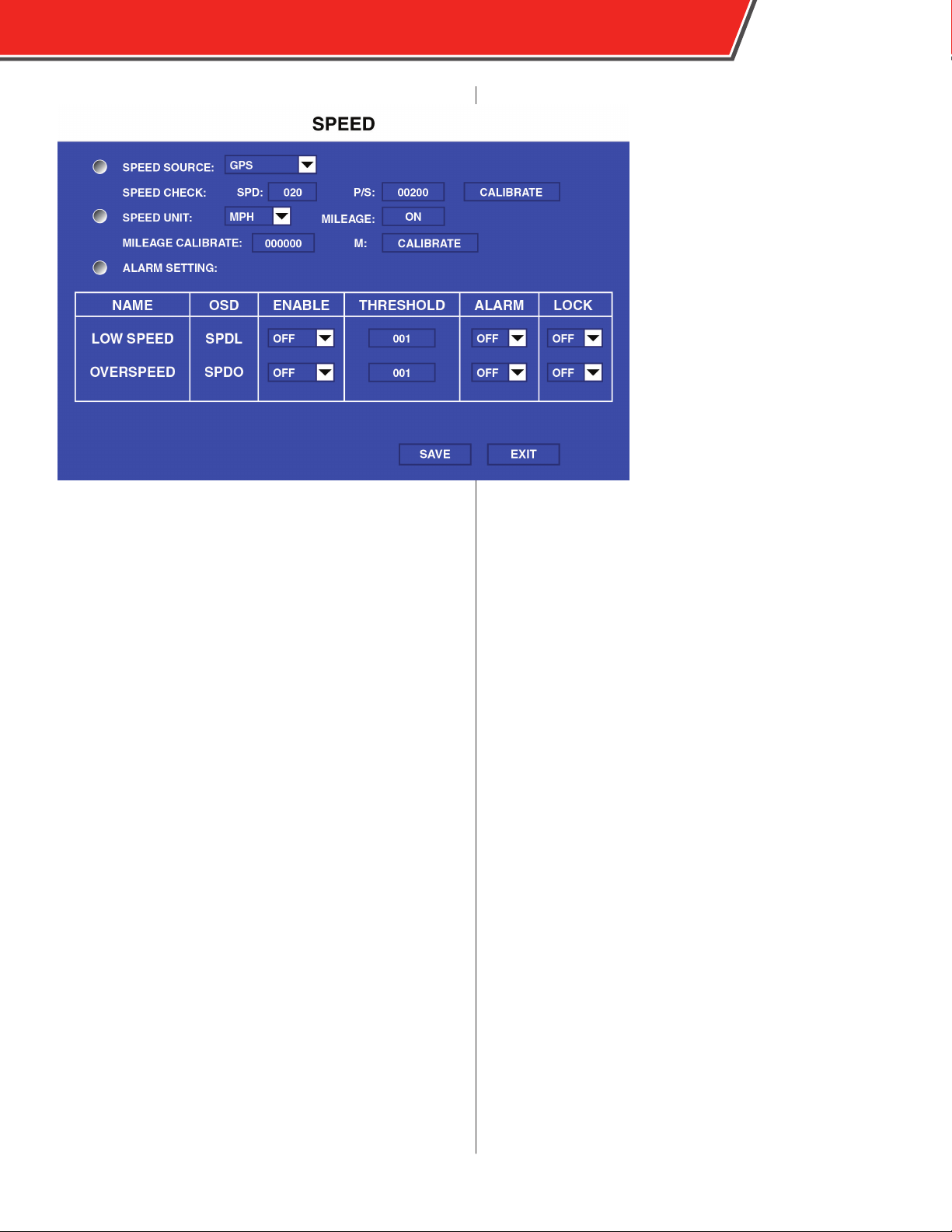

Speed

The Speed menu controls the speed type (SPDL and SPDO) events.

Use the remote control to congure the following options:

SPEED SOURCE: Select VEHICLE to obtain vehicle speed data from the vehicle’s own speedometer, or GPS to obtain this data from the GPS signal.

For more information about connecting the DVR to a vehicle speedometer, please contact Safety Vision Technical Support.

SPEED UNIT: Select MPH to use miles per hour or KPH to use kilometers per hour.

ALARM SETTING: Select the following options for UNDER SPD and OVER

SPD:

ENABLE: Select ON to enable this SPEED event. Select OFF

to disable it. THRESHOLD: Use the number keys on the remote control to enter the speed at which the event is triggered. ALARM: Select ON to enable the ALM LED on the front of the DVR when the THRESHOLD speed is reached and an event is triggered. This LED continues to ash after an event is triggered until the conguration menus are accessed. LOCK: Select ON to lock the video of the recorded event when the THRESHOLD speed is reached (not allowing it to be overwritten).

Page 48

Acceleration

The Acceleration menu controls the thresholds of the DVR’s accelerometers that trigger an G-FORCE (GF) event.

Use the remote control to congure the following options:

EN: Select ON to enable the SHK event. Select OFF to disable it. THRESHOLD: Use the number keys on the remote control to enter the amount of force (in Gs) for each axis (X, Y, and Z) at which the event is triggered. ALARM: Select ON to enable the ALM LED on the front of the DVR when the THRESHOLD force is reached and an event is triggered. This LED continues to ash after an event is triggered until the conguration menus are accessed. LOCK: Select ON to lock the video of the event recorded when the THRESHOLD force is reached (not allowing it to be overwritten).

ICOP PRO USER GUIDE

Page 49

ICOP PRO USER GUIDE

triggered until the conguration menus are accessed. LOCK: Select ON to lock the video of the event recorded when the THRESHOLD force is reached (not allowing it to be overwritten).

Temperature

The Temperature menu controls the thresholds of the DVR’s internal thermometers.

TEMERATURE UNIT: Select F for Fahrenheit. Select C for Celsius.

Use the remote control to congure the following options:

ENAB: Select ON to enable this alarm. THRESHOLD: Use the number keys

on the remote control to enter the maximum or minimum temerature at which an event is triggered. ALARM: Select ON to enable the ALM LED on the front of the DVR when the THRESHOLD temperature is reached and an event is triggered. This LED

continues to ash after an event is

Page 50

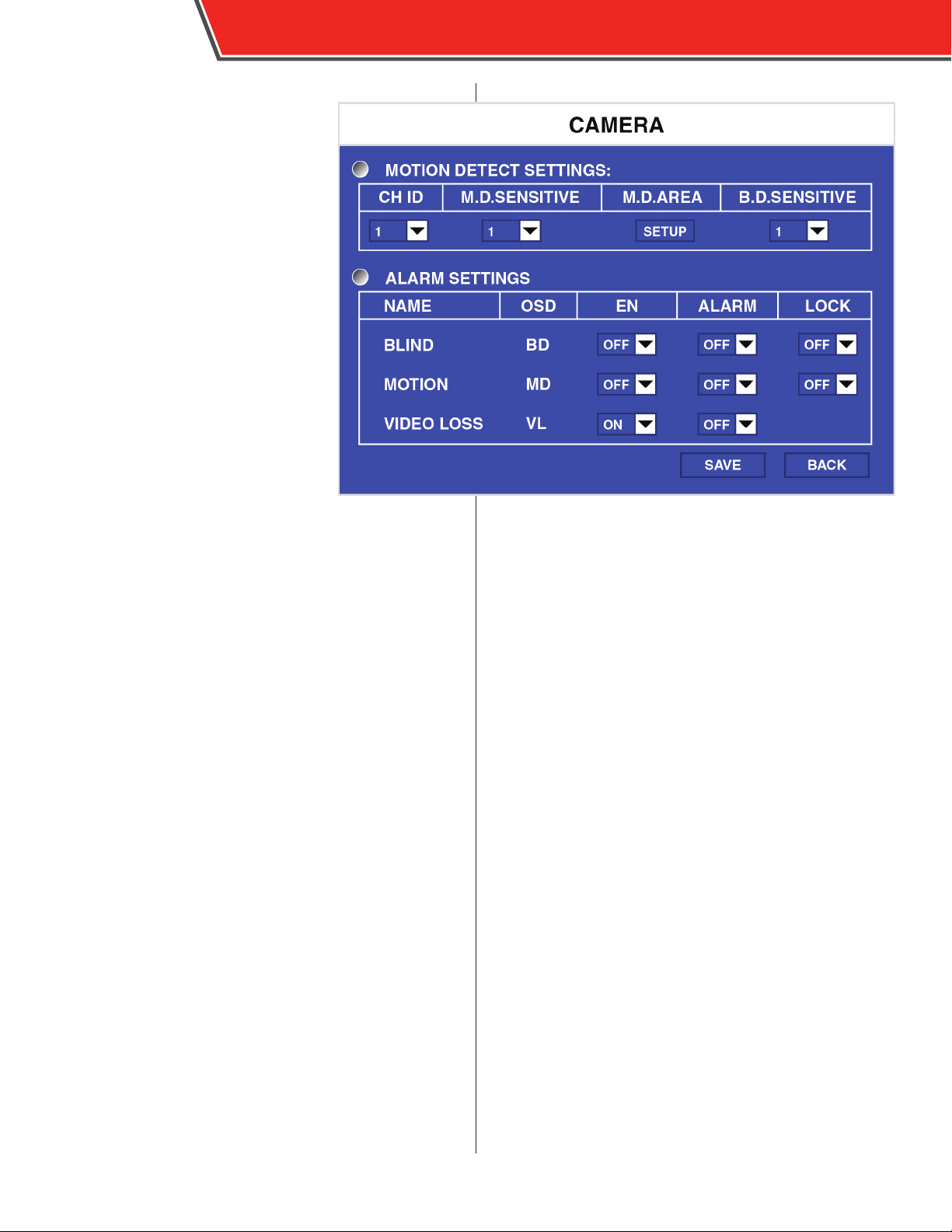

Camera

The Camera menu controls camera motion detection settings and associated events.

Use the remote control to congure the following options:

MOTION DETECT SETTINGS

CH ID: Select the channel to congure

the following settings. M.D. SENSITIVE: Select the sensitivity of the motion detection feature, with 3 being the most sensitive. The more sensitive the motion detection, the smaller the movements can be that trigger events. M.D.AREA: Select Setup to enter the motion detection setup screen. Use the cross keys on the remote control to shade in red the area of view that is monitored for motion. Use the Enter key to switch between shading and not shading. This is useful when the camera’s angle of view covers both areas with frequent motion and monitored areas. B.D.SENSITIVE: The blind detection feature senses when a camera’s view may be purposely blocked. Select the sensitivity of the blind detection feature, with 3 being the most sensitive. The more sensitive the blind detection, the smaller the movements can be that trigger events.

ICOP PRO USER GUIDE

ALARM SETTINGS

For each type of alarm (BLIND, MOTION, and VIDEO LOSS), select ON or OFF for the following:

EN: Select ON to enable the event. Select OFF to disable it. ALARM: Select ON to enable the ALM LED on the front of the

DVR when the event is triggered. This LED continues to ash after an event is triggered until the conguration menus are accessed. LOCK: Select ON to lock the video of the recorded event.

Page 51

ICOP PRO USER GUIDE

time, in minutes, that the DVR can continue to receive the voltage indicated in the VOLTAGE eld before disconnecting from the CMS. SHUT DOWN DELAY: Select the time, in minutes, that the DVR can continue to receive the voltage indicated in the LOW VO LTAGE eld before automatically shutting down.

Low Voltage Protection

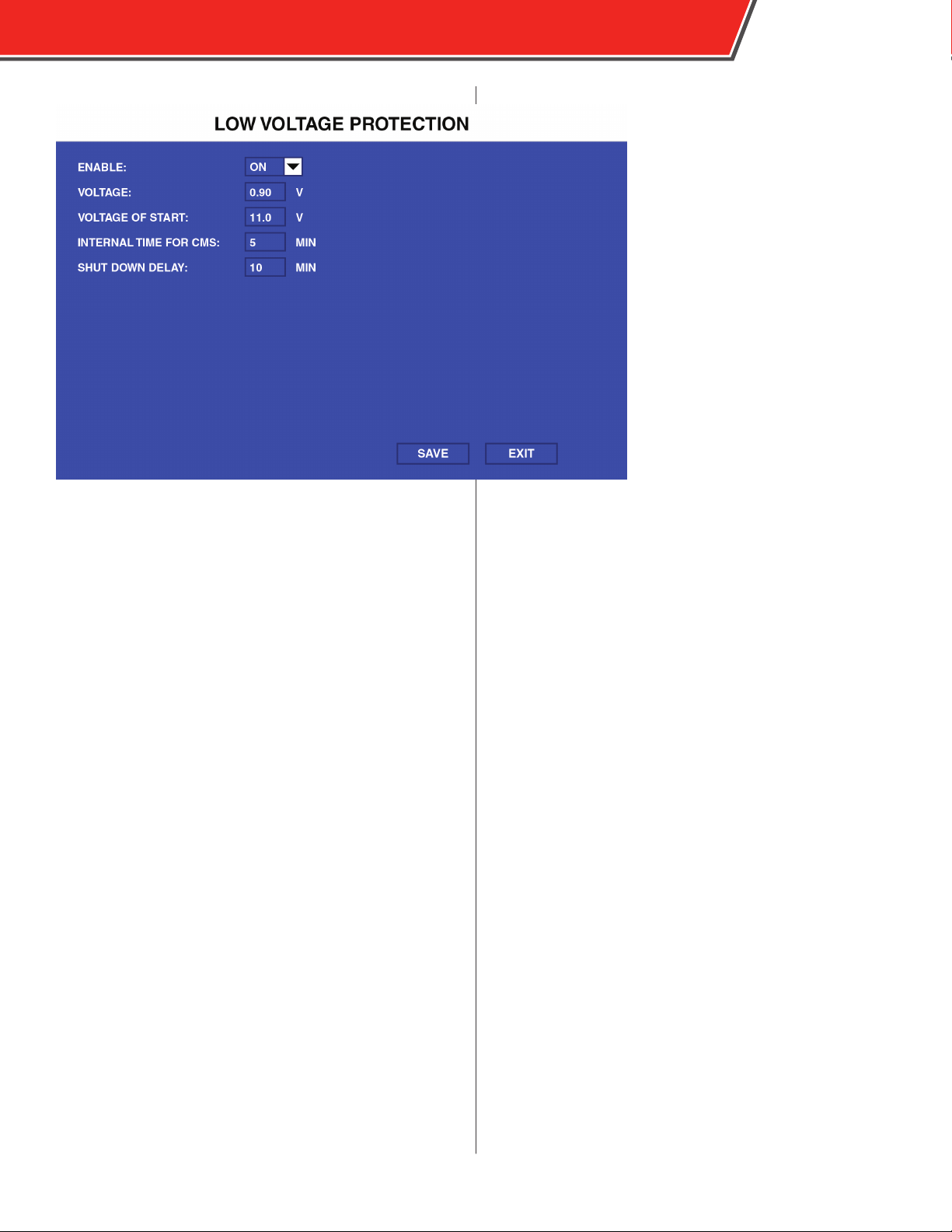

The Low Voltage Protection menu controls the voltage threshold before the DVR shuts down automatically to protect itself.

Use the remote control to congure the following:

ENABLE: Select ON to enable voltage protection. LOW VO LTAGE: Enter the minimum voltage, in volts, that the DVR can receive before it automatically disconnects from the CMS or shuts down. VOLTAG E OF START: Enter the voltage, in volts, that the vehicle typically drops to during startup (the ignition key is turned).

INTERNAL TIME FOR CMS: Select the

Page 52

Emergency Event

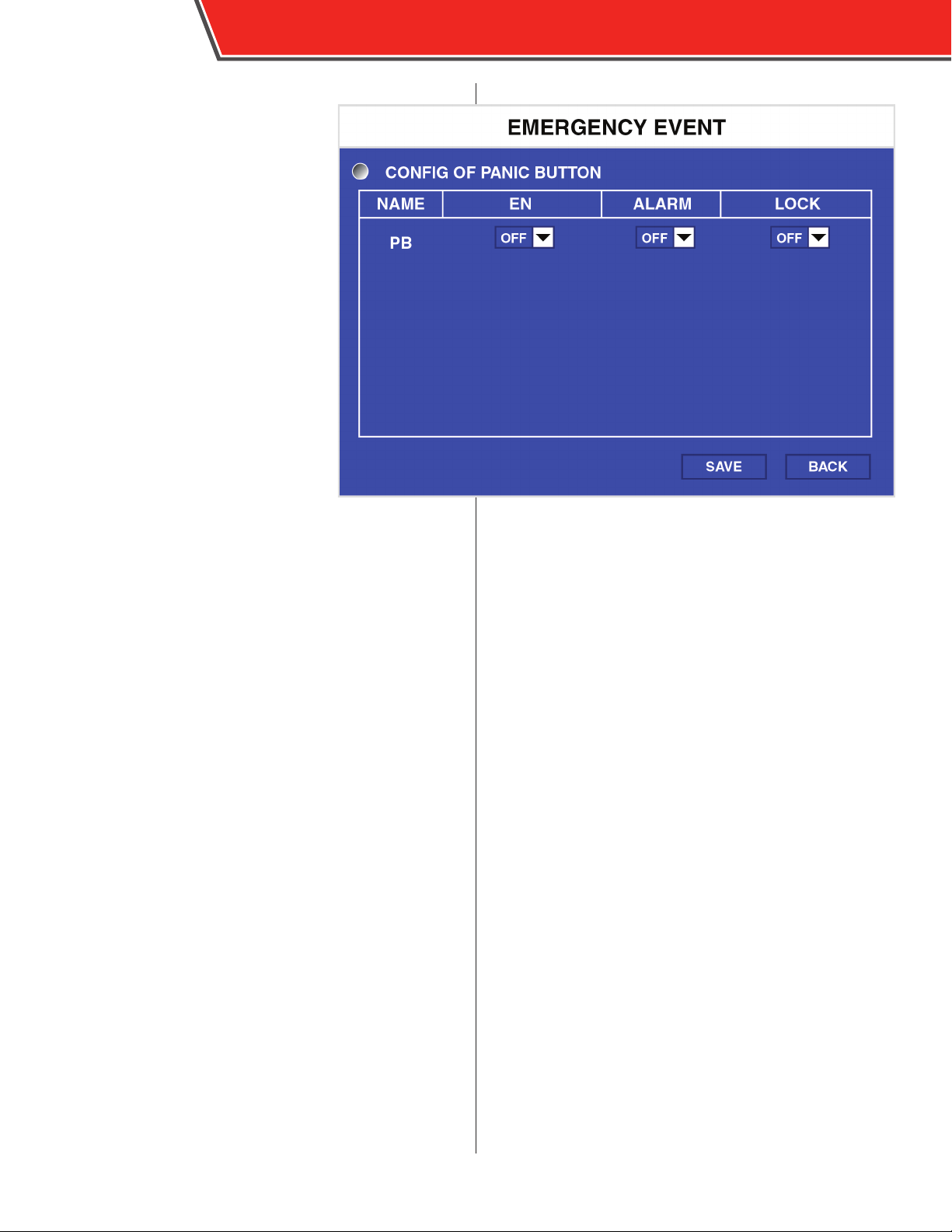

The Emergency Event menu controls events relating to the panic button module.

Use the remote control to congure the following:

EN: Select ON to enable the panic button module. Select OFF to disable it. ALARM: Select ON to enable the ALM status LED when the event is triggered. This LED continues to ash after an event is triggered until the conguration menus are accessed. LOCK: Select ON to lock thevideo of the recorded event.

ICOP PRO USER GUIDE

Page 53

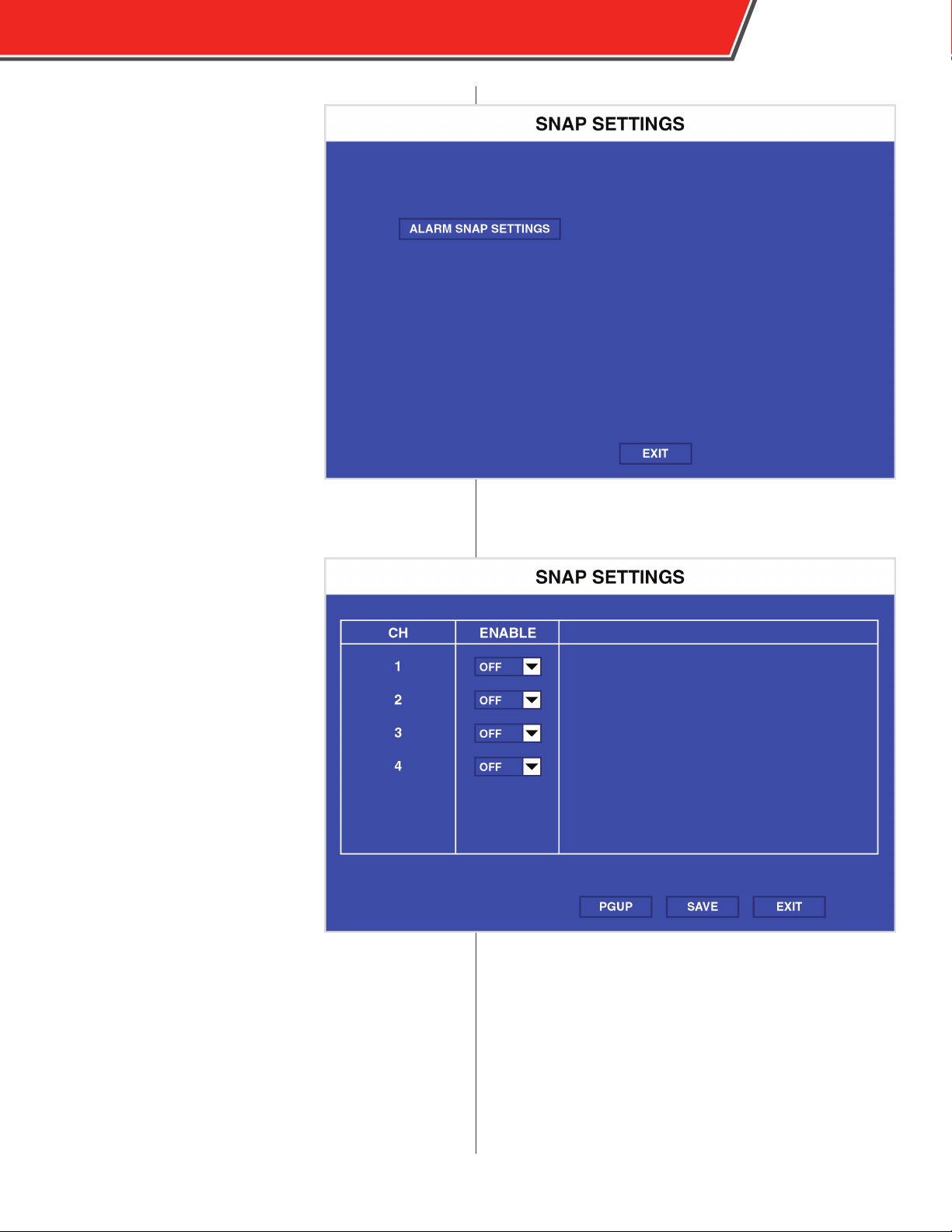

Snap Settings

The Snap Settings menu enables snapshot mode for each camera. When snapshot mode is enabled, video is recorded in a series of snap shots taken in a constant interval. This may reduce storage usage for some non-critical camera views.

For each camera, select ON to enable snapshot mode.

ICOP PRO USER GUIDE

Page 54

ICOP PRO USER GUIDE

Peripheral Menu

The Peripheral Menu contains parameters that control

optional connected peripheral accessories.

PTZ

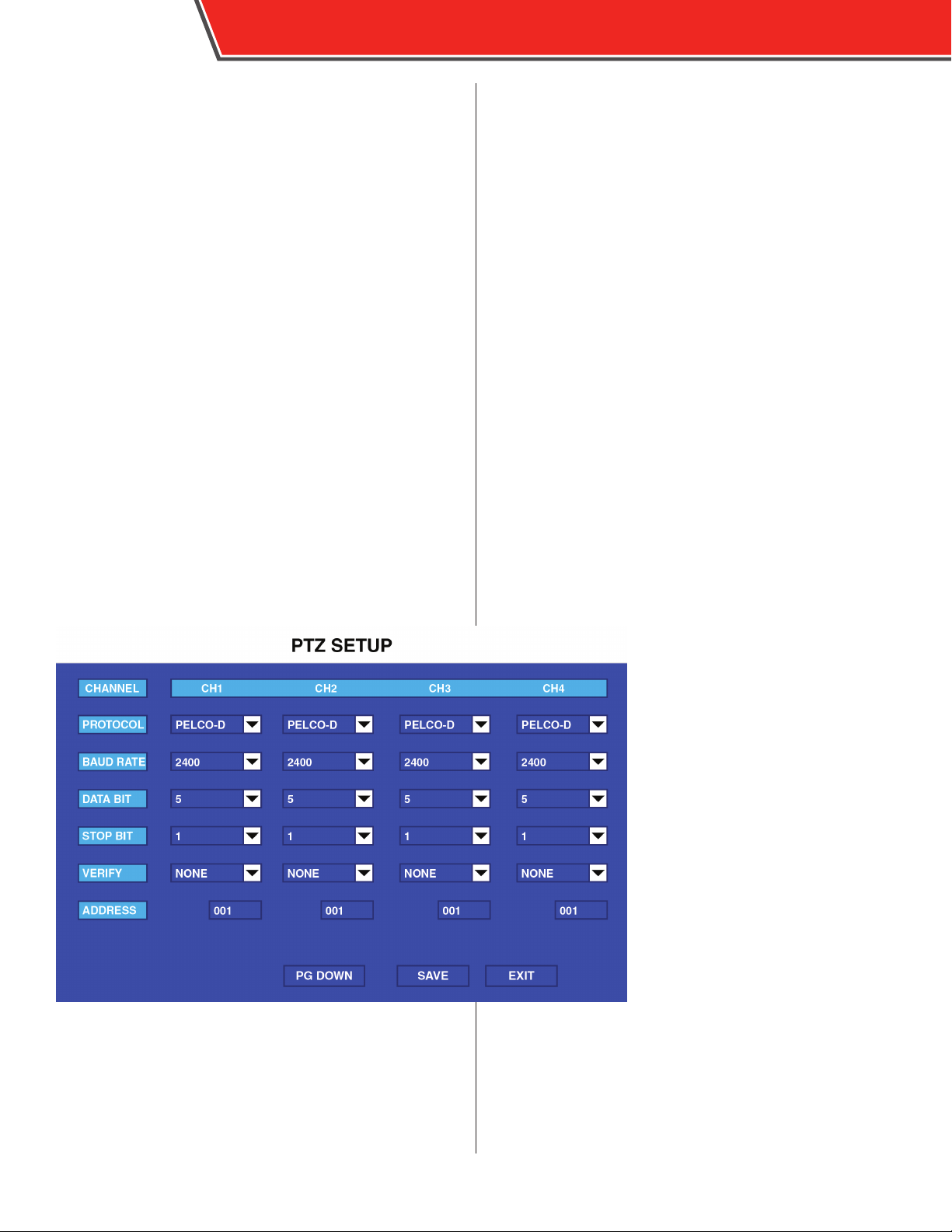

The PTZ Setup menu provides conguration options for advanced optional cameras. Consult with the camera manufacturer for the following information:

Protocol Baud Rate Data Bit Stop Bit Verify Address

Page 55

ICOP PRO USER GUIDE

Ext. Com. Setup

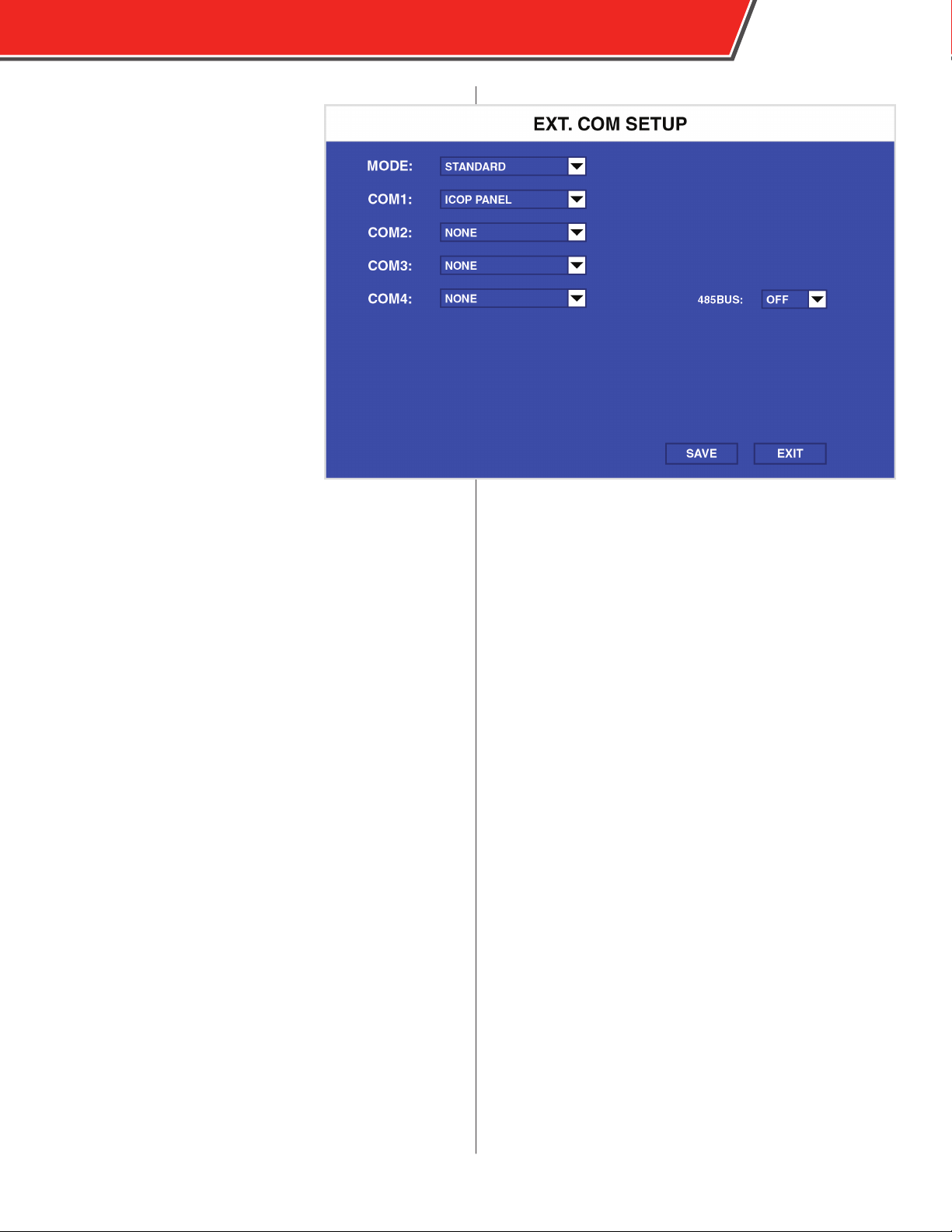

The Ext. Com. Setup menu enables optional connections to the PCM, acceleration sensor, or panic button.

Use the remote control to congure the following for each individual input:

RS232-1: Select the device connected to the 232RXD-1 and 232TXD-1 terminals. ICOP PANEL is selected by default for the PCM. RS232-2: Select the device connected to the 232RXD-2 and 232TXD-2 terminals. Select NONE if nothing is connected to these terminals. RS485 -1: Select the device connected to the 485A-1 and 485B-1 terminals. Select NONE if nothing is connected to these terminals. RS485-2: Select the device connected to the 485A-2 and 485B-2 terminals. Select NONE if nothing is connected to these terminals. 485 BUS: Select ON to enable the Smart Battery connection.

Page 56

ICOP PRO USER GUIDE

System Information

Select the System Information icon to display the System, History, Modules, and Authorized menus.

These menu options display unique information and history about the DVR unit.

System

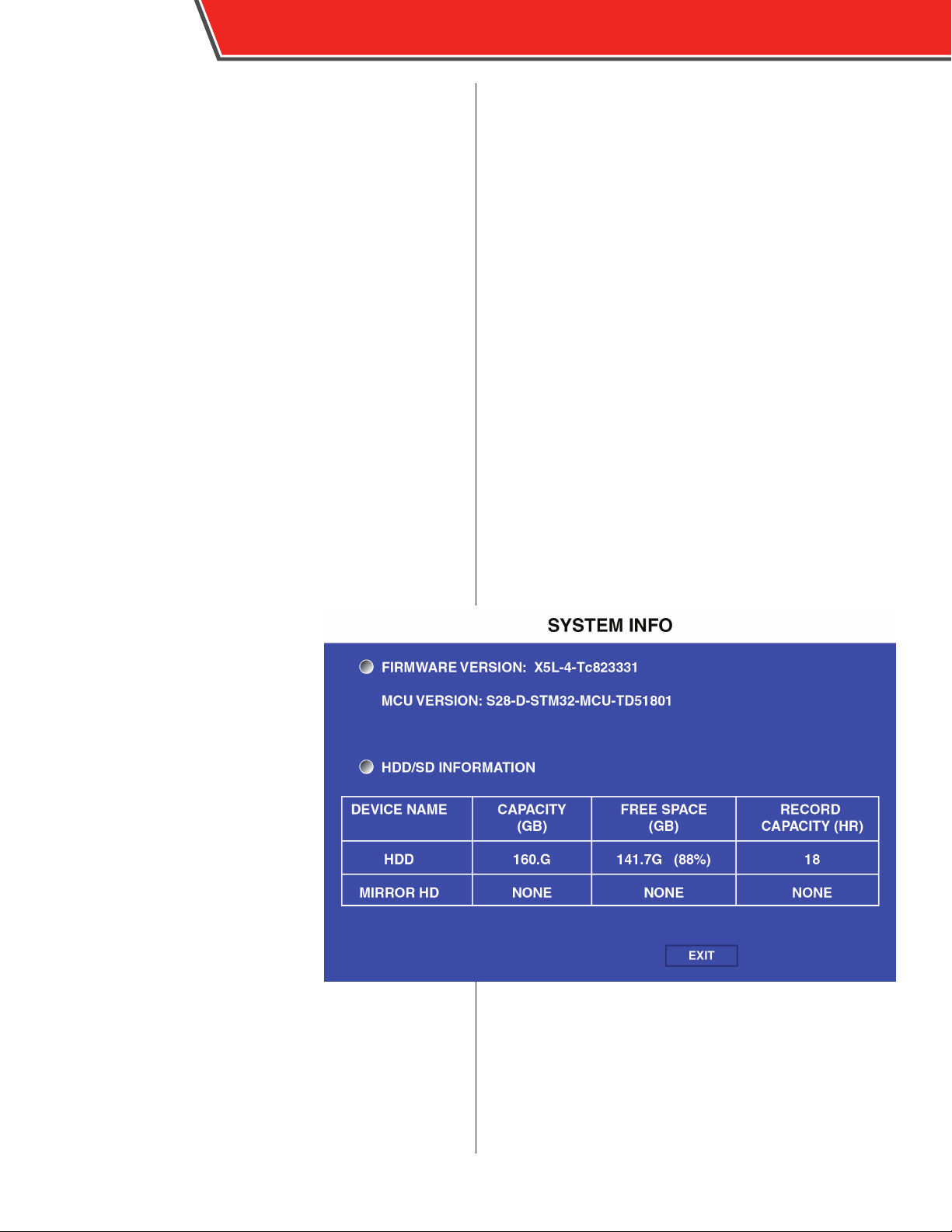

The System menu displays the rmware version and information on the SD card.

FIRMWARE VERSION: The version of rmware currently installed. MCU VERSION: The MCU feature is not active at this time.

DEVICE NAME: Displays the name of the storage unit. CAPACITY: Displays the overall capacity of the storage unit, in gigabytes (GB). FREE SPACE: Displays the remaining storage capacity of the storage unit, in gigabytes (GB). RECORD CAPACITY: Displays the overall recording capacity of the storage device (in hours), based on the capacity and setting made in the conguration menus.

If information about a storage device is displayed in this menu, it is operating as normal.

Page 57

ICOP PRO USER GUIDE

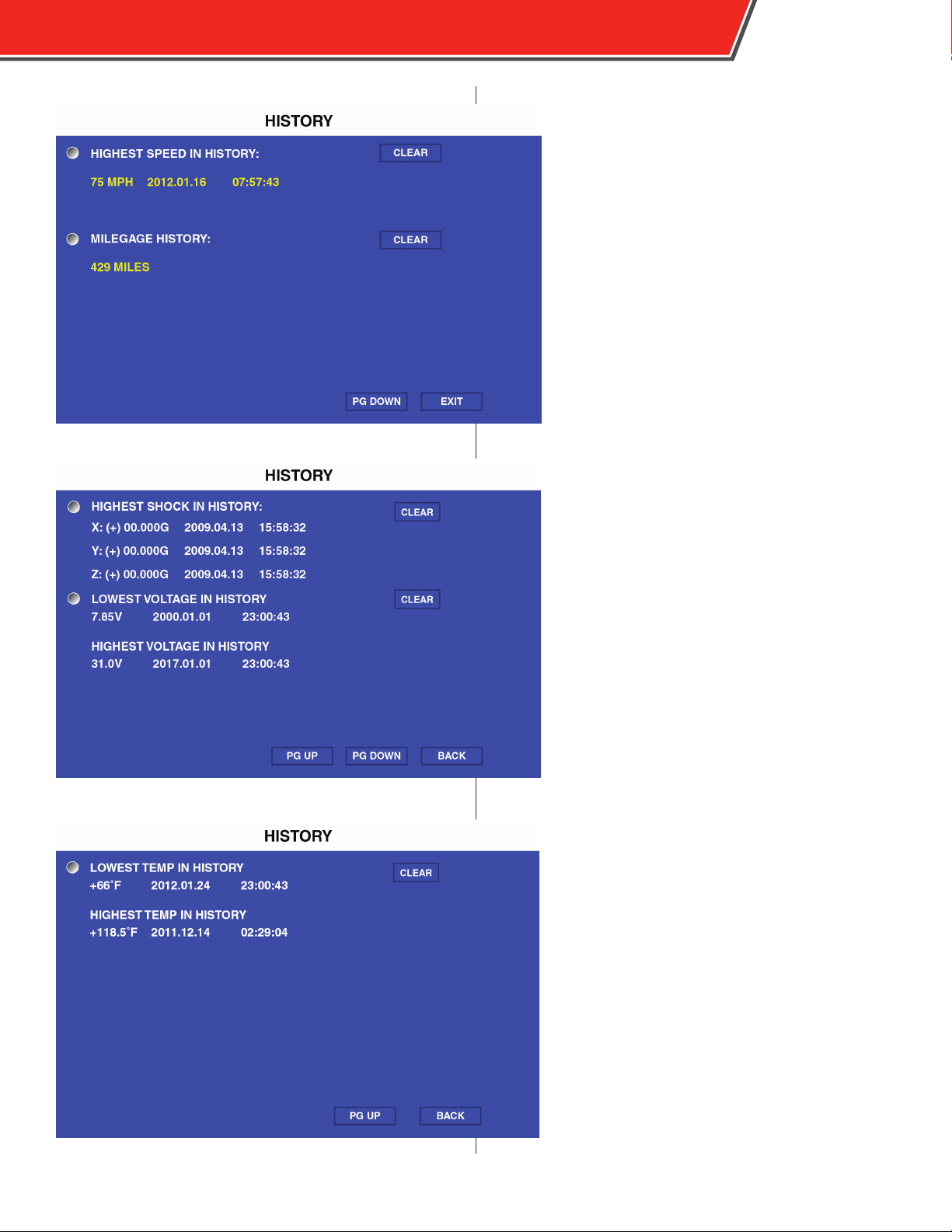

History Info

The History Info menu consists of three pages. Select CLEAR next to any record to reset it.

HIGHEST SPEED IN HISTORY: Displays the highest obtained speed, including the date and time it was recorded (assuming speed data is collected). TOTAL MILEAGE: Displays the total amount of miles (or kilometers) driven.

LOWEST VOLTAGE IN HISTORY: Displays the lowest received voltage, including the date and time it was recorded. HIGHEST VOLTAGE IN HISTORY: Displays the highest received voltage, including the date and time it was recorded.

LOWEST TEMP IN HISTORY: Displays the lowest internal temperature, including the date and time it was recorded. HIGHEST TEMP IN HISTORY: Displays the highest internal temperature, including the date and time it was recorded.

Page 58

Modules Status

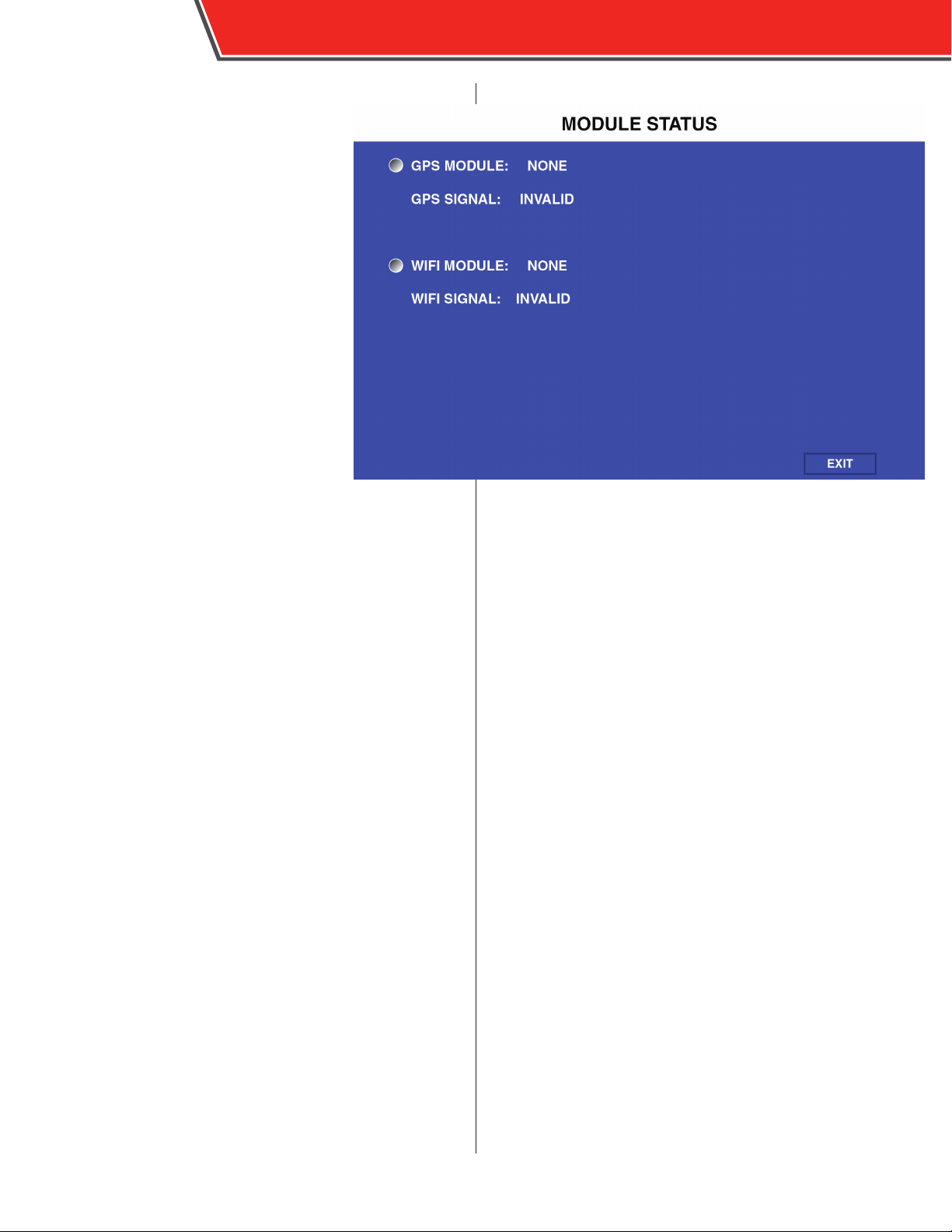

The Modules menu displays the status of optional installed modules.

GPS MODULE: Displays NORMAL if a GPS module is installed; NONE is one is not. GPS SIGNAL: Displays if the GPS signal received is valid.

WIFI MODULE: Displays NORMAL if a Wi-Fi module is installed; NONE if one is not. WIFI SIGNAL: Displays the strength of the Wi-Fi signal (in decibels) if a Wi-Fi module is installed

ICOP PRO USER GUIDE

Page 59

ICOP PRO USER GUIDE

Page 60

ICOP PRO USER GUIDE

Appendix A: Specications

SPECIFICATIONS

SD Card

Solid-State Drive (SSD)

Audio/Video Inputs

Storage

Form Factor

Recording

Mirror Recording

Pre-Event Recording

Post-Event Recording

On-Screen Display

Dimensions (L × W × H)

Included in Box

4 channels

(audio plus video)

8 channels

(audio plus video)

128 G B 256/500 GB

1-Din

Continuous, Background, or

Event-only recording

Mirror recording to secondary SD card

(max 128 GB) with wrapping

up to 15 minutes up to 30 minutes

LCD status screen

(time, date, user ID, DVR status)

6.62 in × 7.40 in × 1.96 in

ICOP PRO DVR

Console mount

GPS antenna

Cable harness

Screw kit

Page 61

ICOP PRO USER GUIDE

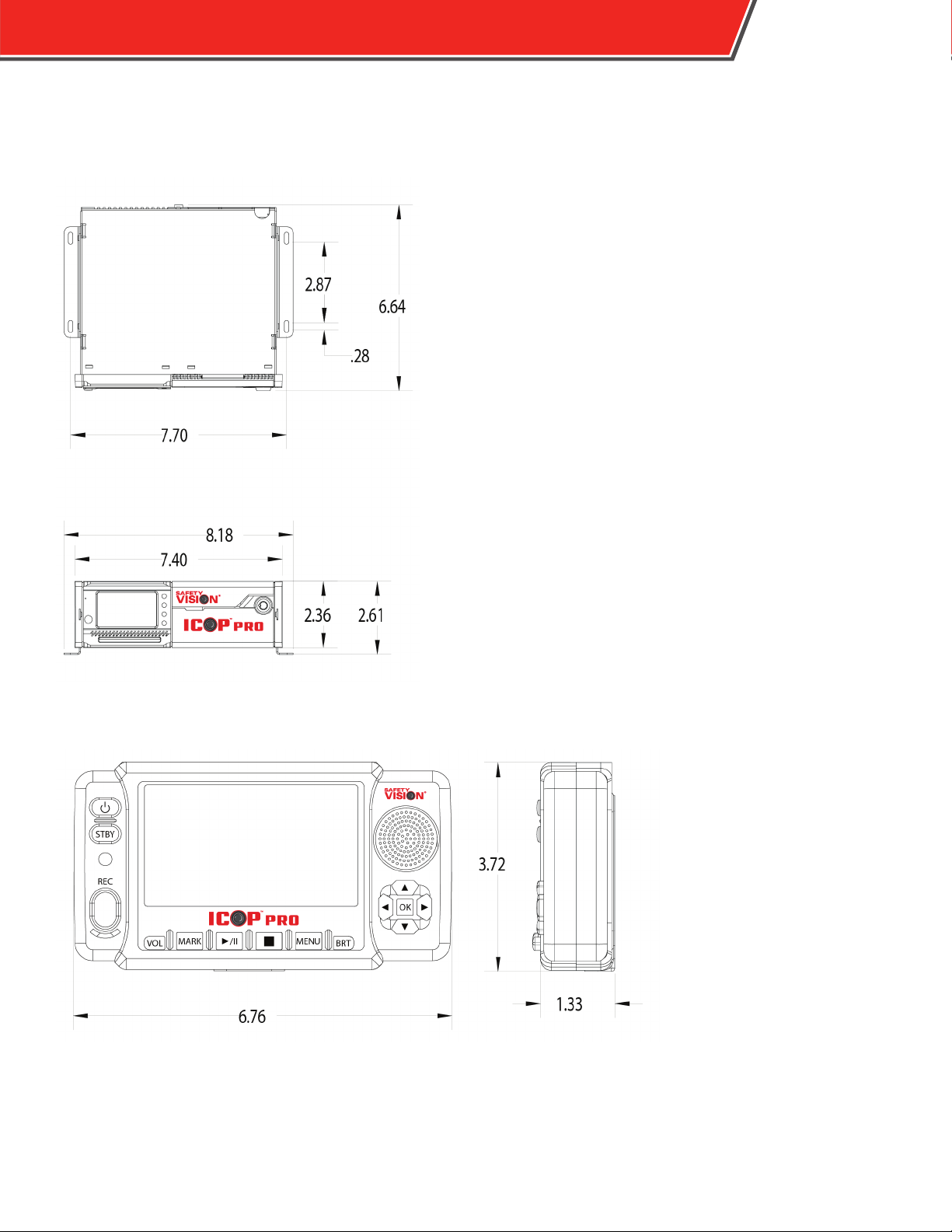

Appendix B: Dimensions

DVR

Power Control Monitor

Page 62

ICOP PRO USER GUIDE

Page 63

Limited 3-Year New Product Warranty

Safety Vision, LLC (“SV”) makes the following limited warranty, which is eective at the time of the original end-user purchase.

Note: Optional warranty products are available for all SV products and may be purchased at the time of the original end-user purchase or any time during the original Limited 3-Year New Product Warranty period.

SV warrants this product against defects in materials for a period of 3 years after the date of purchase. During this period, SV will repair or replace a defective product or part without charge to the customer. The customer must send the defective product or part to SV or an authorized SV dealer. The customer must pay for all transportation and insurance charges for sending the unit to be repaired. SV’s total liability is limited to the original product cost.

User Guide

The customer should thoroughly read this guide before operating this product.

Customer’s Responsibility

The above warranty is subject to the following conditions:

• Customer must notify SV within 10 days of discovering the defective product or

part and provide a description of the defect and complete information about the manner of its discovery.

• All warranty servicing of this product must be performed by SV or an authorized

servicing agent.

• Warranty extends only to defects in materials as limited above. Warranty

does not extend to any product or part that has been lost or discarded by the customer; to damage to products or parts caused by misuse, accident, improper installation, improper maintenance, or use in violation of instructions furnished with the product; to units that have been altered or modied without authorization of SV; to damage to products or parts thereof that have had the serial number removed, altered, defaced, or rendered illegible; or to any failure of the product to function caused by burglary, re, ood, war, riot, civil commotion, Acts of God, or any other condition beyond the control of SV.

Obtaining Warranty Service

To obtain warranty service, the customer must contact the SV Service and Warranty Manager at 713.896.6600 or 800.880.8855 to report a defective product. (The customer must report the model number and serial number if available.) The Service and Warranty Manager will assist in troubleshooting the problem and, if necessary, issue a return material authorization (RMA) number. The customer must include this number on the outside of each package shipped to SV.

Important Packing and Shipping Instructions

When a product requires service, only the aected component must be returned. If returning the RouteRecorder 4C SD SS unit, please include the SD card that was in use at the time the issue occured. The customer must use proper packing material to ensure against damage during shipping. Any shipping damage caused by improper packing is not covered under this warranty. In addition, the customer must include a return material authorization (RMA) number on the outside of each package shipped to SV and a letter explaining the defect with the product.

Page 64

ICOP PRO USER GUIDE

FCC Compliance Statement

NOTE

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference in which case the user will be required to correct the interference at his own expense.

CAUTION

Any changes or modications in construction of this device which are not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment.

Page 65

ICOP PRO USER GUIDE

Page 66

CORPORATE HEADQUARTERS

6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640

www.safetyvision.com
