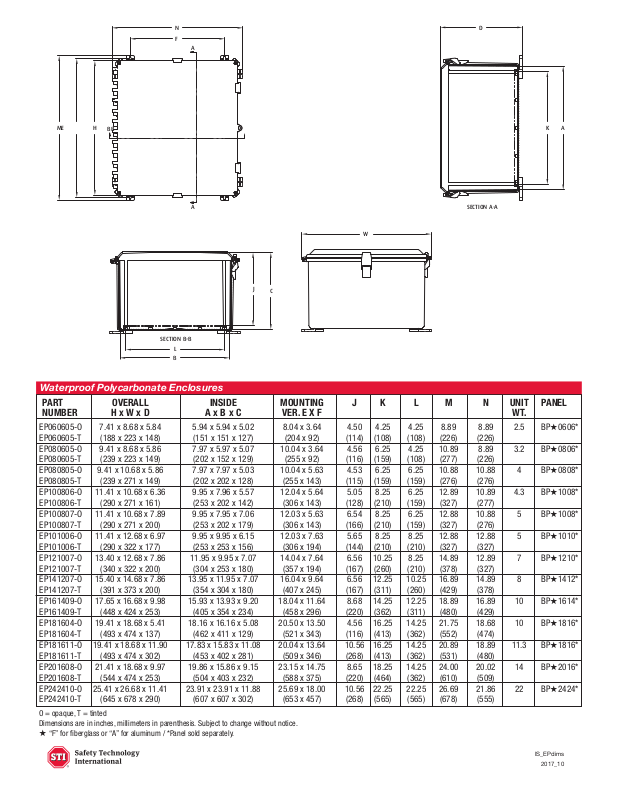

Safety Technology International Waterproof Polycarbonate Enclosures Reference Drawing

N

F

A

D

D

ME H

BB

SECTION B-B

L

B

A

W

J

C

SECTION A-A

A

K

Waterproof Polycarbonate Enclosures

PART OVERALL INSIDE MOUNTING J K L M N UNIT PANEL
NUMBER H x W x D A x B x C VER. E X F WT.

EP060605-O 7.41 x 8.68 x 5.84 5.94 x 5.94 x 5.02 8.04 x 3.64 4.50 4.25 4.25 8.89 8.89 2.5 B PH0606*
EP060605-T (188 x 223 x 148) (151 x 151 x 127) (204 x 92) (114) (108) (108) (226) (226)
EP080605-O 9.41 x 8.68 x 5.86 7.97 x 5.97 x 5.07 10.04 x 3.64 4.56 6.25 4.25 10.89 8.89 3.2 BPH0806*
EP080605-T (239 x 223 x 149) (202 x 152 x 129) (255 x 92) (116) (159) (108) (277) (226)
EP080805-O 9.41 x 10.68 x 5.86 7.97 x 7.97 x 5.03 10.04 x 5.63 4.53 6.25 6.25 10.88 10.88 4 BPH0808*
EP080805-T (239 x 271 x 149) (202 x 202 x 128) (255 x 143) (115) (159) (159) (276) (276)
EP100806-O 11.41 x 10.68 x 6.36 9.95 x 7.96 x 5.57 12.04 x 5.64 5.05 8.25 6.25 12.89 10.89 4.3 BPH1008*
EP100806-T (290 x 271 x 161) (253 x 202 x 142) (306 x 143) (128) (210) (159) (327) (277)
EP100807-O 11.41 x 10.68 x 7.89 9.95 x 7.95 x 7.06 12.03 x 5.63 6.54 8.25 6.25 12.88 10.88 5 BPH1008*
EP100807-T (290 x 271 x 200) (253 x 202 x 179) (306 x 143) (166) (210) (159) (327) (276)
EP101006-O 11.41 x 12.68 x 6.97 9.95 x 9.95 x 6.15 12.03 x 7.63 5.65 8.25 8.25 12.88 12.88 5 BPH1010*
EP101006-T (290 x 322 x 177) (253 x 253 x 156) (306 x 194) (144) (210) (210) (327) (327)
EP121007-O 13.40 x 12.68 x 7.86 11.95 x 9.95 x 7.07 14.04 x 7.64 6.56 10.25 8.25 14.89 12.89 7 BPH1210*
EP121007-T (340 x 322 x 200) (304 x 253 x 180) (357 x 194) (167) (260) (210) (378) (327)
EP141207-O 15.40 x 14.68 x 7.86 13.95 x 11.95 x 7.07 16.04 x 9.64 6.56 12.25 10.25 16.89 14.89 8 BPH1412*
EP141207-T (391 x 373 x 200) (354 x 304 x 180) (407 x 245) (167) (311) (260) (429) (378)
EP161409-O 17.65 x 16.68 x 9.98 15.93 x 13.93 x 9.20 18.04 x 11.64 8.68 14.25 12.25 18.89 16.89 10 BPH1614*
EP161409-T (448 x 424 x 253) (405 x 354 x 234) (458 x 296) (220) (362) (311) (480) (429)
EP181604-O 19.41 x 18.68 x 5.41 18.16 x 16.16 x 5.08 20.50 x 13.50 4.56 16.25 14.25 21.75 18.68 10 BPH1816*
EP181604-T (493 x 474 x 137) (462 x 411 x 129) (521 x 343) (116) (413) (362) (552) (474)
EP181611-O 19.41 x 18.68 x 11.90 17.83 x 15.83 x 11.08 20.04 x 13.64 10.56 16.25 14.25 20.89 18.89 11.3 BPH1816*
EP181611-T (493 x 474 x 302) (453 x 402 x 281) (509 x 346) (268) (413) (362) (531) (480)
EP201608-O 21.41 x 18.68 x 9.97 19.86 x 15.86 x 9.15 23.15 x 14.75 8.65 18.25 14.25 24.00 20.02 14 BPH2016*
EP201608-T (544 x 474 x 253) (504 x 403 x 232) (588 x 375) (220) (464) (362) (610) (509)
EP242410-O 25.41 x 26.68 x 11.41 23.91 x 23.91 x 11.88 25.69 x 18.00 10.56 22.25 22.25 26.69 21.86 22 BPH2424*
EP242410-T (645 x 678 x 290) (607 x 607 x 302) (653 x 457) (268) (565) (565) (678) (555)

O = opaque, T = tinted
Dimensions are in inches, millimeters in parenthesis. Subject to change without notice.

H “F” for fiberglass or “A” for aluminum / *Panel sold separately.

IS_EPdims

2017_10
