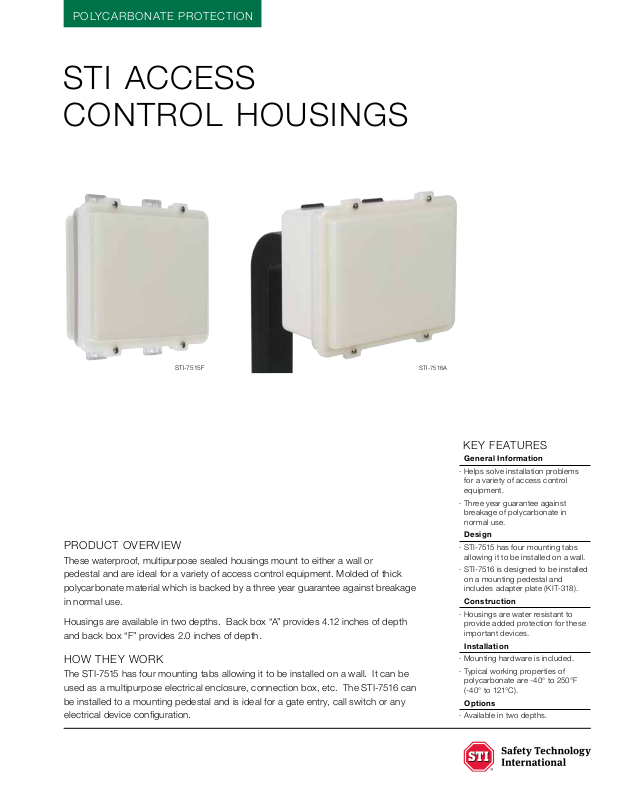

Safety Technology International STI Access Control Housings Data Sheet

POLYCARBONATE PROTECTION

STI ACCESS
CONTROL HOUSINGS

STI-7515F

PRODUCT OVERVIEW

These waterproof, multipurpose sealed housings mount to either a wall or
pedestal and are ideal for a variety of access control equipment. Molded of thick
polycarbonate material which is backed by a three year guarantee against breakage
in normal use.

Housings are available in two depths. Back box “A” provides 4.12 inches of depth
and back box “F” provides 2.0 inches of depth.

HOW THEY WORK

The STI-7515 has four mounting tabs allowing it to be installed on a wall. It can be
used as a multipurpose electrical enclosure, connection box, etc. The STI-7516 can
be installed to a mounting pedestal and is ideal for a gate entry, call switch or any
electrical device configuration.

STI-7516A

KEY FEATURES

General Information

· Helps solve installation problems
for a variety of access control
equipment.

· Three year guarantee against
breakage of polycarbonate in
normal use.

Design

· STI-7515 has four mounting tabs
allowing it to be installed on a wall.

· STI-7516 is designed to be installed
on a mounting pedestal and
includes adapter plate (KIT-318).

Construction

· Housings are water resistant to
provide added protection for these
important devices.

Installation

· Mounting hardware is included.

· Typical working properties of
polycarbonate are -40° to 250°F
(-40° to 121°C).

Options

· Available in two depths.

STI Access Control Housings

8.44 in.(214mm)

4.12 in.

(104mm)

SECTION B-B

A

A

B

B

6.46 in.

(164mm)

SECTION A-A

8.55 in.(217mm)

2 in.

(50mm)

SECTION B-B

A

A

B

B

SECTION A-A

6.57 in.

(166mm)

Dimensions and Technical Information

MODELS AVAILABLE

ST I-7515 A Housing, wall mount, “A” back box
ST I-7515 F Housing, wall mount, “F” back box
ST I-7 516A Housing, pedestal mount, adapter plate, “A”

back box

ST I-7 516 F Housing, pedestal mount, adapter plate, “F”

back box

Accessories

KI T- 318 Adapter plate used for mounting “A” or “F”

back box to pedestal

KIT-6702 Tamperproof Screw Kit
KI T- H19 0 16 Two Tamper Wrenches

WARRANTY

Three year guarantee against breakage of polycarbonate in
normal use.

NOTE:

The shaded areas represent the mounting tabs (included with
STI-7515 only) for wall installation.

H W D

ST I -7515 A

ST I -7516 A

ST I -7515 F

ST I -7516 F

6.46 in.(164mm) 8.44 in.(214mm) 4.12 in.(104mm)

6.57 in.(166mm) 8.55 in.(217mm) 2 in.(50mm)

A MODELS F MODELS

A

B

A

8.44 in.(214mm)

SECTION B-B

B

4.12 in.

(104mm)

6.46 in.

(164mm)

SECTION A-A

B

A

A

8.55 in.(217mm)

SECTION B-B

B

2 in.

(50mm)

SECTION A-A

6.57 in.

(166mm)

Printed in U.S.A., © 1987-2020 Safety Technology International, Inc.

05/20Subject to change without notice.
